Epson DS-970 User Guide

Download
DS-870/DS-970 User's Guide

Contents

DS-870/DS-970 User's Guide ...................................................................................................................... 7
Scanner Basics............................................................................................................................................ 8
Loading Originals...................................................................................................................................... 23
Using the Control Panel ....................................................................................................................... 8
Control Panel Buttons and Lights .................................................................................................... 8
The LCD Screen ......................................................................................................................... 9
Adjusting the Screen Brightness.................................................................................................... 13
Changing LCD Screen Language.................................................................................................. 14
Changing Regular Cleaning Alert Settings .................................................................................... 15
Scanner Parts Locations .................................................................................................................... 16
Scanner Parts................................................................................................................................ 17
User Replaceable Epson Scanner Parts ....................................................................................... 19
Using Power Saving Settings ............................................................................................................. 20
Changing the Sleep Timer Settings ............................................................................................... 20
Changing the Power Off Timer Settings ........................................................................................ 21
Loading Originals in the Input Tray..................................................................................................... 23
Loading Multiple Sizes of Originals in the Input Tray ..................................................................... 31
Original Document Specifications.................................................................................................. 33
Loading Plastic and Laminated Cards in the Input Tray ..................................................................... 36
Plastic and Laminated Card Specifications ................................................................................... 39
Loading Special Originals................................................................................................................... 40
Special Original Specifications ...................................................................................................... 47
Using the Network Interface Unit ............................................................................................................. 49
Network Security Recommendations ................................................................................................. 49
Network Interface Unit Control Panel ................................................................................................. 50
Connecting the Network Interface Unit............................................................................................... 50
Setting Up Network Scanning ............................................................................................................ 50
3
Scanning to Network Computers from the Network Interface Unit...................................................... 52
Scanning .................................................................................................................................................... 54
Starting a Scan................................................................................................................................... 54
Starting a Scan Using the Product Control Panel .......................................................................... 54

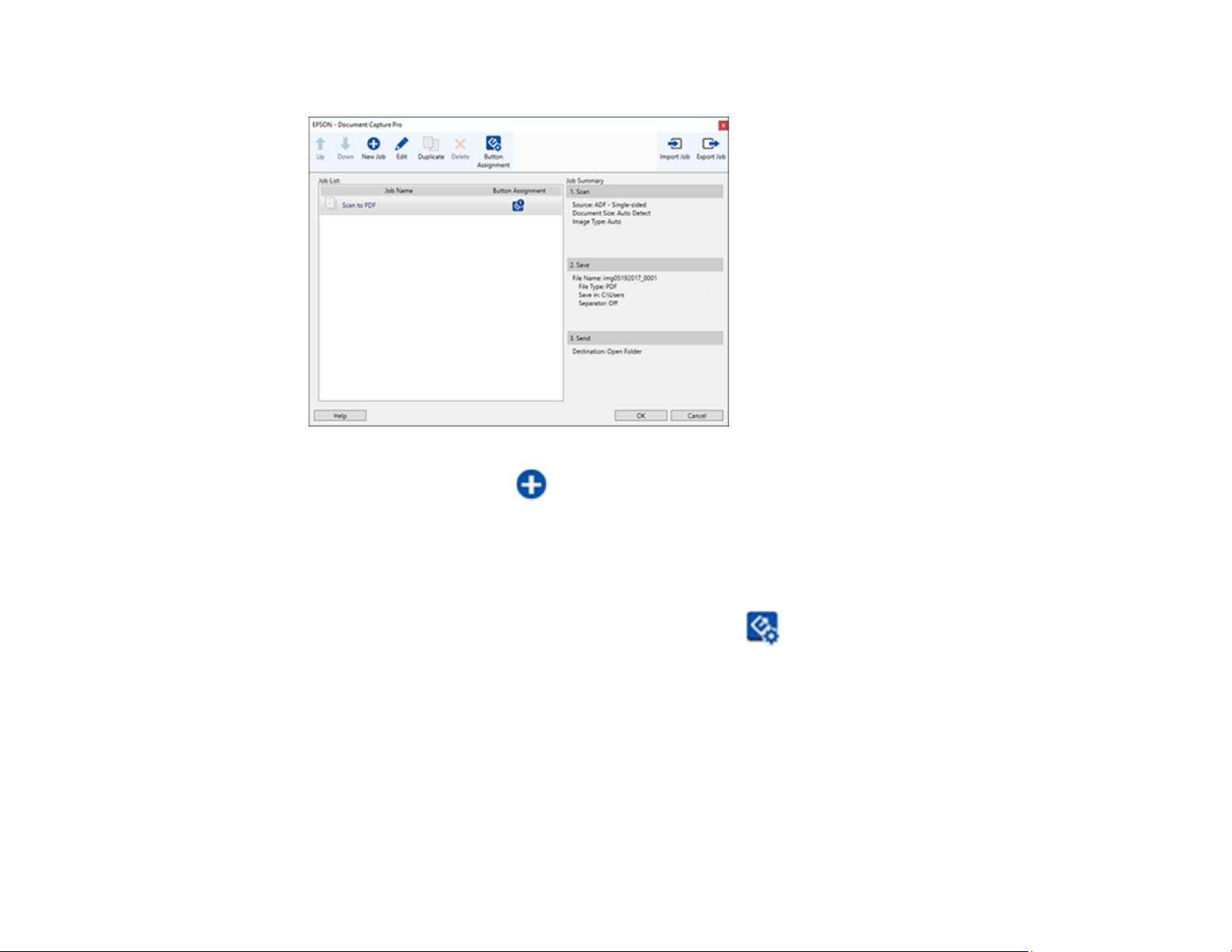

Adding and Assigning Scan Jobs with Document Capture Pro - Windows ............................... 56
Starting a Scan Using the Epson Scan 2 Icon ............................................................................... 60
Starting a Scan from a Scanning Program..................................................................................... 62
Scanning with Document Capture Pro - Windows.............................................................................. 64

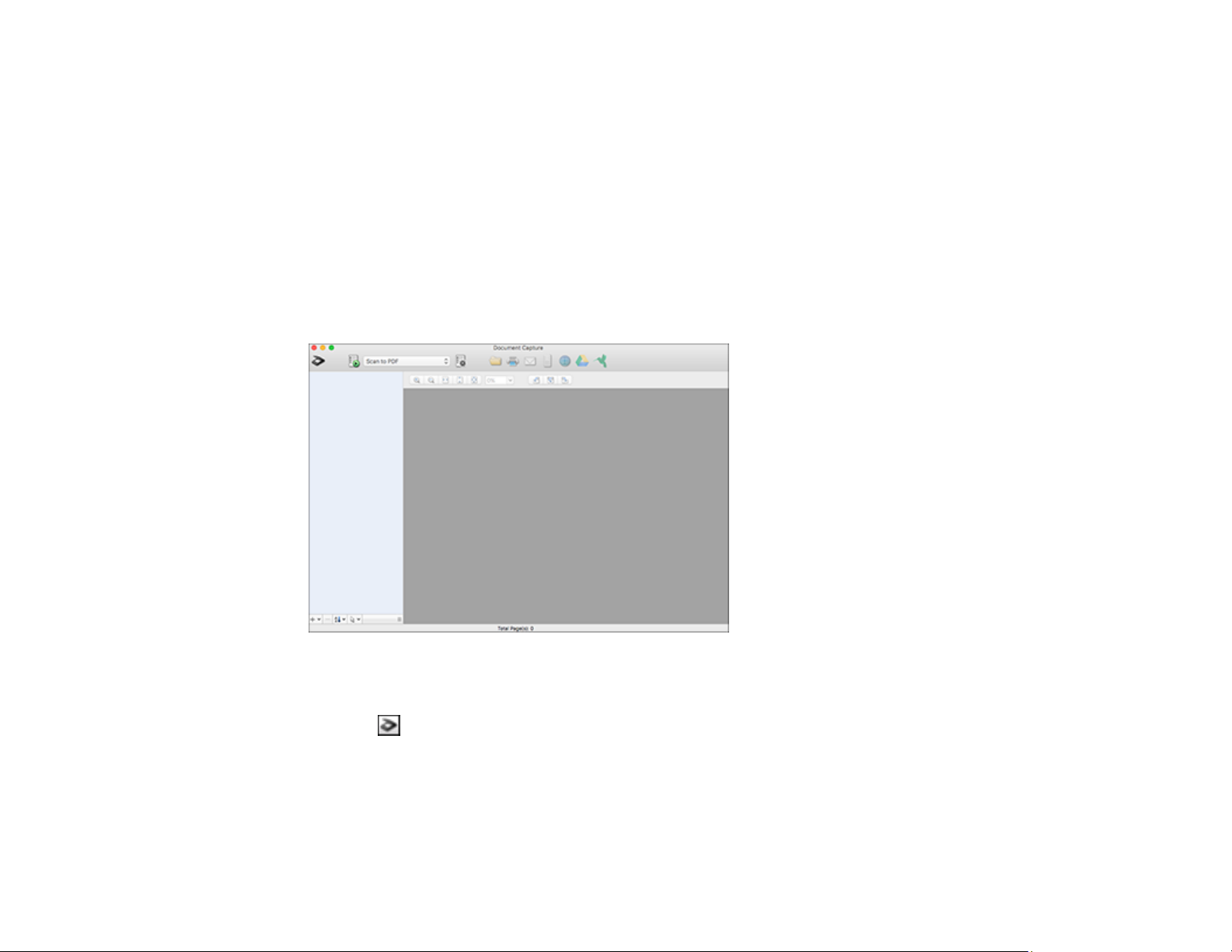

Scanning with Document Capture - Mac ............................................................................................ 68
Scanning in Epson Scan 2 ................................................................................................................. 71
Additional Scanning Settings - Main Settings Tab ......................................................................... 75
Additional Scanning Settings - Advanced Settings Tab................................................................. 76
Scanning Settings for Special Documents..................................................................................... 77
Image Format Options................................................................................................................... 78
Scan Resolution Guidelines ............................................................................................................... 79
Scanning Special Projects.................................................................................................................. 79
Scanning Two Originals onto One Sheet (Stitching Images) - Windows ....................................... 80
Scanning Multi-Page Originals as Separate Files - Windows ........................................................ 83
Saving Scanned Documents as a Searchable PDF Using Epson Scan 2 ..................................... 87
Saving a Scan as an Office Format File - Windows ....................................................................... 88
Scanning to a SharePoint Server or Cloud Service - Windows...................................................... 91
Scanning to a SharePoint Server or Cloud Service - Mac ............................................................. 94
Using the Optional Flatbed Scanner Dock - Windows ........................................................................... 96
Flatbed Scanner Dock Parts .............................................................................................................. 97
Scanning from the Flatbed Scanner Dock.......................................................................................... 98
Scanning from the Docked Flatbed Scanner ................................................................................. 98
Scanning from the ADF with the Flatbed Scanner Dock Attached............................................... 102
Cleaning the Flatbed Scanner Dock................................................................................................. 106
Transporting the Flatbed Scanner Dock........................................................................................... 107
Cleaning and Transporting Your Scanner............................................................................................. 110
Cleaning Your Scanner .................................................................................................................... 110
Cleaning Inside Your Scanner.......................................................................................................... 110
4
Checking the Scanner Roller Counter .............................................................................................. 121
Replacing the Scanner Rollers......................................................................................................... 123
Resetting the Scanner Roller Counter ......................................................................................... 129
Transporting Your Scanner .............................................................................................................. 129
Solving Problems .................................................................................................................................... 132
Product Status Messages ................................................................................................................ 132
Solving Scanning Problems ............................................................................................................. 133
Scanner Does Not Turn On or Turns Off Unexpectedly............................................................... 133
Scanner Button Does Not Work as Expected .............................................................................. 133
Scanning Software Does Not Operate Correctly ......................................................................... 134
Cannot Start Epson Scan 2 ......................................................................................................... 135
Original Feeds Incorrectly in Scanner.......................................................................................... 136
Original Jams in Scanner............................................................................................................. 136
Scanning is Slow ......................................................................................................................... 139
Solving Scanned Image Quality Problems ....................................................................................... 139
Back of Original Image Appears in Scanned Image .................................................................... 140
Scanned Characters are Blurry ................................................................................................... 140
Characters are not Recognized During Conversion to Editable Text (OCR) ............................... 141
Ripple Patterns Appear in an Image ............................................................................................ 141
Spots or Lines Appear in All Scanned Images............................................................................. 142
Scanned Image is Cropped ......................................................................................................... 142
Resetting the Epson Scan 2 Settings .......................................................................................... 143
Solving Flatbed Scanner Dock Problems ......................................................................................... 143
Scanned Image Edges are Cropped ........................................................................................... 144
Line of Dots Appears in All Scanned Images............................................................................... 144
Binding Margins on a Scanned Booklet are Blurry....................................................................... 144
Back of Original Image Appears in Scanned Document .............................................................. 144
Uninstall Your Scanner Software...................................................................................................... 145
Uninstalling Scanner Software - Windows................................................................................... 145
Uninstalling Scanner Software - Mac........................................................................................... 146
Where to Get Help............................................................................................................................ 146
Technical Specifications ........................................................................................................................ 148
Windows System Requirements ...................................................................................................... 148
5
Mac System Requirements .............................................................................................................. 149
General Specifications ..................................................................................................................... 149
Dimension Specifications ................................................................................................................. 150
Electrical Specifications ................................................................................................................... 151
Environmental Specifications ........................................................................................................... 152
Flatbed Scanner Dock Specifications............................................................................................... 152
Safety and Approvals Specifications ................................................................................................ 153
Notices ..................................................................................................................................................... 154
Important Safety Instructions............................................................................................................ 154
Restrictions on Copying ................................................................................................................... 156
Default Delay Times for Power Management for Epson Products.................................................... 157
Binding Arbitration and Class Waiver ............................................................................................... 157
Trademarks...................................................................................................................................... 160
Copyright Notice............................................................................................................................... 160
libTIFF Software Acknowledgment.............................................................................................. 161
A Note Concerning Responsible Use of Copyrighted Materials................................................... 162
Copyright Attribution.................................................................................................................... 162
6
DS-870/DS-970 User's Guide
Welcome to the DS-870/DS-970 User's Guide.
For a printable PDF copy of this guide, click here.
7

Scanner Basics

See these sections to learn about the basic features of your scanner.
Using the Control Panel Scanner Parts Locations Using Power Saving Settings

Using the Control Panel

See these sections to learn about the control panel and select control panel settings.
Control Panel Buttons and Lights Adjusting the Screen Brightness Changing LCD Screen Language Changing Regular Cleaning Alert Settings
Parent topic: Scanner Basics

Control Panel Buttons and Lights

1
2
3 LCD screen
4
power button and the power light
home button
help button
8
5 Navigation arrows and the OK button
6
7 start button
8 back button
The LCD Screen Viewing Animations Setting User Access Restrictions (Access Control) Status Icon Information
Parent topic: Using the Control Panel
The LCD Screen
stop button
1 Home screen indicator
2 Double Feed Detection Skip (DFDS) is enabled (blue) or disabled. Select the DFDS Function
option in the Scanner Settings menu to change the setting.
3 Slow mode is enabled (blue) or disabled. Select the Slow option in the Scanner Settings menu to
change the setting.
9
4 Displays available menus
5 Press the arrow button to scroll through available menus
6 Displays available button actions
Parent topic: Control Panel Buttons and Lights
Viewing Animations
You can view animations on the LCD screen to help guide you with a procedure or to troubleshoot a problem.
1. Press the help button to display the Help screen.
You see a screen like this:
2. Select Troubleshooting if you are experiencing a problem or How To to view instructions on common procedures.
3. Select a topic from the list of available topics and follow the on-screen instructions.
10
While viewing the topics, you may see screens like this:
1 Indicates your overall progress through the animation
2 Press the left arrow button to view the previous step
3 Displays the current step number and the total number of steps
4 Press the right arrow button to view the next step
Parent topic: Control Panel Buttons and Lights
Setting User Access Restrictions (Access Control)
You can restrict user access for the following control panel settings to prevent unauthorized use of the product.
• Number of Scans After Replacing Roller
• Number of Scans After Regular Cleaning
• Paper Protection
• Detect Glass Dirt
• Ultrasonic Double Feed Detection
• Sleep Timer
• Power Off Timer
11
• Language
• Regular Cleaning Alert Settings
• System Administration
Note: If your system has an administrator, contact your administrator before enabling restricted access.
1. Press the home button, if necessary.
2. Select Settings and press the OK button.
3. Use the arrow buttons to select System Administration and press the OK button.
4. Press the OK button to select Restrict User Access.
5. Select On and press the OK button.
You see a screen like this:
6. Press and hold the up and down arrow buttons simultaneously.
You return to the Settings screen.
7. Press the OK button to confirm that access restriction is enabled.
To disable access restriction, select Settings > System Administration and press the OK button. When you see the Restrict User Access is enabled screen, press and hold the up and down arrow buttons simultaneously. Then press the OK button, select Off, and press the OK button again.
Parent topic: Control Panel Buttons and Lights
12
Status Icon Information
Your product displays status icons on the LCD screen for certain product status conditions.
Icons Description
Indicates that you are on the home screen.
Slow mode is enabled. Paper feeding speed is reduced during scanning.
Slow mode is disabled.
Double Feed Detection Skip (DFDS) is enabled. Double feed detection is skipped once during scanning.
Double Feed Detection Skip (DFDS) is disabled.
Displays additional information or instructions.
There is a problem with the indicated setting. See the Device Information menu to resolve the problem.
Parent topic: Control Panel Buttons and Lights

Adjusting the Screen Brightness

You can adjust the brightness of the LCD screen.
1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.
13
You see a screen like this:
3. Use the arrow buttons to select LCD Brightness and press the OK button.
4. Use the arrow buttons to decrease or increase the brightness.
5. Press the OK button to exit.
Parent topic: Using the Control Panel

Changing LCD Screen Language

You can change the language used on the LCD screen.
Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.
1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.
14
You see a screen like this:
3. Use the arrow buttons to select Language and press the OK button.
4. Select a language and press the OK button to exit.
Parent topic: Using the Control Panel

Changing Regular Cleaning Alert Settings

You can set an alert to appear to remind you to perform regular cleaning after a certain number of scans.
Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.
1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.
15
You see a screen like this:
3. Use the arrow buttons to select Regular Cleaning Alert Settings and press the OK button.
4. Do the following:
• Set the Warning Alert Setting to On to receive a notification when it is time to clean inside the
scanner.
• On the Count Alert Setting screen, use the arrow buttons to change the number of scans before
the notification appears.
5. Press the OK button to exit.
Parent topic: Using the Control Panel

Scanner Parts Locations

See these sections to identify the parts on your scanner.
Scanner Parts User Replaceable Epson Scanner Parts
Parent topic: Scanner Basics
16

Scanner Parts

1 Control panel
2 Edge guides
3 Input tray
4 Input tray extension
5 ADF (Automatic Document Feeder)
6 Output tray
7 Output tray extensions
17
8 Stopper
1 Kensington security slot
2 USB port
3 Power inlet
1 Cover open lever
2 Scanner cover
18
3 Pickup rollers
4 Separation rollers
1 AC adapter
2 Power cord
3 USB 3.0 cable
Parent topic: Scanner Parts Locations

User Replaceable Epson Scanner Parts

You can purchase genuine Epson accessories at epson.com (U.S. sales), epson.ca (Canadian sales), or
epson.com.jm (Caribbean sales). You can also purchase accessories from an Epson authorized reseller.
To find the nearest one, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.
Part Part number
Carrier sheet B12B819051
Roller assembly kit B12B819031
Cleaning kit B12B819291
Network Interface Unit* B12B808441
19
Part Part number
Flatbed scanner dock* (Windows only) B12B819011
Epson Perfection V19 (for use with scanner dock)
Epson Perfection V39 (for use with scanner dock)
* You cannot use the flatbed scanner dock and the Network Interface Unit at the same time.
Parent topic: Scanner Parts Locations

Using Power Saving Settings

Your scanner enters sleep mode automatically and turns off the LCD screen if it is not used for a period of time. You can make the time period shorter to save energy and resources.
Changing the Sleep Timer Settings Changing the Power Off Timer Settings
Parent topic: Scanner Basics

Changing the Sleep Timer Settings

You can adjust the time period before your product enters sleep mode and turns off the LCD screen.
Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.
B11B231201
B11B232201
1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.
20
You see a screen like this:
3. Use the arrow buttons to select Sleep Timer and press the OK button.
4. Do one of the following:
• Press the up or down arrow buttons to decrease or increase the number of minutes.
• Press the left and right arrow buttons to move to the previous or next character.
5. Press the OK button to exit.
Parent topic: Using Power Saving Settings

Changing the Power Off Timer Settings

You can have the product turn off automatically if it is not used for a specified period of time.
Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.
1. Press the home button, if necessary.
2. Use the arrow buttons to select Settings and press the OK button.
21
You see a screen like this:
3. Use the arrow buttons to select Power Off Timer and press the OK button.
4. Select Off or select a time period between 30minutes and 12h (12 hours).
5. Press the OK button to exit.
Parent topic: Using Power Saving Settings
22

Loading Originals

Follow the instructions here to load your originals into the scanner.
Loading Originals in the Input Tray Loading Plastic and Laminated Cards in the Input Tray Loading Special Originals

Loading Originals in the Input Tray

You can load originals that meet the document specifications in the input tray.
Caution: Do not load photos, or valuable original documents or artwork, directly into the input tray. This may wrinkle or damage the original. Load these originals using an optional carrier sheet.
The steps below describe loading originals of the same size. To load originals of multiple sizes at once, see the link at the end of these steps.

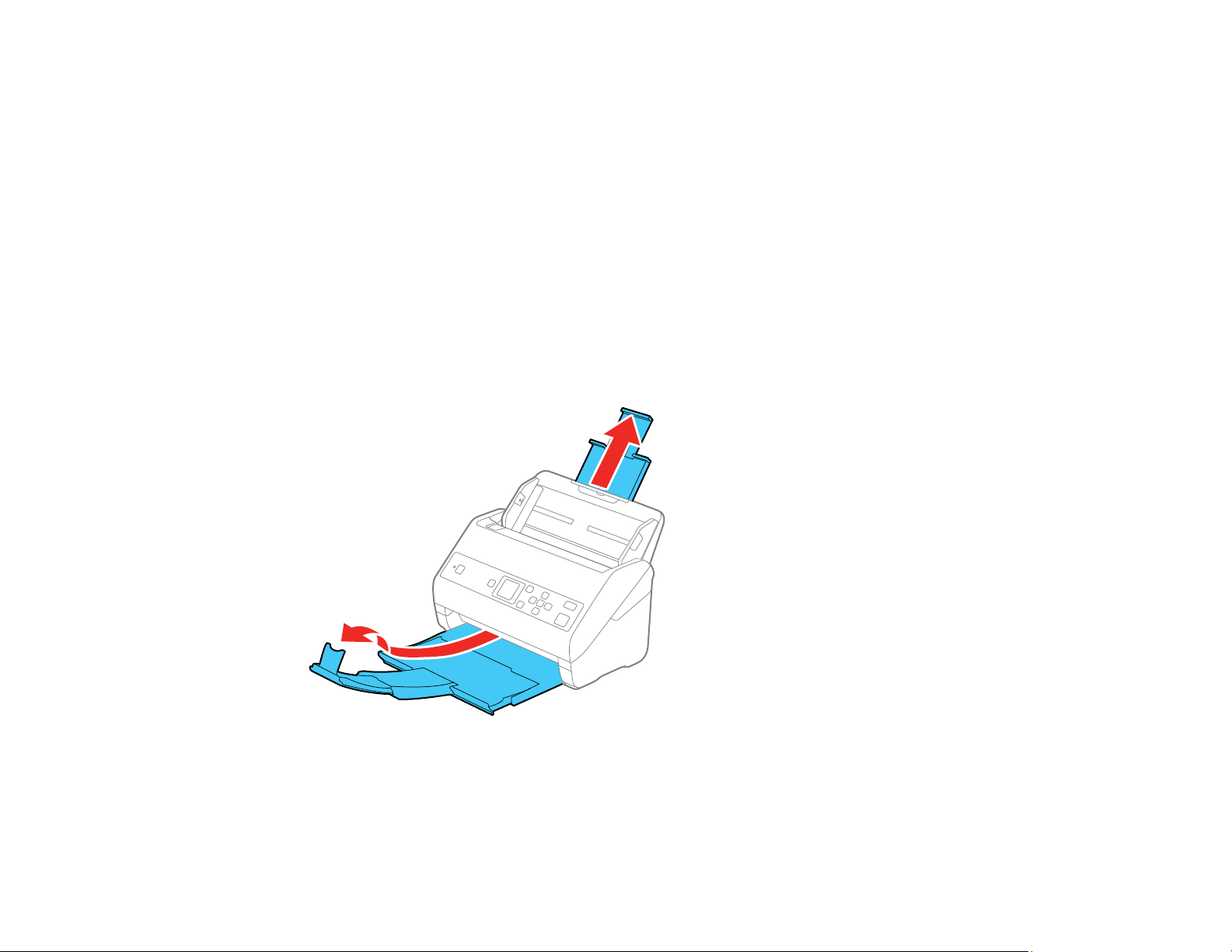

1. Pull up the input tray extension.
2. Pull out the output tray and its extension, and open the stopper.
23
Note: If you are loading an original that is 15.5 inches (393.8 mm) or longer, do not pull out the input
or output tray extensions and do not open the stopper.
3. Slide the input tray edge guides all the way out.
4. If you are loading a multi-page original, fan your stack of originals.
Note: If you are loading an original that is 15.5 inches (393.8 mm) or longer, load only one sheet at a time.
24
5. Stack the originals with the printed side facing down and slide the stack so the leading edge is at an angle as shown.
25
6. Load standard originals into the input tray printed side down and top edge first, and guide them in until they meet resistance.
• If you are loading paper business cards, load up to 30 cards (printed side down and long edge
first) into the input tray horizontally, and slide them in until they meet resistance.
26
27
• If you are loading hole-punched originals, load them with the holes facing down or to the side as
shown. The holes must be within 1.2 inches (30 mm) of the edge of the originals.
28
7. Slide the edge guides against the edges of the original.
Note: If you are scanning originals that are 15.5 inches (393.8 mm) or longer, support the original as it enters into and ejects from the scanner as shown and use the following resolutions:
• 15.5 to 53 inches (393.8 to 1346.2 mm): 600 dpi or less
• 53 to 215 inches (1346.3 to 5461 mm): 300 dpi or less
29
• 215 to 240 inches (5461.1 to 6096 mm): 200 dpi or less
8. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.
Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.
If scanning thin or wrinkled paper causes paper jams, slow down the feeding speed by selecting Settings > Scanner Settings > Slow > On on the LCD screen.
Loading Multiple Sizes of Originals in the Input Tray Original Document Specifications
Parent topic: Loading Originals
30
Related references
Original Document Specifications
Related topics
Scanning

Loading Multiple Sizes of Originals in the Input Tray

You can load originals of different sizes, paper types, and thicknesses at one time in the input tray. Just make sure they meet the original document specifications.
Caution: Do not load photos, or valuable original documents or artwork, directly into the input tray. This may wrinkle or damage the original. Load these originals using an optional carrier sheet.
1. Pull up the input tray extension.
2. Pull out the output tray and its extension, and open the stopper.
Note: If you are loading originals that are 15.5 inches (393.8 mm) or longer, do not pull out the input or output tray extensions and do not open the stopper.
31
3. Slide the input tray edge guides all the way out.
4. Load the originals in the center of the input tray in descending order of paper size with the widest at the back and the narrowest at the front. Slide them in until they meet resistance. Make sure the printed sides are facedown and the top edges are slightly angled in the input tray.
32
5. Slide the edge guides against the edges of the widest original.
6. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.
Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.
If scanning thin or wrinkled paper causes paper jams, slow down the feeding speed by selecting Settings > Scanner Settings > Slow > On on the LCD screen.
You can also scan originals of multiple sizes by loading them one by one using the Automatic Feeding
Mode setting in Epson Scan 2.
Parent topic: Loading Originals in the Input Tray
Related tasks
Scanning in Epson Scan 2

Original Document Specifications

You can load original documents that meet these specifications in your scanner.
33
Paper type Paper size Paper weight Loading capacity
Plain paper
Fine paper
Recycled paper
Letter (8.5 × 11 inches [216 × 279 mm])
A4 (8.3 × 11.7 inches [210 × 297 mm])
A5 (5.8 × 8.2 inches [148 × 210 mm])
A6 (4.1 × 5.8 inches [105 × 148 mm])
B5 (7.2 × 10.1 inches [182 × 257 mm])
B6 (5 × 7.2 inches [128 × 182 mm])
A8 (2.1 × 2.9 inches [52 × 74 mm])
Width: 2.0 to 8.5 inches (50.8 to 215.9 mm)
7 to 110 lb (27 to 413 g/m²)
34 to 110 lb (127 to 413 g/m²)
13 to 35 lb (50 to 130 g/m²)
21 lb (80 g/m²): 100 sheets
24 lb (90 g/m²): 86 sheets
28 lb (104 g/m²): 74 sheets
34 lb (127 g/m²): 62 sheets
42 lb (157 g/m²): 50 sheets
56 lb (209 g/m²): 38 sheets
68 lb (256 g/m²): 30 sheets
110 lb (413 g/m²): 18 sheets
Loading capacity may vary depending on the paper type.
1 sheet
Height: 15.5 to 240 inches (393.8 to 6096 mm)
34
Paper type Paper size Paper weight Loading capacity
Plain paper
Fine paper
Legal (8.5 × 14 inches [216 × 356 mm])
7 to 110 lb (27 to 413 g/m²)
Recycled paper
Paper business cards Business cards Up to 56 lb
(210 g/m²)
21 lb (80 g/m²): 80 sheets
24 lb (90 g/m²): 69 sheets
28 lb (104 g/m²): 59 sheets
34 lb (127 g/m²): 50 sheets
42 lb (157 g/m²): 40 sheets
56 lb (209 g/m²): 30 sheets
68 lb (256 g/m²): 24 sheets
110 lb (413 g/m²): 14 sheets
Loading capacity may vary depending on the paper type.
30 cards loaded horizontally
Note: You can load originals of different sizes, paper types, and thicknesses up to this size: Letter (8.5 × 11 inches [216 × 279 mm]).
Caution: Do not load the following types of originals directly in the scanner, or they may be damaged or may damage the scanner:
• Thermal paper
• Coated paper
• Originals with uneven surfaces, such as embossed documents
• Photos
• Originals with wet ink
• Ripped, curled, or wrinkled originals
35
• Originals containing staples or paper clips
• Originals with holes on the bottom of them
• Originals that are bound
• Originals with carbon paper backing
• Transparencies
• Glossy originals
• Carbon-less paper
• Perforated originals
• Originals with labels, stickers, or glue
• Fabric or other non-paper originals
Parent topic: Loading Originals in the Input Tray

Loading Plastic and Laminated Cards in the Input Tray

You can load plastic and laminated cards that meet the card specifications in the input tray.
1. Pull out the output tray and open the stopper. Do not pull out the extensions.
36
2. Slide the input tray edge guides all the way out.
3. Load plastic or laminated cards (printed side down and long edge first) into the input tray horizontally, and slide them in until they meet resistance.
37
Note: Do not load plastic cards vertically.
4. Slide the edge guides against the edges of the card.
38
5. Turn off the Detect Double Feed setting on the Main Settings tab in Epson Scan 2 when scanning the cards.
Note: If you do not disable the Detect Double Feed setting and a double feed error occurs, remove the plastic or laminated card from the input tray and reload it. Press the down arrow button on the control panel, and select DFDS Function > On to disable the Detect Double Feed setting for the next scan. The DFDS Function setting only disables the Detect Double Feed setting for one scan.

Plastic and Laminated Card Specifications

Parent topic: Loading Originals
Related references
Plastic and Laminated Card Specifications
Related topics
Scanning
Plastic and Laminated Card Specifications
You can load original plastic and laminated cards that meet these specifications in your scanner.
Paper type Paper size Paper thickness Loading capacity
Plastic cards, embossed (ISO7810 ID-1 compliant)
Plastic cards, standard (ISO7810 ID-1 compliant)
Laminated cards 4.7 × 5.9 inches (120
Note: Plastic cards with glossy surfaces may not scan properly.
Parent topic: Loading Plastic and Laminated Cards in the Input Tray
2.1 × 3.3 inches (54 × 85.6 mm)
× 150 mm) or smaller
39
0.05 inch (1.24 mm) maximum
0.04 inch (1.1 mm) maximum
0.03 inch (0.8 mm) maximum
1 card (horizontal)
5 cards (horizontal)
1 card

Loading Special Originals

You can load photos or large, thick, or folded originals in the input tray using one or more carrier sheets. You can also load envelopes. Make sure the originals meet the specifications for special originals before loading them.
1. Pull up the input tray extension.
2. Pull out the output tray and its extension, and open the stopper.
Note: If you are loading originals that are 15.5 inches (393.8 mm) or longer, do not pull out the input or output tray extensions and do not open the stopper.
40
3. Slide the input tray edge guides all the way out.
41
4. Load envelopes vertically in the input tray with the printed side down and the flap facing as shown. Slide in the envelopes until they meet resistance. Skip to step 7.
5. Do one of the following to load photos, or folded or irregularly shaped originals using a carrier sheet:
Note: Use only the carrier sheet designed for your scanner. The carrier sheet is automatically recognized by the scanner by the two small rectangular holes on the front edge, as shown. Keep the
42
holes clean and not covered. Do not load a carrier sheet that has scratches on it or one that has been scanned more than 3,000 times.
• For a Letter- or A4-size or larger original, fold it as shown and place it in the center of an optional
carrier sheet. Make sure the illustration on the front edge of the carrier sheet is facing up.
To scan both sides and stitch them together, set the appropriate setting in Epson Scan 2 or Document Capture Pro.
• For a photo or an irregularly shaped original, load it in the center of an optional carrier sheet with
the printed side face down. Make sure the illustration on the front edge of the carrier sheet is facing up. If you are loading originals that are 11.7 inches (297 mm) or shorter, place the leading
43
edge of the original against the binding of the carrier sheet, as shown. Otherwise, the scanner may not detect the correct length of the original.
44
6. Load the carrier sheet in the input tray as shown until it meets resistance.
Folded original
45
Photo or irregularly shaped original
7. Slide the edge guides against the edges of the envelope or carrier sheet.
46
8. Turn off the Detect Double Feed setting on the Main Settings tab in Epson Scan 2 when scanning special originals.
Note: If the Document Size setting on the Main Settings tab in Epson Scan 2 is set to Auto Detect, Paper Skew is automatically selected as the Correct Document Skew setting.
9. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.
Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.

Special Original Specifications

Parent topic: Loading Originals
Related references
Special Original Specifications User Replaceable Epson Scanner Parts
Related tasks
Scanning Two Originals onto One Sheet (Stitching Images) - Windows
Related topics
Scanning
Special Original Specifications
You can load photos, envelopes, or large, thick, or folded originals that meet these specifications in your scanner.
47
Paper type Paper size Paper thickness Loading capacity
Large originals (plain paper, fine paper, or recycled paper)
(load only in a carrier sheet)
Up to this size: A3 (11.7 × 16.5 inches [297 × 420 mm])
B4 (13.9 × 9.84 inches [353 × 250 mm])
Legal (8.5 × 14 inches [216 × 356 mm]); only load above sizes if folded in half
Custom sizes up to 17 inches (431.8 mm) wide and 11.7 inches (297 mm) long; originals wider than 8.5 inches (215.9 mm) must be folded in half
Photos
(load only in a carrier
Up to this size: A4 (8.3 × 11.7 inches [210 × 297 mm])
sheet)
Envelopes 4.49 × 6.38 inches (114
× 162 mm)
4.33 × 8.66 inches (110 × 220 mm)
0.012 inch (0.3 mm) maximum
(excluding the thickness of the carrier sheet)
0.012 inch (0.3 mm) maximum
(excluding the thickness of the carrier sheet)
0.015 inch (0.38 mm) maximum
10 carrier sheets
10 carrier sheets
10 envelopes
Irregularly shaped originals
Up to this size: A4 (8.3 × 11.7 inches [210 × 297 mm])
(load only in a carrier sheet)
Parent topic: Loading Special Originals
48
0.012 inch (0.3 mm) maximum
(excluding the thickness of the carrier sheet)
10 carrier sheets

Using the Network Interface Unit

See these sections to use the optional Epson Network Interface Unit to scan over a network.
Note: You cannot use the Epson Network Interface Unit and flatbed scanner dock options at the same time.
Network Security Recommendations Network Interface Unit Control Panel Connecting the Network Interface Unit Setting Up Network Scanning Scanning to Network Computers from the Network Interface Unit

Network Security Recommendations

To help deter unauthorized access to your product over a network, you should protect your network environment using appropriate security measures.
Security measures such as these can help deter threats such as loss of user data, use of telephone and fax lines, and other intrusions:
• Connect your product only to a network protected by a firewall
Connecting your product directly to the Internet may leave it vulnerable to security threats. Instead, connect it to a router or other network connection protected by a firewall. Your router may already have a firewall set up by your Internet service provider; check with your ISP for confirmation. For best results, set up and use a private IP address for your network connection.
• Change the default administrator password on your product
If your product has an option to set an administrator password, change the default administrator password to deter access by unauthorized users to personal data stored on your product, such as IDs, passwords, and contact lists.
Parent topic: Using the Network Interface Unit
49

Network Interface Unit Control Panel

1
2 LCD screen (displays status, operations, and error messages)
3
4
5
6 OK button and arrows (use the arrows to highlight an option and the OK button to select it)
7 start button (starts scanning when networking is enabled)
Parent topic: Using the Network Interface Unit
power button (turns the unit on and off)
settings button (selects product settings, network settings, and maintenance options)
Reset button (returns the LCD to the default screen)
Stop button (cancels scanning)

Connecting the Network Interface Unit

See the documentation that came with the optional Epson Network Interface Unit for instructions on connecting it to your scanner.
Parent topic: Using the Network Interface Unit

Setting Up Network Scanning

You can set up network scanning through the optional Epson Network Interface Unit. First connect the unit to your scanner and verify that both are working properly. Then follow the instructions here to set up computers for network scanning using the Epson Scan 2 Utility.
50
Note: Make a note of the IP address or host name of the Epson Network Interface Unit so you can enter
it in these steps.
1. Do one of the following to start the Epson Scan 2 Utility:
• Windows 10: Click and select EPSON > Epson Scan 2 Utility.
• Windows 8.x: Navigate to the Apps screen and select Epson Scan 2 Utility.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
EPSON > Epson Scan 2 > Epson Scan 2 Utility.
• Mac: Open the Applications folder, open the Epson Software folder, and select Epson Scan 2
Utility.
2. Select Settings from the Scanner drop-down list.
You see a screen like this:
Note: If you see an Enable Editing button (Windows) or a lock icon (Mac), click it so that you can modify the scanner settings.
3. Select your scanner and click Add.
51
You see a screen like this:
4. Do one of the following:
• Under Search for Network, select the IP address of your Epson Network Interface Unit and click
Add.
• Select the Enter address setting, type in the IP address or host name of your Epson Network
Interface Unit, and click Add.
5. Click OK to save your settings and then close Epson Scan 2 Utility.
Parent topic: Using the Network Interface Unit

Scanning to Network Computers from the Network Interface Unit

You can scan to a network computer directly from the Epson Network Interface Unit. You first set up a scan job in Document Capture Pro (Windows) or Document Capture (Mac) and then select the computer you want to send the scanned file to.
52
Note: Make sure your scan job settings are set up correctly in Document Capture Pro (Windows) or
Document Capture (Mac) before scanning with the Epson Network Interface Unit.
1. Start a scan job using Document Capture Pro (Windows) or Document Capture (Mac).
2. Press the OK button on the Epson Network Interface Unit.
3. On the LCD screen of the Epson Network Interface Unit, select the computer you want to send the scanned file to and press the OK button.
Note: If your scanner is part of a network group, make sure to set the computer to the same network group or it will not appear on the LCD screen.
4. If you set up a password in Document Capture Pro (Windows) or Document Capture (Mac), enter the password at the prompt.
5. Select a scan job and press the OK button on the Epson Network Interface Unit.
6. Press the start button on the scanner or Epson Network Interface Unit.
Your original is scanned and the file is sent to the computer you selected.
Parent topic: Using the Network Interface Unit
53

Scanning

You can scan your originals and save them as digital files.
Starting a Scan Scanning with Document Capture Pro - Windows Scanning with Document Capture - Mac Scanning in Epson Scan 2 Scan Resolution Guidelines Scanning Special Projects

Starting a Scan

After placing your originals on your product for scanning, start scanning using one of these methods.
Note: You can also scan using Document Capture Pro (Windows) or Document Capture (Mac).
Starting a Scan Using the Product Control Panel Starting a Scan Using the Epson Scan 2 Icon Starting a Scan from a Scanning Program
Parent topic: Scanning

Starting a Scan Using the Product Control Panel

You can scan an original from the control panel using jobs created in Document Capture Pro (Windows) or Document Capture (Mac).
Note: To scan an original from the control panel, a USB connection is required.
1. Make sure you installed the product software and connected the product to your computer or network.
Note: Restart your computer after installing the product software to enable scanning from the control panel.
2. Place your original on the product for scanning.
3. Press the home button, if necessary.
54
4. Use the arrow buttons to select Scan, and press the OK button.
5. On the Select Job screen, use the left and right arrow buttons to select a job.
Note: If you want to start scanning immediately, press the start button on the Select Job screen.
6. If you want to change the scan settings, press the down arrow.
Note: Make sure the Disable job setting changes on the control panel setting is not selected in Document Capture Pro or Document Capture.
55
7. Select from the following options:
• To slow down the scanning speed, set the Slow setting to On.
• To skip double feed detection when scanning originals such as envelopes or plastic cards, set the
DFDS Function setting to On.
• To stop scanning immediately when a feed error occurs, set the Paper Protection setting.
• To detect dirt on the glass surface inside the scanner, set the Detect Glass Dirt setting to On-
Low, if the alert displays a misdetection, or On- High if dirt is not detected.
8. Press the back button to return to the Select Job screen.
9. Press the OK button to view the job settings.
10. To edit the job settings, press the OK button and use the arrow buttons to change the settings as necessary. Then press the OK button to return to the Edit Job screen.
11. Press the start button.
Adding and Assigning Scan Jobs with Document Capture Pro - Windows Adding and Assigning Scan Jobs with Document Capture - Mac
Parent topic: Starting a Scan
Adding and Assigning Scan Jobs with Document Capture Pro - Windows
You can view, change, or add scan jobs for use when you scan using your product control panel. You do this by accessing the scan jobs in the Document Capture Pro program.
Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.
56
1. Do one of the following to start Document Capture Pro:
• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
Epson Software > Document Capture Pro.
You see the Document Capture Pro window.
2. If you see a Switch to Simple View button in the upper right corner of the window, click it.
You see a window like this:
3. Click the Job Settings button.
Note: If you do not see the button, click the < symbol in the Job bar.
57
You see a window like this:
4. To add a scan job, click the New Job icon, enter a name for the new job, select settings as necessary, and click OK.
You can now use the new scan job when you scan with Document Capture Pro.
Note: See the help information in Document Capture Pro for details.
5. To assign a scan job to the product control panel, click the Button Assignment icon.
58
6. Select the jobs that you want to assign using any of the pull-down menus.
Note: The number of pull-down menus available may vary, depending on your product and any connected options.
7. Click OK, then click OK again.
You can now use the added scan jobs when you scan from the product control panel.
Parent topic: Starting a Scan Using the Product Control Panel
Adding and Assigning Scan Jobs with Document Capture - Mac
You can view, change, or add available default scan settings when you scan using the Document Capture Pro option on the product control panel. You do this by accessing the scan jobs in the Document Capture program.
1. Start Document Capture on a computer connected to the product.
2. Click the Manage Job icon from the toolbar at the top of the window.
You see a window showing the current scan job list.
3. To add a scan job, click the + icon, enter a name for the new job, select settings as necessary, and click OK.
59
You can now use the new scan job when you scan with Document Capture.
Note: See the Help information in Document Capture for details.
4. To assign scan jobs to the selection list on the product control panel, click the icon at the bottom of the window and click Event Settings.
5. Select the jobs that you want to assign using any of the pull-down menus.
You can now use the added scan jobs when you scan from the product control panel.
6. Click OK, then click OK again.
Parent topic: Starting a Scan Using the Product Control Panel

Starting a Scan Using the Epson Scan 2 Icon

You can start the Epson Scan 2 program to select scan settings, scan, and save the scanned image to a file.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.
• Windows 10: Click and select EPSON > Epson Scan 2.
• Windows 8.x: Navigate to the Apps screen and select Epson Scan 2.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select EPSON
> Epson Scan 2 > Epson Scan 2.
• Mac: Open the Applications folder, open the Epson Software folder, and select Epson Scan 2.
60
You see an Epson Scan 2 window like this:
61
Parent topic: Starting a Scan

Starting a Scan from a Scanning Program

You can start Epson Scan 2 from a TWAIN-compliant scanning program to select scan settings, scan, and open the scanned image in the program.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.
1. Open your scanning program and select its scanning option. (See your scanning program help for instructions.)
2. Select your product.
Note: In certain programs, you may need to select your product as the "source" first. If you see a Select Source option, choose it and select your product. With Windows, do not select a WIA option
for your product; not all scan functions will be available.
62
You see an Epson Scan 2 window like this:
63
Parent topic: Starting a Scan

Scanning with Document Capture Pro - Windows

When you scan with Document Capture Pro, the program automatically saves your scanned file on your computer in the folder you specify. You can select settings, preview, and change the scanned file settings as necessary.
Note: The settings may vary, depending on the software version you are using. See the Help information in Document Capture Pro for details.
1. Do one of the following to start Document Capture Pro:
• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
Epson Software > Document Capture Pro.
You see this window:
Note: Click Switch to Simple View, if necessary.
2. Click Select Scanner and select your scanner from the scanner list, if necessary.
64
3. Click one of the job icons or click the arrow next to the Job Settings button to select a different format.
4. If you want to select detailed scan settings, click Switch to Standard View and select Scan
Settings from the Scan Setting Name list.
65
You see a window like this:
5. Select any displayed scan settings you want to use and click OK.
6. Click Scan.
66
You see a preview of your scan in the Document Capture Pro window.
Note: You may have to close the Epson Scan 2 window to view your scan in the Document Capture Pro window.
7. If you would like to scan additional originals and add them to the current captured images, click the
Add Page icon and follow the instructions on the screen.
8. Check the scanned images and edit them as necessary.
9. Click one of the Destination icons to choose where to send your scanned files. (If you cannot see all of the icons below, click the arrow next to the icons.)
10. Depending on the destination you chose, click OK or Send to complete the scan.
Parent topic: Scanning
Related tasks
Loading Originals in the Input Tray Scanning in Epson Scan 2
67

Scanning with Document Capture - Mac

When you scan with Document Capture, the program automatically saves your scanned file on your computer in the folder you specify. You can select settings, preview, and change the scanned file settings as necessary.
Note: The settings may vary, depending on the software version you are using. See the Help information in Document Capture for details.
1. Load your original in the product.
2. Open the Applications folder, open the Epson Software folder, and select Document Capture.
You see a window like this:
Note: You may need to select your scanner from the scanner list.
3. Click the Scan icon.
68
You see a window like this:
Note: If you want to use a scan job that you created instead, select it from the Job list in the Document Capture window, click the Start Job button, and skip the rest of these steps.
4. Select any displayed scan settings you want to use.
Note: See the Help information in Document Capture for details.
5. If you want to select detailed scan settings, close the Scan Settings window, open the Scan menu at the top of the Mac desktop, and select Displays the EPSON Scan Setup Screen.
6. Click the Scan icon and select any detailed scan settings you want to use from the Epson Scan 2 window.
7. Click Scan.
69
You see a preview of your scan in the Document Capture window.
Note: You may have to close the Epson Scan 2 window to view your scan in the Document Capture window.
8. If you would like to scan additional originals and add them to the current captured images, click the + icon, select Acquire from Scanner, and repeat the previous steps.
9. Check the scanned images and edit them as necessary.
10. Click one of the Destination icons to choose where to send your scanned files. (If you cannot see all of the icons below, click the arrow next to the icons.)
11. Depending on the destination you chose, click OK or Send to complete the operation.
Parent topic: Scanning
Related tasks
Loading Originals in the Input Tray
70

Scanning in Epson Scan 2

Scanning in Epson Scan 2
Epson Scan 2 automatically scans your document and saves the scanned file in PDF format in your operating system's Documents or My Documents folder, or opens it in your scanning program. You can select settings, preview, and change the scanned file settings as necessary.
1. Load your original in the product.
2. Start Epson Scan 2.
71
You see this window:
72
Note: The Document Source setting is automatically set to ADF for your product.
3. If you want to scan different size originals by loading them into the ADF one by one, check the Automatic Feeding Mode checkbox and click Scan. Scanning begins as soon as you load each original.
4. Select the Scanning Side setting that matches the sides of the original that you want to scan.
5. Select the Document Size setting that matches the size of your original, or select Auto Detect to have Epson Scan 2 automatically detect the size. You can select Customize to enter a custom size, if necessary.
6. Click on one of the orientation icons, if applicable.
7. Select your original image type and how you want it scanned as the Image Type setting.
8. Select the Resolution setting you want to use for your scan.
9. Select any of the additional settings that you want to use on the Main Settings tab.
10. Click the Advanced Settings tab and select any settings that you want to use.
11. To see a preview of your scan with the settings you selected, click the Preview button.
73
Epson Scan 2 previews your original and displays the results in the Epson Scan 2 window.
12. Reinsert your original into the ADF.
13. If scanning an original in a carrier sheet or other special original, see the link below for other setting requirements for special documents.
14. Select the format in which you want to save your scanned file as the Image Format setting. If necessary, select Options and select any desired format options.
15. Enter the file name for your scanned file in the File Name field. Select Settings to modify the file name settings.
74
16. Select the location in which you want to save your scanned file as the Folder setting. If necessary, select Select to create a new folder.
17. Click Scan.
The product scans your original and saves the scanned file in the location you specified.
18. If you selected the Automatic Feeding Mode setting, place your next original in the ADF for scanning. When you finish scanning originals, click Finish.
Additional Scanning Settings - Main Settings Tab Additional Scanning Settings - Advanced Settings Tab Scanning Settings for Special Documents Image Format Options
Parent topic: Scanning
Related tasks
Loading Originals in the Input Tray

Additional Scanning Settings - Main Settings Tab

You can select these additional scanning settings on the Epson Scan 2 Main Settings tab.
Stitch Images
When scanning double-sided originals, lets you lay out images from both sides of the original onto one scanned page.
Rotate
Rotates the original image clockwise to the desired angle before scanning it. Select Auto to allow your product to automatically rotate the image based on the orientation of the text (may take longer to scan).
Correct Document Skew
Corrects skewed originals, image contents, or both.
Add or edit pages after scanning
Lets you add, remove, or edit the pages in a scan, including rotating pages and changing the page order.
Note: To save multiple pages in a single file, you must select a file format that supports multiple pages such as PDF or Multi-TIFF. If you select another file format, each scanned image or page is saved as a separate file.
75
Skip Blank Pages
If the scanner detects marks from the other side of a blank page and adds the marks to the scanned image, adjust this setting to prevent this.
Detect Double Feed
Detects a double-feed paper error in the ADF. If you are scanning an original envelope or plastic card, select Off.
Parent topic: Scanning in Epson Scan 2

Additional Scanning Settings - Advanced Settings Tab

You can select these additional scanning settings on the Epson Scan 2 Advanced Settings tab. Not all adjustment settings may be available, depending on other settings you have chosen.
Unsharp Mask
Makes the edges of certain image areas clearer. Turn off this option to leave softer edges.
Descreening
Removes the ripple pattern that might appear in subtly shaded image areas, such as skin tones. This option improves results when scanning magazines or newspapers. (The results of descreening do not appear in the preview image, only in your scanned image.)
Remove Background
Removes the background of the originals.
Text Enhancement
Sharpens the appearance of letters in text documents.
Auto Area Segmentation
Makes black and white images clearer and text recognition more accurate by separating the text from the graphics.
Dropout
The scan will not pick up the color you select. This setting is available only if you select Grayscale or Black & White as the Image Type setting.
Color Enhance
Enhances the shades of the color you select in the scanned image. This setting is available only if you select Grayscale or Black & White as the Image Type setting.
Brightness
Adjusts the overall lightness and darkness of the scanned image.
Contrast
Adjusts the difference between the light and dark areas of the overall scanned image.
76
Gamma
Adjusts the midtone density of the scanned image.
Threshold
Adjusts the level at which black areas in text and line art are delineated, improving text recognition in OCR (Optical Character Recognition) programs.
Edge Fill
Corrects shadowing around the edges of the image by filling the shadows with black or white.
Remove Punch Holes
Removes the shadows caused by holes on the edges of the original.
Dual Image Output
Scans the original image twice using different output settings (Windows only).
Watermark
Adds text to the background of the scanned image.
Parent topic: Scanning in Epson Scan 2

Scanning Settings for Special Documents

You need to select specific options on the Main Settings tab in Epson Scan 2 when scanning special originals.
Type of original Required settings
Envelope Select Off as the Detect Double Feed setting.
Plastic cards Select Plastic Card (Landscape) as the Document Size
setting and Off as the Detect Double Feed setting.
Carrier sheet If you select Auto Detect as the Document Size setting,
paper skew is automatically corrected even if the Correct Document Skew setting is set to Off.
If you select a setting other than Auto Detect as the Document Size setting, you can only use Contents Skew as the Correct Document Skew setting. As paper skew is not applied in this case, only contents skew is corrected when you select the Paper and Contents Skew setting.
Large originals If the Document Size list does not contain the document
size you want to scan, select Customize to create a custom size.
77
Type of original Required settings
Long paper If the Document Size list does not contain the document
Laminated cards To scan any transparent areas around the edges of the
Parent topic: Scanning in Epson Scan 2

Image Format Options

You can select different image formats and related options. For details on available options, click the ? icon on the Epson Scan 2 Image Format Options window. Not all image formats have options.
Bitmap (*.bmp)
A standard image file format for most Windows programs.
JPEG (*.jpg)
An image format that lets you highly compress image data. However, the higher the compression, the lower the image quality. (The TIFF format is recommended when you need to modify or retouch your scanned image.)
PNG (*.png)
An image format that does not lose quality during editing.
size you want to scan, select Auto Detect (Long Paper) or select Customize to create a custom document size.
card, select Settings as the Document Size setting and either select the Scan laminated card checkbox or create a custom size.
TIFF (*.tif)
A file format created for exchanging data between many programs, such as graphic and DTP software.
Multi-TIFF (*.tif)
A TIFF file format when multiple pages are saved to the same file, allowing you to edit the images using a compatible program.
PDF (*.pdf)
A document format that is readable by Windows and Mac systems using Adobe Reader, Acrobat, or other programs. You can save multi-page documents in one PDF file.
Searchable PDF (*.pdf)
A document format that is readable by Windows and Mac systems using Adobe Reader, Acrobat, or other programs. You can save multi-page documents in one PDF file. Recognized text in the scanned document can be searched.
78
Parent topic: Scanning in Epson Scan 2

Scan Resolution Guidelines

The resolution setting in your scanning software, measured in dpi (dots per inch), controls the amount of detail captured in your scans. Increasing the resolution raises the amount of detail captured but comes with the following disadvantages:
• Larger file sizes
• It takes longer to scan your originals, send/receive your scans by email or fax, and to print your scans
• The image may become too large to fit on your display or print on paper
If you plan to enlarge a scanned image so you can print it at a larger size, you may need to increase the resolution from the default resolution set by the software. Follow these guidelines to determine the resolution setting you need:
• You will scan the image at its original size but enlarge it later in an image-editing program.
Increase the resolution setting in your scanning software. Increase the resolution by the same amount you will increase the image size to retain a high image quality. For example, if the resolution is 300 dpi (dots per inch) and you will double the image size later, change the resolution setting to 600 dpi.
• You will scan the image at 100% or smaller size.
Select the resolution setting based on how you will use the scanned image:
• Email/view on a computer screen/post on the web: 96 to 200 dpi
• Print/fax/convert to editable text (OCR)/create searchable PDF: 200 to 300 dpi
• You will scan a long original.
Scan paper up to 240 inches (6096 mm) in length with a maximum resolution of 300 dpi or less.
Parent topic: Scanning

Scanning Special Projects

Your product's scanning software offers various options to help you quickly complete special scan projects.
Scanning Two Originals onto One Sheet (Stitching Images) - Windows Scanning Multi-Page Originals as Separate Files - Windows Saving Scanned Documents as a Searchable PDF Using Epson Scan 2 Saving a Scan as an Office Format File - Windows Scanning to a SharePoint Server or Cloud Service - Windows
79
Scanning to a SharePoint Server or Cloud Service - Mac
Parent topic: Scanning

Scanning Two Originals onto One Sheet (Stitching Images) - Windows

You can scan both sides of a double-sided or folded original and combine them into a single image with the Epson Scan 2 Stitch Images settings (not available for all products).
Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.
1. Load your original in the product.
Note: When scanning a folded original, you must use the optional carrier sheet or damage to the original may occur. Load the document into the carrier sheet with the folded edge against the right side of the carrier sheet. Make sure to insert the carrier sheet into the scanner with the white edge facing down.
2. Do one of the following to start Document Capture Pro:
• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start and select All Programs or Programs. Select
Epson Software > Document Capture Pro.
3. If you see a Switch to Simple View button in the upper right corner of the window, click it.
80
You see a window like this:
4. Click the Scan Settings button, then click Detailed Settings.
Note: If you do not see any icons, click the V symbol next to the Job Settings button.
81
You see an Epson Scan 2 window like this:
82
5. Select Double-Sided as the Scanning Side setting.
6. Select the original document size or Auto Detect as the Document Size setting.
7. Select one of the following as the Stitch Images setting:
• Top&Bottom: Places the scanned images one above the other.
• Left&Right: Places the scanned images side by side.
8. Select the Advanced Settings tab and set the Edge Fill setting to None.
9. Click Save.
10. Click OK.
11. Click Scan.
The scanned image is displayed.
Note: If the scanned images are not stitched together in the correct orientation, click Scanning Side on the Epson Scan 2 window, select Settings, set the Binding Edge to Left or Top, and rescan the document.
Parent topic: Scanning Special Projects
Related references
User Replaceable Epson Scanner Parts

Scanning Multi-Page Originals as Separate Files - Windows

You can use Document Capture Pro (Windows) to scan multi-page originals as separate scanned files. You indicate how the separate files are created by defining a maximum page count per file or by inserting blank pages, barcodes, or characters that can be detected by the software as separation markers.
Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.
1. Load your multi-page original in the product.
2. Do one of the following to start Document Capture Pro:
• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
83
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
Epson Software > Document Capture Pro.
You see the Document Capture Pro window.
3. If you see a Switch to Simple View button in the upper right corner of the window, click it.
You see a window like this:
4. Click the Scan Settings button.
Note: If you do not see any icons, click the V symbol next to the Job Settings button.
84
You see a window like this:
5. Select any displayed settings you want to use and click OK.
Note: See the help information in Document Capture Pro for details.
6. Click one of the destination icons (except Print) in the Scan and... section of the window. Your product starts scanning and you see the settings window.
7. Select the Apply job separation checkbox.
8. Click Separation Settings.
85
You see a window like this:
9. Select the method you used to separate the originals as the Separator setting.
Note: See the help information in Document Capture Pro for details.
10. If necessary, select Create Folder and select a folder name.
11. Select any other folder naming settings you want and click OK, then click OK again.
Your originals are saved into separate files and folders as specified.
Parent topic: Scanning Special Projects
Related tasks
Loading Originals in the Input Tray
86

Saving Scanned Documents as a Searchable PDF Using Epson Scan 2

You can scan a document and save the text in a searchable PDF. In a searchable PDF, text is recognized using Optical Character Recognition (OCR) and then embedded in the scanned original.
Note: The required Epson Scan 2 OCR Component is installed automatically when you install your product software as instructed on the Start Here sheet. If you install your scanner software programs individually, be sure to also install this component if you want to perform OCR.
1. Load your original in the product for scanning.
2. Start Epson Scan 2.
3. Select your scan settings.
4. Click Preview and adjust the area you want to scan, if necessary.
5. Reload the ejected original in the scanner.
6. Select Searchable PDF as the Image Format setting.
7. Select Options from the Image Format list.
You see this window:
87
8. Select any of the options on the General tab.
9. Select the Text tab.
10. Make sure the language used in the document text is selected as the Text Language setting.
11. Select the Security tab if you want to add a password to the PDF or protect printing or editing properties.
12. Click OK.
13. Confirm the File Name setting and select a Folder setting for your document.
14. Click Scan.
The scanned image is saved as a searchable PDF.
Parent topic: Scanning Special Projects

Saving a Scan as an Office Format File - Windows

You can use Document Capture Pro (Windows) to save your scans in one of the following Microsoft Office file formats: Microsoft Word (.docx), Microsoft Excel (.xlsx), or Microsoft PowerPoint (.pptx).
Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.
1. Load your original in the product.
2. Do one of the following to start Document Capture Pro:
• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
Epson Software > Document Capture Pro.
3. If you see a Switch to Simple View button in the upper right corner of the window, click it.
88
You see a window like this:
4. Click the Scan Settings button.
Note: If you do not see any icons, click the V symbol next to the Job Settings button.
89
You see a window like this:
5. Select any displayed settings you want to use and click OK.
Note: See the help information in Document Capture Pro for details.
6. Click one of the destination icons (except Print) to choose where to send your scanned files. Your product starts scanning and you see the settings window.
7. Select the Office format file you want to use from the File Type drop-down list.
Note: The first time you select an Office format file you are prompted to download a plug-in update for Microsoft Office files. Select Yes to download and install the plug-in.
8. Click Option to display additional settings.
90
9. Select any additional settings as necessary and click OK.
Note: See the help information in Document Capture Pro for details.
10. Confirm your settings and click OK.
Your originals are saved in the Office file format you selected.
Parent topic: Scanning Special Projects

Scanning to a SharePoint Server or Cloud Service - Windows

You can use Document Capture Pro (Windows) to upload scanned images to a SharePoint server or a cloud service.
Note: The settings may vary, depending on the software version you are using. See the help information in Document Capture Pro for details.
1. Load your original in the product.
2. Do one of the following to start Document Capture Pro:
• Windows 10: Click and select Epson Software > Document Capture Pro.
• Windows 8.x: Navigate to the Apps screen and select Document Capture Pro.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select
Epson Software > Document Capture Pro.
3. If you see a Switch to Simple View button in the upper right corner of the window, click it.
91
You see a window like this:
4. Click the Scan Settings button.
Note: If you do not see any icons, click the V symbol next to the Job Settings button.
92
You see a window like this:
5. Select any displayed settings you want to use and click OK.
Note: See the help information in Document Capture Pro for details.
6. Click one of the cloud server or service destination icons in the Scan and... section of the window. Your product starts scanning and you see the settings window.
Note: If you cannot see all of the icons, the service software may not be installed or the service may not be available on your platform.
7. Enter any required information to set up the destination. You may need to log in to your cloud service to authenticate the connection and allow Document Capture Pro to access the cloud service. If you have previously created a saved setting for the destination, select it from the drop-down list.
93
8. Adjust any settings and click OK.
Note: See the help information in Document Capture Pro for details.
Your originals are uploaded to the indicated server or cloud service.
Parent topic: Scanning Special Projects
Related tasks
Loading Originals in the Input Tray

Scanning to a SharePoint Server or Cloud Service - Mac

You can use Document Capture to upload scanned images to a SharePoint server or a cloud service.
1. Open the Applications folder, open the Epson Software folder, and select Document Capture.
You see a window like this:
Note: You may need to select your scanner from the scanner list.
2. Click the Scan icon.
94
3. Select any displayed scan settings you want to use.
Note: See the Help information in Document Capture for details.
4. Click Scan.
You see a preview of your scan in the Document Capture window.
5. Click one of the cloud service Destination icons to choose where to save your scanned file. (If you cannot see all of the icons, the service software may not be installed, the service may not be available on your platform, or you need to click the arrow next to the icons.)
You see the Transfer Settings window.
6. Enter any required information to set up the destination. You may need to log in to your cloud service to authenticate the connection and allow Document Capture to access the cloud service. If you have previously created a saved setting for the destination, select it from the drop-down list.
7. Adjust any save settings, then click OK or Send, depending on the destination.
Your originals are scanned and uploaded to the indicated server or cloud service.
Parent topic: Scanning Special Projects
Related tasks
Loading Originals in the Input Tray
95

Using the Optional Flatbed Scanner Dock - Windows

The optional flatbed scanner dock combines your document scanner with a flatbed scanner into a single unit. This allows you to scan thick or over-sized originals, such as cardboard and books, that won't fit into the document scanner's ADF.
You must purchase a flatbed scanner (Epson Perfection V19/V39) to use the optional flatbed scanner dock. To attach the flatbed scanner and dock to your document scanner, follow the installation instructions that came with your flatbed scanner dock.
Note: You cannot use the flatbed scanner dock and Epson Network Interface Unit options at the same time.
See these sections to learn about the flatbed scanner dock option.
Flatbed Scanner Dock Parts Scanning from the Flatbed Scanner Dock Cleaning the Flatbed Scanner Dock Transporting the Flatbed Scanner Dock
96

Flatbed Scanner Dock Parts

1 Stopper
2 Output tray extension
97
3 Scanner cover/output tray
1 USB port 1 (for connecting flatbed dock to computer)
2 USB port 2 (for connecting flatbed dock to document scanner)
3 Power inlet
Parent topic: Using the Optional Flatbed Scanner Dock - Windows

Scanning from the Flatbed Scanner Dock

See these sections to scan when using the optional flatbed scanner dock.
Scanning from the Docked Flatbed Scanner Scanning from the ADF with the Flatbed Scanner Dock Attached
Parent topic: Using the Optional Flatbed Scanner Dock - Windows

Scanning from the Docked Flatbed Scanner

You can place originals directly on the scanner glass of the flatbed scanner attached to the optional flatbed scanner dock.
98
Caution: Make sure the scanner is placed on a flat surface. Do not place heavy objects on the scanner
glass and do not press on the glass with too much force, or it may damage the scanner. Do not leave photos on the scanner glass for an extended period, or they may stick to the glass.
1. Close the document scanner's output tray.
99
2. Open the flatbed scanner cover.
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
