User’s Guide
NPD4958-00 EN
DS-860 User’s Guide
Copyright and Trademarks
Copyright and Trademarks
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko
Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither
is any liability assumed for damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product.
Seiko Epson Corporation and its affiliates shall not be liable against any damages or problems arising from the use of
any options or any consumable products other than those designated as Original Epson Products or Epson Approved
Products by Seiko Epson Corporation.
EPSON
trademarks of Seiko Epson Corporation.
Microsoft
Microsoft Corporation.
Adobe
Intel
Intel
EPSON Scan Software is based in part on the work of the Independent JPEG Group.
libtiff
is a registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION are
®
, Windows®, Windows Server®, Windows Vista®, and SharePoint® are registered trademarks of
®
, Adobe Reader®, and Acrobat® are registered trademarks of Adobe Systems Incorporated.
®
is a registered trademark of Intel Corporation.
®
Core™ is a trademark of Intel Corporation.
®
Copyright © 1988-1997 Sam Leffler
Copyright © 1991-1997 Silicon Graphics, Inc.
Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose is
hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in
all copies of the software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics
may not be used in any advertising or publicity relating to the software without the specific, prior written
permission of Sam Leffler and Silicon Graphics.
THE SOFTWARE IS PROVIDED “AS-IS“ AND WITHOUT WARRANTY OF ANY KIND, EXPRESS,
IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED
OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
libjpeg-turbo
2
DS-860 User’s Guide
Copyright and Trademarks
Copyright © 1991-2012 Thomas G. Lane, Guido Vollbeding
Copyright © 1999-2006 MIYASAKA Masaru
Copyright © 2009 Pierre Ossman for Cendio AB
Copyright © 2009-2013 D. R. Commander
Copyright © 2009-2011 Nokia Corporation and/or its subsidiary(-ies)
Redistribution and use in source and binary forms, with or without modification, are permitted provided that
the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation
- Neither the name of the libjpeg-turbo Project nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS-IS“, AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
OPEN SOURCE SOFTWARE LICENSE
1) This product includes GPL programs according to the license terms of each program.
2) We provide the source code of the GPL Programs, until five (5) years after the discontinuation of same
model of this product. If you desire to receive the source code above, please see the “Where To Get Help“ of
this User’s Guide, and contact the customer support of your region. You shall comply with the license
terms of each open source software program.
3) The open source software programs are WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. See the license
agreements of each open source software program for more details, which are described on \Manual
\OSS.pdf in the Software CD-ROM.
4) The license terms of each open source software program are described on \Manual\OSS.pdf in the
Software CD-ROM.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their
respective companies.
Copyright © 2013 Seiko Epson Corporation. All rights reserved.
The contents of this manual and the specifications of this product are subject to change without notice.
3
DS-860 User’s Guide
Contents
Contents
Copyright and Trademarks
Operating System Versions
Safety Instructions
Important Safety Instructions................. 7
Restrictions on copying.................... 8
Getting to Know Your Product
Product Parts............................ 10
Status Light and Display.................... 11
Status light............................ 11
Display............................... 12
Button................................. 12

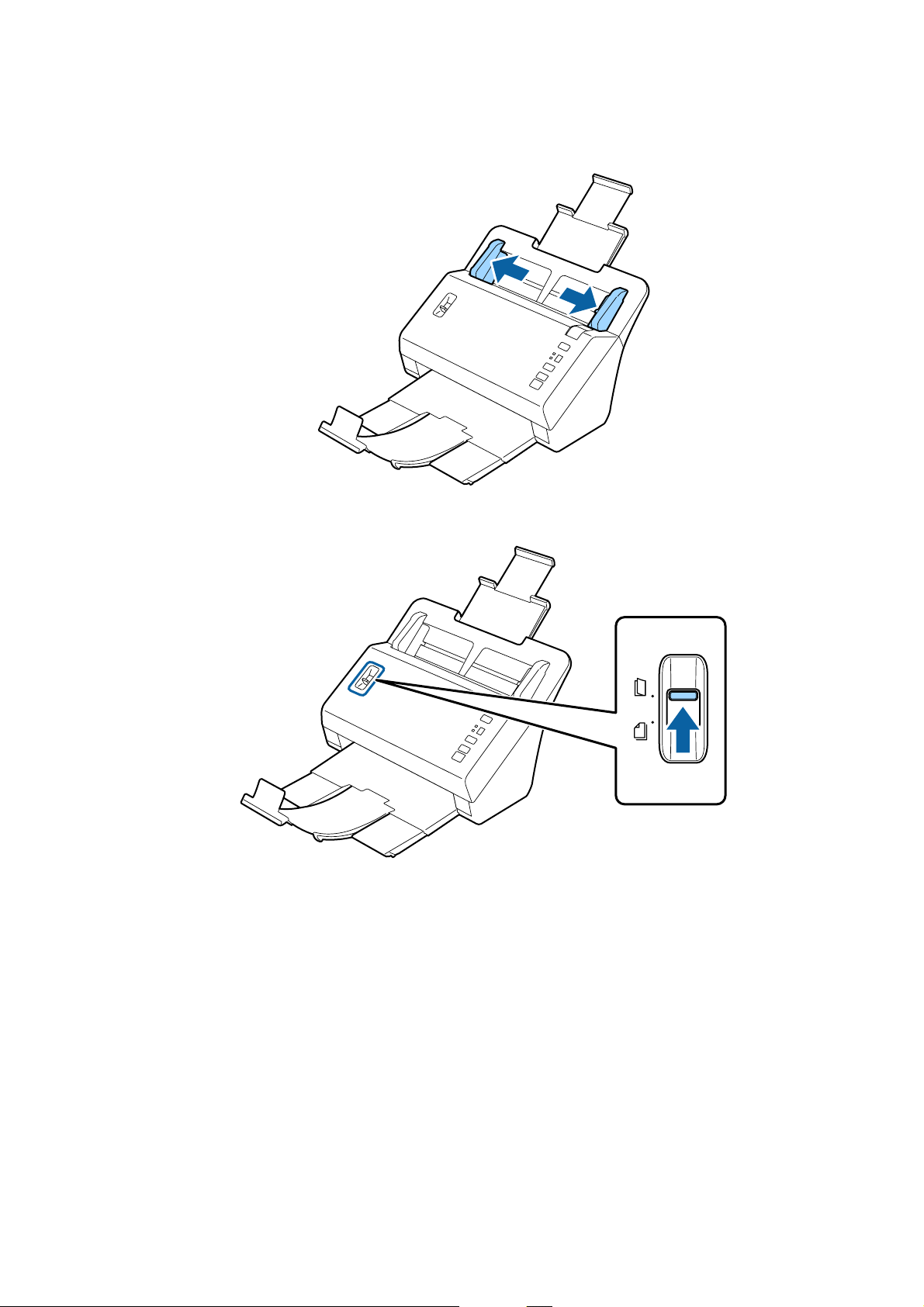

Page Separation Lever...................... 13
Placing Originals on the Product
Loading Documents....................... 14
Document specifications.................. 14
Loading a mixture of documents at different
sizes................................. 15
Loading documents...................... 16
Loading Cards........................... 19
Loading Special Documents.................. 22
Basic Scanning
Scanning from the Button................... 27
Scanning Using Document Capture Pro......... 27
Scanning Using Epson Scan ................. 28
Various Types of Scanning
Scanning to SharePoint or Cloud Service........ 30
Scanning Multiple Documents to Separate Files
...................................... 30
Assigning a Specified Scanning Setting to a
Program................................ 31
Scanning Stitched Images................... 32
Adjusting the Scanned Image................. 33
Software Information
Document Capture Pro..................... 35
How to start........................... 35
How to access the help................... 35
Epson Scan Driver ........................ 35
How to start........................... 35
How to access the help................... 35
Another Scanning Software.................. 36
Checking and Installing Your Software......... 36
Checking the software installed on your
computer............................. 36
Uninstalling Your Software.................. 36
Maintenance
Cleaning the Product...................... 38
Cleaning inside the scanner.................. 38
Replacing the Roller Assembly Kit............. 41
Energy Saving............................ 47
Transporting the Product................... 48
Using Security Slot........................ 49
Updating the Firmware..................... 49
Troubleshooting
Problems Indicated by status light............. 50
Problems When Starting a Scan............... 50
Using the button........................ 51
Using the Network Interface Unit........... 51
How to unblock Document Capture Pro. . . . . . 51
Using scanning software other than Epson
Scan driver............................ 52
Problems When Feeding Paper............... 52
The paper gets dirty..................... 52
Multiple sheets of paper are fed............. 52
Double feed error has occurred............. 53
Paper jams in the product ................. 53
Problems With Scanning Time............... 55
Problems With Scanned Images............... 55
Scan quality is unsatisfactory............... 55
The scanning area is unsatisfactory.......... 57
Problems Remain After Trying All Solutions. . . . . 57
Where To Get Help
Technical Support Web Site.................. 58
Contacting Epson Support................... 58
Before Contacting Epson.................. 58
4
DS-860 User’s Guide
Contents
Help for Users in North America............ 58
Help for Users in Latin America............ 59
Help for Users in Europe.................. 60
Help for Users in Taiwan.................. 60
Help for Users in Australia................ 61
Help for Users in Singapore................ 62
Help for Users in Thailand................ 62
Help for Users in Vietnam................. 62
Help for Users in Indonesia................ 63
Help for Users in Hong Kong.............. 64
Help for Users in Malaysia................. 64
Help for Users in India................... 65
Help for Users in the Philippines............ 66
Technical Specifications
System Requirements...................... 67
Product Specifications...................... 67
General.............................. 67
Mechanical............................ 68
Electrical............................. 68
Environmental......................... 69
Interfaces............................. 69
Standards and approvals.................. 69
5
DS-860 User’s Guide
Operating System Versions
Operating System Versions
In this manual, the following abbreviations are used.
Windows refers to Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP, Windows XP x64,
Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, and Windows Server 2003.
❏ Windows 8.1 refers to Windows 8.1 and Windows 8.1 Pro.
❏ Windows 8 refers to Windows 8 and Windows 8 Pro.
❏ Windows 7 refers to Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, and
Windows 7 Ultimate.
❏ Windows Vista refers to Windows Vista Home Basic Edition, Windows Vista Home Premium Edition, Windows
Vista Business Edition, Windows Vista Enterprise Edition, and Windows Vista Ultimate Edition.
❏ Windows XP refers to Windows XP Home Edition, Windows XP Professional x64 Edition, and Windows XP
Professional.
❏ Windows Server 2012 refers to Windows Server 2012 Essentials Edition and Windows Server 2012 standard
Edition.
❏ Windows Server 2008 R2 refers to Windows Server 2008 R2 x64 Standard Edition and Windows Server 2008 R2
x64 Enterprise Edition.
❏ Windows Server 2008 refers to Windows Server 2008 Standard Edition, Windows Server 2008 Enterprise Edition,
Windows Server 2008 x64 Standard Edition, and Windows Server 2008 x64 Enterprise Edition.
❏ Windows Server 2003 refers to Windows Server 2003 Standard Edition, Windows Server 2003 Enterprise Edition,
Windows Server 2003 x64 Standard Edition, and Windows Server 2003 x64 Enterprise Edition.
6
DS-860 User’s Guide
Safety Instructions
Safety Instructions
Important Safety Instructions
In this document, important and notes indicate the following:
Importants:
c
must be observed to avoid damage to your equipment.
Notes
contain important information and useful tips on the operation of this product.
Read all these instructions, and follow all warnings and instructions marked on the product.
❏ Place the product on a flat, stable surface that extends beyond the base of the product in all directions. If you place
the product by the wall, leave more than 10 cm between the back of the product and the wall. The product will not
operate properly if it is tilted at an angle.
❏ Avoid places subject to dust, shocks, or vibrations.
❏ Place the product close enough to the computer for the interface cable to reach it easily. Do not place or store the
product or the AC adapter outdoors, near excessive dirt or dust, water, heat sources, or in locations subject to
shocks, vibrations, high temperature or humidity, direct sunlight, strong light sources, or rapid changes in
temperature or humidity.
❏ Do not use with wet hands.
❏ Place the product near an electrical outlet where the adapter can be easily unplugged.
❏ The AC adapter cord should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place
objects on top of the cord and do not allow the AC adapter or the cord to be stepped on or run over. Be particularly
careful to keep the cord straight at the end.
❏ Use only the AC adapter that comes with your product. Using any other adapter could cause fire, electrical shock,
or injury.
❏ The AC adapter is designed for use with the product with which it was included. Do not attempt to use it with other
electronic devices unless specified.
❏ Use only the type of power source indicated on the AC adapter’s label, and always supply power directly from a
standard domestic electrical outlet with the AC adapter that meets the relevant local safety standards.
❏ When connecting this product to a computer or other device with a cable, ensure the correct orientation of the
connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may
damage both devices connected by the cable.
❏ Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.
7
DS-860 User’s Guide
Safety Instructions
❏ If you use an extension cord with the product, make sure the total ampere rating of the devices plugged into the
extension cord does not exceed the cord’s ampere rating. Also, make sure the total ampere rating of all devices
plugged into the wall outlet does not exceed the wall outlet’s ampere rating.
❏ Never disassemble, modify, or attempt to repair the AC adapter, product, or product option by yourself except as
specifically explained in the product’s guides.
❏ Do not insert objects into any opening as they may touch dangerous voltage points or short out parts. Beware of
electrical shock hazards.
❏ If damage occurs to the plug, replace the cord set or consult a qualified electrician. If there are fuses in the plug,
make sure you replace them with fuses of the correct size and rating.
❏ Unplug the product and the AC adapter, and refer servicing to qualified service personnel under the following
conditions: The AC adapter or plug is damaged; liquid has entered the product or the AC adapter; the product or
the AC adapter has been dropped or the case has been damaged; the product or the AC adapter does not operate
normally or exhibits a distinct change in performance. (Do not adjust controls that are not covered by the
operating instructions.)
❏ Unplug the product and the AC adapter before cleaning. Clean with a damp cloth only. Do not use liquid or
aerosol cleaners.
❏ If you are not going to use the product for a long period, be sure to unplug the AC adapter from the electrical
outlet.
❏ After replacing consumable parts, dispose of them correctly following the rules of your local authority. Do not
disassemble them.
Restrictions on copying
Observe the following restrictions to ensure responsible and legal use of your product.
Copying of the following items is prohibited by law:
❏ Bank bills, coins, government-issued marketable securities, government bond securities, and municipal securities
❏ Unused postage stamps, pre-stamped postcards, and other official postal items bearing valid postage
❏ Government-issued revenue stamps, and securities issued according to legal procedure
Exercise caution when copying the following items:
❏ Private marketable securities (stock certificates, negotiable notes, checks, etc.), monthly passes, concession
tickets, etc.
❏ Passports, driver’s licenses, warrants of fitness, road passes, food stamps, tickets, etc.
Note:
Copying these items may also be prohibited by law.
Responsible use of copyrighted materials
8
DS-860 User’s Guide
Safety Instructions
Products can be misused by improperly copying copyrighted materials. Unless acting on the advice of a
knowledgeable attorney, be responsible and respectful by obtaining the permission of the copyright holder before
copying published material.
9
DS-860 User’s Guide
Getting to Know Your Product
Getting to Know Your Product
Product Parts
Note:
Use all the items that came with your product.
Important:
c
When carrying your product, hold it by the scanner body and not the input tray.
a. scanner cover
b. page separation lever
c. edge guides
d. input tray
e. cover open lever
f. output tray
10
DS-860 User’s Guide
a. security slot
b. USB interface connector
c. DC inlet
a. AC adapter
b. AC power cord
c. USB cable
Getting to Know Your Product
Note:
Epson Scan works with the optional Network Interface Unit (B12B808451/B12B808461) to enable direct control of all
features of your scanner in a network environment.
See the User's Guide for more information on setting up the Network Interface Unit.
You can download the User's Guide from the following Website.
& http://support.epson.net/netscan/
Status Light and Display
a. Ready light
b. display
c. Error light
Status light
The Status light indicates whether the product is operating normally.
11
DS-860 User’s Guide
Getting to Know Your Product
Light Indicator Status Meaning
Ready (Blue) On The product is ready to scan.
Flashing The product is initializing or scanning.
Ready (Blue) and Error
(Amber)
Error (Amber) On An error has occurred.
Ready (Blue) and Error
(Amber)
Flashing (alternately) The firmware is being updated.
Flashing (simultaneously) A fatal error has occurred. Contact your dealer.
& “Problems Indicated by status light” on page 50
Off The product is off.
Display
This display shows the job numbers assigned in Document Capture Pro. You can select the job you want to start by
using the Job Select button.
& “Document Capture Pro” on page 35
Button
The product has four buttons for scanning operations.
Before using these buttons, make sure you have installed your scanning software.
a. P Power Button
b. Job Select Button
c. y Stop Button
d. ] Start Button
12
DS-860 User’s Guide
Button Function
Getting to Know Your Product
P Power Button
Job Select Button Selects the job you want to start from the display. You can assign jobs to this
y Stop Button
] Start Button
Turns the product on if pressed once.
Turns the product off if pressed again.
button in Document Capture Pro.
& “Document Capture Pro” on page 35
Cancels scanning.
Starts scanning.
You can customize the Start button using Document Capture Pro.
& “Document Capture Pro” on page 35
Page Separation Lever
Change the position of the page separation lever depending on the type of document you are going to scan.
Separation feeding You should normally use separation feeding. Documents with multiple
pages are fed one sheet at a time.
& “Loading Documents” on page 14
Use this mode when scanning standard plastic cards. You cannot scan
embossed cards.
& “Loading Cards” on page 19
Non Separation feeding Use this mode when scanning special documents such as folded
documents, plastic cards (embossed cards), carrier sheets, and so on.
Scanning is performed without separating the document.
& “Loading Cards” on page 19
& “Loading Special Documents” on page 22
13
DS-860 User’s Guide
Placing Originals on the Product
Placing Originals on the Product
Loading Documents
Document specifications
The following table provides a list of the paper you can load into the product.
Paper Size Measurements Paper Thickness Paper Type Loading Capacity
A4
Letter
Legal
B5
A5
B6
A6
B7
(horizontal)
210 × 297 mm
(8.3 × 11.7 inches)
215.9 × 279.4 mm
(8.5 × 11 inches)
215.9 × 355.6 mm
(8.5 × 14 inches)
182 × 257 mm
(7.2 × 10.1 inches)
148.5 × 210 mm
(5.8 × 8.3 inches)
128 × 182 mm
(5.0 × 7.2 inches)
105 × 148.5 mm
(4.1 × 5.8 inches)
91 × 128 mm
(3.6 × 5.0 inches)
40 to 210 g/m Plain paper, fine
paper, recycled
paper
40 g/m: 100 sheets
80 g/m: 80 sheets
210 g/m: 30 sheets
(The loading capacity
varies depending on the
paper type.)
A7
(horizontal)
B8
(horizontal)
A8
(horizontal)
Business card
(horizontal)
74 × 105 mm
(2.9 × 4.1 inches)
64 × 91 mm
(2.5 × 3.6 inches)
52 × 74 mm
(2.0 × 2.9 inches)
- 210 g/m - 30 sheets
127 to 210 g/m
See the following for more information on loading special documents such as plastic cards.
& “Loading Cards” on page 19
& “Loading Special Documents” on page 22
14
DS-860 User’s Guide
Placing Originals on the Product
You cannot load the following documents:
❏ Thermal paper
❏ Coated paper
❏ Document with an uneven surface
❏ Photos
❏ Document with wet ink
❏ Ripped, wrinkled, or curled documents
❏ Document with staples or paper clips (which may damage the paper source)
❏ Documents with holes (not including punched holes)
❏ Bound documents
❏ Documents with carbon paper on the back
❏ Non-paper document (such as clear files)
❏ Transparent documents
❏ Glossy documents
❏ Carbon-less paper
❏ Perforated documents
❏ Document with labels or stickers
Important:
c
Do not feed photos or valuable original artwork into the scanner directly. Misfeeding may wrinkle or damage the
original. When scanning such originals, make sure you use the carrier sheet (sold separately).
Loading a mixture of documents at different sizes
You can load a mixture of documents at different sizes. When loading documents, follow the notes below.
❏ You can load a mixture of documents from A6 to A4/letter size.
❏ Load the documents in the input tray in descending order of paper size with the largest at the back and the smallest
at the front.
15
DS-860 User’s Guide
Placing Originals on the Product
❏ Load the documents at the center of the input tray with the edges of the documents aligned.
❏ Slide the edge guides to fit the edges of the widest document.
Loading documents
Follow the steps below to load the document.
Extend the input tray, slide out and extend the output tray, and then raise the stopper.
A
Note:
❏ When scanning documents that are A6 size or larger, extend the input tray all the way.
❏ When scanning documents larger than A4 size, do not raise the stopper.
❏ Extend the output tray and use the stopper to match the size of the document you are scanning.
16
DS-860 User’s Guide
Placing Originals on the Product
Slide the edge guides on the input tray all the way out.
B
Make sure that the page separation lever is lowered.
C
17
DS-860 User’s Guide
Placing Originals on the Product
Load only the first page of your documents into the input tray with the printed side facing down and the top
D
edge facing into the feeder.
Slide the paper into the feeder until it meets resistance.
Note:
❏ Load business cards horizontally.
❏ Align the edges of the documents; otherwise a paper jam may occur.
❏ Smooth out the folding lines on the documents before loading them.
18
DS-860 User’s Guide
Placing Originals on the Product
Slide the edge guides to fit the edge of the paper.
E
& “Scanning Using Document Capture Pro” on page 27
& “Scanning Using Epson Scan ” on page 28
Loading Cards
Note:
Scan results are not guaranteed for plastic cards with shiny surfaces.
You can load plastic cards with the following specifications into the product.
Type
Size
Loading capacity Standard cards: Up to 3
Loading direction Horizontal
Plastic card (including embossed cards)
54 × 85.6 mm
(2.1 × 3.3 inches)
Embossed cards: 1
*
Paper thickness Up to 1.24 mm thick (including emboss)
* ISO7810 compliant
Follow the steps below to load plastic cards.
19
DS-860 User’s Guide
Placing Originals on the Product
Extend the input tray, slide out and extend the output tray, and then raise the stopper.
A
Note:
Extend the output tray and use the stopper to match the size of the card you are scanning.
Slide the edge guides on the input tray all the way out.
B
20
DS-860 User’s Guide
Placing Originals on the Product
Change the position of the page separation lever to match the type of card you are going to scan.
C
Standard cards (up to 3)
Embossed cards (only one card)
Load the card into the input tray with the printed side facing down and the top edge facing into the feeder. Slide
D
the card into the feeder until it meets resistance. Then slide the edge guides to fit the edge of the card.
21
DS-860 User’s Guide
Important:
c
❏ Do not load plastic cards vertically.
Placing Originals on the Product
❏ To scan plastic cards, clear Detect Double Feed in Epson Scan. See the Epson Scan Help for details.
❏ Depending on the condition of the card, it may not be scanned correctly or the scanned image may be
skewed.
& In this case, select Auto Detect as the Size setting and clear Detect Double Feed in Epson Scan. See the
Epson Scan help for details.
This completes the procedure for loading cards. See the following sections for more information on scanning
documents.
& “Scanning Using Document Capture Pro” on page 27
& “Scanning Using Epson Scan ” on page 28
Lower the page separation lever after scanning.
Loading Special Documents
Raise the page separation lever to scan paper that has been folded in half, envelopes, or non-standard size documents.
The following table provides a list of supported paper types and sizes.
22
DS-860 User’s Guide
Paper type Measurements Paper Thickness Loading Capacity
Placing Originals on the Product
Plain paper, fine paper,
recycled paper (long paper)
Plain paper, fine paper,
recycled paper (folded in half)
Envelope
Carrier sheet (sold separately)
* Envelopes with special shapes cannot be loaded. Depending on the envelope type, it may not be fed correctly. Check before
scanning.
*
Width: 50.8 to 215.9 mm
Length: 355.6 to 3048 mm
A6 to A3 40 to 210 g/m
C6: 114 × 162 mm (standard
size)
DL: 110 × 220 mm (standard
size)
A8 to 216 × 297 mm
40 to 210 g/m 1 sheet
Up to 0.38 mm thick
Up to 0.3 mm thick
(not including carrier
sheet)
Follow the steps below to load a document.
Extend the input tray, slide out and extend the output tray, and then raise the stopper.
A
Note:
❏ When scanning documents that are A6 size or larger, extend the input tray all the way.
❏ When scanning documents larger than A4 size, do not raise the stopper.
❏ Extend the output tray and use the stopper to match the size of the document you are scanning.
23
DS-860 User’s Guide
Placing Originals on the Product
Slide the edge guides on the input tray all the way out.
B
Raise the page separation lever.
C
24
DS-860 User’s Guide
Placing Originals on the Product
Load the documents into the input tray with the printed side facing down and the top edge facing into the
D
feeder. Slide the paper into the feeder until it meets resistance.
When loading a document that is folded in half, fold it as shown below.
Important:
c
❏ Do not load the document with the open side facing down.
❏ To scan special documents, clear Detect Double Feed in Epson Scan. See the Epson Scan Help for details.
25
DS-860 User’s Guide
Placing Originals on the Product
This completes the procedure for loading documents. See the following sections for more information on scanning the
documents.
& “Scanning Using Document Capture Pro” on page 27
& “Scanning Using Epson Scan ” on page 28
Lower the page separation lever after scanning.
Note:
When loading a photo or paper that is an irregular shape, use the carrier sheet (sold separately). You cannot use a clear file
instead of the carrier sheet.
See the following for more information on placing the document in the carrier sheet.
❏ If the document is smaller than A4 size, insert it into the center of the carrier sheet with the side to be scanned facing
down.
❏ If the document is larger than A4 size, fold it in half so that the side to be scanned is facing out, with the right side at the
front.
26
DS-860 User’s Guide
Basic Scanning
Basic Scanning
Scanning from the Button
The product starts the job assigned on the Job Settings window in Document Capture Pro.
& “Assigning a Specified Scanning Setting to a Program” on page 31
Load the document(s).
A
& “Loading Documents” on page 14
& “Loading Cards” on page 19
& “Loading Special Documents” on page 22
Press the Job Select button to select the job you want to start from the display.
B
Press the ] Start button.
C
The product starts scanning the job you selected.
Note:
❏ You can select a job from jobs 1 to 9 assigned in Document Capture Pro.
❏ When the product is connected to the Network Interface Unit, you cannot select a job from the display. In this case,
displayed on the display.
Scanning Using Document Capture Pro
This section explains basic scanning procedures using Document Capture Pro.
See the Help for details on Document Capture Pro.
Load the document(s).
A
& “Loading Documents” on page 14
is
& “Loading Cards” on page 19
& “Loading Special Documents” on page 22
Start Document Capture Pro.
B
& “Document Capture Pro” on page 35
27
DS-860 User’s Guide
Basic Scanning
Click (Scan) icon.
C
Set all of the items, and then click Scan.
D
If you want to make detailed settings such as image quality, click Detailed Settings to display the “Epson Scan”
scanner driver screen, and then make the necessary settings.
The scanned document is displayed in Document Capture Pro.
Check the scanned images (pages), and then edit as necessary.
E
When you have finished checking the image, click the destination icon.
F
Make settings for each item, and then click OK or Send.
G
Note:
On the Batch Save window or the Transfer Settings window, click File Name Settings and then select Apply job
separation to sort the documents into separate files by detecting blank pages or barcodes in your scanned images.
The scanned image is saved to the folder you specified.
Scanning Using Epson Scan
This section explains basic scanning procedures using EPSON Scan.
See the Help for details on Epson Scan.
Note:
Do not use the Fast User Switching function while using your scanner.
28
DS-860 User’s Guide
Load the document(s).
A
& “Loading Documents” on page 14
& “Loading Cards” on page 19
& “Loading Special Documents” on page 22
Start Epson Scan.
B
& “How to start” on page 35
Make settings for each item in Main Settings.
C
Click Preview.
D
The Preview window displays the scanned image.
Basic Scanning
Important:
c
The first page is ejected and the scanned image is displayed in the preview window. Reload the ejected page, and
then scan again.
Click Image Adjustment tab, and then make adjustments to the image quality such as the brightness.
E
See the Help for details on Epson Scan.
Note:
When Auto Detect is selected as the Size setting, depending on the value of the Brightness or the Contrast, the
scanning area may not be detected correctly.
In this case, select a size of the scanning area other than Auto Detect as the Size setting.
Click Scan.
F
In the File Save Settings window, make settings for each item and click OK.
G
Note:
If the Show this dialog box before next scan check box is cleared, Epson Scan starts scanning immediately without
displaying the File Save Settings window.
The scanned image is saved to the folder you specified.
29
DS-860 User’s Guide
Various Types of Scanning
Various Types of Scanning
Scanning to SharePoint or Cloud Service
You can upload scanned images to a SharePoint Server or Cloud Service.
Note:
You need to create a cloud service account before using this function.
Start Document Capture Pro and scan your document.
A
& “Scanning Using Document Capture Pro” on page 27 steps 1 to 5
On the Main window of Document Capture Pro, click the destination icon.
B
See the Help for details on Document Capture Pro.
On the settings window, make settings for each item and then click Send.
C
The image is uploaded to the target server.
Scanning Multiple Documents to Separate Files
This function sorts documents into separate files by using a variety of detection methods such as blank pages or
barcodes inserted between the scanned images.
30
DS-860 User’s Guide
Various Types of Scanning
Note:
The actual operations may differ depending on the destination selected.
Load a document into the input tray including indicators, such as blank pages, between the pages where you
A
want to separate the data.
Start Document Capture Pro and scan your document.
B
& “Scanning Using Document Capture Pro” on page 27 steps 2 to 6
Click File Name Settings on the Batch Save window or the Transfer Settings window.
C
Select Apply job separation, and then click Separation Settings.
D
Select the separation method and the method for specifying the folder name on the Job Separation Settings
E
window, and then click OK.
See the Help for details on Document Capture Pro.
Make other settings on the File Name Settings window, and then click OK.
F
Make other settings on the Batch Save window or the Transfer Settings window, and then click OK or Send.
G
Scanned images are saved separately based on the separation method selected.
Assigning a Specified Scanning Setting to a Program
By registering a specific scanning operation to a scanner button, you can perform that operation by simply pressing the
scanner button. The operation number is displayed on the scanner and you can select the operation you want to start.
You can also register settings, such as separator processing, save format, and save as/destination.
Start Document Capture Pro.
A
& “Document Capture Pro” on page 35
Click the (Manage Job) icon on the main window.
B
On the Job Management window, click Add .
C
Make settings for Job Name, Scan, Output, and Destination on the Job Settings window, and then click
D
OK.
See the Help for details on Document Capture Pro.
31
DS-860 User’s Guide
Various Types of Scanning
Click Event Settings on the Job Management window.
E
Click the job name to select the job you want to assign from the pull-down menu.
F
Click OK on the Job Management window.
G
This completes the procedure for assigning a job to the scanner button. You can select the job you want to start from
the scanner display.
& “Scanning from the Button” on page 27
Scanning Stitched Images
Stitch Images allows you to stitch together both sides of a double-sided document or a folded document, and save them
as one sheet.
The following shows how the sheets are stitched together.
Direction Document
Double-Sided
Folded
Stitch Image Direction:
Left&Right
Stitch Image Direction:
Top&Bottom
Load the document.
A
& “Loading Documents” on page 14
& “Loading Cards” on page 19
& “Loading Special Documents” on page 22
Start Document Capture Pro.
B
& “How to start” on page 35
32
DS-860 User’s Guide
Various Types of Scanning
Click the (Scan) icon.
C
Click Detailed Settings and display EPSON Scan.
D
Select Double-Sided from Document Source on the Main Settings tab.
E
Select the document size from Size.
F
Select Top&Bottom or Left&Right from Stitch Images, and then click OK.
G
Click Scan.
H
The scanned image is displayed in Document Capture Pro.
Check the scanned image, and then save it.
I
& “Scanning Using Document Capture Pro” on page 27 steps 5 to 7
Note:
If the images are not stitched together in the intended direction, check Binding Position (for Double-Sided Scanning) on
the EPSON Scan Configuration screen.
Adjusting the Scanned Image
Epson Scan offers a variety of settings for improving color, sharpness, and other aspects affecting image quality.
Unsharp Mask Sharpens the edges of image areas.
Descreening A ripple or cross-hatch pattern (known as moiré) may appear in a scanned image of a printed
document.
33
DS-860 User’s Guide
Various Types of Scanning
Text Enhancement Enhances text recognition when scanning text documents.
Auto Area Segmentation Scans text in Black&White and applies grayscale to any images in the document.
Dropout Scans without the selected color.
Color Enhance Enhances the selected color.
See the Help for details on Epson Scan.
34
DS-860 User’s Guide
Software Information
Software Information
Document Capture Pro
This software allows you to rearrange pages or correct rotation for image data, and then save the data, send it by e-mail,
send it to a server, or send it to a cloud service.
You can also register frequently used scanning settings to simplify scanning operations.
How to start
❏ Windows 8.1/ Windows 8:
Start screen > Apps > Epson Software > Document Capture Pro.
❏ Windows 7/ Windows Vista/ Windows XP:
Select Start > All Programs or Programs > Epson Software > Document Capture Pro.
How to access the help
See the software's Help for more information on using the software and its functions. To display the Help, select Help
from the menu at the top-right of the software screen.
Epson Scan Driver
This software lets you control all aspects of scanning. You can use this as a standalone scanning program or use it with
another TWAIN-compliant scanning program.
How to start
❏ Windows 8.1/ Windows 8:
Start screen > Apps > Epson > EPSON Scan.
❏ Windows 7/ Windows Vista/ Windows XP:
Select Start > All Programs or Programs > EPSON > EPSON Scan > EPSON Scan.
How to access the help
Click the Help button on the Epson Scan driver.
35
DS-860 User’s Guide
Software Information
Another Scanning Software
For inquiries about other scanning software, contact the manufacturer of the software.
Checking and Installing Your Software
Checking the software installed on your computer
To use the functions described in this User’s Guide, you need to install the following software.
❏ Epson Driver and Utilities
❏ Document Capture Pro
Follow the steps below to check that the software is installed on your computer.
Do one of the following:
A
Windows 8.1/ Windows 8:
Select Desktop , Settings charm, and Control Panel.
Windows 7/ Windows Vista/ Windows XP:
Select Start and select Control Panel.
Do one of the following:
B
Windows 8.1/ Windows 8/ Windows 7/ Windows Vista:
Click Uninstall a program from the Programs category.
Windows XP:
Double-click the Add or Remove Programs icon.
Check the list of currently installed programs.
C
Installing the software
Insert the software disk that came with your product and select the software you want to install on the Software Select
window.
Uninstalling Your Software
You may need to uninstall and then reinstall your software to solve certain problems or if you upgrade your operating
system.
36
DS-860 User’s Guide
Software Information
Note:
❏ For Windows 8.1, Windows 8, Windows 7 and Windows Vista, you need an administrator account and password if
you log on as a standard user.
❏ For Windows XP, you must log on to a Computer Administrator account.
Turn off the product.
A
Disconnect the product’s interface cable from your computer.
B
Display the software list.
C
Windows 8.1/ Windows 8:
Select Desktop , Settings charm, and Control Panel. Select Uninstall a program from the Programs category.
Windows 7/ Windows Vista:
Select Start and select Control Panel. Click Uninstall a program from the Programs category.
Windows XP:
Select Start and select Control Panel. Double-click the Add or Remove Programs icon.
Select the software you want to uninstall from the list displayed.
D
Uninstall the software.
E
Windows 8.1/ Windows 8/ Windows 7:
Click Uninstall/Change.
Windows Vista:
Click Uninstall/Change, and then click Continue in the User Account Control window.
Windows XP:
Click Change/Remove.
When the confirmation window appears, click Yes.
F
Follow the on-screen instructions.
A message may appear to prompt you to restart your computer. If so, make sure I want to restart my computer
now is selected, and then click Finish.
37
DS-860 User’s Guide
Maintenance
Maintenance
Cleaning the Product
To keep your product operating at its best, follow the steps below to clean it periodically.
Important:
c
❏ Never use alcohol, thinner, or corrosive solvent to clean the product. These chemicals can damage the product
components and the case.
❏ Be careful not to spill liquid into the product mechanism or electronic components. This could permanently
damage the mechanism and circuitry.
❏ Do not spray lubricants to the product.
❏ Never open the product case.
Turn off the product.
A
Unplug the AC adapter from the product.
B
Wipe off any dirt on the outer case with a soft cloth.
C
Note:
If the case is very dirty, dampen a soft cloth with water and wring it well, and then wipe off any remaining stains.
After that, use a soft dry cloth to wipe the case.
Cleaning inside the scanner
When scanned images have streaks or when scanned documents become dirty, clean inside the scanner.
Important:
c
❏ Do not place too much force on the glass surface inside the product.
❏ Be careful not to scratch or damage the glass surface inside the product, and do not use a hard or abrasive brush to
clean it. A damaged glass surface can decrease the scan quality.
❏ Never use alcohol, thinner, or corrosive solvent to clean the scanner. These chemicals can damage the scanner
components and the case.
❏ Be careful not to spill liquid into the scanner mechanism or electronic components. This could permanently
damage the mechanism and circuitry.
❏ Do not spray lubricants inside the scanner.
Turn off the product.
A
38
DS-860 User’s Guide
Unplug the AC adapter from the product.
B
Pull the cover open lever and open the scanner cover.
C
Maintenance
Use a soft cloth to wipe off any stains on the roller on the Scanner cover side.
D
Wipe off any stains on the pickup roller.
E
Plug the AC adapter, and then turn on the scanner.
F
39
DS-860 User’s Guide
Maintenance
Wipe off any stains on the four rollers on the bottom.
G
Hold down the ] button for at least two seconds. Press the ] button several times to rotate the roller and wipe
off any stains on the roller.
Turn off the product. Unplug the AC adapter from the product.
H
Wipe off any stains on the glass surface.
I
Make sure that dust does not build up on the glass surface. Dust can cause spots and straight lines in your
scanned images.
Important:
c
Do not spray glass cleaner directly on the glass surface.
Close the Scanner cover.
J
Note:
If the case is very dirty, dampen a soft cloth with water and wring it well, and then wipe off any remaining stains.
After that, use a soft dry cloth to wipe the case.
40
DS-860 User’s Guide
Maintenance
Replacing the Roller Assembly Kit
You need to replace the parts on the Roller Assembly Kit after scanning every 200,000 times.
Note:
Make sure you replace all of the rollers at the same time.
Removal part Part number Number of scanning
Roller Assembly Kit B12B813581 200,000
To replace the Roller Assembly Kit, follow the steps below.
Important:
c
Do not touch the surface of the roller.
Turn off the scanner.
A
Unplug the AC adapter from the product.
B
Pull the cover open lever and open the scanner cover.
C
Press the hook on the right side of the pickup roller cover, and then open the cover.
D
41
DS-860 User’s Guide
Important:
c
Do not place too much force on the arm when replacing the pickup roller. Doing so may break the arm.
Slide and remove the installed pickup rollers.
E
Maintenance
Remove the upper pickup roller from the axis.
F
Attach the new upper pickup roller to the axis.
G
Rotate the roller and slide it all the way onto the axis.
42
DS-860 User’s Guide
Maintenance
Remove the middle pickup roller from the axis.
H
Align the grooves in the roller with the slots on the axis, and then remove the roller.
Attach the new middle pickup roller to the axis.
I
Align the holes on the roller with the projecting parts on the axis, and then slide the roller onto the axis until it
clicks into place.
If you cannot attach the roller, rotate it and then slide it all the way onto the axis.
Remove the lower pickup roller from the axis.
J
43
DS-860 User’s Guide
Maintenance
Attach the new lower pickup roller to the axis.
K
Align the holes on the roller with the projecting parts on the axis, and then slide the roller onto the axis until it
clicks into place.
If you cannot attach the roller, rotate it and then slide it all the way onto the axis.
Attach the new lower pickup roller in the correct position.
L
Make sure the notches are aligned.
Attach the new middle pickup roller in the correct position.
M
Make sure the notches are aligned.
44
DS-860 User’s Guide
Maintenance
Attach the new upper pickup roller in the correct position.
N
Make sure the notches are aligned.
Close the pickup roller cover.
O
If you cannot close the cover, check that you have performed steps 12 to14 correctly.
Press in the hooks on up sides of the separation roller cover, and then open the cover.
P
Important:
c
Do not apply too much force when opening the cover. Doing so may break the cover.
Slide and remove the installed separation roller.
Q
45
DS-860 User’s Guide
Maintenance
Remove the roller from the axis.
Attach the new separation roller to the axis, and make sure the notches align.
R
Check that there are no gaps. Make sure the roller does not come off the axis.
Attach the new separation roller to the correct position. Make sure the notches align.
S
Close the separation roller cover.
T
If you cannot close the cover, check that you have performed step 18 correctly.
Close the scanner cover.
U
46
DS-860 User’s Guide
Maintenance
Plug the AC adapter, and then turn on the scanner.
V
Start Epson Scan Settings.
W
Windows 8.1/ Windows 8:
Start screen > Apps > Epson > Epson Scan Settings.
Windows 7/ Windows Vista/ Windows XP:
Start > All Programs or Programs > EPSON > EPSON Scan > Epson Scan Settings.
Click Maintenance.
X
Click Reset, and then click OK.
Y
Important:
c
Make sure you reset the counter after replacing the Roller Assembly Kit.
Energy Saving
The product turns off automatically if no operations are performed for the selected period. You can adjust the time
before power management is applied. Any increase will affect the product's energy efficiency. Consider the
environment before making any changes.
Follow the steps below to adjust the time.
Start Epson Scan Settings.
A
Windows 8.1/ Windows 8:
Start screen > Apps > Epson > Epson Scan Settings.
Windows 7/ Windows Vista/ Windows XP:
Start > All Programs or Programs > EPSON > EPSON Scan > EPSON Scan Settings.
Click Energy Saving.
B
47
DS-860 User’s Guide
Maintenance
Set the Power Off Timer, and then click OK.
C
Note:
If you want to turn off the Power Off Timer, set it to 0.
Transporting the Product
Turn off the product, then unplug the AC adapter.
A
Disconnect the USB cable from the product.
B
Close the output tray.
C
Remove the input tray by pulling it towards the scanner cover.
D
Important:
c
Make sure you close the output tray securely; otherwise it may be damaged during transport.
48
DS-860 User’s Guide
Maintenance
Attach the packing materials that came with the product, then repack the product in its original box or a similar
E
box that fits the product snugly.
Using Security Slot
The security slot is compatible with the Microsaver Security System manufactured by Kensington.
See the following for more details on the Microsaver Security System.
& http://www.kensington.com/
Updating the Firmware
Check the Epson home page for the latest firmware update releases. If there is no firmware information on the home
page, you are already using the latest firmware.
& http://www.epson.com
Important:
c
Do not turn off the product while the firmware is updating. Otherwise, the firmware may not be updated correctly.
49
DS-860 User’s Guide
Troubleshooting
Troubleshooting
Problems Indicated by status light
❏ Make sure the scanner cover is closed.
❏ Make sure there is no jammed paper.
❏ Make sure the product is connected to your computer properly.
❏ Turn off the product and turn it on again. If the problem is not solved, the product may be malfunctioning, or the
light source in the scanner unit may need to be replaced. Contact your dealer.
❏ Contact your dealer if you cannot clear the error.
Problems When Starting a Scan
❏ Make sure the scanning software is fully installed.
See the paper manual for instructions on installing the scanning software.
❏ Check the status light and make sure the product is ready to scan.
❏ Make sure your cables are securely connected to the product and a working electrical outlet.
❏ Check that the electrical outlet is working. Plug another device into the electrical outlet and check that you can
turn the power on.
❏ Turn off the product and computer, and then check the interface cable connection between them to make sure it is
secure.
❏ Make sure you select the correct product if a scanner list is displayed when starting to scan.
❏ Connect the product directly to the computer’s external USB port or through one USB hub only. The product may
not work properly when connected to the computer through more than one USB hub. If the problem persists, try
connecting the product directly to the computer.
❏ If more than one product is connected to your computer it may not work. Connect only the product you want to
use, and then try scanning again.
❏ If the scanning software does not work properly, uninstall the software first and then reinstall it as described in the
paper manual.
& “Uninstalling Your Software” on page 36
❏ If the light source has reached the end of its service life, it must be replaced by a professional. For details, contact
your dealer.
& “Contacting Epson Support” on page 58
50
DS-860 User’s Guide
Troubleshooting
Using the button
Depending on the product, the scanning function may not be available when using the button.
❏ Check if you have assigned a program to the button.
& “Assigning a Specified Scanning Setting to a Program” on page 31
❏ Check that compatible scanning software is installed.
& “Checking the software installed on your computer” on page 36
❏ If you have clicked the Keep Blocking button in the Windows Security Alert window during or after installation of
the Epson Software, unblock Document Capture Pro.
& “How to unblock Document Capture Pro” on page 51
Note:
You can select a job from jobs 1 to 9 assigned in Document Capture Pro.
Using the Network Interface Unit
❏ When the product is connected to the Network Interface Unit, you cannot select a job from the display. In this
case,
❏ You need to install the latest firmware for the Network Interface Unit before scanning. Go to the Epson home page
to download the Epson Firmware Updater for the Network Interface Unit.
& http://www.epson.com
After downloading, start Epson Firmware Updater, and then follow the on-screen instructions. If the latest
firmware is already installed on the Network Interface Unit, you do not need to update the firmware.
is displayed on the display.
How to unblock Document Capture Pro
Display the Control Panel.
A
Windows 8.1/ Windows 8:
Select Desktop , Settings charm, and Control Panel.
Windows 7/ Windows Vista/ Windows XP:
Select Start and select Control Panel.
Display the Firewall settings window.
B
Windows 8.1/ Windows 8/ Windows 7:
Select System and Security.
Select Allow a program through Windows Firewall.
Windows Vista:
Select Security.
Select Allow a program through Windows Firewall.
51
DS-860 User’s Guide
Troubleshooting
Windows XP:
Select Security Center.
Select Windows Firewall.
Select EEventManager Application from the list.
C
Epson Event Manager is installed with Document Capture Pro.
Windows 8.1/ Windows 8/ Windows 7:
Confirm that the check box for EEventManager Application is selected in the Allowed programs and features
list.
Windows Vista:
Click the Exceptions tab, and then confirm that the check box for EEventManager Application is selected in
the Program or port list.
Windows XP:
Click the Exceptions tab, and then confirm that the check box for EEventManager Application is selected in
the Programs and Services list.
Click OK.
D
Using scanning software other than Epson Scan driver
❏ If you are using any TWAIN-compliant programs, such as Adobe Photoshop Elements, make sure that the correct
product is selected as the Scanner or Source setting.
❏ If you cannot scan using any TWAIN-compliant scanning programs, such as Adobe Photoshop Elements,
uninstall the TWAIN-compliant scanning program and then reinstall it.
& “Uninstalling Your Software” on page 36
Problems When Feeding Paper
The paper gets dirty
Clean the interior of the product.
& “Cleaning inside the scanner” on page 38
Multiple sheets of paper are fed
❏ Make sure the page separation lever is lowered.
❏ If you load unsupported paper, the product may feed more than one sheet of paper at a time.
& “Loading Documents” on page 14
52
DS-860 User’s Guide
Troubleshooting
❏ Clean the product.
& “Cleaning the Product” on page 38
& “Replacing the Roller Assembly Kit” on page 41
Note:
When scanning small documents that are less than 85 mm wide, Detect Double Feed in EPSON Scan is not available.
Double feed error has occurred
❏ When scanning normal documents, make sure the page separation lever is lowered.
& “Page Separation Lever” on page 13
❏ When scanning plastic cards and special documents (folded documents, envelopes, and so on), clear Detect
Double Feed in Epson Scan.
& See the Epson Scan Help for details.
& When scanning documents using a job registered in Document Capture Pro, you need to edit the job. Select the
job from the Job Management window in Document Capture Pro, and then click Edit to open the Job Settings
window. Click Detailed Settings, and clear Detect Double Feed on the Document tab in the Configuration
window.
Note:
When scanning plastic cards (embossed cards) and special documents (folded documents, envelopes, and so on), make sure
the page separation lever is raised.
& “Page Separation Lever” on page 13
Paper jams in the product
If paper jams inside the product, follow the steps below to remove jammed paper.
Turn off the product.
A
Remove all paper from the input tray.
B
53
DS-860 User’s Guide
Pull the cover open lever and open the scanner cover.
C
Remove any jammed paper.
D
Troubleshooting
Important:
c
Make sure you open the scanner cover before removing jammed paper. If you do not open the cover, the
documents may be damaged.
Note:
Remove any pages remaining inside the scanner.
54
DS-860 User’s Guide
Troubleshooting
If there is paper jammed in the output tray, gently pull the paper out in the direction shown.
E
Close the scanner cover.
F
Problems With Scanning Time
❏ Computers with Hi-Speed external USB ports can scan faster than those with external USB ports. If you are using a
Hi-Speed external USB port with your product, make sure it meets the system requirements.
& “System Requirements” on page 67
❏ Scanning at a high resolution takes a long time.
❏ When using security software, exclude the TWAIN.log file from monitoring, or set the TWAIN.log as a read-only
file. For more information on your security software's functions, see the help and so on supplied with the software.
The TWAIN.log file is saved in the following locations.
Windows XP:
C:\Documents and Settings\(user name)\Local Settings\Temp
Windows 8.1/ Windows 8/ Windows 7/ Windows Vista:
C:\Users\(user name)\AppData\Local\Temp
Problems With Scanned Images
Scan quality is unsatisfactory
Scan quality can be improved by changing the current settings or adjusting the scanned image.
& “Adjusting the Scanned Image” on page 33
55
DS-860 User’s Guide
Troubleshooting
Color slip appears in your scanned image
Use Color Slip Reduction to improve this problem. This function may not provide perfect results.
See the Help for details on Epson Scan.
An image on the back of your original appears in your scanned image
When scanning thin paper, images on the back may be visible to the product and appear in your scanned image.
❏ Make sure the Document Type and Image Type settings are correct for your original.
❏ Select Text Enhancement as the image quality setting from the scanning software.
Characters are blurred
❏ Select Text Enhancement as the image quality setting from the scanning software.
❏ When the Image Type is Black&White, select Threshold setting as the image quality setting from the scanning
software.
❏ Increase the resolution setting.
Characters are not recognized when converted into editable text (OCR)
Place the document so that it is straight on the document glass. If the document is skewed, it may not be recognized
correctly.
Ripple patterns appear in your scanned image
A ripple or cross-hatch pattern (known as moiré) may appear in a scanned image of a printed document.
❏ Select Descreening as the image quality setting.
❏ Try changing the Resolution setting.
Uneven color, smears, dots, or straight lines appear in your image
Clean the product.
56
DS-860 User’s Guide
Troubleshooting
& “Cleaning the Product” on page 38
The scanned image is unsatisfactory or skewed when scanning cards
Select Auto Detect as the Size setting and clear Detect Double Feed in Epson Scan. See the Epson Scan help for
details.
The scanning area is unsatisfactory
The edges of your original are not scanned
If the edges of your original are not scanned correctly, set the Size to Auto Detect, click the Configuration button, and
then adjust the cropping area in Crop Margins for Size “Auto”.
Problems Remain After Trying All Solutions
If you have tried all the solutions and have not solved the problem, initialize the Epson Scan settings.
Click Configuration, select the Other tab, and then click Reset All.
57
DS-860 User’s Guide
Where To Get Help
Where To Get Help
Technical Support Web Site
Epson’s Technical Support Web Site provides help with problems that cannot be solved using the troubleshooting
information in your product documentation. If you have a Web browser and can connect to the Internet, access the site
at:
http://support.epson.net/
If you need the latest drivers, FAQs, manuals, or other downloadables, access the site at:
http://www.epson.com
Then, select the support section of your local Epson Web site.
Contacting Epson Support
Before Contacting Epson
If your Epson product is not operating properly and you cannot solve the problem using the troubleshooting
information in your product documentation, contact Epson support services for assistance. If Epson support for your
area is not listed below, contact the dealer where you purchased your product.
Epson support will be able to help you much more quickly if you give them the following information:
❏ Product serial number
(The serial number label is usually on the back of the product.)
❏ Product model
❏ Product software version
(Click About, Version Info, or similar button in the product software.)
❏ Brand and model of your computer
❏ Your computer operating system name and version
❏ Names and versions of the software applications you normally use with your product
Help for Users in North America
Epson provides the technical support services listed below.
58
DS-860 User’s Guide
Where To Get Help
Internet Support
Visit Epson’s support website at http://epson.com/support and select your product for solutions to common
problems. You can download drivers and documentation, get FAQs and troubleshooting advice, or e-mail Epson with
your questions.
Speak to a Support Representative
Dial: (562) 276-1300 (U.S.), or (905) 709-9475 (Canada), 6 am to 6 pm, Pacific Time, Monday through Friday. Days
and hours of support are subject to change without notice. Toll or long distance charges may apply.
Before you call Epson for support, please have the following information ready:
❏ Product name
❏ Product serial number
❏ Proof of purchase (such as a store receipt) and date of purchase
❏ Computer configuration
❏ Description of the problem
Note:
For help using any other software on your system, see the documentation for that software for technical support information.
Purchase Supplies and Accessories
You can purchase genuine Epson ink cartridges, ribbon cartridges, paper, and accessories from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at http://
www.epsonstore.com (U.S. sales) or http://www.epson.ca (Canadian sales).
Help for Users in Latin America
Electronic support services are available 24 hours a day at the following web sites:
Service Access
World Wide Web From the Internet, you can reach Epson’s Latin American web site at http://
www.latin.epson.com
In Brazil, you can reach Epson at http://www.epson.com.br
To speak with a support representative, call one of the numbers below:
Country Telephone number
Argentina (54 11) 5167-0300
Brazil (55 11) 3956-6868
Chile (56 2) 230-9500
59
DS-860 User’s Guide
Where To Get Help
Country Telephone number
Colombia (571) 523-5000
Costa Rica (50 6) 2210-9555, (800) 377-6627
Mexico (52 55) 1323-2052, 01-800-087-1080
Peru (51 1) 418-0210
Venezuela (58 212) 240-1111
Help for Users in Europe
Check your Pan-European Warranty Document for information on how to contact Epson support.
Help for Users in Taiwan
Contacts for information, support, and services are:
World Wide Web (http://www.epson.com.tw)
Information on product specifications, drivers for download, and products enquiry are available.
Epson HelpDesk (Phone: +0800212873)
Our HelpDesk team can help you with the following over the phone:
❏ Sales enquiries and product information
❏ Product usage questions or problems
❏ Enquiries on repair service and warranty
Repair service center:
Telephone number Fax number Address
02-23416969 02-23417070 No.20, Beiping E. Rd., Zhongzheng Dist., Taipei City 100, Taiwan
02-27491234 02-27495955 1F., No.16, Sec. 5, Nanjing E. Rd., Songshan Dist., Taipei City 105,
Taiwan
02-32340688 02-32340699 No.1, Ln. 359, Sec. 2, Zhongshan Rd., Zhonghe City, Taipei County
235, Taiwan
039-605007 039-600969 No.342-1, Guangrong Rd., Luodong Township, Yilan County 265,
Taiwan
038-312966 038-312977 No.87, Guolian 2nd Rd., Hualien City, Hualien County 970, Taiwan
03-4393119 03-4396589 5F., No.2, Nandong Rd., Pingzhen City, Taoyuan County 32455,
Taiwan (R.O.C.)
60
DS-860 User’s Guide
Where To Get Help
Telephone number Fax number Address
03-5325077 03-5320092 1F., No.9, Ln. 379, Sec. 1, Jingguo Rd., North Dist., Hsinchu City 300,
Taiwan
04-23011502 04-23011503 3F., No.30, Dahe Rd., West Dist., Taichung City 40341, Taiwan
(R.O.C.)
04-23805000 04-23806000 No.530, Sec. 4, Henan Rd., Nantun Dist., Taichung City 408, Taiwan
05-2784222 05-2784555 No.463, Zhongxiao Rd., East Dist., Chiayi City 600, Taiwan
06-2221666 06-2112555 No.141, Gongyuan N. Rd., North Dist., Tainan City 704, Taiwan
07-5520918 07-5540926 1F., No.337, Minghua Rd., Gushan Dist., Kaohsiung City 804, Taiwan
07-3222445 07-3218085 No.51, Shandong St., Sanmin Dist., Kaohsiung City 807, Taiwan
08-7344771 08-7344802 1F., No.113, Shengli Rd., Pingtung City, Pingtung County 900,
Taiwan
Help for Users in Australia
Epson Australia wishes to provide you with a high level of customer service. In addition to your product
documentation, we provide the following sources for obtaining information:
Your Dealer
Don’t forget that your dealer can often help identify and resolve problems. The dealer should always be the first call for
advise on problems; they can often solve problems quickly and easily as well as give advise on the next step to take.
Internet URL http://www.epson.com.au
Access the Epson Australia World Wide Web pages. Worth taking your modem here for the occasional surf! The site
provides a download area for drivers, Epson contact points, new product information and technical support (e-mail).
Epson Helpdesk
Epson Helpdesk is provided as a final backup to make sure our clients have access to advice. Operators on the Helpdesk
can aid you in installing, configuring and operating your Epson product. Our Pre-sales Helpdesk staff can provide
literature on new Epson products and advise where the nearest dealer or service agent is located. Many types of queries
are answered here.
The Helpdesk numbers are:
Phone: 1300 361 054
Fax: (02) 8899 3789
We encourage you to have all the relevant information on hand when you ring. The more information you prepare, the
faster we can help solve the problem. This information includes your Epson product documentation, type of
computer, operating system, application programs, and any information you feel is required.
61
DS-860 User’s Guide
Where To Get Help
Help for Users in Singapore
Sources of information, support, and services available from Epson Singapore are:
World Wide Web (http://www.epson.com.sg)
Information on product specifications, drivers for download, Frequently Asked Questions (FAQ), Sales Enquiries,
and Technical Support via e-mail are available.
Epson HelpDesk (Phone: (65) 6586 3111)
Our HelpDesk team can help you with the following over the phone:
❏ Sales enquiries and product information
❏ Product usage questions or problems
❏ Enquiries on repair service and warranty
Help for Users in Thailand
Contacts for information, support, and services are:
World Wide Web (http://www.epson.co.th)
Information on product specifications, drivers for download, Frequently Asked Questions (FAQ), and e-mail are
available.
Epson Hotline (Phone: (66)2685-9899)
Our Hotline team can help you with the following over the phone:
❏ Sales enquiries and product information
❏ Product usage questions or problems
❏ Enquiries on repair service and warranty
Help for Users in Vietnam
Contacts for information, support, and services are:
Epson Hotline (Phone):84-8-823-9239
Service Center: 80 Truong Dinh Street, District 1, Hochiminh City
Vietnam
62
DS-860 User’s Guide
Where To Get Help
Help for Users in Indonesia
Contacts for information, support, and services are:
World Wide Web (http://www.epson.co.id)
❏ Information on product specifications, drivers for download
❏ Frequently Asked Questions (FAQ), Sales Enquiries, questions through e-mail
Epson Hotline
❏ Sales enquiries and product information
❏ Technical support
Phone (62) 21-572 4350
Fax (62) 21-572 4357
Epson Service Center
Jakarta Mangga Dua Mall 3rd floor No 3A/B
Jl. Arteri Mangga Dua,
Jakarta
Phone/Fax: (62) 21-62301104
Bandung Lippo Center 8th floor
Jl. Gatot Subroto No.2
Bandung
Phone/Fax: (62) 22-7303766
Surabaya Hitech Mall lt IIB No. 12
Jl. Kusuma Bangsa 116 – 118
Surabaya
Phone: (62) 31-5355035
Fax: (62)31-5477837
Yogyakarta Hotel Natour Garuda
Jl. Malioboro No. 60
Yogyakarta
Phone: (62) 274-565478
63
DS-860 User’s Guide
Where To Get Help
Medan Wisma HSBC 4th floor
Jl. Diponegoro No. 11
Medan
Phone/Fax: (62) 61-4516173
Makassar MTC Karebosi Lt. Ill Kav. P7-8
JI. Ahmad Yani No.49
Makassar
Phone: (62)411-350147/411-350148
Help for Users in Hong Kong
To obtain technical support as well as other after-sales services, users are welcome to contact Epson Hong Kong
Limited.
Internet Home Page
Epson Hong Kong has established a local home page in both Chinese and English on the Internet to provide users with
the following information:
❏ Product information
❏ Answers to Frequently Asked Questions (FAQs)
❏ Latest versions of Epson product drivers
Users can access our World Wide Web home page at:
http://www.epson.com.hk
Technical Support Hotline
You can also contact our technical staff at the following telephone and fax numbers:
Phone: (852) 2827-8911
Fax: (852) 2827-4383
Help for Users in Malaysia
Contacts for information, support, and services are:
World Wide Web (http://www.epson.com.my)
❏ Information on product specifications, drivers for download
❏ Frequently Asked Questions (FAQ), Sales Enquiries, questions through e-mail
64
DS-860 User’s Guide
Where To Get Help
Epson Trading (M) Sdn. Bhd.
Head Office.
Phone: 603-56288288
Fax: 603-56288388/399
Epson Helpdesk
❏ Sales enquiries and product information (Infoline)
Phone: 603-56288222
❏ Enquiries on repair services & warranty, product usage and technical support (Techline)
Phone: 603-56288333
Help for Users in India
Contacts for information, support, and services are:
World Wide Web (http://www.epson.co.in)
Information on product specifications, drivers for download, and products enquiry are available.
Epson India Head Office - Bangalore
Phone: 080-30515000
Fax: 30515005
Epson India Regional Offices:
Location Telephone number Fax number
Mumbai 022-28261515 /16/17 022-28257287
Delhi 011-30615000 011-30615005
Chennai 044-30277500 044-30277575
Kolkata 033-22831589 / 90 033-22831591
Hyderabad 040-66331738/ 39 040-66328633
Cochin 0484-2357950 0484-2357950
Coimbatore 0422-2380002 NA
Pune 020-30286000 /30286001/30286002 020-30286000
65
DS-860 User’s Guide
Where To Get Help
Location Telephone number Fax number
Ahmedabad 079-26407176 / 77 079-26407347
Helpline
For Service, Product info or to order a cartridge - 18004250011 (9AM - 9PM) - This is a Toll-free number.
For Service (CDMA & Mobile Users) - 3900 1600 (9AM - 6PM) Prefix local STD code
Help for Users in the Philippines
To obtain technical support as well as other after sales services, users are welcome to contact the Epson Philippines
Corporation at the telephone and fax numbers and e-mail address below:
Trunk Line: (63-2) 706 2609
Fax: (63-2) 706 2665
Helpdesk Direct Line: (63-2) 706 2625
E-mail:
World Wide Web (http://www.epson.com.ph)
Information on product specifications, drivers for download, Frequently Asked Questions (FAQ), and E-mail
Enquiries are available.
Toll-Free No. 1800-1069-EPSON(37766)
Our Hotline team can help you with the following over the phone:
❏ Sales enquiries and product information
❏ Product usage questions or problems
❏ Enquiries on repair service and warranty
epchelpdesk@epc.epson.com.ph
66
DS-860 User’s Guide
Technical Specifications
Technical Specifications
System Requirements
Make sure your system meets the requirements in these sections before using it with your product.
System Microsoft Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP Home
Edition, Windows XP Professional Edition, Windows XP Professional x64 Edition, Windo ws
Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003
Interface external USB port (Type A) built into the main board
Display
Color monitor with 800 × 600 screen resolution or higher, and 24-bit (Full Color) color
(Color and tone reproduction are subject to the display capability of your computer
system, including the video card, display monitor, and software. See your system
documentation for details.)
Product Specifications
Note:
Specifications are subject to change without notice.
General
Scanner type Sheet Feed, one pass duplex A4 color scanner
Photoelectric device CIS
Effective pixels
Document size
5,100 × 8,400 pixels at 600 dpi
Max: 215.9 × 3048 mm
(8.5 × 120 inches)
Min: 50.8 × 50.8 mm
(2.0 × 2.0 inches)
Paper input Face-down loading
Paper output Face-down ejection
Paper capacity 80 sheets of paper at 80 g/m
Scanning resolution 600 dpi (main scan)
600 dpi with Micro Step (sub scan)
Output resolution 75, 100, 150, 200, 240, 300, 400, 600, 1200 dpi (in increments of 1 dpi)
67
DS-860 User’s Guide
Technical Specifications
Image data 16 bits per pixel per color internal
1 bit, 8 bits per pixel per color external
Interface One Hi-speed USB port
Light source RGB LED
Mechanical
Dimensions Width: 300.0 mm (11.8 inches)
Depth: 166.0 mm (6.5 inches)
Height: 158.0 mm (6.2 inches)
* Not including input tray
Weight Approx. 4.0 kg (8.8 lb)
Electrical
Product
Rated input current 2.00 A
Rated input voltage DC 24 V
Rated input frequency 50 to 60 Hz
Power consumption Approx. 42.0 W Operating
Approx. 8.0 W Ready Mode
Approx. 1.6 W Sleep Mode
Approx. 0.4 W Power off
Note:
Power consumption varies depending on operating conditions and whether an option is installed.
AC Adapter
AC adapter model A421H
Rated input voltage AC 100 to 240 V
Rated input current AC 1.20 A
Rated input frequency 50 to 60 Hz
Rated output voltage DC 24 V
Rated output current 2.00 A
68
DS-860 User’s Guide
Technical Specifications
Note:
Check the label on the AC adapter or on the back of the product for voltage information.
Environmental
Temperature Operating 5 to 35 °C (41 to 95 °F)
Storage –25 to 60 °C (–13 to 140 °F)
Humidity Operating 10 to 80%, without condensation
Storage 10 to 85%, without condensation
Operating conditions Ordinary office or home conditions.
Avoid operating the product in direct sunlight, near a strong light source, or in extremely
dusty conditions.
Interfaces
USB Interface
Interface type Universal Serial Bus Specification Revision 2.0
Electrical standard Full Speed mode (12 Mbits per second) and Hi-Speed mode (480 Mbits per second) of
Universal Serial Bus Specification Revision 2.0.
Connector type One Type B port
Standards and approvals
Product
U.S. model:
EMC FCC Part 15 Subpart B Class B
CAN/CSA-CEI/IEC CISPR22 Class B
European model:
EMC Directive 2004/108/EC EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
Australian model:
EMC AS/NZS CISPR22 Class B
69
DS-860 User’s Guide
Technical Specifications
AC adapter
U.S. model:
Safety UL60950-1
CAN/CSA-C22.2 No. 60950-1
EMC FCC Part 15 Subpart B Class B
CAN/CSA-CEI/IEC CISPR22 Class B
European model:
Low Voltage Directive 2006/95/EC EN 60950-1
EMC Directive 2004/108/EC EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
Australian model:
Safety AS/NZS 60950.1
EMC AS/NZS CISPR22 Class B
70
Loading...
