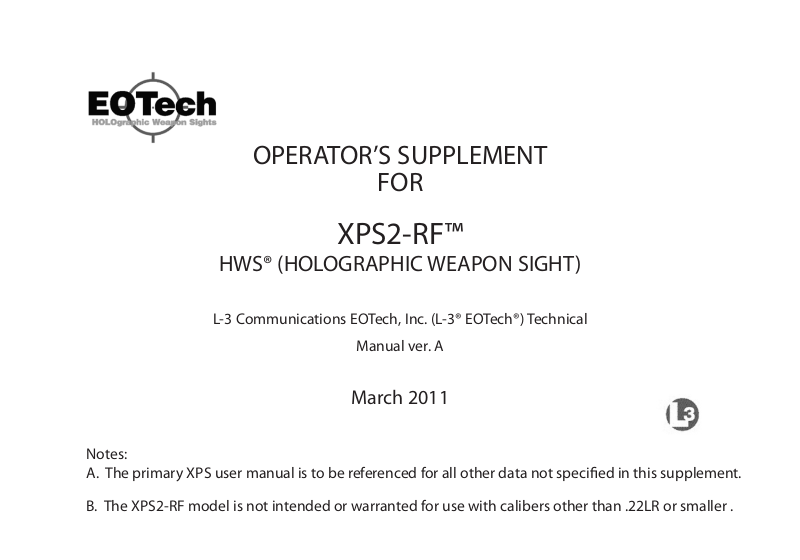

OPERATOR’S SUPPLEMENT
FOR
XPS2-RF™
HWS® (HOLOGRAPHIC WEAPON SIGHT)
L-3 Communications EOTech, Inc. (L-3® EOTech®) Technical
Manual ver. A
March 2011
Notes:
A. The primary XPS user manual is to be referenced for all other data not specied in this supplement.
B. The XPS2-RF model is not intended or warranted for use with calibers other than .22LR or smaller .
XPS2-RF Equipment Description
Operation
• Optics: Transmission holography – Parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 3.5”x2”x2.2” (91.4 x 50.8 x 55.8mm)
• Weight: 7.0 oz (197g)
• Temperature: -40 to 150 F (-40 to 65° C)
• Waterproof: Resistant
• Sealing: Fogproof internal optics
• Color/Finish: Non-reflective black
• Adjustment (per click): 0.5 MOA (1/2” (12.7mm) at 100 yds (91m))
• Adjustment Range: +/- 40 MOA travel
• Mount: 3/8” Dovetail (does not work with 1” Weaver or Mil-Std 1913 rails).
• Return to Zero: Repeatable up to 2 MOA after re-mounting
• Reticle Options: 0- 65MOA circle with quadrant ticks with 1 MOA aiming dot
• Protective Hood: None
• This commodity is controlled under the Export Administration Regulations (EAR), ECCN 0A987, and may not be exported to a
Foreign Person, either U.S. or abroad, without a license or exception from the U.S. Department of Commerce.
MOUNTING
The XPS2-RF™ is equipped with an integrated base designed to attach to a 3/8”
(9.5mm) dovetail rail. To achieve the best results and accuracy, the HWS® must be
mounted properly. To mount the sight, please follow these steps.
1. Turn the two cap screws counterclockwise to back
out weaver lock. Do not back the bolt all of the
way out of the lock, only enough for the base to sit
properly on the rail.
2. Turn the set screws clockwise, drawing the weaver
lock into the rail until the screw head is flush to the
weaver lock.
3. Using the 1/16 allen tool, rotate the cap screws an
additional 1/2 turn to fully tighten. This is equivalent to approximately 6 in-lb (0.07 kgm) of torque.
Note: This model is not intended or warranted for use
with calibers other than .22LR or smaller .
FACTORY REPLACEMENT ITEMS
Part number Description
XP1100 Threaded Battery Cap – 123 Lithium Battery
XP2020 Weaver Lock for 3/8” dovetail
REPLACEMENT PARTS COMMERCIALLY AVAILABLE
1/16” Allen Tool
#4-40 x 1/2” button cap screw
OUR PRODUCT IS PROUDLY MANUFACTURED IN THE
UNITED STATES OF AMERICA
