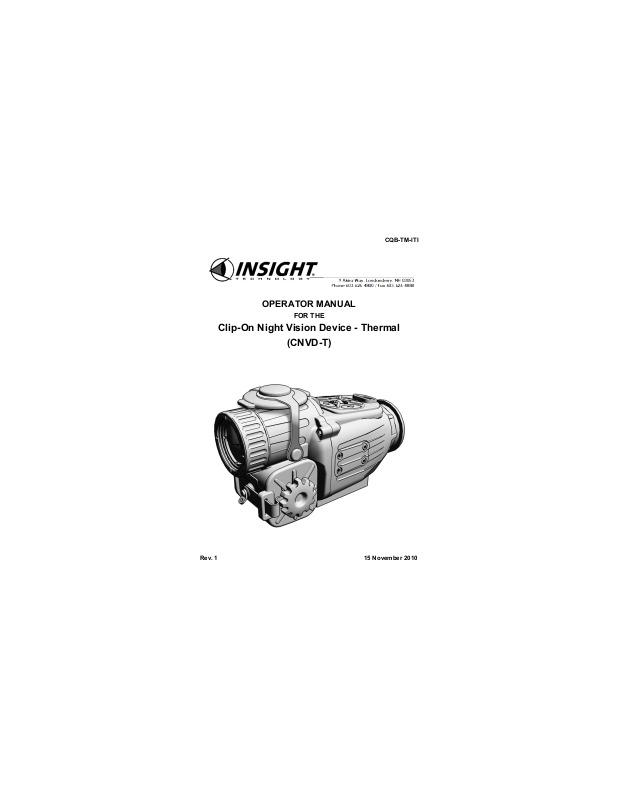

EOTech CNVD-T User Manual

OPERATOR MANUAL
FOR THE
Clip-On Night Vision Device - Thermal
(CNVD-T)
CQB-TM-ITI

SAFETY SUMMARY

1. GENERAL SAFETY INSTRUCTIONS
This manual contains operating instructions and maintenance procedures which may cause injury or death to personnel, or damage to equipment if not properly followed. Prior to performing any task, the WARNINGs, CAUTIONs and NOTEs included in that task shall be reviewed and understood.
2. WARNINGS, CAUTIONS AND NOTES
Safety headings used in this manual and their respective definitions are as follows:
WARNING..
Highlights an essential operating or maintenance procedure, practice, condition or statement, which, if not strictly observed, could result in injury to, or death of, personnel or long term health hazards.
CAUTION..
Highlights an essential operating or maintenance procedure, practice, condition or statement, which, if not strictly observed, could result in damage to, or destruction of, equipment or loss of mission effectiveness.
Highlights an essential operating or maintenance procedure, condition or statement.
NOTE
i
3. SAFETY PRECAUTIONS
The following general safety precautions supplement the specific WARNINGs, CAUTIONs and NOTEs that appear elsewhere in this manual.
3.1
Batteries . The Clip-On Night Vision Device – Thermal (CNVD-T) is powered by four lithium DL123A batteries. The following safety precautions apply when handling lithium batteries:
Do not short circuit, puncture, incinerate, or disassemble.
Do not attempt to recharge.
Prior to use, inspect all batteries for cracks, dents,
leakage, or bulging. Never install a defective battery in the CNVD-T.
WARNING..
Do not use the CNVD-T with a mix of old and new batteries, or batteries of different brands.
CAUTION..
Lithium batteries can explode or cause burns if disassembled, shorted, recharged, exposed to water, fire, or high temperatures (above 100°C or 212°F). Do not place loose batteries in a pocket or other container containing metal objects. Do not store batteries with hazardous or combustible materials. Store in a cool, dry, ventilated area.
ii
WARNING..
Use of incorrect batteries poses a risk of fire or explosion. Be aware that batteries do exist with similar physical characteristics to the DL123A battery, but with a different voltage and/or polarity path. Ensure that only 3V lithium batteries with a raised positive (+) terminal are installed in the CNVD-T.
WARNING..
Use of off-brand batteries poses a risk of fire or explosion. Ensure that only 3V lithium batteries produced by well-known battery manufacturers such as Duracell®, Rayovac®, or Panasonic® are installed in the CNVD-T. These batteries are specifically designed for use in high performance, high-drain devices, and contain built-in fault and heat protection features.
CAUTION..
Do not ship or store the CNVD-T with batteries installed.
3.2
Weapons Safety
. The CNVD-T is designed to be used with destructive weapon systems. Improper operation or misuse of the CNVD-T with these weapon systems could lead to personal injury or death of either the operator or other persons within weapons range. Safe firearms handling procedures must be practiced at all times.
iii
WARNING..
Remove the CNVD-T from the weapon before inspecting, cleaning, or performing other maintenance functions.
3.3
Operation and Maintenance
.
CAUTION..
Use of acetone or gun cleaning agents containing perchloroethylene or methylene chloride may permanently damage the CNVD-T system.
CAUTION..
Pointing the CNVD-T directly at the sun without the lens cover installed (and closed) may permanently damage the thermal assembly.
iv

TABLE OF CONTENTS

SAFETY SUMMARY ....................................................................... i
TABLE OF CONTENTS ................................................................. v
LIST OF FIGURES ....................................................................... vii
LIST OF TABLES ......................................................................... vii
CHAPTER 1 ...................................................................................... 1-1
INTRODUCTION ......................................................................... 1-1
SECTION I .............................................................................. 1-1
GENERAL INFORMATION ............................................... 1-1
1.1 SCOPE .................................................................. 1-1
1.2 MODEL NUMBER AND EQUIPMENT NAME ...... 1-1
1.3 MANUFACTURER ................................................ 1-2
1.4 PURPOSE OF EQUIPMENT ................................ 1-2
1.5. ABBREVIATIONS AND ACRONYMS ................. 1-2
SECTION II ............................................................................. 1-3
EQUIPMENT DESCRIPTION ........................................... 1-3
1.6 SYSTEM DESCRIPTION ...................................... 1-3
1.7 TECHNICAL SPECIFICATIONS .......................... 1-4
CHAPTER 2 ...................................................................................... 2-1
1.8 LIST OF MAJOR COMPONENTS ........................ 1-5
OPERATING INSTRUCTIONS ................................................... 2-1
SECTION I .............................................................................. 2-1
PREPARATION FOR USE AND INSTALLATION ............ 2-1
2.1 PREPARATION FOR USE ................................... 2-1
2.2 BATTERY HANDLING .......................................... 2-1
2.3 MOUNTING INSTRUCTIONS .............................. 2-3
2.4 OBJECTIVE LENS AND EYEPIECE .................... 2-5
SECTION II ............................................................................. 2-7
OPERATING PROCEDURES ........................................... 2-7
2.5 CONTROLS AND ADJUSTMENTS ...................... 2-7
2.6 POWER ................................................................. 2-8
2.7 BUTTON FUNCTIONS ......................................... 2-8
2.8 BRIGHTNESS ADJUSTMENT ............................. 2-9
2.9 GAIN (CONTRAST) ADJUSTMENT................... 2-10
2.10 FOCUS ADJUSTMENT .................................... 2-11
2.11 STARTUP PROCEDURES ............................... 2-12
2.12 MENU FUNCTIONS ......................................... 2-12
2.13 SHUTDOWN PROCEDURES .......................... 2-20
v
TABLE OF CONTENTS (cont'd)
2.14 EXTERNAL MONITOR ..................................... 2-20
SECTION III .......................................................................... 2-22
ZEROING PROCEDURES ............................................. 2-22
CHAPTER 3 ...................................................................................... 3-1
APPENDIX A.................................................................................... A-1

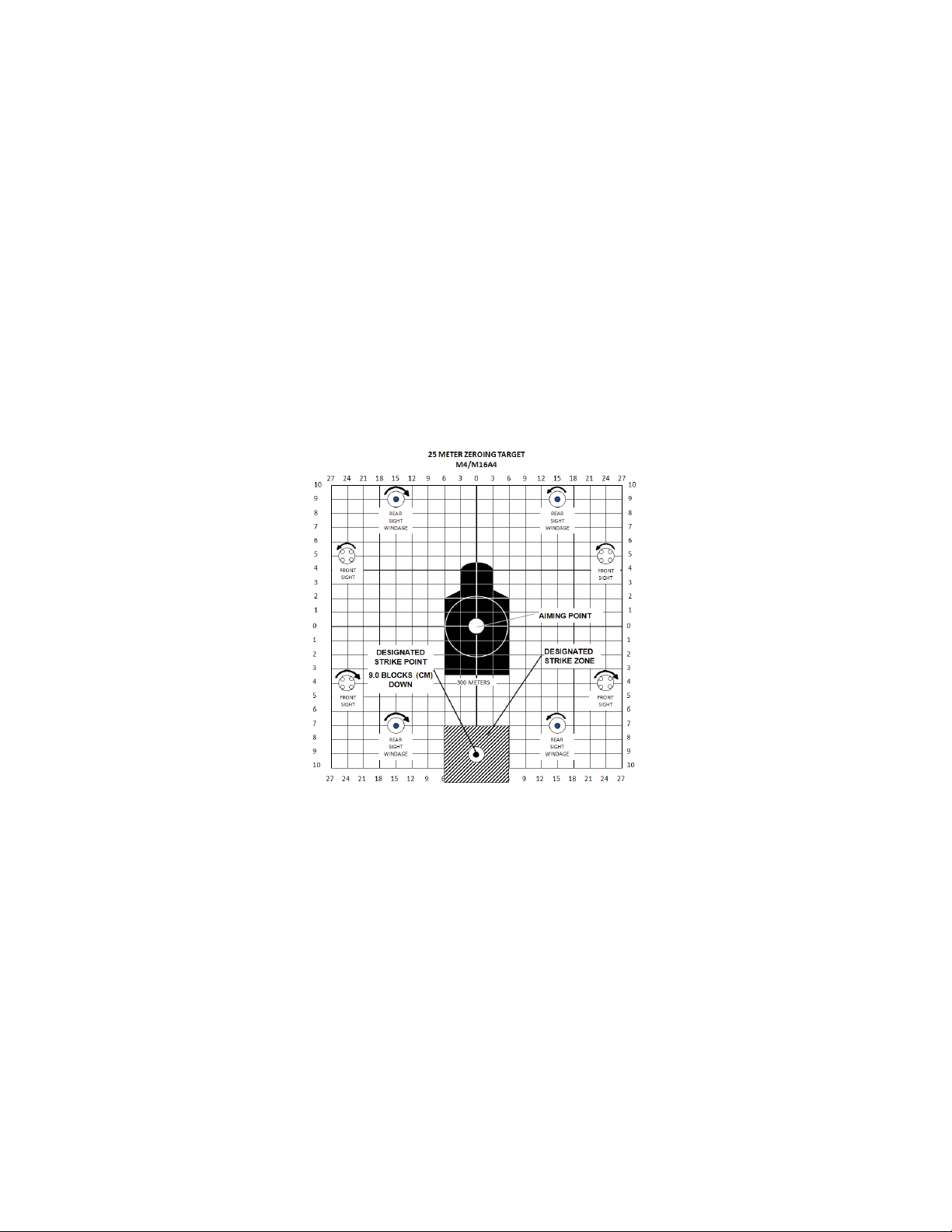

2.15 ZEROING ON A 25-METER RANGE ............... 2-22
MAINTENANCE AND SERVICING ............................................ 3-1
SECTION I .............................................................................. 3-1
MAINTENANCE AND TROUBLESHOOTING .................. 3-1
3.1 MAINTENANCE PROCEDURES ......................... 3-1
3.2 TROUBLESHOOTING PROCEDURES ............... 3-2
3.3 CORRECTIVE MAINTENANCE PROCEDURES 3-3
SECTION II ............................................................................. 3-9
SERVICE / PACKING AND UNPACKING ........................ 3-9
3.4 RETURN INSTRUCTIONS ................................... 3-9
3.5 WARRANTY INFORMATION ............................. 3-10
3.6 NON-WARRANTY INFORMATION .................... 3-10
REPAIR PARTS / ACCESSORIES ........................................... A-1
A.1 Scope ................................................................... A-1
vi

LIST OF FIGURES

Figure 1-1 Clip-On Night Vision Device – Thermal (CNVD-T) ........ 1-1
Figure 1-2 CNVD-T Major Components Figure 2-1 Battery Installation Figure 2-2 Throw-Lever Mount Figure 2-3 CNVD-T Mounted with ACOG® Figure 2-4 CNVD-T Controls and Adjustments Figure 2-5 Brightness Control Figure 2-6 Contrast (Gain) Control Figure 2-7 Main Menu Figure 2-8 Menu – ZOOM 1X / ZOOM 2X Figure 2-9 Menu – Polarity (POL) Figure 2-10 Menu – Calibration (CAL) Figure 2-11 Menu – Reticle Intensity (RETINT) Figure 2-12 Reticle Intensity Control Figure 2-13 Menu – Reticle (RET) Control Figure 2-14 Reticle Position Adjustment Figure 2-15 Menu – RS170 / VGA Figure 2-16 Menu - Exit Figure 2-17 Video Cable Figure 3-1 Replacing Objective Lens Cover Figure 3-2 Replacing battery Door Lanyard Figure 3-3 Replacing Video Jack Plug Assembly

LIST OF TABLES

Table 1-1 Technical Specifications .................................................. 1-4
Table 1-2 CNVD-T Major Components Table 2-1 Reticle Adjustments Table A-1 Repair Parts / Accessories
.......................................... 1-5
.......................................................... 2-2
........................................................ 2-3
..................................... 2-5
............................... 2-7
.......................................................... 2-9
................................................ 2-10
.................................................................... 2-12
..................................... 2-13
.................................................. 2-14
........................................... 2-15
............................ 2-16
............................................. 2-16
.................................... 2-17
....................................... 2-18
................................................. 2-18
................................................................. 2-19
................................................................ 2-20
.................................... 3-5
.................................... 3-7
............................ 3-8
........................................... 1-5
....................................................... 2-22
............................................. A-1
vii
viii
CHAPTER 1

INTRODUCTION

SECTION I

GENERAL INFORMATION

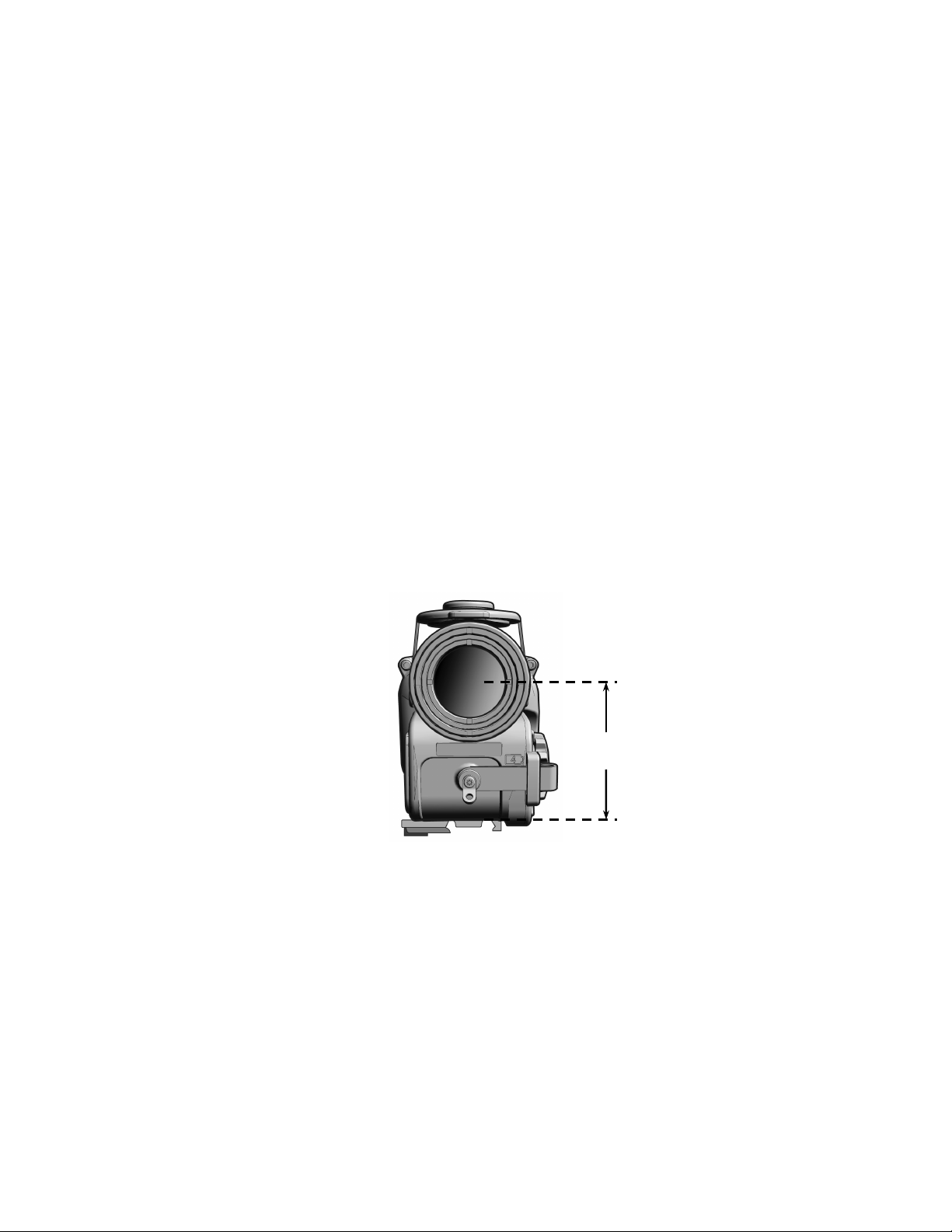

Figure 1-1 Clip-On Night Vision Device – Thermal
(CNVD-T)
1.1 SCOPE
This manual is intended for use by operators of the Clip-On Night Vision Device - Thermal (CNVD-T). It provides a system description, operational procedures, and maintenance responsibilities. Complete familiarization with this manual prior to using the equipment will ensure safe operation and maximum effectiveness of the CNVD-T.
1.2 MODEL NUMBER AND EQUIPMENT NAME
CQB-001-A7, Clip-On Night Vision Device – Thermal (CNVD-T)
1-1
1.3 MANUFACTURER
ACOG®
Advanced Combat Optical Gunsight
AZ
Azimuth
BNC
Bayonet Neill-Concelman
cm
Centimeter
CNVD-T
Clip-On Night Vision Device - Thermal
EL
Elevation
F
Fahrenheit
m
Meter
NSN
National Stock Number
RCO
Rifle Combat Optic
RMA
Return Material Authorization
V
Volt
VGA
Video Graphics Array
L-3 Insight Technology Incorporated 9 Akira Way Londonderry, NH 03053 USA
1.4 PURPOSE OF EQUIPMENT
The CNVD-T is a handheld or weapon-mounted thermal imaging device that allows for observation, target identification, and passive target acquisition during the day or in adverse conditions such as light rain, light snow, dry smoke, and low light to total darkness.
1.5. ABBREVIATIONS AND ACRONYMS
Abbreviations and acronyms used in this manual are spelled out the first time they appear. For reference purposes, they are also listed as follows:
C Celsius
ITAR International Traffic in Arms Regulations
TBD To Be Determined
1-2

EQUIPMENT DESCRIPTION

SECTION II

1.6 SYSTEM DESCRIPTION
The CNVD-T is a battery operated, handheld or weapon­mounted, thermal imaging device. It allows for observation, target identification, and target acquisition during the day or in adverse conditions such as light rain, light snow, dry smoke, and low light to total darkness. The unit will not allow the user to see through glass, water, or heavy rain / snow.
The CNVD-T detects and displays available thermal signatures to provide rapid cueing to the operator of potential targets or danger. The sight is passive and does not emit visible or infrared light (except from the eyepiece) that can be detected by the enemy.
The CNVD-T can be mounted to weapons equipped with a MIL-STD-1913 rail. It may also be used in conjunction with other optical and red dot sights.
It is a ruggedized system designed for operation in battlefield environments.
1-3
1.7 TECHNICAL SPECIFICATIONS
WEIGHT AND DIMENSIONS
Length
6.0 inches (15.2 cm)
Width
2.7 inches (6.9 cm)
Height
3.3 inches (8.4 cm)
POWER
Batteries
4 DL123A lithium batteries
* Battery Life
7.25 hours continuous operation
DETECTION PARAMETERS**
Stationary
Moving
Detection
420m
560m
Recognition
165m
220m
Identification
62m
90m
OTHER PARAMETERS
Field of View
25° diagonal
Operating
Storage Immersion
66 feet (20m) for 2 hours
Table 1-1 Technical Specifications
Weight (with batteries)
Temperatures
Temperatures
< 22.4 ounces (635 grams)
-25° F (-32°C) to +122°F (+50°C)
-40° F (-40°C) to +160°F (+71°C)
*
Performance will vary depending on actual environmental and atmospheric conditions.
Provides detection ranges for a man-size target.
**
1-4
Major
Component
1
CNVD-T
A thermal imaging device used for
light to total darkness.
1 2 3
6
7
8
9
1.8 LIST OF MAJOR COMPONENTS
The CNVD-T system includes the components shown in Figure 1-2. Table 1-2 provides a brief functional description of each item. The “Key” column in Table 1-2 corresponds to the label numbers in Figure 1-2.
Key
10
11
5
Figure 1-2 CNVD-T Major Components
Table 1-2 CNVD-T Major Components
Function
Assembly
observation, target identification, and passive target acquisition during the day or in adverse conditions such as light rain, light snow, dry smoke, and low
4
1-5
Key
Major
Component
2
Soft Carrying
Protects the CNVD-T and accessories
3
Operator Manual
Provides detailed operating and
CNVD-T.
4
Quick Reference Guide
Provides at-a-glance operating procedures for the CNVD-T.
5
of the CNVD-T.
DL123A
to power the CNVD-T.
7
Box Wrench, 3/8”
Used to adjust the tension of the throw-
8
Night Vision
When attached, prevents fogging of the
9

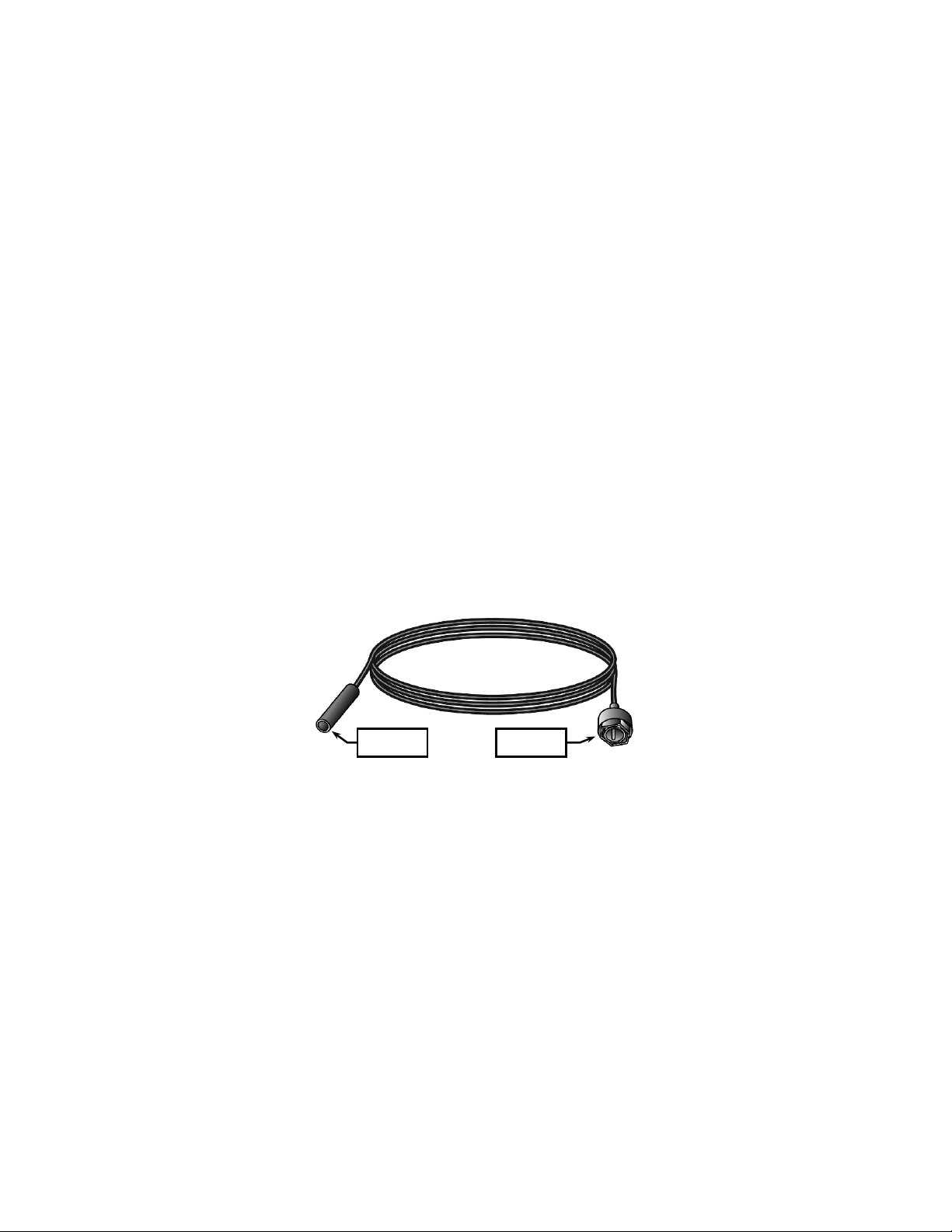

Video Cable
Allows for viewing the CNVD-T thermal image on an external monitor.
10
Removable
stray light from the eyepiece.
mounted in-line with other optical sights.
Function
Case
Lens Cleaning Kit A lens brush, lens tissue, and anti-fog
6
Batteries,
Spectrum Filter
Eye Cup,
11
Interface Hood
while in a field environment.
maintenance instructions specific to the
solution used to clean the optical lenses
Four 3V DL123A lithium batteries used
lever mounting bracket.
eyepiece and reduces backlighting and loss of night vision in low light environments.
When attached, reduces emission of
Used to improve light security and image quality when the CNVD-T is
1-6
CHAPTER 2

OPERATING INSTRUCTIONS

PREPARATION FOR USE AND INSTALLATION

2.1 PREPARATION FOR USE
2.1.1
Unpacking the Equipment . Before unpacking the equipment, verify that all major components listed in Table 1-2 are present. Check the CNVD-T assembly to ensure the following additional items are included:
a. Battery Door
b. Objective Lens Cover
c. Video Jack Plug
If any of the major components or items listed above are missing, seek guidance from the equipment issuing authority.
2.1.2
Inspection of the Equipment pieces of equipment for any damage such as cracks, loose parts, faulty cables, or other visible defects. If any damage or defects are noted, seek guidance from the equipment issuing authority.
2.2 BATTERY HANDLING
2.2.1
Battery Inspection batteries for any cracks, dents, leakage, or bulging. Never install a defective battery in the CNVD-T.

SECTION I

. Before use, inspect all
. Before installation, inspect the
2-1
2.2.2 Battery Installation
. Open the battery compartment by turning the thumbscrew located in the center of the battery door counterclockwise. Install four DL123A lithium batteries with the positive ends facing up as shown in Figure 2-1. Reseat the battery door on the battery compartment and tighten the thumbscrew by turning clockwise until snug.

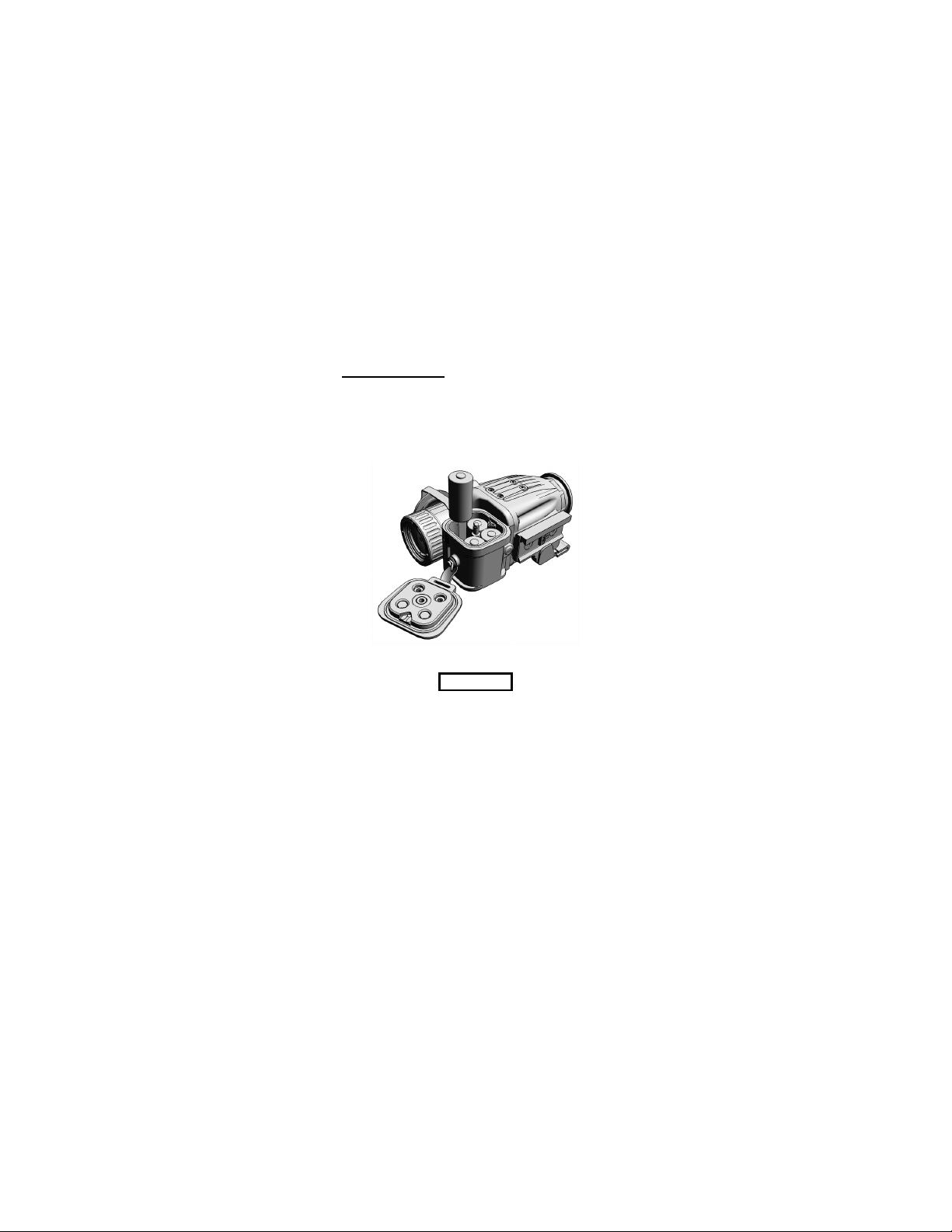

Figure 2-1 Battery Installation
CAUTION..
Do not ship or store the CNVD-T with batteries installed.
NOTE
The CNVD-T may be powered by as few as two DL123A lithium batteries. If installing only two batteries, they must occupy slots in the battery compartment that are diagonally across from each other. Operating the CNVD-T with less than four batteries will result in significantly reduced battery run time.
2-2
Throw-Lever
2.2.3 Low Battery Power
. A low battery message will appear in the eyepiece display when approximately 20 minutes of continuous operation remain. If the batteries are not replaced promptly when the “LOW POWER” message appears, the display quality will deteriorate rapidly.
2.3 MOUNTING INSTRUCTIONS
The CNVD-T is equipped with a throw-lever mounting bracket that is designed for direct attachment to weapons with a MIL-STD-1913 rail.
Recoil Lug

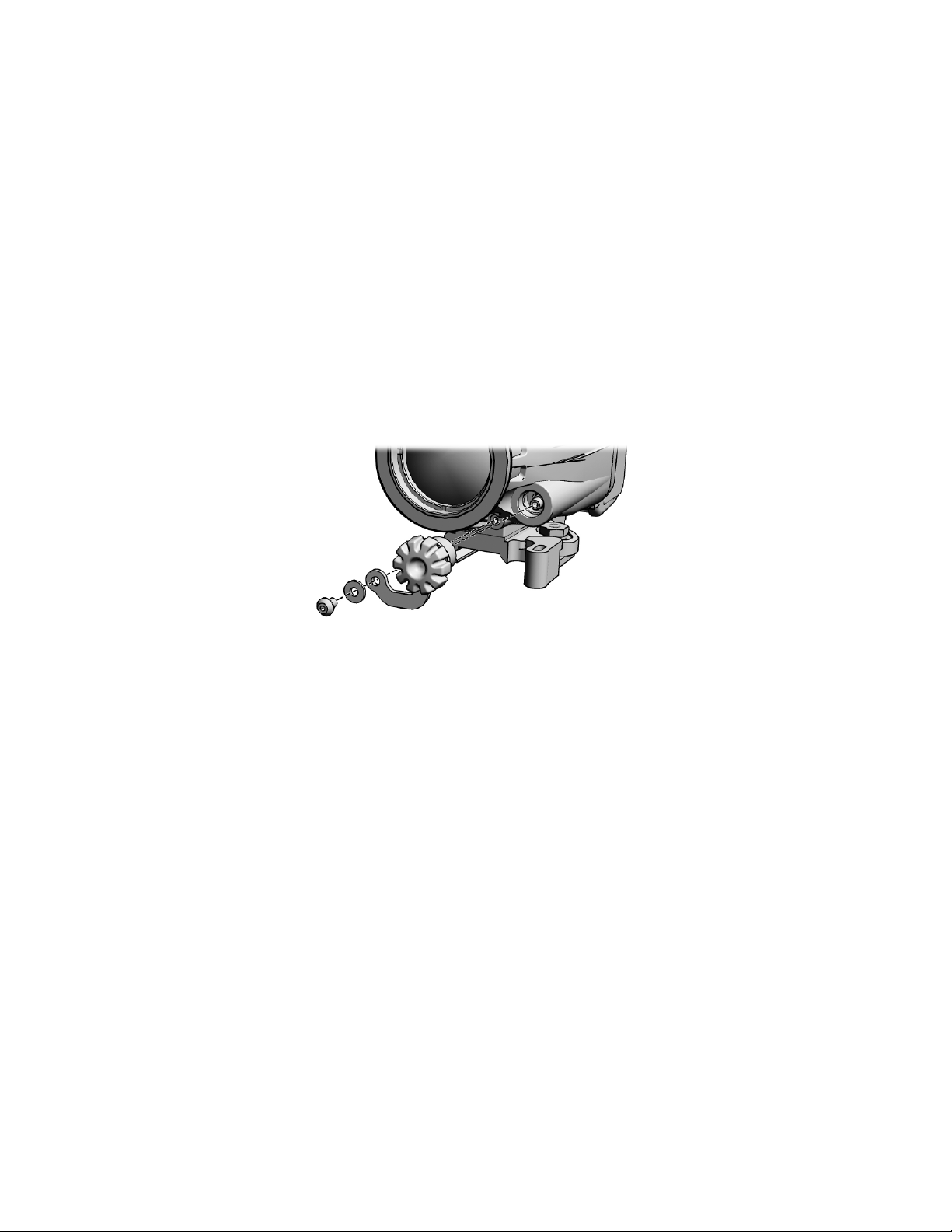

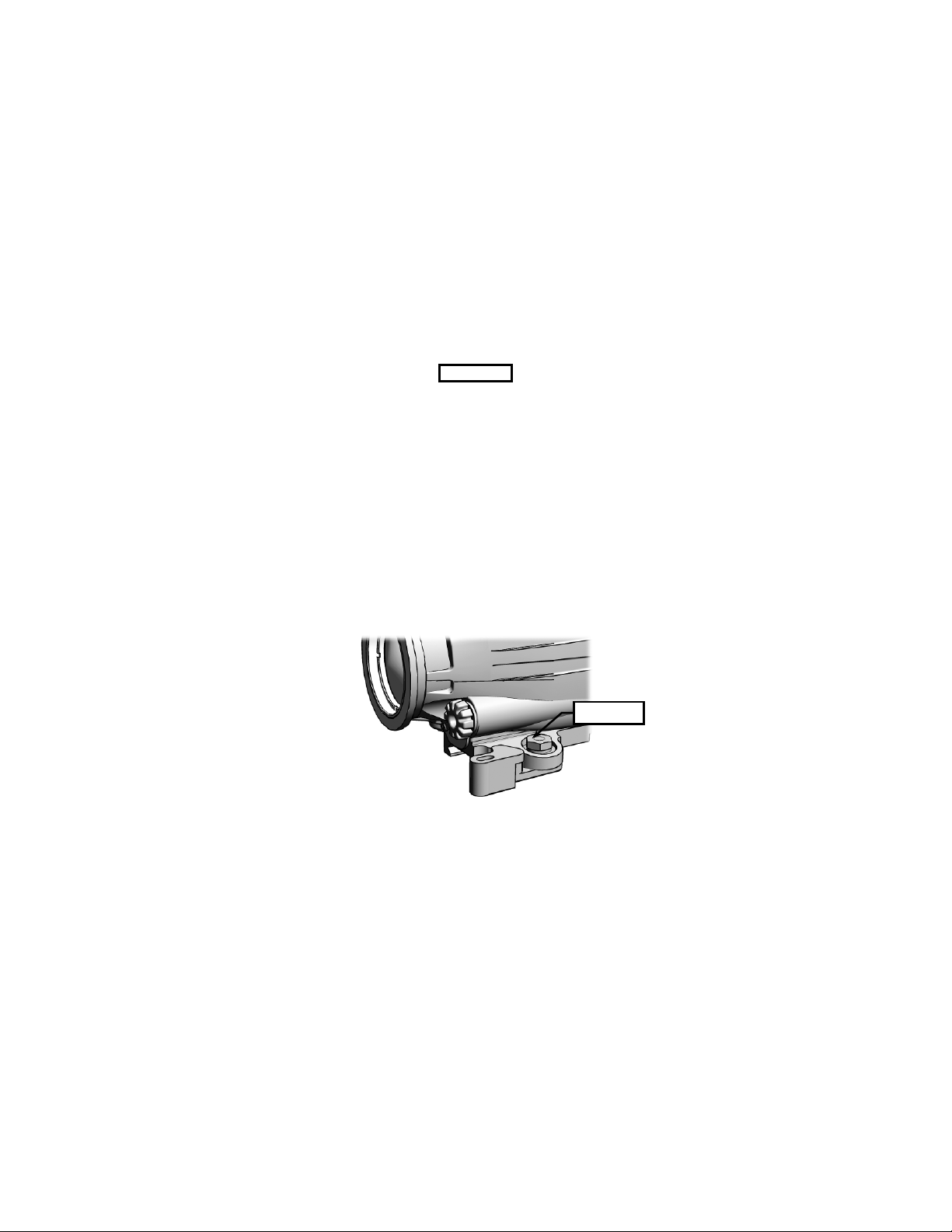

Figure 2-2 Throw-Lever Mounting Bracket
Lever Lock
2.3.1
Mounting Procedures
.
WARNING..
Be sure the weapon is CLEAR and SAFE before proceeding.
2-3
NOTE
The CNVD-T may be placed at any position (forward and aft) on the rail that is most convenient for the operator. If, however, the CNVD-T is removed from the rail, the operator should note the position at which it was zeroed, and return it to that same position to ensure that zero is retained.
a. Pull the lever lock out to the full open position.
b. Swing the throw-lever toward the front (objective
lens) of the CNVD-T to allow the mounting bracket sufficient space to fit over the MIL-STD-1913 rail.
c. Position the mounting bracket over the rail ensuring
that the recoil lug is properly seated in one of the rail’s recoil grooves.
CAUTION..
If too much or too little force is required to perform step d., the throw-lever must be adjusted to properly secure to the rail of the host weapon. See paragraph 3.3.1 for adjustment procedures.
d. While pushing down and forward on the CNVD-T,
swing the throw-lever toward the back (eyepiece) of the CNVD-T until it is snug against the mounting bracket.
e. Push the lever lock in to engage the locking
mechanism.
2-4
2.3.2 Mounting with Other Optics
. When mounting the CNVD-T in-line with a day optic, first stretch the interface hood over the eyepiece of the CNVD-T. Mount the day optic to the rail in accordance with manufacturer’s instructions. Mount the CNVD-T to the weapon rail (in front of the optical sight) per paragraph 2.3.1. Ensure the interface hood covers the objective lens of the optic (see Figure 2-3).

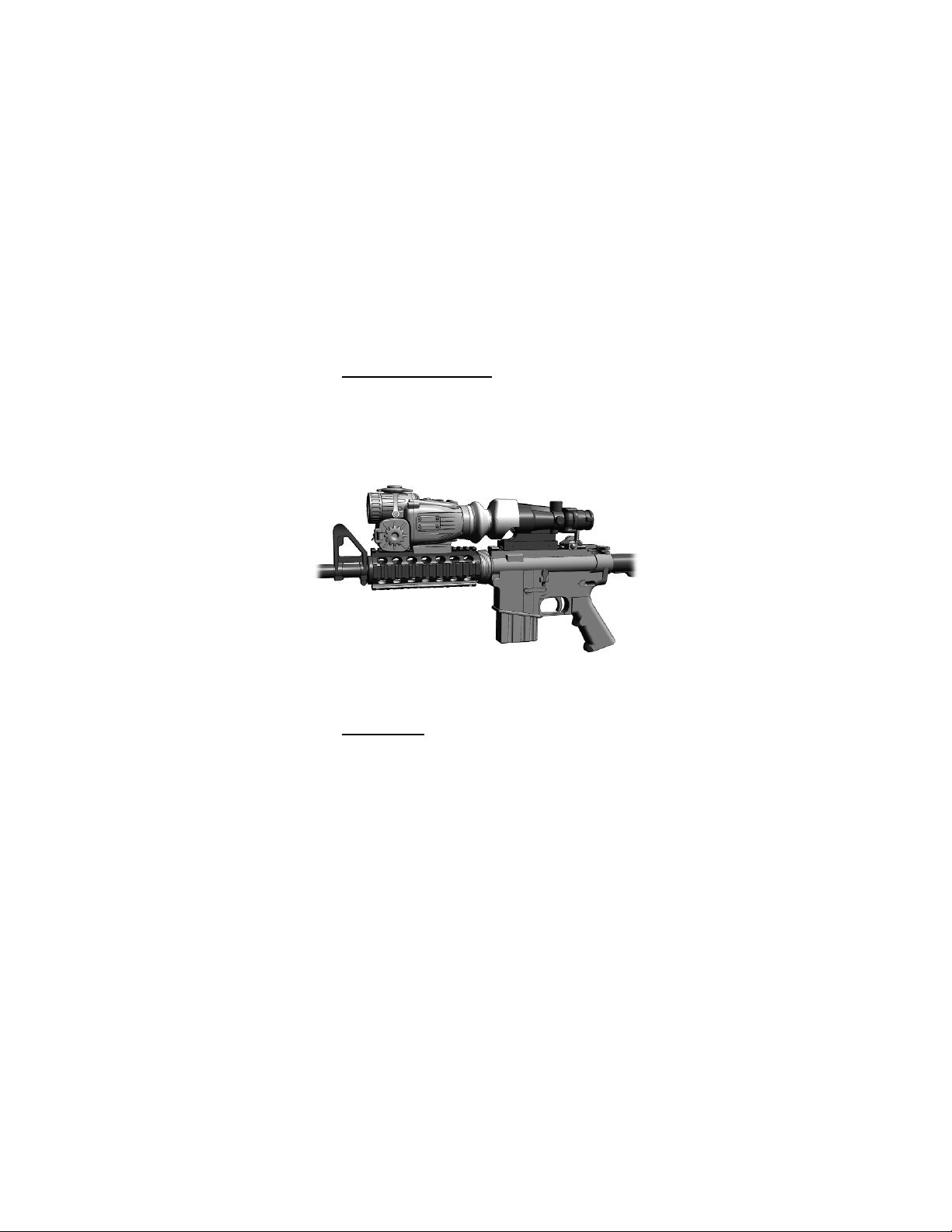

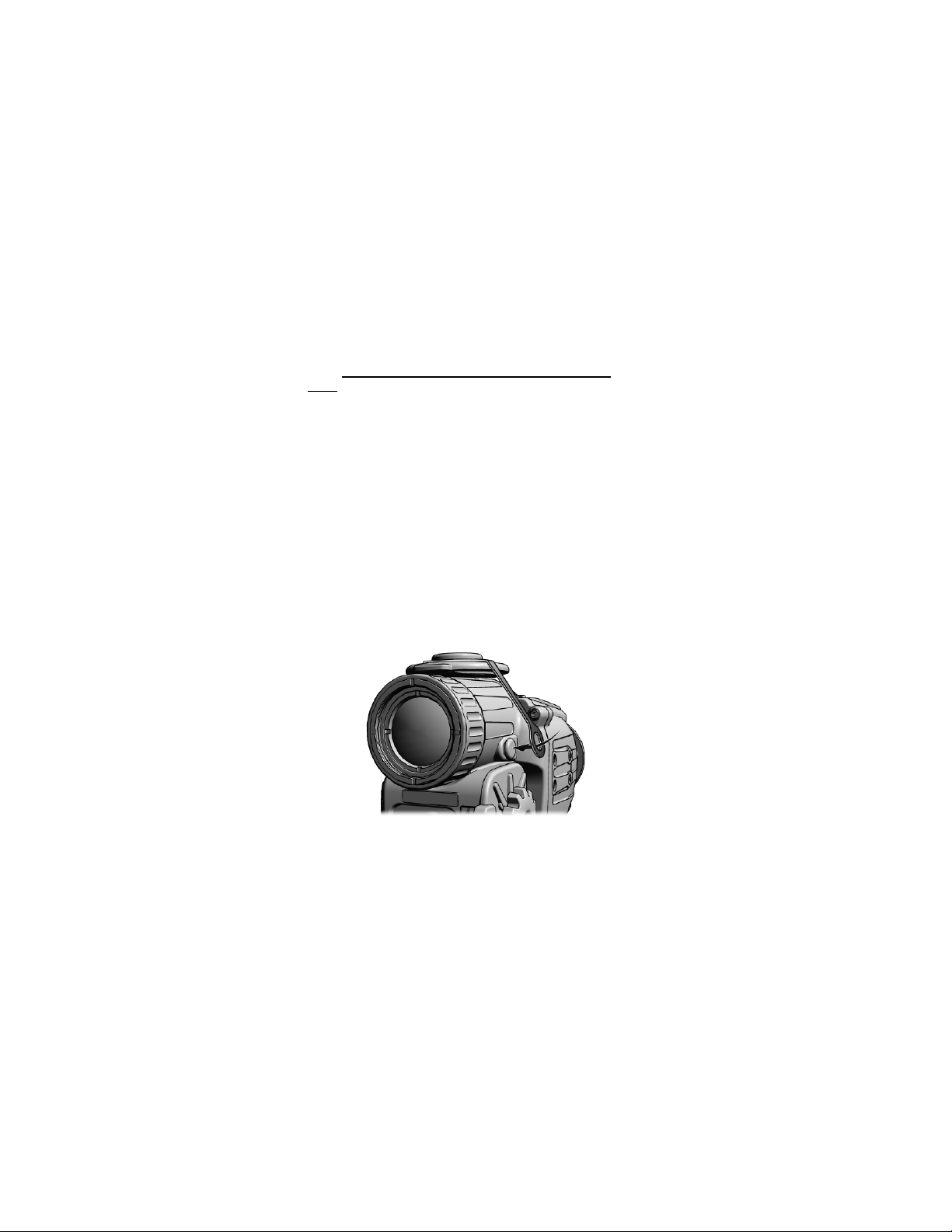

Figure 2-3 CNVD-T Mounted with ACOG®
2.4 OBJECTIVE LENS AND EYEPIECE
2.4.1
Objective Lens
. Whenever the CNVD-T is not being used, the objective lens cover should be pulled down over the objective lens to protect it from possible damage. The objective lens cover should also be installed when calibrating the CNVD-T (see paragraph 2.12.3).
2-5
2.4.2 Eyepiece . The eyepiece assembly may be fitted with one or both of the following components:
2.4.2.1 When installed, the night vision spectrum filter prevents fogging of the eyepiece, and reduces backlighting and loss of night vision in low light environments. The filter / shield is installed as follows:
a. Place the filter / shield over the eyepiece with the
threaded side down.
b. Carefully turn the filter / shield clockwise to screw it
into the eyepiece assembly.
c. Tighten until snug.
2.4.2.2 When attached, the eyecup reduces emission of stray light from the eyepiece. To install, stretch the base of the eyecup into place over the eyepiece assembly. Rotate the eyecup to obtain a proper eye socket and cheek weld.
2-6
RIGHT
DOWN
Video Jack /
MENU / ZOOM

OPERATING PROCEDURES

SECTION II

2.5 CONTROLS AND ADJUSTMENTS
Figure 2-4 shows the features and controls for the CNVD-T. This section provides details regarding their function and operation.
Objective
Lens Cover
UP
Button
LEFT
Button
Button
Eyepiece
Assembly
Objective
Focus Ring
Button
Button
POWER
Button
Jack Plug

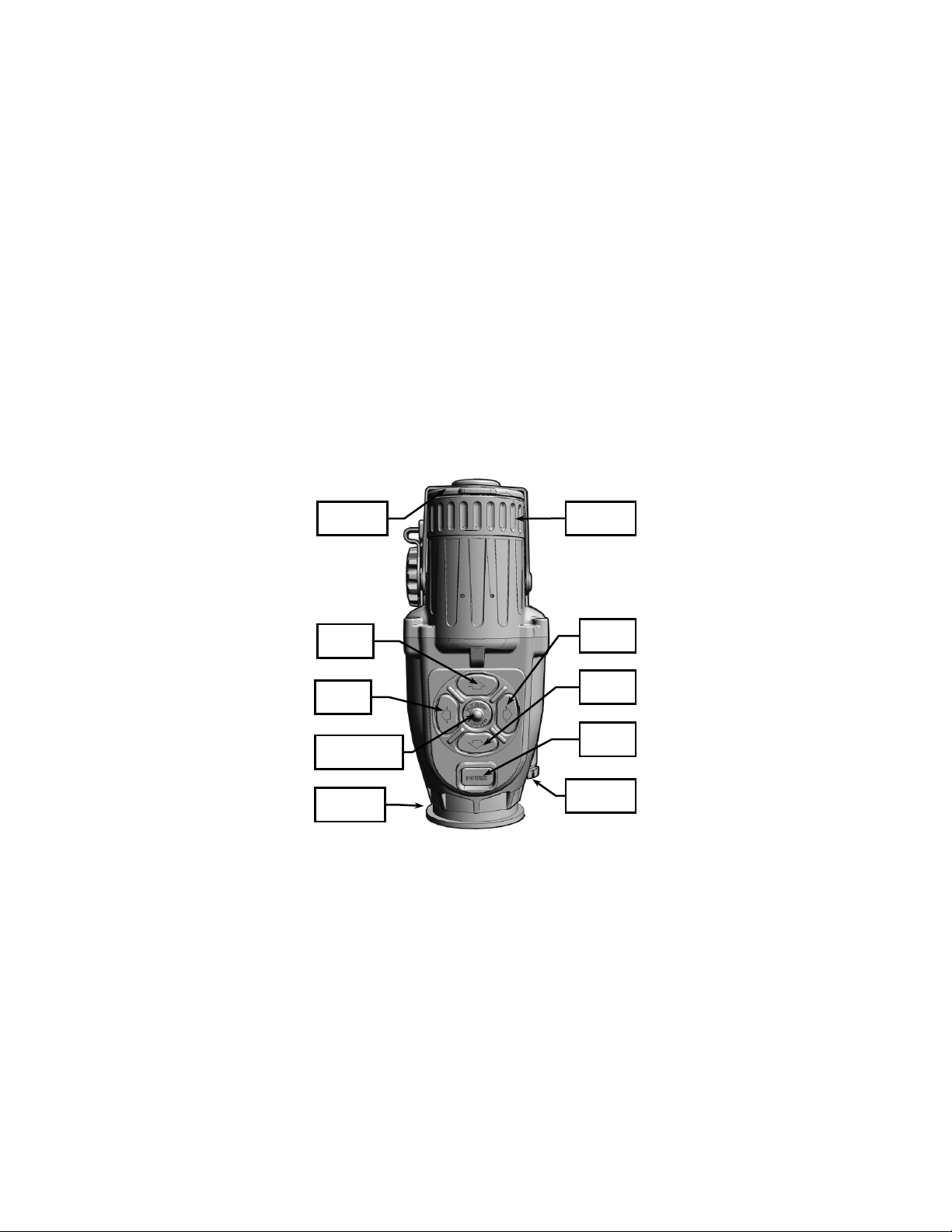

Figure 2-4 CNVD-T Controls and Adjustments
2-7
2.6 POWER
Pressing the POWER button will turn the unit on. The CNVD-T will power up with the same settings selected as when the system was last turned off.
With the system powered on, the CNVD-T can be placed in a Standby Mode by pressing and holding the MENU / ZOOM button for about 3 seconds. Pressing any of the LEFT / RIGHT / UP / DOWN buttons will reactivate the unit. Upon “waking” from Standby Mode, the unit will retain all settings entered by the operator prior to being placed in standby. Standby Mode decreases power consumption by approximately 10% by shutting off the eyepiece display.
NOTE
In Standby Mode, the CNVD-T will continue to draw a significant amount of power that will eventually drain the batteries. The unit should be turned off if it is not expected to be used.
To turn off, press and hold the POWER button for approximately 3 seconds as the messages OFF? then OFF! appear sequentially in the eyepiece display. Release the
POWER button when the eyepiece display turns dark.
2.7 BUTTON FUNCTIONS
The CNVD-T buttons are multifunctional and produce different results depending on how they are pressed and whether or not the Main Menu is displayed.
2.7.1
MENU / ZOOM Button
. The MENU / ZOOM button
has a raised dimple that allows it to be easily identified by touch.
2-8
MIN
Status Bar
2.7.1.1 Pressing the MENU / ZOOM button calls up the Main Menu (see section 2.12).
2.7.1.2 Pressing the MENU / ZOOM button twice in rapid succession (double-tapping) toggles between a 1x and 2x magnified viewed image (see section 2.12.1).
2.7.2
UP / DOWN Buttons . The UP / DOWN buttons are
used to control the brightness of the display. They are also used to scroll through menu items when the Main Menu is displayed.
2.7.3
LEFT / RIGHT Buttons
. The LEFT / RIGHT buttons
are used to control the contrast (gain) settings of the thermal image. They are also used to scroll through sub-menu options, when displayed.
2.8 BRIGHTNESS ADJUSTMENT
When the Main Menu is NOT displayed, pressing either the UP or DOWN button calls up the brightness control settings. Brightness controls are presented in the eyepiece display as shown in Figure 2-5.
BRIGHTNESS
MAX

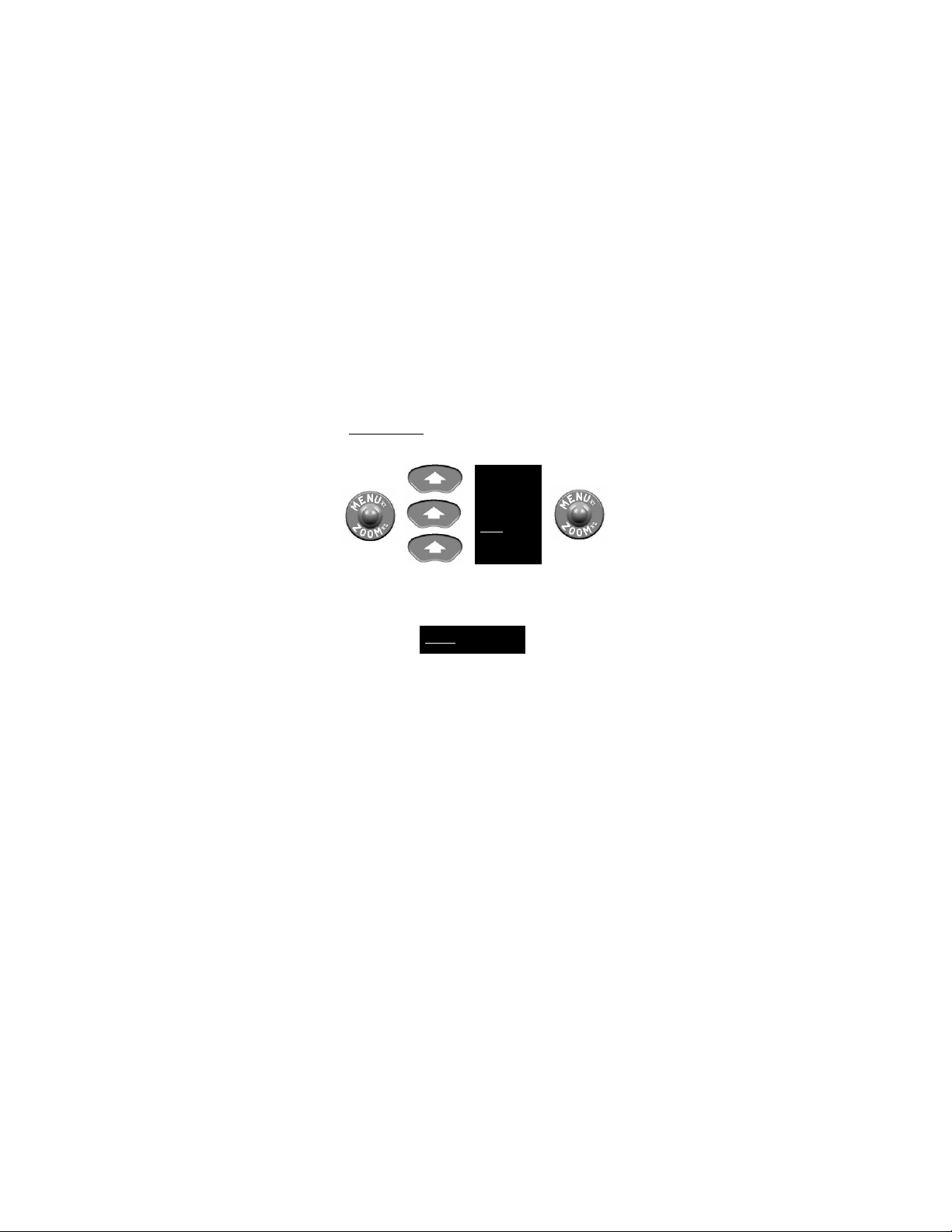

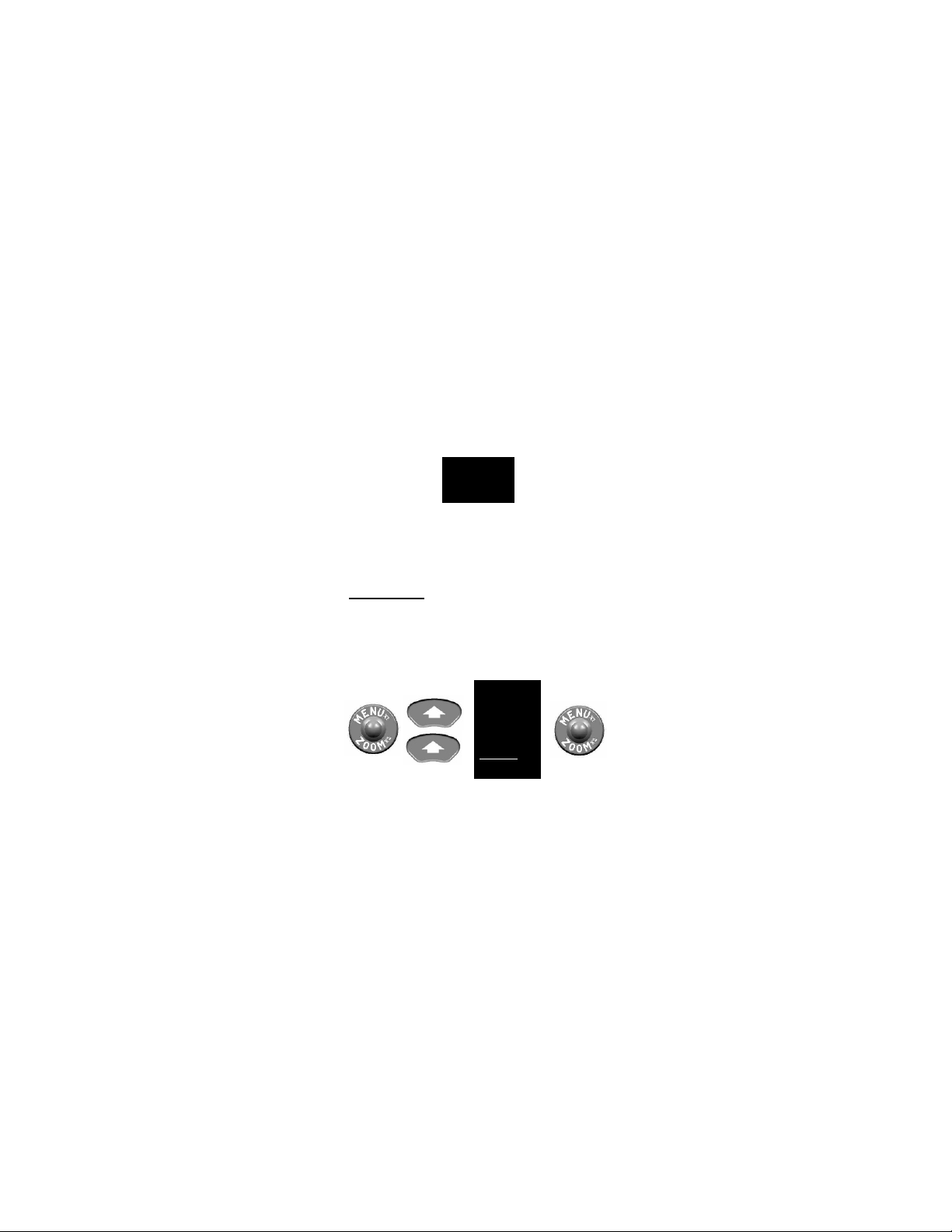

Figure 2-5 Brightness Control
2-9
Brightness of the display is adjusted by pressing the UP / DOWN buttons to move the status bar along the MIN / MAX
scale. Repeatedly pressing the UP / DOWN buttons will move the status bar in single increments. Pressing and holding the UP / DOWN buttons will auto-scroll the status bar in multiple increments.
If the UP / DOWN buttons are not pressed within 3 seconds, the brightness scale will disappear and the CNVD-T will revert to normal viewing mode. Once adjusted, the brightness will remain at the applied setting (even if the CNVD-T is turned off) until readjusted by the operator.
2.9 CONTRAST (GAI N) ADJUSTMENT
When the Main Menu is NOT displayed, pressing either the LEFT or RIGHT button calls up the contrast (gain) control settings. Contrast controls are presented in the eyepiece display as shown in Figure 2-6.
CONTRAST LOW HIGH
MANUAL

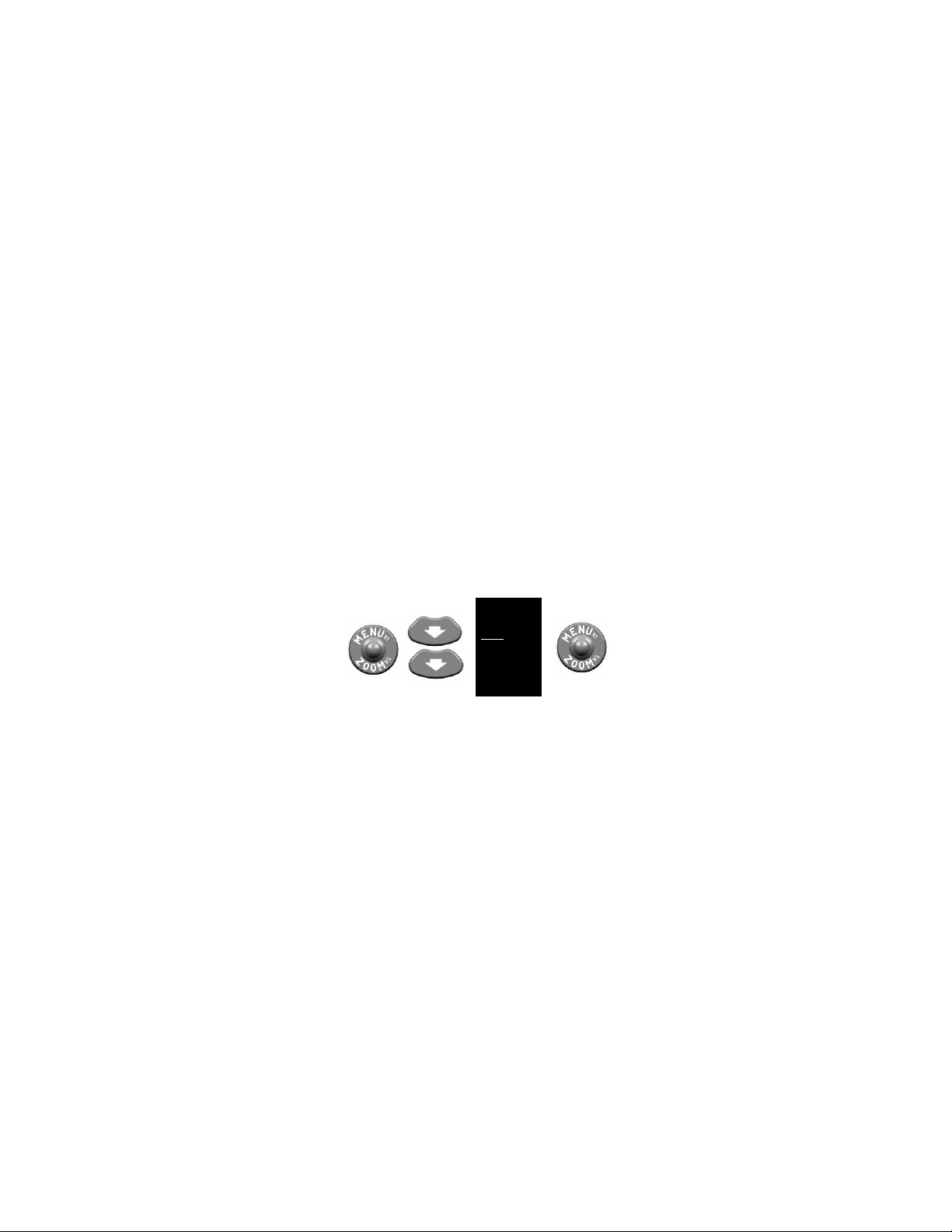

Figure 2-6 Contrast (Gain) Control
Contrast is manually adjusted by pressing the LEFT / RIGHT buttons to move the status bar along the LOW / HIGH scale. Repeatedly pressing the LEFT / RIGHT buttons will move the status bar in single increments. Pressing and holding the LEFT / RIGHT buttons will auto-scroll the status bar in multiple increments.
2-10
If the LEFT / RIGHT buttons are not pressed within 3 seconds, the contrast scale will disappear and the CNVD-T will revert to normal viewing mode. Once adjusted, the contrast will remain at the applied setting (even if the CNVD­T is turned off) until readjusted by the operator.
2.9.1
Auto-Gain Control . The CNVD-T may also be placed
in one of two auto-gain modes:
a. AUTO-LOW mode is accessed by repeatedly
pressing the RIGHT button to move the status bar along the contrast scale. As the status bar approaches the extreme right (HIGH) end of the scale, the word MANUAL will be replaced by the word AUTO-LOW.
b. While in AUTO-LOW mode, pressing the RIGHT
button once more will place the CNVD-T in AUTO­HIGH mode. The word AUTO-LOW will be replaced by the word AUTO-HIGH.
NOTE
Adjusting the contrast in MANUAL mode allows for lower and higher settings than either of the AUTO modes.
2.10 FOCUS ADJUSTMENT
The objective lens must be focused for the viewing distance being observed. Rotate the objective focus ring for best image clarity. A change in viewing distance requires that the lens be refocused. However, if already focused for a distance of at least 20m, no change in focus is required between this distance and infinity.
2-11
2.11 STARTUP PROCEDURES
To achieve optimal performance and image clarity, the following procedures should be accomplished in the order presented, each time the CNVD-T is to be placed into operation:
a. Install batteries per paragraph 2.2.2.
b. Turn on the CNVD-T by pressing the POWER
button. Wait 2 to 5 seconds until the system begins imaging.
c. Install the objective lens cover and perform a
calibration as described in paragraph 2.12.3.
d. Flip up the objective lens cover and adjust the
brightness setting to a comfortable viewing level as described in section 2.8.
e. Adjust the contrast (gain) setting to a comfortable
viewing level as described in section 2.9.
f. While looking through the eyepiece at an object at
least one meter away, rotate the objective focus ring until the best (sharpest) thermal image is obtained.
2.12 MENU FUNCTIONS
With the CNVD-T turned on, access the Main Menu by pressing the MENU / ZOOM button. The Main Menu will appear in the eyepiece display as shown below.
Figure 2-7 Main Menu
ZOOM 1X POL CAL RETINT RET RS170 EXIT
2-12
Menu items are then selected (underlined) by scrolling with the UP / DOWN buttons. Where available, sub-menus are accessed by pressing the LEFT / RIGHT buttons. Activation of the selected menu item is accomplished by again pressing the MENU / ZOOM button. If there is no button activity within approximately 10 seconds, the Main Menu will disappear and the CNVD-T will revert to normal viewing mode. Once activated, menu options will remain at that setting (even if the CNVD-T is turned off) until reset by the operator.
2.12.1
ZOOM 1X / ZOOM 2X
. Activating the ZOOM 1X / ZOOM 2X menu item toggles between a 1x and 2x magnified viewed image. Toggling between ZOOM 1X and ZOOM 2X may also be accomplished when the Main Menu is NOT displayed by double-tapping the MENU / ZOOM button. When in ZOOM 2X mode, the word “ZOOM” will appear near the bottom of the display and blink once every 5 seconds.
WARNING..
Activating ZOOM 2X when the CNVD-T is used in­line with other optical sights may induce an error in the aiming function of those devices.
ZOOM 1X POL CAL RETINT RET RS170 EXIT
Figure 2-8 Menu – ZOOM 1X / ZOOM 2X
2-13
2.12.2 Polarity (POL)
. Activating the POL menu item allows the operator to toggle between white hot (WH) and black hot (BH) polarity modes and is accomplished as follows:
Figure 2-9 Menu – Polarity (POL)
ZOOM 1X POL CAL RETINT RET RS170 EXIT
which calls up this sub-menu:
WH BH
Use the LEFT / RIGHT buttons to select the desired polarity mode and press the MENU / ZOOM mode to activate.
When in white hot mode, objects with the hottest thermal signature will appear white and those with the coolest thermal signature will appear black. In black hot mode, the reverse is true.
2.12.3
Calibration (CAL)
.
NOTE
Failure to cover the objective lens prior to initiating a calibration may result in a distorted picture or the presence of ghost images in the eyepiece display.
2-14
ZOOM 1X
Activating the CAL menu item initiates a calibration of the CNVD-T. After prolonged use, or after transitions from one temperature extreme to another, a degradation of the thermal image may be noticed. When this occurs, the CNVD-T should be calibrated as follows:
a. Install the objective lens cover over the objective
lens to block out all available light.
b. Activate the CAL menu item as shown below.
c. The message “CALIBRATING” will appear as the
unit performs the calibration. Once complete, the message will disappear and the CNVD-T will revert to normal viewing mode.
d. Remove the objective lens cover to resume normal
viewing.
POL CAL RETINT RET RS170 EXIT
Figure 2-10 Menu – Calibration (CAL)
The CNVD-T is equipped with an internal sensor that detects significant changes in temperature. When this condition occurs, the message “RECAL” will appear in the eyepiece display, indicating that the operator should perform a calibration of the CNVD-T as described above.
2-15
2.12.4 Reticle Intensity (RETINT)
BLACK
Status Bar
. Activating the RETINT menu item allows the operator to adjust the color of the reticle from white, through the gray scale to black, to provide the best contrast with the viewed image.
ZOOM 1X POL CAL RETINT RET RS170 EXIT
Figure 2-11 Menu – Reticle Intensity (RETINT)
During adjustment, a color scale is presented in the eyepiece display as shown in Figure 2-12.
RETICLE
WHITE

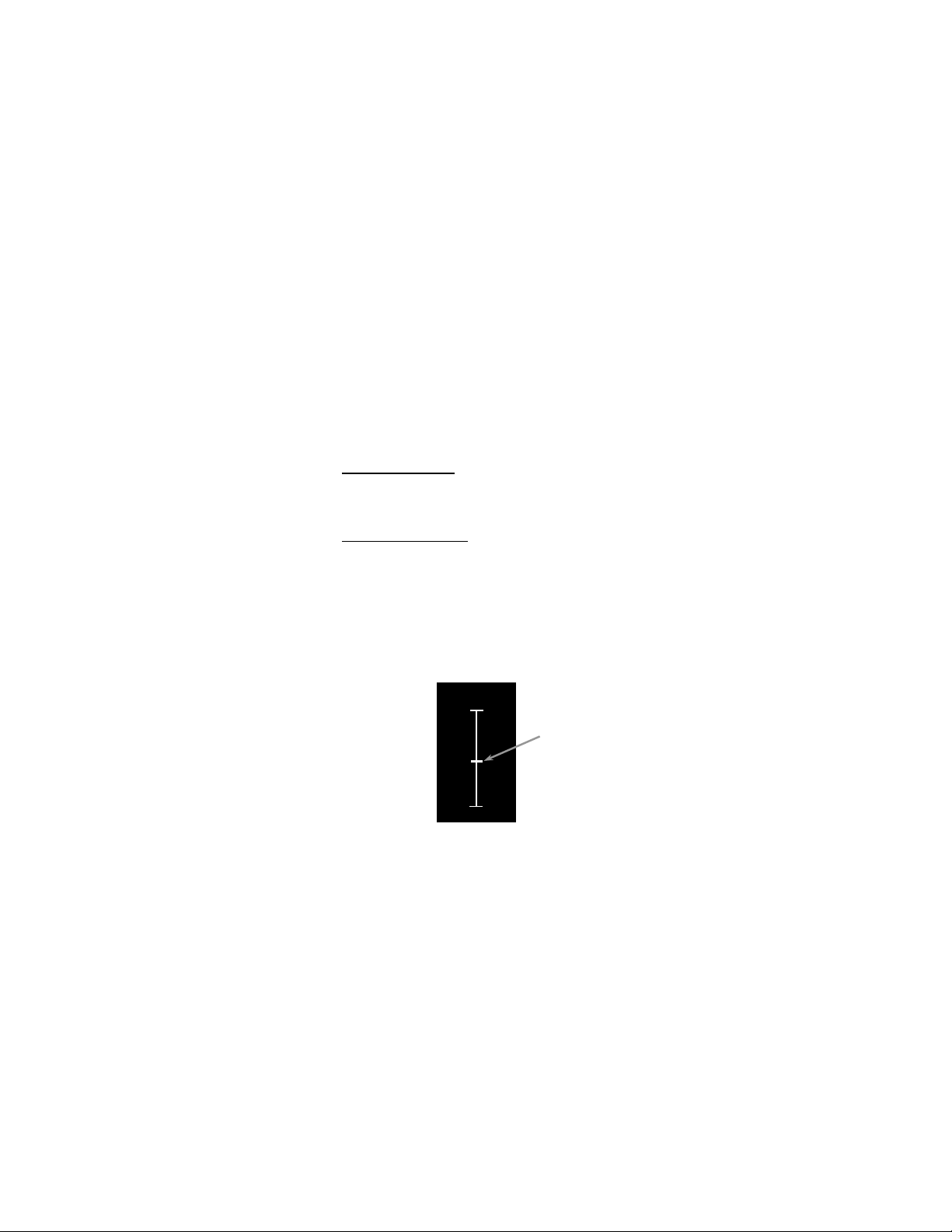

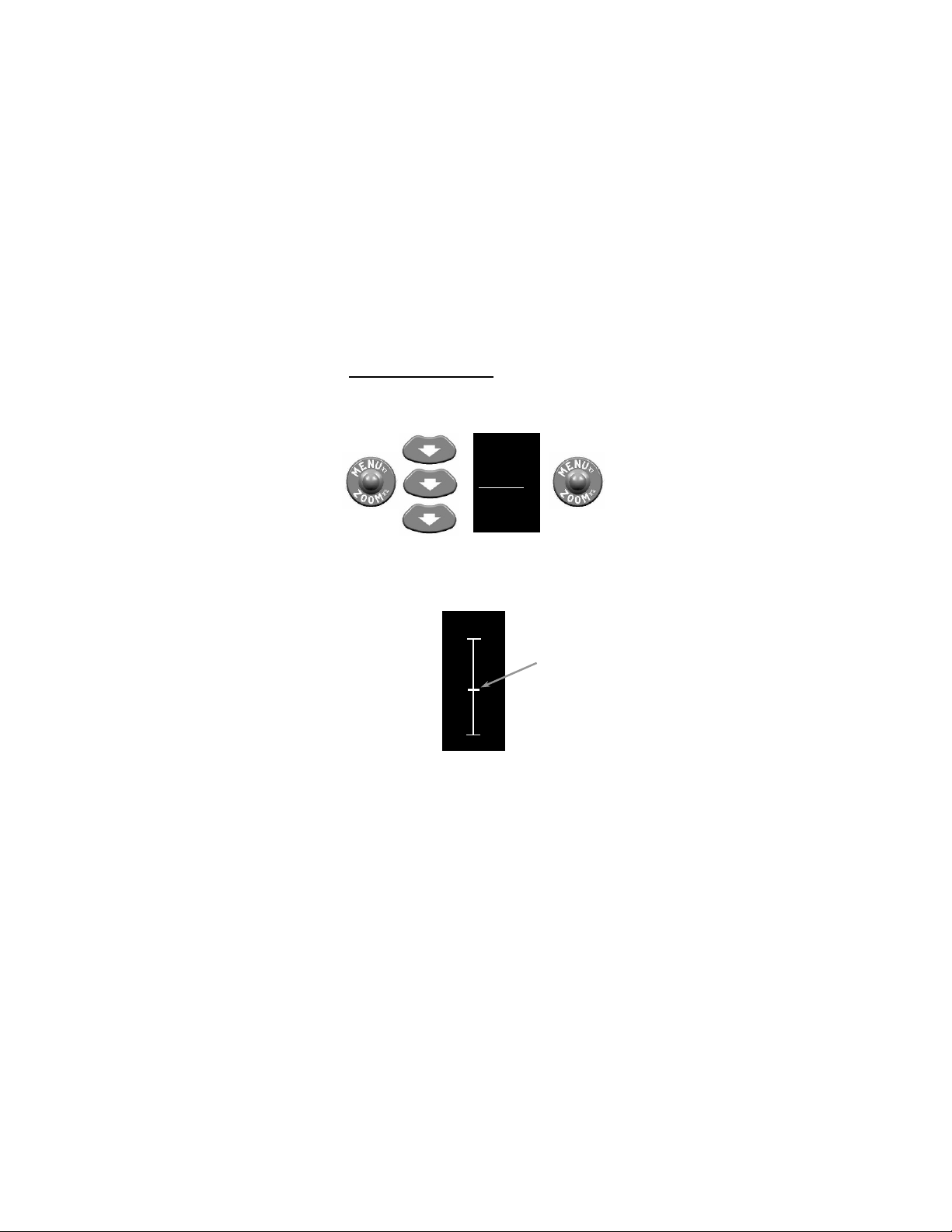

Figure 2-12 Reticle Intensity Control
Reticle intensity is adjusted by pressing the UP / DOWN buttons to move the status bar along the WHITE / BLACK scale. If the UP / DOWN buttons are not pressed within 3 seconds, the reticle intensity scale will disappear and the CNVD-T will revert to normal viewing mode. The unit may
2-16
be placed in an auto-intensity mode by repeatedly pressing the UP button until the status bar is at the extreme upper (WHITE) end of scale and the word AUTO appears.
2.12.5
Reticle (RET)
. Activating the RET menu item allows
for repositioning the reticle and toggling it on or off.
ZOOM 1X POL CAL RETINT RET RS170 EXIT
Figure 2-13 Menu – Reticle (RET) Control
Once selected, the following sub-menu will appear in the eyepiece display:
EXIT POS OFF
2.12.5.1 Activating the POS (position adjustment) sub-menu item allows for adjusting the position of the reticle in the eyepiece display.
a. Adjustments are made using the UP / DOWN / LEFT
/ RIGHT buttons. When adjusting reticle position, AZ (azimuth) and EL (elevation) values appear in the lower left corner of the display as shown in Figure 2-14. The numbers represent “clicks” of the reticle. Azimuth and elevation values can rapidly be returned to 0 by pressing the UP and DOWN buttons or the LEFT and RIGHT buttons simultaneously.
2-17
b. When in ZOOM 1X mode, the reticle is moved in
ZOOM 1X
2-pixel increments each time the UP / DOWN / LEFT / RIGHT buttons are pressed. The reticle is moved
in 1-pixel increments when in ZOOM 2X mode. See section 2.15 for click equivalents and zeroing information.

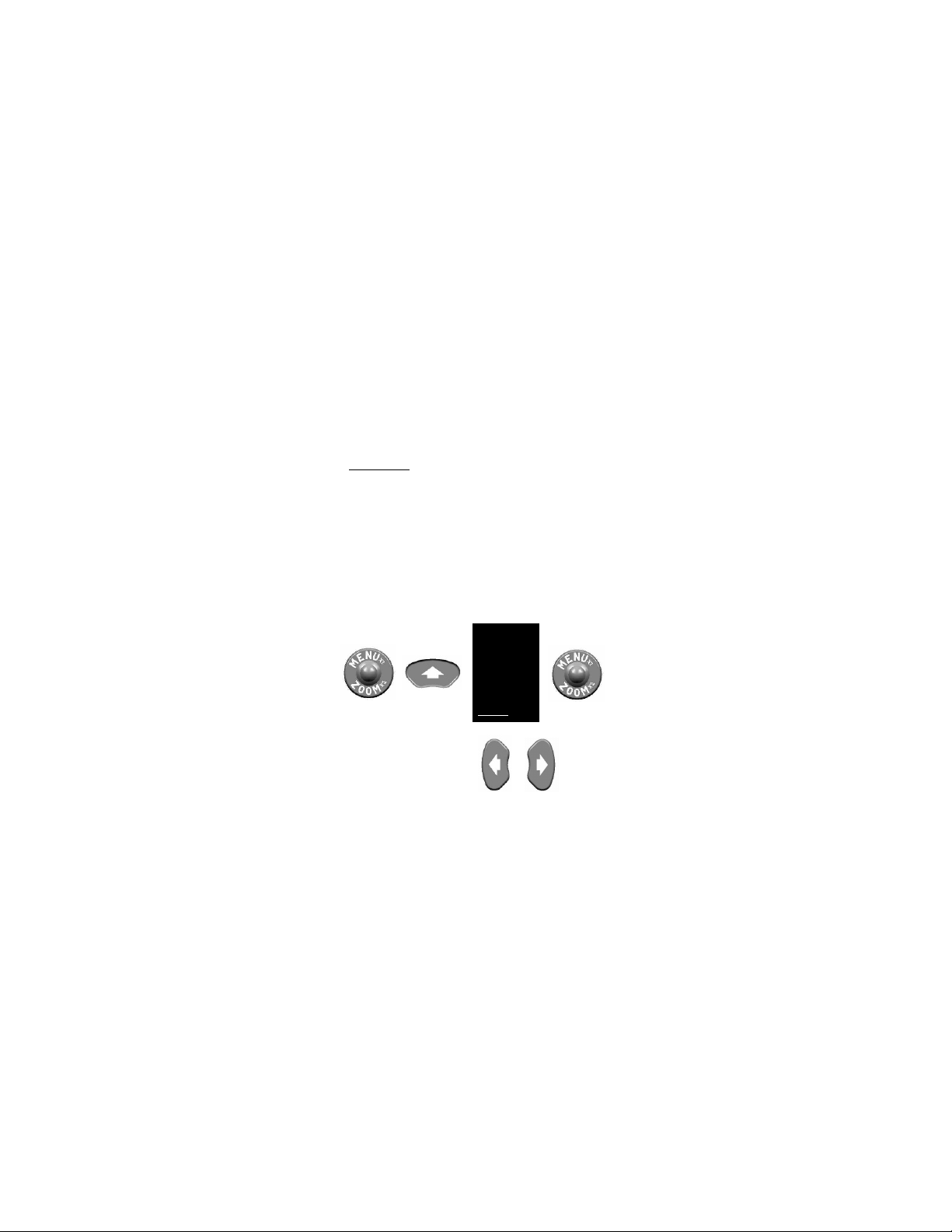

Figure 2-14 Reticle Position Adjustment
POS ADJ AZ 8 L EL 2 U
2.12.5.2 Activating the OFF sub-menu item turns the reticle off. Turning the reticle back on is accomplished by selecting the RET menu item from the Main Menu.
2.12.6
RS170 / VGA
. Activating the RS170 / VGA menu item toggles between these two display formats. VGA format is appropriate for high-motion viewing. RS170 format is appropriate for all other applications. See section 2.14 for instructions on how to connect the CNVD-T to an external monitor for viewing live thermal imagery.
POL CAL RETINT RET RS170 EXIT
Figure 2-15 Menu – RS170 / VGA
2-18
Or to exit any
time:
NOTE
When viewing the CNVD-T thermal image on an external monitor, the RS170 video format must be selected. Using the VGA video format for this purpose will result in an extremely distorted image.
2.12.7
Exit (EXIT) . Exiting the Main Menu is accomplished
by either activating the EXIT menu item or pressing the LEFT or RIGHT button. Exiting the Main Menu saves all changes made and returns the CNVD-T to normal viewing mode.
NOTE
The message “NO SAVE” will appear at the bottom of the display if settings could not be saved due to low battery power. Changes will be made, but not saved for future use.
ZOOM 1X POL CAL RETINT RET RS170 EXIT
or

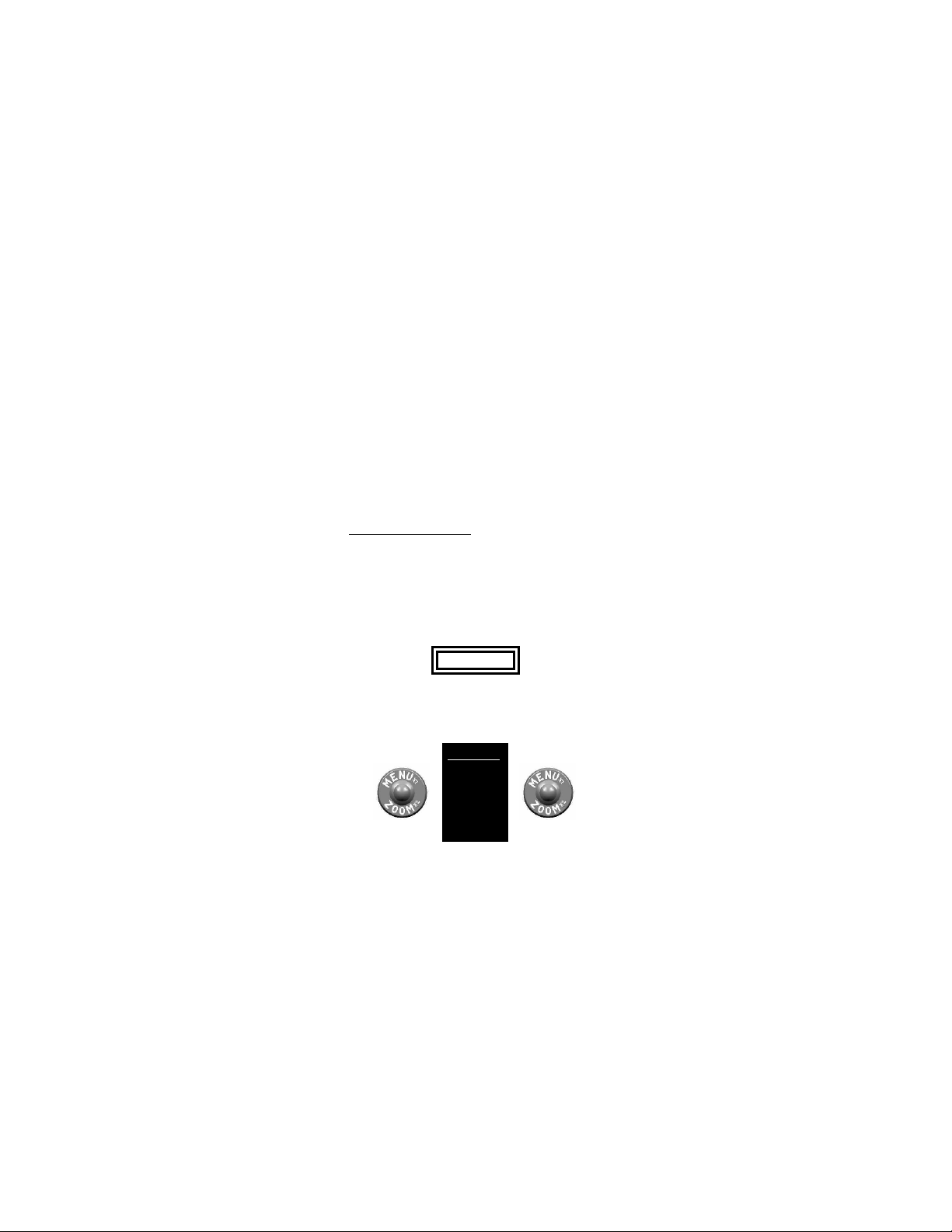

Figure 2-16 Menu - Exit
2-19
2.13 SHUTDOWN PROCEDURES
CNVD-T
BNC
a. Press and hold the POWER button for
approximately 3 seconds as the messages OFF? then OFF! appear sequentially in the eyepiece display. Release the POWER button when the eyepiece display turns dark.
b. Install the objective lens cover over the objective
lens.
c. Remove all batteries; place batteries and the
CNVD-T in the soft carrying case.
2.14 EXTERNAL MONITOR
The CNVD-T is supplied with a video cable that is used to connect the unit to an external monitor for viewing live thermal imagery. The video cable is shown in Figure 2-17.
2-20
Connector
Figure 2-17 Video Cable
Connector
Viewing live imagery from the CNVD-T on an external monitor is accomplished as follows:
a. Remove the video jack plug (captive to the CNVD-
T2) from the video jack.
b. Plug the CNVD-T connector into the video jack.
c. Attach the BNC connector to an external monitor or
television.
d. Follow the CNVD-T startup procedures contained in
section 2.11 and ensure RS170 video format is selected from the Main Menu as described in paragraph 2.12.6.
e. Follow instructions provided by the manufacturer of
the monitor or television for viewing video from an external device.
2-21

SECTION III

10m
25m
100m
150m
300m
ZOOM 1X
1.1cm
2.8cm
11.0cm
16.5cm
33.0cm
ZOOM 2X
0.6cm
1.4cm
5.5cm
8.3cm
16.5cm

ALIGNMENT / ZEROING

2.15 ZEROING ON A 25-METER RANGE
2.15.1
Clip-On
.
WARNING..
Activating ZOOM 2X when the CNVD-T is used in­line with other optical sights may induce an error in the aiming function of those devices.
When being used in-line with an optical sight, the CNVD-T should be placed in ZOOM 1X, the reticle should be turned off, and zeroing procedures associated with the primary sight should be used. Placing the CNVD-T in front of an already zeroed optic / weapon combination does not necessitate rezeroing.
2.15.2
Stand-Alone
. Each click of the CNVD-T reticle moves the shot group about 2.8cm at 25m (when in ZOOM 1X). Other click equivalents are provided in Table 2-1. Changing the position of the reticle corresponds to a subsequent change in shot group movement (i.e., the UP button will move the strike of the round up).
Table 2-1 Reticle Adjustments
Single Click Equivalents
2-22
5.9cm
When being used as a stand-alone device, the example below shows how to align the CNVD-T2 to be parallel with the rail of the host weapon on a 25-meter range. This “infinite parallel” configuration is appropriate for many mission profiles. Once parallel, the CNVD-T2 / weapon combination may be zeroed in accordance with established unit, departmental, or agency procedures.
a. Once mounted to a weapon, the distance from the
top of the rail to the centerline of the CNVD-T objective lens is 5.9cm. Calculate the designated strike point by adding this value to the distance from the center of the weapon barrel to the top of the weapon rail (3.1cm for an M4/M4A1). Therefore, in this example, the designated strike point is 5.9cm +
3.1cm = 9.0cm down from the center of the target.
Figure 2-18 Strike Point Calculation
2-23
b. Mark the designated strike point on a standard 25-
meter zeroing target.
c. Draw a designated strike zone around the strike
point that corresponds in size to an acceptable degree of desired accuracy.
Figure 2-19 Designated Strike Zone
d. Mount the target on an “E” silhouette or other
suitable surface at 25 meters.
e. Mount the CNVD-T to the weapon.
2-24
f. Turn on the CNVD-T using the startup procedures in
section 2.11.
g. Align the CNVD-T reticle with the center of the target
per paragraph 2.12.5.
h. Fire a 3-round shot group and note the center of the
shot group relative to the designated strike point.
i. Adjust the position of the reticle to move the center
of the shot group to the designated strike point.
j. Fire another 3-round shot group and again observe
the center of the new shot group relative to the designated strike point.
k. When 2 out of 3 rounds are in the designated strike
zone, the CNVD-T is aligned to be parallel with the rail of the host weapon.
2-25
2-26
CHAPTER 3

MAINTENANCE AND SERVICING

MAINTENANCE AND TROUBLESHOOTING

3.1 MAINTENANCE PROCEDURES
The operator should inspect the CNVD-T before each use and after it has been in extreme conditions, such as prolonged exposure to intense temperatures. The following procedures will prolong the life of the CNVD-T and help ensure safe operation.
3.1.1
Batteries leakage, or bulging. If a battery shows signs of damage, remove and dispose of properly. Replace batteries as required per paragraph 2.2.2.
3.1.2
Battery Compartment compartment for dirt, dust, or corrosion. Dirt or debris that cannot be shaken loose from the battery compartment may be removed using a clean cloth. If necessary, clean battery contacts with a cotton swab and isopropyl alcohol.
3.1.3
Objective Lens and Eyepiece lens and eyepiece for dirt, dust, and grime. Remove any large particles or loose dirt using the lens brush. Fine cleaning of the optical surfaces should be performed using the optical cloth and cleaning solution. Avoid using excessive force as this may scratch the lenses.
. Inspect the batteries for cracks, dents,

SECTION I

. Inspect the battery
. Inspect the objective
3-1
3.1.4 CNVD-T Housing
. Inspect the CNVD-T housing for any signs of damage including cracks, missing parts, and any other visible defects. Rinse the CNVD-T housing with water and wipe clean with a soft cloth. Clean around buttons and attachment points with a cotton swab.
3.1.5
Video Jack
. Inspect the video jack for corrosion, dirt and damage. Gently remove any large particles of foreign matter and clean the contacts with a cotton swab and isopropyl alcohol.
3.2 TROUBLESHOOTING PROCEDURES
The procedures below will help the operator correct some of the basic problems that may arise with the CNVD-T during operation. If the equipment malfunction is not listed, or the actions listed do not correct the fault, refer to section 3.4 for additional guidance.
a. No display is present when turning on the CNVD-T.
(1) Ensure the CNVD-T is not in Standby Mode by
pressing any of the arrow buttons. (2) Adjust display brightness per section 2.8. (3) Adjust contrast setting per section 2.9. (4) Cycle the power button. (5) Verify that the batteries are properly installed per
paragraph 2.2.2. (6) Replace existing batteries with fresh batteries. (7) Clean the battery compartment per paragraph
3.1.2.
b. Display is on but no image is present.
(1) Flip open the objective lens cap. (2) Focus on an object in the distance. (3) Adjust display brightness per section 2.8.
3-2
(4) Place the unit in auto-gain mode per section
2.9.1.
c. No Reticle is visible.
(1) Adjust display brightness per section 2.8. (2) Ensure reticle is turned on per paragraph 2.12.5. (3) Adjust reticle intensity per paragraph 2.12.4.
d. Poor or degraded image.
(1) Perform a calibration per paragraph 2.12.3. (2) Remove night vision spectrum filter, if installed.
Clean eyepiece and objective lens. (3) Inspect the night vision spectrum filter for dirt,
grime, scratches, and cracks. Clean and/or
replace, if necessary. (4) Replace existing batteries with fresh batteries.
3.3 CORRECTIVE MAINTENANCE PROCEDURES
See section 3.4 of this chapter for guidance regarding maintenance and/or repair actions beyond those described in this manual.
3.3.1
Adjusting Throw-Lever Tension
. The throw-lever mounting bracket has a locknut that adjusts the tension required to clamp it to the weapon rail. It is preset at the factory but may need adjustment when initially mounted to the rail of the host weapon. If adjustment is required, the following procedures apply and are performed with the CNVD-T removed from the host weapon:
3-3
Creating too much tension with the locknut may result in damage to the mounting bracket when the throw-lever is forced against the weapon rail. Creating too little tension with the locknut may allow for movement of the CNVD-T on the rail. Never completely remove the locknut from the
CAUTION..
mounting bracket.
a. Swing the throw-lever closed (against the body of
the CNVD-T), then push in the lever lock to engage the locking mechanism.
b. Using the provided 3/8” box wrench, adjust the
locknut using slight movements (2 or 3 degrees). Turning the locknut counterclockwise will decrease tension on the throw-lever. Turning it clockwise will increase tension on the throw-lever.
Locknut
Figure 3-1 Adjusting Throw-Lever Tension
c. Test each adjustment by attempting to mount the
CNVD-T to the weapon rail per section 2.3.1.
3-4
3.3.2 Replacing Objective Lens Cover and Lens Cover Strap . No tools are required to perform this procedure.
a. Pull both ends of the existing strap off their
respective retaining pins (located on the CNVD-T housing).
b. While holding the lens cover in one hand, use the
other hand to pull the strap over, and off, the center stud of the lens cover.
c. Work the large, center eye of the replacement strap
over the center stud of the lens cover, ensuring it lays flat against the surface with the glossy side down.
d. Loop one of the strap’s smaller eyes over one of the
retaining pins.
e. Lead the strap’s remaining eye over the top of the
housing as shown in Figure 3-2 and loop it over the other retaining pin.
Figure 3-2 Replacing Objective Lens Cover
f. Flip the lens cap down and over the objective lens.
3-5
3.3.3 Replacing Battery Door Lanyard . Vibra-Tite® (or equivalent) and a T-7 Torx wrench are required to perform this procedure.
NOTE
This procedure is best performed with the battery door installed (closed).
NOTE
Because the lanyard mounting screw is installed at the factory with a small amount of bonding material, it is normal to encounter resistance when removing it.
a. Use a T-7 Torx wrench to remove the lanyard
mounting screw.
b. If necessary, pull the lanyard over, and off, the
battery door thumbscrew.
c. Stretch the large eye of the replacement lanyard
over the battery door thumbscrew.
d. Feed the smaller eye of the lanyard down through
the slot in the battery door.
e. Arrange the battery door hardware so that the
pieces (e.g., washer, retaining lug, mounting screw) can be assembled as shown in Figure 3-3.
3-6
Figure 3-3 Replacing Battery Door Lanyard
f. Apply a small bead of Vibra-Tite® (or equivalent) to
the threads of the mounting screw and use a T-7 Torx wrench to install.
3.3.4
Replacing Video Jack Plug Assembly . Vibra-Tite® (or equivalent) and a T-7 Torx wrench are required to perform this procedure.
a. Turn the video jack plug counterclockwise until it is
unscrewed from the video jack.
NOTE
Because the lanyard mounting screw is installed at the factory with a small amount of bonding material, it is normal to encounter resistance when removing it.
3-7
b. Use a T-7 Torx wrench to remove the lanyard
mounting screw.
c. Position the replacement parts so that they can be
assembled as shown in Figure 3-4.

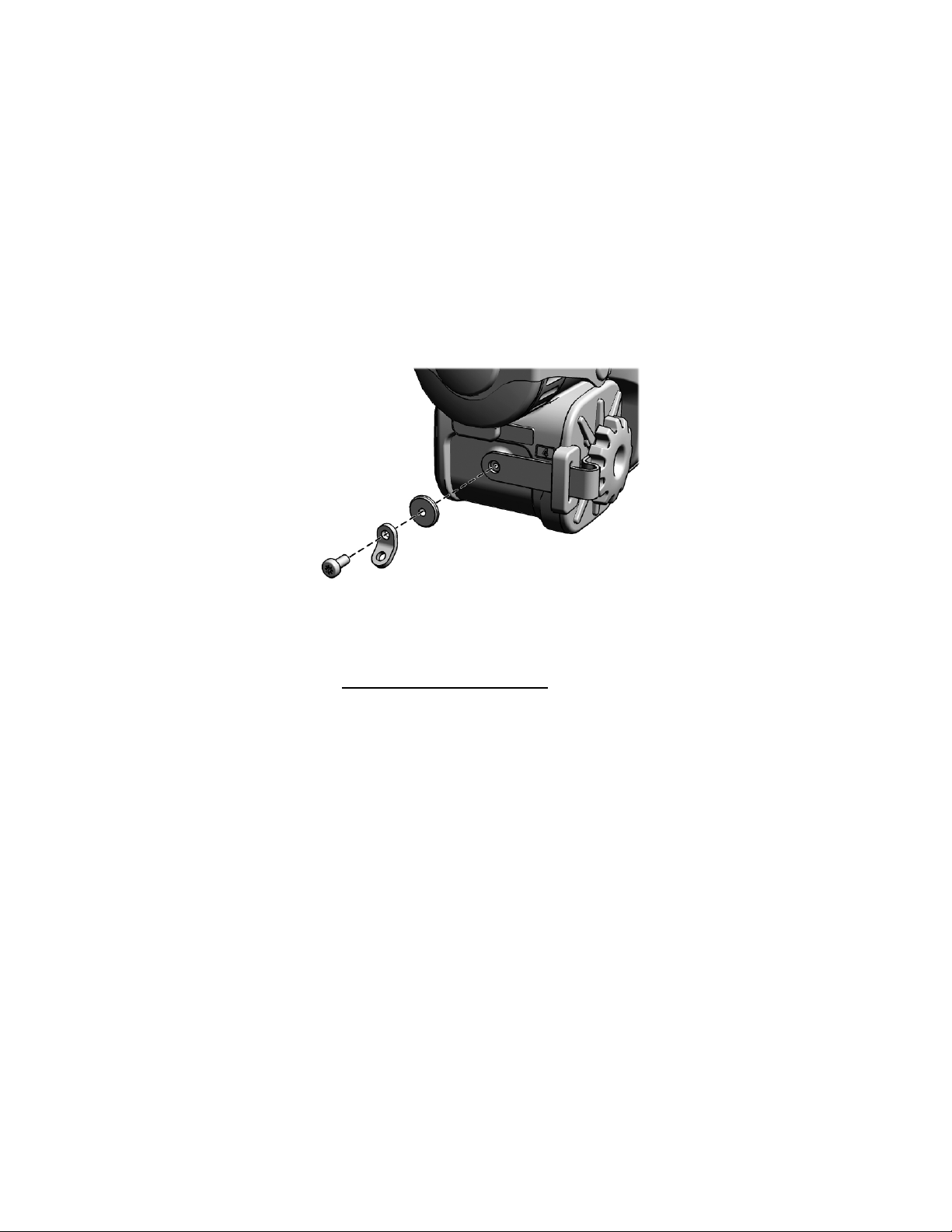

Figure 3-4 Replacing Video Jack Plug Assembly
d. Apply a small bead of Vibra-Tite® (or equivalent) to
the threads of the mounting screw and use a T-7 Torx wrench to install.
3-8

SERVICE / PACKING AND UNPACKING

SECTION II

3.4 RETURN INSTRUCTIONS
3.4.1 For service, repair, or replacement, first e-mail
returns.insight@l-3com.com
or call toll-free 1-877-744-4803.
3.4.2 To assist with determining if the item is repairable, the following information shall be provided:
a. Serial number of the defective item;
b. Thorough description of the malfunction, defect, or
damage; and
c. If known, an explanation as to how the malfunction,
defect or damage occurred.
If the item is determined to be Beyond Economical Repair, follow applicable replacement procedures through your Property Officer. If it is determined that the item is under warranty, or should be returned for repair, a Return Material Authorization (RMA) number will be provided.
3.4.3 When returning the CNVD-T for service / repair, the following procedures should be followed to prevent any additional damage:
a. Be sure that the CNVD-T is free of all contaminants
such as dirt or any other foreign material.
b. Remove batteries.
c. Place the CNVD-T in the soft carrying case.
3-9
3.4.4 Place the item and a copy of the test report or detailed description of the failure in a suitable packing container. Mark the package with “Field Return” and the RMA number. Ship via fastest, traceable, pre-paid means to L-3 Insight Technology Incorporated, 9 Akira Way, Londonderry, NH
03053.
3.5 WARRANTY INFORMATION
The CNVD-T is under warranty from defects in material and workmanship for a minimum of one (1) year from the date of manufacture. This warranty does not protect against damage due to misuse, mishandling or battery leakage. Additional warranty coverage may have been provided through the contract or via subsequent contract extension. Specific warranty terms can be obtained from your procurement agent, Contracting Officer or L-3 Insight Technology Incorporated.
3.6 NON-WARRANTY INFORMATION
Non-warranty repairs are subject to an evaluation fee. The item will be tested and evaluated for failure, then customer permission and payment terms are obtained prior to any repairs being performed.
3-10
NUMBER
TBD
ITI-501-01
Soft Carrying Case
N/A
CQB-TM-ITI
Operator Manual
N/A
CQB-QRG-ITI
Quick Reference Guide
5855-01-561-8116
CQB-630-02
Interface Hood
5855-01-579-5688
CQB-670-02
Eyecup
5855-01-579-5695
CQB-506-A2
Filter, NV Spectrum
5855-01-561-8559
TGS-104
Video Cable
5120-01-582-2832
ITI-150
Box Wrench, 3/8”
6135-01-559-9641
DL123ABK
Battery, 3V, lithium
5855-01-561-8630
ITI-015
Lens Cleaning Tissue
5855-01-561-8616
ITI-013
Lens Brush
6850-01-561-8223
ITI-011
Lens Cleaning Solution
TBD
CQB-626-02
Objective Lens Cap
TBD
CQB-627-02
Objective Lens Cap Strap
TBD
CQB-625-A2
Lanyard, Battery Door
5340-01-561-7933
CQB-011-A2
Battery Door w/ Lanyard
Retaining Lug, Battery Door Lanyard
Lanyard
Retaining Screw, Video

APPENDIX A

REPAIR PARTS / ACCESSORIES

A.1 Scope

This Appendix provides an organizational level parts list for the CNVD-T. Table A-1 lists spares, parts, and assemblies authorized for repair / replacement at the operator level. Special tools or equipment are not required for these repairs.
Table A-1 Repair Parts / Accessories
NSN
PART
DESCRIPTION
5305-01-561-8555 MHW013-23A
5855-01-561-8085 CQB-193
5310-01-561-8067 CQB-067-02
5303-01-575-3158 MHW013-022AB
Retaining Screw, Battery Door Lanyard
Washer, Battery Door
Jack Plug
A-1
Loading...
