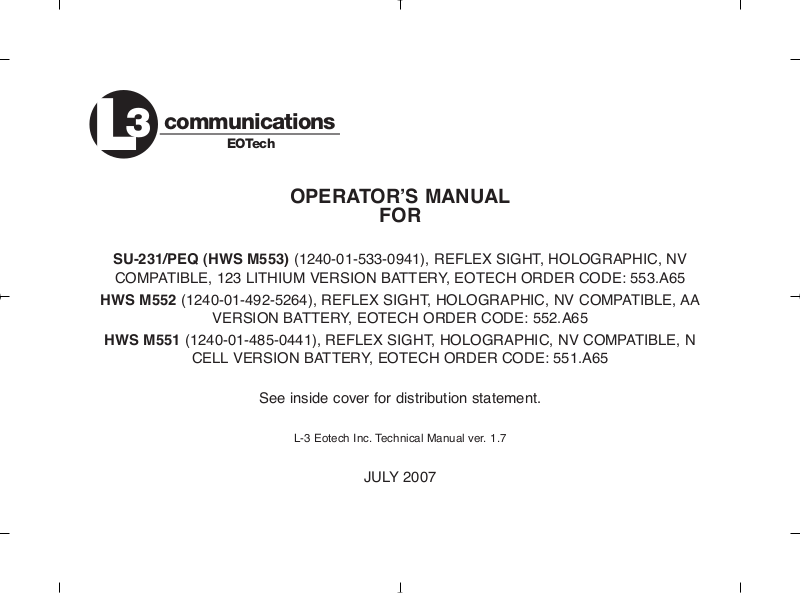

OPERATOR’S MANUAL
FOR
SU-231/PEQ (HWS M553) (1240-01-533-0941), REFLEX SIGHT, HOLOGRAPHIC, NV
COMPATIBLE, 123 LITHIUM VERSION BATTERY, EOTECH ORDER CODE: 553.A65
HWS M552 (1240-01-492-5264), REFLEX SIGHT, HOLOGRAPHIC, NV COMPATIBLE, AA
VERSION BATTERY, EOTECH ORDER CODE: 552.A65
HWS M551 (1240-01-485-0441), REFLEX SIGHT, HOLOGRAPHIC, NV COMPATIBLE, N
CELL VERSION BATTERY, EOTECH ORDER CODE: 551.A65
See inside cover for distribution statement.
L-3 Eotech Inc. Technical Manual ver. 1.7
JULY 2007
communications
EOT ech
L
3
DISTRIBUTION STATEMENT: Distribution is authorized to U.S. Government
agencies and their contractors. This publication is required for administration and
operational purposes. Additional copies of this document can be found on the
manufactuerʼs website. Written requests must be referred to:
L-3 EOTech Service Dept.
Attn: TM Request
1201 E. Ellsworth Road
Ann Arbor, MI 48108
(734)741-8868 Option #8
general@L-3com.com
DESTRUCTION NOTICE: Destroy the sightʼs operability by removing the battery
cap, batteries, and then crushing the battery cap. Destroy this document by any
method that will prevent disclosure of contents or reconstruction of the document.
This defense article is controlled under the International Traffic in Arms
Regulations (ITAR), and may not be exported to a Foreign Person, either in the U.S.
or abroad, without a license or exemption from the U.S. Department of State.
The 553 is designed to mount only to rail systems that are made to the dimensions
of the current MIL-STD-1913 rail specification. Rails which do not meet the
dimensional requirements of the MIL-STD-1913 specification may result in the
sight fitting loosely, moving on the rail during recoil, or not allow the cam levers to
close properly.
WARNING
WEAPON SAFETY: Prior to mounting the HWS on your weapon, be sure the weapon
is cleared. If you are not sure how to clear your weapon, please see the accompanying
operator’s manual for the weapon platform you are mounting the sight on.
LASER SAFETY: The HWS is a Class II laser product. The Class II level illuminating
beam, however, is completely blocked by the housing. The only laser light accessible
to the eye is the image beam and is at a power level within the limit of a Class IIa laser
product. The illuminating beam can become accessible to the eye if the housing is
broken. Turn the sight off immediately and return the broken unit to the factory for
repair.
FCC COMPLIANCE: The HWS complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions: (1) this device may not cause harmful interference
and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION
• Never disassemble the sight’s optical assembly. The optical cavity is purged,
nitrogen filled, and sealed to achieve fog proof performance. Disassembly will
void the warranty and render the sight inoperable.
• There is a 12 volt battery that is approximately the same size as the Type N 1.5 volt
alkaline battery used in the M551. DO NOT USE the 12 volt batteries. They will
severely damage the sight.
• When used with a Night Vision device, always check to make sure the sight is off
before pressing the NV button to turn on the sight in the Night Vision mode.
Otherwise, it will toggle to the Normal mode and saturate the image intensifier.
• When a sudden increase in resistance is felt in the elevation or windage adjustment
shafts, the end of the adjustment range has been reached. DO NOT TURN THE
ADJUSTMENTS ANY FARTHER OR SERIOUS DAMAGE MAY OCCUR TO THE
SIGHT.
• Never clean the glass surface with a dry cloth or paper towel; always dampen the
glass surfaces prior to cleaning
• All moving parts of the sight are permanently lubricated. Do not try to lubricate them.
• Do not use deteriorated or corroded batteries. Inspect batteries for rips, tears,
dents, or cuts in the housing. If there is any exposed, internal content of the battery,
it could effect the operation of the sight.
• The SU-231/PEQ (HWS M553) is designed to mount only to rail systems that are
made to the dimensions of the current MIL-STD-1913 rail specification. Rails which
do not meet the dimensional requirements of the MIL-STD-1913 specification may
result in the sight fitting loosely, moving on the rail during recoil, or not allow the cam
levers to close properly.
This page was intentionally left blank.
TABLE OF CONTENTS
Page
1.0 INTRODUCTION............................................................................................ 1
1.1 General Information...............................................................................1
1.2 Key Attributes ...................................................................................... 2
1.3 Equipment Description ........................................................................ 4
1.4 Location and Description of Major Components ................................. 9
2.0 OPERATING INSTRUCTIONS.......................................................................11
2.1 Description of Components, Controls, and Indicators .........................11
2.1.1 Hood .........................................................................................12
2.1.2 Batteries ...................................................................................12

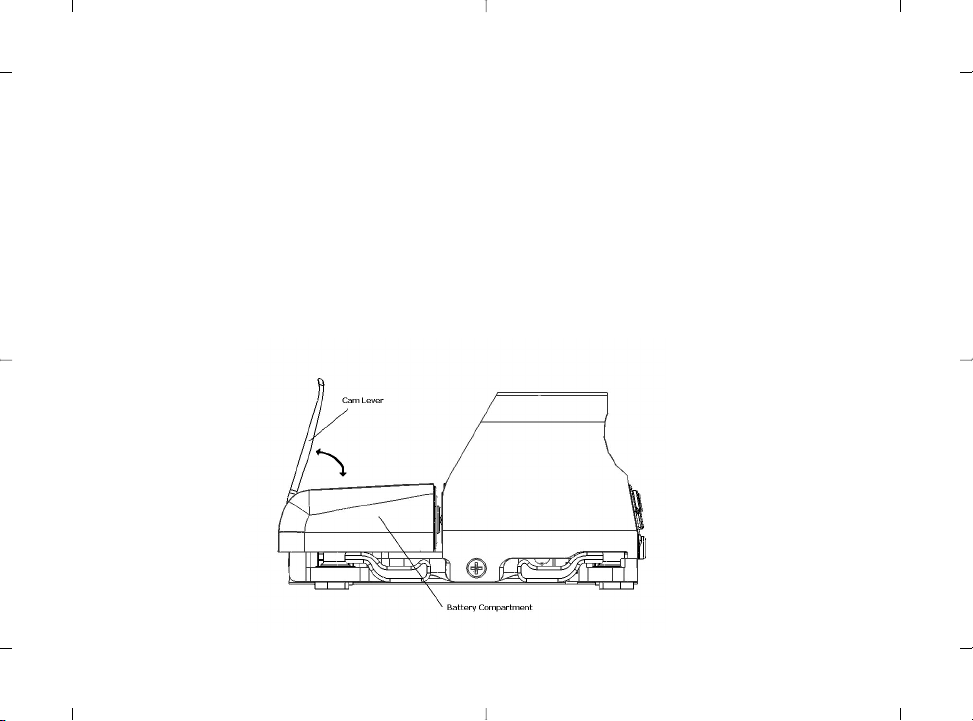

2.1.3 Replacing Batteries...................................................................14

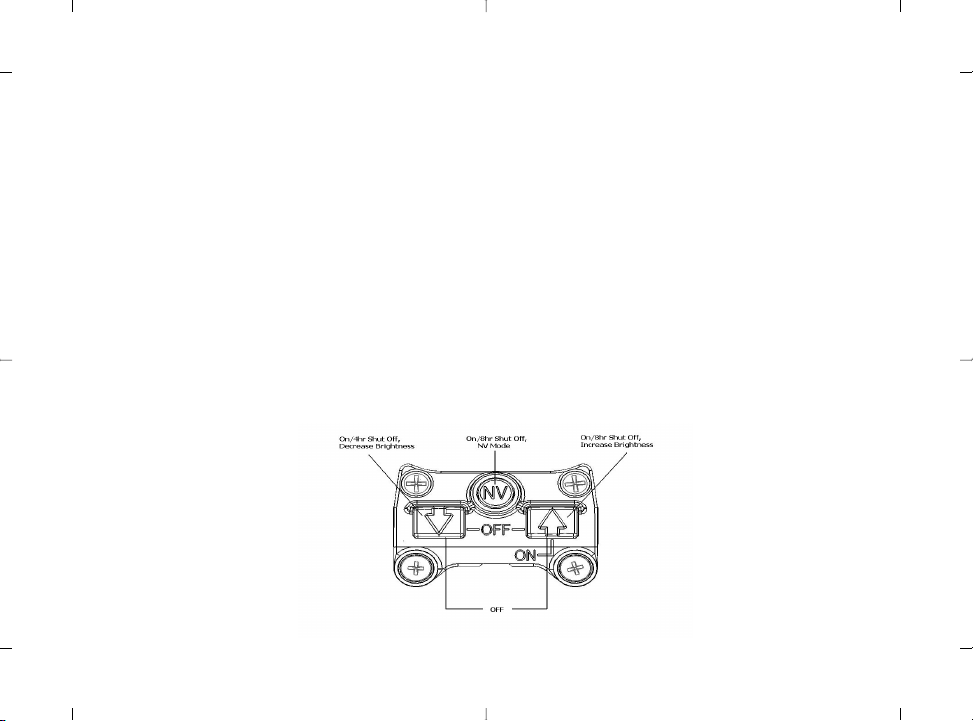

2.1.4 Electronic Features...................................................................15
2.1.5 Night Vision Mode.....................................................................16

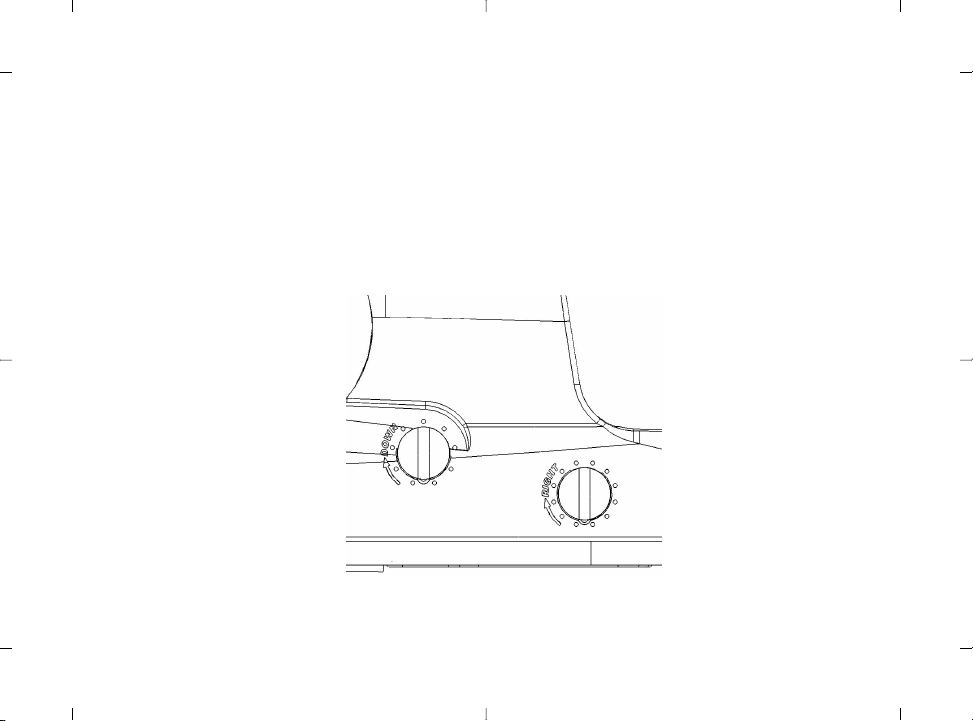

2.1.6 Windage and Elevation Adjustments........................................17
2.2 Preventive Maintenance Checks and Services (PMCS) .....................19
2.3 Troubleshooting...................................................................................21
2.4 Unit Level Maintenance and Repair ....................................................24
2.5 Installation of Equipment .....................................................................26

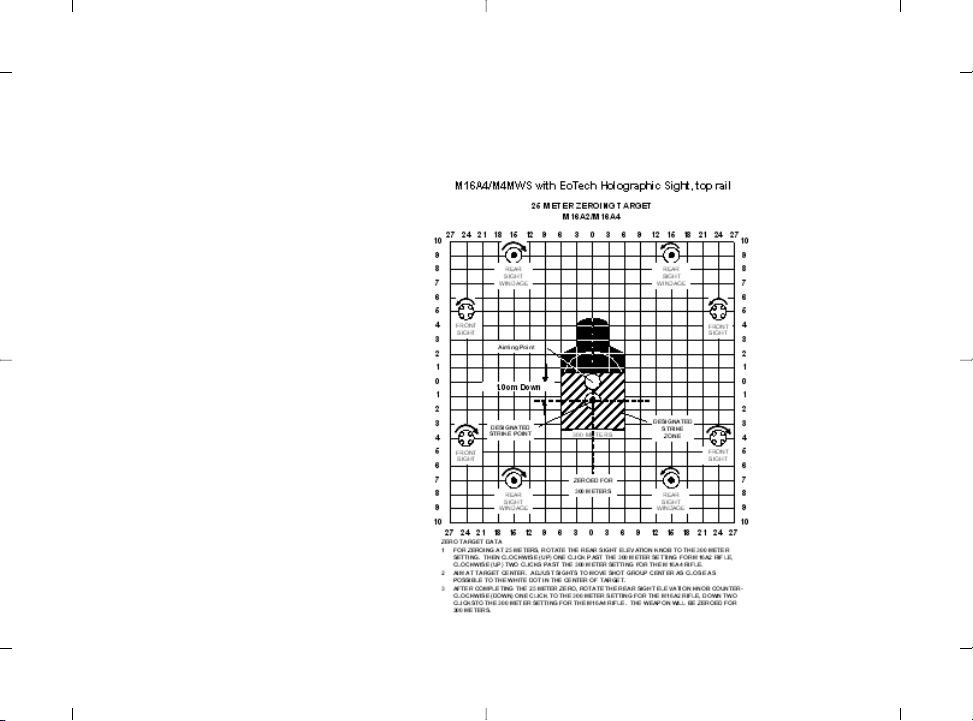

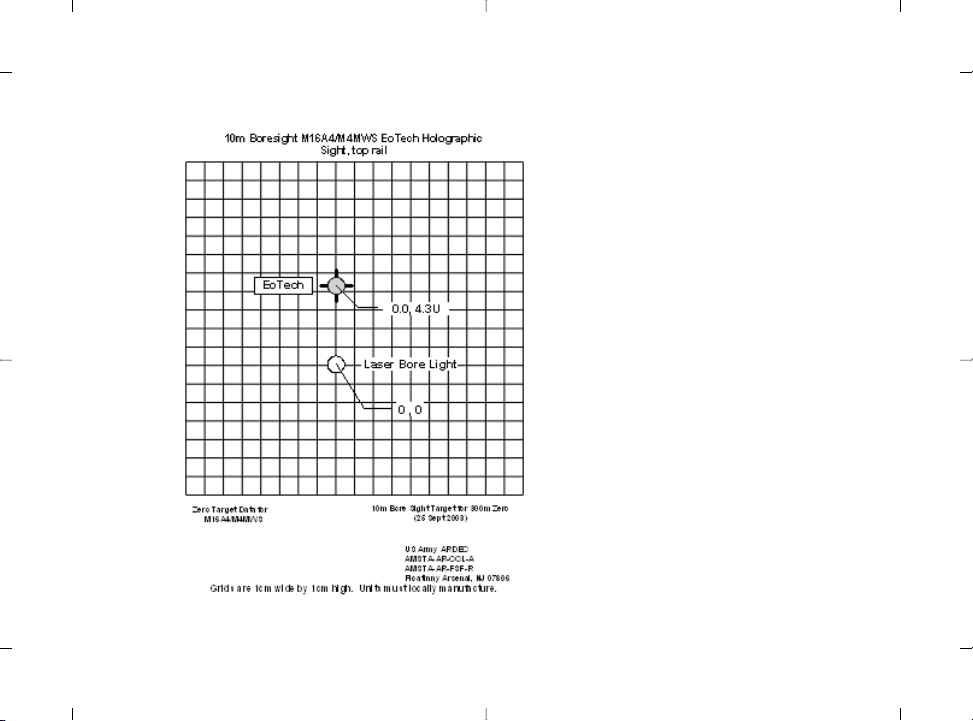

2.6 Zeroing Procedures .............................................................................28
3.0 MOUNTING SOLUTIONS ..............................................................................33

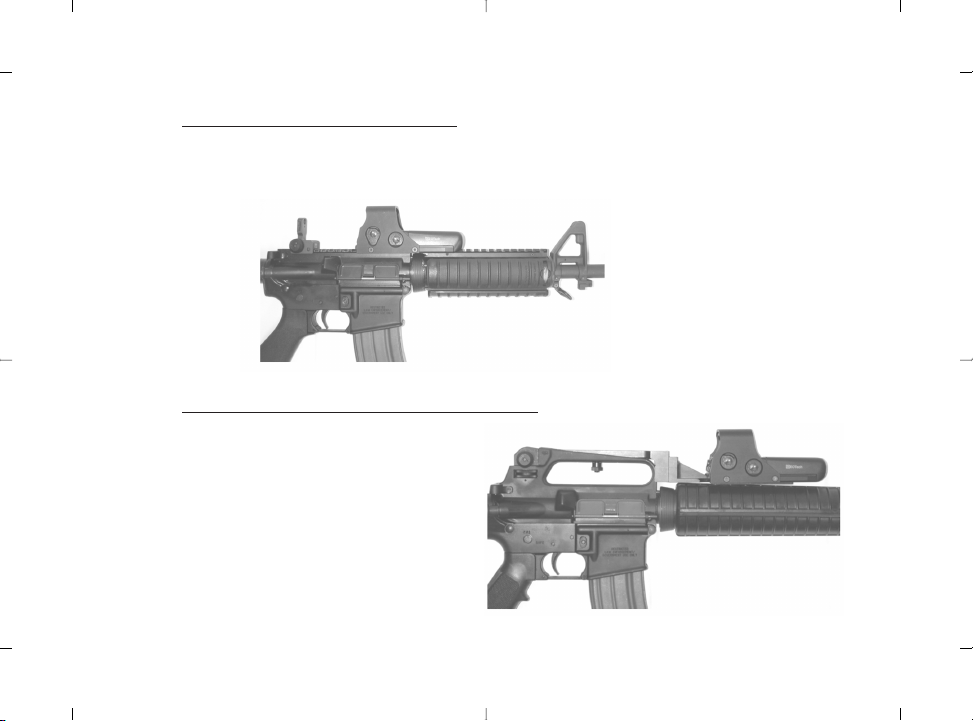

3.1 M4/M16 Flat Top Co-witness .....................................................................34
3.2 M4/M16 Adjustable Cantilever Mount........................................................34
3.3 M4/M16 Fixed Cantilever Mount................................................................35

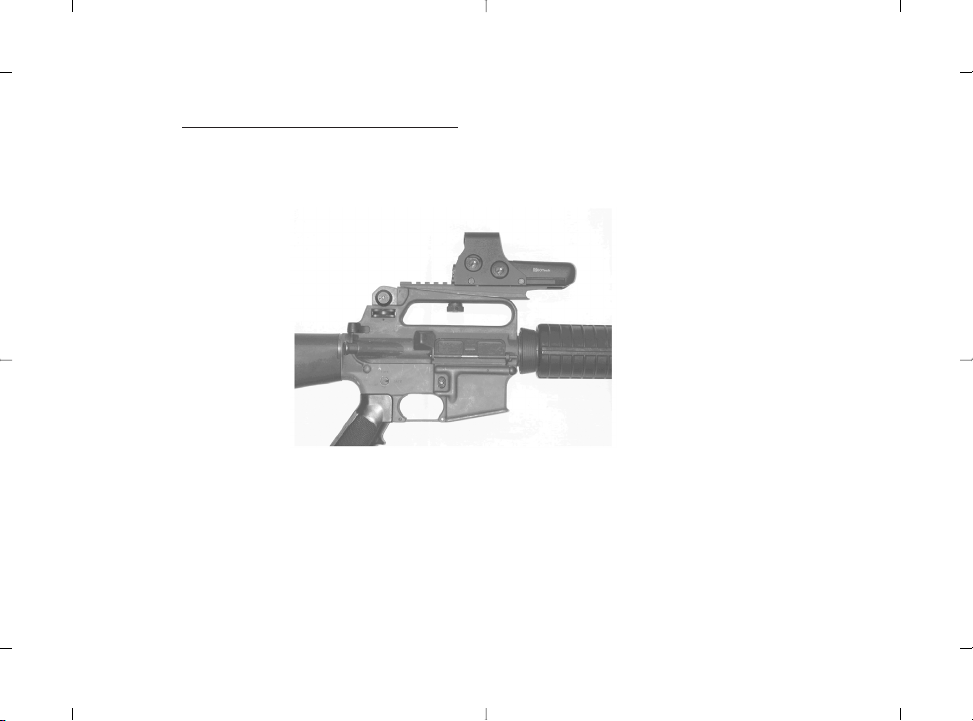

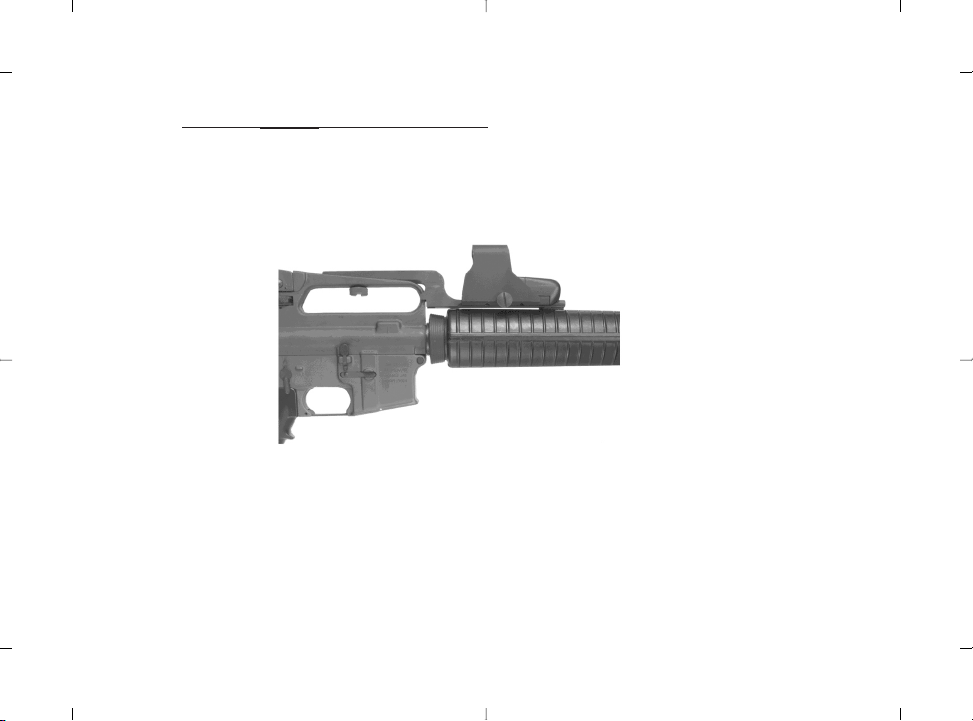

3.4 M4/M16 Carry Handle Mount.....................................................................36

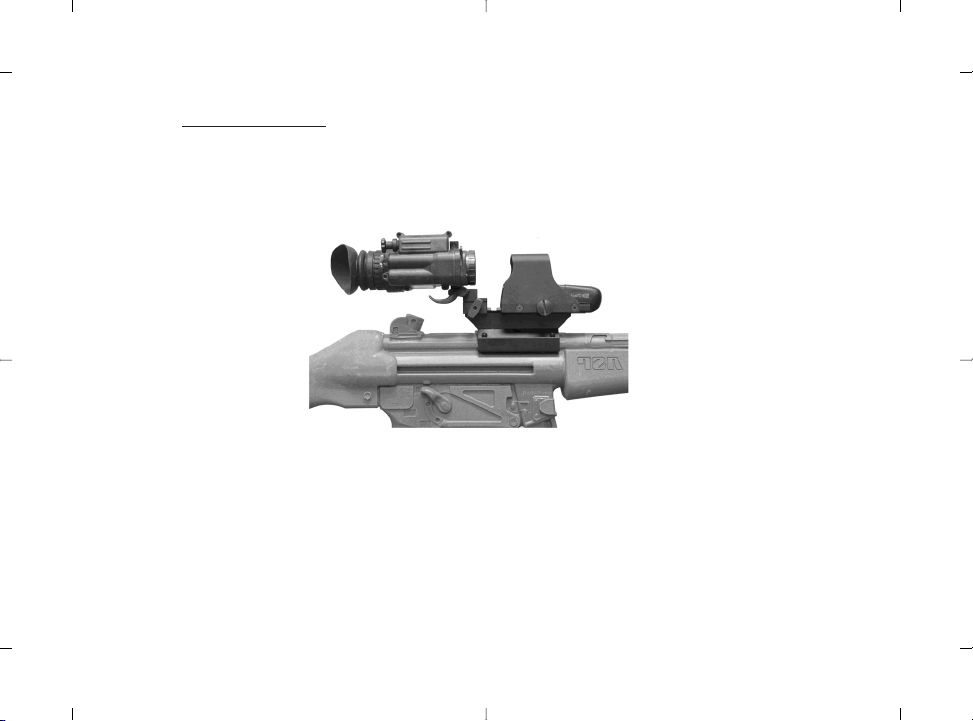

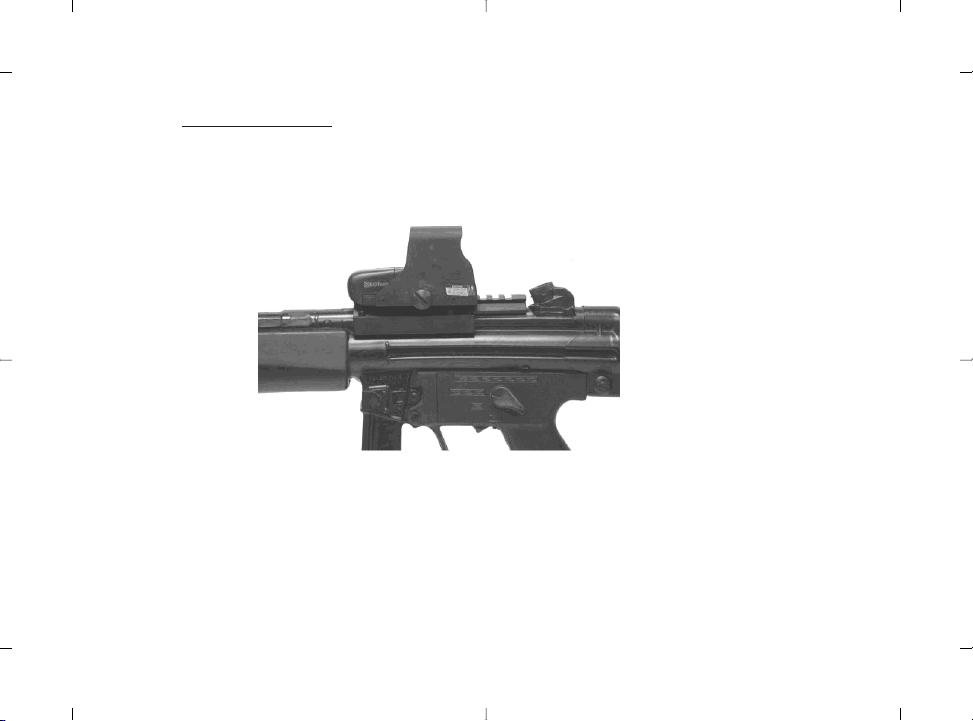

3.5 HK Low Profile ...........................................................................................37
3.6 HK Mid Profile ............................................................................................38

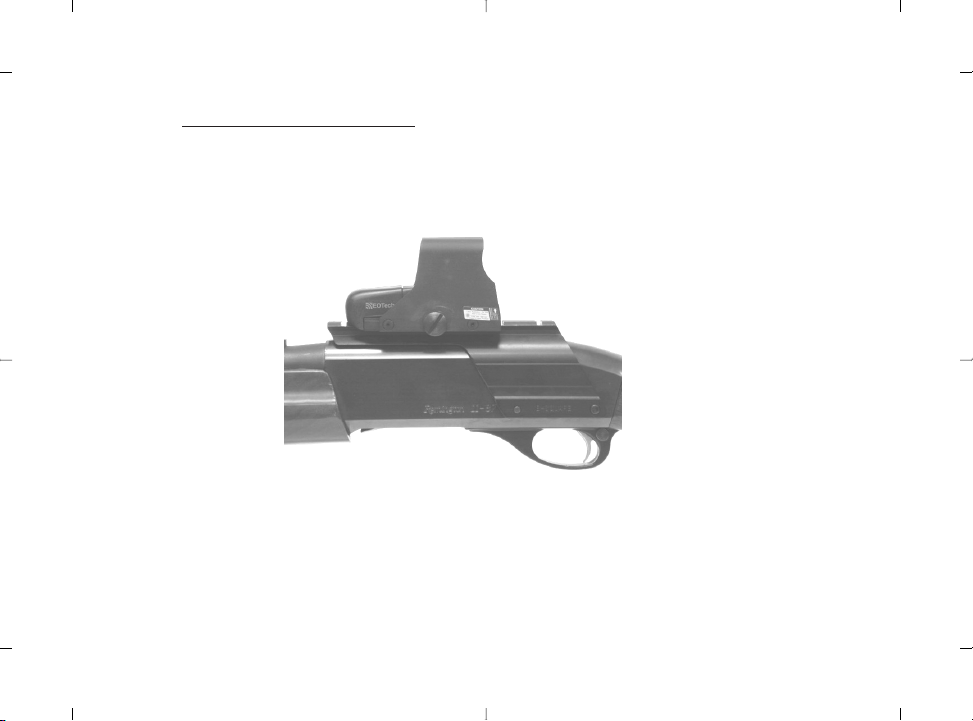

3.7 Tactical Shotgun Mount..............................................................................39

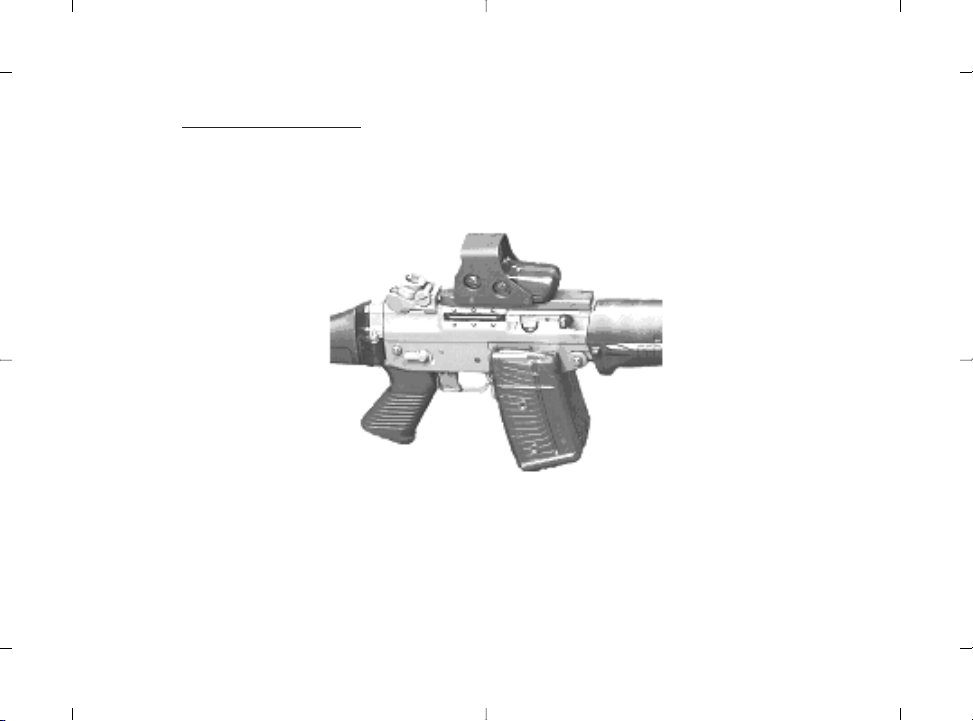

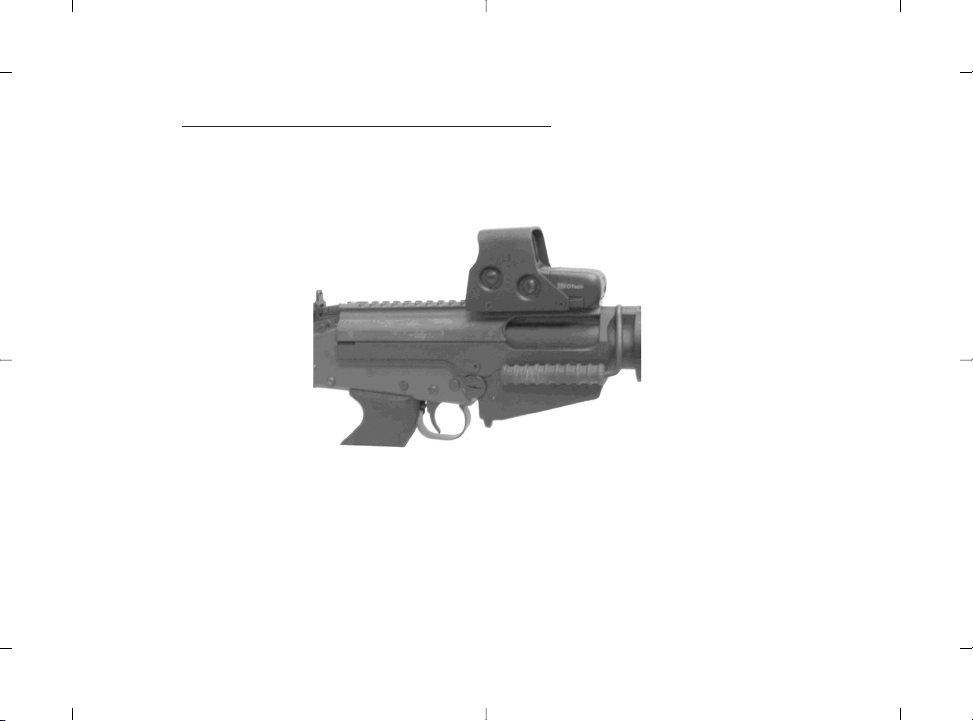

3.8 SIG SG-550 Mount ....................................................................................40
3.9 FN FAL Mount ............................................................................................41

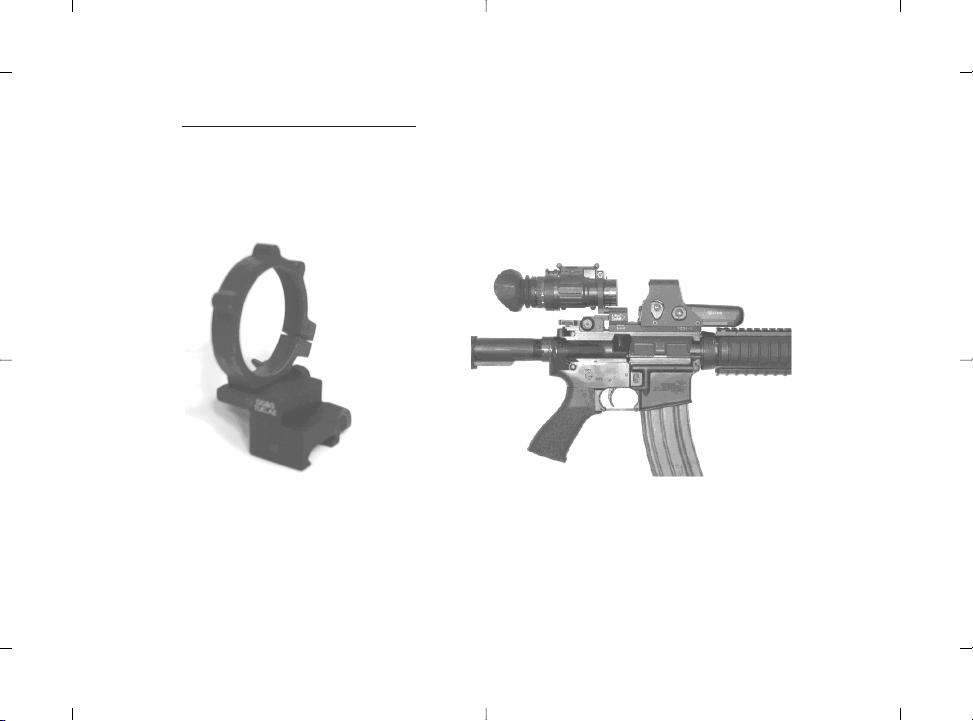

3.01 PVS-14 Ring and Mount ............................................................................42

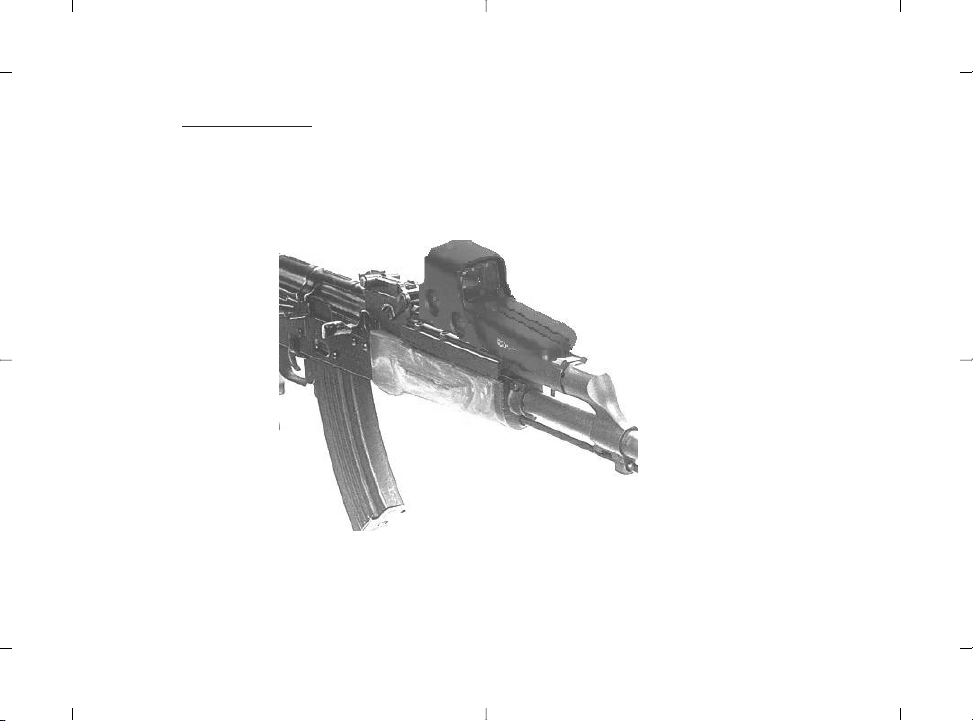

3.02 AK-47 Mount ..............................................................................................43
4.0 APPENDIX A, COMPONENTS OF END ITEM..............................................44

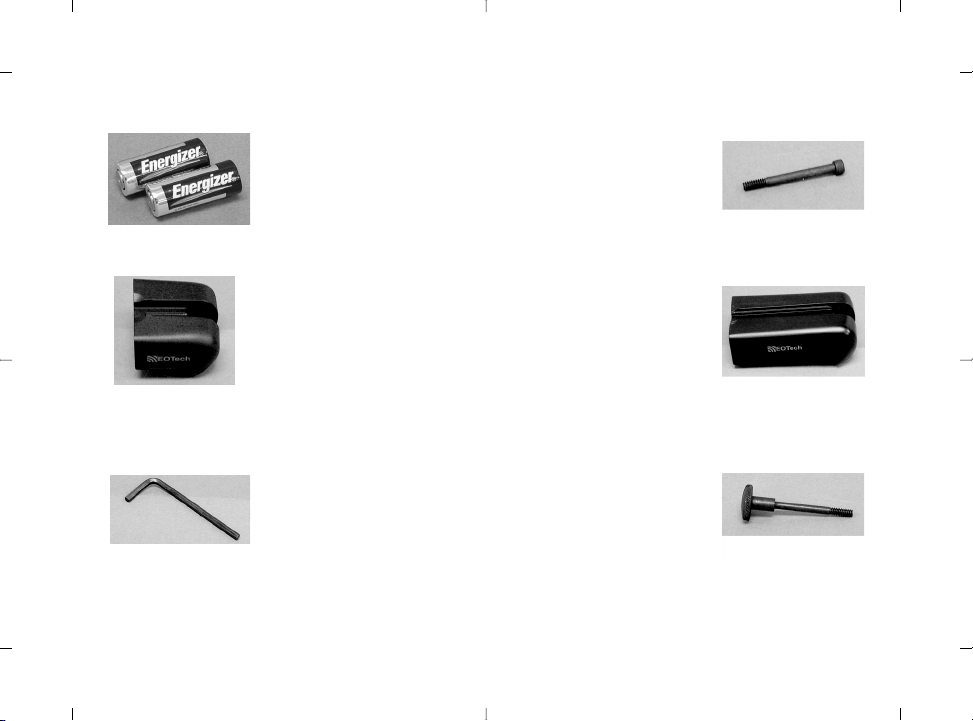

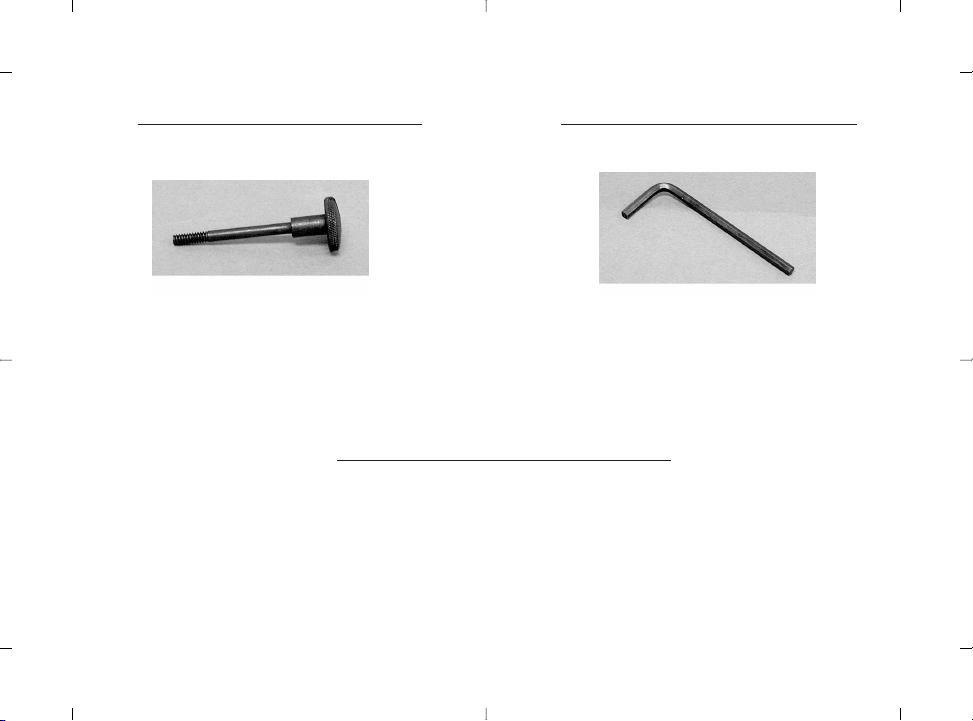

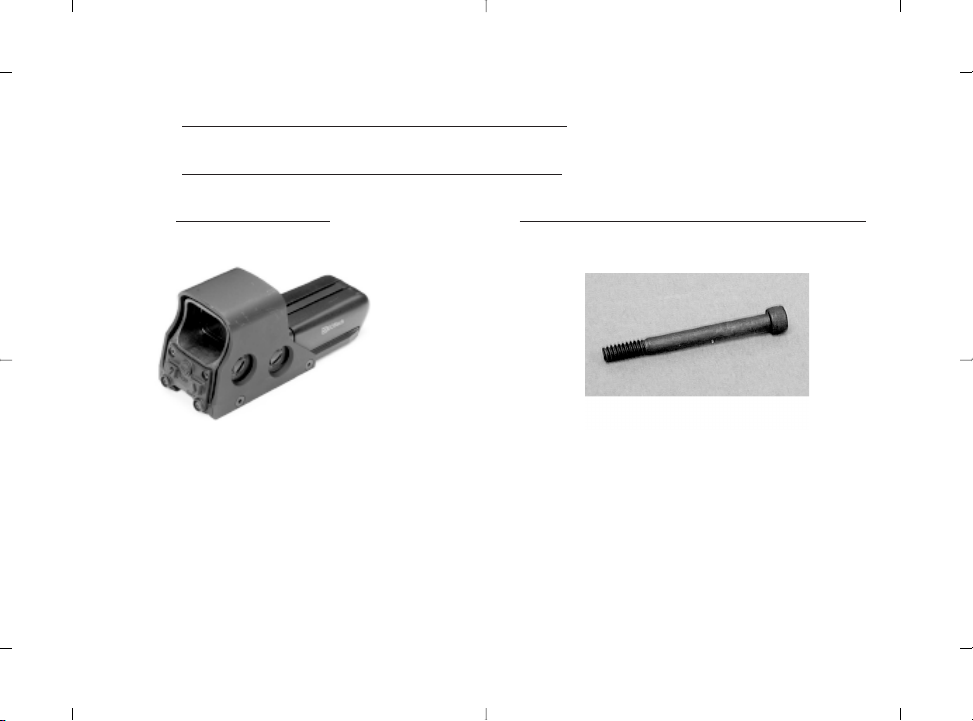

4.1 Basic Issue Items ................................................................................44

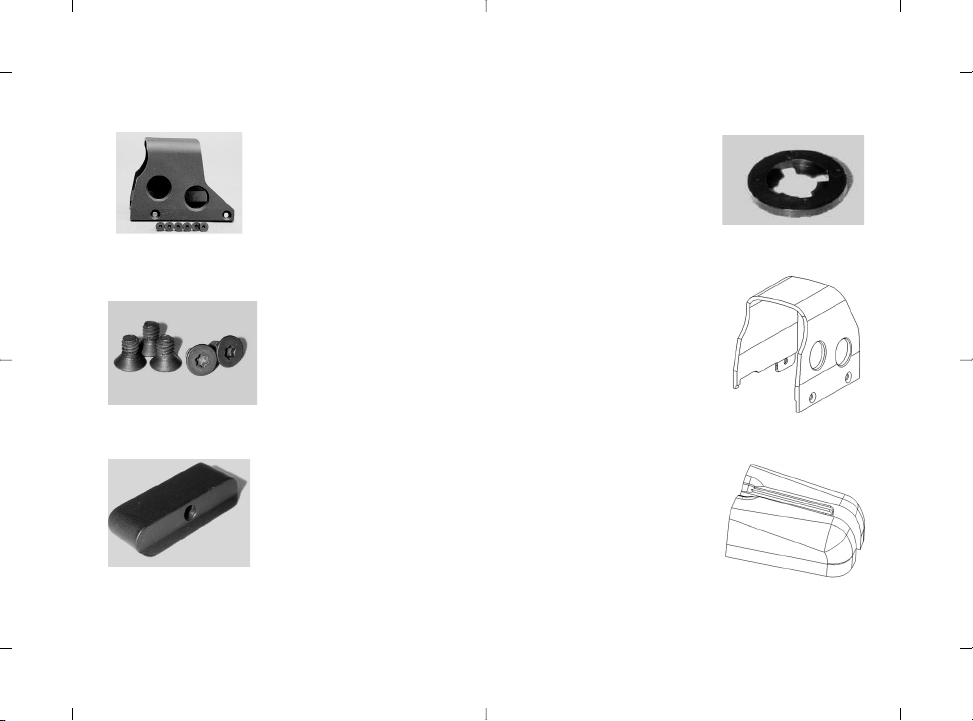

4.2 Replacement Items..............................................................................47
5.0 APPENDIX B, FACTORY CONTACTS ..........................................................50
1.0 INTRODUCTION
1.1 General Information
This manual is an overview of the SU-231/PEQ (M553), M552, and the M551
Holographic Weapon Sights (HWS) or Reflex Sight, and will define the basic
operation, features/benefits, and options of this proprietary optical system. The Reflex
Sight is a state of-the-art optical sighting system, employing holographic sighting
technology for small to medium caliber weaponry and launching type platforms. The
Reflex Sight utilizes holographic optics fabrication technology that is used in the
production of advanced heads up display in attack fighter aircraft for targeting, gauge
reading, weapon system verification, etc. L-3 EOTech has miniaturized the
sophisticated sighting heads up display system into a compact and rugged package
for use on small arms and other weapon platforms.
1
1.2 Key Attributes
The SU-231/PEQ (M553), M552, and the M551 reflex sights are lightweight, nonmagnifying, optical sights designed for Close Quarter Battle. They allow very fast
target acquisition and engagement at short ranges while providing aiming capability
out to 300 meters equal to or better than iron sights.
The major combat advantage of the reflex sight is extremely rapid reticle-on-target
acquisition. As quickly as a target is identified, the holographic reticle can be
superimposed on the target. The sight allows operators
to maintain eye contact on the target and to place the
holographic reticle onto the target without shifting focus.
Operators can quickly acquire the target and reticle in the
same focal plane for fast and accurate shot placement.
The reflex sight appears to project the holographic image
of a reticle on the target plane. The sight can be used as
a bright open reticle image or a fine dot which is limited
only by the acuity of the shooter’s eye. The reticle
pattern is parallax free and the holographic heads up display window allows an
undistorted and unrestricted view of the target.
The reflex sight standard reticle is displayed in Figure 1: 65 minute ring with vertical
and horizontal stadia and a one MOA aiming dot.
2
Fig 1:
Standard
Reticle
The reflex sight offers extremely fast target acquisition in Close Quarter Battle (CQB)
using the large ring, and aiming precision in longer range engagements (using the
MOA Dot) without obscuring the target.
Another advantage of the Reflex Sight is the full field of view which allows the operator
better situational awareness. The Reflex Sight employs a true heads up display
(HUD) window that eliminates blind spots and constricted or tunnel vision associated
with scope sights. Controls are inset into the Reflex Sight housing with no protruding
knobs, battery compartments, or rings obscuring the target. Utilizing natural binocular
vision is an advantage of this sighting system, as well as additional threat
identification through increased operator situational awareness and peripheral vision.
The reflex sight can operate in tandem with Generation I – IV+ night vision intensifier
tubes. Operators can see the holographic reticle image with helmet mounted or
weapon mounted night vision devices. The reflex sight is a passive system and emits
no signature from frontal or from a peripheral aspect. While in the NV mode, the sight
is undetectable by opposing force night vision equipment. The HWS can be
positioned behind night vision systems without any “bloom” on the target area.
The primary use of the reflex sight is for the M4A1 carbine and CQBR in Close
Quarters Battle. The reflex sight is not however, limited to carbines. The reflex sight
is currently employed on medium caliber machine guns, grenade launchers and less
than lethal projectile launchers. The sight provides a 1X (no magnification) sight
picture and is not designed as a long range sight system, however, it can be used as
effectively as iron sights on targets to 300 meters.
3
The advantage of the reflex sight is that it provides the operator superior shooting
performance, rapid reticle-on-target acquisition, full field of view and accurate shot
placement. The reflex sight can be naturally employed by all levels of users, from
novice to the most highly trained operator.
1.3 Equipment Description
SU-231/PEQ (M553)
Operation
Optics: Transmission holography – 100% parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 4.9”x1.8”x2.8”
Weight: 12.3 oz
Temperature: -40 to 150 F
Waterproof: Submersible to 66 ft depth
Sealing: Fogproof internal optics
Color/Finish: Flat Dark Earth (non-reflective black on some small components)
Adjustment (per click): 0.5 MOA (1/2” at 100 yds)
Adjustment Range: +/- 40 MOA travel
Mount: USSOCOM requirements dictated dual quick release throw levers designed
specifically for the Picatinny (MIL-STD-1913) mounting rail:
• Certain commercial variants to the MIL-STD 1913 rail specification may not be compatible
with the SU-231/PEQ (M553) mounting assembly.
4
• The SU-231/PEQ (M553) base consists of (2) ARMS®throw levers and is only adaptable to
rails that properly accept the ARMS
®
design.
Return to Zero: Repeatable to 1 MOA after re-mounting
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20” x 0.85” (30 x 23mm)
Window Material: Shatter resistant laminate (3/16” thick)
Field of View (100 yds): 30 yds (28m) at a 4” eye relief
Standard Reticle: 65MOA circle with quadrant ticks with 1 MOA aiming dot
Electrical
Brightness Adjustment Range: 110,000: 1 brightest to lowest
Night Vision Brightness Range: 1000: 1 with NV switch engaged
Power Source: 2 x 123 lithium batteries
Battery Life: 1100 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: At 8 hrs- programmable to 4 hrs
5
M552
Operation
Optics: Transmission holography – 100% parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 5”x1.8”x2.25” (131x49x60 mm)
Weight: 11.5 oz (326 grams)
Temperature: -40 to 150 F (using AA lithiums); -20 to 140 F (all other battery choices)
Waterproof: Submersible to 33 ft depth
Sealing: Fogproof internal optics
Color/Finish: Non reflective black with hard coat finish
Adjustment (per click): 0.5 MOA (1/2” at 100 yds)
Adjustment Range: +/- 40 MOA travel
Mount: 1” Picatinny (MIL-STD-1913) rail
Return to Zero: Repeatable to 1 MOA after re-mounting
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20” x 0.85” (30 x 23mm)
Window Material: Shatter resistant laminate (3/16” thick)
Field of View (100 yds): 30 yds (28m) at a 4” eye relief
Standard Reticle: 65MOA circle with quadrant ticks with 1 MOA aiming dot
6
Electrical
Brightness Adjustment Range: 110,000: 1 brightest to lowest
Night Vision Brightness Range: 1000: 1 with NV switch engaged
Power Source: 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable)
Battery Life: 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with
AA alkaline
Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: At 8 hrs- programmable to 4 hrs
M551
Operation
Optics: Transmission holography – 100% parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 4”x1.8”x2.25” (102x49x60 mm)
Weight: 8.8 oz (250 grams)
Temperature: -20 to 140 F
Waterproof: Submersible to 33 ft depth
Sealing: Fogproof internal optics
Color/Finish: Non reflective black with hard coat finish
Adjustment (per click): 0.5 MOA (1/2” at 100 yds)
Adjustment Range: +/- 40 MOA travel
Mount: Picatinny (MIL-STD-1913) rail
Return to Zero: Repeatable to 2 MOA after re-mounting
<#
7
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20” x 0.85” (30 x 23mm)
Window Material: Shatter resistant laminate (3/16” thick)
Field of View (100 yds): 30 yds (28m) at a 4” eye relief
Standard Reticle: 65MOA circle with quadrant ticks with 1 MOA aiming dot
Electrical
Brightness Adjustment Range: 110,000: 1 brightest to lowest
Night Vision Brightness Range: 1000: 1 with NV switch engaged
Power Source: 2x N type 1.5V alkaline batteries (3.0V)
Battery Life: 200 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: At 8 hrs- programmable to 4 hrs
8

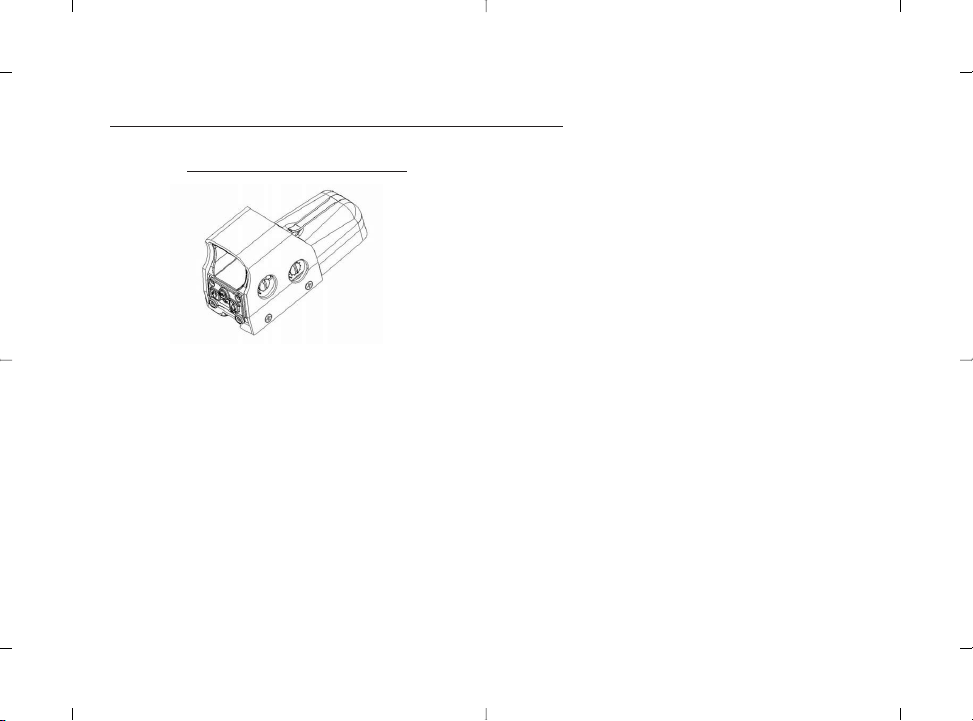

1.4 Location and Description of Major Components
Fig 2: SU-231/PEQ (M553)
9
Holographic Window - Contains the embedded holographic reticle pattern that forms a virtual
image of the reticle when illuminated by laser light.
Protective Hood
- Preassembled, protective hood increases durability of sight housing and
protects the sight from impact damage.
Battery Latch
- A cam lever that secures the removable battery compartment to the sight and
prevents water, dirt, or grime from entering the battery housing.
Removable Battery Compartment
- Protective housing that contains the power source for the
HWS. The compartment is easily and quickly removed for the replacement of batteries.
Universal Moun
t - Integrated Picatinny (MIL-STD-1913) compatible rail.
W
indage Adjustment - Adjusts the point of impact 1/2 MOA per click in a leftward and rightward
direction.
Elevation
Adjustment - Adjusts the point of impact 1/2 MOA per click in an upward and
downward direction.
On/Off, NV Mode, and Brightness Switches
- Raised button control interface allows the
operator to perform and adjust user settings for appropriate and preferred conditions.
10
Loading...
