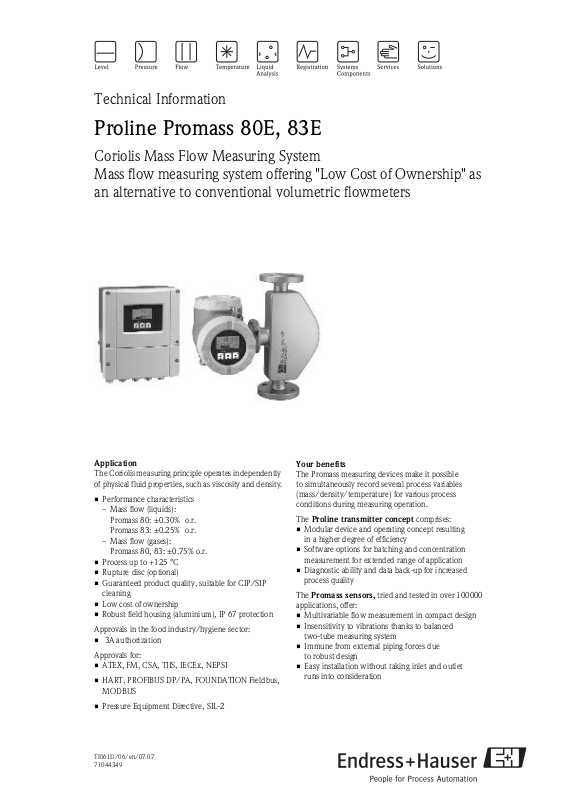

Endress+Hauser Proline Promass 80E, Proline Promass 83E Technical Information

Technical Information

Proline Promass 80E, 83E

Coriolis Mass Flow Measuring System
Mass flow measuring system offering "Low Cost of Ownership" as
an alternative to conventional volumetric flowmeters

Application

The Coriolis measuring principle operates independently
of physical fluid properties, such as viscosity and density.

• Performance characteristics
– Mass flow (liquids):

Promass 80: ±0.30% o.r.
Promass 83: ±0.25% o.r.

– Mass flow (gases):

Promass 80, 83: ±0.75% o.r.

• Process up to +125 °C

• Rupture disc (optional)

• Guaranteed product quality, suitable for CIP/SIP
cleaning

• Low cost of ownership

• Robust field housing (aluminium), IP 67 protection

Approvals in the food industry/hygiene sector:

• 3A authorization

Approvals for:

• ATEX, FM, CSA, TIIS, IECEx, NEPSI

• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS

• Pressure Equipment Directive, SIL-2

Your benefits

The Promass measuring devices make it possible
to simultaneously record several process variables
(mass/density/temperature) for various process
conditions during measuring operation.

The Proline transmitter concept comprises:

• Modular device and operating concept resulting
in a higher degree of efficiency

• Software options for batching and concentration
measurement for extended range of application

• Diagnostic ability and data back-up for increased
process quality

The Promass sensors, tried and tested in over 100000
applications, offer:

• Multivariable flow measurement in compact design

• Insensitivity to vibrations thanks to balanced
two-tube measuring system

• Immune from external piping forces due
to robust design

• Easy installation without taking inlet and outlet
runs into consideration

TI061D/06/en/07.07
71044349

Table of contents

Proline Promass 80E, 83E

Function and system design. . . . . . . . . . . . . . . . . . . . . 3

Measuring principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Measuring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Measured variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operable flow range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Input signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Output signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Signal on alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Low flow cut off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Galvanic isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Switching output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Electrical connection Measuring unit . . . . . . . . . . . . . . . . . . . . . 10

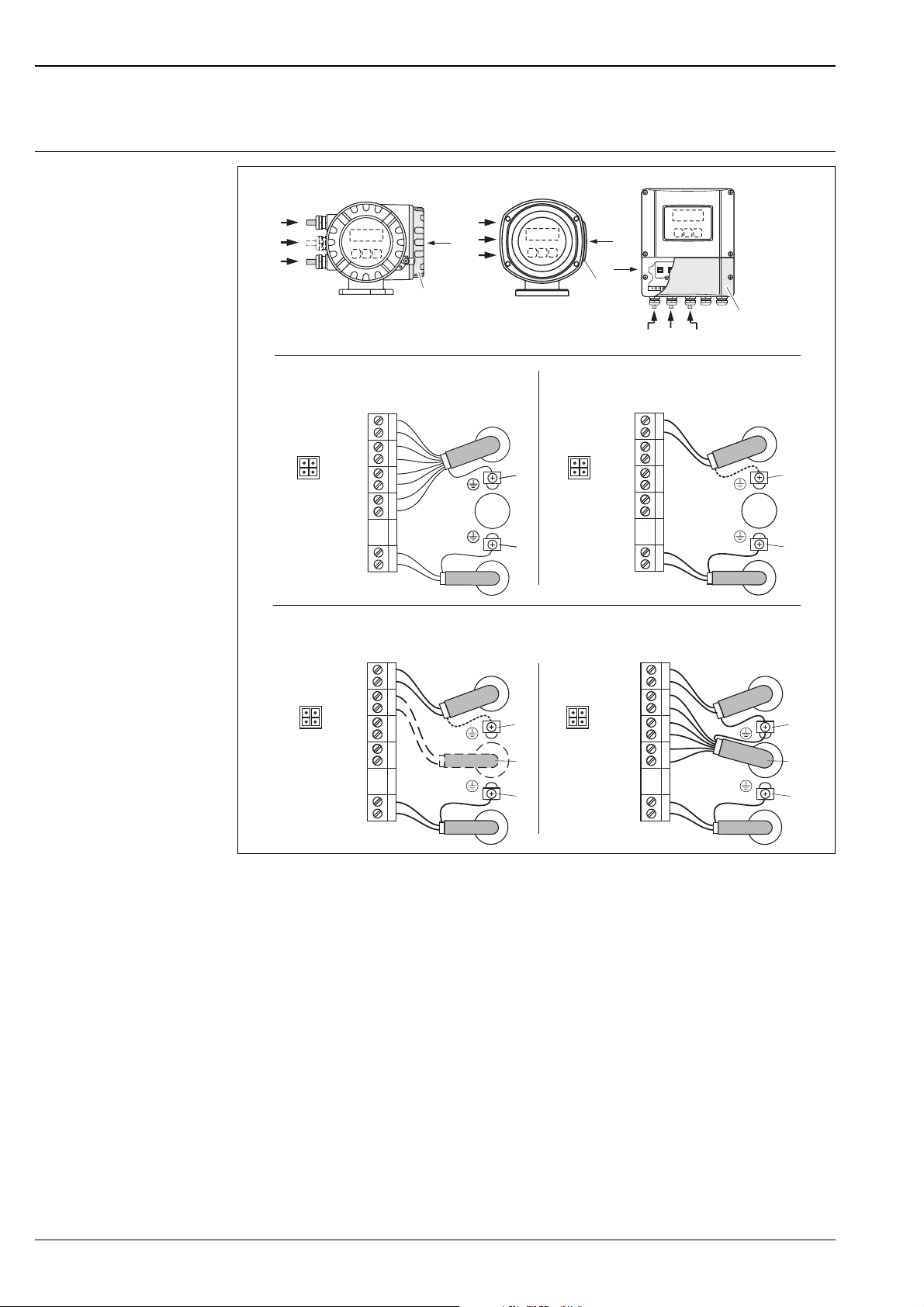

Electrical connection, terminal assignment . . . . . . . . . . . . . . . . . 11

Electrical connection Remote version . . . . . . . . . . . . . . . . . . . . . 12

Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cable entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cable specification

Remote version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power supply failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Potential equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Pressure loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Mechanical construction . . . . . . . . . . . . . . . . . . . . . . 22

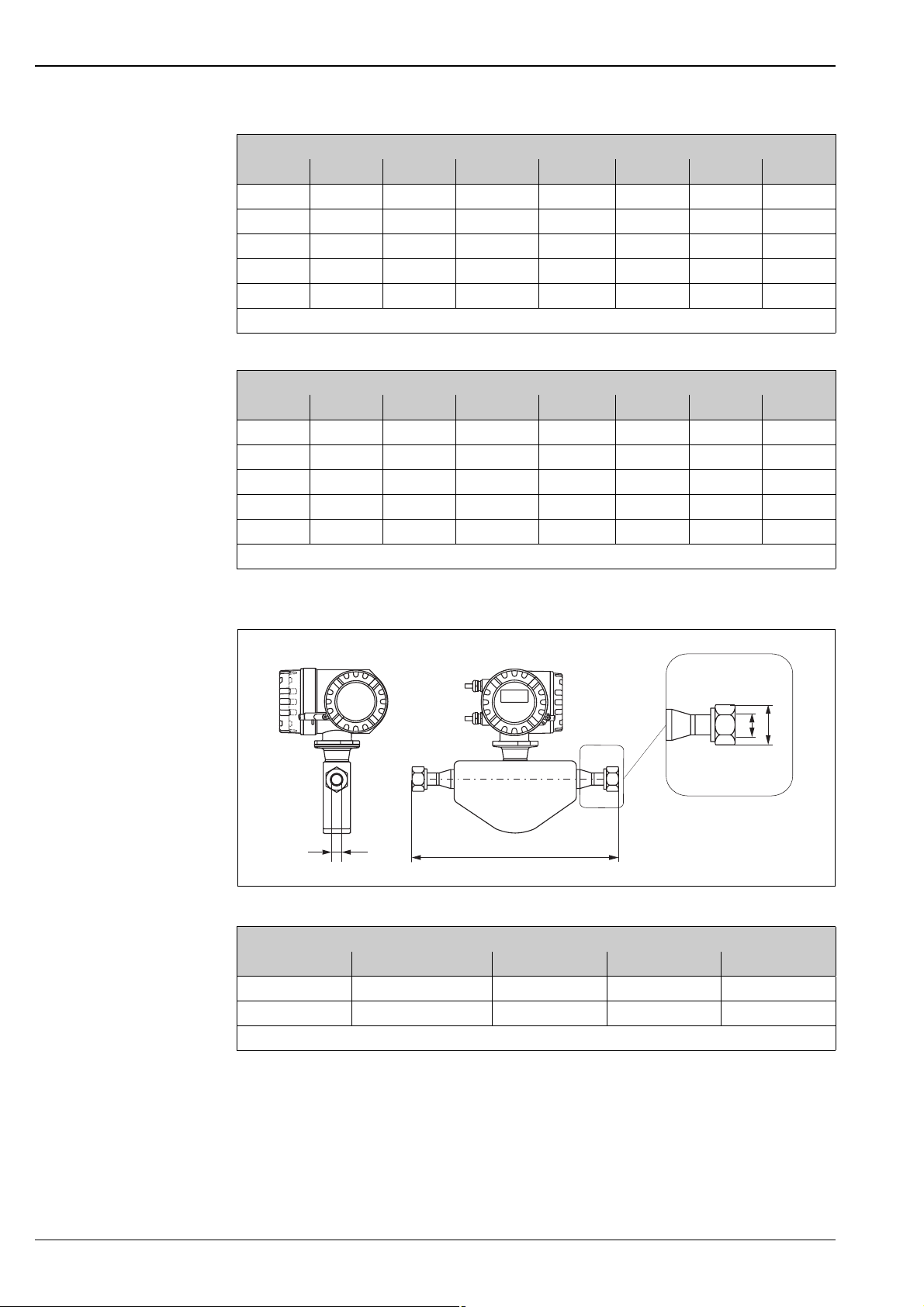

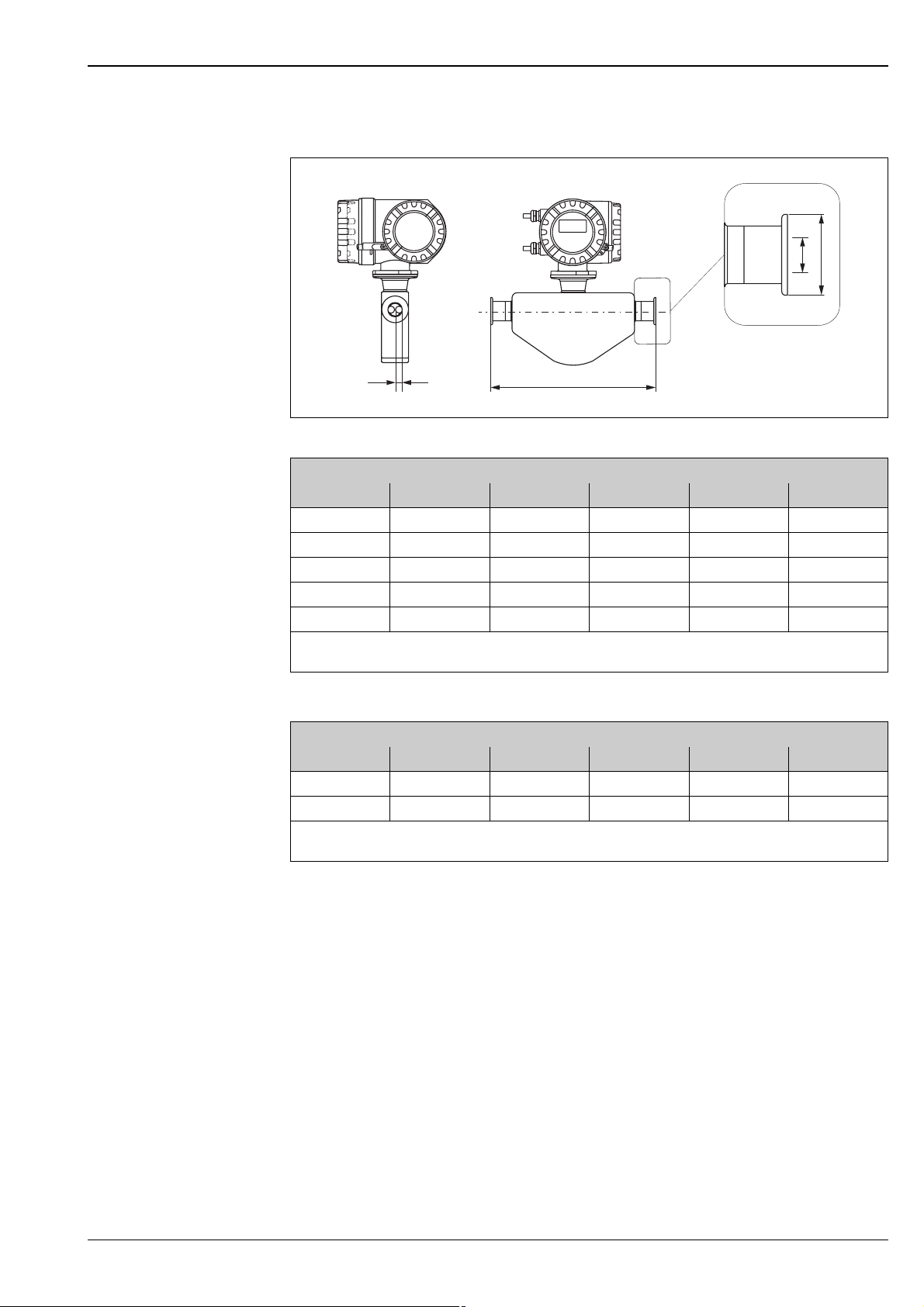

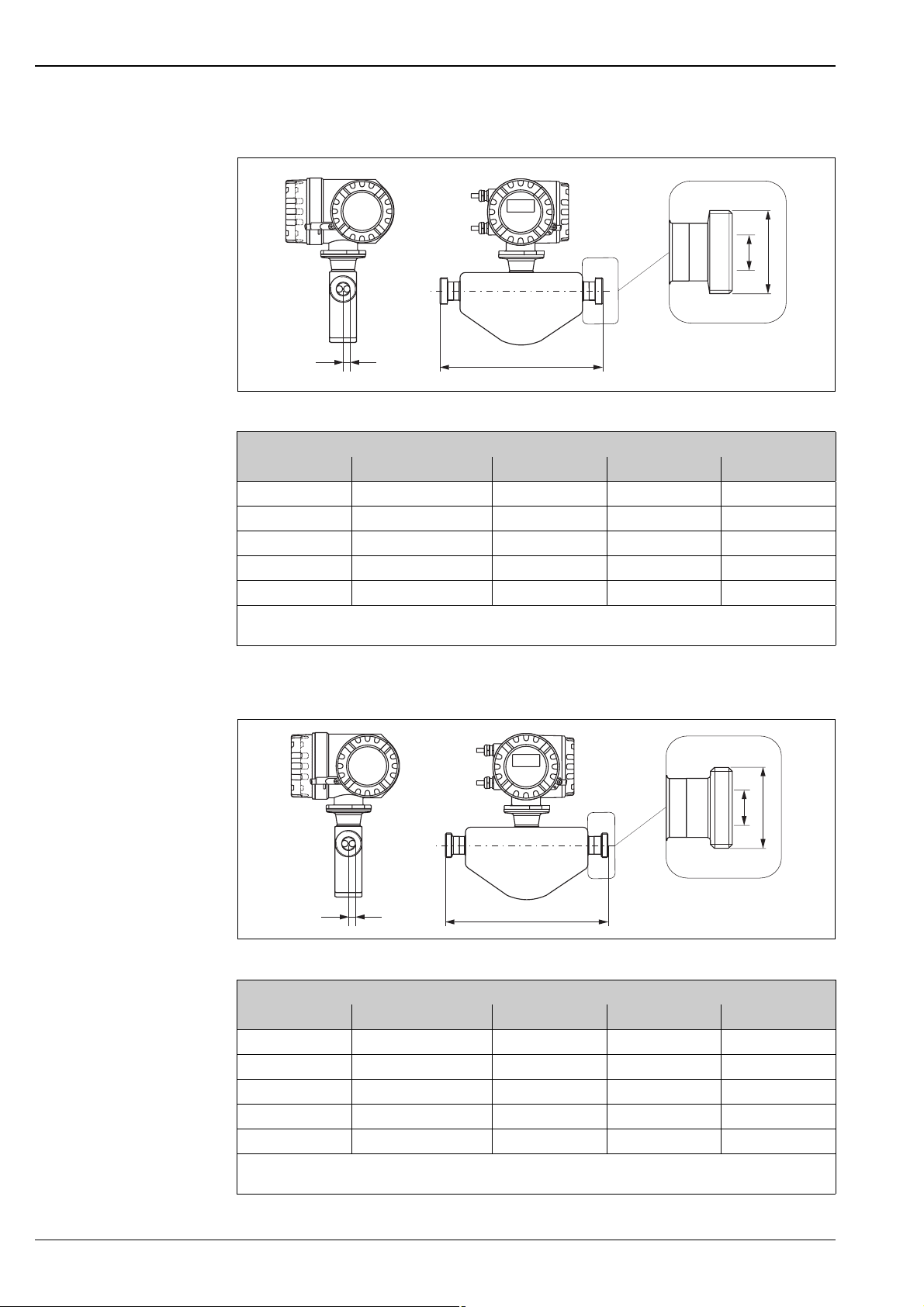

Design / dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Rupture disk in the sensor housing (optional) . . . . . . . . . . . . . . . 32

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Material load curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Process connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Human interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Unified control concept for both types of transmitter . . . . . . . . . . 36

Language groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Remote operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Certificates and approvals . . . . . . . . . . . . . . . . . . . . . 37

CE mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

C-Tick symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Ex approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Hygienic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

FOUNDATION Fieldbus certification . . . . . . . . . . . . . . . . . . . . 37

PROFIBUS DP/PA certification . . . . . . . . . . . . . . . . . . . . . . . . . 37

MODBUS certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Other standards and guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Pressure Equipment Directive . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Functional safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . 38

Performance characteristics. . . . . . . . . . . . . . . . . . . . 13

Reference operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maximum measured error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Influence of fluid temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Influence of fluid pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Operating conditions: Installation . . . . . . . . . . . . . . . 16

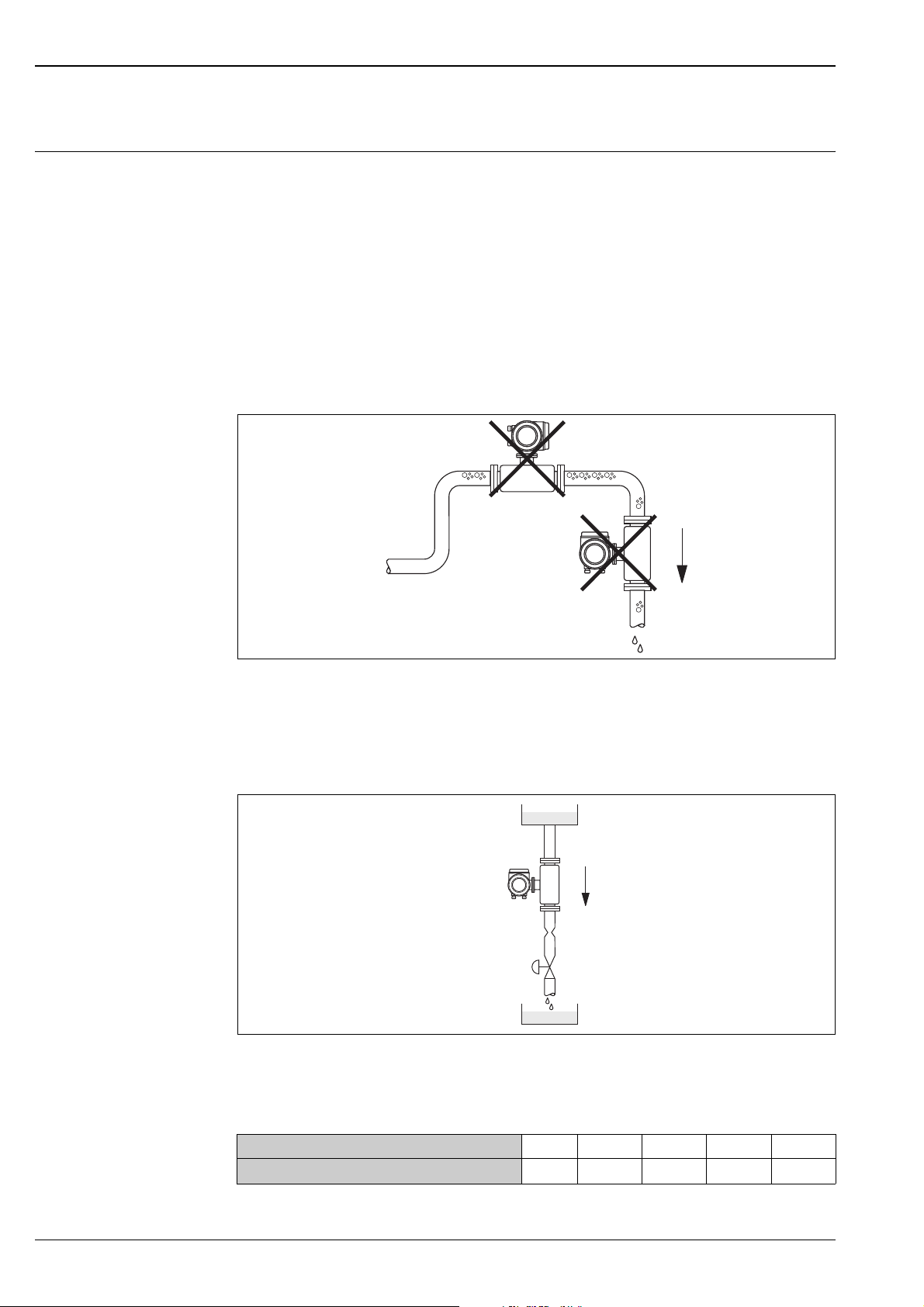

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Inlet and outlet runs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Length of connecting cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

System pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Operating conditions: Environment. . . . . . . . . . . . . . 20

Ambient temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Shock resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Vibration resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Electromagnetic compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . 20

Operating conditions: Process . . . . . . . . . . . . . . . . . . 20

Fluid temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fluid pressure range (nominal pressure) . . . . . . . . . . . . . . . . . . . 20

Rupture disk in the sensor housing (optional) . . . . . . . . . . . . . . . 20

Limiting flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . . 39

2 Endress+Hauser

Proline Promass 80E, 83E

Function and system design

Measuring principle The measuring principle is based on the controlled generation of Coriolis forces. These forces are always present

when both translational and rotational movements are superimposed.

FC = 2 · Δm (v · ω)

= Coriolis force

F

C

Δm = moving mass
ω = rotational velocity

v = radial velocity in rotating or oscillating system

The amplitude of the Coriolis force depends on the moving mass Δm, its velocity v in the system, and thus on
the mass flow. Instead of a constant angular velocity ω, the Promass sensor uses oscillation.

In the sensor, two parallel measuring tubes containing flowing fluid oscillate in antiphase, acting like a tuning
fork. The Coriolis forces produced at the measuring tubes cause a phase shift in the tube oscillations (see

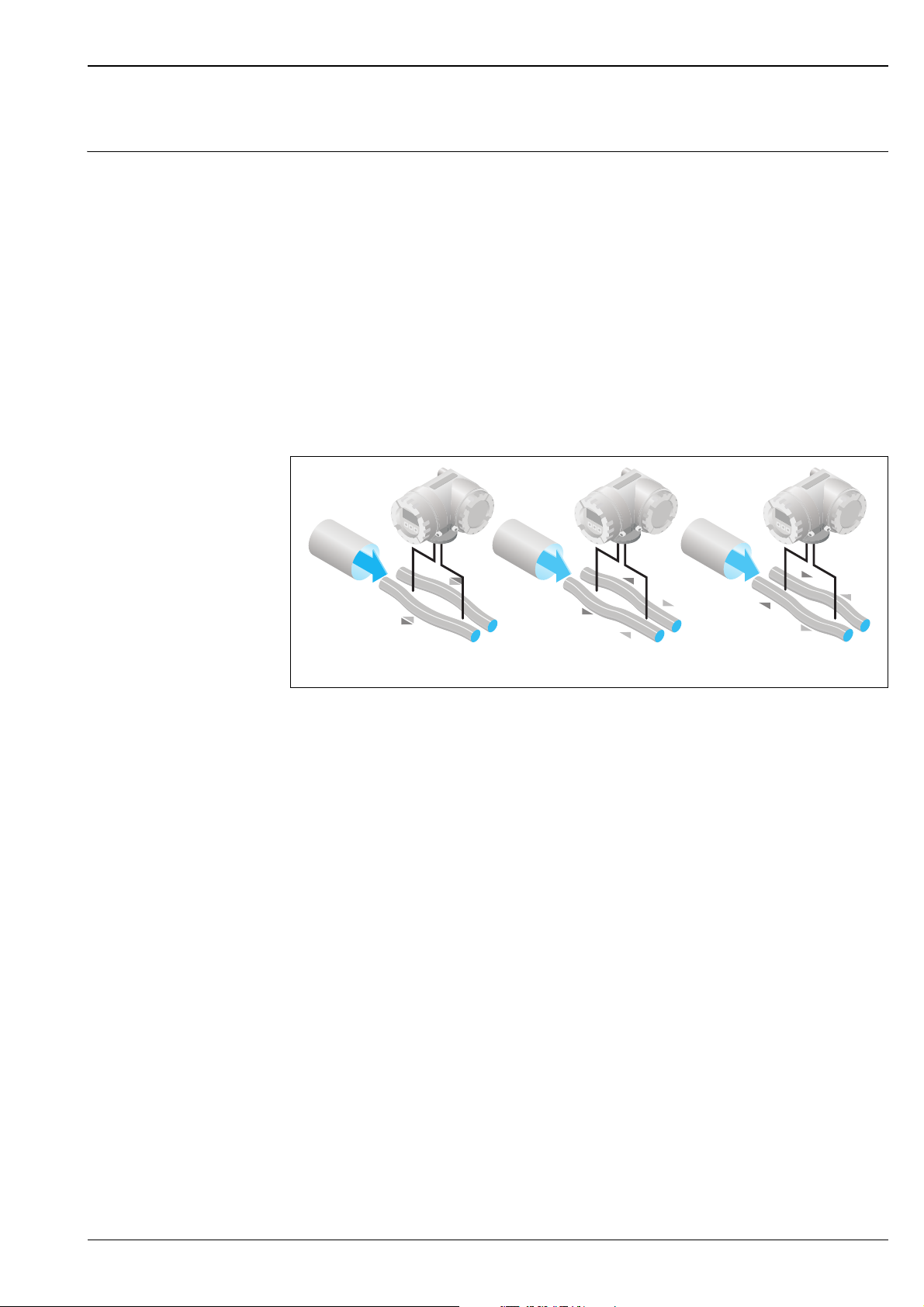

illustration):

• At zero flow, in other words when the fluid is at a standstill, the two tubes oscillate in phase (1).

• Mass flow causes deceleration of the oscillation at the inlet of the tubes (2) and acceleration at the outlet (3).

A

B

A

B

A

B

12 3

a0003385

The phase difference (A-B) increases with increasing mass flow. Electrodynamic sensors register the tube
oscillations at the inlet and outlet.
System balance is ensured by the antiphase oscillation of the two measuring tubes. The measuring principle
operates independently of temperature, pressure, viscosity, conductivity and flow profile.

Volume measurement

The measuring tubes are continuously excited at their resonance frequency. A change in the mass and thus the
density of the oscillating system (comprising measuring tubes and fluid) results in a corresponding, automatic
adjustment in the oscillation frequency. Resonance frequency is thus a function of fluid density. The density
value obtained in this way can be used in conjunction with the measured mass flow to calculate the volume
flow.
The temperature of the measuring tubes is also determined in order to calculate the compensation factor due
to temperature effects.

Endress+Hauser 3

Proline Promass 80E, 83E

Esc

E

-

+

Esc

E

-

+

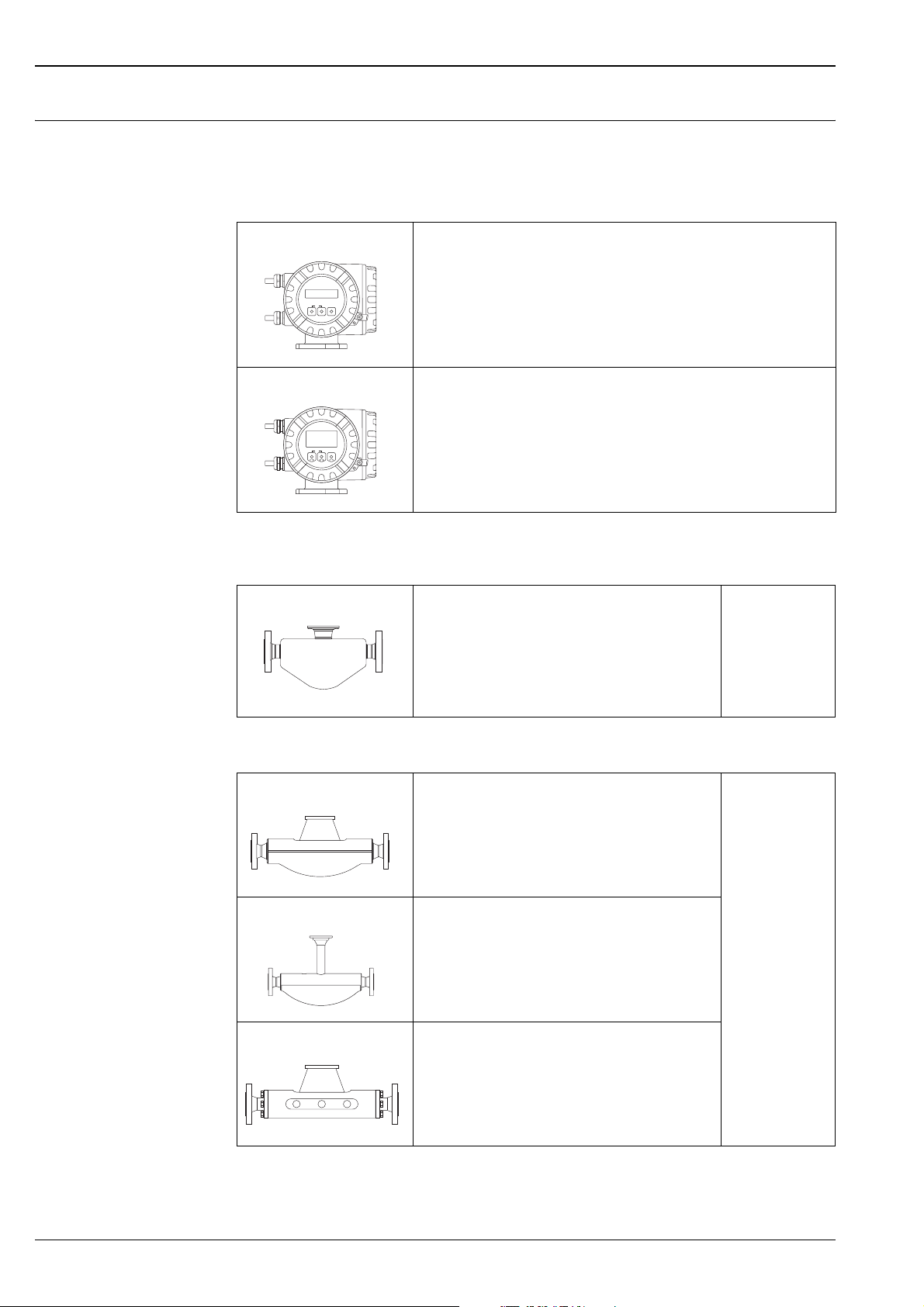

Measuring system The measuring system consists of a transmitter and a sensor. Two versions are available:

• Compact version: transmitter and sensor form a mechanical unit.

• Remote version: transmitter and sensor are mounted physically separate from one another.

Transmitter

Promass 80

Promass 83

Sensor

E

• Two-line liquid-crystal display

• Operation with push buttons

a0003671

• Four-line liquid-crystal display

• Operation with "Touch control"

• Application-specific Quick Setup

• Mass flow, volume flow, density and temperature measurement as well as
calculated variables (e.g. fluid concentrations)

a0003672

• General purpose sensor, ideal replacement for volumetric
flowmeters.

• Nominal diameters DN 8 to 50

• Material: Stainless Steel EN 1.4539/ASTM 904L,
EN 1.4404/ASTM 316L

Documentation No.
TI 061D/06/en

a0002271

Other sensors can be found in the separate documentation

F

F (High-temperature)

M

• Universal sensor for fluid temperatures up to 200 °C.

• Nominal diameters DN 8 to 250

• Material: Stainless Steel EN 1.4539/ASTM 904L,
EN 1.4404/ASTM 316L, Alloy C-22 DIN 2.4602

a0003673

• Universal high-temperature sensor for fluid temperatures
up to 350 °C.

• Nominal diameters DN 25, 50, 80

• Material: Alloy C-22, DIN 2.4602,
EN 1.4404/ASTM 316L

a0003675

• Robust sensor for extreme process pressures, high
requirements for the secondary containment and fluid
temperatures up to 150 °C

• Nominal diameters DN 8 to 80

• Material: Titanium, Ti Grade 2, Ti Grade 9

a0003676

Documentation No.
TI 053D/06/en

4 Endress+Hauser

Proline Promass 80E, 83E

A

• Single-tube system for highly accurate measurement of
very small flows

Documentation
No. TI 054D/06/en

• Nominal diameters DN 1 to 4

• Material: Stainless Steel EN 1.4539/ASTM 904L,
EN 1.4404/ASTM 316L (process connection),
Alloy C-22 DIN 2.4602

a0003679

H

• Single bent tube. Low pressure loss and chemically
resistant material

Documentation No.
TI 074D/06/en

• Nominal diameters DN 8 to 50

• Material: Zirconium 702/R 60702

a0003677

I

• Straight single-tube instrument. Minimal shear stress on
fluid, hygienic design, low pressure loss

Documentation No.
TI 075D/06/en

• Nominal diameters DN 8 to 80

• Material: Titanium, Ti Grade 2, Ti Grade 9

a0003678

S

• Single bent tube.
Hygienic design, low pressure loss, for fluid temperatures

Documentation No.
TI 076D/06/en

up to 150 °C

• Nominal diameters DN 8 to 50

• Material: Stainless Steel EN 1.4539/ASTM 904L,
EN 1.4435/ASTM 316L

a0006828

P

• Single bent tube, minimal shear stress on fluid.
Hygienic design with documents for Life Science

Documentation No.

TI 078D/06/en
Industries applications, low pressure loss, for fluid
temperatures up to 200 °C

• Nominal diameters DN 8 to 50

• Material: Stainless Steel EN 1.4435/ASTM 316L

a0006828

Endress+Hauser 5

Proline Promass 80E, 83E

Input

Measured variable • Mass flow (proportional to the phase difference between two sensors mounted on the measuring tube to

register a phase shift in the oscillation)

• Fluid density (proportional to resonance frequency of the measuring tube)

• Fluid temperature (measured with temperature sensors)

Measuring range Measuring ranges for liquids

DN Range for full scale values (liquids) g

8 0 to 2000 kg/h

15 0 to 6500 kg/h

25 0 to 18000 kg/h

40 0 to 45000 kg/h

50 0 to 70000 kg/h

min(F)

to g

max(F)

Measuring ranges for gases

The full scale values depend on the density of the gas. Use the formula below to calculate the full scale values:

= g

g

max(G)

g

= max. full scale value for gas [kg/h]

max(G)

= max. full scale value for liquid [kg/h]

g

max(F)

ρ

= Gas density in [kg/m³] at operating conditions

(G)

Here, g

max(G)

· ρ

max(F)

÷ 225 [kg/m³]

(G)

can never be greater than g

max(F)

Calculation example for gas:

• Sensor type: Promass E, DN 50

• Gas: air with a density of 60.3 kg/m³ (at 20 °C and 50 bar)

• Measuring range (liquid): 70000 kg/h

Max. possible full scale value:

g

max(G)

= g

max(F)

· ρ

÷ 160 [kg/m³] = 70000 kg/h · 60.3 kg/h ÷ 160 kg/m³ = 26400 kg/h

(G)

Recommended full scale values

See information in the "Limiting flow" section → Page 20 ff.

Operable flow range Greater than 1000: 1. Flow rates above the preset full scale value do not overload the amplifier, i.e. the totalizer

values are registered correctly.

Input signal Status input (auxiliary input)

U = 3 to 30 V DC, R

= 5 kΩ, galvanically isolated.

i

Configurable for: totalizer reset, positive zero return, error message reset, zero point adjustment start, batching
start/stop (optional).

Status input (auxiliary input) with PROFIBUS DP and MODBUS RS485

U = 3 to 30 V DC, R

= 3 kΩ, galvanically isolated.

i

Switching level: 3 to 30 V DC, polarity-independent.
Configurable for: totalizer reset, positive zero return, error message reset, batching start/stop (optional), batch
totalizer reset (optional).

Current input (only Promass 83)

Active/passive selectable, galvanically isolated, resolution: 2 A

• Active: 4 to 20 mA, R

< 700 Ω, U

L

• Passive: 0/4 to 20 mA, R

= 150 Ω, U

i

= 24 V DC, short-circuit proof

out

= 30 V DC

max

6 Endress+Hauser

Proline Promass 80E, 83E

Output

Output signal Promass 80

Current output:

Active/passive selectable, galvanically isolated, time constant selectable (0.05 to 100 s), full scale value
selectable, temperature coefficient: typically 0.005% o.f.s./°C, resolution: 0.5 μA

• Active: 0/4 to 20 mA, R

• Passive: 4 to 20 mA; supply voltage U

Pulse/frequency output:

Passive, open collector, 30 V DC, 250 mA, galvanically isolated.

• Frequency output: full scale frequency 2 to 1000 Hz (f

• Pulse output: pulse value and pulse polarity selectable, pulse width configurable (0.5 to 2000 ms)

PROFIBUS PA interface:

• PROFIBUS PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MBP), galvanically isolated

• Profile Version 3.0

• Current consumption: 11 mA

• Permitted supply voltage: 9 to 32 V

• Bus connection with integrated reverse polarity protection

• Error current FDE (Fault Disconnection Electronic) = 0 mA

• Data transmission rate: 31.25 kBit/s

• Signal encoding: Manchester II

• Function blocks: 4 × Analog Input, 1 × Totalizer

• Output data: Mass flow, Volume flow, Density, Temperature, Totalizer

• Input data: Positive zero return (ON/OFF), Zero point adjustment, Measuring mode, Totalizer control

• Bus address can be configured via miniature switches or via the local display (optional)

< 700 Ω (for HART: RL ≥ 250 Ω)

L

18 to 30 V DC; Ri ≥ 150 Ω

S

max

= 1250 Hz), on/off ratio 1:1, pulse width max. 2 s

Promass 83

Current output:

Active/passive selectable, galvanically isolated, time constant selectable (0.05 to 100 s), full scale value
selectable, temperature coefficient: typically 0.005% o.f.s./°C, resolution: 0.5 μA

• Active: 0/4 to 20 mA, R

• Passive: 4 to 20 mA; supply voltage U

< 700 Ω (for HART: RL ≥ 250 Ω)

L

18 to 30 V DC; Ri ≥ 150 Ω

S

Pulse/frequency output:

active/passive selectable, galvanically isolated

• Active: 24 V DC, 25 mA (max. 250 mA during 20 ms), RL > 100 Ω

• Passive: open collector, 30 V DC, 250 mA

• Frequency output: full scale frequency 2 to 10000 Hz (f

= 12500 Hz), on/off ratio 1:1, pulse width max.

max

2 s

• Pulse output: pulse value and pulse polarity selectable, pulse width configurable (0.05 to 2000 ms)

PROFIBUS DP interface:

• PROFIBUS DP in accordance with EN 50170 Volume 2

• Profile Version 3.0

• Data transmission rate: 9.6 kBaud to 12 MBaud

• Automatic data transmission rate recognition

• Signal encoding: NRZ Code

• Function blocks: 6 × Analog Input, 3 × Totalizer

• Output data: Mass flow, Volume flow, Corrected volume flow, Density, Reference density, Temperature,
Totalizers 1 to 3

• Input data: Positive zero return (ON/OFF), Zero point adjustment, Measuring mode, Totalizer control

• Bus address can be configured via miniature switches or via the local display (optional)

• Available output combination→ Page 11

Endress+Hauser 7

Proline Promass 80E, 83E

PROFIBUS PA interface:

• PROFIBUS PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MBP), galvanically isolated

• Data transmission rate:

31.25 kBit/s

• Current consumption: 11 mA

• Permitted supply voltage: 9 to 32 V

• Bus connection with
integrated reverse polarity protection

• Error current FDE (Fault Disconnection Electronic): 0 mA

• Signal encoding: Manchester II

• Function blocks: 6 × Analog Input, 3 × Totalizer

• Input data: Positive zero return (ON/OFF), Zero point adjustment, Measuring mode, Totalizer control

• Output data: Mass flow, Volume flow, Corrected volume flow, Density, Reference density, Temperature,
Totalizers 1 to 3

• Bus address can be configured via miniature switches or via the local display (optional)

• Available output combination→ Page 11

MODBUS interface:

• MODBUS device type: slave

• Address range: 1 to 247

• Supported function codes: 03, 04, 06, 08, 16, 23

• Broadcast: supported with the function codes 06, 16, 23

• Physical interface: RS485 in accordance with EIA/TIA-485 standard

• Supported baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Baud

• Transmission mode: RTU or ASCII

• Response times:
Direct data access = typically 25 to 50 ms
Auto-scan buffer (data range) = typically 3 to 5 ms

• Possible output combinations → Page 11

FOUNDATION Fieldbus interface:

• FOUNDATION Fieldbus H1, IEC 61158-2, galvanically isolated

• Data transmission rate: 31.25 kBit/s

• Current consumption: 12 mA

• Permitted supply voltage: 9 to 32 V

• Error current FDE (Fault Disconnection Electronic): 0 mA

• Bus connection with integrated reverse polarity protection

• Signal encoding: Manchester II

• ITK Version 4.01

• Function blocks: 7 × Analog Input, 1 × Digital Output, 1 × PID

• Output data: Mass flow, Volume flow, Corrected volume flow, Density, Reference density, Temperature,
Totalizers 1 to 3

• Input data: Positive zero return (ON/OFF), Zero point adjustment, Measuring mode, Reset totalizer

• Link Master (LM) function is supported

8 Endress+Hauser

Proline Promass 80E, 83E

Signal on alarm Current output:

Failsafe mode selectable (e.g. in accordance with NAMUR Recommendation NE 43)

Pulse/frequency output:

Failsafe mode selectable

Status output (Promass 80)

Nonconductive in the event of a fault or if the power supply fails

Relay output (Promass 83)

Dead in the event of a fault or if the power supply fails

Load see "Output signal"

Low flow cut off Switch points for low flow cut off are selectable.

Galvanic isolation All circuits for inputs, outputs, and power supply are galvanically isolated from each other.

Switching output Status output (Promass 80)

Open collector, max. 30 V DC / 250 mA, galvanically isolated.
Configurable for: error messages, Empty Pipe Detection (EPD), flow direction,
limit values.

Relay output (Promass 83)

Normally closed (NC or break) or normally open (NO or make) contacts available (factory setting: relay 1 =
NO, relay 2 = NC), max. 30 V / 0.5 A AC; 60 V / 0.1 A DC, galvanically isolated.

Endress+Hauser 9

Power supply

Proline Promass 80E, 83E

Electrical connection Measuring unit

AB

d

g

b

d
g
b

a

HART*

–27

+26

–25

f f

+24

–23

+22

–21

+20

N (L-) 2
L1 (L+)1

d

e

c

b

a

PA(–)/FF(–)
PA(+)/FF(+)

N (L-)
L1 (L+)

C

d/(g)

b

(d)

PROFIBUS PA*

FOUNDATION Fieldbus*

27
26

–

25

+

24

–

23

+

22

–

21

+

20

2
1

a

d

e

c

b

PROFIBUS DP*

PROFIBUS DP**

MODBUS RS485**

N (L-)
L1 (L+)

27
26

–

25

+

24

–

23

+

22

–

21

+

20

2
1

A (RxD/TxD-N)

B (RxD/TxD-P)

d

e

g

c

–
+

–
+

–
+

N (L-)
L1 (L+)

27
26

25
24

23
22

21
20

2
1

A (RxD/TxD-N)
B (RxD/TxD-P)

f f

b

Connecting the transmitter, cable cross-section: max. 2.5 mm

2

A View A (field housing)
B View B (Stainless Steel field housing)
C View C (wall-mount housing)

*) fixed communication board
**) flexible communication board
a Connection compartment cover
b Cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC

Terminal No. 1: L1 for AC, L+ for DC

Terminal No. 2: N for AC, L- for DC
c Ground terminal for protective ground
d Signal cable: see Terminal assignment → Page 11

Fieldbus cable:

Terminal No. 26: DP (B) / PA (+) / FF (+) / MODBUS RS485 (B) / (PA, FF: with reverse polarity protection)

Terminal No. 27: DP (A) / PA (–) / FF (–) / MODBUS RS485 (A) / (PA, FF: with reverse polarity protection)
e Ground terminal for signal cable shield / fieldbus cable / RS485 line
f Service adapter for connecting service interface FXA 193 (Fieldcheck, FieldCare)
g Signal cable: see Terminal assignment → Page 11
g Cable for external termination (only for PROFIBUS DP with permanent assignment communication board):

Terminal No. 24: +5 V

Terminal No. 25: DGND

d

e

g

c

b

a0002441

10 Endress+Hauser

Proline Promass 80E, 83E

Electrical connection, terminal assignment

Promass 80

Terminal No. (inputs/outputs)

Order version 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–)

80***-***********A - - Frequency output Current output, HART

80***-***********D Status input Status output Frequency output Current output, HART

80***-***********H - - - PROFIBUS PA

80***-***********S - -

80***-***********T - -

80***-***********8 Status input Frequency output Current output 2 Current output 1,

Frequency output
Ex i, passive

Frequency output
Ex i, passive

Current output Ex i
Active, HART

Current output Ex i
Passive, HART

HART

Promass 83

The inputs and outputs on the communication board can be either permanently assigned (fixed) or variable
(flexible), depending on the version ordered (see table). Replacements for modules which are defective or
which have to be replaced can be ordered as accessories.

Terminal No. (inputs/outputs)

Order version 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–)

Fixed communication boards (permanent assignment)

83***-***********A - - Frequency output

83***-***********B Relay output Relay output Frequency output

83***-***********F - - - PROFIBUS PA, Ex i

83***-***********G - - -

83***-***********H - - - PROFIBUS PA

83***-***********J - -

83***-***********K - -

83***–***********Q - - Status input MODBUS RS485

83***-***********R - - Current output 2

83***-***********S - -

83***-***********T - -

83***-***********U - - Current output 2

Flexible communication boards

83***-***********C Relay output 2 Relay output 1 Frequency output

83***-***********D Status input Relay output Frequency output

83***-***********E Status input Relay output Current output 2

+5V
(ext. termination)

- FOUNDATION

Ex i, active

Frequency output
Ex i, passive

Frequency output
Ex i, passive

Ex i, passive

Current output
HART

Current output
HART

FOUNDATION
Fieldbus Ex i

PROFIBUS DP

Fieldbus

Current output 1
Ex i active, HART

Current output Ex i
Active, HART

Current output Ex i
Passive, HART

Current output 1
Ex i passive, HART

Current output
HART

Current output
HART

Current output 1
HART

Endress+Hauser 11

Proline Promass 80E, 83E

Terminal No. (inputs/outputs)

Order version 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–)

83***-***********L Status input Relay output 2 Relay output 1

83***-***********M Status input Frequency output 2 Frequency output 1

83***–***********N Current output Frequency output Status input MODBUS RS485

83***–***********P Current output Frequency output Status input PROFIBUS DP

83***–***********V Relay output 2 Relay output 1 Status input PROFIBUS DP

83***-***********W Relay output Current output 3 Current output 2

83***-***********0 Status input Current output 3 Current output 2

83***-***********2 Relay output Current output 2 Frequency output

83***-***********3 Current input Relay output Current output 2 Current output 1

83***-***********4 Current input Relay output Frequency output Current output

83***-***********5 Status input Current input Frequency output Current output

83***-***********6 Status input Current input Current output 2 Current output

83***–***********7 Relay output 2 Relay output 1 Status input MODBUS RS485

Current output
HART

Current output
HART

Current output 1
HART

Current output 1
HART

Current output 1
HART

HART

HART

HART

HART

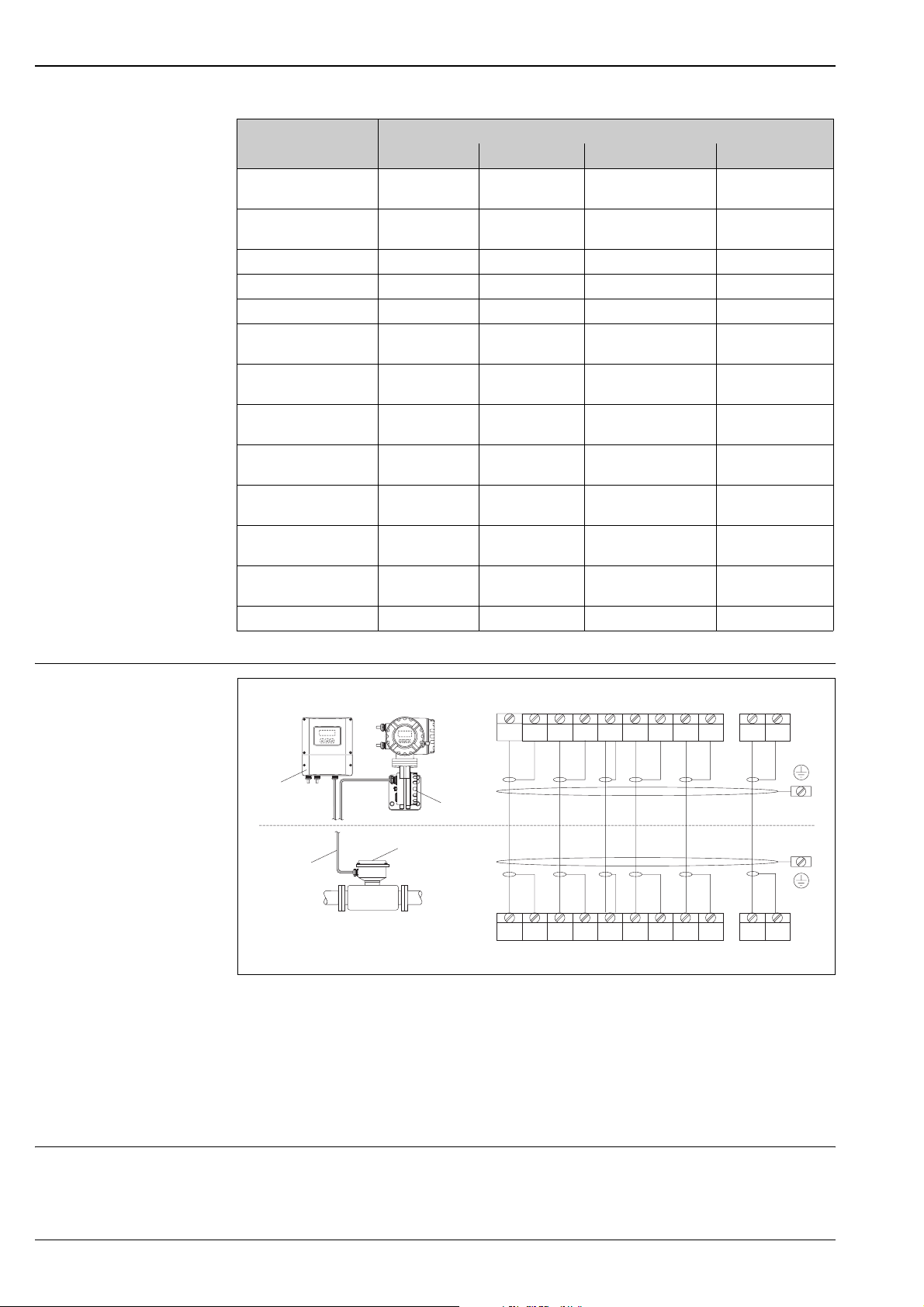

Electrical connection Remote version

a

b

S1 S1 S2 S2 GND TM TM TT TT

++ ++

4 5 6 7 8 9 10 11 12 41 42

d

d

d

e

c

Connecting the remote version

a Wall-mount housing: non-hazardous area and ATEX II3G / zone 2 → see separate "Ex documentation"
b Wall-mount housing: ATEX II2G / Zone 1 /FM/CSA → see separate "Ex documentation"
c Remote version, flanged version
d Cover for connection compartment or connection housing
e Connecting cable

Terminal No.: 4/5 = gray; 6/7 = green; 8 = yellow; 9/10 = pink; 11/12 = white; 41/42 = brown

4 5 6 7 8 9 10 11 12 41 42
++ ++

S1 S1 S2 S2 GND TM TM TT TT

a0003681

Supply voltage 85 to 260 V AC, 45 to 65 Hz

20 to 55 V AC, 45 to 65 Hz
16 to 62 V DC

12 Endress+Hauser

Proline Promass 80E, 83E

Cable entries Power-supply and signal cables (inputs/outputs):

• Cable entry M20 × 1.5 (8 to 12 mm)

• Thread for cable entries, ½" NPT, G ½"

Connecting cable for remote version:

• Cable entry M20 × 1.5 (8 to 12 mm)

• Thread for cable entries, ½" NPT, G ½"

Cable specification Remote version

Power consumption AC: <15 VA (including sensor)

Power supply failure Promass 80

• 6 × 0.38 mm² (PVC cable with common shield and individually shielded cores

• Conductor resistance: ≤ 50 Ω/km

• Capacitance: core/shield: ≤ 420 pF/m

• Cable length: max. 20 m

• Permanent operating temperature: max. +105 °C

Operation in zones of severe electrical interference:
The measuring device complies with the general safety requirements in accordance with EN 61010-1, the
EMC requirements of IEC/EN 61326, and NAMUR recommendation NE 21/43.

DC: <15 W (including sensor)

Switch-on current:

• Max. 13.5 A (<50 ms) at 24 V DC

• Max. 3 A (<5 ms) at 260 V AC

Lasting min. 1 power cycle:

• EEPROM saves measuring system data if the power supply fails

• HistoROM/S-DAT: exchangeable data storage chip with sensor specific data (nominal diameter, serial
number, calibration factor, zero point, etc.)

Promass 83

Lasting min. 1 power cycle:

• EEPROM and T-DAT save the measuring system data if the power supply fails.

• HistoROM/S-DAT: exchangeable data storage chip with sensor specific data (nominal diameter, serial
number, calibration factor, zero point, etc.)

Potential equalization No special measures for potential equalization are required. For instruments for use in hazardous areas, observe

the corresponding guidelines in the specific Ex documentation.

Performance characteristics

Reference operating conditions

Maximum measured error The following values refer to the pulse/frequency output. Measured error at the current output is typically

Error limits following ISO/DIS 11631:

• 20 to 30 °C

• 2 to 4 bar

• Calibration systems as per national norms

• Zero point calibrated under operating conditions

• Field density calibrated (or special density calibration)

±5 μA.

o.r. = of reading

Mass flow (liquid):

Promass 80

±0.30% ± [(zero point stability ÷ measured value) · 100]% o.r.

Endress+Hauser 13

Promass 83

±0.25% ± [(zero point stability ÷ measured value) · 100]% o.r.

Mass flow (gas)

±0.75% ± [(zero point stability ÷ measured value) · 100]% o.r.

Volume flow (liquid)

±0.45% ± [(zero point stability ÷ measured value) · 100]% o.r.

Zero point stability

DN Maximum full scale value Zero point stability

[kg/h] [kg/h]

8 2 000 0.20

15 6 500 0.65

25 18 000 1.8

40 45 000 4.5

50 70 000 7.0

Proline Promass 80E, 83E

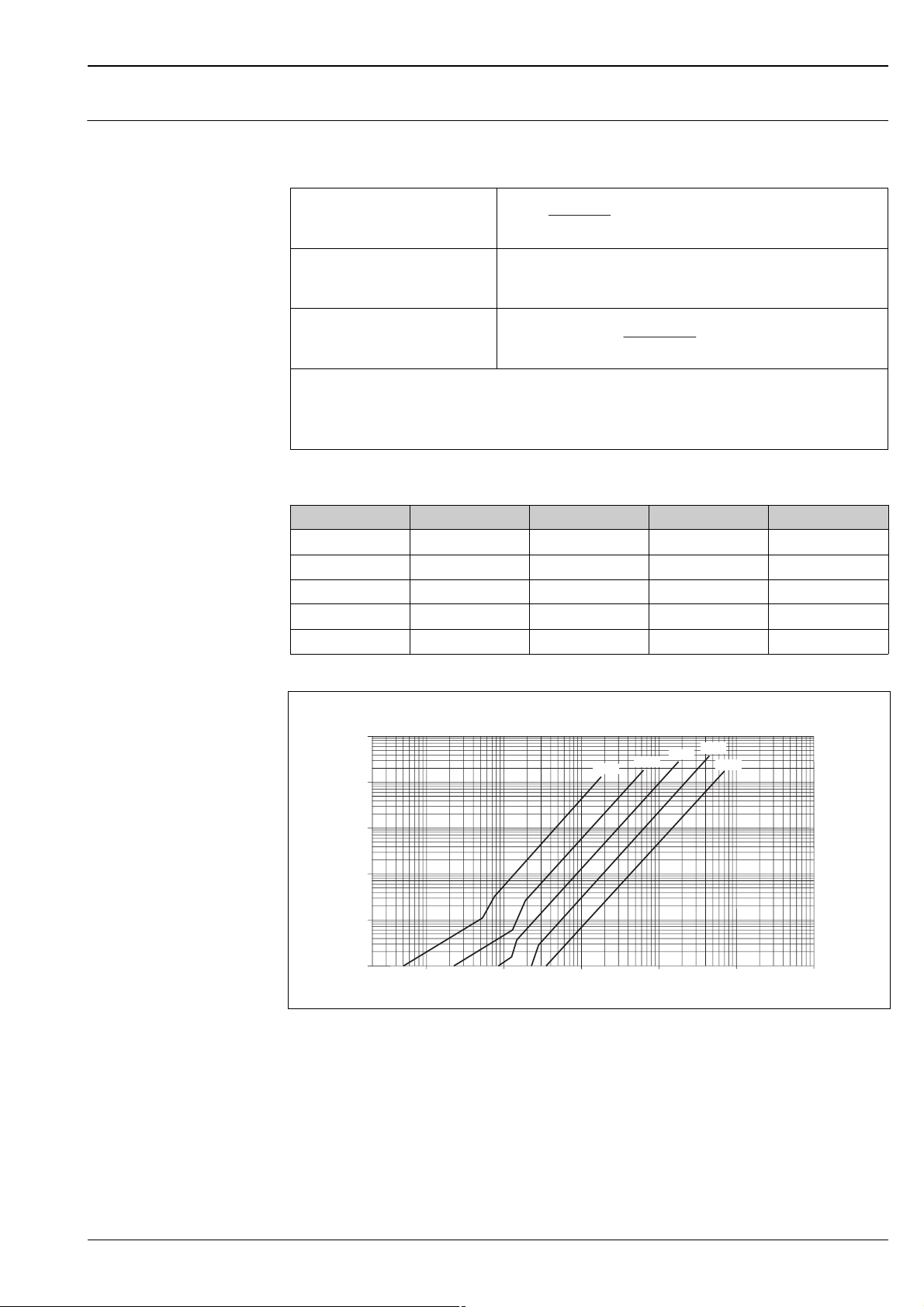

Sample calculation

[%]

±2.0

±1.5

±1.0

±0.3

0

024681012141618

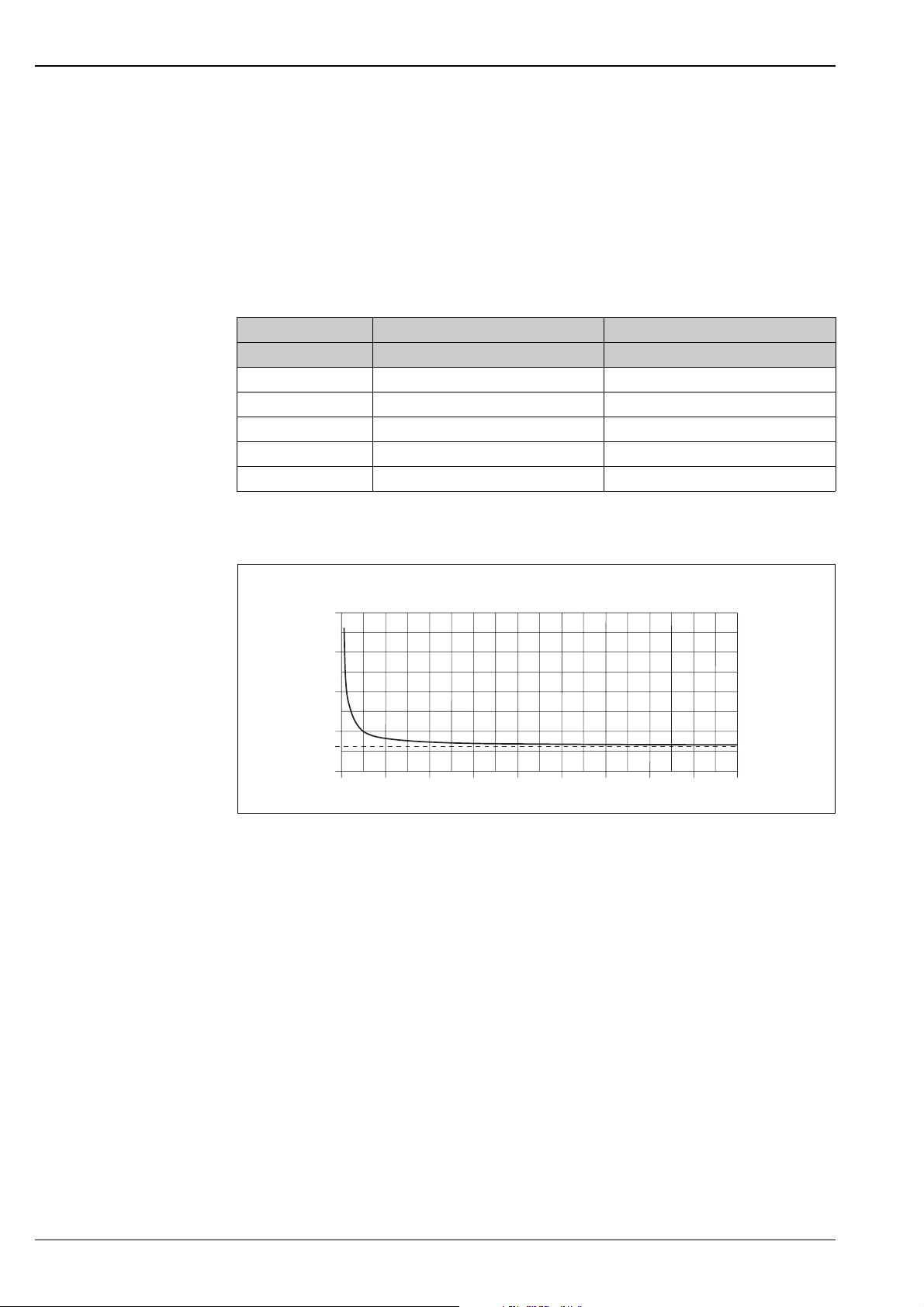

Max. measured error in % of measured value (example: Promass 83E / DN 25)

Calculation example (mass flow, liquid):
Given: Promass 83E / DN 25, flow measured value = 8000 kg/h
Max. measured error: ±0.25% ± [(zero point stability ÷ measured value) · 100]% o.r.
Max. measured error: ±0.25% ± 1.8 kg/h ÷ 8000 kg/h · 100% = ±0.273%

Density (liquid)

1 g/cc = 1 kg/l

t/h

a0006891

Standard calibration:

±0.02 g/cc

After field density calibration or under reference conditions:

±0.001 g/cc

Temperature

±0.5 °C ±0.005 · T (T = fluid temperature in °C)

14 Endress+Hauser

Proline Promass 80E, 83E

Repeatability Mass flow (liquid)

±0.10% ± [½ · (zero point stability ÷ measured value) · 100]% o.r.

Mass flow (gas)

±0.35% ± [½ · (zero point stability ÷ measured value) · 100]% o.r.

Volume flow (liquid)

±0.20% ± [½ · (zero point stability ÷ measured value) · 100]% o.r.

o.r. = of reading
Zero point stability: see "Max. measured error"→ Page 13 ff.

Calculation example (mass flow, liquid):
Given: Promass 83P / DN 25, flow measured value = 8 000 kg/h
Repeatability: ±0.10% ± [½ · (zero point stability ÷ measured value) · 100]% o.r.
Repeatability: ±0.10% ± ½ · 1.8 kg/h ÷ 8 000 kg/h · 100% = ±0.111%

Density measurement (liquid)

1 g/cc = 1 kg/l

±0.0005 g/cc

Temperature measurement

±0.25 °C ±0.0025 · T (T = fluid temperature in °C)

Influence of fluid temperature When there is a difference between the temperature for zero point adjustment and the process temperature,

the typical measured error of the Promass sensor is ±0.0002% of the full scale value / °C.

Influence of fluid pressure With nominal diameters DN 8 to 40, the effect on accuracy of mass flow due to a difference

between calibration pressure and process pressure can be neglected.
With DN 50 the influence is –0.009% o.r. / bar (o.r. = of reading)

Endress+Hauser 15

Operating conditions: Installation

Installation instructions Note the following points:

• No special measures such as supports are necessary. External forces are absorbed by the construction of the
instrument, for example the secondary containment.

• The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring
system is not influenced by pipe vibrations.

• No special precautions need to be taken for fittings which create turbulence (valves, elbows, T-pieces etc.),
as long as no cavitation occurs.

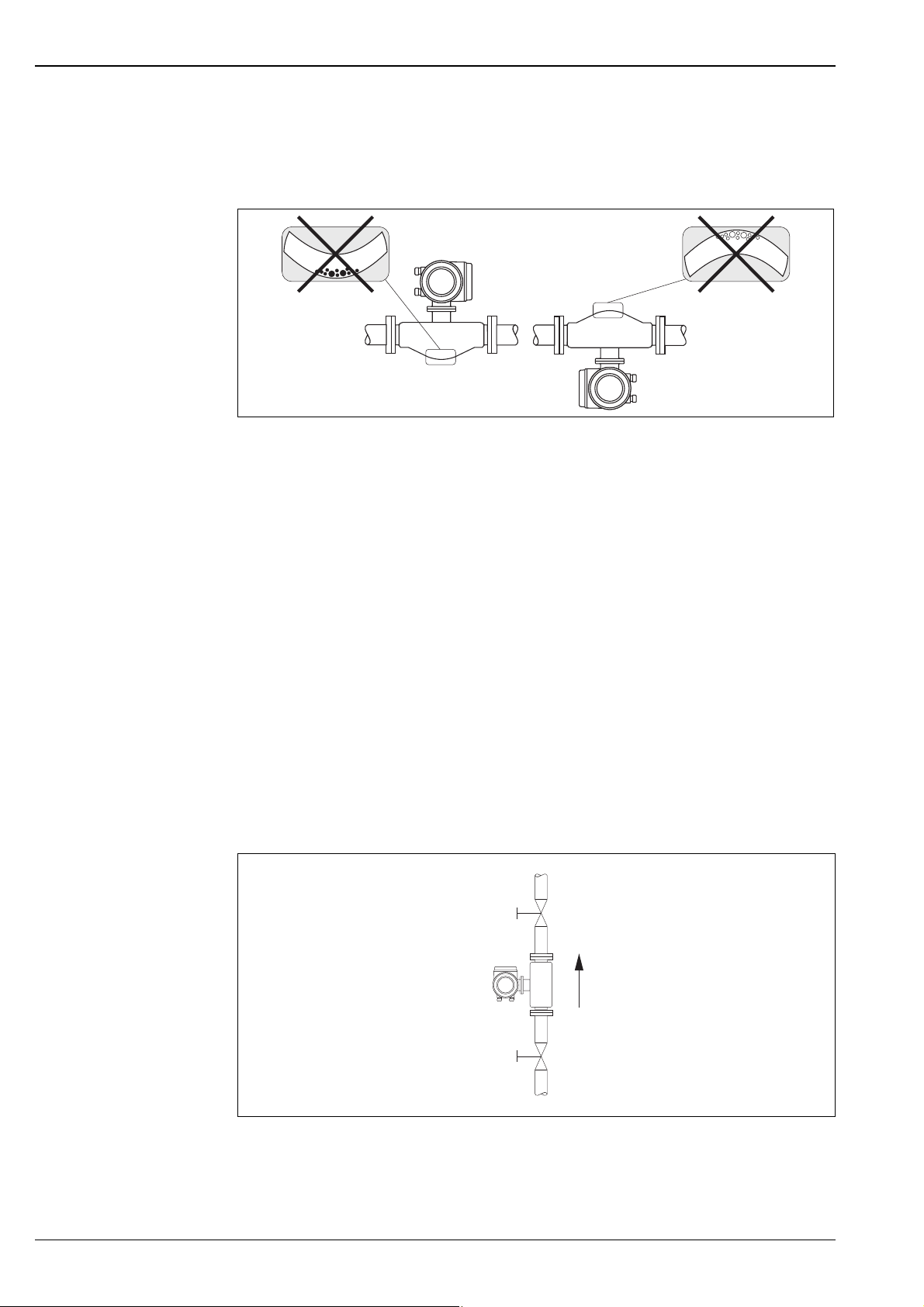

Mounting location

Entrained air or gas bubbles in the measuring tube can result in an increase in measuring errors.
Therefore, avoid the following mounting locations in the pipe installation:

• Highest point of a pipeline. Risk of air accumulating.

• Directly upstream of a free pipe outlet in a vertical pipeline.

Proline Promass 80E, 83E

a0003605

Mounting location

Notwithstanding the above, the installation proposal below permits installation in an open vertical pipeline.
Pipe restrictions or the use of an orifice with a smaller cross-section than the nominal diameter prevent the
sensor running empty while measurement is in progress.

1

2

3

4

5

a0003597

Installation in a down pipe (e.g. for batching applications)

1 = Supply tank, 2 = Sensor, 3 = Orifice plate, pipe restriction (see Table), 4 = Valve, 5 = Batching tank

DN 815254050

Ø Orifice plate, pipe restriction [mm] 610142228

16 Endress+Hauser

Proline Promass 80E, 83E

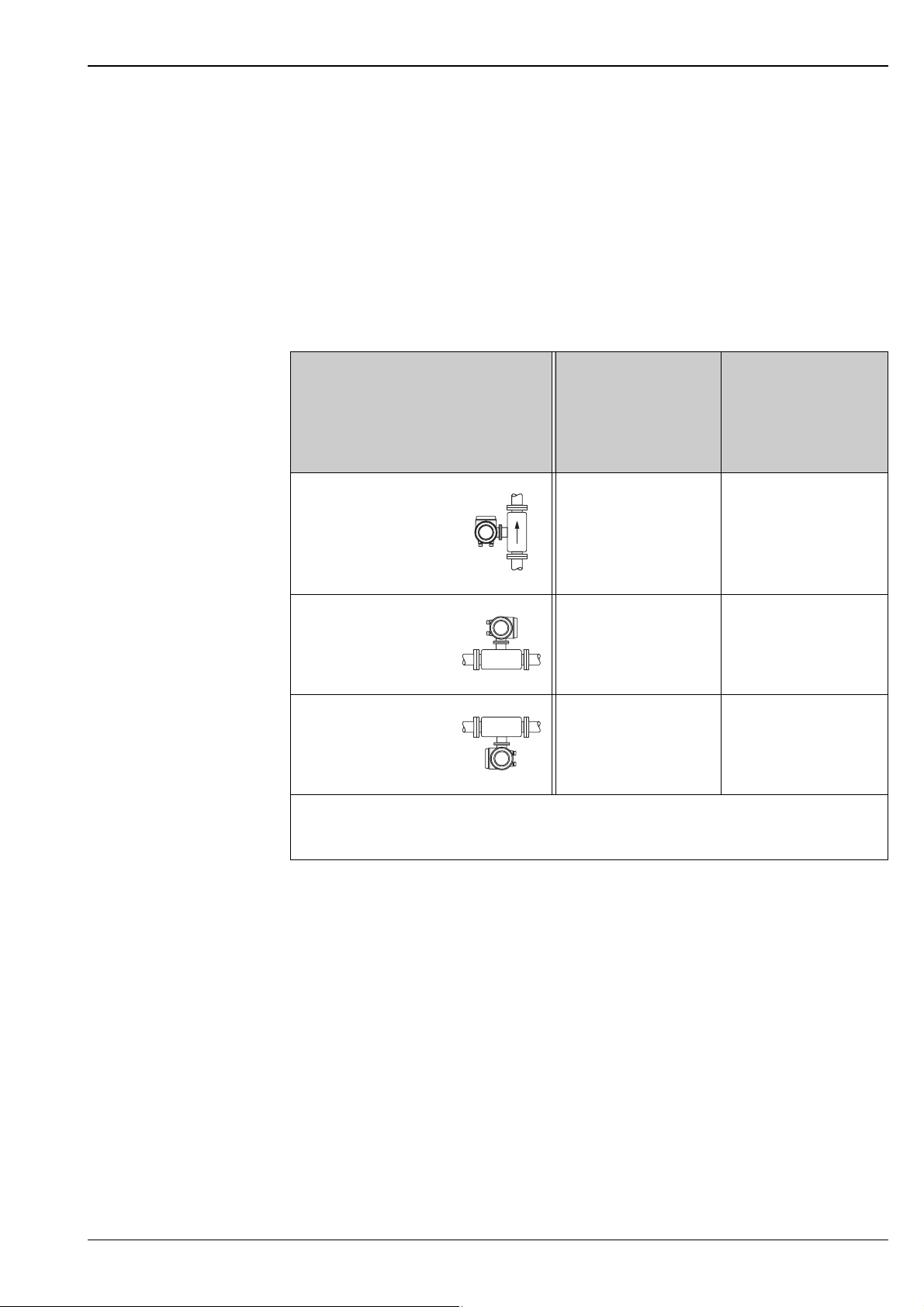

Orientation

Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow
(direction of fluid flow through the pipe).

Vertical (view V)

Recommended orientation with upward direction of flow. When fluid is not flowing, entrained solids will sink
down and gases will rise away from the measuring tube. Thus the measuring tubes can be completely drained
and protected against solids buildup.

Horizontal (view H1 to H2)

The transmitter can be installed in any orientation in a horizontal pipe run.

Fig. V

Vertical orientation

a0004572

Fig. H1

Horizontal orientation
Transmitter head up

a0004576

Fig. H2

Horizontal orientation
Transmitter head down

a0004580

ÃÃ = Recommended orientation
à = Orientation recommended in certain situations

✘ = Impermissible orientation

Standard, compact

ÃÃ ÃÃ

ÃÃ ÃÃ

ÃÃ

m

Standard, remote

ÃÃ

m

m = To ensure that the maximum permitted ambient temperature for the transmitter (–20 to +60 °C,

optionally –40 to +60 °C) is not exceeded, for low-temperature fluids, we recommend the horizontal
orientation with the transmitter head up (Fig. H1) or the vertical orientation (Fig. V).

Endress+Hauser 17

Proline Promass 80E, 83E

1

2

Special installation instructions for Promass P

Caution!

"

When using a bent measuring tube and horizontal installation, the position of the sensor has to be matched to
the fluid properties!

1

Horizontal installation for sensors with a bent measuring tube

1 Not suitable for fluids with entrained solids. Risk of solids accumulating.
2 Not suitable for outgassing fluids. Risk of air accumulating.

Zero point adjustment

All Promass devices are calibrated to state-of-the-art technology. The zero point determined in this way is
imprinted on the nameplate.
Calibration takes place under reference conditions. → Page 13 ff.
Promass therefore does not require zero point adjustment!

Experience shows that the zero point adjustment is advisable only in special cases:

• To achieve highest measuring accuracy also with very low flow rates

• Under extreme process or operating conditions (e.g. very high process temperatures or very high-viscosity
fluids).

Please note the following before carrying out the adjustment:

• The adjustment can only be performed with fluids that have no gas or solid contents.

• Zero point adjustment is performed with the measuring tubes completely filled and at zero flow
(v = 0 m/s). This can be achieved, for example, with shutoff valves upstream and/or downstream of the
sensor or by using existing valves and gates.
– Normal operation → valves 1 and 2 open
– Zero point adjustment with pump pressure → valve 1 open / valve 2 closed
– Zero point adjustment without pump pressure → valve 1 closed / valve 2 open

2

a0004581

18 Endress+Hauser

Zero point adjustment and shutoff valves

a0003601

Proline Promass 80E, 83E

Heating

Some fluids require suitable measures to avoid heat transfer at the sensor. Heating can be electric, e.g. with
heated elements, or by means of hot water or steam pipes made of copper.

Caution!

"

• Risk of electronics overheating! Consequently, make sure that the adapter between the sensor and
transmitter and the connection housing of the remote version always remain free of insulating material. Note
that a certain orientation might be required, depending on the fluid temperature. → Page 17

• If using an electric trace heating system whose heating is regulated via phase angle control or pulse packages,
influence on the measured values cannot be ruled out due to magnetic fields (i.e. for values that are greater
than the values approved by the EN standard (sine 30 A/m)). In such cases, the sensor must be magnetically
shielded.
The secondary containment can be shielded with tin plates or electric sheets without preferential direction
(e.g. V330-35A) with the following properties:
– Relative magnetic permeability μ
– Plate thickness d ≥ 0.35 mm

• Information on permitted temperature ranges → Page 20

Special heating jackets, which can be ordered separately from Endress+Hauser as an accessory, are available
for the sensors.

Inlet and outlet runs There are no installation requirements regarding inlet and outlet runs.

≥ 300

r

Length of connecting cable Max. 20 meters (remote version)

System pressure It is important to ensure that cavitation does not occur, because it would influence the oscillation of the

measuring tube. No special measures need to be taken for fluids which have properties similar to water under
normal conditions.
In the case of liquids with a low boiling point (hydrocarbons, solvents, liquefied gases) or in suction lines, it is
important to ensure that pressure does not drop below the vapor pressure and that the liquid does not start to
boil. It is also important to ensure that the gases that occur naturally in many liquids do not outgas. Such effects
can be prevented when system pressure is sufficiently high.

Therefore, the following locations should be preferred for installation:

• Downstream from pumps (no danger of vacuum)

• At the lowest point in a vertical pipe

Endress+Hauser 19

Operating conditions: Environment

Ambient temperature range Standard: –20 to +60 °C (sensor, transmitter)

Optional: –40 to +60 °C (sensor, transmitter)

!

Storage temperature –40 to +80 °C, preferably +20 °C

Degree of protection Standard: IP 67 (NEMA 4X) for transmitter and sensor

Shock resistance According to IEC 68-2-31

Vibration resistance Acceleration up to 1 g, 10 to 150 Hz, following IEC 68-2-6

Note!

• Install the device at a shady location. Avoid direct sunlight, particularly in warm climatic regions.

• At ambient temperatures below –20 °C the readability of the display may be impaired.

Proline Promass 80E, 83E

Electromagnetic compatibility (EMC)

As per IEC/EN 61326 and NAMUR recommendation NE 21

Operating conditions: Process

Fluid temperature range Sensor

–40 to +125 °C

Fluid pressure range (nominal pressure)

Rupture disk in the sensor housing (optional)

Flanges

DIN PN 40 to 100 / ASME B16.5 Cl 150, Cl 300, Cl 600 / JIS 10K, 20K, 40K, 63K

Pressure ranges of secondary containment

The sensor Promass E has no secondary containment.

The sensor housing protects the inner electronics and mechanics and is filled with dry nitrogen. The housing
of this sensor does not fulfill any additional secondary containment function. However, 15 bar can be specified
as a reference value for the pressure loading capacity.
For increased safety, a version with rupture disk (triggering pressure 10 to 15 bar) can be used, which is
available for order as a separate option.

Further informationen → Seite 32.

Limiting flow See information in the "Measuring range" section → Page 6

Select nominal diameter by optimizing between required flow range and permissible pressure loss. See the
"Measuring range" section for a list of maximum possible full scale values.

• The minimum recommended full scale value is approx. 1/20 of the max. full scale value.

• In most applications, 20 to 50% of the maximum full scale value can be considered ideal

• Select a lower full scale value for abrasive substances such as fluids with entrained solids (flow velocity
<1 m/s).

• For gas measurement the following rules apply:
– Flow velocity in the measuring tubes should not be more than half the sonic velocity (0.5 Mach).
– The maximum mass flow depends on the density of the gas: formula → Page 6

20 Endress+Hauser

Proline Promass 80E, 83E

Pressure loss Pressure loss depends on the fluid properties and on the flow rate. The following formulae can be used to

approximately calculate the pressure loss:

2·

Reynolds number

Re =

g

pnr·d· ·

a0004623

Re ≥ 2300 *

Re < 2300

Δp = pressure loss [mbar]
ν = kinematic viscosity [m2/s]

g = mass flow [kg/s]

Drp=K· · ·

p=K1· · +

D

ρ = fluid density [kg/m3]
d = inside diameter of measuring tubes [m]
K to K2 = constants (depending on nominal diameter)

0.25 1.85 –0.86

gn

K2 · ·

gn

0.25 2

gn

r

* To compute the pressure loss for gases, always use the formula for Re ≥ 2300.

Pressure loss coefficients for Promass E

DN d[m] K K1 K2

8 5.35 · 10

15 8.30 · 10

25 12.00 · 10

40 17.60 · 10

50 26.00 · 10

[mbar]

10000

1000

–3

–3

–3

–3

–3

5.70 · 10

7.62 · 10

1.89 · 10

4.42 · 10

8.54 · 10

DN 8

7

6

6

5

4

DN 25

DN 15

7.91 · 10

1.73 · 10

4.66 · 10

1.35 · 10

4.02 · 10

DN 40

DN 50

7

7

6

6

5

2.10 · 10

2.13 · 10

6.11 · 10

1.38 · 10

2.31 · 10

a0004626

a0004628

7

6

5

5

4

100

10

1

0.1

0.001

0.01

0.1

1

10

100 1000

[t/h]

a0004606

Pressure loss diagram for water

Endress+Hauser 21

Mechanical construction

Proline Promass 80E, 83E

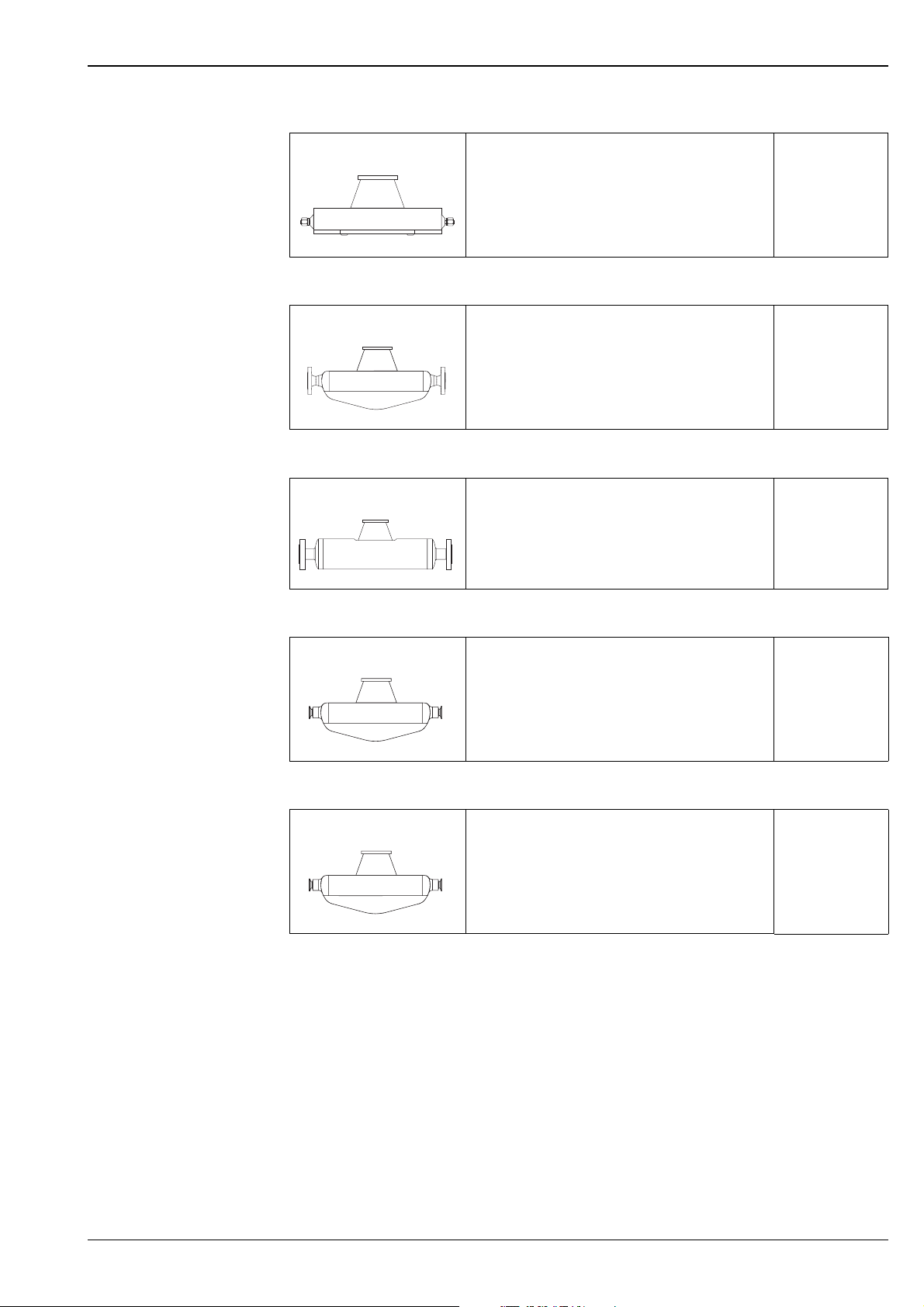

Design / dimensions

Dimensions:

Field housing compact version, powder-coated die-cast aluminum → Page 23

Dimensions: Remote version → Page 24

Transmitter connection housing remote version (II2G/Zone 1) → Page 24

Transmitter wall-mount housing (non Ex-zone and II3G/Zone 2) → Page 25

Flange connections EN (DIN), ASME B16.5, JIS → Page 26

VCO connections → Page 28

Tri-Clamp connections → Page 29

DIN 11851 (hygienic connection) → Page 30

DIN 11864-1 Form A couplings (threaded ferrule) → Page 30

DIN 11864-2 Form A (flat flange) → Page 31

ISO 2853 connections (couplings) → Page 31

SMS 1145 (hygienic connection) → Page 32

Rupture disk in the sensor housing (optional) → Page 32

22 Endress+Hauser

Proline Promass 80E, 83E

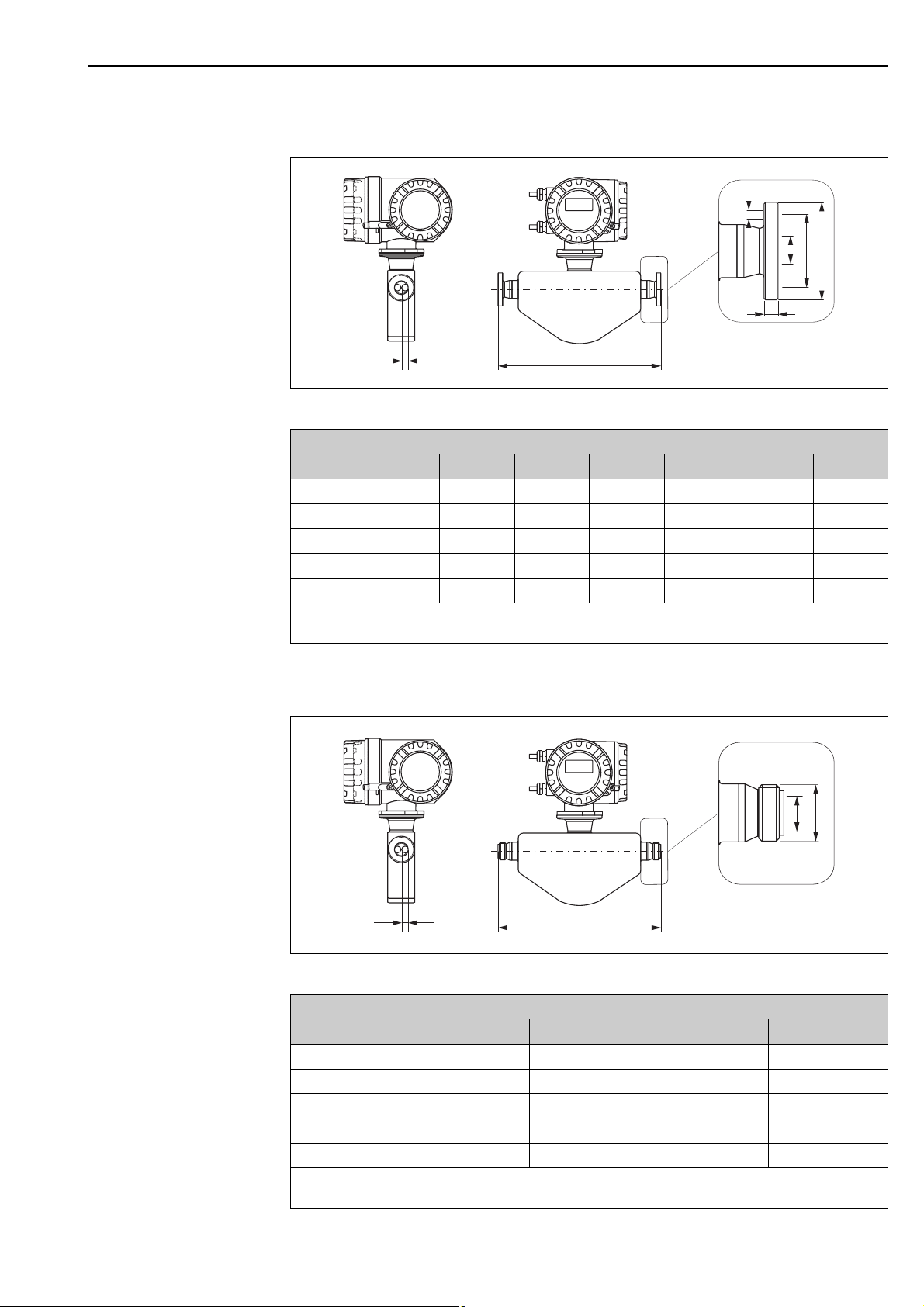

E

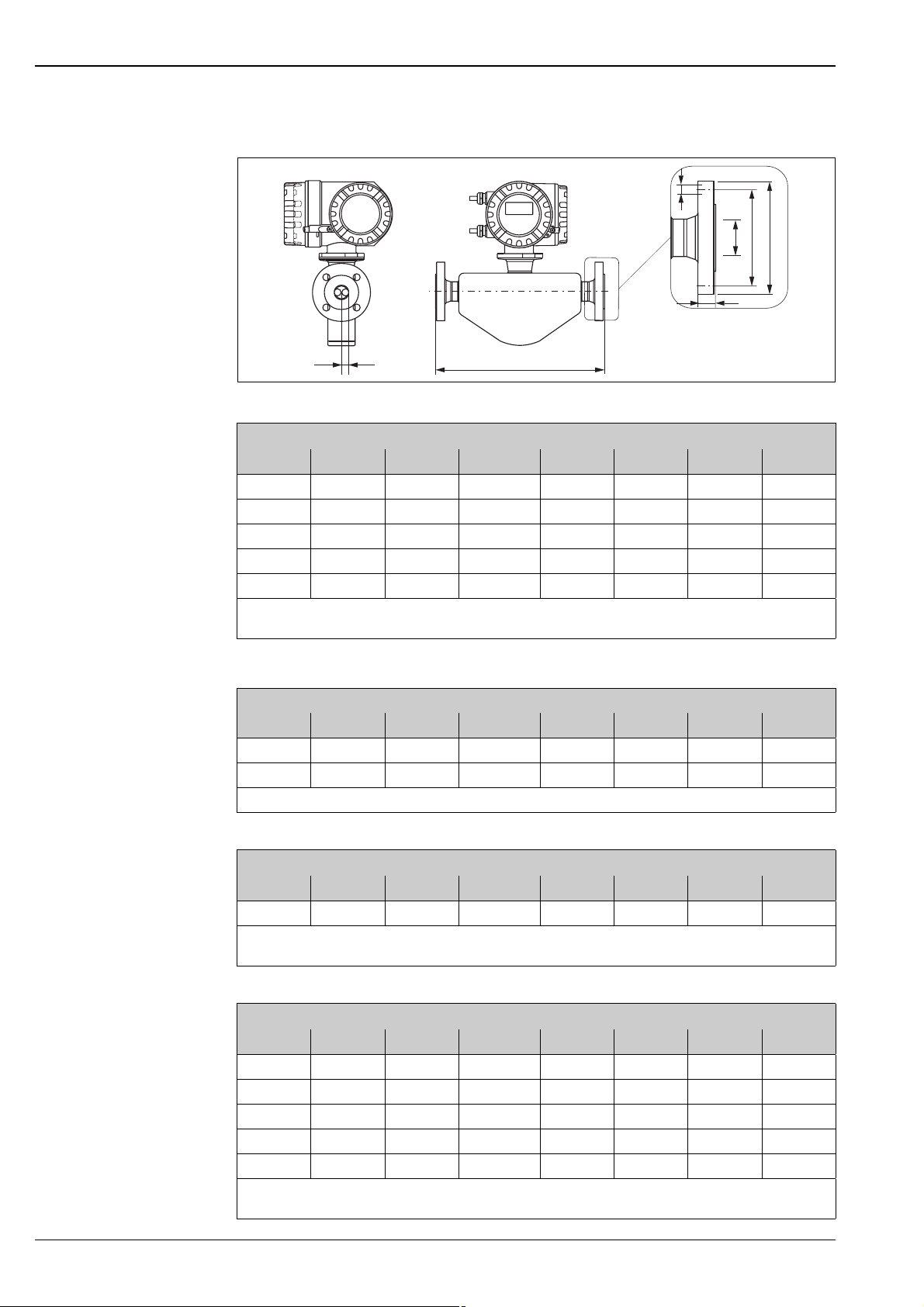

Field housing compact version, powder-coated die-cast aluminum

A

A*

di

A A* B C D

227 207 187 168 160

All dimensions in [mm];
* Blind version (without local display)

DN E F G L di

8 224 93 317 * *

15 226 105 331 * *

25 231 106 337 * *

40 237 121 358 * *

50 253 170 423 * *

All dimensions in [mm];
* dependent on respective process connection
→ For dimensions, see the following pages

B

C

D

L

E

G

F

A0007638

!

Note!
Dimensions for transmitters II2G/Zone 1 → Page 24.

Endress+Hauser 23

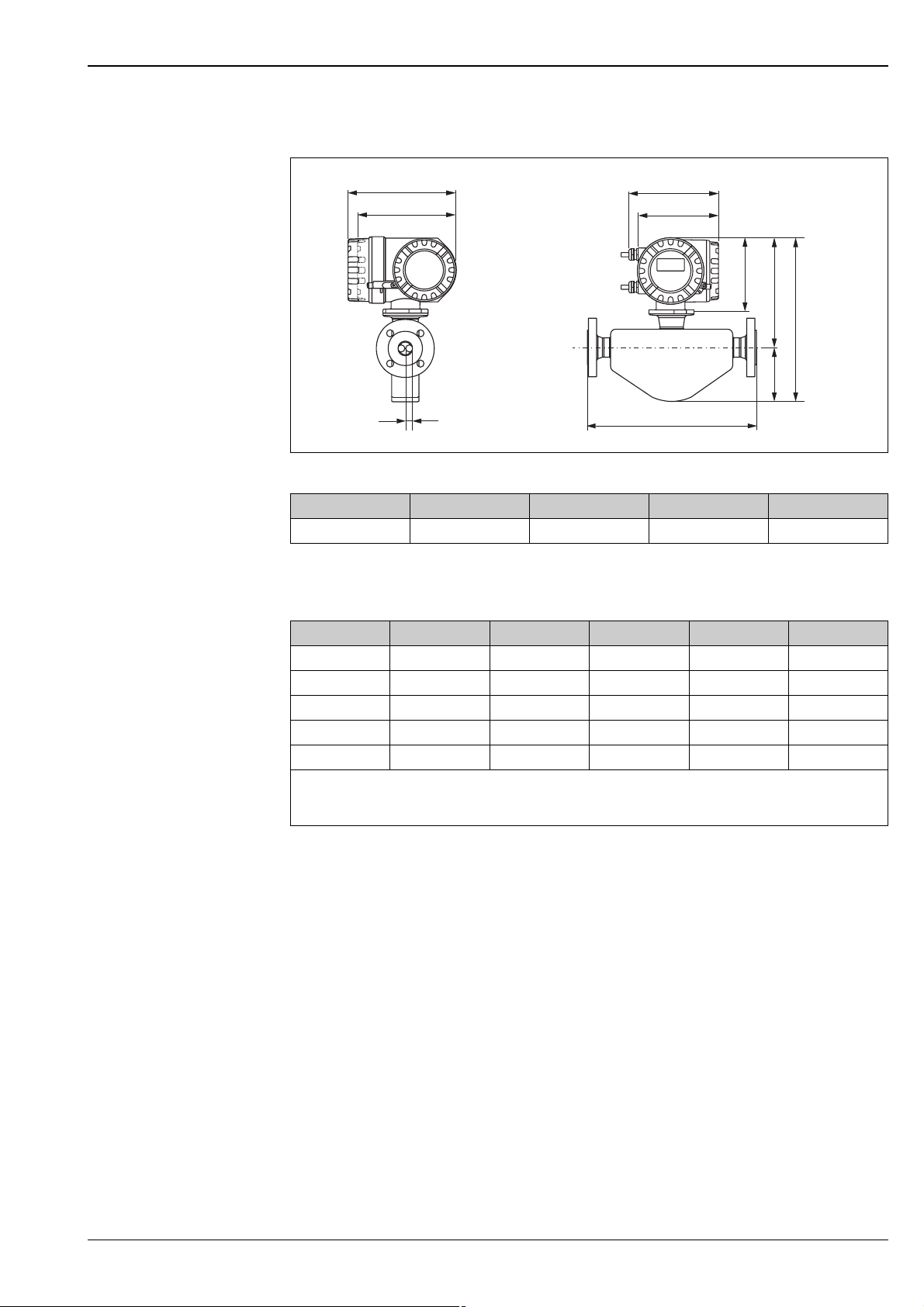

Dimensions: Remote version

Esc

E

- +

DN A B C

8 129 102 166

15 129 102 168

25 129 102 173

40 129 102 179

50 129 102 195

All dimensions in [mm]

Proline Promass 80E, 83E

A

B

C

a0007637

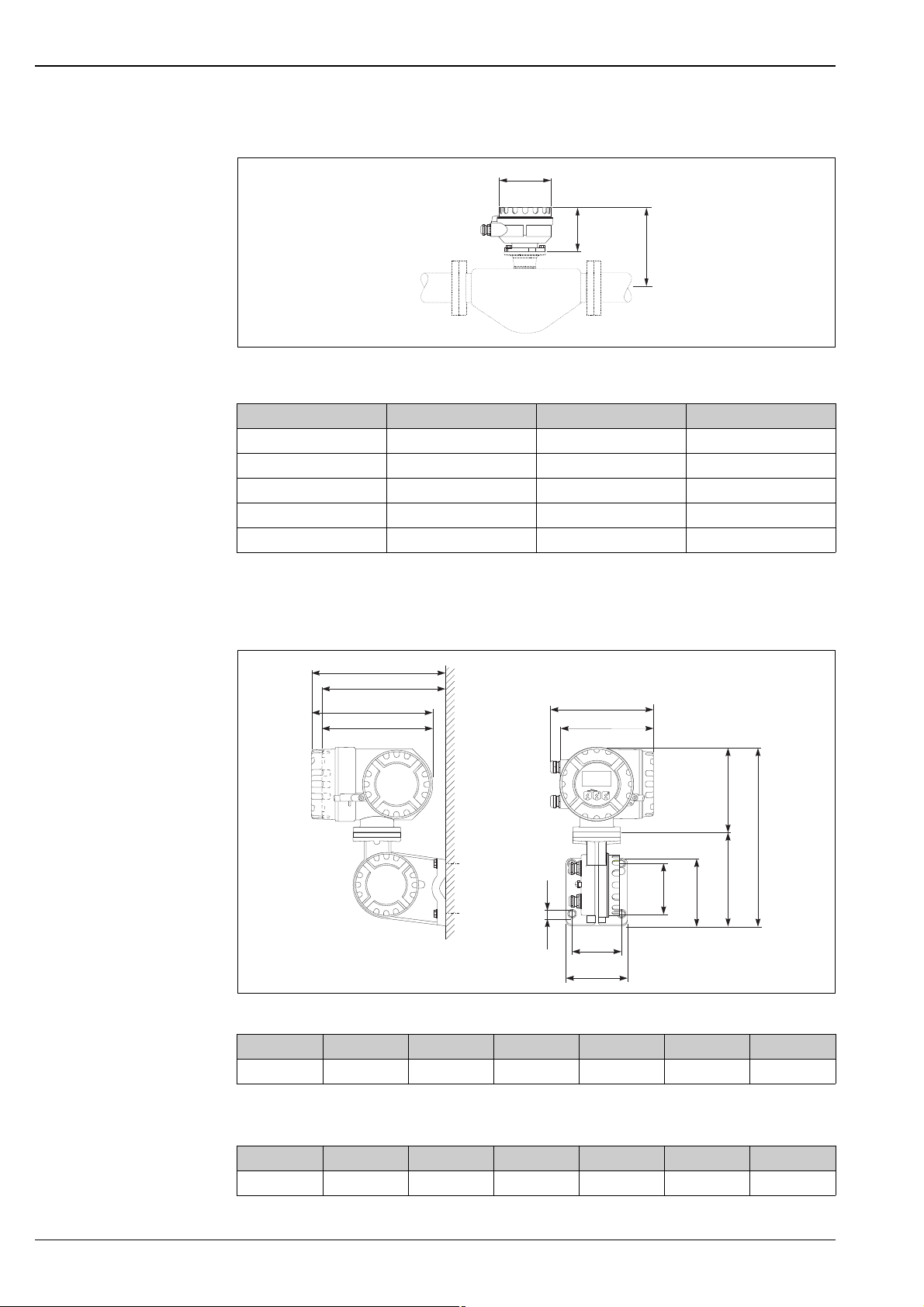

Transmitter connection housing remote version (II2G/Zone 1)

A

A*

B

B*

Nicht-eigensichere
Stromkreisedurch

IP40-Abdeckunggeschützt

Non-intrinsicallysafe
circuitsIp40 protected

Bouclesde courant

sanssécurité intrinsèque

protégéespar Ip40

F

A A* B B* C D E

265242240217206186167

* Blind version (without local display)

C

D

S

r

e

p

t

a

n

n

u

n

t

u

h

n

c

i

g

e

n

n

f

N

f

ö

e

l

i

h

e

v

w

i

l

t

a

h

e

g

i

r

t

a

r

s

e

t

i

v

u

o

c

c

r

i

p

c

e

e

K

K

e

e

c

p

i

r

c

c

u

o

i

v

t

s

e
r

a

t

r

i

e

g

h

a

t

l

i

w

v

e

h

i

l

e

n

s

o

i

o

N

l

s

u

s

n

i

t

e

e

e

r

p

a

a

p

s

p

o

a

’

l

u

v

r

r

i

E

M

J

L

K

G

H

a0002128

F G H J K L M

Ø 8.6 (M8) 100 123 100 133 188 355

All dimensions in [mm]

24 Endress+Hauser

Proline Promass 80E, 83E

E

-

+

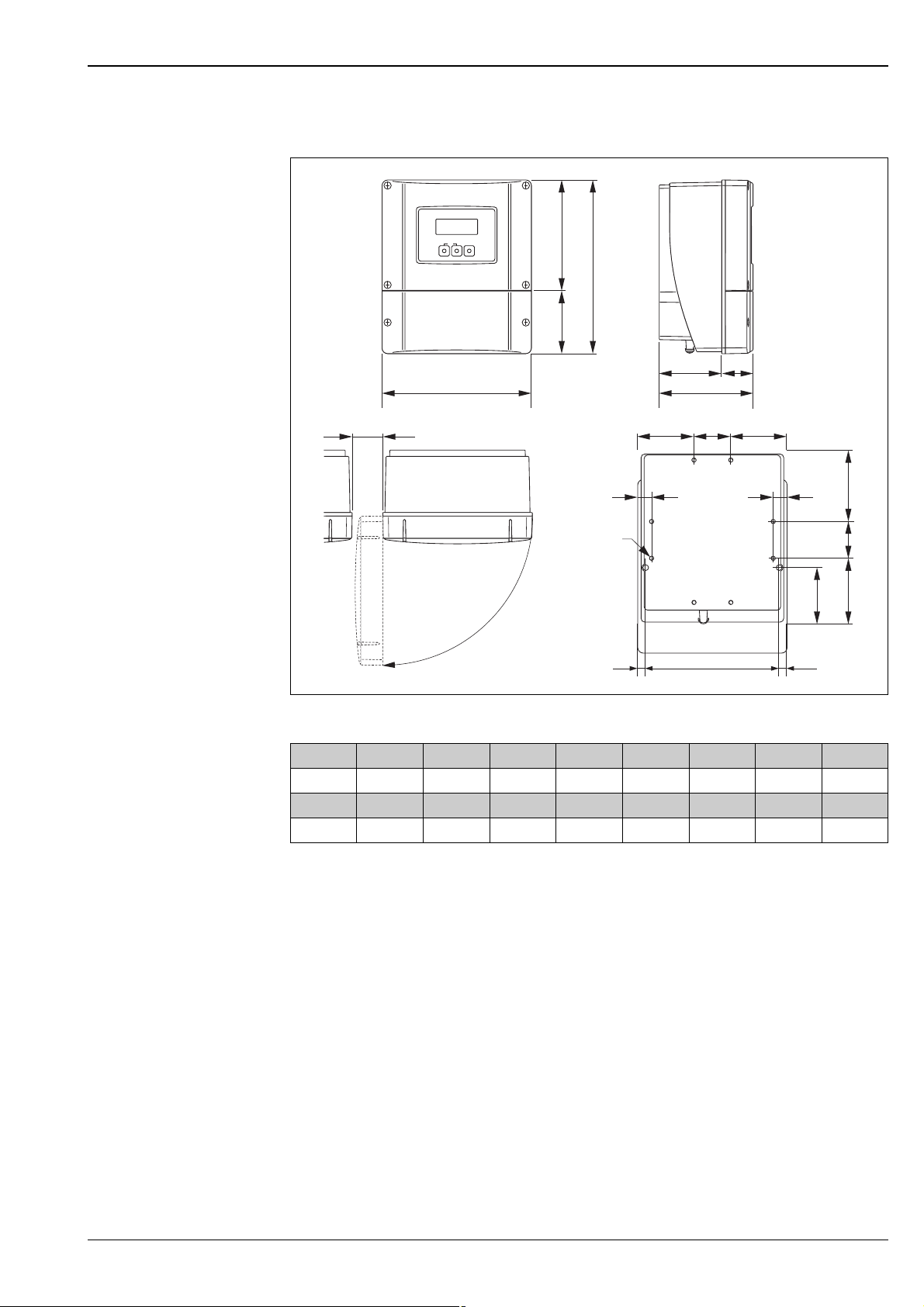

Transmitter wall-mount housing (non Ex-zone and II3G/Zone 2)

Esc

D

B

C

F

G

A

H J

E

K

J

R

PP

Q

N

SS

M

L

O

a0001150

A B C D E F G H J

215 250 90.5 159.5 135 90 45 >50 81

K L M N O P Q R S

53 95 53 102 81.5 11.5 192 8xM5 20

All dimensions in [mm]

Endress+Hauser 25

Flange connections EN (DIN), ASME B16.5, JIS

E

Proline Promass 80E, 83E

N

U

G

LK

S

di

+1.5

L

–2.0

Flange EN 1092-1 (DIN 2501 / DIN 2512N 1) / PN 40: 1.4404/316L

DN G L N S LK U di

8 95 232 4 × Ø14 16 65 17.3 5.35

15 95 279 4 × Ø14 16 65 17.3 8.30

25 115 329 4 × Ø14 18 85 28.5 12.00

40 150 445 4 × Ø18 18 110 43.1 17.60

50 165 556 4 × Ø18 20 125 54.5 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

1)

Flange with groove to EN 1092-1 Form D (DIN 2512N) available

Flange EN 1092-1 (DIN 2501) / PN 40 (with DN 25-flanges): 1.4404/316L

DN G L N S LK U di

8 115 329 4 × Ø14 18 85 28.5 5.35

15 115 329 4 × Ø14 18 85 28.5 8.30

All dimensions in [mm]; Further dimensions → Page 23 ff.

a0007640-en

Flange EN 1092-1 (DIN 2501 / DIN 2512N 1)) / PN 63: 1.4404/316L

DN G L N S LK U di

50 180 565 4 × Ø22 26 135.0 54.5 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

1)

Flange with groove to EN 1092-1 Form D (DIN 2512N) available

Flange EN 1092-1 (DIN 2501 / DIN 2512N 1)) / PN 100: 1.4404/316L

DN G L N S LK U di

8 105 261 4 × Ø14 20 75 17.3 5.35

15 105 295 4 × Ø14 20 75 17.3 8.30

25 140 360 4 × Ø18 24 100 28.5 12.00

40 170 486 4 × Ø22 26 125 42.5 17.60

50 195 581 4 × Ø26 28 145 53.9 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

1)

Flange with groove to EN 1092-1 Form D (DIN 2512N) available

26 Endress+Hauser

Proline Promass 80E, 83E

Flange according to ASME B16.5 / Cl 150: 1.4404/316L

DN G L N S LK U di

8 3/8" 88.9 232 4 × Ø15.7 11.2 60.5 15.7 5.35

15 ½" 88.9 279 4 × Ø15.7 11.2 60.5 15.7 8.30

25 1" 108.0 329 4 × Ø15.7 14.2 79.2 26.7 12.00

40 1½" 127.0 445 4 × Ø15.7 17.5 98.6 40.9 17.60

50 2" 152.4 556 4 × Ø19.1 19.1 120.7 52.6 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

Flange according to ASME B16.5 / Cl 300: 1.4404/316L

DN G L N S LK U di

8 3/8" 95.2 232 4 × Ø15.7 14.2 66.5 15.7 5.35

15 ½" 95.2 279 4 × Ø15.7 14.2 66.5 15.7 8.30

25 1" 123.9 329 4 × Ø19.0 17.5 88.9 26.7 12.00

40 1½" 155.4 445 4 × Ø22.3 20.6 114.3 40.9 17.60

50 2" 165.1 556 8 × Ø19.0 22.3 127.0 52.6 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

Flange according to ASME B16.5 / Cl 600: 1.4404/316L

DN G L N S LK U di

8 3/8" 95.3 261 4 × Ø15.7 20.6 66.5 13.9 5.35

15 ½" 95.3 295 4 × Ø15.7 20.6 66.5 13.9 8.30

25 1" 124.0 380 4 × Ø19.1 23.9 88.9 24.3 12.00

40 1½" 155.4 496 4 × Ø22.4 28.7 114.3 38.1 17.60

50 2" 165.1 583 8 × Ø19.1 31.8 127.0 49.2 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

Flange JIS B2220 / 10K: SUS 316L

DN G L N S LK U di

50 155 556 4 × Ø19 16 120 50 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

Flange JIS B2220 / 20K: SUS 316L

DN G L N S LK U di

8 95 232 4 × Ø15 14 70 15 5.35

15 95 279 4 × Ø15 14 70 15 8.30

25 125 329 4 × Ø19 16 90 25 12.00

40 140 445 4 × Ø19 18 105 40 17.60

50 155 556 8 × Ø19 18 120 50 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

Endress+Hauser 27

Proline Promass 80E, 83E

E

Flange JIS B2220 / 40K: SUS 316L

DN G L N S LK U di

8 115 261 4 × Ø19 20 80 15 5.35

15 115 300 4 × Ø19 20 80 15 8.30

25 130 375 4 × Ø19 22 95 25 12.00

40 160 496 4 × Ø23 24 120 38 17.60

50 165 601 8 × Ø19 26 130 50 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

Flange JIS B2220 / 63K: SUS 316L

DN G L N S LK U di

8 120 282 4 × Ø19 23 85 12 5.35

15 120 315 4 × Ø19 23 85 12 8.30

25 140 383 4 × Ø23 27 100 22 12.00

40 175 515 4 × Ø25 32 130 35 17.60

50 185 616 8 × Ø23 34 145 48 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

VCO connections

di

VCO connections: 1.4404/316L

DN G L U di

8 1" AF 252 10.2 5.35

15 1½" AF 305 15.7 8.30

All dimensions in [mm]; Further dimensions → Page 23 ff.

L

+1.5
–2.0

U

G

a0007641-en

28 Endress+Hauser

Proline Promass 80E, 83E

E

Tri-Clamp connections

G

U

di

+1.5

L

–2.0

1", 1½", 2" Tri-Clamp: 1.4404/316L

DN Clamp G L U di

8 1" 50.4 229 22.1 5.35

15 1" 50.4 273 22.1 8.30

25 1" 50.4 324 22.1 12.00

40 1½" 50.4 456 34.8 17.60

50 2" 63.9 562 47.5 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.
3A version also available (Ra ≤ 0.8 μm/150 grit.)

½" Tri-Clamp: 1.4404/316L

DN Clamp G L U di

8½"25.02299.55.35

15 ½" 25.0 273 9.5 8.30

All dimensions in [mm]; Further dimensions → Page 23 ff.
3A version also available (Ra ≤ 0.8 μm/150 grit.)

a0007643-en

Endress+Hauser 29

DIN 11851 (hygienic connection)

G

U

E

E

Proline Promass 80E, 83E

di

+1.5

L

–2.0

Hygienic connection DIN 11851: 1.4404/316L

DN G L U di

8 Rd 34 × 1/8" 229 16 5.35

15 Rd 34 × 1/8" 273 16 8.30

25 Rd 52 × 1/6" 324 26 12.00

40 Rd 65 × 1/6" 456 38 17.60

50 Rd 78 × 1/6" 562 50 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.
3A version also available (Ra ≤ 0.8 μm/150 grit.)

DIN 11864-1 Form A couplings (threaded ferrule)

a0007644-en

di

+1.5

L

–2.0

Coupling DIN 11864-1 Form A (threaded ferrule): 1.4404/316L

DN G L U di

8 Rd 28 × 1/8" 229 10 5.35

15 Rd 34 × 1/8" 273 16 8.30

25 Rd 52 × 1/6" 324 26 12.00

40 Rd 65 × 1/6" 456 38 17.60

50 Rd 78 × 1/6" 562 50 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.
3A version also available (Ra ≤ 0.8 μm/150 grit.)

U

G

a0007649-en

30 Endress+Hauser

Proline Promass 80E, 83E

E

E

DIN 11864-2 Form A (flat flange)

N

U

G

LK

S

di

+1.5

L

–2.0

Flange DIN 11864-2 Form A (flat flange): 1.4404/316L

DN G L N S LK U di

8 54 249 4 × Ø9 10 37 10 5.35

15 59 293 4 × Ø9 10 42 16 8.30

25 70 344 4 × Ø9 10 53 26 12.00

40 82 456 4 × Ø9 10 65 38 17.60

50 94 562 4 × Ø9 10 77 50 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.
3A version also available (Ra ≤ 0.8 μm/150 grit.)

ISO 2853 connections (couplings)

a0007649-en

U

G

di

+1.5

L

–2.0

a0007651-en

Coupling ISO 2853: 1.4404/316L

DN G

1)

L U di

8 37.13 229 22.6 5.35

15 37.13 273 22.6 8.30

25 37.13 324 22.6 12.00

40 50.68 456 35.6 17.60

50 64.16 562 48.6 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.

1)

Max. thread diameter to ISO 2853 Annex A,; 3A version also available (Ra ≤ 0.8 μm/150 grit.)

Endress+Hauser 31

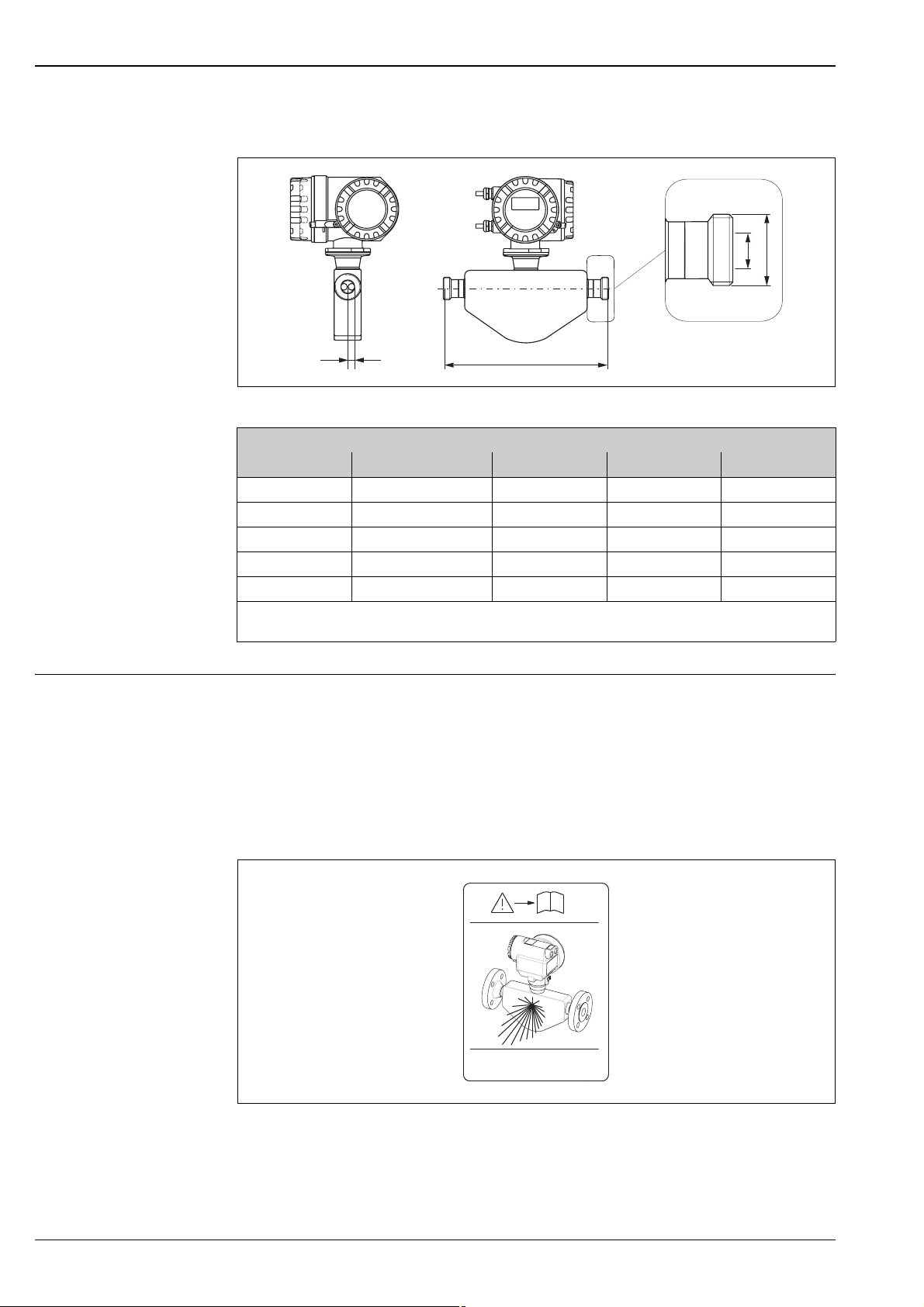

SMS 1145 (hygienic connection)

E

Proline Promass 80E, 83E

G

U

Rupture disk in the sensor housing (optional)

#

di

Hygienic connection SMS 1145: 1.4404/316L

DN G L U di

8 Rd 40 × 1/6" 229 22.5 5.35

15 Rd 40 × 1/6" 273 22.5 8.30

25 Rd 40 × 1/6" 324 22.5 12.00

40 Rd 60 × 1/6" 456 35.5 17.60

50 Rd 70 × 1/6" 562 48.5 26.00

All dimensions in [mm]; Further dimensions → Page 23 ff.
3A version also available (Ra ≤ 0.8 μm/150 grit.)

+1.5

L

–2.0

a0007653-en

Burst pressure 10 to 15 bar.

Warning!
Sensor housings with integrated rupture elements are optionally available. Make sure that the function and
operation of the rupture element is not impeded through the installation. Take adequate precautions to ensure
that no damage occurs, and risk to human life is ruled out, if the rupture element is triggered.

The position of the rupture disk is indicated by an adhesive label on top of the disk. If the rupture disk is
triggered, the adhesive label is damaged and can thus be visually monitored.

i

RUPTURE DISK

a0007823

Additional sign regarding the position of the rupture disk

32 Endress+Hauser

Proline Promass 80E, 83E

Weight • Compact version: see table below

• Remote version
– Sensor: see table below
– Wall-mount housing: 5 kg

DN 8 15 25 40 50

Compact version 8 8 10 15 22

Remote version (sensor) 6 6 8 13 20

All values (weight) refer to devices with EN/DIN PN 40 flanges.
Weight information in [kg].

Materials Transmitter housing

• Compact housing: Stainless Steel 1.4301/ASTM 304

• Compact housing: powder coated die-cast aluminum

• Wall-mount housing: powder coated die-cast aluminum

• Remote field housing: powder-coated die-cast aluminum

Sensor housing / containment

• Acid and alkali-resistant outer surface

• Stainless Steel 1.4301/ASTM 304

Connection housing, sensor (remote version)

• Stainless Steel 1.4301/ASTM 304

Process connections

Hygienic process connection

• 3A approved

Stainless Steel 1.4404/316L/SUS 316L

• Flanges EN 1092-1 (DIN 2501)

• Flanges according to ASME B16.5

• Flanges JIS B2220

• DIN 11864-2 Form A (flat flange)

• VCO conection

•Tri-Clamp

• Hygienic connection:
– DIN 11864-1, Form A
– DIN 11851
– SMS 1145
– ISO 2853

Measuring tubes

• Stainless Steel 1.4539/904L

• Finish quality: Ra

= 0.8 μm

max

Seals

• Welded process connections without internal seals

Endress+Hauser 33

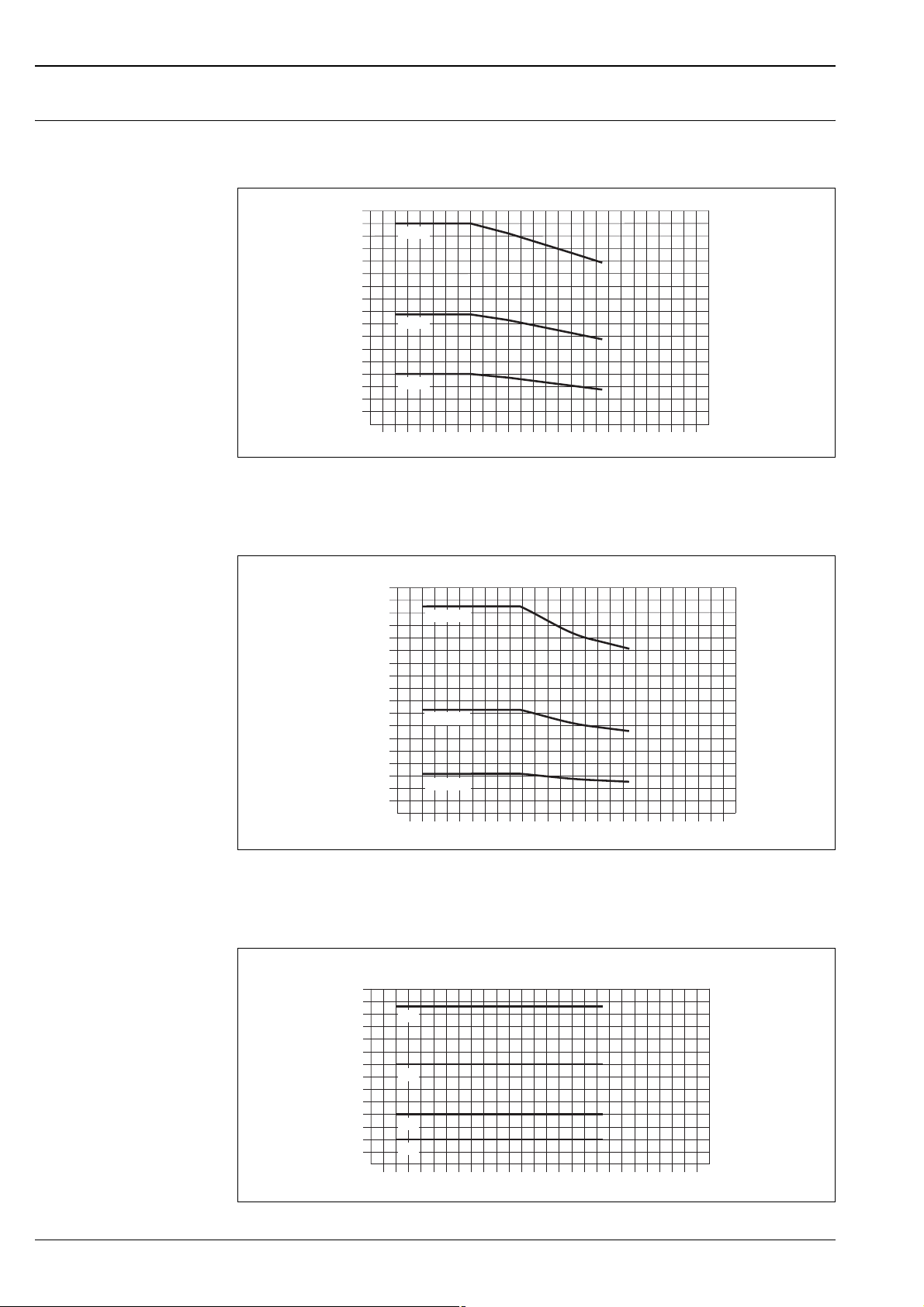

Material load curves Flange connection to EN 1092-1 (DIN 2501)

Flange material: 1.4404/316L

[bar]

100

90
80
70
60
50
40
30
20

-60

-40

PN100

PN63

PN40

-20

020

40 60 80 100 120 140 180 200160

Proline Promass 80E, 83E

[°C]

a0006904-en

Flange connection according to ASME B16.5

Flange material: 1.4404/316L

[bar]

90
80

Class 600

70
60
50
40

Class 300

30
20
10

Class 150

0

-60

-40

-20

020

Flange connection to JIS B2220

Flange material: SUS 316L

40 60 80 100 120 140

160

180

200

[°C]

a0006905-en

[bar]

70
60

63K

50
40

40K

30
20
10

20K

10K

0

-60

-40

-20

020

40 60 80 100 120 140 180 200160

[°C]

A0006906-en

34 Endress+Hauser

Proline Promass 80E, 83E

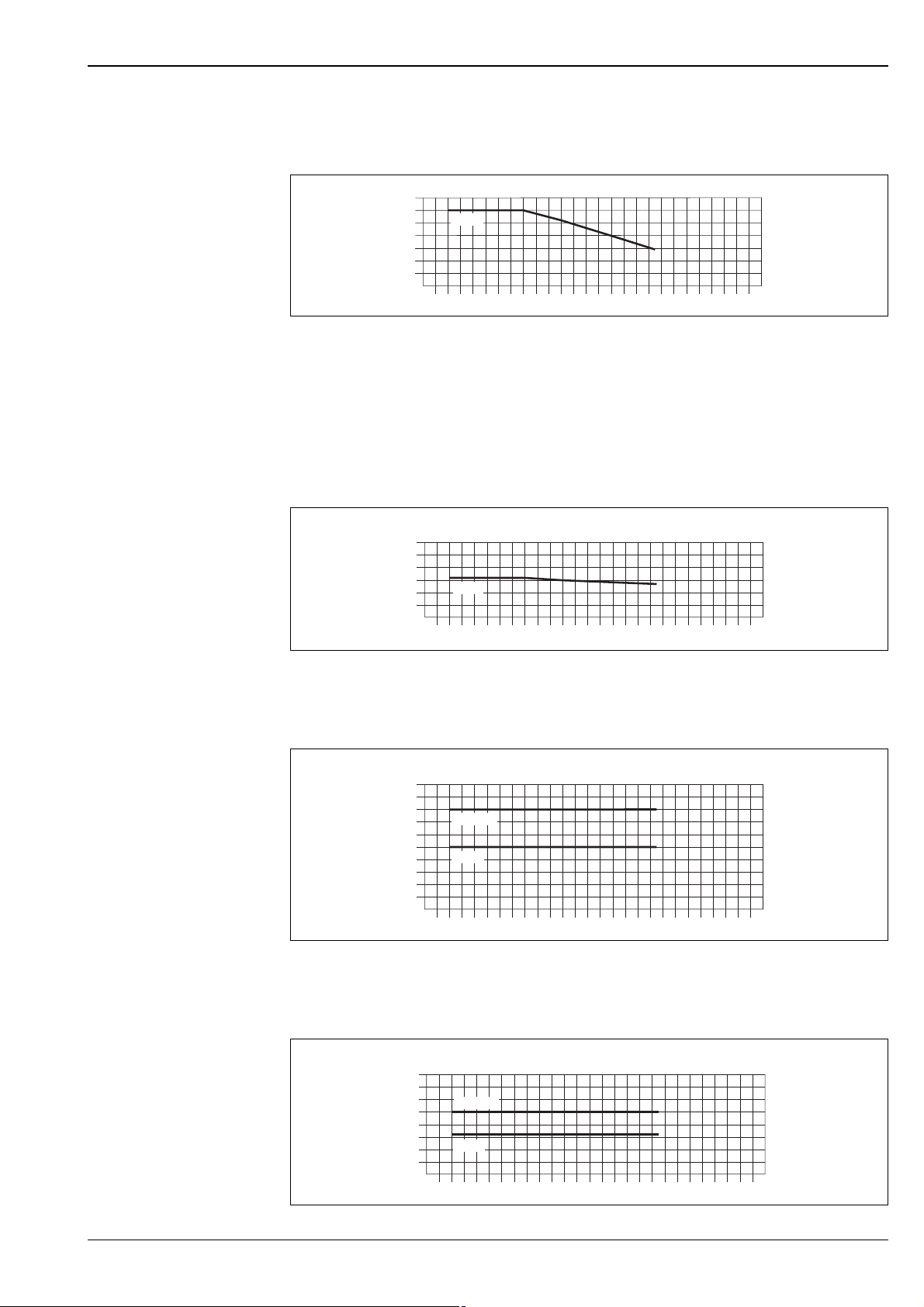

VCO process connection

Flange material: 1.4404/316L

[bar]

100

90
80
70

-60

-40

PN100

-20

020

40 60 80 100 120 140 180 200160

[°C]

a0006908-en

Tri-Clamp process connection

The Clamp connections (e.g. Tri-Clamp ISO2852, DIN32676) are suited up to a maximum pressure of 16 bar.
As these operating limits also depend on the clamp and the seal used, their specifications have to be observed.
The clamp and the seal are not included in the scope of supply.

Hygienic Coupling to DIN 11851 and SMS 1145

Coupling material: 1.4404/316L

[bar]

30
20

-60

-40

PN16

-20

020

40 60 80 100 120 140

10

0

Coupling to DIN 11864-1 Form A (threaded ferrule)

Coupling material: 1.4404/316L

[bar]

50
40
30
20
10

0

-60

-40

DN 8...40

DN 50

-20

020

40 60 80 100 120 140

160

160

180

180

200

200

[°C]

A0006909-en

[°C]

A0006910-en

Flange connection to DIN 11864-2 Form A (flat flange)

Flange material: 1.4404/316L

[bar]

40
30
20
10

0

-60

DN 8...40

DN 50

-40

-20

020

40 60 80 100 120 140

160

180

200

[°C]

A0006911-en

Endress+Hauser 35

Proline Promass 80E, 83E

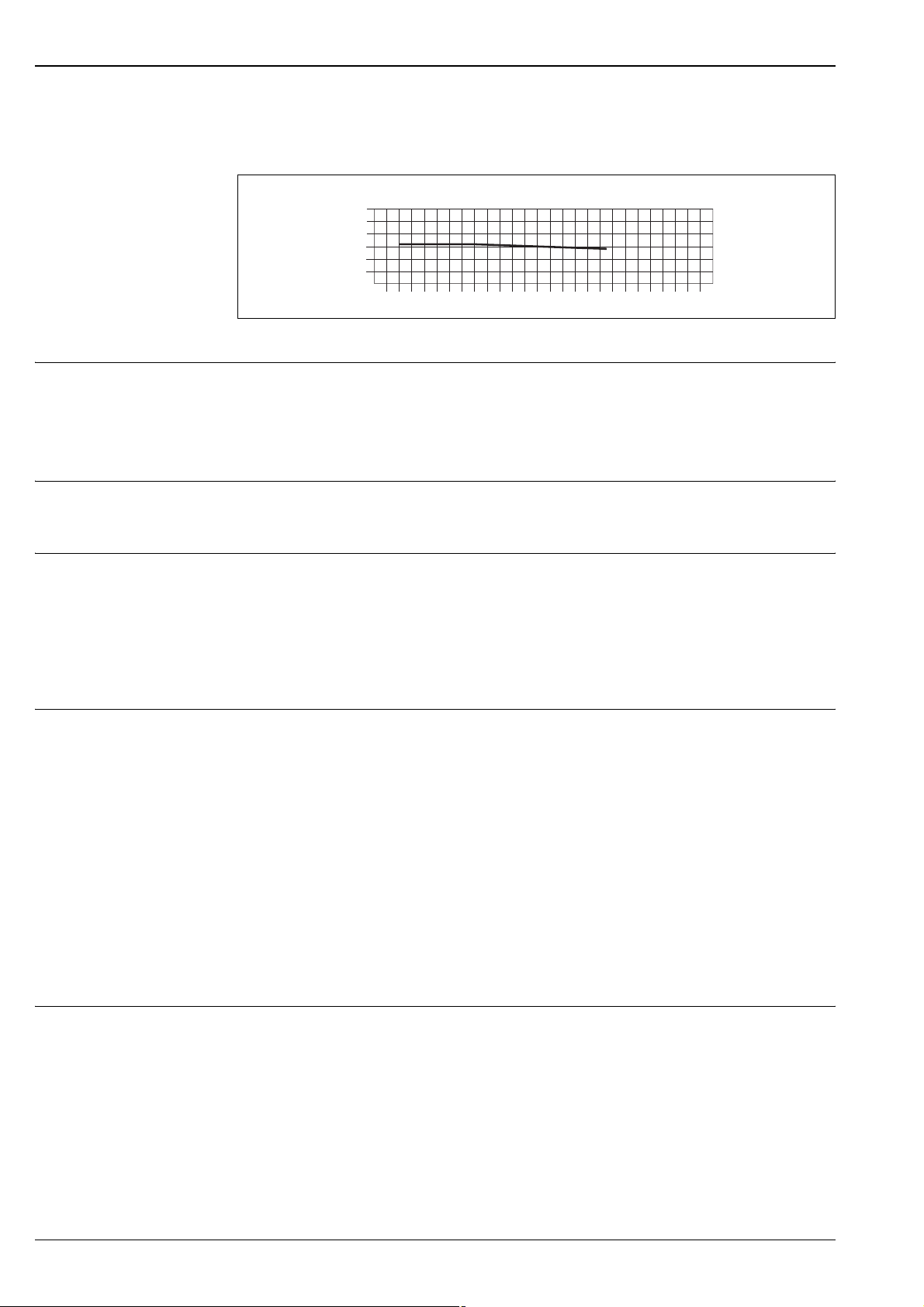

Coupling to ISO 2853

Coupling material: 1.4404/316L

[bar]

30
20
10

0

-60

-40

-20

020

40 60 80 100 120 140

160

180

200

[°C]

A0006912-en

Process connections See Page 33 → Materials → Process connections

Human interface

Display elements • Liquid-crystal display: backlit, two lines (Promass 80) or four lines (Promass 83) with 16 characters per line

• Selectable display of different measured values and status variables

• At ambient temperatures below –20 °C the readability of the display may be impaired.

Unified control concept for both types of transmitter

Language groups

!

Promass 80

• Local operation with three keys (–, +, E)

• Quick Setup menus for straightforward commissioning

Promass 83

• Local operation with three optical keys (S/O/F)

• Application-specific Quick Setup menus for straightforward commissioning

Note!
The language group is changed using the "FieldCare" operating program.

Language groups available for operation in different countries:

• Western Europe and America (WEA):
English, German, Spanish, Italian, French, Dutch and Portuguese

• Eastern Europe/Scandinavia (EES):
English, Russian, Polish, Norwegian, Finnish, Swedish and Czech

• South and Eastern Asia (SEA):
English, Japanese, Indonesian

Only Promass 83

• China (CN):
English, Chinese

Remote operation Promass 80

Remote operation via HART, PROFIBUS PA

Promass 83

Remote operation via HART, PROFIBUS DP/PA, FOUNDATION fieldbus

36 Endress+Hauser

Proline Promass 80E, 83E

Certificates and approvals

CE mark The measuring system is in conformity with the statutory requirements of the EC Directives.

Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

C-Tick symbol The measuring system complies with the EMC requirements of the "Australian Communications and Media

Authority (ACMA)"

Ex approval Information about currently available Ex versions (ATEX, FM, CSA, IECEx, NEPSI etc.) can be supplied by your

Endress+Hauser Sales Center on request. All information relevant to explosion protection is available in
separate Ex documents that you can order as necessary.

Hygienic compatibility • 3A approval

FOUNDATION Fieldbus certification

PROFIBUS DP/PA certification

MODBUS certification The measuring device meets all the requirements of the MODBUS/TCP conformity test and has the

Other standards and guidelines

The flowmeter has passed all the test procedures implemented and has been certified and registered by the
Fieldbus Foundation. The flowmeter thus meets all the requirements of the specifications listed below:

• Certified to FOUNDATION Fieldbus specification

• The flowmeter meets all the specifications of the FOUNDATION Fieldbus-H1.

• Interoperability Test Kit (ITK), revision status 5.0:
The device can also be operated in conjunction with other-make certified devices

• Physical Layer Conformance Test of the Fieldbus Foundation

The flow device has successfully passed all the test procedures carried out and is certified and registered by the
PNO (PROFIBUS User Organization). The device thus meets all the requirements of the following
specifications:

• Certified in accordance with PROFIBUS Profile Version 3.0 (device certification number: available on
request)

• The device can also be operated with certified devices of other manufacturers (interoperability)

"MODBUS/TCP Conformance Test Policy, Version 2.0". The measuring device has successfully passed all the
test procedures carried out and is certified by the "MODBUS/TCP Conformance Test Laboratory" of the
University of Michigan.

• EN 60529
Degrees of protection by housing (IP code)

• EN 61010-1
Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory
Procedures.

• IEC/EN 61326
"Emission in accordance with Class A requirements".
Electromagnetic compatibility (EMC requirements)

•NAMUR NE 21
Electromagnetic compatibility (EMC) of industrial process and laboratory control equipment.

•NAMUR NE 43
Standardization of the signal level for the breakdown information of digital transmitters with analog output
signal.

•NAMUR NE 53
Software of field devices and signal-processing devices with digital electronics

Pressure Equipment Directive Measuring devices with a nominal diameter smaller than or equal to DN 25 correspond to Article 3(3) of the

EC Directive 97/23/EC (Pressure Equipment Directive) and have been designed and manufactured according
to good engineering practice. For larger nominal diameters, optional approvals according to Cat. II/III are
available when required (depends on fluid and process pressure).

Endress+Hauser 37

Functional safety SIL -2:

accordance IEC 61508/IEC 61511-1 (FDIS)

"4–20 mA HART" output according to the following order code:

Promass 80

Promass80***-************A
Promass80***-************D
Promass80***-************S
Promass80***-************T
Promass80***-************8

Promass 83

Promass83***-************A
Promass83***-************B
Promass83***-************C
Promass83***-************D
Promass83***-************E
Promass83***-************L

Promass83***-************M
Promass83***-************R
Promass83***-************S
Promass83***-************T
Promass83***-************U
Promass83***-************W

Proline Promass 80E, 83E

Promass83***-************Ø
Promass83***-************2
Promass83***-************3
Promass83***-************4
Promass83***-************5
Promass83***-************6

Ordering information

The Endress +Hauser service organization can provide detailed ordering information and information on the
order codes upon request.

Accessories

Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter
and the sensor.

38 Endress+Hauser

Proline Promass 80E, 83E

Documentation

• Flow measurement (FA005D/06/en)

• Technical Information Promass 80F, 80M, 83F, 83M (TI053D/06/en)

• Technical Information Promass 80A, 83A (TI054D/06/en)

• Technical Information Promass 80H, 83H (TI074D/06/en)

• Technical Information Promass 80I, 83I (TI075D/06/en)

• Technical Information Promass 80P, 83P (TI078D/06/en)

• Technical Information Promass 80S, 83S (TI076D/06/en)

• Operating Instructions Promass 80 (BA057D/06/en)

• Operating Instructions Promass 80 PROFIBUS PA (BA072D/06/en)

• Operating Instructions Promass 83 (BA059D/06/en)

• Operating Instructions Promass 83 FOUNDATION Fieldbus (BA065D/06/en)

• Operating Instructions Promass 83 PROFIBUS DP/PA(BA063D/06/en)

• Operating Instructions Promass 83 MODBUS (BA107D/06/en)

• Description of Device Functions Promass 80 (BA058D/06/en)

• Description of Device Functions Promass 80 PROFIBUS PA (BA073D/06/en)

• Description of Device Functions Promass 83 (BA060D/06/en)

• Description of Device Functions Promass 83 FOUNDATION Fieldbus (BA066D/06/en)

• Description of Device Functions Promass 83, PROFIBUS DP/PA (BA064D/06/en)

• Description of Device Functions Promass 83 MODBUS (BA108D/06/en)

• Supplementary documentation on Ex-ratings: ATEX, FM, CSA

• Functional safety manual Promass 80, 83 (SD077D/06/en)

Registered trademarks

TRI-CLAMP
Registered trademark of Ladish & Co., Inc., Kenosha, WI, USA

HART
Registered trademark of HART Communication Foundation, Austin, TX, USA

PROFIBUS
Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany

FOUNDATION™ Fieldbus
Registered trademark of the Fieldbus FOUNDATION, Austin, USA

MODBUS
Registered trademark of the MODBUS Organization

HistoROM™, S-DAT
FieldCare
Registered or registration-pending trademarks of Endress+Hauser Flowtec AG, Reinach, CH

®

®

®

®

®

®

, T-DAT™, F-CHIP®, ToF Tool - Fieldtool® Package, Fieldcheck®, Applicator®

Endress+Hauser 39

Instruments International

Endress+Hauser
Instruments International AG
Kaegenstrasse 2
4153 Reinach
Switzerland

Tel. [phone]
Fax [phone]
www.endress.com
[email protected]

TI061D/06/en/07.07
71044349
FM+SGML6.0 ProMoDo
