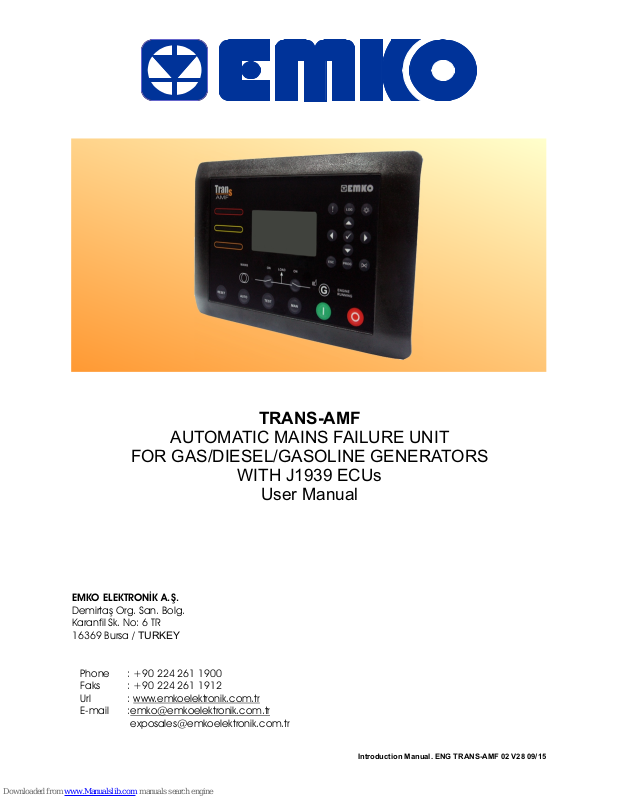

EMKO TRANS-AMF User Manual

TRANS-AMF

AUTOMATIC MAINS FAILURE UNIT

FOR GAS/DIESEL/GASOLINE GENERATORS

WITH J1939 ECUs

User Manual

EMKO ELEKTRON K A. .

Demirta Org. San. Bolg.
Karanfil Sk. No: 6 TR
16369 Bursa / TURKEY

ÝÞ

þ

Phone
Faks
Url
E-mail

: [phone]
: [phone]
: www.emkoelektronik.com.tr
:[e-mail]
[e-mail]

Introduction Manual. ENG TRANS-AMF 02 V28 09/15

1.Introduction.......................................................................................................................................

1.1 General Specifications..............................................................................................................

1.2 Warranty....................................................................................................................................

1.3 Maintenance .............................................................................................................................

2.Installation.........................................................................................................................................

2.1 Unit Configuration......................................................................................................................

2.2 Panel Mounting..........................................................................................................................

Figure 2.1 Front View................................................................................................................

Figure 2.2 Panel Cut-Out..........................................................................................................

2.3 Electrical Connection.................................................................................................................

3.Definition Of Front Panel And Accessing To The Parameters......................................................

3.1 Front Panel Description.............................................................................................................

3.2 Accessing To The Operator Parameters....................................................................................

3.3 Accessing To The Technician Parameters.................................................................................

3.4 Changing And Saving Parameter Values .................................................................................

4.Parameters........................................................................................................................................

4.1 Operator Parameters.................................................................................................................

4.1.1 Mains................................................................................................................................

4.1.2 Generator.........................................................................................................................

4.2 Technician Parameters..............................................................................................................

4.2.1 System.............................................................................................................................

4.2.2 Mains................................................................................................................................

4.2.3 Generator.........................................................................................................................

4.2.4 Engine..............................................................................................................................

4.2.5 Inputs...............................................................................................................................

4.2.6 Outputs.............................................................................................................................

4.2.7 Timers..............................................................................................................................

4.2.8 Expansion Modules..........................................................................................................

4.2.9 User Adjustment...............................................................................................................

5.Specifications....................................................................................................................................

6.Other Informations.............................................................................................................................

CONTENTS

Page 4

Page 7

Page 6

Page 5

Page 7

Page 5

Page 5
Page 5

Page 16

Page 79

Page 4
Page 4
Page 4

2

Page 25

Page 25
Page 25
Page 25
Page 27
Page 27
Page 32
Page 32
Page 35
Page 48
Page 64
Page 73
Page 74
Page 75

Page 5

Page 17
Page 24

Page 80

Manufacturer’s Name : EMKO ELEKTRONIK A.S.
Manufacturer’s Address : DOSAB, Karanfil Sk., No:6,

16369 Bursa, TURKEY

The manufacturer hereby declares that the product:

Product Name : Automatic Mains Failure Unit

Type Number : TRANS-AMF

Product Category : Electrical equipment for measurement, control and

laboratory use

Conforms to the following directives :

2006 / 95 / EC The Low Voltage Directive

2004 / 108 / EC The Electromagnetic Compatibility Directive

has been designed and manufactured to the following specifications:

EN 61000-6-4:2007 EMC Generic Emission Standard for Industrial Environments

EN 61000-6-2:2005 EMC Generic Immunity Standard for Industrial Environments

EN 61010-1:2001 Safety Requirements for electrical equipment for measurement, control

and laboratory use

When and Where Issued Authorized Signature

th

25 February 2011 Name : Serpil YAKIN

Bursa-TURKEY Position : Quality Manager

EU DECLARATION OF CONFORMITY

3

1.Introduction

1.1 General Specifications

4

The unit provides for automatic transfer of a load from mains to generator in the event of a
mains failure. Intended for unattended operation, it is able to detect failure of any phase of the
mains and to start and switch over to a generator if the mains voltage goes outside pre-set
limits. Both automatic and manual control is possible. A test mode is also available which
allows the generator to be run without taking the load.

The unit has Dual Working feature. In the event of a mains failure, group with high priority
starts and takes the load. If both groups has no priority, the group with less working hour will
start and take the load. To use Dual Working feature Dual Set expansion module must be
used.

The unit calculates engine RPM from Magnetic Pickup sensor input (MPU) and/or generator
voltage signal.

The unit monitors J1939 ECU messages and provides remote start/stop control via J1939
protocol (supported ECUs: Volvo EMS2, Volvo EDC4, Perkins, Scania S6, MAN MFR and
standard messages).

The unit is extensively programmable through the front panel, with password protection on two
levels. Operational parameters can also be monitored and controlled from a PC via a built-in USB
communication port.

.

The unit monitors generator operation and gives warning of any faults that are detected.

The configurable input-3 can be used as the water level sensing input.
The configurable input-7 can be used as the cabin temperature analog input.

In the event that the engine fails to start on the first attempt, the attempt will be repeated a
programmed number of times or until successful

If a fault is detected, the unit shuts down the engine and shows the failure message on the LCD
display and activates the internal sounder.

1.2 Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and
workmanship. This warranty is provided for a period of two years. The warranty period starts from
the delivery date. This warranty is in force if duty and responsibilities which are determined in
warranty document and instruction manual performs by the customer completely.

1.3 Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device
before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of
these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl
alcohol or water to clean the external plastic case.

5

ü

Ýçindekiler

A visual inspection of this product for possible damage occured during shipment is
recommended before installation. It is your responsibility to ensure that qualified mechanical
and electrical technicians install this product.

If there is danger of serious accident resulting from a failure or defect in this unit , power off
the system and seperate the electrical connection of the device from the system.

Keep the power off until all of the wiring is completed so that electric shock and trouble with
the unit can be prevented.

To reduce the effect of electrical noise on device, Low voltage line (especially sensor input
cable) wiring must be separated from high current and voltage line.
If possible, use shielded cable and shield must be connected to ground only one side.

Before commissioning the device, parameters must be set in accordance with desired use.
Incomplete or incorrect configuration can cause dangerous stiuations.

Before beginning installation of this product, please read the instruction
manual and warnings below carefully.

2. Installation

Ýçindekiler

2.1 Unit Configuration

Ýçindekiler

2.2 Panel Mounting

The unit is designed for panel mounting. Fixing is by two screw fixings.

1- Insert the unit in the panel cut-out from the front.
2- Insert the fixings in the slotted at the corners of the unit and tighten the fixing screws to secure

the unit against the panel.

During the equipment is putted in hole on the metal panel while mechanical
installation some metal burrs can cause injury on hands, you must be careful.

Figure 2.1 Front View Figure 2.2 Panel Cut-Out

The unit can be programmed using the buttons and LCD display on the front panel or PC
Software.

182mm

135mm

152mm

229mm

!

!

2.3 Electrical Connection

6

TRANS-AMF three phase connections schematic

1- Connect the unit as shown in the appropriate diagram. Be sure to connect the battery

supply the right way round and battery negative should be grounded.
2- The CAN interface requires that a 120 Ohms terminator is fitted to each end of the
communications link. This termination resistor is fitted internally into the unit. So it is not
required externally. The screen is grounded at one end ONLY.
3- Screened cable must be used for connecting the Magnetic Pickup, ensuring that the
screen is grounded at one end ONLY.

4- Current transformers secondary should be grounded.

FUSE-1, FUSE-2, FUSE-5, FUSE-6 2 A. T FUSE-3, FUSE-4 8 A. T
FUSE-7 6 A. T
FUSE-8 Max. 10 A. T

!

25

Level Sender or
Configurable Analog Input-1

Temperature Sender

Oil Sender

24

2335 21

22

BATTERY -

BATTERY +

40

42

41

5A

BATTERY +

27

26

Configurable Analog Input-2

Sender Common

18

19

17

H(+) L(-)

J1939 ECUs

34 33

BATTERY -

32 31

30 29

28

High Temperature or
Configurable Input-5

Low Oil Pressure or
Configurable Input-4

Water Level or
Configurable Input-3

Configurable Input-2

Configurable Output-5

Configurable Output-6

5A

To Engine
Earth

USB

SCR

FUSE-7

FUSE-8

*

*

IT CAN BE USED

AS A DIGITAL INPUT

BY SELECTING

FROM THE PROGRAM

PARAMETERS

* * *

3

1

Configurable Output-3

39 38 37 36

Configurable Output-4

TRANSISTOR OUTPUTS

MAX. 1 A

BATTERY +

20

-(SCR) +

MPU

2

Emergency Stop or
Configurable Input-1

Configurable Input-6

6

27

3

8

8A

8A

1

4

9

10

5

L1

GENERATORMAINS

L2

L3

N

M

LOAD

G

L1L2L3

N

El

c r c l

nte lo

ck

e t

i

a

i r

M

e

ha

ni

ca in

r

l

kc l

te

o

c

11 12

13

14

15 16

Mains
Contactor
Relay

Generator
Contactor
Relay

FUSE-1

FUSE-2

FUSE-3

FUSE-4

FUSE-5

FUSE-6

4

!

!

!

!

Fuel Or
Configurable Output-1

Crank Or
Configurable Output-2

D+(W.L.)
Charge Alt.

Max. 300VV Max. 300VV

Cabin Temperature or
Configurable Input-7

This LED indicates that a "Shutdown" alarm was detected.

1

2

4

5

6
7

9

12
13

14

Number

Comment

ü

1

2

3

4

5

6 7

8

9

10 11 12 13 14

15 16 17

18

19

21

20

22

24

26

28

27

29 30 31 32 33

25

23

3. Front Panel Description And Accessing To The Parameters

3.1 Front Panel Description

This LED indicates that a "Warning" alarm was detected
This LED indicates that a "Maintenance" alarm was detected

3

This LCD display is used for displaying the electrical measurements during normal operation,
and editing/inspecting programming parameters in program mode.

This LED indicates that Mains voltage and frequency is within limits and is ready to take over the
load.

This LED shows that the load is supplied from the mains.
This LED shows that the load is supplied from the generator.

8

This LED indicates that Generator voltage and frequency is within limits and is ready to take over
the load.

This LED indicates that the engine has started and is running.

10

11

This LED shows that the unit is in the AUTO mode.
This LED shows that the unit is in the TEST mode.
This LED shows that the unit is in the MANUAL mode.
In the MAN, AUTO and TEST modes, this LED indicates that the engine is starting up or is

running.
This LED shows that the unit is in the STOP mode.

7

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

21

22

23
24
25
26

19

15

18

Number

Comment

Warning and Alarm messages shortcut button.
Event Logs shortcut button.

16
17

The LAMP TEST button illuminates all LED indicators.
This button is used for showing previous parameters on the currently selected page in

normal operation. In Programming mode, it operates as an Up button (changing cursor
position) or Increment button (increase parameter value).

This button is used for showing previous page in normal operation. In Programming mode, it
operates as an Left button (changing cursor position).

20

This button is used for entering parameter edit section and saving parameter value in
programming mode.

This button is used for showing next page in normal operation. In Programming mode, it
operates as an Right button (changing cursor position).

This button is used for showing next parameters on the currently selected page in normal
operation. In Programming mode, it operates as an Down button (changing cursor position)
or Decrement button (decrease parameter value).

The Escape button is used for exit previous section in programming mode.
When this button is pressed, the unit goes into its PROGRAMMING Mode.
This button will silence the alarm horn after a failure has been detected.
This button opens or closes the mains contactor, only operative when manual mode is selected.
This button opens or closes the gen. contactor, only operative when manual mode is selected.
This button will reset the controller after a failure has been detected.
The AUTO button is used for changing operating mode of the unit to the AUTO Mode.
The TEST button is used for changing operating mode of the unit to the TEST Mode.
The MAN button is used for changing operating mode of the unit to the MANUAL Mode.
The START button is used for starting the engine when the unit is in the Manual Mode.
The STOP button is used for changing operating mode of the unit to the STOP Mode.

The generator is stopped.

27
28
29
30

31
32
33

LCD display Description

Mains Page1

Measurement values

Engine Status or Error Messages

Current page name

128x64 Dot-matrix LCD display.

Use the Next and Previous buttons to select which Data display page (screen) is to be displayed.

When the Alarm (!) shortcut button is pressed, the Warning & Alarm display page is displayed.

When the Event log (LOG) shortcut button is pressed, the Event Log display page is displayed.

ü

8

Mains Page1:

V12: Mains voltage L1-L2
V23: Mains voltage L2-L3
V31: Mains voltage L3-L1
V1: Mains voltage L1-N
V2: Mains voltage L2-N
V3: Mains voltage L3-N

Mains Page2:

Fq: Mains frequency
Phase Seq.: Mains phase sequence

Generator Page1:

V12: Generator voltage L1-L2
V23: Generator voltage L2-L3
V31: Generator voltage L3-L1
V1: Generator voltage L1-N
V2: Generator voltage L2-N
V3: Generator voltage L3-N

Generator Page2:

I1: Load Current L1
I2: Load Current L2
I3: Load Current L3
PF1: Generator power factor L1
PF2: Generator power factor L2
PF3: Generator power factor L3

Generator Page3:

Fq: Generator frequency
Ie: Earth Current
Phase Seq.: Generator phase sequence

Generator Page4:

P1: Generator active power L1
P2: Generator active power L2
P3: Generator active power L3

9

Data display pages on the LCD display;

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

MAINS
Fq:50.0Hz
Phase seq.: L1 L2 L3

Wait for start

GENERATOR
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
On load

GENERATOR
I1: 26A PF1: -0.84
I2: 23A PF2: -0.80
I3: 25A PF3: -0.82
On load

GENERATOR
Fq:50.0Hz Ie: 0A
Phase seq.: L1 L2 L3

On load

GENERATOR
P1: 170kW
P2: 170kW
P3: 170kW
On load

Generator Page5:

Q1: Generator reactive power L1
Q2: Generator reactive power L2
Q3: Generator reactive power L3

Generator Page6:

S1: Generator apparent power L1
S2: Generator apparent power L2
S3: Generator apparent power L3

Generator Page7:

S
S
S

P: Generator total active power
Q: Generator total reactive power
S: Generator total apparent power

Generator Page8:

kWh: Generator active energy
KVArh: Generator reactive energy

Engine Page1:

Oil pressure: Oil pressure sender input value
Temperature: Coolant temperature sender input value
Speed: Engine speed

Engine Page2:

Conf. AI1: Configurable Analog Input-1 value
Conf. AI2: Configurable Analog Input-2 value
Battery volt: Battery supply voltage

10

GENERATOR
Q1: 40kVAr
Q2: 40kVAr
Q3: 40kVAr
On load

GENERATOR
S1: 210kVA
S2: 210kVA
S3: 210kVA
On load

GENERATOR

P: 510kW
Q: 120kVAr
S: 630kVA

On load

S
S
S

GENERATOR
kWh : 30600
kVArh: 7200

On load

ENGINE
Oil Pressure: 4.3bar
Temperature : 30ºC
Speed : 1500rpm
On load

ENGINE
Conf.AI1 : 96%
Conf.AI2 : 40ºC
Battery volt: 12.0Vdc
On load

J1939 VALUES
Coolant level: 87.6%
Load at cur.spd: 25%
Fuel temper.: 13°C
On load

J1939 VALUES
Fuel rate: 12.50L/h
Fuel tot.: 176L
Oil level: 97.2%
On load

J1939 VALUES
Engine speed: 1500rpm
Oil pressure: 4.0bar
Coolant temp: 27ºC
On load

ENGINE MAINTENANCE
Next hours : 5000
Next days : 180
Last date: 15/02/2011
On load

ENGINE
W.Hour_Min: 2_57
Cabin temp: 26ºC

On load

Engine Page3:

Gen.chg.volt: Charge generator voltage
Run times: Number of generator runs
Crank times: Number of generator starts

Engine Page4:

W.Hour_Min: Engine running time (Hour and Minute)
Cabin temp: Cabin temperature

Engine Maintenance Page:

Next hours: The remaining hour for maintenance
Next days: The remaining day for maintenance
Last date: The last maintenance date

J1939 Values Page1:

Engine speed: Engine speed via J1939
Oil pressure: Oil pressure via J1939
Coolant temp: Coolant temperature via J1939

J1939 Values Page2:

Fuel rate: Fuel rate via J1939
Fuel tot.: Fuel total used via J1939
Oil level: Oil level via J1939

J1939 Values Page3:

Coolant level: Coolant level via J1939
Load at cur.spd: Load at current speed via J1939
Fuel temper.: Fuel temperature via J1939

11

ENGINE
Gen.chg.volt: 11.8Vdc
Run times : 7
Crank times : 11
On load

DATE & TIME

15/02/2011
13:32:28

EXP. INPUT & OUTPUT
1 4 5 8
Inputs : 0000 0000
Outputs: 0000 0000
On load

INPUT & OUTPUT
1 4 5 8
Inputs : 0000 000X
Outputs: 0000 0000
On load

J1939 DM1 FAULTS1
Spn:110
Fmi:0 Oc:1
Coolant Temper.sensor
Value too high

J1939 VALUES
Int.man.temp.: 45ºC
Pedal position: 50.0%
W.Hour_Min: 2_57
On load

J1939 VALUES
Oil temper.: 82.00ºC
Act.engine torq: 75%
Boost press.: 2.8bar
On load

J1939 Values Page4:

Oil temper.: Oil temperature via J1939
Act.engine torq: Actual engine torque via J1939
Boost press.: Boost pressure via J1939

J1939 Values Page5:

Int.man.temp.: Intake manifold temperature via J1939
Pedal position: Accelerator pedal position via J1939
W.Hour_Min: Working hour and minute via J1939

J1939 DM1 (Active) Faults Page:

Spn: Suspect parameter number (e.g. SPN = 110 corresponds to
coolant temperature sensor)

Fmi: Failure mode identifier (e.g. FMI = 0 means value too high)
Oc: Occurrence count (if OC = 0, no alarm is present)

The first 10 active alarm messages (Active Diagnostic Trouble
Codes - DM1) with SPN, FMI, and OC are displayed). If more than
one active fault condition is present, all of them is displayed
sequencely by pressing Next and Previous buttons.

Input & Output Status Page:

Inputs: Input status information. If an input is active, related digit
is displayed as "1" else it is displayed as "0".

1: Conf. in-1, 2: Conf. in-2, 3: Conf. in-3, 4: Conf. in-4,
5: Conf. in-5, 6: Conf. in-6, 7: Conf. in-7, 8: Not available.
Outputs: Output status information. If an output is active, related

digit is displayed as "1" else it is displayed as "0".

1: Conf. out-1, 2: Conf. out-2, 3: Conf. out-3, 4: Conf. out-4,
5: Conf. out-5, 6: Conf. out-6, 7: Generator contactor,
8: Mains contactor.

Exp. Input & Output Status Page:

Inputs: Exp. input status information. If an input is active, related
digit is displayed as "1" else it is displayed as "0".

1: Exp. conf. in-1, 2: Exp. conf. in-2, 3: Exp. conf. in-3,
4: Exp. conf. in-4, 5: Exp. conf. in-5, 6: Exp. conf. in-6,
7: Exp. conf. in-7, 8: Exp. conf. in-8.
Outputs: Exp. output status information. If an output is active,

related digit is displayed as "1" else it is displayed as "0".

1: Exp. conf. out-1, 2: Exp. conf. out-2, 3: Exp. conf. out-3,
4: Exp. conf. out-4, 5: Exp. conf. out-5, 6: Exp. conf. out-6,
7: Exp. conf. out-7, 8: Exp. conf. out-8.

Date & Time Page:

Date: Day, Month, Year.
Time: Hour, minute, second.

12

Warning & Alarm Page:

1/3: The first message of current alarms.
Emergency stop!: This message indicates that an emergency

stop alarm has occurred.

Event Log Page1:

1.1: The first page of related event log
Emergency stop: This message indicates that an emergency stop

alarm has occurred. (Event history: 15/02/2011 date, 14:26:08
time).

V1: Generator voltage L1-N
I1: Load Current L1
V2: Generator voltage L2-N
I2: Load Current L2

Event Log Page2:

1.2: The second page of related event log
V3: Generator voltage L3-N
I3: Load Current L3
Fq: Generator frequency
kW: Generator total active power
Oil oressure: Oil pressure sender input value
Coolant temp: Coolant temperature sender input value

Event Log Page3:

1.3: The last page of related event log
Conf. AI1: Configurable Analog Input-1 value
Conf. AI2: Configurable Analog Input-2 value
kWh: Generator active energy

Events (from 1 to 50) can be displayed sequencely with the Next
and Previous buttons.

13

WARNING&ALARM 1/3

Emergency stop!

EVENT LOG 1.1
15/02/2011 14:26:08
Emergency stop
V1: 220V I1: 26A
V2: 220V I2: 23A

EVENT LOG 1.2
V3: 220V I3: 25A
Fq:50.0Hz kW: 510
Oil pressure: 4.3bar
Coolant temp: 30ºC

EVENT LOG 1.3
Conf.AI1 : 96%
Conf.AI2 : 40ºC
kWh: 30600

Warning & Alarm display pages on the LCD display;

Event Log display pages on the LCD display;

GenSet Page: (This page is only available at TRANS-AMF.TR device)

VLn: Generator voltage L1-N, L2-N and L3-N
Amp: Generator current L1, L2 and L3
Hz: Generator frequency
bar: Oil pressure sender input value
kW: Generator total active power
ºC: Coolant temperature sender input value
cos: Generator power factor average
%: Configurable Analog Input-1 value
rpm: Engine speed
Vdc: Battery supply voltage

GENSET
VLn 220V 220V 220V
Amp 26A 23A 25A

50.0Hz 4.3bar
630kW 30ºC

1.00cos 96%
1500rpm 12.0Vdc
On load

GENERATOR
kWh : 30600
kVArh: 7200

On load

ENGINE
Oil Pressure: 4.3bar
Temperature : 30ºC
Speed : 1500rpm
On load

ENGINE
Conf.AI1 : 96%
Conf.AI2 : 40ºC
Battery volt: 12.0Vdc
On load

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

MAINS
Fq:50.0Hz
Phase seq.: L1 L2 L3

Wait for start

GENERATOR
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
On load

GENERATOR
I1: 26A PF1: -0.84
I2: 23A PF2: -0.80
I3: 25A PF3: -0.82
On load

GENERATOR
P1: 170kW
P2: 170kW
P3: 170kW
On load

GENERATOR
Fq:50.0Hz Ie: 0A
Phase seq.: L1 L2 L3

On load

GENERATOR

P: 510kW
Q: 120kVAr
S: 630kVA

On load

S
S
S

GENERATOR
S1: 210kVA
S2: 210kVA
S3: 210kVA
On load

GENERATOR
Q1: 40kVAr
Q2: 40kVAr
Q3: 40kVAr
On load

ENGINE
Gen.chg.volt: 11.8Vdc
Run times : 7
Crank times : 11
On load

ENGINE
W.Hour_Min: 2_57
Cabin temp: 26ºC

On load

ENGINE MAINTENANCE
Next hours : 5000
Next days : 180
Last date: 15/02/2011
On load

J1939 VALUES
Engine speed: 1500rpm
Oil pressure: 4.0bar
Coolant temp: 27ºC
On load

J1939 VALUES
Fuel rate: 12.50L/h
Fuel tot.: 176L
Oil level: 97.2%
On load

J1939 VALUES
Coolant level: 87.6%
Load at cur.spd: 25%
Fuel temper.: 13°C
On load

J1939 DM1 FAULTS1
Spn:110
Fmi:0 Oc:1
Coolant Temper.sensor
Value too high

J1939 VALUES
Oil temper.: 82.00ºC
Act.engine torq: 75%
Boost press.: 2.8bar
On load

J1939 VALUES
Int.man.temp.: 45ºC
Pedal position: 50.0%
W.Hour_Min: 2_57
On load

INPUT & OUTPUT
1 4 5 8
Inputs : 0000 000X
Outputs: 0000 0000
On load

EXP. INPUT & OUTPUT
1 4 5 8
Inputs : 0000 000X
Outputs: 0000 0000
On load

DATE & TIME

15/02/2011
13:32:28

Example-1: Displaying all Data display pages.

14

WARNING&ALARM 1/2

Emergency stop!

WARNING&ALARM 2/2

High temp.prealarm!

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

Example-2: Displaying all Warning&Alarm display pages

15

Example-3: Displaying all Event Log display pages

EVENT LOG 1.1
15/02/2011 14:26:08
Emergency stop
V1: 220V I1: 26A
V2: 220V I2: 23A

EVENT LOG 1.2
V3: 220V I3: 25A
Fq:50.0Hz kW: 510
Oil pressure: 4.3bar
Coolant temp: 30ºC

EVENT LOG 1.3
Conf.AI1 : 96%
Conf.AI2 : 40ºC
kWh: 30600

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

LCD display language selection

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

ü

English Display

ü

ü

Press the Up or
Down buttons to
select the language
you wish to change.

Press the
Enter
button.

LCD DISPLAY
Language
ENGLISH

LCD DISPLAY
Language
ENGLISH

Press the Enter
button to confirm
the changed value.

Press the Escape
button to exit language
selection screen.

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

English Display

V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V

Chinese Display

主电源

3.2 Accessing To The Operator Parameters

16

PROGRAM
Operator setting
Technician setting
Factory adjustment

OPERATOR SETTING
Password

0000

ü ü

OPERATOR SETTING
Mains
Generator

ü

MAINS
Volt level
Frequency level

ü

MAINS VOLT LEVEL
Under volt trip
Under volt reset
Over volt trip
Over volt reset

ü

MAINS VOLT LEVEL
Under volt trip
320 Vac

ü

MAINS
Volt level
Frequency level

ü

MAINS FREQ. LEVEL
Under freq trip
Under freq reset
Over freq trip
Over freq reset

ü ü

MAINS FREQ. LEVEL
Under freq trip

45.0 Hz

OPERATOR SETTING
Mains
Generator

ü

GENERATOR
Volt level
Frequency level
Current level
Power level

ü

GENERATOR
Volt level
Frequency level
Current level
Power level

ü

GENERATOR VOLT LEVEL
Under volt shutdown
Under volt prealarm
Under volt reset
Over volt shutdown

ü

GENERATOR VOLT LEVEL
Under volt shutdown
320 Vac

ü

GENERATOR
Volt level
Frequency level
Current level
Power level

ü

GENERATOR CUR LEVEL
Under cur. set
Under cur. prealarm
Under cur. reset
Over cur. set

GENERATOR CUR LEVEL
Over cur. prealarm
Over cur. reset

ü

ü

GENERATOR CUR LEVEL
Under cur. set
20 A

ü

ü

GENERATOR VOLT LEVEL
Over volt prealarm
Over volt reset
Shutdown delay time

ü

GENERATOR VOLT LEVEL
Over volt prealarm
340 Vac

ü

GENERATOR VOLT LEVEL
Under volt shutdown
Under volt prealarm
Under volt reset
Over volt shutdown

GENERATOR VOLT LEVEL
Over volt prealarm
Over volt reset
Shutdown delay time

GENERATOR FREQ LEVEL
Under freq shutdown
Under freq prealarm
Under freq reset
Over freq shutdown

ü

GENERATOR FREQ LEVEL
Under freq shutdown

43.0 Hz

ü

GENERATOR FREQ LEVEL
Under freq shutdown
Under freq prealarm
Under freq reset
Over freq shutdown

GENERATOR FREQ LEVEL
Over freq prealarm
Over freq reset
Shutdown delay time

ü

GENERATOR FREQ LEVEL
Over freq prealarm

55.0 Hz

ü

GENERATOR FREQ LEVEL
Over freq prealarm
Over freq reset
Shutdown delay time

GENERATOR CUR LEVEL
Over cur. prealarm
90 A

GENERATOR
Volt level
Frequency level
Current level
Power level

ü

GEN POWER LEVEL
Under power set
Under power prealarm
Under power reset
Over power set

GEN POWER LEVEL
Over power prealarm
Over power reset
Reverse power set

ü

ü

GEN POWER LEVEL
Under power set
150 kVA

ü

ü

GEN POWER LEVEL
Over power prealarm
280 kVA

GEN POWER LEVEL
Over power prealarm
Over power reset
Reverse power set

GEN POWER LEVEL
Under power set
Under power prealarm
Under power reset
Over power set

GENERATOR CUR LEVEL
Under cur. set
Under cur. prealarm
Under cur. reset
Over cur. set

GENERATOR CUR LEVEL
Over cur. prealarm
Over cur. reset

GENERATOR
Working calendar

ü

ü

ü

ü

GEN WORKING CALENDAR
Stop time on tuesday
Start time on wednes.
Stop time on wednes.
Start time on thurs.

GEN WORKING CALENDAR
Stop time on thursday
Start time on friday
Stop time on friday
Start time on satur.

GEN WORKING CALENDAR
Stop time on saturday
Start time on sunday
Stop time on sunday

ü

GEN WORKING CALENDAR
Stop time on tuesday

17.30 Hour.Min

ü

GEN WORKING CALENDAR
Stop time on thursday

18.30 Hour.Min

ü

GEN WORKING CALENDAR
Stop time on saturday

14.20 Hour.Min

GEN WORKING CALENDAR
Disable/enable select
Start time on monday
Stop time on monday
Start time on tues.

GEN WORKING CALENDAR
Disable/enable select
DISBL

ü ü

GEN WORKING CALENDAR
Stop time on tuesday
Start time on wednes.
Stop time on wednes.
Start time on thurs.

GEN WORKING CALENDAR
Stop time on thursday
Start time on friday
Stop time on friday
Start time on satur.

GEN WORKING CALENDAR
Stop time on saturday
Start time on sunday
Stop time on sunday

GEN WORKING CALENDAR
Disable/enable select
Start time on monday
Stop time on monday
Start time on tues.

MAINS VOLT LEVEL
Under volt trip
Under volt reset
Over volt trip
Over volt reset

MAINS FREQ. LEVEL
Under freq trip
Under freq reset
Over freq trip
Over freq reset

3.3 Accessing To The Technician Parameters

17

PROGRAM
Operator setting
Technician setting
Factory adjustment

TECHNICIAN SETTING
Password

0000

ü ü ü

TECHNICIAN SETTING
System
Mains
Generator
Engine

ü

SYSTEM
Network
Breakers
LCD display
Communication

ü

SYSTEM NETWORK
CT ratio
Earth Fault CT ratio
PT ratio
Type of AC system

SYSTEM NETWORK
Phase sequence
Generator kVA rating
Power unit
kVA,kW,kVAr point

ü

ü

SYSTEM NETWORK
CT ratio
500 A

SYSTEM NETWORK
CT ratio
Earth Fault CT ratio
PT ratio
Type of AC system

SYSTEM NETWORK
Phase sequence
Generator kVA rating
Power unit
kVA,kW,kVAr point

ü

SYSTEM NETWORK
Phase sequence
DISBL

SYSTEM
Network
Breakers
LCD display
Communication

ü

BREAKERS
Type of Breaker
Gen.brk.cls.contact
Gen.brk.cls.relay
Gen.brk.cls.time

ü ü

BREAKERS
Type of Breaker
0

BREAKERS
Gen.brk.open relay
Gen.brk.open time
Mains.brk.cls.contact
Mains.brk.cls.relay

ü ü

BREAKERS
Gen.brk.open relay
0

BREAKERS
Mains.brk.cls.time
Mains.brk.open relay
Mains.brk.open time
Break.close puls.time

ü ü

BREAKERS
Mains close timer
5 SEC

BREAKERS
Type of Breaker
Gen.brk.cls.contact
Gen.brk.cls.relay
Gen.brk.cls.time

BREAKERS
Gen.brk.open relay
Gen.brk.open time
Mains.brk.cls.contact
Mains.brk.cls.relay

BREAKERS
Mains.brk.cls.time
Mains.brk.open relay
Mains.brk.open time
Break.close puls.time

BREAKERS
Break.open pulse time
Transfer time
Spring loading time
Retry number

ü ü

BREAKERS
Break.open pulse time

0.5 SEC

BREAKERS
Break.open pulse time
Transfer time
Spring loading time
Retry number

SYSTEM
Network
Breakers
LCD display
Communication

ü

LCD DISPLAY
Language
Contrast
Auto backlight off
Auto scroll time

ü ü

LCD DISPLAY
Auto scroll number
Err. mesg scroll time

ü ü

LCD DISPLAY
Auto scroll number
5

LCD DISPLAY
Language
Contrast
Auto backlight off
Auto scroll time

LCD DISPLAY
Auto scroll number
Err. mesg scroll time

SYSTEM
Network
Breakers
LCD display
Communication

ü

COMMUNICATION
Slave address
Baud rate
Parity
Stop bit

ü ü

COMMUNICATION
Slave address
1

COMMUNICATION
Slave address
Baud rate
Parity
Stop bit

SYSTEM
Date & time set
Default settings
Password

ü

DATE & TIME SET
Year
Month
Day
Week

ü ü

DATE & TIME SET
Year
11

DATE & TIME SET
Hour
Minute
Second

ü ü

DATE & TIME SET
Hour
18

DATE & TIME SET
Year
Month
Day
Week

DATE & TIME SET
Hour
Minute
Second

SYSTEM
Date & time set
Default settings
Password

ü

DEFAULT SETTINGS
Save setting to def.
Reset default sets
Reset factory sets

ü ü

DEFAULT SETTINGS
Save setting to def.
no

SYSTEM
Date & time set
Default settings
Password

ü

TECHNICIAN SETTING
System
Mains
Generator
Engine

ü

MAINS
Volt level
Frequency level
Actions

ü

MAINS VOLT LEVEL
Under volt trip
Under volt reset
Over volt trip
Over volt reset

ü

MAINS VOLT LEVEL
Under volt trip
320 Vac

ü

MAINS
Volt level
Frequency level
Actions

ü

MAINS FREQ. LEVEL
Under freq trip
Under freq reset
Over freq trip
Over freq reset

ü ü

MAINS FREQ. LEVEL
Under freq trip

45.0 Hz

MAINS VOLT LEVEL
Under volt trip
Under volt reset
Over volt trip
Over volt reset

MAINS FREQ. LEVEL
Under freq trip
Under freq reset
Over freq trip
Over freq reset

PASSWORD SETTINGS
Operator password
Technician password

ü ü

PASSWORD SETTINGS
Operator password
1

PASSWORD SETTINGS
Operator password
Technician password

DEFAULT SETTINGS
Save setting to def.
Reset default sets
Reset factory sets

TECHNICIAN SETTING
System
Mains
Generator
Engine

ü

GENERATOR
Volt level
Frequency level
Current level & act.
Power level

ü

GENERATOR VOLT LEVEL
Under volt shutdown
Under volt prealarm
Under volt reset
Over volt shutdown

ü

GENERATOR VOLT LEVEL
Under volt shutdown
320 Vac

ü

GENERATOR VOLT LEVEL
Under volt shutdown
Under volt prealarm
Under volt reset
Over volt shutdown

LCD DISPLAY
Language
ENGLISH

MAINS
Volt level
Frequency level
Actions

ü

MAINS ACTIONS
Mains failure detect
Mains fail.stop mode
Always return delay

ü ü

MAINS ACTIONS
Mains failure detect
ENABL

MAINS ACTIONS
Mains failure detect
Mains fail.stop mode
Always return delay

GENERATOR
Volt level
Frequency level
Current level & act.
Power level

ü

GENERATOR
Volt level
Frequency level
Current level & act.
Power level

ü ü

GEN CUR LEVEL & ACT
Under cur. set
20 A

ü

GENERATOR VOLT LEVEL
Over volt prealarm
Over volt reset
Shutdown delay time

ü

GENERATOR VOLT LEVEL
Over volt prealarm
340 Vac

ü

GENERATOR VOLT LEVEL
Over volt prealarm
Over volt reset
Shutdown delay time

GENERATOR FREQ LEVEL
Nominal frequency
Under freq shutdown
Under freq prealarm
Under freq reset

ü

GENERATOR FREQ LEVEL
Nominal frequency

50.0 Hz

ü

GENERATOR FREQ LEVEL
Over freq shutdown
Over freq prealarm
Over freq reset
Shutdown delay time

ü

GENERATOR FREQ LEVEL
Over freq shutdown

58.0 Hz

ü

GEN CUR LEVEL & ACT
Under cur. set
Under cur. prealarm
Under cur. reset
Under cur. act.

GEN CUR LEVEL & ACT
Under cur. set
Under cur. prealarm
Under cur. reset
Under cur. act.

GENERATOR FREQ LEVEL
Nominal frequency
Under freq shutdown
Under freq prealarm
Under freq reset

GENERATOR FREQ LEVEL
Over freq shutdown
Over freq prealarm
Over freq reset
Shutdown delay time

ü

ü

ü

GEN CUR LEVEL & ACT
Under act. delay time
2 SEC

GEN CUR LEVEL & ACT
Over cur. act.
DISBL

ü

ü

GEN CUR LEVEL & ACT
Earth fault cur. act.
E.F. act. delay time
Unbalance load set
Unbalance load act.

GEN CUR LEVEL & ACT
Under act. delay time
Over cur. set
Over cur. prealarm
Over cur. reset

GEN CUR LEVEL & ACT
Over cur. act.
Over act. delay time
Short circuit cur.
Earth fault cur.

GEN CUR LEVEL & ACT
Earth fault cur. act.
DISBL

ü

GEN CUR LEVEL & ACT
Earth fault cur. act.
E.F. act. delay time
Unbalance load set
Unbalance load act.

GEN CUR LEVEL & ACT
Under act. delay time
Over cur. set
Over cur. prealarm
Over cur. reset

GEN CUR LEVEL & ACT
Over cur. act.
Over act. delay time
Short circuit cur.
Earth fault cur.

18

GEN POWER LEVEL
Under act. delay time
Over power set
Over power prealarm
Over power reset

GEN POWER LEVEL
Over power act.
Over act. delay time
Reverse power set
Reverse power act.

ü

ü

ü

ü

GEN POWER LEVEL
Under act. delay time
2 SEC

GEN POWER LEVEL
Over power act.
DISBL

GEN POWER LEVEL
Under act. delay time
Over power set
Over power prealarm
Over power reset

GEN POWER LEVEL
Over power act.
Over act. delay time
Reverse power set
Reverse power act.

GENERATOR
Working calendar
General

ü

ü

ü

ü

GEN WORKING CALENDAR
Stop time on tuesday
Start time on wednes.
Stop time on wednes.
Start time on thurs.

GEN WORKING CALENDAR
Stop time on thursday
Start time on friday
Stop time on friday
Start time on satur.

GEN WORKING CALENDAR
Stop time on saturday
Start time on sunday
Stop time on sunday

ü

GEN WORKING CALENDAR
Stop time on tuesday

17.30 Hour.Min

ü

GEN WORKING CALENDAR
Stop time on thursday

18.30 Hour.Min

ü

GEN WORKING CALENDAR
Stop time on saturday

14.20 Hour.Min

GEN WORKING CALENDAR
Disable/enable select
Start time on monday
Stop time on monday
Start time on tues.

GEN WORKING CALENDAR
Disable/enable select
DISBL

ü ü

GEN WORKING CALENDAR
Stop time on tuesday
Start time on wednes.
Stop time on wednes.
Start time on thurs.

GEN WORKING CALENDAR
Stop time on thursday
Start time on friday
Stop time on friday
Start time on satur.

GEN WORKING CALENDAR
Stop time on saturday
Start time on sunday
Stop time on Sunday

GEN WORKING CALENDAR
Disable/enable select
Start time on monday
Stop time on monday
Start time on tues.

TECHNICIAN SETTING
System
Mains
Generator
Engine

ü ü

ENGINE
Starting options
Crank disconnect
Speed settings
Plant battery

ENGINE START OPTIONS
Horn prior start
No. of start attemp
Cranking time
Crank rest time

ü ü

ENGINE START OPTIONS
Horn prior start
DISBL

ENGINE START OPTIONS
Horn prior start
No. of start attemp
Cranking time
Crank rest time

GENERATOR
Volt level
Frequency level
Current level & act.
Power level

ü

GEN POWER LEVEL
Under power set
Under power prealarm
Under power reset
Under power act.

ü

GEN POWER LEVEL
Under power shutdown
150 kVA

ü

GEN POWER LEVEL
Under power set
Under power prealarm
Under power reset
Under power act.

GENERATOR
Working calendar
General

ü

GENERATOR GENERAL
Sens.option gen.freq
Sens.opt.pickup&Flywh
All warning are latch

GENERATOR GENERAL
Sens.option gen.freq
DISBL

ü ü

GENERATOR GENERAL
Sens.option gen.freq
Sens.opt.pickup&Flywh
All warning are latch

ü

GEN CUR LEVEL & ACT
Unbalance act. delay

GEN CUR LEVEL & ACT
Unbalance act. delay
2 SEC

ü

GEN CUR LEVEL & ACT
Unbalance act. delay

GEN POWER LEVEL
Rv.pow.act.delay time

ü ü

GEN POWER LEVEL
Rv.pow.act.delay time
2 SEC

GEN POWER LEVEL
Rv.pow.act.delay time

19

ENGINE
CanBus ECU
CanBus error set
Maintenance
Load test

ü

CANBUS ERROR SET
CAN fault actions
CAN fault activation
CAN fault delay
Amber warn.actions

ü ü

CANBUS ERROR SET
CAN fault actions
DISBL

CANBUS ERROR SET
Amber warn.activation
Amber warn.delay
Red stop actions
Red stop activation

ü ü

CANBUS ERROR SET
Amber warn.activation
2

CANBUS ERROR SET
Red stop delay

ü ü

CANBUS ERROR SET
Red stop delay
2 SEC

CANBUS ERROR SET
CAN fault actions
CAN fault activation
CAN fault delay
Amber warn.actions

CANBUS ERROR SET
Amber warn.activation
Amber warn.delay
Red stop actions
Red stop activation

CANBUS ERROR SET
Red stop delay

ENGINE
CanBus ECU
CanBus error set
Maintenance
Load test

ü

ENGINE
Starting options
Crank disconnect
Speed settings
Plant battery

ü

ENGINE SPEED SETS
Nominal speed
Under speed shutdown
Under speed prealarm
Under speed reset

ü ü

ENGINE SPEED SETS
Nominal speed
1500 RPM

ENGINE SPEED SETS
Over speed shutdown
Over speed prealarm
Over speed reset
Shutdown delay time

ü ü

ENGINE SPEED SETS
Over speed shutdown
DISBL

ENGINE
Starting options
Crank disconnect
Speed settings
Plant battery

ü

ENGINE PLANT BATTERY
Under volt
Under volt reset
Under volt delay
Over volt

ü ü

ENGINE PLANT BATTERY
Under volt

10.0 Vdc

ENGINE PLANT BATTERY
Over volt reset
Over volt delay
Alt. chg. warning

ü ü

ENGINE PLANT BATTERY
Over volt reset

29.5 Vdc

ENGINE PLANT BATTERY
Under volt
Under volt reset
Under volt delay
Over volt

ENGINE PLANT BATTERY
Over volt reset
Over volt delay
Alt. chg. warning

CANBUS ECU
Baud rate
J1939 ECU type
Device address
Engine cont. address

ü ü

CANBUS ECU
Baud rate
4

CANBUS ECU
ECU remote control
Speed control enable
Oil Pres cont. enab
Temp. control enable

ü ü

CANBUS ECU
ECU remote control
DISBL

CANBUS ECU
Speed set point
Speed correction

ü ü

CANBUS ECU
Speed set point
1500 RPM

ENGINE
CanBus ECU
CanBus error set
Maintenance
Load test

ü

CANBUS ECU
Baud rate
J1939 ECU type
Device address
Engine cont. address

CANBUS ECU
ECU remote control
Speed control enable
Oil Pres cont. enab
Temp. control enable

CANBUS ECU
Speed set point
Speed correction

ENGINE MAINTENANCE
Running hour interval
Maint. date interval
Eng. stop when maint
Eng.running hour(lsb)

ü ü

ENGINE MAINTENANCE
Running hour interval
5000 HOUR

ENGINE MAINTENANCE
Running hour interval
Maint. date interval
Eng. stop when maint
Eng.running hour(lsb)

ENGINE SPEED SETS
Nominal speed
Under speed shutdown
Under speed prealarm
Under speed reset

ENGINE SPEED SETS
Over speed shutdown
Over speed prealarm
Over speed reset
Shutdown delay time

ENGINE MAINTENANCE
Eng.running hour
Eng.running hour(msb)
Maintenance okay

ü ü

ENGINE MAINTENANCE
Eng.running hour
0

ENGINE MAINTENANCE
Eng.running hour
Eng.running hour(msb)
Maintenance okay

LOAD TEST
Disable/enable select

LOAD TEST
Disable/enable select
DISBL

ENGINE
CanBus ECU
CanBus error set
Maintenance
Load test

ü ü ü

LOAD TEST
Disable/enable select

ENGINE
Exercise
General

ü ü

EXERCISE
Disable/enable select
Start time on monday
Stop time on monday
Start time on tues.

ü

EXERCISE
Disable/enable select
DISBL

EXERCISE
Disable/enable select
Start time on monday
Stop time on monday
Start time on tues.

ENGINE
Starting options
Crank disconnect
Speed settings
Plant battery

ü

ENG.CRANK DISCONNECT
Generator frequency
Engine speed
Generator volt
Alt. Charge volt

ü ü

ENG.CRANK DISCONNECT
Generator frequency

30.0 Hz

ENG.CRANK DISCONNECT
Oil pressure

ü

ENG.CRANK DISCONNECT
Generator frequency
Engine speed
Generator volt
Alt. Charge volt

ENG.CRANK DISCONNECT
Oil pressure

ü

ENG.CRANK DISCONNECT
Oil pressure
DISBL

ENGINE START OPTIONS
Pickup fail delay

ü ü

ENGINE START OPTIONS
Pickup fail delay

1.0 sec

ENGINE START OPTIONS
Pickup fail delay

ü

EXERCISE
Stop time on Tuesday
Start time on wednes.
Stop time on wednes.
Start time on thurs.

ü

EXERCISE
Stop time on Tuesday

0.00 Hour.Min

EXERCISE
Stop time on Tuesday
Start time on wednes.
Stop time on wednes.
Start time on thurs.

20

SENDER INPUTS
Conf. AI1 high prealr
Conf. AI1 high reset
Conf. AI1 high shutd.
Conf. AI1 control ON

ü

SENDER INPUTS
High temp. reset
High temp. shutdown
Low temp. Warning
Heater control ON

ü

SENDER INPUTS
Heater control OFF
Water pump on time
Water pump off time
Conf. AI1 unit

ü

SENDER INPUTS
Conf. AI1 type
Conf. AI1 low prealrm
Conf. AI1 low reset
Conf. AI1 low shutdwn

ü

ü

SENDER INPUTS
High temp. reset
88 ºC

ü

SENDER INPUTS
Heater control OFF
45 ºC

ü

SENDER INPUTS
Conf. AI1 type
0-NOT USED

ü

SENDER INPUTS
Conf. AI1 high prealr
DISBL

INPUTS
Sender inputs
Sender linearisations
Conf. input-1
Conf. input-2

ü

SENDER LINEARISATION
Oil pressure sender 1
Oil pressure 1
Oil pressure sender 2
Oil pressure 2

ü ü

SENDER LINEARISATION
Oil pressure sender 1
10 R

SENDER LINEARISATION
Oil pressure sender 3
Oil pressure 3
Oil pressure sender 4
Oil pressure 4

ü ü

SENDER LINEARISATION
Oil pressure sender 3
62 R

SENDER LINEARISATION
Oil pressure sender 5
Oil pressure 5
Oil pressure sender 6
Oil pressure 6

ü ü

SENDER LINEARISATION
Oil pressure sender 5
111 R

SENDER LINEARISATION
Oil pressure sender 7
Oil pressure 7
Oil pressure sender 8
Oil pressure 8

ü ü

SENDER LINEARISATION
Oil pressure sender 7
156 R

SENDER LINEARISATION
Oil pressure sender 9
Oil pressure 9
Oil press. sender 10
Oil pressure 10

ü ü

SENDER LINEARISATION
Oil pressure sender 9
205 R

SENDER INPUTS
Conf. AI1 high prealr
Conf. AI1 high reset
Conf. AI1 high shutd.
Conf. AI1 control ON

SENDER INPUTS
High temp. reset
High temp. shutdown
Low temp. Warning
Heater control ON

SENDER INPUTS
Heater control OFF
Water pump on time
Water pump off time
Conf. AI1 unit

SENDER INPUTS
Conf. AI1 type
Conf. AI1 low prealrm
Conf. AI1 low reset
Conf. AI1 low shutdwn

SENDER INPUTS
Oil pressure shutdown
Temperature unit
Temp. input type
High temp. prealarm

ü ü

SENDER INPUTS
Oil press. shutdown

1.0 Bar

SENDER INPUTS
Oil pressure shutdown
Temperature unit
Temp. input type
High temp. Prealarm

SENDER LINEARISATION
Oil pressure sender 1
Oil pressure 1
Oil pressure sender 2
Oil pressure 2

SENDER LINEARISATION
Oil pressure sender 3
Oil pressure 3
Oil pressure sender 4
Oil pressure 4

SENDER LINEARISATION
Oil pressure sender 5
Oil pressure 5
Oil pressure sender 6
Oil pressure 6

SENDER LINEARISATION
Oil pressure sender 7
Oil pressure 7
Oil pressure sender 8
Oil pressure 8

SENDER LINEARISATION
Oil pressure sender 9
Oil pressure 9
Oil press. sender 10
Oil pressure 10

SENDER INPUTS
Conf. AI1 control OFF
Conf. AI2 unit
Conf. AI2 type
Conf. AI2 low prealrm

ü ü

SENDER INPUTS
Conf. AI1 control OFF
75 %

SENDER INPUTS
Conf. AI1 control OFF
Conf. AI2 unit
Conf. AI2 type
Conf. AI2 low prealrm

SENDER INPUTS
Conf. AI2 low reset
Conf. AI2 low shutdwn
Conf. AI2 high prealr
Conf. AI2 high reset

ü ü

SENDER INPUTS
Conf. AI2 low reset
60 ºC

SENDER INPUTS
Conf. AI2 low reset
Conf. AI2 low shutdwn
Conf. AI2 high prealr
Conf. AI2 high reset

INPUTS
Sender inputs
Sender linearisations
Conf. input-1
Conf. input-2

ü

SENDER INPUTS
Oil pressure unit
Oil press. input type
Oil pressure prealarm
Oil pressure reset

ü ü

SENDER INPUTS
Oil pressure unit
Bar

SENDER INPUTS
Oil pressure unit
Oil press. input type
Oil pressure prealarm
Oil pressure reset

TECHNICIAN SETTING
Inputs
Outputs
Timers
Expansion modules

ü

SENDER INPUTS
Conf. AI2 high shutd.
Conf. AI2 control ON
Conf. AI2 control OFF

ü ü

SENDER INPUTS
Conf. AI2 high shutd.
DISBL

SENDER INPUTS
Conf. AI2 high shutd.
Conf. AI2 control ON
Conf. AI2 control OFF

ü

EXERCISE
Stop time on Thursday
Start time on Friday
Stop time on Friday
Start time on satur.

ü

EXERCISE
Stop time on Thursday

0.00 Hour.Min

EXERCISE
Stop time on Thursday
Start time on Friday
Stop time on Friday
Start time on satur.

ü

EXERCISE
Stop time on Saturday
Start time on sunday
Stop time on Sunday

ü

EXERCISE
Stop time on Saturday

0.00 Hour.Min

EXERCISE
Stop time on Saturday
Start time on sunday
Stop time on Sunday

ENGINE
Exercise
General

ü ü

ENGINE GENERAL
Fuel selection
Stop solenoid time
Ignition delay
Gas valve delay

ü

ENGINE GENERAL
Fuel selection
1-DIESEL

ENGINE GENERAL
Fuel selection
Stop solenoid time
Ignition delay
Gas valve delay

ü

ENGINE GENERAL
Min.of ignition speed
Choke time

ü

ENGINE GENERAL
Min.of ignition speed
200 RPM

ENGINE GENERAL
Min.of ignition speed
Choke time

21

SENDER LINEARISATION
Conf. AI1 sender 5
Conf. AI1 value 5
Conf. AI1 sender 6
Conf. AI1 value 6

ü ü

SENDER LINEARISATION
Conf. AI1 sender 5
90 R

SENDER LINEARISATION
Conf. AI1 sender 9
Conf. AI1 value 9
Conf. AI1 sender 10
Conf. AI1 value 10

ü ü

SENDER LINEARISATION
Conf. AI1 sender 9
170 R

SENDER LINEARISATION
Conf. AI2 sender 1
Conf. AI2 value 1
Conf. AI2 sender 2
Conf. AI2 value 2

ü ü

SENDER LINEARISATION
Conf. AI2 sender 1
579 R

SENDER LINEARISATION
Conf. AI1 sender 7
Conf. AI1 value 7
Conf. AI1 sender 8
Conf. AI1 value 8

ü ü

SENDER LINEARISATION
Conf. AI1 sender 7
130 R

SENDER LINEARISATION
Conf. AI1 sender 5
Conf. AI1 value 5
Conf. AI1 sender 6
Conf. AI1 value 6

SENDER LINEARISATION
Conf. AI1 sender 9
Conf. AI1 value 9
Conf. AI1 sender 10
Conf. AI1 value 10

SENDER LINEARISATION
Conf. AI2 sender 1
Conf. AI2 value 1
Conf. AI2 sender 2
Conf. AI2 value 2

SENDER LINEARISATION
Conf. AI1 sender 7
Conf. AI1 value 7
Conf. AI1 sender 8
Conf. AI1 value 8

SENDER LINEARISATION
Conf. AI2 sender 7
Conf. AI2 value 7
Conf. AI2 sender 8
Conf. AI2 value 8

SENDER LINEARISATION
Conf. AI2 sender 9
Conf. AI2 value 9
Conf. AI2 sender 10
Conf. AI2 value 10

ü ü

SENDER LINEARISATION
Conf. AI2 sender 9
67 R

SENDER LINEARISATION
Conf. AI2 sender 7
Conf. AI2 value 7
Conf. AI2 sender 8
Conf. AI2 value 8

SENDER LINEARISATION
Conf. AI2 sender 9
Conf. AI2 value 9
Conf. AI2 sender 10
Conf. AI2 value 10

INPUTS
Sender inputs
Sender linearisations
Conf. input-1
Conf. input-2

ü

SENDER LINEARISATION
Conf. AI2 sender 3
Conf. AI2 value 3
Conf. AI2 sender 4
Conf. AI2 value 4

ü ü

SENDER LINEARISATION
Conf. AI2 sender 3
342 R

SENDER LINEARISATION
Conf. AI2 sender 5
Conf. AI2 value 5
Conf. AI2 sender 6
Conf. AI2 value 6

ü ü

SENDER LINEARISATION
Conf. AI2 sender 5
179 R

ü ü

SENDER LINEARISATION
Conf. AI2 sender 7
103 R

SENDER LINEARISATION
Conf. AI2 sender 3
Conf. AI2 value 3
Conf. AI2 sender 4
Conf. AI2 value 4

SENDER LINEARISATION
Conf. AI2 sender 5
Conf. AI2 value 5
Conf. AI2 sender 6
Conf. AI2 value 6

CONF. INPUT-1
Select from list
Active delay

ü ü

CONF. INPUT-1
Select from list
2-AUX. MAINS FAIL

CONF. INPUT-1
Select from list
Active delay

CONF. INPUT-1
Dis,user conf.or list
Polarity
Indication
Activation

ü ü

CONF. INPUT-1
Dis,user conf.or list
1

CONF. INPUT-1
Dis,user conf.or list
Polarity
Indication
Activation

SENDER LINEARISATION
Conf. AI1 sender 1
Conf. AI1 value 1
Conf. AI1 sender 2
Conf. AI1 value 2

ü ü

SENDER LINEARISATION
Conf. AI1 sender 1
10 R

SENDER LINEARISATION
Conf. AI1 sender 3
Conf. AI1 value 3
Conf. AI1 sender 4
Conf. AI1 value 4

ü ü

SENDER LINEARISATION
Conf. AI1 sender 3
50 R

SENDER LINEARISATION
Conf. AI1 sender 1
Conf. AI1 value 1
Conf. AI1 sender 2
Conf. AI1 value 2

SENDER LINEARISATION
Conf. AI1 sender 3
Conf. AI1 value 3
Conf. AI1 sender 4
Conf. AI1 value 4

SENDER LINEARISATION
Temperature sender 9
Temperature 9
Temperature sender 10
Temperature 10

ü ü

SENDER LINEARISATION
Temperature sender 9
10 R

SENDER LINEARISATION
Temperature sender 9
Temperature 9
Temperature sender 10
Temperature 10

SENDER LINEARISATION
Temperature sender 1
Temperature 1
Temperature sender 2
Temperature 2

ü ü

SENDER LINEARISATION
Temperature sender 1
360 R

SENDER LINEARISATION
Temperature sender 3
Temperature 3
Temperature sender 4
Temperature 4

ü ü

SENDER LINEARISATION
Temperature sender 3
145 R

SENDER LINEARISATION
Temperature sender 5
Temperature 5
Temperature sender 6
Temperature 6

ü ü

SENDER LINEARISATION
Temperature sender 5
50 R

SENDER LINEARISATION
Temperature sender 7
Temperature 7
Temperature sender 8
Temperature 8

ü ü

SENDER LINEARISATION
Temperature sender 7
43 R

SENDER LINEARISATION
Temperature sender 1
Temperature 1
Temperature sender 2
Temperature 2

SENDER LINEARISATION
Temperature sender 3
Temperature 3
Temperature sender 4
Temperature 4

SENDER LINEARISATION
Temperature sender 5
Temperature 5
Temperature sender 6
Temperature 6

SENDER LINEARISATION
Temperature sender 7
Temperature 7
Temperature sender 8
Temperature 8

22

ü

INPUTS
Conf. Exp. input-8

CONF. EXP. INPUT-8
Dis,user conf.or list
Hardware type
Polarity
Indication

ü

CONF. EXP. INPUT-8
Activation
Select from list
Active delay

ü

ü

CONF. EXP. INPUT-8
Dis,user conf.or list
1

ü

CONF. EXP. INPUT-8
Activation
2

CONF. EXP. INPUT-8
Dis,user conf.or list
Hardware type
Polarity
Indication

CONF. EXP. INPUT-8
Activation
Select from list
Active delay

OUTPUTS
Conf. output-5
Conf. output-6
Conf. Exp. output-1
Conf. Exp. output-2

ü

CONF. OUTPUT-5
Polarity
Function

ü ü

CONF. OUTPUT-5
Polarity
NO

CONF. OUTPUT-5
Polarity
Function

OUTPUTS
Conf. Exp. output-3
Conf. Exp. output-4
Conf. Exp. output-5
Conf. Exp. output-6

ü

CONF. EXP. OUTPUT-3
Polarity
Function

ü ü

CONF. EXP. OUTPUT-3
Polarity
NO

CONF. EXP. OUTPUT-3
Polarity
Function

TECHNICIAN SETTING
Inputs
Outputs
Timers
Expansion modules

ü

OUTPUTS
Conf. output-1
Conf. output-2
Conf. output-3
Conf. output-4

ü

CONF. OUTPUT-1
Polarity
Function

ü ü

CONF. OUTPUT-1
Polarity
NO

CONF. OUTPUT-1
Polarity
Function

OUTPUTS
Conf. Exp. output-5
Conf. Exp. output-6
Conf. Exp. output-7
Conf. Exp. output-8

ü

CONF. EXP. OUTPUT-5
Polarity
Function

ü ü

CONF. EXP. OUTPUT-5
Polarity
NO

CONF. EXP. OUTPUT-5
Polarity
Function

TIMERS
Start timers
Stopping timers

ü

START TIMERS
Mains transient delay
Mains fail start dely
Remote start delay
Pre-heat

ü ü

START TIMERS
Mains transient delay

2.0 SEC

START TIMERS
Pre-heat bypass
Safety on delay
Warming up time
Horn duration

ü ü

START TIMERS
Pre-heat bypass
0 MIN

TECHNICIAN SETTING
Inputs
Outputs
Timers
Expansion modules

ü

START TIMERS
Mains transient delay
Mains fail start dely
Remote start delay
Pre-heat

START TIMERS
Pre-heat bypass
Safety on delay
Warmup time
Horn duration

START TIMERS
Chg.excitation time
Cooling fan time
Idle mode time
Idle mode time off

ü ü

START TIMERS
Chg.excitation time
15 SEC

START TIMERS
Chg.excitation time
Cooling fan time
Idle mode time
Idle mode time off

TIMERS
Start timers
Stopping timers

ü

STOPPING TIMERS
Mains return delay
Remote stop delay
Cooling time
Fail to stop delay

ü ü

STOPPING TIMERS
Mains return delay
5 SEC

STOPPING TIMERS
Mains return delay
Remote stop delay
Cooling time
Fail to stop delay

ü

INPUTS
Conf. Exp. input-4
Conf. Exp. input-5
Conf. Exp. input-6
Conf. Exp. input-7

CONF. EXP. INPUT-4
Dis,user conf.or list
Hardware type
Polarity
Indication

ü

CONF. EXP. INPUT-4
Activation
Select from list
Active delay

ü

CONF. EXP. INPUT-4
Dis,user conf.or list
1

CONF. EXP. INPUT-4
Activation
2

CONF. EXP. INPUT-4
Dis,user conf.or list
Hardware type
Polarity
Indication

CONF. EXP. INPUT-4
Activation
Select from list
Active delay

CONF. INPUT-7
Select from list
Active delay

ü ü

CONF. INPUT-7
Select from list
8-SIMULATE MAN. BUT

CONF. INPUT-7
Select from list
Active delay

INPUTS
Conf. input-7
Conf. Exp. input-1
Conf. Exp. input-2
Conf. Exp. input-3

ü

CONF. INPUT-7
Input type
Polarity
Indication
Activation

ü ü

CONF. INPUT-7
Input type
3

CONF. INPUT-7
Input type
Polarity
Indication
Activation

INPUTS
Sender inputs
Sender linearisations
Conf. input-1
Conf. input-2

ü

CONF. INPUT-3
Select from list
Active delay

ü ü

CONF. INPUT-3
Select from list
4-SIM.HORN REST BUT

CONF. INPUT-3
Select from list
Active delay

CONF. INPUT-3
Dis,user conf.or list
Polarity
Indication
Activation

ü ü

CONF. INPUT-3
Dis,user conf.or list
1

CONF. INPUT-3
Dis,user conf.or list
Polarity
Indication
Activation

INPUTS
Conf. input-3
Conf. input-4
Conf. input-5
Conf. input-6

ü

CONF. INPUT-2
Select from list
Active delay

ü ü

CONF. INPUT-2
Select from list
3-SIM.LAMP TEST BUT

CONF. INPUT-2
Select from list
Active delay

CONF. INPUT-2
Dis,user conf.or list
Polarity
Indication
Activation

ü ü

CONF. INPUT-2
Dis,user conf.or list
1

CONF. INPUT-2
Dis,user conf.or list
Polarity
Indication
Activation

23

BATTERY&CHRG GEN.VOL
Batt.volt offset
Gen.chg.volt offset

ü ü

BATTERY&CHRG GEN.VOL
Batt.volt offset

0.0 Vdc

USER ADJUSTMENT
Sender inputs offset

ü

USER ADJUSTMENT
Mains voltage offset
Gen. voltage offset
Current offset
Battery&chrg gen.vol

ü

SENDER INPUTS OFFSET
Oil pressure offset
Temperature offset
Conf. AI1 offset
Conf. AI2 offset

ü ü

SENDER INPUTS OFFSET
Oil pressure offset

0.0 Bar

BATTERY&CHRG GEN.VOL
Batt.volt offset
Gen.chg.volt offset

SENDER INPUTS OFFSET
Oil pressure offset
Temperature offset
Conf. AI1 offset
Conf. AI2 offset

CURRENT OFFSET
Current I1 offset
Current I2 offset
Current I3 offset
E/F. Current offset

ü ü

CURRENT OFFSET
Current I1 offset
0 A

GEN. VOLTAGE OFFSET
Gen. V1 offset
Gen. V2 offset
Gen. V3 offset

ü ü

GEN. VOLTAGE OFFSET
Gen. V1 offset
0 Vac

USER ADJUSTMENT
Mains voltage offset
Gen. voltage offset
Current offset
Battery&chrg gen.vol

ü

USER ADJUSTMENT
Mains voltage offset
Gen. voltage offset
Current offset
Battery&chrg gen.vol

ü

CURRENT OFFSET
Current I1 offset
Current I2 offset
Current I3 offset
E/F. Current offset

GEN. VOLTAGE OFFSET
Gen. V1 offset
Gen. V2 offset
Gen. V3 offset

TECHNICIAN SETTING
User adjustment

ü

MAINS VOLTAGE OFFSET
Mains V1 offset
Mains V2 offset
Mains V3 offset

ü ü

MAINS VOLTAGE OFFSET
Mains V1 offset
0 Vac

USER ADJUSTMENT
Mains voltage offset
Gen. voltage offset
Current offset
Battery&chrg gen.vol

ü

MAINS VOLTAGE OFFSET
Mains V1 offset
Mains V2 offset
Mains V3 offset

WEB SERVER MODULE
Disable/enable select

ü ü

WEB SERVER MODULE
Disable/enable select
DISBL

EXPANSION MODULES
Dual set
Web Server
GPRS Web

ü

WEB SERVER MODULE
Disable/enable select

DUAL SET MODULE
Remote priority selct

ü ü

DUAL SET MODULE
Remote priority selct
DISBL

DUAL SET MODULE
Remote priority selct

DUAL SET MODULE
Disable/enable select
Node ID
Working period
Early start time

ü ü

DUAL SET MODULE
Disable/enable select
DISBL

EXPANSION MODULES
Dual set
Web Server
GPRS Web

ü

DUAL SET MODULE
Disable/enable select
Node ID
Working period
Early start time

EXPANSION MODULES
IO (1-8)
Dial-up & Ethernet
GSM
GPRS

ü

GPRS MODULE
Disable/enable select
Call back selection
GPS

ü ü

GPRS MODULE
Disable/enable select
DISBL

GPRS MODULE
Disable/enable select
Call back selection
GPS

GPRS WEB MODULE
Disable/enable select

ü ü

GPRS WEB MODULE
Disable/enable select
DISBL

EXPANSION MODULES
Dual set
Web Server
GPRS Web

ü

GPRS WEB MODULE
Disable/enable select

EXPANSION MODULES
IO (1-8)
Dial-up & Ethernet
GSM
GPRS

ü

EXPANSION MODULES
IO (1-8)
Dial-up & Ethernet
GSM
GPRS

ü

DIAL-UP & ETHERNET
Disable/enable select
Call back selection

ü ü

DIAL-UP & ETHERNET
Disable/enable select
DISBL

DIAL-UP & ETHERNET
Disable/enable select
Call back selection

GSM MODULE
Disable/enable select
Call back selection
SMS

ü ü

GSM MODULE
Disable/enable select
DISBL

GSM MODULE
Disable/enable select
Call back selection
SMS

TECHNICIAN SETTING
Inputs
Outputs
Timers
Expansion modules

ü

EXPANSION MODULES
IO (1-8)
Dial-up & Ethernet
GSM
GPRS

ü ü

IO (1-8) MODULE
Disable/enable select

ü

IO (1-8) MODULE
Disable/enable select
DISBL

IO (1-8) MODULE
Disable/enable select

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

3.4 Changing And Saving Parameters Values

ü

Operation Screen

When the Prog button is
pressed, the parameters
section is asked for
accessing to parameters.

ü

ü ü

ü

ü

ü ü

ü ü

ü

ü

Press the Up or
Down buttons to
select the section
you wish to
view/change.

Press the
Enter
button.

Enter password
with cursor (Right,
Left, Up and
Down) buttons.

Press the Enter button to confirm
password. If the password is
incorrect, the unit will drop out of
program mode.

Press the Up or
Down buttons to
select the main
parameter group
you wish to
view/change.

Note1: If Enter button is pressed
and the technician password is
zero, Password screen is ignored.

Press Enter button to access to
all parameters page in currently
main parameter group.

Parameter can be
changed with Up
and Down buttons.

Press Enter button to
confirm the changed value.

PROGRAM
Operator setting
Technician setting
Factory adjustment

PROGRAM
Operator setting
Technician setting
Factory adjustment

TECHNICIAN SETTING
Password

0162

TECHNICIAN SETTING
Password

0000

TECHNICIAN SETTING
System
Mains
Generator
Engine

TECHNICIAN SETTING
System
Mains
Generator
Engine

GENERATOR
Volt level
Frequency level
Current level & act.
Power level

GENERATOR VOLT LEVEL
Under volt shutdown
320 Vac

GENERATOR VOLT LEVEL
Under volt shutdown
Under volt prealarm
Under volt reset
Over volt shutdown

Press the Enter
button to view
parameter value.

Press Enter button to
access to all parameters in
currently parameter page.

GENERATOR VOLT LEVEL
Under volt shutdown
325 Vac

GENERATOR VOLT LEVEL
Under volt shutdown
Under volt prealarm
Under volt reset
Over volt shutdown

Operation
Screen

GENERATOR
Volt level
Frequency level
Current level & act.
Power level

When the Escape button is
pressed any time, previous
page can be accessed.

MAINS
V12: 380V V1: 220V
V23: 380V V2: 220V
V31: 380V V3: 220V
Wait for start

To exit from
programming mode any
time, press Prog button.

24

600
60
60
60

600

600

600

VV
VV
VV
VV

60

Min

DefaultMAINS VOLT LEVEL (Mains->Volt level)

Max

Mains Under Voltage
Mains Under Voltage Reset
Mains Over Voltage
Mains Over Voltage Reset

320
340
440
420

Under volt trip

4.1 Operator Parameters

Under volt reset

Over volt trip
Over volt reset

Unit

25

Note: dis = disable

4. Parameters

Min

DefaultMAINS FREQ. LEVEL (Mains->Frequency level)

Max

Mains Under Frequency

Hz
Hz
Hz
Hz

20.0 75.0

20.0 75.0

20.0 75.0

20.0 75.0

45.0

48.0

55.0

52.0

Mains Under Frequency Reset
Mains Over Frequency
Mains Over Frequency Reset

Under freq trip
Under freq reset
Over freq trip
Over freq reset

Unit

600

60(dis)

60
60

600
600
600

VV
VV
VV
VV

60(dis)

Min

Default

Max

Generator Under Voltage Shutdown
Generator Under Voltage Pre-Alarm
Generator Under Voltage Pre-Alarm Reset
Generator Over Voltage Shutdown

Generator Over Voltage Pre-Alarm

320
340
350
440

60(dis) 600

60 600

420
400

Generator Over Voltage Pre-Alarm Reset

VV
VV

Under volt shutdown
Under volt prealarm
Under volt reset

Over volt shutdown
Over volt prealarm
Over volt reset

Unit

Shutdown delay time

Generator Voltage Shutdown Delay Time

GENERATOR VOLT LEVEL (Generator->Volt level)

0.0 10.0 1.0

Sec

75.0

30.0(dis)

75.0

75.0

Hz

30.0(dis)

Min

Default

Max

Generator Under Frequency Pre-Alarm
Generator Under Frequency Pre-Alarm Reset
Generator Over Frequency Shutdown
Generator Over Frequency Pre-Alarm
Generator Over Frequency Pre-Alarm Reset

45.0

46.0

58.0

55.0

54.0

Generator Frequency Shutdown Delay Time

Hz
Hz
Hz
Hz

30.0

30.0(dis)

30.0

75.0

75.0

Under freq prealarm
Under freq reset
Over freq shutdown

Over freq prealarm
Over freq reset
Shutdown delay time

Unit

GENERATOR FREQ LEVEL (Generator->Frequency level)

75.0

75.0

Hz

30.0

Nominal Alternator Frequency

50.0

43.0

Hz

Nominal frequency

Under freq shutdown

Generator Under Frequency Shutdown

30.0(dis)

0.0 10.0 1.0

Sec

Min

Default

Max

Generator Under Current Pre-Alarm Reset

Generator Over Current IDMT Alarm

Generator Over Current Set
Generator Over Current Pre-Alarm
Generator Over Current Pre-Alarm Reset

Under cur. reset
Over cur. IDMT alarm
Over cur. set
Over cur. prealarm
Over cur. reset

Unit

GENERATOR CUR LEVEL (Generator->Current level)

Generator Under Current Set

Under cur. set
Under cur. prealarm

Generator Under Current Pre-Alarm

0 9999 9980

AV

0

0(dis)

0

0

0(dis)

9999
9999
9999

9999
9999

1

dis

5

DISBL

9999
9990

AV
AV
AV

AV
AV

4.1.1 Mains

4.1.2 Generator

ENABL/DISBL

26

Please enter the days of the weekly workdays for Working Function. Example:

DISBL The working calendar is disable
ENABL The working calendar is enable

08.30 The working function is every Monday started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every Monday stopped at 17.30 o'clock
(if it is enabled)

08.30 The working function is every started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every stopped at 17.30 o'clock
(if it is enabled)

08.30 The working function is every started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every stopped at 17.30 o'clock
(if it is enabled)

08.30 The working function is every started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every stopped at 17.30 o'clock
(if it is enabled)

08.30 The working function is every started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every stopped at 17.30 o'clock
(if it is enabled)

08.30 The working function is every started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every stopped at 17.30 o'clock
(if it is enabled)

08.30 The working function is every Sunday started at 08.30 o'clock
(if it is enabled)

17.30 The working function is every Sunday stopped at 17.30 o'clock
(if it is enabled)

Disable/enable select

Start time on monday

Stop time on monday

Start time on tues. Tuesday

Stop time on tuesday Tuesday

Start time on wednes. Wednesday

Stop time on wednes. Wednesday

Start time on thurs. Thursday

Stop time on thursday Thursday

Start time on friday Friday

Stop time on friday Friday

Start time on satur. Saturday

Stop time on saturday Saturday

Start time on sunday

Stop time on sunday

Min

Default

Max

Working Calendar Disable or Enable

Working Calendar Work Start Time on Monday

Working Calendar Work Stop Time on Monday

Working Calendar Work Start Time on Tuesday

Working Calendar Work Stop Time on Tuesday

Working Calendar Work Start Time on Wednesday

Working Calendar Work Start Time on Thursday

Working Calendar Work Start Time on Friday

Working Calendar Work Start Time on Saturday

Working Calendar Work Start Time on Sunday

Disable/enable select
Start time on monday
Stop time on monday

Start time on tues.
Stop time on tuesday
Start time on wednes.

Start time on thurs.

Start time on friday

Start time on satur.

Start time on sunday

Unit

Stop time on wednes.

Stop time on thursday

Stop time on friday

Stop time on saturday

Stop time on sunday

Working Calendar Work Stop Time on Wednesday

Working Calendar Work Stop Time on Thursday

Working Calendar Work Stop Time on Friday

Working Calendar Work Stop Time on Saturday

Working Calendar Work Stop Time on Sunday

GEN WORKING CALENDAR (Generator->Working calendar)

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

23.59

23.59

23.59

23.59

23.59

23.59

23.59

DISBL/ENABL

DISBL

9999
9999
9999

9999
9999
9999

kVA
kVA
kVA

kVA

0

0(dis)

0

0

0(dis)

0

Min

Default

Max

Generator Under Power Set
Generator Under Power Pre-Alarm
Generator Under Power Pre-Alarm Reset

Generator Over Power Set

Generator Over Power Pre-Alarm

0

5

Generator Over Power Pre-Alarm Reset

kVA
kVA

Under power set
Under power prealarm
Under power reset

Over power set
Over power prealarm
Over power reset

Unit

Reverse power set

Reverse Power Set

GEN POWER LEVEL (Generator->Power level)

-9999 0 0

kW

dis

0

0

dis

Generator Over Power IDMT Alarm

Over power IDMT alarm

ENABL/DISBL DISBL

4.2 Technician Parameters

27

4.2.1 System

CT ratio

Load current transformers transfer ratio(Primary current/Secondary current) value must be entered to
this parameter.
Example:
If Current Transformer Primary=500A and Current Transformer Secondary=5A, Current Transformer
Ratio should be entered CT Primary/CT Secondary=100.

PT ratio

Defines the scaling factor applied to voltage readout and associated fault conditions.
This PT ratio is for additional voltage transformers mounted the unit.

CT location
Generator: The CTs are located to the generator side, so will show only generator load.
Load: The CTs are located to the load side, so will show generator or mains load provided by supply.

Min

Default

Unit

BREAKERS (System->Breakers)

Max

Hardware Breaker Selection
Gen Close Breaker Contact Type

Gen Close Breaker Relay Type
Gen Close Timer

0

Gen Open Breaker Relay Type

0 2

Gen Open Timer
Mains Close Breaker Contact Type
Mains Close Breaker Relay Type

Mains Close Timer

NO / NC

0

NOR / PULS

5

1 250

0

Sec

0

NOR / PULS

0

1 250

5

0

NOR / PULS

0

1 250

5

5

NOR / PULS

0.0

0.0
0

10.0

10.0
250

2

Mains Open Breaker Relay Type

Mains Open Timer
Breaker Close Pulse Time
Breaker Open Pulse Time
Transfer Time
Spring Loading Time
Retry Number

NO / NC

Gen.brk.cls.contact
Gen.brk.cls.relay
Gen.brk.cls.time
Gen.brk.open relay
Gen.brk.open time

Type of Breaker

Mains.brk.cls.relay
Mains.brk.cls.time
Mains.brk.open relay
Mains.brk.open time
Break.close puls.time

Mains.brk.cls.contact

Transfer time
Spring loading time
Retry number

Break.open pulse time

Sec

Sec

1 250

0.5

0.5

Sec
Sec
Sec
Sec
Sec

3
5

1 250
1 250

Hardware Breaker Selection
0- Breakers: Mains and Gen breakers have only close drives and if close drive off breaker will open.

Parameters; GEN CLOSE BREAKER CONTACT TYPE, GEN CLOSE TIMER(if gen closed input
selected), GEN OPEN TIMER(if gen closed input selected), MAIN CLOSE BREAKER CONTACT
TYPE, MAINS CLOSE TIMER(if mains closed input selected), MAINS OPEN TIMER(if mains closed
input selected), TRANSFER TIME.

Note-1 : NO / NC : Normally Open / Normally Close
2 : NOR / PULS : Normal / Pulse

Min

Default

Max

Current Transformer Ratio
Earth Fault Current Transformer Ratio
Voltage Transformer Ratio
Select AC system;

Generator Phase Sequence (dis, L123 or L321)

Generator kVA rating set

Power unit

Current Transformer Location;

kVA, kW, kVAr point position;

CT ratio
Earth fault CT ratio
PT ratio

Type of AC system

Phase sequence
Generator kVA rating

Power unit

CT location

kVA,kW,kVAr point

Unit

SYSTEM NETWORK (System->Network)

9999

3

9999

100

kVA

1

0

0

1

100

1

300

kVA

1

DISBL

0- 1 Phase 2 Wire
1- 3 Phase 4 Wire
2- 2 Phase 3 Wire L1-L2
3- 2 Phase 3 Wire L1-L3

DISBL, L123, L321

99991

100

kVA/kW

3

1

0

0

0

0

0-> 0
1-> 0.0
2-> 0.00
3-> 0.000

0-> Generator
1-> Load

1- User Configured: Mains and Gen breakers have only close drives, when want to breaker close,
close breaker output on and after 1 sec. open breaker output on and after breaker close pulse time
open breaker output will off. When want to breaker open close breaker output and open breaker output
will off.
Parameters; GEN CLOSE BREAKER CONTACT TYPE, GEN CLOSE TIMER(if gen closed input
selected), GEN OPEN TIMER(if gen closed input selected), MAIN CLOSE BREAKER CONTACT
TYPE, MAINS CLOSE TIMER(if mains closed input selected), MAINS OPEN TIMER(if mains closed
input selected),BREAKER CLOSE PULSE TIME, TRANSFER TIME.

28

Example: If Hardware Breaker Selection parameter is selected as 0;

2- Motorised Breakers: User can select all the breaker types.

Parameters; GEN CLOSE BREAKER CONTACT TYPE, GEN CLOSE BREAKER RELAY TYPE, GEN
CLOSE TIMER(if gen closed input selected), GEN OPEN BREAKER RELAY TYPE, GEN OPEN
TIMER(if gen closed input selected), MAIN CLOSE BREAKER CONTACT TYPE, MAIN CLOSE
BREAKER RELAY TYPE, MAINS CLOSE TIMER(if mains closed input selected), MAIN OPEN
BREAKER RELAY TYPE, MAINS OPEN TIMER(if mains closed input selected), BREAKER CLOSE
PULSE TIME(if Gen Close Breaker Relay Type or Main Close Breaker Relay Type parameter is
selected as 1), BREAKER OPEN PULSE TIME(if Gen Open Breaker Relay Type or Main Open
Breaker Relay Type parameter is selected as 1), TRANSFER TIME, SPRING LOADING TIME, RETRY
NUMBER.

Example-1: GCB Close Diagram.
If Hardware Breaker Selection parameter is selected as 2 (user configured), Gen. Close Breaker Relay
Type parameter is selected as 1 (PULSE) and Gen. Open Breaker Relay Type parameter is selected
as 1 (PULSE);

GbCt: Gen close timer
brCP: Breaker close pulse time
brOP: Breaker open pulse time
sPLD: Spring loading time
rtNB: Retry number

Example: If Hardware Breaker Selection parameter is selected as 1;

For closing

Gen. Shalter

Gen. Closed Out.

(NO)

Gen. Closed Out.

(NC)

For opening

Gen. Shalter

ClosedGen. Shalter

Opened

t[s]

t[s]

Gen. Closed Out.

(NO)

Gen. Closed Out.

(NC)

ClosedGen. Shalter

Opened

t[s]

t[s]

t[s]

t[s]

Gen. Open Out.

(NO)

Gen. Open Out.

(NC)

1 s

Breaker close

pulse time

For closing

Gen. Shalter

For opening

Gen. Shalter

29

1s

GCB close

command

brOP

brCP

sPLD

brCP brCP

GbCt GbCt

1s

brOP

brCP

sPLD

brCP

GbCt

1s

brOP

brCP

sPLD

brCP

GbCt

brCP

GbCt

brCP

GbCt

brCP

GbCt

rtNB

GCB open

command

Feedback

input

GCB fail to

close alarm

t[s]

t[s]

t[s]

t[s]

GCB close

command

GbOt

GCB open

command

Feedback

input

GCB fail to
open alarm

t[s]

t[s]

t[s]

t[s]

brOP

GbOt

Example-2: GCB Open Diagram.
If Hardware Breaker Selection parameter is selected as 2 (user configured), Gen. Close Breaker Relay
Type parameter is selected as 1 (PULSE) and Gen. Open Breaker Relay Type parameter is selected
as 1 (PULSE);

GbOt: Gen open timer
brOP: Breaker open pulse time

Gen Close Timer

Gen Open Timer

Mains Close Timer

This is used to monitor the closure of the generator contactor or breaker. It will only operate if an
auxiliary input is configured as ‘Generator Closed Auxiliary’ and connected to the auxiliary on the
generator contactor or breaker. Once a generator closed signal is issued the ‘gen close timer’ is
initiated. Should the ‘Generator Closed Auxiliary’ input become active the timer the ‘gen close timer’ is
cancelled. If the timer expires and the ‘Generator Closed Auxiliary’ has not become active the module
will issue a ‘generator failed to close’ alarm.

This is used to monitor the opening of the generator contactor or breaker. It will only operate if an
auxiliary input is configured as ‘Generator Closed Auxiliary’ and connected to the auxiliary on the
generator contactor or breaker. Once a generator open signal is issued the ‘gen open timer’ is initiated.
Should the ‘Generator Closed Auxiliary’ input become in-active the timer ‘gen open timer’ is cancelled.
If the timer expires and the ‘Generator Closed Auxiliary’ has not become in-active the module will issue
a ‘generator failed to open’ alarm.

This is used to monitor the closure of the mains contactor or breaker. It will only operate if an auxiliary
input is configured as ‘Mains Closed Auxiliary’ and connected to the auxiliary on the mains contactor or
breaker. Once a mains closed signal is issued the ‘mains close timer’ is initiated. Should the ‘Mains
Closed Auxiliary’ input become active the timer the ‘mains close timer’ is cancelled. If the timer expires
and the ‘Mains Closed Auxiliary’ has not become active the module will issue a ‘mains failed to close’
alarm.

30

Mains Open Timer

Breaker Close Pulse Time

Breaker Open Pulse Time

Transfer Time

Spring Loading Time

Retry Number

This is used to monitor the opening of the mains contactor or breaker. It will only operate if an auxiliary
input is configured as ‘Mains Closed Auxiliary’ and connected to the auxiliary on the mains contactor or
breaker. Once a mains open signal is issued the ‘mains open timer’ is initiated. Should the ‘Mains
Closed Auxiliary’ input become in-active the timer the ‘mains open timer’ is cancelled. If the timer
expires and the ‘Mains closed auxiliary’ has not become in-active the module will issue a ‘mains failed
to open’ alarm.

This is used to determine the duration of the Mains and Generator close signals. This timer is only
used if Pulsed outputs are configured to be used.

This is used to determine the duration of the Mains and Generator close signals. This timer is only
used if Pulsed outputs are configured to be used.

This is used to allow for fixed duration transfer breaks when switching from mains to generator and
back. It can be used to ensure that the supply is removed from the load for fixed period of time to allow
pumps/motors to come to rest etc.

The unit try to close

When the unit give open command to the (GCB or MCB) breaker and after that the unit want to give
close command the same breaker, this time for between open and close commands, because if there
is no delay between open and close commands can be problem the motorized switches.

(GCB or MCB) breaker number of this parameter. If each try there is no close

feedback, after last try the alarm will be activated.

Min

Default

Unit

LCD DISPLAY (System->LCD display)

Max

Language Selection
Contrast Setting
Auto Backlight Off

ENGLISH/CHINESE

5

4 9

Contrast

Auto backlight off

Language

Auto Scroll Time
Auto Scroll Number

Scroll Time For Error Messages

0

0 (dis) 250

Sec

5

24

2

1 250

Auto scroll number

Err. mesg scroll time

Auto scroll time

Sec

1

ENGLISH

ENABL/DISBL DISBL

Language Selection

Digital Contrast

Auto Backlight Off

Auto Scroll Time

Auto Scroll Number

Scroll Time For Error Messages

Language selection: English or Chinese.

It is used to change contrast of LCD Display.

ENABL: If any button is not pressed during 120 secs, LCD backlight is automatically changed power
safety mode.
DISBL: LCD backlight is on continuously.

The scroll time between all data display pages.

The number of data display pages that will be scrolled.

Error messages are displayed the last line of LCD Display. If more than one error condition is present,
each of them is displayed during time defined by Auto Scroll Timer parameter.

31

Note: dis = disable

Operator Password

Technician Password

Use this option to change the Operator password. This password allows access to operator
parameters section.

Use this option to change the Technician password. It allows access to both operator and technician
parameters section.

Min

DefaultDATE & TIME SET (System->Date & time set)

Max

Year
Month

0 99

1

12

Date

1

31

Day of week

1

7

Hour

0

23

Minute

0

59

Second

0

59

Year
Month
Day
Week

Hour
Minute
Second

Unit

Min

Default

Unit

PASSWORD SETTINGS (System->Password settings)

Max

Operator Password
Technician Password

0

0 9999
0

9999 0

Operator password
Technician password

Min

Default

Unit

DEFAULT SETTINGS (System->Default settings)

Max

Save setting to default
Reset default sets

Save setting to def.
Reset default sets

YES / NO NO

Reset factory sets

Reset factory sets

YES / NO NO

YES / NO NO

Save setting to default

If this parameter is selected as “Yes”, the unit’s currently parameters save as default sets.
After this parameter is reset automatically to “No”.

Reset default sets

If this parameter is selected as “Yes”, the unit’s parameters back to default sets.
After this parameter is reset automatically to “No”.

Reset factory sets

If this parameter is selected as “Yes”, the unit’s parameters back to factory sets.
After this parameter is reset automatically to “No”.

Day of week 1=Monday,2=Tuesday,3=Wednesday,4=Thursday,5=Friday,6=Saturday,7=Sunday

Min

Default

Unit

COMMUNICATION (System->Communication)

Max

Slave Address

1

1 247

0

5 3

Baud Rate: 0 - 1200 baud

1 - 2400 baud
2 - 4800 baud
3 - 9600 baud
4 - 19200 baud
5 - 38400 baud

Datalog Period
Timeout

Stop Bit (0-> 1 stop bit,1-> 2 stop bit)

0

2

0

0.0(dis)
0(dis)

0

999.9
999

1

1.0
dis

0

Slave address
Baud rate

Parity

Datalog period

Timeout

Stop bit

Parity: 0 - NONE

1 - ODD
2 - EVEN

Min
Min

Timeout

This parameter is used for the modem hardware reset.
If the data communication is interrupted and this situation continues as this parameter, the modem
hardware reset is performed.

32

600
60
60
60

600

600

600

VV
VV
VV
VV

60

Min

DefaultMAINS VOLT LEVEL (Mains->Volt level)

Max

Mains Under Voltage
Mains Under Voltage Reset
Mains Over Voltage
Mains Over Voltage Reset

320
340
440
420

Under volt trip

4.2.2 Mains

Under volt reset

Over volt trip
Over volt reset

Unit

Min

DefaultMAINS FREQ. LEVEL (Mains->Frequency level)

Max

Mains Under Frequency

Hz
Hz
Hz
Hz

20.0 75.0

20.0 75.0

20.0 75.0

20.0 75.0

45.0

48.0

55.0

52.0

Mains Under Frequency Reset
Mains Over Frequency
Mains Over Frequency Reset

Under freq trip
Under freq reset
Over freq trip
Over freq reset

Unit

600

60(dis)

60
60

600
600
600

VV
VV
VV
VV

60(dis)

Min

Default

Max

Generator Under Voltage Shutdown
Generator Under Voltage Pre-Alarm
Generator Under Voltage Pre-Alarm Reset
Generator Over Voltage Shutdown

Generator Over Voltage Pre-Alarm

320
340
350
440

60(dis) 600

60 600

420
400

Generator Over Voltage Pre-Alarm Reset

VV
VV

Under volt shutdown
Under volt prealarm
Under volt reset

Over volt shutdown
Over volt prealarm
Over volt reset

Unit

Shutdown delay time

Generator Voltage Shutdown Delay Time

GENERATOR VOLT LEVEL (Generator->Volt level)

0.0 10.0 1.0

Sec

75.0

30.0(dis)

75.0

75.0

Hz

30.0(dis)

Min

Default

Max

Generator Under Frequency Pre-Alarm
Generator Under Frequency Pre-Alarm Reset
Generator Over Frequency Shutdown
Generator Over Frequency Pre-Alarm
Generator Over Frequency Pre-Alarm Reset

45.0

46.0

58.0

55.0

54.0

Generator Frequency Shutdown Delay Time

Hz
Hz
Hz
Hz

30.0

30.0(dis)

30.0

75.0

75.0

Under freq prealarm
Under freq reset
Over freq shutdown

Over freq prealarm
Over freq reset
Shutdown delay time

Unit

GENERATOR FREQ LEVEL (Generator->Frequency level)

75.0

75.0

Hz

30.0

Nominal Alternator Frequency

50.0

43.0

Hz

Nominal frequency

Under freq shutdown

Generator Under Frequency Shutdown

30.0(dis)

0.0 10.0 1.0

Sec

4.2.3 Generator

Mains Failure Detection En/Dis

Look Mains Failure at Stop Mode En/Dis

Always Look Mains Return Delay

ENABLE: The module will monitor the mains supply. If the mains supply go out side of limits, the
module will initiate its automatic mains failure sequence.

ENABLE: As soon as the module detects a mains failure the mains contactor or breaker relay will be
opened to remove the supply from the load. This is to prevent damage to the load in case of single­phase failure.
DISABLE: In the event of a mains failure the unit will attempt to maintain the supply to the load for the
incoming AC mains supply until the generator is available to go on load. In the event of a generator
failure the module will default back to the incoming AC mains supply.

ENABLE: T

DISABLE: T

generator is available to go on load

he module will always wait the Mains Return Delay parameter before transferring the load

back to mains.

he module will wait the Mains Return Delay parameter while only the engine is running

and the before transferring the load back to mains.

Min

Default

Unit

MAINS ACTIONS (Mains->Actions)

Max

Mains Failure Detection En/Dis
Look Mains Failure at Stop Mode En/Dis

Always Look Mains Return Delay

Mains failure detect
Mains fail.stop mode

Always return delay

ENABLENABL/DISBL
ENABL/DISBL
ENABL/DISBL

ENABL

DISBL

33

Min

Default

Max

Generator Under Current Pre-Alarm Reset

Generator Under Current Actions Delay Time
Generator Over Current IDMT Alarm
Generator Over Current Set
Generator Over Current Pre-Alarm
Generator Over Current Pre-Alarm Reset

Generator Over Current Actions Delay Time
Generator Short Circuit Current Set
Generator Earth Fault Current Set

Generator Earth Fault Current Actions Delay Time

Under cur. reset
Under cur. act.

Under act. delay time
Over cur. IDMT alarm
Over cur. set
Over cur. prealarm
Over cur. reset
Over cur. act.

Over act. delay time
Short circuit cur.
Earth fault cur.
Earth fault cur. act.

E.F. act. delay time

Unit

GEN CUR LEVEL & ACT (Generator->Current level & act.)

Generator Under Current Set

Under cur. set
Under cur. prealarm

Generator Under Current Pre-Alarm

0

0(dis)

0
0
0

0(dis)

0

9999

3

99
9999
9999

3

99

9980

dis

2

9999

100

dis

2

AV

AV
AV

0

0(dis)

0

0(dis)

0

0

0(dis)

9999
9999
9999

3

99

9999
9999

1

dis

5

dis

2

9999
9990

AV
AV
AV

AV
AV

Sec

Sec

Sec

Generator Under Current Actions

0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)
3 - Shutdown (Alarm And Shutdown)

Generator Over Current Actions

0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)
3 - Shutdown (Alarm And Shutdown)

Generator Earth Fault Current Actions

0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)

3 - Shutdown (Alarm And Shutdown)

Unbalance Load Set

Unbalance Load Actions Delay Time

Unbalance load set
Unbalance load act.

Unbalance act. delay

0

0(dis)

0

9999

3

99

0

dis

2

AV

Sec

Unbalance Load Actions
0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)

3 - Shutdown (Alarm And Shutdown)

ENABL/DISBL DISBL

Over cur. IDMT alarm

DISABLE: If the measurement value of current more than “Over cur. set” parameter and this condition
is go on more than “Over act. delay time” parameter, the unit will give a “Over current” alarm.

ENABLE: If the measurement value of current more than “Over cur. set” parameter and this condition
is go on more than “Tripping time”, the unit will give a “Over current” alarm.

(“Over act. delay time” parameter) x (“Over cur. set” parameter)

(Measured current) - (“Over cur. set” parameter)

Tripping time =

9999
9999
9999

9999
9999
9999

kVA
kVA
kVA

kVA

0

0(dis)

0

0

0(dis)

0

Min

Default

Max

Generator Under Power Set
Generator Under Power Pre-Alarm
Generator Under Power Pre-Alarm Reset

Generator Over Power IDMT Alarm
Generator Over Power Set

Generator Over Power Pre-Alarm

0

5

Generator Over Power Pre-Alarm Reset

kVA
kVA

Unit

Generator Over Power Action Delay Time
Reverse Power Set

Reverse Power Action Delay Time

0

-9999
0(dis)

0

99

0
3

99

2
0

0(dis)

2

Sec

kW

Sec

dis

0

0

dis

Reverse Power Actions

0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)
3 - Shutdown (Alarm And Shutdown)

Under power set
Under power prealarm
Under power reset

Over power IDMT alarm
Over power set
Over power prealarm
Over power reset

Over act. delay time
Reverse power set

Reverse power act.

Rv.pow.act.delay time

GEN POWER LEVEL (Generator->Power level)

Generator Under Power Action Delay Time

0(dis)

0399

0(dis)

2

Sec

Generator Under Power Actions
0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)
3 - Shutdown (Alarm And Shutdown)

Under power act.

Under act. delay time

0(dis) 3 0(dis)

Generator Over Power Actions
0 - Disable
1 - Warning (Alarm Only, No Shutdown)
2 - Electrical Trip (Alarm/Off Load Generator

Followed By Shutdown After Cooling)
3 - Shutdown (Alarm And Shutdown)

Over power act.

Min

Default

Max

Working Calendar Disable or Enable

Working Calendar Work Start Time on Monday

Working Calendar Work Stop Time on Monday

Working Calendar Work Start Time on Tuesday

Working Calendar Work Stop Time on Tuesday

Working Calendar Work Start Time on Wednesday

Working Calendar Work Start Time on Thursday

Working Calendar Work Start Time on Friday

Working Calendar Work Start Time on Saturday

Working Calendar Work Start Time on Sunday

Disable/enable select
Start time on monday
Stop time on monday

Start time on tues.
Stop time on tuesday
Start time on wednes.

Start time on thurs.

Start time on friday

Start time on satur.

Start time on sunday

Unit

Stop time on wednes.

Stop time on thursday

Stop time on friday

Stop time on saturday

Stop time on sunday

Working Calendar Work Stop Time on Wednesday

Working Calendar Work Stop Time on Thursday

Working Calendar Work Stop Time on Friday

Working Calendar Work Stop Time on Saturday

Working Calendar Work Stop Time on Sunday

GEN WORKING CALENDAR (Generator->Working calendar)

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

23.59

23.59

23.59

23.59

23.59

23.59

23.59

DISBL/ENABL

DISBL

34

ENABL/DISBL DISBL

Over power IDMT alarm

DISABLE: If the measurement value of power more than “Over power set” parameter and this
condition is go on more than “Over act. delay time” parameter, the unit will give a “Over power” alarm.

ENABLE: If the measurement value of power more than “Over power set” parameter and this condition
is go on more than “Tripping time”, the unit will give a “Over power” alarm.

(“Over act. delay time” parameter) x (“Over power set” parameter)

(Measured power) - (“Over power set” parameter)

Tripping time =

35

Min

Default

Unit

GENERATOR GENERAL (Generator->General)

Max

Sensing Options Generator Frq En/Dis

Sens.option gen.freq

ENABL

ENABL/DISBL

0(dis)

Sensing Opt Pickup En/Dis & Flywheel

DISBL1000

All Warnings Are Latched En/Dis

Sens.opt.pickup&flywh
All warning are latch

ENABL/DISBL DISBL

4.2.4 Engine

ENABL/DISBL

Sec

Min

Default

Unit

ENGINE START OPTIONS (Engine->Starting options)

Max

Audible Alarm Prior To Starting En/Dis
Number Of Start Attempts
Cranking Time
Crank Rest Time

DISBL

3
5

1
1

10
99

10

5 99

Pickup Sensor Fail Delay

1.0

0.1 10.0

Horn prior start
No. of crank attemp

Cranking time
Crank rest time
Pickup fail dely

Sec
Sec

Sensing Options Generator Frq En/Dis

Sensing Options Pickup En/Dis & Flywheel

All Warnings Are Latched En/Dis

ENABLE: Speed sensing will be derived from the generator output frequency.
DISABLE: Speed sensing not will be derived from the generator output frequency.

DISABLE: Speed sensing will not be derived from the magnetic pickup.
1-1000: Speed sensing will be derived from the magnetic pickup and the number is flywheel
teeth on the engine.

ENABLE: Warnings and pre-alarms will latched when triggered. To reset the alarm either an external
reset must be applied to one of the inputs or the 'Reset' pushbutton operated, once the triggering
condition has cleared.
DISABLE: Normal operation, the warnings and pre-alarms (except spare inputs, because they have
their latching or non-latching selections) will automatically reset once the triggering condition has
cleared.

Note: dis = disable

Audible Alarm Prior To Starting En/Dis

ENABLE: The audible alarm will sound before the engine starts. The sounder will become active once
the start delay is initialised, it will remain active until either the engine reaches crank disconnect speed
or pre-heat timers are cancelled.

Number Of Start Attempts

This value is the number of times the module will attempt to start the generator. Should the generator
start the module will not attempt further starts. If the generator does not start after the final attempt, the
module will give a ‘Fail to start’ alarm.

Cranking Time

This is the maximum amount of time that the module will energise the starter motor for during starting
attempts once the starter has engaged.

Crank Rest Time

This is the amount of time the module will wait for between start attempts. This is to allow the starter
motor to cool and the starter batteries to recover.

Min

Default

Unit

ENGINE SPEED SETS (Engine->Speed settings)

Max

Engine Under Speed Shutdown
Engine Under Speed Prealarm

Engine Under Speed Prealarm Reset

dis

Engine Over Speed Shutdown

500(dis) 5000
500(dis)

RPM

500

500 5000

Engine Over Speed Prealarm Reset
Engine Speed Shutdown Delay Time

500

1.0

RPM

RPM
RPM
RPM
RPM

Sec

5000

500(dis) 5000

5000
5000

10.0

Engine Over Speed Prealarm

Under speed shutdown

Under speed prealarm

Under speed reset

Over speed shutdown

Over speed prealarm

Over speed reset

Shutdown delay time

500

0.0

The parameters in this page are used for the generator speed low and high alarms.

36

Note: dis = disable

The parameters in this page are used for engine started signals. If any of the selected signals appears,
the unit assumes that the engine has started.

If the generator frequency over than 30.0 Hz, the unit assumes that the engine has started and the unit
stop cranking.

If the generator speed over than 500 Rpm, the unit assumes that the engine has started and the unit
stop cranking.

If the generator voltage over than 300 Vac, the unit assumes that the engine has started and the unit
stop cranking.

If the charge alternator voltage over than 6.1 Vdc, the unit assumes that the engine has started and
the unit stop cranking. Note: If the charge generator input (terminal #35) is disconnect, this parameter
selected as disabled (6.0 Vdc).

This parameter is used for to activate of the crank disconnect on oil pressure feature.

If the oil pressure sender over than this value, the unit assumes that the engine has started and the
unit stop cranking.

If this parameter is enabled, the unit will not be allowed to crank if the oil pressure isn’t seen as being
low.

Crank Disconnect On Gen. Frequency

Crank Disconnect On Engine RPM

Crank Disconnect On Gen. Voltage

Crank Disconnect On Charge Alt. Voltage

Crank Disconnect On Oil Pressure En/Dis

Oil Pressure Value

Check Oil Pressure Before Start

Nominal Speed

1500

500 5000

RPM

Nominal speed

dis

dis
dis

500(dis)

ENG. CRANK DISCONNECT (Engine->Crank disconnect)

Generator frequency
Engine speed

Generator volt
Charge alt. volt

Oil pres. enab./dis.
Oil pressure value
Check oil befor.start

Min

Default

UnitMax

Crank Disconnect On Gen. Frequency

Crank Disconnect On Gen. Voltage
Crank Disconnect On Charge Alt. Voltage

30.0

Crank Disconnect On Oil Pressure En/Dis
Oil Pressure Value
Check Oil Pressure Before Start

10.0 75.0

Hz

500

100 6000

RPM

300

60 (dis) 600

VV

dis

6.0 (dis) 30.0

VZ

1.0 30.0

BAR

Crank Disconnect On Engine RPM

1.0

ENABL/DISBL DISBL

ENABL/DISBL ENABL

37

Min

Default

ENGINE PLANT BATTERY (Engine->Plant battery)

Max

Battery Undervolts Shutdown
Battery Undervolts Warning
Battery Undervolts Warning Reset
Battery Undervolts Volts Delay
Battery Overvolts Shutdown
Battery Overvolts Warning

11.0

Battery Overvolts Warning Reset

6.0(dis)

6.0(dis)

30.0

30.0

11.5

6.0

1.0

0.0 9.9

29.0

28.5

Charge Alternator Warning

dis

30.0

30.0

30.0

6.0 30.0

Battery Overvolts Delay

1.0

0.0 9.9

30.0

6.0(dis)

6.0(dis)

6.0(dis)

Under volt shutdown
Under volt warning
Under volt reset

Under volt delay
Over volt shutdown
Over volt warning
Over volt reset

Over volt delay
Alt. chg. warning

Unit

VZ
VZ
VZ

VZ
VZ
VZ

Sec

Sec

VZ

The parameters in this page are used for the battery voltage low and high alarms and the charge
alternator voltage warning.

dis

dis

Note: Changing above mentioned parameter becomes only effective after restarting the unit.

38

Baud Rate

J1939 ECU Type Selection

It defines the used Baud rate.
Note: All participants on the CAN bus must use the same Baud rate.

The J1939 interface of this unit can be operated with different ECUs. This parameter determines the
operating mode of the used ECUs. If this parameter is selected as “disable”, No messages will be sent
or received.

Note: Volvo EMS2 engine types: TAD734, TAD940, TAD941, TAD1640, TAD1641, TAD1642.

Volvo EDC3 engine types: TAD1240, TAD1241, TAD1242.
Volvo EDC4 engine types: TD520, TAD520, TD720, TAD720, TAD721, TAD722.
Perkins engines fitted with the ADEM3 / ADEM4: 2306, 2506, 1106, 2806.
Scania S6 engine types: DC 9, DC 12, DC 16.

MAN MFR type: EDC7.

CANBUS ECU (Engine->CanBus ECU)

Baud Rate:

0 - 20
1 - 50
2 - 100
3 - 125
4 - 250
5 - 500
6 - 800
7 - 1.000

J1939 ECU Type Selection:

0 - Disable
1 - Standard
2 - Volvo EMS1
3 - Volvo EMS2
4 - Volvo EMS2b
5 - Volvo EDC3
6 - Volvo EDC4
7 - Deutz EMR2
8 - Deutz EMR3
9 - Perkins 1300
10 - Perkins ADEM3
11 - Perkins ADEM4
12 - Scania S6
13 - MAN MFR

Baud rate

J1939 ECU type

Device address

SPN version

Min

Default

UnitMax

0

7 4

13

0

0 255 17
1 3 1

kBaud

ECU remote control

Speed control enable

Oil pres cont. enab

Temp. control enable

ENABL

Device Address

0(dis)

SPN version

ECU Remote Control via J1939

Speed Control via J1939
Oil Pressure Control via J1939
Coolant Temperature Control via J1939

Speed correction

50

Speed Correction Value

%

0 100

Speed set point

1500

1500 / 1800

Speed Set Point Selection

RPM

ENABL/DISBL
ENABL/DISBL
ENABL/DISBL
ENABL/DISBL

ENABL

DISBL
DISBL

39

SPN Version

There are 4 different Suspect Parameter Number versions with J1939 protocol. The device has ability
to detecting version 4 automatically. Therefore, this parameter is important to show alarm messages
correctly except version 4.

ECU Remote Control Via J1939

If this parameter is selected as “Enable”, The unit sends remote control messages to the ECU if the
selected ECU type is supporting the J1939 Remote control Messages. Available messages are engine
start-stop, 50/60 Hz selection or Idle mode. For some ECUs;

If this parameter is selected as “Disable”, The ECU remote control via the J1939 protocol will be
disabled.

If this parameter is selected as “Enable”, The speed sensing from J1939 ECU will be used for the
speed (Rpm) failures.

If this parameter is selected as “Enable”, The oil pressure sensing from J1939 ECU will be used for the
oil pressure failures and the engine started signal.

If this parameter is selected as “Enable”, The coolant temperature sensing from J1939 ECU will be
used for the coolant temperature failures.

(50/60 Hz)

This parameter used for to select the requested engine speed as 1500Rpm (50Hz) or 1800Rpm
(60Hz). Note: The scenario; first change the parameter, next wait at least 5 seconds, and then start
the engine.

This parameter can be changed between 0 and 100%. The engine should change the speed as
follows:

0% = rated speed – speed deviation ECU e.g. 1500 – 120 = 1380rpm
50% = rated speed e.g. = 1500rpm
100% = rated speed + speed deviation ECU e.g. 1500 + 120 = 1620rpm

Speed Control via J1939

Oil Pressure Control via J1939

Coolant Temperature Control via J1939

Speed Set Point Selection

Speed Correction Value

Volvo EMS1,
Volvo EMS2,
Volvo EMS2b,
Volvo EDC3

Volvo EDC4,
Deutz EMR2,
Deutz EMR3

Perkins 1300,
Perkins ADEM3,
Perkins ADEM4

17

3 43

ECU

The unit sends J1939 request and control messages with this ID. It must be changed for different ECU
types according to the following table. The ECU listens only to control messages, if they are sent to the
correct address.

Device Address

Volvo EMS1,
Volvo EMS2,
Volvo EMS2b,
Volvo EDC3

Parameter

Volvo EDC4,
Deutz EMR2,
Deutz EMR3

Perkins 1300,
Perkins ADEM3,
Perkins ADEM4

MAN MFR

Yes
Yes
Yes

Yes

No
No
No

No

No
No
No

No

Yes
Yes

No

Yes

Remote Start

Remote Stop

50/60 Hz
Selection

Idle Mode

Scania S6

Yes
Yes
Yes

Yes

Scania S6

39

MAN MFR

253

Standard

No
No
No

No

40

Note: dis = disable

Min

Default

Unit

CANBUS ERROR SET (Engine->CanBus error set)

Max

Can Fault Actions:
0- Disable
1- Warning Non-Latching
2- Warning (Alarm Only, No Shutdown)
3- Electrical Trip (Alarm/Off Load Generator
Followed By Shutdown After Cooling)
4- Shutdown (Alarm And Shutdown)

0

0 2

0

0(dis) 4

CAN fault activation

CAN fault actions

SecCan Fault Delay

10

2 250

CAN fault delay

Can Fault Activation:
0- Active From Starting
1- Active From Safety On
2- Always Active

J1939 Amber Warning Lamp Actions:
0- Disable
1- Warning Non-Latching
2- Warning (Alarm Only, No Shutdown)
3- Electrical Trip (Alarm/Off Load Generator
Followed By Shutdown After Cooling)
4- Shutdown (Alarm And Shutdown)

2

0 2

0

0(dis) 4

Amber warn.activation

Amber warn.actions

SecJ1939 Amber Warning Lamp Delay

2

0 250

Amber warn.delay

J1939 Amber Warning Lamp Activation:
0- Active From Starting
1- Active From Safety On
2- Always Active

J1939 Red Stop Lamp Actions:
0- Disable
1- Warning Non-Latching
2- Warning (Alarm Only, No Shutdown)
3- Electrical Trip (Alarm/Off Load Generator
Followed By Shutdown After Cooling)
4- Shutdown (Alarm And Shutdown)

2

0 2

0

0(dis) 4

Red stop activation

Red stop actions

SecJ1939 Red Stop Lamp Delay

2

0 250

Red stop delay

J1939 Red Stop Lamp Activation:
0- Active From Starting
1- Active From Safety On
2- Always Active

41

Note: dis = disable

Min

Default

ENGINE MAINTENANCE (Engine->Maintenance)

Max

Running Hours Interval

Maintenance Date Interval

Force Engine Shutdown When Maintenance Is Due

Engine Running Hour (Lsb)

5000

Engine Running Hour

0(dis) 9999

Engine Running Hour(Msb)

ENABL/DISBL

0

0 255

DISBL

0
0

0(dis)

12 6

0 255
0 14

Maint. date interval

Eng. stop when maint

Eng. running hour(lsb)

Eng. running hour

Eng. running hour(msb)

Running hour interval

Unit

Hour

Month

Maintenance Okay

NO

Maintenance okay

YES/NO

The user can change the engine running hours value by using these parameters (Engine Running
Hour (Lsb) , Engine Running Hour and Engine Running Hour (Msb)).

For example; if the engine running hours was changed 75112 hours, the values of these
parameters was calculated as follows;

Engine Running Hour (Msb) = 75112 / 65536

= 1

Intermediate Value = 75112 – (Engine Running Hour (Msb) * 65536)

= 75112 – (1 * 65536)
= 9576.

Engine Running Hour = Intermediate Value / 256

= 9576 / 256
= 37

Engine Running Hour (Lsb) = Intermediate Value – (Engine Running Hour * 256)

= 9576 – (37 * 256)
= 104

Min

Default

LOAD TEST (Engine->Load test)

Max

Unit

1-NO LOAD

Disable/enable select

Disable, No Load or On Load Selection

0-DISABLE
1-NO LOAD
2-ON LOAD

Disable, No Load or On Load Selection

DISABLE Test mode disable.
NO LOAD The generator will be running without taking the load in test mode.
ON LOAD The generator will be running with load in test mode.

:

:
:

42

Note: dis = disable

Min

Default

Max

Exercise Disable or Enable

Exercise Start Time 1 on Monday

Exercise Stop Time 1 on Monday

Exercise Start Time 2 on Monday

Exercise Stop Time 2 on Monday

Exercise Start Time 3 on Monday

Exercise Stop Time 3 on Monday

Exercise Start Time 4 on Monday

Exercise Stop Time 4 on Monday

Exercise Start Time 1 on Tuesday

Exercise Start Time 2 on Tuesday

Exercise Start Time 3 on Tuesday

Exercise Start Time 4 on Tuesday

Exercise Stop Time 1 on Tuesday

Exercise Stop Time 2 on Tuesday

Exercise Stop Time 3 on Tuesday

Exercise Stop Time 4 on Tuesday

Exercise Start Time 1 on Wednesday

Exercise Start Time 2 on Wednesday

Exercise Start Time 3 on Wednesday

Exercise Start Time 4 on Wednesday

Exercise Start Time 1 on Thursday

Exercise Start Time 2 on Thursday

Exercise Start Time 3 on Thursday

Exercise Start Time 4 on Thursday

Exercise Start Time 1 on Friday

Exercise Start Time 2 on Friday

Exercise Start Time 3 on Friday

Exercise Start Time 4 on Friday

Exercise Start Time 1 on Saturday

Exercise Start Time 2 on Saturday

Exercise Start Time 3 on Saturday

Exercise Start Time 4 on Saturday

Disable/enable select
Start time1 on monday
Stop time1 on monday
Start time2 on monday
Stop time2 on monday
Start time3 on monday
Stop time3 on monday
Start time4 on monday
Stop time4 on monday
Start time1 on tues.

Start time2 on tues.

Start time3 on tues.

Start time4 on tues.

Stop time1 on tuesday

Stop time2 on tuesday

Stop time3 on tuesday

Stop time4 on tuesday
Start time1 on wednes

Start time2 on wednes

Start time3 on wednes

Start time4 on wednes

Start time1 on thurs.

Start time2 on thurs.

Start time3 on thurs.

Start time4 on thurs.

Start time1 on friday

Start time2 on friday

Start time3 on friday

Start time4 on friday

Start time1 on satur.

Start time2 on satur.

Start time3 on satur.

Start time4 on satur.

Unit

Stop time1 on wednes.

Stop time2 on wednes.

Stop time3 on wednes.

Stop time4 on wednes.

Stop time1 on thurs.

Stop time2 on thurs.

Stop time3 on thurs.

Stop time4 on thurs.

Stop time1 on friday

Stop time2 on friday

Stop time3 on friday

Stop time4 on friday

Stop time1 on satur.

Stop time2 on satur.

Stop time3 on satur.

Stop time4 on satur.

Exercise Stop Time 1 on Wednesday

Exercise Stop Time 2 on Wednesday

Exercise Stop Time 3 on Wednesday

Exercise Stop Time 4 on Wednesday

Exercise Stop Time 1 on Thursday

Exercise Stop Time 2 on Thursday

Exercise Stop Time 3 on Thursday

Exercise Stop Time 4 on Thursday

Exercise Stop Time 1 on Friday

Exercise Stop Time 2 on Friday

Exercise Stop Time 3 on Friday

Exercise Stop Time 4 on Friday

Exercise Stop Time 1 on Saturday

Exercise Stop Time 2 on Saturday

Exercise Stop Time 3 on Saturday

Exercise Stop Time 4 on Saturday

EXERCISE (Engine->Exercise)

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min
H.Min
H.Min
H.Min
H.Min
H.Min
H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

DISBL/ENABL DISBL

43

Exercise Start Time 1 on Sunday

Exercise Start Time 2 on Sunday

Exercise Start Time 3 on Sunday

Exercise Start Time 4 on Sunday

Exercise Stop Time 1 on Sunday

Exercise Stop Time 2 on Sunday

Exercise Stop Time 3 on Sunday

Exercise Stop Time 4 on Sunday

Start time1 on sunday

Start time2 on sunday

Start time3 on sunday

Start time4 on sunday

Stop time1 on sunday

Stop time2 on sunday

Stop time3 on sunday

Stop time4 on sunday

23.59

23.59

23.59

23.59

23.59

23.59

23.59

23.59

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

H.Min

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

0.00

44

Engine Fuel (Gas/ Diesel/Gasoline) Selection

Stop Solenoid Time

Gas, Diesel or Gasoline engines can be selected.

This timer is used if the unit is configured to operate an Energise to stop engine. It dictates the
duration that the Stop Solenoid output will remain active after the module has detected the engine has
come to rest. If the Stop Solenoid output is not configured, this timer will still operate, preventing an
immediate restart.

Choke Time

This timer dictates that how long choke output will be active in gasoline engines.

Ignition Delay

With gas engines often a purging operation is desired before starting. With the engaging of the starter
the ignition delay is started. If the 'min ignition speed' is reached after expiry of this time, the
configurable relay output 'ignition' is set.

Gas Valve Delay

By setting the ignition relay the gas valve delay is started. After the expiry of the set time as long as the
number of revolutions is higher than the minimum ignition speed, the gas valve is set. When the
necessary engine shutdown process, gas valve is de-energised.

Minimum Ignition Speed

After expiry of the ignition delay the number of revolutions set must be reached, so that the
configurable relay output 'ignition' will be set.

Min

Default

Unit

ENGINE GENERAL (Engine->General)

Max

Engine Fuel Selection

1-DIESEL

Stop Solenoid Time

1 2099

Ignition Delay

1 599 Sec

Gas Valve Delay

1 599 Sec

Minimum Ignition Speed

10 2001500 RPM

Fuel selection

Stop solenoid time

Ignition delay

Gas valve delay

Min. of ignition speed

Sec

Choke time

Choke Time

Sec

0.0 0.830.0

0-GAS
1-DIESEL
2-GASOLINE

45

Start request

Ignition

Starter

Gas valve

Engine

monitoring ON

Minimum ignition speed

Rated speed

[RPM]

t[s]

t[s]

t[s]

Starting Stopping

Minimum ignition speed

will not be reached

[1/min;RPM]

5 s

Unsuccessful

Successful

t[s]

t[s]

t[s]

tIT

tID

tR

tGV

tD

Crank disconnect

magnetic pick-up speed

Start/Stop Diagram for GAS ENGINE

tR Interval between 2 start attempts [s]

tID Ignition delay [s]

tGV Gas valve delay [s]

tD Engine delayed monitoring [s]

46

Start request

Pre-heat

Starter

Fuel relay

Engine

monitoring ON

Rated speed

[RPM]

t[s]

Starting Unsuccessful

Successful

Stopping

tPH

2s

[1/min;RPM]

t[s]

t[s]

t[s]

t[s]

t[s]

tR

tCR tCR

tD

Crank disconnect

magnetic pick-up speed

Start/Stop Diagram for DIESEL ENGINE

tPH Preheating time [s]

tCR Engagement time [s]

tR Interval between 2 start attempts [s]

tD Engine delayed monitoring [s]

47

Start/Stop Diagram for GASOLINE ENGINE

Start request

Pre-heat

Starter

Fuel relay

Choke

Engine

monitoring ON

Rated speed

[RPM]

t[s]

Starting Unsuccessful

Successful

Stopping

tPH

2s

[1/min;RPM]

t[s]

t[s]

t[s]

t[s]

t[s]

tR

tCR

tCR

tD

Crank disconnect

magnetic pick-up speed

tCH

tCH

tPH Preheating time [s]

tCR Engagement time [s]

tR Interval between 2 start attempts [s]

tD Engine delayed monitoring [s]

tCH Choke time [s]

Min

Default

Unit

SENDER INPUTS (Inputs->Sender inputs)

Max

Oil Pressure Input Type

Oil Pressure Pre-Alarm
Oil Pressure Pre-Alarm Reset

Coolant Temperature Input Type

1.2

0.0 (dis) 30.0

BAR

1.4

0.0 30.0

BAR

1.0

0.0 30.0

BAR

0 - Not Used (Disable)
1 - Digital NC
2 - Digital NO
3 - VDO 5 BAR
4 - VDO 7 BAR
5 - VDO 10 BAR
6 - DATCON 5 BAR
7 - DATCON 7 BAR
8 - MURPHY 7 BAR
9 - User Configured

90

0 (dis) 300

88

0 300

95

0 300

0 (dis) 3000

%

0 3000

3000

Temperature Sensor Break
High Temperature Pre-Alarm

Oil Pressure Shutdown

High Temp. Pre-Alarm Reset
High Temperature Shutdown

C
C
C

Temp. sensor break

High temp. prealarm

High temp. reset

High temp. shutdown

Conf. AI1 type

Conf. AI1 low prealrm

Temp. input type

Oil pressure shutdown

Oil pressure reset

Oil pressure prealarm

Oil press. input type

%

%

0 (dis)

60

0 (dis)

70

Low Temperature Warning

C

Low temp. warning

Conf. AI1 unit

Configurable Analog Input-1 Type

3000

90

0 3000

Conf. AI1 low shutdwn

Conf. AI1 high prealr

0 (dis)

0 - Not Used (Disable)
1 - Digital NC
2 - Digital NO
3 - VDO 120 ºC
4 - VDO 150 ºC
5 - DATCON
6 - MURPHY
7 - PT100
8 - User Configured

0 (dis)

0 - Not Used (Disable)
1 - Digital NC
2 - Digital NO
3 - VDO OHM (10-180)
4 - VDO TUBE (90-0)
5 - US OHM (240-33)
6 - EMS OHM (0-190)
7 - FORD (73-10)
8 - User Configured

0 (dis)

0 (dis)

0 (dis)

0 (dis)

0 (dis)

%

%

0 (dis)

48

Oil Pressure Unit

Oil pressure unit

BARBAR/PSI/KPA

Conf. AI1 high reset

Coolant Temperature Unit

Temperature unit

ºCºC/ºF

4.2.5 Inputs

BAR/PSI/KPA/ºC/ºF/%/Lt

%

Configurable Analog Input-1 Unit

Configurable Analog Input-1
Low Pre-Alarm

Conf. AI1 low reset

Configurable Analog Input-1
Low Reset

Configurable Analog Input-1
Low Shutdown

Configurable Analog Input-1
High Pre-Alarm

Configurable Analog Input-1
High Reset

0 (dis)

0 (dis) 300

Coolant Heater Control On

C

Heater control ON

0

300

Coolant Heater Control Off

C

Heater control OFF

45

DISBL/ENABL DISBL

5

0 9999

Water Pump On Time

Water pump on time

0

9999

Water Pump Off Time

Sec

Water pump off time

5

Sec

49

Note: dis = disable

Configurable Analog Input-2 Type

Conf. AI2 type

Configurable Analog Input-2 Unit

Conf. AI2 unit

0 - Not Used (Disable)
1 - Digital NC
2 - Digital NO
3 - VDO 120 ºC
4 - VDO 150 ºC
5 - DATCON
6 - MURPHY
7 - PT100
8 - User Configured

0 (dis) 300

ºC

0 300

300

Conf. AI2 low prealrm

ºC

ºC

0 (dis)

60

300

90

0 300

Conf. AI2 low shutdwn

Conf. AI2 high prealr

Conf. AI2 high shutd.

0 (dis)

0 (dis)

0 (dis)

0 (dis)

ºC

0 (dis)

Conf. AI2 high reset

BAR/PSI/KPA/ºC/ºF/%/Lt

Configurable Analog Input-2
Low Pre-Alarm

Conf. AI2 low reset

Configurable Analog Input-2
Low Reset

Configurable Analog Input-2
Low Shutdown

Configurable Analog Input-2
High Pre-Alarm

Configurable Analog Input-2
High Reset

0 (dis) 300

0 (dis)

0 (dis)

300

75

300

Conf. AI2 control ON

Conf. AI2 control OFF

0 (dis)

0

Configurable Analog Input-2
High Shutdown

Configurable Analog Input-2
control ON

Configurable Analog Input-2
control OFF

ºC

ºC

ºC

ºC

ºC

0

%

75

Conf. AI1 control OFF

Configurable Analog Input-1
control OFF

3000

0 (dis)

0 (dis) 3000

%

Conf. AI1 control ON

Configurable Analog Input-1
control ON

Conf. AI1 high shutd.

Configurable Analog Input-1
High Shutdown

0 (dis) 3000

%

0 (dis)

Oil Pressure Input Type

This section is used to configure the Oil Pressure sender input.

0 NOT USED: The Oil Pressure input will not be monitored.
1 DIGITAL NC: The Oil pressure input is fed from an engine mounted digital pressure switch. This

switch returns a closed signal during low oil pressure conditions (and engine at rest), once oil pressure
is established the switch will open.
2 DIGITAL NO: The Oil pressure input is fed from an engine mounted digital pressure switch. This
switch returns an open signal during low oil pressure conditions (and engine at rest), once oil pressure
is established the switch will close.
3, 4, 5, 6, 7, 8 and 9: Oil pressure input is connected to a resistive type engine mounted oil pressure
transducer. If this parameter selected as "9 USER CONFIGURED", the user can input the data
manually according to the sensor curve.

Temperature Input Type

This section is used to configure the Coolant Temperature sender input.

0 NOT USED: The Coolant Temperature input will not be monitored.
1 DIGITAL NC: The Coolant Temperature input is fed from an engine mounted digital temperature

switch. This switch returns a closed signal during low temperature, should the temperature rise above
the switch manifacturers trip point the switch contact will open.
2 DIGITAL NO: The Coolant Temperature input is fed from an engine mounted digital temperature
switch. This switch returns an open signal during low temperature, should the temperature rise above
the switch manifacturers trip point the switch contact will close.
3, 4, 5, 6, 7 and 8: The Coolant Temperature input is connected to a resistive type engine mounted
temperature transducer. If this parameter selected as "8 USER CONFIGURED", the user can input the
data manually according to the sensor curve.

Temperature Sensor Break

: The Coolant Temperature sensor break will not be monitored.

ENABLE: The Coolant Temperature sensor break will be monitored if the engine runs at least 3

minutes.

This section is used to configure the sender input.

0 NOT USED: The will not be monitored.
1 DIGITAL NC: open for low .
2 DIGITAL NO: close for low .
3, 4, 5, 6, 7 and 8: The input is connected to a resistive type engine
mounted level/temperature/pressure transducer. If this parameter selected as "8 USER
CONFIGURED", the user can input the data manually according to the sensor curve.

This section is used to configure the sender input.

0 NOT USED: The will not be monitored.
1 DIGITAL NC: open for low .
2 DIGITAL NO: close for low .
3, 4, 5, 6, 7 and 8: The input is connected to a resistive type engine
mounted level/temperature/pressure transducer. If this parameter selected as "8 USER
CONFIGURED", the user can input the data manually according to the sensor curve.

-

-

-

-

-

-

-

-

DISABLE

Configurable Analog Input-1 Type

Configurable Analog Input-1

- Configurable Analog Input-1

- Configurable Analog Input-1

- Configurable Analog Input-1

Configurable Analog Input-1

-

Configurable Analog Input-2 Type

Configurable Analog Input-2

- Configurable Analog Input-2

- Configurable Analog Input-2

- Configurable Analog Input-2

Configurable Analog Input-2

-

50

51

Min

Default

Unit

SENDER LINEARISATION (Inputs->Sender linearisation)

Max

Oil Pressure Sender Point-1

Oil Pressure Sender Point-2

Oil Pressure Sender Point-3

Oil Pressure Sender Point-4

Oil Pressure Sender Point-5

Oil Pressure Sender Point-6

Oil Pressure Sender Point-7

Oil Pressure Sender Point-8

Oil Pressure Sender Point-9

Oil Pressure Sender Point-10

Temperature Sender Point-1

Temperature Sender Point-2

Temperature Sender Point-3

Temperature Sender Point-4

Temperature Sender Point-5

Temperature Sender Point-6

Temperature Sender Point-7

Temperature Sender Point-8

Temperature Sender Point-9

Temperature Sender Point-10

Configurable Analog Input-1 Sender Point-1

Configurable Analog Input-1 Sender Point-2

Configurable Analog Input-1 Sender Point-3

Configurable Analog Input-1 Sender Point-4

Configurable Analog Input-1 Sender Point-5

Oil Pressure Point-1

Oil Pressure Point-2

Oil Pressure Point-3

Oil Pressure Point-4

Oil Pressure Point-5

Oil Pressure Point-6

Oil Pressure Point-7

Oil Pressure Point-8

Oil Pressure Point-9

Oil Pressure Point-10

Temperature Point-1

Temperature Point-2

Temperature Point-3

Temperature Point-4

Temperature Point-5

Temperature Point-6

Temperature Point-7

Temperature Point-8

Temperature Point-9

Temperature Point-10

Configurable Analog Input-1 Point-1

Configurable Analog Input-1 Point-2

Configurable Analog Input-1 Point-3

Configurable Analog Input-1 Point-4

Configurable Analog Input-1 Point-5

15

31

49

66

85

101

117

132

149

178

579

404

342

250

179

136

103

77

67

63

10

30

50

70

90

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

10.0

28

35

40

50

60

70

80

90

95

98

0

11

22

33

44

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

BAR

BAR

BAR

BAR

BAR

BAR

BAR

BAR

BAR

BAR

ºC

ºC

ºC

ºC

ºC

ºC

ºC

ºC

ºC

ºC

%

%

%

%

%

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

30.0

30.0

30.0

30.0

30.0

30.0

30.0

30.0

30.0

30.0

300

300

300

300

300

300

300

300

300

300

3000

3000

3000

3000

3000

Oil pressure sender 1

Oil pressure sender 2

Oil pressure sender 3

Oil pressure sender 4

Oil pressure sender 5

Oil pressure sender 6

Oil pressure sender 7

Oil pressure sender 8

Oil pressure sender 9

Oil pressure sender 10

Temperature sender 1

Temperature sender 2

Temperature sender 3

Temperature sender 4

Temperature sender 5

Temperature sender 6

Temperature sender 7

Temperature sender 8

Temperature sender 9

Temperature sender 10

Conf. AI1 sender 1

Conf. AI1 sender 2

Conf. AI1 sender 3

Conf. AI1 sender 4

Conf. AI1 sender 5

Oil pressure 1

Oil pressure 2

Oil pressure 3

Oil pressure 4

Oil pressure 5

Oil pressure 6

Oil pressure 7

Oil pressure 8

Oil pressure 9

Oil pressure 10

Temperature 1

Temperature 2

Temperature 3

Temperature 4

Temperature 5

Temperature 6

Temperature 7

Temperature 8

Temperature 9

Temperature 10

Conf. AI1 value 1

Conf. AI1 value 2

Conf. AI1 value 3

Conf. AI1 value 4

Conf. AI1 value 5

52

Configurable Analog Input-1 Sender Point-6

Configurable Analog Input-1 Sender Point-7

Configurable Analog Input-1 Sender Point-8

Configurable Analog Input-1 Sender Point-9

Configurable Analog Input-1 Sender Point-10

Configurable Analog Input-1 Point-6

Configurable Analog Input-1 Point-7

Configurable Analog Input-1 Point-8

Configurable Analog Input-1 Point-9

Configurable Analog Input-1 Point-10

110

130

150

170

190

0

0

0

0

0

1300

1300

1300

1300

1300

55

66

77

88

100

0

0

0

0

0

R

R

R

R

R

3000

3000

3000

3000

3000

Conf. AI1 sender 6

Conf. AI1 sender 7

Conf. AI1 sender 8

Conf. AI1 sender 9

Conf. AI1 sender 10

Conf. AI1 value 6

Conf. AI1 value 7

Conf. AI1 value 8

Conf. AI1 value 9

Conf. AI1 value 10

Configurable Analog Input-2 Sender Point-1

Configurable Analog Input-2 Sender Point-2

Configurable Analog Input-2 Sender Point-3

Configurable Analog Input-2 Sender Point-4

Configurable Analog Input-2 Sender Point-5

Configurable Analog Input-2 Sender Point-6

Configurable Analog Input-2 Sender Point-7

Configurable Analog Input-2 Sender Point-8

Configurable Analog Input-2 Sender Point-9

Configurable Analog Input-2 Sender Point-10

Configurable Analog Input-2 Point-1

Configurable Analog Input-2 Point-2

Configurable Analog Input-2 Point-3

Configurable Analog Input-2 Point-4

Configurable Analog Input-2 Point-5

Configurable Analog Input-2 Point-6

Configurable Analog Input-2 Point-7

Configurable Analog Input-2 Point-8

Configurable Analog Input-2 Point-9

Configurable Analog Input-2 Point-10

579

404

342

250

179

136

103

77

67

63

0

0

0

0

0

0

0

0

0

0

1300

1300

1300

1300

1300

1300

1300

1300

1300

1300

28

35

40

50

60

70

80

90

95

98

0

0

0

0

0

0

0

0

0

0

ºC

%

%

%

%

%

ºC

ºC

ºC

ºC

ºC

ºC

ºC

ºC

ºC

R

R

R

R

R

R

R

R

R

R

300

300

300

300

300

300

300

300

300

300

Conf. AI2 sender 1

Conf. AI2 sender 2

Conf. AI2 sender 3

Conf. AI2 sender 4

Conf. AI2 sender 5

Conf. AI2 sender 6

Conf. AI2 sender 7

Conf. AI2 sender 8

Conf. AI2 sender 9

Conf. AI2 sender 10

Conf. AI2 value 1

Conf. AI2 value 2

Conf. AI2 value 3

Conf. AI2 value 4

Conf. AI2 value 5

Conf. AI2 value 6

Conf. AI2 value 7

Conf. AI2 value 8

Conf. AI2 value 9

Conf. AI2 value 10

Min

Default

Unit

CONF. INPUT-1 (Inputs->Conf. input-1)

Max

1

2

20(dis)

10

4

20

0

2500

Sec

0

2

0

26 25

0

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery
25-Emergency Stop
26-Emergency Stop No-Latching

Input active delay

53

Note: dis = disable

Min

Default

Unit

Max

0

2

20(dis)

10

4

20

0

2500

Sec

0

1

0

24 3

5

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery

Input active delay

54

Note: dis = disable

CONF. INPUT-2 (Inputs->Conf. input-2)

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

Min

Default

Unit

Max

1

2

20(dis)

10

4

20

0

2500

Sec

0

1

4

24 4

5

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery

Input active delay

55

Note: dis = disable

CONF. INPUT-3 (Inputs->Conf. input-3)

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

Min

Default

Unit

Max

0

2

20(dis)

10

4

20

0

2500

Sec

0

2

0

26 25

0

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery
25-Low Oil Pressure
26-Low Oil Level

Input active delay

56

Note: dis = disable

CONF. INPUT-4 (Inputs->Conf. input-4)

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

Min

Default

Unit

Max

0

2

20(dis)

10

4

20

0

2500

Sec

0

2

0

25 25

0

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery
25-High Temperature

Input active delay

57

Note: dis = disable

CONF. INPUT-5 (Inputs->Conf. input-5)

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

Min

Default

Unit

Max

0

2

20(dis)

10

4

20

0

2500

Sec

0

1

0

24 7

5

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery

Input active delay

58

Note: dis = disable

CONF. INPUT-6 (Inputs->Conf. input-6)

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

59

Note: dis = disable

Min

Default

Unit

CONF. INPUT-7 (Inputs->Conf. input-7)

Max

30(dis)

10

4

20

0

2500

Sec

0

Input type

Polarity

Indication

Activation

Select from list

Active delay

0- Disable
1- User Configured (Digital)
2- Select From List (Digital)
3- Cabin Temperature (Anolog)

If Input Type is Digital
0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If Input Type is User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If Input Type is User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

Input active delay (If Input Type is Digital)

If Input Type is Select From List

0-Remote Start On Load
1-Remote Start Off Load
2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator
22-Remote Inhibit
23-Being Found Alive
24-Low Battery

3

Cabin temp.low prealr
Cabin temp.low reset
Cabin temp.low shutd.
Cabin temp.high preal
Cabin temp.high reset
Cabin temp.high shutd

5
Cabin temperature low prealarm
Cabin temperature low prealarm reset
Cabin temperature low shutdown
Cabin temperature high prealarm reset
Cabin temperature high prealarm
Cabin temperature high shutdown

100
100
100
100
100
100

ºC
ºC
ºC
ºC
ºC
ºC

dis

0

dis
dis

0

dis

-50(dis)

-50

-50(dis)

-50(dis)

-50

-50(dis)

0

0

2

24 8

Min

Default

Unit

Max

0

2

20(dis)

10

4

20

2

2500

Sec

0

1

0

21 2

5

0- Disable
1- User Configured
2- Select From List

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

If User Configured
0- Status
1- Warning Non-Latching
2- Warning Latching
3- Electrical Trip
4- Shutdown

If User Configured
0- Active From Starting
1- Active From Safety On
2- Always Active

If Select From List

2-Auxiliary Mains Fail
3-Simulate Lamp Test Button
4-Simulate Horn Reset Button
5-Simulate Alarm Reset Button
6-Simulate Auto Button
7-Simulate Test Button
8-Simulate Manual Button
9-Simulate Start Button
10-Simulate Stop Button
11-Generator Closed Auxiliary
12-Generator Load Inhibit
13-Mains Closed Auxiliary
14-Mains Load Inhibit
15-Auto Restore Inhibit
16-Auto Start Inhibit
17-Panel Lock
18-Scheduled Runs(Exercise) Inhibited
19-Priority Select
20-Transfer To Generator/Open Mains
21-Transfer To Mains/Open Generator

Input active delay

010

0-> -Ve (Switched To Battery -)
1-> +Ve (Switched To Battery +)

60

Min

Default

Unit

CONF. EXP. INPUT-2 (Inputs->Conf. exp. input-2)

Max

0

2

2

0(dis)

10

4
2

0
2

2500

Sec

0

1

0

2

5

Dis,user conf.or list

Polarity
Indication
Activation
Select from list
Active delay

The same as Expansion Config. Input-1 options

Input active delay

21

The same as Expansion Config. Input-1 options
The same as Expansion Config. Input-1 options
The same as Expansion Config. Input-1 options
The same as Expansion Config. Input-1 options

010

Hardware type

The same as Expansion Config. Input-1 options

CONF. EXP. INPUT-1 (Inputs->Conf. exp. input-1)

Dis,user conf.or list

Polarity

Indication

Activation

Select from list

Active delay

Hardware type

Min

Default

Unit

CONF. EXP. INPUT-3 (Inputs->Conf. exp. input-3)

Max

0

2

2

0(dis)

10

4
2

0
2

2500

Sec

0

1

0

2

5

Dis,user conf.or list

Polarity
Indication
Activation
Select from list
Active delay

The same as Expansion Config. Input-1 options

Input active delay

21

The same as Expansion Config. Input-1 options
The same as Expansion Config. Input-1 options
The same as Expansion Config. Input-1 options
The same as Expansion Config. Input-1 options

010

Hardware type

The same as Expansion Config. Input-1 options

61

Note: dis = disable

Min

Min

Min

Min

Min

Default

Default

Default

Default

Default

Unit

Unit

Unit

Unit

Unit

CONF. EXP. INPUT-4 (Inputs->Conf. exp. input-4)

CONF. EXP. INPUT-5 (Inputs->Conf. exp. input-5)

CONF. EXP. INPUT-6 (Inputs->Conf. exp. input-6)

CONF. EXP. INPUT-7 (Inputs->Conf. exp. input-7)

CONF. EXP. INPUT-8 (Inputs->Conf. exp. input-8)

Max

Max

Max

Max

Max

0

0

0

0

0

2

2

2

2

2

2

2

2

2

2

0(dis)

0(dis)

0(dis)

0(dis)

0(dis)

1

1

1

1

1

0

0

0

0

0

4

4

4

4

4

2

2

2

2

2

0

0

0

0

0

2

2

2

2

2

250

250

250

250

250

0

0

0

0

0

Sec

Sec

Sec

Sec

Sec

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

2

2

2

2

2

5

5

5

5

5

Dis,user conf.or list

Dis,user conf.or list

Dis,user conf.or list

Dis,user conf.or list

Dis,user conf.or list

Polarity

Polarity

Polarity

Polarity

Polarity

Indication

Indication

Indication

Indication

Indication

Activation

Activation

Activation

Activation

Activation

Select from list

Select from list

Select from list

Select from list

Select from list

Active delay

Active delay

Active delay

Active delay

Active delay

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

Input active delay

Input active delay

Input active delay

Input active delay

Input active delay

21

21

21

21

21

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

Hardware type

Hardware type

Hardware type

Hardware type

Hardware type

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

The same as Expansion Config. Input-1 options

CONFIGURABLE INPUTS SELECTIONS

0 REMOTE START ON LOAD

In AUTO mode, if one of the configurable inputs are selected as 0 (Remote Start On Load), the unit doesn't
perform the mains failure control in order to start the generator. In AUTO mode, if one of the configurable inputs
are selected as 0 (Remote Start On Load) and this input is active, then the unit will perform the start sequence
and transfer load to the generator. If the input is passive, the unit will perform the stop sequence.

1 REMOTE START OFF LOAD

If this input is active, operation will be similar to the ‘Remote Start On Load’ function except that the generator will
not be instructed to take the load. This function can be used where an engine only run is required e.g. for
exercise.

2 AUXILIARY MAINS FAIL

The unit will monitor the incoming single or three phase supply for Over Voltage, Under Voltage, Over Frequency
or Under Frequency. It may be required to monitor a different mains supply or some aspect of the incoming
mains not monitored by the unit. If the devices providing this additional monitoring are connected to operate this
input, the unit will operate as if the incoming mains supply has fallen outside of limits, the generator will be
instructed to start and take load. Removal of the input signal will cause the unit to act if the mains has returned to
within limits.

3 SIMULATE LAMP TEST BUTTON

This input mimic's the operation of the 'Lamp Test' button and is used to provide a remotely located Lamp Test
push button.

4 SIMULATE HORN RESET BUTTON

This input mimic's the operation of the 'Horn Reset' button and is used to provide a remotely located Horn Reset
push button.

5 SIMULATE ALARM RESET BUTTON

This input mimic's the operation of the 'Alarm Reset' button and is used to provide a remotely located Alarm
Reset push button.

6 SIMULATE AUTO BUTTON

This input mimic's the operation of the 'Auto' button and is used to provide a remotely located Auto mode push
button.

7 SIMULATE TEST BUTTON

This input mimic's the operation of the 'Test' button and is used to provide a remotely located Test mode push
button.

8 SIMULATE MANUAL BUTTON

This input mimic's the operation of the 'Manual' button and is used to provide a remotely located Manual mode
push button.

9 SIMULATE START BUTTON

This input mimic's the operation of the 'Start' button and is used to provide a remotely located start push button.

10 SIMULATE STOP BUTTON

This input mimic's the operation of the 'Stop' button and is used to provide a remotely located Stop push button.

11 GENERATOR CLOSED AUXILIARY

This input is used to provide feedback to allow the unit to give true indication of the contactor or circuit breaker
switching status. It should be connected to the generator load switching device auxiliary contact.

12 GENERATOR LOAD INHIBIT

This input is used to prevent the unit from loading the generator. If the generator is already on load, activating
this input will cause the unit to unload the generator. Removing the input will allow the generator to be loaded
again. Note: This input only operates to control the generator-switching device if the unit load switching logic is
attempting load the generator. It will not control the generator-switching device when the mains is on load.

13 MAINS CLOSED AUXILIARY

This input is used to provide feedback to allow the unit to give true indication of the contactor or circuit breaker
switching status. It should be connected to the generator load switching device auxiliary contact.

62

14 MAINS LOAD INHIBIT

This input is used to prevent the unit from loading the mains supply. If the manis supply is already on load,
activating this input will cause the unit to unload the mains supply. Removing the input will allow the mains to be
loaded again. Note: This input only operates to control the mains-switching device if the unit load switching logic
is attempting to load the mains. It will not control the mains-switching device when the generator is on load.

15 AUTO RESTORE INHIBIT

When module in the AUTO mode. In the event of a remote start or mains failure, the generator will be instructed
to start and take load. On removal of the remote start signal or mains return, the module will continue to run the
generator on load until this AUTO RESTORE INHIBIT input is removed. Once the input is removed the unit will
transfer the load back to the mains supply and follow a normal generator stop sequence. This input allows the
module to be fitted as part of a system where the manual restoration to mains is controlled remotely or by an
automated system.

16 AUTO START INHIBIT

This input is used to provide an over-ride function to prevent the unit from starting the generator in the event of a
remote start or mains out of limits condition occurring. If this input is active and a remote start signal or mains
failure occurs the unit will not give a start command to the generator. If this input signal is then removed, the unit
will operate as if a remote start or mains failure has occurred, starting and loading the generator. This function
can be used to give an 'AND' function so that a generator will only be called to start if the mains fails and another
condition exists whish requires the generator to run. If the 'Auto Start Inhibit' signal become active once more it
will be ignored until the unit has returned the mains supply on load and shutdown.

17 PANEL LOCK

This input is used to provide security to the installation. If the panel lock input is active, the unit will not respond to
operation of the mode select or start buttons. This allows the unit to be placed into a spesific mode (such as
Auto) and than secured. The operation of the unit is not affected and the operator will still be able to view the
various instrumentation pages etc. Note: External control sources (i.e. Simulate Start Button) are not affected by
the panel lock input and will continue to operate normally.

18 SCHEDULED RUNS(EXERCISE) INHIBITED

This input is used to prevent the generator for starting in the event of a programmed scheduled (exercise) run
occurring. While the input is active no scheduled runs will occur. If the input is active when a schedule run is
called for, and is removed during the running period the gen-set will start and complete any remaining scheduled
running time.

19 PRIORITY SELECT

This input is used to determine the generator that is working at dual set application.

20 TRANSFER TO GENERATOR/OPEN MAINS

This input is used to transfer the load to the generator when running in Manual mode.

21 TRANSFER TO MAINS/OPEN GENERATOR

This input is used to transfer the load to the mains supply when running in Manual mode.

22 REMOTE INHIBIT

In AUTO mode, if one of the configurable inputs are selected as 22 (Remote Inhibit) and this input is active, the
module will inhibit the generator for starting. In the other hand, if this input is active while the generator was
starting, the module will stop the generator.

23 BEING FOUND ALIVE

When this input is active, controlling the engine remotely is not possible.

24 LOW BATTERY

If this input is active when the unit is in AUTO mode and if mains is not okay, t

.

25 EMERGENCY STOP (FOR CONFIGURABLE INPUT-1)

This input is used as the emergency stop input.

25 LOW OIL PRESSURE (FOR CONFIGURABLE INPUT-4)

This input is used as the oil pressure failure input. It will be checked while starting or stopping attempts.

25 HIGH TEMPERATURE (FOR CONFIGURABLE INPUT-5)

This input is used as the temperature failure input.

26-LOW OIL LEVEL (FOR CONFIGURABLE INPUT-4)

This input is used as the oil pressure failure input. It won’t be checked while starting or stopping attemps.

26 EMERGENCY STOP NO-LATCHING (FOR CONFIGURABLE INPUT-1)

This input is used as the non-latching emergency stop input.

he unit will perform the start

sequence and transfer load to the generator

63

Min

Default

Unit

CONF. OUTPUT-1 (Outputs->Conf. output-1)

Max

010

1310 43

Polarity

Function

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

64

4.2.6 Outputs

0-NOT USED
1-AIR FLAP CONTROL
2-ALARM RESET
3-AUDIBLE ALARM
4-AUTO START INHIBIT
5-AUXILIARY MAINS FAILURE
6-BATTERY HIGH VOLTAGE
7-BATTERY LOW VOLTAGE
8-CALLING FOR SCHEDULED RUN(EXERCISE)
9-CAN ECU POWER
10-CAN ECU STOP
11-CHARGE ALTERNATOR FAILURE
12-COMMON ALARM
13-COMMON ELECTRICAL TRIP ALARM
14-COMMON SHUTDOWN ALARM
15-COMMON WARNING ALARM
16-COOLING FAN AFTER START
17-COOLING FAN AFTER STOP
18-COOLANT TEMPERATURE HIGH PRE-ALARM
19-COOLANT TEMPERATURE HIGH SHUTDOWN
20-COOLING DOWN TIMER IN PROGRESS
21-CRANK RELAY ENERGISED
22-DELAYED ALARMS ACTIVE
23-DIGITAL INPUT1 ALARM
24-DIGITAL INPUT2 ALARM
25-DIGITAL INPUT3 ALARM
26-DIGITAL INPUT4 ALARM
27-DIGITAL INPUT5 ALARM
28-DIGITAL INPUT6 ALARM
29-DIGITAL INPUT7 ALARM
30-EXPANSION INPUT1 ALARM
31-EXPANSION INPUT2 ALARM
32-EXPANSION INPUT3 ALARM
33-EXPANSION INPUT4 ALARM
34-EXPANSION INPUT5 ALARM
35-EXPANSION INPUT6 ALARM
36-EXPANSION INPUT7 ALARM
37-EXPANSION INPUT8 ALARM
38-EARTH FAULT
39-EMERGENCY STOP
40-FAIL TO START ALARM
41-FAIL TO STOP ALARM
42-CONF. AI1 CONTROL
43-FUEL RELAY ENERGISED
44-GAS ENGINE IGNITION OUTPUT
45-GENERATOR AT REST
46-GENERATOR AVAILABLE
47-GENERATOR CLOSED AUXILIARY
48-GENERATOR FAILED TO CLOSE
49-GENERATOR FAILED TO OPEN
50-GENERATOR HIGH FREQUENCY PRE-ALARM
51-GENERATOR HIGH FREQUENCY SHUTDOWN
52-GENERATOR HIGH VOLTAGE PRE-ALARM
53-GENERATOR HIGH VOLTAGE SHUTDOWN
54-GENERATOR LOAD INHIBIT
55-GENERATOR LOW FREQUENCY PRE-ALARM
56-GENERATOR LOW FREQUENCY SHUTDOWN
57-GENERATOR LOW VOLTAGE PRE-ALARM
58-GENERATOR LOW VOLTAGE SHUTDOWN
59-GENERATOR STOPPING
60-GENERATOR OPEN BREAKER
61-HORN OUTPUT LATCHED
62-HORN OUTPUT PULSED
63-LAMP TEST
64-CONF. AI2 CONTROL
65-LOSS OF MAGNETIC PICK-UP SPEED SIGNAL
66-LOW TEMPERATURE
67-MAINTENANCE DUE ALARM
68-MAINS CLOSED AUXILIARY
69-MAINS FAILED TO CLOSE
70-MAINS FAILED TO OPEN
71-MAINS FAILURE
72-MAINS HIGH FREQUENCY
73-MAINS HIGH VOLTAGE
74-MAINS LOAD INHIBIT
75-MAINS LOW FREQUENCY
76-MAINS LOW VOLTAGE
77-MAINS OPEN BREAKER
78-NO LOADING COMMAND
79-OIL PRESSURE LOW PRE-ALARM
80-OIL PRESSURE LOW SHUTDOWN
81-CONF.AI1.HIGH PREA
82-CONF.AI1.HIGH SHUT
83-OVER CURRENT PRE-ALARM
84-OVER CURRENT
85-OVER POWER PRE-ALARM
86-OVER POWER SHUTDOWN
87-OVERSPEED PRE-ALARM
88-OVERSPEED SHUTDOWN
89-PANEL LOCK
90-PRE-HEAT(during preheat timer)
91-PRE-HEAT(until end of cranking)
92-PRE-HEAT(until end of warming)
93-PRE-HEAT(until end safety on)
94-REMOTE START PRESENT
95-REMOTE STOP DELAY IN PROGRESS
96-SHORT CIRCUIT
97-SMOKE LIMITING
98-STARTING ALARM
99-STARTING ALARMS ARMED
100-STOP RELAY ENERGISED
101-SYSTEM IN AUTO MODE
102-SYSTEM IN MANUAL MODE
103-SYSTEM IN STOP MODE
104-SYSTEM IN TEST MODE
105-UNDER CURRENT PRE-ALARM
106-UNDER CURRENT
107-UNDER POWER PRE-ALARM
108-UNDER POWER SHUTDOWN
109-UNDERSPEED PRE-ALARM
110-UNDERSPEED SHUTDOWN
111-WAITING FOR GENERATOR
112-DUAL COMMUNICATION ERROR
113-LOAD SUPPLY FROM GENERATOR
114-LOAD SUPPLY FROM MAINS
115-CONFIGURABLE ANALOG INPUT 1 LOW PRE-ALARM
116- CONFIGURABLE ANALOG INPUT 1 LOW SHUTDOWN
117-CONFIGURABLE ANALOG INPUT 2 LOW PRE-ALARM
118-CONFIGURABLE ANALOG INPUT 2 LOW SHUTDOWN
119-CONFIGURABLE ANALOG INPUT 2 HIGH PRE-ALARM
120-CONFIGURABLE ANALOG INPUT 2 HIGH SHUTDOWN
121-CHOKE ACTIVE
122-REMOTE CONTROL ACTIVE
123-REVERSE POWER
124-CABIN TEMPERATURE LOW PRE-ALARM
125-CABIN TEMPERATURE LOW SHUTDOWN
126-CABIN TEMPERATURE HIGH PRE-ALARM
127-CABIN TEMPERATURE HIGH SHUTDOWN
128-HEATER CONTROL
129-REMOTE OUTPUT
130-UNBALANCE LOAD
131-WATER PUMP

65

Min

Min

Min

Min

Min

Min

Min

Min

Min

Min

Min

Default

Default

Default

Default

Default

Default

Default

Default

Default

Default

Default

Unit

Unit

Unit

Unit

Unit

Unit

Unit

Unit

Unit

Unit

Unit

Max

Max

Max

Max

Max

Max

Max

Max

Max

Max

Max

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

131

131

131

131

131

131

131

131

131

131

131

0

0

0

0

0

0

0

0

0

0

0

21

62

9

10

12

12

12

12

12

12

12

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

The same as Configurable Output-1 options

CONF. OUTPUT-2 (Outputs->Conf. output-2)

CONF. OUTPUT-3 (Outputs->Conf. output-3)

CONF. OUTPUT-4 (Outputs->Conf. output-4)

CONF. OUTPUT-5 (Outputs->Conf. output-5)

CONF. OUTPUT-6 (Outputs->Conf. output-6)

CONF. EXP. OUTPUT-1 (Outputs->Conf. exp. output-1)

CONF. EXP. OUTPUT-2 (Outputs->Conf. exp. output-2)

CONF. EXP. OUTPUT-3 (Outputs->Conf. exp. output-3)

CONF. EXP. OUTPUT-4 (Outputs->Conf. exp. output-4)

CONF. EXP. OUTPUT-5 (Outputs->Conf. exp. output-5)

CONF. EXP. OUTPUT-6 (Outputs->Conf. exp. output-6)

Polarity

Polarity

Polarity

Polarity

Polarity

Polarity

Polarity

Polarity

Polarity

Polarity

Polarity

Function

Function

Function

Function

Function

Function

Function

Function

Function

Function

Function

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

66

Min

Min

Default

Default

Unit

Unit

Max

Max

0

0

1

1

0

0

131

131

0

0

12

12

The same as Configurable Output-1 options

The same as Configurable Output-1 options

CONF. EXP. OUTPUT-7 (Outputs->Conf. exp. output-7)

CONF. EXP. OUTPUT-8 (Outputs->Conf. exp. output-8)

Polarity

Polarity

Function

Function

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

0- Normally Open (Close To Activate)
1- Normally Close (Open To Activate)

CONFIGURABLE OUTPUTS SELECTIONS

0 NOT USED

Output is not used

1 AIR FLAP CONTROL

Normally used to control an air flap, this output becomes active upon an Engine shutdown failure situation.
Inactive when the set has come to rest.

2 ALARM RESET

The output indicates that an alarm reset being performed. Once the alarm reset has been completed, the output
become inactive again. The output could be used to give an external reset signal to external systems.

3 AUDIBLE ALARM

The output indicates that the internal sounder is operating. It may be use for external sounder.

4 AUTO START INHIBIT

This output indicates that a digital input that has been configured as 'auto start inhibit' is active.

5 AUXILIARY MAINS FAILURE

This output indicates that a digital input that has been configured as 'auxiliary mains failure' is active.

6 BATTERY HIGH VOLTAGE

This output indicates that a battery high voltage alarm has occurred.

7 BATTERY LOW VOLTAGE

This output indicates that a battery low voltage alarm has occurred.

8 CALLING FOR SCHEDULED RUN(EXERCISE)

This output indicates that a scheduled run(exercise) has been called for. If the unit is in the 'auto' and mains
okay, the unit will change mode to 'test' and the generator will run if no shutdown alarms are present.

9 CAN ECU POWER

This output normally used to turn on the ECU (sometimes via an external slave relay). Some engine ECUs are
permanently powered in which case the ECU Power output is used to give input to a Run (or similarly named)
input on the ECU.

10 CAN ECU STOP

This output used to give input to a Stop (or similarly named) input on the ECU. This is used as a backup stop
system should the ECU Data link fail. In this instance, it is not possible to stop the engine using a data command
as the link is not operative. As a backup, the STOP signal is given to the engine via a separate hardwired
connection.

11 CHARGE ALTERNATOR FAILURE

This output indicates that a charging alternator failure has occurred.

12 COMMON ALARM

This output indicates that a warning, electrical trip or shutdown alarm has been activated.

13 COMMON ELECTRICAL TRIP ALARM

This output indicates that an electrical trip alarm has been activated. This output can only be reset by removal of
the fault and by then pressing the RESET button.

14 COMMON SHUTDOWN ALARM

This output indicates that a shutdown alarm has been activated. This output can only be reset by removal of the
fault and by then pressing the RESET button or by using an external 'alarm reset' input.

67

15 COMMON WARNING ALARM

This output indicates that a warning alarm has been activated. This output is normally self-resetting on removal
of the fault.

16 COOLING FAN AFTER START

This output should energise as soon as engine has started so the fan should be running when the engine is
running. This output should continue to operate for Cooling Fan Time parameter after engine has stopped.

17 COOLING FAN AFTER STOP

This output indicates that can be made to energise for Cooling Fan Time parameter after the engine shuts down
(to run an electric cooling fan on the radiator).

18 COOLANT TEMPERATURE HIGH PRE-ALARM

This output indicates that a high engine coolant temperature warning (pre-alarm) has occurred.

19 COOLANT TEMPERATURE HIGH SHUTDOWN

This output indicates that a high engine coolant temperature shutdown has occurred.

20 COOLING DOWN TIMER IN PROGRESS

This output source will be active when the cooling off-load timer is running.

21 CRANK RELAY ENERGISED

The output mimics the operation of the crank relay. Can be used to control external logic circuitry.

22 DELAYED ALARMS ACTIVE

The output indicates that the delayed alarms now enabled. Can be used to control external logic circuitry.

23 DIGITAL INPUT1 ALARM

This output indicates that digital input 1 alarm has occurred.

24 DIGITAL INPUT2 ALARM

This output indicates that digital input 2 alarm has occurred.

25 DIGITAL INPUT3 ALARM

This output indicates that digital input 3 alarm has occurred.

26 DIGITAL INPUT4 ALARM

This output indicates that digital input 4 alarm has occurred.

27 DIGITAL INPUT5 ALARM

This output indicates that digital input 5 alarm has occurred.

28 DIGITAL INPUT6 ALARM

This output indicates that digital input 6 alarm has occurred.

29 DIGITAL INPUT7 ALARM

This output indicates that digital input 7 alarm has occurred.

30 EXPANSION CONFIGURABLE INPUT1 ALARM

This output indicates that expansion configurable input 1 alarm has occurred.

31 EXPANSION CONFIGURABLE INPUT2 ALARM

This output indicates that expansion configurable input 2 alarm has occurred.

32 EXPANSION CONFIGURABLE INPUT3 ALARM

This output indicates that expansion configurable input 3 alarm has occurred.

33 EXPANSION CONFIGURABLE INPUT4 ALARM

This output indicates that expansion configurable input 4 alarm has occurred.

34 EXPANSION CONFIGURABLE INPUT5 ALARM

This output indicates that expansion configurable input 5 alarm has occurred.

35 EXPANSION CONFIGURABLE INPUT6 ALARM

This output indicates that expansion configurable input 6 alarm has occurred.

36 EXPANSION CONFIGURABLE INPUT7 ALARM

This output indicates that expansion configurable input 7 alarm has occurred.

68

37 EXPANSION CONFIGURABLE INPUT8 ALARM

This output indicates that expansion configurable input 8 alarm has occurred.

38 EARTH FAULT

This output indicates that the unit has detected that an earth fault exists on the generator output.

39 EMERGENCY STOP

This output indicates that an emergency stop alarm has occurred.

40 FAIL TO START ALARM

This output indicates that the engine has not started after the specified number of attempts.

41 FAIL TO STOP ALARM

This output indicates that the generator has failed to stop within the selected time

42 CONFIGURABLE ANALOG INPUT-1 CONTROL

Becomes active when the Analog Input-1 falls below the "ANALOG INPUT-1 ON" setting. If the output is already
active it will become inactive when the Analog Input-1 is above the “ANALOG INPUT-1 OFF" setting.

43 FUEL RELAY ENERGISED

The output mimics the operation of the fuel relay. It can be used to control external logic circuitry.

44 GAS ENGINE IGNITION OUTPUT

With the engaging of the starter the ignition delay is started. If the ‘minimum ignition speed’ is reached after
expiry of this time, the configurable relay output ‘ignition’ is set. When the necessary engine shutdown process,
firstly gas valve is de-energised. Then ignition output is de-energised that after 5 seconds when the engine
speed become lower than ‘minimum ignition speed’

45 GENERATOR AT REST

The output indicates that the generator is not running.

46 GENERATOR AVAILABLE

This output indicates when the generator is ready to accept load, i.e. after safety on and warm up timers have
timed out.

47 GENERATOR CLOSED AUXILIARY

This output indicates that a digital input that has been configured as 'generator closed auxiliary' is active.

48 GENERATOR FAILED TO CLOSE

This output source has intended to be used to indicate a failure of the generator contactor or breaker. It can only
be used if the unit is configured to use 'generator closed auxiliary' feedback.

49 GENERATOR FAILED TO OPEN

This output source has intended to be used to indicate a failure of the generator contactor or breaker. It can only
be used if the unit is configured to use 'generator closed auxiliary' feedback.

50 GENERATOR HIGH FREQUENCY PRE-ALARM

This output indicates that a generator high frequency warning (pre-alarm) has occurred.

51 GENERATOR HIGH FREQUENCY SHUTDOWN

This output indicates that a generator high frequency shutdown has occurred.

52 GENERATOR HIGH VOLTAGE PRE-ALARM

This output indicates that a generator high voltage warning (pre-alarm) has occurred.

53 GENERATOR HIGH VOLTAGE SHUTDOWN

This output indicates that a generator high voltage shutdown has occurred.

54 GENERATOR LOAD INHIBIT

This output indicates that a digital input has been configured as 'generator load inhibit' is active.

55 GENERATOR LOW FREQUENCY PRE-ALARM

This output indicates that a generator low frequency warning (pre-alarm) has occurred.

56 GENERATOR LOW FREQUENCY SHUTDOWN

This output indicates that a generator low frequency shutdown has occurred.

69

57 GENERATOR LOW VOLTAGE PRE-ALARM

This output indicates that a generator low voltage warning (pre-alarm) has occurred.

58 GENERATOR LOW VOLTAGE SHUTDOWN

This output indicates that a generator low voltage shutdown has occurred.

59 GENERATOR STOPPING

This output indicates that the engine has been instructed to stop but has not come to rest.

60 GENERATOR OPEN BREAKER

This output used to control the load switching device. For Details see: "BREAKERS Page" section.

61 HORN OUTPUT LATCHED

This output indicates that the latched horn alarm has occurred.

62 HORN OUTPUT PULSED

This output indicates that the pulsed horn alarm has occurred.

63 LAMP TEST

This output indicates that the module is performing a lamp test. Once the lamp test completed, the output will
become inactive again. The output can be used to feed a lamp test on external modules or panel lamps.

64 CONFIGURABLE ANALOG INPUT-2 CONTROL

Becomes active when the Analog Input-2 falls below the "ANALOG INPUT-2 ON" setting. If the output is already
active it will become inactive when the Analog Input-2 is above the “ANALOG INPUT-2 OFF" setting.

65 LOSS OF MAGNETIC PICK-UP SPEED SIGNAL

This output indicates that the magnetic pick up signal is not sufficient to be used by the unit for speed monitoring.
The alarm can only operate if the speed signal fails to appearduring cranking. It is disabled if ‘multiple attempts to
engage’ is selected. If the MPU fails during engine running this would result in an under speed alarm.

66 LOW TEMPERATURE

This output indicates that a low temperature warning has occurred.

67 MAINTENANCE DUE ALARM

This output indicates that the generator is now due for maintenance either because it has used all the available
running hours or the periodic maintenance time has expired. To clear the output a maintenance reset must be
performed.

68 MAINS CLOSED AUXILIARY

This output indicates that a digital input that has been configured as 'mains closed auxiliary' is active.

69 MAINS FAILED TO CLOSE

This output source has intended to be used to indicate a failure of the mains contactor or breaker. It can only be
used if the unit is configured to use 'mains closed auxiliary' feedback.

70 MAINS FAILED TO OPEN

This output source has intended to be used to indicate a failure of the mains contactor or breaker. It can only be
used if the unit is configured to use 'mains closed auxiliary' feedback.

71 MAINS FAILURE

This output indicates that the unit has sensed that a failure of the incoming AC mains supply. This output will
become active whenever the mains voltage or frequency goes out of limits, or if the auxiliary mains failure input
active (if used) and the mains transient timer has expired.

72 MAINS HIGH FREQUENCY

This output indicates that the unit has sensed that the incoming AC mains supply frequency has exceeded the
frequency limit setting.

73 MAINS HIGH VOLTAGE

This output indicates that the unit has sensed that the incoming AC mains supply voltage has exceeded the
voltage limit setting.

74 MAINS LOAD INHIBIT

This output indicates that a digital input has been configured as 'mains load inhibit' is active.

70

75 MAINS LOW FREQUENCY

This output indicates that the unit has sensed that the incoming AC mains supply frequency has fallen below the
frequency setting.

76 MAINS LOW VOLTAGE

This output indicates that the unit has sensed that the incoming AC mains supply voltage has fallen below the
voltage limit setting.

77 MAINS OPEN BREAKER

This output used to control the load switching device. For Details see: "BREAKERS Page" section.

78 NO LOADING COMMAND

This output indicates that the unit is not calling of the generator contactor or breaker to be closed. Should the unit
close the generator contactor this output will become inactive.

79 OIL PRESSURE LOW PRE-ALARM

This output indicates that a low oil pressure warning (pre-alarm) has occurred.

80 OIL PRESSURE LOW SHUTDOWN

This output indicates that a low oil pressure shutdown has occurred.

81 CONFIGURABLE ANALOG INPUT-1 HIGH PRE-ALARM

This output indicates that a high analog input-1 warning (pre-alarm) has occurred.

82 CONFIGURABLE ANALOG INPUT-1 HIGH SHUTDOWN

This output indicates that a high analog input-1 shutdown has occurred.

83 OVER CURRENT PRE-ALARM

This output indicates that the over current pre-alarm has been reached.

84 OVER CURRENT ALARM

This output indicates that the over current trip level has been reached.

85 OVER POWER PRE-ALARM

This output indicates that the over power pre-alarm has been reached.

86 OVER POWER SHUTDOWN

This output indicates that the over power shutdown has been reached.

87 OVER SPEED PRE-ALARM

This output indicates that the over speed warning (pre-alarm) has occurred.

88 OVER SPEED SHUTDOWN

This output indicates that the over speed shutdown has occurred.

89 PANEL LOCK

This output indicates that the unit ‘panel lock’ is active. If the panel lock input is active, the unit will not respond to
operation of the Mode select or start buttons. This allows the unit to be placed into a specific mode (such as
auto) and then secured.

90 PRE-HEAT(during preheat timer)

The output controls the pre-heater. Pre-heat output is available for the duration of pre-heat timer, which
terminates prior to cranking.

91 PRE-HEAT(until end of cranking)

The output controls the pre-heater. As 'Pre-heat (during pre-heat timer)' mode but pre-heat is also available
during cranking.

92 PRE-HEAT(until end of warming)

The output controls the pre-heater. As 'Pre-heat (until safety on)' but pre-heat continues to be available until the
warm-up timer has elapsed.

93 PRE-HEAT(until end safety on)

The output controls the pre-heater. As 'Pre-heat (until end of cranking)' but pre-heat is also available while
waiting for the delayed alarms to become active.

94 REMOTE START PRESENT

This output indicates that a digital input that has been configured as 'remote start' is active. This output could be
used to pass the remote start signal on to else where in the control system.

95 REMOTE STOP DELAY IN PROGRESS

This output source will be active to indicate that the return timer is running.

96 SHORT CIRCUIT

This output indicates that the module has detected a short circuit on the generator output.

97 SMOKE LIMITING

This output is used to supply a smoke-limiting signal to an Electronic Governor to limit smoke emissions on start­up. It is used in conjunction with the Smoke limit timer (Idle mode timer) settings. Once the timer has expired, the
Smoke limit output will cease to operate allowing the engine to accelerate to normal running speed.

98 STARTING ALARM

This output is used to supply an external sounder with a signal that the engine is about to start. The output will be
active during the start delay and pre-heat timer (if used).

99 STARTING ALARMS ARMED

The output indicates that the starting alarms are now enabled. It can be used to control external logic circuitry.
Starting alarms are armed as soon as the unit commences starting of the engine and remain armed until the
engine at rest.

100 STOP RELAY ENERGISED

The output mimics the operation of the stop relay. Can be used to control external logic circuitry.

101 SYSTEM IN AUTO MODE

The output indicates that the unit is in the Auto mode.

102 SYSTEM IN MANUAL MODE

The output indicates that the unit is in the Manual mode.

103 SYSTEM IN STOP MODE

The output indicates that the unit is in the Stop mode.

104 SYSTEM IN TEST MODE

The output indicates that the unit is in the Test mode.

105 UNDER CURRENT PRE-ALARM

This output indicates that the under current pre-alarm has been reached.

106 UNDER CURRENT ALARM

This output indicates that the under current trip level has been reached.

107 UNDER POWER PRE-ALARM

This output indicates that the under power pre-alarm has been reached.

108 UNDER POWER SHUTDOWN

This output indicates that the under power shutdown has been reached.

109 UNDER SPEED PRE-ALARM

This output indicates that an under speed warning (pre-alarm) has occurred.

110 UNDER SPEED SHUTDOWN

This output indicates that an under speed shutdown has occurred.

111 WAITING FOR GENERATOR

This output indicates that the engine has been instructed to start but has not yet become available. Once the
generator becomes available this output will be in-active.

112 DUAL COMMUNICATION ERROR

This output indicates that an dual communication alarm has occurred.

113 LOAD SUPPLY FROM GENERATOR

This output indicates that the load is supplying from generator.

71

114 LOAD SUPPLY FROM MAINS

This output indicates that the load is supplying from mains.

115 CONFIGURABLE ANALOG INPUT-1 LOW PRE-ALARM

This output indicates that a low configurable analog input-1 warning (pre-alarm) has occurred.

116 CONFIGURABLE ANALOG INPUT-1 LOW SHUTDOWN

This output indicates that a low analog input-1 shutdown has occurred.

117 CONFIGURABLE ANALOG INPUT-2 LOW PRE-ALARM

This output indicates that a low configurable analog input-1 warning (pre-alarm) has occurred.

118 CONFIGURABLE ANALOG INPUT-2 LOW SHUTDOWN

This output indicates that a low analog input-2 shutdown has occurred.

119 CONFIGURABLE ANALOG INPUT-2 HIGH PRE-ALARM

This output indicates that a high analog input-2 warning (pre-alarm) has occurred.

120 CONFIGURABLE ANALOG INPUT-2 HIGH SHUTDOWN

This output indicates that a high analog input-2 shutdown has occurred.

121 CHOKE ACTIVE

This ouput becomes active everytime generator cranks and stays active until the choke time expires.

122 REMOTE CONTROL ACTIVE

This output indicates that the engine is being controlled remotely.

123 REVERSE POWER

This ouput becomes active when generator’s active power drops below the Reverse Power Set value.

124 CABIN TEMPERATURE LOW PRE-ALARM

This output indicates that a low cabin temperature warning (pre-alarm) has occurred.

125 CABIN TEMPERATURE LOW SHUTDOWN

This output indicates that a low cabin temperature shutdown has occurred.

126 CABIN TEMPERATURE HIGH PRE-ALARM

This output indicates that a high cabin temperature warning (pre-alarm) has occurred.

127 CABIN TEMPERATURE HIGH SHUTDOWN

This output indicates that a high cabin temperature shutdown has occurred.

128 HEATER CONTROL

Becomes active when the Coolant Temperature falls below the "Heater control ON" setting. If the output is
already active it will become inactive when the Coolant Temperature is above the “Heater control OFF" setting.

129 REMOTE OUTPUT

This output indicates that the output can be energised or de-energised remotely.

130 UNBALANCE LOAD

This output indicates “out of balance” current loading of the generator.
Sometimes also called Negative Sequence Current or Symmetry Fault.

131 WATER PUMP

This output becomes active for the “Water pump on time” parameter and passive for the “Water pump off time”
parameter while the "Heater control output" was active.

72

Min

Default

START TIMERS (Timers->Start timers)

Max

Mains Transient Delay

Remote Start Delay

Pre-Heat

2.0

Pre-Heat Bypass

0.0 20.0

4

0 3600

3

0 250

0

0 250

Safety On Delay

5

0 99

Horn Duration

60

0 (dis) 999

Charge Excitation Time

15

0 99(cont)

Cooling Fan Time

180

0 250

Remote start delay

Pre-heat
Pre-heat bypass

Safety on delay

Horn duration
Chg. excitation time

Cooling fan time

Mains transient delay

Mains Fail Start Delay

0

0 9999

Mains fail start dely

Mains Transient Delay

Mains Fail Start Delay

Remote Start Delay

Pre-Heat

Pre-Heat Bypass

Safety On Delay

Warmup Time

Horn Duration

Charge Excitation Time

The unit uses this parameter to decide the mains fail.

This timer dictates how long the unit will wait after it has received a mains failure signal before it will
attempt to start. This prevent un-necessary starting on a fluctuating mains supply etc.

This timer dictates how long the unit will wait after it has received a remote start signal before it will
attempt to start. This prevent un-necessary starting on a fluctuating mains supply etc.

This timer dictates the duration that the pre-heat output will be active before an attempt is made to
start the engine. Once this timer is expired cranking will commence.

This feature allows the unit to start a hot engine without performing an un-necessary pre-heat delay.
The bypass timer is triggered by the generator starting and actually being loaded. If the generator
started but does not achieve loading then the timer will not be triggered. The bypass timer is initiated
once the engine has come to rest. If any attempts to start are requested within the duration of the
bypass timer the start sequence will bypass the pre-heat timer.

This timer dictates how long the unit will ignore the Low Oil Pressure, High Engine Temperature,
Underspeed, Undervolts and any other inputs configured as active from safety on. It allows the values
such as oil pressure to rise to their operating values on starting without triggering an alarm. Once the
timer has expired all alarm conditions are monitored again. If configured to use 'fast loading', should all
the monitored conditions, such as oil pressure, come to expected state prior to the end of the safety on
timer, the timer will be terminated prematurely ensuring maximum protection as soon as possible.

This timer is initiated once the engine is up and running. It delays loading the generator until it has
stabilised. Once this timer is expired the 'Close generator' signal will be given and the generator is
available to be loaded.

This timer dictates how long the external horn and the internal sounder will work after the last error
detected. Once after this timer ended unit will do the external horn and the internal sounder reset.

Charge excitation was selectable as momentary / continuous operation.This timer dictates how long
the Charge excitation will active.

Unit

Sec

Min

Sec
Sec

Sec

Sec
Sec
Sec

Sec

Idle Mode Time (Smoke Limiting)

dis

3600

Idle mode time

Idle Mode Time Off (Smoke Limiting Off)

Idle mode time off

Sec
Sec

0 (dis)

0 250 5

Note: dis = disable cont = continuous

73

4.2.7 Timers

Warmup Time

3

0 250

Warming up time

Sec

Min

Default

STOPPING TIMERS (Timers->Stopping timers)

Max

Remote Stop Delay
Cooling Time

4

0 250

60

0 (dis)

3600

Fail To Stop Time

Battery Charging Time

30

5

15199

9999

Remote stop delay
Cooling time

Fail to stop delay

Battery charging time

Mains Return Delay

Remote Stop Delay

Cooling Timer

Fail To Stop Time

Battery Charging Time

This timer dictates how long the unit will wait before it will un-load the generator (back to the mains
supply if AMF) and initialise it's run-on and shutdown cycle. This is ensure that the mains supply has
stabilised before transferring the load back to mains.

This timer dictates how long the unit will wait after it has received a remote stop signal before it will
attempt to stop. This prevent un-necessary stopping on a fluctuating mains supply etc.

This is the time the generator is to run off-load once the load transfer signal has ceased. This gives the
engine time to cool down before shutdown.

Once the unit has given a shutdown signal to the engine it expects the engine to come to rest. It
monitors the Oil pressure and speed sensing sources and if they still indicate engine movement when
this timer expires a 'Fail To Stop' alarm signal is generated.

In AUTO mode and no mains, if one of the configurable inputs are selected as “24-Low Battery” and
this input is active, the unit will perform the start sequence. When the mains back or “Battery Charging
Time” parameter is expired, the unit will perform the stop sequence.

Unit

Sec
Sec
Sec
Min

Cooling Fan Time

Idle Mode Time (Smoke Limiting)

Idle Mode Time Off (Smoke Limiting Off)

This timer dictates how long the Cooling Fan will continue to operate.

This is the amount of time that the smoke limiting output will remain active for once the engine has
started. While the smoke limiting output is active the engine will be held at a reduced speed to
minimise smoke emissions on start-up. (Only if fitted with an appropriate Electronic Control Module).
Once the timer has expired the engine will be allowed to accelerate up to its normal operating speed.

This timer is started after the Idle mode timer (smoke limit timer) was expired. This is to allow the
engine to accelerate to its normal running speed without triggering an underspeed alarm, etc.

74

Note: dis = disable

Mains Return Delay

5

0 3600

Mains return delay

Sec

4.2.8 Expansion Modules

IO (1-8) MODULE (Expansion modules->IO (1-8))

Expansion I/O Module Selection

Disable/enable select

Min

Default

Max

DISBL

ENABL/DISBL

Unit

DIAL-UP & ETHERNET (Expansion modules-> )Dial-up & Ethernet

Expansion Dal-up&Ethernet Module Selection

Call Back Selection

Disable/enable select
Call back selection

Min

Default

Max

ENABL

DISBL

ENABL/DISBL
ENABL/DISBL

Unit

GSM MODULE (Expansion modules->GSM)

Expansion GSM Module Selection
Call Back Selection
SMS Feature Enable or Disable

Disable/enable select
Call back selection
SMS

Min

Default

Max

ENABL

DISBL
DISBL

ENABL/DISBL
ENABL/DISBL
ENABL/DISBL

Unit

75

4.2.9 User Adjustment

Min

Default

Unit

MAINS VOLTAGE OFFSET (User adjustment->Mains voltage offset)

Max

0
0
0

-20

-20

-20

Mains V1 offset
Mains V2 offset
Mains V3 offset

Mains V1 Offset
Mains V2 Offset
Mains V3 Offset

20
20
20

VV
VV
VV

Min

Default

Unit

GEN. VOLTAGE OFFSET (User adjustment->Gen. voltage offset)

Max

0
0
0

-20

-20

-20

Gen. V1 offset
Gen. V2 offset
Gen. V3 offset

Generator V1 Offset
Generator V2 Offset
Generator V3 Offset

20
20
20

VV
VV
VV

Min

Default

Unit

CURRENT OFFSET (User adjustment->Current offset)

Max

0
0
0
0

-20

-20

-20

-20

Current I1 offset
Current I2 offset
Current I3 offset
E/F. Current offset

Current I1 Offset
Current I2 Offset
Current I3 Offset
Earth current I3 Offset

20
20
20
20

AV
AV
AV
AV

Min

Default

Unit

BATTERY&CHRG GEN.VOL (User adjustment->Battery&chrg gen.vol)

Max

0
0

-5.0

-5.0

Batt.volt offset
Gen.chg.volt offset

Battery Voltage Offset
Charge Generator Voltage Offset

5.0

5.0

VZ
VZ

Min

Default

Unit

SENDER INPUTS OFFSET (User adjustment->Sender inputs offset)

Max

0.0
0
0
0

-2.0

-20

-200

-20

Oil Pressure offset
Temperature offset
Conf. AI1 offset
Conf. AI2 offset

Oil Pressure Offset
Coolant Temperature Offset
Configurable Analog Input-1 Offset
Configurable Analog Input-2 Offset

2.0
20

200

20

BAR

ºC

ºC

%

GPRS MODULE (Expansion modules->GPRS)

Expansion GPRS Module Selection

Call Back Selection
GPS Feature Enable or Disable

Disable/enable select

Call back selection
GPS

Min

Default

Max

1-SERVER

DISBL
DISBL

0-DISABLE
1-SERVER
2-CLIENT

ENABL/DISBL
ENABL/DISBL

Unit

DUAL SET MODULE (Expansion modules->Dual set)

Expansion Dual Set Module Selection
Node Address
Dual Working Period
Early Start Time
Remote Priority Selection:

Disable/enable select

1

*

Node ID

2

*

Working period
Early start time
Remote priority selct

Min

Default

Max

1

0:00

0

0(dis)

2

9:59

250

2

1

1:00

15

dis

H.Min

Sec

0- Disable, 1- Priority, 2- None Priority

Unit

ENABL

ENABL/DISBL

WEB SERVER MODULE (Expansion modules->Web Server)

Web Server Module Selection

Disable/enable select

Min

Default

Max

ENABL

ENABL/DISBL

Unit

GPRS WEB MODULE (Expansion modules->GPRS Web)

GPRS-Web Module Selection

Disable/enable select

Min

Default

Max

ENABL

ENABL/DISBL

Unit

1

Note: * =

2

* =

dis = disable.

Changing this parameter becomes only effective after restarting the unit.
Changing this parameter becomes only effective after restarting the unit.

76

Error Messages And Explanations:

Battery high error! : Battery high error
Battery low error! : Battery low error
Battery high warning! : Battery high error
Battery low warning! : Battery low error
Cab temp.high error! : Cabin temperature high error
Cab temp.high prealr! : Cabin temperature high pre-alarm
Cab temp.low error! : Cabin temperature low error
Cab temp.low prealr! : Cabin temperature low pre-alarm
Can bus warning! : Can bus error
Charge alterntr fail! : Charge alternator fail
Conf. AI1 high error! : Configurable analogue input-1 high error
Conf. AI1 high preal! : Configurable analogue input-1 high pre-alarm
Conf. AI1 low error! : Configurable analogue input-1 low error
Conf. AI1 low prealr! : Configurable analogue input-1 low pre-alarm
Conf. AI1 sensor err! : Configurable analogue input-1 sensor break
Conf. AI2 high error! : Configurable analogue input-2 high error
Conf. AI2 high preal! : Configurable analogue input-2 high pre-alarm
Conf. AI2 low error! : Configurable analogue input-2 low error
Conf. AI2 low prealr! : Configurable analogue input-2 low pre-alarm
Conf. AI2 sensor err! : Configurable analogue input-2 sensor break
Dual communicat. err! : Dual communication error
E/F. instant trip! : Earth fault error
E/F. warning! : Earth fault warning
E/F.trip with cool.! : Earth fault electrical trip
Emergency stop! : Emergency stop error
Exp.spare-1 alarm! : Expansion module spare 1 error
Exp.spare-2 alarm! : Expansion module spare 2 error
Exp.spare-3 alarm! : Expansion module spare 3 error
Exp.spare-4 alarm! : Expansion module spare 4 error
Exp.spare-5 alarm! : Expansion module spare 5 error
Exp.spare-6 alarm! : Expansion module spare 6 error
Exp.spare-7 alarm! : Expansion module spare 7 error
Exp.spare-8 alarm! : Expansion module spare 8 error
Fail to start alarm! : Fail to start alarm
Gen break.close fail! : Generator breaker not closed alarm
Gen break.open fail! : Generator breaker not opened alarm
Gen over frq.prealr! : Generator over frequency pre-alarm
Gen over frq.shutdwn! : Generator over frequency shutdown
Gen over vol.shutdwn! : Generator over voltage shutdown
Gen over volt.prealr! : Generator over voltage prealarm
Gen phase seq.wrong! : Generator phase sequence wrong
Gen stop fail! : Generator stop error
Gen under frq.prealr! : Generator under frequency pre-alarm
Gen under frq.shtdwn! : Generator under frequency shutdown
Gen under vol.shtdwn! : Generator under voltage shutdown
Gen under volt.preal! : Generator under voltage pre-alarm
High temp.prealarm! : Temp pre-alarm
High temp.shutdown! : High temp. shutdown
J1939 ECU warning! : Amber warning lamp error
Low temperature! : Low temperature
Mains break.cls fail! : Mains breaker not closed alarm
Mains break.opn fail! : Mains breaker not opened alarm
Mains phase seq. err! : Mains phase sequence error
Maintenance alarm! : Maintenance error
Oil press.shutdown! : Pressure shutdown
Over curr.trip cool.! : Over current electrical trip
Over current prealr! : Over current pre-alarm
Over current trip! : Over current error
Over current warnng! : Over current warning
Over power alarm! : Under power error
Over power prealarm! : Under power pre-alarm
Over power trip cool! : Over power electrical trip
Over power warning! : Over power warning
Over speed alarm! : Over speed error
Over speed prealarm! : Over speed pre-alarm

Error Messages And Explanations:

Pressure prealarm! : Pressure prealarm
Pressure sensor err! : Oil pressure sensor break
Red stop lamp! : Red stop lamp error

Reverse power warnng! : Reverse power Warning
Rev.power trip cool.! : Reverse power Electrical Trip
Reverse power trip! : Reverse power Error

Short circuit trip! : Short circuit error
Spare-1 alarm! : Spare 1 error
Spare-2 alarm! : Spare 2 error
Spare-3 alarm! : Spare 3 error

Spare-4 alarm! : Spare 4 error
Spare-5 alarm! : Spare 5 error
Spare-6 alarm! : Spare 6 error
Spare-7 alarm! : Spare 7 error
Speed loss alarm! : Speed loss error
Temperat. sensor err! : Temperature sensor break
Unbalance load trip! : Unbalance load error

Unbal.load trip cool! : Unbalance load electrical trip
Unbalance load warn.! : Unbalance load warning

Under curr.trip cool! : Under current electrical trip
Under current prealr! : Under current pre-alarm
Under current trip! : Under Current error
Under current warnng! : Under Current Warning
Under power prealarm! : Under power prealarm
Under power trip! : Under power error

Under pow.trip cool! : Under power electrical trip
Under power warning! : Under power warning

Under speed prealarm! : Under speed prealarm

77

Event Messages And Explanations:

Battery high alarm : Battery high error
Battery low alarm : Battery low error

Cab temp.high error : Cabin temperature high error
Cab temp.high prealr : Cabin temperature high pre-alarm
Cab temp.low error : Cabin temperature low error
Cab temp.low prealr : Cabin temperature low pre-alarm

Can bus warning : Can bus error
Changed mode to auto : Changed mode to auto
Changed mode to man : Changed mode to manual
Changed mode to stop : Changed mode to off
Changed mode to test : Changed mode to test
Charge alterntr fail : Charge alternator fail
Conf. AI1 high error : Configurable analogue input-1 high error
Conf. AI1 high preal : Configurable analogue input-1 high pre-alarm
Conf. AI1 low error : Configurable analogue input-1 low error
Conf. AI1 low prealr : Configurable analogue input-1 low pre-alarm
Conf. AI1 sensor err : Configurable analogue input-1 sensor break
Conf. AI2 high error : Configurable analogue input-2 high error
Conf. AI2 high preal : Configurable analogue input-2 high pre-alarm
Conf. AI2 low error : Configurable analogue input-2 low error
Conf. AI2 low prealr : Configurable analogue input-2 low pre-alarm
Conf. AI2 sensor err : Configurable analogue input-2 sensor break
Dual communicat. err : Dual communication error
E/F. alarm : Earth fault alarm
Emergency stop : Emergency stop error
Engine started
Engine stopped
Exp.spare-1 alarm : Expansion module spare 1 error
Exp.spare-2 alarm : Expansion module spare 2 error
Exp.spare-3 alarm : Expansion module spare 3 error
Exp.spare-4 alarm : Expansion module spare 4 error
Exp.spare-5 alarm : Expansion module spare 5 error
Exp.spare-6 alarm : Expansion module spare 6 error

78

Event Messages And Explanations:

Exp.spare-7 alarm : Expansion module spare 7 error
Exp.spare-8 alarm : Expansion module spare 8 error
Fail to start alarm : Fail to start alarm
Gen break.close fail : Generator breaker not closed alarm
Gen break.open fail : Generator breaker not opened alarm
Gen over frq.prealr : Generator over frequency pre-alarm
Gen over frq.shutdwn : Generator over frequency shutdown
Gen over vol.prealr : Generator over voltage pre-alarm
Gen over vol.shutdwn : Generator over voltage shutdown
Gen phase seq.wrong : Generator phase sequence wrong
Gen stop fail : Generator stop error
Gen under frq.preal : Generator under frequency pre-alarm
Gen under frq.shtdwn : Generator under frequency shutdown
Gen under vol.preal : Generator under voltage pre-alarm
Gen under vol.shtdwn : Generator under voltage shutdown
GPRS IP not found : Gprs no IP alarm
GPRS reset fail : Gprs reset fail
High temp.prealarm : High temp. pre-alarm
High temp.shutdown : High temp. shutdown
J1939 ECU warning : Amber warning lamp error
Low temperature : Low temperature
Mains break.cls fail : Mains breaker not closed alarm
Mains break.opn fail : Mains breaker not opened alarm

Mains phase seq. err : Mains phase sequence error

Maintenance alarm : Maintenance error

Maintenance warning : Maintenance warning
Modem response: error : Gprs error response alarm
No respons.from modem : Gprs no response alarm
Oil press.shutdown : Pressure shutdown
Over current alarm : Over current alarm
Over current prealr : Over current pre-alarm
Over power alarm : Under power error
Over power prealarm : Under power pre-alarm
Over speed prealarm : Over speed pre-alarm
Over speed shutdown : Over speed shutdown
Pressure prealarm : Pressure prealarm
Pressure sensor err : Oil pressure sensor break
Red stop lamp : Red stop lamp error
Reverse power alarm : Reverse power alarm
Short circuit alarm : Short circuit alarm
SMS was not sent : Sms wasn't sent
SMS was sent : Sms was successfully sent
Spare-1 alarm : Spare 1 error
Spare-2 alarm : Spare 2 error
Spare-3 alarm : Spare 3 error
Spare-4 alarm : Spare 4 error
Spare-5 alarm : Spare 5 error
Spare-6 alarm : Spare 6 error
Spare-7 alarm : Spare 7 error
Speed loss alarm : Magnetic pickup loss of speed error
Temperat. sensor err : Temperature sensor break
Unbalance load alarm : Unbalance load alarm
Under current alarm : Under current error
Under current prealr : Under current pre-alarm
Under power alarm : Under power error
Under power prealarm : Under power pre-alarm
Under speed prealarm : Under speed pre-alarm
Under speed shutdown : Under speed shutdown

5. Specifications

79

Equipment use : Electrical control equipment for generating sets.
Housing & Mounting : 229 mm x 152 mm x 41 mm. (including connectors). Plastic

housing for panel mounting.

Panel Cut-Out : 182mm x 135mm.
Protection : IP65 at front panel.
Weight : Approximately 0,53 Kg.
Environmental rating : Standard, indoor at an altitude of less then 2000 meters

with non-condensing humidity.

Operating/Storage Temperature : -20°C to +70°C / -30°C to +80°C
Operating/Storage Humidity : 90 % max. (non-condensing)
Installation Over Volt. Category : II Appliances, portable equipment
Pollution Degree : II, Normal office or workplace, non conductive pollution
Mode of Operation : Continuous.

DC Battery Supply Voltage : 8 to 32 V Z. Max. operating current is 360 mA.

Cranking Dropouts : Battery voltage can be “0” VDC for max. 50 ms during

cranking (battery voltage should be at least nominal
voltage before cranking).

Battery Voltage Measurement : 8 to 32 V Z, accuracy: 1 % FS, resolution: 0,1 V
Mains Voltage Measurement : 3 to 300 VAC Ph-N, 5 to 99.9 Hz. Accuracy: 1 % FS,

Resolution: 1 V.

Mains Frequency : 5 to 99.9Hz (min. 20 VAC Ph-N) Accuracy: 0,25 % FS,

Resolution: 0,1 Hz.

Generator Voltage Measurement : 3 to 300 VAC Ph-N, 5 to 99.9 Hz. Accuracy: 1 % FS,

Resolution: 1 V.

Generator Frequency : 5 to 99.9Hz (min. 20 VAC Ph-N) Accuracy: 0,25 % FS,

Resolution: 0,1 Hz.

Magnetic Pickup Input : 35 to 10000 Hz (1 to 35 volts peak continuously).

Accuracy: 0,25 % FS.

CT secondary : 5A.
Charge Generator Excitation : 210mA @12V, 105mA @24V. Nominal 2.5W.

Charge Gen. Vol. Measurement : 8 to 32 V Z, accuracy: 1 % FS, resolution: 0,1 V.
Sender Measurement : 0 to 1300 ohm, accuracy: 1 % FS, resolution: 1 ohm.
Canbin Temp. Measurement : -50 to +100 ºC, accuracy: 1 % FS, resolution: 1 ºC.
Communication interface : USB programming and communication port,

CanBus communication with 1939 ECU

Optional Expansion I/O Module : Expansion I/O module including 8 inputs and 8 outputs.
Optional Comm. Modules : Ethernet/Dial-up, GSM/GPRS, RS-485, Dual Set,

Web Server and GPRS-Web modules.

Relay Outputs : Generator contactor relay output 8A@250VV

Mains contactor relay output 8A@250VV
Configurable output-5 5A@250VV
Configurable output-6 5A@250VV

Transistor Outputs : Fuel or Configurable output-1 1A at DC supply voltage

Crank or Configurable output-2 1A at DC supply voltage
Configurable output-3 1A at DC supply voltage
Configurable output-4 1A at DC supply voltage
All transistor ouputs supplied from DC supply terminal 22

80

6. Other Informations

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.Þ.
Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369
BURSA/TURKEY

Phone : [phone]
Fax : [phone]

Repair and maintenance service information:

Emko Elektronik Sanayi ve Ticaret A.Þ.
Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369
BURSA/TURKEY
Phone : [phone]
Fax : [phone]

Thank you very much for your preference to use Emko Elektronik

Products.

Your Technology Partner

www.emkoelektronik.com.tr
