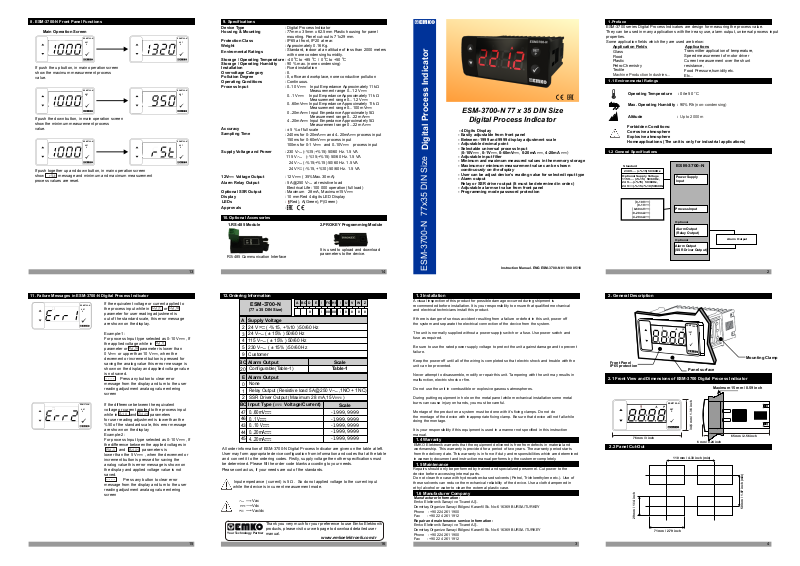

Emko ESM-3700-N User guide
8. ESM-3700-N Front Panel Functions
Main Operation Screen
ESM3700-N
SET
P
If push the up button, in main operation screen
show the maximum measurement process
value.
ESM3700-N
SET
P
If push the down button, in main operation screen
show the minimum measurement process
value.
ESM3700-N
SET
P
If push together up and down button, in main operation screen
show message and minimum and maximum measurement
process values are reset.
9. Specifications
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
Device Type
Housing & Mounting
Protection Class
Weight
Enviromental Ratings
Storage / Operating Temperature
Storage / Operating Humidity
Installation
Overvoltage Category
Pollution Degree
Operating Conditions
Process Input
Accuracy
Sampling Time
Supply Voltage and Power
115 V
: Digital Process Indicator
: 77mm x 35mm x 62.5mm Plastic housing for panel
mounting. Panel cut-out is 71x29 mm.
: IP65 at front, IP20 at rear.
: Approximately 0.16 Kg.
: Standard, indoor at an altitude of less than 2000 meters
with none condensing humidity.
o
: -40 C to +85 C / 0 C to +50 C
: 90 % max. (none condensing)
: Fixed installation
: II.
: II, office and workplace, none conductive pollution
: Continuous.
: 0..10 V Input Empedance Approximately 11k
0..1 V Input Empedance Approximately 11k
0..60mV Input Empedance Approximately 11k
0..20mA Input Empedance Approximately 5
4..20mA Input Empedance Approximately 5
: ± 5 % of full scale
: 240ms for 0-20mA and 4..20mA process input
150ms for 0-60mV process input
100ms for 0-1 V and 0..10Vprocess input
o
Measurement range 0...12 V
Measurement range 0...1.2 V
Measurement range 0...100 mV
Measurement range 0...22 mA
Measurement range 0...22 mA
: 230 V
o
o
50/60 Hz. 1.5 VA(-%15;+%15)
50/60 Hz. 1.5 VA(-%15;+%15)
24 V
50/60 Hz. 1.5 VA(-%15;+%15)
V (-%15, +%10) 50/60 Hz. 1.5 24 VA
12V Voltage Output : 12 V ( 35%Max.30 mA)
Alarm Relay Output
Optional SSR Output
Display
LEDs
: 5 A@250 V
Electrical Life: 100 000 operation (full load)
: Maximum 28 mA, Maximum15 V
: 10 mm Red 4 digits LED Display
:
(Red),
at resistive load
A(Green), P(Green)
: Approvals
10. Optional Accessories
1.RS-485 Module
RS-485 Communication Interface
2.PROKEY Programming Module
It is used to upload and download
parameters to the device.
13 14
1.Preface
ESM-3700 series Digital Process Indicators are design for measuring the process value.
They can be used in many applications with their easy use, alarm output, universal process input
properties.
Some application fields which they are used are below:
Application Fields
Glass
Flood
Plastic
Petro-Chemistry
Textile
Machine Production Industries...
1.1 Environmental Ratings
Applications
Transmitter application of temperature,
Speed measurement of motor driver
Current measurement over the shunt
resistance,
Food Pressure,humidity etc.
Etc...
Ω
Ω
Ω
Ω
Ω
Digital Process Indicator
ESM-3700-N 77x35 DIN Size
ESM- 77 x 35 DIN Size3700-N
Digital Process Indicator
- 4 Digits Display
- Easily adjustable from front panel
- Between -1999 and 9999 display adjustment scale
- Adjustable decimal point
- Selectable universal process Input
(0-10V , 0-1V, 0-60mV, 0-20mA , 4-20mA )
- Adjustable input filter
- Minimum and maximum measured values in the memory storage
- Maximum or minimum measurement value can be shown
continuously on the display
- User can be adjust device’s reading value for selected input type
- Alarm output
Relay or SSR driver output (It must be determined in order.)
- Adjustable alarm set value from front panel
- Programming mode password protection
Instruction Manuel. ENG ESM-3700-N 01 V00 05/18
Operating Temperature :
Max. Operating Humidity : 90% Rh (non-condensing)
Forbidden Conditions:
Corrosive atmosphere
Explosive atmosphere
Homeapplications (The unit is only for industrial applications)
1.2 General Specifications
Standard
±
230V ( %15) 50/60Hz
Optional Supply Voltage
115 V( %15) 50/60Hz,
±
24 V( %15) 50/60Hz,
±
24 V(-%15,+%10)50/60Hz
(0-10 V)
(0-1 V)
(0-60 mV)
(0-20 mA)
(4-20 mA)
0 ile 50 °C
:Altitude Up to 2000 m
ESM-3700-N
Power Supply
Input
Process Input
Optional
Alarm Output
(Relay Output)
Optional
Alarm Output
(SSR Driver Output)
Alarm Output
2
11. Failure Messages in ESM-3700-N Digital Process Indicator
ESM3700-N
O
PS
F
SET
P
ESM3700-N
O
PS
F
SET
P
If the equivalent voltage or current applied to
the process input while in or
parameter for user reading adjustment is
out of the standard scale, this error message
are shown on the display.
Example-1:
For process Input type selected as 0-10 V , If
the applied voltage while in
parameter or parameter is lower than
0 V or upper than 10 V , when the
decrement or increment button is pressed for
saving the analog value this errror message is
shown on the display and applied voltage value
is not saved.
Press any button to clear error
message from the display and turn to the user
reading adjustment analaog value entering
screen
If the difference between the equivalent
voltage or current applied to the process input
while in and parameters
for user reading adjustment is lower than the
%50 of the standard scale, this error message
are shown on the display
Example-2:
For process Input type selected as 0-10 V , If
the difference between the applied voltages in
and parameters is
lower than the 5 V , when the decrement or
increment button is pressed for saving the
analog value this errror message is shown on
the display and applied voltage value is not
saved.
Press any button to clear error
message from the display and turn to the user
reading adjustment analaog value entering
screen
12.Ordering Information
U
ESM-3700-N
(77 x 35 DIN Size)
Supply Voltage
A
24 V ( -%15, +%10 ) 50/60 Hz
2
24 V ( ± 15% ) 50/60 Hz
3
115 V ( ± 15% ) 50/60 Hz
4
230 V ( ± 15% ) 50/60 Hz
5
Customer
9
Alarm Output
BC
Configurable(Table-1)
20
E
Alarm Output
None
0
Relay Output (Resistive load 5 A@250 V ),1NO + 1NC
1
SSR Driver Output (Maximum 28 mA,15 V )
2
Input Type ( Voltage/Current)
BC
47
0..60mV
46
0..1 V
43
0..10 V
44
0..20mA
45
4..20mA
All order information of ESM-3700-N Digital Process Indicator are given on the table at left.
User may form appropriate device configuration from information and codes that at the table
and convert it to the ordering codes. Firstly, supply voltage then other specifications must
be determined. Please fill the order code blanks according to your needs.
A BC D E FG HI /
0 00 0 0 000 0
/
V W Z/
/
Scale
Table-1
Scale
-1999, 9999
-1999, 9999
-1999, 9999
-1999, 9999
-1999, 9999
Please contact us, if your needs are out of the standards.
Input empedance (current) is 5 . So do not applied voltage to the current input
while the device is in current measurement mode.
Vac
Vdc
Vac/dc
Thank you very much for your preference to use Emko Elektronik
Your Technology Partner
products, please visit our web page to download detailed user
manual.
Ω
www.emkoelektronik.com.tr
1.3 Installation
A visual inspection of this product for possible damage occurred during shipment is
recommended before installation. It is your responsibility to ensure that qualified mechanical
and electrical technicians install this product.
If there is danger of serious accident resulting from a failure or defect in this unit, power off
the system and separate the electrical connection of the device from the system.
The unit is normally supplied without a power supply switch or a fuse. Use power switch and
fuse as required.
Be sure to use the rated power supply voltage to protect the unit against damage and to prevent
failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble with the
unit can be prevented.
Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in
malfunction, electric shock or fire.
Do not use the unit in combustible or explosive gaseous atmospheres.
During putting equipment in hole on the metal panel while mechanical installation some metal
burrs can cause injury on hands, you must be careful.
Montage of the product on a system must be done with it’s fixing clamps. Do not do
the montage of the device with inappropriate fixing clamp. Be sure that device will not fall while
doing the montage.
It is your responsibility if this equipment is used in a manner not specified in this instruction
manual.
1.4 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and
workmanship. This warranty is provided for a period of two years. The warranty period starts
from the delivery date. This warranty is in force if duty and responsibilities which are determined
in warranty document and instruction manual performs by the customer completely.
1.5 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the
device before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of
these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in
ethyl alcohol or water to clean the external plastic case.
1.6 Manufacturer Company
Manufacturer Information:
Emko Elektronik Sanayi ve Ticaret A.Ş.
Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA/TURKEY
Phone : +90 224 261 1900
Fax : +90 224 261 1912
Repair and maintenance service information:
Emko Elektronik Sanayi ve Ticaret A.Ş.
Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA /TURKEY
Phone : +90 224 261 1900
Fax : +90 224 261 1912
2. General Description
ESM3700-N
Front Panel
IP65 protection
2.1
Front View and Dimensions of ESM-3700 Digital Process Indicator
ESM3700-N
2.2 Panel Cut-Out
76 mm / 3 inch
SET
P
Panel surface
Maximum 15 mm / 0.59 inch
34,5 mm / 1.36 inch
6 mm / 0.24 inch
Mounting Clamp
65 mm / 2.56 inch
2.2 Panel Cut-Out
110 mm / 4.33 inch (min)
50 mm / 1.97 inch (min)
29 mm / 1.14 inch
71 mm / 2.79 inch
3 41615
2.3 Panel Mounting
1
ESM3700-N
3
ESM3700-N
3
2
1-Before mounting the device in your panel,
make sure that the cut-out is of the right size.
2-Insert the device through the cut-out. If
the mounting clamps are on the unit, put out
them before inserting the unit to the panel.
3-Insert the unit in the panel cut-out from
the front side. Insert the mounting clamps to
the fixing sockets that located left and right
sides of device and make the unit completely
immobile within the panel
2.4 Removing From the Panel
1-Push mounting clamps in direction of arrow.
2-Pull mounting clamps from left and right fixing
ESM3700-N
sockets.
1
3-Pull the unit through the front side of the panel
2
Before starting to remove the unit from panel,
3
power off the unit and the related system.
3. Using Prokey
TO USE PROKEY, VALUE OF THE PrC PARAMETER MUST BE ‘0’.
IF PrC=1 AND BUTTON IS PRESSED MESSAGE WILL BE SHOWN. 10s. LATER
DEVICE TURNS BACK TO THE MAIN OPERATION SCREEN OR YOU CAN PRESS SET
BUTTON TO TURN BACK TO MAIN OPERATION SCREEN.
DOWNLOADING FROM DEVICE TO PROKEY
1.The device is programmed by using the parameters.
2.Energize the device then put in PROKEY and press button. Message is shown on the
display. When the loading has finished, message is shown.
3.Press any button to turn back to main operation screen.
4.Remove the PROKEY.
NOTE: message is shown when an error occurs while programming. If you want to reload, put
in PROKEY and press button. If you want to quit, remove PROKEY and press button. The
device will turn back to main operation screen.
DOWNLOADING FROM PROKEY TO DEVICE
1.Switch off the device.
2.Put in PROKEY then energize the device.
3.When the device is energized, the parameter values in PROKEY, start downloading to the device
automatically. At first, message is shown on the display, when loading has finished,
message is shown.
4.After 10 seconds device starts to operate with new parameter values.
5.Remove the PROKEY.
NOTE: message is shown when an error occurs while programming. If you want to reload,
switch off the device and put in PROKEY then energize the device. If you want to quit remove
PROKEY and press button. The device will turn back to main operation screen.
4. Electrical Wiring Diagram
0 - 20 mA
4 - 20 mA
0 - 60 mV
0 - 1 V
6
4
3
21 5 7 8
P/N : ESM-3700-N
For SSR Output
4.1 Supply Voltage Input Connection of the Device
Connection of Supply
Voltage Input
L
N
4
5
External
Fuse
(1A T)
Note-1
Supply
Switch
Supply Voltage
230 V (± %15) 50/60 Hz ,
115 V (± %15) 50/60 Hz,
24 V (± %15) 50/60 Hz ,
24 V (-%15,+%10) 50/60 Hz
External fuse is recommended.
Note-1 :
Make sure that the power supply voltage is same indicated
on the instrument.Switch on the power supply only after
that all the electrical connection have been completed.
Supply voltage range must be determined in order. While
installing the unit, supply voltage range must be
controlled and appropriate supply voltage must be
applied to the unit. Controlling prevents damages in unit
and system and possible accidents as a result of incorrect
supply voltage.
There is no power supply switch or fuse on the device. So
a power supply switch and a fuse must be added to the
supply voltage input. Power supply switch and fuse must
be put to a place where user can reach easily.
Power supply switch must be two poled for seperating
phase and neutral. On/Off condition of power supply
switch is very important in electrical connection. On/Off
condition of power supply switch must be signed for
preventing the wrong connection.
External fuse must be on phase connection in supply input.
External fuse must be on (+) line connection in supply input.
N
L
(-)
(+)
0 - 10 V
12 V ( ± 35% )
Max. 30 mA
Supply Voltage Input
230V( %15) 50/60Hz±
115V( %15) 50/60Hz±
24V( %15) 50/60Hz±
24V( %15) 50/60Hz±
It must be determined in order.
Relay or SSR Driver Output
(This Output exist in device
with Alarm Output.)
4.2 Device Label and Connection Diagram
CONNECTION DIAGRAM
230V
P/N:ESM-3700-N-5.20.0.1/00.00/0.0.0.0
OUTPUT
5A@250V
NO NCC
RÖLE ÇIKISLI
230 V ± 15%
50/60Hz - 1.5VA
±
12V %35
max. 30 mA
OUTPUT
230 V ± 15%
5A@250V
50/60Hz - 1.5VA
RS-485
or
PROKEY
7
8
0 - 20 mA
4 - 20 mA
0 - 60 mV
0 - 1 V
0 - 10 V
NO NCC
±
12V %35
7
max. 30 mA
8
0 - 20 mA
4 - 20 mA
0 - 60 mV
0 - 1 V
0 - 10 V
RS-485
PROKEY
or
5 6
6.2 Universal Input User Reading Adjustment Operation
Reading Adjustment Selection Parameter
Press ENTER button for accessing
to the parameter value. Press increment
button for accessing to the next parameter
Reading Adjustment Selection Value
Press ENTER button for
saving the parameter value
User Reading Adjustment
Low Limit Analogue Value Parameter
Press ENTER button for accessing to the user reading
adjustment low limit analogue value entering screen.
At this state, the equivalent voltage or current for low reading adjustment value parameter
is applied to process input of the devices. When decrement button is press, display starts to blink. It
means, the analogue value at process input is saved as a user reading adjustment low limit value.
User Reading Adjustment
Low Limit Analogue Value Parameter
Press increment button for accessing
to the next parameter
User Reading Adjustment High Limit
Analogue Value Entering Screen
Press ENTER button for accessing
to programming screen
At this state, the equivalent voltage or current for high reading adjustment value parameter
is applied to process input of the devices. When increment button is press, display starts to blink. It
means, the analogue value at process input is saved as a user reading adjustment high limit value.
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
Reading Adjustment Selection Value
Change the value with increment
and decrement buttons
Reading Adjustment Selection Parameter
Press increment button for accessing
to the next parameter
User Reading Adjustment Low Limit
Analogue Value Entering Screen
Press ENTER button for accessing
to programming screen
User Reading Adjustment
High Limit Analogue Value Parameter
Press ENTER button for accessing
to the parameter value.
User Reading Adjustment
High Limit Analogue Value Parameter
Press increment button for accessing
to the next parameter
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
ESM3700-N
SET
P
6.3 Programming Mode Parameter List
Process Input Type Selection Parameter(Default = 0)
Proses giriş tipi bu parametre ile belirlenir. 0 ile 4 arasında bir değer tanımlanabilir.
0...10 V (-1999 ; 9999)
MODBUS ADDRESS:40002
0...1 V (-1999 ; 9999)
0...60 mV (-1999 ; 9999)
0...20 mA (-1999 ; 9999)
4...20 mA (-1999 ; 9999)
Process Input Filter Selection Parameter(Default = 0)
Process Input filter is determined with this parameter. It can be adjusted from 0 to 4.
240ms for 0-20mA and 4..20mA process input
150ms for 0-60mV process input
100ms for 0-1 V and 0..10V process input
MODBUS ADDRESS:40003
The last measurement value is shown.
The average of last 2 measurement value is shown.
The average of last 4 measurement value is shown.
The average of last 8 measurement value is shown.
The average of last 16 measurement value is shown.
Display Function Selection Parameter(Default = 0)
In main operation screen displayed process value is determined with this parameter.
It can be adjusted from 0 to 2.
The measurement process value is shown on the display.
The minimum measurement process value is shown continuously
on the display.
The maximum measurement process value is shown continuously
on the display
Decimal Point Position Parameter(Default = 0) MODBUS ADDRESS : 40005
Decimal point position is determined with this parameter. It can be adjusted
from 0 to 3.
MODBUS ADDRESS:40004
No point.
0.0
0.00
0.000
Low Reading Adjustment Value Parameter(Default = -1999)
MODBUS ADDRESS : 40006
It defines minimum value for dual point reading adjustment.
It can be adjusted -1999 to ( -1)
High Reading Adjustment Value Parameter(Default = 9999)
MODBUS ADDRESS : 40007
It defines maximum value for dual point reading adjustment.
It can be adjusted ( +1) to 9999.
Reading Adjustment Selection Parameter(Default = 0)
MODBUS ADDRESS : 40008
It defines which reading adjustment type is active. It can be adjusted from 0 to 1.
Selected process input type is read according to the standard
reading adjustment.
Selected process input type is read according to the user reading
and parameters are observed if reading adjustment selection parameter
9
= 1, otherwise these parameters are can not be observed.
adjustment.
10
5.Front Panel Definition and Accessing to the Menus
5
1
SET
3
P
2
BUTTON DEFINITIONS
1. Increment Button :
*It is used to increase the value, in main operation screen show the maximum measurement
process value.
2. Decrement Button :
*It is used to decrease the value, in main operation screen show the minimum measurement
process value.
**If PRC=0, it used to download parameters from device to prokey.
3. Set Button :
*It is used to enter to the Alarm Set Value Changing Mode.
**It is used to enter to the Parameter Mode (pressed for 5 seconds).
4. Enter Button :
*It is used to OK and save button.
LED DEFINITIONS
5. Alarm Active Led :
*Alarm output active led.
6.Alarm Set Led :
*Led Indication of Alarm Set Value Changing Mode is Active.
7.Program Led :
*Led Indication of Programming Mode is Active.
6. Changing and Saving Alarm Set Value
Main Operation Screen
SET
3
P
When SET button is pressed, A led lights on
and alarm set value is shown on the display.
Alarm Set Value Screen
Press SETbutton for saving
the alarm set value
Alarm Set Parameter (Default=2000) MODBUS ADDRESS:40001
ESM3700-N
SET
P
ESM3700-N
SET
P
76
ESM3700-N
SET
P
4
Alarm Set Value Screen
SET
3
P
Change the alarm set value with
increment and decrement buttons.
Main Operation Screen
A led lights off and main
operation screen is shown.
ESM3700-N
SET
P
ESM3700-N
SET
P
Alarm set value can be adjusted from low reading adjustment value
i
parameter to up reading adjustment value parameter.
(Alarm set value changingmode is active in devices with alarm output.)
If no operation is performed in Alarm set value changing mode for 20 seconds,
i
device turns to main operation screen automatically.
6.1 Entering To The Programming Mode, Changing and Saving Parameter
Main Operation Screen
ESM3700-N
SET
SET
P
P
ESM3700-N
SET
P
�
When SET button is pressed
for 5 seconds. “P” led starts to
blink. If programming mode
entering password is different from
0, programming mode entering
screen is observed.
Note-1:If programming mode
accessing password is 0, process
input type selection parameter
screen is observed instead of
programming mode accessing
screen
ESM3700-N ESM3700-N
SET
P
Programming Mode
Accessing Screen
Press ENTER
button for accessing
to the password
entering screen.
SET
P
�
Password Enterin Screen
Enter programming mode accessing password
with increment and decrement buttons
Note-2 : Parameters can be observed by pressing ENTER button in programming mode accessing
screen without entering programming mode accessing password. But parameters can not be changed.
Process Input Type Selection Parameter
Press ENTER button for accessing
to the parameter value.
Process Input Type Selection Value
Press ENTER button for saving
the parameter value
Programlama modu içerisindeyken kullanıcı 20 saniye içerisinde herha ngi bir işlem
i
7
yapmazsa, cihazotomatik olarakana çalışma ekranınadöner.
ESM3700-N ESM3700-N
SET
P
ESM3700-N
SET
P
Password Enterin Screen
Press ENTER button for
accessing to the parameters
SET
P
Process Input Type Selection Value
Change the value with increment
and decrement buttons
ESM3700-N
SET
P
Process Input Type Selection Parameter
Press increment or decrement
button for accessing to the next parameter
i
i
8
User ReadingAdjustment Low Limit Analogue Value Parameter
MODBUS ADDRESS : 40009
In this parameter, the equivalent voltage or current for low reading adjustment
value parameter is determined.
User Reading Adjustment High Limit Analogue Value Parameter
MODBUS ADDRESS : 40010
In this parameter, the equivalent voltage or current for up reading adjustment
value parameter is determined.
Alarm Hysteresis Parameter (Default = 0) MODBUS ADDRESS : 40011
Alarm hysteresis value.
It can be adjusted from 0 to ( - ) / 2
Alarm Type Selection Parameter ( Default = 1)
Process High Alarm
MODBUS ADDRESS : 40012
Process Low Alarm
AlarmOnDelay Time Parameter ( Default = 0)
It can be adjusted from 0 to 99 minutes.
Alarm Off Delay Time Parameter
It can be adjusted from 0 to 99 minutes.
When this parameter is 99, if increment button is pressed, is observed
and alarm latching output is selected. To make the alarm latching output
passive, decrement button must be pressed in main operation screen.
Alarm Delay Parameter After PowerOn (Default = 0)
MODBUS ADDRESS:40015
This parameter defines the delay for the alarm is being active after power on.
It can be adjusted from 0 to 99 minutes.
Communication Mode Selection Parameter ( Default = 0 )
MODBUS ADDRESS:40016
( Default = 0)
MODBUS ADDRESS : 40013
MODBUS ADDRESS : 40014
PROKEY
RS485
Slave ID Parameter ( Default = 1 )
Device communication address parameter (1 to 247).
Programming Mode Acessing Password ( Default = 0)
MODBUS ADDRESS:40018
Password for entering to the programming mode is defined with this
parameter. It can be adjusted from 0 to 9999. If it is 0, programming mode is
accessed without entering password.
,
, ,
parameters are active in device with alarm output.
If no operation is performed in Programming mode for 20 seconds, device turns to main
operation screen automatically.
,
MODBUS ADDRESS:40017
7. Operation Graphics of Alarm Output and Alarm Types
Time
Time
Time
Time
Process Low Alarm
Alarm
Output
ON
OFF
Power
Alarm
Status
Alarm
Output
Active
Led
Alarm
Output
Process High Alarm
Alarm
Output
ON
OFF
=Alarm Set Value
Enerji
Alarm
Status
Alarm
Output
Active
Led
Alarm
Output
Process Value
Process Value
(Alarm latching output is selected)
=
Decrement
button must be
pressed to make
alarm output
is passive
Time
Time
Time
Time
1211
If no operation is performed in Programming mode for 20 seconds, device turns to
main operation screen automatically.
Loading...
