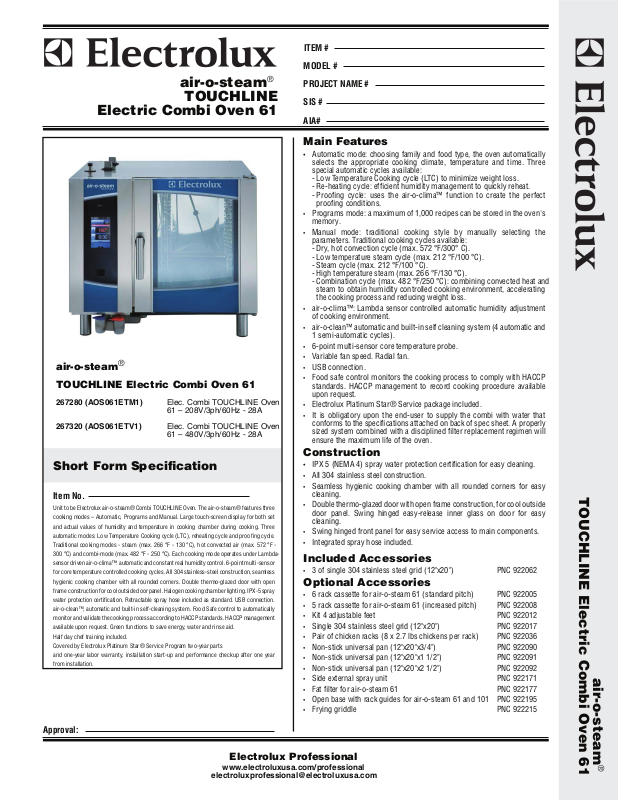

Electrolux AOS061ETM1(267280) General Manual
air-o-steam
®
TOUCHLINE
Electric Combi Oven 61
air-o-steam
TOUCHLINE Electric Combi Oven 61
267280 (AOS061ETM1) Elec. Combi TOUCHLINE Oven
267320 (AOS061ETV1) Elec. Combi TOUCHLINE Oven
Short Form Specification
Item No.
Unit to be Electrolux air-o-steam® Combi TOUCHLINE Oven. The air-o-steam® features three
cooking modes – Automatic, Programs and Manual. Large touch-screen display for both set
and actual values of humidity and temperature in cooking chamber during cooking. Three
automatic modes: Low Temperature Cooking cycle (LTC), reheating cycle and proofing cycle.
Traditional cooking modes - steam (max. 266 °F - 130 °C), hot convected air (max. 572 °F 300 °C) and combi-mode (max. 482 °F - 250 °C). Each cooking mode operates under Lambdasensor driven air-o-clima™: automatic and constant real humidity control. 6-point multi-sensor
for core temperature controlled cooking cycles. All 304 stainless-steel construction, seamless
hygienic cooking chamber with all rounded corners. Double thermo-glazed door with open
frame construction for cool outside door panel. Halogen cooking chamber lighting. IPX-5 spray
water protection certification. Retractable spray hose included as standard. USB connection.
air-o-clean™, automatic and built-in self-cleaning system. Food Safe control to automatically
monitor and validate the cooking process according to HACCP standards. HACCP management
available upon request. Green functions to save energy, water and rinse aid.
Half day chef training included.
Covered by Electrolux Platinum Star® Service Program two-year parts
and one-year labor warranty, installation start-up and performance checkup after one year
from installation.
®
61 – 208V/3ph/60Hz - 28A
61 – 480V/3ph/60Hz - 28A
ITEM #
MODEL #
PROJECT NAME #
SIS #
AIA#
Main Features
• Automatic mode: choosing family and food type, the oven automatically
selects the appropriate cooking climate, temperature and time. Three
special automatic cycles available:
- Low Temperature Cooking cycle (LTC) to minimize weight loss.
- Re-heating cycle: efficient humidity management to quickly reheat.
- Proofing cycle: uses the air-o-clima™ function to create the perfect
proofing conditions.
• Programs mode: a maximum of 1,000 recipes can be stored in the oven's
memory.
• Manual mode: traditional cooking style by manually selecting the
parameters. Traditional cooking cycles available:
- Dry, hot convection cycle (max. 572 °F/300°
- Low temperature steam cycle (max. 212 °F/100 °C).
- Steam cycle (max. 212 °F/100 °C).
- High temperature steam (max. 266 °F/130
- Combination cycle (max. 482
steam to obtain humidity controlled cooking environment, accelerating
the cooking process and reducing weight loss.
• air-o-clima™: Lambda sensor controlled automatic humidity adjustment
of cooking environment.
• air-o-clean™ automatic and built-in self cleaning system (4 automatic and
1 semi-automatic cycles).
• 6-point multi-sensor core temperature probe.
• Variable fan speed. Radial fan.
• USB connection.
• Food safe control monitors the cooking process to comply with HACCP
standards. HACCP management to record cooking procedure available
upon request.
• Electrolux Platinum Star® Service package included.
• It is obligatory upon the end-user to supply the combi with water that
conforms to the specifications attached on back of spec sheet. A properly
sized system combined with a disciplined filter replacement regimen will
ensure the maximum life of the oven.
°F/250 °C): combining convected heat and
C).
°C).
Construction
• IPX 5 (NEMA 4) spray water protection certification for easy cleaning.
• All 304 stainless steel construction.
• Seamless hygienic cooking chamber with all rounded corners for easy
cleaning.
• Double thermo-glazed door with open frame construction, for cool outside
door panel. Swing hinged easy-release inner glass on door for easy
cleaning.
• Swing hinged front panel for easy service access to main components.
• Integrated spray hose included.
Included Accessories
single 304 stainless steel grid (12"x20") PNC 922062
• 3 of
Optional Accessories
• 6 rack cassette for air-o-steam 61 (standard pitch) PNC 922005
• 5 rack cassette for air-o-steam 61 (increased pitch) PNC 922008
• Kit 4 adjustable feet PNC 922012
• Single 304 stainless steel grid (12"x20") PNC 922017
• Pair of chicken racks (8 x 2.7 lbs chickens per rack) PNC 922036
• Non-stick universal pan (12"x20"x3/4") PNC 922090
• Non-stick universal pan (12"x20"x1 1/2") PNC 922091
• Non-stick universal pan (12"x20"x2 1/2") PNC 922092
• Side external spray unit PNC 922171
• Fat filter for air-o-steam 61 PNC 922177
• Open base with rack guides for air-o-steam 61 and 101 PNC 922195
• Frying griddle PNC 922215
TOUCHLINE Electric Combi Oven 61
air-o-steam
Approval:
Electrolux Professional
www.electroluxusa.com/professional
electroluxprofessional@electroluxusa.com
®
-o-steam
air
®
TOUCHLINE
Electric Combi Oven 61
Front
op
T
Electric
Supply voltage:
267280 (AOS061ETM1) 208 V/3 ph/60 Hz
267320 (AOS061ETV1) 480 V/3 ph/60 Hz
Amps: 28
Connected load: 10.1 kW
Circuit breaker required
ater
W
Water inlet "CW" connection
Hardness:
ater consumption (gal./hr.): Min: 2.25 Max: 11.89
W
Pressure: 22-36 psi (1.5-2.5 bar)
Drain "D": 1 1/4" connection
Conductivity: (50-200 µs/cm)
Chlorides: (must be less than 20 ppm)
PH: (must be greater than 7)
Electrolux recommends the use of treated water, based
on testing of specific water conditions.
Please refer to user manual for detailed water quality
information
It is obligatory upon the end-user to supply the combi with
water that conforms to the specifications attached on the spec
sheet. A properly sized system combined with a disciplined
filter replacement regimen will ensure the maximum life of the
oven.
3/4" unfiltered drinking water
5-50ppm (boiler/steam –
rear connection) less than
400ppm (cleaning/quenching
- front connection)
CWI = Cold W
D = Drain
DO = Overflow drain pipe
EI = Electrical connection
ater inlet
WIC = Cooling water inlet
Side
Installation
Clearance: 2'' rear and right hand sides
Suggested clearance for
vice access: 20'' left hand side
ser
Capacity
Steam pans: 6 - 12''x 20''
Half size sheet pans: 6 - 13''x 18''
GN: 6 - 1/1 gastronorm
Max load capacity: 66 lbs. (30 kg)
Key Infor
Net weight: 300 lbs (136 kg)
Shipping width: 37 5/8" (955 mm)
Shipping depth: 38 3/4" (985 kg)
Shipping height: 41 15/16" (1065 mm)
Shipping weight: 342 lbs (155 kg)
Shipping volume: 35.37 ft³ (1 m³)
The company reserves the right to make modifications to the products
mation
TOUCHLINE Electric Combi Oven 61
without prior notice. All information correct at time of printing.
air-o-steam
5-19-10
®
