A SyStem for All ApplicAtionS
Barrier Arm Options
Aluminum and wood arms come in 14-foot (4.3m)
lengths. Plastic arm comes in 12-foot (3.6m) lengths.
For low headroom requirements, folding arm kits are
available for all arm types.
Breakaway arm available for the 1601 Model.
Lighted 14 ft (4.27m) round aluminum arm for enhanced safety
and increased visibility.
To enhance safety, foam padding is available for the aluminum
and wood arms.
3-piece counter-balanced long arm applications up to 27-feet
(8.2m) for the 1602 model only.
20-feet (6.1m) (wood or aluminum)
24-feet (7.3m) (aluminum only)
27-feet (8.2m) (aluminum only)
1602 27-ft. (8.2m)
aluminum arm
Loop Logic Safety Systems
DKS barrier operators now offer a Loop
Logic (PatPend) vehicular/pedestrian
detection system that knows when to
allow the barrier arm to come down –
or not. The system reverses barrier arm
if person is detected, and lowers barrier
arm if unauthorized vehicle enters. This
allows the protection of parking facilities
to help prevent inadvertent accidents
from happening.
Traffic Control
Spike Systems
Traffic control spikes are ideal to
enforce one-way traffic direction.
Always use Warning Signs with
traffic spike systems.
A lock-down option allows for
temporary two-way traffic lanes.
Flush mount
spikes come in 6-foot (1.8m) sections and are available with a
spring retraction system or weighted retraction system.
Retractable surface
mount spikes install easily without trenching and double as a
speed bump. Available in 3-foot (.9m) sections.
Back-up Power Inverters
The Model 1000 power inverter
provides backup power for a single
gated access control system
when primary AC power fails by
converting 12 volt DC power to
120 volt AC power. This capability
maintains a completely operable
access control system during power
outages and brown outs and is
ideal for smaller applications with a
single gate system.
Reverses
barrier arm
if person
is detected
Lowers
barrier arm
if unauthorized
vehicle enters

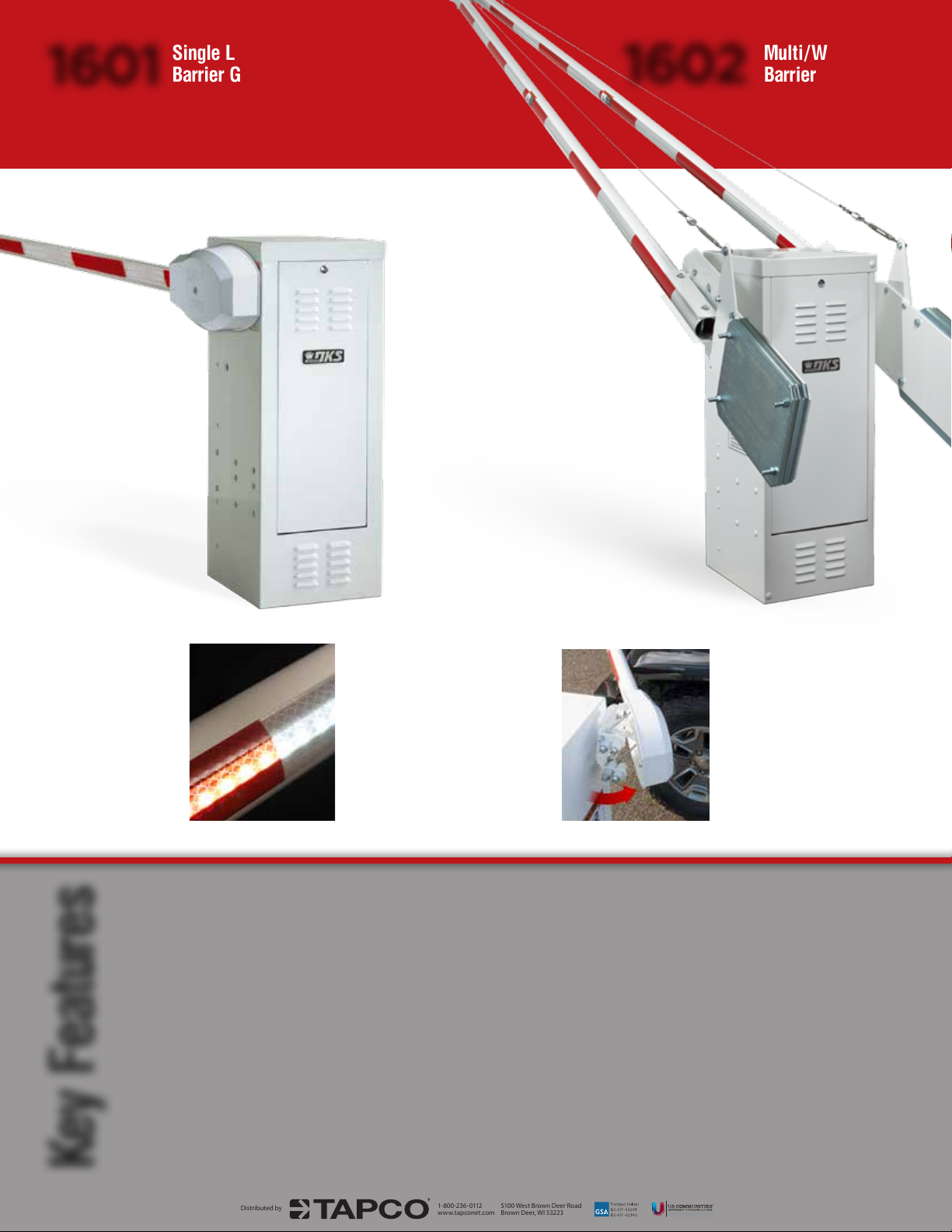

1601
1- 80 0- 236 - 0112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Single Lane
Barrier Gate Operator
1602
Multi/Wide Lane
Barrier Gate Operator
The Model 1601
is for high usage
single lane vehicular
traffic control.
1. Lighted
Arm
• Enhanced safety and
increased visibility.
• Energy efficient
LED lamps.
The Model 1602 is for limited
use applications such as
industrial sites and loading
dock areas. The 1602 is used to
control wide traffic lanes.
2. Breakaway
Arm Option
• Reduce maintenance costs.
• Allows arm to swing out of the
way when struck by a vehicle.
• Easily reset by simply snapping
the arm back into place.
3. Arm Mounts
Left or Right
• Operators are designed so that they
can be mounted on either the left or
right hand side of the roadway.
• Magnetic limit control.
• Ports for plug-in loop detectors
(DKS loop detectors only)
• Automatic sequencing inputs for use
with slide and swing gate operators
• Up input memory
• Down memory
• Two convenience outlets
• Gate tracker reporting output
• Programming switches
• Built-in power On/Off switch
• Left or right hand mount
• 1601 360º gear box rotation
provides for smooth operation,
evens wear across the entire gear-
Key Features
box, and increases the life span
of the operator
Model 1601
• Single lane (14 ft. max - 4.3m)
vehicular traffic control
• 1/2 HP continuous-duty motor
• High traffic commercial and
industrial applications
• 40:1 gear-box running in a
continuous oil bath
• Arm rotates 90° in
approximately 1.5 secs
Model 1602
• Wide traffic lanes up to 27 ft.
wide (8.2m)
• 1 HP continuous-duty motor
• Low use commercial and
industrial applications
• Uses a counter-balanced
three-piece wishbone style
arm assembly, and is used
with the extended arm barriers
• 60:1 gear-box running in a
continuous oil bath
• Arm rotates 90° in
approximately 5.5 secs
Model 1603
• Retractable spike sections are
available in 3 ft. (.9m) lengths
• 1/2 HP continuous-duty motor
• 18 inch (45.7cm) tunnel
sections available
• A traffic signal and/or
warning sign is required
• 40:1 gear-box running in a
continuous oil bath
• Arm rotates 90° in
approximately 1.5 secs
Single Lane Modular
1- 80 0- 236 - 0112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by

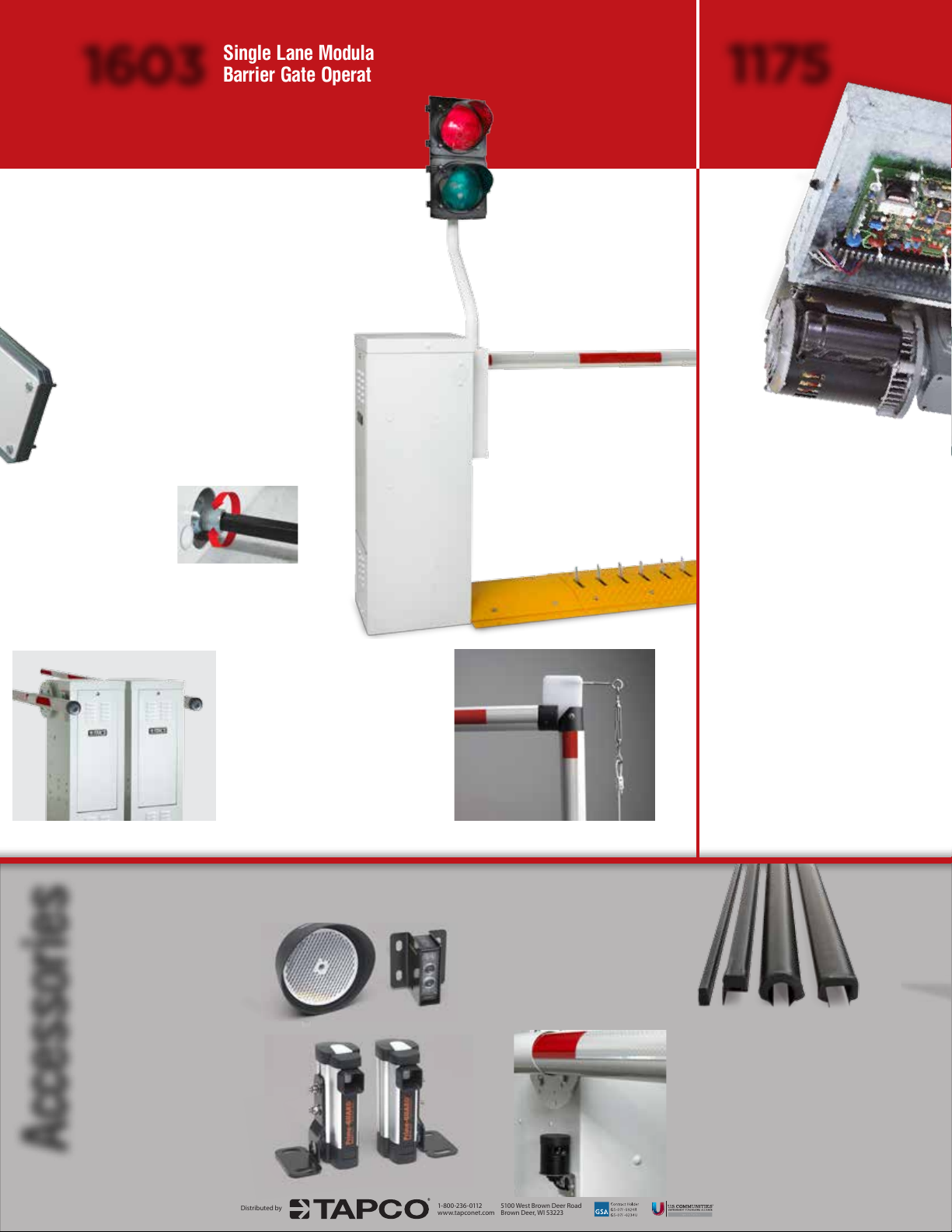

1603
The DKS 1603 modular system
mechanically links the spikes to the
barrier arm, and sequences with the
traffic light and in conjunction with slide
or swing gate operators. Surface mount
spikes install easily without trenching
and double as a speed bump. Flexible
shaft drive keeps spikes operable and
eliminates
down time
from breakage.
Barrier Gate Operator/Auto Spike System
4. Folding
Arm Kits
• For low ceiling applications, folding
arm kits are available for the
aluminum, wood and plastic
arms used with models
1601 and 1603.
1175
Key Features:
• Advanced microprocessor
control board
• Ports for plug-in open and
reverse loop detectors (DKS
loop detectors only)
• Selectable loop function (stop
or reverse)
• Direct driven limit nuts for
precise gate control
• Auto-close timer 1-23 sec.
Timer override feature helps
prevent tailgating
• Gate tracker reporting output
• Keyed manual release
• Built-in power switch
• External obstruction sensing
devices must be used with
these operators
SAFETY DEVICES
Photo-eyes
• P hoto-reflective beams
have a scan distance
up to 45 ft. (14m)
• I ncludes reflector and
mounting bracket
• Thru-beam photocells
have a scan distance
up to 100 ft. (30.48m)
• Separate sender
and receiver
Accessories
• Hooded metal enclosure
• I nfrared beam
Reversing edges
• A variety of edge styles
• Mounting channels included
• 2-wire edges can be hard wired
Loop Logic
• DKS vehicular/pedestrian
detection system
• Reverses barrier arm if
pedestrian detected
• Lowers arm if unauthorized
vehicle enters
Low Profile
1- 80 0- 236 - 0112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Overhead Door/Gate Operator
1601 1602 1603
Operators available
for gate heights of
8, 10, 12 and 14 feet
(2.4m, 3.0m, 3.6m and 4.3m)

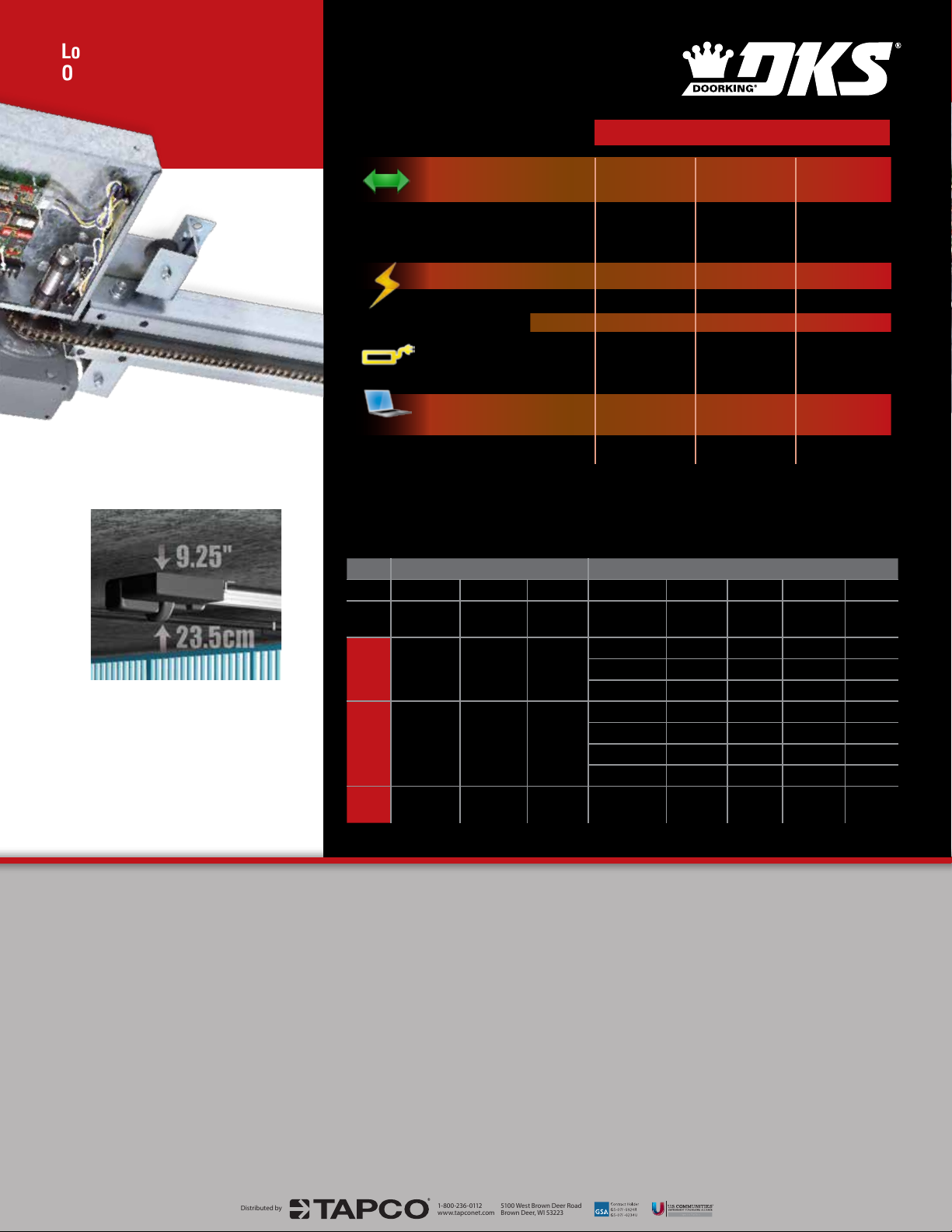

Low Profile
• Low profile (only 9.25 inches
- 23.5cm) design makes the
1150 ideal for low clearance
underground parking areas.
• Optional cover shown.
Maximum Arm Width
Folding Arm Kit (low ceilings)
Horse Power
Half HP
One HP
Loop Detector Ports
Gate Tracker
Convience Open Package *
* Optional factory installed DC powered drive system provides an automatic method to open the gate when
primary (AC) power fails.
Model Usage Barrier Arm
High Use
Commercial
1601
1602
1603
Limited Use
Industrial
ü ü
ü ü
Cycle
Time
90° 1.5
Sec
ü
90° 5.5
Sec
90° 1.5
Sec
14 ft (4.3m) 27 ft (8.2m) 14
3 - 3
3 -
-
3 -
3 3 3
3 3
3 3 3
Length Type Folding
14 Ft. (4.3m) Aluminum Yes No No
14 Ft. (4.3m) Wood Yes No No
12 Ft. (3.6m) Plastic Yes Yes Yes
20 Ft. (6.1m) Wood No No No
20 Ft. (6.1m) Aluminum No No Yes
24 Ft. (7.3m) Aluminum No No Yes
27 Ft. (8.2m) Aluminum No No Yes
14 Ft. (4.3m) Aluminum Yes No Yes
Breakaway Lighted
Kit
ft (4.3m
3
3
)
