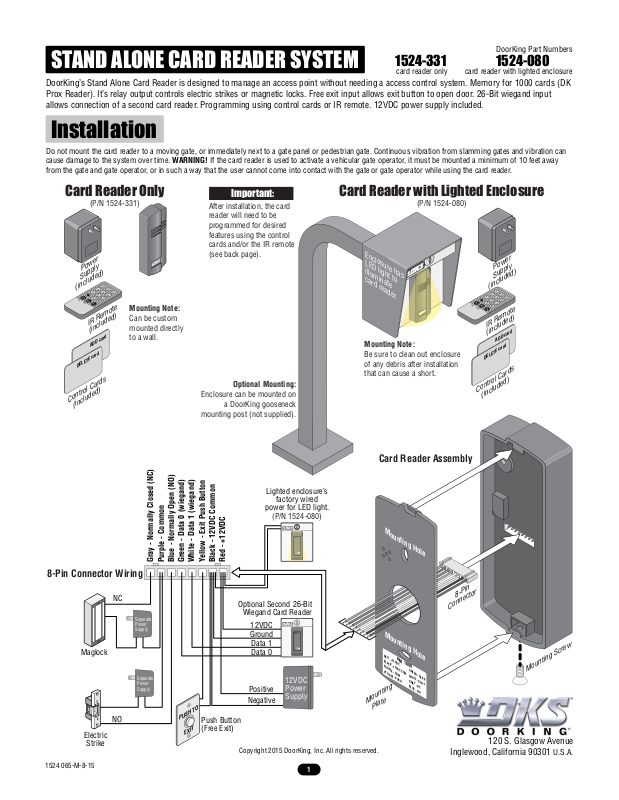

DoorKing 1524-331, 1524-080 Quick Start Manual
DoorKing Part Numbers
STAND ALONE CARD READER SYSTEM
1524-331 1524-080
card reader only card reader with lighted enclosure
DoorKing’s Stand Alone Card Reader is designed to manage an access point without needing a access control system. Memory for 1000 cards (DK
Prox Reader). It’s relay output controls electric strikes or magnetic locks. Free exit input allows exit button to open door. 26-Bit wiegand input
allows connection of a second card reader. Programming using control cards or IR remote. 12VDC power supply included.
Installation
Do not mount the card reader to a moving gate, or immediately next to a gate panel or pedestrian gate. Continuous vibration from slamming gates and vibration can
cause damage to the system over time. WARNING! If the card reader is used to activate a vehicular gate operator, it must be mounted a minimum of 10 feet away
from the gate and gate operator, or in such a way that the user cannot come into contact with the gate or gate operator while using the card reader.
Card Reader Only
(P/N 1524-331)
Power
Supply
1
4
7
E
X
0
IT
D
EL
AD
D
RE
C
V
ALL
IR Remote
(included)
ADD card
2
5
3
8
6
9
#
Mounting Note:
Can be custom
mounted directly
to a wall.
(included)
DELETE card
Control Cards
(included)
Important:
After installation, the card
reader will need to be
programmed for desired
features using the control
cards and/or the IR remote
(see back page).
Optional Mounting:
Enclosure can be mounted on
a DoorKing gooseneck
mounting post (not supplied).
Card Reader with Lighted Enclosure
(P/N 1524-080)
Enclosure has
LED light to
illumin
card reader
ate
Mounting Note:
Be sure to clean out enclosure
of any debris after installation
that can cause a short.
Card Reader Assembly
Power
Supply
(included)
1
4
2
7
5
8
6
E
XIT
0
9
D
E
ADD
LR
#
C
E
V
ALL
IR Remote
(included)
ADD card
DELETE card
Control Cards
(included)
3
8-Pin Connector Wiring
NC
Maglock
NO
Electric
Strike
1524 065-M-8-15
Gray - Normally Closed (NC)
Purple - Common
Blue - Normally Open (NO)
Green - Data 0 (wiegand)
White - Data 1 (wiegand)
Separate
Power
Supply
Separate
Power
Supply
H TO
PUS
Push Button
(Free Exit)
EXIT
Lighted enclosure’s
factory wired
power for LED light.
(P/N 1524-080)
Yellow - Exit Push Button
Black - 12VDC Common
Red - +12VDC
Optional Second 26-Bit
Wiegand Card Reader
12VDC
Ground
Data 1
Data 0
Positive
Negative
Copyright 2015 DoorKing, Inc. All rights reserved.
12VDC
Power
Supply
Mounting Hole
8-Pin
Connector
Mounting Hole
RED
- +1
HM 1000
BLA
2VDC
C
K -
P
1
URP
2V
D
C
LE -
G
CO
Mount
Plate
YELLO
i
REEN
CO
M
M
-
WH
W
Dat
-
ITE -
a
P
USH
0
G
Dat
RA
a
Y - NC
1
BL
U
E -
ng
N
O
Mounting Screw
120 S. Glasgow Avenue
Inglewood, California 90301
1
U.S.A.
Programming
1524-331, 1524-080
card reader only card reader with lighted enclosure
ADD card
DELETE card
Operation Using Control Cards Using IR Remote
Enter programming mode
Exit programming mode
Enroll one or more new
cards one at a time.
Record card #’s on log
sheet for future reference.
Enroll a block of new
cards.
Record card #’s on log
sheet for future reference.
Delete one or more cards
one at a time.
Use ADD and/or DELETE card (see desired operation below).
Use ADD and/or DELETE card (see desired operation below) or wait until green
LED turns off.
1. Present ADD card (green LED flashes).
2. Present new card (reader beeps).
3. Repeat step 2 with additional new cards.
4. Present ADD card or wait until green LED turns off to exit programming.
1. Present ADD card TWICE (green LED flashes).
2. Present FIRST card in the block of cards (reader beeps).
3. Present LAST card in the block of cards (reader beeps).
4. Present ADD card or wait until green LED turns off to exit programming.
1. Present DELETE card (green LED flashes).
2. Present card to be deleted (reader beeps).
3. Repeat step 2 with additional cards to be deleted.
4. Present DELETE card or wait until green LED turns off to exit programming.
press “#”, followed by the 6 digit password (green LED on).
Manufacturer’s default is “000000”.
press “ ” or wait until green LED turns off.
This function is NOT programmable using IR Remote.
This function is NOT programmable using IR Remote.
1. Enter programming mode with remote (See above).
2. Press “6” (green LED flashes).
3. Enter 8 digit card number, 3 digit FC, 5 digit CC.
4. Repeat step 2 and 3 with additional cards to be deleted.
5. Press “ ” or wait until green LED turns off to exit programming.
DoorKing Part Numbers
4
7
EXIT
DEL
8
0
ADD
#
REV
CAL
L
1
2
5
3
6
9
Delete ALL cards.
Change door release time
(1 - 255 seconds)
Create new ADD and
DELETE control cards.
Change Password.
1. Present DELETE card 5 times (reader beeps).
2. Present ADD card 5 times (long beep). THIS CANNOT BE UNDONE.
1. Present ADD card (green LED flashes).
2. Present DELETE card (reader beeps).
3. Present DELETE card once for each second of time before door will release
(i.e. swipe DELETE card 3 times for three seconds).
4. Wait until green LED turns off to exit programming.
NOT applicable.
NOT applicable.
8 Digit
Registered Card
0678
65,0
Card Code
0
1. Enter programming mode with remote (See above).
2. Press “4” TWICE. THIS CANNOT BE UNDONE.
1. Enter programming mode with remote (See above).
2. Press “5” (green LED flashes).
3. Enter 3 digit release time (i.e. “001” for 1 second,
“030” for thirty seconds, “255” for 255 seconds).
1. Enter programming mode with remote (See above).
2. Press “7” (green LED flashes).
3. Present first new card - this is new ADD card (reader beeps).
4. Present second new card - this is new DELETE card (reader beeps).
Note: Discard OLD ADD and DELETE control cards.
1. Enter programming mode with remote (See above).
2. Press “1” (green LED flashes).
3. Enter new 6 digit password (reader beeps).
1524 065-M-8-15
