D-Link DWR-111 User Manual

User Manual

Wireless N150 Wi-Fi Router

Version 1.00 | 10/30/2013

DWR-111

iD-Link DWR-111 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Manual Revisions

Revision Date Description

1.0 October 25, 2013

DCS-6004L/DCS-6005L Revision A1 with rmware version 1.00

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

Preface

iiD-Link DWR-111 User Manual

Table of Contents

Package Contents ......................................................................... 1

System Requirements ................................................................. 1

Introduction ...................................................................................2

Front Panel and LEDs ........................................................... 3

Hardware Overview ..................................................................... 4

Back Panel ...............................................................................4

Installation ......................................................................... 5

Connect to Your Network ..........................................................5

Wireless Installation Considerations ......................................6

Conguration ..................................................................... 7

Web-based Conguration Utility ............................................ 7

Setup Wizard .................................................................................. 8

Internet Connection Setup Wizard .................................8

Manual Internet Connection Setup .............................12

Internet Connection ..........................................................13

Internet Connection Type ...........................................13

Dynamic IP (DHCP) ........................................................14

PPPoE .................................................................................15

PPTP ....................................................................................17

L2TP ....................................................................................19

3G ........................................................................................21

Static IP ..............................................................................23

Failover Setting ....................................................................24

Wireless Settings ............................................................25

Network Settings ................................................................27

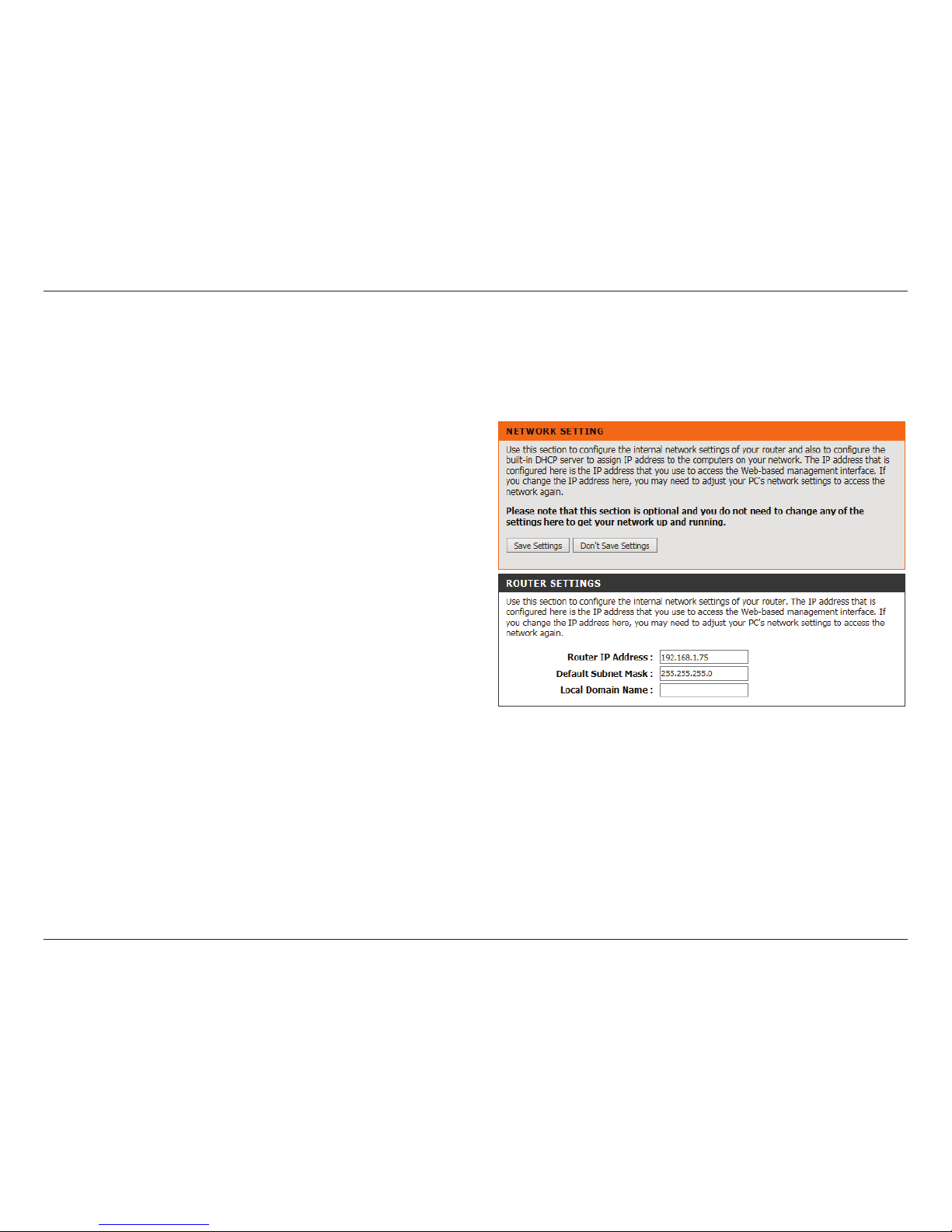

Router Settings ...............................................................27

DHCP Server Settings ...................................................28

Virtual Server ........................................................................29

Application Rules ................................................................30

QoS Engine............................................................................31

MAC Address Filter .............................................................32

URL Filter ................................................................................33

Outbound Filter ...................................................................34

Inbound Filter ......................................................................35

SNMP .......................................................................................36

Routing ...................................................................................37

Advanced Wireless .............................................................38

Advanced Network ............................................................39

DMZ .........................................................................................40

Admin .....................................................................................41

Time .........................................................................................42

Syslog ......................................................................................43

E-mail Settings .....................................................................44

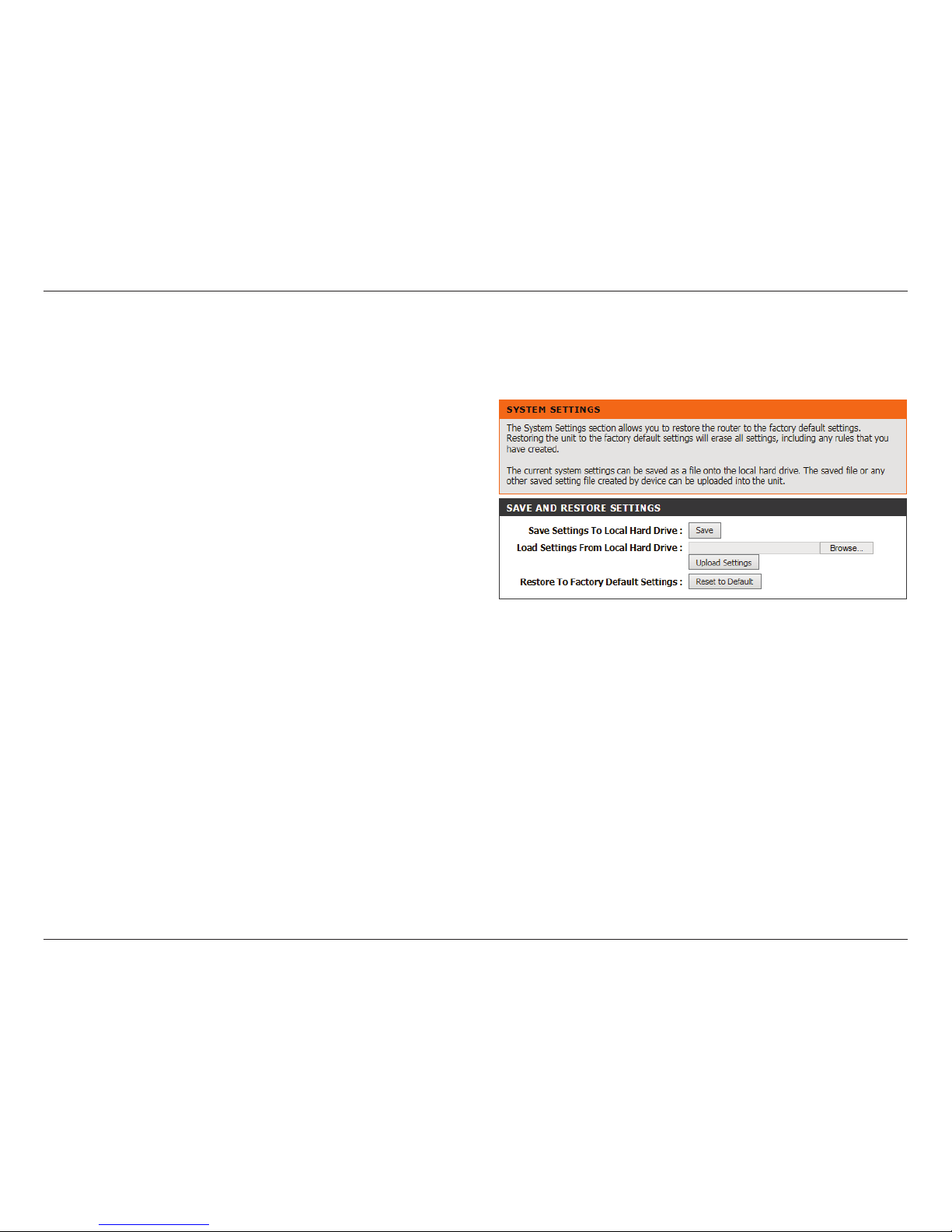

System ....................................................................................45

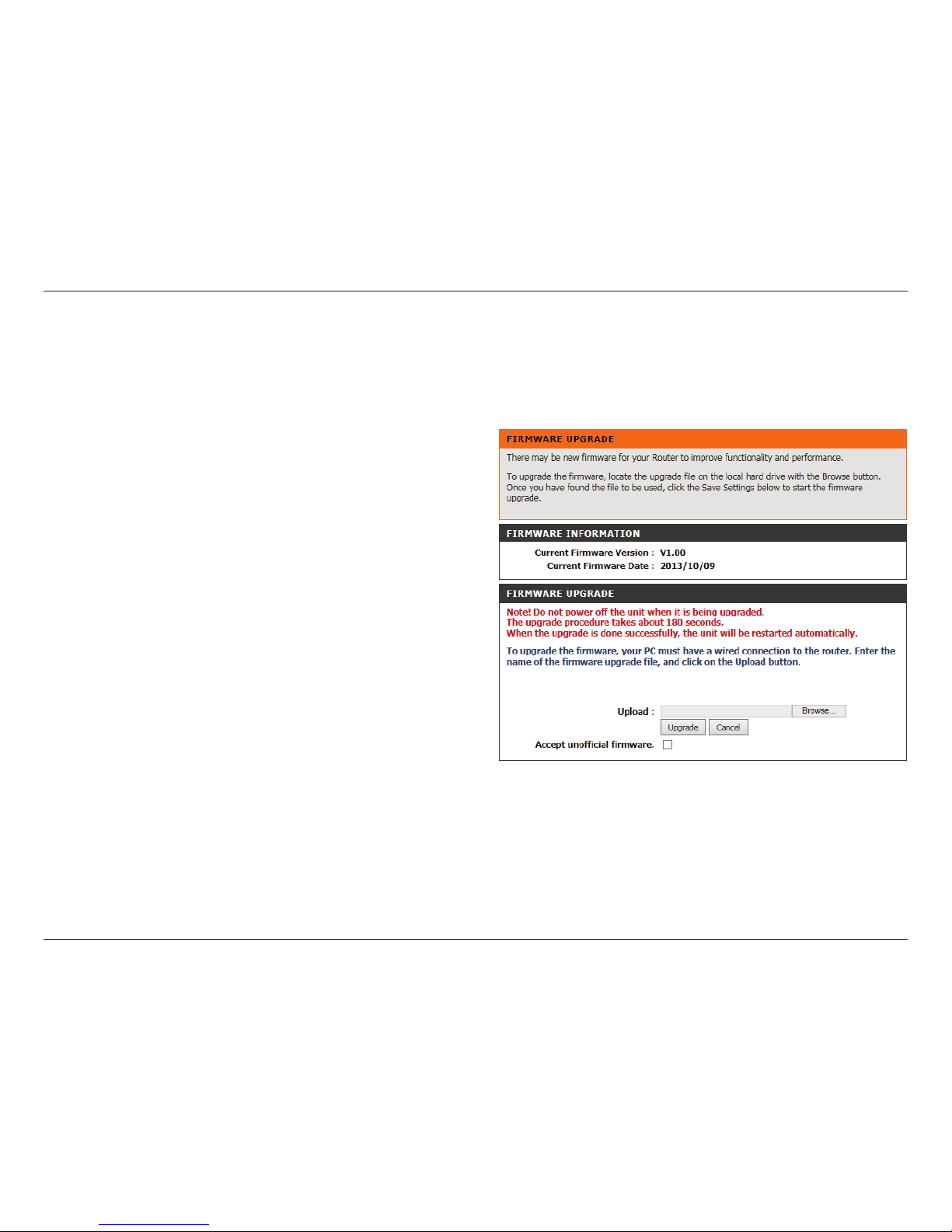

Firmware ................................................................................46

Dynamic DNS .......................................................................47

System Check .......................................................................48

Schedules ..............................................................................49

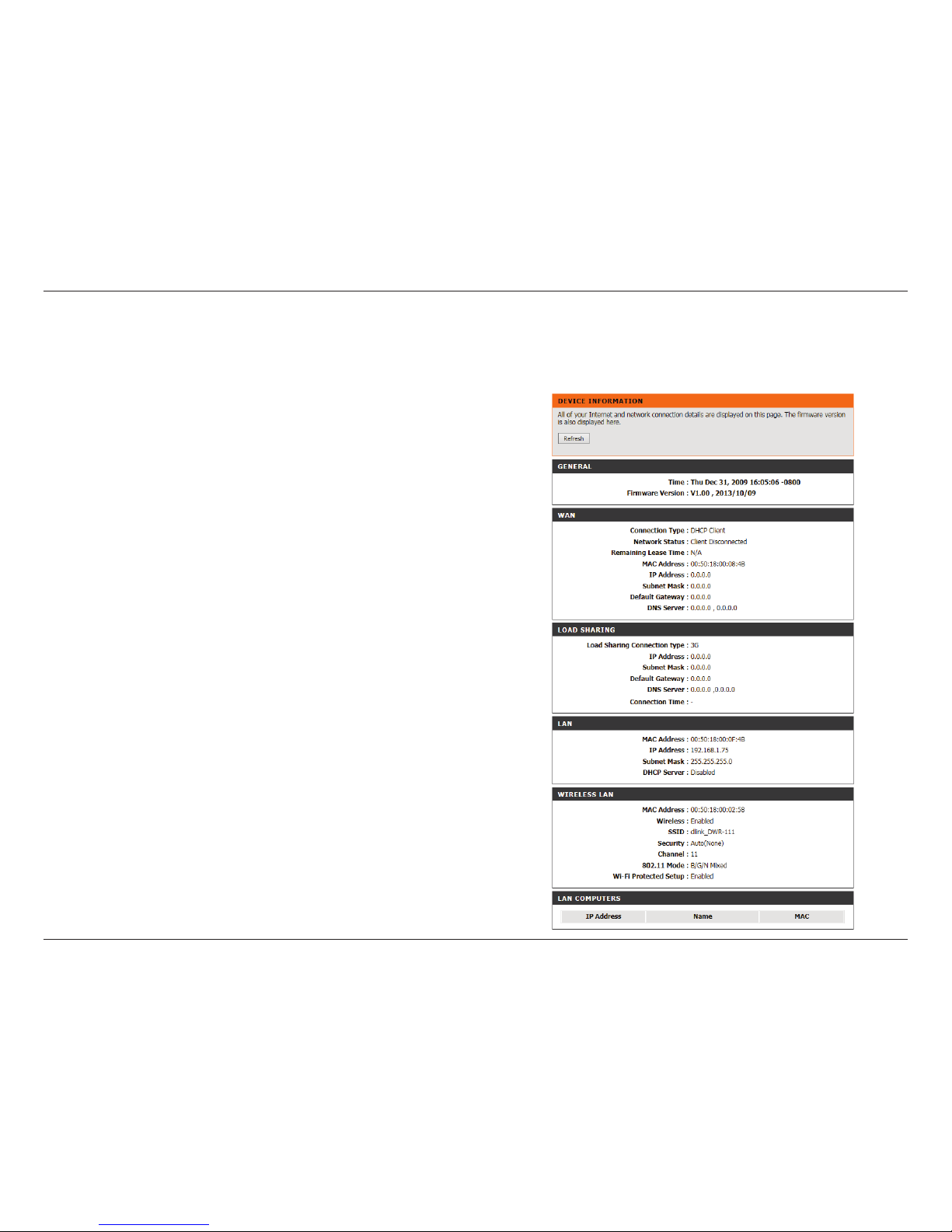

Device Information ............................................................50

Logs .........................................................................................51

Statistics .................................................................................52

Table of Contents

iiiD-Link DWR-111 User Manual

Table of Contents

Wireless ..................................................................................53

Support ..................................................................................54

Wireless Security .............................................................55

What is WEP? ................................................................................55

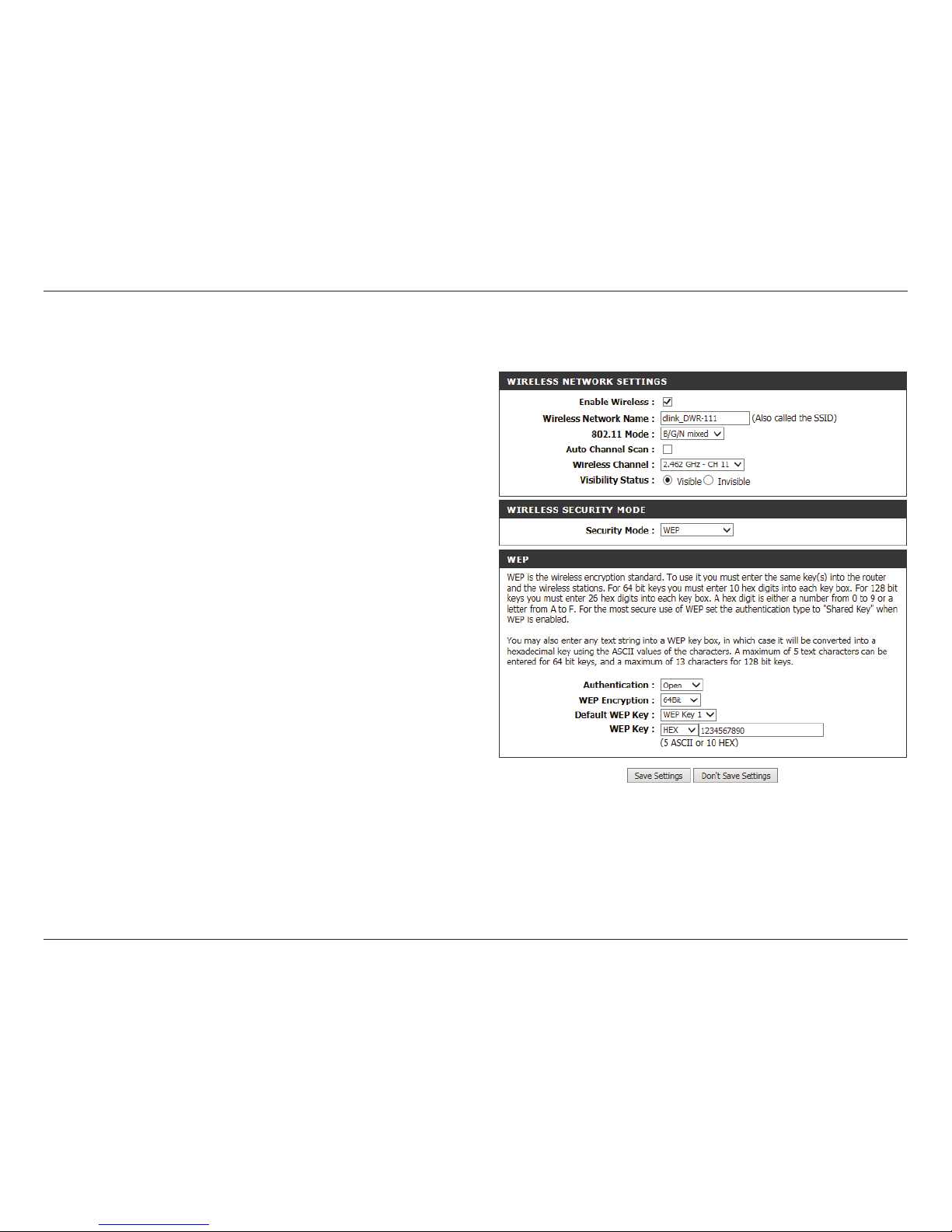

Congure WEP .............................................................................56

What is WPA? ................................................................................57

Congure WPA-PSK ....................................................................58

Congure WPA (RADIUS) .........................................................59

Connect to a Wireless Network ....................................... 60

Using Windows Vista™ ..............................................................60

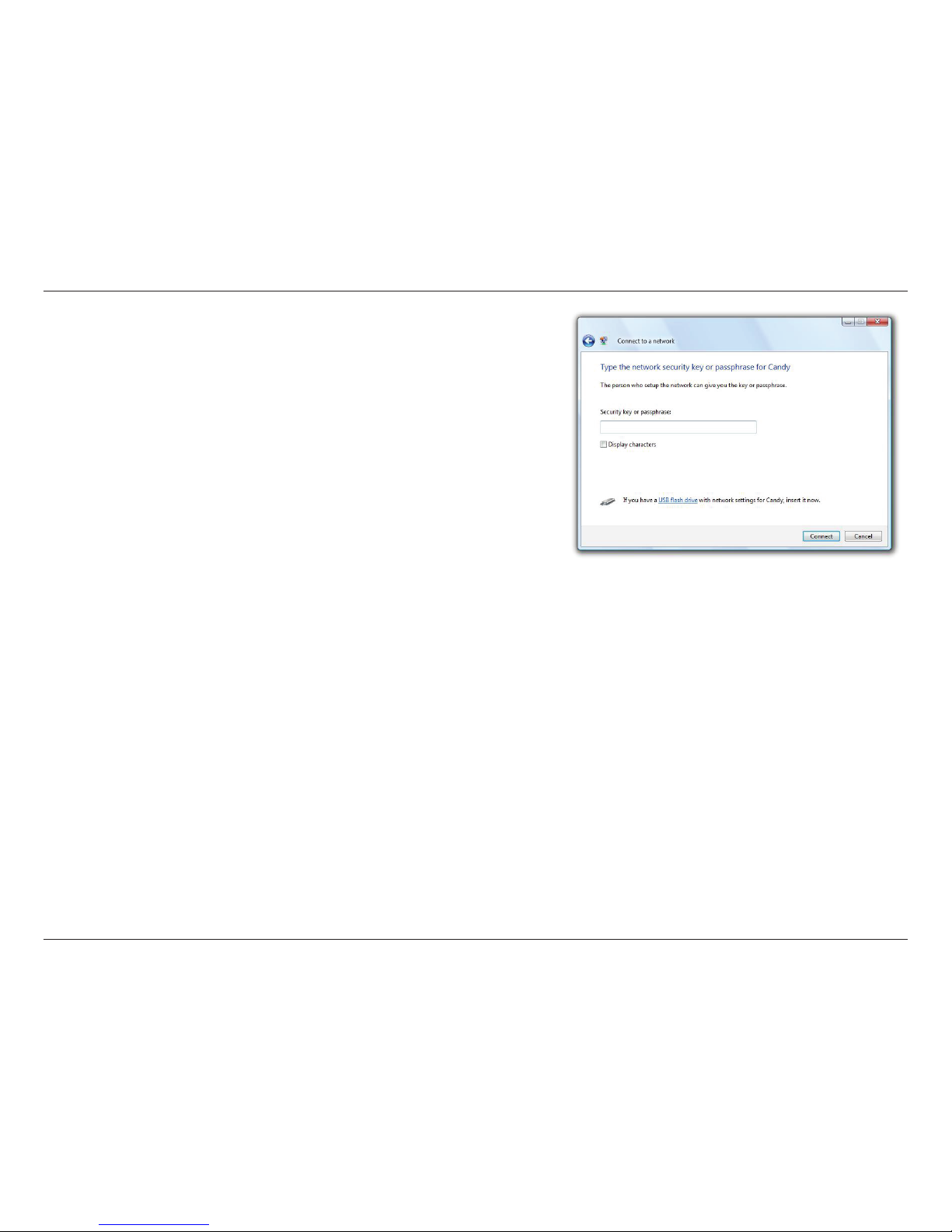

Congure Wireless Security ............................................61

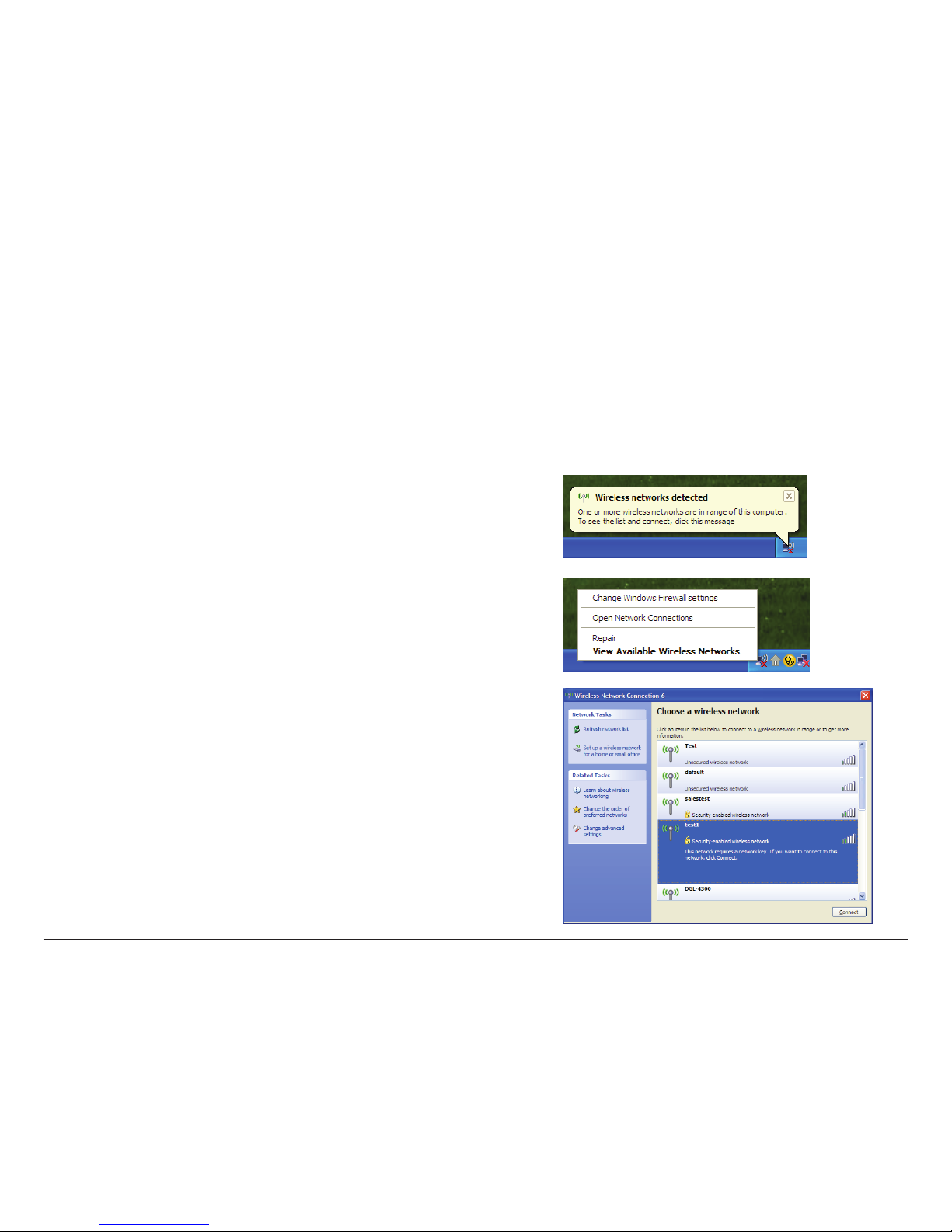

Connect to a Wireless Network ....................................... 63

Using Windows

XP ....................................................................63

Congure WEP .....................................................................64

Congure WPA-PSK ............................................................66

Troubleshooting ..............................................................68

Wireless Basics .................................................................70

What is Wireless? .........................................................................71

Tips ...................................................................................................73

Wireless Modes ............................................................................74

Networking Basics ........................................................... 75

Check your IP address ...............................................................75

Statically Assign an IP address ...............................................76

Technical Specications .................................................. 77

1D-Link DWR-111 User Manual

Section 1 - Product Overview

• D-Link DWR-111 Wireless N150 Wi-Fi Router

• Power Adapter

• Manual and Warranty on CD

• External Wi-Fi antenna

System Requirements

• A compatible 3G USB modem

• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet adapter

• Internet Explorer Version 6.0 or Netscape Navigator™ Version 6.0 and above (for conguration)

Product Overview

If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a dierent voltage rating than the one included with the DWR-111 will cause damage and void the warranty for this product.

Package Contents

2D-Link DWR-111 User Manual

Section 1 - Product Overview

Introduction

The D-Link Wireless N150 Wi-Fi Router allows users to access worldwide mobile broadband networks. Once connected, users can transfer data and stream media. Simply connect your USB modem and share your 3G Internet connection through a secure 802.11n wireless network or using the 10/100 Ethernet port.

The Wireless N150 Wi-Fi Router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DWR-111 can even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.

3D-Link DWR-111 User Manual

Section 1 - Product Overview

Hardware Overview

Front Panel and LEDs

LED Description

Color Solid Blinking Blinking (Fast) Power Green The device is powered on - Internet Green Internet connection established - Wi-Fi Green Wi-Fi active and available Data transmitting Device in WPS

mode

LAN Green Ethernet connection established Data transmitting - USB Green 3G connection established Data transmitting - WAN Green WAN connection established Data transmitting -

Power LED

Internet Wi-Fi LAN

WAN

USB

4D-Link DWR-111 User Manual

Section 1 - Product Overview

Hardware Overview

Back Panel

Port Function Reset Button Resets the device to its factory default settings. USB Port Connects to a USB modem. WPS Button Starts the WPS feature for connecting to other devices. LAN Port Connects to wired computers or devices. WAN Port Connects to the Internet. Power Input Connects to the power adapter. Power Button Turns the device on or o.

USB Port

WPS Button LAN WAN Power Input

Power Button

Reset Button

5D-Link DWR-111 User Manual

Section 2 - Installation

Installation

This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in an attic or garage.

Connect to Your Network

Note: Ensure that your DWR-111 Wireless N150 Wi-Fi Router is disconnected and powered o before performing the installation steps below.

1. Connect a USB modem to the USB port on the back of the router.

2. Insert a LAN network cable into the LAN port on the back of the router. Plug the other end of the LAN cable into the LAN port of your computer

or laptop. The Ethernet LED will turn green if the Ethernet connection is successfully established.

Note: The DWR-111 Wireless N150 Wi-Fi Router LAN Port is “Auto-MDI/MDIX.” Therefore, patch or crossover Ethernet cables can be used.

3. Congure the device using the setup utility.

6D-Link DWR-111 User Manual

Section 2 - Installation

Wireless Installation Considerations

The DWR-111 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing the wireless range is to follow these basic guidelines:

1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as glass, metal, brick, insulation, concrete and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal doors and aluminum studs may also have a negative eect on range.

4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.

7D-Link DWR-111 User Manual

Section 3 - Conguration

Conguration

This section will show you how to congure your new D-Link mobile router using the web-based conguration utility.

Web-based Conguration Utility

To access the conguration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1).

Type Admin and then enter the password. By default, the password is blank.

If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.

8D-Link DWR-111 User Manual

Section 3 - Conguration

Setup Wizard

The setup wizard guides you through the initial setup of your router. There are two ways to setup your Internet connection. You can use the web-based Internet Connection Setup Wizard or you can manually congure using the Manual Internet Connection Setup wizard.

Click Internet Connection Setup Wizard to begin.

If you want to enter your settings without running the wizard, click Manual Internet Connection Setup and skip to page 12.

This wizard will guide you through a step-by-step process to congure your D-Link router to connect to the Internet.

Click Next to continue.

Internet Connection Setup Wizard

9D-Link DWR-111 User Manual

Section 3 - Conguration

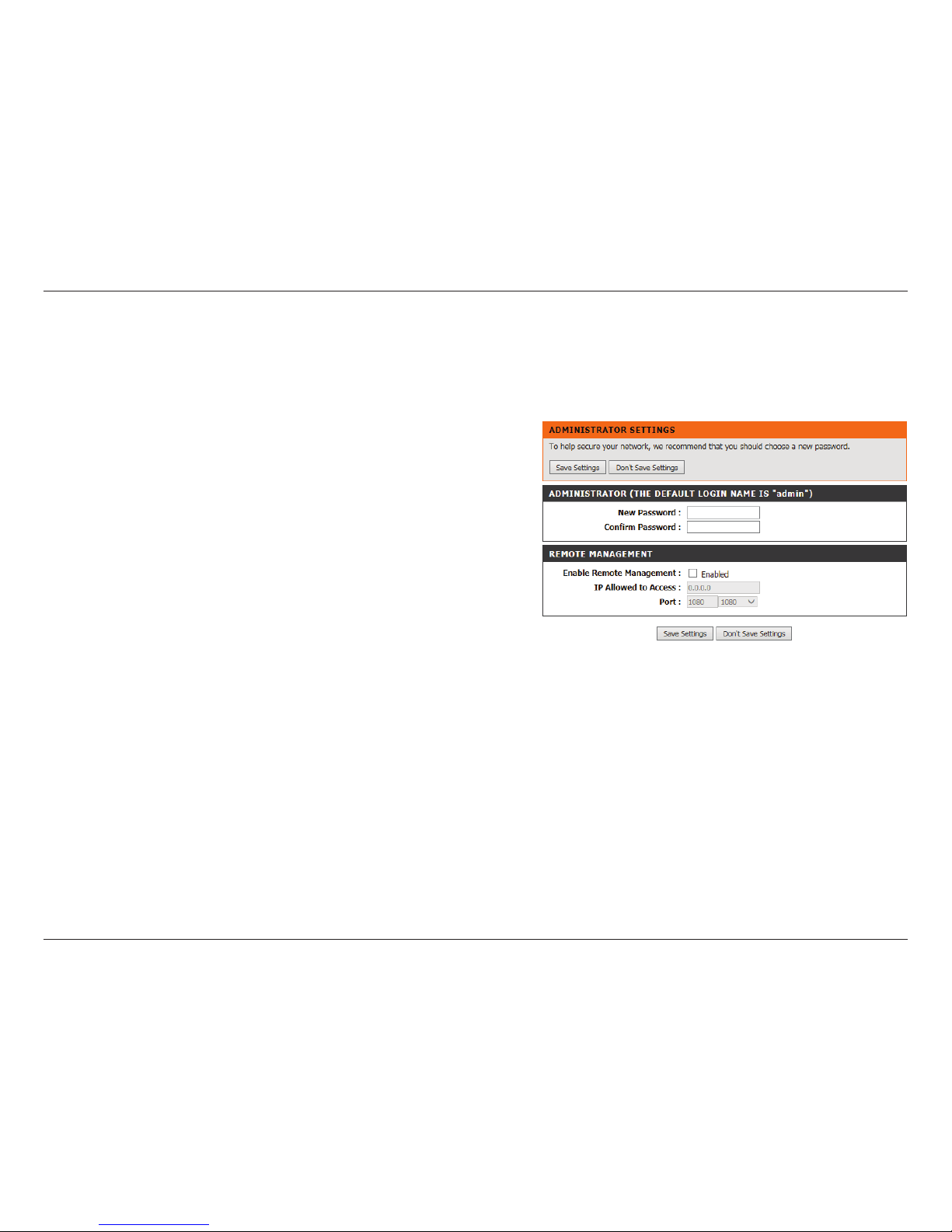

Create a new password and then click Next to continue. Click Prev to go back to the previous page or click Cancel to close the wizard.

Select your time zone from the drop-down box and then click Next to continue.

Click Prev to go back to the previous page or click Cancel to close the wizard.

Select the Internet connection type. The connection types are explained on the following page. If you are unsure of the correct connection type, you may have to contact your Internet Service Provider (ISP).

Click Prev to go back to the previous page or click Cancel to close the wizard.

Note: The DWR-111 supports several kinds of WAN interfaces, allowing you to assign either a WAN or a WWAN(3G) connection as the Backup WAN. If the Primary WAN is down or unavailable, congure the Backup WAN to Enable, and all the trac will be routed through Backup WAN. This feature is called WAN Failover. You can use WAN Failover if you need redundancy to your Internet connection or any other network.

10D-Link DWR-111 User Manual

Section 3 - Conguration

Choose this if your Internet connection automatically provides you with an IP Address. Most cable modems use this type of connection. See page 14 for information about how to congure this type of connection.

Choose this option if your Internet connection requires a username and password to connect. Most DSL modems use this style of connection. See page 15 for information about how to congure this type of connection.

Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See page 17 for information about how to congure this type of connection.

Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See page 19 for information about how to congure this type of connection.

Choose this option if your Internet Setup Provider provided you with a user name and password to use with your 3G / 4G LTE enabled USB Dongle. See page 21 for information about how to congure this type of connection.

Choose this option if your Internet Setup Provider provided you with IP Address information that has to be manually congured. See page 23 for information about how to congure this type of connection.

DHCP Connection

(Dynamic IP Address):

Username / Password

Connection (PPPoE):

Username / Password

Connection (PPTP):

Username / Password

Connection (L2TP):

3G Connection:

Static IP Address

Connection:

The subsequent conguration pages will dier depending on the selection you make on this page.

11D-Link DWR-111 User Manual

Section 3 - Conguration

You have completed the Setup Wizard.

Click Connect to save your settings.

A pop-up will appear, to conrm your settings.

Click OK to save your settings.

12D-Link DWR-111 User Manual

Section 3 - Conguration

Manual Internet Connection Setup

Click Manual Internet Connection Setup to begin.

If you want to congure your router to connect to the Internet using the wizard, click Internet Connection Setup Wizard and refer to page 8.

13D-Link DWR-111 User Manual

Section 3 - Conguration

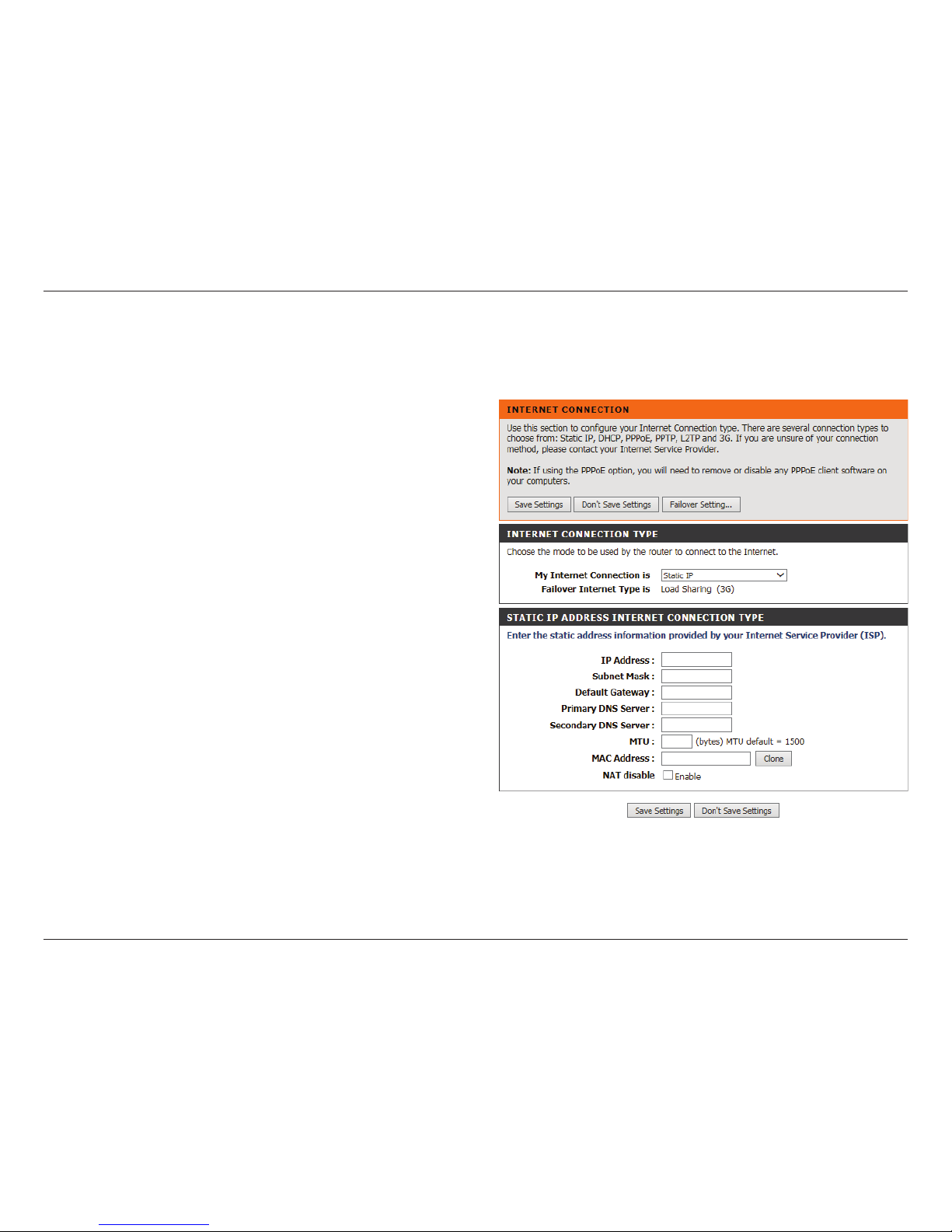

Several dierent Internet Connection types can be selected depending upon the specications of your Internet Service Provider (ISP).

Select the Internet Connection type specied by your Internet Service Provider (ISP). The corresponding settings will be displayed below. Please see the following pages for details on how to congure these dierent connection types.

This connection can serve as a backup for your default connection.

Enter the name of the Internet host to be used as the backup connection.

Enter the primary DNS server.

Enter the secondary DNS server.

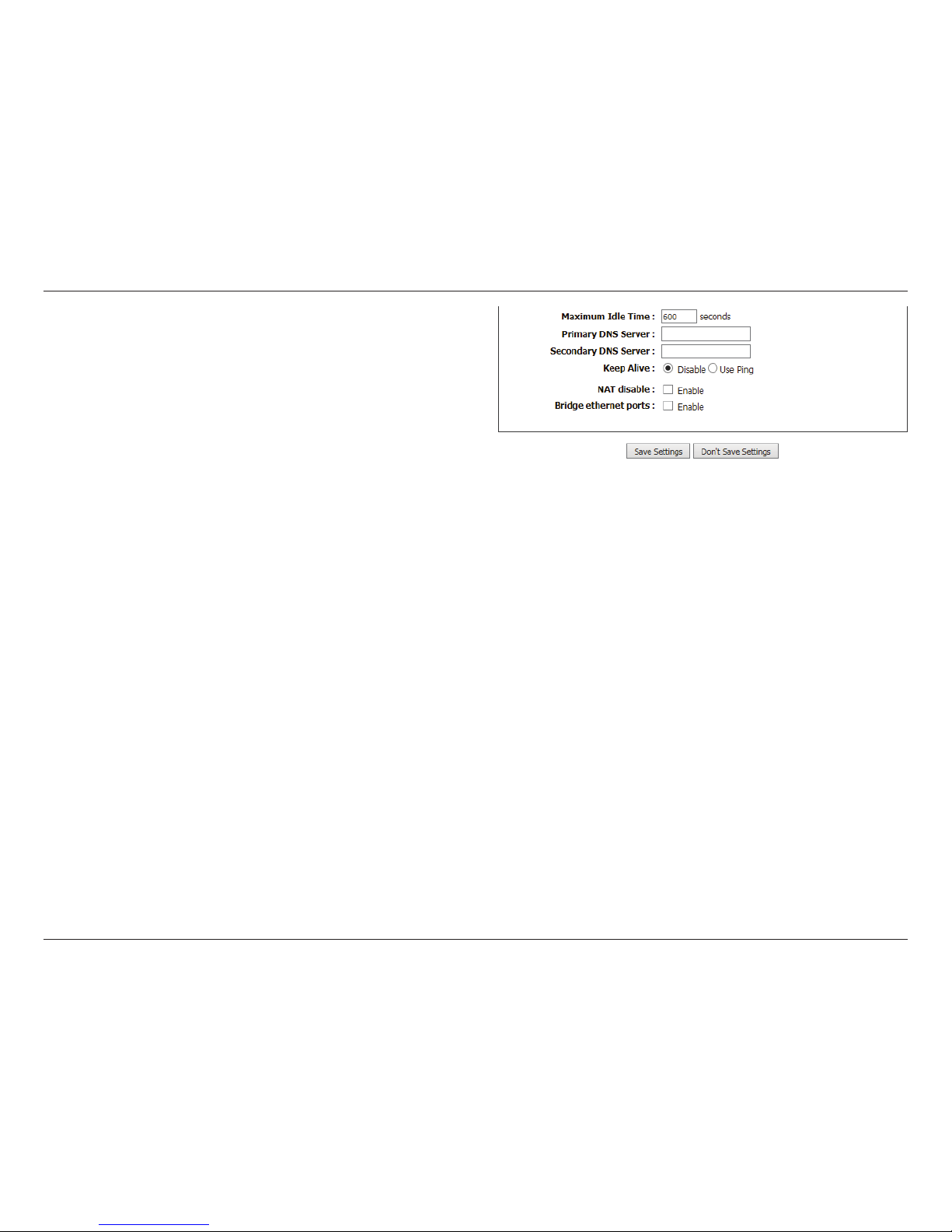

Set the MTU (the default value is 1500).

Manually enter the MAC address or click Clone to copy the PC’s MAC address.

Check this check box to enable auto-reconnect.

Check this check box to disable network address translation.

Internet Connection

Internet Connection Type

My Internet

Connection is:

Failover Internet

Type is:

Host Name:

Primary DNS Server:

Secondary DNS

Server:

MTU:

MAC Address:

Auto-reconnect:

NAT disable:

14D-Link DWR-111 User Manual

Section 3 - Conguration

Dynamic IP (DHCP)

(Optional) Required by some ISPs.

(Optional) Fill in with IP address of primary DNS server.

(Optional) Fill in with IP address of secondary DNS server.

You may need to change the Maximum Tran smissi on Un it (MTU) for optim a l performance. The default value is 1500.

The default MAC Address is set to the Internet port’s physical inter face MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your PC.

This feature enables this product to renew WAN IP address automatically when the lease time is expiring.

Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.

This section will help you to obtain IP Address information automatically from your ISP. Use this option if your ISP didn’t provide you with IP Address information and/or a username and password.

Host Name:

Primary DNS Server:

Secondary DNS Server:

MTU (Maximum

Transmission Unit):

MAC Address:

Auto-reconnect:

15D-Link DWR-111 User Manual

Section 3 - Conguration

PPPoE

Choose this Internet connection if your ISP provides you a PPPoE account.

The username/account name that your ISP provides to you for PPPoE dial-up.

Password that your ISP provides to you for PPPoE dial-up.

Fill in with the same password in Password eld.

(Optional) Fill in if provided by your ISP.

(Optional) Fill in if provided by your ISP. If not, keep the default value.

MAC address of WAN interface. You can also copy MAC address of your PC to its WAN interface by pressing Clone Your PC’s MAC button. The Restore MAC button will reset the router to its default MAC address.

The amount of time of inactivity before disconnecting established PPPoE session. Set it to zero or enable Auto-reconnect will disable this feature.

Username:

Password:

Verify Password:

Service Name:

IP Address:

Primary DNS Server:

Secondary DNS

Server:

MAC Address:

Maximum Idle Time:

Maximum

Transmission Unit

16D-Link DWR-111 User Manual

Section 3 - Conguration

(MTU):

Reconnect Mode:

NAT disable:

The default setting of PPPoE is 1492.

The device will dial-up PPPoE connection automatically if set to always, otherwise you will need to manually reconnect.

Check this check box to disable network address translation.

Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.

17D-Link DWR-111 User Manual

Section 3 - Conguration

PPTP

Choose this Internet connection if your ISP provides you with a PPTP account.

Choose Static IP only if your ISP assigns you an IP address. Otherwise, please choose Dynamic IP.

Enter the information provided by your ISP. (Only applicable for Static IP PPTP.)

IP address of PPTP server.

User/account name that your ISP provides to you for PPTP dial-up.

Password that your ISP provides to you for PPTP dial-up.

Fill in with the same password in Password eld.

Choose Always-on when you want to establish PPTP connection all the time. If you choose Connect-on-demand, the device will establish PPTP connection when local users want to surf the Internet, and disconnect if no trac after time period of Maximum Idle Time expires.

Address Mode:

PPTP IP Address:

PPTP Subnet Mask:

PPTP Gateway IP

Address:

PPTP Server IP

Address:

Username:

Password:

Verify Password:

Reconnect Mode:

18D-Link DWR-111 User Manual

Section 3 - Conguration

The time of no activity to disconnect your PPTP session. Set it to zero or choose Always-on to disable this feature.

If your ISP requires that you enter a MAC address to use with your PPTP account, enter it here. You can also click the Clone button, which will copy your computer’s MAC address.

Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.

Maximum Idle Time:

MAC Address:

19D-Link DWR-111 User Manual

Section 3 - Conguration

L2TP

Choose this Internet connection if your ISP provides you with a L2TP account.

Choose Static IP only if your ISP assigns you an IP address. Otherwise, please choose Dynamic IP.

Enter the information provided by your ISP. (Only applicable for Static IP L2TP.)

IP address of L2TP server.

User/account name that your ISP provides to you for L2TP dial-up.

Password that your ISP provides to you for L2TP dial-up.

Fill in with the same password in Password eld.

Choose Always-on when you want to establish L2TP connection all the time. Choose Connect- on-demand if the device will establish a L2TP connection when local users want to surf Internet, and disconnect if there is no trac after time period of Maximum Idle Time.

Address Mode:

L2TP IP Address:

L2TP Subnet Mask:

L2TP Gateway IP

Address:

L2TP Server IP

Address:

Username:

Password:

Verify Password:

Reconnect Mode:

20D-Link DWR-111 User Manual

Section 3 - Conguration

The time of no activity to disconnect your L2TP session. Set it to zero or choose Always-on to disable this feature.

If your ISP requires that you enter a MAC address to use with your PPTP account, enter it here. You can also click the Clone button, which will copy your computer’s MAC address.

Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.

Maximum Idle Time:

MAC Address:

21D-Link DWR-111 User Manual

Section 3 - Conguration

Choose whether to have the router auto-detect the 3G settings or to manually input the necessary values.

Use the dropdown menu to select which country your 3G service provider is based from.

Once you have selected the country from which your 3G provider resides in, a list of 3G service telecom providers will be available for you to choose from.

Select the type of 3G network your provider uses.

(Optional) Fill in only if requested by ISP.

Enter the number to be dialed.

PAP, CHAP, or Auto detection. Th e default authentication method is Auto.

(Optional) Enter the APN information.

Enter the PIN associated with your SIM card.

Auto or M a nua l . Conn e ct to 3 G n e two r k automatically or manually.

Dial-Up Prole:

Country:

Telecom:

3G Network:

Username:

Password:

Dialed Number:

Authentication:

APN:

PIN:

Reconnect Mode:

Choose this Internet connection if you already use a SIM card for 3G Internet service from your Telecom company. The elds here may not be necessary for your connection. The information on this page should only be used if required by your service provider.

+ 57 hidden pages

D-Link DWR-111 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
