D-link DI-LB604 Quick Installation Guide

System Requirements

 Ethernet


Computers with Win

operating sy



Internet Explorer

above

-based Cable o
dows, Ma

stems

with an inst

Version 6.0 or Net

r DSL

Modem

cintosh, or Linux

alled Ethernet adap

Package Contents

DI-LB604 Install GuideSystem Requirements

scape Nav

-based
ter

igator 7.0 and

2 D-Link Systems, Inc.

DI-LB604 Install Guide Hardware Overview

Hardware Overview

Front Panel

WAN LEDs

A solid light indicates a connection
on the WAN port. These LEDs blink
during data transmission.

Power LED

A solid light indicates a
proper connection to the
proper power supply.

Local Network LEDs

A soli d light on e a c h por t
indicates a connection to an
Ethernet enabled computer.
These LEDs blink during data
transmission.

Status LED

This LED will be off to indicate
proper operation and it will blink
during data transmission.

D-Link Systems, Inc. 3

DI-LB604 Install GuideHardware Overview

Back Panel Connections

LAN Ports

These are the connections for Ethernet cables
to Ethernet enabled computers.

Power Receptor

WAN Ports

This is for the connection of
an Ethernet cable to your
Cable or DSL modem.

Reset Button

Pressing this button restores the Router to its
original factory default settings.

4 D-Link Systems, Inc.

DI-LB604 Install Guide Connecting the DI-LB604

Connecting The DI-LB604 Load
Balancing Router To Your Network

A. First, connect the power adapter to the receptor at the back

panel of the DI-LB604 and then plug the other end of the power
adapter to a wall outlet or power strip. The Power LED will turn
ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; som e devices

may not have an on/off switch and wi l l require you to
unplug the power adapter. Now, the DI-LB604 should be
powered on and the Cable/DSL modem should be turned off.

2. Cable/DSL modem (Power Off) – DI-LB604 (Power On)
Connect an Ethernet cable to the Ethernet jack located
on th e Ca ble/DSL modem. After the Ethernet cabl e is
securely co n n ec t e d, pow e r on the Ca ble / D S L modem
by turning on the unit or plugging in the power adapter.

3. Cable/DSL modem (Power On) – DI-LB604 (Power On)
Insert the other end of the Ethernet cable to the WAN PORT on
the back panel of the DI-LB604. The WAN LED light will illuminate
to indicate proper connection. If the WAN LED is not illuminated,
please go back to step B1 and repeat the instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the

DI-LB604 and an available Ethernet port on the network adapter
in the computer you will use to configure the DI-LB604. The LED
light for LAN Port 1 will illuminate to indicate proper connection.
(Note: The LAN Ports on the DI-LB604 are Auto-MDI/MDIX.
Meaning you can use a straight-through or crossover Ethernet
cable to the LAN Ports.)

D-Link Systems, Inc. 5

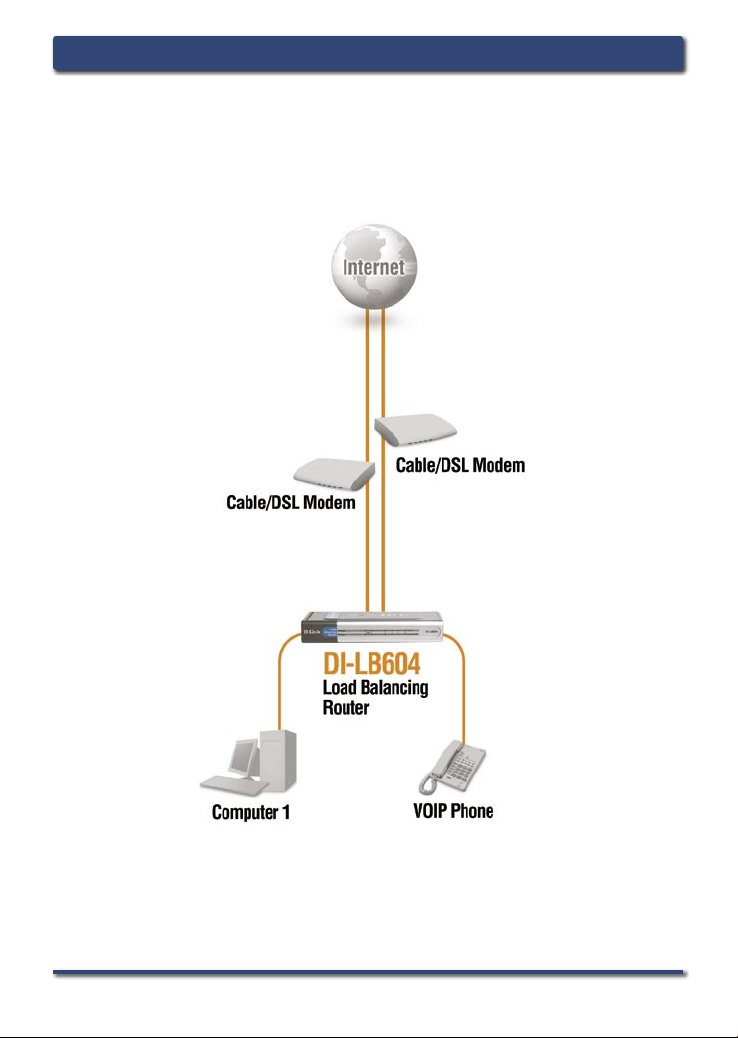

Getting Started

DI-LB604 Install GuideConnecting the DI-LB604

6 D-Link Systems, Inc.

DI-LB604 Install Guide Using The Setup Wizard

Using The Setup Wizard

Open your Web browser and
type “http://192.168.0.1”
into the URL address box.
Then press the Enter or
Return key.

The logon screen will
appear.

Type “admin” for the username
and leave the password field
blank.

Click OK

Once you have logged
in, the Home screen will
appear.

Click Run Wizard

D-Link Systems, Inc. 7

You will see the following
screens:

Click Next

Set up your new password.

You have the option to establish
a password for the username
“admin”.

DI-LB604 Install GuideUsing The Setup Wizard

Click Next

Choose your time zone

from the drop down list.

Click Next

8 D-Link Systems, Inc.

DI-LB604 Install Guide Using The Setup Wizard

If you are unsure of which

setting to select, pleas e
contact your Internet Service
Provider.

Select the type of Internet
Connection that is attached
to WAN1.

Click Next

Enter the needed information
for the type of connection you
have chosen.

Click Next

Select the type of Internet
connection that is attached
to WAN2.

Click Next

D-Link Systems, Inc. 9

Enter the needed information
for the type of connection you
have chosen.

Click Next

Your Setup is Complete!

DI-LB604 Install GuideUsing The Setup Wizard

Click Next

10 D-Link Systems, Inc.

DI-LB604 Install Guide Appendix

To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain an
IP address automatically for the DI-LB604
Load Balancing Router.

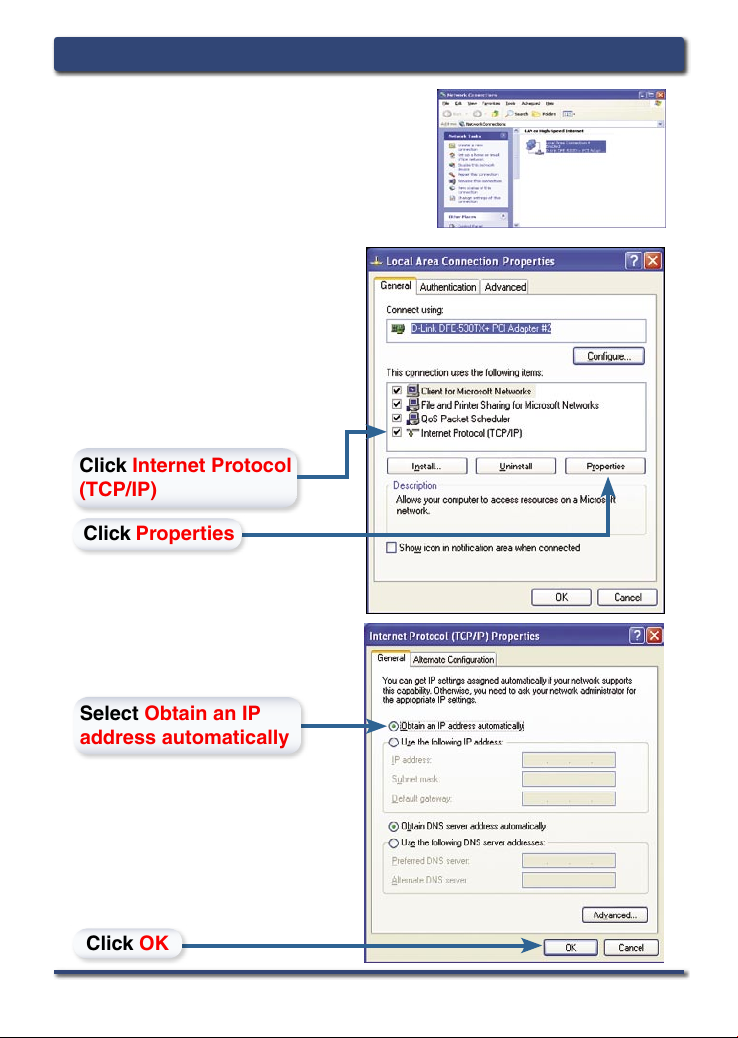

For Microsoft Windows XP: Go to

Start > right click on My Network

Places > select Properties > Right

click on the Network Connection

associat e d wi t h t h e Et h e rnet
adapter and select Properties
(i.e., D-Link DFE-530TX+).

Click Internet Protocol

(TCP/IP)

Click Properties

Select Obtain an IP

address automatically

Click OK

D-Link Systems, Inc. 11

For Apple Macintosh OS X:

Go to the Apple Menu Click on

System Preferences and Select
Network

Click on Network

Select Built-in Ethernet
in the Show pull down
menu

Select Using DHCP
in the Configure pull
down menu

DI-LB604 Install GuideAppendix

The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear.

Click on Apply Now

Restart your computer (if necessary)

12 D-Link Systems, Inc.

DI-LB604 Install Guide Notes

NOTES

D-Link Systems, Inc. 13

NOTES

DI-LB604 Install GuideNotes

14 D-Link Systems, Inc.

DI-LB604 Install Guide Notes

NOTES

D-Link Systems, Inc. 15

DI-LB604 Install GuideNotes

Technical Support

D-Link’s website contains the latest user documentation and software
updates for D-Link products.

D-Link provides free technical support for customers within the United States
and Canada for the duration of the product’s warranty period.

U.S. and Canadian customers can contact D-Link Technical Support through
our website or by phone.

United States

Telephone

[phone]

Twenty four hours a day, seven days a week.

World Wide Web

http://support.dlink.com

E-mail

[e-mail]

Canada

Telephone

[phone]

Monday through Friday, 7:30am to 9:00pm EST.

World Wide Web

http://support.dlink.ca

E-mail

[e-mail]
