Page 1

D-Link DI-704UP

Express EtherNetwork

Broadband Router with USB Print Server

Manual

Building Networks for People

Page 2

Package Contents ................................................................................3

Introduction............................................................................................4

Features and Benefits ...........................................................................5

LEDs ....................................................................................................6

Connections .......................................................................................... 7

Introduction to Broadband Router Technology ........................................ 8

Sample Scenario ................................................................................10

Network Setup .................................................................................... 11

Using the Setup Wizard ....................................................................... 12

Using the Configuration Menu..............................................................17

Installing the Print Server Software ......................................................58

Networking Basics .............................................................................. 62

Resetting the DI-704UP to the Factory Default Settings .......................82

Technical Specifications ......................................................................83

Frequently Asked Questions ................................................................ 84

Contacting Technical Support ............................................................ 112

Warranty and Registration ................................................................. 113

Page 3

Package Contents

Contents of Package:

D-Link DI-704UP Express EtherNetwork



Broadband Router with USB Print Server Manual, Warranty and Print Server Software on CD



Quick Installation Guide



Power Adapter - AC 5V, 2A



CAT5 Ethernet Cable



If any of the above items are missing, please contact your reseller.

WARNING! Using a power supply with a different voltage rating than the one included with the DI-704UP will cause damage and void the warranty for this product.

System Requirements for Configuration:

Computer with Windows, Macintosh, or Linux-based Operating



System with an installed Ethernet adapter



Internet Explorer version 6.x, Netscape Navigator version 6.x and above, or another Internet Browser application with Javascript enabled

Page 4

Introduction

Thank you for purchasing the DI-704UP Express EtherNetwork Broadband Router with USB Print Server. The DI-704UP is an Ethernet Broadband Router with a built-in 4-port switch. It also features a USB port to share a USB printer on the home or office network and includes a print server application for Windows. As many as four computers can be connected directly to the router’s integrated switch, using its four 10/100Mbps AutoMDIX Ethernet ports. More computers can be added to the network by connecting additional switches to the DI-704UP. The DI-704UP package even includes an Ethernet cable to get you started.

The DI-704UP is ideal if you are creating your first home or small business network, or if you are a more advanced user looking for additional management settings.

The DI-704UP includes a new, easy-to-use D-Link web-based graphical user interface (GUI) to configure the router. To prevent unwanted Internet intruders from accessing your private network, the DI-704UP also serves as a featurerich firewall.

So, whether you are a college student who wants to network with friends and roommates, an executive working at home or in a small office, or a concerned parent who just wants to have more control over how your children access the Internet, then the D-Link DI-704UP Express EtherNetwork Broadband Router with USB Print Server is the networking solution for you.

Page 5

Features & Benefits

Firewall Features



Filtering - Easily applied filtering based on Media Access Con-



trol (MAC) Addresses, IP Addresses, Port Addresses, and time schedule allows or denies computer on the network access to the Internet.

Network Address Translation - NAT allows your private net-



work to share a single public IP address. All your computer connected to the DI-704UP will be on a private network shielded from Internet intruders.

Built-In 4-Port Switch - Allows you to quickly and easily share an Internet



connection with multiple computers and devices. Each 10/100 Ethernet Port automatically senses and accepts the type of Category (CAT) 5 cable you attach - whether straight through or cross-over. Connect additional switches to allow more computer to access the Internet.

Built-In Print Server - Includes a USB port to connect to a USB printer



and includes a Windows-based print server software application, so users on the network can share the printer. The print server is also capable of TCP/IP printing.



Ethernet Cable Included - One Ethernet cable is included with the DI704UP to get you started.



Simple Setup Wizard for Easy Installation - The D-Link setup wizard simplifies the installation process, getting you up and running in just a few clicks.

Page 6

LEDs

Status LED

POWER LED

LED

Power

Status

WAN LED

LOCAL NETWORK LEDs

Printer LED

LED Activity

A solid light indicates a proper connection to the power supply.

Flashes consistently to indicate that the DI-704UP is working properly. A solid light indicates that the unit is not working properly.

WAN

LOCAL NETWORK LEDs (Ports 1-4)

Printer

A Solid light indicates connection on the WAN port. This LED blinks during data transmission.

A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission.

A solid light indicates a proper connection to a printer.

Page 7

Connections

Printer Port

Receptor for

Power Adapter

Reset Button

Printer Port

WAN Port

LAN Ports

Connect the supplied power adapter that came with the unit. Using the wrong power adapter will damage the unit.

Reset button is to reset the device to its factory default settings.

Connect to the printer using a USB cable. This feature is used to share the printer on the network.

Receptor for Power Adapter

Reset Button

WAN Port

Lan Ports

WARNING!

Using a power supply with a different voltage rating than the one included with the DI-704UP will cause damage and void the warranty for this product.

WAN port is the connection point for your DSL or Cable modem.

LAN port is where you would connect each computer to your network.

Page 8

Introduction to Broadband Router Technology

A router is a device that forwards data packets from a source to a destination. Routers can work on Open System Interconnection (OSI) layer 3, which forwards data packets using an IP address and not a MAC address. A router will forward data from the Internet to a particular computer on your LAN.

The information that makes up the Internet gets moved around using routers. When you click on a link on a web page, you send a request to a server to show you the next page. The request sent and the information received by your computer is moved from your computer to the server using routers. A router also determines the best route that your information should follow to ensure that the information is delivered properly.

A router controls the amount of data that is sent through your network by eliminating information that should not be there. This provides security for the computers behind your router because computers from the outside cannot access or send information directly to any computer on your network. The router determines which computer the information should be forwarded to and sends it. If the information is not intended for any computer on your network, the data is discarded. This keeps any unwanted or harmful information from accessing or damaging your network.

Introduction to Firewalls

A firewall is a device that sits between your computer and the Internet that prevents unauthorized access to or from your network. A firewall can be a computer using firewall software or a special piece of hardware built specifically to act as a firewall. In most circumstances, a firewall is used to prevent unauthorized Internet users from accessing private networks such as corporate LANs and Intranets.

A firewall watches all of the information moving to and from your network and analyzes each piece of data. Each piece of data is checked against a set of criteria that the administrator configures. If any data does not meet the criteria, that data is blocked and discarded. If the data meets the criteria, the data is passed through.. This method is called packet filtering.

A firewall can also run specific security functions based on the type of application or type of port that is being used. For example, a firewall can be configured to work with an FTP or Telnet server. Or a firewall can be configured to work with specific UDP or TCP ports to allow certain applications or games to work properly over the Internet.

Page 9

Introduction to Local Area Networking

A Local Area Network (LAN) is typically an Ethernet-based network that connects several computers together over a small area such as a building or group of buildings. LAN’s can also be connected over large areas. A collection of LANs connected over a large area is called a Wide Area Network (WAN).

There are many types of media that can connect computers together. The most common media is CAT5 cable; UTP or STP twisted pair wire. Each computer must have a Network Interface Card (NIC), which transfers the data between computers. A NIC is usually a 10/100Mbps Fast Ethernet adapter.

Most networks use hardware devices such as hubs or switches to transfer data between computers. A hub receives data arriving through each port and forwards the data to all other ports. A switch is more sophisticated, in that a switch can determine the port (or corresponding computer) that each packet of data is supposed to be delivered to. A switch minimizes network traffic and speeds up communication over a network.

There are many types of scenarios to consider which could affect the operability of a network. Some of these issues are discussed in the manual under the Networking Basics section.

Page 10

Sample Scenario

A typical network setup in a home or small office (as shown above) might contain the following devices. For specific information on setting up your network with the DI-704UP please see the Network Setup section on the following page.

You will need broadband Internet access (a Cable or DSL subscription line into your home or office)

Consult with your Cable or DSL provider for proper installation of the modem

Connect the Cable or DSL modem to the DI-704UP wireless broadband router (see the Quick Installation Guide included with the DI-704UP.)

If you are connecting a desktop computer that does not already have an available Ethernet port to your network, you can install the D-Link DFE-530TX+ Ethernet adapter into an available PCI slot. (See the Quick Installation Guide included with the DWL-530TX+.)

If you are connecting a laptop computer without an available Ethernet port to your network, install an Ethernet Cardbus adapter (e.g., D-Link DFE-690TXD) and its drivers into the laptop computer.(See the Quick Installation Guide included with the DFE-690TXD.)

Connect your USB printer to the USB printer port on the DI-704UP. Please refer to the Quick Installation Guide for loading the Windows print server software if on a Windows-based computer.

** Easily upgrade to a wireless network by adding a wireless Access Point (D-Link DWL-900AP+) **

Page 11

Network Setup

Turn everything off. A. Power OFF your Cable or DSL modem. If your modem does

not have an on/off switch, disconnect the power cable.

B. Turn OFF your computer. C. Do NOT connect the power adapter to your D-Link router.

Connect the D-Link Router Cables. A. Connect the Ethernet (or networking) cable from the Cable or

DSL modem to the WAN port of the router. B. Use the D-Link supplied Ethernet cable to connect the Ethernet port (Network Card) of your computer to one of the LAN ports of the router. The complete setup should look like the image shown above.

Power up the devices in sequence. A. Power up the Cable or DSL modem. Wait until the modem has

made the connection to your Internet Service Provider’s (ISP’s) network.

Note: Please see the Manual included with your modem for an explanation of the modem’s LEDs.

B. Power up the D-Link router by connecting the D-Link provided power adapter to the router and to an available power outlet.

C. Turn on your computer. D. Now, refer to either the Quick Installation Guide or continue

to follow this manual to complete the installation process.

Page 12

Using the Setup Wizard

Open your Web browser and

type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key.

The logon pop-up screen will appear.

Type “admin” for the username and leave the password field blank.

Click OK

Once you have logged in, the Home screen will appear.

Click Run Wizard

Page 13

Using the Setup Wizard (continued)

You will see the following screens

Click Next

Set up your new password.

You have the option to establish a password.

Click Next

Page 14

Using the Setup Wizard (continued)

Set up your Time Zone. You

have the option to the set standard time for your router. To change the default selection, select the drop down arrow and choose the correct time zone.

Click Next

Select your Internet Connection. You will be

prompted to select the type of Internet connection for your router.

If you are unsure of which setting to select, please contact your Internet Service Provider.

Click Next

Select Others only if you use PPTP in Europe or BigPond Cable in Australia.

Page 15

Using the Setup Wizard (continued)

If you selected Dynamic IP

Address, this screen will

appear: (Used mainly for Cable Internet service.)

Click the “Clone MAC Address”

button to automatically copy the MAC address of the network adapter in your computer. You can also manually type in the MAC address.

What is a MAC address? Each

network adapter has a discrete Media Access Control (MAC) address. Note that some computers and peripherals may already include built-in network adapters.

Click Next

If your ISP requires a Static

IP Address, and this option

is selected, then this screen will appear:

Enter the IP Address information originally provided to you by your ISP. You will need to complete all the listed fields.

Click Next

Page 16

Using the Setup Wizard (continued)

If your ISP uses PPPoE (Point-to-Point Protocol over Ethernet), and this option is selected, then this screen will appear: (Used mainly for DSL Internet service.)

Please be sure to remove any existing PPPoE client software installed on your computers.

Enter in the username and password provided to you by your ISP.

Click Next

Click Restart

Page 17

Using the Configuration Menu

Whenever you want to configure your network or the DI-704UP, you can access the Configuration Menu by opening the web-browser and typing in the IP Address of the DI-

704UP. The DI-704UP default IP Address is shown below:

Open the web browser. Type in the IP Address of the DI-704UP.

Home > Wizard

Note: If you have changed the default IP Address assigned to the DI-704UP, make sure to enter the correct IP Address.

The factory default User name is “admin” and the default Password

is blank (empty). It is recommended that you change the admin password for security purposes. Please refer to Tools>Admin to change the admin password.

Page 18

Using the Configuration Menu (continued)

Home > Wizard (continued)

The Home>Wizard screen will appear upon log in. Please refer to the Quick Instal- lation Guide for more information regarding the Setup Wizard.

Clicking Apply will save changes made to the page

Clicking Cancel will clear changes made to the page

Clicking Help will bring up helpful information regarding the page

Clicking Restart will restart the router. (Necessary for some changes.)

Page 19

Using the Configuration Menu (continued)

Home > WAN (continued)

WAN is short for Wide Area Network. The WAN settings can be referred to as the Public settings. All IP information in the WAN settings are public IP addresses which are accessible on the Internet. The WAN settings consist of four options: Dynamic IP Address, Static IP Address, PPPoE, and Others. Select the appropriate option and fill in the information needed to connect to your ISP.

Choose Dynamic IP Address to obtain IP address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services. Host Name: The Host Name field is optional but may be required by some ISPs. The host name is the device name of the Broadband Router.

Page 20

Using the Configuration Menu (continued)

Home > WAN (continued)

MAC Address:

The default MAC address is set to the WAN’s physical interface MAC address on the Broadband Router. You can use the “Clone MAC Address” button to copy the MAC address of the Ethernet Card installed by your ISP and replace the WAN MAC address with this MAC address. It is not recommended that you change the default MAC address unless required by your ISP.

Primary/Secondary DNS Address:

Enter a DNS Address if you do not wish to use the one provided by your ISP.

MTU:

Only enter the MTU if it is required by your ISP. Otherwise, leave it at the default setting of 1500.

Auto-reconnect:

If enabled, the Broadband Router will automatically connect to your ISP after your system is restarted or if the connection is dropped.

Page 21

Using the Configuration Menu (continued)

Home > WAN > Static IP Address

Choose Static IP Address if all WAN IP information is provided to you by your ISP. You will need to enter in the IP Address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which are four IP octets separated by a dot (x.x.x.x). The Router will not accept the IP Address if it is not in this format.

IP Address:

Public IP address provided by your ISP.

Subnet Mask:

Subnet mask provided by your ISP.

ISP Gateway Address:

Public IP address of your ISP that you are connecting to.

Primary/Secondary DNS Address:

Enter a DNS Address if you do not wish to use the one provided by your ISP.

MTU:

Enter an MTU value only if required by your ISP. Otherwise, leave it at the default setting of 1500.

Page 22

Using the Configuration Menu (continued)

Home > WAN > PPPoE

Please be sure to remove any Client Software program on your computer before you start your configuration of the DI-704UP Router. Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses PPPoE connection. Your ISP will provide you

with a username and password. This option is typically used for DSL services. Select Dynamic PPPoE to obtain an IP address automatically for your PPPoE connection. Select Static PPPoE to use a static IP address for your PPPoE connection.

Page 23

Using the Configuration Menu (continued)

Home > WAN > PPPoE (continued)

Dynamic PPPoE:

PPPoE connection where you will receive an IP address automatically from your ISP.

Static PPPoE:

PPPoE connection where you have an assigned (static) IP address.

User Name:

Your PPPoE username provided by your ISP.

Password:

Your PPPoE password provided by your ISP.

Retype Password:

Re-enter PPPoE password.

Service Name:

Enter the service name provided by your ISP. (optional)

IP Address:

This option is only available for Static PPPoE. Enter in the static IP address for the PPPoE connection.

Primary DNS Address:

Primary DNS IP provided by your ISP.

Secondary DNS Address:

Optional.

Maximum Idle time:

The amount of time of inactivity before disconnecting your PPPoE session. Enter a Maximum Idle Time (in minutes) to define a maximum period of time for which the Internet connection is maintained during inactivity. If the connection is inactive for longer than the defined Maximum Idle Time, then the connection will be dropped. Either set this to zero or enable Auto-reconnect to disable this feature.

MTU:

MTU stands for Maximum Transmission Unit. For PPPoE connections, you may need to change the MTU settings in order to work correctly with your ISP.

Auto-reconnect:

If enabled, the Broadband Router will automatically connect to your ISP after your system is restarted or if the connection is dropped.

Page 24

Using the Configuration Menu (continued)

Home > WAN > PPTP

Dynamic IP Address for PPTP is a WAN connection used in Europe.

My IP Address:

Enter in the IP address for the PPTP connection.

My Subnet Mask:

Enter the subnet mask information.

Server IP:

Enter the Server IP address. By default, its set to 192.168.0.1

Page 25

Using the Configuration Menu (continued)

Home > WAN > PPTP (continued)

PPTP Account:

Enter in the username for the PPTP account.

PPTP Password:

Enter the password for the PPTP account. Retype in Password to confirm.

Connection ID:

(Optional) Enter the Connection ID if required.

Maximum Idle Time:

The amount of time of inactivity before disconnecting your PPTP session. Enter a Maximum Idle Time (in minutes) to define a maximum period of time for which the Internet connection is maintained during inactivity. If the connection is inactive for longer than the defined Maximum Idle Time, then the connection will be dropped. Either set this to zero or enable Auto-reconnect to disable this feature.

Auto-reconnect:

If enabled, the device will automatically connect to your ISP after your unit is restarted or when the connection is dropped.

Page 26

Using the Configuration Menu (continued)

Home > WAN > BigPond Cable

Dynamic IP Address for BigPond is a WAN connection used in Australia.

Account:

Enter in the username for the BigPond account.

Password:

Enter the password for the BigPond account.

(Optional) Enter the Login Server name if required.

Auto-reconnect:

If enabled, the device will automatically connect to your ISP after your unit is restarted or when the connection is dropped.

Page 27

Using the Configuration Menu (continued)

Home > LAN

LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for the DI-704UP. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.

IP Address:

The IP address of the LAN interface. The default IP address is 192.168.0.1.

Subnet Mask:

The subnet mask of the LAN interface. The default subnet mask is 255.255.255.0.

Local Domain Name:

This field is optional. Enter in the your local domain name.

Page 28

Using the Configuration Menu (continued)

Home > DHCP

DHCP stands for Dynamic Host Control Protocol. The DI-704UP has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the DI-704UP. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

Page 29

Using the Configuration Menu (continued)

Home > DHCP

Static DHCP allows computers on the LAN to receive the same DHCP IP address everytime it boots up. You can bind a specific IP address to a specific computer based

on the computer’s MAC address.

Starting IP address:

The starting IP address for the DHCP server’s IP assignment.

Ending IP address:

The ending IP address for the DHCP server’s IP assignment.

Lease Time:

The length of time for the IP lease.

Page 30

Using the Configuration Menu (continued)

Advanced > Virtual Server

The DI-704UP can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network). The DI-704UP firewall feature filters out unrecognized packets to protect your LAN network so all computers networked with the DI-704UP are invisible to the outside world. If public access is desired, you can make some of the LAN computers accessible from the Internet by enabling Virtual Server. Depending on the requested service, the DI-704UP redirects the external service request to the appropriate server within the LAN network.

Page 31

Using the Configuration Menu (continued)

Advanced > Virtual Server

The DI-704UP is also capable of port-redirection meaning incoming traffic to a particular port can be redirected to a different port on the server computer. Each of the virtual services that are created will be listed at the bottom of the screen in the Virtual Servers List. There are already pre-defined virtual services already in the table. You may use them by enabling them and assigning the server IP to use that particular virtual service.

Name:

The name referencing the virtual service.

Private IP:

The server computer in the LAN (Local Area Network) that will be providing the virtual services.

Private Port:

The port number of the service used by the Private IP computer.

Protocol Type:

The protocol used for the virtual service.

Public Port:

The port number on the WAN side that will be used to access the virtual service.

Schedule:

The schedule of time when the virtual service will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. If it is set to Time, select the time frame for the service to be enabled. If the system time is outside of the scheduled time, the service will be disabled.

Example #1: If you have a Web server that you wanted Internet users to access at all times, you would need to enable it. Web (HTTP) server is on LAN (Local Area Network) computer

192.168.0.25. HTTP uses port 80, TCP.

Name: Web Server Private IP: 192.168.0.25 Protocol Type: TCP Private Port: 80 Public Port: 80 Schedule: always

Page 32

Using the Configuration Menu (continued)

Advanced > Virtual Server

Example #2: If you have an FTP server that you wanted Internet users to access by WAN port 2100 and only during the weekends, you would need to enable it as such. FTP server is on LAN computer 192.168.0.30. FTP uses port 21, TCP.

Name: FTP Server Private IP: 192.168.0.30 Protocol Type: TCP Private Port: 21 Public Port: 2100 Schedule: From: 01:00AM to 01:00AM, Sat to Sun

• All Internet users who want to access this FTP Server must connect to it from port

2100. This is an example of port redirection and can be useful in cases where there are many of the same servers on the LAN network.

Page 33

Using the Configuration Menu (continued)

Advanced > Application

Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony. These applications have difficulty working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DI-704UP. If you need to run applications that require multiple connections, specify the port normally associated with an application in the Trigger

Ports field, then enter the public ports associated with the trigger port into the Public Ports field.

Page 34

Using the Configuration Menu (continued)

Advanced > Application

At the bottom of the screen, there are defined special applications. To use them, select one from the drop down list and select an ID number you want to use. Then click the “Copy to” button and the router will fill in the appropriate information to the list. You will then need to enable the service. If the mechanism of Special Applications fails to make an application work, try using DMZ host instead.

Note! Only one PC can use each Special Application tunnel.

Enable / Disable:

Select to activate the policy. To disable the virtual server feature, select disable.

Trigger Port:

This is the port used to trigger the application. It can be either a single port or a range of ports.

Trigger Type:

Select the trigger protocol you would like to initiate. To change the selection, use the drop down arrow and other choices will be listed.

Public Ports:

Enter in the public port or ports to be used. A range of ports can be specified with a hyphen.

Public Type:

Enter in the protocol type for public ports to access. To change the selection, use the drop down arrow and other choices will be listed.

Special Application List:

In the Special Application List, it will list some of the popular services with its trigger ports. This is the port number on the WAN side that will be used to access the application. You may define a single port or a range of ports. You can use a comma to add multiple ports or port ranges.

Page 35

Using the Configuration Menu (continued)

Advanced > IP Filter

Use IP (Internet Protocol) filters to allow or deny computers access to the Internet based on their IP address.

Page 36

Using the Configuration Menu (continued)

Advanced > IP Filter

Enabled / Disabled:

Click Enabled to apply the filter policy or click Disabled to enter an inactive filter policy (You can reactivate the policy later.)

IP Address:

Enter in the IP address range of the computers that you want the policy to apply to. If it is only a single computer that you want the policy applied to, then enter the IP address of that computer in the Start Source IP and leave the End Source IP blank.

Port Ranges:

Enter in the port range of the TCP/UDP ports that you want the policy to apply to. If it is only a single port that you want the policy applied to, then enter the port number in the Start Port field and leave the End Port field blank. If you want to use all the ports, you can leave the port range empty.

Protocol:

Select the protocol type to block certain IP addresses.

Schedule:

Select Always, or choose From and enter the time period during which the IP filter policy will be in effect.

Page 37

Using the Configuration Menu (continued)

Advanced > MAC Filters

MAC (Media Access Control) Filters are used to allow or deny LAN (Local Area Network) computers from accessing the Internet and network by their MAC address.

At the bottom of the screen, there is a list of MAC addresses from the DHCP client computers connected to the DI-704UP. To use them, select one from the drop down list and select an IP number you want to use. Then click the “Copy to” button and the DI704UP will fill in the appropriate information to the list.

Page 38

Using the Configuration Menu (continued)

Advanced > MAC Filters

Disabled MAC Filter:

Select this option if you do not want to use MAC filters on your Local Area Network (LAN).

Only allow computers with MAC address listed below to access the network:

Select this option to allow only computers that are in the list access to the network and Internet. All other computers will be denied access to the network and Internet.

Only deny computers with MAC address listed below to access the network:

Select this option to deny only computers that are in the list access to the network and Internet. All other computers will be allowed access to the network and Internet.

Name:

Enter the Name to create a profile for the associated computer(s) on the network.

MAC Address:

Enter the MAC Address of the client that will be filtered.

DHCP Client:

Select from the DHCP Client list and click the Clone button to automatically clone that computer’s MAC address to the MAC address field.

Page 39

Using the Configuration Menu (continued)

Advanced > URL Blocking

Use URL Blocking filters to disallow computer(s) to access Internet with the following URL keywords entered into the list. The URL Blocking filters are useful features that are similar to parental control. Users can enter keywords that may have adult content, hack, or other materials to prevent computers connected to the Local Area Network (LAN) from accessing those web sites.

Page 40

Using the Configuration Menu (continued)

Advanced > Domain Filter

Use Domain filters to allow or deny computers access to specific Internet domains whether it is through www, ftp, snmp, etc. Domain filters apply to wired computers connected to one of the four Ethernet LAN ports to the DI-704UP.

Page 41

Using the Configuration Menu (continued)

Advanced > Domain Filter

Disabled Domain Filter:

Select this option if you do not want to use Domain filters.

Allow users to access the following domains and block all other domains:

Select this option to allow users to access the specified Internet domains listed below. Users will be denied access to all other Internet domains.

Deny users to access the following domains and permit all other domains:

Select this option to deny users to access the specified Internet domains listed below. Users will be allowed access to all other Internet domains.

Permitted Domains:

Enter in the domain suffix of the Internet domain you want to use. (Example: shopping.com, sports.net.)

Blocked Domains:

Enter in the domain suffix of the Internet domain you want to block. (Example: shopping.com, sports.net.)

Delete:

Select this option to remove the domain suffix from the Permitted Domains or Blocked Domains list.

Page 42

Using the Configuration Menu (continued)

Advanced > Firewall

Firewall Rules is an advanced feature used to allow or deny traffic from passing through the Broadband Router. It works in the same way as IP Filters with additional settings. You can create more detailed access rules for the DI-704UP. When virtual services are created and enabled, it will also display in Firewall Rules. Firewall Rules contains all network firewall rules pertaining to IP (Internet Protocol).

In the Firewall Rules List at the bottom of the screen, the priorities of the rules are from top (highest priority) to bottom (lowest priority.)

Note: The DI-704UP MAC Address filtering rules have precedence over the Firewall

Rules.

Page 43

Using the Configuration Menu (continued)

Advanced > SNMP

SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network device to the administrator of the network. SNMP can be used to monitor traffic and statistics of the DI-704UP. The DI704UP supports SNMP v1.

Enabled or Disabled:

Click Enabled to enable SNMP. Click Disabled to de-activate SNMP.

Local:

SNMP services will be available on the Local (LAN) network.

Remote:

SNMP services will be available on the remote (WAN) network.

Get Community:

“Read only” access for network administration using SNMP. You can view the network, but no configuration is possible with this setting.

Set Community:

“Read and Write” access for network administration using SNMP. The administrator can configure the network with this setting.

Page 44

Using the Configuration Menu (continued)

Advanced > DDNS

DDNS (Dynamic Domain Name System) keeps dynamic IP addresses (e.g., IP addresses assigned by a DHCP capable router or server) linked to a domain name. Users who have a Dynamic DNS account may use this feature on the DI-704UP.

DDNS:

When an IP address is automatically assigned by a DHCP server, DDNS automatically updates the DNS server.

Provider:

Select your provider from the pull-down menu.

Host Name:

Enter the Host name.

Username/Email:

Enter the username/email address.

Password/Key:

Enter the password/key.

Page 45

Using the Configuration Menu (continued)

Advanced > Routing

Static routes can be added if you require specific routes within your internal network. These routes will not apply to the WAN network.

Destination:

Enter in the IP of the specified network that you want to access using the static route.

Subnet Mask:

Enter in the subnet mask to be used for the specified network.

Gateway:

Enter in the gateway IP address to the specified network.

Hop:

Enter in the amount of hops it will take to reach the specified network.

Enable:

Select this option for the specified static route to take effect.

Hop Count - in a transmission path, each link is terminated at a network device such as a router or gateway. The number of hops equals the number of routers or

gateways that data must pass through before reaching the destination.

Page 46

Using the Configuration Menu (continued)

Advanced > DMZ

If you have a computer that cannot run Internet applications properly from behind the DI-704UP, then you can allow that computer to have unrestricted Internet access. Enable this feature and enter the IP address of that computer as a DMZ (Demilitarized Zone) host with unrestricted Internet access. Adding a client to the DMZ may expose that computer to a variety of security risks; so only use this option as a last resort.

Page 47

Using the Configuration Menu (continued)

Tools > Admin

Administrator Settings

At this page, the DI-704UP administrator can change the system password. There are two accounts that can access the Broadband Router’s Web-Management interface. They are admin and user. Admin has read/write access while user has read-only access. User can only view the settings but cannot make any changes.

Page 48

Using the Configuration Menu (continued)

Tools > Admin

Remote Management:

Remote Management allows the DI-704UP to be configured from the Internet by a web browser. A username and password is still required to access the Web-Management interface. In general, only a member of your network can browse the built-in web pages to perform “Administrator” tasks. This feature enables you to perform “Administrator” tasks from the remote (Internet) host.

IP Address:

Internet IP address of the computer that has access to the Broadband Router. It is not recommended that you set the IP address to 0.0.0.0, because this allows any Internet IP address to access the Broadband Router, which could result in a loss of security for your network. If you elect to Enable Remote Management, enter the IP Address of

your remote location.

Port:

Select the port number used to access the Broadband Router.

Example: http://x.x.x.x:8080 whereas x.x.x.x is the WAN IP address of the Broadband

Router and 8080 is the port used for the Web-Management interface.

Tools > Time

The system time is the time used by the DI-704UP for scheduling services. You can manually set the time or connect to a NTP (Network Time Protocol) server. If an NTP server is set, you will only need to set the time zone.

Page 49

Using the Configuration Menu (continued)

Tools > System

The current system settings can be saved as a file onto the local hard drive. The saved file or any other saved setting file created by the DI-704UP can be uploaded into the unit. To reload a system settings file, click on Browse to search the local hard drive for the file to be used. The device can also be reset back to factory default settings by clicking on the Reset to Default button. Use the restore feature only if necessary. This will erase previously saved settings for the unit. Make sure to save your system settings to the hard drive before doing a factory restore.

Save Settings to Local Hard Drive:

Click Save to save the current settings to the local Hard Drive

Load Settings from Local Hard Drive:

Click Browse to find the settings file, then click Load

Restore to Factory Default Settings:

Click Reset to Default to restore the factory default settings

Page 50

Using the Configuration Menu (continued)

Tools > Firmware

You can upgrade the firmware by using this tool. First, check the D-Link support site for firmware updates at http://support.dlink.com. Make sure that the firmware you want to use is saved on the local hard drive of your computer. Click on Browse to search the local hard drive for the firmware that you downloaded from the D-Link website to be used for the update. Upgrading the firmware will not change any of your system settings but it is recommended that you save your system settings before doing a firmware upgrade.

Browse:

After you have downloaded the new firmware, click Browse in this window to locate the firmware update on your hard drive. Click Apply to complete the firmware upgrade.

Note! Do not power off the unit when it is being upgraded. When the upgrade is complete, the unit will be restarted automatically.

Page 51

Using the Configuration Menu (continued)

Tools > Misc

Page 52

Using the Configuration Menu (continued)

Tools > Misc

Ping Test:

This diagnostic utility can be used to check if a computer is on the Internet. It sends ping packets and listens for replies from the specific host.

Reboot:

Click Reboot to restart the unit.

Block WAN Ping:

Click Enable to block the WAN ping. Computers on the Internet will not get a reply back from the DI-704UP when it is being “ping”ed. This may help to increase security.

SPI Mode:

Stateful Packet Inspection is a form of firewall protection that will inspect all of the packets transmitted through the DI-704UP. It carefully inspects all incoming packets and if the packets contain suspicious information, it will automatically drop those packets.

UPnP Setting:

Universal Plug and Play is a feature that is preset to allow certain popular applications such as MSN messenger to be functional using the router without making any configurations. By default, theUPnP Setting is set to enable. It is recommended to keep the UPnP Setting on enable.

VPN Pass Through:

For users who telecommute or use Virtual Private Network (VPN), you can select PPTP or IPSec to be used with this router.

Non-standard FTP port:

If an FTP server you want to access is not using the standard port 21, then enter in the port number that the FTP server is using instead.

Page 53

Using the Configuration Menu (continued)

Status > Device Info

This page in the Configuration Utility displays the current information for the Broadband Router. It will display the WAN, LAN, and MAC address information. If your WAN connection is set up for Dynamic IP address a Release button and Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP. If your WAN connection is set up for PPPoE, a Connect button and Disconnect button will be displayed. Use Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection. This page allows you to observe

the DI-704UP’s working status:

Page 54

Using the Configuration Menu (continued)

Status > Device Info

LAN

LAN MAC Address:

Displays the LAN port MAC/hardware address.

IP Address:

LAN/Private IP Address of the DI-704UP.

Subnet Mask:

LAN/Private Subnet Mask of the DI-704UP.

WAN

WAN MAC Address:

Displays the WAN port MAC/hardware address.

IP Address:

WAN/Public IP Address.

Subnet Mask:

WAN/Public Subnet Mask.

Gateway:

WAN/Public Gateway IP Address.

Domain Name Server:

WAN/Public DNS IP Address.

PeripheralPrinter:

Status of the USB print server port.

Page 55

Using the Configuration Menu (continued)

Status > Log

The Broadband Router keeps a running log of events and activities occurring on the router. If the device is rebooted, the logs are automatically cleared. You may save the log files under Log Settings.

First Page:

The first page of the log.

Last Page:

The last page of the log.

Moves back one log page.

Moves forward one log page.

Clear:

Clears the logs completely.

Log Settings:

Brings up the page to configure the logs.

Page 56

Using the Configuration Menu (continued)

Status > Log Settings

Log Settings

Displays the logs of activities and events, and can be setup to send these logs to another location.

E-Mail Alert:

The DI-704UP can be set up to send the log files to a specific email address.

SMTP Server IP:

Input the SMTP information. Usually, this is provided by your Internet Service Provider (ISP).

Send E-Mail alert to:

Enter in the email address of the recipient who will receive the email log.

Send Mail Now:

Click to send mail now.

Page 57

Using the Configuration Menu (continued)

Help

This menu displays the complete Help menu. For help at anytime, click on the Help tab in the configuration menu.

Page 58

Installing the Print Server Software

Insert the installation CD-ROM into the CD-ROM drive. The following window will be shown automatically. If it is not, please run “install.exe” on the CD-ROM.

Click Install Print

Server Software

Click to Install Print

Server Software for either Windows 98SE/ME or Windows 2000/XP

Click Next

Page 59

Installing the Print Server Software (continued)

Select the destination folder.

Click Browse to select a destination folder

Click Next

Click Finish

Select the option for restarting the computer.

Click OK

After rebooting your computer, the software installation procedure is finished.

Page 60

Installing the Print Server Software (continued)

Configuring on Windows 98SE/ME Platforms

After you finish the software installation procedure, your computer will be capable of network printing provided by the DI-704UP. On a Windows 95/98 platform, open the Printers window in the My Computer menu.

Now, you can configure the print server of the DI-704UP: Find the corresponding icon for your printer, for example, the Epson Stylus C60 Series. Right click on that icon, and then select Properties.

The screen at the right will appear.

Click on the

Details tab

Choose the “D-Link LPT port (Print Server)” from the list attached at the Print To item. Be sure that the Printer Driver item is configured to the correct driver of your printer.

Click Port Settings

Page 61

Installing the Print Server Software (continued)

Configuring on Windows XP/2000/NT Platforms

Type in the IP address of the DI-704UP.

Click OK

Click Port

The configuration procedure for a Windows 2000/XP platform is similar to that of Windows 95/98 except the screen of printer Prop- erties:

Click Configure Port

Type in the IP address of the DI-704UP.

Click OK

(Note: Screen shots are taken in Windows 2000, similar screens will appear in Windows XP.)

Page 62

Networking Basics

Using the Network Setup Wizard in Windows XP

In this section you will learn how to establish a network at home or work, using Microsoft Windows XP.

Note: Please refer to websites such as

and

http://www.microsoft.com/windows2000 for information about

networking computers using Windows 2000, ME or 98SE.

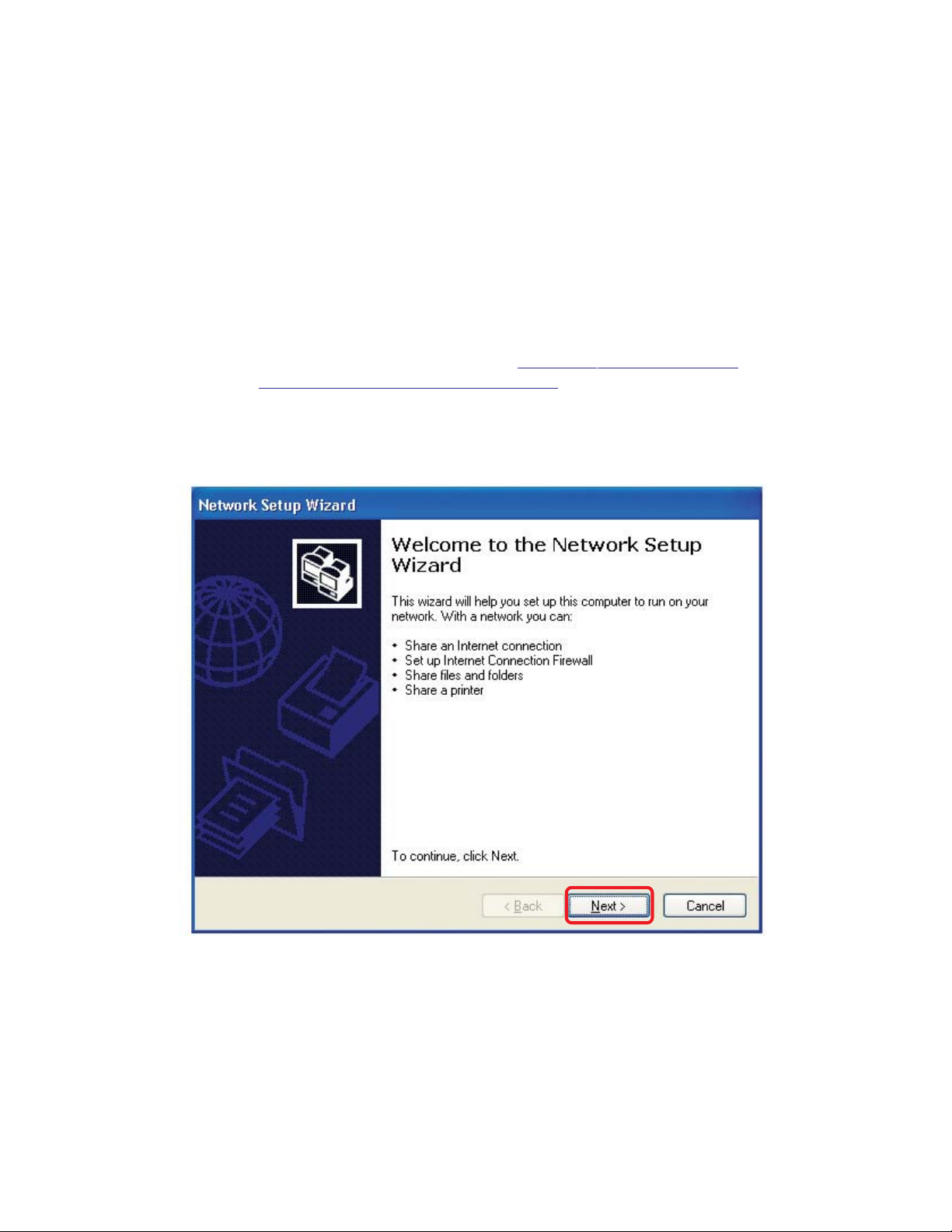

Go to Start>Control Panel>Network Connections Select Set up a home or small office network

http://www.homenethelp.com

To continue, click Next.

Page 63

Networking Basics (continued)

Using the Network Setup Wizard in Windows XP

Please follow all the instructions in this window:

Click Next

In the following window, select the best description of your computer. If your computer connects to the Internet through a gateway/router, select the second option as shown.

Click Next

Page 64

Networking Basics (continued)

Using the Network Setup Wizard in Windows XP

Enter a Computer description and a Computer name (optional.)

Click Next

Enter a Workgroup name. All computers on your network should have the same Workgroup name.

Click Next

Page 65

Networking Basics (continued)

Using the Network Setup Wizard in Windows XP

Please wait while the Network Setup Wizard applies the changes.

When the changes are complete, click Next.

Please wait while the Network Setup Wizard configures the computer. This may take a few minutes.

Page 66

Networking Basics (continued)

Using the Network Setup Wizard in Windows XP

In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the

computers on your network. Click Next.

Insert a disk into the Floppy Disk Drive, in this case, drive A.

Format the disk if you wish, and click Next.

Page 67

Networking Basics (continued)

Using the Network Setup Wizard in Windows XP

Please wait while the Network Setup Wizard copies the files.

Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the

Network Setup Wizard once on each of the computers on your network.

To continue, click Next.

Page 68

Networking Basics (Continued)

Using the Network Setup Wizard in Windows XP

Please read the information on this screen, then click Finish to complete the Network Setup Wizard.

The new settings will take effect when you restart the computer. Click Yes to restart the computer.

You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network. After running the Network Setup Disk on all your computers, your new network will be ready to use.

Page 69

Networking Basics (Continued)

Naming your Computer

To name your computer, please follow these directions: In Windows XP:



Click Start (in the lower left corner of the screen)

Right-click on My Computer



Select Properties



Select the Computer



Name Tab in the System Properties window.



Enter a Computer Description; this field is

optional.

To rename the computer or



join a domain, Click Change.

Page 70

Networking Basics (Continued)

Naming your Computer



In this window, enter the

Computer name

Select Workgroup and enter



the name of the Workgroup

All computers on your network



must have the same Workgroup name.

Click OK



Assigning a Static IP Address in Windows XP/2000

Note: Residential Gateways/Broadband Routers will automatically assign IP Addresses to the computers on the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are using a DHCP-capable Gateway/Router you will not need to assign Static IP Addresses.

If you are not using a DHCP capable Gateway/Router or you need to assign a Static IP Address, please follow these instructions:

Go to Start



Double-click on



Control Panel

Page 71

Networking Basics (Continued)

Assigning a Static IP Address in Windows XP/2000

Double-click on



Network Connections

Right-click on Local Area



Connections

Double-click on



Properties

Page 72

Networking Basics

Assigning a Static IP Address in

Windows XP/2000

Click on Internet Protocol



(TCP/IP)

Click Properties



Select Use the following IP



address in the Internet Protocol (TCP/IP) Properties window

(shown below)

In the window below, select Use the following IP address. Input your IP



address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of

192.168.0.2, the other computers should have IP addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The Subnet mask must be the same for all the computers on the network.)

IP address:

e.g., 192.168.0.2

Subnet mask:

255.255.255.0

Default gateway:

Enter the LAN IP address of

the wireless router. (D-Link wireless routers have a LAN IP address of 192.168.0.1)

Select Use the following



DNS server addresses. Enter the LAN IP address of the Wireless Router. (DLink wireless routers have a LAN IP address of

192.168.0.1)

Click OK



You have successfully assigned a Static IP Address.

Page 73

Networking Basics (Continued)

Selecting a Dynamic IP Address with Macintosh OSX

Go to the Apple Menu and



select System Preferences



Double-click on Network



Select Built-in Ethernet in the Show pull-down menu

Select Using DHCP in the



Configure pull-down menu

Click Apply Now



The IP Address, Subnet



mask, and the Router’s IP Address will appear in a

few seconds

Page 74

Networking Basics

Checking the Connection by Pinging in Windows XP and 2000

Go to Start > Run >



type cmd. A window similar to this one will appear. Type

ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the

Router or Access Point. A good wireless connection will show four replies from the Wireless Router or Access Point, as shown.

Checking the Connection by Pinging in Windows Me and 98

Go to Start > Run



> type command. A window similar to this will appear. Type ping

xxx.xxx.xxx.xxx where xxx is the IP Address of the

Router or Access Point. A good wireless connection will show four replies from the wireless router or access point, as shown.

Page 75

Resetting the DI-704UP to the Factory Default Settings

After you have tried other methods for troubleshooting your network, you may choose to Reset the DI-704UP to the factory default settings.

To hard-reset the D-Link DI-704UP to the Factory Default Settings, please do the following:

Locate the Reset button on the back of the DI-704UP.



 Use a paper clip to press the Reset button and power on.

Hold for about 5 seconds and then release. (Or release



when the status LED flashes.)

After you have completed the above steps, the DI-704UP



will be reset to the factory default settings

Page 76

Technical Specifications

Standard

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3 NWay Auto-Negotiation USB 1.1

VPN Pass Through

PPTP L2TP IPSec

Ports

One WAN Four LAN

LEDs

Power WAN Printer Local Network - 10/100

Operating Temperature

32oF to 131oF (0oC to 55oC)

Humidity

95% maximum (non-condensing)

Power

External Power Supply AC 5V, 2A

Dimensions

L = 7.56 inches (192mm) W = 4.64 inches (118mm) H = 1.22 inches (31mm)

Weight

0.68 lbs (0.31kg)

Warranty

One Year

Page 77

Frequently Asked Questions

Why can´t I access the web based configuration?

When entering the IP Address of the DI-704UP (192.168.0.1), you are not connecting to the Internet or have to be connected to the Internet. The device has the utility builtin to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.

To resolve difficulties accessing a web utility, please follow the steps below.

Step 1

you do not get a solid link light, try using a different cable or connect to a different port on the device if possible. If the computer is turned off, the link light will not be on.

Verify physical connectivity by checking for solid link lights on the device. If

What type of cable should I be using?

The following connections require a Crossover Cable:

Computer to Computer Computer to Uplink Port Computer to Access Point Computer to Print Server Computer/XBOX/PS2 to DWL-810 Computer/XBOX/PS2 to DWL-900AP+ Uplink Port to Uplink Port (hub/switch) Normal Port to Normal Port (hub/switch)

The following connections require a Straight-through Cable:

Computer to Residential Gateway/Router Computer to Normal Port (hub/switch) Access Point to Normal Port (hub/switch) Print Server to Normal Port (hub/switch) Uplink Port to Normal Port (hub/switch)

Rule of Thumb: ”If there is a link light, the cable is right.”

Page 78

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

What type of cable should I be using? (continued)

What´s the difference between a crossover cable and a straight-through cable?

The wiring in crossover and straight-through cables are different. The two types of cable have different purposes for different LAN configurations. EIA/TIA 568A/568B define the wiring standards and allow for two different wiring color codes as illustrated in the following diagram.

*The wires with colored backgrounds may have white stripes and may be denoted that way in diagrams found elsewhere.

How to tell straight-through cable from a crossover cable:

The main way to tell the difference between the two cable types is to compare the wiring order on the ends of the cable. If the wiring is the same on both sides, it is straight-through cable. If one side has opposite wiring, it is a crossover cable.

All you need to remember to properly configure the cables is the pinout order of the two cable ends and the following rules:

A straight-through cable has identical ends A crossover cable has different ends

It makes no functional difference which standard you follow for straight-through cable ends, as long as both ends are the same. You can start a crossover cable with either standard as long as the other end is the other standard. It makes no functional difference which end is which. The order in which you pin the cable is important. Using a pattern other than what is specified in the above diagram could cause connection problems.

When to use a crossover cable and when to use a straight-through cable:

Computer to Computer – Crossover Computer to an normal port on a Hub/Switch – Straight-through Computer to an uplink port on a Hub/Switch - Crossover Hub/Switch uplink port to another Hub/Switch uplink port – Crossover

Hub/Switch uplink port to another Hub/Switch normal port - Straight-through

Page 79

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

Step 2 Disable any Internet security software running on the computer. Software

firewalls like Zone Alarm, Black Ice, Sygate, Norton Personal Firewall, etc. might block access to the configuration pages. Check the help files included with your firewall software for more information on disabling or configuring it.

Step 3 Configure your Internet settings.

Go to Start>Settings>Control Panel. Double click the Internet Options Icon. From the Security tab, click the Default Level button to restore the settings to their defaults.

Click to the Connection tab and set the dialup option to Never Dial a Connection. Click

the LAN Settings button

Nothing should be checked. Click OK

Go to the Advanced tab and click the Restore Defaults button to restore

these settings to their defaults.

Click OK. Go to the desktop and close any open windows

Page 80

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

Step 4 Check your IP Address. Your computer must have an IP Address in the same

range of the device you are attempting to configure. Most D-Link devices use the

192.168.0.X range.

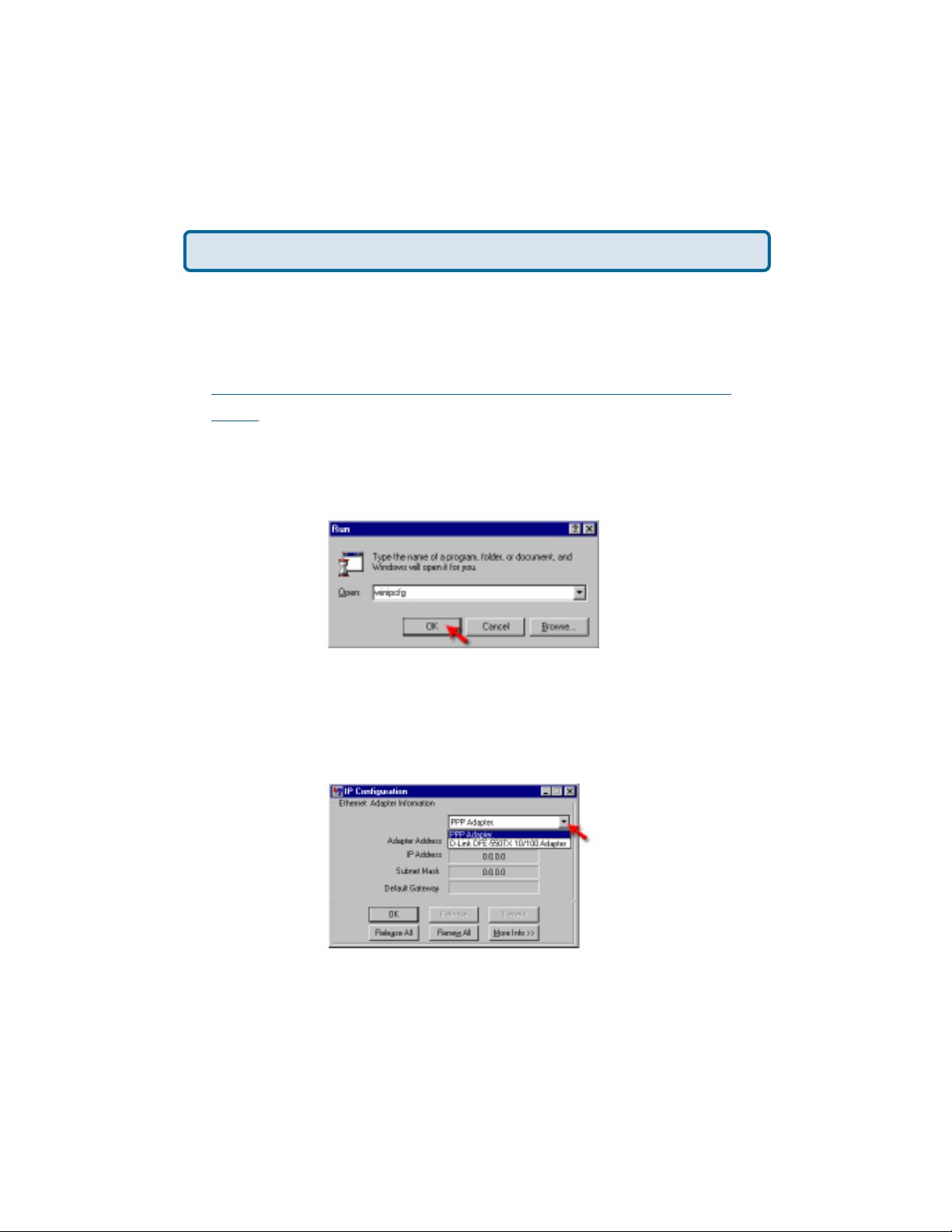

How can I find my IP Address in Windows 95, 98, or ME?

Step 1 Click on Start, then click on Run.

Step 2 The Run Dialogue Box will appear. Type winipcfg in the text field and

then click OK.

Step 3 The IP Configuration window will appear, displaying your Ethernet

Adapter Information.

 Select your adapter from the drop down menu.  If you do not see your adapter in the drop down menu, your adapter is

not properly installed.

Step 4 After selecting your adapter, it will display your IP Address, subnet

mask, and default gateway.

Step 5 Click OK to close the IP Configuration window

Page 81

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

Step 4 (continued) Check your IP Address. Your computer must have an IP Address

in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range.

How can I find my IP Address in Windows 2000/XP?

Step 1 Click on Start and select Run.

Step 2 Type cmd then click OK.

Step 3 From the Command Prompt, enter ipconfig. It will return your IP

Address, subnet mask, and default gateway

Step 4 Type exit to close the command prompt.

Page 82

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

Step 4 (continued) Check your IP Address. Your computer must have an IP Address

in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range.

Make sure you take note of your computer´s Default Gateway IP Address. The Default Gateway is the IP Address of the D-Link router. By default, it should be 192.168.0.1.

How can I assign a Static IP Address in Windows XP?

Step 1

Click on Start > Control Panel > Network and Internet Connections > Network connections.

Step 2 See Step 2 for Windows 2000 and continue from there.

How can I assign a Static IP Address in Windows 2000?

Step 1 Right-click on My Network

Places and select Properties.

Step 2 Right-click on the Local

Area Connection which represents

your network card and select Properties.

Highlight Internet Protocol (TCP/ IP) and click Properties.

Page 83

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

How can I assign a Static IP Address in Windows 2000? (continued)

Click Use the following IP Address and enter an IP Address that is on the same subnet as the LAN IP Address on your router. Address is 192.168.0.1, make your IP Address 192.168.0.X where X = 2-99. Make sure that the number you choose is not in use on the network.

Set the Default Gateway to be the same as the LAN IP Address of your router (192.168.0.1).

Set the Preferred DNS server to be the same as the LAN IP address of your router (192.168.0.1).

Example: If the router´s LAN IP

The Alternate DNS server is not needed or enter a DNS server from your ISP.

Click OK twice. You may be asked if you want to reboot your computer. Click

Yes.

How can I assign a Static IP Address in Windows 98/Me?

Step 1 From the desktop, right-click on the

Network Neigborhood icon (Win ME - My Network Places) and select Properties

Highlight TCP/IP and click the Properties button. If you have more than 1 adapter, then there will be a TCP/IP “Binding” for each adapter. Highlight TCP/IP > (your

network adapter) and then click Properties.

Page 84

Frequently Asked Questions (continued)

Why can´t I access the web based configuration? (continued)

How can I assign a Static IP Address in Windows 98/Me? (continued)

Step 2 Click Specify an IP Address.

Enter in an IP Address that is on the same subnet as the LAN IP Address on your router. Example: If the router´s LAN IP Address is

192.168.0.1, make your IP Address

192.168.0.X where X is between 2-99. Make sure that the number you choose is not in use on the network.

Step 3 Click on the Gateway tab.

Enter the LAN IP Address of your router here (192.168.0.1).

Click Add when finished.

Step 4 Click on the DNS Configuration tab.

Click Enable DNS. Type in a Host (can be any word). Under DNS server search order, enter the LAN IP Address of your router (192.168.0.1). Click Add.

Step 5 Click OK twice.

When prompted to reboot your computer, click Yes. After you reboot, the computer will now have a static, private IP Address.

Step 5 Access the web management. Open your web

browser and enter the IP Address of your D-Link device in the address bar. This should open the login page for the web

management. Follow instructions to login and complete the configuration.

Page 85

Frequently Asked Questions (continued)

How can I setup my router to work with a Cable modem connection?

Dynamic Cable connection

(i.e. Cox, Adelphia, Rogers, Roadrunner, Charter, and Comcast).

Note: Please configure the router with the computer that was last connected directly

to the cable modem.

Step 1 Log into the web based

configuration by typing in the IP Address of the router (default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password

is blank (empty).

Step 2 Click the Home tab

and click the WAN button.

By default, Dynamic IP Address is the selected option.

Click Clone Mac Address.

Click on Apply and then Continue to save the changes.

Page 86

Frequently Asked Questions (continued)

How can I setup my router to work with a Cable modem connection? (continued)

Step 3 Power cycle the cable modem and router:

First turn the cable modem off. Next, turn the router off Leave them off for 2 minutes**. After 2 minutes**, turn the cable modem on. Wait until you get a solid cable light on the cable modem, and then turn the router on. Wait 30 seconds.

** If you have a Motorola (Surf Board) modem, leave off for at least 5 minutes.

Step 4 Follow step 1 again and log back into the web configuration. Click the Status

tab and click the Device Info button. If you do not already have a public IP Address under the WAN heading, click on the DHCP Renew and Continue buttons.

Static Cable Connection

Step 1 Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click the Home tab and click the WAN

button. Select Static IP Address and enter your static settings obtained from the ISP in the fields provided.

If you do not know your settings, you must contact your ISP.

Step 3 Click on Apply and then

click Continue to save the changes.

Step 4 Click the Status tab and

click the Device Info button. Your IP Address information will be displayed under the WAN heading.

Page 87

Frequently Asked Questions (continued)

How can I setup my router to work with Earthlink DSL or any PPPoE connection?

Make sure you disable or uninstall any PPPoE software such as WinPoet or Enternet 300 from your computer or you will not be able to connect to the Internet.

Step 1 Upgrade Firmware if needed.

(Please visit the D-Link tech support website at: http://support.dlink.com for the latest firmware upgrade information.)

Step 2 Take a paperclip and perform a hard reset. With the unit on, use a paperclip

and hold down the reset button on the back of the unit for 10 seconds. Release it and the router will recycle, the lights will blink, and then stabilize.

Step 3 After the router stabilizes, open your browser and enter 192.168.0.1 into the

address window and hit the Enter key. When the password dialog box appears, enter the username admin and leave the password blank. Click OK.

If the password dialog box does not come up repeat Step 2.

Note: Do not run Wizard.

Step 4 Click on the WAN tab on left-hand side of the screen. Select PPPoE.

Step 5 Select Dynamic PPPoE (unless your ISP supplied you with a static IP

Address).

Step 6 In the username field enter ELN/username@earthlink.net and your

password, where username is your own username.

For SBC Global users, enter username@sbcglobal.net. For Ameritech users, enter username@ameritech.net. For BellSouth users, enter username@bellsouth.net. For Mindspring users, enter username@mindspring.com. For most other ISPs, enter username.

Step 7 Maximum Idle Time should be set to zero. Set MTU to 1492, unless

specified by your ISP, and set Autoreconnect to Enabled.

Note: If you experience problems accessing certain websites and/or email issues,

please set the MTU to a lower number such as 1472, 1452, etc. Contact your ISP for more information and the proper MTU setting for your connection.

Page 88

Frequently Asked Questions (continued)

How can I setup my router to work with Earthlink DSL or any PPPoE connection? (continued)

Step 8 Click Apply. When prompted, click Continue. Once the screen refreshes,

unplug the power to the D-Link router.

Step 9 Turn off your DSL modem for 2-3 minutes. Turn back on. Once the modem

has established a link to your ISP, plug the power back into the D-Link router. Wait about 30 seconds and log back into the router.

Step 10 Click on the Status tab in the web configuration where you can view the

device info. Under WAN, click Connect. Click Continue when prompted. You should now see that the device info will show an IP Address, verifying that the device has connected to a server and has been assigned an IP Address.

Can I use my D-Link Broadband Router to share my Internet connection provided by AOL DSL Plus?

In most cases yes. AOL DSL Plus may use PPPoE for authentication bypassing the client software. If this is the case, then our routers will work with this service. Please contact AOL if you are not sure.

To set up your router:

Step 1Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Enter your screen name followed by @aol.com for the user name. Enter your

AOL password in the password box.

Step 3 You will have to set the MTU to 1400. AOL DSL Plus does not allow for

anything higher than 1400.

Step 4 Click Apply.

Step 5 Recycle the power to the modem for 1 minute and then recycle power to the

router. Allow 1 to 2 minutes to connect.

If you connect to the Internet with a different ISP and want to use the AOL software, you can do that without configuring the router’s firewall settings. You need to configure the AOL software to connect using TCP/IP.

Go to http://www.aol.com for more specific configuration information of their software.

Page 89

Frequently Asked Questions (continued)

How do I open ports on my router?

To allow traffic from the Internet to enter your local network, you will need to open up ports or the router will block the request.

Step 1 Log into the web based

configuration by typing in the IP Address of the router (default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on Advanced on top and

then click Virtual Server on the left

Step 3 Check Enabled to activate

entry.

Step 4 Enter a name for your virtual

server entry.

Step 5 Next to Private IP, enter the IP

Address of the computer on your local network that you want to allow the incoming service to.

Step 6 Choose Protocol Type - either TCP, UDP, or both. If you are not sure, select

both.

Step 7 Enter the port information next to Private Port and Public Port. The private

and public ports are usually the same. The public port is the port seen from the WAN side, and the private port is the port being used by the application on the computer within your local network.

Step 8 Set the Schedule information.

Step 9 Click Apply and then click Continue.

Note: Make sure DMZ host is disabled. If DMZ is enabled, it will disable all Virtual Server entries.

Because our routers use NAT (Network Address Translation), you can only open a specific port to one computer at a time. For example: If you have 2 web servers on your network, you cannot open port 80 to both computers. You will need to configure one of the web servers to use port 81. Now you can open port 80 to the first computer.

Page 90

Frequently Asked Questions (continued)

What is DMZ?

Demilitarized Zone:

In computer networks, a DMZ (Demilitarized Zone) is a computer host or small network inserted as a neutral zone between a company´s private network and the outside public network. It prevents outside users from getting direct access to a server that has company data. (The term comes from the geographic buffer zone that was set up between North Korea and South Korea following the UN police action in the early 1950s.) A DMZ is an optional and more secure approach to a firewall and effectively acts as a proxy server as well.

In a typical DMZ configuration for a small company, a separate computer (or host in network terms) receives requests from users within the private network for access to Web sites or other companies accessible on the public network. The DMZ host then initiates sessions for these requests on the public network. However, the DMZ host is not able to initiate a session back into the private network. It can only forward packets that have already been requested.

Users of the public network outside the company can access only the DMZ host. The DMZ may typically also have the company´s Web pages so these could be served to the outside world. However, the DMZ provides access to no other company data. In the event that an outside user penetrated the DMZ hosts security, the Web pages might be corrupted but no other company information would be exposed. D-Link, a leading maker of routers, is one company that sells products designed for setting up

a DMZ

How do I configure the DMZ Host?

The DMZ feature allows you to forward all incoming ports to one computer on the local network. The DMZ, or Demilitarized Zone, will allow the specified computer to be exposed to the Internet. DMZ is useful when a certain application or game does not work through the firewall. The computer that is configured for DMZ will be completely vulnerable on the Internet, so it is suggested that you try opening ports from the Virtual Server or Firewall settings before using DMZ.

Step 1 Find the IP address of the computer you want to use as the DMZ host.

To find out how to locate the IP Address of the computer in Windows XP/2000/ME/9x or Macintosh operating systems please refer to Step 4 of the first question in this section (Frequently Asked Questions).

Page 91

Frequently Asked Questions (continued)

How do I configure the DMZ Host? (continued)

Step 2 Log into the web based configuration

of the router by typing in the IP Address of the router (default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank

(empty).

Step 3 Click the Advanced tab and then click on the DMZ button. Select Enable

and type in the IP Address from Step 1.

Step 4 Click Apply

and then Continue to save the changes.

Note: When DMZ is enabled, Virtual Server settings will still be effective. Remember, you cannot forward the same port to multiple IP Addresses, so the Virtual Server settings will take priority over

DMZ settings.

Page 92

Frequently Asked Questions (continued)

How do I open a range of ports on my DI-704UP using Firewall rules?

Step 1 Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

If you are having difficulty accessing web management, please see the first question in this section.

Step 2 From the web management Home page, click the Advanced tab then click

the Firewall button.

Step 3 Click on

Enabled and type in a name for the new rule.

Step 4 Choose WAN

as the Source and enter a range of IP Addresses out on the internet that you would like this rule applied to. If you would like this rule to allow all internet users to be able to access these ports, then put an Asterisk (*) in the first box and leave the

second box empty.

Step 5 Select LAN as the Destination and enter the IP Address of the computer on

your local network that you want to allow the incoming service to. This will not work with a range of IP Addresses

Step 6 Enter the port or range of ports that are required to be open for the incoming

service.

Step 7 Click Apply and then click Continue.

Note: Make sure DMZ host is disabled.

Because our routers use NAT (Network Address Translation), you can only open a specific port to one computer at a time. For example: If you have 2 web servers on your network, you cannot open port 80 to both computers. You will need to configure 1 of the web servers to use port 81. Now you can open port 80 to the first computer and then open port 81 to the other computer.

Page 93

Frequently Asked Questions (continued)

What are virtual servers?

A Virtual Server is defined as a service port, and all requests to this port will be redirected to the computer specified by the server IP. For example, if you have an FTP server (port 21) at 192.168.0.5, a Web server (port 80) at 192.168.0.6, and a VPN server (port 1723) at 192.168.0.7, then you need to specify the following virtual server mapping table:

Server Port

Server IP

Enable

21 192.168.0.5 X

80 192.168.0.6 X

1723 192.168.0.7 X

How do I use PC Anywhere with my DI-704UP router?

You will need to open 3 ports in the Virtual Server section of your D-Link router.

Step 1 Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on Advanced at the

top and then click Virtual Server on the left side.

pcanywhere1

Step 3 Enter the information as

seen below. The Private IP is the IP Address of the computer on your local network that you want to connect to.

Step 4 The first entry will read

as shown here:

Step 5 Click Apply and then

click Continue.

Page 94

Frequently Asked Questions (continued)

How do I use PC Anywhere with my DI-704UP router? (continued)

Step 6 Create a second entry as shown.

pcanywhere2

Step 7 Click Apply and then click

Continue.

Step 8 Create a third and final entry as shown here:

pcanywhere3

Step 9 Click Apply and then click

Continue.

Step 10 Run PCAnywhere from the remote site and use the WAN IP Address of the

router, not your computer´s IP Address.

Page 95

Frequently Asked Questions (continued)

How can I use eDonkey behind my D-Link Router?

You must open ports on your router to allow incoming traffic while using eDonkey.

eDonkey uses three ports (4 if using CLI):

4661 (TCP) To connect with a server 4662 (TCP) To connect with other clients 4665 (UDP) To communicate with servers other than the one you are connected to. 4663 (TCP) *Used with the command line (CLI) client when it is configured to allow remote connections. This is the case when using a Graphical Interface (such as the

Java Interface) with the client.

Step 1 Log into the web based configuration by typing in the IP Address of the

router (default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on

Advanced and then click Firewall.

Step 3 Create a new

firewall rule: Click Enabled. Enter a name (edonkey). Click Allow. Next to Source, select WAN under interface. In the first box, enter an *. Leave the second box empty. Next to Destination, select LAN under interface. Enter the IP Address of the computer you are running eDonkey

from. Leave the second

box empty. Under Protocol, select *. In the port range boxes, enter 4661 in the first box and then 4665 in the second box. Click Always or set a schedule.

edonkey

WAN

LAN 192.168.0.100 4661 4665

Step 4 Click Apply and then Continue.

Page 96

Frequently Asked Questions (continued)

How do I set up my router for SOCOM on my Playstation 2?

To play SOCOM and hear audio, you must download the latest firmware for the router (if needed), enable Game Mode, and open port 6869 to the IP Address of your Playstation.

Step 1 Upgrade the firmware.

Step 2 Log into the web based configuration by typing in the IP Address of the

router (default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 3 Click on the Advanced tab and then click on Virtual Server on the left side.

Step 4 You will now create a new Virtual Server entry. Click Enabled and enter a

name (socom). Enter the IP Address of your Playstation for Private IP.

Step 5 For Protocol Type select Both. Enter 6869 for both the Private Port and

Public Port. Click Always. Click Apply to save changes and then Continue

socom

100

Both

6869

Step 6 Click on the Tools tab and then Misc on the left side.

Step 7 Make sure Gaming Mode is Enabled. If not, click Enabled. Click Apply

and then Continue.

Page 97

Frequently Asked Questions (continued)

How can I use Gamespy behind my D-Link router?

Step 1 Log into the web based configuration by typing in the IP Address of the

router (default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on the Advanced tab and then click Virtual Server on the left side.

Step 3 You will create 2 entries.

Step 4 Click Enabled and enter settings:

gamespy1

100

NAME - Gamespy1

PRIVATE IP - The IP

Address of your computer that you are running Gamespy from.

PROTOCOL TYPE - Both

PRIVATE PORT - 3783

PUBLIC PORT - 3783

SCHEDULE - Always.

Both

3783

Click Apply and then Continue

Step 5 Click Enabled and enter settings:

NAME - Gamespy2

PRIVATE IP - The IP Address of

your computer that you are running Gamespy from.

PROTOCOL TYPE - Both

PRIVATE PORT - 6500

PUBLIC PORT - 6500

SCHEDULE - Always.

Click Apply and then Continue.

gamespy2

Both

6500

100

Page 98

Frequently Asked Questions (continued)

How do I configure my router for KaZaA and Grokster?

The following is for KaZaA, Grokster, and others using the FastTrack P2P file sharing system.

In most cases, you do not have to configure anything on the router or on the Kazaa software. If you are having problems, please follow steps below:

Step 1 Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on Advanced and then click Virtual Server.

Step 3 Click Enabled and then enter a Name (kazaa for example).

Step 4 Enter the IP Address of the computer you are running KaZaA from in the

Private IP box. Select TCP for the Protocol Type.

Step 5 Enter 1214 in the Private and Public Port boxes. Click Always under

schedule or set a time range. Click Apply.

kazaa

100

6500

Note: Make sure that you did not enable proxy/firewall in the KaZaA software.

Page 99

Frequently Asked Questions (continued)

How do I configure my router to play Warcraft 3?

To host a Warcraft 3 game, you must open ports on your router to allow incoming traffic. To play a game, you do not have to configure your router.

Warcraft 3 (Battlenet) uses port 6112.

For the DI-704UP:

Step 1 Log into the web based

configuration by typing in the IP Address of the router (default:192.168.0.1) in your web

warcraft3

both

6112

100

browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on Advanced and

then click Virtual Server.

Step 3 Create a new entry: Click

Enabled. Enter a name (warcraft3). Private IP - Enter the IP Address of the computer you want to host the game. Select Both for Protocol Type Enter 6112 for both Private Port and Public Port Click Always or set a schedule.

Step 4 Click Apply and then Continue.

Note: If you want multiple computers from you LAN to play in the same game that

you are hosting, then repeat the steps above and enter the IP Addresses of the other computers. You will need to change ports. Computer #2 can use port 6113, computer #3 can use 6114, and so on.

You will need to change the port information within the Warcraft 3 software for computers #2 and up.

Configure the Game Port information on each computer:

Start Warcraft 3 on each computer, click Options > Gameplay. Scroll down and you should see Game Port. Enter the port number as you entered in the above steps.

Page 100

Frequently Asked Questions (continued)

How does NetMeeting work with my D-Link Router?

Unlike most TCP/IP applications, NetMeeting uses DYNAMIC PORTS instead of STATIC PORTS. That means that each NetMeeting connection is somewhat different than the last. For instance, the HTTP web site application uses port 80. NetMeeting can use any of over 60,000 different ports.

All broadband routers using only standard NAT and all internet sharing programs like Microsoft ICS that use only standard NAT will NOT work with NetMeeting or other h.323 software packages.

In order to use NetMeeting with your D-LInk router, you need to put the router in DMZ.

Note: A few hardware manufacturers have taken it on themselves to actually provide H.323 compatibility. This is not an easy task since the router must search each incoming packet for signs that it might be a netmeeting packet. This is a whole lot more work than a router normally does and may actually be a weak point in the firewall. D-Link is not one of the manufacturers.

To read more on this visit http://www.HomenetHelp.com

How do I set up my router to use iChat? -for Macintosh users-

You must open ports on your router to allow incoming traffic while using iChat.

iChat uses the following ports: 5060 (UDP) 5190 (TCP) File Sharing 16384-16403 (UDP) to video conference with other clients

Step 1 Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and the password is blank (empty).

Step 2 Click on Advanced and then click Firewall.

100

D-Link DI-704UP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Package Contents

Introduction

LEDs

Connections

Introduction to Broadband Router Technology

Sample Scenario

Network Setup

Using the Setup Wizard

Using the Configuration Menu

Installing the Print Server Software

Networking Basics

Resetting the DI-704UP to the Factory Default Settings

Technical Specifications

Frequently Asked Questions
