1D-Link DHP-W611AV User Manual
Section 1 - Product Overview
D-Link DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200 Adapter
D-Link DHP-P610AV PowerLine AV2 1000 Gigabit Passthrough Adapter
CAT5 Ethernet Cable (x2)
Wi-Fi Conguration Card
Quick Installation Guide
Package Contents
Product Overview
Wi-Fi Conguration Note
2D-Link DHP-W611AV User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet broadband connection
• 10/100/1000 Ethernet clients OR
• 802.11ac/n/g/a wireless clients
Browser Requirements
• Internet Explorer 7.0 or higher
• Firefox 3.5 or higher
• Safari 4.0 or higher
• Chrome 8.0 or higher
3D-Link DHP-W611AV User Manual
Section 1 - Product Overview
The DHP-W610AV allows you to connect both wired and wireless computers, high-denition TVs, networking devices, and gaming consoles using
the most pervasive medium in your home - the electrical wiring. Share Internet connections and experience smooth le transfers, streaming
multimedia, online gaming, and more. The DHP-W611AV is a complete solution that consists of the DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200
Adapter and the DHP-P610AV PowerLine AV2 1000 Gigabit Passthrough Adapter, giving you everything you need to create a high-speed Powerline
network in your home. Simply plug the devices into your home’s electrical outlets and you’ll be able to use your existing wiring to expand your
Internet access and wireless network.
The PowerLine AV2 1000 Wi-Fi AC1200 Adapter incorporates the latest technology to improve on AV data speeds over a home’s existing electrical
wiring. This faster transmission speed provides ample bandwidth suitable for streaming HD video while simultaneously providing high-speed
Internet access throughout the home. With Quality of Service (QoS) support, you can prioritize and allocate bandwidth based on media type. This
feature ensures that applications that require real-time communication (such as VoIP calling and online gaming) stay uninterrupted even while
streaming Internet TV and music.
A D-Link exclusive, the Clone My Wi-Fi feature lets you quickly and easily set up your Powerline devices in your existing network if you are using
a compatible router. Simply choose the Clone My Wi-Fi option in the setup wizard and the extender will automatically copy your current network
settings to your new Powerline devices. Gigabit Ethernet and Wireless AC provide high speed data transfers so you can enjoy speedy performance
no matter how you are connected. Plug and Play completes the package, so you can expand your home network and share your Internet connection
with other devices at the touch of a button.
Introduction
4D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Features
Data Transmission Over Electrical Wiring
The D-Link DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200 Adapter, compliant with the HomePlug AV2 standard, uses your home’s existing electrical
wiring1 to create or extend your network. It turns every power outlet into a potential network connection to access digital media devices, game
consoles, print servers, computers, and network storage devices throughout your home. Additionally, Wireless AC provides high speed transfers
without the need for unsightly network cables.
Faster Wireless Speeds & Wider Operational Range
The Wireless AC technology incorporated into the DHP-W610AV oers increased speed and range beyond standard 802.11n technology. Initial
wireless setup can be accomplished quickly, thanks to a convenient setup wizard. WPA/WPA2 encryption keeps your network trac safe and secure.
Ideal For Bandwidth-Intensive Applications
The DHP-W610AV is capable of delivering Powerline AV data transfer rates even higher than the old AV standard. This rapid transmission speed makes
it ideal for bandwidth-intensive applications, guaranteeing smooth HD video streaming, clear VoIP calls, and lag-free online gaming experiences.
In addition, it prioritizes Internet trac, ensuring that multimedia applications do not experience glitches while web surng and downloads are in
progress. This device provides ample network bandwidth, enabling digital home consumers to tap into existing electrical wiring for high-quality
multimedia streaming.
Convenient Setup and Secure Operation
The DHP-W611AV devices plug directly into a power outlet, and do not require any additional power cables. Extend your home network by connecting
multiple devices in the farthest corners of your home via Ethernet cable or Wireless AC. For convenient setup, wired or wireless encryption keys
can be quickly congured with the push of a button on top of the device. The adapter implements 128-bit AES data encryption to protect the
network from unauthorized wiretapping. With hassle-free plug and play installation, the DHP-W611AV is an ideal solution to create a wall-to-wall
home network.
1
Power outlets and electrical wiring must all be part of the same electrical circuit. Certain electrical conditions in your home, such as wiring condition and conguration, may aect the performance of this product.
Additional D-Link PowerLine AV adapters are required to add new devices to the network. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network. Connecting this product to a power
strip with a surge protector may adversely aect the performance of this product. For best results, plug the adapter directly into a wall outlet.
5D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Hardware Overview
DHP-W610AV
Connections
1 RJ-45 10/100BASE-TX Ethernet Port Connects to Digital Media Devices, PCs, Game Consoles, Network Storage Devices
2 Reset Button Press and hold the button for 5 seconds to reset to factory defaults.
3 Simple Connect/WPS Button
Push this button to create a secure Powerline connection with another adapter. More
on this connection is available at Hardware Installation on page 9. It can also
be used to connect using Wi-Fi Protected Setup (WPS). To connect using WPS, press
this button, then press the WPS button on your wireless client.
4 On/O Switch Slide this switch to power on or o the device.
1
4
3
1
2
6D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1 Power LED
A solid light indicates a proper connection to the power supply. A blinking light indicates it is in sleep
mode or seeking a Powerline connection.
2 Powerline LED A solid light indicates that a Powerline connection is established.
3 Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
4 Wireless LED A solid light indicates that the wireless network is ready.
2
4
3
1
7D-Link DHP-W611AV User Manual
Section 1 - Product Overview
Hardware Overview
DHP-P610AV
Connections
1 RJ-45 10/100BASE-TX Ethernet Port Connects to digital media devices, PCs, game consoles, network storage devices.
2 Simple Connect Button
Press this button for 3-5 seconds to set up a Powerline network or press it for 10
seconds to perform a factory reset.
1
2
8D-Link DHP-W611AV User Manual
Section 1 - Product Overview
1 Power LED
A solid light indicates a proper connection to the power supply. A blinking light indicates it is in sleep
mode (after 5 minutes of inactivity) or seeking a Powerline connection.
2 Powerline LED A solid light indicates that a Powerline connection is established.
3 Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
Hardware Overview
DHP-P610AV
LEDs
2
1
3
9D-Link DHP-W611AV User Manual
Section 2 - Installation
Hardware Installation
Power
Plug the DHP-P610AV into a wall outlet near your router. Fully extend the antennas and plug the DHP-W610AV into a wall outlet where you want
to extend your network. Slide the power switch on the side of the device to the ON position. The Power LED will light to indicate the devices are
receiving power.
Connect the Devices
Press the Simple Connect Button on the DHP-P610AV for 3 seconds. Then, press the Simple Connect Button on the DHP-W610AV for 3 seconds. This
must be done within two minutes after pressing the Simple Connect Button on the DHP-P610AV.
Note: Network connectivity is conrmed when the Powerline LEDs on both Powerline devices are steadily lit. This will indicate that your network
is now secure.
Plug in the Ethernet Cable
You should already own a router connected to a modem. Connect one of the supplied Ethernet cables between your router and the DHP-P610AV.
Connect the other Ethernet cable between your DHP-W610AV and your computer. Read the guidelines on the following pages, and continue to
DHP-W610AV Conguration on page 13.
Adding More Devices (optional)
If you have more Powerline devices now or in the future, you may add them to your network in the same way as above. Be sure to press the Simple
Connect Button on the new device, then the Simple Connect Button on the existing network.
4
ROOM A ROOM B
DHP-P610AV DHP-W610AV
RouterInternet
PC
10D-Link DHP-W611AV User Manual
Section 2 - Installation
Wireless Installation Considerations
The DHP-W610AV lets you access your network using a wireless connection from anywhere within the operating range of your wireless network.
Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the
range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to
maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the DHP-W610AV and other network devices to a minimum. Each wall or ceiling can reduce your
adapter’s range by 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters) at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position the wireless
DHP-W610AV and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or wireless products such as ceiling fans, lights, and home security systems, your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base
transmits a signal even if the phone is not in use.
11D-Link DHP-W611AV User Manual
Section 2 - Installation
Plan the location of your Powerline devices:
1. Connect Powerline devices to electrical outlets that are not controlled by a wall switch to avoid accidentally turning o power to the device.
2. Do not connect the Powerline devices to an extension cord, surge protector, or power strip as
this might prevent it from working correctly, or negatively impact network performance.
3. Avoid using the Powerline devices in an electrical outlet that is located near an appliance that
uses a lot of power, such as a washer or dryer, or a refrigerator. This may prevent the adapter from
working correctly, or negatively impact network performance.
4. Verify that your Powerline devices are electrically rated to operate with the power available in
your location.
5. To help prevent against electrical shock, be sure to plug the power cables into properly
grounded electrical outlets.
6. The Powerline device is designed to help ensure proper grounding. Do not use adapter plugs or
remove the grounding prong from the device.
Powerline Installation Considerations
12D-Link DHP-W611AV User Manual
Section 2 - Installation
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service the device.
2. Ensure that the device is plugged into the wall in a vertical position.
3. Use the device in a dry location, and avoid placing it in humid environments.
4. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it from the power outlet
and use a damp towel.
5. Keep the device out of direct sunlight.
6. Do not cover or block the vents on the device.
7. Make sure that the device has adequate room for ventilation.
8. Avoid placing the device near a heater or radiator.
Important Safety Notes
13D-Link DHP-W611AV User Manual
Section 3 - Conguration
DHP-W610AV Conguration
Setup
If you wish to change the default settings or optimize the performance of the
DHP-W610AV, you may use the web-based conguration utility.
To access the conguration utility, open a web browser such as Internet Explorer
and enter either http://dlinkapWXYZ.local. (this is on the Wi-Fi Conguration
Card) or http://dlinkapWXYZ in the address eld.
By default, Admin will be the User Name. Leave the password blank to log in.
If you receive a “Page Cannot be Displayed” error, please refer to Troubleshooting
on page 47 for assistance.
You will automatically proceed to the Setup heading after logging in.
This section covers conguration of your DHP-W610AV PowerLine AV2 1000 Wi-Fi AC1200 Adapter. The DHP-P610AV PowerLine AV2 1000 Gigabit
Passthrough Adapter does not require conguration other than the initial Powerline connection.
14D-Link DHP-W611AV User Manual
Section 3 - Conguration
Setup Wizard
Use the wizard’s on-screen instructions to conveniently set up your network if you have not done so already. You can also manually congure your
network by going to Settings from the main page. Wi-Fi settings are covered in Wireless Settings on page 15 and Powerline settings are under
PLC Settings on page 18.
15D-Link DHP-W611AV User Manual
Section 3 - Conguration

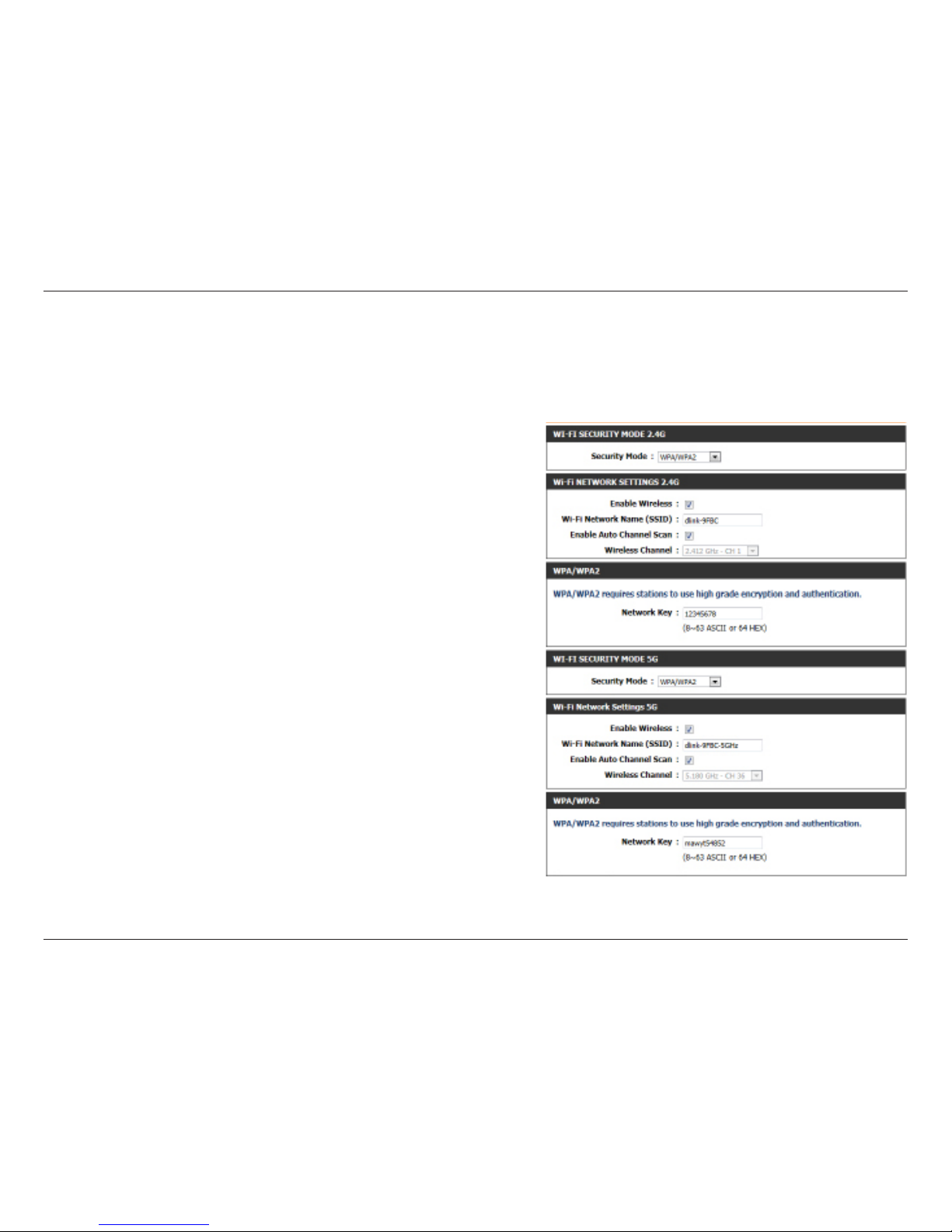

Wireless Settings
You can choose to use WPA/WPA2 encryption or copy the
settings from your current router if you have a router that
supports Clone My Wi-Fi.
The Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID
is case-sensitive.
The auto channel selection setting can be selected to allow
this device to choose the channel with the least amount of
interference.
By default the channel is set to 1. The channel can be changed
to match the channel setting for an existing wireless network
or to customize the wireless network. If you enable Auto
Channel Scan, this option will be greyed out.
Use of TKIP/AES security framework provides the optimum
mix of security and compatibility. Choose a password that
is strong. A good password uses both letters and numbers
in unpredictable places. Example bad passwords could be
password or 12345678.
Click Save Settings for the changes to take eect.
WiFi Security
Mode:
Wi-Fi Network
Name:
Enable Auto
Channel Scan:
Wireless Channel:
WPA/WPA2
Network Key:
The DHP-W610AV lets you customize your wireless settings for your access point. This device allows you to extend your current network so you can
roam about the house while staying connected to the Internet. The following settings apply to both 2.4G and 5G modes.
16D-Link DHP-W611AV User Manual
Section 3 - Conguration
Network Settings
This section will allow you to change the local network settings of the DHP-W610AV and to congure the DHCP settings.
You can customize the Device Name of your DHP-W610AV.
You will use this name to connect to it through a web browser.
The default name is listed on your Wi-Fi Conguration Card.
Use the drop-down menu to select Static IP or Dynamic IP
(DHCP) to automatically obtain an IP address on the LAN/
private network. For Static IP setup, please see the next page.
Your Internet Service Provider (ISP) may require this to be set
a certain way for Internet access. You can choose from Static
IPv6, Autoconguration, or Link-local Only. Contact your
ISP for more help on the above requirements.
This shows the current IPv6 address of the DHP-W610AV on
your network.
Click Save Settings for the changes to take eect.
Device Name:
LAN Connection
Type:
IPv6 Connection
Type:
IPv6 DNS
Settings:
17D-Link DHP-W611AV User Manual
Section 3 - Conguration
Select Static IP to manually enter the IP address, subnet mask, and default gateway addresses.
LAN Connection
Type:
IPv4 Address:
Subnet Mask:
Gateway
Address:
Primary and
Secondary DNS
Servers:
Select Static IP from the drop-down menu.
Enter the IP address of the DHP-W610AV. The default IP
address is 192.168.0.50. If you change the IP address, once
you click Apply, you will need to enter the new IP address in
your browser to return to the conguration
utility. You can also connect with the device name. (See
previous page.)
Enter the Subnet Mask.
Enter the Gateway. This is usually the LAN or internal IP
address of your router.
This is the Domain Name Server that looks up addresses on
the Internet, you may choose your preferred DNS provider
as well as a backup.
Click Save Settings for the changes to take eect.
LAN Settings - Static IP
18D-Link DHP-W611AV User Manual
Section 3 - Conguration
This section will show you how to congure your new Powerline device using the web-based conguration utility.
PLC Settings
Network Name:
Public Network
Name:
Private Network
Name:
Network List:
QoS Settings:
MAC Address/
Priority:
You can set the name of your network and set it as either
public or private. Make sure the network names of all of the
devices within your Powerline network is the same.
Select this option if you would like to make your Powerline
network public using “HomePlugAV” as the default network
name. Since this is a commonly used network name, it is less
secure than a private network name.
Select this option if you wish to make your Powerline network
more secure by using a private network name.
This section lists devices connected to your Powerline
network as well as their MAC address and connection speed.
Click the Scan button to scan for new Powerline devices. This
list is automatically updated and will refresh with this page.
Here you can set the Quality of Service (QoS) Settings for
each network device. QoS helps you prioritize network trac
based on the device or port.
Select a device from the Client List dropdown box and then
click the << next to Computer Name to automatically ll in
the device’s MAC Address. Then set the order of priority for
the device under the Priority dropdown box. Clear settings
for a rule using the Clear button.
Click Save Settings for the changes to take eect.
19D-Link DHP-W611AV User Manual
Section 3 - Conguration
Use MAC (Media Access Control) Filters to authorize wireless clients to access your network by their MAC addresses. When enabled, you can choose
to block the devices listed, or only allow the devices listed.
MAC Address Filter
MAC Filtering
Rules:
Description:
MAC Address:
Set MAC Filtering to ALLOW, DENY, or OFF. ALLOW means
only the devices listed can access the network. DENY means
the devices listed cannot access the network. OFF means this
function is currently disabled.
You enter a custom description for convenience; for example,
“My PC” or “My friend’s smartphone”.
Enter the MAC address you would like to lter.
Note: If you are ltering to ALLOW only the listed devices,
make sure to add your own computer to the list or you will
be denied access to the network and the conguration utility.
If you DENY the listed addresses be sure not to include your
own computer. You can delete the rule by clicking on the
Clear button next to the rule.
Click Save Settings for the changes to take eect.
Advanced
20D-Link DHP-W611AV User Manual
Section 3 - Conguration
Advanced Wireless
Transmit Power:
WLAN Partition:
HT20/40
Coexistence:
Sets the power of the antennas.
Select this checkbox to enable WLAN partition. If this feature
is disabled, then there is no barrier between communication
among wireless stations connecting to the DHP-W610AV. If
this is enabled, wireless clients are not allowed to exchange
data with each other through the DHP-W610AV.
Enabling this function allows compatibility with both
802.11ac/n devices as well as 802.11a/g by using both bands.
Disabling this may provide higher speeds by automatically
selecting one band but may only allow 802.11ac/n devices
to function.
Click Save Settings for the changes to take eect.
This section allows you to change several advanced settings for both 2.4G and 5G on your DHP-W610AV.
Loading...
