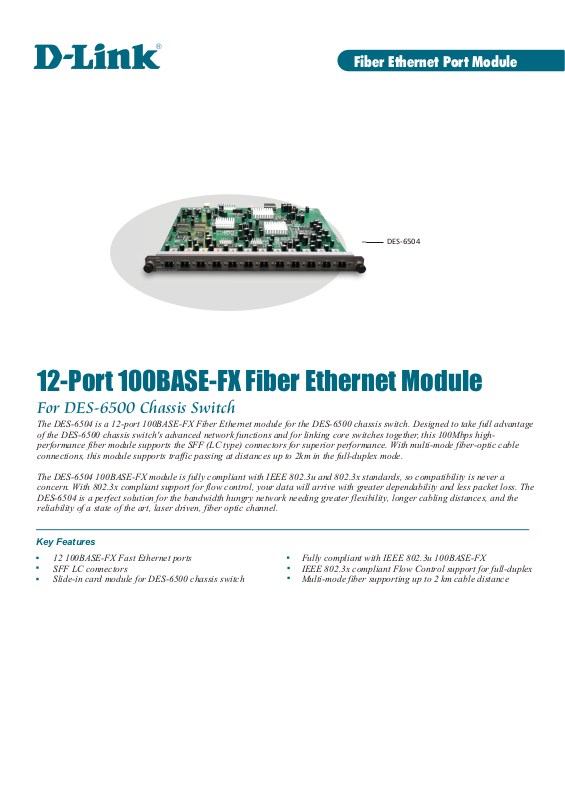

D-link DES-6504 BROCHURE

Fiber Ethernet Port Module

DES-6504

12-Port 100BASE-FX Fiber Ethernet Module

For DES-6500 Chassis Switch

The DES-6504 is a 12-port 100BASE-FX Fiber Ethernet module for the DES-6500 chassis switch. Designed to take full advantage
of the DES-6500 chassis switch's advanced network functions and for linking core switches together, this 100Mbps high­performance fiber module supports the SFF (LC type) connectors for superior performance. With multi-mode fiber-optic cable
connections, this module supports traffic passing at distances up to 2km in the full-duplex mode.

The DES-6504 100BASE-FX module is fully compliant with IEEE 802.3u and 802.3x standards, so compatibility is never a
concern. With 802.3x compliant support for flow control, your data will arrive with greater dependability and less packet loss. The
DES-6504 is a perfect solution for the bandwidth hungry network needing greater flexibility, longer cabling distances, and the
reliability of a state of the art, laser driven, fiber optic channel.

Key Features

12 100BASE-FX Fast Ethernet ports
SFF LC connectors
Slide-in card module for DES-6500 chassis switch

Fully compliant with IEEE 802.3u 100BASE-FX
IEEE 802.3x compliant Flow Control support for full-duplex
Multi-mode fiber supporting up to 2 km cable distance

DES-6504

Technical Specifications

Standards

- IEEE 802.3u 100BASE-FX

- IEEE 802.3x Flow Control

Protocol

CSMA/CD

Data Transfer Rate

- 100Mbps half duplex

- 200Mbps full duplex

Topology

Star

Number of Ports

12 fiber Ethernet ports

Connectors

12 SFF LC

Network Cable

1310nm multi-mode fiber

Maximum Cable Distance

Up to 2km

Physical & Environmental

AC Input

90 to 264 VAC, 47/63 Hz
Through DES-6500 chassis switch power supply

Fiber Ethernet Port Module

Power Consumption

30 watts (maximum)

Operating Temperature

o o

0 to 40 C

Storage Temperature

o o

-25 to 55 C

Humidity

5% to 95% RH, non-condensing

Dimensions

330mm x 281mm x 27.5mm

EMI

- FCC Class A

- CE

- VCCI

- C-Tick

Box Includes

- DES-6504 12-port 100BASE-FX (SFF) module

- Quick Installation Guide

Ordering Information

DES6504 12 port 100BASE-FX (SFF) module worldwide package
NES6504 12 port 100BASE-FX (SFF) module China package

Specifications subject to change
without prior notice.
D-Link is a registered trademark of
D-Link Corporation/D-Link System
Inc. All other trademarks belong to
their proprietors.

Rev. 01 (Mar. 2005)
