D-LINK DCS-950G User Manual

DCS-950G User’s Manual
Table Of Contents
Package Contents ............................................................................... 5
Minimum System Requirements .............................................................. 5
Introduction ...................................................................................... 6
Features and Benefits .......................................................................... 7
Hardware Overview ............................................................................. 8
Connections .........................................................................................................8
LEDs .....................................................................................................................9
Hardware Installation .......................................................................... 10
Security .......................................................................................... 12
Using the Setup Wizard .......................................................................13
Using the Configuration Menu ................................................................ 25
Home Screen ......................................................................................................25
Table of Contents
Configuration .....................................................................................................28
Advanced ......................................................................................................29
Default Level ......................................................................................29
Custom Level .....................................................................................29
Tools .............................................................................................................38
Installing the DCS-950G Behind a Router .................................................. 48
D-Link Systems, Inc.
Status ...........................................................................................................46
Help ..............................................................................................................47
2
DCS-950G User’s Manual
Single Camera Installation ..................................................................................48
Multiple Camera Installation ...............................................................................48
1) Identify Your Camera on the Network ......................................................49
2) Assign a Local IP Address for Your Camera ............................................49
Assigning and Opening the HTTP Port on the DCS-950G ...................................50
3) Open the HTTP Port ................................................................................50
Router Setup and Installation .............................................................................51
Assigning and Opening Virtual Server Ports ......................................................52
4) Open Virtual Server Ports To Enable Remote Image Viewing ...................52
Viewing Your Camera .........................................................................................53
IPView Lite Application Installation ......................................................... 54
IPView Lite ...................................................................................... 59
How to Change the Password ............................................................................59
How to Add a Camera .........................................................................................60
How to Delete a Camera .....................................................................................62
Table of Contents
How to Change the IP Address ...........................................................................63
How to Format the Camera View ........................................................................64
How to Rotate the Video View ............................................................................65
How to take a Snap-Shot with the Camera .........................................................66
How to Start Recording ......................................................................................66
How to Stop Recording .....................................................................................66
Camera Property Settings ..................................................................................67
General .........................................................................................................67
Recording .....................................................................................................68
Menu Bar ............................................................................................................71
File ................................................................................................................71
View ..............................................................................................................72
Camera .........................................................................................................74
IPView Lite Icon Description ..............................................................................77
D-Link Systems, Inc.
Tools .............................................................................................................74
About ............................................................................................................76
3
DCS-950G User’s Manual
Context Sensitive Menu ......................................................................................78
Uninstall IPView Application ................................................................ 79
Frequently Asked Questions .................................................................. 81
Internet Camera Features ...................................................................................81
Internet Camera Installation ...............................................................................83
How to Ping Your IP Address .............................................................................85
Time Zone Table ................................................................................ 87
Adjusting the Camera Focus .................................................................. 89
Technical Specifications ...................................................................... 90
Contacting Technical Support ................................................................ 92
Warranty ......................................................................................... 93
Registration .................................................................................... 97
Table of Contents
D-Link Systems, Inc.
4
DCS-950G User’s Manual
Package Contents
D-Link SECURICAM Network DCS-950G
Internet Camera
Cat5 Ethernet Cable
802.11G Antenna
Power Adapter (5.0V, 2.5A)
Camera Stand with Mounting Bracket and Screws
CD-ROM with Software and Manual
Quick Installation Guide
Package Contents
Note: Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Minimum System Requirements
Local Area Network: 10Base-T Ethernet or 100Base-TX Fast Ethernet
Wireless Local Area Network: 802.11g Wireless Router or Access Point
Recommended: PC or Notebook to access the Internet Camera
PC with
• 1.3GHz Processor
• 128MB Memory
• Windows® XP/2000/Me
• Internet Explorer v6
Multiple Camera Operation Requires Computer with
• 2.4GHz Processor
• 512MB Memory
• 32MB Video Card
• Windows® XP/2000/Me
• Internet Explorer v6
D-Link Systems, Inc.
5
DCS-950G User’s Manual
Introduction
Congratulations on your purchase of the DCS-950G Internet Camera! The DCS-950G is a versatile and unique solution for your small office or home. Unlike a PC Camera, the DCS-950G is a stand-alone system with a built-in CPU and Web server that transmits high quality video images for monitoring. The DCS-950G can be accessed remotely, and controlled from any PC/Notebook over the Intranet or Internet via a Web browser. The simple installation procedure and intuitive web-based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11g wireless network. The DCS-950G also comes with remote monitoring capability for a complete and cost-effective home security solution.
Introduction
D-Link Systems, Inc.
6
DCS-950G User’s Manual
Features and Benefits
Simple to Use: The DCS-950G is a stand-alone system with a built-in CPU,
requiring no special hardware or software such as PC frame grabber cards. The DCS-950G supports ActiveX mode for Internet Explorer. All that is required is a computer with Internet Explorer 6.0 or above.
Supports a Variety of Platforms: Supporting TCP/IP networking, HTTP, and other
Internet related protocols. It can also be integrated easily into other Internet/ Intranet applications because of its standards-based features.
Remote Snapshot Images and Recording: Using the Snapshot and recording
features, you can save snapshots and record video and audio directly from the Web browser to a local hard drive without installing any software, making it convenient to instantly capture any moment from a remote location.
Record Directly to a NAS: The DCS-950G allows you to record directly to a
local network area storage device without the use of a dedicated PC for storing recorded video.
Low Light Recording: The DCS-950G’s 0.5 lux light sensitivity allows you to
capture video in rooms with minimal lighting, making it ideal for use at night time.
Features and Benefits
802.11g Wireless or Ethernet/Fast Ethernet Support: The DCS-950G offers both
802.11g wireless and Ethernet/Fast Ethernet connectivity, making the DCS­950G easy to integrate into your existing network environment. The DCS-950G works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired environments and works with 802.11g routers or access points for added flexibility. The Site Survey feature also allows you to view and connect to nearby wireless networks.
Web Configuration: Using a standard Web browser, Administrators can configure
and manage the Internet Camera directly from its own Web page via the Intranet or Internet. This means you can access your DCS-950G at anytime from anywhere in the world!
Remote Monitoring Utility: The IPView Lite application adds enhanced features
and functionality for the Internet Camera and allows administrators to configure and access the Internet Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 4 cameras on one screen, and taking snapshots.
Broad Range of Applications: With today’s high-speed Internet services, the
Internet Camera can provide the ideal solution for live video images over the Intranet and Internet for remote monitoring. The Internet Camera allows remote access from a Web browser for live image viewing and allows the administrator to manage and control the Internet Camera at anytime, from anywhere in the world. Many applications exist, including industrial and public monitoring of homes, offices, banks, hospitals, child-care centers, and amusement parks.
D-Link Systems, Inc.
7
DCS-950G User’s Manual
Hardware Overview
Connections
Hardware Overview
Reset Button
Reset will be initiated when the reset button is pressed once and Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed continuously for ten seconds. Release the reset button and the Power LED will begin to flash indicating that the DCS-950G’s settings are reverting back to the factory settings. The IP address will also return to the default setting of
192.168.0.20.
802.11g Antenna
The DCS-950G features an 802.11g wireless anten n a for 802 .11g wireless connectivity to your existing network. can be used in conjunction with an 802.11g compliant access point or router.
The DCS-950G
wirele ss
DC Power Connector
The DC power input connector is labeled DC 5V with a single jack socket to supply power to the DCS-950G.
D-Link Systems, Inc.
Ethernet Cable Connector
The DCS-950G features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 UTP cable). The port supports the NWay protocol, allowing the DCS-950G to automatically detect or negotiate the transmission speed of the network. The port also supports MDI/X, which allows the use of either straight through or cross­over cables.
8
DCS-950G User’s Manual
LEDs
Power LED
The Power LED is positioned on the right side of the DCS-950G lens. Steady orange confirms that the DCS-950G is powered ON.
Hardware Overview
D-Link Systems, Inc.
Link LED
The Link LED is positioned on the right side of the DCS-950G’s lens. It is located below the Power LED. Steady green confirms a good connection to the LAN. Depending on the data traffic, the LED will begin to flash to indicate that the DCS-950G is receiving/transceiving from/to the LAN network.
9
DCS-950G User’s Manual
Hardware Installation
Attach the Antenna
Locate the antenna included with your DCS-950G and attach it to the antenna connector located on the back of the DCS-950G.
Attach the External Power Supply
Hardware Installation
Attach the external power supply to the DC power input connector located on the rear panel of the DCS-950G and connect it to your local power supply. Note: Power source is confirmed when the orange LED Power Indicator located to the right of the lens on the DCS-950G is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on the back panel of the DCS-950G and attach it to the network. Network Connectivity is confirmed when the green LED Indicator on the DCS-950G located below the Power LED is illuminated.
D-Link Systems, Inc.
10
DCS-950G User’s Manual
Attach the Mounting Bracket
If you would like to mount the camera on a wall, locate the necessary screws and continue with securing the bracket to the wall. To attach the mounting bracket to the Camera, simply attach the Camera’s base to the bracket (see illustration below).
Hardware Installation
D-Link Systems, Inc.
11
DCS-950G User’s Manual
Security
To ensure the highest security and prevent unauthorized usage of the DCS-950G, the Administrator has the exclusive privilege to authorize all users. The DCS-950G supports multi-level password protection/access that can be restricted by the Administrator for defined users who have a User Name and User Password.
The Administrator can release a public User Name and Password so that when remote users access the DCS-950G they will be allowed to view the images transmitted by the DCS-950G.
Note: When the DCS-950G is used for the first time, it is highly recommended that the Administrator set the Admin ID and Admin Password to constrain user access to the DCS-950G since the Default settings for the Admin ID and Admin Password are both “admin.” Once the ID and Password are defined, only the Administrator has access to the management of the DCS-950G. This procedure should be done as soon as possible.
Security
D-Link Systems, Inc.
12
DCS-950G User’s Manual
Using the Setup Wizard
Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process.
Insert the D-Link DCS-950G CD into your CD-ROM drive. Click Install Software.
Using the Setup Wizard
Click Installation Wizard.
D-Link Systems, Inc.
13
DCS-950G User’s Manual
Click Next.
Using the Setup Wizard
Click Yes.
D-Link Systems, Inc.
14
DCS-950G User’s Manual
Click Next.
Using the Setup Wizard
Click Finish.
D-Link Systems, Inc.
15
DCS-950G User’s Manual
Now you should install ffdshow, this will install the proper codec that will allow you to playback recorded video taken by the DCS-950G.
Select a language and click OK.
Using the Setup Wizard
Click Next.
D-Link Systems, Inc.
16
DCS-950G User’s Manual
Click I Agree.
Using the Setup Wizard
Click Next.
D-Link Systems, Inc.
17
DCS-950G User’s Manual
Click Install.
Using the Setup Wizard
Click Next.
D-Link Systems, Inc.
18
DCS-950G User’s Manual
Click Finish.
Using the Setup Wizard
Before using ffdshow, you must configure it’s properties. From your computer, please click on Start->Programs->ffdshow->Configuration.
D-Link Systems, Inc.
19
DCS-950G User’s Manual
At the ffdshow properties window, scroll to the bottom and click Miscellaneous. Be sure that Autodetect is checked and that Error resilience and Error concealment are set to “none”.
Using the Setup Wizard
Click OK and close the window.
To run the Setup Wizard, click on Start->Programs->DCS-950 Series Setup Wizard. Your camera’s default IP Address will be displayed on the screen. Click Wizard to begin.
D-Link Systems, Inc.
20
DCS-950G User’s Manual
By default, the Admin ID and Password are “admin” (lower case). Enter this in both fields. To change the Admin Password, select the Change box and enter a New Password. Click Next.
Using the Setup Wizard
The IP Address, Subnet Mask of your camera, Gateway, and DNS addresses must correspond with your network settings for you to access the camera. If you are unsure of what these settings should be, please check with your network administrator. Click Next.
D-Link Systems, Inc.
21
DCS-950G User’s Manual
The Connection Mode depends on how your camera is connected to your network. Click Infrastructure for use with a router or Adhoc for a peer-to-peer connection. The Network Name, Wireless Channel, Security Mode, and Authentication type MUST correspond with your wireless network settings for the camera to work. Click Next.
Using the Setup Wizard
Enter the Encryption Mode, Key Format, and Encryption Keys for your wireless network. Click Next.
D-Link Systems, Inc.
22
DCS-950G User’s Manual
If you need to make any changes, click Back to modify your camera settings. Otherwise, click Restart to save and apply your settings. This may take a few minutes
Using the Setup Wizard
Your setup is now complete! Wait until the Link LED on the camera begins to flash. Click Link to launch your Web browser and view your images.
D-Link Systems, Inc.
23
DCS-950G User’s Manual
Your camera is now displayed in the Web browser.
Using the Setup Wizard
D-Link Systems, Inc.
24
DCS-950G User’s Manual
Using the Configuration Menu
After completing the Setup Wizard, you are ready to use your camera. The Web configuration utility is designed to easily access and configure your DCS-950G. Clicking the “Link” button will open up the main configuration page.
If you would like to open the configuration page from a Web Browser, enter the IP address that you assigned to your DCS-950G.
Using the Configuration Menu
Home Screen
When you click on “Link”, the DCS-950G Home screen will appear. Use the following displayed options to set up and view your Internet Camera:
Wizard
Setup
Audio On
Upside Down
Mirrored
Snap Shot
Log Out
D-Link Systems, Inc.
25
DCS-950G User’s Manual
Using the Configuration Menu
Wizard:
Setup:
Audio On:
Upside Down:
Mirrored:
Snapshot:
Home Screen
This page is used to set up the DCS-950G using the Wizard to walk you through setting up the camera for your network.
This will allow you to change the configuration settings of the DCS-950G.
This will turn on the built-in microphone on the DCS-950G . By default the audio is turned off.
This will flip the image vertically. This feature can be used if you choose to mount the DCS-950G upside down on the ceiling.
This will flip the image horizontally in such a way that your left side will be on the left side of the screen and vice versa.
Click to capture a snapshot image. The image will pop up in a new window. This image can be saved to a local hard drive.
D-Link Systems, Inc.
26
DCS-950G User’s Manual
Using the Configuration Menu
Logout:
Nightshot:
Brightness:
On-line User Icon:
File Path:
Start Video
Recording:
Click to log out of the DCS-950G. If you would like to view or configure the camera, you will must log in again.
Select this if the camera is operating under low light conditions. In this setting the DCS-950G will be able to view at 0.5 Lux.
There are 5 settings each for more brightness and less brightness from 0. After selecting your setting, please wait a few seconds for the camera to adjust accordingly.
The DCS-950G will be able to detect simultaneous users connected to it and indicate the amount with a digital readout next to the green icon on the video window.
The DCS-950G is able to record video from the Web Browser into a local hard drive of the PC that is viewing it. This path can be specified (for example, c:\dcs950G\myrecording).
Clicking this button will start recording video and audio immediately to the file path specified above.
D-Link Systems, Inc.
27
DCS-950G User’s Manual
Configuration
Click on Setup from the Home screen to access the settings required for the DCS­950G.
There will be several options in the Configuration page to choose from to setup your DCS-950G and they are as follows:
Advanced
Video
User
LAN
PPPoE
DDNS
Wireless
Site Survey
Tools
Using the Configuration Menu
Admin
Time
System
Firmware
Recording
Trigger
Status
Device Info
Help
D-Link Systems, Inc.
28
DCS-950G User’s Manual
Advanced
The Advanced tab provides the following configuration options: Video, User, LAN, PPPoE, DDNS, Wireless, and Site Survey.
Video
Using the Configuration Menu
Default Level
Custom Level
D-Link Systems, Inc.
Quality:
Capture
Resolution:
Capture
Resolution:

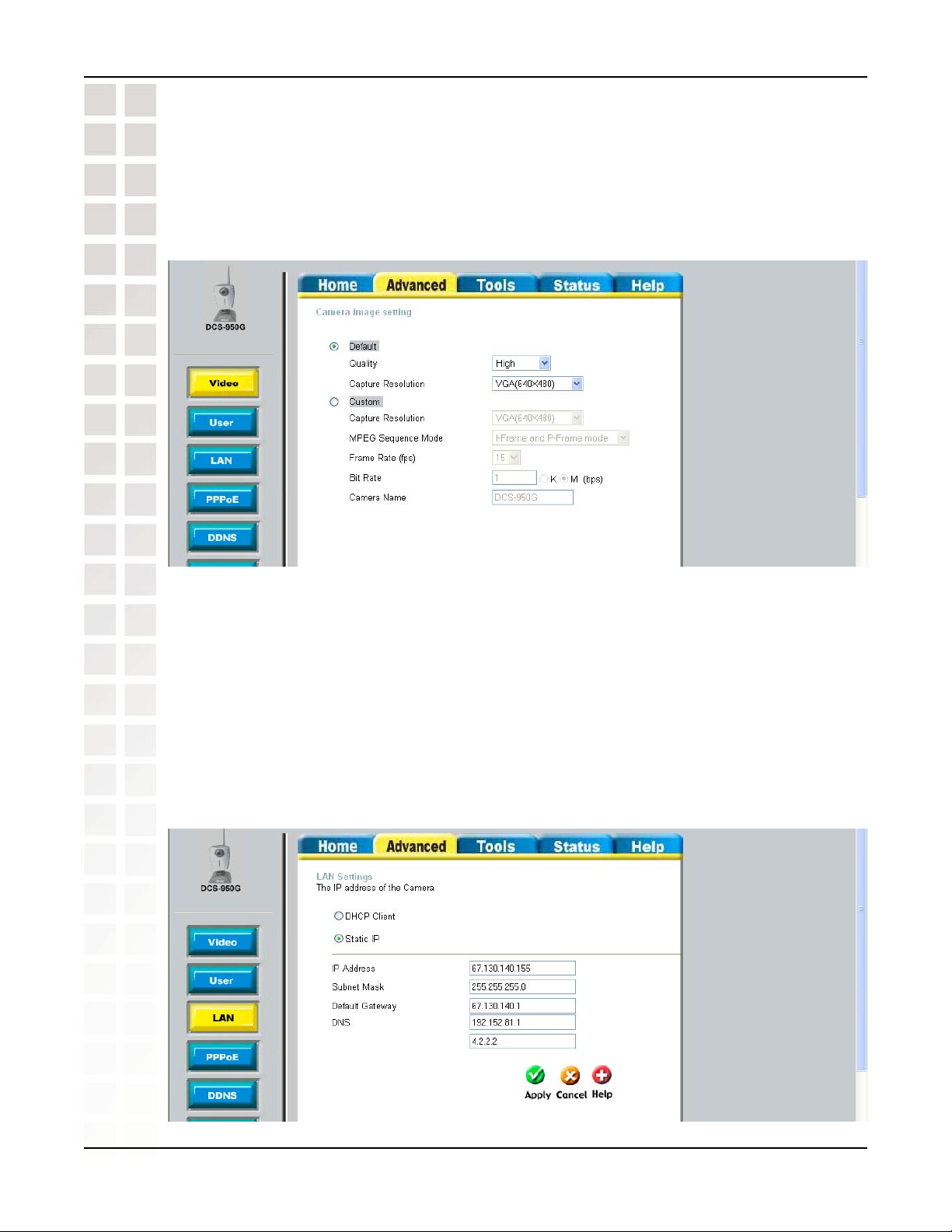

Advanced > Video
Select the viewing video quality. By default the quality is set to High.
This is the size of the video display. By default the capture resolution is set to VGA (640x480).
This is the size of the video display. By default the capture resolution is set to VGA (640x480).
29
DCS-950G User’s Manual
Using the Configuration Menu
MPEG Sequence
Mode:
Frame Rate:
Bit Rate:
Camera Name:
I-frame and P-frame mode and I-frame and BP-frames are selectable. This determines how many repeated P frames will appear after one I frame. A large “Key frame interval” can reduce the bit rate, but can cause image to be corrupted longer if there is packet loss while transmitting. The video quality may be poor due to the sending of maximum frame rate within the limited bandwidth when images are moving rapidly. Consequently, to ensure detailed video quality (quantization rate) regardless of the network, it will utilize more bandwidth to send the maximum frames when images change drastically.
This is the refresh frame rate. By default the frame rate is set to 15 frames per second (fps).
The higher the bit-rate the better the picture quality, but at the same time the file size will also be larger. For low bandwidth network a lower bit rate than 352k is advised
The camera name will display as the title of the window within the Windows operating system. This name will also appear on the log-in screen (once a password has been set).
D-Link Systems, Inc.
30
Loading...
+ 67 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
