D-Link DAP-1650 User Manual

Version 1.00 | 12/30/2013
User Manual
DAP-1650 Wireless AC1200 Dual Band Gigabit Range Extender
DAP-1650
Table of Contents
Table of Contents
Product Overview .............................................................. 4
Package Contents .........................................................................4
System Requirements ................................................................. 5
Introduction ................................................................................... 6
Features ............................................................................................7
Hardware Overview ..................................................................... 8
Installation ....................................................................... 10
Operation Modes ........................................................................10
Media Bridge Mode ...........................................................13
Wireless Installation Considerations ....................................14
Conguration ................................................................... 15
SharePort Mobile App (iOS, Android) .................................15
QRS Mobile App Setup .............................................................16
Web-based Conguration Utility ..........................................17
Wireless Setup Wizard ...............................................................18
Repeater Mode ....................................................................19
Access Point Mode .............................................................22
Media Bridge Mode ...........................................................24
Manual Conguration ...............................................................26

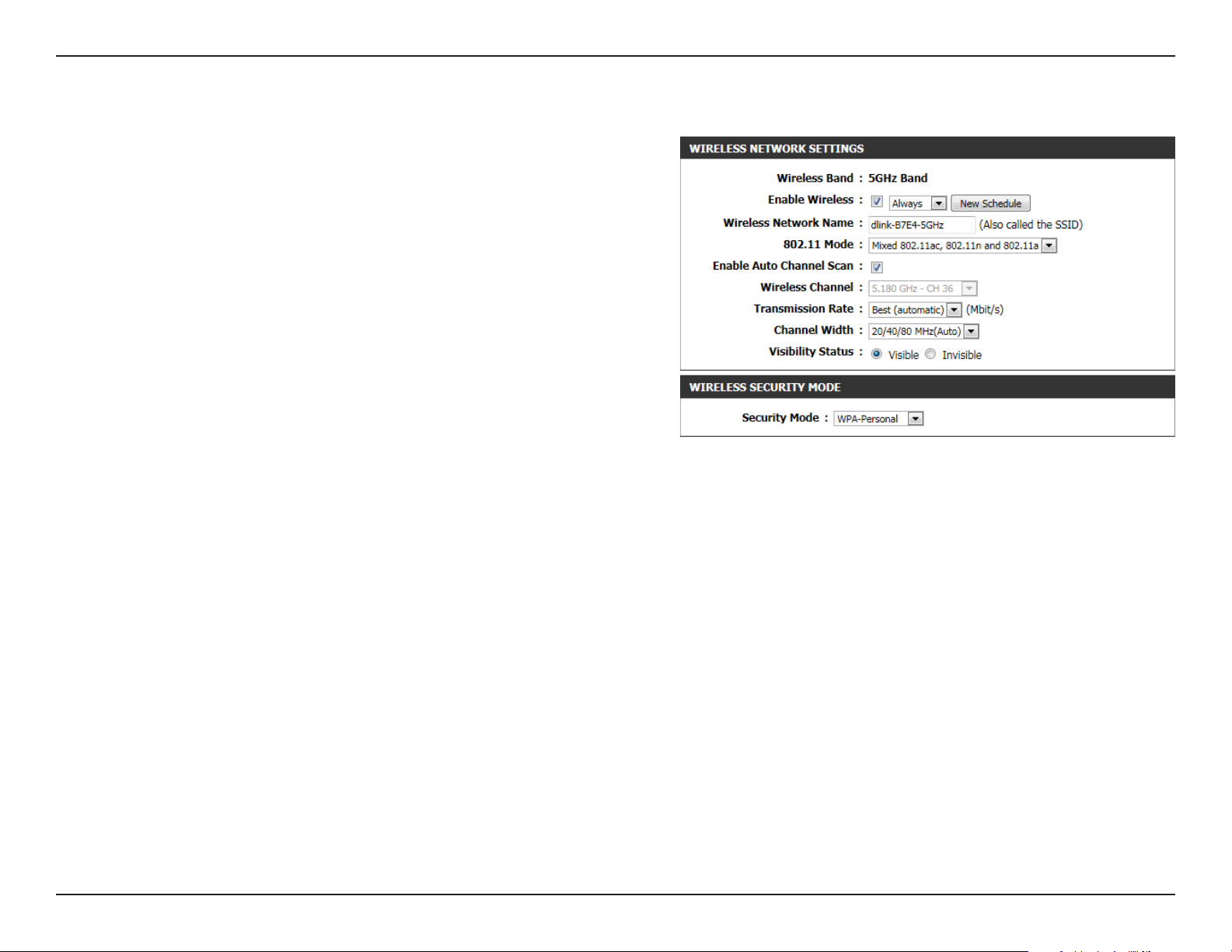

Wireless Settings .................................................................26
Access Point Mode ........................................................27
Repeater Mode ...............................................................31
Media Bridge Mode.......................................................35
Conguring Wireless Security ........................................36
Network Settings ................................................................39
Storage ...................................................................................42
Media Server.........................................................................45
Advanced ......................................................................................46
Access Point Mode .............................................................46
Access Control .................................................................46

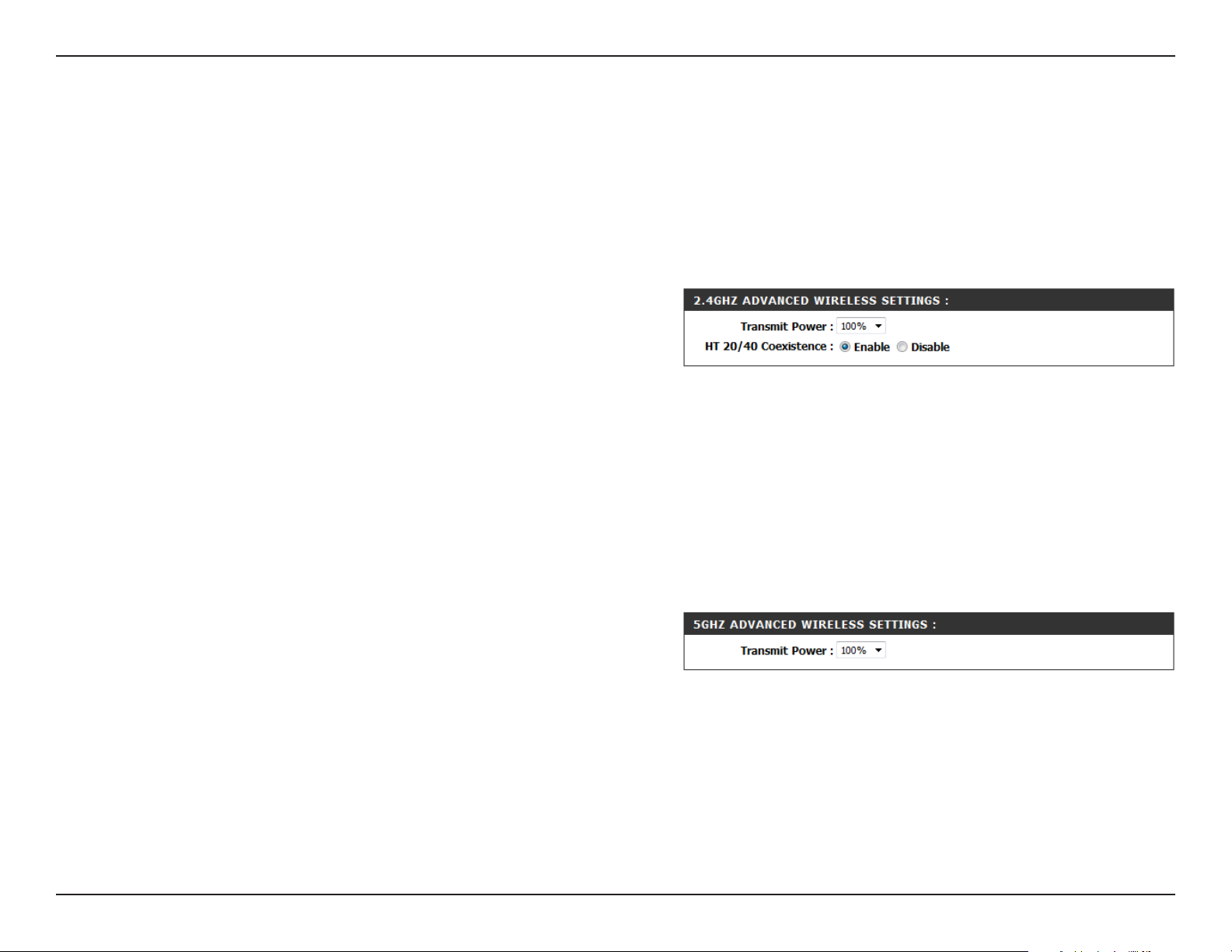

Advanced Wireless ........................................................47
Guest Zone .......................................................................48
QoS ......................................................................................49
Wi-Fi Protected Setup...................................................50
User Limit ..........................................................................51
Repeater Mode ....................................................................52
Advanced Wireless ........................................................52
Wi-Fi Protected Setup...................................................53
Media Bridge Mode ...........................................................54
Advanced Wireless ........................................................54
Wi-Fi Protected Setup...................................................55
iiD-Link DAP-1650 User Manual
Table of Contents
Maintenance ................................................................................56
Access Point Mode .............................................................56
Admin.................................................................................56
System ...............................................................................57
Firmware ...........................................................................58
Time ....................................................................................59
System Check ..................................................................60
Schedules .........................................................................61
Repeater Mode ....................................................................62
Admin.................................................................................62
System ...............................................................................63
Firmware ...........................................................................64
Time ....................................................................................65
Media Bridge Mode ...........................................................66
Admin.................................................................................66
System ...............................................................................67
Firmware ...........................................................................68
Wireless Security .............................................................76
What is WEP? ................................................................................76
What is WPS? ................................................................................76
What is WPA? ................................................................................77
Connect to a Wireless Network ....................................... 78
Windows® 8 ...................................................................................78
Windows® 7 ...................................................................................80
Windows Vista® ............................................................................83
WPA/WPA2 ............................................................................84
Using Windows® XP ....................................................................86
Troubleshooting .............................................................. 89
Networking Basics ........................................................... 91
Check your IP address ...............................................................91
Statically Assign an IP address ...............................................92
Time ....................................................................................69
Status ..............................................................................................70
Device Info ............................................................................70
Logs .........................................................................................71
Statistics .................................................................................72
Wireless ..................................................................................73

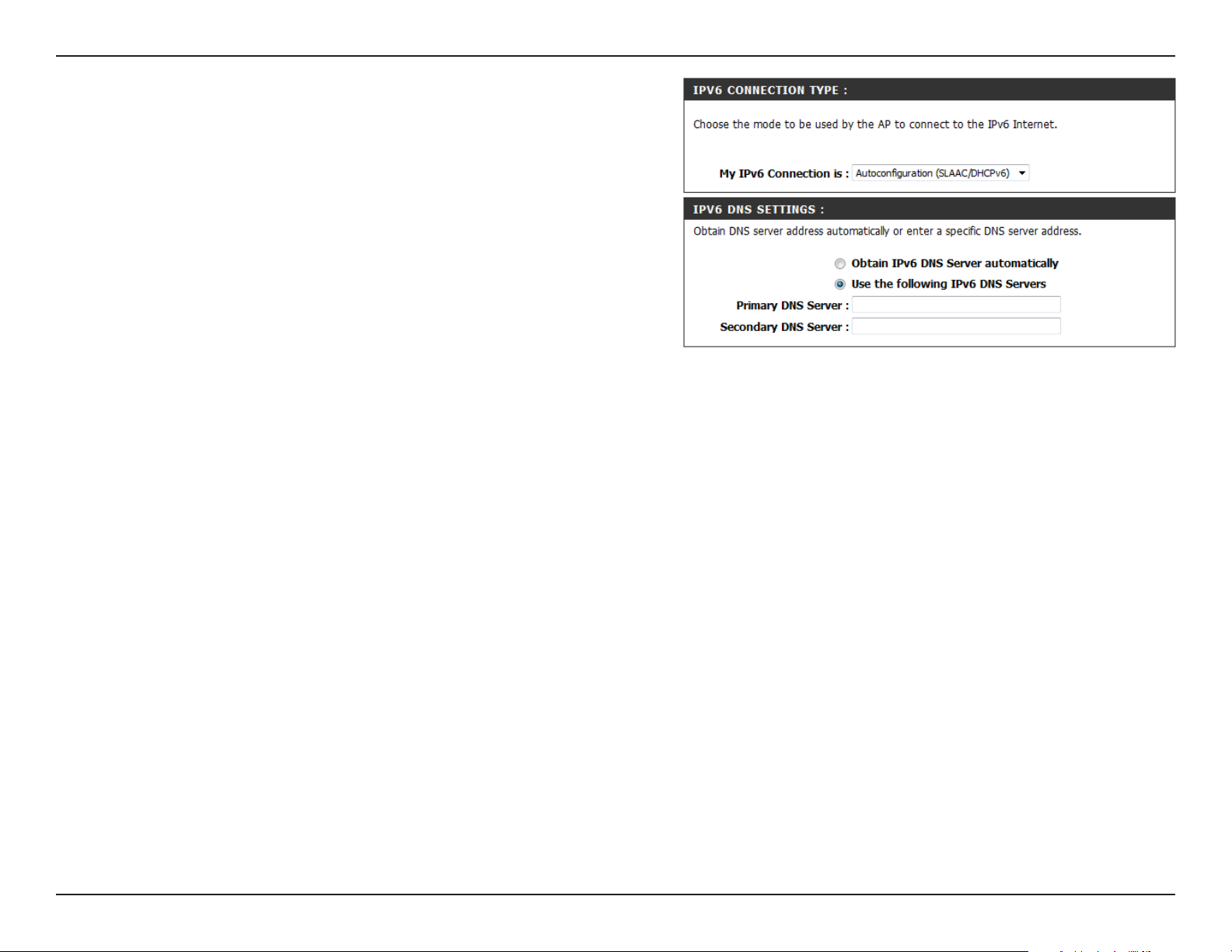

IPv6 ..........................................................................................74

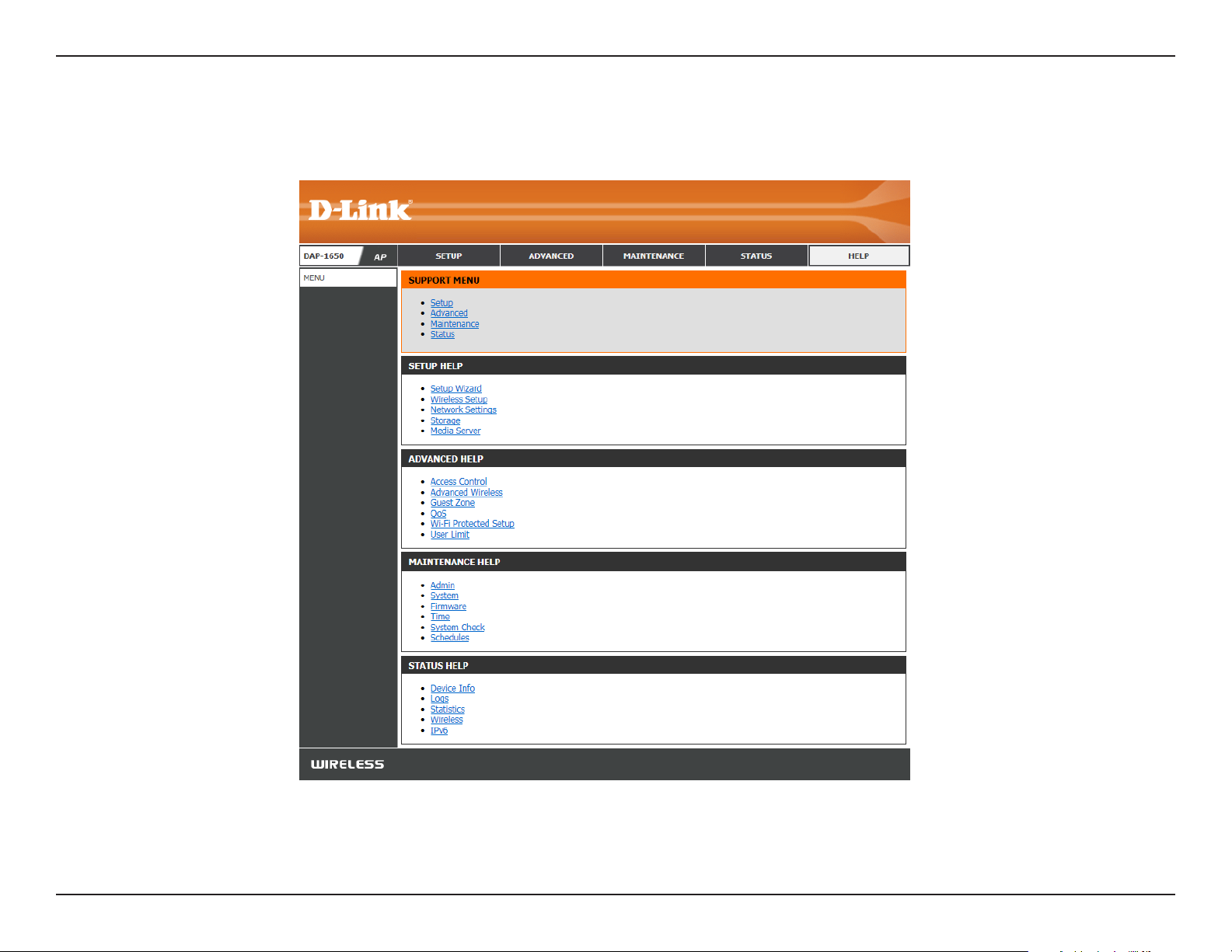

Help .................................................................................................75
Technical Specications .................................................. 93
Compliance Statements .................................................. 95
iiiD-Link DAP-1650 User Manual
Section 1 - Product Overview
DAP-1650 Wireless AC1200 Dual Band Gigabit Range Extender
Ethernet Cable
Power Adapter

Product Overview

Package Contents

Wi-Fi Conguration Note
WI-FI Conguration Note
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-1650 will cause damage and void the warranty for this product.
4D-Link DAP-1650 User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements

System Requirements

• An Ethernet-based Network
• IEEE 802.11ac/n/g/b/a wireless network (AP/Bridge/Repeater Mode)
• 10/100/1000 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 7.0 or higher
• Mozilla Firefox 12.0 or higher
• Google™ Chrome 20.0 or higher
• Apple Safari 4.0 or higher
Windows® Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version.
5D-Link DAP-1650 User Manual
Section 1 - Product Overview

Introduction

D-Link, an industry leader in networking, introduces the new D-Link DAP-1650 Wireless AC1200 Dual-band Gigabit Range Extender. With the ability to transfer les with a maximum combined wireless signal rate of up to 1200 Mbps1, the DAP-1650 gives you high-speed wireless network access for your home or oce.
The DAP-1650 is compliant with the latest draft IEEE 802.11ac standard, meaning that it can connect and inter-operate with other 802.11ac compatible wireless client devices. The DAP-1650 is also backwards compatible with 802.11b/g/n devices. It can be exibly congured to operate in 3 dierent modes: Access Point, Media Bridge, and Repeater. With its setup wizard, the DAP-1650 ensures that you will be up and running on a wireless network in just a matter of minutes.
The DAP-1650 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless data communications. The DAP-1650 also includes additional security features to keep your wireless connection safe from unauthorized access.
The DAP-1650 also supports Wi-Fi Protected Setup (WPS), repeater and wireless client operation modes each capable of being conveniently set up by using the PIN or Push Button methods.
1
Maximum wireless signal rate derived from draft 802.11ac specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
6D-Link DAP-1650 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1650 provides combined wireless speeds of up to 1200 Mbps1 . This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.
• Flexible Operation Modes - The DAP-1650 can operate as an Access Point, Repeater, and Media Bridge, meaning that you can customize its operation to suit your specic networking requirements.
• Gigabit Ethernet Ports - The built-in Gigabit Ethernet ports facilitate a wired connection of up to 1 Gbps, meaning that wired devices can also take advantage of the DAP-1650’s high-speed wireless capabilities.
• Compatible with IEEE 802.11n/g/b/a Devices - The DAP-1650 is still fully compatible with the 802.11n/g/b/a standards, so it can connect with existing wireless adapters found on older devices.
• Robust Security - Use WPS (Wi-Fi Protected Setup) to create a secure connection to new devices in a matter of seconds by simply pushing a button or entering a PIN. There’s also WPA/WPA2 security encryption, allowing you to customize your network’s security.

Features

• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DAP-1650 lets you control what information is accessible to those on the wireless network, whether from the Internet or from your company’s server. Congure your device to your specic settings within minutes.
1
Maximum wireless signal rate derived from draft 802.11ac specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
7D-Link DAP-1650 User Manual
Section 1 - Product Overview

Hardware Overview

Connections

1
2
3
4
5
6
1 USB Port Connect a USB storage device to enable network wide access.
2 WPS Button Use WPS (Wi-Fi Protected Setup) to easily create a secure connection to new devices.
3 LAN Ports Connect 10/100/1000 Ethernet devices such as computers, switches, and hubs.
4 Power Switch Press to turn power to the unit on or o.
5 Power Receptor Receptor for the supplied power adapter.
6 Reset Button (base) Press the reset button to return the device back to it’s factory conditions.
8D-Link DAP-1650 User Manual
Section 1 - Product Overview
Hardware Overview

LEDs

1
2
1 Power LED
2 Internet LED
A solid green light indicates a proper connection to the power supply. The light will blink green during the WPS process. The light will blink orange during boot up.
A solid light indicates connection on the Internet port. If the LED is orange, the connection is good but the device cannot connect to the Internet.
9D-Link DAP-1650 User Manual
Section 2 - Installation

Installation

Please congure the DAP-1650 with a computer connected directly to the device. The following pages will explain the dierent operational modes you can use.

Operation Modes

The DAP-1650 features three operation modes, enabling you to customize it to your networking requirements. Please refer to the following sections to determine which mode is most suitable for your network.
• Access Point mode - page 11
• Repeater mode - page 12
• Media Bridge mode - page 13
10D-Link DAP-1650 User Manual
Section 2 - Installation

Access Point Mode

Access Point (AP) mode adds wireless capability to your existing wired network. The DAP-1650 acts as a central connection point for any computer (client) that has an 802.11ac or backwards compatible 802.11n/g/b/a wireless network interface and is within range of the access point. Clients must connect to the network name (SSID) broadcast by the access point in order to wirelessly access the network. If wireless security is enabled on the access point, the client will need to enter a password to connect. In Access Point mode, multiple clients can connect wirelessly to the network at the same time.
AP Mode
Internet
Router
DAP-1650
Wireless Devices
11D-Link DAP-1650 User Manual
Section 2 - Installation
Repeater Mode
In Repeater mode, the DAP-1650 extends the range of your existing wireless network by repeating the wireless signal of another access point or wireless router. The DAP-1650 and wireless router (if used) must be within range of each other. The extended wireless network can use the same SSID and security settings as the existing network, or you can choose to specify a new network name and security method.
Repeater Mode
Internet
Wireless
Router
DAP-1650
Wireless Devices
12D-Link DAP-1650 User Manual
Section 2 - Installation

Media Bridge Mode

In Media Bridge mode, the DAP-1650 creates a wireless link between two existing networks, and enables you to attach a wired device to a wireless network.The two networks must be within wireless reach of one another in order for bridge mode to be eective.
Media Bridge Mode
Internet
Switch
DAP-1650Router/
Gaming console
13D-Link DAP-1650 User Manual
Section 2 - Installation

Wireless Installation Considerations

The DAP-1650 Wireless Dual Band Gigabit Range Extender lets you access your network using a wireless connection from virtually anywhere within the operating range of the device. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
• Keep the number of walls and ceilings between the device and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
• Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it appears over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
• Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
• Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
• If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may also be aected. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.
14D-Link DAP-1650 User Manual
Section 3 - Conguration
Conguration

SharePort Mobile App (iOS, Android)

When used in Access Point Mode, the SharePort Mobile app will allow you to access les from a USB storage drive that is plugged into your device. You must enable le sharing from the Setup > Storage page (refer to page 22) for this app to work properly.
1. Plug your USB storage drive into the USB port.
USB port
Note: The DAP-1650 supports hard drives with up to
one terabyte of storage capacity.
2. Use your iOS or Android mobile device to scan the QR code to the right to download the SharePort Mobile app.
You can also search for the SharePort Mobile app directly in
the iOS App Store or Google Play.
3. From your iOS or Android mobile device, choose Settings.
Note: These steps are for the iOS version of the app. The Android version may dier slightly.
iOS Android
Settings
15D-Link DAP-1650 User Manual
Section 2 - Installation

QRS Mobile App Setup

The DAP-1650 can be set up from your iOS or Android smartphone or tablet device using the QRS Mobile app.
Search for “QRS Mobile” in the App Store or Google Play, or use your mobile device to scan the QR codes on the right to download the QRS Mobile app from the App Store (left) for your iOS device, or from Google Play (right) for your Android device.
For iOS For Android
Connect to the Wi-Fi network that is displayed on the Wi-Fi Conguration Card included in your package (ex: dlink-a8fa). Then, enter the Wi-Fi password also printed on the Wi-Fi Conguration Card (akbdj1936).
16D-Link DAP-1650 User Manual
Section 3 - Conguration
Web-based Conguration Utility
This section will show you how to congure your device using the web-based conguration utility.
If you wish to change the default settings or adjust the conguration of the DAP-1650, you may use the web-based conguration utility.
To access the conguration utility, open a web browser such as Internet Explorer and enter http://dlinkap.local in the address eld.
Select Admin from the drop-down menu and then enter your password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to “Troubleshooting” on page 89 for assistance.
17D-Link DAP-1650 User Manual
Section 3 - Conguration

Wireless Setup Wizard

Click Launch Wireless Setup Wizard to congure your device.
If you want to congure the device manually without running the wizard, skip to ”Manual Conguration” on page 26.
Click Next to continue.
18D-Link DAP-1650 User Manual
Section 3 - Conguration

Repeater Mode

This wizard is designed to assist you in conguring your DAP-1650 as a repeater to extend the range of your existing wireless network.
Select Repeater from the drop-down menu.
This screen will help you to set a network name (SSID) and security password for your wireless network. Specify an SSID for both the
2.4 GHz and 5 GHz bands (these names must not be the same).
It is possible to use the same wireless security password for both networks. If you wish to use a dierent password for each network (recommended) enter the desired passwords in the 2.4 GHz Wi-Fi Password and 5 GHz Wi-Fi Password elds.
Click Next to continue.
19D-Link DAP-1650 User Manual
Section 3 - Conguration
The wizard will scan for available wireless networks.
Select the network you wish to extend and click Next.
Enter your password for that wireless network and click Next.
A summary page will be displayed, showing the current settings for your 2.4 GHz and 5 GHz wireless networks. It is recommended that you make a note of this information for future reference.
Click Finish to save your network settings.
In order for your network settings to take eect the AP will reboot automatically.
When the device has nished rebooting the main screen will display.
20D-Link DAP-1650 User Manual
Section 3 - Conguration

Access Point Mode

This wizard is designed to assist you in conguring your DAP-1650 as an access point.
Select Access Point from the drop-down menu. Then, click Next to continue.
This screen will help you to set a network name (SSID) and security password for your wireless network. Specify an SSID for both the
2.4 GHz and 5 GHz bands (these names must not be the same).
It is possible to use the same wireless security password for both networks. If you wish to use a dierent password for each network (recommended) enter the desired passwords in the 2.4 GHz Wi-Fi Password and 5 GHz Wi-Fi Password elds.
Click Next to continue.
21D-Link DAP-1650 User Manual
Section 3 - Conguration
Enter your password. By default, Admin is selected as the username and cannot be changed, and by default, the password is blank.
Check the Enable Graphical Authentication box to enable CAPTCHA authentication for added security. Click Next to continue.
Select your time zone from the drop-down menu and click Next to continue.
22D-Link DAP-1650 User Manual
Section 3 - Conguration
A summary page will be displayed, showing the current settings for your 2.4 GHz and 5 GHz wireless networks. It is recommended that you make a note of this information for future reference.
Click Finish to save your network settings.
In order for your network settings to take eect AP will reboot automatically.
When the device has nished rebooting the main screen will display.
A dialog box will appear asking if you wish to save the address for the web-based conguration utility in your browser’s bookmarks. Click OK to save and you will be taken to your browser’s bookmark settings to save the address. Click Cancel to continue without saving a bookmark.
In order for your network settings to take eect the AP will reboot automatically.
When the device has nished rebooting the main screen will display.
23D-Link DAP-1650 User Manual
Section 3 - Conguration

Media Bridge Mode

This wizard is designed to assist you in conguring your DAP-1650 as a media bridge to extend the range of your existing wireless network. This mode is particularly useful for attaching a wired device to a wireless network.
Select Media Bridge from the drop-down menu.
The wizard will scan for available wireless networks.
Select the network you wish to extend and click Next.
24D-Link DAP-1650 User Manual
Section 3 - Conguration
Enter your password for that wireless network and click Next.
A summary page will be displayed, showing the current settings for your wireless network. It is recommended that you make a note of this information for future reference.
Click Finish to save your network settings.
In order for your network settings to take eect the AP will reboot automatically.
When the device has nished rebooting the main screen will display.
25D-Link DAP-1650 User Manual
Section 3 - Conguration
Manual Conguration

Wireless Settings

You may also manually congure your DAP-1650 instead of running the setup wizard. Please refer to the following pages for detailed instructions on how to manually congure the DAP-1650 for your desired operation mode.
Repeater mode - page 27 Access Point mode - page 31 Media Bridge mode - page 35
26D-Link DAP-1650 User Manual
Section 3 - Conguration
Repeater Mode
Repeater mode re-broadcasts the wireless signal of an existing network to increase coverage. The existing wireless signal can be repeated by the DAP-1650 using both the 2.4 GHz and 5 GHz bands.
2.4 GHz Band
Wireless Mode:
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Select Repeater from the drop-down menu.
Check the box to enable the wireless function for the 2.4 GHz band. If you do not want to use wireless, uncheck the box to disable all wireless functions. You may also set up a specic time range (schedule). Select a schedule from the drop-down menu or click Add New to create a new schedule. By default, the schedule is set to Always.
Specify a network name (SSID) to identify the 5 GHz network. This is the network name that wireless clients will search for when connecting to your wireless network. This name should be dierent to that of the 2.4 GHz network congured above.
Select one of the following:
802.11a Only - Select if you are only using 802.11a wireless clients.
802.11n Only - Select if you are only using 802.11n wireless clients. Mixed 802.11n and 802.11a - Select if you are using a mix of
802.11n and 802.11a wireless clients.
802.11ac Only - Select if you are only using 802.11ac wireless clients. Mixed 802.11ac and 802.11n - Select if you are using a mix of
802.11ac and 802.11n wireless clients. Mixed 802.11ac, 802.11n and 802.11a - Select if you are using a mix of 802.11ac, 802.11n, and 802.11a wireless clients.
Enable Auto
Channel Scan:
The Auto Channel Scan setting can be selected to allow the DAP-1650 to automatically choose the channel with the least amount of interference.
27D-Link DAP-1650 User Manual
Section 3 - Conguration
Wireless
Channel:
Transmission
Rate:
Channel
Width:
Visibility
Status:
Site Survey:
Indicates the channel setting for the DAP-1650. The channel can be changed to t the channel setting for an existing wireless network or to reduce interference in congested areas. If you enable Auto Channel Scan, this option will not be available.
Use the drop-down menu to select the appropriate transmission rate in Mbits per second. Many users will want to use the default setting, Best (automatic).
Select the channel width: Auto 20/40/80 - Select this option if you are using a combination of 802.11ac, 802.11n, and other wireless devices. Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices. 20 MHz - Select if you are not using any 802.11n wireless clients.
Select whether you would like the network name (SSID) of your wireless network to be Visible or Invisible to wireless clients. If Invisible, the SSID of the DAP-1650 will not be seen by site survey utilities, so wireless clients will have to manually enter the SSID of your wireless network in order to connect to it.
Click Site Survey to display a list of wireless networks in your area. You may select the wireless access point to connect to.
Security
Mode:
For information on how to set up wireless security, please refer to “Conguring Wireless Security” on page 36.
Click Save Settings at the bottom of the page to save the current conguration.
28D-Link DAP-1650 User Manual
Section 3 - Conguration
5 GHz Band
Wireless Mode:
Enable Wireless:
Wireless
Network Name:
802.11 Mode:
Select Repeater from the drop-down menu.
Check the box to enable the wireless function for the 5 GHz band. If you do not want to use wireless, uncheck the box to disable all wireless functions. You may also set up a specic time range (schedule). Select a schedule from the drop-down menu or click Add New to create a new schedule. By default, the schedule is set to Always.
Specify a network name (SSID) to identify the 5 GHz network. This is the network name that wireless clients will search for when connecting to your wireless network. This name should be dierent to that of the 2.4 GHz network congured above.
Select one of the following:
802.11a Only - Select if you are only using 802.11a wireless clients.
802.11n Only - Select if you are only using 802.11n wireless clients. Mixed 802.11n and 802.11a - Select if you are using a mix of
802.11n and 802.11a wireless clients.
802.11ac Only - Select if you are only using 802.11ac wireless clients. Mixed 802.11ac and 802.11n - Select if you are using a mix of
802.11ac and 802.11n wireless clients. Mixed 802.11ac, 802.11n and 802.11a - Select if you are using a mix of 802.11ac, 802.11n, and 802.11a wireless clients.
Enable Auto
Channel Scan:
Wireless
Channel:
The Auto Channel Scan setting can be selected to allow the DAP-1650 to automatically choose the channel with the least amount of interference.
Indicates the channel setting for the DAP-1650. The channel can be changed to t the channel setting for an existing wireless network or to reduce interference in congested areas. If you enable Auto Channel Scan, this option will not be available.
29D-Link DAP-1650 User Manual
Section 3 - Conguration
Transmission
Rate:
Channel
Width:
Visibility
Status:
Security
Mode:
Use the drop-down menu to select the appropriate transmission rate in Mbits per second. Many users will want to use the default setting, Best (automatic).
Select the channel width: Auto 20/40/80 - Select this option if you are using a combination of 802.11ac, 802.11n, and other wireless devices. Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices. 20 MHz - Select if you are not using any 802.11n wireless clients.
Select whether you would like the network name (SSID) of your wireless network to be Visible or Invisible to wireless clients. If Invisible, the SSID of the DAP-1650 will not be seen by site survey utilities, so wireless clients will have to manually enter the SSID of your wireless network in order to connect to it.
For information on how to set up wireless security, please refer to “Conguring Wireless Security” on page 36.
Click Save Settings at the bottom of the page to save the current conguration.
30D-Link DAP-1650 User Manual
Loading...
+ 67 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
