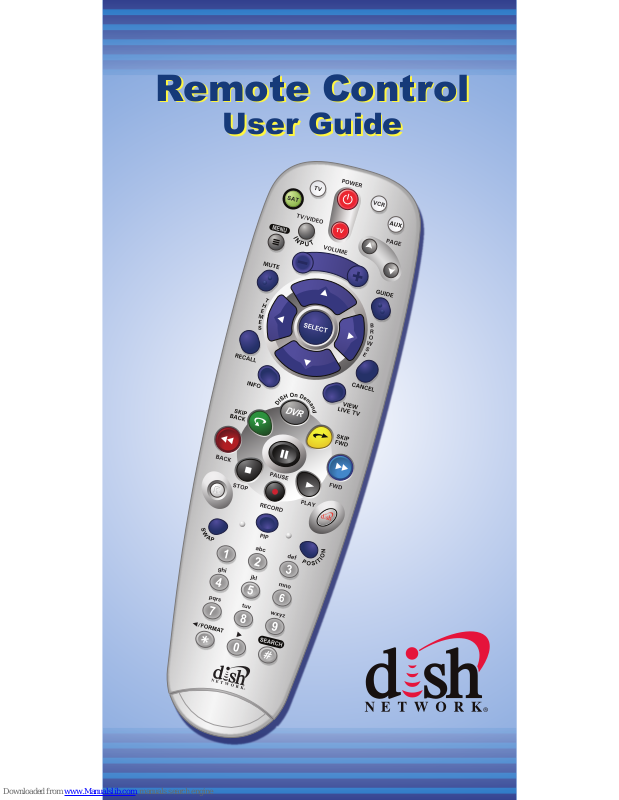

Dish Network 5.4 User Manual

Remote Control
User Guide
Remote Control
User Guide
Table of Contents
SETUP AND OPERATION
Quick Setup
Making the Remote Work with Your Receiver...................S-1
Program the Remote to Control Your TV...........................S-2
Placing Your Remote in Limited Mode...............................S-3
Operation
If You Lose Your Picture (Using RECOVER) .....................S-3
SAT Mode..............................................................................S-4
TV Mode................................................................................S-5
VCR Mode.............................................................................S-6
IN THIS GUIDE
Remote Control Overview...................................................... 1
Using the Guide ...................................................................... 1
Remote Control Modes ..........................................................1
How the Remote Communicates........................................... 2
Programming for Other Equipment ......................................2
Combination Equipment (for example, TV/VCR) ..........2
Limited Mode ...................................................................3
Fixed Channel Mode........................................................3
Setting Fixed Channel Mode for TV/VCR ..................3
Removing Fixed Channel Mode for TV/VCR .............3
Programming Using Equipment Code Tables ..............4
Scanning for Equipment Codes.....................................5
Switching Between TV & Amplifier Volume Control.....7
Programming the Remote to Control a Second Receiver
in AUX Mode .................................................................8
Reading Out the Remote Control Codes ..............................9
Discrete Codes for Learning Remotes ............................... 10
Changing the Remote and Receiver Address.................... 10
Equipment Codes ................................................................. 12
TV Codes........................................................................12
VCR Codes.....................................................................14
DVD Player Codes .........................................................16
Tuner/Amplifier Codes..................................................16
TV/VCR Combo Codes..................................................17
TV/DVD Combo Codes..................................................18
TV/VCR/DVD Combo Codes .........................................18
TV/VCR/Tuner Combo Codes.......................................18
VCR/DVD Combo Codes...............................................19
Troubleshooting.................................................................... 20
Limited Warranty................................................................... 22

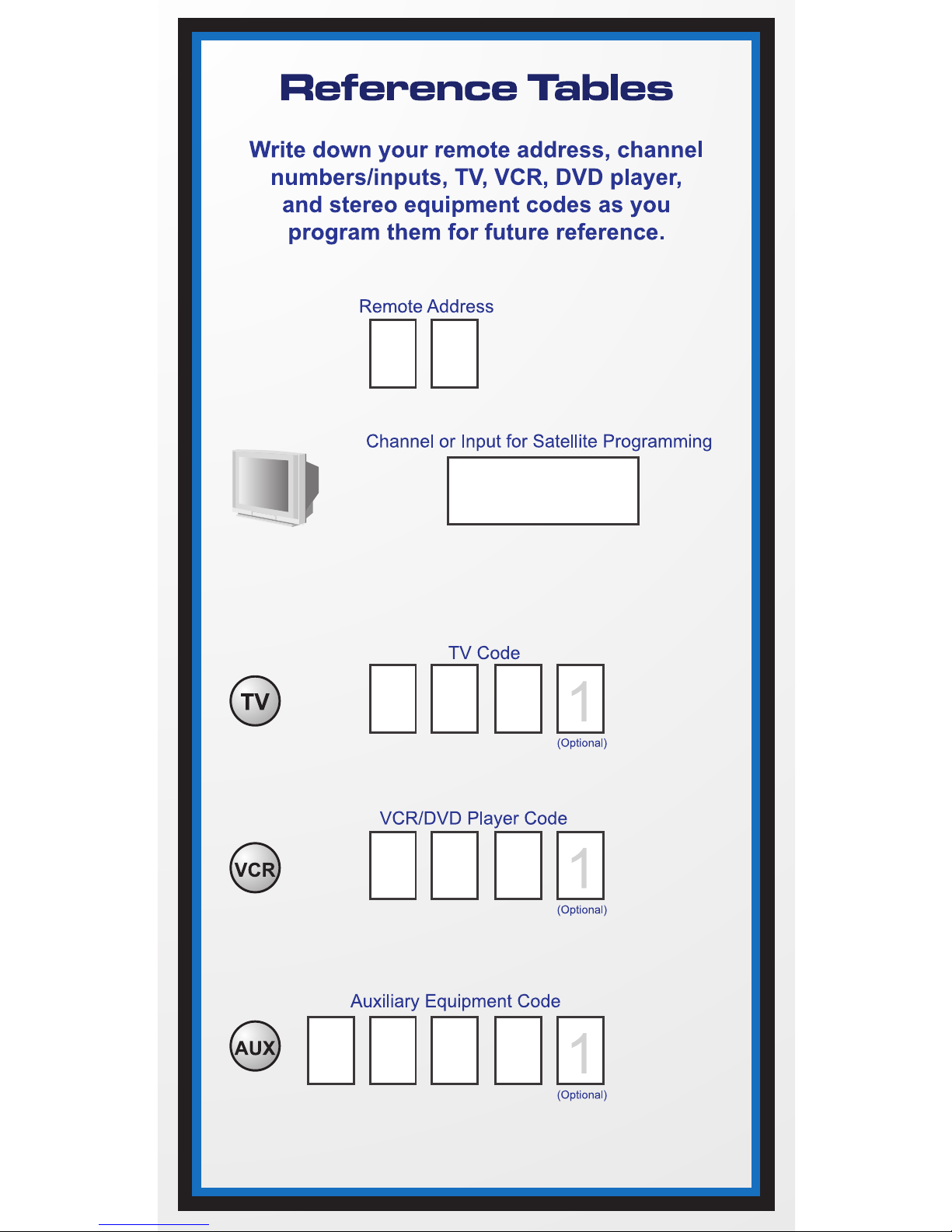

Your Remote Control Codes.....................Inside Back Cover
Insert the Batteries
1
2
S-1
Replace
the remote battery
cover.
A
B
Battery
Battery
Insert 4 AAA
batteries making
sure to match the plus (+) ends with the plus markings
on the battery case.
3
A
B
Battery
Battery
Quick Setup
A
B
Pull the
remote battery
cover off.
1
RECORD
Turn your receiver and
TV on, and press SYSTEM
INFO on the front
of the receiver.
Confirm that you
see the System
Info screen.
Press RECORD on
your remote. The remote
address probably
changes on the screen.
Use the remote to select Done from System Info to confirm that your remote
operates your receiver.
If this is not working,
go back to step
1.
1
3
2
Making the Remote Work
With Your Receiver
2
4
S-2
Quick Setup
Turn your
TV on.
Press & hold the
TV Mode button
until all Mode
buttons light up.
Press
POWER.
Press the UP
ARROW
repeatedly
(about 1
press per second)
until your TV
turns off.
Press
POUND.
Press the POWER
button to turn the TV on
and try other buttons
to make sure the code works. If you want to try another code, start over
from step 1.
Program the Remote to
Control Your TV
1
2
3
4
5 6
#
S-3
Quick Setup/Operation
SELECT
Press and hold RECOVER until all mode buttons light up.
If you see the System Info screen, proceed to step 4. Otherwise, continue to step 3.
Press RECOVER again & wait until the mode lights stop flashing. If you see the System Info screen, go to step 4. If not, repeat this step until you do.
SAT
TV
VCR
AUX
Press SELECT to resume watching TV.
Use the Recover button to get back to watching
satellite programming if you accidentally change
channels or inputs on your TV.
Placing Your Remote
in Limited Mode
If You Lose Your Picture
(How to Use the Recover Button)
#
Press
POUND.
Press & hold the
TV Mode button
until all Mode
buttons light up.
2
3
1
1
2
3
4
Press the
PAGE UP
button.
PAGE
To take the remote out of Limited Mode, use the PAGE DOWN
button instead of the PAGE UP button in step 2.
(Your screen may be different)
Limited Mode locks out all the TV mode operations except for
TV power, Mute, and Volume. This feature prevents you from
accidentally tuning away from satellite programming.
S-4
Operation
Remote Operation
SAT Mode
SAT
To use the features described in this section, make
sure you are in SAT mode by pressing the SAT Mode button.
Note: Some features may not be available depending on your receiver model.
Receiver Power
& TV Power
Receiver Menu
Program Guide
Arrows/Select Buttons
View Satellite Programming
Number Buttons
Top button turns
the receiver on/off
Bottom button
turns the TV on/off
Programming required
(see page S-2)
Channel up/down, navigate through menus/guides and select a desired option
Exit out of any menu/ guide and go back to viewing live TV
DISH
Explore interactive TV features
Browse
See what is on other channels while watching TV
Enter a channel number or select menu items
Search
Search for a program
Recover
Recovers satellite
programming if your
TV input or channel
has changed
Format
Format the picture
to the desired width
to match the program
you are viewing
(this feature varies
by receiver)
Display current and future satellite program listings
Page Buttons
Page up/down in menus
Control TV volume
Programming required (see page S-2)
Access receiver
features and settings
Themes
Search for programs
using Themes
Recall
Go back to last
channel viewed
Info
Display program info
Volume & Mute Buttons
Press this button for SAT Mode
Picture-In-Picture
(PIP) Buttons
Watch two separate
programs at once (in Single Mode if
available on your
receiver)
TV
S-5
Note: Remote operation is different on DISH Network TVs.
See your DISH Network TV User's Guide for proper operation.
TV Power
TV Menu
Up/Down Arrow Buttons
Picture-In-Picture
(PIP) Buttons
Number Buttons
Top & bottom button
Turn TV on/off
Channel up/down on TV
Enter a desired channel number on TV
Display PIP features
on some TVs with
PIP capabilities
Volume
Control TV volume
Access menu
features available on
some TVs
TV/Video
Switch between
TV inputs
(available only for
certain makes and
models of TVs)
Mute
Turn TV volume
on or off
Recall
Go back to last
TV channel viewed
Press this button for
TV Mode
Operation
Remote Operation
TV Mode
To use the features described in this section, make
sure you are in TV mode by pressing the TV Mode
button. Remote programming is required.
See page S-2 for instructions.
VCR
S-6
Operation
Remote Operation
VCR Mode
VCR
To use the features described in this section, make
sure you are in VCR mode by pressing the VCR Mode button.
You can use this mode to operate your DVD player instead of a VCR.
Remote programming is required. See page 2 for instructions.
VCR/DVD Power
& TV Power
TV/Video
Up/Down Arrow Buttons
FWD
Number Buttons
Top button turns
VCR/DVD player
on/off
Bottom button
turns the TV on/off
Channel up/down on VCR
Forward a videotape or DVD
Play
Play a videotape or DVD
Pause
Pause a videotape or DVD
Enter a desired channel number on VCR
Switch VCR between
its TV & VCR mode
Back
Rewind a videotape
or reverse a DVD
Stop
Stop playing
or recording a
videotape, or stop
playing a DVD
Record
Record on a
videotape
Press this
button for
VCR Mode
REMOTE CONTROL OVERVIEW
Great Idea: Whenever you finish using
other equipment (TV, VCR, DVD, etc.) be sure to put the remote back in SAT mode.
Use this full-function remote to control your DISH Network receiver. Also, you can program the remote to control most of the popular brands of audio/video equipment like a TV, VCR, DVD player, or a second DISH Network satellite receiver. See Programming for Other Equipment on page 2.
Note: This remote control may have features not used by your receiver.
USING THE GUIDE
This guide makes it easy to set up and use your remote control. By now you’ve noticed that the pages at the beginning of this User Guide contain information on quick set up and remote operation.
The rest of the guide contains in-depth information to help you get the most from your remote control, including controlling other equipment like TVs, VCRs, and DVD players.
REMOTE CONTROL MODES
Use the remote control’s mode buttons to set the remote to the correct mode for the equipment. Be sure to program the remote to control other equipment as described on page 2.
To change the mode, press the button for the equipment you want to control. The mode button lights for two seconds to show you’ve set the remote to that mode.
1
If you program the remote to control other equipment, refer to the following pages located at the beginning of this guide for remote control operation instructions:
• TVs, Remote Operation TV Mode, page S-5.
• VCRs and DVD players, Remote Operation VCR Mode,
page S-6.
• DISH Network satellite receivers, Remote Operation SAT Mode,
page S-4.
• Stereo equipment use only these buttons: SELECT (change
inputs), MUTE, VOLUME, and POWER.
HOW THE REMOTE COMMUNICATES
This remote uses IR signals to control the receiver and other equipment.
IR signals travel only short distances (up to 40 feet), and cannot go through walls or other solid objects. Point the remote control right at the equipment you want to control, with no objects to block the signal path.
PROGRAMMING FOR OTHER EQUIPMENT
Page S-2, Program the Remote to Control Your TV, shows you how to program the remote to control a TV. This section uses a different method to program the remote to control a TV or other equipment (such as a VCR, DVD player, tuner, amplifier, or a second TV). You can program the remote by either following the instructions in
Programming Using Equipment Code Tables on page 4, or the Scanning for Equipment Codes procedure described on page 5.
COMBINATION EQUIPMENT (FOR EXAMPLE, TV/VCR)
When programming the remote to control combination equipment, such as a TV/VCR or a TV/DVD, program the remote control in one mode, and then repeat the procedure in the other mode. Use the appropriate equipment codes provided later in this guide (see page 12). For example, to program the remote to control a Magnavox TV/VCR using code 887, follow the instructions to program the remote to control the TV using code 887, and then repeat the instructions for the VCR using code 797. Put the remote in TV mode to use the TV and VCR mode to use the VCR.
2
