Dish Network 112182 User Manual

"R

AT T EN

Be s

d

a

e

e to r

r

u

Me

on th

Fi

TI

e

rst"

e

O

f

v

i

N

i

r

:

w

e

nf

i

t p

s

e

h

t

ormat

e!

ag

i

on

ATTENTION SYMBOLS,WARNING SYMBOLS, AND GRAY BOXES

You must be aware of safety when you install and use th is system. This User Guide provides various
procedures. If you do some of these procedures carelessly, you could injure or kill yourself or damage
equipment or property. Some other procedures require special attention.

The

WARNING! symbol means that if you are not careful,

You could injure or kill yourself, or

You could damage equipment or property.

The

ATTENTION! symbol means you should pay special attention to:

Important instructions for using the system, or
Important instructions for maintaining the system.

The Class II Symbol alerts qualified service personnel to use only identical replacement

parts in this apparatus.

FOR YOUR SAFETY

Do not try to open the case of the receiver. There is risk of electrical shock, which may cause
damage to the receiver and/or personal injury or death to you. There are no user-serviceable parts
inside the receiver. Opening the receiver case or making unauthorized changes will void
the warranty.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

IMPORTANT SOFTWARE NOTICE!

As with all software controlled products, unexpected behavior could arise if the user tries to perform operations in a non­routine manner. This product, like a lmost any other high tech product, is subject to bugs and hence EchoStar CANNOT AND
DOES NOT GUARANTEE OR WARRANT THAT ALL FEATURES, SUCH AS PARENTAL CONTROL, WILL WORK
AS INTENDED UNDER ALL CIRCUMSTANCES. EchoStar endeavors to improve such conditions and will periodically
download improvements.

EQUIPMENT AND SOFTWARE COVERED BY THIS USER ’S GUIDE

Note: This User Guide covers the DishPVR 501, DishPVR 508, and DishDVR 510 receivers, and software models DP501, DP508, and

DP510. This Guide may cover other devices, not listed here.

COPYRIGHT NOTICE

Copyright © 2003 EchoStar Technologies Corporation, Englewood, Colorado 80112. All rights reserved.
The information in this User Guide may change without notice. We may issue revisions to tell you about such changes.
Please send comment s or questions about this User Guide to: Technical Publications, EchoStar Technologies Corporation, 94 Inverness Terrace East,

Englewood, Colorado 80112.
Part Number: 124878
Printed in the United States of America.
DISH Network is a registered trademark of EchoStar Communications C orporation. For information about DISH Network, please visit our website at

www.dishnetwork.com.
Manufactured under license from Dolby Laboratories.“Dolby”, “Pro Logic”, and are trademarks of Dolby Laboratories.
We acknowledge all product names, trade names, or corporate names we mention in this User Guide to be the proprietary property of the registered owners.

124878

Contents

Safety Instructions ..............................................................v

Chapter 1 - How to Get Started ..........................................1

Welcome! .....................................................1

Overview ......................................................2

New Features Video .....................................2

Getting Starte d .............................................3

Quick Tour of Basic Features .......................4

Quick Tour of the Menus ..............................6

Quick Tour of DishDVR Features .................10

Chapter 2 - Parts of the System .........................................15

The Receiver ................................................15

Remote Control ............................................20

Receiver Menus ...........................................27

TV and VCR Connections ............................29

Chapter 3 - Using the System.............................................31

Change Channels .........................................31

Use the Program Guide ................................31

Use the Program Banner ..............................34

Use the Browse Banner ...............................34

Buy a Pay Per View Program .......................36

Use Themes .................................................37

Use Favorites Lists .......................................38

Use the Search Feature ...............................40

Use Locks .....................................................42

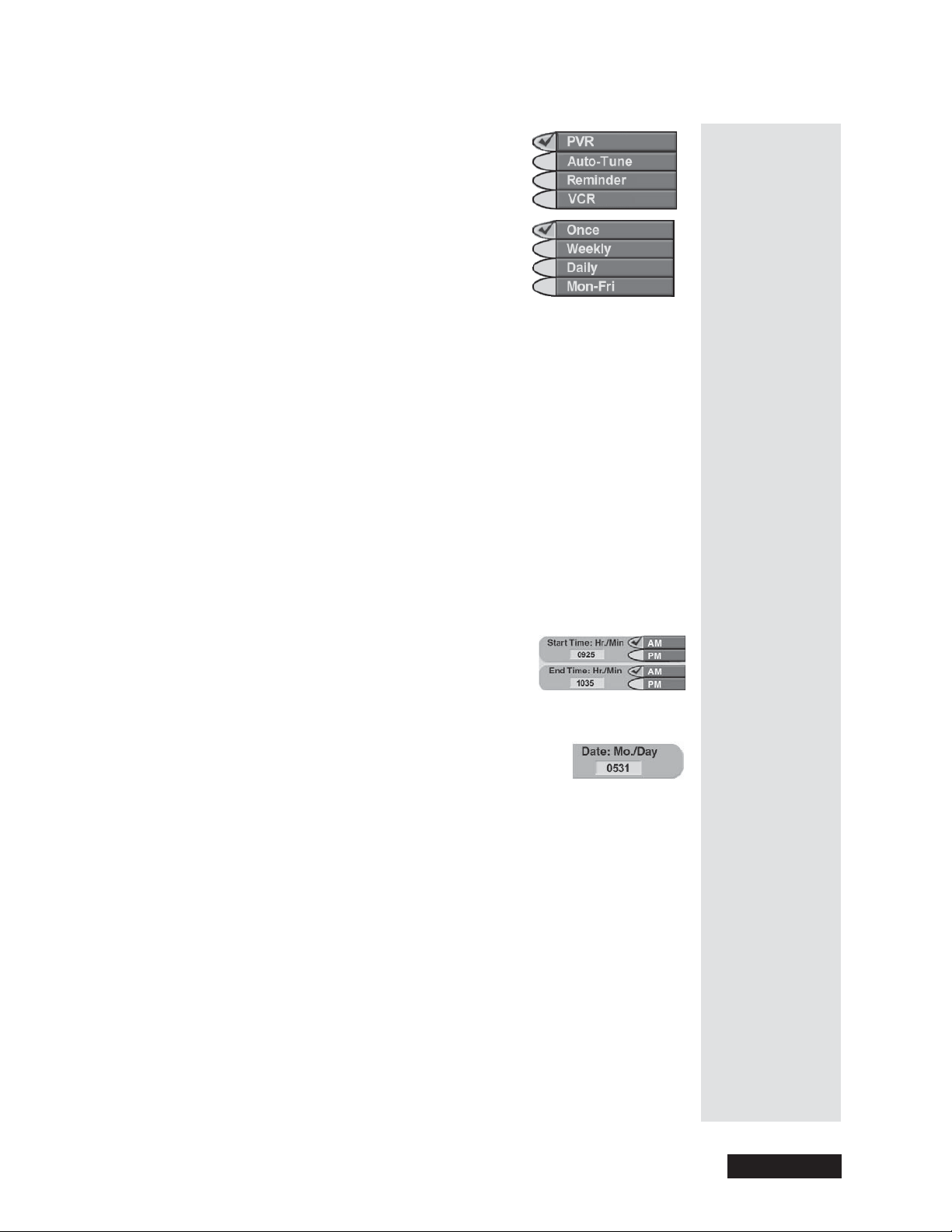

Use Event Timers .........................................48

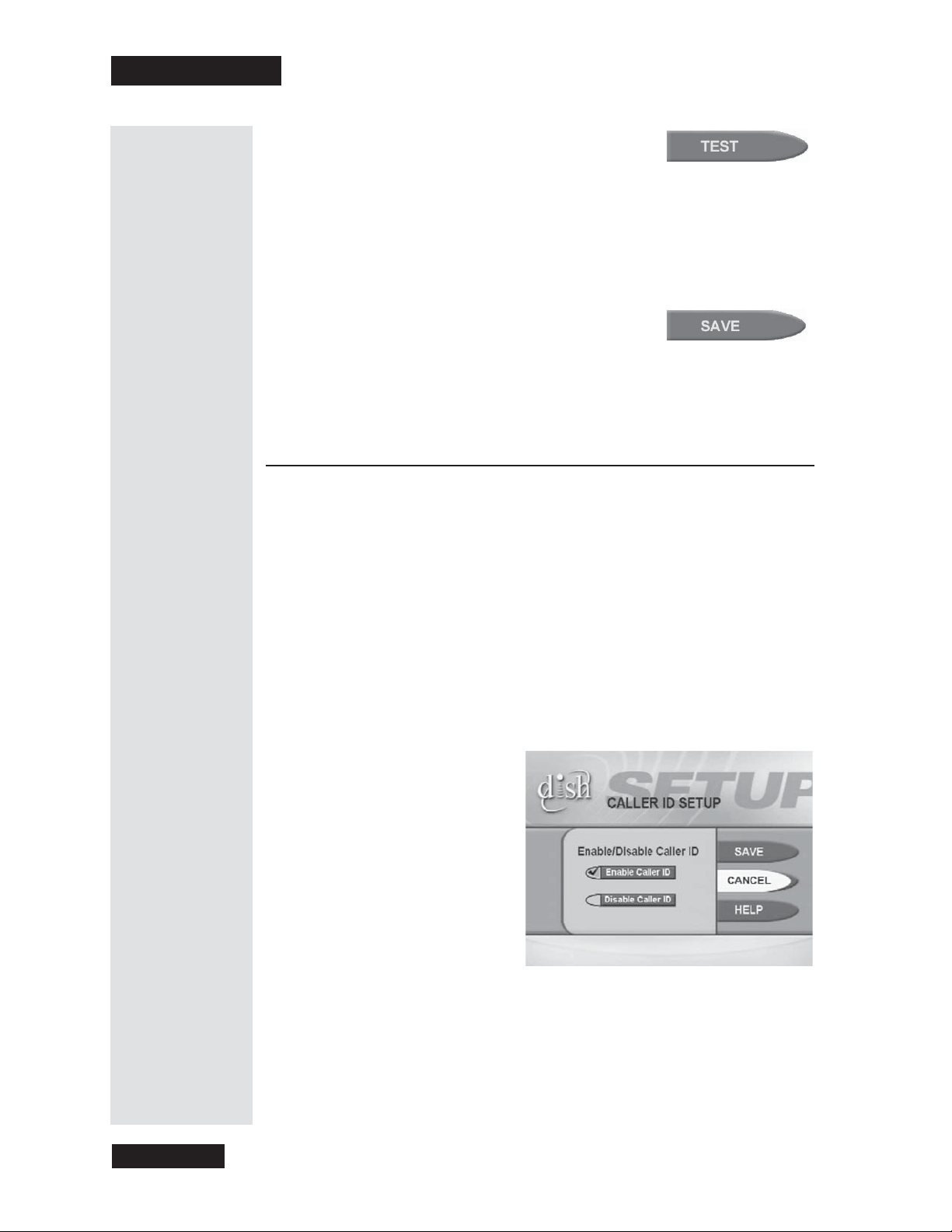

Use Caller ID ................................................58

Use Dolby® Digi tal Sound ............................59

Use the DishDVR Features ..........................60

Control Other Devices with the Remote .......68

Upgrade the Receiver S oftware ...................79

Reset the Receiver .......................................80

Change Program Languages .......................80

Set Up the Accessory Jack ..........................81

Dish Home Interactive TV Applications ........81

Page iii

Contents

Chapter 4 - Installation Instructions ................................. 83

How to Use these Instructions ..................... 83

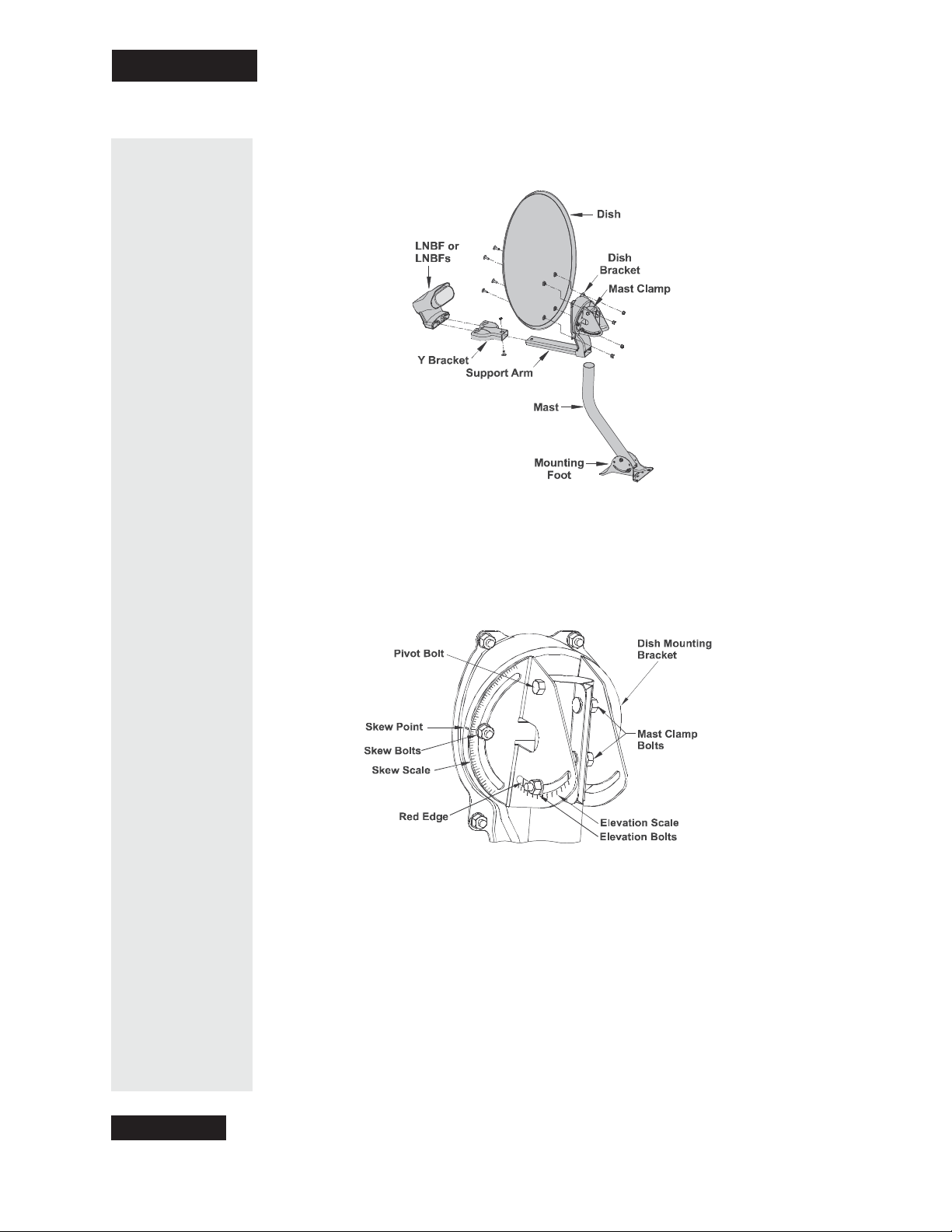

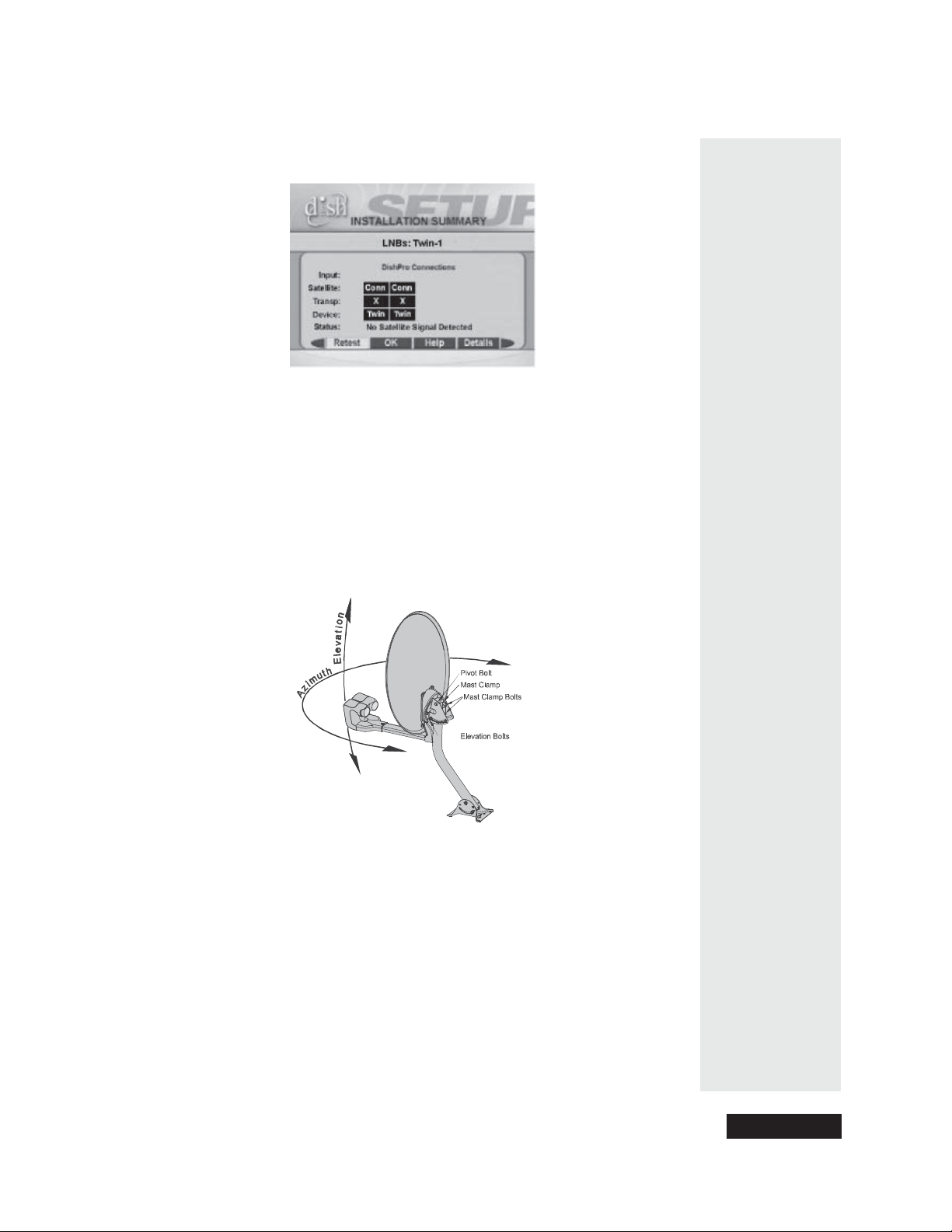

Installing a DISH 500 Antenna ................ ..... 83

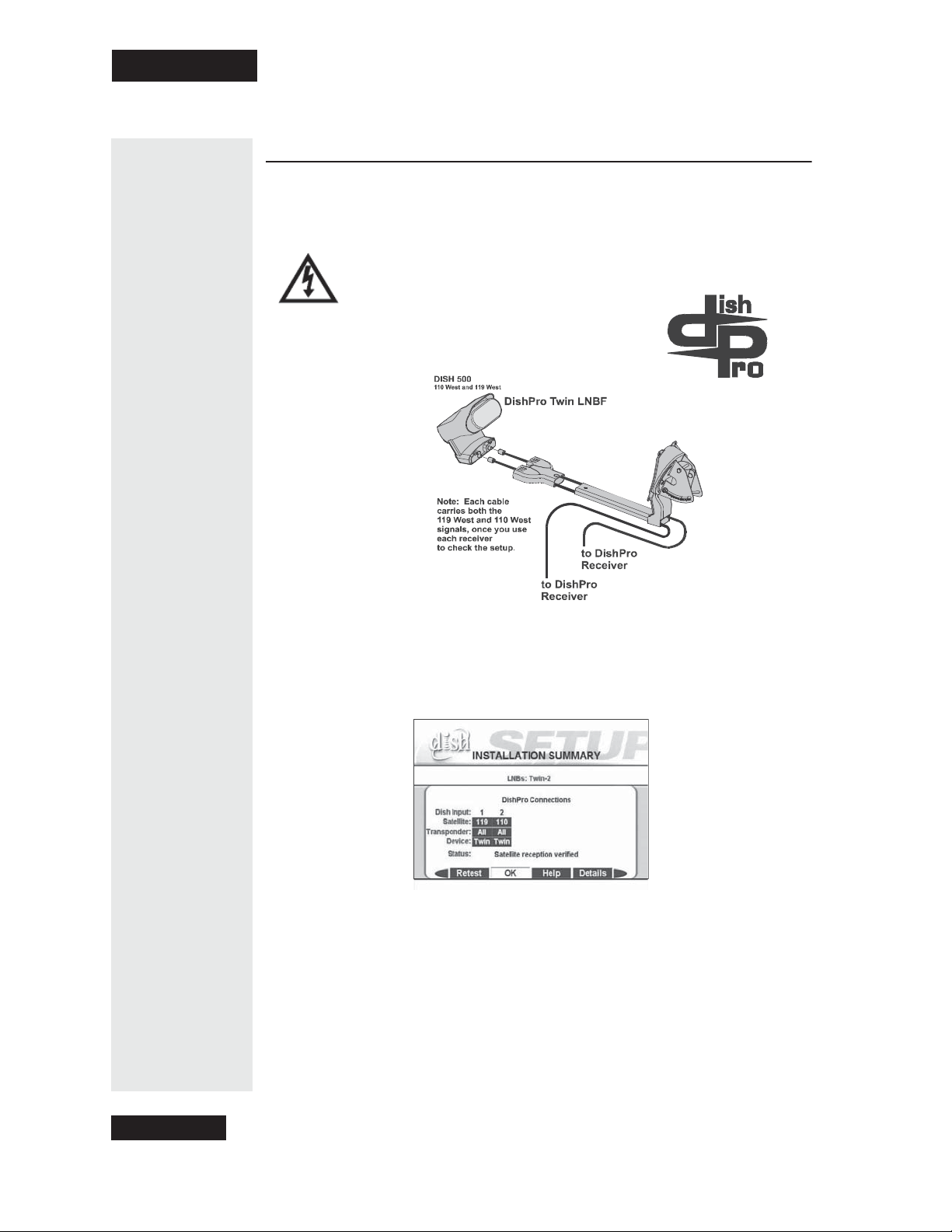

DishPro Wiring Diagrams ............................. 94

Running Coaxial Cable ................................101

Connecting Each Receiver to a Phone Line 102

Chapter 5 - Reference......................................................... 105

Use the T roubleshooting Tables ..................105

Test the System ........................................... 119

Device Codes ............................................... 120

Appendix A .......................................................................... 125

Appendix B .......................................................................... 127

Limited Warranty ..........................................127

What the Warranty Covers ........................... 127

What the Warranty Does Not Cov er ............127

Residential Customer Agreement ................ 130

Staying Legal ...............................................136

FCC Compliance ..........................................137

Radio Interference .......................................138

Index .................................................................................... 1 39

Page iv

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord f rom being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.

11. Use only attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long
periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

Apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed
on the apparatus.

Page v

Safety

Note to Satellite TV System Installer: This reminder is provided to call the

satellite TV system installer’s attention to Article 820-40 of the National
Electrical Code (NEC) that provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry as practical.

Sate llite D ish

Coaxial Cable

Ground Clamp

Antenna Discharge
Unit

Grounding C onductors

(NEC Se ction 810-21 )

Safety Tips

• Unplug the receiver from the AC power outlet before cleaning.

• The use of a ccessories or attachments not recommended by the receiver
manufacturer will void the Limited Warranty.

•Donot place the receiver in an enclosure such as a cabinet without proper
ventilation.

• Do not install the receiver in any area where the temperature can be less than
40°F or more than 113°F.

•Donot stack the receiver on top of or below other electronic devices.

•Donot place candles or other meltable objects on top of the receiver.

• Operate the receiver using only the type of power source indicated on the
marking label. Unplug the receiver power cord by gripping the power plug, not
the cord.

•Donot overload wall outlets or extension cords, as this can result in a risk of
fire or electrical shock.

• Never insert objects of any kind into the receiver through openings, as the
objects may touch dangerous voltage points or short out parts. This could cause
fire or electrical shock.

• Make sure that the outdoor parts of the antenna system are grounded in
accordance with local, state, federal, and National Electrical Code (NEC)
requirements.

•Donot locate the antenna near overhead light or power circuits, or where it can
fall into such power lines or circuits. When installing the antenna, take extreme
care to avoid touching such power lines or circuits, as contact with them can be
fatal.

•Donot attempt to service the receiver yourself, as opening or removing covers
may expose you to dangerous voltage, and will void the Limited Warranty.
Refer all servicing to authorized service personnel.

• Use an outlet that contains surge suppression or ground fault protection. For
added protection during a lightning storm, or when the receiver is left
unattended and unused for long periods of time, unplug the power cord from
the wall outlet, disconnect the lines between the receiver and the antenna, and
disconnect the telephone line. This will provide some protection against
damage caused by lightning or power line surges.

from SatelliteDish

Electric Servic e Equ ipment

Ground Clam ps

Power Service G rounding
Electrod e Sys tem

(NEC Art. 250, Part H)

Page vi

Chapter 1

How to Get Started

Welcome!

You’re about to enjoy a Digital Video Recorder!

This satellite receiver lets you decide how you watch TV. You can record and
play back audio and video with full digital quality. You can pause a live
program and not miss any of the action or you can record a program to watch
later, without a VCR.

This device is a lso an advanced satellite receiver, with features like a UHF/IR
remote control, on-screen program information, themes to select programs,
favorite lists, program locks, Dolby

®

Digital sound, and more.

IMPORTANT INFORMATION ABOUT THIS RECEIVER

• Always handle the satellite receiver carefully. Avoid
excessive shock and vibration at all times as this can
damage the hard drive.

• If you have the receiver turned on and need to move it,
be sure to unplug the receiver and letitsitforatleast
30 seconds before moving it.

• Do not install the receiver in any area where the
temperature can be less than 40°F or more than 113°F
while the unit is operating.

• If the receiver is cold to the touch, do not plug it in
immediately. Let it sit unplugged at room temperature
for at least 45 minutes before plugging it in.

• Avoid installing the receiver on top of or underneath
another electronic device (such as a stereo receiver) as
this can cause heat build-up and vibration.

Note: Portions of your system may be marked with DishPVR and PVR or

DishDVR and DVR. Either way, the system works just the same.

Welcome to
this User
Guide! We
have placed
tips in the gray
bars on most
pages to help
you.

Page 1

Chapter 1

How to Get Started

Overview

Before you use your satellite receiver, you need to install the system or

have it installed by a professional technician. For a professional installation,
please call the Customer Service Center at 1-800-333-DISH (3474). If you
install the system yourself, use the instructions in Chapter 4.

A vital part of the installation is to set up the receiver to get
the latest software via the satellite signal. You cannot use the
receiver’s features until you do! If you are installing a new
system and follow the instructions in Chapter 4, your receiver
will automatically get this software.

• After you install your system (or add this receiver to an existing system),
all you need to do is order your program packages using the instructions
on page 3.

Tip: Notice that
menus and
other screen
pictures shown
in this guide are
for example
only. What you
see on your TV
maylookabit
different.

•TaketheQuick Tours that begin on page 4 to become familiar with
product operation and features.

• To learn about the parts of the system, see Parts of the System on
page 15.

• To learn how to use the system, see Chapter 3, How to Use the System
on page 31.

• To troubleshoot the system, see Chapter 5, Reference on page 105.

• Tune to the DISH Network info channels or visit our Web site at
www.dishnetwork.com for info.

• For more help, call the Customer Service Center at 1-800-333-DISH
(3474).

New Features Video

Your new receiver comes with New Features Video software. This new
software allows us to download information to your hard drive in the form of
short, video messages which will appear in your
messages to tell you when we’ve updated your receiver to add exciting new
features and capabilities. Be sure to look for these events whenever you
access your recorded events — to see what’s new for you from the DISH
Network!

DVR List.Wewillusethese

Page 2

Getting Started

Order Your Program P ackages

1. Turn on the receiver and your TV.

2. Press the SYS INFO button on the receiver front panel

to open the
the TV screen. Leave the menu open while you do steps
3 and 4.

Note: The numbers in the figure below are for example only. Use the

numbers on the
your TV.

Important System Information screen on

Important System Information screen displayed on

Getting Started

3. Call 1-800-333-DISH (3474) to tell us you’ve installed the system and
want to get services. We’ll explain what program packages you can buy.
You’ll need to verify the information on the

Information

screen.

Important System

4. We’ll turn your services on via the satellite signal. This process usually
takes just a few minutes. When we finish, you’ll be able to watch your
programs.

5. Press the SELECT button on the remote control or receiver
front panel to clear the

Important System Information

menu from the TV screen.

Page 3

Chapter 1

How to Get Started

The Program
Guideisyour
key to satellite
TV programs.
The receiver
displays the
Program Guide
on the TV
screen.

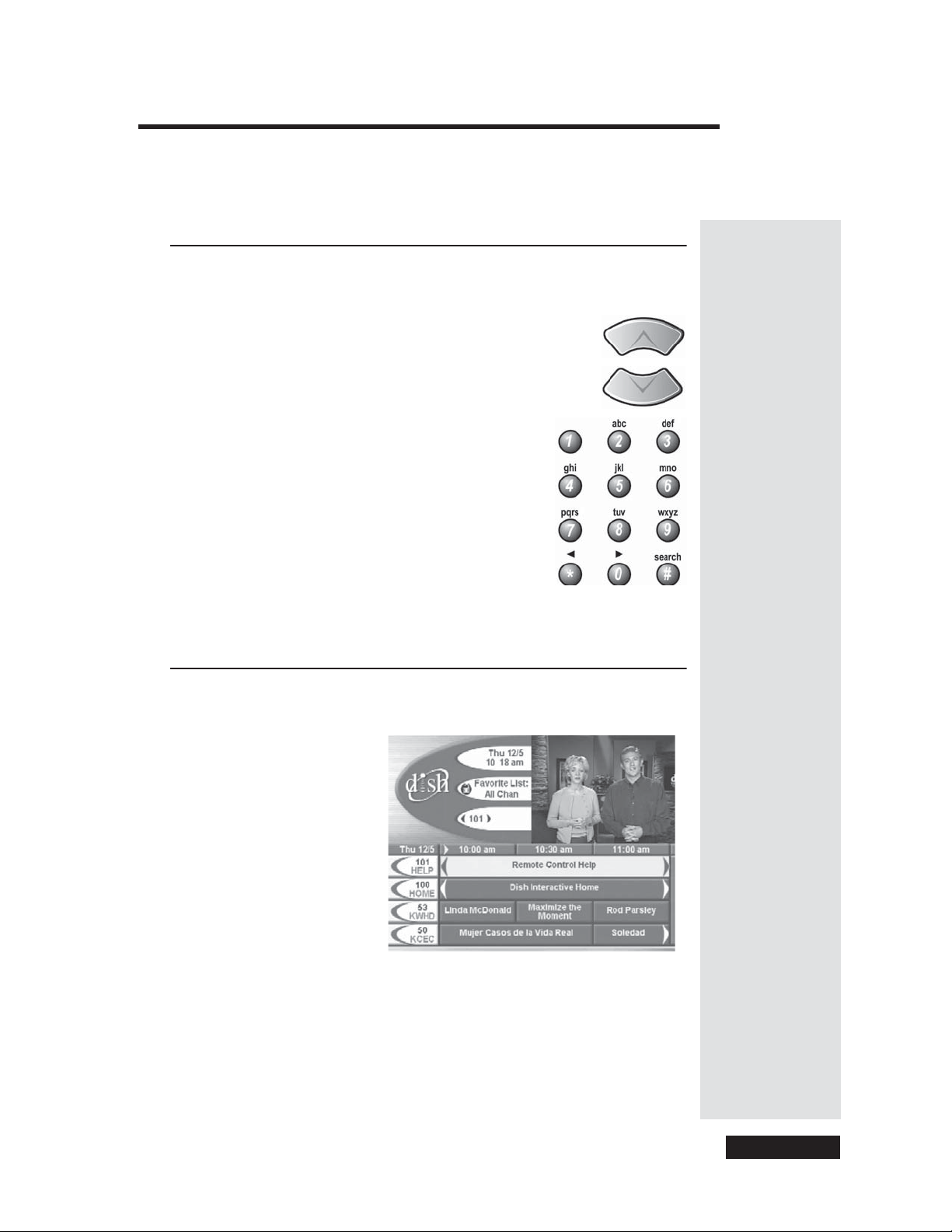

Choose a Program to Watch

1. Make sure the receiver is on and its green front panel POWER light is

on. Also, make sure you turn on the TV.

2. Press the remote control GUIDE button to open the receiver’s

Program Guide on the TV screen.

You’ll find a
quick tour of
basic features
here, and a
quick tour of
DVR features
beginning on
page 10.

Whenever you
want to go back
to the last
channel you
watched, just
press the

RECALL button.

3. Use the remote control ARROW buttons to

move the highlight around the

, and to highlight a program that is on

Guide

Program

now.

4. Press the remote control SELECT button to

watch the program you just highlighted.

Quick Tour of Basic Features

1. Make sure the TV is on.

2. Press the UP or DOWN ARROW button to change

channels.

3. Press the RECALL buttontogobacktothelast

channel you watched.

Page 4

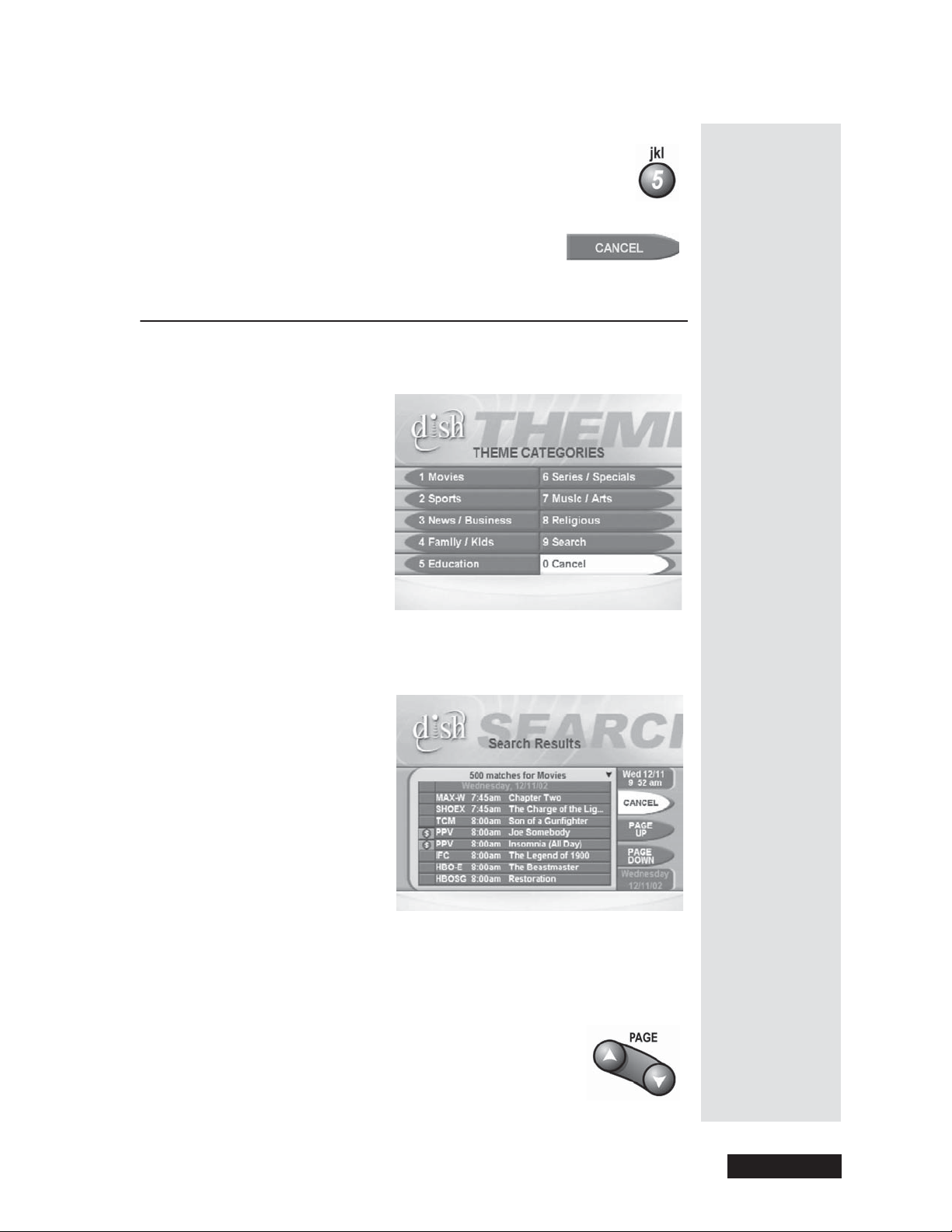

4. Press the THEME (LEFT arrow) button to open the

Themes menu.

5. For example, press the 1 buttontoseealistofmovies.

Quick Tour of Basic Features

6. Press the VIEW button to go back to watch a program.

7. Press the INFO button to see info about the program.

8. Press the CANCEL buttontogobacktowatchthe
program.

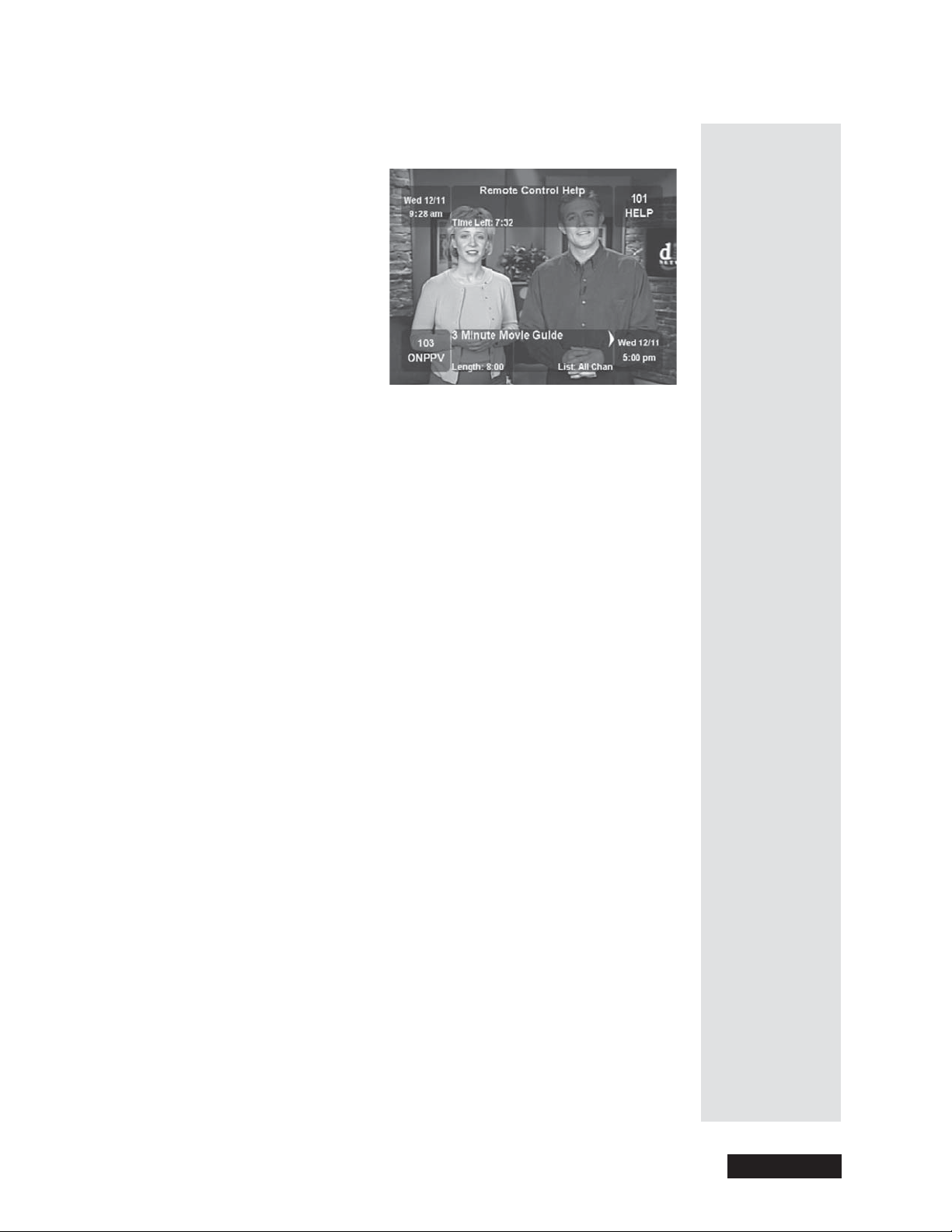

9. Press the BROWSE (RIGHT arrow) button to open the

Browse Banner.

In this example, the

Browse Banner shows info on a

program we’re watching at the top, and info on another
program at the bottom.

Page 5

Chapter 1

How to Get Started

10. P ress the UP or DOWN A RROW button to change the channel

information you see at the bottom of the TV screen. Until you do, the
bottom info is the same as the top info.

11. Press the RIGHT ARROW button to change the

channel information you see at the bottom of the
TV screen for the program coming next. Press the
LEFT ARROW button to got back to the
program on now.

Tip: The Main
Menu is your
key to the
menus the
receiver
displays on the
TV screen.

12. P ress the VIEW button to clear the

Banner

from the TV screen and to go back to watching a

program.

Quick Tour of the Menus

1. Press the remote control MENU

button to open the

2. Press the 1 buttontoselectthe

Program Guide optionontheMain Menu. This opens the
Program Guide on the TV screen.

You ca n use the
For now, though, go on with this tour.

Main Menu.

Program Guide to find a program to watch.

Browse

Page 6

3. Press the MENU buttontogobacktotheMain Menu.

Quick Tour of the Menus

Any time you’re
in a menu and
want to go
directly back to
watching your
program, just
press

VIEW on

the remote.

4. Press the 2 button to select the

Main Menu. This opens the Themes menu on the TV

on the

Themes and Search option

screen.

5. For example, press the 1 buttontoseealistofmovies.

Tip: Themes let
you get a list of
just movies,
just sports
events, or just
programs in
several other
categories .

Page 7

Chapter 1

How to Get Started

Tip: You can set
up a Favorites
List of your
favorite
channels. Then,
when you use
this list as your
program guide,
you see only
those channels
that really
interest you.

6. Press the MENU buttontogobacktotheMain Menu.

7. Back on the

Main Menu, notice the Mail option. The mail

feature is for DISH Network to send you messages, and
only at special times.

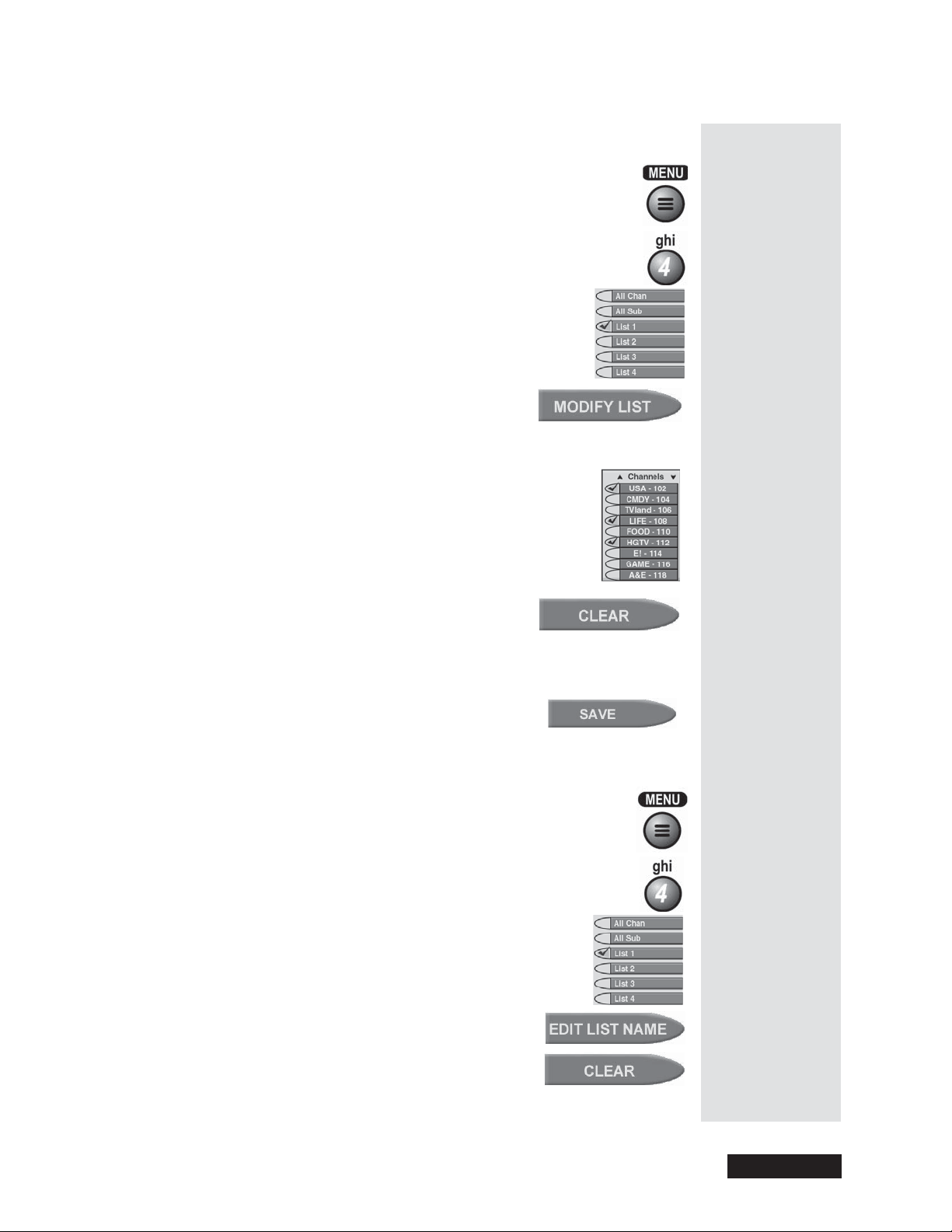

8. Press the 4 buttontoselectthe

to open the Favorite Lists menu.You can use Favorite

Menu

to make the Program Guide and other on-screen lists

Lists

Favorites option on the Main

show only your favorite channels.

9. Press MENU to go back to the

Main Menu.

Tip: The
System Setup
menu lets you
set up the
system the way
you want!

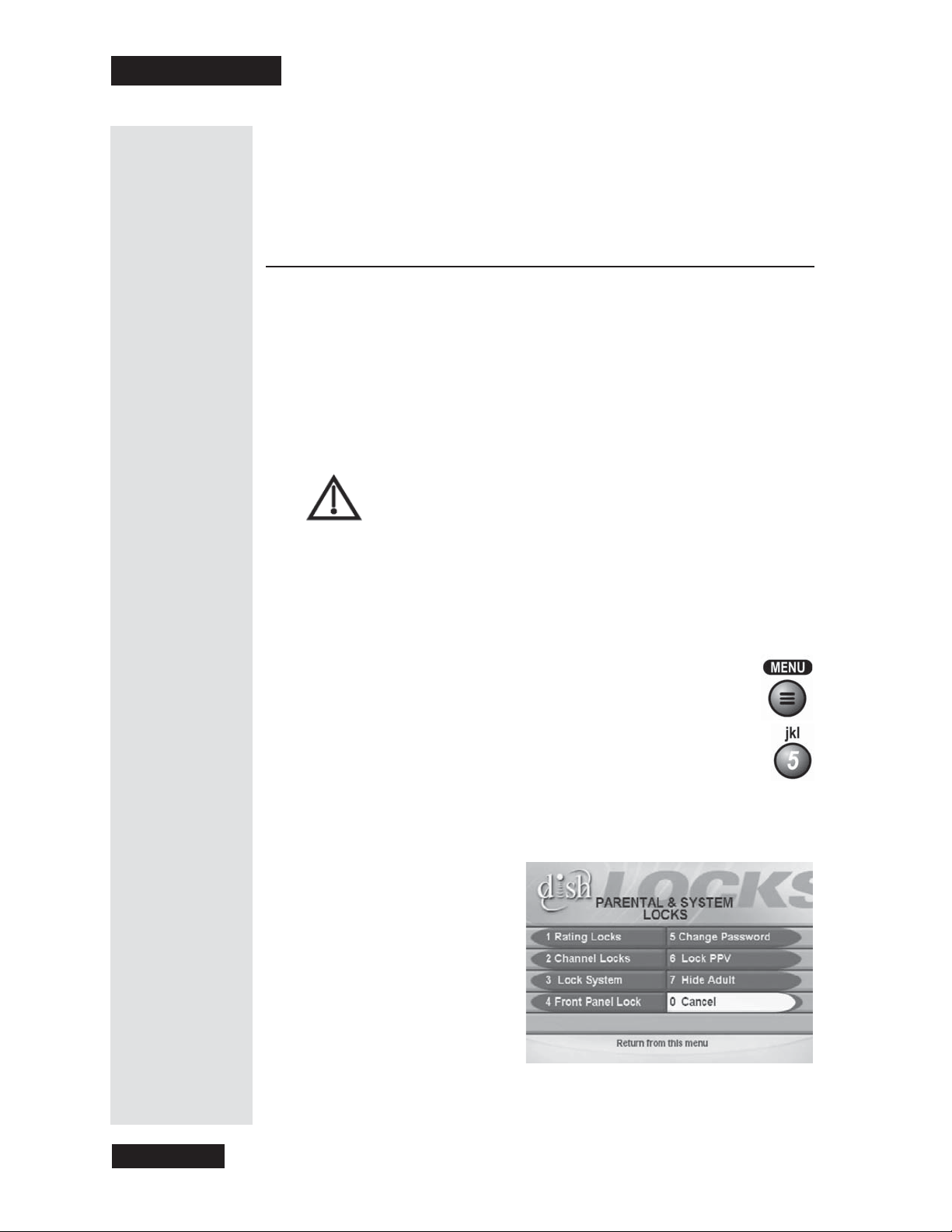

10. P ress the 5 buttontoselectthe

Menu.

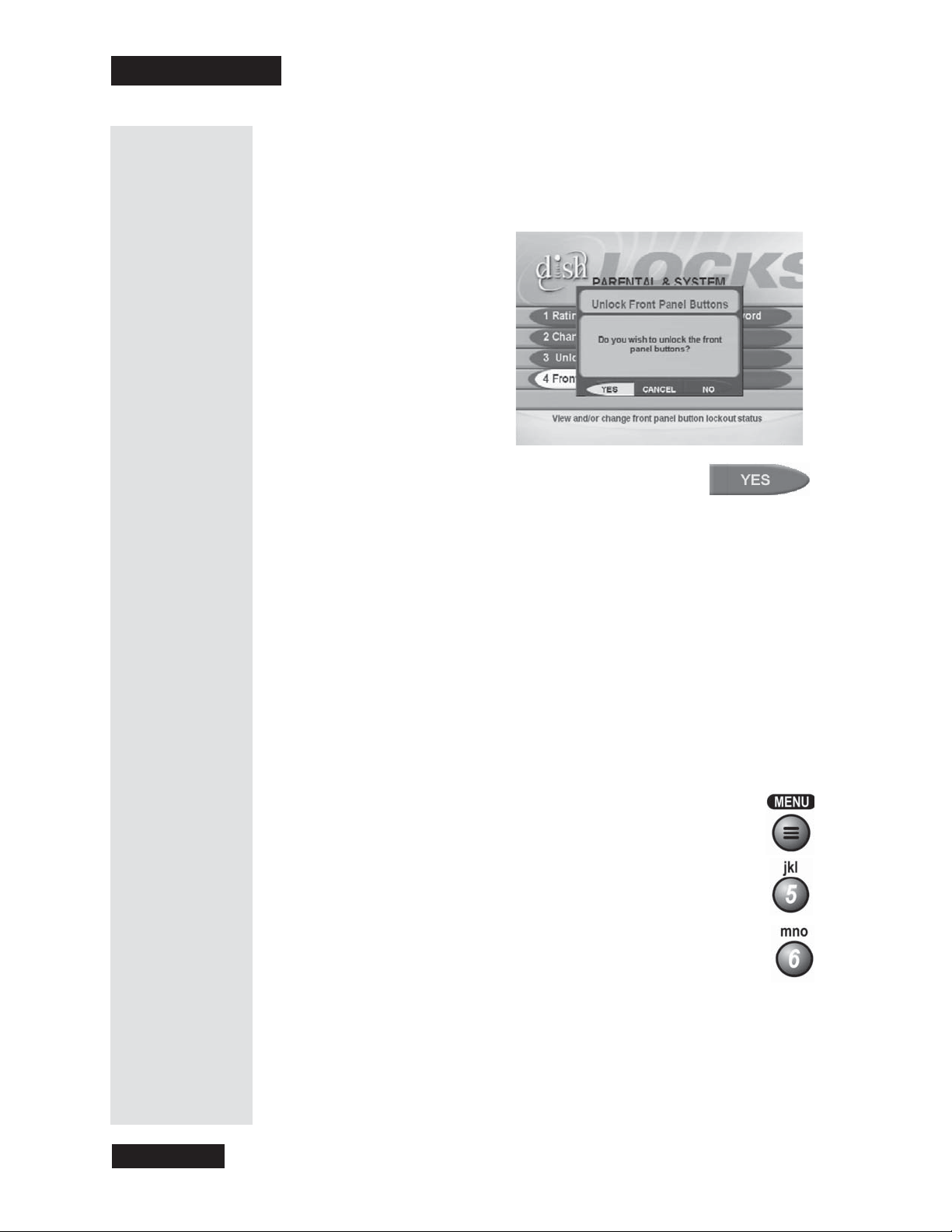

This opens the Locks menu on the TV screen.

Locks option on the Main

This menu is used to set a lock.

11. Press MENU to go back to the

12. P ress the 6 buttontoselectthe

Main Menu. This opens the S ystem Setup menu.

Main Menu.

System Setup option on the

Use this menu to set up the system the way you want.

Page 8

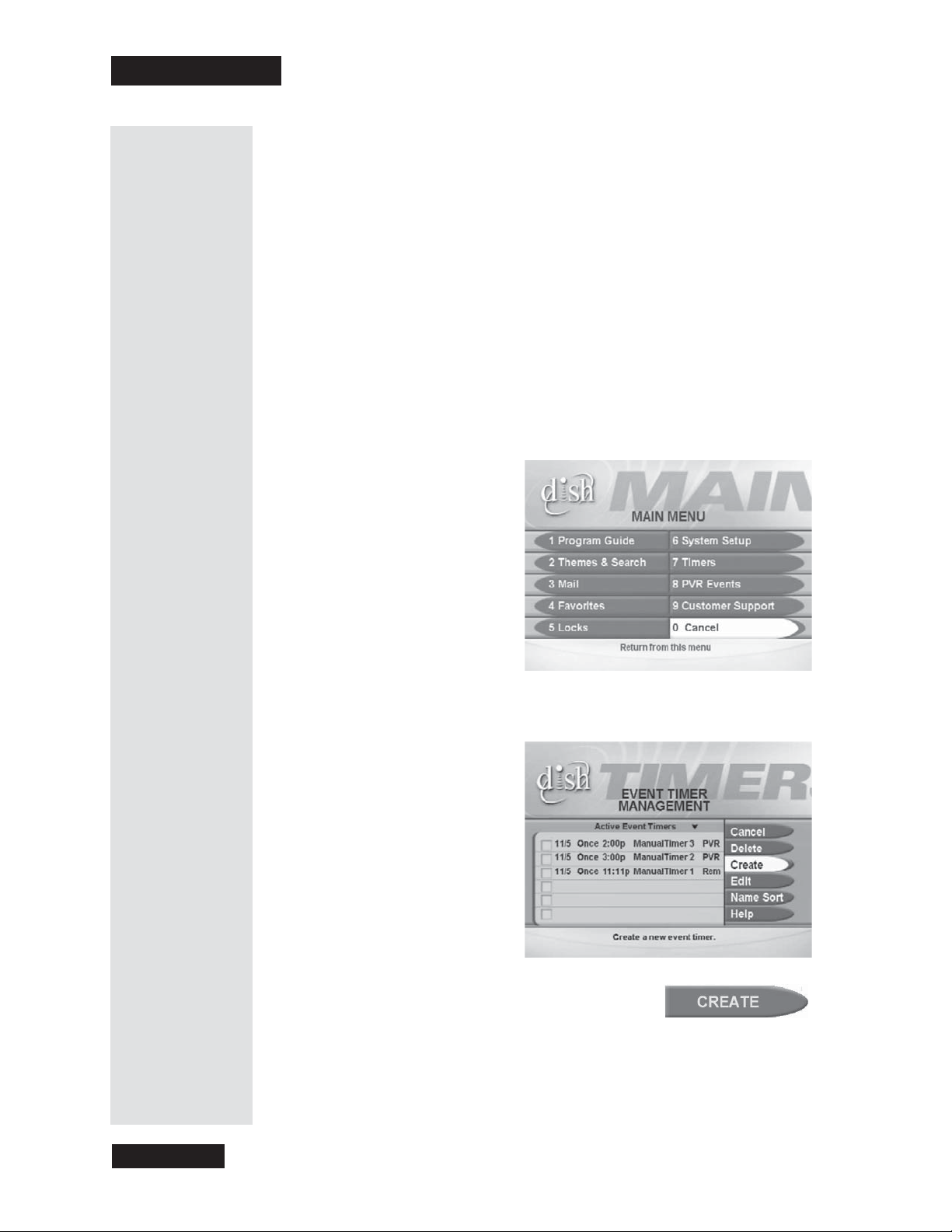

13. Press MENU to go back to the Main Menu.

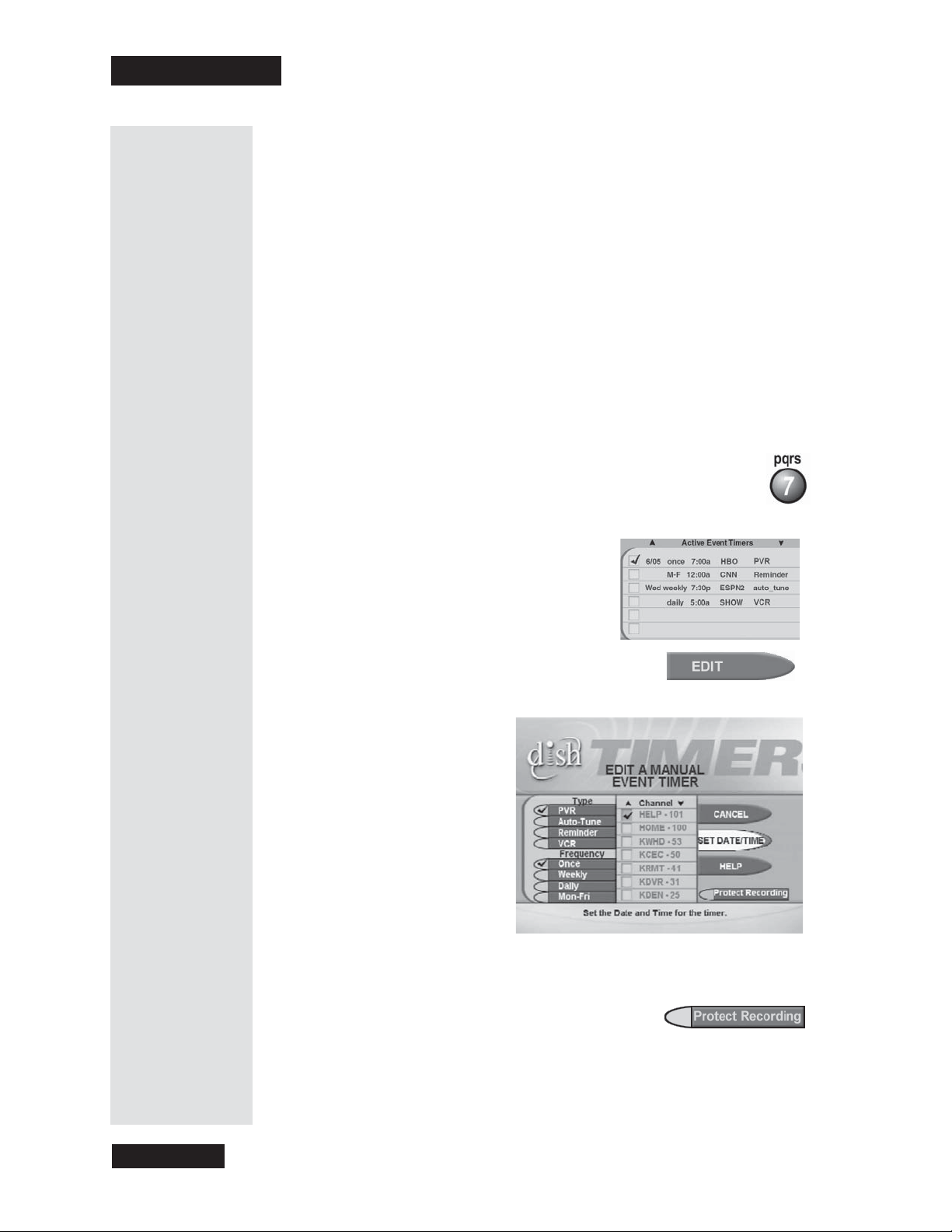

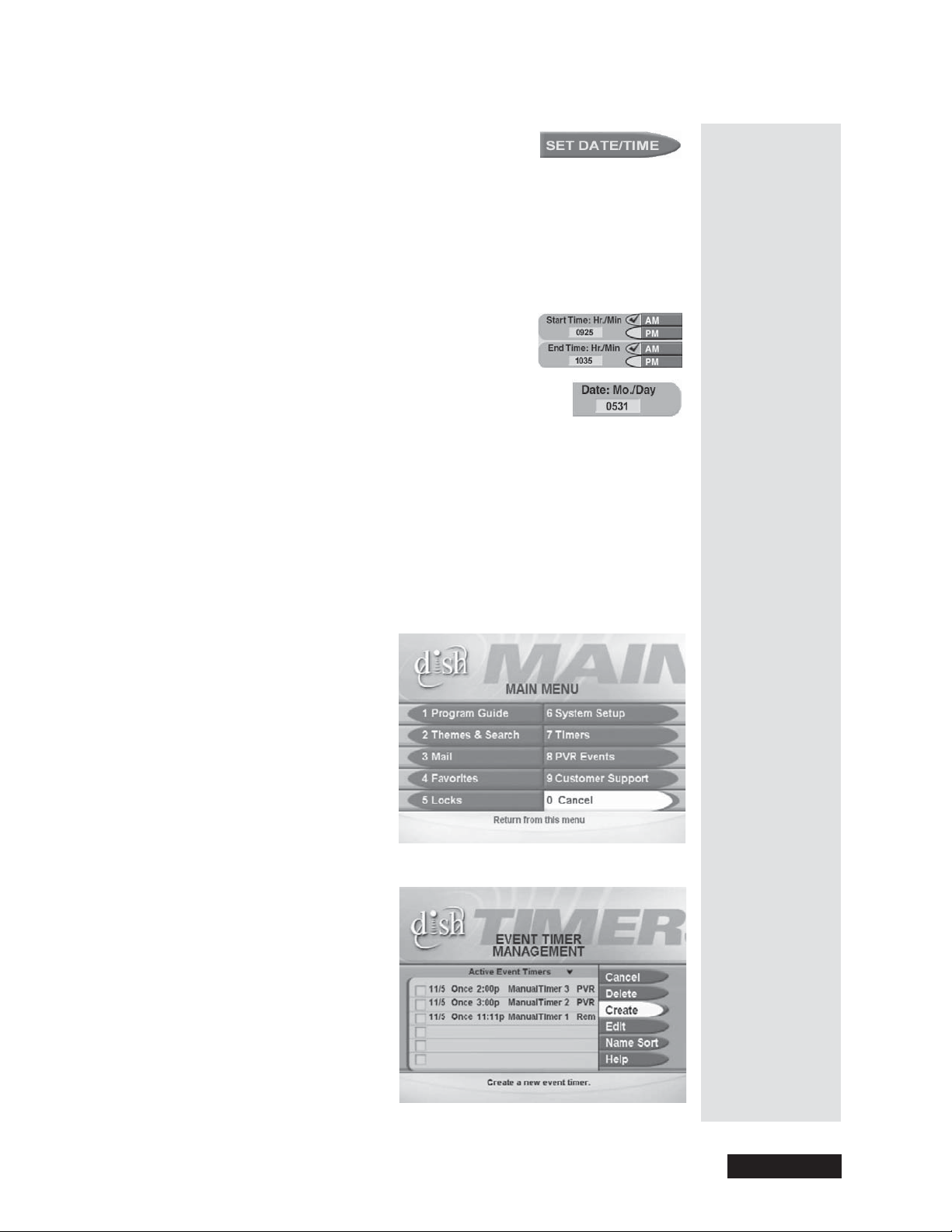

14. Press the 7 buttontoselectthe

to open the Event Timer Management menu.

Menu

Timers option on the Main

Quick Tour of the Menus

Tip: You can
press the

CANCEL

buttontoback
outofany
menu. Unless
you’re in the
Important
System
Information
screen, if you
want to
immediately go
back to
watching a
program no
matter where
you are in the
menus, press

VIEW

the
button.

This menu is used for creating and changing timers used to trigger
automatic recordings.

15. Press MENU to go back to the

Note: Your screen may show PVR instead of DVR, but the recei ver

Main Menu.

operates the same way.

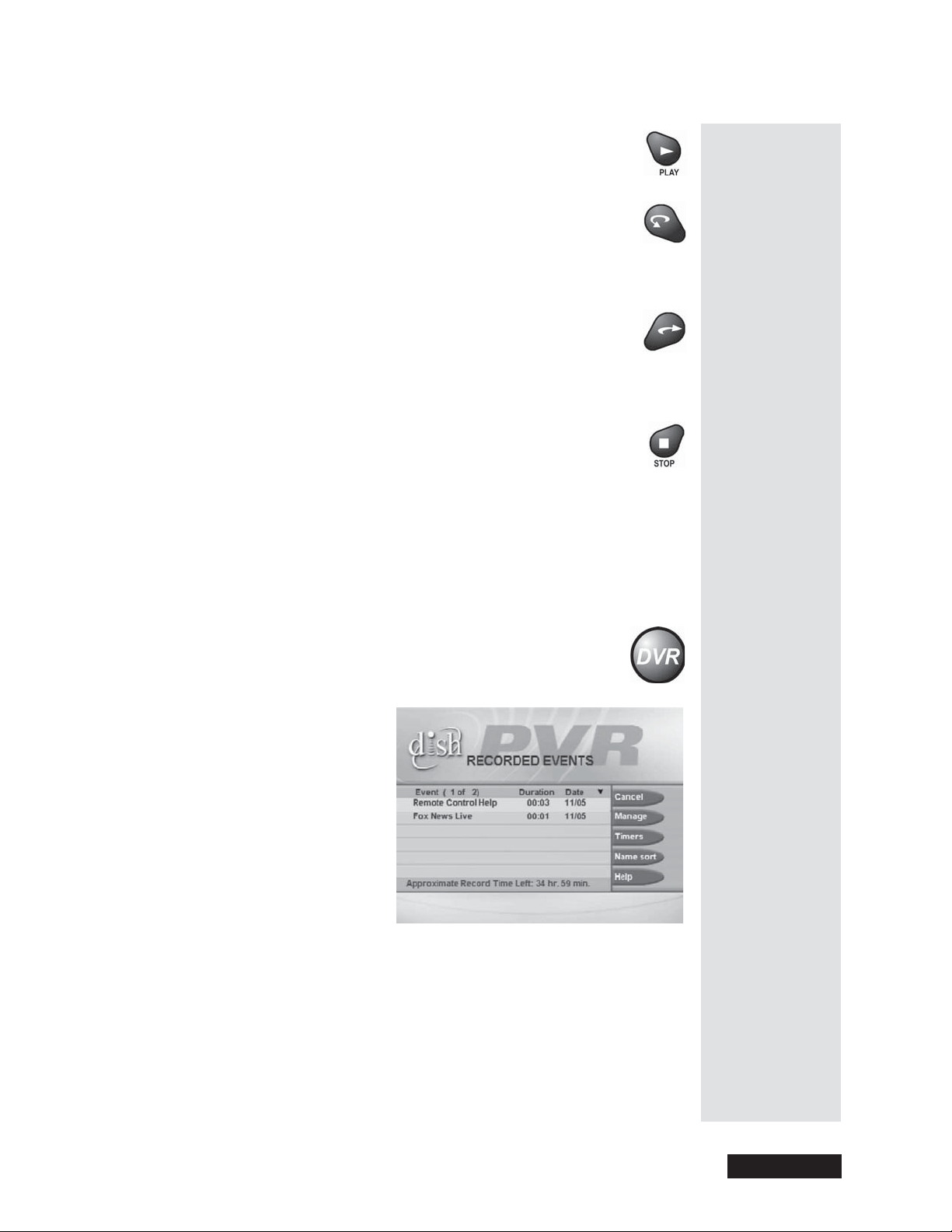

16. Press the 8 buttontoselectthe
on the

Events

Main Menu. This opens the DishDVR Recorded

menu, which allows you to select and play back

DVR Events option

programs you recorded.

Page 9

Chapter 1

How to Get Started

Quick Tour of DishDVR Features

Tip: You can
pausealive
program to
answer the
phone or get a
snack!

L

17. P ress the VIEW buttontogobacktowatchingaprogram.

1. Watch a program for just a few m inutes.

2. Press the PAUSE button to pause the program.

Page 10

3. Press the PLAY button to watch the program from the point

where you paused it.

4. Press the VIEW button to go back right away to the “live”

program.

5. Press the SKIP BACK button to skip back about ten seconds

in the program.

Quick Tour of DishDVR Features

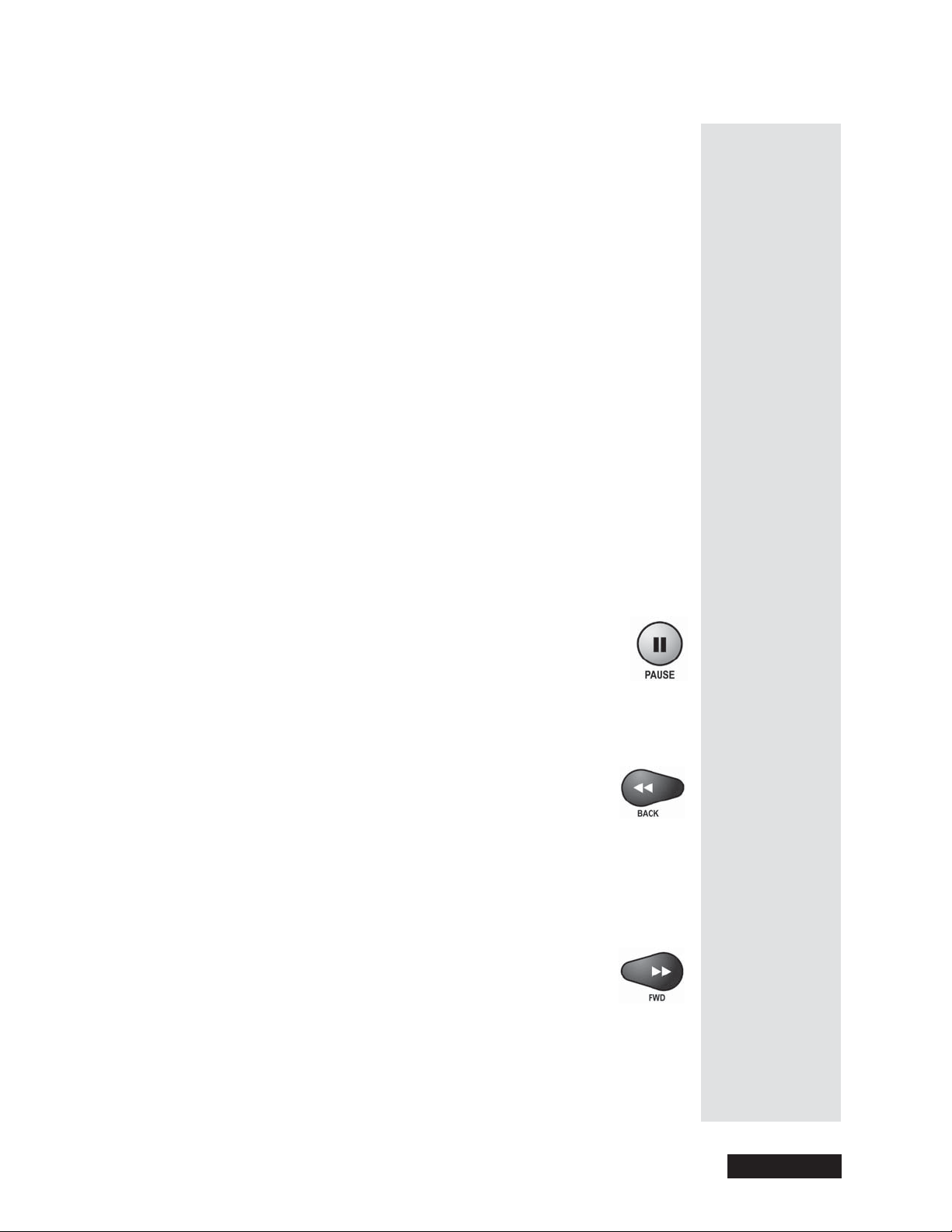

6. Press the PAUSE button and then press the BACK button to reverse the
program in slow motion. Press the BACK button once to reverse the
program 1/4 the speed as normal play. Press the BACK button twice to
reverse at normal speed. If you press the BACK button again, the
program reverses as described in step 7.

7. Press the BACK button once to reverse the program
four times as fast as normal play. Press the BACK
button twice to reverse at 15 times normal speed, three

times to reverse at 60 times normal speed, and four
times to reverse at 300 times normal speed.

8. Press the PLAY button.

Page 11

Chapter 1

How to Get Started

9. Press the SKIP AHEAD buttontoskipaheadabout30

seconds in the play back.

Note: You cannot skip ahead if you are watching live TV.

10. P ress the PAUSE button and then press the FWD button to forward the
program in slow motion. When you press the FWD button once the
program advances at 1/15 the speed of normal play. Press the FWD
button twice to forward at 1/4 as fast as normal play. Press the FWD
button three times to play the program at normal speed. If you press the
FWD button again, the program advances as described in step 11.

Tip: The
DishDVR has
features that
let you decide
how to watch
TV!

Page 12

11. Press the FWD (“FORWARD”) button once to forward
the program four times as fast as normal play. Press the

FWD button twice to forward at 15 times normal speed,
three times to forward at 60 times normal speed, and
four times to forward at 300 times normal speed.

Quick Tour of DishDVR Features

12. Press the VIEW button to go back right away to the program in

progress.

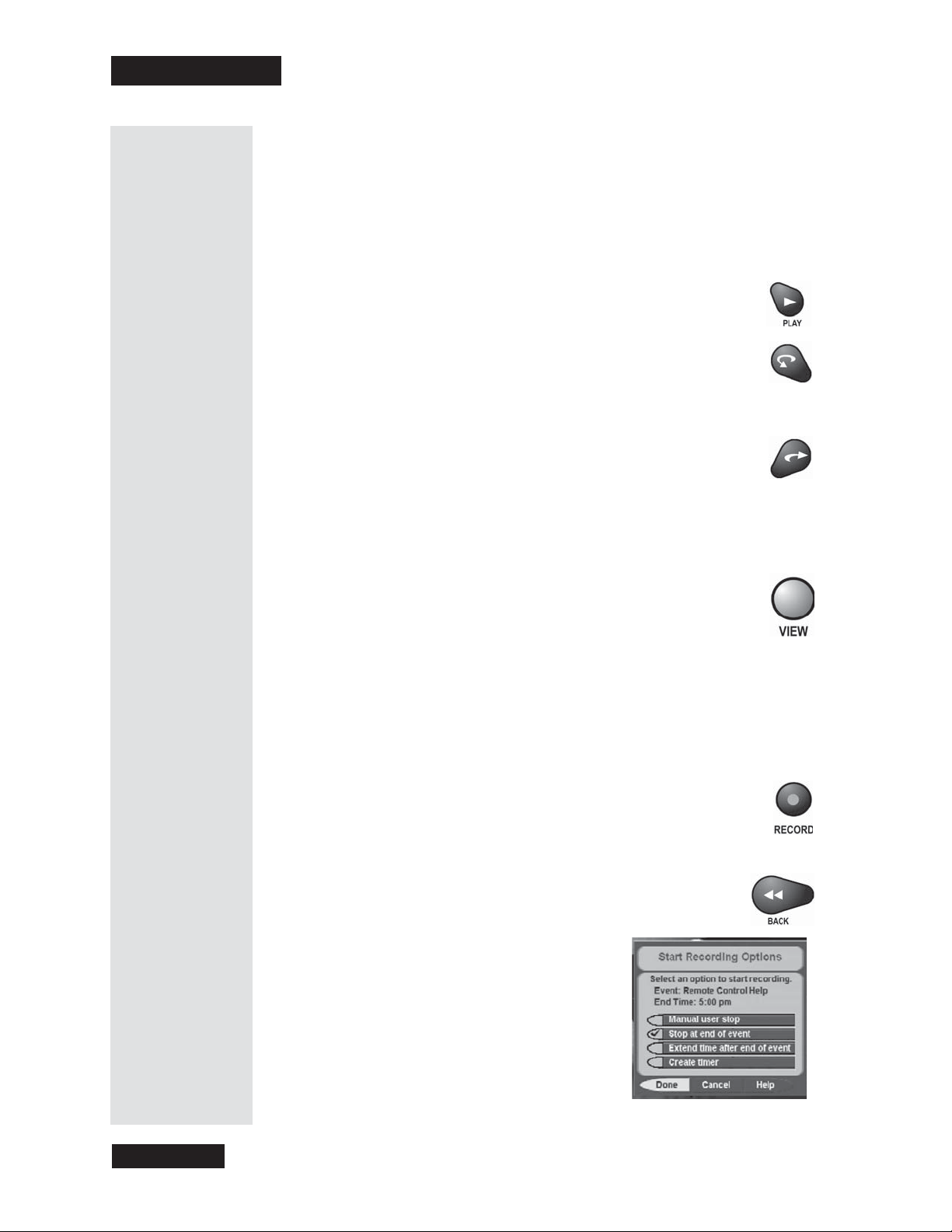

13. Press the RECO RD button to start recording the program right now.

14. The

Start Recording Options menu displays. Select Manual

user stop

. See page 48 for an e xplanation of the other

recording options.

15. Select

Done to start recording the program. Notice the receiver’s front

panel RECORDING light turns on.

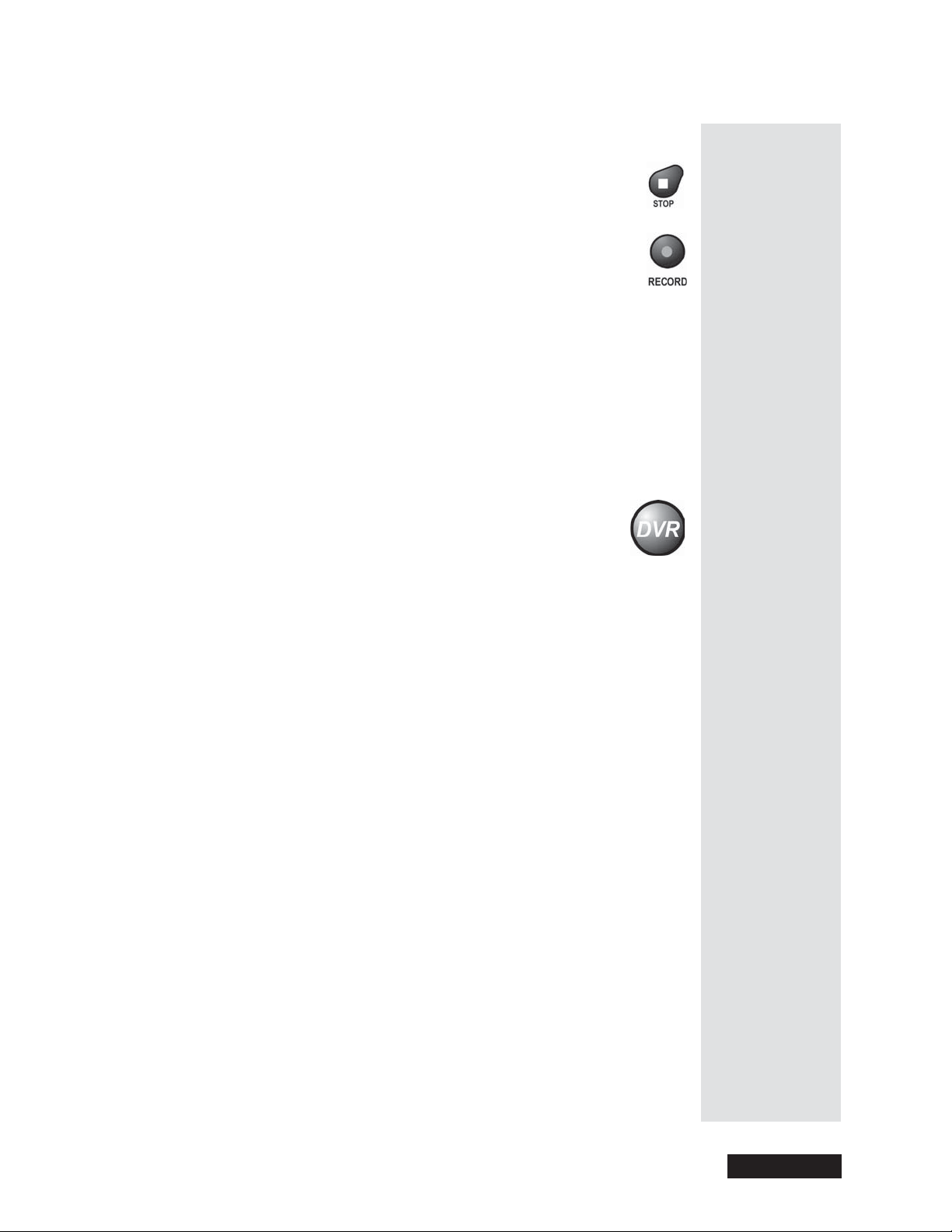

16. If you want, press the STOP button. This stops the receiver

from recording the program.

Notice the receiver’s front panel RECORDING light turns
off.

17. Now, if you want to take the time, use the

Program Guide to find

another program set to start in the next few minutes.

Note: Start watching the program when it starts. Watch the program for

a few minutes.

18. Press the BACK button to reverse the program.

Note: Let the program reverse all the way to its start.

19. Press the RECO RD button. The receiver stores a

recording of all of the program broadcast so far, and keeps on
recording the program. You can record all of the program,
even though you didn’t start recording until after the program
started.

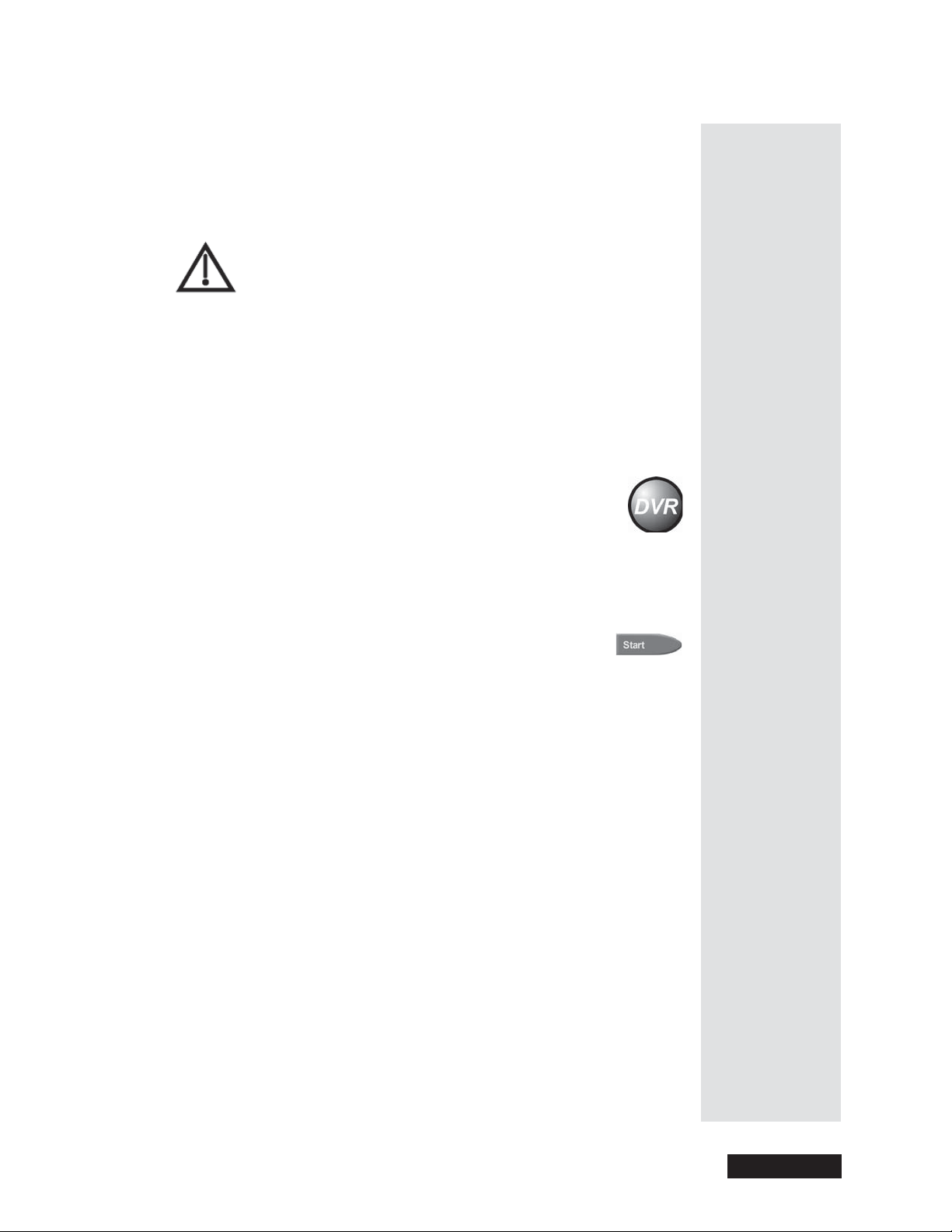

20. Press the DVR button. This opens the

Recorded Even ts

menu on the TV screen.

Note: Even though the button on your remote c ontrol may be

marked DVR or PVR, the remote control works the same way.

Tip: The
DishDVR
features let you
record
programs
without using a
VCR!

This is
important: If
you don’t tune
to a program
until after it
starts, you can
record onl y the
part of the
program that
comes after
youtunetoit.

Page 13

Chapter 1

How to Get Started

21. Use the remote control arrow buttons to
highlight an event on the
menu (it’s OK to highlight an event you’re
recording).

Recorded Events

22. P ress the r emote control SELECT button to select the event
you highlighted. This opens a menu of info about that
event.

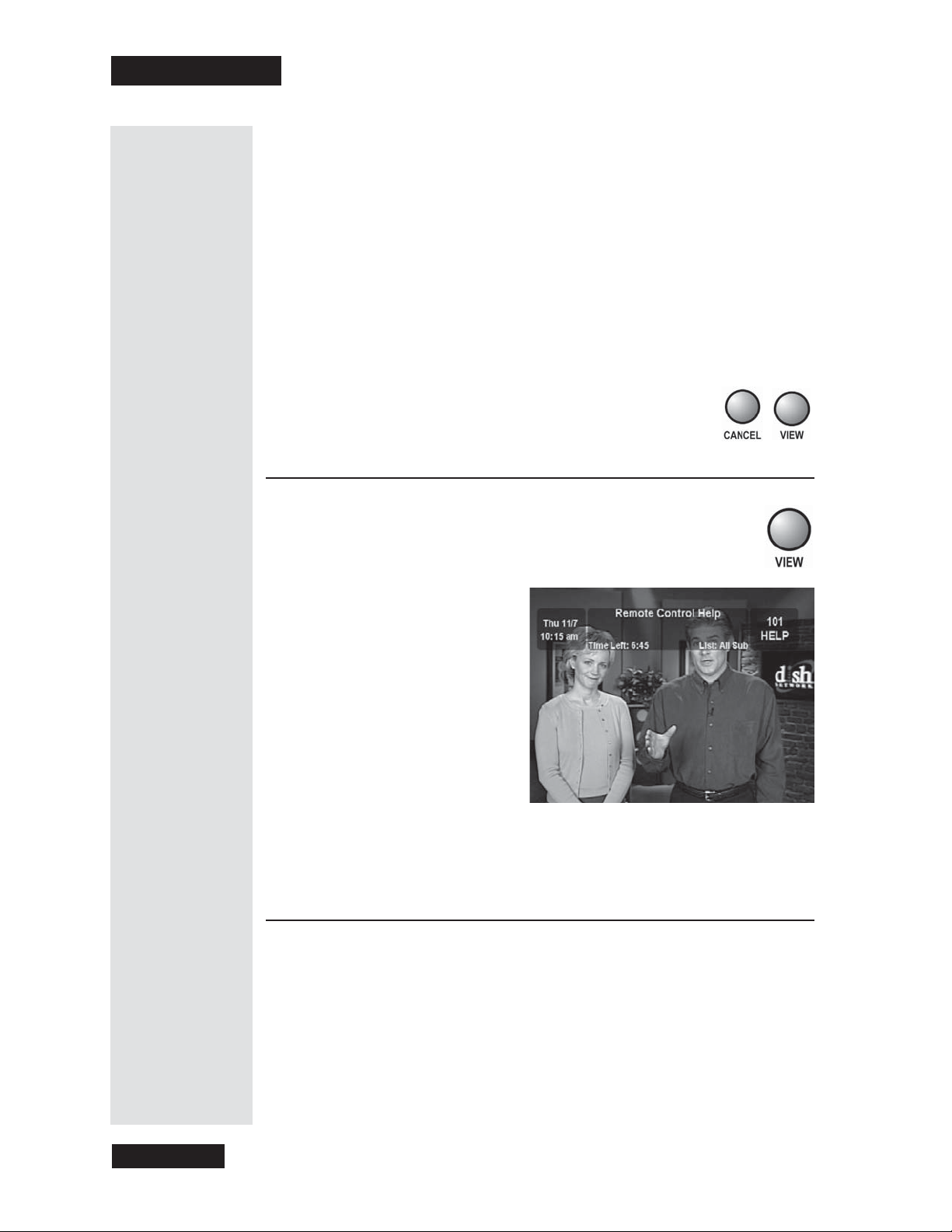

23. P ress VIEW to return to your live programming.

Conclusion

This is the end of the quick tours. Continue on to the next chapter, Parts of
the System, for a detailed description of your DishDVR receiver.

Page 14

Chapter 2

Parts of the System

The Receiver

Receiver Front Panel

Smart Card Door

The Smart Card is behind the door on the front panel.

Note: Leave the Smart Card in, and keep the door closed.

Front Panel Buttons

The front panel buttons work the same way as the buttons on the
remote, to control the receiver. For m ore information on the remote
control buttons, see Remote Control on page 20 of this User Guide.

Info Button

Press the INFO button to see information about a program
you watch or a program you highlight in a menu.

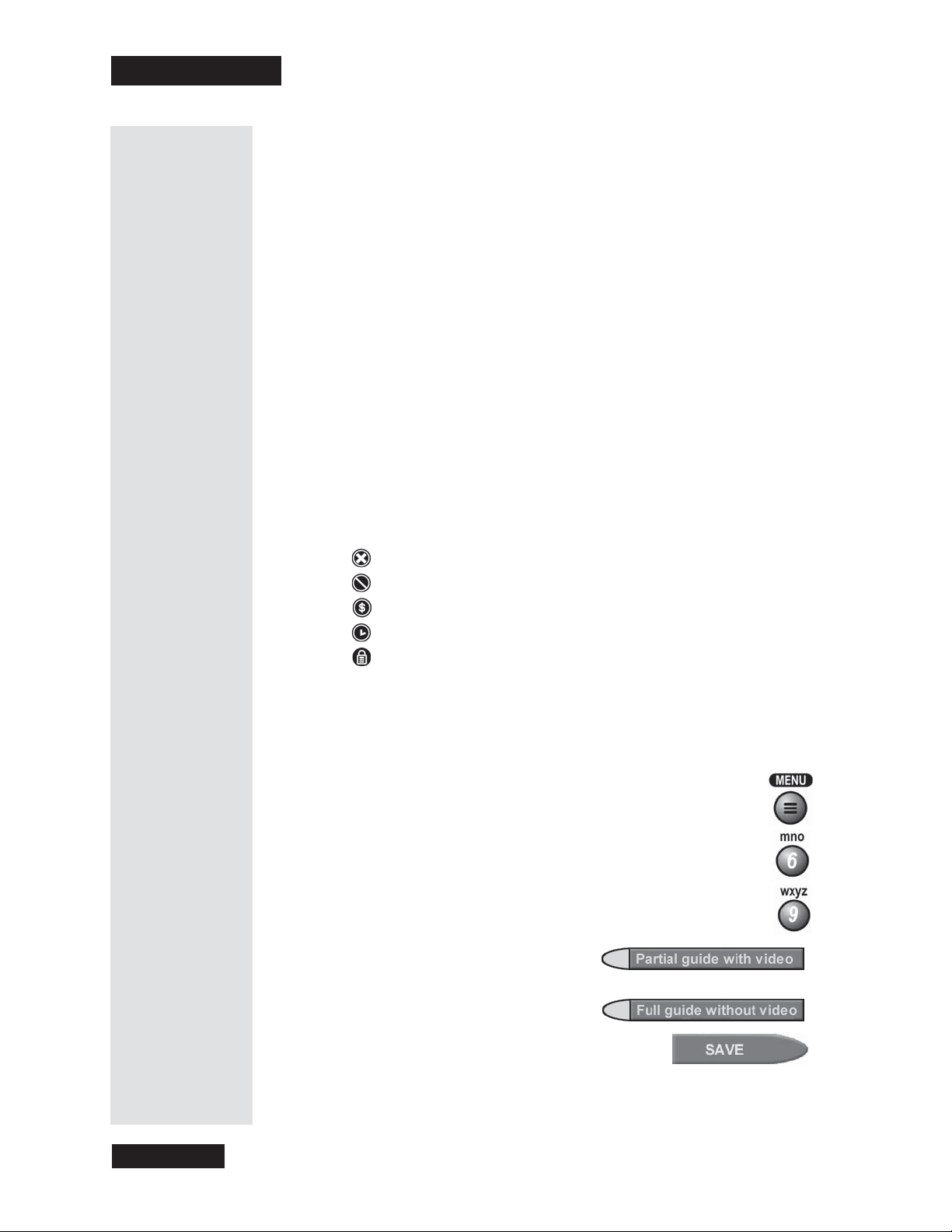

The information may include one or more of these signs:

for a program you can’t buy

for a blacked-out program

for a pay per view program

for a program with an e vent timer

for a locked program

Menu Button

Press the MENU button to open the Main Menu.

Page 15

Chapter 2

Parts of the System

Tip: First, you
move the
highlight to an
item with the
Arrow buttons,
andthenyou
press the
SELECT
button to
select that
item.

Arrow Buttons

Use the ARROW buttons to move a menu
highlight to an option or a program.

Use the UP and DOWN ARROW buttons to
change channels while watching a program.

When watching a program, pressing the LEFT
ARROW button opens the
the RIGHT ARROW button opens the

Banner

.

Themes menu and

Browse

Select Button

Press the SE LECT button to select a n item you highlight in a
menu.

Sys Info Button

Press the SY S INFO button to open the Important System

Information

menu.

Power Button

Press the PO WER button to turn the receiver on or off.

Power L ight

The POWER LED lights up when you turn the receiver on
and turns off when you turn it off.

Note: Even when the POWER light is off, the receiver
continues to work and requires power. Don’t unplug the
receiver unless you need to move it!

Recording Light

The RECORDING LED lights up whenever you
are recording a program.

IR Sensor and IR Blasters

The IR SEN SOR receives IR signals from the remote control. F or
information on the IR BLASTERS, please see Control a VCR on page 56.

Page 16

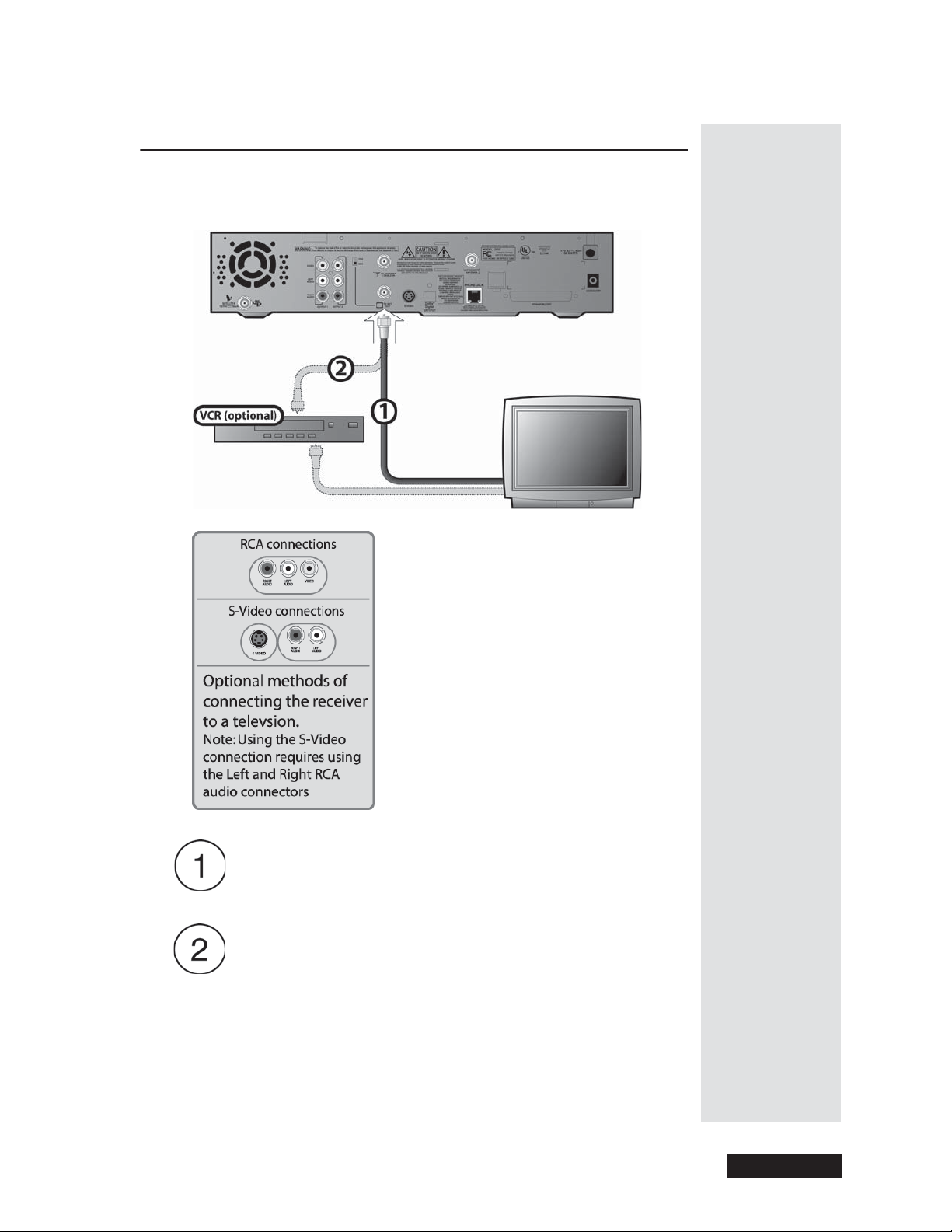

Receiver Back Panel

The receiver back panel has ports you can use to connect the receiver to
other devices (you may not need to use some of these ports). The back panel
also has the power cord and phone jack.

Tighten the connections only by hand. If you use a wrench
you might over-tighten the connections and cause damage
that would not be covered by the Limited Warranty.

The Receiver

Receiver Fan and Air Holes

The receiver has a fan behind the air holes. The fan turns on
and off as needed to cool the receiver.

Don’t block the air holes! If you do, the receiver
could over-heat!

Satellite In

Connect the cable from the satellite dish to the SATELLITE IN
port.

Channel 3/4 Switch

If you use TV SET OUT to connect the receiver to a TV,
set this switch to the channel you want to tune to on
your TV. Choose a channel that isn’t used by a cable or
local TV station. If you connect the receiver to a VCR
that has a channel switch, set both switches to the same
channel.

Note: If you are connecting multiple receivers to multiple TVs, these

receivers and TVs can all be set to the same channel (3 or 4) to avoid
interference with local broadcasts.

Page 17

Page 17

Chapter 2

Parts of the System

TV Set Out

This connection provides good picture quality and good mono
sound quality (even if you have a TV or other devices that
provide stereo sound).

If you use TV S

ET OUT to watch satellite channels, you must

keep the TV(s) tuned to the same channel (either channel 3 or

4) as you selected on the Channel 3/4 Switch of the satellite

receiver.

The TV S
signal on the TV A

ET OUT can be switched between satellite programming and the

NTENNA/CABLE IN connection using the TV/VIDEO

button on the remote control.

TV Antenna/Cable In

Use the TV ANTENNA/CABLE IN to connect a broadcast TV
antenna or cable TV box to the receiver. The TV A

C

ABLE IN connection is only available through the TV SET

NTENNA/

OUT as described above.

Phono (RCA) Audio/Video Outputs

These outputs provide high-quality picture and stereo
sound.

• If the TV has only one input for this type of audio,
connect it to the receiver’s R

• If you use these outputs to connect the receiver to other devices, be sure
to follow the instructions in the devices’ user manuals.

IGHT AUDIO output.

Super Video (S-Video) Output

The receiver provides S-Video, which is the highest quality video
available. If you use this output for video, you must still connect
the audio with the P

HONO (RCA) AUDIO OUTPUTS or the DOLBY

®

DIGITAL output.

Dolby®Digital Output

The receiver provides Dolby®Digital encoded output and linear
Pulse Code Modulation (PCM) for an audio amplifier/decoder
that can process this kind of output.

Phone Jack

Connect a phone cable with a standard RJ-11 phone plug to the
receiver here, and then connect the cable to an active phone
jack.

Note:Youmust keep the receiver connected to a phone line at all times to

buy Pay Per View programs or use exciting interactive features.

Expansion Port

This port is reserved for future use.

Page 18

Accessory Jack

Ifyouconnectamulti-dishswitchtotheACCESSORY JACK,or
if you use an IR extender, you must set up the receiver properly.
See Set Up the Accessory Jack on page 81.

Power Cord

Even when the receiver front pan el’s green POWER LED is off, the
receiver keeps working and it needs power. So, don’t unplug the receiver’s
power cord unless you need to move the receiver or if it will not be used for
an extended period of time.

Before moving the receiver, unplug the power cord
and let the receiver sit for at least 30 seconds! Always

handle the receiver gently to protect the delicate parts it has
inside.

UHF Remote Antenna Input

The receiver uses the antenna to get UHF signals
from the remote control. Connect the UHF antenna
here, and set it so it doesn’t touch anything. Set the
antenna straight up so you can use the remote
control as far away as possible.

The Receiver

Attach an Attenuator

Stray UHF signals (from your neighbor’s remote control, for example) can
block signals from the remote control to the receiver. To help prevent
blocks, you can install a 10 dB attenuator (you can buy one from a consumer
electronics parts store).

Note: This will help keep out stray UHF signals, but also cut down how far

away you can use the remote control.

1. Take the UHF antenna off of the

receiver’s back panel UHF REMOTE
ANTENNA input.

Put a 10 dB attenuator onto the

2.

UHF REMOTE ANTENNA input.

3. Put the UHF antenna onto the attenuator.

Tip: If the
receiver does
unexpected
things (for
example,
changes
channels,
starts DVR
features
randomly), you
may have to
install a 10 d B
attenuator to
block stray
UHF signals.
You can buy
one of th ese
attenuat ors at
almost any
electronic parts
store.

Page 19

Page 19

Chapter 2

Parts of the System

Remote Control

Tip: If the
receiver does
unexpected
things (for
example,
changes
channels, starts
DVR features
randomly), you
may have to
change the
remote control
address. See
Change the
Address on page

26.

This section describes the remote control and its buttons used to control the
receiver. To find out how to use the remote to control other devices, see
Control Other Devices with the Remote, beginning on page 68. The remote
control we pack with the receiver may look a bit different than the one
shown on page 22.

If you lose or damage the remote control,

you can

use the
receiver’s front panel buttons to operate many of the receiver's
features. Call the Customer Service Center at 1-800-333-DISH
(3474) to order a new remote.

The remote control uses both Ultra High Frequency (UHF) radio signals and
infrared (IR) light signals to control the receiver but uses only IR signals to
control other devices.

• IR signals travel only short distances (40 feet or less), and can’t go
through walls or other solid objects. You must point the remote control
directly at the device you want to control, with no objects to block the
signal path.

• UHF signals travel long distances (100 feet or more) and can go through
walls and other solid objects. Because UHF signals travel so far, the
receiver may respond to signals from other nearby remote controls (for
example, your neighbor’s remote control). To handle this problem,
please see Change the Address on page 26. If this doesn’t work, please
see Attach an Attenuator on page 19.

Note: To use UHF capabilities, you need to connect your UHF antenna

as described on page 19.

Page 20

Remote Control Batteries

The remote control comes with AAA batteries. When you replace old
batteries, you should replace all of the batteries. Use batteries of the same
kind, for example alkaline or carbon zinc, and don’t mix batteries of
different kinds. Alkaline batteries last longer.

Changing the Batteries

1. Press down on the battery cover’s top latch and
lift the cover off.

2. Take out a ll of the old batteries.

3. Put the new batteries in. Make sure you match the
plus (“+”) ends with the plus markings on the
battery case.

4. Fit the battery cover’s bottom tab back into the
slot a t the bottom of the battery case, and snap the
cover back into place.

Low Battery Warning

Remote Control

When you see a low battery warning message on the bottom line of the
Program Banner, the batteries in your remote control are weak and need
to be replaced.

Page 21

Page 21

Chapter 2

Parts of the System

Page 22

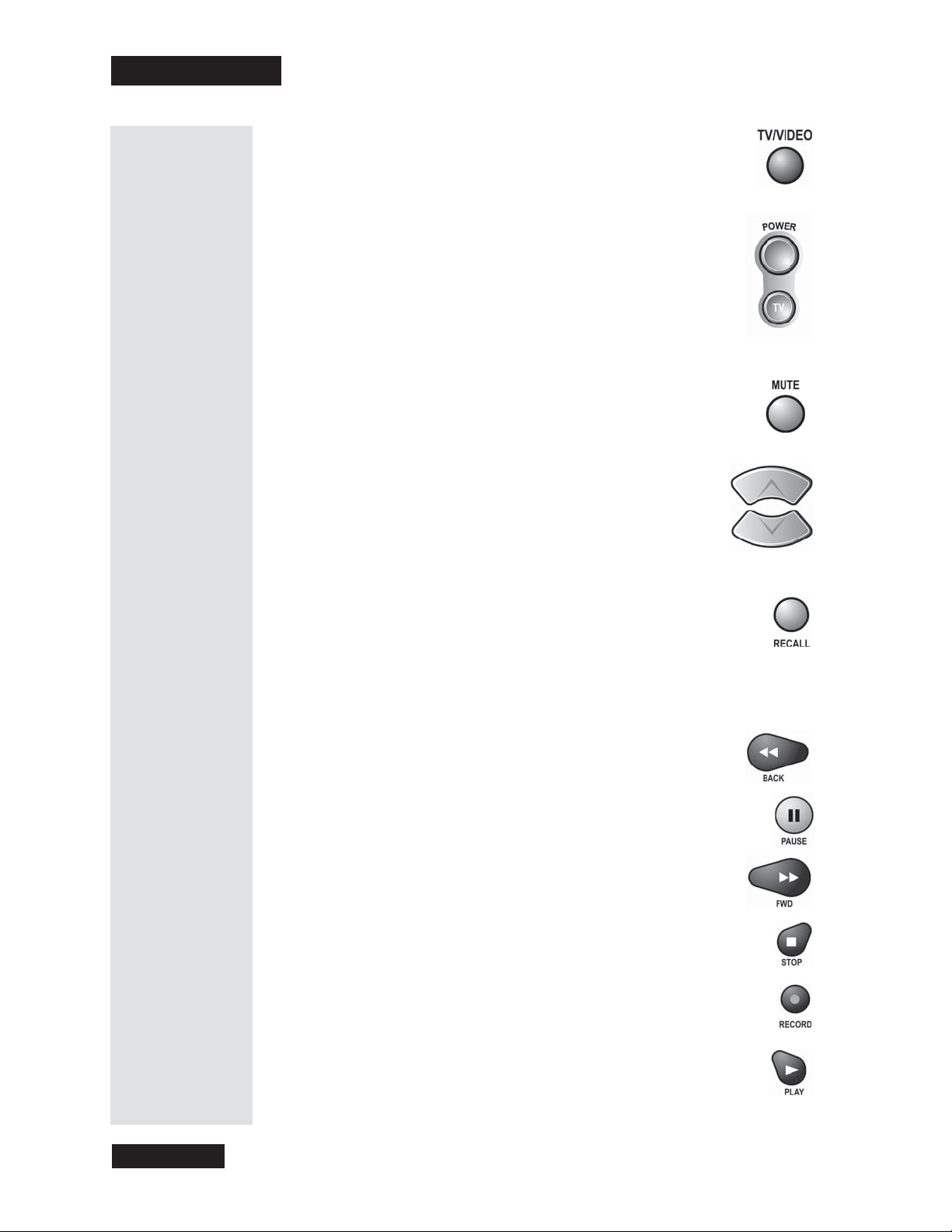

Remote Control Buttons

SAT Mode Button

Press this button to set the remote to SAT
SAT mode button’s back light lights up for two seconds to show

you’ve set the remote
SAT mode, the remote control buttons operate as described below
to control satellite receiver functions.

to SAT mode. While the remote control is in

(“satellite”) mode

.The

Power Buttons

Press the blank POWER button to turn the receiver on or off.

Use the TV POWER button to turn the TV on or off. See Set Up
the Remote to Control Other Devices for

instructions on

programming the remote to control your TV.

Menu Button

Press this button to open the Main Menu.

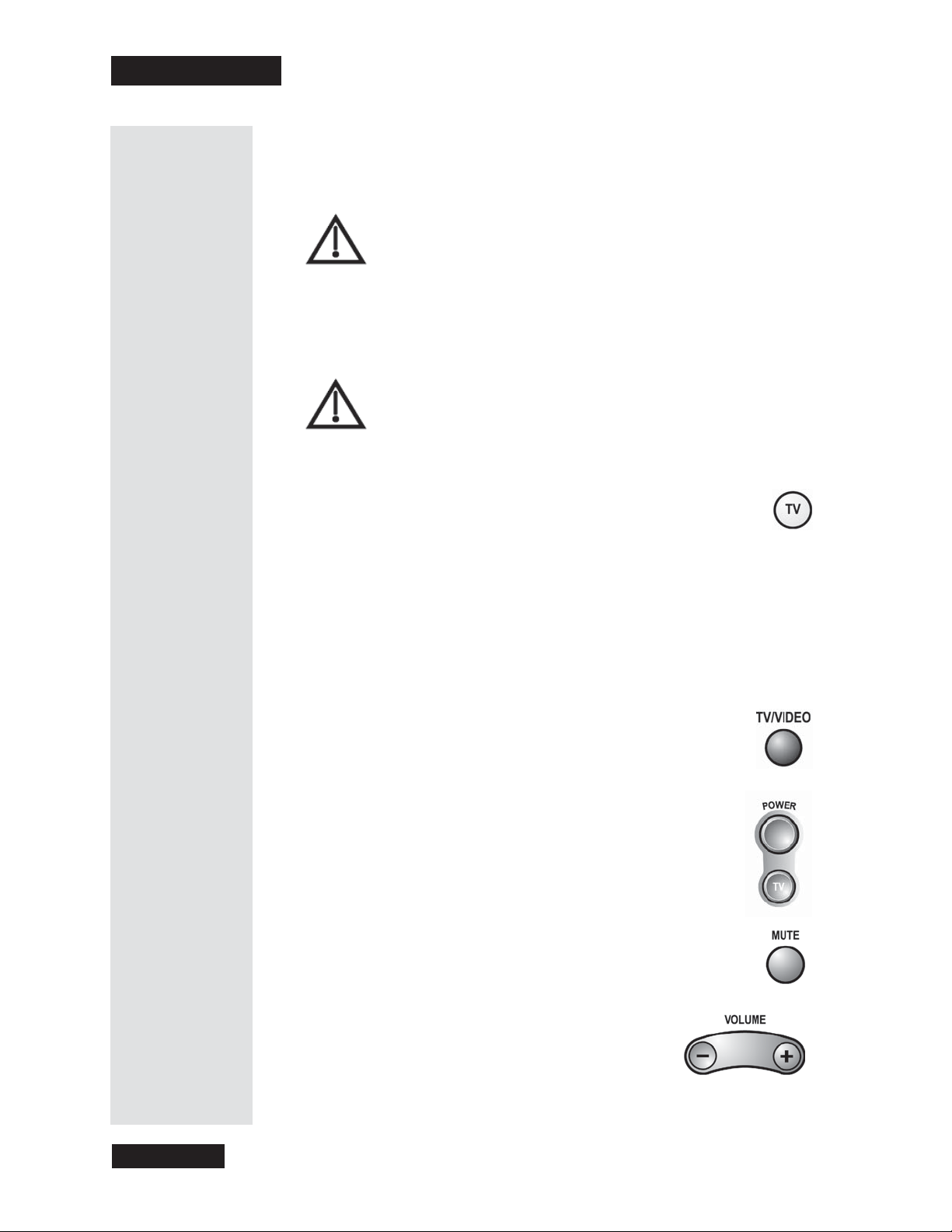

TV/Video Button

If you connect a second video source, such as cable or a broadcast
antenna, to the receiver’s back panel TV A

NTENNA/CABLE IN

port,you can use this button to switch the receiver between the
satellite signal a nd the another video signal.

Note: The signal from the second video source will only be available on the

ET OUT port, not on the S-VIDEO or RCA output connectors.

TV S

Page Up and Page Down Buttons

Remote Control

Press the PAGE UP button or the PAGE DOWN button
to scan, page by page, through the

Themes

list,

a Favorite List,anEvent Timers list, or a

Program Guide,

a

list of channels.

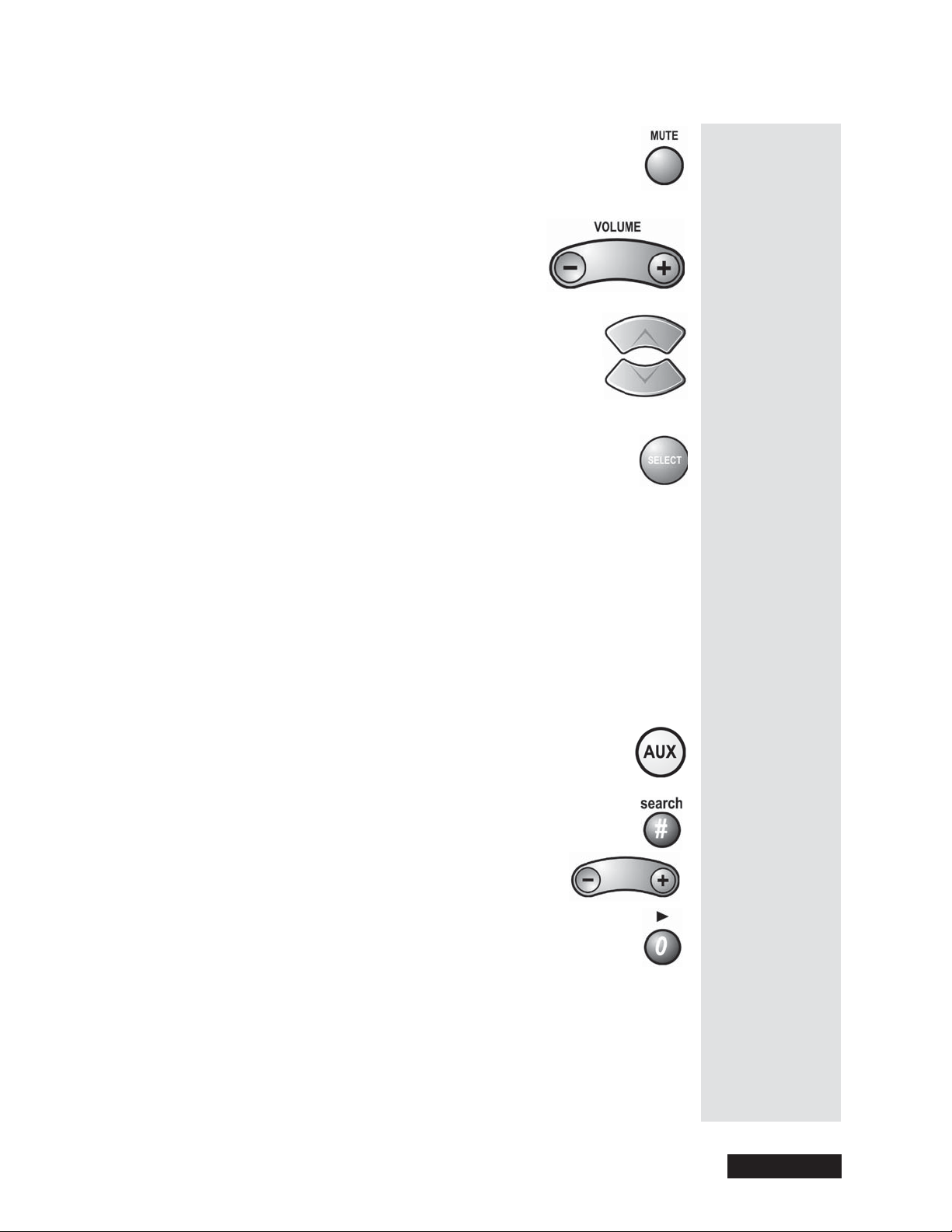

Mute Button

Press this button to turn the TV sound off or on. To use this
button, you must set up the remote to control your TV. See Set Up
the Remote to Control Other Devices for

instructions.

Vol um e But to n

Press this button to change the TV volume. To use
this button, you must set up the remote to control
your TV. See Set Up the Remote to Control Other
Devices for

instructions.

Guide Button

Press this button to open the Program Guide.
the

Program Guide

open,

press this button again to change the

Favorites Lists.

When you have

Arrow Buttons

• Press these buttons to highlight an option in
the menus, the Program Guide,andthe
Browse Banner.

• While watching a program, press the UP or
DOWN ARROW button to change channels.

• While watching a program, press the
BROWSE button (the RIGHT ARROW
button) to open the

Browse Banner.

Tip: The Guide
button opens
the Program
Guide. Use it
to get
informationon
programs that
are on now
and that will
be on in the
future.

Page 23

Page 23

Chapter 2

Parts of the System

• While watching a program, press the THEME button (the LEFT
ARROW button) to open

• To e nter a num ber in a menu, highlight the place where you need to
enter the number. Then, press the UP or DOWN ARROW button to
increase or decrease the number in the highlighted place. Or, you can
use the number buttons.

the

Themes

menu.

Select Button

Press this button to select the option you highlight in a menu,

Program Guide,orBrowse Banner.

Recall Button

Press this button to
watched. Press it again to switch between the last two receiver
channels you watched.

go back

to the last receiver channel you

Info Button

•PresstheINFO button for more information a bout the show
you are watching.

•PresstheINFO button for more
highlighted in the
Recorded Events list.

•

If a menu has
that menu.

Program Guide, Browse Banner,Themes,or

a Help option, press this button to see help

inform ation

about a program you have

information

View Button

• While watching a program, press this button to briefly
display the Program Ba nner.

• When you use a menu, press this button to cancel out of the menu and
go back to watching a program.

for

Page 24

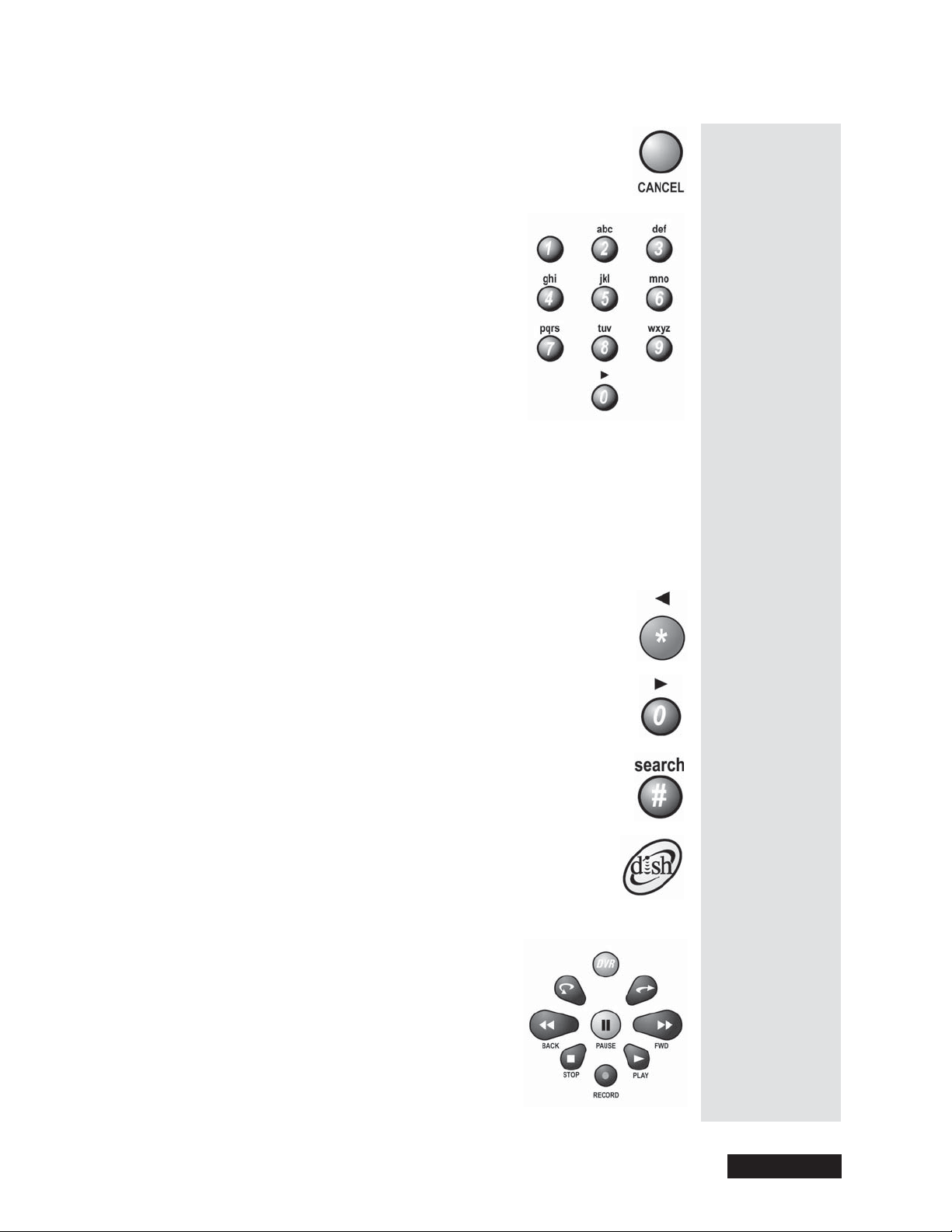

Cancel Button

Press this button to cancel and return to the previous menu or to
watch a program if there are no previous menus.

Number Buttons

• While watching a program, using the

Program Guide,orusingtheBrowse

Banner, use these buttons to enter a channel

number.

• When you have the Program Guide open,

enter a number of hours you want to skip
forward with these buttons, and then press the

RIGHT ARROW

quickly move the
T o move back, enter the number of hours you
want to move back and then press the

ARROW

button.

• If a menu option has a number, press the button with the same number
to select that option.

button. This is how you can

Program Guide

forward.

LEFT

Remote Control

Tip: When
you’re in the
Program
Guide, you
can skip
ahead 24
hours just by
pressing the

SKIP AHEAD

buttononthe
remote.

If you skip
ahead, you
can skip back
24 hours by
pressing the

SKIP BACK

button.

• Use these buttons to enter numbers in a blank field.

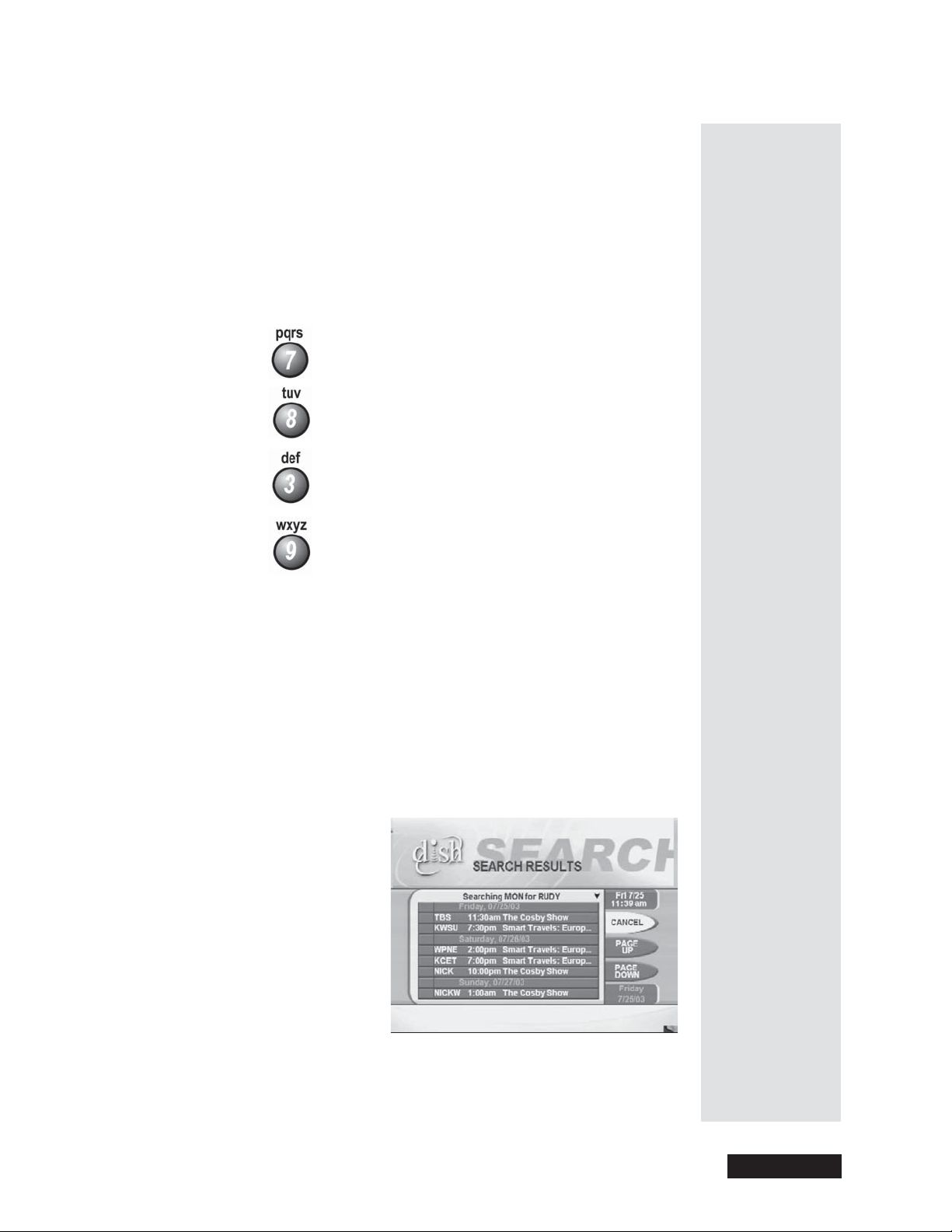

Star (*) Button

PressthisbuttontobackspacewhileusingtheSearch f unction
of your receiver.

Zero Button

Press this button to move one character forward while using the

Search function of your receiver.

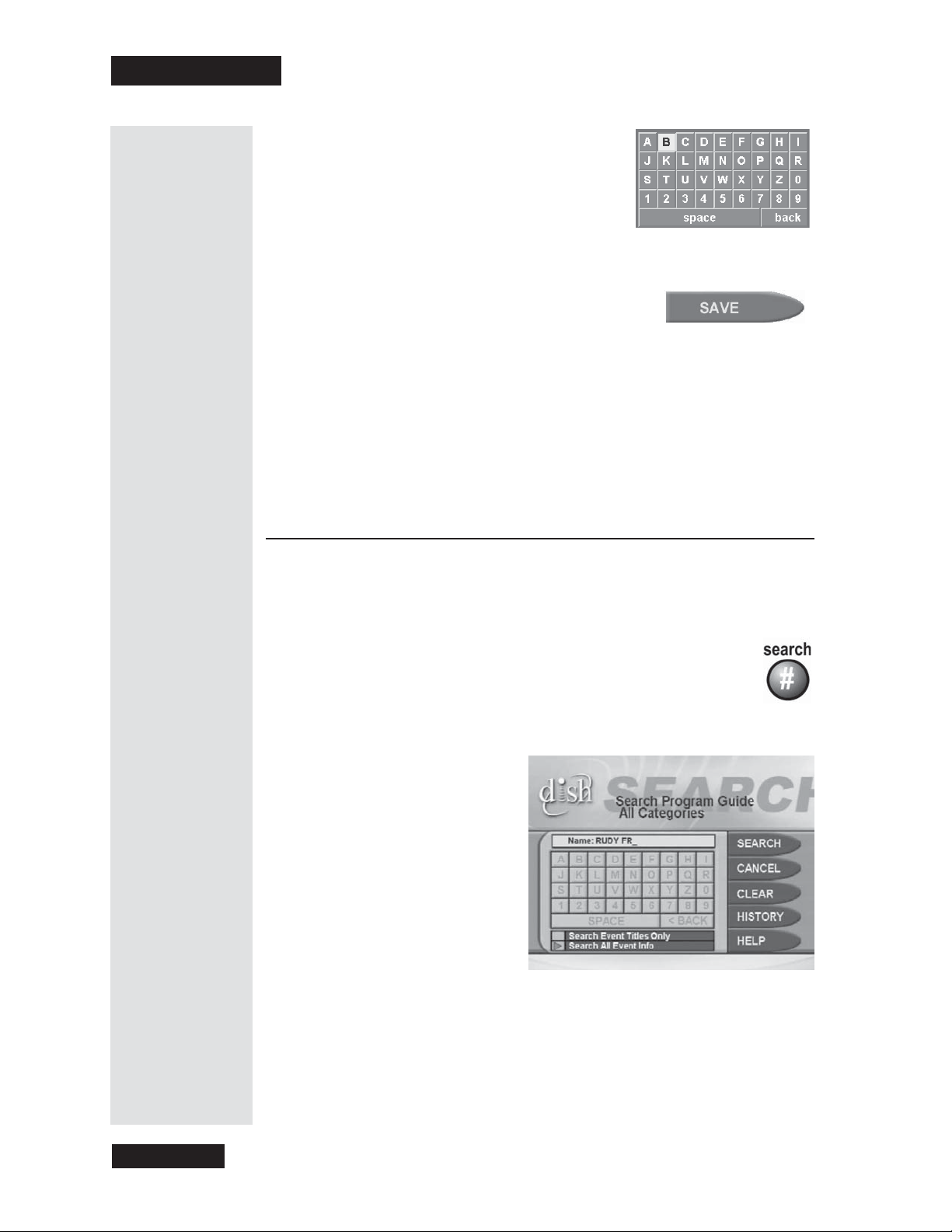

Pound (#) Button

Press this button to display the Search screen. Also, you use this
button in several procedures described in this User’s Guide.

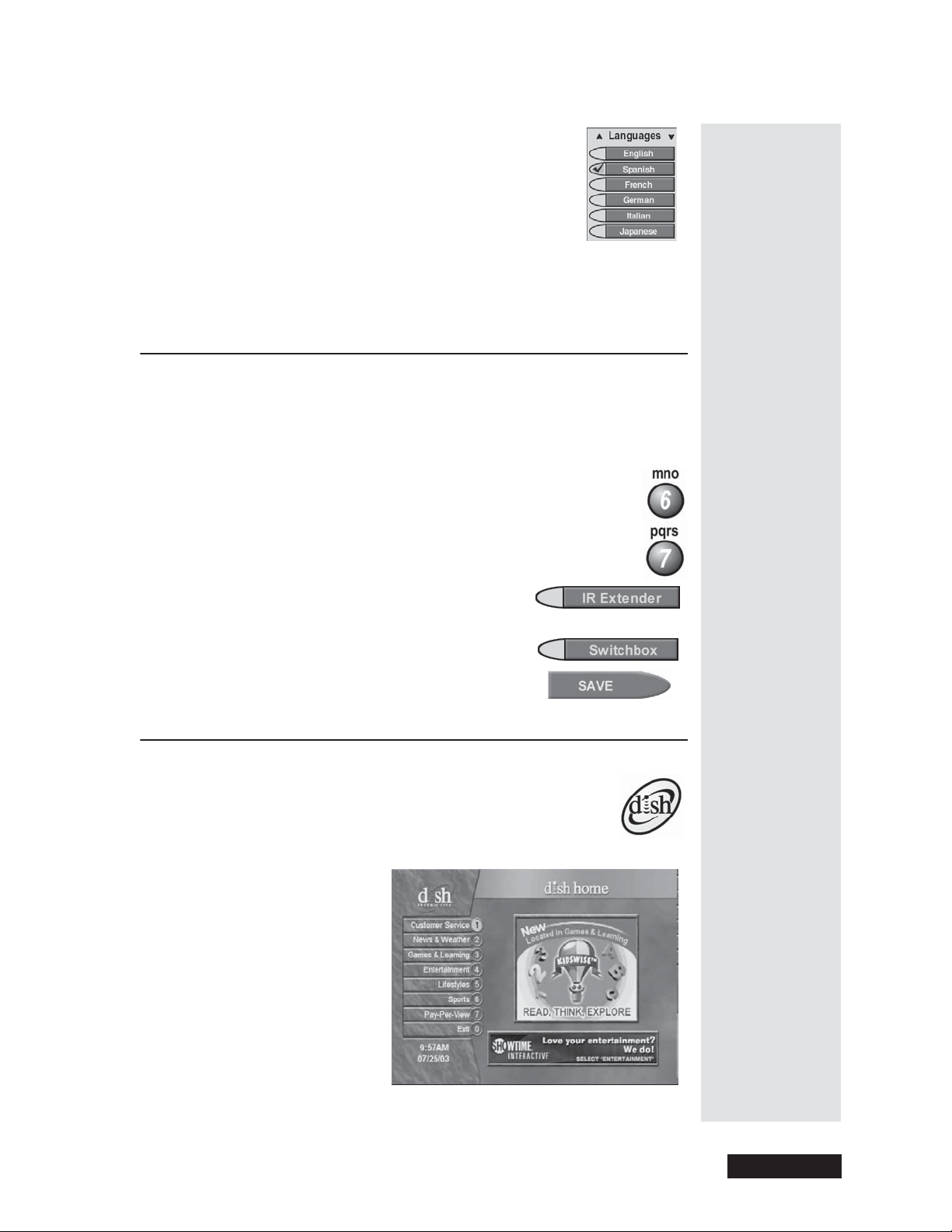

Dish Button

Press this button to use the Dish Home Interactive TV
applications. See page 81 for information on using this exciting
new feature.

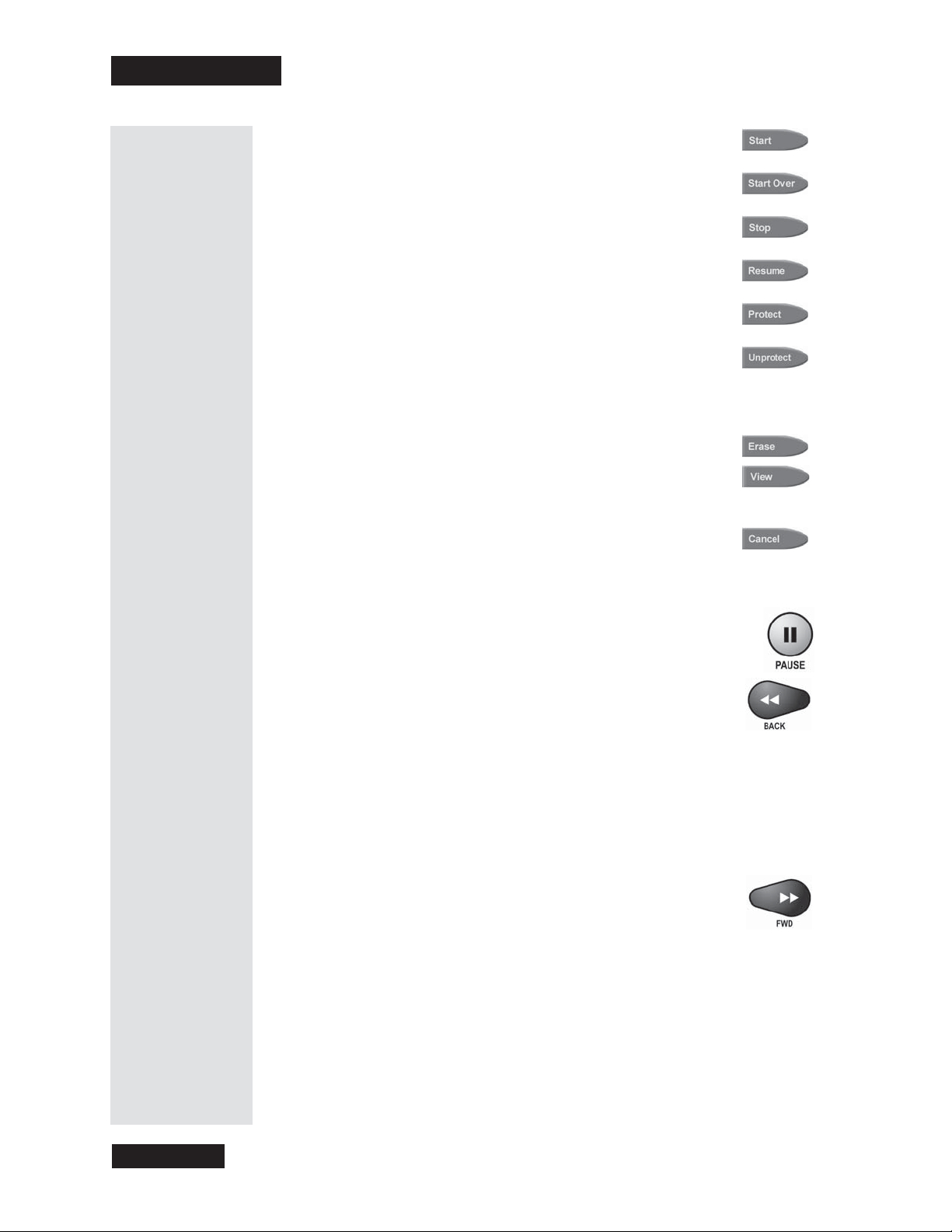

DVR Buttons

Use these buttons to record or play back a DVR
program. See Use the DVR Features for details.

Note: Even if the top button says “PVR” instead

of “DVR,” it works the same.

Tip: DVR
buttons let you
take control of
television. You
can use them
to pause live
TV, go back in
time, skip
ahead, an d
more!

Page 25

Page 25

Chapter 2

Parts of the System

Change the Address

Because UHF signals travel long distances and go through walls, a
neighbor’s remote could control your receiver by mistake. To handle this
problem, you can change the address on the remote and receiver as follows:

1. Make sure you turn on the TV and receiver.

2. Open the

Important System Information menu by

pressing the receiver’s front panel SYS INFO button.

3. The

Important System Information menu shows a

Remote Address.

Write down this number:

4. Press and hold the SAT mode button about three seconds, until
all the mode buttons light up, and then let go of the SAT button.

5. Use the number buttons to enter any number from 1 to 16, but
not the one you wrote in step 3.

Write down the number you enter:

6. Press the POUND (#) button. If you entered the address correctly, the
SAT mode button flashes three times.

7. Press the RECORD button.

8. Make sure the

Information

Remote Address you see on the Important System

menu now is the same as the one you entered in step 5. If

the addresses are not the same, repeat step 7.

9. To check the address in the remote control, press and hold the SAT
mode button for three seconds. Then, let go of the SAT button, and
press the POUND (#) button twice. The SAT mode button flashes the
same number of times as the address you entered in step 5.

Page 26

Press the SE LECT button to close the
menu.

Important System Information

Receiver Menus

Receiver Menus

This section shows examples of

the key menus

the receiver displays on the

TV screen and how to use them.

Open or Close a Menu

•PresstheMENU button to open the Main Menu. You can open any

other menu starting from the

Main Menu.

•PresstheCANCEL button to close a menu.

Make a Choice in a Menu

1. Use the remote control ARROW buttons

highlight

a menu option. An option you highlight

looks like the English option shown below.

2. Press the remote control SELECT buttontoselect

the option you highlight.

Note: If a menu option has a number, you can press the

remote control’s number to select that option. If you do
this, you don’t have to highlight the option first. F or example, to select the

Program Guide option on the Main Menu, just press the remote control 1

button.

to

Tip:
Whenever a
menu option
has a number
next to it, you
can just
press that
number on
theremoteto
instantly
access it.

1

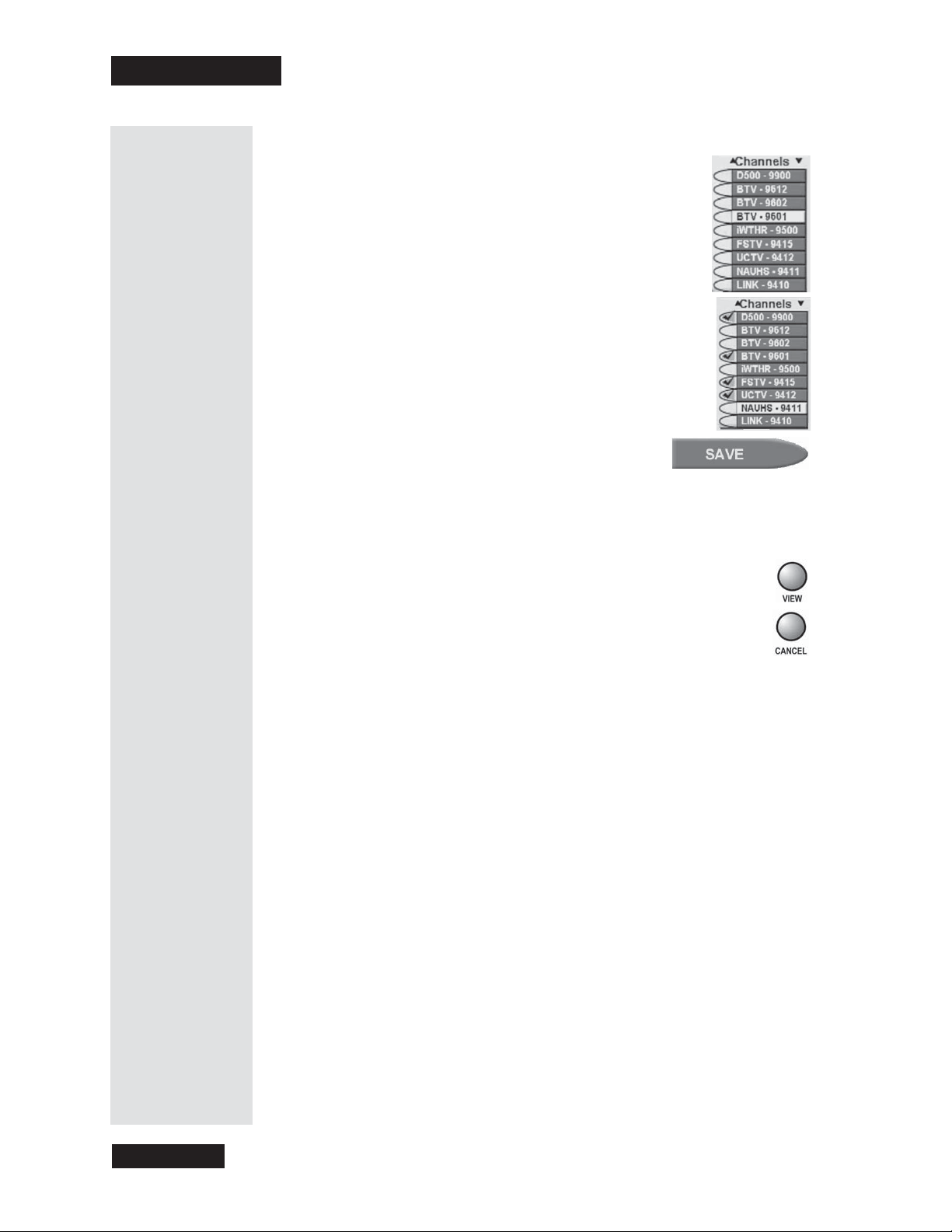

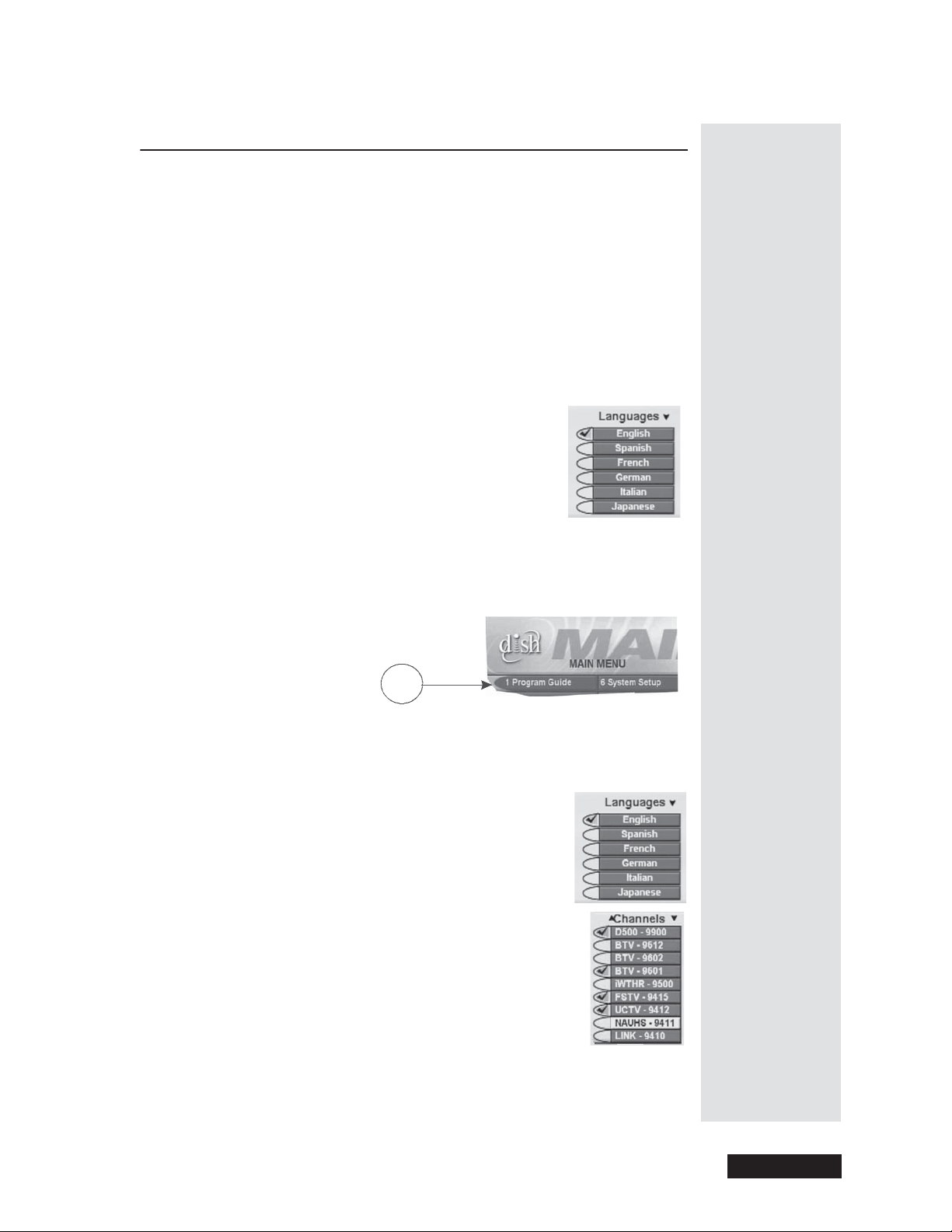

Make a Choice in a List

The menus have two types of lists, like these examples:

•Asingle choice list lets you make only one choice at a
time. I f you make another choice, you don’t keep your
earlier choice.

•Amultiple choice list lets you make more than one
choice at a time. If you make another choice, you keep
your earlier choice(s).

Page 27

Page 27

Chapter 2

Parts of the System

Tip: Any time
you’re in a
menu and
want to
immediately
go back to
watching your
program, just
press the View
button.

Cancel a Procedure

Here’s what to do:

1. Use the ARROW buttons to highlight an option.

2. Press SELECT to choose the option(s).

3. Select Save.

To cancel a procedure, press the remote control CANCEL or VIEW
button before you do the last step of the procedure.

• Togobacktowatchaprogram,presstheVIEW button.

• To go back to the previous menu, press the CANCEL button.

Note: If you don’t do anything in a menu for several minutes, the

menu times out. This throws away any change you made, and
displays the last channel you watched.

Page 28

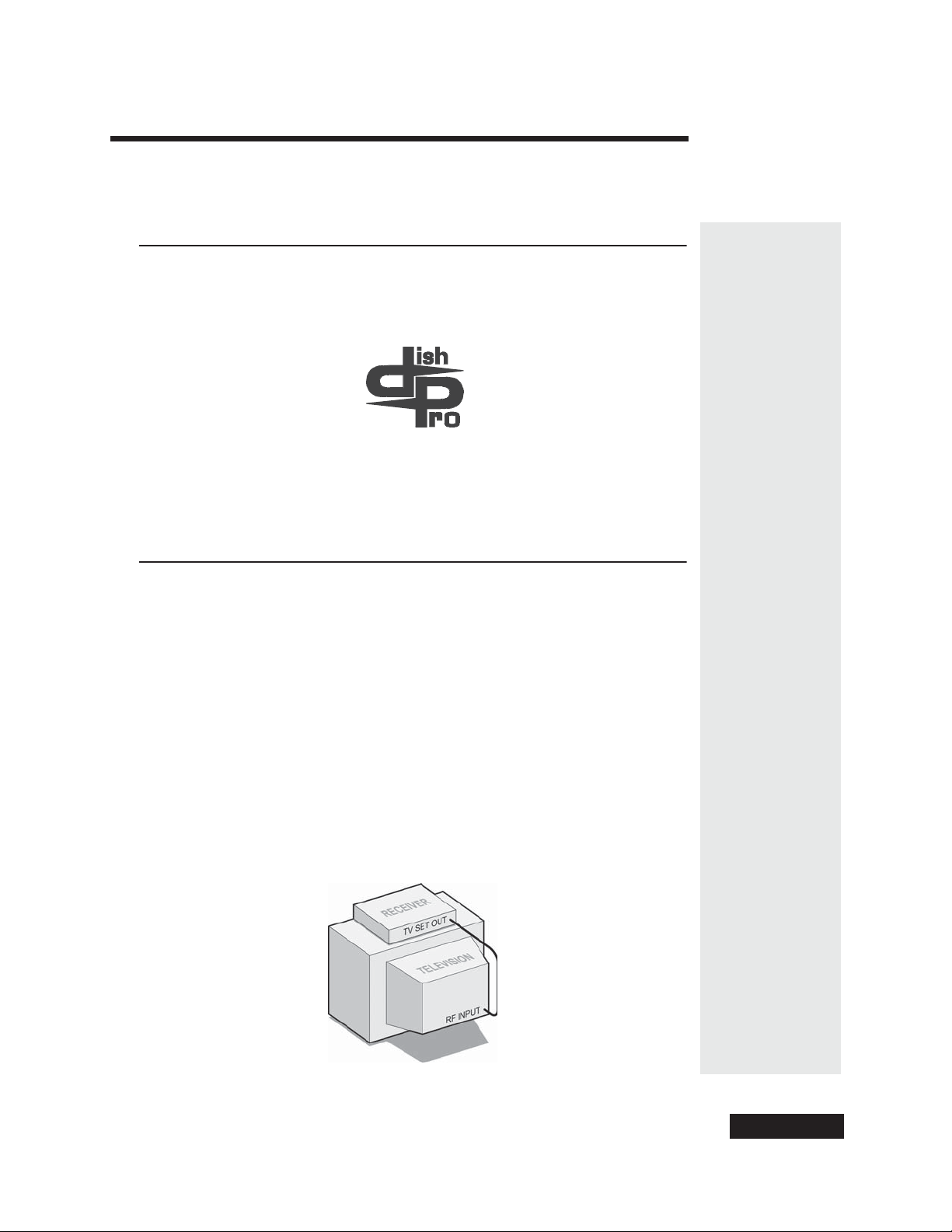

TV and VCR Connections

Use the following diagram and instructions to connect the satellite receiver
to a TV and VCR (optional).

TV and VCR Connections

TV Set Out to a TV - Connect a coaxial cable between the TV

ET OUT on the receiver an the TV’s input. Be sure to set the

S

CHANNEL 3/4 switch on the receiver to the channel you use to
watch satellite TV.

TV Set Out to a VCR (Optional) - Connect a coaxial cable

between the TV S

ET OUT on the receiver and the VCR’s input.

Connect another cable between the VCR’s output and the TV’s
input. Be sure to set the CHANNEL 3/4 switches on the receiver
and VCR to the channel you use to watch satellite TV.

Page 29

Page 29

Chapter 2

Parts of the System

Notes

Page 30

Chapter 3

Using the System

Change Channels

You can change channel on your satellite receiver while watching a
program by doing one of the following:

• Press the remote control UP or DOWN ARROW

button to change the channel.

•UsetheNUMBER PAD buttons to enter the

channel number you want.

Note: If you apply a Favorites List, you can

use the UP or DOWN ARROW buttons to
change channels on the list you apply, or use
the number buttons to change to any channel,
even if it is not on your applied list. The
receiver skips over blocked channels if you
hide them and lock the receiver. See page 38
for information on

Favorites Lists.

Use the Program Guide

You can use the Program Guide to see what programs are on and to
change channels.

• The first time you use the receiver, it will take a little while to
display the
indicating that the
normal.

•Ared background behind a channel usually means you haven’t
subscribed to the channel. Once you buy a channel, you can tune to
it. To order a channel, please call 1-800-333-DISH (3474) or use

Dish button to order through the Customer Support a pplication.

the

Program Guide. A m essage may be displayed

Program Guide needs to be updated. This is

Tip: The
Program
Guideisyour
key to satellite
TV programs.
The receiver
displays the
Program
Guide on the
TV screen.

Page 31

Chapter 3

Using the System

Tip: Be sure to
turn off the
receiver (so
the green
power l ight is
off) when
you’re not
using it. This
way, the
Program Guide
will be
automatically
updated, and
you won’t have
to wait for it to
be updated
when you’re
watching a
program.

•TheProgram Guide shows which Favorites List you apply. Pressing

GUIDE scrolls through the available

All Chan - Displays all of the c hannels available on DISH Network.

•

•

All Sub - Displays all of the channels in your subscription.

Other Favorites Lists -Displaysonly the channels on a particular

•

Favorites L ists:

list. See Use Favorites Lists for more information.

•TheProgram Guide shows programs that are on now and those that
will be on during the next seven to nine days. The guide doesn’t show
programs that have ended.

Note: You can only get the seven to nine-day Program Guide from the

110 West satellite. If your system does not receive 110 West, the

Program Guide will display information on programs for only two

days.

• You can hide adult channels so the

Program Guide doesn’t show them.

Please see Hide or Show All Adult Channels on page 47.

• You will find any of the following symbols in the Program Guide:

(DD) in the programming titles means a program has Dolby

•

®

Digital

sound.

• for a program you can’t buy

• for a blacked-o ut program

• for a pay per view program

• for a program with an event tim er

• for a locked program

Display the Last Channel You Watched in the Program Guide

YoucansetuptheProgram Guide to e ither show or not show the channel
you are watching in its upper right-hand corner.

1. Press the MENU button.

2. Select the

3. Select the

4. Select the
option or the Full guide without

video

5. Select the

System Setup option.

Guide Displays option.

Partial guide with video

option.

Save option.

or:

Page 32

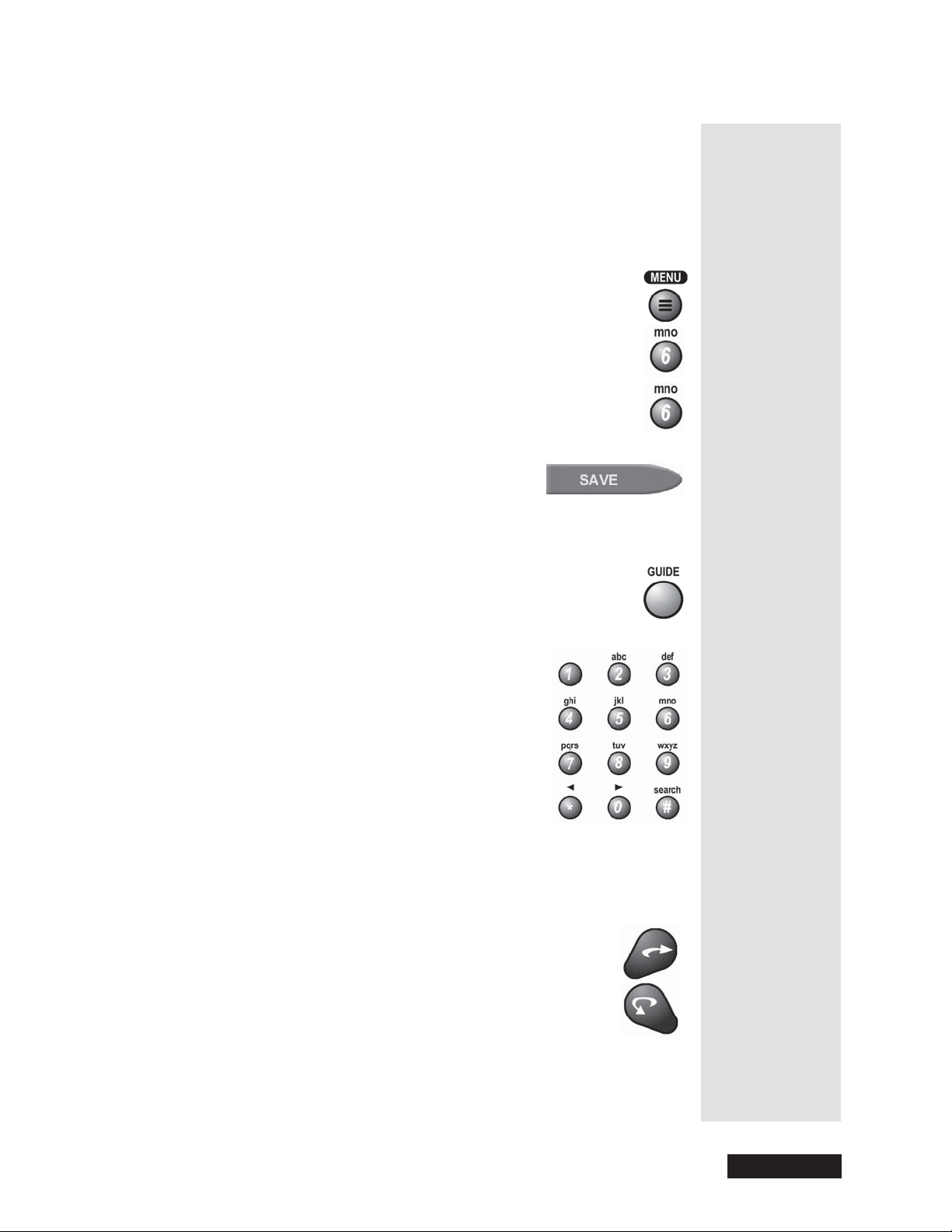

Set the Channel Order in the Program Guide

You c a n s et up th e Program Guide to list channels in ascending order (with
the highest channel number at the top), or in descending order (with the
highest channel number at the bottom).

Note: If you don’t set a channel order, the Program Guide lists the channels

in descending order.

1. Press the MENU button.

Use the Program Guide

2. Select the

3. Select the

4. Select the

5. Select the

System Setup option.

Channel Order option.

Ascending or Descending option.

Save option.

Select a Program in the Program Guide

1. Press GUIDE to open the Program Guide.

2. Move around the
the following ways:

•UsetheNUMBER PAD buttons to enter the

channel number you want. This will move the

Program Guide to show the channel you

enter and some others.

•UsetheARROW buttons to move the

highlight around the

Program Guide to highlight a program using

Program Guide.

• Jump through the

Program Guide in large

steps forward or backward in time:

a. Use the NUMBER PAD to enter the number of hours you want

to skip. Press the RIGHT ARROW buttontoskipforward,and
then the LEFT ARROW button to skip backward.

b. Use the SKIP AHEAD or SKIP BACK feature to

move the

Program Guide ahead or back a full 24

hours.

Page 33

Page 33

Chapter 3

Using the System

Use the Program Banner

Note: When you use the Program Guide, if the receiver needs to get

the latest information (which might take a few minutes), it’ll display a
message that asks you to let it download new program information. As
it downloads, the receiver displays a status bar. To avoid getting this
message, turn the receiver off when you’re not using it. It’ll get the
latest information by itself and maintain an updated

Program Guide.

3. After you have highlighted the program you want, you can press the

INFO button for more information about the program. If you do, press
the CANCEL buttontogobacktotheProgram Guide.

4. Press the SELECT button to change to the highlighted program. If you

select a program that is on in the future, the receiver will display a
message to create a timer. See User Event Timers on pa ge 48.

5. Press the CANCEL or VIEW buttontoclosethe

Program Guide.

You ca n use the Program Banner to find out more about a
program you watch, while you watch it. The receiver displays the
Program Banner for a few seconds at the top of the TV screen
every time you change the channel or press the VIEW button.

Tip: Whenever
you change
channels, the
Program Banner
appears for a
few seconds
with information
on the program
that’s p laying on
that channel.

Note: When you see a low battery warning message on the bottom line of

the Program Banner, the batteries in your remote control are weak and
need to be replaced.

Use the Browse Banner

You can use the Browse Banner to see what other programs are on and not
miss any of a program you are watching. The
information on the program you are watching at the top of the TV screen,
and information on other programs at the bottom of the TV screen. The

Browse Banner stays on the TV screen until you close it.

Browse Banner shows

Page 34

Use the Browse Banner

In this example, the

Browse Banner shows information on a program we’re

watching at the top, and information on another program at the bottom.

The bottom
applied. If the
channels. If another

Browse Banner displays the Favorites List that is currently

All Chan list is applied, the Browse Bann er shows all

Favorites List is applied, the banner shows only the

channels on that list. If you hide adult channels and lock the receiver, the
banner doesn’t show adult channels.

Select a Program with the Browse Banner

While you watch a program,presstheBROWSE (right arrow) button to get
information on other programs.

With the Browse Banner open:

1. Move through the programs and highlight a desired program by doing
the following:

•PresstheUP or DOWN ARROW button to change the channel

information you see at the bottom of the TV screen, or use the
number buttons to enter a channel number. The

Browse Banner

shows information about the program on now on that channel, at the
bottom of the TV screen.

•PresstheRIGHT ARROW button to see information about the next

program on the channel you chose. If you do this, press the LEFT
ARROW button to go back to the current program on now on that
channel.

2. Press the INFO button for more information about the highlighted
program at the bottom of the TV screen. If you do this, press the
CANCEL buttontogobacktothe

3. Select a highlighted program with the

Browse Banner.

Browse Banner:

If the program is on now, the channel will change to the selected
program.

If the program occurs in the future, this opens a menu where you can set
an Event Timer for the program, as described on page 48.

4. To exit the

Browse Banner,presstheCANCEL button.

Page 35

Page 35

Chapter 3

Using the System

Buy a Pay Per View Program

Once you confirm an order for a pay per view program, you
can’t cancel thereafter and we’ll bill you for it.

Tip: If you
have a DSL
line, the
receiver’s
modem may
not be able to
dial out. If so,
you will n eed
to get a DS L
filter and
install it
between the
receiver and
thephonewall
jack. You
should be able
to obtain one
of these filters
from your DSL
provider.

You must pay for all programs you or anyone else buys with the
receiver. To lock pay p er view, see Lock or Unlock All Pay Per
View Programs on page 46.

To buy pay per view programs, you must connect the receiver to an active
phone line.

You can watch a pay per view program on TVs connected to as many as six
different receivers. You will pay for the program only once, but you must
order the program for all the receivers you will watch it on.

HowtoBuyaPayPerViewProgram

1. Select a pay per view program in the Program Guide.Payperview
programs are marked “PPV” in the

2. To buy the pay per view program, select the
option. If you don’t want to buy the pay per view

program, select the

No or Cancel option.

Program Guide.

Yes

or

Remember:
Enjoy your
Pay Per View
events but be
careful. You
cannot cancel
the purchase
of any Pay Per
View events
once you
confirm.

3. A menu displays asking you to confirm your order.
Select the
willbillyouforit.Selectthe
cancel the order.

Yes optiontoconfirmtheolderandwe

No or Cancel option to

or

Review Pay Per View Programming You Have Purchased

1. Press the MENU button.

2. Select the

System Setup option.

Page 36

Use Themes

3. Select the

Purchase Info option. This opens a list of

shows you’ve bought, both the ones you’ve wa tched
and the ones you haven’t watched yet.

4. Select the

Cancel option to close the list.

Use Themes

1. While you watch a program,presstheTHEME (LEFT ARROW)

button to open the

Themes (Theme Categories) menu.

2. Select a

Theme you selected like this example.

Note: If you hide adult channels and lock the receiver, Themes lists

Theme category. This opens a list of programs that match the

will not show programs on adult channels.

Note: Programs colored in red are those that are not in your

subscription.

3. Move through the list of programs using the UP and

DOWN ARROW buttons or a page at a time using the
PAGE UP and PAGE DOWN buttons on the remote

control.

Page 37

Page 37

Chapter 3

Using the System

Tip: Favorites
Lists let you
set up lists of
your favorite
channels.
When you
apply one of
these lists in
your Program
Guide, you see
only your
favorite
channels —
making it much
easier to find
programs to
watch.

4. Highlight the program you want. You can press the INFO button for

more information about the program you highlight. If you do, press the
CANCEL buttontogobacktothelistofprograms.

5. Press the SELECT button to watch the program or set a timer.

Use Favorites Lists

You ca n set up lists of your favorite channels to appear in the Program

. These lists can include any channels you want.

Guide

Note: If you hide adult channels and lock the receiver, no Favorites List

will show adult channels.

You mu st do two things to use Favorites Lists:

1. Set up the list(s) you want. Please see Set Up or Change a Favorites List
on page 39.

2. Apply a list. See Apply a Favorites List on page 40.

About Favorites Lists

• When you apply a Favorites List, the Program Guide shows only the
channels in that list. To choose channels in the list, press the remote
control UP or DOWN ARROW button.

• To c hoose a channel whether or not it is on the

Favorites List you

apply, use the number buttons to enter the channel number.

•The

•The

All Chan list includes all the channels. You can’t make any changes

All Chan list.

to the

All Sub list includes all the channels you buy. You can’t make any

changes to the

All Sub list unless you change what you buy. To do so,

please call 1-800-333-DISH (3474) or press the DISH buttontogoto

Dish Home Inter activ e TV Applications.

• You can use up to four custom Favorites Lists. You can give each list a
name. When you first get the receiver, the four lists have the names

, List 2, List 3,andList 4. The lists are empty until you add channels

1

List

to them.

• You can add as many channels as you want to each list.

Page 38

SetUporChangeaFavoritesList

1. Press the MENU button.

2. Open the

3. Select the list you want to change. A check mark
showsupnexttothelist.For example, here we
selected

Favorites Lists menu.

List 1.

UseFavoritesLists

Tip: Be sure to
set up a list of
your favorite
channels
because it
makes finding
programs to
watch much
easier!

4. Select the

Note: You cannot modify the All Chan and
All Sub lists.

5. In the

Modify List option.

Channels list, select a channel or channels you

want to add to the list. A check mark shows up ne xt to
each channel. For example, here we selected

LIFE - 108,andHGT V - 112.

You can sele ct the

Clear option to remove all

the channels from the channels list.

6. To delete a channel, select the channel again.
The check mark next to the channel goes away.

7. Select the

Save option to save your changes.

Change a Favorites List’s Name

1. Open the Favorites Lists m enu.

USA - 102,

2. Select the list whose name you want to change. A
check mark shows up next to the list. For e xample,
here we selected

3. Select the

4. Select the

List 1.

Edit List Name option.

Clear option if you want to clear the

list’s name.

Page 39

Page 39

Chapter 3

Using the System

Tip: It’s easy
to apply a
Favorites Li st.
Just press
GUIDE on the
remote
repeatedly,
and watch for
the name of
your list to
appear in the
upper left
most area of
the Program
Guide

ApplyaFavoritesList

5. Select a letter on the on-screen keypad (it’s
just like selecting a menu option). For
example, here we selected

B.Dothisagain

to spell out the name. You can enter up to
eight letters, numbers, or spaces. If you
need to, select the
space in the name or the

space option to insert a

back option to

correct a letter.

6. Select the

To apply a Favorites L ist, do the following:

•Ifthe
the list you want appears. The

Save option to save your c hanges.

Program Guide is open, press the GUIDE button repeatedly until

Program Guide shows which list you

apply.

Note: Unless you add channels to at least one custom list, you can

apply only the

All Chan list or the All Sub list.

Use the Search Feature

The Search feature allows you to search the Program Guide for programs
or program information.

1. Press the SEARCH button.

2. The Search menu will open.

Page 40

3. Move the highlight to the

Name box.

Use the Search Feature

4. There are two ways to enter the name of the program you want to find:

•UsetheUP, DOWN, LEFT,andRIGHT ARROWS to scroll

around on the virtual keyboard and then select the letters you want.

• Use the remote control number pad to enter the letters in the

Name

box. Numbers 2 through 9 have telephone-style numbers written
above them. To enter an H, for example, press 4 twice because H is
the second letter listed above the 4 on the number pad. For example,
if you are searching for Rudy:

Press three times for an R.

Press twice for a U.

Press once for a D.

Press three times for a Y.

Note: Enter up to 1 4 characters (letters and spaces) for your search.

5. When you have entered the name, scroll down to choose between two
options:

• Search Event Titles Only - Select this option when you a re sure

the word(s) you entered are part of the event title.

• Search All Event Info - Select this option if you want to search

event titles and information for the word(s) you entered.

6. Select the Search option. When the se arch completes, you will see a

screen listing the name of the program(s) and the start and stop times.

7. Highlight the program you want to watch or record and press SELECT.

Page 41

Page 41

Chapter 3

Using the System

8. If the Create An Event Timer m enu opens, select Create to record

the program. See Use Event Timers for more options on setting up
timers.

Tip: You can
lock out
program s by a
rating such as
PG-13, or you
can lock out
entire
channels.

9. After setting up the timer, select Cancel to exit the menu or press

to go back to watching a program.

Use Locks

The Locks feature allows you to lock out certain programming, channels, or
receiver functions. The locks can be unlocked using a special password.

Note: You can set up a Personal Identification Number (PIN) with the

Customer Serv ice Center so only you can order services by phone. See
Personal Identification N umber on page 48 for more information.

• You can set locks and lock the receiver so only someone who knows the
password can get to locked channels or programs.

You mu st do two things to use locks:

1. Set up the locks you want (s ee the next few pages).

Lock the receiver. This is how you apply the locks you set

2.
up (that is, how you make them work). See Lock or Unlock
the Receiver on pa ge 47.

Open the Locks Menu

View

1. Press the MENU button.

2. Select the

This opens the

Note: If you’ve locked the receiver previously, you must enter the

password to open the

3. On the

Locks option.

Locks (Paren tal and System Locks) m enu.

Locks menu.

Locks menu, select the option for the lock you want to set.

Page 42

Set or Change the Password

Use Locks

1. Press MENU and then select the Locks menu.

Note: If you’ve locked the receiver previously, you must enter

the existing password to open the

Locks menu. So, unless you

know the password you can’t change it.

2. Select the

Change Password option.

3. Use the number buttons to enter the password you
have now. The re ceiver displays stars (*) as you
enter the digits of the password. When you enter
the last digit of the password, the receiver
highlights the

OK option. Press the SELECT

button.

4. Enter the new password.

5. Enter the new password again to confirm your
choice.

6. Select the

OK option again.

7. Memorize your new password.

Important: If
you create a
password, be
sureto writeit
down and put
it away some
where safe, as
you will not
be able to
change any
locks or
unlock the
receiver
without it.

If You Forget the Password

If you forget the password, call the Customer Service Center at
1-800-333-DISH (3474). You may need to give us information such as your
name, your address, your telephone number, the receiver serial number (see
Order Your Program Packages on page 3), and your Personal Identification
Number (PIN), if you use one (see page 48).

Rating Code Locks

• Rating code locks use the codes the original program providers assign
to the programs. The actual content of the programs may be different
from the assigned ratings.

Note: No rating system can guarantee that all unwan ted material is

screened out.

• Like all other locks, these locks work only when you lock the receiver.

• You can lock any satellite program, even a pay per view program.

• The locks built into some TVs (“V chip” locks) don’t work for satellite
programs.

• TV program ratings are different from movie ratings.

Tip: If you
forget your
password, call
Customer
Service at
1-800-333­DISH (3474)

• Receiver locks don’t work for TV programs.

Page 43

Page 43

Chapter 3

Using the System

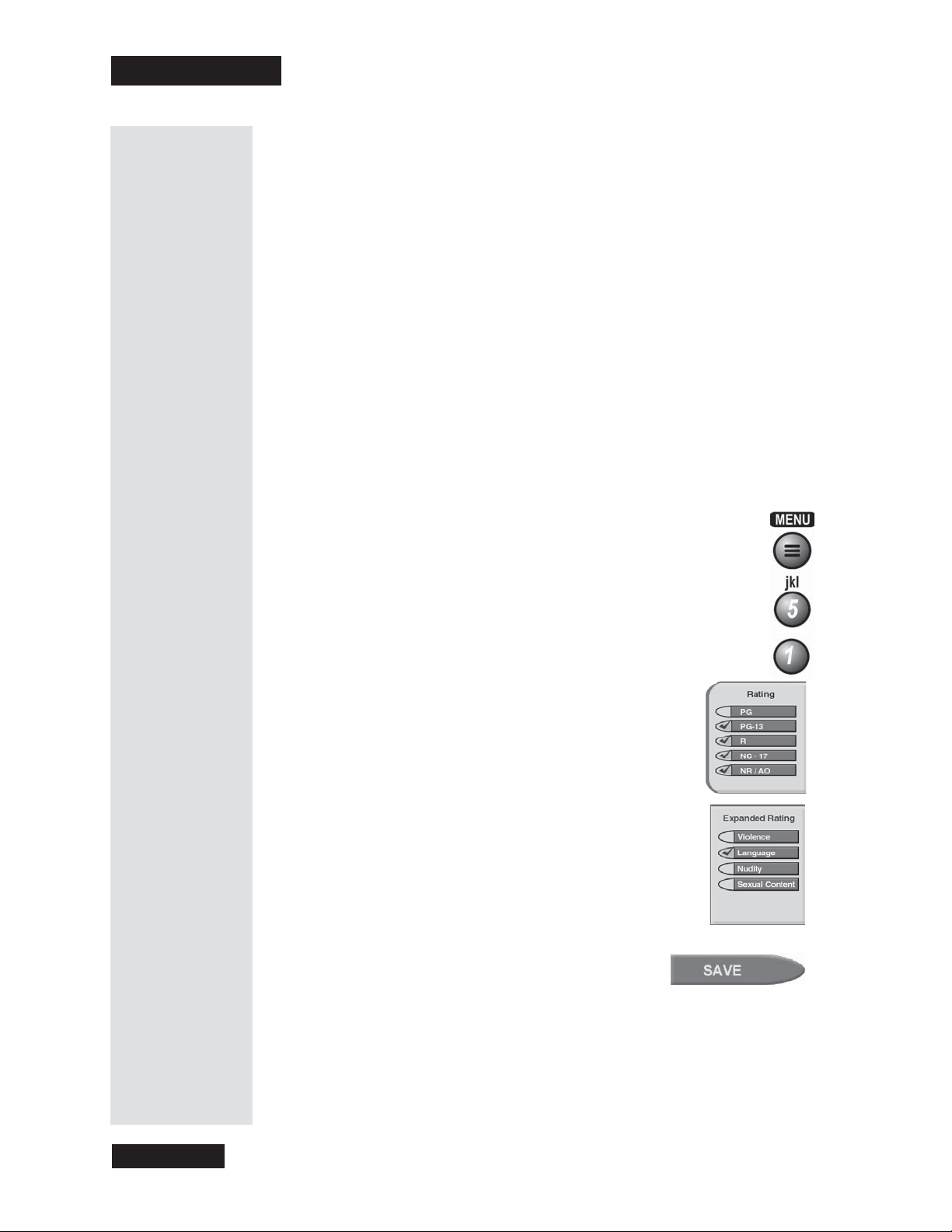

Set or Change Rating Code Locks

• Rating Codes:

G: General Audience. Suitable for young children.
PG: Parental Guidance suggested.
PG-13: Parental Guidance suggested. Not recommended for

children under 13.
R: Restricted. Not recommended for children under 17 unless
accompanied by an adult.

NC-17: Not recommended for Children under the age of 17.
NR/AO: Not Rated/Adult Oriented

Expanded Ratings:

L: Language. Adult language.
V: Viol enc e. Graphic Violence.
SC: Sexual Content. Sexual scenes.
N: Nudity. Nude scenes.

1. Press MENU andthenselecttheLocks m enu.

Tip: If you
have the
password,
you can lock
and unlock
any channel,
including pay
per view
channels.

2. Select the

3. Select the rating for the y oungest viewers you want to
protect. This also selects ratings for programs for
more mature viewers. In the example here, if you lock
PG-13 rated programs, you also lock al l programs
with the R, NC-17, and NR/AO ratings.

4. Select the expanded rating code(s), if you want to
lock these ratings too. For exam ple, here we selected

Language.

Note: You can select any, all, or none of these rating

codes.

5. To unlock a rating code, select the code.

6. Select the

7. You must lock the receiver to apply the lock you
just set. See Lock or Unlock t he Receiver on
page 47.

Ratings Locks option.

Save option to save your changes.

Page 44

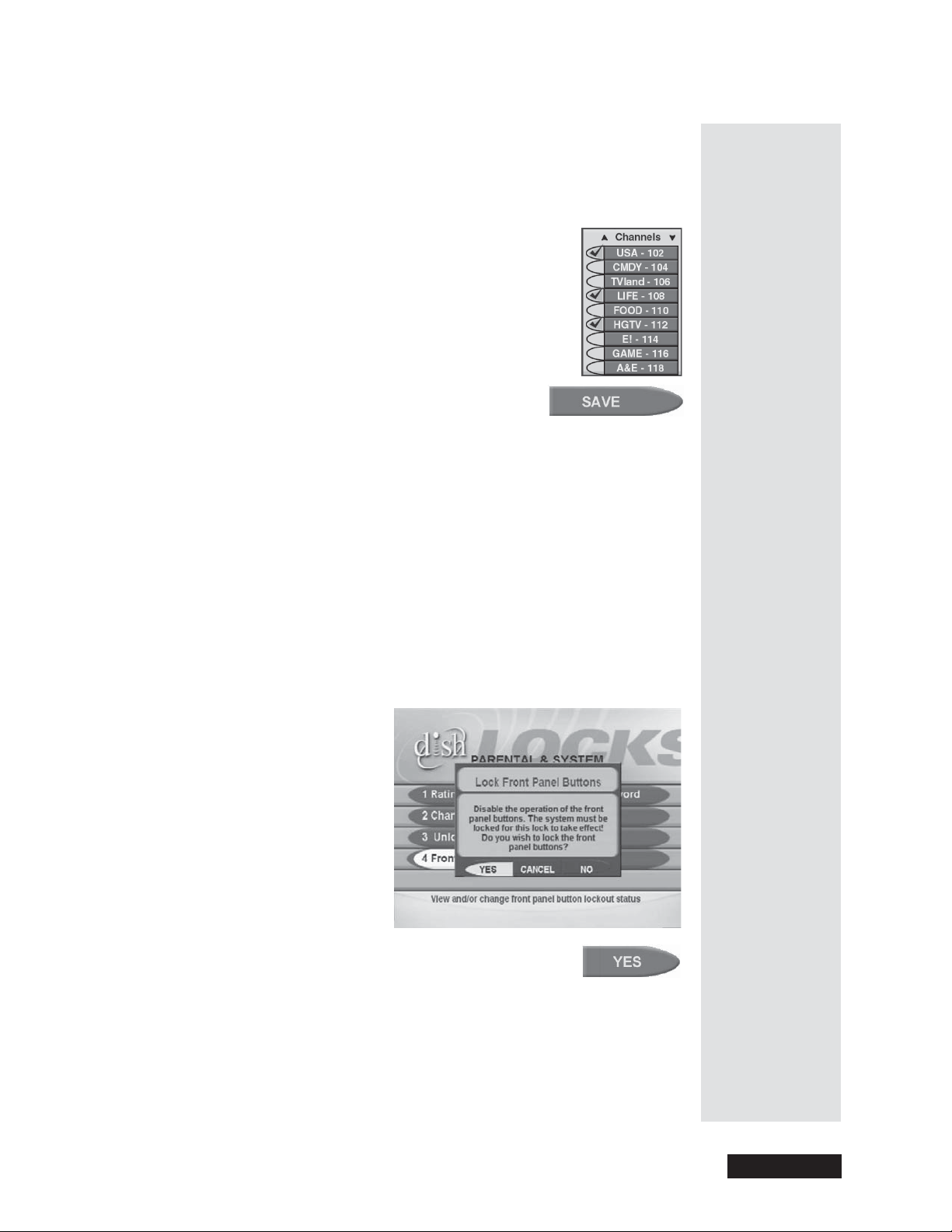

Set or Change Channel Locks

Note: You can lock any channel, even a pay per view channel.

Use Locks

1. Press MENU and then select the

2. Select the

Channel Locks option. Select the

Locks menu.

channel(s) you want to lock. A checkmark shows up
next to the channel(s), as you can see in this example.

3. To unlock a channel, select that channel. The
checkmark next to the channel goes away.

4. Select the

Save option to save your changes.

5. You must lock the receiver to apply the lock you just set. See Lock or
Unlock the Receiver on page 47.

Lock or Unlock the Receiver Front Panel Buttons

Note: You can lock the receiver buttons and hide the remote to limit how

people use the receiver.

Note: Even if you lock the receiver front panel buttons, the POWER button

will continue to work.

1. Press MENU and then select the

Locks menu.

2. Select the

Front Panel Lock option. The Lock Front Panel Buttons

pop-up displays.

3. Select the

Yes option.

4. You must lock the receiver to apply the lock you just set. See Lock or
Unlock the Receiver on page 47.

Page 45

Page 45

Chapter 3

Using the System

To unlock the receiver front panel buttons:

1. Press MENU andthenselectthe

2. Select the

Front Panel Lock options Unlock Front Panel Buttons pop-

Locks menu.

up displays.

3. Select the

Yes option.

Lock or Unlock All Pay Per View Programs

Note: This locks all pay per view channels. You c an lock one or more

channel(s) with channel locks or rating code locks.

To lock all pay per view programs:

1. Press MENU andthenselectthe

2. Select the

Lock PPV option.

Locks menu.

3. You must lock the receiver to apply the lock you just set. Please see
Lock or Unlock the Receiver on page 47.

To u nlock all pay per view programs:

1. Press MENU andthenselectthe

Locks menu.

2. Select the Unlock PPV option.

Page 46

Use Locks

Hide or Show All Adult Channels

You can keep the Program Guide, Themes lists, Favorites Li sts,andthe

Browse Banner from showing any adult channels. This means no one can

tune to adult channels with the remote control UP or DOWN ARROW
button or number buttons.

Note: This locks all adult channels. You can lock one or more adult

channel(s) with channel locks or rating code locks.

To hide all adult channels:

1. Open the Locks menu.

2. Select the

Hide Adult option.

3. You must lock the receiver to apply the lock you just set. Please see
Lock or Unlock the Receiver,below.

To show all adult channels:

1. Open the

2. Select the

Locks menu.

Unhide Adult option.

Lock or Unlock the Receiver

To lock the receiver:

1. Press MENU and then select the

2. Select the

Lock System option. The receiver displays a message that

tells you to enter the password.

Locks menu.

Tip: Yo u can lock
single adult
channels or all
adult chan nels.
Just remember
that you will
need the
password to
unlock them.

Tip: To use
Locks, you
must set the
locks you
want, and then
lock the
receiver.

3. Use the number buttons to enter the password. The receiver displays
stars (*) as you enter the digits of the password. When you enter the last
digit of the password, the receiver highlights the

OK option. Press the

SELECT button.

4. The receiver displays a message that tells you to enter the password
again. Do so, and then select the

OK option again. This applies all the

locks you set.

To unlock the recei ver:

1. Press MENU and then select the

Locks menu.

2. Because the receiver is locked, it displays a message that tells
you to enter a password. The receiver displays stars (*) as you
enter the digits of the password. When you enter the last digit of
the password, the receiver highlights the

OK option. Press the

SELECT button.

3. Select the

Unlock System option.

Page 47

Page 47

Chapter 3

Using the System

When You’ve Locked the Receiver

• If you try to watch a locked channel or program, erase a protected
DishDVR recording, or open the
message that tells you to enter the password.

• The receiver gives you three tries to enter the right password. If you
can’t do this, the receiver doesn’t let you try again for several minutes.
If you enter the right password, you can watch a locked channel or
program or open the

Locks menu.

Locks menu, the r eceiver displays a

• If you leave a locked channel or program or the
enter the password again to see the channel, program, or
again.

• If you unlock the receiver, leave the locks unchanged, a nd then lock the
receiver again, you apply the same locks as before.

Locks menu, you must

Locks menu

Personal Identification Number

You ca n set up a Personal Identification Number (PIN) for call-in requests
only. Anyone who calls the Customer Service Center must provide this PIN
to make any changes to your account, to buy services, or to get information.
You can call the Customer Service C enter at 1-800-333-DISH (3474) at any
time to set up a PIN.

If you forget your PIN, you must call the Customer Service Center. We may
ask for more information to make sure it’s okay for you to make changes to
your account.

Use Event Timers

Many satellite TV programs and films are copyrighted. In some
cases, copyright law may apply to private, in-home recording.

Page 48

Event timers let you set up the receiver to tune in future programs and/or
record them, with the DishDVR features or a VCR.

• An “event” is a program, sports event, pay per view movie, or anything
else on satellite TV.

• You can quickly set a one-time event timer with Quick Record.See
page 50.

• You can set an automatic event timer for a program listed with start and
stop times in the
each day or each week. See page 51 .

•Amanual event timer lets you set custom start and stop times for a
timer. You can use a manual timer to record part of a program, several
programs together, or parts of several programs. See page 52.

Program Guide. This can be a program that comes on

• If you use an ev ent timer, you can record only the channel you’ve got
tuned. This means you can’t reco rd one program and watc h or record
another “live” program at the same time.

• If you open a menu while you r ecord to a VCR, the tape may record the
menu. If you change the volume or press the MUTE button, the tape
may record the change depending on how your VCR is connected in
your system.

Note: If you want to have Event Timer record to a VCR, you must set

up the receiver to control the VCR. See Control a VCR on page 56.

Note: Even if the systems shows “PVR” instead of “DVR,” it works the

same way.

Use Event Timers

Event Timer Types

DVR Reminds you a program is about to start; tunes the receiver to

the program when it begins; records the program with the
DishDVR features.

Auto-Tune Reminds you a program is about to start; tunes the receiver to

the program when it begins.

Reminder Reminds you a program is about to start.

VCR Reminds you a program is about to start; tunes the receiver to

the program when it begins; starts a VCR to record the
program.

Event Timer Frequencies

Once Works for a one-time program. If the program time changes,

this timer works at the new time. The receiver deletes this
timer right after the timer wo rks.
a program, not a time. So even if the program comes on late,
the timer works for it.

Weekly Works once a week on the same channel at the same time on

the same day. You can set this t imer for a program that comes
on once a week.

Daily Works on Monday through Sunday on the same channel at

the same time each day. You can set this timer for a program
that comes on every day.

Note: A Once timer keys on

Tip: Want to
make sure
you never
miss an
episode of
your favorite
show? Just
set a Weekly
Event Timer
once, and the
receiver wi ll
automatically
record it
every week!

Mo.-Fr. Works on Monday through Friday on the sa me c hannel at the

same time each day. You can set this timer for a program that
comes on every weekday.

Page 49

Page 49

Chapter 3

Using the System

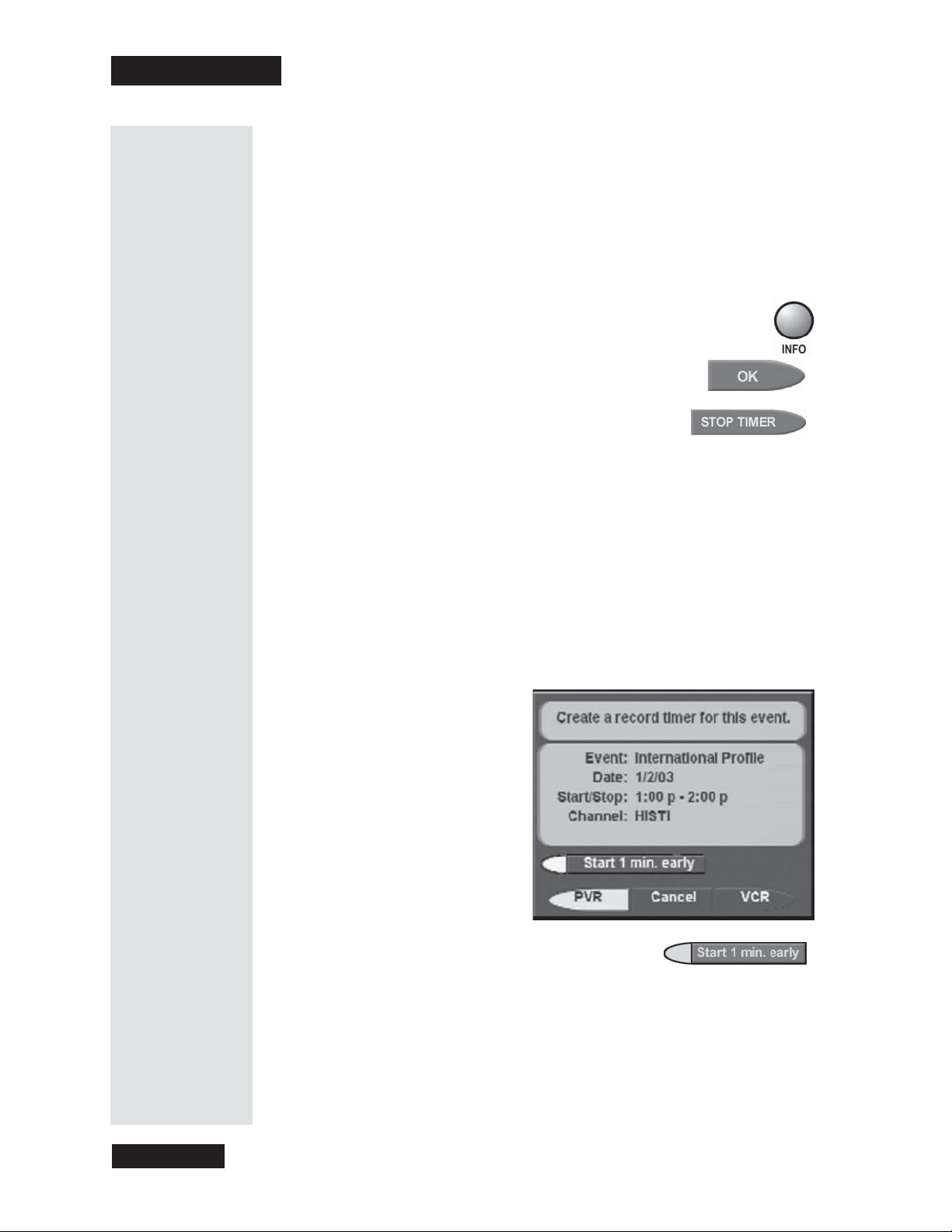

When an Event Timer Works

Only during the five minutes right before an event timer works, you’ll see a
small picture of a clock blinking on the TV screen. This clock goes away
when the program begins. While you see the clock, you can do either one of
the following:

• Press the remote control C ANCEL button to clear the clock from the

TV screen. This doesn’t change the timer; it will still work.

Tip: You can
also press
the

SELECT

button to see
more
information
about the
event timer.

Tip: Quick
Record is the
fastest and
easiest way to
record one
program once.
Just find the
program you
want to record,
press

RECORD and

then you’re
done. It’s that
simple!

• Press the remote control INFO button to see more information

on the event timer. If you do this, you’ll have these two choices:

• Select the

OK option to continue with the event

timer, or

• Select the

Stop Timer optiontostoptheevent

timer.

Use Quick Record

You can us e Quick Record to very quickly set a one-time, one-program DVR
Event Timer or VCR Event Timer.

1. Highlight but don’t select a future program in the
the

Program Guide or in a Themes list.

Note: If you select a future program, you open a menu where you can

set an automatic event timer. This is almost as fast as Quick Record.

2. Press the RECORD button.

3. This opens a menu where you can set an event timer.

Browse Banner,in

Page 50

4. If you want to start the timer one m inute early,
select the

Note: This lets you make sure the timer records a program’s start.

Note: You can start any timer (except one for a pay pe r view program)

Start 1 min. early option.

one minute early. But, if you set a timer that works right after another
timer and the second one starts early, the first one will end early.

5. Select the

DVR or VCR option.

Set an Automatic Event Timer

1. Highlight and select a future program in the Browse Banner,inthe

Program Guide, or in a Themes list.

This opens the

2. Select a
shows up next to the option you select. For
example, here we selected the

3. Select a
mark shows up next to the option you select.
For example, here we selected the
option.

4. Only for a Once (one-time), DVR Event Timer,
you can select the
box. If you do this, a check mark shows up in
the box.

Create an Event Timer menu.

Timer Type option. A check mark

DVR option.

Timer Frequency option. A check

Once

Protect Reco rdi ng check

Use Event Timers

Tip: You can
protect any
recording so
that the
receiver wi ll
not reco rd
over it
without
asking yo u
first. Just
select Protect
Recording on
the Create an
Event Timer
menu.

Note: When you protect a recorded program, the receiver will ask you

before it r ecords over that program.

5. Select the
on the program in the

Create option to set the event timer. You’ll see a clock picture

Program Guide, and also when you press the

INFO button to get information about the program.

Page 51

Page 51

Chapter 3

Using the System

Set a Manual Event Timer

Use a manual event timer to manually set the start and stop time of a
recording. This is useful for recording a ll of a sports event, even if it goes
into overtime. Or, you can record part of a program, or several programs one
after the other.

Notes:

• Be fore you set a manual timer, use the Program Guide or program lists
to find the start and end times you want to set.

•Youcan’t set a manual timer for a pay per view program.

•Youmust set the end time after the start time, and set the end time at
least one minute later than the start time.

Here’s what to do:

Tip: You can
use Event
Timers to
record
programs
automatically,
or you can set
amanual
event timer t o
record several
programs that
are on one
after another
on the same
channel.

1. Press the MENU button.

2. Select the

This opens the

Timers option.

Event Timer M anagement menu.

Page 52

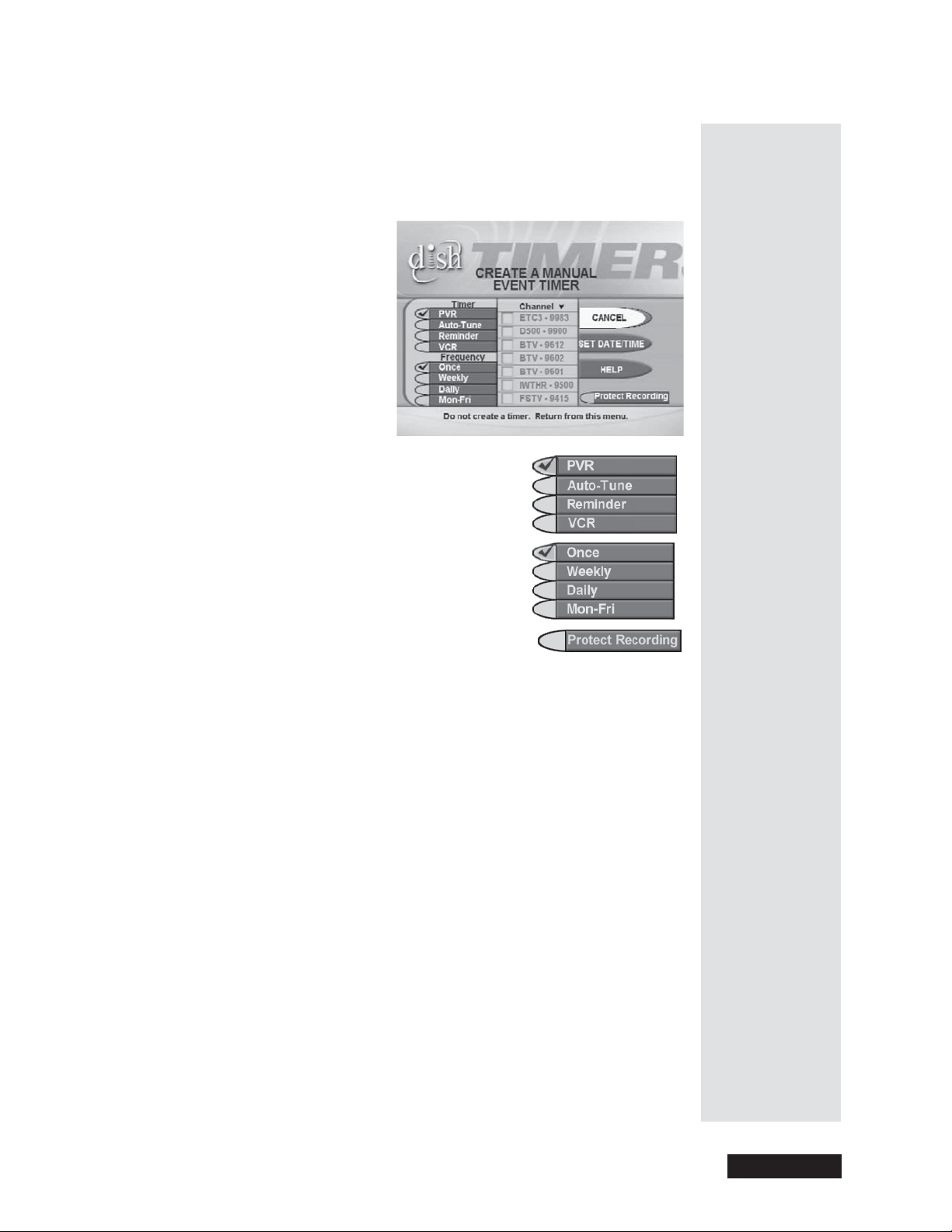

3. Select the

This opens the

Create option.

Create a Manual Event Timer menu.

Use Event Timers

4. Select a

Timer Type option. A check mark

shows up next to the option you select. For
example, here we selected the

5. Select a

Timer Frequency option. A check

DVR option.

mark shows up next to the option you select.
For example, here we selected the

Once

option.

6. Select a channel:

Either:UsetheUP or DOWN ARROW button to highlight a channel.

Then, press the SELECT button.

Or: Use the number buttons to enter a channel number.

7. On ly for a Once (o ne-time), DVR Even t Timer, you can select the

Protect Recording check box. If you do this, a check mark shows up in

the box.

Note: If you want to delete a protected program, the receiver will ask

you if you are sure you want to delete the event.

8. Select the

Set Date/Time option.

This opens the

9. Use the number buttons to enter the

Set Date/Time for Manual Timer menu.

Start Time

(make sure you select AM or PM)andtheEnd

, (make sure you select AM or PM). Note:

Time

The menu displays zeroes for you in numbers
like “07”.

10. Use the number buttons to enter the

11. Select the

12.

Either: To set another event timer, select the Create option again.
Or: If you don’t want to set another event timer, press the CANCEL

Create Timer option.

Date.

button.

When Event Timers Overlap

If you try to set event timers for programs on at the same time and date, the
receiver displays a conflict menu with the dates and times of both programs.
To resolve the conflict, pick which timer to keep and which timer to delete.

Note: The receiver deletes one-time event timers right after they work. You

must delete all other types of timers yourself.

Tip: You can
use a Manual
Event Timer to
record a
“block” of
programs on
the same
channel, or to
make sure you
don’t miss the
last few
minutes of a
sports event
that goes into
overtime.

Page 53

Page 53

Chapter 3

Using the System

Edit an Event Timer

• You can edit any type of event timer.

• You can change any feature of an event timer.

• When you edit an automatic event timer you change it to a manual event

• You can change one type of event timer to any other type of event timer and

timer. A manual timer works at the times you set, which don’t have to be the
actual program times.

back, within the limits on each type of timer. Each type of timer has its own
limits, so please be careful! Also, you can’t change a manual timer to an
automatic timer.

Here’s what to do:

1. Press the MENU button.

2. Select the

This opens the

Timers option.

Event Timer M anagement menu.

3. Select the event timer you want to edit. A
checkmarkshowsupintheboxnextto
the event timer. For example, here we
selected a DVR event timer.

4. Select the

This opens the

Edit option.

Edit a Ma nual Event Timer menu.

Page 54

5. You can change the

Timer Type, Timer Frequency,orChannel.Todo

this, select each option you want.

6. Only for a Once (one-time), DVR Event Timer,
you can select the

Protect R ecording check

box. If you do this, a check mark shows up in
the box.

Note: When you protect a recorded program, the receiver will ask you

before it records over that program.

Use Event Timers

7. If you want to change the

Time

,ortheDate , select the Set Date/Time

Start Time,theEnd

option. This opens the Set Date/Time for

Manual Timer

Note: If you don’t want to change the date or time, please skip to step

menu.

10.

8. Use the number buttons to enter the

AM or PM)andtheEnd Time, (make sure you select AM or PM).

Note: The menu displays zeroes for you in

Start Time (make sure you select

numbers like “0925”.

9. Use the number buttons to enter the

10. Select the

11.

Either: To edit another event timer, highlight the timer and selec t the
Edit option again.

Or: If you don’t want to e dit another event timer, press the CANCEL

Create Timer option.

Date.

button.

Delete an Event Timer

1. Press the MENU button.

2. Select the

Timers option to open the Event Timer Management Menu.

Page 55

Page 55

Chapter 3

Using the System

3. Select an event timer you want to delete. A check mark shows up in the
box next to the event timer. For example, here we selected a DVR event
timer.

4. Select any other timer(s) you want to delete.

Tip: You must
buyaPayPer
View event
before you can
set an
automatic
event timer for
it. And you
cannot set a
manual event
timer for any
Pay Per View
event.

5. Select the

Delete option to delete the timer(s) you selected.

Pay Per View Programs and Locked Programs

• You must buy a pay per view program be fore you can set an automatic event
timer for it. You c an’t set a manual event timer for a pay per view program.
You can’t edit an event timer for a pay per view program.

• When you’ve locked the receiver, you must enter the password before you
can set an automatic event timer for a locked program. You can set a manual
event timer for a locked program and not enter the password. If you do set a
timer like this, when the timer works the receiver may display only an error
message or a password entry menu. If you’ve set a DVR Event Timer or a
VCR Event Timer, the recording will show only the error message or
password menu.

• If you use a DVR Event Timer to record a locked program, you must enter
the password to play back the program. If you record a block of two or more
programs and just one of them is locked, you must enter the password to
play back any of them. For example, if you set an event timer to record a
block of three programs and one of them is an adult movie, you must enter
the password to watch any of the three progra ms.

Power Off and Event Timers

• If the receiver is off when a DVR Ev ent Timer, Auto-Tune Event Timer,or
VCR Event Timer works, the receiver will turn on. When the program ends,

the receiver will turn off unless you press any remote control or front panel
buttons while the timer is in operation.

• If the receiver is off when a Reminder Event Timer starts, the receiver will
turn on and stay on.

How Many Event Timers You Can Set

You ca n set a limited number of event timers. If you try to set more, the
receiver displays a menu where you can delete an existing timer. If you
don’t delete an existing timer, you won’t be able to set any new ones.

Control a VCR

Note: Remember, you can use the DishDVR features to record a program

without aVCR!

•TouseVCR Event Timers, you must connect the receiver’s back panel

audio/video outputs to the audio/video inputs on the VCR. See page 29
for the recommended connection to a VCR.

Page 56

•TouseVCR Ev ent Timers, you must set up the receiver to control the
VCR (see below). If the receiver can’t control the VCR, use an Auto-
Tune Event Timer to tune the receiver to the channel you want to record.
Use the timers built into the VCR to start and stop the VCR a t the right
times.

• The receiver ’s front panel IR BLASTER sends a n IR signal to control
the VCR. This signal can bounce off wa lls or other objects on its way to
the VCR. This works in most home setups. But, shelves or smoked glass
doors between the receiver and the VCR can block the signal. If the
signal has to cross a very large room, or bounce off curtains, it may not
be strong enough to control the VCR. Make sure nothing blocks the
signal, and the signal can bounce off nearby, light-colored, smooth
surfaces.

• If you can’t set up the IR BLASTER to control the VCR, maybe you
can use an IR extender you connect to the receiver ACCESSORY
JACK. An IR extender is a cable that carries the infrared signal from the
receiver to the IR sensor on the VCR. You can buy extenders from the
Customer Service Center. You must set up the receiver to send the right
signals out via the ACCESSORY JACK.PleaseseeSet Up the
Accessory Jack on page 81.

Use Event Timers

Here’s what to d o:

The receiver starts the VCR to record, but doesn’t
turn the VCR on. So, you must leave the V CR turned on!

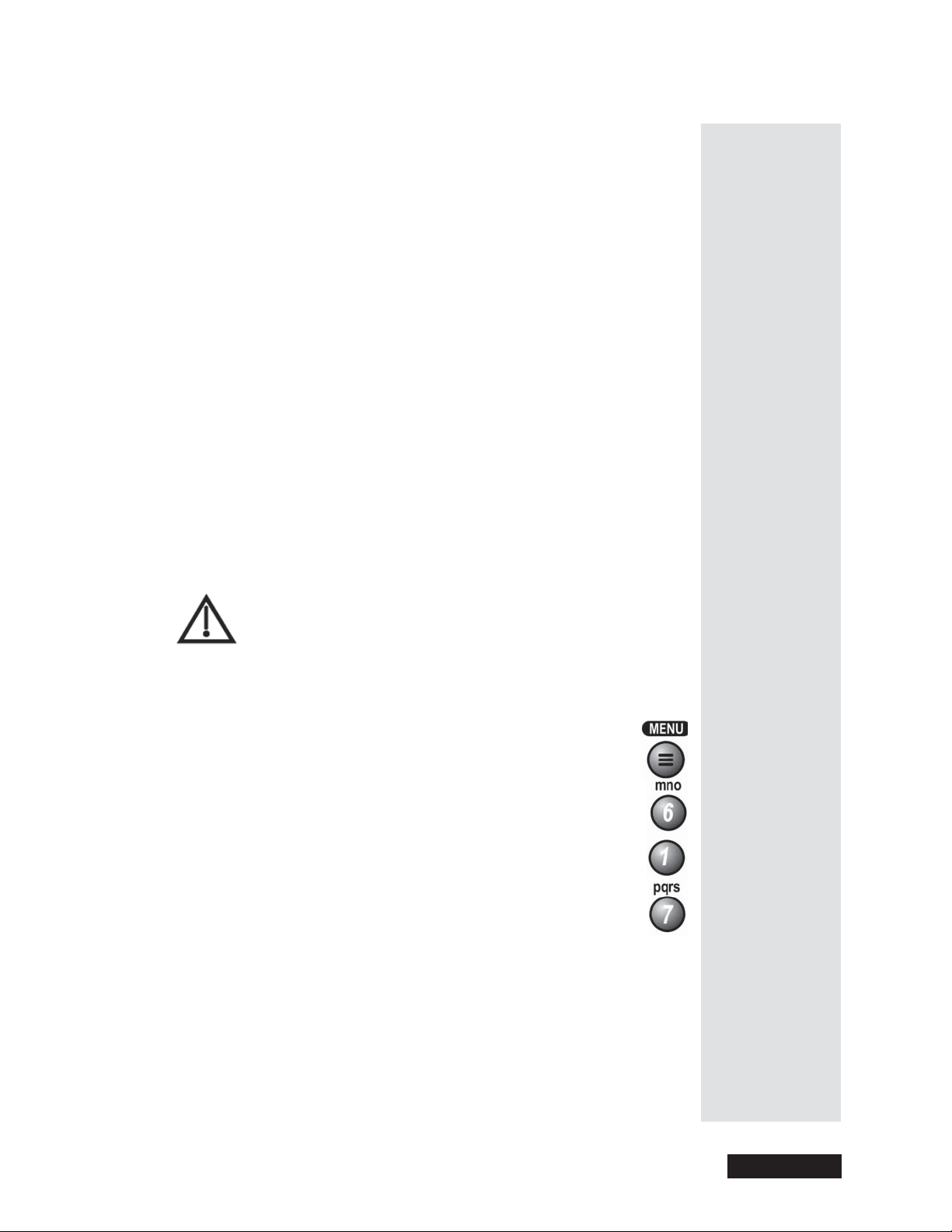

1. Get the VCR device code from the table in Device Codes starting on
page 121.

2. Press the MENU button.

3. Select the

4. Select the

5. Select the

System Setup option.

Installation option.

VCR Setup option.

6. Use the number buttons to enter the VCR device code.

7. Make sure you turn on the VCR. If you are using the

TV Set O ut on the

receiver to provide audio/video to the VCR, set its channel switch to 3
or 4 to match the receiver back panel channel 3/4 switch and make sure
the VCR is set to record on this channel. Put in a rewound videotape
that you can record on.

Page 57

Page 57

Chapter 3

Using the System

Use Caller ID

8. To test the device code, highlight the Test
option. The receiver displays a message that
warns you to make sure you turn the VCR on.

9. Press the SELECT button to start the test. The VCR records for a few
seconds, stops, and then rewinds.

10. The receiver displays a message that says the VCR test is done. Do what
the message says. If the VCR did not do the test, enter another device
code from the table, and then do step 8, step 9, and this step again.

11. Onc e you f ind the right VCR code, select the

Save option to save the VCR code you entered.

12. S et the VCR Event Timer(s) you want.
Remember, you must leave the VCR turned on with a blank tape
inserted ready to record.

Caller ID displays on your TV the names of people as they call you if you
subscribe to Caller ID from your local phone company.

Enable Caller ID

1. Make sure you have an a ctive phone line connected to the DishDVR
receiver.

2. Make sure your system is properly grounded. Sometimes an improperly
grounded system will cause problems with the Caller ID feature.

3. Press MENU on the remote and select
then Caller ID, or press MENU -6-1-8 on the remote.

4. When the Ca ller ID menu opens, move the highlight to Enable and
press SELECT to save your choice. Press VIEW to go back to watching
a program.

System Setup, Installation,and

Page 58

Use Dolby®Digital Sound

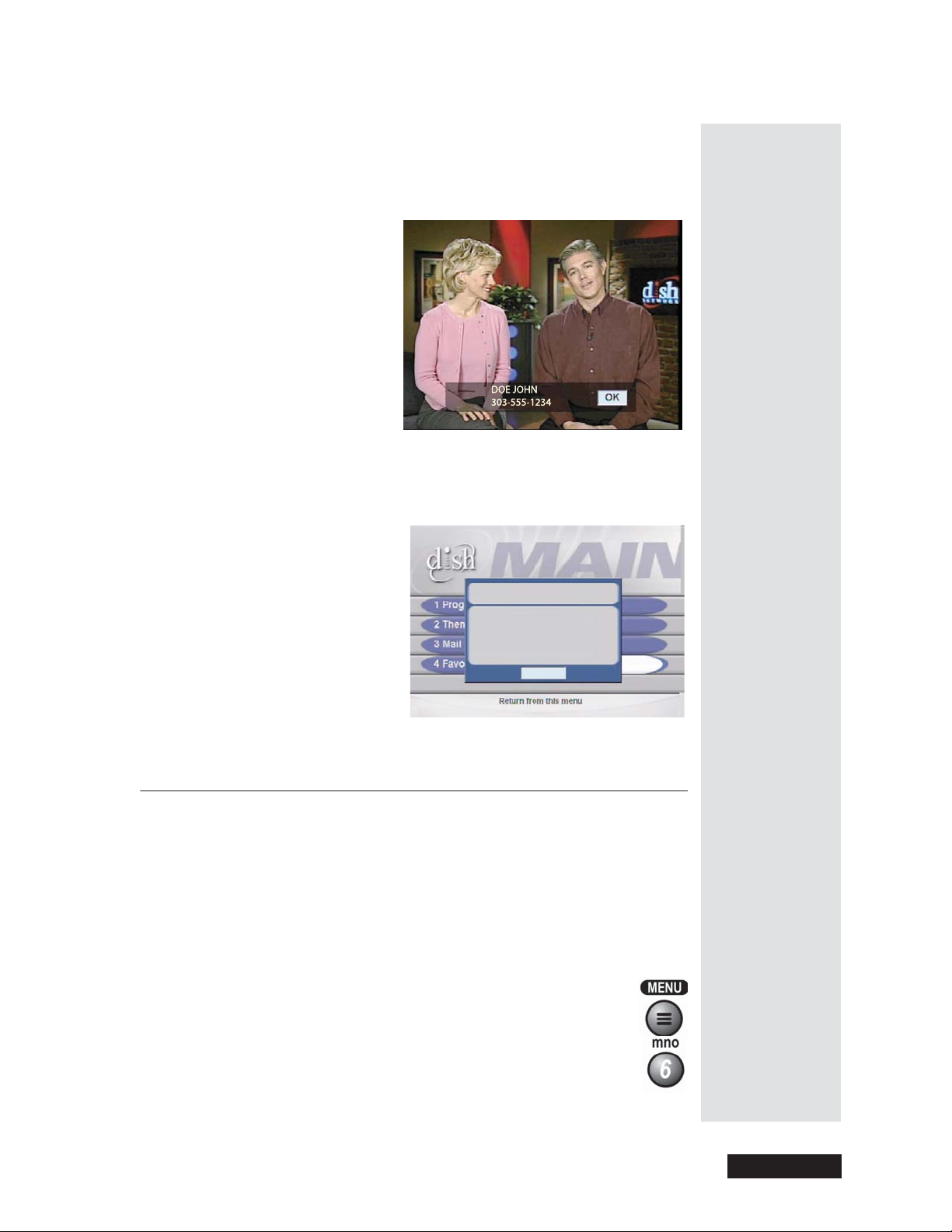

When You Get a Call

When you receive a call, you will see a Caller ID popup with the same kind
of information you see on your regular phone or Caller ID device.

You ca n s e l e c t

OK to close the message. If you do nothing, it will disappear

after 20 seconds.

If you are in a menu when a call comes in, you will see a different
popup screen.

Attention

Incoming call:

Name: DOE JOHN
Phone: [phone]

OK

Use Dolby®Digital Sound

Dolby®Digital lets you use Dolby®Surround sound in an audio/video
system. The receiver has a Dolby

®

have Dolby

Digital sound. The receiver provides Dolby®Digital and
Linear PCM (regular mono or stereo sound) for a sound system or audio
amplifier/decoder that can process such audio.

®

Digital output, although not all programs

Caller ID

1. Connect an amplifier/decoder that can process Dolby

the receiver’s back panel DOLBY

®

DIGITAL output.

2. Press the MENU button.

3. Select the

System Setup option.

®

Digital signals to

Page 59

Page 59

Chapter 3

Using the System

4. Select the Dolby

®

Digital option.

5. Select one of the options below.

If you select the

Dolby®Digital/PCM option and

the amplifier can’t process both types of signals, you could
damage the speakers. Please see the user’s manual that
came with your amplifier for more details.

•

Dolby®Digital Only - S elect this option if the amplifier can

process only Dolby

•

PCM Only - Select this option only if the amplifier can’t process

®

Digital (AC3) signals.

Dolby Digital signals.

•

Dolby®Digital/PCM - Select this option only if the amplifier

can process both Dolby

6. Select the Save option to save the setup.

Use the DishDVR Features

Most satellite TV programs and films are copyrighted.
In some cases, copyright law may apply to private,
in-home recording.

®

Digital and Linear PCM signals.

The DishDVR features let you decide how to watch TV. You can pause,
reverse, or skip back through a program. Then you can go back to watch,
fast forward, or skip ahead through the programed can record and play back
programs with full digital audio and video quality, without aVCR.

Auto Recording

If you get a phone call while you watch a live program, you can pause the
program, answer the phone, go back to watch the program, and not miss any
of the action.

You ca n pause, reverse, or skip back through a live program. Then you can
go back to watch, fast forward, or skip ahead through the program.

You ca n also use slow motion forward and backward, and frame advance
and reverse while using the DishDVR’s auto recording feature.

For more information, please see Use Auto Recording,below.

Page 60

Use the DishDVR Features

On-Demand Recording

You can record a program on now or a future program to watch later, or you
can keep your recording.

You can pause, go back to play, reverse, skip back, fast forward, or skip
ahead through a recorded program.

You can also use slow motion forward and backward, and frame advance
and reverse while using the DishDVR’s auto reco rding feature.

You can play back a program you already recorded and record a new
program at the same time.

For more information, see page 62.

Auto Recording and On-Demand Recording at the Same Time

You can pause, go back to watch, reverse, skip back through, fast forward,
or skip ahead through a “ live” program and record that program at the same
time. For more information, see page 66.

Use Auto Recording

Tip: Auto
recording i s
what happens
automatically
while you’re
watching a
program. It
includes
features like
Pause, Back,
Forward and
Skip Forward.
On-demand
recording i s
what you use
with
programs
you’ve
already
recorded.

Turn the receiver on and tune it to a channel. Then you can use the remote
control’s D ishDVR buttons.

Note: When you press any one of these buttons, you’ll see a sm all sign on

the TV screen.

Press the PAUSE button to pause the program. Press this button
again to watch the program from where it paused.

Note: For a “live” program, the on-screen pause timer shows how

long you’ve paused the program. If you’ve paused the program
more than once, the pause timer shows the total time you’ve paused. If you
pause after you reverse or forward, the pause timer shows how far you’re
behind the “live” program.

Press the BACK button once to reverse the program four times
as fast as normal play. Press the BACK button twice to reverse
at 15 times normal speed, three times to reverse at 60 times
normal speed, and four times to reverse at 300 times normal
speed. The on-screen bar shows how far you’ve gone.

Press the PAUSE button and then press the BACK buttontoreversethe
program in slow motion. Press the BACK button once to reverse the
program 1/4 the speed as normal play. Press the BACK button twice to
reverse at normal speed.

Press the FWD (“FORWARD”) button once to forward the
program four times as fast as normal play. Press the FWD
button twice to forward at 15 times normal speed, three times to
forward at 60 times normal speed, and four times to forward at
300 times normal speed. The on-screen bar shows how far you’ve gone.

Page 61

Page 61

Chapter 3

Using the System

Press the PA USE button and then press the FWD button to forward the
program in slow motion. When you press the FWD button once the program
advances at 1/15 the speed of normal play. Press the FWD button twice to
forward at 1/4 as fast as normal play. Press the FWD button three times to
play the program.

Note: Of course, you can’t “forward” into the part of a “live” program that

hasn’t been broadcast yet.

Press the PL AY button to watch the program. Also, press this
button to switch from pause, forward, or reverse to play.

Press the SK IP BACK button to skip back about ten seconds in a
recorded program. Press this button again to skip back again.

Press the PAUSE button and then press the skip back button to
reverse the recording one frame at a time.

Press the SK IP AHEAD button to skip ahead about 30 seconds in
the program. Press this button again to skip ahead again.

Press the PAUSE button and then press SKIP AHEAD to advance
the recording one frame at time.

Note: Of course, you can’t “forward” into the part of a “live” program that

hasn’t been broadcast yet.

Press the VIEW button to c atch up with the program as it’s showing
now.

Use On-Demand Recording

Turn the receiver on and tune it to a channel.

Note: If you record a locked program while you have the receiver locked,

you’ll have to enter the password to play back that program.

Start Recording a Program

• At a program’s start, press the remote control’s RECORD

button.

If you’ve watched a program from its start, up to about one
hour after it’s started, you can reverse to its start:

1. Press the BACK button.

2. Let the program reverse to its start.

3. Press the RECORD button.

You’ll get all of the program on
your recording.

Page 62

Note: If you don’t tune to a program

until after it starts, you can record only
the part of the program that comes
after you tune to it.

Use the DishDVR Features

Stop Recording a Program

• Press the remote control’s STOP button.

When you press the RECORD button, you control how long the
receiver records. The receiver won’t stop recording too soon.
This also means you must remember to stop the recording! You
can use an Event Timer to start and stop the recording:

•UseQuick Record to set a one-time DVR event timer for a future
program. Please see page 50.

•Setanautomatic DVR event timer to record a future program that
comes on each day or each week. Please see page 51.

•Setamanual DVR event timer to make a future recording with start
and stop times you set. This lets you record part of a program or a
block of several programs, one after the other. S ee page 52.

Use the DVR Recorded Events Menu

Press the DVR button to open the DishDVR Recorded

Events

menu.

• “Events” are recorded programs or other recordings you
make.

• If you hide adult channels and lock the receiver, this menu doesn’t
list any adult programs by name.

• To review programs you reco rd only with the DishDVR features,
use this menu. To see all event timers, including DishDVR timers,
use the

The

DishDVR Rec orded Events menu shows you:

Event Timer M anagement menu.

• A list of r ecorded events that includes the one you’re recording
now, if any.

Note: You can sort events either by date or the name of the event.

• Approximately how much time you can still record. We call this the
“time left.”

Note: The receiver needs more room to record programs with

more action. So, the “time left” isn’t exact.

If you selec t any one of t he events on the DishDV R Recorded

•

Events menu
information menu for that event.

Note: This is just an example of the information menu. The

(even an event you’re recording), you open an

information menu shows only the options for the event you select.
For a different event, you’ll see different options. You’ll see some
(not all) of the options we list below. You won’t see an option to
start recording; to do that, you must press the remote control
RECORD button or set an event timer.

Note:Ifyou record a locked program while you have the

receiver locked, you’ll have to enter the password to play back
that program

.

Tip: Press

DVR on the

remote to see
alistofthe
events you’ve
recorded. To
view one of
these events,
just Select it.
You can the n
Start the
recording,
Start Over,
Stop or
Resume play.

Page 63

Page 63

Chapter 3

Using the System

• Select the Start optiontoplaybacktheeventfromits
start.

• Select the

Start Over option to play back the event

from its start.

• Select the

Stop option to stop play back and go back to

the event’s information menu.

• Select the

Resume optiontoplaybacktheeventfrom

where you stopped it before, if ever.

• Select the

Protect option to “protect” the event. The

receiver will ask you be fore it records over the event.

• Select the

Note: To unprotect an event or to erase a protected

Unprotect option to “unprotect” the event.

event when you’ve locked the receiver, you must enter the
password.

• Select the

Erase option to e rase the event.

• Select the

View optiontogobacktothelastsatellite

TV channel you watched. If you’re recording an event,
the receiver tunes to that event’s channel.

• Select the

Recorded E vents

Cancel option to go back to the DishDVR

menu.

While Playing Back or Recording an Event

•PressthePAUSE buttontopausetheplayback.Pressthis

button again to go on with the play back.

•PresstheBACK button once to reverse the program four
times as fast as normal play. Press the BACK button twice to
reverse at 15 times normal speed, three times to reverse at 60
times normal speed, and four times to reverse at 300 times
normal speed.

•PressthePAUSE button and then press the BACK buttontoreversethe
program in slow motion. Press the BACK button once to reverse the
program 1/4 the speed as normal play. Press the BACK button twice to
reverse at normal speed.

•PresstheFWD (“FORWARD”) button once to forward the
program four times as fast as normal play. Press the FWD
button twice to forward at 15 times normal speed, three
times to forward at 60 times normal speed, and four times to
forward at 300 times normal speed.

Page 64

•PressthePAUSE button and then press the FWD button to forward the
program in slow motion. When you press the FWD button once the
program advances at 1/15 the speed of normal play. Press the FWD
button twice to forward at 1/4 as fast as normal play. Press the FWD
button three times to play the program.

Note: Of course, you can watch any part of an e vent you’ve already

recorded.

Use the DishDVR Features

•PressthePLAY button to play back or go on with a paused play

back. Also, press this button to switch from fast forward or
reverse back to normal play back.

•PresstheSKIP BACK button to skip back about ten se conds in

the event. Press this button again to skip back again.

•PressthePAUSE button and then press the SKIP BACK

button to reverse the recording on e frame at a time.

•PresstheSKIP AHEAD button to skip ahead about 30 seconds

in the event. Press this button again to skip ahead again.

•PressthePAUSE button and then press the SKIP AHEAD

button to advance the recording one frame at a time.

•PresstheSTOP buttontostopplayback.

Play Back a Recorded Event and Record Another Event

1. Set up the receiver to make an on-demand recording.

Note:YoucanpresstheRECORD button or you can use any kind

of event timer except a V CR event timer.

2. Press the DVR button. This opens the

Events

3. Select an event on the

menu.

DishDVR Reco rded Events menu (not the

one you’re recording). This opens an information menu for that
event.

DVR Recorded

Tip: With the
DishDVR
receiver, you
can even
watch one
recorded
event while
recording
another at the
same time!

4. Select the
event.

Start, Start Over,orResume optiontoplaybackthe

Page 65

Page 65

Chapter 3

Using the System

More About the DVR Features

Auto Recording

• Whenever you turn the receiver on, it’s auto recording.

• Withautorecord,youcanrecorduptoabout an hour of a program. This
total recording time applies to auto recording only.

• The receiver needs m ore room to record programs with more a ction. So,
the total recording time isn’t exact.

•Afterabout an hour, the receiver starts to record over its oldest audio
and video to have room for new audio and video.

• If one program ends and the next one starts on the same channel, the
receiver continues to record the next program.

• If you change the channel, you eras e the recorded audio and video, a nd
start recording the new channel.

On-Demand Recording

• On-demand recording works only when you set it up.

•Thereceivermust have enough room to record:

• W hen you m ake a one-time DishDVR recording, you can set the

receiver to ask you before it records over what you record. This is
how you “protect” a recorded event.

• If the receiver needs room to record a new event, it’ll record over

the oldest “unprotected” recorded event(s) to make room.

• If the receiver is out of room, and you don’t let it record over any

old recorded events, it won’t be able to record a new e vent.

• To free up space on the receiver, you can erase events by opening

Events Information menu and selecting the Erase option.

the

Auto and On-Demand Record at the Same Time

If you record a live program using the on-demand option, you can use auto
recording to pause, go back to play, reverse, skip back through, fas t forward,
or skip ahead through the same program at the same time.

Page 66

Copy Recordings to Videotape

Use the DishDVR Features

You may want to keep a videotape copy of a recording you made
on the DishDVR. Or, if the receiver is out of room,
maybe you’ll want to move recordings to a videotape to store them.

Many satellite TV programs and films are copyrighted. In some
cases, copyright law may apply to private, in-home recording.

You wil l not be able to play back events with full digital audio
and video quality from a videotape.

Here’s what to do:

1. Connect the receiver’s back panel audio/video outputs to the VCR’s
audio/video inputs.

2. Put a rewound tape into the VCR.

3. Turn the VCR on.

4. Press the remote control DVR button. This opens the

DishDVR Recorded Events menu.

5. Select an event on the

DishDVR Reco rded Events menu. This opens

an information menu for that event.

6. Start the VCR to record onto the tape.

Tip: If you
want to
“archive” an
event to save
it for a long
time, you can
move it from
the receiver to
aVCR.

7. On the event’s information menu, select the
The receiver begins to play back the event.

8. When the play back is done,

either: Select another event to copy, or:If

you don’t have another copy to make, stop the VCR.

Start option.

Page 67

Page 67

Chapter 3

Using the System

Control Other Devices with the Remote

Remote Control Modes

This section describes how to use the remote to control a TV, a VCR, or
other devices. For information on how to use the remote to control the
receiver, see Remote Control on page 20. You can set up the remote to
control the satellite TV receiver and up three other devices. These devices
can be a TV, a VCR or DVD player, and a third device.

You ca n set the remote to four different modes to control the receiver or
other devices.

You must set up the remote to control a device like a TV or a VCR. See Set
Up the Remote to Control Other Devices,below.

Use the remote control’s mode buttons, SAT
(satellite receiver), TV, VCR (for a VCR or a
DVD player), and AUX (“auxiliary,” for a
cable TV box, a tuner, or an audio amplifier)
to set the remote to the right mode for the
device. To change the mode, press the button
for the device you want the remote to control.
The mode button lights for two seconds to
show you’ve set the remote to that mode.

Limited Mode

You ca n program your remote control in limited mode to keep from
accidentally changing the channel on your TV or VCR. When you use the
remote to control your TV in limited mode, you will only be able to use the
POWER, MUTE,andVOLUME buttons. Also, when you use the remote to
control your VCR in limited mode, you will only be able to use the
POWER and VCR tape control buttons.

The section Set Up the Remote Control has a step that tells the remote
control to go into limited mode.

Note: Limited mode is not used with cable boxes or amplifiers.

Set Up the Remote to Control Other Devices

Over the next few pages we tell you how to use the remote to control a TV, a
VCR, a cable TV box, a tuner, or an amplifier.

When you get the remote it’s already set up to control the
receiver. But, you must set up the remote to control the TV

before you c an c ontrol the TV’s POWER, MUTE, and
VOLUME buttons.

To use the remote to control other devices, you must first program it to
control these other devices. You can do this by either following the
instruction in Set Up the Remote Control below, or Scan for Dev ice Codes
procedure described on page 70.

Page 68

Control Other Devices with the Remote

Set Up the Remote Control

You can set up the remote to control other devices using the device codes
listed on page 120.

1. Turn the device on. Use the device’s front panel buttons

or its remote control.

2. Find the brand name of the
device in the tables starting on
page 120.

3. Press and hold the mode
button until all the other mode
buttons light up, and then let
go of the button.

The mode button flashes.

4. For AUX mode only.Press0
forasecondTV,or1fora
second VCR, or 2 for a tuner,
amplifier, or cable box.

5. Enter one of the three-digit
device codes from the table
using the number buttons.

6. If you want to program
limited mode, press 1. If not,
skip to step 7.

7. Press the POUND (#) button. If you entered the code correctly,

If the brand isn’t listed, see Scan for
Device Codes on page 70.

For example, hold the TV mode
button for a TV until all of the other
mode buttons light. When you let
go, the TV mode light w ill flash.

This step is for programming which
kind of device that should be
programmed in AUX mode. If
you’re not programming in AUX
mode, skip to step 5.

The three-digit device code should
be for the brand name of your device
that you found in step 2.

See L imited Mode for more
information.

the mode button flashes three times.

8. Press the blank POWER
buttontoturnoffthedevice.If
the device does not turn off,
go to step 10.

9. Turn the device back on and
try some other buttons to
make sure they work. If the
code works for other buttons,
stop here.

10. If the code doesn’t work, redo
steps 3 through 9 with another
device code from the tables.

11. If you can’t find a code that
works try, Scan for Device
Codes below.

If the code works, the device should
turn off.

Sometimes the blank POWER
button works when other buttons
don’t.

Try every code listed for you brand
until one works for your device.

Page 69

Page 69

Chapter 3

Using the System

Scan for Device Codes

If the code for your device is not listed in the tables starting on page 120, use
this procedure to scan the remote control’s memory for the device code.

1. Turn the device on. Use the device’s front panel buttons
or its remote control.

Tip: The
receiver
deletes one­time event
timers right
after they work.
You mu st
delete all other
types of tim ers
yourself.

2. Press and hold the mode

button until all the other mode
buttons light up, and then let
go of the button.

The mode button flashes.

3. For AUX mode only.Press0

forasecondTV,or1fora
second VCR, or 2 for a tuner,
amplifier, or cable box. Then
press the STAR (*) button.

4. Press the blank POWER

button.

5. Press the UP or DOWN

ARROW button repeatedly
until the device turns off.

For example, hold the TV mode
button for a TV until all of the other
mode buttons light. When you let
go, the TV mode light will flash.

This step is for programming which
kind of device that should be
programmed in AUX mode. If
you’re not programming in AUX
mode,skiptostep4.

This puts your remote in the scan
mode.

As you press the UP or DOW N
ARROW button, the remote is
trying each code in the memory to
see if it can turn off your device.
When the device turns off, you have
found a code that might work.

Note: The mode button for the
device will flash rapidly eight times
when you’ve scanned all the codes
for that device.

Page 70

6. Press the Pound (#) button. This stores the code you found.

7. Turn the device back on and

try some other buttons to
make su re they work.

Press the blank POWER button to
turn the device back on. Try some
other buttons to make sure they
work. Sometimes, the blank
POWER button works when other
buttons don’t.

8. Repeat this procedure until

you’ve tried all the codes.

You may need to repeat the scan to
find the best code for your device.

Control Other Devices with the Remote

ChecktheDeviceCodes

You can find out what device code you’ve set for each remote control mode.

1. Press and hold the mode
button until all the other mode
buttons light up, and then let
go of the button.

The mode button flashes.

2. Press the Pound (#) button
twice.
Wa tch the mode light to
determine your code. The
mode button flashes the
number for each digit of the
device code, with a pause
between the groups of flashes.
A quick flash is for zero.

3. For AUX mode only.The first
group of flashes tells you what
the AUX mode controls. A
quick flash (zero) before the
three-digit code is for a TV;
one regular f lash is for a VC R;
and two flashes is for a tuner,
amplifier, or cable box.

For example, hold the TV mode
button for a TV until all of the other
mode buttons light. When you let
go, the TV mode light w ill flash.

For example, if the code is 570, the
mode button flashes five times,
pauses, flashes seven times, pauses,
and flashes once quickly.

For example, if the TV code is 570,

the AUX mode button flashes once
quickly (indicating 0 for TV),
pauses, flashes five times, pauses,
flashes seven times, pauses, and
flashes once quickly.

Page 71

Page 71

Chapter 3

Using the System

Remote Control Buttons

Control the Receiver

When you get the remote it’s already set up to control the
receiver. But, you must set up the remote to control the TV
before you can use the MUTE and VOLUME buttons.

For information on the remote buttons that control the
receiver, please see Remote Control on page 20.

Control a TV (or a Second TV)

Only the buttons described here control a TV. Some of the
buttons described here may not control your TV. Please see
your TV user’s manual for information about the TV’s
features.

TV Mode Button

Tip: If you set
up the remote
to control a TV,
the TV POWER,
MUTE, and
VOLUME
buttons will
control the TV
volume when
you’re in m ost
other modes.

You must first set up the r emote to control the TV. Please see Set Up
the Remote to Control Other Devices, beginning on page 68. Then,

you must press the TV mode button to set the remote to TV mode. The TV
mode button lights for two seconds to show you’ve set the remote to TV
mode. Make sure you keep the remote in TV m ode to use the buttons
described here.

Note: You can set up the remote to control a second TV in AUX mode, the

same way it controls the first TV in TV mode. See Set Up the Remote to
Control Devices beginning on page 68.

TV/Video Button

If the TV has video input options, use this button to switch the TV
video input.

Power Buttons

Press either POWER button to turn the TV on or off.

Note: If you set up the remote to control one TV in TV mode

and an additional TV in AUX mode, pressing the TV POWER
button controls only the TV you set up in TV mode.

Mute Button

Press this button to turn the TV sound on or off.

Page 72

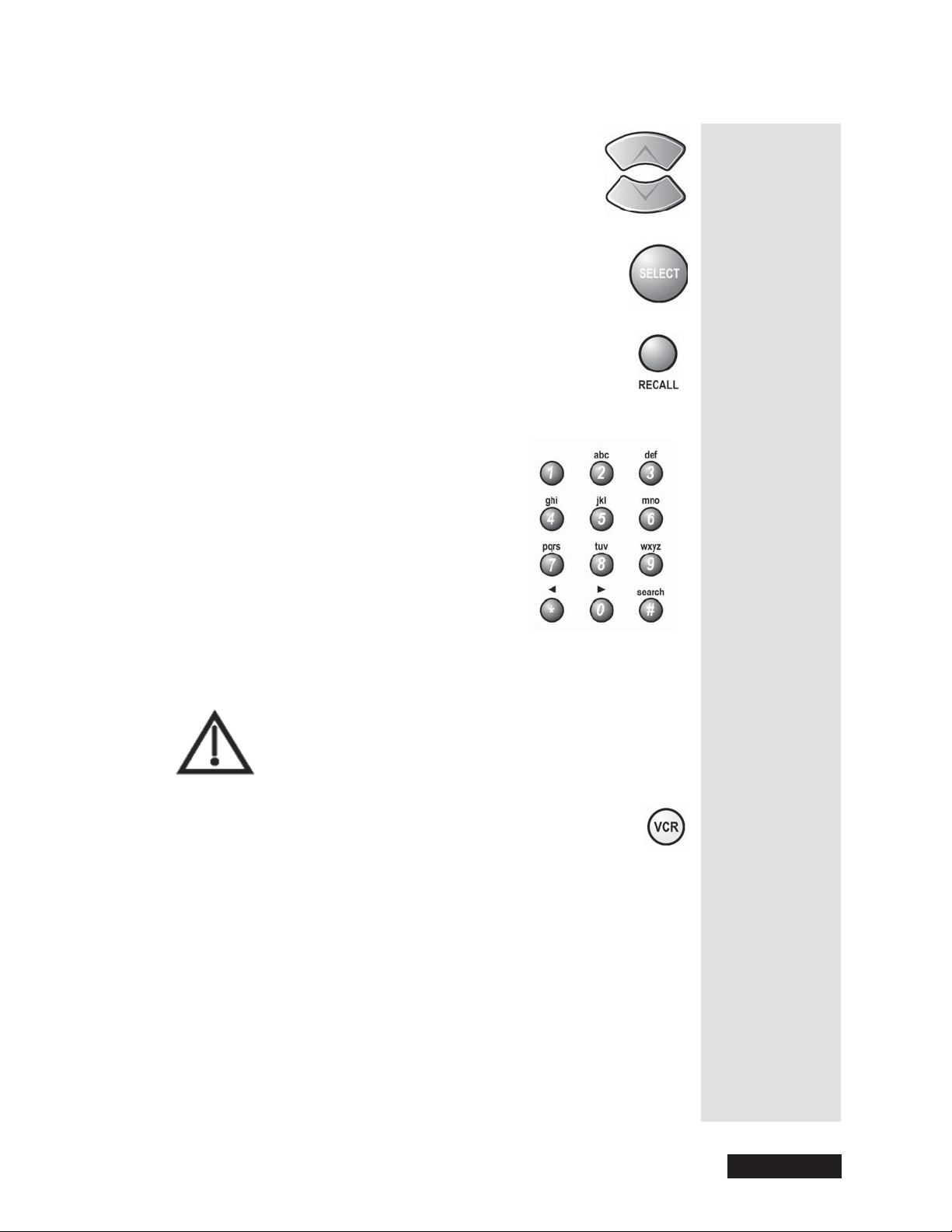

Volume Bu tton

Press this button to raise (+) or lower (-) the TV sound
volume.

Control Other Devices with the Remote

Up/Down Arrow Buttons

Use these buttons to change channels on the TV.

Note: These buttons do not change the channels on the TV if

the remote control is in limited mode.

Select Button

The SELECT button works as the ENTER button for a TV.

Recall Button

Press this button to go back to the last TV channel you watched.
Press it again to switch between the last two TV channels you
watched.

Number Buttons

Use these buttons to directly enter a different
channel.

Note: These buttons do not change the channels on

the TV if the remote control is in limited mode.

Control a VCR (or a Second VCR or a

DVD Player)

Only the buttons described here control a VCR or DVD
player. Some of the buttons described here may not control
your VCR or DVD player. See the user’s manual that came
with your VCR or DVD player for information about the
features.

VCR Mode Button

You must first set up the remote to control the VCR. See Set Up the
Remote to Control Devices, beginning on page 68. Then, you must

press the VCR mode button to set the remote to VCR mode. The VCR
mode button lights for two seconds to show you’ve set the remote to VCR
mode. Make sure you keep the remote in VCR mode to use the buttons
described here.

Note: You can set up the remote to control a second VCR in AUX mode, the

same way it controls the first VCR in VCR mode. See Set Up the Remote to
Control Devices beginning on page 68.

Note:Youmust set the remote to VCR mode to set it up to control a DVD

player. Once you do this, you must set the remote to VCR mode to control a
DVD player.

Page 73

Page 73

Chapter 3

Using the System

TV/Video Button

Use this button to switch the VCR between its TV mode a nd its
VCR mode (see your VCR user’s manual for information).

Power Button

Press the blank Power button to turn the VCR on or off. Press
the TV power button to turn the TV on or off.

Mute Button

Press this button to turn the TV sound off or on.

Up/Down Arrow Buttons

Use these buttons to change channels on the VCR.

Note: If you are using the remote control in Limited Mode,

the TV will not change channels.

Recall Button

Press this button to go back to the last VCR channel you used.
Press it again to switch between the last two VCR channels you
used.

VCR Buttons

•PresstheBACK button to rewind a videotape.

•PressthePAUSE button to pause a videotape. Press this
button or the PLAY button to go back to play the tape.

•PresstheFWD (“forward”) button to forward a videotape.

•PresstheSTO P buttontostopplayingorrecordingona
videotape.

Page 74

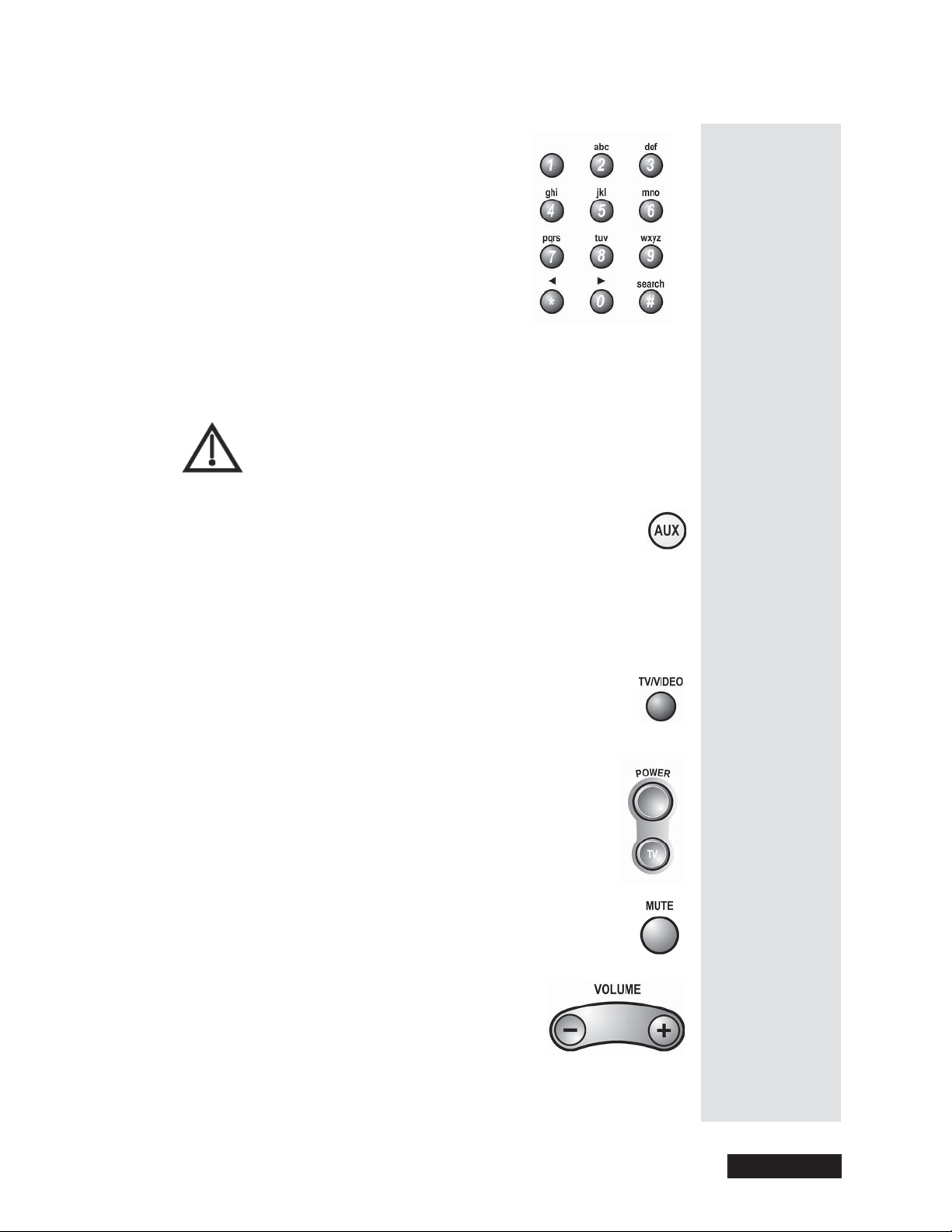

•PresstheRECORD button to record on a videotape.

•PressthePLAY buttontoplayortogobacktoplaya
videotape.

Control Other Devices with the Remote

Number Buttons

Use these buttons to enter channel numbers.

Note: If you are using the remote control in Limited

Mode, the TV will not change channels.

Control a Cable TV Box

Only the buttons described here control a cable TV box. Some
of the buttons described here may not control your cable TV
box. Please see your cable box user’s manual for information
about the box’s features.

AUX Mode Button

You must f irst set up the remote to control the cable TV box. Please
see Set Up the Remote to Control Devices, beginning on page 68.
Then, you must press the AUX mode button to set the remote to AUX mode.
The AUX mode button lights for two seconds to show you’ve set the remote
to AUX mode. M ake sure you keep the remote in AUX mode to use the
buttons described here.

TV/Video Button

Use this button to switch the cable box between its TV mode and
its video mode.

Power Button

Press the blank POWER button to turn the cable box on or off.

Mute Button

Press this button to turn on or off the sound from the cable box.

Vol um e But to n

Press this button to raise (+) or lower (-) the sound
volume from the cable box.

Page 75

Page 75

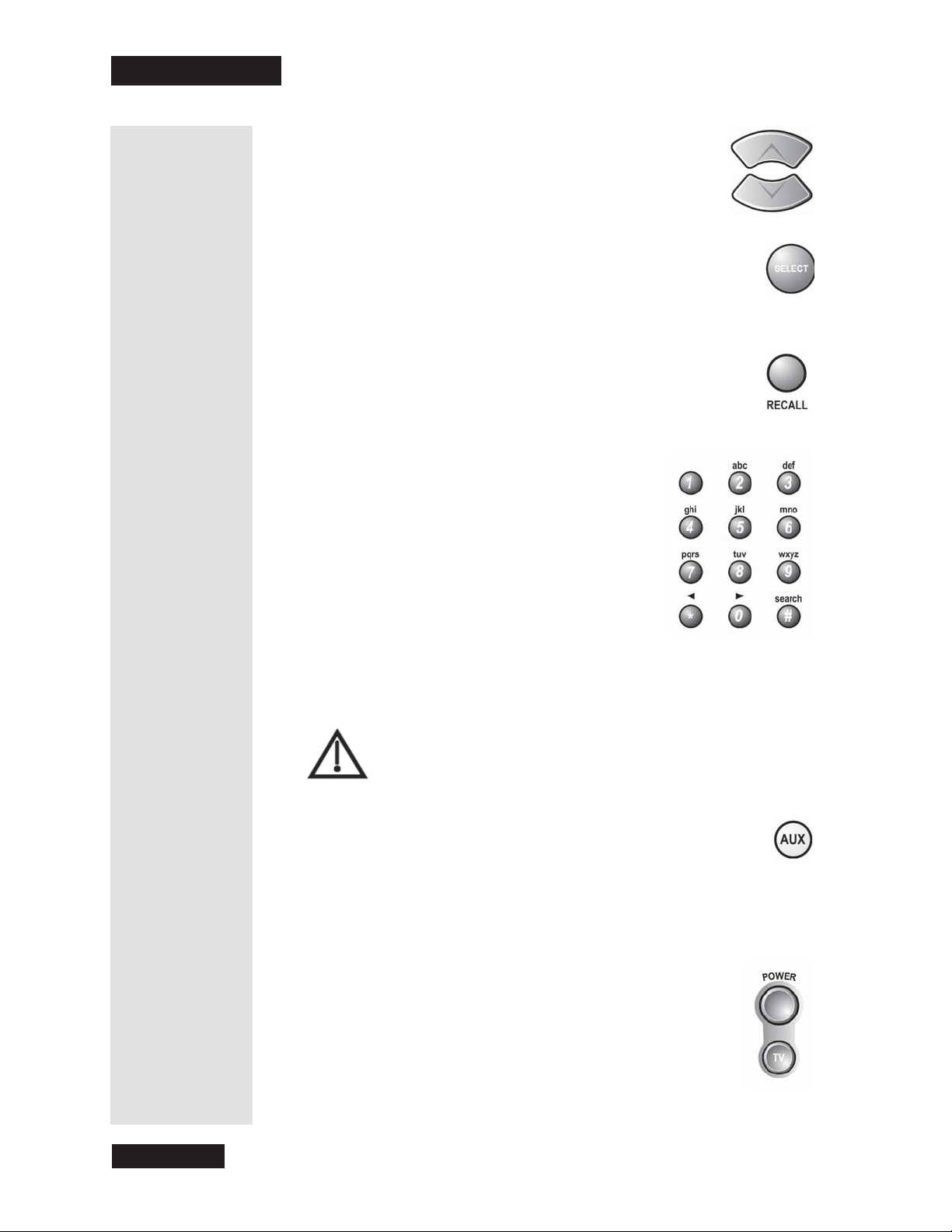

Chapter 3

Using the System

Up/Down Buttons

Use these buttons to change channels on the cable box.

Select Button

Press the Select button in place of the ENTER button for the cable
box.

Recall Button

Press this button to go back to the last cable box channel you used.
Press it again to switch between the last two cable box channels
you used.

Number Buttons

Use these buttons to enter channel numbers.

Control a Tuner or Amplifier

Only the buttons described here control a tuner or amplifier.
Some of the buttons described here may not control your tuner
or amplifier. Please se e the user’s manual that c ame with your
tuner or amplifier for more information.

AUX Mode Button

You must first set up the remote to control the device. See Set Up the
Remote to Control Devices, beginning on page 68. Then, you must

press the AUX mode button to set the remote to AUX mode. The AUX mode
button flashes once to show you’ve set the remote to AUX mode. Make sure
you keep the remote in AUX mode to use the buttons described here.

Power Button

Press the blank POWER button to turn the tuner or a mplifier on
or off. Press the TV power button to turn the TV on or off

Page 76

Control Other Devices with the Remote

Mute Button

Press this button to turn the sound off or on.

Vol um e But to n

Press this button to raise (+)orlower(-) the volume.

Up/Down Arrow Buttons

Use these buttons to change channels on the tuner or
amplifier.

Select Button

This button works as the INPUT SELECT button for the tuner or
amplifier.

Other Remote Control Features

Switch Between TV and AUX Device Volume Control

When you set up the remote to control a TV, the mute and volume buttons
control the TV volume. However, if you want to use the AUX mode to
control a tuner or amplifier and the device has a volume setting, you can set
up the remote to control the device’s volume instead of the TV volume.

To set the remote to control the device’s volume:

1. Press and hold the AUX mode button for three seconds, and
then let go of it. The AUX mode button will blink.

2. Press the POUND (#) button.

3. Press the plus (+) side of the VOLUME button.

4. Press the 0 number button.

Page 77

Page 77

Chapter 3

Using the System

5. Press the POUND (#) button.
The AUX m ode button flashes three times.

6. Press the SAT mode button.

7. Press the plus (+) and minus (-) sides of the VOLUME button.
The device’s volume changes and the AUX mode button lights instead
of the TV mode button.

To set the remote bac k to control the TV volume:

1. Press and hold the TV mode button for three seconds, and then
let go of it. The TV mode button will blink.

2. Press the POUND (#) button.

3. Press the plus (+) side of the VO LUME button.

4. Press the 0 number button.

5. Press the POUND (#) button.
The TV mode button flashes three times.

6. Press the SAT mode button.

7. Press the plus (+) and minus (-) sides of the VOLUME button.
The TV’s volume changes and the TV mode button lights
instead of the AUX mode button.

Page 78

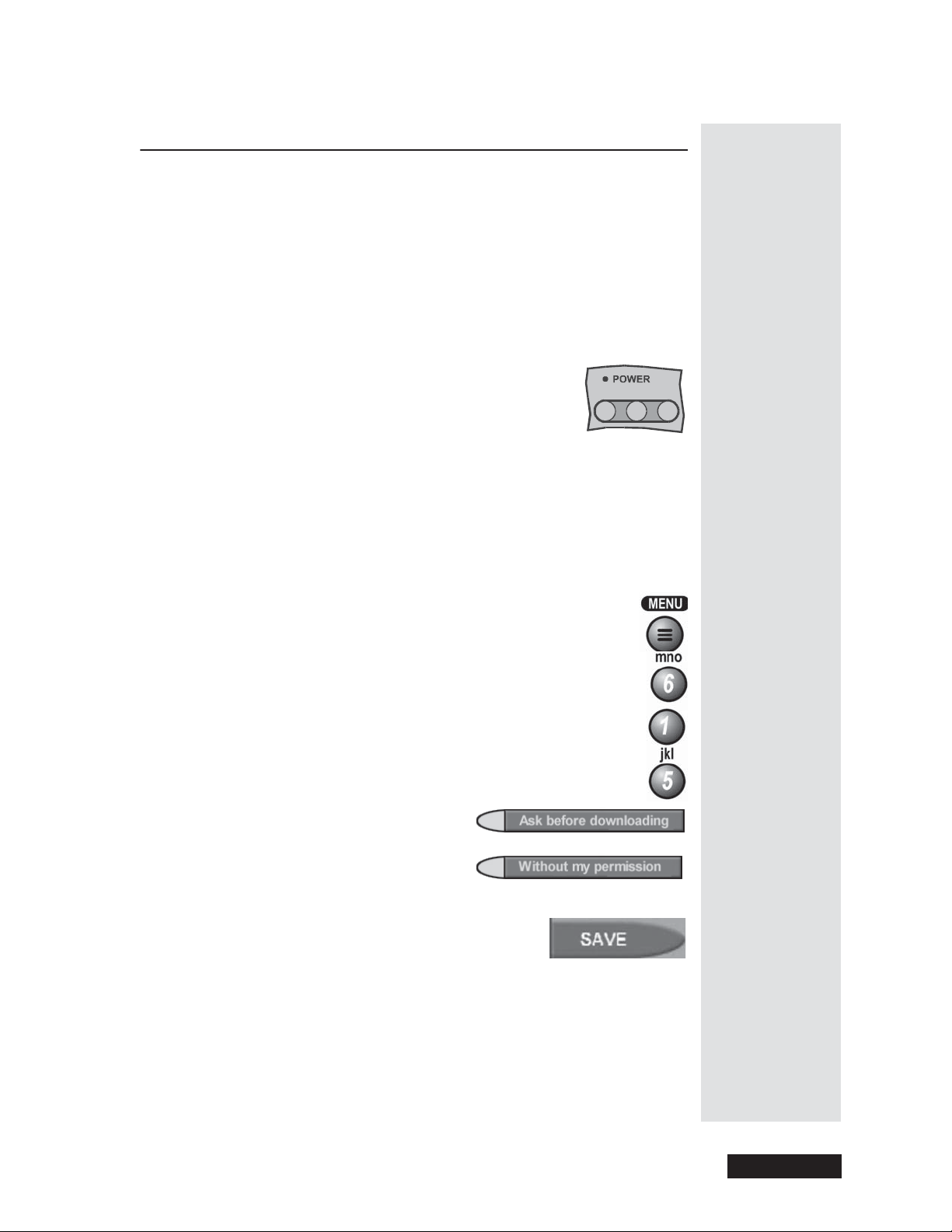

Upgrade the Receiver Software

Upgrade the Receiver Software

Once in a while, we may upgrade your r eceiver’s software for free. You can
set up the receiver to Receive a Software Upgrade and/or Set Up the
Receiver to Tell You About Upgrades.

Receive a Software Upgrade

1. Make sure you turn the receiver off, so its green front panel POWER
light is off. To do this, press the remote control’s blank POWER button
while the remote control is in SAT m ode.

2. While the receiver is taking the upgrade, the receiver’s
front panel POWER light will blink. Don’t disturb or
unplug the receiver while the new software is
downloading.

Note: The software upgrade may take up to about half an hour.

Set Up the Receiver to Tell You About Upgrades

You can set up the receiver to tell you when you can get a software upgrade;
it’ll ask you to let it get the software. Unless you set up the receiver to ask
you, automatically download new software without asking.

1. Press the MENU button.

2. Select the

3. Select the

4. Select the

5. Select the

System Setup option.

Installation option.

System Upgrades option.

Ask before downloading

option or the Without my permission
option.

Note: A “download” is the same as a n

or:

upgrade.

6. Select the

Save option to save your choice.

Page 79

Page 79

Chapter 3

Using the System

Reset the Receiver

You ca n reset the receiver with the setup it had when you bought it.

If you reset the receiver, you throw away all Favorites Lists

except

All Chan and All Sub.

If you reset a locked receiver, you keep the locks. If you reset
an unlocked receiver, you throw away the locks.

If you lock the receiver, even resetting it won’t bypass a lock
or unlock the receiver. You can’t reset the receiver to get rid of
a password you forget.

1. Press the MENU button.

2. Select the System Setup option.

3. Select the Installation option.

When you
record to a
VCR, the VCR
records only
what you see
on the TV
screen. If you
try to play
back a
program and
record a new
program to a
VCR at the
same time,
the VCR will
record what
you play back,
not the new
program.

4. Select the Factory Defaults option (“Factory Defaults” refers

to the receiver’s original settings).

5. Select the

Yes option to confirm the reset.

Change Program Languages

You ca n choose a language other than English for some programs. Some
programs, like movies, show at the start if you can choose another language.

Note: You can choose another language for a program but not for the

menus.

1. Press the MENU button.

2. Select the System Setup option.

3. Select the

Alternate Audio option.

Page 80

Set Up the Accessory Jack

4. Select a language in the

Languages list. A check mark

shows up in the box next to the language. For e xample,
here we selected

Note: If the program is broadcast in a language that

isn’t listed, select the

Spanish.

Alternate option to hear that

language. If the program is broadcast only in the listed
languages, select the

5. Select the

Save option to save your choice.

Alternate option to hear English.

Set Up the Accessory Jack

If you connect a multi-dish switch to the ACCESSORY JACK,orifyou
use an IR extender, you must set up the receiver for these options.

1. Press the MENU button.

2. Select the System Setup option.

3. Select the

Accessory Jack option.

4. Select the
extender. Select the

IR Extender option to use an IR

Switchbox (multi-dis h

switch) option if you connect a multi-dish
switch to the ACCESSORY JACK.

5. Select the

Save option.

Dish Home Interactive TV Applications

Press the DISH button on your remote control to use the Dish

Home Interactive Applications

check the news and weather, and even play games.

. You can order channels,

or:

Page 81

Page 81

Chapter 3

Using the System

Notes

Page 82

Chapter 4

Installation Instructions

How to Use these Instructions

These instructions guide you through the installation of a satellite system which
includes your DishPro receiver (included with this manual), and a
antenna system that can be identified by the DishPro logo shown below.

Note: If you have a Dish antenna system already installed, and the dish has been

pointed for the strongest possible signal strength, you can skip this chapter and
go directly to Appendix A to install the satellite receiver in an existing system.

Installing a DISH 500 Antenna

DishPro

The first step in installing your dish antenna is to assemble the satellite dish,
mount it, and point it in the general direction of a satellite. To do this, follow
these instructions:

Finding the Satellites

You need to f ind the satellites in the sky. To do this, you need to know the
azimuth angle (the south, southeast, or southwest direction to the satellites) and
the elevation angle (the angle up to the satellites) from your location, and the
skew angle.

1. Connect the TV S

RF T

UNER INPUT using a coaxial cable. Make sure that the TV is tuned to

the same c hannel as the C
(for example, if this switch is on “3,” the TV must be tune to Channel 3).

ET OUT on the receiver’s back panel to the television’s

HANNEL 3/4 SWITCH on the receiver’s back panel

Page 83

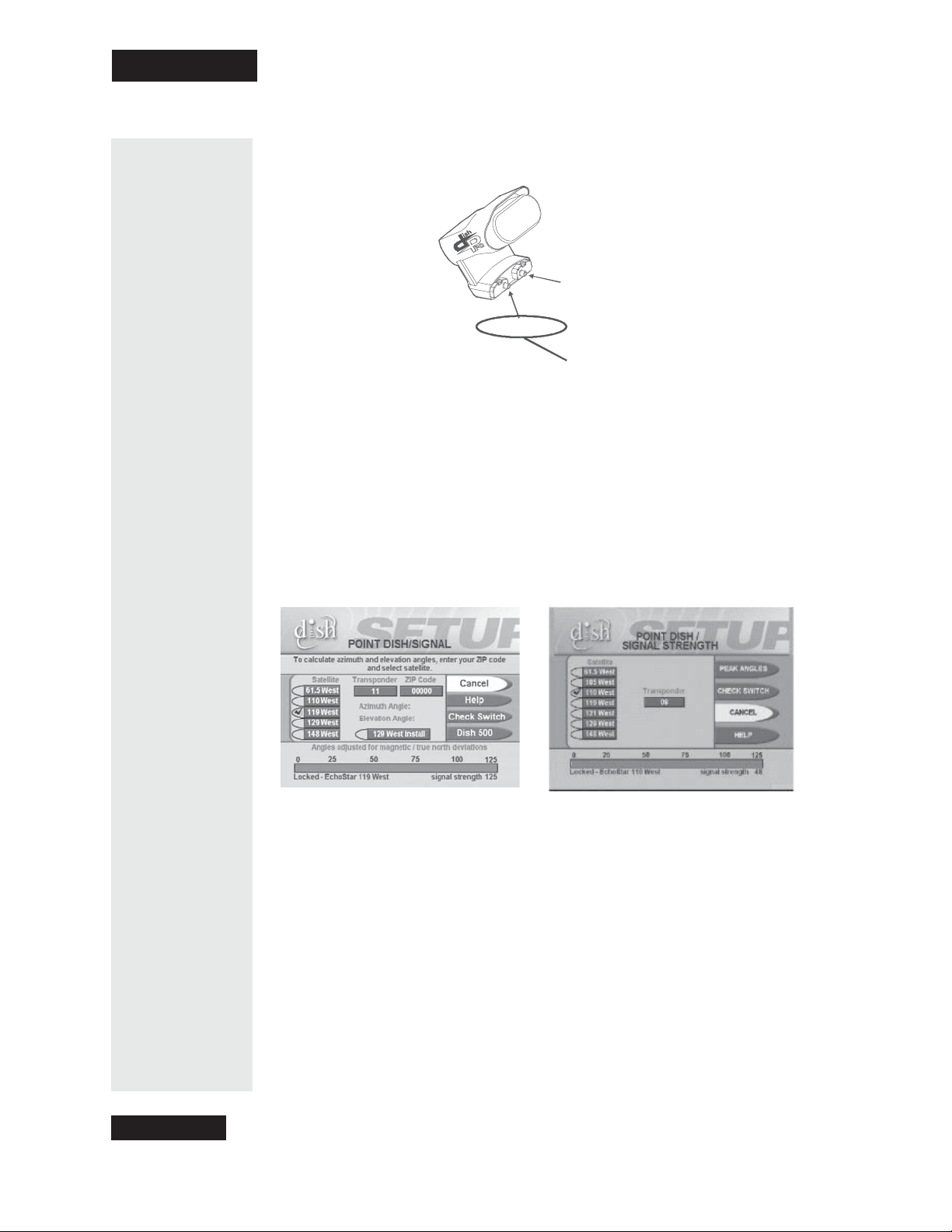

Chapter 4

Installation Instructions

2. Make sure that the remote control batteries are fresh, and are installed

properly. If needed, make sure that the remote is in SAT mode to control the
satellite receiver.

3. Turn ON the television and receiver.

4. Display the

Point Dish and Signal Strength menu by pressing MENU and

and then 6-1-1 (unless the receiver already displays this menu).

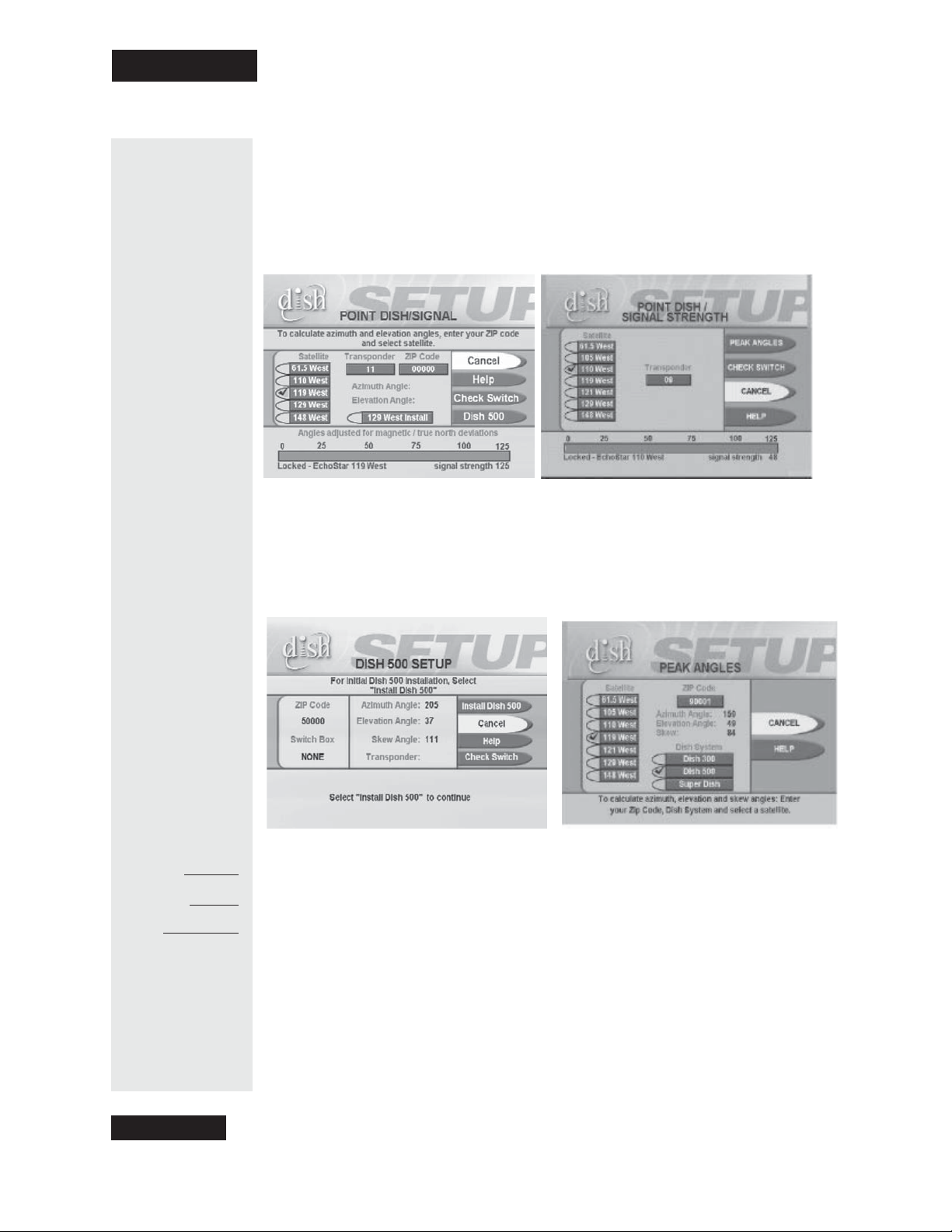

5. If you Point Dish/Signal screen looks like the one on the left, continue to
step 6. If your Point Dish/Signal screen looks like the one on the right,

Peak Angles.

select

6. Enter your ZIP code in the

7. Select the

Dish 500 option.

ZIP Code field.

Azimuth:

Elevation:

Skew:

Page 84

8. The menu displays the azimuth, elevation, and skew angles. Write down
these numbers in the blanks provided in the margin.

9. Select Cancel to exit out of this menu and return to the Point
Dish/Signal menu.

10. Go to Mounting the Dish on page 85.

Installing a DISH 500 Antenna

Mounting the Dish

1. Using these azimuth and elevation angles, find a location for the satellite
dish which can be pointed towards the satellites located at these angles.
With a compass, find the required azimuth angle. Then, use the elevation
angle to find out how high the satellites are in the sky from your location.

Make sure nothing blocks the line of sight between the dish and the

satellites.

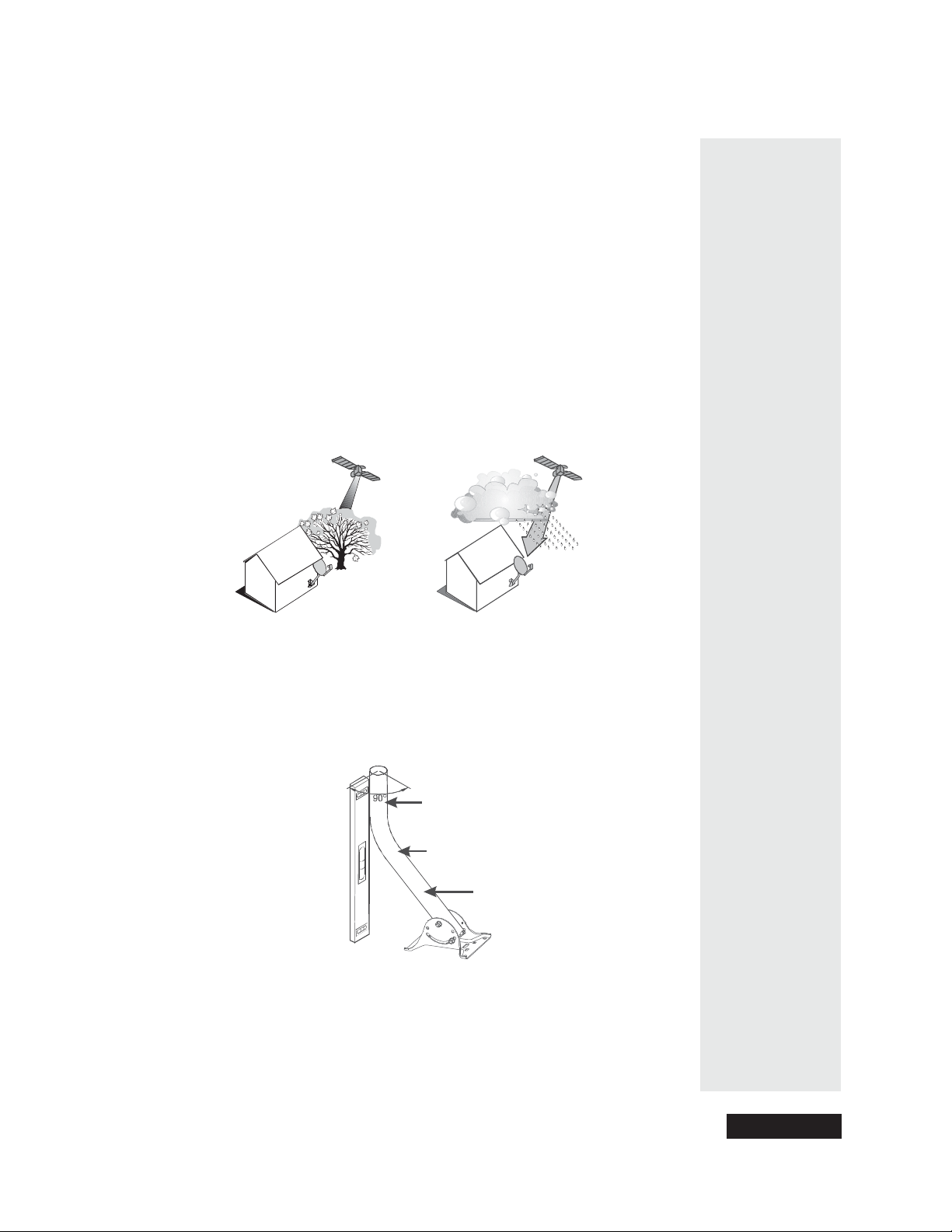

2. Mount the m ast to a solid surface so that the dish antenna cannot move or be
bumped out of adjustment. Keep in mind that physical and environmental
conditions can block your satellite dish’s ability to receive a clear satellite
signal. The conditions to be aware of are: Eaves and overhangs on your
building or house, wind, plant growth, and deterioration of the mounting
surface. Never mount to a tree.

NO YES

3. Align the top part of the mast so that it is absolutely vertical, as shown
below. If the top part of the mast is off vertical by only a few degrees, it will
be difficult or maybe even impossible for you to find the satellites. Take at
least two readings with a bubble level, on the upper mast, that are 90
degrees apart from one another.

Top Par t
of Mast

Bubble Level

Mast

Page 85

Chapter 4

Installation Instructions

4. As semble the satellite dish as shown below, except do not attach the Y­bracket or LNBF at this time.

5. Loosen both skew bolts and set the skew by rotating the dish mounting
bracket to align the red mark with the required angle on the skew scale
which you wrote down on 84. Tighten the skew bolts securely to keep the
dish from rotating. Once the skew is set, do not try to fine-tune this angle

when aiming the dish.

Page 86

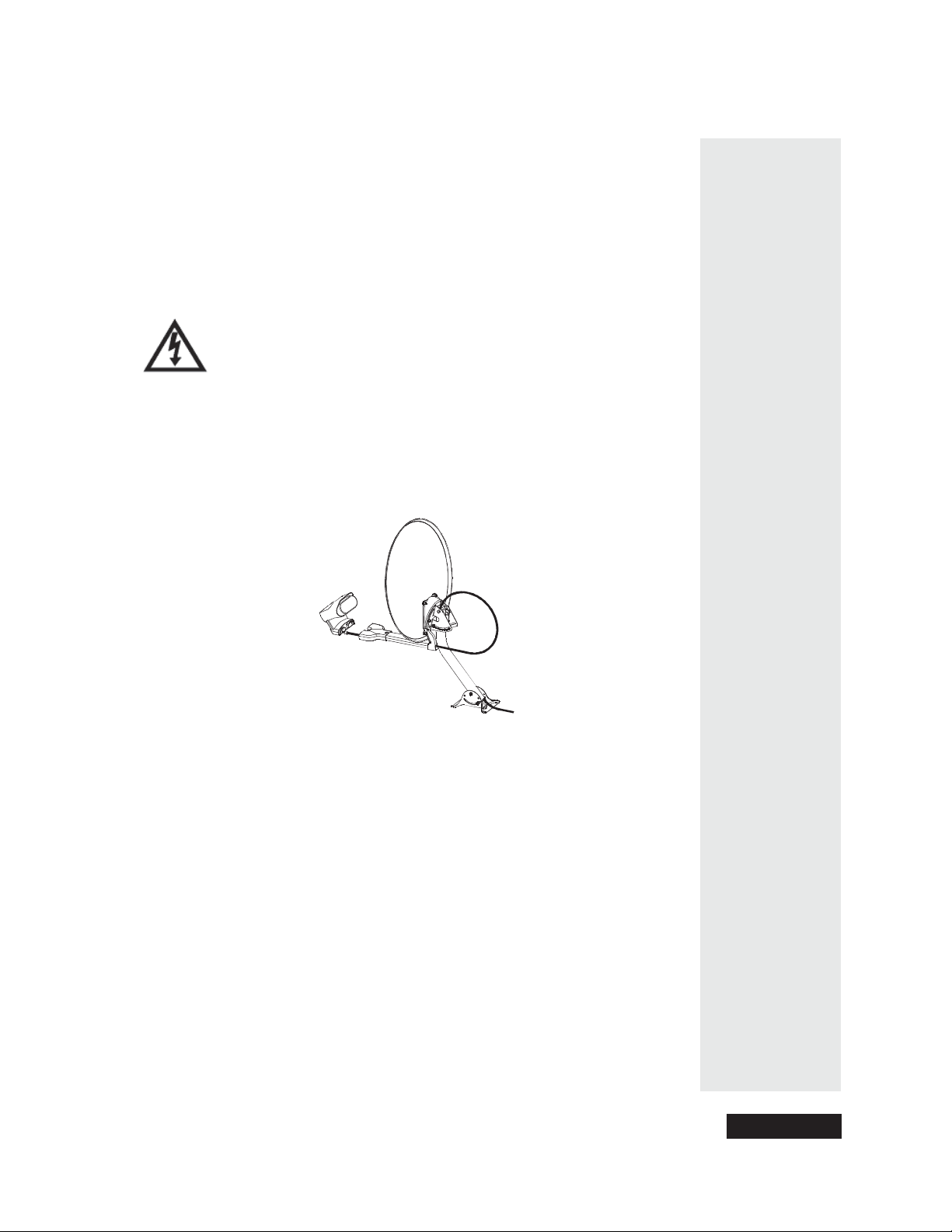

6. Set the elevation by tilting the dish mounting bracket to align the red edge
with the required angle from page 84 on the elevation scale. Tighten the
elevation bolts, but do not tighten the pivot bolt at this time.

Installing a DISH 500 Antenna

Note: You can have as much as 200 feet of cable between the DishPro LNBF

and the DishPro receiver. However, you must use only RG-6 coaxial cables
rated for 950 to 2150 MHz. Some cables may say "Swept tested for 2150 MHz."
If you have any doubt about this, ask your DISH retailer, or look on the
container the cable came in. Do not use cable company TV cables or cables
from other satellite TV systems not rated for 950-2150 MHz. These other cables
may cause signal loss. Do not use existing cables such as RG-59. Also, be sure
that any outdoor connections are made using waterproof F-connectors.

Tighten all of the coaxial cable connection only by hand. If you use a
wrench, you may over-tighten the connections and damage your
equipment. Such damage is not coveredbytheLimitedWarranty.

7. Thread the RG-6 coaxial cable through the mast support arm and
the Y-bracket. This cable should be long enough to run from your receiver

to your LNBF.

Note:SeeRunning Coaxial Cables on page 101 for cable installation

guidance.

8. Attach the Y-bracket, using the Y-bracket screw.

9. Connect the RG-6 cable from the DISHPro S

AT IN connection on the back

of the receiver directly to port 1 of the DISHPro Twin LNBF, a s shown

Page 87

Chapter 4

Installation Instructions

below. Be sure there are no multi-dish switches between the LNBF and the
receiver.

10. Attach the LNB F to the Y-bracket using the two LNBF screws.

11. S lide the dish assembly down onto the mast. Make sure the pivot bolt rests
on the top of the mast. Turn the dish assembly so that it points in the general
direction of the satellites, using the azimuth angle from 84.

Port 2

Port 1

Connect to Port 1. It’s on
the left when the LNBF is
pointed towards you

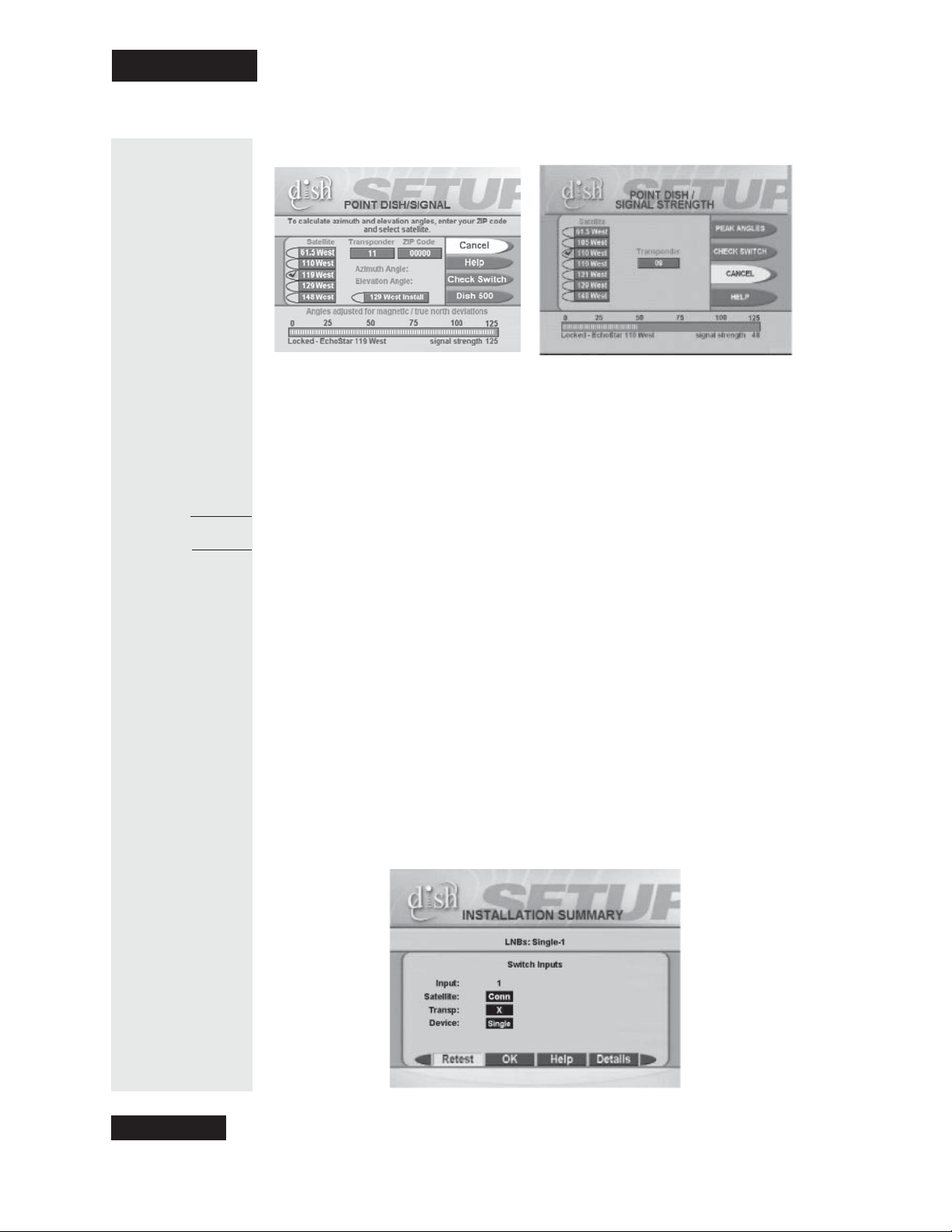

12. You should see the

Point Dish/Signal menu. If not, open the Main Menu,

select System Setup,thenInstallation,thenPoint Dish/Signal (press
MENU andthenpress6-1-1 on the remote).

13. S elect

14.

Check Switch.TheCheck Switch screen will open.

Select Check or Test. The receiver shows you a message that it is checking

the switches. Go to step 15.

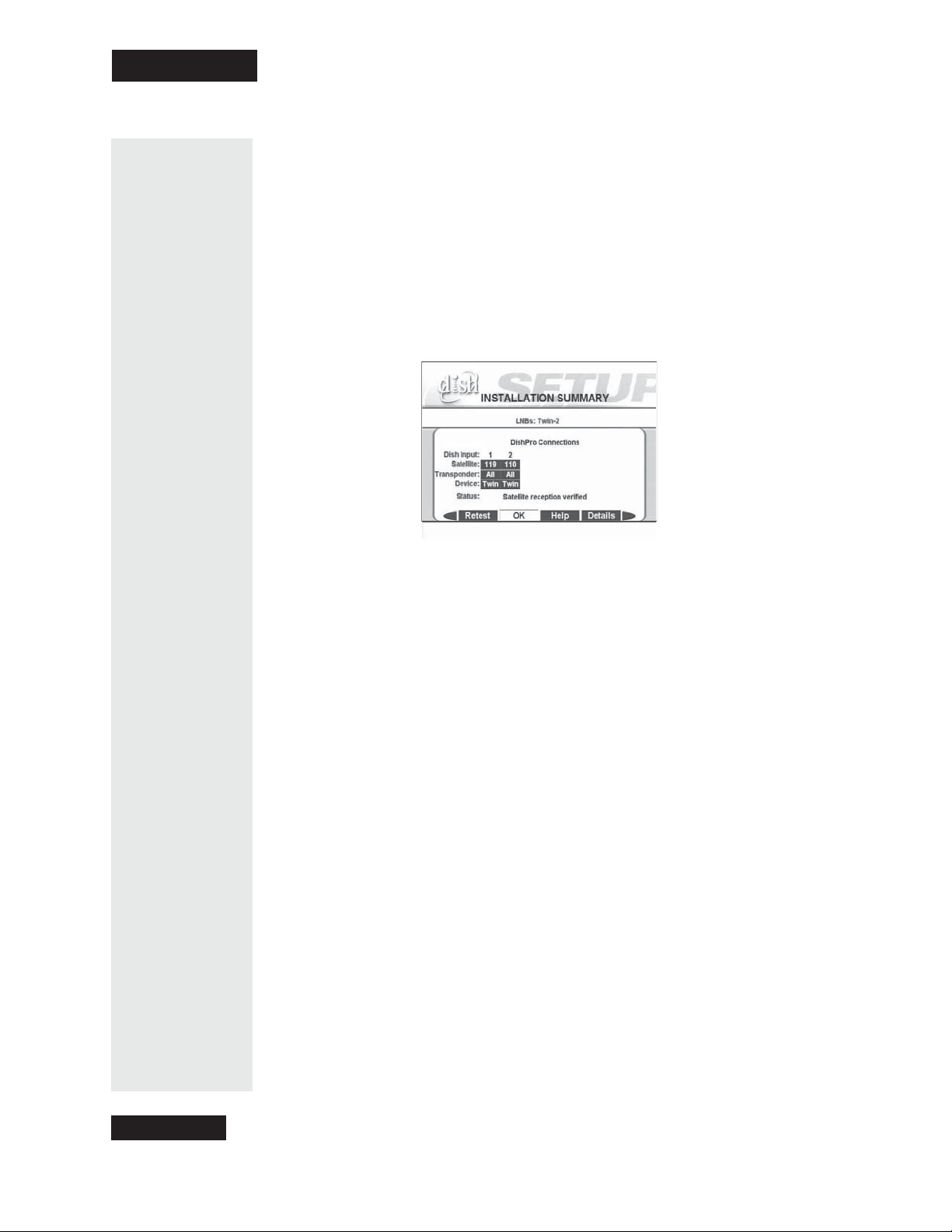

15. Whe n the c heck switch procedure finishes, you will see an installation
summary screen sim ilar to the one below. In the Satellite line, you will see
“Conn.” In the Device line, you will “Twin” twice. This indicates that your
receiver has confirmed the connection with your DishPro Twin LNBF is
working. The Transponder line may show two “Xs.” This is OK and does
not indicate a problem with the receiver.

Page 88

Installing a DISH 500 Antenna

16. Select Cancel or OK to return to the Point Dish/Signal screen. Make sure
the check mark is next to 119 West. If not, move the highlight to 119
West and press SELECT. Notice the signal strength bar. This is used to
help you aim the dish by showing the strength of the signal you are
receiving. Look at the signal strength bar while you aim the dish. Don’t
stand in front of the dish while you aim it, because your body will block the
satellite signal. After you adjust the aim, let go of the dish so that you can
get a good signal reading after the dish se ttles back in place by itself. Do not

change the skew setting.

17. Turn the dish back and forth very slowly, until the signal strength bar turns

green. This shows you’ve found the signal.

Tip: Have one

person aim the
dish while
another watches
the signal
strength or
listens to the
signal tone.

Note: If you cannot find the signal, turn the dish back to the first azimuth

angle. Then, loosen both elevation bolts just enough so you can tilt the dish.
Tilt the dish elevation up by two degrees, and then tighten both bolts. Now,
turn the dish back and forth again. If you still can’t find the signal, tilt the
dish up again very slightly and turn the dish back and forth until you find the
signal.

18. Once the signal strength bar is green, turn the dish back and forth just a
little, to where the signal strength bar shows the strongest signal. When you
find the strongest signal, tighten both mast clamp bolts. Then loosen both
elevation bolts, just enough so you can tilt the dish. Tilt the dish up and
down just a little, to where the signal strength bar shows the strongest
signal. Do not adjust the skew. When you find the strongest signal, tighten
all bolts in the dish assembly so the dish cannot be moved.

Page 89

Chapter 4

Installation Instructions

19. You are now ready to verify reception from both satellites. Select the

Check Switch option. When the Check Switch menu opens, select
Check or Tes t. The r eceiver shows you a message that it is checking the
switches. When the procedure is finished, you will see an Installation
Summary screen. This screen may look different than the one shown
below. However, you must see that you have signals from both the 110
West and 119 West S atellites, you see “All” twice in the Transponder

line, and the message “Satellite reception verified. Press CANCEL or OK
to exit this menu.”

20. I f you do not see “110” under

• Make sure the skew angle you wrote down on page 84 is exactly the
same as the skew angle you set in step 5 on page 86. If it is not, reset the
skew angle as described on page 86. After you reset the skew angle, go
back page 89 and start over from step 16.

• If “ 119” is shown under
to the east and restart the procedure at step 12.

21. Look a t the Point Dish/Signal menu. If you have good signal strength
with the check mark in 119 West, move the check mark to 110 West.If
you have good signal strength on 110 West,gotostep22.

If you do not have good signal strength with the check mark in 11 0 West,

go back to Step 17, and fine-tune the dish but with the check mark in 110
West instead of 119 West. W hile the 110 West and 119 West signals will
not be equal, you should be able to fine-tune the dish until you have the
strongest possible signal from both satellites.

22. S elect Cancel to exit the Point Dish/Signal menu. An Attention screen
will open asking the mounting and positioning of your dish is complete with
a “Locked” indication in the Point Dish/Signals screen. I f the answer is yes,
select Yes.

If the answer is No, you will need to repoint your dish following the

preceding steps until the mounting and positioning is complete and you do
have the “Locked” indication.

Dish Input 2:

Dish Input 2, move the dish approximately 9°

Page 90

Installing a DISH 500 Antenna

23. After you select Ye s, the receiver will begin taking a software upgrade. You
will see a Warning that “Vital program information will now be
downloaded into your receiver.” You will also see a status bar showing the
progress of this upgrade.

24. Once the software upgrade is complete, you will see a m essage that your
receiver’s memory is being upgraded.

Do not disturb the receiver while the receiver’s memory is being upgraded.

Note: If you are installing other DishPro receivers, be sure to run

Switch

on all of them, and allow them to take the necessary software

Check

upgrade.

If you will be installing a multi-dish system, follow the instructions that
begin below.

Installing a Multiple Dish DishPro System

Note: You cannot use DishPro LNBFs and switches (those marked with the

DishPro logo) with Legacy (non-DishPro) switches a nd LNBFs (those without
the DishPro logo). You must install your DISH antenna system with either all
DishPro LNBFs and switches or all Legacy LNBFs and switches. If you m ix the
two, the system will not work.

Note: You can have as much as 200 feet of cable between the DishPro LNBF

and the DishPro receiver. However, you must use only RG-6 coaxial cables
rated for 950 to 2150 MHz. Some cables may say "Swept tested for 2150 MHz."
If you have any doubt about this, ask your DISH retailer, or look on the
container the cable came in. Do not use cable company TV cables or cables
from other satellite TV systems not rated for 950-2150 MHz. These other cables
may cause signal loss. Do not use existing cables such as RG-59. Also, be sure
that any outdoor connections are made using waterproof F-connectors.

Once you have installed the DISH 500 with its DishPro Twin LNBF using the
preceding instructions, you can install a DISH 300 with a DishPro LNBF as
follows:

1. Turn on the television and the receiver if they are not already on. You
should see the

Point Dish/Signal screen. If not, open the Main Menu and

press 6-1-1 on the remote.

Page 91

Chapter 4

Installation Instructions

2. Make sure the check mark is next to the satellite your dish will be pointed
toward.

Azimuth:

Elevation:

3. If your
step 4. If your
select

4. Select

Point Dish/Signal screen looks like the one on the left, continue to

Point Dish/Signal screen looks like the one on the right,

Peak Angles and the Dish 300 option.

Peak Angles.

5. Use the number buttons on the remote to enter your ZIP code to get the
necessary azimuth and elevation. Write these numbers down in the spaces
provided in the margin.

6. Mount the dish antenna following the m ounting instructions that came with
it.

7. Connect an RG-6 cable from the DishPro S
directly to the DishPro LNBF on the Dish 300.

AT IN connection on the receiver

Make sure there are no

multi-di sh switches between the LNBF and the DishPro receiver.

8. Select

9. When

Check Switch from the Point Dish/Signal menu. When the Check

Switch

screen opens, select Check.

Check Switch is complete, you will see an Installation Summary

screen similar to the one shown next. It will show a connection (“Conn”
next to satellite) and

Single device under 1 (Dish Input). It may also show

an X on the Transponder line. This is okay and does not m ean there is a
problem with the system.

Page 92

Installing a DISH 500 Antenna

10. Press CANCEL to exit back to the Point Dish/Signal menu.

11. Point the dish for the strongest possible signal, following the instructions
that came with it and the DishPro wiring diagrams that start on page 94.

12. Connect any switches in your system, using the instructions which came
with the switch(es).

13. Select Check Switch from the Point Dish/Signal menu. When the
Check Switch menu opens, select Check or Tes t. When the procedure
completes, you will see the Installation Summary screen again. This
time you should see confirmation for all satellites your dishes are pointed at,
and “Satellite reception verified.” You should also see that the switch(es) in
your system has been correctly identified.

Refer to the DishPro wiring diagrams for examples of installation summary

screens.

14. Press CANCEL to exit this menu, and then Cancel to exit the Point
Dish/Signal screen.

If you have any other receivers in your system, make sure you run Check
Switch on each of them, and allow each to take the software upgrade, as
needed.

Page 93

Chapter 4

Installation Instructions

DishProWiringDiagrams

DISH 500, One DishPro Twin LNBF, Two DishPro Receivers

This diagram leaves out grounding to be clear. Make sure you
ground the system per the National Electrical Code (NEC) and all
local electrical codes.

When you set up your system following this diagram and run Check Switch
the Installation Summary screen should look similar to the one shown
below.

Page 94
