Digi Tech HT-6 Owner's Manual

HARDWIRE HT-6

POLYCHROMATIC TUNER

OWNER’S MANUAL

DECLARATION OF CONFORMITY

Manufacturer’s Name: Harman Signal Processing Manufacturer’s Address: 8760 S. Sandy Parkway Sandy, Utah 84070, USA

declares that the product:

Product name: HT-6

Product option: All (requires Class II power adapter

conforms to the following Product Speciﬁcations:

Safety: IEC 60065 -01+Amd 1

EMC: EN 55022:2006 EN 55024:1998 FCC Part 15

Supplementary Information:

The product herewith complies with the requirements of the:

Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC. RoHS Directive 2002/95/EC WEEE Directive 2002/96/EC EC Regulation 278/2009

that conforms to the requirements of EN60065, EN60742, or equivalent.)

With regard to Directive 2005/32/EC and EC Regulation 1275/2008 of 17 December 2008, this product is designed, produced, and classiﬁed as Professional Audio Equipment and thus is exempt from this Directive.

With regard to the PS200R and Directive 2005/32/EC and EC Regulation 278/2009 of 6 April 2009, this regulation applies to Class A (single output) external power supplies. The PS200R used with this product is a multi-output power supply and thus is exempt from this Directive.

Roger Johnsen Vice-President of Engineering 8760 S. Sandy Parkway Sandy, Utah 84070, USA Date: March 1, 2011

European Contact: Your local DigiTech Sales and Ser vice Ofﬁce or

Harman Signal Processing 8760 South Sandy Parkway Sandy, Utah 84070 USA Ph: (801) 566-8800 Fax: (801) 568-7583

If you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery, and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic product free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery, and recycling and thus prevent potential negative effects on the environment and human health.

ELECTROMAGNETIC

COMPATIBILITY

This device complies with part 15 of the FCC Rules and the Product Specifications noted on the Declaration of Conformity. Operation is subject to the following two conditions:

• this device may not cause harmful interference , and

• this device must accept any interference received, including interference that may cause undesired operation.

Operation of this unit within significant electromagnetic fields should be avoided.

• use only shielded interconnecting cables.

For your protection, read the following:

WARNING

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, for

other markings and pertinent information.

WARRANTY:

We at DigiTech® are very proud of our products and back-up each one we sell with the following warranty:

1. Please register online at www.digitech.com within ten days of purchase to validate this warranty. This warranty is valid only in the United States.

2. DigiTech warrants this product, when purchased new from an authorized U.S. DigiTech dealer and used solely within the U.S., to be free from defects in materials and workmanship under normal use and service. This warranty is valid to the original purchaser only and is non-transferable.

3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show evidence of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of one year (this warranty is extended to a period of six years when the product has been properly registered through our website). A Return Authorization number may be obtained from DigiTech by telephone. The company shall not be liable for any consequential damage as a result of the product’s use in any circuit or assembly.

4. Proof-of-purchase is considered to be the responsibility of the consumer. A copy of the original purchase receipt must be provided for any warranty service.

5. DigiTech reserves the right to make changes in design, or make additions to, or improvements upon this product without incurring any obligation to install the same on products previously manufactured.

6. The consumer forfeits the benefits of this warranty if the product’s main assembly is opened and tampered with by anyone other than a certified DigiTech technician or, if the product is used with AC voltages outside of the range suggested by the manufacturer.

7. The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor authorizes any person to assume any obligation or liability in connection with the sale of this product. In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.

NOTE: The information contained in this manual is subject to change at any time without notiﬁcation. Some information contained in this manual may also be inaccurate due to undocumented changes in the product or operating system since this version of the manual was completed. The information contained in this version of the owner’s manual supersedes all previous versions.

Introduction

More than a remarkable achievement, DigiTech’s HardWire® series represents a collection of significant improvements in guitar effects pedals. The HardWire

pedals provide a suite of well-known effects, each with superior tone and

series control. But these pedals go above and beyond their peers to provide such distinguishing features as true bypass and high voltage operation, making them essential additions to the signal chain of players who know about sound quality and demand the utmost in performance.

Included Items:

• HardWire HT-6 PolyChromatic Tuner

• Foot Switch Glow Sticker

• Hook-and-loop Pedalboard Pad

• Online Warranty Registration Information Card

Features

• Polyphonic Tuning (tune all strings at once)

• Single Note Tuning (accurately tune single strings for any note)

• Automatically detects between capo tuning, flat tuning, and standard

tuning (+/- 6 semitones)

• Unified Polyphonic/Single Note display

• Muted output when tuner is engaged

• Normal or Strobe display for Single Note tuning

• Adjustable Reference: A440, A♭, G, G ♭, F, E, and 436 Hz to 445 Hz

• Works with guitar and bass

• Batter y or AC powered (using optional power supply)

• DC Output connection for powering other pedals

• True Bypass

Amplifier In-Line Setup

Harman Power

Supply (optional)

9VDC Out 9VDC In USB

Custom

Guitar BassModeTuning

NOTE: Use unbalanced mono instrument cables only with the HT-6. Any effects devices placed in the signal chain before the HT-6 should be bypassed before tuning an instrument with the HT-6.

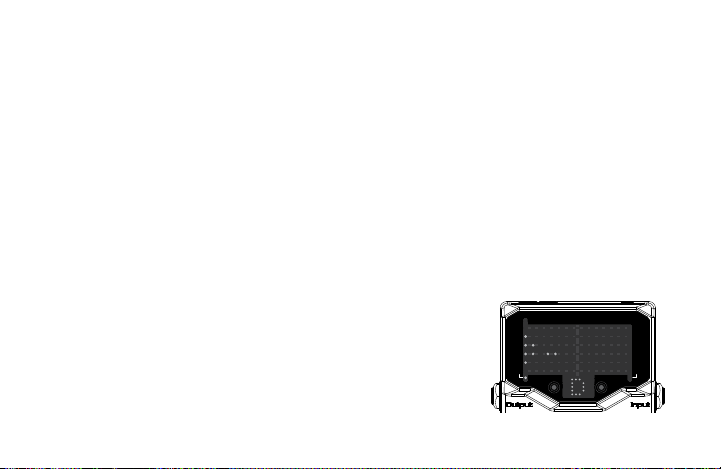

Pedal Interface

321

13 12

9VDC Out9VDC In USB

Custom

Guitar BassModeTuning

5 6

What Does This Do?

1. DC Power Output - This jack is a power output for providing

additional power to other pedals. Connect the HardWire HV-5 five pedal power cable to this jack and use the Harman PS0913DC power adapter to power 5 additional HardWire pedals.

NOTE: Do not power other pedals with the HT-6 Tuner when using battery power!

2. DC Power Input - Connect the optional Harman power supply to

this jack. Use the proper supply for your area’s mains line voltage.

3. USB Jack - This jack is used for updating the pedal’s firmware.

4. LED Display Matrix - This area features 90 LEDs in six rows that

are used to display both polyphonic and single note tuning states of your instrument. When strumming all strings on your guitar or bass, the six rows will begin lighting and show the tuning state of each independent string (for bass, 4 – 6 rows will light depending on the type of bass). A single row will light when individual strings are being tuned.

5. Bass LED - This LED lights when any of the three Bass Display Modes

are selected.

6. Input Jack - Connect your instrument here. This jack enables battery

power to the pedal when connected.

NOTE: Use unbalanced mono instrument cables only. To prolong battery life, disconnect the cable from the Input Jack when not in use. If using the optional Harman power supply, this cable can remain connected.

7. Mode Button - When the tuner is on, this button is used to select

between the two Display Modes: Normal and Strobe.

8. Note Display - This series of LEDs is used to show the note played

when tuning strings individually and to display the guitar Fret Offset feature when using a capo or lowered tunings.

9. Foot Switch - Press this Switch to turn the tuner on and off.

10. Foot Switch Release Pins - These two pins are spring-loaded

hinges that hold the Foot Switch in place. Push these pins in with the tip of a 1/4” guitar cable to release the actuator from the pedal chassis, exposing the battery compartment.

11. Tuning Button - When the tuner is on, this button is used to select

between the different Tuning options. Pressing and holding the Tuning button will access the Tuning References.
