DiGiCo SD7 Operation Manual

Appendix 1 - MACH 2 Operation

SD7 Operation Manual

Appendix 1:

MACH 2 Operation

For Software Versions 1.6.131+

A1-1

Appendix 1 - MACH 2 Operation

Contents

A1.1 Overview .......................................................................................A1-3

A1.2 New Features................................................................................A1-3

A1.2.1 New Internal Effects................................................ .......A1-3

A1.2.2 Channel EQ Types .................................................. .......A1-4

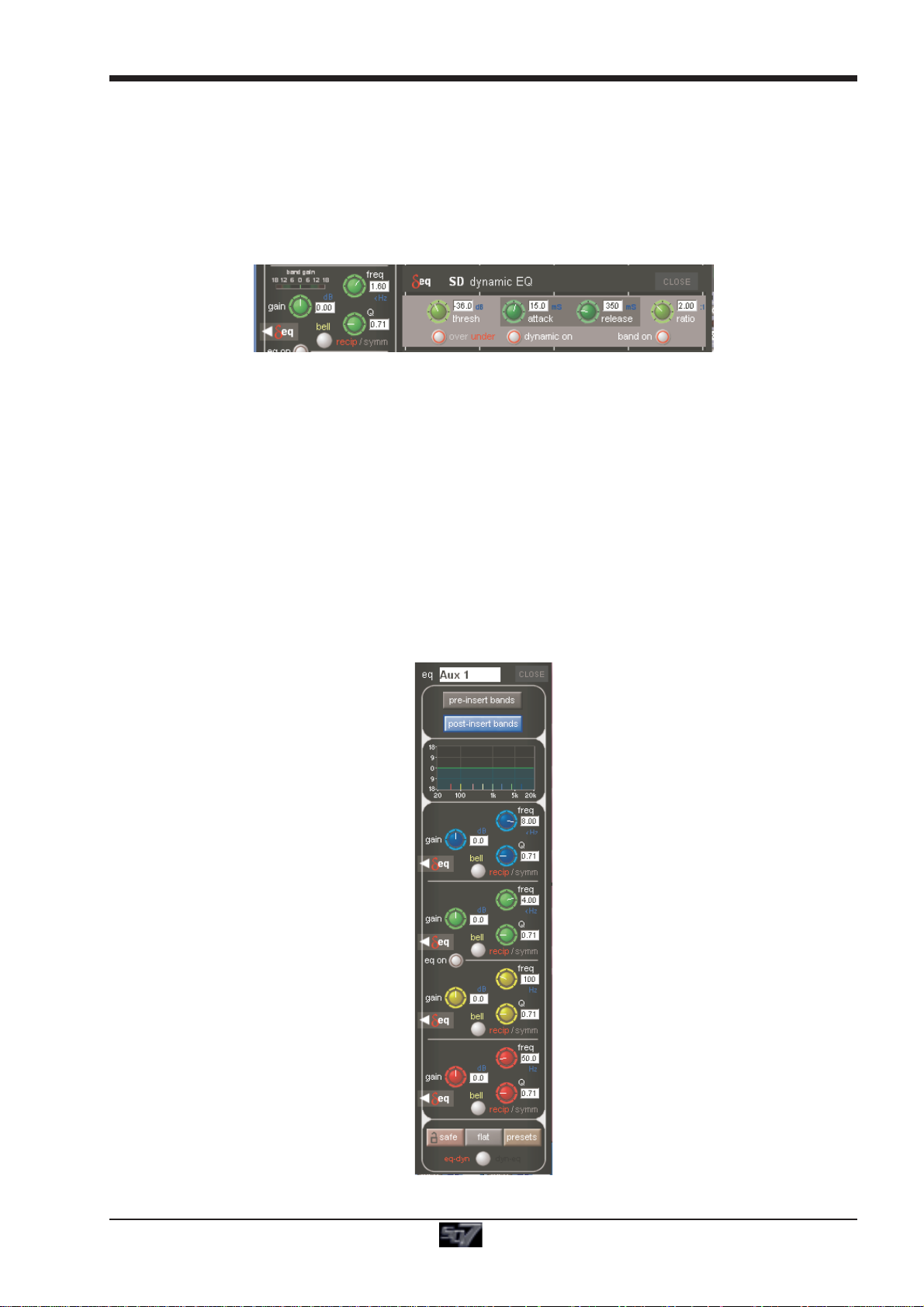

A1.2.3 Dynamic EQ Details ................................................ .......A1-4

A1.2.4 Output EQ Expansion............................................. .......A1-5

A1.2.5 Multi-Band Dynamics ............................................. .......A1-6

A1.2.6 Talkback ................................................................... .......A1-6

A1.2.7 DiGiTubes ................................................................ .......A1-7

A1.2.8 Audio I/O Port s........................................................ .......A1-7

A1.2.9 Master Screen Scroll Buttons................................ .......A1-7

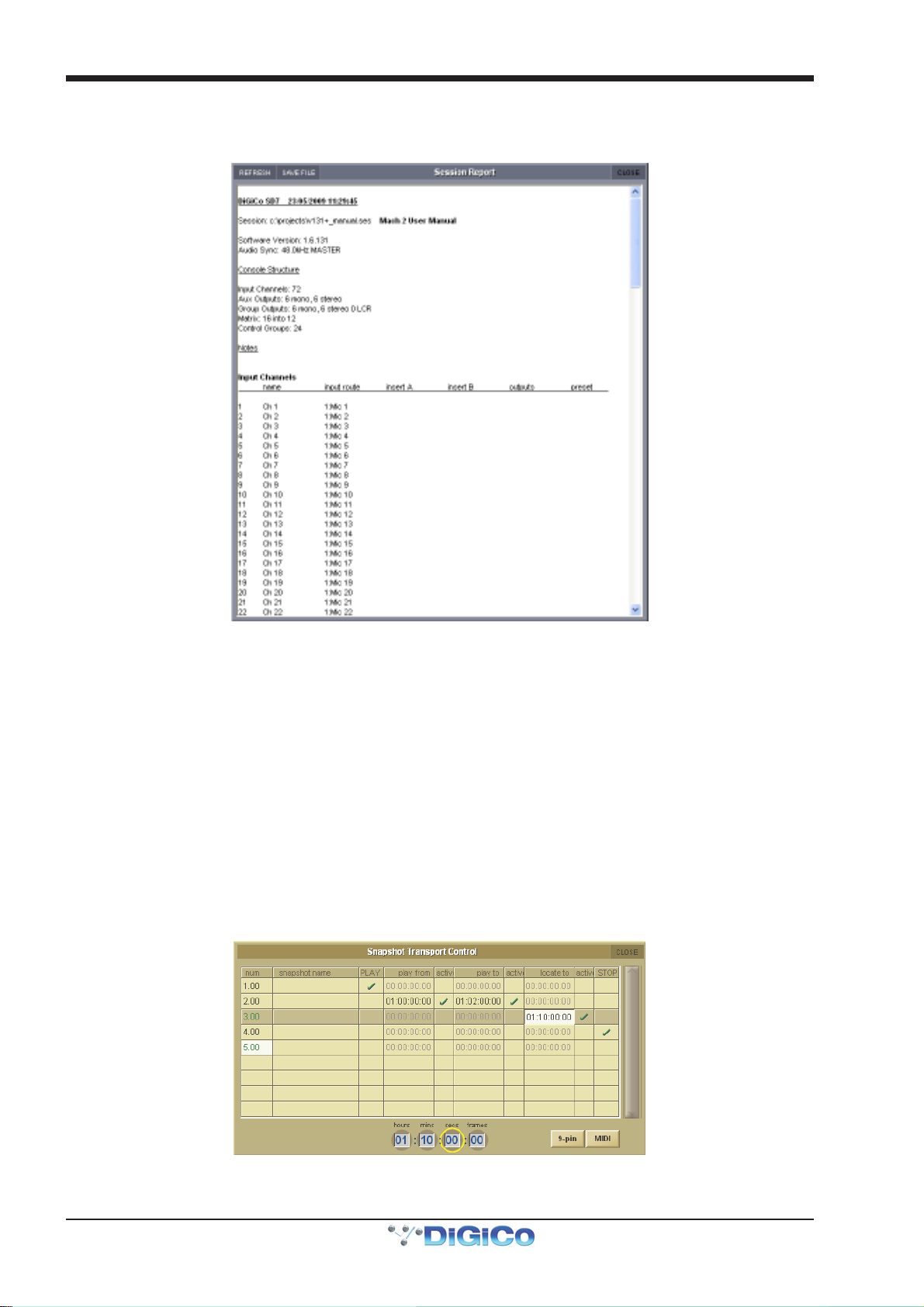

A1.2.10 Session Report ..................................................... .......A1-8

A1.2.1 1 Snapshot s & MTC/SONY 9PIN.............................. .......A1-8

A1.2.12 Additional New Features ...................................... .......A1-9

A1-2

Appendix 1 - MACH 2 Operation

A1.1 Overview

This Appendix should be read in conjunction with the standard SD7 User Manual.
It contains details of additional new features added to SD7 software versions 1.6.131+ (Mach 2)

IMPORTANT NOTE : If you are loading sessions from older versions of SD7 software, new Effects will not appear in your
session until you restructure your session. You do not need to clear channels, rebuild banks, or make any other changes : It is
the act of restructuring (Files Menu – Session Structure – Restructure) that adds the additional functionality to your session.

A1.2 New Features

A1.2.1 New Internal Effects ..........................................................

16 stereo FPGA reverbs now added and permanently available.
Up to 32 other effects such as Delays, Choruses, Pitch Shifters and Audio Enhancers are also available.
The total number of other Effects which can be used simultaneously is dependant on combinations selected and limited by total resources.
The effects are arranged in groups. Press an FX PRESET button on any existing effect or press the NEW button in the top left of the

Effects panel to view available effects. Effects groups are listed in the left section of the effects presets panel. Press a Group name to
view the selections available on the right of the panel. Press the effects name buttons to select, change or remove effects, in the same
way as on channel screens.

NOTE: When Effects names are greyed out, the maximum number of available effects has been reached.

Old Effects have been removed from SD7 (and will be removed from loaded sessions). The conversion from old to new FX presets
necessitated removing all presets prior to loading an old session, thus current presets which are not in the file are not preserved as they
would be normally.

When a preset is selected the effect is created and displayed without any signal or routing, signals can be routed to and from the effect
using standard input/output routing panels. It is still possible to create and route FX using the FX Output Button found at the output of
each channel type.

NOTE : All Effects created directly in the FX Rack are stereo. Mono effects can only be created using the FX Output button found on
channels.

A1-3
