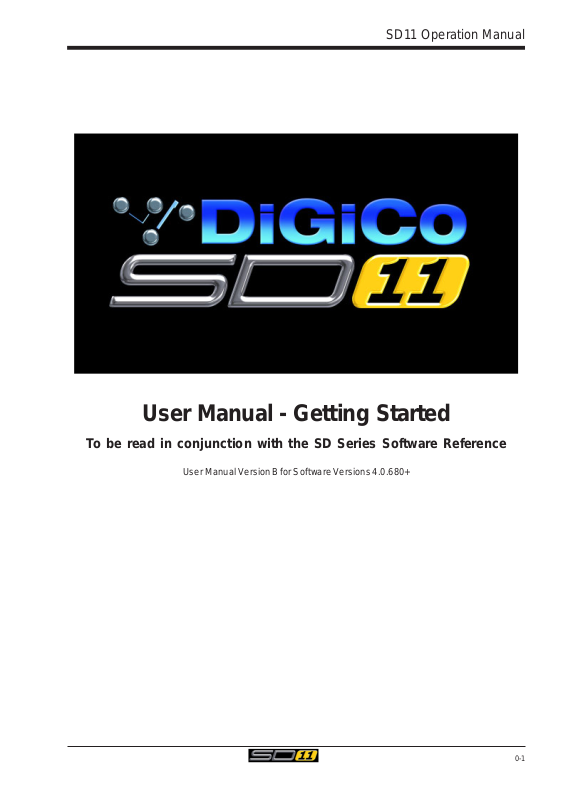

SD11 Operation Manual
User Manual - Getting Started
To be read in conjunction with the SD Series Software Reference
User Manual Version B for Software Versions 4.0.680+
0-1
SD11 Operation Manual
0-2
SD11 Operation Manual
0-3
SD11 Operation Manual
Copyright © 2014 Digico UK Ltd
All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Digico UK Ltd. Information in this manual is subject to change without notice, and does not represent a commitment on the part of the vendor. Digico UK Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
All repair and service of the SD11 product should be undertaken by Digico UK Ltd or its authorised agents. Digico UK Ltd cannot accept any liability whatsoever for any loss or damage caused by service, maintenance, or repair by unauthorised personnel.
Software License Notice
Your license agreement with Digico UK Ltd, which is included with the SD11 product, specifies the permitted and prohibited uses of the product. Any unauthorised duplication or use of Digico UK Ltd software, in whole or in part, in print or in any other storage and retrieval system is prohibited.
Licenses and Trademarks
The SD11 logo and SD11 name are trademarks, and Digico UK Ltd and the Digico UK Ltd logo are registered trademarks of Digico
UK Ltd. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corp.
Digico (UK) Ltd
Unit 10
Silverglade Business Park
Leatherhead Road
Chessington |
|
Surrey |
|
KT9 2QL |
|
England |
|
Telephone: |
+44 (0)1372 845600 |
Fax: |
+44 (0)1372 845656 |
Email: |
sales@digiconsoles.com |
WWW:http://www.digiconsoles.com
Manual Issue and Date: Issue B - April 2014 - For Version 4.0.680+ Software
Licence Agreement
"Product": |
SD11 software product produced by Digico UK Ltd intended for use on Target Platform identified below. |
"Target Platform": |
Digico SD11 Digital Console system. |
In return for the payment of the one-time fee, the Customer (identified at the end of this Agreement) receives from Digico UK Ltd a licence to use the Product subject to the following terms and conditions.
1.The Product may be used without time limit by the Customer on the Target Platform.
2.The Customer must register the Product with Digico UK Ltd. Registering the Product is deemed an acceptance of the terms and conditions in this agreement.
3.The Product and its licence are not transferable, and the Customer is not permitted to onward-license to any third party. The Customer indemnifies Digico UK Ltd against any and all claims and actions arising from third party use of copies of the Product made by the Customer.
4.The Customer agrees not to attempt to decompile the object code of the Product otherwise than in circumstances specifically provided for by law, and then only after consultation with Digico UK Ltd.
5.The Customer agrees not to use, or licence the Product for use, with equipment other than the Target Platform.
6.The Customer agrees not to modify the Product without the prior written consent of Digico UK Ltd.
7.This Agreement applies to any enhancement or upgrades that may become available for the Product.
8.This Agreement does not transfer any right, title, or interest in the Product to Customer except as specifically set forth herein.
9.Digico UK Ltd reserves the right to terminate this Agreement upon breach, in which event Customer shall thereafter only be authorised to use the Product to the extent that its contractual commitments to third parties require and then only where such commitments relate to use of the Product as authorised in the foregoing provisions of the Agreement.
LIMITED WARRANTY - Digico UK Ltd warrants for a period of 1 year from the date of purchase of the Product, the Product will reasonably execute its programming instructions when properly installed on the Target Platform. In the event that this Product fails to execute its programming instructions during the warranty period, the Customer's remedy shall be to return the Product to Digico UK Ltd foreplacement or repair at Digico UK Ltd option. Digico UK Ltd makes no other express warranty, whether written or oral with respect of this
Product.
LIMITATION OF LIABILITY - Except as otherwise expressly provided by law, (a) the remedies provided above are the Customer's sole and exclusive remedies and (b) Digico UK Ltd shall not be liable for any direct, indirect, special, incidental, or consequential damages
(including lost profit whether based on warranty, contract, tort, or any other legal theory.) This agreement is made under the Laws of England.
LICENCE NO: ..................... ..........................................................
REGISTRATION DATE: ..... ..........................................................
0-4
|
|
SD11 Operation Manual |
|
|
|
|
|
|
|
|
Contents |
1.1 |
Introduction .............................................................................. |
.......1-1 |
1.2 |
Manual Overview ..................................................................... |
.......1-1 |
1.3 |
Before You Start ....................................................................... |
.......1-2 |
1.3.1 Worksurface Layout ...................................................... |
.......1-2 |
1.3.2 Screen Assignment ....................................................... ....... |
1-2 |
1.3.3 Channel Banks .............................................................. ....... |
1-2 |
1.3.4 Using the Control Surface ............................................ ....... |
1-3 |
1.3.5 The Assigned Channel .................................................. ....... |
1-3 |
1.3.6 The Master Fader ........................................................... ....... |
1-4 |
1.3.7 Other Controls ............................................................... ....... |
1-4 |
1.3.8 Channel Types ............................................................... ....... |
1-5 |
1.4 |
Hardware Configuration.......................................................... |
.......1-6 |
|
1.4.1 Connections ................................................................... ....... |
1-6 |
|
1.4.2 Audio I/O Panel ............................................................... ....... |
1-6 |
1.5 |
Configuring a Session ............................................................ |
.......1-9 |
|
1.5.1 Session Structure .......................................................... ....... |
1-9 |
|
1.5.2 Assigning Faders to the Worksurface ....................... ....... |
1-10 |
1.6 |
Saving and Loading Sessions ............................................. |
.......1-11 |
|
1.6.3 Load Session ............................................................... ....... |
1-11 |
1.7 Audio Sync .............................................................................. |
.......1-12 |
|
1.8 |
Routing Basics ....................................................................... |
.......1-13 |
|
1.8.1 Selecting Inputs & Outputs ......................................... ....... |
1-13 |
|
1.8.2 Ripple Channels .......................................................... ....... |
1-14 |
|
1.8.3 Channel Names ........................................................... ....... |
1-14 |
1.9 |
Channel Processing .............................................................. |
.......1-15 |
|
1.9.1 EQ ................................................................................. ....... |
1-15 |
|
1.9.2 Dynamics ...................................................................... ....... |
1-16 |
|
1.9.3 Auxiliaries ..................................................................... ....... |
1-17 |
1.10 The Matrix ............................................................................. |
.......1-18 |
|
1.11 Control Groups ..................................................................... |
.......1-19 |
|
1.12 Solo Setup............................................................................. |
.......1-20 |
|
0-5
SD11 - Getting Started
1.1 Introduction
The Digico SD11 consists of a rack-mountable worksurface with an onboard audio engine and a range of onboard inputs and outputs. This can be connected to multiple Input/Output Rack Units by CAT5 cable or MADI links which carry all the audio input and output signals.
For Standard SD11 - The console worksurface can control 32 input channels (8 of which can be stereo), 8 VCAs, up to 12 mono or stereo busses, 8 Matrix inputs and outputs, 12 onboard graphic EQs and 4 onboard stereo effects.
For SD11i and SD11B - The console worksurface can control 40 input channels (all which can be stereo), 8 VCAs, up to 12 mono or stereo busses, 8 Matrix inputs and outputs, 12 onboard graphic EQs and 6 onboard stereo effects.
There are 12 assignable faders, each with associated assignable encoders and switches, used to control elements displayed in the touchscreen.
Multiple console setups can provide:
Front of House and Monitoring with a shared stage rack and gain tracking.
Remote control of a console from a laptop computer.
Mirroring of two consoles for an expanded workurfaces and audio engine redundancy
1.2 Manual Overview
This manual provides an overview of the desk, and describes some of the basic operating principles which the user will need to understand in order to run the desk.
For full details on all SD software functionality please refer to the SD Series Software Reference Manual available for download at www.digico.biz
The following typographical conventions are used in this manual:
Bold type is used to indicate that the text is an exact copy of the labelling either on a screen or on the worksurface.
An arrow bracket (>) is used to indicate a sequence of button pressing. For example, Layout > Fader Banks indicates that the
Fader Banks button is accessed by first pressing the Layout button.
1-1
SD11 - Getting Started
1.3 Before You Start
There are certain general operating principles and terms that should be understood before continuing to use this manual. Please read this chapter carefully before proceeding.
1.3.1 Worksurface Layout ..............................................................
|
Talkback |
|
Touchscreen |
USB |
|||||
|
Control |
|
|
|
|
Port |
|||
Headphone |
|
Solo Buss |
Macro |
|
Light |
||||
Control |
|
Controls |
Buttons |
|
Controls |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Channel Processing: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
High and Low Pass Filters |
Quick |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 Band Dynamic Parametric EQ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dynamics Thresholds & On / Off |
||
Select |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Channel Insert On/Off |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Direct Out On/Off |
Assignable Rotaries |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Undo/Redo & |
||
|
|
|
|
|
|
|
|
|
|
|
|
Channel Select Buttons |
|||||||||
Screen Scroll Buttons |
|
|
|
|
|
|
|
Master Level |
|||||||||||||
|
|
|
|
|
|
|
|
||||||||||||||
Option/All & 2nd Function Buttons |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Touch Turn Controls |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|||||||||||||||
LCD Functions |
|
|
|
|
|
|
|
|
Snapshot Previous/Next |
||||||||||||
|
|
|
|
|
|
|
|||||||||||||||
Mute and Channel Select Buttons |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Master Screen Assign |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
Headphone |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Layer Select Button |
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
Socket |
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bank Select Buttons |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.3.2 Screen Assignment ...............................................................
The SD11 has one central touchscreen which is used to access many of the consoles' functions. It displays either the in-channel controls for the selected fader bank, or the Master menus. Press the master screen button to the right of the faders to switch between these two displays.
Master Screen
Button
1.3.3 Channel Banks ......................................................................
The SD11's fader strips can be assigned to any of the console's fader banks. The SD11 has two layers, each with four banks of 12 faders. The active layer is selected using the layer button to the left of the master screen button, and the bank of channels which is currently active on the control surface are defined using the fader bank buttons below them (see diagram above).
The position of the banks on the worksurface is defined in the Layout > Fader Banks panel. By default, the Input channels are assigned to the first three banks of Layer 1, with Control Groups and Master fader are assigned to Layer 1 Bank 4, while the different output channels are assigned to Layer 2. These bank assignments can be customised by the user and saved in a session at any time.
1-2
SD11 - Getting Started
1.3.4 Using the Control Surface ....................................................
There are two main ways in which all of the functions of the SD11 are accessed:
1.The touchscreen display, which can be controlled directly using a finger, or by using the keyboard and mouse
2.The physical encoders, switches and faders.
Note that when touching the screen directly, you may find it easier to use a finer point than your finger. However, in order to prevent damage to the screen, it is important that you only use devices specifically designed for touching screens (such as a pda stylus), and that you never press down hard on the screen.
A number of functions can be accessed in different ways, allowing users to operate the console using whichever interface they prefer. This manual will describe accessing on-screen functions by touching the screen directly and not by using the mouse.
All of the physical controls found in the upper section are described in full within the relevant section of the manual and many require no further introduction. The Master screen has a row of grey buttons which are used to access a range of configuration displays. Pressing these buttons opens either a further drop-down sub-menu or a pop-up display. If a drop-down menu is opened, pressing on one of its entries will open a pop-up display. The buttons lighten to indicate that their sub-menu or pop-up display is open. A number of the buttons within each pop-up display generate further pop-ups.
The buttons within the pop-ups are coloured grey when their function is inactive, generally switching to a lighter shade of the pop-up background when their function is active. Pressing on a text box opens a numeric or QWERTY keypad which can be operated directly by pressing the screen or via the console’s external keyboard.
Pop-ups are closed by pressing the box in the top right-hand corner of the pop-up, marked CLOSE or CANCEL (or by pressing
CAN on keypad pop-ups).
To the right and below the touchscreen is a single encoder and switch marked Touch-Turn. This is used to access some of the rotary and switch controls within the Master screen. To assign the Touch-Turn encoder to a particular on-screen control, touch the pot to be assigned. You will notice that a coloured ring appears around the on-screen pot, indicating that it is assigned to the
Touch-Turn encoder/switch.
1.3.5 The Assigned Channel .........................................................
One of the channels in the Channel Strip panel is displayed in gold, indicating that it is currently the Assigned Channel. This means that it has been assigned to the worksurface controls and can be configured in detail, as described below. To Assign a channel, touch anywhere in the channel on the screen.
Once a channel is Assigned, all of the controls for that channel which are not displayed within the channel strip itself can be accessed via secondary pop-ups, displayed by touching inside the relevant area of the channel. These pop-ups include controls such as input and output routing and signal processing parameters.
A number of the physical rotary encoders on the control surface can be assigned to different on-screen pots. In order to ensure that it is clear which function is assigned to which encoder, the assigned on-screen pot will have a coloured ring around it.
The twelve encoders and buttons immediately below the touchscreen refer to the channels with which they are aligned:
Quick
Select
Buttons
Channel
Encoiders
Pressing one of the Quick Select buttons on the left of the screen will assign the selected function to the below the screen.
1-3
