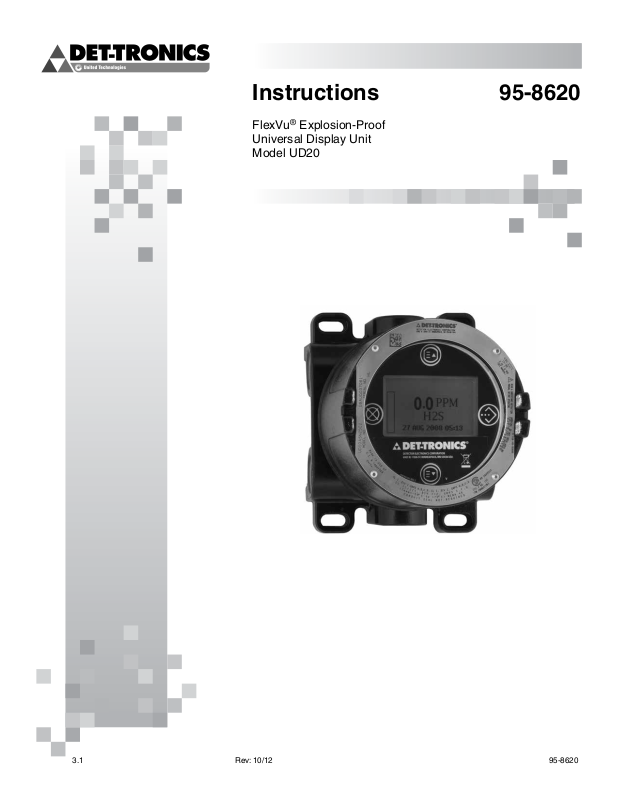

Det-Tronics UD20 User Manual

Instructions 95-8620
FlexVu® Explosion-Proof Universal Display Unit Model UD20
3.1 Rev: 10/12 95-8620
Table Of Contents
HART Communication .....................................................................2
Magnetic Switches ........................................................................... 2
Device Enclosure .............................................................................2
Device Display .................................................................................2
Logging ............................................................................................2
Output Test ....................................................................................... 2
Real Time Clock ............................................................................... 2
Identication of Vapor(s) to be Detected .......................................... 3
Identication of Detector Mounting Locations .................................. 3
Device Mounting Orientation ............................................................4
Sensor Separation ...........................................................................4
Power Supply Requirements ............................................................4
Wiring Cable Requirements .............................................................4
Wiring Procedure ..............................................................................4
General Calibration Information ....................................................... 6
Calibration Procedure .......................................................................7
Input Trim ......................................................................................... 7
DEVICE REPAIR AND RETURN ......................................................... 10
ORDERING INFORMATION ................................................................ 10
APPENDIX A —HART COMMUNICATION .......................................... 11
Impo rtan t
Be sure to read and understand the entire instruction manual before installing or operating the gas detection system. The Model UD20 is to be used with the GT3000 to provide early warning of the presence of a toxic gas mixture. Proper device installation, operation, and maintenance is required to ensure safe and effective operation. If this equipment is used in a manner not specied in this manual, safety protection may be impaired.
INSTRUCTIONS
FlexVu® Explosion-Proof
Universal Display Unit
Model UD20
ApplicAtion
The FlexVu® Model UD20 Universal Display Unit is designed to be used with the GT3000 Toxic Gas Detector.
It is recommended for applications where a 2-wire loop powered gas detector is required. The output is a 4-20 mA signal with HART, corresponding to the output of the GT3000 detector.
Gas concentrations are displayed on an alpha-numeric display in ppm (% for O2). The display unit reads the linear 4-20 mA DC output signal from the GT3000 that corresponds to the detected gas concentration. The UD20 automatically detects the gas type and operating range of the sensor to which it is connected via the HART signal.
All electronics are enclosed in an explosion-proof aluminum or stainless steel housing. The display unit is used with a single GT3000, which may be either directly coupled to the display unit, or remotely located using a sensor termination box. The UD20 features non-intrusive calibration, which can be performed by using a handheld magnet to activate internal magnetic switches on the faceplate. Calibration can also be performed by activating the GT3000’s internal magnetic reed switch with a magnet.
Description
The UD20 provides display and control capabilities for the GT3000, and utilizes the following I/O:
Signal Inputs: 4-20 mA loop with HART,
from the GT3000
User Inputs: Magnetic switches (4),
on the display panel
Visible Outputs: LCD display
Signal Outputs: 4-20 mA loop with HART,
from the GT3000
3.1 ©Detector Electronics Corporation 2012 Rev. 10/12 95-8620
HART COMMUNICATION
DEVICE ENCLOSURE
The UD20 is a HART primary master and communicates with the GT3000, which is a HART slave device. Upon power-up, the UD20 requests the gas type, measurement range, and unit of measure from the GT3000. During normal operation, the UD20 continually polls the GT3000 for status information. Because the UD20 is a primary master, a secondary master can also be used to communicate with the GT3000 at the same time. If an Asset Management System (AMS) is used, it should be configured as a secondary master to avoid communication conflicts with the UD20.
MAGNETIC SWITCHES
Four internal magnetic switches provide a non-intrusive user interface that allows adjustment of configuration parameters and calibration in the field without the use of a HART handheld device.
The switches are labeled as follows:
Cancel, Escape
Enter, Select
The housing for the UD20 consists of a multi-port aluminum or stainless steel explosion-proof junction box with a clear viewing window. Available conduit entry sizes include 3/4 inch NPT and M25.
DEVICE DISPLAY
The UD20 is provided with a 160 x 100 dot matrix LCD display. See Figure 1.
During normal operation, the UD20’s LCD display indicates the gas type and units measured.
The UD20 communicates with the sensor and allows easy access to the following information:
•Sensor(GTS)information/fault/status
•Transmitter(GTX)information/fault/status
Refer to Appendix A for details regarding the HART menu structure.
LOGGING
The UD20 has no logging capability of its own, but reads the logs that are stored in the GT3000 and displays them on the LCD screen. If an AMS is used, it communicates directly with the GT3000 and not with the UD20.
Previous
Next
Figure 1—Faceplate of UD20
B2426
PREVIOUS
CANCEL / ESCAPE
ENTER / SELECT
NEXT
UD20
GT3000
GAS
DETECTOR
CONTROL
SYSTE M
Operating and history logs that are stored in the GT3000 and displayed by the UD20 include:
•Calibration
•Sensorrunninghours
•Sensortemperature
•Events
OUTPUT TEST
The UD20 can start and stop a 4-20 mA Loop Test for checking correct operation of system output devices.
REAL TIME CLOCK
The Real Time Clock resides in the GT3000 and can be set by the UD20, HART handheld, or AMS. The UD20 reads and displays the current time/date from the GT3000.
3.1 95-86202
importAnt sAfety notes
instA llAtio n
CaUtIon
The wiring procedures in this manual are intended to ensure proper functioning of the device under normal conditions. However, because of the many variations in wiring codes and regulations, total compliance to these ordinances cannot be guaranteed. Be certain that all wiring complies with the NEC as well as all local ordinances. If in doubt, consult the authority having jurisdiction before wiring the system. Installation must be done by a properly trained person.
CaUtIon
This product has been tested and approved for use in hazardous areas. However, it must be properly installed and used only under the conditions specied within this manual and the specic approval certicates. Any device modication, improper installation, or use in a faulty or incomplete conguration will render warranty and product certications invalid.
CaUtIon
The device contains no user serviceable components. Service or repair should never be attempted by the user. Device repair should be performed only by the manufacturer or trained service personnel.
LIabILItIes
The manufacturer’s warranty for this product is void, and all liability for proper function of the Display is irrevocably transferred to the owner or operator in the event that the device is serviced or repaired by personnel not employed or authorized by Detector Electronics Corporation, or if the device is used in a manner not conforming to its intended use.
CaUtIon
Observe precautions for handling electrostatic sensitive devices.
NOTE The UD20 housing must be electrically connected to earth ground. A dedicated earth ground terminal is provided on the UD20.
Install gas detectors in the appropriate locations following the guidelines below. The UD20 should be located where it can be easily viewed by personnel. The GT3000 can be attached directly to the UD20 housing, or it can be mounted remotely using a Det-Tronics STB termination box (see “Sensor Separation” for additional information). Detectors must always be installed per local installation practices.
Always define the following application details:
IDENTIFICATION OF VAPOR(S) TO BE DETECTED
It is necessary to always identify the vapor(s) of interest at the job site. In addition, the fire hazard properties of the vapor, such as vapor density, flashpoint, and vapor pressure should be identified and used to assist in selecting the optimum detector mounting location within the area.
IDENTIFICATION OF DETECTOR MOUNTING LOCATIONS
Identification of the most likely leak sources and leak accumulation areas is typically the first step in identifying the best detector mounting locations. In addition, identification of air current / wind patterns within the protected area is useful in predicting gas leak dispersion behavior. This information should be used to identify optimum sensor installation points.
If the vapor of interest is lighter than air, place the sensor above the potential gas leak. Place the sensor close to the floor for gases that are heavier than air. Note that air currents may cause a gas that is slightly heavier than air to rise under some conditions. Heated gases may also exhibit the same phenomenon.
CaUtIon
Unused entries must be closed with suitably certied blanking elements upon installation.
3.1 95-86203
The most effective number and placement of detectors varies depending on the conditions at the job site. The individual designing the installation must often rely on experience and common sense to determine the detector quantity and best locations to adequately protect the area. Note that it is typically advantageous to locate detectors where they are accessible for maintenance. Locations near excessive heat or vibration sources should be avoided if possible.
Final suitability of possible gas detector locations should be verified by a job site survey.
GREEN LED
CALIBRATION NOTCH
B2436
GND LUG
Figure 2— Correct Mounting Orientation
WirinG
POWER SUPPLY REQUIREMENTS
Calculate the total gas detection system power consumption rate in watts from cold start-up. Select a power supply with adequate capability for the calculated load. Ensure that the selected power supply provides regulated and filtered 24 Vdc output power for the entire system. If a back-up power system is required, a float-type battery charging system is recommended. If an existing source of 24 Vdc power is being utilized, verify that system requirements are met.
NOTE The UD20 and GT3000 communicate using HART protocol, which requires a power supply with low noise levels for proper operation. (For detailed information regarding power supply specications, refer to the HART Communication Foundation’s document “FSK Physical Layer Specication” HCF_SPEC-54.)
WIRING CABLE REQUIREMENTS
DEVICE MOUNTING ORIENTATION
The gas detector must be mounted in a vertical position only, with the sensor pointing down
. See Figure 2.
Impo rtan t
The GT3000 must be oriented with the LEDs facing forward so they are easily visible to personnel within the area. To ensure correct orientation (the LEDs are not visible when power is off), position the GND lug on the left hand side and the calibration notch to the front. Note that the LEDs are located directly above the calibration notch.
SENSOR SEPARATION
Det-Tronics sensor termination boxes (Model STBs) enable the installation of the GT3000 separately from the UD20 Universal Display Unit. Two-conductor shielded cable is required to prevent possible nuisance EMI/RFI.
The maximum cable length between the termination box and the UD20 is 2000 ft.
Always use proper cabling type and diameter for input power as well as output signal wiring. 22 to 14 AWG shielded stranded copper wire is recommended.
Always install a properly sized, master power fuse or breaker on the system power circuit.
NOTE The use of shielded cable in conduit or shielded armored cable is required. In applications where the wiring is installed in conduit, dedicated conduit is recommended. Avoid low frequency, high voltage, and non-signaling conductors to prevent nuisance EMI problems.
CaUtIon
The use of proper conduit installation techniques, breathers, glands, and seals is required to prevent water ingress and/or maintain the explosion-proof rating.
WIRING PROCEDURE
Refer to Figures 3 and 4 for wiring illustrations.
3.1 95-86204
J2-6
J2
HAZARDOUS LOCATION NON-HAZARDOUS LOCATION
+
24 VDC
UD20 DISPLAY UNIT
B2483
J2-6
J2-5
J2-4
J2-3
J2-2
J2-1
J2
NOTE 1 GROUND THE SHIELD AT THE POWER SOURCE END ONLY.
NOTE 2 250 OHM RESISTOR REQUIRED (INCLUDED).
NOTE 3 EXTERNAL HART COMMUNICATION DEVICES CAN BE CONNECTED ACROSS THE 250 OHM RESISTOR, ACROSS J2-5 AND J2-6, OR ACROSS J2-2 AND J2-3.
NOTE 4 JUNCTION BOXES MUST BE ELECTRICALLY CONNECTED TO EARTH GROUND.
BLACK
RED
SEE NOTE 1
SEE NOTES 2 AND 3
SEE NOTE 1
GT3000
GAS DETECTOR
SENSOR TERMINATION BOX
RED
RED
BLACK
BLACK
GREEN
+
+
SHIELD
SHIELD
SENSOR
LOOP
POWER
LOOP
HAZARDOUS LOCATION NON-HAZARDOUS LOCATION
GT3000
GAS DETECTOR
RED
UD20 DISPLAY UNIT
BLACK
GREEN
+
POWER
LOOP
SEE NOTE 1
NOTE 1 CONNECT THE GREEN SENSOR LEAD TO THE CHASSIS GROUND LUG ON THE INSIDE BOTTOM OF THE UD20 DISPLAY UNIT ENCLOSURE.
NOTE 2 250 OHM RESISTOR REQUIRED (INCLUDED).
NOTE 3 EXTERNAL HART COMMUNICATION DEVICES CAN BE CONNECTED ACROSS THE 250 OHM RESISTOR, ACROSS J2-5 AND J2-6, OR ACROSS J2-2 AND J2-3.
NOTE 4 JUNCTION BOX MUST BE ELECTRICALLY CONNECTED TO EARTH GROUND.
NOTE 5 GROUND THE SHIELD AT THE POWER SOURCE END ONLY.
SHIELD
J2-5
J2-4
+
J2-3
J2-2
J2-1
SHIELD
SENSOR
LOOP
Figure 3—Basic Wiring for Explosion Proof UD20 with GT3000
SEE NOTES 2 AND 3
+
24 VDC
SEE NOTE 5
B2406
3.1 95-86205
Figure 4—Basic Wiring for Explosion Proof UD20 and GT3000 with Terminal Box
Table 1— GT3000 LEDs During Calibration
Table 2— GT3000 LEDs and 4-20 mA Output
During Various Status Conditions
Device Status Green LED Yellow LED
Normal Steady On Off
Waiting for Zero Off Steady On
Waiting for Gas Off Blinking
Waiting for Span Off Blinking
Remove Cal Gas Off Off
Normal Steady On Off
cAlibrAtion
The calibration process is automatic, with the exception of gas delivery. LEDs on the GT3000 and messages on the UD20 faceplate guide the operator when to apply and remove the calibration gas. See Table 1.
NOTE The UD20 allows the operator to adjust the calibration gas concentration within the range of 30 to 90% full scale. The default value for all gas sensors except oxygen is 50% full scale. Oxygen sensors use a default value of 20.9%.
GENERAL CALIBRATION INFORMATION
All GT3000 Gas Detectors require a two-point calibration — zero and span.
The calibration process can be initiated using the magnetic switch on the GT3000 or using the magnetic switches on the UD20 faceplate. All sensors, including oxygen, should be in clean air (20.9% oxygen) when the calibration sequence is initiated.
Function
Warm-up Off Steady On 3.5
Normal
Operation
Fault
Condition
Calibration See Table 1 3.8
Green
LED
Steady On Off 4-20
Off Steady On 3.5
Yellow
LED
Analog
4-20 mA
Signal
If the calibration sequence is aborted or not completed successfully, the detector reverts back to the previous calibration values and signals a calibration fault. If a successful calibration cannot be performed, the calibration fault can be cleared by activating the magnetic switch on the GT3000 for one second.
For help assessing when a fault has occurred see Table
2.
The calibration process can fail for the following causes:
•Zeroisoutofrange
•Spanisoutofrange
•Time-Out.
The time and date of calibration events are logged in the GT3000’s non-volatile memory along with the calibration outcome. Possible calibration scenarios include the following:
•SuccessfulCalibration
•AbortedCalibration
•FailedCalibration
Once calibration is initiated, the process proceeds automatically. The yellow LED on the GT3000 and the digital display on the UD20 are used to inform the operator of the progress of the calibration procedure, and also signal when to apply and when to remove the calibration gas.
The calibration can be aborted after zero calibration by activating the magnetic switch on the GT3000 or navigating the UD20 menu.
3.1 95-86206
NOTE The calibration procedure must be completed within a ten minute period. If the calibration is not completed, a calibration fault will be generated and the previous calibration data will be used.
NOTE To ensure reliable protection, it is important to check and calibrate the detection system on a regularly scheduled basis. The frequency of these checks is determined by the requirements of the particular installation – typically 30, 60, or 90 day intervals, depending on the ambient conditions.
LED
INPUT TRIM
The input current loop of the UD20 is trimmed at the factory. However, it can also be trimmed in the field using the following automated process.
Navigate through the menu to “Input Loop Cal”.
PLACE MAGNET HERE
TO ACTIVATE INTERNAL
MAGNETIC SWITCH
A2452
Figure 5—Location of Magnetic Switch on GT3000 Detector
CALIBRATION PROCEDURE
1. Clean air must be present at the sensor prior to initiating calibration. The use of bottled air is recommended.
2. Calibration can be initiated in one of two ways:
A. Hold the calibration magnet against the
designated location on the sensor module (see Figure 5) until the green LED turns off and the yellow LED turns on steady (approximately one second).
B. Initiate calibration via the magnetic switches on
the UD20. Select Main Menu > Device Cal > Calibration > Execute.
The UD20 indicates “Waiting for Zero”.  The
transmitter immediately begins taking zero readings.
3. When the zero calibration is complete, the yellow LED changes from steady to blinking and the UD20 indicates “Waiting for Gas”. Apply the calibration gas to the sensor. When gas is detected, the UD20 indicates “Waiting for Span”.
Main Menu
Process Vars Display Status Device Status Device Setup Device Cal Device Test
Device Setup
HART Option
RTC
Write Protect
Input Loop Cal
Contrast Control
Upon entering Input Loop Cal, the UD20 commands the detector to output 4 mA, and then automatically calibrates its own input. The UD20 then commands the detector to output 20 mA, and subsequently calibrates its own input.
specificAtions
UD20 UNIVERSAL DISPLAY UNIT
OPERATING VOLTAGE—
24 Vdc nominal, operating range is 19 to 30 Vdc. UD20 maximum loop voltage drop (Vd) 5.0 volts. Maximum loop supply 30.0 Vdc.
OPERATING POWER—
0.8 watt maximum.
OPERATING CURRENT—
A minimum of 3.5 mA.
CURRENT OUTPUT—
Linear 4-20 mA (with HART output directly from GT3000). 250 ohm termination resistor is required (included).
OPERATING T EMP ERAT URE—
–20°C to +70 °C.
4. When the yellow LED turns off and the UD20 indicates “Remove Cal Gas”, remove the calibration gas. The gas level at the sensor gradually returns to zero. The green LED turns on steady to indicate that the device has returned to normal operation, using the new calibration data.
3.1 95-86207
STORAGE TEMPERATURE—
–40°C to +70°C.
HUMIDITY RANGE—
5 to 95% RH (Det-Tronics verified).
SENSOR COMPATIBILITY—
The UD20 can be used with any of the Det-Tronics GT3000 line of gas detectors.
11.28
(28.7)
6.48
(16.5)
3.46 (8.8)
4.7
(11.9)
5.2
(13.2)
5.86
(14.9)
R0.175
Figure 6—Dimensions of UD20 with GT3000 in Inches (Centimeters)
WIRING TERMINALS—
Terminals can handle wire sized from 22 to 14 AWG.
CONDUIT ENTRIES—
3/4” NPT or M25.
(Five conduit entries standard.)
ENCLOSURE MATERIAL—
Epoxy coated aluminum or 316 stainless steel.
SHIPPING WEIGHT—
Aluminum: 4.15 pounds (1.88 kilograms). Stainless steel: 10.5 pounds (4.76 kilograms).
3.1 95-86208
A2442
DIMENSIONS—
See Figures 6 and 7.
ELECTRO-MAGNETIC COMPATIBILITY—
EMC Directive 2004/108/EC EN55011 (Emissions) EN50270 (Immunity)
WARRANTY—
12 months from date of installation or 18 months from date of shipment, whichever occurs first.
®
5.86
(14.9)
2.7
(6.9)
5.2
(13.2)
CERTIFICATIONS—
FM: Class I, Div. 1, Groups B, C & D; Class I, Div. 2, Groups B, C & D (T4);
ClassI,Zone1/2AExdIICT6;
FM
Class II/III, Div. 1/2, Groups E, F & G.
APPROVED
T
–20°C to +70°C
amb
NEMA/Type4X,IP66
Conduit seal not required.
4.7
(11.9)
3.46
(8.8)
3.77 (9.6)
1.28 (3.3)
Figure 7—Dimensions of Model STB Termination Box
in Inches (Centimeters)
C2281
Performance verified in accordance with: ANSI/ISA-92.0.01 ANSI/ISA-92.02.01 FM 6341 (Draft) ANSI/ISA-12.13.01 ANSI/ISA-12.13.04/FM 6325 FM 6310/6320
CSA: CSA 08 2162793. Class I, Div. 1, Groups B, C & D; Class I, Div. 2, Groups B, C & D (T4);
®
Class II/III, Div. 1/2, Groups E, F & G. (T
= –20°C to +70°C)
amb
Type4X,IP66
Conduit seal not required.
ATEX: 0539
II 2 G Ex d IIC T6 Gb T
–20°C to +70°C
amb
FM08ATEX0044X
IP66 Performance verified in accordance with: EN 61779-1/-4 and EN 50241-1/-2.
IECEx: Ex d IIC T6 Gb T
–20°C to +70°C
amb
IECExFMG08.0010X
IP66
Performance verified in accordance with:
IEC 61779-1, -4.
3.1 95-86209
INMETRO CEPEL 12.2128 Ex d IIC T6 Gb IP66 T6 (T
–20°C to +70°C)
amb
All cable entry devices shall be Brazil certified in the type of explosion protection, flameproof enclosure ‘d’, suitable for the conditions of use and correctly installed, with an ingress protection rating of IP66.
A screw or cover lock is provided for a secondary means of fastening the cover.
DeVice repAir AnD retUrn
REPLACEMENT PARTS
Prior to returning devices, contact the nearest local Detector Electronics office so that a Return Material Identification (RMI) number can be assigned. A
written statement describing the malfunction must accompany the returned device or component to assist and expedite nding the root cause of the failure.
Pack the unit properly. Always use sufficient packing material. Where applicable, use an antistatic bag as protection from electrostatic discharge.
NOTE Inadequate packaging that ultimately causes damage to the returned device during shipment will result in a service charge to repair the damage incurred during shipment.
Return all equipment transportation prepaid to the factory in Minneapolis.
NOTE It is highly recommended that a complete spare be kept on hand for eld replacement to ensure continuous protection.
Part Number Description
009700-001 Magnetic Tool 009793-002 Electronics Module 010253-001 250 ohm Terminating Resistor Kit 101197-001* Stop Plug, 3/4" NPT, AL 101197-004* Stop Plug, 3/4" NPT, SS 101197-005 Stop Plug, M25, AL, IP66 101197-003 Stop Plug, M25, SS, IP66
010816-001 StopPlug,20PK,3/4"NPT,AL,EXD 010817-001 StopPlug,20PK,3/4"NPT,SS,EXD
010818-001 010819- 001
StopPlug,20PK,M25,AL,IP66,EXDE StopPlug,20PK,M25,SS,IP66,EXDE
102804-001 Reducer, M25 to M20, AL 102804-003 Reducer, M25 to M20, SS 103922-001 475 Field Communicator 005003-001 Lubriplate grease, 1 oz.
* NEMA 4/IP66 rating requires addition of non-hardening
thread sealant or Teflon tape.
ASSISTANCE
For assistance in ordering a system to meet the needs of a specific application, contact:
orDerinG informAtion
Sensor module, Transmitter module and termination boxes (if used) must be ordered separately.
Refer to the UD20 Model Matrix for ordering details.
UD20 MODEL MATRIX
MODEL DESCRIPTION
UD20 Universal Display Unit
TYPE MATERIAL
A Aluminum
S Stainless Steel (316)
TYPE THREAD TYPE
5M 5 PORT, METRIC M25
5N 5 PORT, 3/4” NPT
TYPE OUTPUTS
26 Pass-Through 4-20 mA, HART
Detector Electronics Corporation 6901 West 110th Street Minneapolis, Minnesota 55438 USA Operator: (952) 941-5665 or (800) 765-FIRE Customer Service: (952) 946-6491 Fax: (952) 829-8750 Web site: www.det-tronics.com E-mail: det-tronics@det-tronics.com
TYPE APPROVAL
W FM/CSA/ATEX/CE/IECEx
B INMETRO (Brazil)
TYPE CLASSIFICATION (Div/Zone)
2 Ex d (Flameproof)
3.1 95-862010
AppenDix A
HART COMMUNICATION
menU strUctUre - UD20 With Gt3000
This section displays the menu trees for the UD20 connected to the GT3000. The menu tree shows the primary commands and options available when using menu selections.
3.1 95-862011
1.01
LOOP TEST ON/OFF
TX FAULT
EE FAULT ON/OFF
ADC FAULT ON/OFF
DAC FAULT ON/OFF
LOW VOLTAGE ON/OFF
FLASH CRC FAULT ON/OFF
RAM FAULT ON/OFF
TEMP FAULT ON/OFF
SOFTWARE FAULT ON/OFF
FACTORY MODE ON/OFF
SNSR ASSY REMOVE ON/OFF
EE SAFETY FAULT ON/OFF
SENSOR STATUS
ZERO DRIFT FAULT ON/OFF
SENSOR MISMATCH ON/OFF
SENSOR FAULT ON/OFF
SENSOR FAULT ON/OFF
WARM UP ON/OFF
CAL ACTIVE ON/OFF
CAL SWITCH ON/OFF
WRITE PROTECT ON/OFF
EOL SENSOR ON/OFF
CHANGE CONFIG ON/OFF
GEN ACTIVE ON/OFF
SENSOR FAULT
GEN INSTALLED ON/OFF
CAL FAULT ON/OFF
EE FAULT ON/OFF
ADC FAULT ON/OFF
ADC CNTR FAULT ON/OFF
3V FAULT ON/OFF
ZERO DRIFT FAULT ON/OFF
FLASH CRC FAULT ON/OFF
RAM FAULT ON/OFF
TEMP FAULT ON/OFF
COMM FAULT ON/OFF
GEN FAULT ON/OFF
TX STATUS
TX FAULT ON/OFF
WARM UP ON/OFF
CHANGE CONFIG ON/OFF
MULTI DROP ON/OFF
WRITE PROTECT ON/OFF
SELF TEST ON/OFF
RESPONSE TEST ON/OFF
CURRENT FIXED ON/OFF
June 15, 2009
Detector Electronics
UD20
GT3000
Street
th
RTC
6901 West 110
Minneapolis, MN 55438
USA
GENERAL INFO
MODEL FGP_TX
TAG XXXXX
DESCRIPTOR XXXXX
DATE DD/MMM/YYYY
MESSAGE XXXXX
MANUFACTURER
FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
FAULT/STATUS
OP MODE XXXXX
CAL STATE XXXXX
TX STATUS Y/N
TX FAULT Y/N
SENSOR STATUS Y/N
SENSOR FAULT Y/N
SECONDS XX
MINUTES XX
HOURS XX
DAY XX
TX INFO
RTC
H/W REV XX.XX
F/W REV XX.XX
SERIAL NUMBER XXXXX
MONTH XX
UNIVERSAL REV XXXXX
FLD DEV REV XXXXX
YEAR XX
RUNNING HOURS XXXXX
TX HISTORY
RUNNING HOURS XXXXX
MAX TEMP XX.XX C
MAX TEMP TIME XXXXX
SENSOR INFO
TEMPERATURE XX.XX C
SENSITIVITY XXX.XX
GAS TYPE XXXXX
MIN TEMP XX.XX C
H/W REV XX.XX
MIN TEMP TIME XXXXX
F/W REV XX.XX
SERIAL NUMBER XXXXX
SENSOR HISTORY
RUNNING HOURS XXXX
MAX TEMP XX.XX C
MAX TEMP TIME XXXXX
REV XXXXX
USL XX.XX
LSL XX.XX
RUNNING HOURS XXXXX
CAL POINT ZERO XX.XX
CAL POINT SPAN XX.XX
PPM HOURS XXXXX
MIN TEMP XX.XX C
TEMPERATURE XX.XX C
CALIBRATION LOG
CAL ID XXX
MIN TEMP TIME XXXXX
DATE DD/MMM/YYYY
HISTORY
SENSOR HISTORY
TX HISTORY
TIME HH :MM:SS
ZERO XX.XX
CALIBRATION LOG
EVENT LOG
SPAN XX.XX
EVENT XXXXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
DEBUG MENU
EVENT LOG
MODBUS ERRORSXXXX
FAULT
ADC FAULT ON/OFF
FLASH FAULT ON/OFF
RAM FAULT ON/OFF
WDT FAULT ON/OFF
3V FAULT ON/OFF
INPUT LOOP FAULT ON/OFF
DISPLAY INFO
F/W REV XX.XX
PROCESS VARS
GAS NAME XXXX
GAS VALUE X.XX
ANALOG INPUT XX.XX MA
URV X.XX
LRV X.XX
FAULT/STATUS
SERIAL NUMBER XXXX
TEMPERATURE XX.XX C
FACTORY CONFIG
DISPLAY STATUS
FAULT Y/N
STATUS
ANY FAULT ON/OFF
CAL ACTIVE ON/OFF
WARM UP ON/OFF
INPUT HART ON/OFF
SET 4-20 MA
3.5 MA
4 MA
6 MA
8 MA
10 MA
12 MA
14 MA
16 MA
18 MA
20 MA
DEBUG MENU
HART ERRORS XXXXX
LCD TEST
OP MODE XXXXX
FAULT Y/N
STATUS Y/N
DISPLAY INFO
FAULT/STATUS
DEBUG MENU
ANALOG INPUT XX.XX MA
DEVICE STATUS
HART OPTION
TAG XXXXX
DESCRIPTOR XXXXX
GENERAL INFO
FAULT/STATUS
TX INFO
SENSOR INFO
HISTORY
DEBUG MENU
RTC
SET 4-20 MA
DEVICE TEST
SELF TEST
RESPONSE TEST
LOOP TEST
D/A TRIM
ZERO TRIM
GAIN TRIM
D/A TRIM
WRITE PROTECT
SECONDS XX
MINUTES XX
HOURS XX
DAY XX
MONTH XX
DATE DD/MMM/YYYY
MESSAGE XXXXX
FINAL ASSY NUM XXXX
DEVICE SETUP
YEAR XX
RTC
WRITE PROTECT
INPUT LOOP CAL
CONTRAST CONTROL
HART OPTION
CHANGE STATE
CHANGE PASSWORD
WRITE PROTECT XXXXX
CALIBRATION
DEVICE CAL
CAL GAS CONC XX.XX
EXECUTE
CALIBRATION
LOOP TEST
ABORT
CHANGE SNSR TYPE
MAIN MENU
PROCESS VARS
DISPLAY STATUS
DEVICE STATUS
DEVICE SETUP
DEVICE CAL
DEVICE TEST
3.1 95-862012
95-8620
X3301 Multispectrum
IR Flame Detector
PointWatch Eclipse®
IR Combustible Gas Detector
®
Universal Display
FlexVu
w/ GT3000 Toxic Gas Detector
Det-Tronics, Eagle Quantum Premier, Eclipse, and FlexVu are registered trademarks of Detector Electronics Corporation in the
United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.
Eagle Quantum Premier
Safety System
© Copyright Detector Electronics Corporation 2012. All rights reserved.
Detector Electronics Corporation
6901 West 110th Street
Minneapolis, MN 55438 USA
T: 952.941.5665 or 800.765.3473
F: 952.829.8750
®
W: http://www.det-tronics.com
E: det-tronics@det-tronics.com
Loading...
