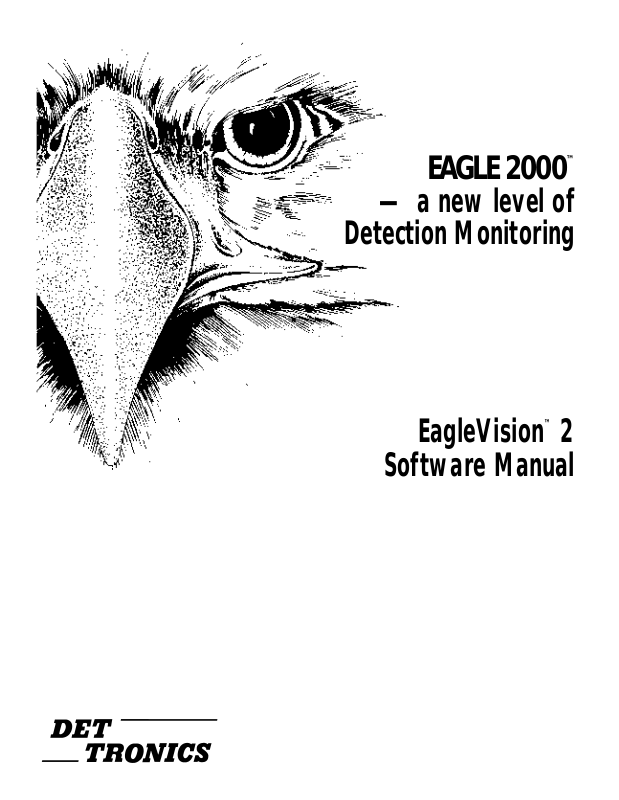

EAGLE2000
™
— a new level of
Detection Monitoring
EagleVision™2
Software Manual
ALL IMPLIED WARRANTIES ON THIS SOFTWARE PACKAGE, INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO NINETY (90) DAYS FROM THE
DATE OF THE ORIGINAL RETAIL PURCHASE OF THIS PRODUCT.
Even though Detector Electronics has reviewed this software package DETECTOR
ELECTRONICS MAKES NO WARRANTY OR REPRESENTATION, EITHER
EXPRESS OR IMPLIED, WITH RESPECT TO THIS SOFTWARE PACKAGE, ITS
QUALITY, ACCURACY, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE.
AS A RESULT, THIS SOFTWARE PACKAGE IS SOLD “AS IS,” AND YOU, THE
PURCHASER, ARE ASSUMING THE ENTIRE RISK AS TO ITS QUALITY AND
ACCURACY.
IN NO EVENT WILL DETECTOR ELECTRONICS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING
FROM ANY DEFECT OR INACCURACY IN THIS SOFTWARE PACKAGE even if
advised of the possibility of such damages.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHERS, ORAL OR WRITTEN, EXPRESS OR IMPLIED. No Detector
Electronics dealer, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
Some states do not allow the exclusion or limitation of implied warranties or liability for incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights, which may vary from state to state.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, mechanical, electronic photocopying, recording or otherwise, without prior written permission of
Detector Electronics.
EagleVision, Eagle 2000, EventHistoryEV, EventsActiveEV and DocumentatorEV
are trademarks of Detector Electronics Corp.
Apple is a registered trademark of Apple Computer, Inc.
Macintosh is a registered trademark of Apple Computer, Inc.
Modbus is a registered trademark of Modicon Inc.
SuperCard is a registered trademark of Aldus Corporation.
HyperCard is a registered trademark of Claris Corp.
Every effort has been made to supply complete and accurate information.
However, Detector Electronics assumes no responsibility for its use, nor for any
infringements of patents or other rights of third parties which would result.
User Information
WARRANTY INFORMATION
95-8434
SECTION 1
EagleVision Software Package......................................................1.1
System Requirements..............................................................1.1
Installing EagleVision Software......................................................1.2
EagleVision Files ...................................................................1.3
EagleVision Capabilities.........................................................1.4
Menu Overview ..........................................................................1.5
File Menu.............................................................................1.5
Edit Menu.............................................................................1.5
Configure Menu....................................................................1.5
EagleVision Software Overview ....................................................1.6
Misc Menu ...........................................................................1.7
SECTION 2
Event Configuration Screen...........................................................2.1
Event Configuration Screen Buttons..........................................2.2
Event Configuration (EagleVision) .................................................2.5
Event Configuration (External Database).......................................2.10
Database File Structure.........................................................2.12
Print Settings Configuration.........................................................2.14
Driver Settings...........................................................................2.16
Single Port Version ..............................................................2.16
Four Port Version.................................................................2.16
Watchdog Timer .................................................................2.18
OIS Modbus Address...........................................................2.18
Datatable Configuration ............................................................2.19
Memory Map Overview.......................................................2.19
Datatable Configuration Screen ............................................2.20
Datatable Configuration Procedure........................................2.21
Point Configuration ...................................................................2.22
Point Configuration Procedure...............................................2.22
Entering Point Calibration and Alarm Setpoints .......................2.24
Setting Point Update Rates....................................................2.24
Point Delete and Find Procedures...........................................2.25
Relay Node Configuration Procedure ..........................................2.26
Point Configuration Database Format ..........................................2.28
Gateway Relay Configuration ....................................................2.29
Network Utilities .......................................................................2.31
Zone Configuration ..................................................................2.33
Configuration Overview.............................................................2.37
Single Port Version ..............................................................2.37
Four Port Version.................................................................2.37
Misc Menu Items .......................................................................2.38
Address Checker.................................................................2.38
Hide Event Window.............................................................2.38
Show Event Window ...........................................................2.38
Modify Password.................................................................2.38
Restore Password Protection..................................................2.38
Collect Module Logs ............................................................2.39
Preferences.........................................................................2.39
EventsActive™......................................................................2.40
EventHistory™......................................................................2.40
Table of Contents
INSTALLING EAGLEVISION
SYSTEM CONFIGURATION
95-8434
SECTION 3
Gateway Point Display.................................................................3.1
General Information Indicators................................................3.1
Pushbutton Functions..............................................................3.3
Communication Module Point Display............................................3.4
General Information Indicators................................................3.4
Pushbutton Functions..............................................................3.5
I/O Information.....................................................................3.6
Calibration Information ..........................................................3.6
Alarm Information..................................................................3.6
Alarm History........................................................................3.6
Sensor Level Bar Graph..........................................................3.7
Relay Module Point Display..........................................................3.8
General Information Indicators................................................3.8
Pushbutton Functions..............................................................3.9
SECTION 4
XCMD and XFCN Definition .........................................................4.1
AckEvents...................................................................................4.2
ChkEventState.............................................................................4.2
ClearEventWindow .....................................................................4.2
GetALoggedEvent........................................................................4.3
GetBit ........................................................................................4.3
GetGWPointDisplay ....................................................................4.3
GetManyBit................................................................................4.4
GetNumLoggedEvents..................................................................4.4
GetTableState.............................................................................4.7
GetWord ...................................................................................4.7
GetZoneState..............................................................................4.8
GetZoneStatus ............................................................................4.8
LogToAll.....................................................................................4.9
LogToDisk...................................................................................4.9
LogToEventWindow.....................................................................4.9
LogToPrinter..............................................................................4.10
ResetBit....................................................................................4.10
SetBit.......................................................................................4.11
SetTablePolling .........................................................................4.11
SetTableState............................................................................4.12
SetWord ..................................................................................4.12
SetZoneState ............................................................................4.12
Table of Contents
POINT DISPLAYS
ADDING GRAPHICS CAPABILITIES
95-8434
EAGLE2000
™
— a new level of
Detection Monitoring
Section 1
Installing EagleVision
™
EagleVision Software Package 1.1
Installing EagleVision Software 1.2
Menu Overview 1.5
EagleVision Software Overview 1.6
EagleVision Software Package
SYSTEM REQUIREMENTS
1.1
95-8434
The EagleVision Software Package includes:
1. Several disks containing EagleVision Software. This includes
EagleVision and its utility programs, online help for Eagle products, an
Adobe Acrobat Reader Installer, and Acrobat files providing viewable
and printable versions of the documentation.
2. Manuals for all Eagle hardware and software.
3. One ADB hardware key.
EagleVision requires the following system components:
■ Macintosh or compatible computer (OIS)
■ Color monitor (640 x 480 minimum) with at least 256 colors
■ MacOS 7.0 or greater
■ 16 megabytes (MB) of RAM minimum. EagleVision requires 5 MB
of free RAM to run, an additional 3 MB of RAM are required by
EventsActive or EventHistory.
■ Hard drive
1. Rename the Macintosh hard disk drive “Detector.”
2. Insert EagleVision Disk 1 (P/N 006141-001) into the floppy drive
and double-click on the “Installer” icon.
3. Follow the onscreen directions.
Detector Electronics’ EagleVision software allows any Apple Macintosh or
compatible computer running under MacOS 7.0 or later to access the
Eagle 2000 system and provide configuration and data acquisition services via the Eagle communication gateway. This system can also read
and write from a programmable device that supports Modbus RTU protocol. The Macintosh computer is referred to as the Operator Interface
Station (OIS). The gateway provides communication between the Eagle
2000 system and the OIS.
EagleVision acts as a Modbus master and can communicate with up to
four gateways by means of serial link(s) utilizing the Modbus RTU protocol. If the OIS is connected to a single gateway, the connection is by serial link from the OIS modem port to the gateway. Multiple gateways will
require a multiport serial board or a Modbus multiplexer.
Installing EagleVision Software
1.2
95-8434
EagleVision This is the core application program, which han-
dles all communication, data acquisition, logging
and system configuration.
Configuration This file includes: datatable configurations, serial
port settings, printer settings, etc.
EventsToMonitor This file contains up to 5000 event configurations
and is created by EagleVision.
Point Types This file is the Detector Electronics product matrix,
which EagleVision uses for point configuration.
As new products are released this file will be
updated. The end user must never modif
y this file.
ZonesToMonitor This file contains the zone configuration informa-
tion as configured in EagleVision. On startup,
EagleVision reads this file to determine the last
saved zone configuration information. When the
zone configuration is changed within EagleVision
and then saved, it is stored in this file.
DocumentatorEV DocumentatorEV is a stand-alone program that
allows printing of EagleVision system configuration information, point configurations, and past
event logs.
EventHistoryEV EventHistoryEV is a stand-alone program that
allows viewing of daily event log file(s). A daily
event log file includes all the events that occur in
a twenty-four hour period. Events configured for
logging to the hard drive, events programmed
using SuperCard or HyperCard, or any message
generated by EagleVision reporting an error are
included in the daily event log.
EventsActiveEV EventsActiveEV is a stand-alone program that
allows viewing of real-time status of all the events
that are currently active.
Periodic backup of all EagleVision files is highly recommended!
Installing EagleVision Software
EAGLEVISION FILES
1.3
95-8434
!
Acquire data from the gateway(s)
Data, in the form of 16-bit status words, can be acquired from up to four
gateways that are connected to the OIS. To speed up operation, the OIS
should be configured to look at only the tables of interest. The two areas
most likely to be of interest are those containing the process variable and
the device status. See the section on Datatables.
Process variable word A 16-bit word that represents the ana-
log signal of a device.
Status word A 16-bit word that provides 16 pieces
of discrete status information for a single point. See the section on Point
Configuration.
Acquire data from a programmable device
EagleVision can acquire the contents of Modbus memory registers,
0xxxx, 1xxxx, 3xxxx, 4xxxx, from a programmable device.
Write data to a programmable device
EagleVision can write data to the Modbus memory registers, 0xxxx,
1xxxx, 3xxxx, 4xxxx, of a programmable device.
Write data to the gateway(s)
EagleVision can write (set) individual “bits” or whole “words” to any
gateway or other Modbus RTU slave device that is connected to the OIS.
This can initiate sequences (commands) or set analog setpoints, timer presets, etc., within the gateway.
Event logging
Changes in the data being monitored by EagleVision from any of its
attached slave devices (Eagle gateways, PLC’s, etc.) can be used to trigger an “event.” Up to 5000 of these “events” can be configured for monitoring. An event can be logged to any or all of the following places:
■ The three line event window at the bottom of the OIS screen
■ The daily event log file (stored on the hard drive)
■ The printer (printed in a variety of color formats).
Graphic displays
The EagleVision program allows any Macintosh application that uses
external commands (XCMD’s) and external functions (XFCN’s) to communicate with any gateway or programmable device connected to the OIS.
This allows creation of custom graphic screens to display system status.
Sample SuperCard and HyperCard stacks are included, which contain
the XCMD and XFCN library. To use the XCMD’s and XFCN’s with another program, contact Det-Tronics.
Installing EagleVision Software
EAGLEVISION CAPABILITES
1.4
95-8434
EagleVision contains menus that are used to navigate through the application and access various features.
The file menu allows the operator to:
“Save” events, zone configurations and point settings to the hard
drive.
“Quit” the EagleVision application.
This menu contains the standard “cut,’’ “copy,” “paste” and “clear” selections that can be used anywhere text entry is allowed throughout the
application.
This menu allows access to any of the seven sections of the application
by either direct menu selection or command key equivalent.
Event Configuration (
1)
This screen allows the operator to configure and modify any of the up to
5000 possible ”events” that will be monitored and can be routed to the
event window, daily event log file, or to the printer.
Print Settings (2)
This screen controls all aspects of printing (all types of supported printing
can be enabled or disabled):
■ Page title setting
■ Page length setting
■ Page “top of form” setting
■ Form feed
■ Reset printer
■ Clear buffer.
Menu Overview
FILE MENU
EDIT MENU
CONFIGURE MENU
1.5
95-8434
A1759
Driver Settings (3)
■ Highway polling can be enabled or disabled.
■ The last Modbus highway error (if any) is shown and can be
cleared.
■ Counters are displayed showing a variety of communication relat-
ed information.
■ The data highway watchdog timer can be enabled, disabled or
have its dropout time modified.
■ Communication port parameters can be adjusted.
■ The Modbus station address for the OIS can be modified.
Datatable Configuration (4)
A “datatable” is defined as a contiguous area of memory in a slave device
from which the OIS is configured to read.
The “Datatable Configuration” screen allows the operator to configure up
to 255 different datatables to be read from any of the attached Modus
slaves. It also allows the operator to quickly enable or disable the reading
of any configured datatables.
Point Configuration (5)
Points for each gateway can be configured. A “point“ is defined as a gateway or a sensing device and its communication module. Each gateway
supports up to 250 points across up to four loops (LON A, B, C, D).
Zone Configuration (6)
Up to 256 logical “zones” can be constructed, each consisting of up to 64
nodes, for purposes of fault and alarm tracking.
Overview (7)
This screen displays an overview of the EagleVision configuration and is
the first screen displayed when EagleVision is launched.
This screen displays a synopsis of the overall EagleVision configuration
including serial port settings, logging status, address information, watchdog timer settings and datatable configuration.
To have access to the menu bar and any of the other screens the operator
must first enter the correct password. The password dialog box is presented as soon as the user clicks anywhere within the boundaries of the
overview screen.
EagleVision Software Overview
1.6
95-8434
The Misc menu includes the following selections:
Address Check Allows the operator to get a
variety of information on a particular address.
Hide/Show Event Window “Hide” removes the event win-
dow from the OIS display.
“Show” displays the event win-
dow on the OIS display.
Modify Password Allows the operator to change
the password.
Restore Password Protection Allows the operator to reactivate
password protection.
Collect Module Logs Allows the targeted retrieval of
alarm information from the nonvolatile memory of the field
devices.
Preferences Where certain program para-
meters are set.
EventsActive™ Launches this “helper applica-
tion” displaying out of tolerance
events.
EventHistory™ Launches this “helper applica-
tion” displaying the daily log of
events.
EagleVision Software Overview
MISC MENU
1.7
95-8434
EAGLE2000
™
— a new level of
Detection Monitoring
Section 2
System Configuration
Event Configuration Screen 2.1
Event Configuration (EagleVision) 2.5
Event Configuration (External Database) 2.10
Print Settings Configuration 2.14
Driver Settings 2.16
Datatable Configuration 2.19
Point Configuration 2.22
Relay Node Configuration Procedure 2.26
Point Configuration Database Format 2.28
Gateway Relay Configuration 2.29
Network Utilities 2.31
Zone Configuration 2.33
Configuration Overview 2.37
Misc Menu Items 2.38
Selecting “Event Configuration (1)” from the “Configure” menu will display the “Event Configurations” screen.
This screen is used to create events to be monitored. Event configuration
defines the information required to track the status of the event and what
happens should the event occur. The event configuration database is
saved in the “EventsToMonitor” file in the “Detector Folder.”
EagleVision can track up to 5000 events. When going to the Event
Configurations screen for the first time, there will be 5000 “blank” or
“unconfigured” events.
There are two methods to configure events:
1. Events can be configured in EagleVision via the Event
Configuration screen.
2. Events can be imported from another application such as a database, spreadsheet or word processor.
Event Configuration Screen (
1
)
2.1
95-8434
A1764
A1760
There are seven buttons on the “Event Configurations” screen, which perform a variety of functions related to the event monitor. They are
described below.
Any changes to the EventsToMonitor file must be saved by selecting
“Save” from the File menu or by typing S.
Delete
This button removes all configuration information for the selected (highlighted) event number. The program will ask the operator to verify the
delete function before erasing the information.
Horn
Select the horn button to display the following dialog box:
This is used to activate an external alarm/event horn (e.g., a programmable device-controlled horn). Normally alarms/events are determined by
logic residing in the gateway or programmable device, and the horn is
controlled from the gateway, i.e., one of the programmable fault relays.
However, it is possible that the operator may want to activate the horn
located in a PLC based on events within the OIS.
Modify
Select Modify (or double-click on an event number or name) to display
the Event Modifier screen for the selected highlighted) event. The Event
Modifier screen allows configuration of an event (see “Event
Configuration Procedure” later in this section for details).
Event Configuration Screen (
1
)
EVENT CONFIGURATION SCREEN BUTTONS
2.2
95-8434
!
A1761
Find
Select the Find button to display the “Find” dialog box. By entering either
text or an address in the appropriate box, the program will display the
next event that matches the find criteria.
■ When searching for text, partial names can be used, the entire
event name is not necessary. For example, to search for any
event with the word “valve” in it, type in “valve” and select
Okay.
■ When searching for an address, the complete address must be
specified.
The find command only searches forward from the currently selected
event number to the last event number. If the address or text being
searched for is before the current event, it will not be found!
Set Days
This button allows the user to choose how many ”daily event logs” to
retain on the system hard drive. The EventHistoryEV program allows viewing of the daily event log for the current day. The DocumentatorEV program allows viewing and printing of event logs from any previous days.
In the example below, “5” is chosen. This means that the system will have
up to five days of event logs, excluding today, on the hard drive. The oldest log will be deleted at midnight of the fifth day.
The number of days to keep on file is up to the operator to decide. The
log is a straight text file and the system hard drive size and the number of
events on an average day will determine how many logs are practical to
keep on file.
Event Configuration Screen (
1
)
2.3
95-8434
!
A1801
A1762
Imp/Exp
The Imp/Exp (Import/Export) button allows an external file, created in
another application, to be read into the system, or a database configured
within EagleVision to be exported to a file, which can be used as a template in another application for database development.
This allows the end user to create an “Events to Monitor” database in the
application the end user chooses.
The file must be of a text only, comma or tab separated values type with
the proper structure. See the section on “Database Event Configuration”
(External Database) for more information.
Logging
This button provides global control of event logging:
■ If “Start” is selected, the program will scan the ”Events To
Monitor” database and begin logging (writing to the daily
event log file on the hard drive) all the events that were configured for logging.
■ If “Stop” is selected, all writing to the daily event log file will
cease.
Event Configuration Screen (
1
)
2.4
95-8434
A1763
1. Select Event Configurations from the Configuration menu:
2. The Event Configurations screen is displayed:
This screen displays the following information:
# Event number (0 to 4999)
Address Modbus address of configured event
Name User-defined event name, up to 48 characters
3. Select an event to modify by either double-clicking on the event number or clicking once on the event and select the Modify button.
4. The Event Modifier dialog box will appear:
As events are configured, Save must be selected before selecting
Exit, Next or Previous. If save isn’t selected first, event configuration
will be lost.
Event Configuration (EagleVision) (
1
)
2.5
95-8434
A1764
A1760
A1765
5. Enter the Event Type by means of the Type pop-up menu.
Transition On
When the discrete bit specified in the PLC and address fields
changes state from a 0 to a 1, the event monitor will process the
event. Event processing can include sending the event to the configured locations (event window, daily event log, printer) and activating the verbal warning alarm.
Transition Off
When the discrete bit specified in the PLC and address fields
changes state from a 1 to a 0, the event monitor will process the
event. Event processing can include sending the event to the configured locations (event window, daily event log, printer) and activating the verbal warning alarm.
Word >=
When the value of the integer word specified in the PC and address
fields is greater than or equal to its setpoint (specified in the value
field) the event monitor will process the event. Event processing can
include sending the event to the configured locations (event window,
daily event log, printer) and activating the verbal warning alarm.
Word <=
When the value of the integer word specified in the PLC and
address fields is less than or equal to its setpoint (specified in the
value field) the event monitor will process the event. Event processing can include sending the event to the configured locations (event
window, daily event log, printer) and activating the verbal warning
alarm.
Event Configuration (EagleVision) (
1
)
2.6
95-8434
A1766
A1777
A1778
A1779
6. Enter the Event Name.
Enter the name of the event. It will appear in the event window, in
daily event logs, and when printed. The name can be up to 48
characters long and use any combination of letters, numbers, symbols, etc. available from the keyboard.
If the event name has a “comma” in it, the “tab” character must be used
to delimit fields and the “Use Tab for Export/Import delimiter” option in
the preference settings found under the “Misc” menu must be selected.
7. Enter the PLC number (i.e. gateway Modbus address).
8. Enter the event address.
The address for the event must conform to the Modbus addressing
format as shown below. This information is available from the Help
button of the Event Modifier dialog box.
Address Description
00004 Coil
10001 Input
30001 Input Register
30001/13 Input Register/Bit
40001 Holding Register
40001/11 Holding Register/Bit
If the event being configured is one of the point status bits, the
address can be automatically calculated by using the “Point
Address” button.
Event Configuration (EagleVision) (
1
)
2.7
95-8434
!
A1765
A1780
This will bring up a dialog box where the operator enters the gateway number, point number, and then chooses the status bit from a
pop-up menu. After this procedure, selecting “enter” will then place
the correct Modbus address in the field.
9. Enter the Event Value.
Enter the analog value that will trigger an event (Word type events
only). Setpoint values range from 0 to 4095 with 4095 representing
the full scale value of the device. Refer to the System Configuration
Matrix (95-8453) for the range of values for specific devices.
10. Use the checkboxes in the Event Modifier dialog box to define how
the event will be annunciated. Clicking on a checkbox turns the
annunciation on or off.
a. Event Window
The Event Window checkbox controls the appearance of the
event name when that event occurs.
The event window is a three line ”First In First Out (FIFO)” display
area running the full width of the screen at its bottom. The current
date and time is displayed on the right side of the event window.
The event window displays the last three events (configured with
Event Window feature on) or errors that have occurred. Each
new event that occurs will appear at the bottom of the event window. Any previous events in the window will move up one. The
oldest event will scroll off the top and disappear.
b. Log to File
The Log to File checkbox controls the posting of the event to the
daily log.
The daily log keeps a one day chronological history of date and
time-tagged events. The log begins at midnight and continues
until the following midnight. A new file is created at midnight.
The daily log is readily accessible for viewing at any time by
means of the EventHistoryEV program. Current event status is displayed by means of the EventsActiveEV program.
c. Sound
The Sound checkbox controls the verbal alarm annunciation from
EagleVision. This has no effect on any audible alarm controlled
by any other device.
d. Printer
The Printer checkbox controls the printing function for the current
event.
When printing is selected, an additional pull-down menu
appears. This menu permits selection of the colors that the event
message will be printed and displayed. Color for both normal
and event conditions can be selected. Color selections include:
black (default), blue, red or green.
Event Configuration (EagleVision) (
1
)
2.8
95-8434
e. Auto Clear
The Auto Clear checkbox controls the requirement for operator
acknowledgment. When Auto Clear is enabled, operator
acknowledgment is not required to clear an event once the event
condition has returned to its original state.
11. Select Save once the event has been configured.
As events are configured, select Save before selecting Exit, Next or
Previous. If not, event configuration will be lost. The “save” button on the
event configuration dialog box saves the event to the database in RAM
only. To make event configuration changes permanent, select “save” from
the “file” menu.
12. Once an event is configured, Next or Previous can be selected to
configure another event. Exit can also be selected to return to the
Event Configurations screen and scroll or use the Find command to
select the next event to create or modify.
Proper operation of the event monitor depends on the proper configuration of datatable reads.
Event Configuration (EagleVision) (
1
)
2.9
95-8434
!
!
Although it is possible to build the entire event monitoring database from
within the EagleVision application, the operator may wish to develop the
database externally.
For large database applications EagleVision allows the importing or
exporting of the “Events to Monitor” file in a generic comma separated
values (CSV) format which is compatible with many database and
spreadsheet programs. You can also work with “Tab” separated values
by selecting this option from the “preferences” dialog box accessed by
means of the “Misc” menu.
When configuring a system with hundreds or thousands of events, a considerable amount of time can be saved by performing the configuration
in a different environment such as a dedicated database or spreadsheet
application. These programs can be optimized for more efficient data
entry.
The “EventsToMonitor” file is read by EagleVision when it is initially
launched and contains all of the configuration information used by the
database for monitoring, alarming, and printing events. During operation, the “EventsToMonitor” file is not used but is updated whenever Save
is selected from the File menu.
To import or export a database file to or from another application choose
the “IMP/EXP” button on the “Event Configurations” screen. The
import/export dialog box will appear.
Selecting “Export” will create a file on the hard disk with all of the configured events. Following is an example of the first three records of a sample database as exported by EagleVision.
0,0,Transition On,Master Fuel Trip, N20:0/0,0,Y,Y,N,N,Red,Green,Y
1,0,Transition On,Master Fault Latch, N20:0/2,0,Y,Y,N,N,Red,Green,Y
2,0,Transition On,Alarm Horn Latch, N20:0/4,0,Y,Y,N,N,Red,Green,Y
Event Configuration (External Database)
2.10
95-8434
A1813
To import a file containing all of the database records for the event monitor, the operator must ensure that the file follows the structure as defined
on pages 2.12 and 2.13.
Select “Import” and the standard Macintosh file access dialog box will
appear.
■ Any text file will be recognized as “available“ for import.
Event Configuration (External Database)
2.11
95-8434
A1781
The following is a field-by-field specification of the record structure.
Field 1: Event number
Must be a number ranging from 0 to 4999.
Field 2: Device address number
Must be the Modbus address of the PLC or Gateway, number ranging
from 1 to 247.
Field 3: Event type
Must contain one of the following text strings:
Transition On (13 characters)
Transition Off (14 characters)
Word >= (7 characters)
Word <= (7 characters)
The character counts listed to the right include spaces between
words and between the end of a word and any arithmetic operators.
Field 4: Event name (user-defined)
Up to 48 characters of any type.
Field 5: Address
Any legal Modbus address. Refer to the “Event Configuration” section for
definition of legal addressing formats.
Field 6: Event value
If the event is based on a word value, the setpoint for toggling the event
is entered in the value field within the following ranges:
Minimum Maximum
Word Any integer between: –32768 32767
Field 7: Event screen
Must contain either the single character “Y” for yes or “N” for no.
Field 8: Log to file
Must contain either the single character “Y” for yes or “N” for no.
Field 9: Sound
Must contain either the single character “Y” for yes or “N” for no.
Field 10: Printer
Must contain either the single character “Y” for yes or “N” for no.
Event Configuration (External Database)
DATABASE FILE STRUCTURE
2.12
95-8434
Field 11: Event color
Must contain one of the following text strings:
Black (5 characters)
Blue (4 characters)
Red (3 characters)
Green (5 characters)
Field 12: Return to normal color
Must contain one of the following text strings:
Black (5 characters)
Blue (4 characters)
Red (3 characters)
Green (5 characters)
Field 13: Auto clear
Must contain either the single character “Y” for yes or “N” for no.
Event Configuration (External Database)
2.13
95-8434
Selecting “Print Settings” from the configure menu will bring up the printing configuration screen.
It has a variety of icon based controls described below.
All Printing
Enables/disables both normal and event printing.
Normal Printing
When switched on, EagleVision prints the event name followed by a suffix of “NORMAL” and the time and date when that event returns to its
nonevent condition.
Only events that were configured to print are printed. See Event
Configurations (2.8, 10 d).
Event Printing
When switched on, EagleVision prints all events as they occur.
The printed event consists of the events name followed by the time and
date it occurred.
The events are printed in the colors selected during event configuration.
Only events that were configured to print are printed. See Event
Configurations (2.8, 10 d).
Print Settings Configuration (
2
)
2.14
95-8434
A1782
A1783
Change page title
Click on this area to bring up a dialog box allowing the header text printed on each page to be changed.
The page title can be any combination of text, symbols and numbers up
to 48 characters long.
Set Top of Form
When changing paper in the printer, physically set the paper to the top
of the page and select Set Top of Form.
This will ensure that form feeds will advance the paper to the proper position.
Form Feed
Select Form Feed to advance the printer one page.
Reset Printer
Select Reset Printer to perform the equivalent of cycling power to the printer. This is used when there is a print error.
Clear Buffer
EagleVision maintains a 1000 event buffer in RAM to allow the printer
paper to be changed without losing events. It also enhances system performance when large numbers of events occur in a short time period.
Pressing the “clear Buffer” button will delete all events in the buffer.
Current number of lines per page
Allows the number of lines printed to be set before the printer advances
to a new page.
Print Settings Configuration (
2
)
2.15
95-8434
Selecting “Driver Settings” from the configure menu will bring up the driver configuration screen.
The Driver Configuration screen allows you to configure the communication link from the OIS to the gateway.
On startup the software will check the OIS hardware and then enable the
appropriate screen from either the single or four port version.
Driver Settings (
3
)
DRIVER SETTINGS
SINGLE PORT VERSION
FOUR PORT VERSION
2.16
95-8434
A1785
A1786
A1784
A variety of onscreen pushbuttons and switches control the configuration.
These controls are described below.
Hiway Polling
Switch this off to stop requesting data from the gateway.
In the multi-port version there is one switch per port. When hiway polling
is switched off for a port, you can not access the point displays for that
gateway.
Last MOD Error
Displays the decimal value of the last Modbus error code. Refer to the
Modbus protocol for a listing of Modbus error codes. The clear button
will reset the error.
Status Counters
Allows you to monitor communications between the OIS and the gateway. The clear button can be used at any time to reset the counters of a
given port to zero.
In the four port version, holding down the option key while selecting any
“clear” button will reset all four sets of counters to zero.
Serial Port Settings
This dialog box allows you to adjust the communication parameters
between the OIS and the gateway(s). These settings must match the gateway settings. Depending on the OIS hardware configuration, either the
single port or four port version for serial settings dialog box will appear.
Driver Settings (
3
)
SINGLE PORT VERSION
2.17
95-8434
!
A1788
The single port version assigns the modem port for communicating with
the gateway.
The four port version leaves the modem port open and uses only the four
serial ports on the serial expansion board.
If Hiway Polling is switched on, the watchdog timer will continuously
monitor serial communications.
■ If the OIS requests data from the gateway, it must receive that
data within the time specified in the watchdog timer dialog box
(180 or 3 second default) or a watchdog timer timeout occurs.
This indicates that the link to the gateway has been lost.
■ Any watchdog timer timeout errors are displayed in the event
window, logged to disk and sent to the printer.
Select the “Set Address” button to modify the Modbus station address for
the OIS.
The current address setting is displayed in the data entry field. This must
be a unique address. Each device must have a different address from 1
to 247.
Driver Settings (
3
)
FOUR PORT VERSION
WATCHDOG TIMER
OIS MODBUS ADDRESS
2.18
95-8434
A1787
A1790
A1789
MEMORY MAP OVERVIEW
Datatable configuration defines the PLC/Gateway addresses that the OIS
will read.
The gateway memory accessible to the OIS emulates a data table in register memory on a generic Modicon PLC. Each address is 16 bits wide
(two contiguous bytes).
The gateway supports up to 250 devices. Each device is allotted five 16
bit words of memory in the “datatable”.
■
Two words of “A” memory (type code and configuration
word) normally not read, for diagnostics only.
■
One word of “B” memory (device control words).
■
One word of “C” memory (diagnostics and status).
■
One word of “D” memory (current value of the process variable).
■
“E” memory is used to transfer information to or from any
individual communication module.
■
"F” memory contains “last direction” diagnostic information.
At least one datatable must be properly configured and enabled before
the “point display” feature will operate.
Datatable Configuration (
4
)
2.19
95-8434
A
D
ADDRESS 40002 - 40502
CONTAINS DEVICE TYPE CODES AND
DEVICE CONFIGURATION CODES AS
DEFINED IN NON-VOLATILE MEMORY
ADDRESS 44098 - 44347 CONTAINS 1
WORD OF PROCESS VARIABLE DATA
FOR DEVICES 1 - 250
B
ADDRESS 42050 - 42299
CONTAINS A DEVICE CONTROL WORD
FOR DEVICES 1 - 250
46143 - EOF
INTERNAL DIAGNOSTICS, WORKING
FILES, AND FUTURE FEATURES
F
4 KBYTES
2 KBYTES
2 KBYTES
ADDRESS 45121 - 46142
TRANSFER BUFFER FOR MOVING
RECORDS TO AND FROM THE HOST
AND LON DEVICES
C
2 KBYTES
ADDRESS 43074 - 43323
CONTAINS A DEVICE STATUS WORD
FOR DEVICES 1 - 250
E
2 KBYTES
A1532
!
1. Select Datatable Configuration from the Configure menu. The
Datatable Configuration screen appears:
# The datatable number is a numeric index used by
EagleVision for reference. It is also used by XCMD’s in
the graphics package to selectively enable or disable
the reading of various datatables.
PLC The Modbus address for a device, a number from 1 to
247. An address of 255 means the table is not configured.
Type The type of memory (coil, input, input register or holding
register).
Address Starting address in Modbus notation (minus the register
type), e.g., address 0001=40001, address
3073=43073 for holding registers.
Words The number of words the OIS will read.
Enabled Indicates whether the OIS is currently reading this area
(user-defined in the Datatable Modifier dialog box and
can be toggled via XCMD’s from the graphics package).
If the enable/disable is modified by means of the appropriate XCMD
while viewing this list, the list will not reflect the change until this screen is
re-entered.
Datatable Configuration (
4
)
DATATABLE CONFIGURATION SCREEN
2.20
95-8434
A1800
DATATABLE CONFIGURATION
PROCEDURE
2. To set up or modify a datatable:
a. Select the datatable for configuration or modificaton and select
Modify.
or
Double-click on the datatable.
b. The Datatable Modifier dialog box is displayed:
c. Enter the PLC number (i.e., gateway Modbus address).
d. Select the Register Type pop-up menu and select the register type.
e. Enter the starting address.
f. Enter the number of words to read (125 words max).
g Enable or disable the read function by selecting the Read
Enabled check box:
■
An X in the Read Enabled check box causes the OIS to
read the datatable.
■
If the Read Enabled checkbox is left blank, the OIS will not
read the data table.
To save time, highlight and copy the Datatable Configuration from one
datatable configuration and paste it elsewhere. Be sure to modify
“Starting Address” and “Words to read” entries of the new configuration.
Datatable Configuration (
4
)
2.21
95-8434
A1802
POINT CONFIGURATION PROCEDURE
1. Select Point Configuration from the Configure menu.
This brings up the point configurations screen.
A “point’’ is defined as a sensing device and its communication
module. Each gateway supports up to 250 points. Each point has a
unique address, which is set by means of a dip switch located in the
device’s communication module.
If this is a new EagleVision installation to an existing Eagle 2000
network, you can upload point configurations from the existing gateway that has been previously configured.
2. Select the point number or name of the device and then select
the Modify button.
or
Double-click on the point or name of the device.
For similar points, select the point number or name, select copy,
select the point number to be configured and then choose paste.
This will paste the complete point configuration requiring only the
address and name to be changed. The configuration number, setpoints, etc. will be the same as the point copied.
Point Configuration (
5
)
2.22
95-8434
A1791
A1792
3. The Point Configuration screen is displayed:
Point numbers 1 through 4 are reserved for the gateway.
4. Assign a configuration number to the current point:
a. Refer to the Eagle 2000™System Configuration Matrix (form num-
ber 95-8453) to determine the configuration number for the
device.
b. Select the Config Number box to display the up and down scroll
arrows (located next to the Config Number box).
c. Enter the configuration number:
■ Use the up and down scroll arrows until the desired Config.
Number is displayed.
■ Select the “S” box next to the scroll arrows and enter the configu-
ration number in the Enter Number dialog box. Scroll through the
list using the arrows next to the configuration number. The information for that type will be displayed.
5. Select Accept when all the point configuration values are
entered, or select Cancel to restore previous point configuration
data.
6. Enter a point name:
a. Select the point name box. The Enter Name/Title dialog box
appears.
b. Enter the desired point name (up to 48 characters).
c. Select Okay to accept the name or cancel to leave the existing
name.
2.23
95-8434
Point Configuration (
5
)
A1793
ENTERING POINT CALIBRATION
AND
ALARM SETPOINTS
SETTING POINT UPDATE RATES
7. Enter the user-defined calibration value in the appropriate units.
See Units: under Device Information in the Point Configuration
screen for the proper units.
a. Select the “Calibration Range Now” box to display the
Calibration/Alarm Setting dialog box.
b. Enter the desired value and select Okay to accept the new value
or cancel to leave the current value unchanged.
8. Enter the user-defined Alarm 1 and 2 values. This defines what
levels will generate alarms.
a. Select the “Alarm 1 or Alarm 2 Now” box to display the
Calibration/Alarm Settings dialog box.
b. Enter the desired value and select Okay to accept the new value
or cancel to leave the current value unchanged.
Selecting the “Defaults” pushbutton will set the Calibration Range, Alarm
1, and Alarm 2 setpoints to their default values.
9. Enter the desired point update rate in milliseconds.
a. Select the “Update Rate” button.
b. Enter the desired update rate in milliseconds. The minimum fre-
quency is 1000 ms (1 sec.) and the maximum is 10,000 ms (10
sec.). The default update is 5000 ms (5 sec.).
Holding down the ”option” key when selecting the update rate button will
allow the rate for all
points to be changed simultaneously.
Point Configuration (
5
)
2.24
95-8434
!
!
A1794
A1803
10. To continue configuration of other points, select the point number
box and:
■ Select the “S” box next to the scroll arrows and enter the
desired Point Number in the Enter Number dialog box.
■ Use the up and down scroll arrows until the desired Point
Number is displayed.
11. Use the above procedure (3 through 9) to configure the rest of
the points.
12. Select Exit once the point configuration is complete. The display
returns to the main Point Configurations screen.
Point configurations can be copied and pasted to speed up the configuration of similar points.
13. Select Save from the File menu to save the new point configuration information to the Configuration file on the OIS hard drive.
14. Download the point configuration to the gateway:
a. Select Download All to download all the point configurations to
the gateway.
b. Select Download One to download the point configurations to a
single selected point. Only the point that is highlighted will be
downloaded.
The gateway will not respond to the new point configuration until the new
point(s) are downloaded.
To delete a single point
1. Select the unwanted point.
2. Select Delete.
A warning box will ask if the selected point should be deleted.
Deleting a point just removes it from the configuration file on the OIS
hard drive. The gateway will still respond to the point. If Download All or
Download One is selected, the gateway will stop responding to the point
and the point will be deleted in the gateway’s memory.
To Find and modify a single point
1. Select Find and enter any portion of the point name you want to
locate.
2. The Find command will search down from the current location
and highlight the first point name that matches the find criteria.
The Find command will only search down from the current location
and will not wrap up to the beginning of the list.
Point Configuration (
5
)
POINT DELETE
AND
FIND PROCEDURES
2.25
95-8434
!
!
!
1. Select the point number or name of the device needing configuration and then select the Modify button.
or
Double-click on the point or name of the device.
2. The Point Configuration screen for an unconfigured node is displayed. Click in the “Config Number” box in the upper right corner
of the window and enter “188” as the point type.
Type “188” is for relay nodes and will display the Point
Configuration screen for a Relay Node.
3. Select the “Modify Relays” button. This will display a dialog box,
allowing the relay node to be configured. From this dialog box the
program for the module must be selected and the appropriate
“node” information that determines how the unit will function must
be entered.
Relay Node Configuration Procedure
2.26
95-8434
A1797
A1798
4. Start/End Mode:
The default program mode selection for the Relay Module is the
“Start/End” mode. In this mode enter a “start” and “end” node
number and the relay module will activate its relay based on data
from this range of nodes.
Also select how the Inputs and Outputs of the module are to be used
by using the appropriate checkboxes.
After the I/O is configured, determine which events within the
defined group of nodes will trigger the module’s relay. This is done
with the “Trigger Bits” checkboxes.
5. List Mode:
The second available program that can be used by the Relay
Module is the “List Mode.” This mode is accessed by selecting the
appropriate “radio button” from the Relay Module Configuration
dialog box.
When selected, eight data entry fields are displayed in place of the two
used in the Start/End mode. In these eight fields you may enter eight discrete communication module addresses and the relay module will
respond based on data from these nodes. As shown in the example
above, the node addresses can be in any order. I/O operation and triggers are selected by means of the same checkboxes as described in the
“Start/End” mode.
In addition, a “Voting” option can be included. By entering a number in
the voting field, the relay will only be activated when “n” modules from
the list have one or more of the conditions specified by the trigger bits,
where “n” is the number entered into the voting field.
In the example shown above, “3” is entered in the voting field and Alarm
1 and Alarm 2 are the triggers. When either Alarm 1 or Alarm 2 is present in at least three modules from the list of eight, the relay will activate.
Relay Node Configuration Procedure
2.27
95-8434
A1799
The IMP/EXP button allows the operator to export an existing
EagleVision point configuration database, or, to import one that has
been created or modified in an external application program. The
import/export file is a text file with each field separated by either a
“comma” or a “tab,” depending on what was selected in the
EagleVision preferences (see Misc. menu). The file format is as follows:
Field 1: “LON number”
A number, 0 through 3, which corresponds to EagleVision’s four supported LONs A, B, C, or D.
Field 2: “Node number”
A number, 5 through 250. This is the logical address as set by the
DIP switches on the field devices communication module.
The point configuration import/export function only pertains to field
sensing devices, not gateways or relay nodes.
Field 3: “Point type”
A number, 1 through 184. This is the number from the left-most column of the System Configuration Matrix (95-8453) that identifies the
parameters for the node to be configured.
Field 4: “Node name”
An operator entered name for the device, up to 48 characters in
length, which appears in the heading of the point display screen.
Field 5: “Calibration Range”
A number from 1 to 100 representing the calibration gas concentration. This number must be within the proper range for the selected
point type (field 3) and can be determined from the System
Configuration Matrix (95-8453).
Field 6: “Alarm 1 Setpoint”
A number representing the alarm setpoint. This number must be within
the proper range for the selected point type (field 3) and can be
determined from the System Configuration Matrix (95-8453).
Field 7: “Alarm 2 Setpoint”
A number representing the alarm setpoint. This number must be within
the proper range for the selected point type (field 3) and can be
determined from the System Configuration Matrix (95-8453).
Field 8: “Update Rate”
A number from 1,000 to 10,000 (milliseconds). The update rate
determines how often a module sends its report to the gateway.
Point Configuration Database Format
IMPORT/EXPORT
2.28
95-8434
The gateway has four relays, each of which can be configured to monitor
a contiguous group of points. In addition there is a gateway fault relay.
All relays can be configured to be energized or de-energized in normal
operation. Gateway relay operation is independent of the OIS.
1. Select Point Configuration from the Configure menu.
2. Select a point (1 through 4) and then select modify or doubleclick on the desired gateway point.
Points 1 through 4 are always reserved for the gateways.
3. The Point Configuration screen for the gateway is displayed:
The Point Configuration screen provides an overview of the
gateway relay configuration:
Any alarm/fault item listed as True will energize/de-energize the
gateway relay when the alarm/fault condition is present.
Start Address Displays the Modbus address where the start-
ing point number is stored.
End Address Displays the Modbus address where the end
point number is stored.
Trigger Address Displays the Modbus address where the relay
trigger is stored.
Gateway Relay Configuration
2.29
95-8434
A1795
4. To configure the gateway relays, select Modify Relays. The
Gateway relay configuration screen is displayed:
5. The upper right area of the screen has two entries relating to
“Slave PLC” operation. When the gateway is configured so its
Port “0” is a Modbus RTU Master (to feed information to a PLC),
the Modbus Address and register offset may need to be adjusted. The default values are MB address “1” and an offset of “0.”
Changing the PLC address (1 – 247) is used to ensure the gateway sends its data to the right PLC. The offset determines where
in the “40,000” register memory the data is placed. Normally
the gateway starts placing data in a Slave PLC’s memory at
40,001. If an offset of “100” were specified, it would start at
40,101.
6. Configure the gateway relays.
Gateway relay configuration involves selecting a range of points
(communication modules and their associated devices), which will
be monitored for any of the fault/alarm conditions listed. Any
fault/alarm that has been selected will cause the gateway relay to
energize/de-energize.
The point display screen provides a means of inhibiting a point. When a
point is inhibited, the gateway relay will not respond to any events or
alarms generated by a particular point. However, events configured in
the OIS will still respond.
Gateway Relay Configuration
2.30
95-8434
!
A1796
The Network Utilities portion of the Point Configurations screen allows
configurations to be transferred between the OIS and the gateway(s).
Get Revision
Retrieves and displays the firmware revision number for the selected
point.
To stop this process, press “command period” (.).
Holding down the option key when selecting “Get Revision” will allow
entry of a starting and ending node number allowing the revision number
of a specific group of nodes to be retrieved.
Download RTC
Select Download RTC to download the real time clock (RTC) value from
the OIS to the gateway. This synchronizes the gateway clock to the OIS
clock. In normal operation, the OIS will automatically synchronize the
gateway clock every night at midnight along with the daily log management.
Upload RTC
Select Upload RTC to upload the real time clock (RTC) value from the current gateway to the OIS. This allows the gateway date/time clock values
to be viewed without affecting the OIS clock. The gateway date/time
clock values appear in the Event Window along with the gateways ROM
software version number.
Download All
Once a group of points has been configured, select Download All to
sequentially download all the point configurations from the OIS to the current gateway. Status messages appear during the download process. The
gateway will then transfer the configuration to the individual communication modules.
To stop the download procedure, press “command period” (.).
Holding down the option key when selecting “Download All” will allow
entry of a starting and ending node number allowing a specific group of
nodes to be downloaded.
Network Utilities
2.31
95-8434
A1792
Upload All
Select Upload All to upload the point configuration from the current gateway to the OIS. The individual point names will appear as asterisks (if no
name is entered in the database for the point) and will have to be
renamed. Status messages appear during the upload process.
To stop the upload procedure, press “command period” (.).
Download One
Select Download One to download a single point configuration (whichever
point is selected) from the OIS to the current gateway. Status messages
appear during the download process. The gateway will then transfer the
configuration to the individual communication modules.
Upload One
Select Upload One to upload a selected single point’s configuration from
the current gateway to the OIS. The individual point name will appear as
an asterisk (if no name is entered in the database for the point) and will
have to be renamed. Status messages and prompts appear during the
upload process.
Clear Memory
Select Clear Memory to completely erase any information stored in the
current gateway’s non-volatile memory. This is usually done at the start of
the configuration of a new gateway.
Reset Module
Select Reset Module to initiate the equivalent of a power-up reset. This
“re-initializes” the module’s software.
This does not affect the module’s type code, configuration code, calibration gas setpoint or alarm setpoints.
Set GW Address
Sets the Modbus address for the gateway being configured by
EagleVision. This must match the DIP switch settings for Modbus address
on the gateway.
Get Voltage
Retrieves and displays the 24 vdc supply voltage level as measured at the
selected module.
To stop this process, press “command period” (.).
Holding down the option key when selecting “Get Voltage” will allow
entry of a starting and ending node number allowing the voltage of a
specific group of nodes to be retrieved.
Update Aux GW
Sends updated configuration information to a selected auxiliary gateway.
Network Utilities
2.32
95-8434
Zone Configuration
Zones are provided primarily to simplify the programming of custom
graphics. They are operator configured logical groupings of up to 64
nodes, in any order, and from any attached LON. EagleVision supports
up to 256 zones. Zones are configured in the following manner:
1. Select Zone Configuration from the Configure menu:
2. The Zone Configuration screen is displayed:
This screen displays the zone number and its name. The zone number
is referenced by the zone status display and by XCMD’s in graphic
programming, the name can be any alphanumeric combination up
to 45 characters in length. The name is used only on this screen.
For maximum performance, do not leave any blanks in the zone assignments. If additional zones will be added later, add them to the end. Blank
spots are inefficient and degrade performance!
Zone Configuration (
6
)
2.33
95-8434
A1808
A1809
3. To configure or edit a zone, select a zone to modify by double-clicking on the zone of interest, or by clicking once on the zone and
then selecting the modify button. This will open the “zone list” dialog box.
The zone list dialog box contains room for specifying up to 64 nodes
to be included in the zone. Each node requires two entries, LON
and node. The LON is identified as A, B, C, or D, and the node is
identified as 5 through 250.
For maximum performance, do not leave any blanks in the node assignments. If additional points will be added to the zone later, then add them
to the end or rework the zone. Blank spots are inefficient and degrade
performance!
Zone Configuration (
6
)
2.34
95-8434
A1810
Zone Trigger Configuration
After the zones are configured, EagleVision must be given the criteria for
what constitutes Alarms and Faults. This is done “globally” (for all zones)
through the Zone Trigger dialog box. It is accessed by selecting the
“Triggers” button on the “Zone List Configuration” screen.
How Zones Work
EagleVision continuously evaluates zones to see if any node in a zone
meets the operator configured trigger criteria, and if so, determines if this
information is new or old. It then sets the zone state to one of five possible conditions, represented by the numbers 0 through 4:
0 = Normal (no alarm or fault) lowest priority
1 = Fault (user selected faults)
2 = Alarm (user selected alarms)
3 = New Fault
4 = New Alarm (highest priority).
Two XCMD’s “GetZoneState” and “GetZoneStatus” are provided to use
in graphic programming to access the state and status of zones.
GetZoneState returns whether or not something has changed in the zone
since the last time it was called. GetZoneStatus returns a number (0 – 4)
representing the current status of the zone (as defined above). See the
XCMD/XFCN reference section of this manual for more detail.
Zone Monitoring
Once the zones are configured, their operation can be verified by selecting the “Status” button from the “Zone List Configuration” screen. This will
display the “Zone Status Listing.”
Zone Configuration (
6
)
2.35
95-8434
A1811
This screen shows the status of all 256 possible zones. Unconfigured
zones are blank. Configured zones will display one of five possible
states: Normal, Fault, Alarm, New Fault, or New Alarm.
As described above, there are five zone “states” represented by the numbers 0 through 4. The higher the number, the higher the priority of that
state. The condition of a zone can be obtained by using either the zone
monitor screen, or through SuperCard scripting with either of two zone
XCMD’s.
Example 1: One of the nodes in Zone 1 indicates a fault.
EagleVision’s Zone Monitor screen will show Zone 1’s
condition as “New Fault”. Once the operator acknowledges the fault by using EagleVision’s acknowledge button, or the AckEvents XCMD from SuperCard, the status
will change to “Fault.”
Example 2: With Zone 1 still in a “Fault” status, an alarm occurs.
EagleVision’s Zone Monitor screen will show Zone 1’s
condition as “New Alarm.” Even though there is still a
fault present, alarms have a higher priority and will be
reported over the fault condition. Once the operator
acknowledges the alarm by using EagleVision’s acknowledge button, or the AckEvents XCMD from SuperCard,
the status will change to “Alarm.”
Zone Configuration (
6
)
2.36
95-8434
A1812
The configuration overview provides a convenient display of the current
EagleVision configuration. This screen is shown at startup and can be
accessed while running by means of the Configuration menu.
There are two different overview screens, one for a single port OIS and
one for a four port OIS. The software will check the OIS hardware at
startup and display the appropriate screen.
The single port version shows a variety of addressing and configuration
information and the status of the Modem port.
The four port version shows the same information as the single port version but includes the communication parameters for all four serial ports.
Configuration Overview (
6
)
SINGLE PORT VERSION
FOUR PORT VERSION
2.37
95-8434
A1769
A1804
Select Address Check to check address usage for a specific Modbus
address. The operator enters an address to determine:
1. If the address is a legal address.
2. If the address is configured for reading in the datatable configuration.
3. If the address has an event configured.
If the address entered is not a legal address, the various fields will
remain blank and a beep will be generated.
Register Type displays the register type.
Address displays the element.
Bit displays the bit.
Polled True indicates the datatable containing the
address is currently being polled.
Configured True indicates the address is within a config-
ured datatable.
Event True indicates that an event has been config-
ured for this address.
Select Hide Event Window to remove the event window from the
bottom of the OIS screen.
Select Show Event Window to display the event window at the bottom of the OIS screen.
This screen allows you to change the current password, which protects the configuration utilities.
With password protection enabled, operators without passwords
can only access the overview. The point display screens can also be
accessed by means of an external graphics program, which uses
the “GetGWPointDisplay” XCMD. See Section 4 for more information on XCMD’s and XFCN’s.
Misc Menu Items
ADDRESS CHECKER
HIDE EVENT WINDOW
SHOW EVENT WINDOW
MODIFY PASSWORD
RESTORE PASSWORD PROTECTION
2.38
95-8434
A1805
Selecting this feature from the miscellaneous menu will invoke the
“Communication Module Alarm Retrieval” dialog box. This will allow the
targeted retrieval of alarm records from the non-volatile memory of field
devices. The operator can specify a specific time window by entering a
starting and ending date, and can also specify a range of nodes (per
LON) to retrieve the data from. This alarm data can then be sorted either
by LON & node number, or in chronological order. The retrieved data is
then output to a text file or daily log file and can also be printed.
The preferences dialog box allows certain “global” parameters for the
EagleVision program to be set. There is a radio button for selection of a
12 or 24 hour clock. And there are five checkboxes pertaining to importing and exporting events and point configurations.
Misc Menu Items
COLLECT MODULE LOGS
PREFERENCES
2.39
95-8434
A1806
A1807
Launches the utility that shows a chronological list of any configured
events that are currently out of tolerance.
Launches the utility that displays the daily log.
Misc Menu Items
EVENTSACTIVE
™
EVENTHISTORY
™
2.40
95-8434
EAGLE2000
™
— a new level of
Detection Monitoring
Section 3
Point Displays
Gateway Point Display 3.1
Communication Module Point Display 3.4
Relay Module Point Display 3.8
The Point Display screens allow the operator to monitor gateway operations and perform certain control functions. The point display can also be
entered by means of the “GetGWpointDisply” XCMD’s.
1. Select the gateway of interest from the Point Configuration screen
list box and then select the “P.Display” button. When the gateway
point display appears, a field in the upper right corner of the display will show the gateway identifier (A, B, C or D) followed by the
gateways’ point number (1 through 4).
Left or Right MIP Fault The gateway has two LON communication
ports, which are identified as the left and
right MIP. If a problem occurs in either of
these hardware components, the appropriate indicator will turn red.
Gateway Fault This indicator shows that an internal diag-
nostic has detected a problem with the
gateway hardware.
Slave PLC When the gateway is configured to act as
a Modbus master, feeding information to a
PLC or other Modbus Slave device, and
the communication link has timed out, this
indicator will turn red.
LON Master This indicator lights when it is the “Master”
gateway. There can be up to four gateways on a single LON, but only one can
be the master. The master is the gateway
currently generating the network “heartbeat” used for fault isolation, and the date
and time tag used by field devices for logging calibration and alarm events.
Gateway Point Display
GATEWAY POINT DISPLAY
GENERAL INFORMATION
INDICATORS
3.1
95-8434
A1814
LON Fault This indicator will turn red when the gate-
way diagnoses a LON fault. This type of
fault is generally indicative of an electrical
open or short circuit in the network wiring.
Net Test Fault This indicator will turn red when a “Net
Test Fault” occurs. A net test fault generally
pertains to a faulty network extender.
One failure mode of a network extender is a case where it only passes
messages in one direction. To detect this type of failure the gateway periodically performs a “network test.” Once an hour the gateway temporarily reverses the direction of the “Heartbeat” signal it uses for LON integrity
testing. By reversing the direction of the message, the gateway can determine if any of the network extenders have failed. Once a “Net Test Fault”
has been detected, its indicator will stay set for at least one hour. This is
true even after the faulty extender has been replaced.
Unable to Configure This indicator will turn red if EagleVision
was unable to successfully download configuration information to a gateway.
Fault Relay Active This indicator will turn red when the gate-
way fault relay is active.
Inhibit Active This indicator will turn red when the point
has been “inhibited” by using the point displays inhibit button. When “inhibited” any
gateway relays programmed to monitor
the status of this gateway will ignore its
data. In addition, the gateway faceplate
will not respond to status changes in the
inhibited point.
Not Communicating This indicator will turn red when the peri-
odic update for the gateway whose point
display is being monitored has not been
received by the gateway through which
EagleVision is getting its data.
Invalid Config. If the gateway configuration downloaded
by EagleVision doesn’t match the switch
settings on the targeted gateway, this indicator will turn red.
Gateway Point Display
3.2
95-8434
!
Reset Relay Select a Reset Relay button to reset a gate-
way relay.
Goto Point This button calls up a keypad allowing the
user to go directly to any point on any of the
attached LON’s.
Next/Previous Point These buttons allow you to view the point dis-
plays for the next higher or lower configured
device connected to this gateway’s LON.
Inhibit This button will inhibit gateway relay and dis-
play response to status changes in this point.
Acknowledge Select Acknowledge to acknowledge all
events, zone events and silence any audible
alarm.
Gateway Point Display
PUSHBUTTON FUNCTIONS
3.3
95-8434
The Point Display screens allow the operator to monitor a communications module/sensor operation, and perform certain control functions.
1. Select the point of interest from the Point configurations screen and
then select the “P. Display” button to access the point display.
Low Voltage This indicator will turn red when the supply
voltage to the module drops below 17.5 vdc.
Com 1/Com 2 These indicators track the fault isolation status
of the module. If the side of the network
attached to terminals 1 and 2 has isolated
due to a network fault, the “Com 1” indicator
will turn red. If the side of the network
attached to terminals 3 and 4 has isolated,
the “Com 2” indicator will turn red.
Unable to Configure This indicator will turn red if EagleVision was
unable to successfully download configuration information to the target module.
Power-up The power-up time delay for the device has
not yet expired.
Not Communicating The gateway has not been receiving the peri-
odic status updates from the target module.
Communication Module Point Display
COMMUNICATION MODULE
POINT DISPLAY
GENERAL INFORMATION INDICATORS
3.4
95-8434
A1815
Inhibit Active This indicator will turn red when the point has
been “inhibited” by using the point display’s
inhibit button. When “inhibited” any gateway
relays programmed to monitor the status of
the point will ignore its data. In addition, the
gateway faceplate will not respond to status
changes in the inhibited point.
Sensor Fault A sensor related fault has been detected. The
fault could be caused by a sensor wiring
problem, a sensor input that is below the
threshold for normal operation, or by an
invalid configuration where one or more setpoints is inconsistent with the type of device
specified.
This status bit has two different meanings. “Sensor fault” or “digital input
1.” Refer to the “System Configuration Matrix” (95-8453) for details.
Invalid Config. Invalid configuration data has been received.
This could include type code, configuration
word, calibration gas level or alarm setpoint
level.
It is not possible for a device to receive invalid configuration data from
EagleVision, however it is possible for a third party Modbus RTU master
to write invalid data to a module through the gateway.
Goto Point This button calls up a keypad allowing the
operator to go directly to any point on any of
the attached LON’s.
Next/Previous Point These buttons allow the operator to view the
point displays for the next higher or lower
configured device connected to this gateway’s LON.
Inhibit Select the Inhibit button to inhibit the current
point. When a point is inhibited, the gateway
relays will not respond to any events or
alarms generated by this module. Information
from this module will be displayed on the
screen and events configured in EagleVision
will respond.
Reset Relay Click on the Reset Relay button to reset the
communication module’s relay.
Acknowledge Select Acknowledge to acknowledge all
events, zone events and silence any audible
alarm.
Communication Module Point Display
PUSHBUTTON FUNCTIONS
3.5
95-8434
Digital Input 2 Status Shows the status of the signal connected to
the communication module’s digital input 2.
Output Relay Status Shows the status of the communication mod-
ule’s output relay.
These indicators show the status of sensor calibration.
Calibration History
The communication module stores and the OIS displays the baseline calibration and the last seven calibration records (high and low calibration
points). These records allow the operator to spot trends in sensor sensitivity or other problems. The time and date stamp is generated in the communications module based on information from the gateway. If the sensor
supports “trending” the Calibration Histor y field will be framed in red. By
clicking the field (inside the red box) a graphic representation of the calibration history is displayed.
Includes Alarm 1 and Alarm 2 status indicators and the current setpoint
value for Alarm 1 and Alarm 2. The alarm setpoint values are defined in
the point configuration screen for the current point (sensor).
The communication module stores and displays the last eight alarms
(Alarm 1 or Alarm 2). The display includes the type of alarm and a time
and date stamp for the alarm. The time and date stamp is generated in
the communication module based on information from the gateway.
Communication Module Point Display
I/O INFORMATION
CALIBRATION INFORMATION
ALARM INFORMATION
ALARM HISTORY
3.6
95-8434
A1816
The sensor level bar graph provides the following real-time information:
■ The sensor level bar graph provides a graphic display of the sensor’s output value. The scaling of the bar graph changes to match
the output of the specific sensor.
■ The digital display in the lower left shows the current sensor output value in the appropriate engineering units.
■ The digital display in the lower right shows the sensor’s output as
a percent of full scale.
Communication Module Point Display
SENSOR LEVEL BAR GRAPH
3.7
95-8434
Com 1/Com 2 These indicators track the fault isolation status
of the module. If the left side has isolated
due to a network fault, the “Com 1” indicator
will turn red. If the right side has isolated, the
“Com 2” indicator will turn red.
Fault This indicator will turn red when a hardware
fault has been detected.
Low Voltage This indicator will turn red when the supply
voltage to the module drops below 17.5 vdc.
Digital Input 1/ These indicators track the status of the two
Digital Input 2 digital inputs and will turn red when the input
is active.
Unable to Configure This indicator will turn red if EagleVision was
unable to successfully download configuration information to the target module.
Output Relay Active This indicator turns red when the onboard
relay is active.
Inhibit Active This indicator will turn red when the point has
been “inhibited” by the using the point displays inhibit button. When “inhibited” any
gateway relays programmed to monitor the
status of the point will ignore its data. In
addition, the gateway faceplate will not
respond to status changes in the inhibited
point.
Relay Module Point Display
GENERAL INFORMATION INDICATORS
3.8
95-8434
A1817
Not Communicating The gateway has not been receiving the peri-
odic status updates from the target module.
Invalid Config. Invalid configuration data has been received.
For a relay module, the most likely cause is
trying to download a configuration for another type of device.
It is not possible for a device to receive invalid configuration data from
EagleVision, however it is possible for a third party Modbus RTU master
to write invalid data to a module through the gateway.
Goto Point This button calls up a keypad allowing the
operator to go directly to any point on any of
the attached LON’s.
Next/Previous Point These buttons allow the operator to view the
point displays for the next higher or lower
configured device connected to this gateway’s LON.
Inhibit Select the Inhibit button to inhibit the current
point. When a point is inhibited, the gateway
relays will not respond to any events or
alarms generated by this module. Information
from this module will be displayed on the
screen and events configured in EagleVision
will respond.
Reset Relay Click on the Reset Relay button to reset the
communication module’s relay.
Acknowledge Select Acknowledge to acknowledge all
events and silence any audible annunciation.
Force Relay On The relay is in a “force on” condition, caus-
ing it to be in its active state, regardless of
voting or other programmed responses.
Force Relay Off The relay is in a “force off” condition, caus-
ing it to be in its inactive state, regardless of
voting or other programmed responses.
Relay Module Point Display
PUSHBUTTON FUNCTIONS
3.9
95-8434
EAGLE2000
™
— a new level of
Detection Monitoring
Section 4
Adding Graphics Capabilities
GetZoneState 4.8
GetZoneStatus 4.8
LogToAll 4.9
LogToDisk 4.9
LogToEventWindow 4.9
LogToPrinter 4.10
ResetBit 4.10
SetBit 4.11
SetTablePolling 4.11
SetTableState 4.12
SetWord 4.12
SetZoneState 4.12
XCMD and XFCN Definition 4.1
AckEvents 4.2
ChkEventState 4.2
ClearEventWindow 4.2
GetALoggedEvent 4.3
GetBit 4.3
GetGWPointDisplay 4.3
GetManyBit 4.4
GetNumLoggedEvents 4.4
GetTableState 4.7
GetWord 4.7
Included with the EagleVision software package are two files,
”EagleVision Supercard” and ”EagleVision Hypercard.” These files contain a suite of XCMD's and XFCN's.
XCMD's (External Commands) and XFCN's (External Functions) allow
other compatible application programs to interface with the EagleVision
application program. This interface includes the retrieval of data from
EagleVision and the sending of data to EagleVision. Below is a list of the
included XCMD's and XFCN's.
AckEvents
ChkEventState
ClearEventWindow
GetALoggedEvent
GetBit
GetGWPointDisplay
GetManyBit
GetNumLoggedEvents
GetTableState
GetWord
GetZoneState
GetZoneStatus
LogToAll
LogToDisk
LogToEventWindow
LogToPrinter
ResetBit
SetBit
SetTablePolling
SetTableState
SetWord
SetZoneState
In order to use these ”resources” they must be incorporated into a XCMD
compatible application program in some manner.
For use in SuperCard they must reside in the resource area of the project
from which they will be called, or in the resource area of the ”Shared
File.” Follow the directions for ”importing resources” in the SuperCard
documentation.
The best way to copy the XCMD’s and XFCN’s to your project is to copy
them from the EagleVision Supercard stack and paste them in your project.
XCMD's & XFCN's
XCMD AND XFCN DEFINITION
4.1
95-8434
A1819
A1818
XCMD's & XFCN's
ACKEVENTS
CHKEVENTSTATE
CLEAREVENTWINDOW
4.2
For use in HyperCard, they must reside in either the stack from which
they will be called or within the resource fork of the HyperCard application. This is done using a resource editor such as Apple Computer's
”ResEdit” program. Other methods would be to clone the sample stack
that contains the XCMD's and use it as a template, or copy them from the
“EagleVision Supercard” project file provided with EagleVision.
There are many other third party application programs that are compatible with XCMD's and XFCN's. These programs should be able to utilize
these resources to interface to EagleVision.
If an event is triggered and is configured to produce a sound, this command will silence the sound, until the next event, that has the sound
attribute set, occurs.
Example:
on mouseUp
AckEvents
end mouseUp
This function is used to check the active state of a range of events. The
events are numbered from 0 to 4999. This can be used, for example, to
determine if a range of detectors are in alarm in an area. To check the
state of one event pass the same number in both parameters. i.e. if
ChkEventState(56,56) = 1 then
ChkEventState(startEvent,endEvent)
Example:
on idle
if ChkEventState(3,44) = 1 then
we have one or more active
else
no events are active.
end idle
This command erases the contents of the event window located at the bottom of the screen.
Example:
on mouseUp
ClearEventWindow
end mouseUp
95-8434
XCMD's & XFCN's
4.3
This command gets an event that is in the log file. The count is from the
start of the file.
GetALoggedEvent(theLoggedEventNumber)
Example:
on openCard
put GetALoggedEvent(theNumber) into theString
end openCard
This command returns the state (1 or 0) of up to fifteen bits in the PLC.
The addresses that the operator requests the state of must be configured
in the “Datatable Configuration” window of the EagleVision™ application.
This command returns the state (1 or 0) of any single bit in the PLC. The
address that the operator requests the state of must be configured in the
“Datatable Configuration” window of the EagleVision™ application.
Refer to the section on addressing for the correct format of the address.
GetBit(PLCNum,address)
Example:
on idle
if GetBit(27,”43073/1”) = 1 then
your command for “1” state
else
your command for “0” state
end idle
This command will display the point display window for the point requested. The gateways are numbered 0 to 3. Point numbers are 1 to 250.
Several conditions must be met before the point display will be shown.
1. The “Gateway Address,” set from within the “Point Configuration”
window, must be non-zero.
2. “Hiway Polling” for the port of the connected gateway, set from
within the “Driver Settings” window, must be enabled.
3. The point must be configured.
GetGWPointDisplay(gateWayNumber,pointNumber)
Example:
on mouseUp
GetGWPointDisplay(0,24)
end mouseUp
GETALOGGEDEVENT
GETBIT
GETGWPOINTDISPLAY
95-8434
GETMANYBIT
GETNUMLOGGEDEVENTS
XCMD's & XFCN's
4.4
95-8434
Refer to the section on addressing for the correct format of the address. A
string is returned that contains one character for each of the addresses
that have been requested. Each character is a “1” or a “0,” i.e.
011100010101.
GetManyBit(PLCNum,address,address,address,etc)
Example:
on idle
put GetBit(27,”43073/1”,”43120/5”) into temp
if the 1 char of temp= 1 then
do something
else
do something else
if the 2 char of temp= 0 then
do something
else
do something else
end idle
Example:
on openCard
put GetNumLoggedEvents() into theNumber
end openCard
This command and “GetALoggedEvent” can be used in conjunction to
display all or part of the events logged. The following is one example of
scripting.
on startUp
global lastEventCount
put 0 into lastEventCount
end startUp
on openCard
global lastEventCount
if lastEventCount = 0 then
put “” into card field AlarmField
— the “AlarmField” is multi-line
end if
put GetNumLoggedEvents() into theNumber
— how many events are there total
put theNumber - lastEventCount into numberToGet
— how many do we need to get
if numberToGet > 0 then
set the cursor to watch
— show the watch
XCMD's & XFCN's
4.5
95-8434
set the lockScreen to true
— speed up getting the data
put lastEventCount into count
— where do we start from
repeat for numberToGet
— get all of the new ones
put GetALoggedEvent(count) into tempString
— the XFCN.
put count + 1 into count
— increment to use later
put char 76 of tempString into colorKind
— char 76 has the color number
— 1 = black
— 2 = blue
— 3 = red
— 4 = green
delete char 76 of tempString
— delete the last char
put tempString into line count of card field AlarmField
— put the string in the field
select line count of card field AlarmField
— select it to change the color
if colorKind = 1 then
set the textColor of card field AlarmField to 256
else if colorKind = 2 then
set the textColor of card field AlarmField to 7
else if colorKind = 3 then
set the textColor of card field AlarmField to 108
else if colorKind = 4 then
set the textColor of card field AlarmField to 10
end if
end repeat
put theNumber into lastEventCount
— save it for next time
set the cursor to arrow
end if
select after last char of card field AlarmField
— scroll the window to the last event
set the lockText of card field AlarmField to true
— do not select any text
set the lockScreen to false
— let drawing begin
end openCard
XCMD's & XFCN's
4.6
95-8434
While the operator is looking at the event log, a new event might occur.
The following script checks for new events during idle and displays any
new event. This script is similar to the one above. The difference is that
some things are done at a different time.
on idle
global lastEventCount
put GetNumLoggedEvents() into theNumber
put theNumber - lastEventCount into numberToGet
if numberToGet > 0 then
set the cursor to watch
set the lockScreen to true
put lastEventCount into count
repeat for numberToGet
put GetALoggedEvent(count) into tempString
put count + 1 into count
put char 76 of tempString into colorKind
delete char 76 of tempString
put tempString into line count of card field AlarmField
select line count of card field AlarmField
if colorKind = 1 then
set the textColor of card field AlarmField to 256
else if colorKind = 2 then
set the textColor of card field AlarmField to 7
else if colorKind = 3 then
set the textColor of card field AlarmField to 108
else if colorKind = 4 then
set the textColor of card field AlarmField to 10
end if
end repeat
put theNumber into lastEventCount
set the lockText of card field AlarmField to false
— it was true from above script
select after last char of card field AlarmField
set the lockText of card field AlarmField to true
set the lockScreen to false
set the cursor to arrow
end if
end idle
GETTABLESTATE
GETWORD
XCMD's & XFCN's
4.7
95-8434
This command will return the changed bit of the datatable requested.
GetTableState(3)
Example:
on openCard
if GetTableState(3) then
beep
end if
end openCard
The datatables maintain a CRC (Cyclic Redundancy Check) that is compared to any new data that is received from the PLC. If the data is different from the last data received, a flag is set. Calling this command returns
the state of the flag and clears it. If the bit is set since the last time this call
was made (for this table) the data has changed.
This command gets the value (–32768 to 32767) of any single word in
the PLC. The address that the operator requests the state of must be configured in the “Datatable Configuration” window of the EagleVision™
application. Refer to the section on addressing for the correct format of
the address.
GetWord(PLCNum,address)
Example:
on idle
put GetWord(27,”44080”) into theValue
end idle
on idle
if GetWord(27,”44085”) = 5678 then
your command for equal
else
your command for not equal
end idle
XCMD's & XFCN's
GETZONESTATE
GETZONESTATUS
4.8
This command will return the changed bit of the zone requested. Zones are numbered 1-256.
GetZoneState(3)
Example:
on openCard
if GetZoneState(3) then
beep
end if
end openCard
If the value of the zone status has changed, then this bit will be set. If the bit is set
since the last time this call was made (for this zone) the status has changed.
This command gets the status (0-4) of any single zone. The zone that the operator
requests the state of must be configured in the “Zone Configuration” window of the
EagleVision™ application. Zones are numbered 1-256.
0 = Normal (no alarm or fault) lowest
1 = Fault (com 1 or 2 fault, sensor fault)
2 = Alarm (alarm 1 or 2)
3 = New Fault (a new fault)
4 = New Alarm (a new alarm) highest
The conditions work off priorities. Conditions 3 and 4 do not clear until the operator acknowledges the condition. Conditions 1 and 2 are self clearing. If an alarm
and a fault co-exist, the status will be 2=Alarm.
Example:
New alarm = condition 4
User acknowledges = condition 2
Alarm conditions is corrected = condition 0
GetZoneStatus(zoneNumber)
Example:
on idle
put GetZoneStatus(3) into theValue
end idle
on idle
if GetZoneStatus(3) = 4 then
— your command for new alarm
end idle
95-8434
XCMD's & XFCN's
LOGTOALL
LOGTODISK
LOGTOEVENTWINDOW
4.9
This command “Logs” any event in a text format. This command will log the data
passed to the printer, today’s disk file and the event window. The data will be time
stamped when it is logged.
LogToAll theThingToLog
Example:
on mouseUp
LogToAll “The operator activated the button”
end mouseUp
on mouseUp
LogToAll someContainerThatHoldsAValue
end mouseUp
This command “Logs” any event in a text format. This command will log the data
passed to today’s disk file. The data will be time stamped when it is logged.
LogToDisk theThingToLog
Example:
on mouseUp
LogToDisk “The operator activated the button”
end mouseUp
on mouseUp
LogToDisk someContainerThatHoldsAValue
end mouseUp
This command “Logs” any event in a text format. This command will log the data
passed to the event window. The data will be time stamped when it is logged.
LogToEventWindow theThingToLog
Example:
on mouseUp
LogToEventWindow “Sent to the event window”
end mouseUp
on mouseUp
LogToEventWindow somethingThatHoldsAValue
end mouseUp
95-8434
XCMD's & XFCN's
LOGTOPRINTER
RESETBIT
4.10
This command “Logs” any event in a text format. This command will log the data
passed to the printer. The data will be time stamped when it is logged.
LogToPrinter theThingToLog
Example:
on mouseUp
LogToPrinter “The operator activated the button”
end mouseUp
on mouseUp
LogToPrinter someContainerThatHoldsAValue
end mouseUp
This command resets the state (0) of any single bit in the PLC. Refer to the section
on addressing for the correct format of the address. This command can set to zero
any bit, in any PLC accessible on the network that is not protected. The por ts are
numbered as follows:
Modem0
Printer 1 not used for this command
Port 1 2 if you have a multi-port board
Port 2 3 these numbers apply
Port 3 4
Port 4 5
ResetBit PLCNum,portNum,,address
Example:
on mouseUp
ResetBit 27,0,”42010/3”
end mouseUp
95-8434
SETBIT
SETTABLEPOLLING
4.11
95-8434
This command sets the state (1) of any single bit in the PLC. Refer to the section on
addressing for the correct format of the address. This command can set any bit to
one, in any PLC accessible on the network that is not protected. The ports are numbered as follows:
Modem 0
Printer 1 not used for this command
Port 1 2 if you have a multi-port board
Port 2 3 these numbers apply
Port 3 4
Port 4 5
SetBit PLCNum,address
Example:
on mouseUp
SetBit 27,2,”42100/3”
end mouseUp
The EagleVision™ system uses a set of tables configured to read data from the
PLC. These tables poll the PLC in a circular nature. The system continuously starts at
table zero and polls all of the tables that have the enable bit set for the port(s) that
are used. When the last table is polled, the system starts at table zero again.
Some table(s) may only need to be polled every hour or when the operator is on a
certain screen. For example, a screen that shows the value of a timer and is not
used in any other manner. When the operator selects the screen, enable the timer
polling and when the operator leaves the screen, disable the polling of that timer.
This will reduce the highway and computer loading. If an event is configured to the
timer then the event will only trigger if the system is polling the timer and the event
becomes true.
SetTablePolling tableNumber,state
Example:
on mouseUp
SetTablePolling 14,1 — on
end mouseUp
on mouseUp
SetTablePolling 14,0 — off
end mouseUp
SETTABLESTATE
SETWORD
SETZONESTATE
4.12
This command will set the changed bit of the datatable requested.
SetTableState tableNumber
Example:
on openCard
SetTableState 3
end openCard
See command GetTableData
This command sets the value (–32768 to 32767) of any single word in the PLC.
Refer to the section on addressing for the correct format of the address. This command can set any word to a value, in any PLC assessable on the network that is
not protected. The ports are numbered as follows:
Modem 0
Printer 1 not used for this command
Port 1 2 if you have a multi-port board
Port 2 3 these numbers apply
Port 3 4
Port 4 5
SetWord PLCNum,portNum,address,theValue
Example:
on mouseUp
SetWord 27,3,”43075”,227
end mouseUp
This command will set the changed bit of the zone requested.
SetZoneState zoneNumber
Example:
on openCard
SetZoneState 3
end openCard
See command GetZoneState
95-8434
Loading...
