1.0 Description

Detcon Model AV2-C1D1M audio-visual alarm stations are designed for installation and use in hazardous

duty, corrosive work environments, UL listed for Class I, Division 1, Groups C and D. The alarm station
consists of two strobe lights and a siren.

The station can be wired to control circuit alarm devices for the purpose of warning personnel of hazardous
conditions. When used in conjunction with Detcon controllers, the alarm station is typically used to provide a
low alarm (strobe) and high alarm (strobe/siren) for pre-determined hazardous environmental gas levels (toxic
or flammable) as indicated by remotely mounted sensors.

The alarm station strobe lights may be configured with any combination of strobe colors such as amber, blue,
clear, green, magenta, or red. Dome guards are included. The rugged strobe lights are specifically designed
for hazardous locations or corrosive environments where a very bright visual signal is required.

1.1 Strobe

Figure 1 Strobe

Hazardous location strobe lights are available in voltage ratings of 24VDC, 120 VAC or 240 VAC.

The strobe light provides 85 high-intensity flashes per minute. The light meets Type 4X watertight, dust-tight,
and corrosion resistant requirements. It has an aluminum base coated for corrosion-resistance. The dome
guard fits over the glass dome to protect it against accidental collision with moving equipment.

Specifications

Strobe Voltage 24VDC, 120 VAC 50/60 HZ, 240 VAC 50/60 HZ
Mount Ceiling
Operating Current 1.9 Amps at 24 VDC, 1.14 Amps at 120VAC, 0.7 Amps

at 240 VAC
Strobe Colors Amber/Blue/Clear/Green/Magenta/Red
Dome Guard Included
Operating Temperature Minimum -55°C

AV2-C1D1M Instruction Manual Rev. 1.5 Page 1 of 8

Operating Temperature Maximum 65°C

Voltage

24VDC, 120 VAC 50/60 HZ, 240 VAC 50/60 HZ

Mount

Omni Directional Mounting Bracket

Operating Current

0.6Amps at 24 VDC

0.21Amps at1

20 VAC

0.12Amps at 240 VAC

Temperature Rating

-55°C to +

66

°C;-67

°F to +1

5

1°F

Sound Output

dB (A) @ 10’ on Axis

UL Audibility Rating dB (A)

Wail

108

98db

Yelp

10899Horn

102

95

Temporal Slow Whoop

102

95

Enclosure Rating

Type3R, IP44

Weight

15.

5Lbs

Height

17in.

Width

13.1

in.

Long

16.3inSound Selectable Positions

Listed on

Figure

3

Flash Rate/Minute 80
Effective Candle Power2(ECP2) 850 eff. (clear dome)
Weight 19.5Lbs
Height 15 in. (with Dome Guard)
Diameter 8.8 in.

1.2 Siren

AV2-C1D1M

Figure 2 SSTX-MV Siren

The explosion proof power alarm siren is available in voltage ratings of 24VDC, 120VAC or 240VAC @
50/60Hz. and mounts on an omni directional mounting bracket with conduit access

Specifications

AV2-C1D1M Instruction Manual Rev. 1.5 Page 2 of 8

AV2-C1D1M

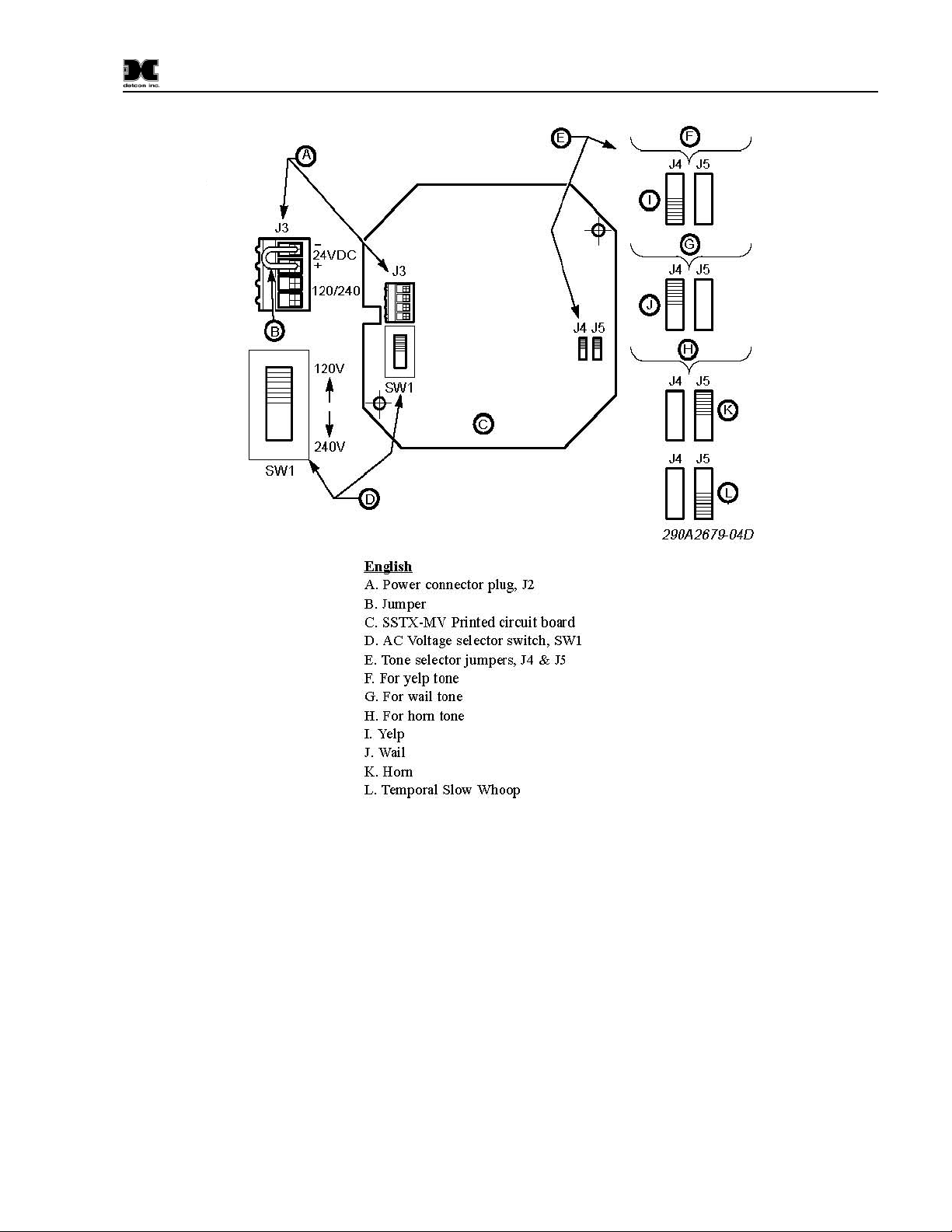

Figure 3 SSTX-MV printed circuit board

2.0 Installation

The assembly is a T-shaped aluminum bracket with holes pre-drilled to accommodate (2) U-bolt attachments
up to 3”maximum diameter pipe. Overall dimensions are 41.6” H x 29.5” W x 16.625” D.

The tone for the siren is set using tone selector jumpers, J4 & J5. Each jumper consists of three pins and the
selection of appropriate tone is made by placing a jumper on two of the three pins as shown in Figure 3.

The alarm comes pre-wired for the appropriate voltage as ordered from the factory. Customer wiring is
installed through opening at bottom of lower junction box. Connect wiring in accordance with the wiring
diagrams in Figure 5 or Figure 6. Use only 12 to 18 AWG wire for power connections. Strip no more than

0.25-inch of insulation from the ends of the power leads.

AV2-C1D1M Instruction Manual Rev. 1.5 Page 3 of 8

AV2-C1D1M

29.5

16.625

U-Bolts for 2~3"
Pipe Mounting

41.5 Typ.

21

3.5

5.5

U-Bolts for 2~3"
Pipe Mounting

Figure 4 Unit Dimensional

U-Bolts for 2~3"

Pipe Mounting

AV2-C1D1M Instruction Manual Rev. 1.5 Page 4 of 8

AV2-C1D1M

G

NL1

GREEN

Oultet Box

Ground

4-Way

Outlet Box

Oultet Box

Ground

SIREN

G G

GREEN

BLACK

BLACK

BLACK

WHITE

STROBE 2STROBE 1

NN L1L1

WHITE

WHITE

GREEN

Terminal Block

Ground

GRN/YLW

4-Way

Outlet Box

GRN/YLW

BLUE

BLACK

WHITE

RED

Terminal Block

Ground

L1 Strobe 2

GND

L1 Strobe 1

Neu (L2)

L1 Siren

Customer Input Wiring

Figure 5 120/240VAC Wiring diagram

AV2-C1D1M Instruction Manual Rev. 1.5 Page 5 of 8

AV2-C1D1M

GREEN

Oultet Box

Ground

4-Way

Outlet Box

Oultet Box

Ground

SIREN

G GNN L1L1GNL1

GREEN

RED

RED

RED

BLACK

STROBE 2STROBE 1

BLACK

BLACK

GREEN

Terminal Block

Ground

GRN/YLW

4-Way

Outlet Box

GRN/YLW

RED

RED

BLACK

RED

Terminal Block

Ground

24VDC STROBE 2

GND

24VDC STROBE 1

24VDC COMMON

24VDC SIREN

Customer Input Wiring

Figure 6 24VDC Wiring Diagram

AV2-C1D1M Instruction Manual Rev. 1.5 Page 6 of 8

3.0 Spare Parts List

Detcon Part # Description

300-679612-ABS Six Pin ABS Terminal Block
356-889321-MV0 24 VDC / 120 VAC / 24 VAC Hazardous Location Siren
354-27X6x4-024 27XST Strobe 24VDC (x represents color of lamp)
354-27X6x4-120 27XST Strobe 120 VAC (x represents color of lamp)
354-27X6x4-240 276XST Strobe 240 VAC (x represents color of lamp)

Strobe colors: Red (2), Amber (4), Green (5), Blue (6), Magenta (7), and Clear (9)

AV2-C1D1M

4.0 4.0 Warranty

Detcon Inc., as manufacturer, warrants under intended normal use each new Model AV2-C1D1M Alarm
Station to be free from defects in material and workmanship for a period of one year. The warranty period
begins from the date of shipment to the original purchaser and ends one year thereafter. All warranties and
service policies are FOB the Detcon Inc. facility located in The Woodlands, Texas.

AV2-C1D1M Instruction Manual Rev. 1.5 Page 7 of 8

AV2-C1D1M

5.0 Appendix

5.1 Revision Log

Rev. Date Changes made Approval

1.4 May 26, 2011 Revision Log added - Change wiring to Terminal Blocks LU

1.5 Dec 05. 2013 Update to new strobes LU
