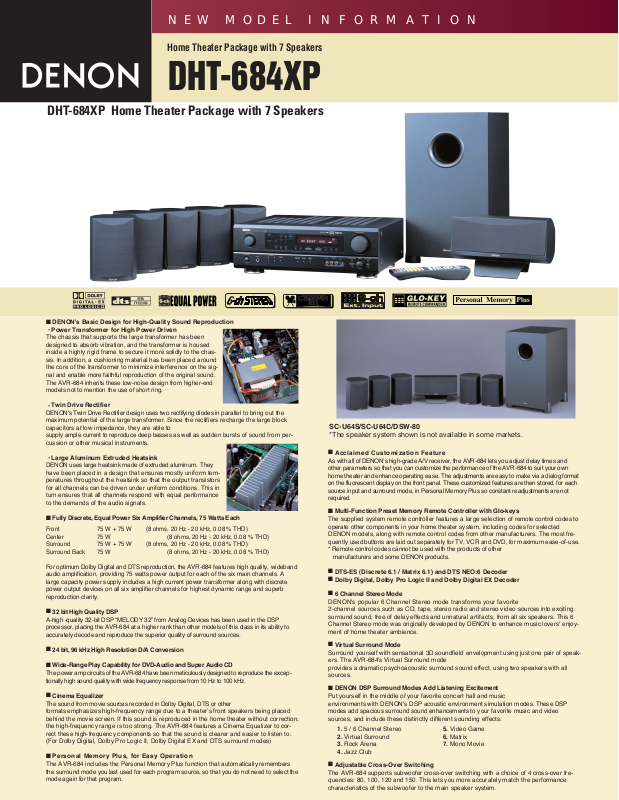

Denon DHT684XP User Manual

DHT-684XP Home Theater Package with 7 Speakers

■

DENON's Basic Design for High-Quality Sound Reproduction

•

Power Transformer for High Power Driven

The chassis that supports the large transformer has been
designed to absorb vibration, and the transformer is housed
inside a highly rigid frame to secure it more solidly to the chas­sis. In addition, a cushioning material has been placed around
the core of the transformer to minimize interference on the sig­nal and enable more faithful reproduction of the original sound.
The AVR-684 inherits these low-noise design from higher-end
models not to mention the use of short ring.

•

Twin Drive Rectifier

DENON's Twin Drive Rectifier design uses two rectifying diodes in parallel to bring out the
maximum potential of the large transformer. Since the rectifiers recharge the large block
capacitors at low impedance, they are able to
supply ample current to reproduce deep basses as well as sudden bursts of sound from per­cussion or other musical instruments.

•

Large Aluminum Extruded Heatsink

DENON uses large heatsink made of extruded aluminum. They
have been placed in a design that ensures mostly uniform tem­peratures throughout the heatsink so that the output transistors
for all channels can be driven under uniform conditions. This in
turn ensures that all channels respond with equal performance
to the demands of the audio signals.

■

Fully Discrete, Equal Power Six Amplifier Channels, 75 Watts Each

Front 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Center 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround Back 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-684 features high quality, wideband
audio amplification, providing 75 watts power output for each of the six main channels. A
large capacity power supply includes a high current power transformer along with discrete
power output devices on all six amplifier channels for highest dynamic range and superb
reproduction clarity.

■

32 bit High Quality DSP

A-high -quality 32-bit DSP “MELODY 32” from Analog Devices has been used in the DSP
processor, placing the AVR-684 at a higher rank than other models of this class in its ability to
accurately decode and reproduce the superior quality of surround sources.

■

24 bit, 96 kHz High Resolution D/A Conversion

■

Wide-Range Play Capability for DVD-Audio and Super Audio CD

The power amp circuits of the AVR-684 have been meticulously designed to reproduce the excep­tionally high sound quality with wide frequency response from 10 Hz to 100 kHz.

■

Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other
formats emphasizes high-frequency range due to a theater’s front speakers being placed
behind the movie screen. If this sound is reproduced in the home theater without correction,
the high-frequency range is too strong. The AVR-684 features a Cinema Equalizer to cor­rect these high-frequency components so that the sound is clearer and easier to listen to.
(For Dolby Digital, Dolby Pro Logic II, Dolby Digital EX and DTS surround modes)

■

Personal Memory Plus, for Easy Operation

The AVR-684 includes the Personal Memory Plus function that automatically remembers
the surround mode you last used for each program source, so that you do not need to select the
mode again for that program.

■

Acclaimed Customization Feature

As with all of DENON’s high-grade A/V receiver, the AVR-684 lets you adjust delay times and
other parameters so that you can customize the performance of the AVR-684 to suit your own
home theater and enhance operating ease. The adjustments are easy to make via a dialog format
on the fluorescent display on the front panel. These customized features are then stored, for each
source input and surround mode, in Personal Memory Plus so constant readjustments are not
required.

■

Multi-Function Preset Memory Remote Controller with Glo-keys

The supplied system remote controller features a large selection of remote control codes to
operate other components in your home theater system, including codes for selected
DENON models, along with remote control codes from other manufacturers. The most fre­quently used buttons are laid out separately for TV, VCR and DVD, for maximum ease-of-use.
* Remote control codes cannot be used with the products of other

manufacturers and some DENON products.

■

DTS-ES (Discrete 6.1 / Matrix 6.1) and DTS NEO:6 Decoder

■

Dolby Digital, Dolby Pro Logic II and Dolby Digital EX Decoder

■

6 Channel Stereo Mode

DENON's popular 6 Channel Stereo mode transforms your favorite
2-channel sources such as CD, tape, stereo radio and stereo video sources into exciting
surround sound, free of delay effects and unnatural artifacts, from all six speakers. This 6
Channel Stereo mode was originally developed by DENON to enhance music lovers' enjoy­ment of home theater ambience.

■

Virtual Surround Mode

Surround yourself with sensational 3D soundfield envelopment using just one pair of speak­ers. The AVR-684's Virtual Surround mode
provides a dramatic psychoacoustic surround sound effect, using two speakers with all
sources.

■

DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music
environments with DENON's DSP acoustic environment simulation modes. These DSP
modes add spacious surround sound enhancements to your favorite music and video
sources, and include these distinctly different sounding effects:

1. 5 / 6 Channel Stereo 5. Video Game

2. Virtual Surround 6. Matrix

3. Rock Arena 7. Mono Movie

4. Jazz Club

■

Adjustable Cross-Over Switching

The AVR-684 supports subwoofer cross-over switching with a choice of 4 cross-over fre­quencies: 80, 100, 120 and 150. This lets you more accurately match the performance
characteristics of the subwoofer to the main speaker system.

DHT-684XP

Home Theater Package with 7 Speakers

NEW MODEL INFORMATION

SC-U64S/SC-U64C/DSW-80

*The speaker system shown is not available in some markets.

■

Digital Optical Output

■

Front Panel Inputs (with Optical Input)

■

Front A/B Speaker Terminals

■

High-grade Speaker Terminals (except speakers B)

■

Frequency Synthesis Tuning

• 40-Station AM/FM Random Preset Memory Tuning

• Auto Preset Memory

Specifications

■

Input/Output Terminals For Every A/V System

•

Audio Inputs

8 Analog Inputs............................................ CD, TUNER, DVD/VDP, TV/DBS, AUX

VCR, CDR/TAPE, V.AUX(FRONT)

6 Analog EXT. Input .................................... FRONT L/R, CENTER,

SURROUND L/R, SUBWOOFER

3 Digital (Optical) Input ................................ OPTICAL X 3

1 Digital (Coaxial) Input ............................... COAXIAL X 1

•

Audio Outputs

1 Analog PRE OUT Terminals..................... SUBWOOFER

2 Analog REC OUT Terminals

..................... VCR, CDR/TAPE

1 Digital (Optical) Output ............................. Optical X 1

•

Video Inputs

4 Composite Inputs...................................... DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)

3 S-Video Inputs ............................................... DVD/VDP, TV/DBS, VCR

2 Component Inputs......................................... DVD/VDP, TV/DBS

•

Video Outputs

2 Composite Outputs................................... VCR, MONITOR

2 S-Video Outputs ....................................... VCR, MONITOR

1 Component Output ................................... MONITOR

■

Power Amplifier Section

Rated output *THD figures are power amp stage values.

Front ................................................ 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

Center.............................................. 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

Surround ......................................... 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

Surround Back ............................... 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

■

Preamplifier Section

Input sensitivity/Impedance

CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE, AUX

V.AUX(FRONT) ...................... 200 mV/47 kohms

Output level/Load impedance

SUBWOOFER ........................ 1.2 V/10 kohms

CDR/TAPE, VCR.................... 200 mV/47 kohms

Frequency response .................... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)

Signal-to-noise ratio..................... 98 dB (IHF-A weighted) (Tone Defeat On)

Tone control................................. Treble: ±12 dB at 10 kHz

Bass: ±12 dB at 100 Hz

■

FM Section

Tuning frequency range............... 87.5 - 107.9 MHz

Usable sensitivity ......................... 1.0 µV (11.2 dBf)

■

AM Section

Tuning frequency range............... 520 - 1710 kHz

Usable sensitivity ......................... 18 µV

■

General

Power supply ............................... AC 120 V, 60 Hz

Power consumption ..................... 4.0 A

Dimensions .................................. 434 (W) x 147 (H) x 417 (D) mm

17.1” (W) x 5.8” (H) x 1.4 “(D)

Weight.......................................... 10.8 kg, 23.8 lbs

■

Speaker section

SC-U64S (Satellite speaker system)

Type ............................................. 2-way Acoustic Suspension

Magnetic shielding........................ Yes

Imepedance ................................. 6 ohms

Dimensions .................................. 131 (W) x 175 (H) x 130 (D) mm (+19 mm grill)

5.2” (W) x 6.9” (H) x 5.1” (D)

Weight.......................................... 1.9 kg, 4.08 lbs

SC-U64C (Center speaker system)

Type ............................................. 2-way Acoustic Suspension

Magnetic shielding........................ Yes

Imepedance ................................. 6 ohms

Dimensions .................................. 276 (W) x 131 (H) x 130 (D) mm (+19 mm grill)

10.9” (W) x 5.2” (H) x 5.1” (D)

Weight.......................................... 3.0 kg, 6.61 lbs

DSW-80 (Subwoofer system with built-in Amplifier)

Imepedance ................................. 4 ohms

Power supply ............................... AC 120 V, 60 Hz, 90 W

Dimensions .................................. 478 (W) x 288 (H) x 393 (D) mm

18.8” (W) x 11.3” (H) x 15.5” (D)

Weight.......................................... 12.5 kg, 27.5 lbs
