Denon AVR-2311CI Owners Manual

Download

Page 1

Simple version

Version simpliﬁée

Versión sencilla

AV SURROUND RECEIVER

AVR-2311CI

Owner’s Manual Manuel de l’Utilisateur Manual del usuario

Basic version

Advanced version

Version basique Versión básica

Version avancée

Versión avanzada

Information

“Part names and functions” (vpage70)

Informations

“Nomenclature et fonctions“ (vpage 70)

Información

“Nombres y funciones de las piezas“ (vpágina 70)

Page 2

SAFETY PRECAUTIONS

IMPORTANT SAFETY

ENGLISHFRANCAISESPAÑOL

FCC INFORMATION (For US customers)

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

HOT SURFACE. DO NOT TOUCH.

The top surface over the internal heat sink may become hot when operating this product continuously.

Hot

surface

mark

Do not touch hot areas, especially around the “Hot surface mark” and the top panel.

PRECAUTION:

SURFACE CHAUDE. NE PAS TOUCHER.

La surface supérieure du dissipateur de chaleur peut devenir chaude si vous utilisez ce produit en continu. Do not touch hot areas, especially around the “Hot surface mark” and the top panel.

PRECAUCIÓN:

SUPERFICIE CALIENTE. NO TOCAR.

La superﬁcie superior sobre el disipador de calor interno podría llegar a calentarse al operar este producto de forma continua. Do not touch hot areas, especially around the “Hot surface mark” and the top panel.

INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Batteries shall not be exposed to excessive heat such as sunshine, ﬁre or the like.

CAUTION:

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

PRECAUTION:

Pour déconnecter complètement ce produit du courant secteur, débranchez la prise de la prise murale. La prise secteur est utilisée pour couper complètement l’alimentation de l’appareil et l’utilisateur doit pouvoir y accéder facilement.

PRECAUCIÓN:

Para desconectar completamente este producto de la alimentación eléctrica, desconecte el enchufe del enchufe de la pared. El enchufe de la alimentación eléctrica se utiliza para interrumpir por completo el suministro de alimentación eléctrica a la unidad y debe de encontrarse en un lugar al que el usuario tenga fácil acceso.

1. PRODUCT

This product complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions contained

in this manual, meets FCC requirements. Modiﬁcation not expressly approved by DENON may void your authority, granted by the FCC, to use the product.

3. NOTE

This product has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the product into an outlet on a circuit different from that to which the receiver is connected.

• Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help.

For Canadian customers:

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Page 3

ESPAÑOLENGLISH FRANCAIS

NOTES ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO

WARNINGS AVERTISSEMENTS ADVERTENCIAS

• Avoid high temperatures. Allow for sufﬁcient heat dispersion when installed in a rack.

• Handle the power cord carefully. Hold the plug when unplugging the cord.

• Keep the unit free from moisture, water, and dust.

• Unplug the power cord when not using the unit for long periods of time.

• Do not obstruct the ventilation holes.

• Do not let foreign objects into the unit.

• Do not let insecticides, benzene, and thinner come in contact with the unit.

• Never disassemble or modify the unit in any way.

• Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths or curtains.

• Naked ﬂame sources such as lighted candles should not be placed on the unit.

• Observe and follow local regulations regarding battery disposal.

• Do not expose the unit to dripping or splashing ﬂuids.

• Do not place objects ﬁlled with liquids, such as vases, on the unit.

• Do not handle the mains cord with wet hands.

• When the switch is in the OFF position, the equipment is not completely switched off from MAINS.

• The equipment shall be installed near the power supply so that the power supply is easily accessible.

• Eviter des températures élevées. Tenir compte d’une dispersion de chaleur sufﬁsante lors de l’installation sur une étagère.

• Manipuler le cordon d’alimentation avec précaution. Tenir la prise lors du débranchement du cordon.

• Protéger l’appareil contre l’humidité, l’eau et la poussière.

• Débrancher le cordon d’alimentation lorsque l’appareil n’est pas utilisé pendant de longues périodes.

• Ne pas obstruer les trous d’aération.

• Ne pas laisser des objets étrangers dans l’appareil.

• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l’appareil.

• Ne jamais démonter ou modiﬁer l’appareil d’une manière ou d’une autre.

• Ne pas recouvrir les oriﬁces de ventilation avec des objets tels que des journaux, nappes ou rideaux. Cela entraverait la ventilation.

• Ne jamais placer de ﬂamme nue sur l’appareil, notamment des bougies allumées.

• Veillez à respecter les lois en vigueur lorsque vous jetez les piles usagées.

• L’appareil ne doit pas être exposé à l’eau ou à l’humidité.

• Ne pas poser d’objet contenant du liquide, par exemple un vase, sur l’appareil.

• Ne pas manipuler le cordon d’alimentation avec les mains mouillées.

• Lorsque l’interrupteur est sur la position OFF, l’appareil n’est pas complètement déconnecté du SECTEUR (MAINS).

• L’appareil sera installé près de la source d’alimentation, de sorte que cette dernière soit facilement accessible.

• Evite altas temperaturas. Permite la suﬁciente dispersión del calor cuando está instalado en la consola.

• Maneje el cordón de energía con cuidado. Sostenga el enchufe cuando desconecte el cordón de energía.

• Mantenga el equipo libre de humedad, agua y polvo.

• Desconecte el cordón de energía cuando no utilice el equipo por mucho tiempo.

• No obstruya los oriﬁcios de ventilación.

• No deje objetos extraños dentro del equipo.

• No permita el contacto de insecticidas, gasolina y diluyentes con el equipo.

• Nunca desarme o modiﬁque el equipo de ninguna manera.

• La ventilación no debe quedar obstruida por haberse cubierto las aperturas con objetos como periódicos, manteles o cortinas.

• No deberán colocarse sobre el aparato fuentes inﬂamables sin protección, como velas encendidas.

• A la hora de deshacerse de las pilas, respete la normativa para el cuidado del medio ambiente.

• No exponer el aparato al goteo o salpicaduras cuando se utilice.

• No colocar sobre el aparato objetos llenos de líquido, como jarros.

• No maneje el cable de alimentación con las manos mojadas.

• Cuando el interruptor está en la posición OFF, el equipo no está completamente desconectado de la alimentación MAINS.

• El equipo se instalará cerca de la fuente de alimentación de manera que resulte fácil acceder a ella.

n CAUTIONS ON INSTALLATION PRÉCAUTIONS D’INSTALLATION EMPLAZAMIENTO DE LA INSTALACIÓN

z z

Wall Paroi Pared

zFor proper heat dispersal, do not install this unit in a conﬁned

space, such as a bookcase or similar enclosure.

• More than 0.3 m (12 in.) is recommended.

• Do not place any other equipment on this unit.

zPour permettre la dissipation de chaleur requise, n’installez

pas cette unité dans un espace conﬁné tel qu’une bibliothèque ou un endroit similaire.

• Une distance de plus de 0.3 m (12 po) est recommandée.

• Ne placez aucun matériel sur cet appareil.

zPara la dispersión del calor adecuadamente, no instale este

equipo en un lugar conﬁnado tal como una librería o unidad similar.

• Se recomienda dejar más de 0.3 m (12 pulg.) alrededor.

• No coloque ningún otro equipo sobre la unidad.

Page 4

Getting started

Thank you for purchasing this DENON product. To ensure proper operation, please read these owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference.

ENGLISH

Contents

Getting started ·············································································· 1

Accessories ··················································································1 About this manual ·········································································1 Features ························································································2 Cautions on handling ····································································2

Simple version (Simple setup guide) ··························3

Basic version ··········································································12

Connections ·················································································13

Important information ································································· 13 Connecting an HDMI-compatible device ····································14 Connecting a TV··········································································15 Connecting a DVD player ····························································16 Connecting a set-top box (Satellite tuner/cable TV) ···················· 16 Connecting a digital video recorder ············································17 Connecting a digital camcorder ··················································17 Connecting a control dock for iPod ·············································18 Connecting an iPod or USB memory device to the USB Port ····18 Connecting a CD player ······························································19 Connecting an antenna ······························································· 19 Connecting an external control device ········································20

Playback (Basic operation) ························································· 21

Important information ································································· 21 Playing a Blu-ray Disc player/DVD player ···································· 22 Playing a CD player ····································································· 22 Playing an iPod® ·········································································22 Tuning in radio stations ·······························································25 Playing a USB memory device ····················································27

Selecting a listening mode (Surround mode) ··························28

Standard playback ·······································································28 DENON original surround playback ·············································30 Stereo playback ··········································································30 Direct playback ···········································································30 Pure direct playback····································································30

Advanced version ·······························································31

Speaker installation/connection (Other than 5.1-channel) ····· 32

Install ··························································································32 Connect ······················································································33 Set up speakers ·········································································· 36

Playback (Advanced operation) ················································· 38

Convenient functions ··································································38

Playback in ZONE2 (Separate room) ········································41

q ZONE2 playback by speaker output ·······································41 w ZONE2 playback by audio output ··········································· 41

Playback ······················································································42 Quick select function ·································································· 42

How to make detailed settings ··················································43

Menu map ··················································································43 Examples of menu and front display ··········································44 Inputting characters ··································································· 45 Input Setup ·················································································46 Audio/Video Adjust ·····································································51 Manual Setup··············································································57 Information ·················································································64

Operating the connected devices by remote control unit ······65

Operating AV equipment ····························································65 Registering preset codes ····························································65 Operating components ······························································· 68 Specifying the zone used with the remote control unit ··············69 Resetting the remote control unit ···············································69

Information ·············································································69

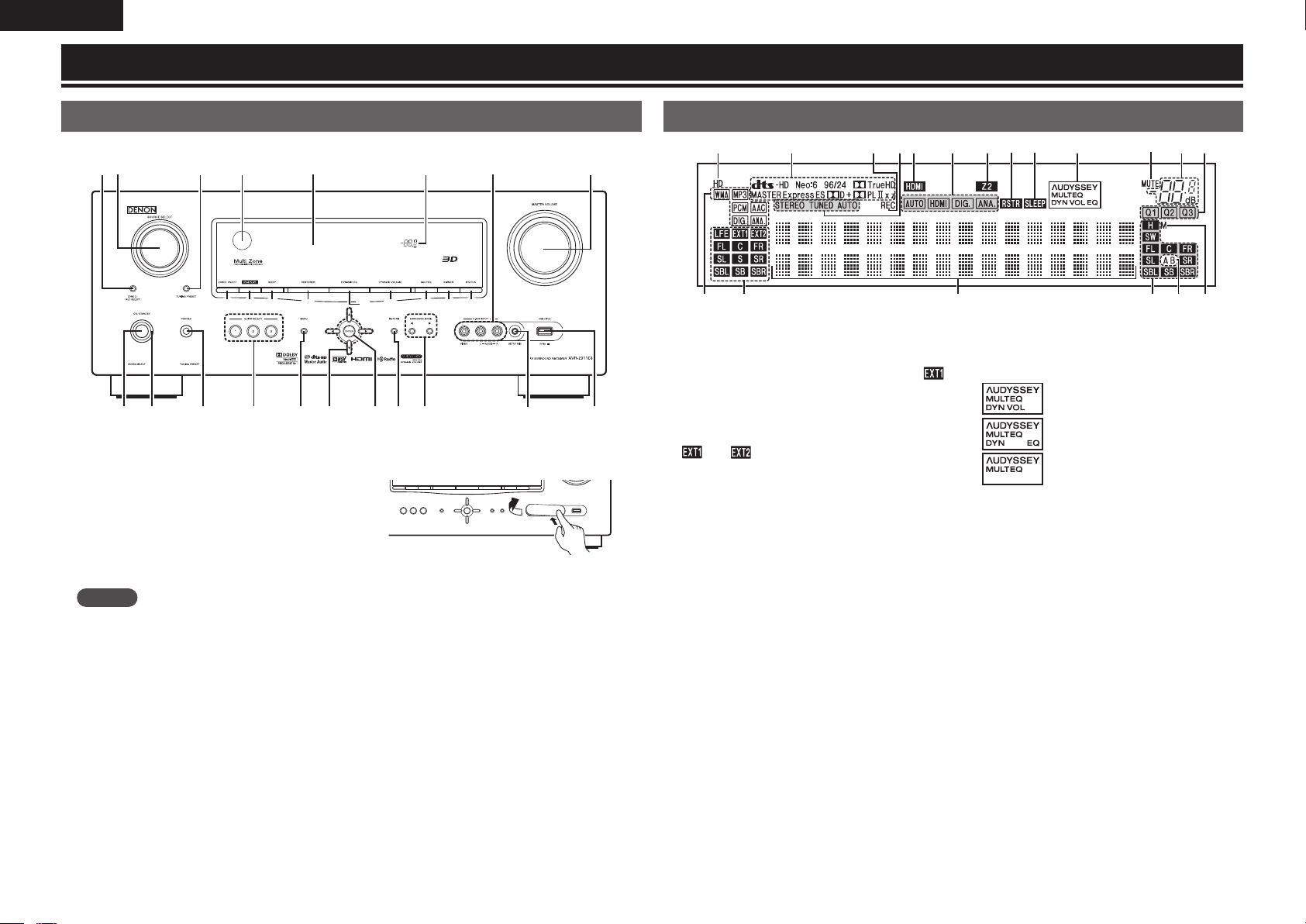

Part names and functions···························································70

Front panel ··················································································70 Display ························································································70 Rear panel ···················································································71 Remote control unit ···································································· 72

Other information ·······································································74

Trademark information ································································74 Surround ·····················································································75 Relationship between video signals and monitor output ············79 Explanation of terms ···································································80

Troubleshooting ··········································································82

Resetting the microprocessor ····················································84

Speciﬁcations ··············································································84

Accessories

Check that the following parts are supplied with the product.

q Owner’s manual ...................................................................... 1

w Warranty (for North America model only) ................................ 1

e Service network list ................................................................. 1

r Power cord (Cord length: Approx. 5.6 ft / 1.7 m) .................... 1

t Remote control unit (RC-1146) ................................................ 1

y R6/AA batteries .......................................................................2

u Setup microphone

(DM-A409, Cord length: Approx. 19.7 ft / 6.0 m) .................... 1

i AM loop antenna (for HD Radio broadcasts) ........................... 1

o FM indoor antenna (for HD Radio broadcasts) ........................1

i o

About this manual

n Operation buttons

The operations described in this manual are based mainly on remote control operation.

n Symbols

NOTE

n Illustrations

Note that the illustrations in these instructions are for explanation purposes and may differ from the actual unit.

This symbol indicates a reference page on which related information is described.

This symbol indicates a supplementary information and tips for operations.

This symbol indicates points to remember operations or function limitations.

Basic version Advanced versionSimple version Information

Page 5

ENGLISH

Features

Fully Discrete, identical quality and power for all 7 channels (135 W x 7ch)

The unit is equipped with a power ampliﬁer that reproduces highﬁdelity sound in surround mode with equal quality and power for all channels, true to the original sound. The power ampliﬁer circuit adopts a discrete-circuit conﬁguration that achieves high-quality surround sound reproduction.

Supports HDMI 1.4 with 3D, ARC, Deep Color, x.v.Color , Auto Lipsync and HDMI control function

This unit can output 3D video signals input from a Blu-ray Disc player to a TV that supports a 3D system. This unit also supports the ARC (Audio Return Channel) function, which reproduces TV sound with this unit via an HDMI cable used for connecting the unit and a TVz.

z The TV should support the ARC function.

6-HDMI inputs and 1-output

The unit is equipped with 6 HDMI input connectors for connecting devices with HDMI connectors, such as a Blu-ray Disc player, game machine, HD video camera, etc.

High deﬁnition audio support

The unit is equipped with a decoder which supports high-quality digital audio format for Blu-ray Disc players such as Dolby TrueHD, DTS-HD Master Audio, etc.

Auto setup function

The unit is provided with an “Auto setup function” which automatically makes speaker settings best suited for the listening environment. The sound from the speakers is picked up with the supplied microphone. Reﬂecting sound and audio characteristics of speakers are measured, and settings for an optimum sound ﬁeld are automatically made.

All sources are up-scaled to 1080p

The unit is provided with an HDMI video upscaling function that converts an analog video signal input to the unit to a 1080p (HD resolution) signal and supplies it to a TV via the HDMI connector. This enables the unit and a TV connected with a single HDMI cable and any video source to be reproduced precisely with HD level of quality.

Direct play for iPod® and iPhone® via USB

Music data from an iPod can be played back if you connect the USB cable supplied with the iPod via the USB port of this unit, and also an iPod can be controlled with the remote control unit for this unit. When an iPod is connected, merely pressing iPod PLAY on the main unit or remote control unit starts playback of music from the iPod.

Cautions on handling

• Before turning the power switch on

Check once again that all connections are correct and that there are no problems with the connection cables.

• Power is supplied to some of the circuitry even when the unit is set to the standby mode. When going on vacation or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.

• About Condensation If there is a major difference in temperature between the inside of the unit and the surroundings, condensation (dew) may form on the operating parts inside the unit, causing the unit not to operate properly. If this happens, let the unit sit for an hour or two with the power turned off and wait until there is little difference in temperature before using the unit.

• Cautions on using mobile phones Using a mobile phone near this unit may result in noise. If that occurs, move the mobile phone away from this unit when it is in use.

• Moving the unit Turn off the power and unplug the power cord from the power outlet. Next, disconnect the connection cables to other system units before moving the unit.

• About Care

• Wipe the cabinet and control panel clean with a soft cloth.

• Follow the instructions when using a chemical cleaner.

• Benzene, paint thinner or other organic solvents as well as

insecticide may cause material changes and discoloration if brought into contact with the unit, and should therefore not be used.

Dolby Pro Logic gz

The unit is provided with a Dolby Pro Logic gz decoder. When you reproduce the sound in Dolby Pro Logic gz playback with front height speakers connected to the unit, you can enjoy playback sound with rich spacial expression.

Easy to use, Graphical User Interface

Simple settings are enabled with the setting menus displayed on the TV screen. When you control the sound volume, the volume level is displayed on the screen, and when you switch the input source, the name of the input source is displayed.

Page 6

Simple version

Here, we explain the entire setup procedure, from unboxing the unit to using it in a home theater. The “Simple version” describes the installation, connection and setup methods for 5.1-channel speakers. See page 32 for the installation, connection and setup methods for speakers other than 5.1-channel speakers.

n Before connecting the unit, turn off the power to all devices. n For operation of the connected devices, refer to the user manuals for each device.

Simple version (Simple setup guide)

ENGLISH

Basic version Advanced version InformationSimple version

Install

(vpage4)

Enjoy better audio, using the correct install method.

Connect

(vpage4)

Connect 5.1-channel speakers, a TV and Bluray Disc player equipped with an HDMI connector.

Turn on power

(vpage6)

Set up speakers

(vpage6)

Use the setup microphone (DM-A409) included with the product, for automatic setup.

Play back disc

(vpage11)

Enjoy Blu-ray Disc and DVD in surround sound.

Set up speakers (Audyssey® Auto Setup)

STEP 1

Preparation

STEP 2

Speaker Detection

STEP 3

Measurement

STEP 4

Calculation

STEP 5

Check

STEP 6

Store

Finish

Page 7

ENGLISH

Install

1 2 4 53

This unit can perform 2.0/2.1 to 7.1-channel surround playback. Here, we explain setup using the example of 5.1-channel speaker playback.

FL FR

22 – 30˚

120˚

Listening position

Connect

Speakers

Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to the this unit, and be sure to interconnect the channels and polarities correctly.

Connecting the speaker cables

Peel off about 0.03 ft/10 mm of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.

1 2 4 53

NOTE

• Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and – sides touch each other (vpage81 “Protection Circuit”).

• Never touch the speaker terminals while the power supply is connected. Doing so could result in electric shock.

• Use speakers with the speaker impedances shown below.

Speaker terminals

FRONT CENTER SURROUND SURR. BACK / AMP ASSIGN

Speaker

impedance

6 – 16 Ω

FL Front speaker (L) • Install the surround speakers in a position FR Front speaker (R) C Center speaker SW Subwoofer SL Surround speaker (L) SR Surround speaker (R)

The “Simple version” describes the installation, connection and setup methods for 5.1-channel speakers.

2 to 3 ft (60 to 90 cm) higher than ear level.

Surround

Front speaker

speaker

2 – 3 ft / 60 – 90 cm

GViewed from the sideH

See page 32 for the installation, connection and setup methods for speakers other than 5.1-channel speakers.

When using a banana plug

Tighten the speaker terminal ﬁrmly before inserting the banana plug.

Page 8

Audio cable (sold separately)

ENGLISH

Connect

Blu-ray Disc player and TV

Use only an HDMI (High Deﬁnition Multimedia Interface) cable that bears the HDMI logo (a certiﬁed HDMI product). Using a cable without the HDMI logo (an uncertiﬁed HDMI product) may result in abnormal playback. When outputting Deep Color or 1080p, etc., we recommend you use a “High Speed HDMI cable” or a “High Speed HDMI cable with Ethernet” for enhanced high-quality playback.

Blu-ray Disc player

Basic version Advanced version InformationSimple version

FL FR

Subwoofer with built-in ampliﬁer

Speaker cables

(sold separately)

HDMI

OUT

HDMI cable

(sold separately)

To household power outlet

(AC 120 V, 60 Hz)

HDMI cable

(sold separately)

Power cord

(supplied)

HDMI

NOTE

• Do not plug in the power cord until all connections have been completed.

• Do not bundle power cords together with connection cables. Doing so can result in humming or noise.

Page 9

ENGLISH

Turn on power

Turn on the TV and subwoofer power.

Power on

Change the TV input to the input of

this unit.

Press POWER ON to turn on power

to the unit.

The power indicator ﬂashes green and the power turns on.

Power on

1 2 4 53

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey Auto Setup”. To perform measurement, place the setup microphone in multiple locations all around the listening area. For best results, we recommend you measure in six positions, as shown in the illustration (up to six positions).

• When performing Audyssey Auto Setup, MultEQ®/Dynamic EQ®/Dynamic

Volume® functions become active (vpage54, 55).

• To set up the speakers manually, use “Speaker Setup” (vpage57) on the menu.

NOTE

• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, ﬂuorescent lights, home appliances, light dimmers, or other devices as measurements may be affected by these sounds.

• Cell phones should be placed away from all audio electronics during the measurement process as Radio Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).

• Do not unplug the setup microphone from the main unit until Audyssey Auto Setup is completed.

• Do not stand between the speakers and setup microphone or allow obstacles in the path while the measurements are being made. This will cause inaccurate readings.

• Loud test sounds may be played during Audyssey Auto setup. This is part of normal operation. If there is background noise in room, these test signals will increase in volume.

• Operating

• Measurement cannot be performed when headphones are connected.

Set up speakers (Audyssey® Auto Setup)

VOL df during the measurements will cancel the measurements.

1 2 4 53

Power on

The “Simple version” describes the installation, connection and setup methods for 5.1-channel speakers.

See page 32 for the installation, connection and setup methods for speakers other than 5.1-channel speakers.

Page 10

ENGLISH

Set up speakers (Audyssey® Auto Setup)

About setup microphone placement

• Measurements are performed by placing the setup microphone successively at multiple positions throughout the entire listening area, as shown in GExample qH. For best results, we recommend you measure in six positions, as shown in the illustration (up to six positions).

• Even if the listening environment is small as shown in GExample wH, measuring at multiple points throughout the listening environment results in more effective correction.

GExample qH GExample wH

FL SW C FR

( : Measuring positions)

FL Front speaker (L) SW Subwoofer FR Front speaker (R) SL Surround speaker (L) C Center speaker SR Surround speaker (R)

SRSL

FL SW C FR

( : Measuring positions)

SRSL

About the main listening position (*M)

The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey Auto Setup, place the setup microphone in the main listening position. Audyssey MultEQ® uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

Set up the microphone

Mount the setup microphone on a tripod or stand and place it in the main listening position.

When placing the setup microphone, adjust the height of the sound receptor to the level of the listener’s ear.

Sound receptor

NOTE

• Do not hold the setup microphone in your hand during measurements.

• Avoid placing the setup microphone close to a seat back or wall as sound reﬂections may give inaccurate results.

Set up the subwoofer

Setup microphone

If using a subwoofer capable of the following adjustments, set up the subwoofer as shown below.

n When using a subwoofer with a direct mode

Set the direct mode to “On” and disable the volume adjustment and crossover frequency setting.

n When using a subwoofer without a direct mode

Make the following settings:

• Volume : “12 o’clock position”

• Crossover frequency : “Maximum/Highest Frequency”

• Low pass ﬁlter : “Off”

• Standby mode : “Off”

NOTE

When you use two subwoofers, please adjust the subwoofer volume controls individually so that each subwoofer level is as close as possible to 75 dB using the test tone (vpage59) before Audyssey Auto Setup.

Set up the remote control unit

n Set up the zone mode

Press ZONE SELECT to switch the zone mode to “MAIN”.

The “MAIN” indicator lights.

Press ZONE SELECT

n Set up the operation mode

Press AMP to set the remote control unit to amplier operation mode.

Press AMP

Basic version Advanced version InformationSimple version

The “Simple version” describes the installation, connection and setup methods for 5.1-channel speakers.

See page 32 for the installation, connection and setup methods for speakers other than 5.1-channel speakers.

Page 11

ENGLISH

Set up speakers (Audyssey® Auto Setup)

STEP 1

Preparation

Connect the setup microphone to the

SETUP MIC jack of this unit.

When the setup microphone is connected, the following screen is displayed.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P1 P repara tion Con nect the s peaker s and pla ce the m acco rding to the re commen datio ns i n the manual . Set the follo wing ite ms i f nece ssary.

Amp Ass ign Cha nnel Selec t

Aut o Se tup St art

Sta rt A uto Se tup

ENT ER En ter RE TURN Cance l

Here, we explain setup using the example of

5.1-channel speaker playback. For settings other than 5.1-channel surround, select “Amp Assign” and perform step 3 to 4 of

“Set up speakers” (vpage36). If unused channels are set with “Channel Select”, measuring time can be shortened. For setting, perform steps 5 to 9 of “Set up speakers”

(vpage37).

Use ui to select “Auto Setup Start”

and then press ENTER.

Mul tEQ

[1/ 6]

STEP 2

Speaker Detection

• In STEP 2, you will perform measurements at the main listening position.

• This step automatically checks the speaker conﬁguration and speaker size, and calculates the channel level, distance, and crossover frequency. It also corrects distortion in the listening area.

Select “Measure” and then press

ENTER.

When measuring begins, a test tone is output from each speaker.

• Measurement requires several minutes.

The detected speakers are displayed.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P2 S pkr De tect C heck

Fro nt Cen ter Sub woof er Sur roun d

Ret ry

Nex t Measu rement

Go to S tep 3 (Measu reme nt) af ter sp eak er c heck

Yes Yes Yes Yes

ENT ER En ter RE TURN Cance l

NOTE

If a connected speaker is not displayed, the speaker may not be connected correctly. Check the speaker connection.

Use ui to select “Next 1

Measurement” and then press ENTER.

Mul tEQ

[2/ 6]

NOTE

If “Caution” is displayed:

Go to “Error messages” (vpage 10), check any related items, and perform the necessary procedures. If the problem is resolved, return and restart “Audyssey Auto Setup”.

When performing Audyssey Auto Setup over again

Press ui to select “Retry”, and then press ENTER.

When measuring has stopped

q Press RETURN, to the “Cancel Auto Setup?”

prompt is displayed.

w Press o to select “Yes”, then press ENTER.

Setting up the speakers again

Repeat the operation from step 4 of

STEP 1 Preparation

STEP 3

Measurement

• In STEP 3, you will perform measurements at multiple positions (two to eight positions) other than the main listening position.

• You can achieve a more effective correction of distortion within the listening area by performing measurements at multiple positions.

Move the setup microphone to

position 2, use ui to select “Measure”, and then press ENTER.

The measurement of the second position starts. Measurements can be made in up to six positions.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P3 M easure ment Ple ase place the mi crop hone at ea r heig ht at 2nd listen ing pos itio n.

Mea sure

Nex t Calcu lation

Sta rt n ext me asurem ent. Test Tone w ill sta rt

ENT ER En ter RE TURN Cance l

If you want to omit measurements from the next position onward, select “Next 1 Calculation”. (Go to

STEP4 Calculation

Repeat step 9, measuring positions 3

to 6.

When measurement of position 6 is completed, a “Measurements ﬁnished.” message is displayed.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P3 M easure ment Mea sure ments finish ed.

Mul tEQ

[3/ 6]

)

Mul tEQ

[3/ 6]

Ret ry

Nex t Calcu lation

Pro ceed to St ep 4 ( Anal yze)

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

ENT ER En ter RE TURN Cance l

Page 12

ENGLISH

Set up speakers (Audyssey® Auto Setup)

STEP 4

Calculation

On the

to select “Next 1 Calculation”, and then press ENTER.

Measuring results are analyzed, and the frequency response of each speaker in the listening room is determined.

STE P4 C alcula tion Now cal culati ng... Ple ase wait.

25%

• Analysis takes several minutes to complete. The time required for this analysis depends on the number of speakers connected. The more connected speakers there are, the longer it takes to perform analysis.

STEP 3

AUTO SE TUP AUDYSSE Y AUTO S ETUP

screen, use ui

Mul tEQ

[4/ 6]

STEP 5

Check

Use ui to select the item you want

to check, and then press ENTER.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P5 C heck Che ck p rocess ing re sult s. T o proc eed,pr ess “Ne xt”

Spk r Co nfig C heck

Dis tanc e Chec k Ch. Le vel Ch eck Cro ssov er Che ck

Nex t Store

Sel ect item t o chec k

ENT ER En ter RE TURN Cance l

• Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers.

• If you want to check another item, press

RETURN.

Use ui to select “Next 1 Store”

and then press ENTER.

NOTE

• If the result differs from the actual connection status, or if “Caution!” is displayed, see “Error messages” (vpage10). Then carry out Audyssey Auto Setup again.

• If the result still differs from the actual connection status after remeasurement or the error message still appears, it is possible that the speakers are not connected properly. Turn this unit off, check the speaker connections and repeat the measurement process from the beginning.

• If you change speaker positions or orientation, perform Audyssey Auto Setup again to ﬁnd the optimal equalizer settings.

Mul tEQ

[5/ 6]

STEP 6

Store

Select “Store” and then press ENTER.

Save the measurement results.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P6 S tore Pre ss “ Store” to st ore cal cula tion r esults .

Sto re

App ly a nd sto re mea sure ment r esult

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P6 S tore Now sto ring.. . Ple ase wait.

25%

ENT ER En ter RE TURN Cance l

• Saving the results requires about 10 seconds.

• If the measuring results are not to be saved,

press RETURN. A message “Cancel Auto Setup?” will be displayed. Press o then select “Yes”. All the measured Audyssey Auto Setup data will be erased.

NOTE

During saving of measurement results, be sure not to turn off the power.

Mul tEQ

[6/ 6]

Mul tEQ

[6/ 6]

Finish

Unplug the setup microphone from

the unit’s SETUP MIC jack.

Set Dynamic Volume®.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

Fin ish Sto ring compl ete. Aut o Se tup is now fin ishe d. Ple ase un plug mic roph one.

Tur n on Dynam ic Vol ume?

Yes No

Tur n Dy namic Volume on and ex it Aut o S etup

ENT ER Ex it

• For details of Dynamic Volume settings, see page 55.

n When turning Dynamic Volume on

• Use o to select “Yes”, and then press ENTER.

The unit automatically enters “Evening” mode.

n When turning Dynamic Volume off

• Use p to select “No”, and then press ENTER.

NOTE

After performing Audyssey Auto Setup, do not change the speaker connections or subwoofer volume. In event of a change, perform Audyssey Auto Setup again.

Mul tEQ

[6/ 6]

Basic version Advanced version InformationSimple version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 13

ENGLISH

Error messages

An error message is displayed if Audyssey® Auto Setup could not be completed due to speaker placement, the measurement environment, etc. If this happens, check the relevant items, be sure to take the necessary measures, then perform Audyssey Auto Setup over again.

NOTE

Be sure to turn off the power before checking speaker connections.

Examples Error details Measures

AUTO SE TUP AUDYSSE Y AUTO S ETUP

No micr ophone or Sp eake r

Che ck c ause o f prob lem!

AUTO SE TUP AUDYSSE Y AUTO S ETUP

Amb ient noise is to o hi gh or Leve l is t oo low

Che ck c ause o f prob lem!

AUTO SE TUP AUDYSSE Y AUTO S ETUP

Cau tion !

Fro nt R Non e

Cau tion !

Ret ry

Cau tion !

Ret ry

Mul tEQ

RET URN Can cel

Mul tEQ

RET URN Can cel

Mul tEQ

• The connected setup microphone is broken,

or a device other than the supplied setup microphone is connected.

• Not all speakers could be detected.

• The front L speaker was not properly detected.

• There is too much noise in the room for accurate measurements to be made.

• Speaker or subwoofer sound is too low for accurate measurements to be made.

• The displayed speaker could not be detected. • Check the connections of the displayed

• Connect the included setup microphone to the SETUP MIC jack of this unit.

• Check the speaker connections.

• Either turn off any device generating noise or move it away.

• Perform again when the surroundings are quieter.

• Check the speaker installation and the direction in which the speakers are facing.

• Adjust the subwoofer’s volume.

speaker.

Parameter Check

This function enables you to check the measurement results and equalizer characteristics after Audyssey Auto Setup.

Use ui to select “Parameter Check” and then

press ENTER.

Use ui to select the item you want to check, then

press ENTER or p.

Measurement results for each speaker are displayed.

AUTO SE TUP PARAMET ER CHECK

Spe aker Confi g Chec k

Dis tanc e Chec k Cha nnel Level Check Cro ssov er Che ck EQ Chec k

Res tore

Sho w sp eaker config urat ion re sult

Speaker Conﬁg. Check

Distance Check

Channel Level Check

Crossover Check

EQ Check

• If “EQ Check” is selected in step 2, press ui to select equalizing

curve (“Audyssey” or “Audyssey Flat”) to be checked.

o p to switch the display between the different speakers.

Use

Check the speaker conﬁguration.

Check the distance.

Check the channel level.

Check the crossover frequency.

Check the equalizer.

Ret ry

Che ck c ause o f prob lem!

AUTO SE TUP AUDYSSE Y AUTO S ETUP

Fro nt L P hase

Ret ry Ski p

Che ck c ause o f prob lem!

RET URN Can cel

Mul tEQ

Cau tion !

RET URN Can cel

Remote control operation

buttons

• The displayed is connected with the polarities reversed.

Move the cursor (Up/Down/Left/Right)

• Check the polarities of the displayed speaker.

• For some speakers, this error message may be displayed even if the speaker is properly connected. If you are sure the connection is correct, press ui to select “Skip”, then press ENTER.

Conﬁrm the setting Return to previous menu

Press RETURN.

The conﬁrmation screen reappears. Repeat step 2.

Retrieving Audyssey Auto Setup settings

If you set “Restore” to “Yes”, you can return to Audyssey Auto Setup measurement result (value calculated at the start by MultEQ®) even when you have changed each setting manually.

Page 14

ENGLISH

Play back disc

Press BD to switch an input source for a player used for playback.

Play the component connected to this unit.

Make the necessary settings on the player (language setting, subtitles setting, etc.) beforehand.

Adjust the sound volume.

VOL d ··········································· Volume up VOL f ······································ Volume down MUTE ·················································· Muting

Set the listening mode.

Set the listening mode according to the playback contents

(cinema, music, etc.) or according to your liking (vpage 28 “Selecting a listening mode (Surround mode)”).

1 2 4 53

When power is switched to standby

Press POWER OFF.

GPower indicator status in standby modeH

• Normal standby : Off

• When “HDMI Control” is set to “ON” : Red

You can also switch the power to standby by pressing ON/STANDBY on the main unit.

NOTE

During power standby, a minimal amount of power is consumed. To totally cut off the power, remove the power cord from the power outlet.

Basic version Advanced version InformationSimple version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 15

ENGLISH

Basic version

Here, we explain the connections and basic operation methods for this unit.

F Connections vpage13 F Playback (Basic operation) vpage21 F Selecting a listening mode (Surround mode) vpage28

n Refer to the pages indicated below for information on connecting and playing back the various

media and external devices.

Audio and video

TV Blu-ray Disc player DVD player Set-top box (Satellite tuner or cable TV) Digital video recorder Game console Digital camcorder Control dock for iPod

Audio

iPod USB memory device HD Radio receiver CD player

For speaker connections, see page 4.

PlaybackConnection

vpage14, 15 vpage14 vpage22 vpage14, 16 vpage22 vpage14, 16 vpage14, 17 vpage14 vpage14, 17 vpage18 vpage22

vpage18 vpage24 vpage18 vpage27 vpage19 vpage25 vpage19 vpage22

–

– – – –

PlaybackConnection

Page 16

Connections

Important information

• Make connections as follows before using this unit. Select an appropriate connection type according to the components to be connected.

• You may need to make some settings on this unit depending on the connection method. Refer to each description for more information.

• Select the cables (sold separately) according to the components being connected.

Converting input video signals for output (Video conversion function)

This unit is equipped with four types of video input connectors (HDMI, Component video, S-Video and video) and two types of video output connectors (HDMI, Component video and video). Use the connectors corresponding to the components to be connected. This function automatically converts various formats of video signals input to this unit into the formats used to output the video signals from this unit to a monitor.

GFlow of video signals for MAIN ZONEH

Video device

Output

Input

(IN)

This unit

Output

(MONITOR OUT)

Monitor

Input

ENGLISH

NOTE

• Do not plug in the power cord until all connections have been completed.

• When making connections, also refer to the operating instructions of the other components being connected.

• Be sure to connect the left and right channels properly (left with left, right with right).

• Do not bundle power cords together with connection cables. Doing so can result in noise.

• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60 formats.

• The resolution of the video signal input to this unit’s HDMI connector is the one set at “Resolution” (vpage50) (1080p HDMI signals and 1080p component signals are output at 1080p, regardless of the setting).

• Resolutions of HDMI-compatible TVs can be checked at “HDMI Monitor Information” (vpage64).

NOTE

• HDMI signals cannot be converted into analog signals.

• When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate.

• Component video input signals cannot be converted into Video format.

• A menu is output via the HDMI connector or component video connector.

Advanced versionSimple version InformationBasic version

HDMI connector

Component video

connectors

S-Video connector

Video connector

HDMI connector

Component video

connectors

S-Video connector

Video connector

in Set as Necessary

• Set when not using the video conversion function.

“Video Convert” (vpage49)

• Set when changing the resolution of the video signal.

“Resolution” (vpage50)

HDMI

connector

Component video

connectors

Video connector

HDMI connector

Component video

connectors

Video connector

Examples of on-screen display

• Menu screen • Status display screen When the input source is

When the volume is adjusted

switched

Audi o/Vide o Adjus t

Info rmatio n Auto Setup Manu al Set up Inpu t Setu p

Adju st var ious au dio an d vide o param eters

Inpu t Auto

STER EO

Mode

Mast er Vo lume -80.0d B

Status display: The operating status appears brieﬂy on the screen

when the input source is switched or the volume is changed.

NOTE

• If you operate the menu while playing back 3D video content, the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.

• This unit does not show the status display while playing back 3D video content.

Page 17

ENGLISH

Connecting an HDMI-compatible device

You can connect up to ﬁve HDMI-compatible devices to the unit.

HDMI function

• 3D

• Deep Color (vpage80)

• Auto Lip Sync (vpage60)

• x.v.Color, sYCC601 color, Adobe RGB color, Adobe YCC601color (vpage80, 81)

• High deﬁnition digital audio format

• ARC (Audio Return Channel)

• Content Type

• CEC (HDMI control)

In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both this unit and TV or the player need to support the copyright protection system known as HDCP (Highbandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV device. This unit supports HDCP.

• If a device that does not support HDCP is connected, video and audio are not output correctly. Read the owner’s manual of your television or player for more information.

About HDMI cables

• When a device supporting Deep Color signal transfer is connected, use a cable compatible “High Speed HDMI cable” or “High Speed HDMI cable with Ethernet”

• When the ARC function is used, connect a device with a ”Standard HDMI cable with Ethernet” or “High Speed HDMI cable with Ethernet” for HDMI 1.4.

HDMI control function (vpage38)

This function allows you to operate external devices from the receiver and operate the receiver from external devices.

NOTE

• The HDMI control function may not work depending on the device it is connected to and its settings.

• You cannot operate a TV or Blu-ray Disc player / DVD player that is not compatible with the HDMI control function.

About ARC (Audio return channel) function

The Audio Return Channel in HDMI 1.4 enables a TV, via a single HDMI cable, to send audio data “upstream” to this unit.

NOTE

• To enable the ARC function, set “HDMI Control” to “ON” (vpage60).

• When connecting a TV that does not support the ARC function, a separate audio cable is required. In this

case, refer to “Connecting a TV” (vpage15) for the connection method.

About Content Type

The HDMI Speciﬁcation Version 1.4 enables simple, automated picture setting selection with no user intervention.

NOTE

To enable the Content Type, set “Video Mode” to “Auto” (vpage49).

Cables used for connections

Audio and video cable (sold separately)

HDMI cable

• This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.

Blu-ray

Disc

player

HDMI OUT

DVD

player

HDMI

OUT

Set-top

box

HDMI

OUT

Digital

video

recorder

HDMI

OUT

Game

console

HDMI

OUT

Digital

camcorder

HDMI

OUT

HDMI

About 3D function

This unit supports input and output of 3D (3 dimensional) video signals of the HDMI 1.4 standards. For playing the 3D video content, a player, and a TV that support the 3D function of the HDMI 1.4 standards are required in addition to this unit.

NOTE

• If you operate the menu while playing back 3D video content, the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.

• This unit does not show the status display while playing back 3D video content.

Page 18

ENGLISH

Connecting an HDMI-compatible device

• When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an HDMI cable.

• When connecting a device that supports Deep Color transmission, please use a “High Speed HDMI cable” or “High Speed cable with Ethernet”.

• Video signals are not output if the input video signals do not match the monitor’s resolution. In this case, switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.

• When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with HDMI audio signal playback, only the video signals are output to the monitor.

NOTE

The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be limited by the HDMI audio speciﬁcations of the connected device regarding permissible inputs.

Connecting to a device equipped with a DVI-D connector

When an HDMI/DVI conversion cable (sold separately) is used, the HDMI video signals are converted to DVI signals, allowing connection to a device equipped with a DVI-D connector.

NOTE

• No sound is output when connected to a device equipped with a DVI-D connector. Make separate audio connections.

• Signals cannot be output to DVI-D devices that do not support HDCP.

• Depending on the combination of devices, the video signals may not be output.

n Settings related to HDMI connections

Set as necessary. For details, see the respective reference pages.

Input Assign (vpage48)

Set this to change the HDMI input connector to which the input source is assigned.

Connecting a TV

• Select the connector to use and connect the device.

• For video connections, see “Converting input video signals for output (Video conversion function)”

(vpage13).

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

To listen to TV audio through this device, use the optical digital connection.

NOTE

This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI

1.4 standard function)) is connected to this unit via an HDMI connection. For details, see “About ARC (Audio return channel) function” (vpage14) or refer to the instruction manual for your TV.

Cables used for connections

Video cable (sold separately)

Video cable

Component video cable

Optical cable

Y P

B PR

VIDEO

COMPONENT VIDEO

(Yellow)

(Green)

(Blue)

(Red)

Audio cable (sold separately)

AUDIO

OPTICAL

VIDEO

OUT

Advanced versionSimple version InformationBasic version

HDMI Setup (vpage60)

Make settings for HDMI video/audio output.

• RGB Range

• Auto Lip Sync

• HDMI Audio Out

• HDMI Control

• Standby Source

• Power Off Control

NOTE

The audio signals output from the HDMI connectors are only the HDMI input signals.

in Set as Necessary

Set this to change the digital input connector to which the input source is assigned. “Input Assign” (vpage48)

Page 19

ENGLISH

Connecting a DVD player

• You can enjoy video and audio from a DVD.

• Select the connector to use and connect the device.

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

Component video cable

Audio cable

Coaxial digital cable

DVD player

COMPONENT VIDEO

(Yellow)

(Green)

(Blue)

(Red)

Audio cables (sold separately)

(White)

(Red)

(Orange)

VIDEO AUDIO

VIDEO

Y P

OUT

B PR

OUT

AUDIO

OUT

COAXIAL

OUT

Connecting a set-top box (Satellite tuner/cable TV)

• You can watch satellite or cable TV.

• Select the connector to use and connect the device.

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

Component video cable

Audio cable

Coaxial digital cable

Satellite tuner/Cable TV

COMPONENT VIDEO

Y P

(Yellow)

(Green)

(Blue)

(Red)

Audio cables (sold separately)

COAXIAL

OUT

B PR

VIDEO

(White)

(Red)

(Orange)

VIDEO

OUT

AUDIO

OUT

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned. “Input Assign” (vpage48)

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned.

“Input Assign” (vpage48)

Page 20

ENGLISH

Connecting a digital video recorder

• You can record video onto a Blu-ray Disc or DVD.

• Select the connector to use and connect the device.

• When recording analog audio, use the analog connection.

• See “REC OUT mode” (vpage40) for operating instructions.

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

S-Video cable

Audio cable

Optical cable

(Yellow)

Audio cable (sold separately)

(White)

(Red)

Digital video recorder

S-VIDEO VIDEO

OUT

VIDEO

OUT

OPTICAL

OUT

RL RL

AUDIOAUDIO VIDEOVIDEO

OPTICAL

AUDIOAUDIO

NOTE

To record video signals through this unit, use the same type of video cable for connection between this unit and the player as used for connection between this unit and the recorder.

Connecting a digital camcorder

• You can enjoy video and audio from a digital comcorder.

• You can enjoy games by connecting a game machine via the V.AUX input connector. In this case, select the input source to “V.AUX”.

• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).

Cables used for connections

Video cable (sold separately)

Video cable

Audio cable

Digital camcorder

(Yellow)

Audio cable (sold separately)

(White)

(Red)

AUDIOVIDEO

VIDEO

OUT

AUDIO

OUT

Advanced versionSimple version InformationBasic version

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned. “Input Assign” (vpage48)

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned.

“Input Assign” (vpage48)

NOTE

When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate. In this case, use the monitor output of the same connector as the input.

Page 21

ENGLISH

Connecting a control dock for iPod

• Connect a control dock for iPod to the unit to enjoy video and music stored on an iPod.

• For a control dock for iPod, use ASD-1R, ASD-11R, ASD-3N, ASD-3W, ASD-51N and ASD-51W made by DENON (sold separately).

• For instructions on the control dock for iPod settings, refer to the control dock for iPod’s operating instructions.

Control dock for iPod

ASD-51N

Use the AV/Control Cable supplied with the DENON control

dock for iPod.

Connecting an iPod or USB memory device to the USB Port

You can enjoy music stored on an iPod or USB memory device.

Cables used for connections

To connect an iPod to this unit, use the USB cable supplied with the iPod.

iPod

USB memory

device

in Set as Necessary

Set this to change the digital input connector to which the input source is assigned. “Input Assign” (vpage48)

You can also connect the iPod you are using directly to the USB port of this unit (vpage18 “Connecting an iPod or USB memory device to the USB Port”).

• When you want to playback a video ﬁle stored on an iPod, use a DENON control dock for iPod (ASD-1R,

ASD-11R, ASD-3N, ASD-3W, ASD-51N and ASD-51W, sold separately) (vpage18 “Connecting a control dock for iPod”).

• With iPods, playback is possible with iPhone, iPod touch, classic and nano released from the 5th-generation of iPods. For details, check the DENON web site or page 24.

• DENON does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

NOTE

• USB memory devices will not work via a USB hub.

• Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.

Page 22

ENGLISH

Connecting a CD player

• You can enjoy CD sound.

• Select the connector to use and connect the device.

Cables used for connections

Audio cable (sold separately)

Audio cable

(White)

CD player

AUDIO

OUT

(Red)

in Set as Necessary

Set this to change the digital input connector to which the input source is assigned. “Input Assign” (vpage48)

Connecting an antenna

Connecting an HD Radio receiver

• By connecting a HD Radio antenna to this unit, you can receive HD Radio programs.

• HD Radio broadcasting currentry is available in the United States and select other countries.

Direction of broadcasting station

FM outdoor antenna

75 Ω coaxial

cable

FM indoor

antenna (for HD Radio broadcasting,

supplied)

White

Black

AM loop antenna (for HD Radio broadcasting, supplied)

• To prevent interference, install at least 3.3 ft/1 m away from the antenna connected to the this unit’s other AM tuner terminal.

w eq

Ground

AM outdoor

antenna

n AM loop antenna assembly

Put the stand section

through the bottom of the loop antenna from the rear and bend it forward.

Insert the projecting part

into the square hole in the stand.

Loop

antenna

Stand

Square hole

Projecting part

n Using the AM loop antenna

Suspending on a wall

Suspend directly on a wall without assembling.

Nail, tack, etc.

Standing alone

Use the procedure shown left to assemble.

NOTE

• Do not connect two FM antennas simultaneously.

• Even if an external AM antenna is used, do not disconnect the AM loop antenna.

• Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

• If the signal has noise interference, connect the ground terminal (GND) to reduce noise.

• If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

Advanced versionSimple version InformationBasic version

Page 23

ENGLISH

Connecting an external control device

REMOTE CONTROL jacks

If this unit is installed in a location that is out of range of the signal from the remote control unit, you can still operate the unit and the devices connected to it by using a commercially available IR receiver. You can also use it to remotely control ZONE2 (another room).

retransmitter

AUX

OUT

Infrared

Input

Infrared sensor

Output

Device equipped with a

REMOTE CONTROL IN jack

RS-232C connector

By connecting an external serial controller, you can control all sorts of household electrical devices (including lights, electric curtains, and air conditioning units) in addition to your audio and video devices.

External serial controller

TRIGGER OUT jacks

When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. The TRIGGER OUT jack outputs a maximum 12 V/150 mA electrical signal.

12 V/150 mA trigger-compatible device

in Set as Necessary

Set to change the conditions for linked operation via the TRIGGER OUT jack. “Trigger Out” (vpage63)

Perform the operation below beforehand.

q Turn on the power of this unit. w Turn off the power of this unit from the external controller. e Check that the unit is in the standby mode.

NOTE

If the permissible trigger input level for the connected device is larger than 12V/150mA, or has shorted, the TRIGGER OUT jack cannot be used. In this case, turn off the power to the unit, and disconnect it.

Page 24

Playback (Basic operation)

ENGLISH

n Selecting the input source (vpage21) n Adjusting the master volume (vpage21) n Turning off the sound temporarily (vpage21)

n Playing a Blu-ray Disc player/DVD player

(vpage22)

n Playing a CD player (vpage22) n Playing an iPod® (vpage22) n Tuning in radio stations (vpage25) n Playing a USB memory device (vpage27)

Selecting a listening mode (Surround mode)

(vpage28)

Playback (Advanced operation) (vpage38)

Important information

Before starting playback, make the connections between the different components and the settings on the receiver.

NOTE

Also refer to the operating instructions of the connected components when playing them.

Selecting the input source

Press the input source select button (NET/USB, iPod, DVD, BD, TUNER,

DOCK, SAT/CBL, GAME, V.AUX, CD,

, TV) to be played back.

DVR

The desired input source can be selected directly.

• When iPod PLAY is pressed, the input source of this unit is

switched to “DOCK” or “USB/iPod” and the connected iPod is automatically played (vpage25 “iPod play function”).

You can also use the following operation to select an input source.

n Using the “Source Select” menu

q Press SOURCE SELECT.

Display the “Source Select” menu.

Sou rc e S el ect :S AT/ CB L

Rec en t S ou rce

q Input Source

The name of the highlighted input source is displayed.

w Recently used sources

The recently used input sources (up to ﬁve) are displayed.

e Icons for the input sources in the

different categories are displayed.

w Use uio p to select the input source, then press ENTER.

The input source is set and the source selection menu is turned

off.

• When using with an iPod connected directly to the USB port of this unit, select “USB/iPod” for the input source.

• Input sources that are not going to be used can be set ahead of time. Make this setting at “Source Delete” (vpage62).

• To turn off the source selection menu without selecting an input source, press SOURCE SELECT again.

The currently selected input source is highlighted.

Sel ec t

Ent er

ENT ER

n Using the knob on the main unit

Turn SOURCE SELECT.

• Turning SOURCE SELECT switches the input

source, as shown below.

BD DVD TV SAT/CBL GAMEDVR

V.AUXUSB/iPod DOCKHD RadioCD

Adjusting the master volume

Use VOL df to adjust the volume.

n When the “Volume Display” setting

(vpage62) is “Relative”

GAdjustable rangeH

– – –

–80.5dB – 18.0dB

n When the “Volume Display” setting (vpage62) is

“Absolute”

GAdjustable rangeH

• The variable range differs according to the input signal and channel level setting.

You can also operate via the main unit. In this case, perform the following operations. Turn MASTER VOLUME to adjust the volume.

0.0 – 99.0

Turning off the sound temporarily

Press MUTE.

• The sound is reduced to the level set at “Mute Level” (vpage62).

• To cancel, press MUTE again. Muting can also be canceled by

adjusting the master volume.

Advanced versionSimple version InformationBasic version

Page 25

ENGLISH

Track SelectTrack SelectTrack Select

Playing a Blu-ray Disc player/DVD player

The following describes the procedure for playing Blu-ray Disc player/ DVD player.

Prepare for playback.

q Turn on the power of the TV,

2 3

subwoofer and player.

w Change the TV input to the input of

this unit.

e Load the disc in the player.

Press POWER ON to turn on power to the unit.

Press BD or DVD to switch an input source for a player used for playback.

Play the component connected to this unit.

Make the necessary settings on the player (language setting, subtitles setting, etc.) beforehand.

Playing a CD player

The following describes the procedure for playing CD player.

Prepare for playback.

q Turn on the power of the

2 3 4

subwoofer and player.

w Load the disc in the player.

Press POWER ON to turn on power to the unit.

Press CD to switch the input source to the CD player.

Play the component connected to this unit.

Playing an iPod

There are two methods for iPod playback.

q Use a DENON Control dock for iPod to play back.

You can play back both video, photo and audio.

w Connect an iPod directly to the USB port to play back

(vpage24).

You can play back audio only.

Use a DENON control dock for iPod to

play back

DENON Control dock for iPod usable on this unit

• ASD-1R/ASD-11R/ASD-3N/ASD-3W/ASD-51N/ASD-51W

n Listening to music on an iPod

Prepare for playback.

q Connect the DENON control dock for iPod to this unit

(vpage18 “Connecting a control dock for iPod”).

w Set the iPod

Press POWER ON to turn on power to the unit.

in the DENON control dock for iPod.

Press DOCK to switch the input source to “DOCK”.

• If “Browse mode” is selected in step 4, the following screen is displayed on a TV screen, depending on the connected control dock for iPod.

(When using an ASD-1R) (When using an ASD-11R)

(When using an ASD-3N, ASD-3W, ASD-51N and ASD-51W)

iPod

Music Video

• In “Browse mode”, the iPod display is as shown at right.

NOTE

If the connections screen is not displayed, the iPod may not be properly connected. Reconnect it.

Press SEARCH and hold it down for 2 seconds or

more to select the display mode.

• There are two modes for displaying the contents recorded on the iPod.

Browse mode

• English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “.” (period).

Remote mode

• “Remote iPod” or “Dock Remote” is displayed on the display of this unit.

Display mode

Playable ﬁles

Active buttons

z1 When using an ASD-11R, ASD-3N, ASD-

3W, ASD-51N or ASD-51W DENON control dock for iPod.

z2 Video may not be output, depending on

the combination of ASD-1R, ASD-11R, ASD-3N, ASD-3W, ASD-51N or ASD51W DENON control dock for iPod and iPod.

Use ui to select the item, then

press ENTER or p to select the le to be played.

Press ENTER, p or 1.

Playback starts.

Display iPod information on the TV screen.

Display iPod information on the iPod screen.

Browse mode Remote mode

Music ﬁle Photo ﬁle Video ﬁle Remote

control unit (This unit)

iPod

P P

OK to disconnect.

Up/Down Sel ect

Page 26

ENGLISH

• You can specify the duration of the on-screen display to be displayed

(default: 30 sec) at menu “iPod” (vpage63). Press uio p to return to the original screen.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (vpage56). The default setting is “Mode 3”.

• In Browse mode, press playback to check the title name, artist name, and album name.

NOTE

• Press POWER OFF and set this unit’s power to the standby mode before disconnecting the iPod. Also switch the input source to “DOCK” before disconnecting the iPod.

• Depending on the type of iPod and the software version, some functions may not operate.

• Note that DENON will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.

STATUS during

n iPod operation

Operation buttons Function

MENU Amp menu

uio p

ENTER Enter

(Press and release)

(Press and hold)

RETURN Return

6 7

(Press and hold)

8 9

3 2

RESTORER RESTORER

MEMORY Store memory

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

• Repeat playback (vpage51 “Repeat”)

• Shufﬂing playback (vpage51 “Shufﬂe”)

z1 If you press

and hold ui, manual search starts.

z2 If you press ENTER during playback, playback pauses. If ENTER is

pressed during pause, playback resumes.

If you press and hold ENTER, playback stops. z3 This functions when an ASD-1R, ASD-11R is used. Press SEARCH, then press o (previous page) or p (next page). To cancel, press ui or SEARCH. z4 This functions when an ASD-3N, ASD-3W, ASD-51N or ASD-51W

is used.

ui during playback, auto search starts. If you press

Cursor operation

Page search mode

Browse / Remote mode switching

Manual search

(fast-reverse/fast-forward)

Playback / Pause Auto search (cue)

Pause

Stop

Playing an iPod

n Viewing videos on an iPod® in the Browse mode

When an iPod equipped with a video function is connected to a DENON ASD-11R, ASD-3N, ASD-3W, ASD-51N and ASD-51W control dock for iPod, image ﬁles can be played in the Browse mode.

Use ui to select “Videos”, then

press ENTER or p.

Use ui to select the search item

or folder, then press ENTER or p.

Use ui to select the video le,

then press ENTER, p or 1.

Playback starts.

n Viewing photos and videos on an iPod® in the

Remote mode

This unit can play back on a TV screen photos and data stored on an iPod equipped with a slide show or video function.

Press and hold SEARCH to set the

Remote mode.

“Remote iPod” or “Dock Remote” is displayed on the display of this unit.

Watching the iPod’s screen,

use ui to select “Photos” or “Videos”.

• Depending on the iPod model, it may be necessary to operate the iPod unit directly.

Press ENTER until the image you want to view is

displayed.

Advanced versionSimple version InformationBasic version

“TV Out” at the iPod’s “Slide show Settings” or “Video Settings” must be set to “On” in order to display the iPod’s photo data or videos on the monitor. For details, see the iPod’s operating instructions.

NOTE

Video may not be output, depending on the combination of ASD-1R, ASD-11R, ASD-3N, ASD-3W, ASD-51N or ASD-51W and iPod.

Page 27

ENGLISH

Playing an iPod

Connect an iPod directly to the USB port

to play back

You can use the USB cable provided with the iPod® to connect the iPod with the unit’s USB port and enjoy music stored on the iPod.

• This unit supports audio playback from the iPod (ﬁfth generation or later), iPod nano, iPod classic, iPod touch and iPhone (it is not compatible with iPod shufﬂe).

Connect the iPod® to the USB port (vpage 18 “Connecting an iPod or USB memory device to the

USB Port”).

Press POWER ON to turn on power to the unit.

Press NET/USB to switch the

input source to “USB/iPod”.

Music

Pla ylis ts

Art ists Alb ums Son gs Pod cast s Gen res Com pose rs

SEA RCH Sea rch

NOTE

If the connections screen is not displayed, the iPod may not be properly connected. Reconnect it.

[1/ 9]

Press SEARCH and hold it down for 2 seconds or

more to select the display mode.

• There are two modes for displaying the contents recorded on the iPod.

Browse mode

• English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “.” (period).

Remote mode

• “Remote iPod” is displayed on the display of this unit.

• The Remote mode is not supported on ﬁfth generation iPod or ﬁrst generation iPod nano.

Display mode

Playable ﬁles

Active buttons

zOnly the sound is played.

Display iPod information on the TV screen.

Display iPod information on the iPod screen.

Browse mode Remote mode

Music ﬁle Video ﬁle Remote

control unit (This unit)

iPod

P P

Use ui to select the item, then press ENTER or p

to select the le to be played.

Press ENTER, p or 1.

Playback starts.

• You can specify the duration of the on-screen display to be displayed

(default: 30 sec) at menu “iPod” (vpage63). Press uio p to return to the original screen.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (vpage56). The default setting is “Mode 3”.

• In Browse mode, press playback to check the title name, artist name, and album name.

STATUS during

NOTE

• Depending on the type of iPod and the software version, some functions may not operate.

• Note that DENON will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.

n iPod operation

Operation buttons Function

MENU Amp menu

uio p

ENTER Enter

(Press and release)

(Press and hold)

RETURN Return

6 7

(Press and hold)

8 9

3 2

RESTORER RESTORER TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

• Repeat playback (vpage51 “Repeat”)

• Shufﬂing playback (vpage51 “Shufﬂe”)

z1 If you press

and hold ui, manual search starts.

z2 If you press ENTER during playback, playback pauses. If ENTER is

pressed during pause, playback resumes.

If you press and hold ENTER, playback stops. z3 This functions when an ASD-1R, ASD-11R is used. Press SEARCH, then press o (previous page) or p (next page). To cancel, press ui or SEARCH.

ui during playback, auto search starts. If you press

Cursor operation

Page search mode

Browse / Remote mode switching

Manual search

(fast-reverse/fast-forward)

Playback / Pause Auto search (cue)

Pause

Stop

Page 28

ENGLISH

Playing an iPod

iPod play function

If iPod PLAY is pressed when power of this unit is on standby and a control dock for iPod or an iPod (USB) is connected, the iPod starts playback.

Press iPod PLAY.

• Power of this unit is turned on.

• This unit’s input source switches to “DOCK” or “USB/iPod”.

• iPod playback starts.

If iPod PLAY on the main unit is pressed, the same function as with the remote control unit can be obtained.

NOTE

• iPod play function does not function if a control dock for iPod (“DOCK”) or an iPod (“USB/iPod”) is not connected.

• If both a control dock for iPod (“DOCK”) and an iPod (“USB/iPod”) are connected, playback with control dock for iPod (“DOCK”) takes priority.

Tuning in radio stations

Important information

n Using the HD Radio™ receiver

HD Radio stations offer higher sound quality than conventional FM/ AM broadcasts. It is also possible to receive data services and select broadcasts from among up to eight multicast programs. HD Radio technology provides higher quality sound than conventional broadcasts and allows reception of data services.

• FM sounds as sensational as CDs

• AM sounds as rich as analog FM stereo

• A variety of “data services”, including text-based information, song title, artist name, album name, genre, etc. can be received.

Furthermore, in addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 8 multicast programs. For detailed information on HD Radio technology, please go to “www. ibiquity.com”.

Listening to HD Radio stations

Press TUNER to switch the input

source to “HD Radio”.

Press BAND to select “FM” or

“AM”.

When listening to an FM broadcast.

When listening to an AM broadcast.

• If the desired station cannot be tuned in with auto tuning, tune it in manually.

• When tuning in stations manually, press and hold TUNING d or

TUNING f to change frequencies continuously.

• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu “TUNER” (vpage63). Press uio p to return to the original screen.

n Selecting audio programs

HD Radio Technology enables stations to broadcast multiple Audio Program and data services on HD2 / HD3 / HD4 channels.

Press ui to select the audio program.

If the station you are listening to has multiple audio programs, “HD1” is indicated on the display. If it only has one audio program, “HD” is indicated.

Advanced versionSimple version InformationBasic version

Tune in the desired broadcast

station.

q To tune in automatically

(Auto tuning)

Press MODE to light the “HD-AUTO” or “AUTO” indicator on the display, then use TUNING d or TUNING f to select the station you want to hear.

• The indicator lights on the display when an HD Radio station is tuned in.

• When “HD-AUTO” (tuning mode) is selected, only HD Radio stations are tuned in.

• If “AUTO” (tuning mode) is selected, both HD Radio and analog stations are tuned in.

w To tune in manually (Manual tuning)

Press MODE to turn off the display’s “AUTO” indicator, then use

TUNING d or TUNING f to select the station you want to hear.

Page 29

ENGLISH

Tuning in radio stations

n Presetting radio stations (Manual preset)

Your favorite broadcast stations can be preset so that you can tune them in easily. Multicasts can also be preset. Up to 56 stations can be preset.

• Stations can be preset automatically at “Auto Preset” (vpage47). If “Auto Preset” is performed after performing “Manual Preset”, the “Manual Preset” settings will be overwritten.

Tune in the broadcast station you

want to preset.

Press MEMORY.

Press SHIFT to select the block

(A to G) in which to preset the channel (1 to 8 per block), then press CH +, CH – or 1 – 8 to select the preset number.

Press MEMORY again to complete the setting.

• To preset other stations, repeat steps 1 to 4.

Default settings

Block (A – G)

and

Channel (1 – 8)

A1 – A8

B1 – B8

C1 – C8

D1 – D8 90.1 MHz E1 – E8 90.1 MHz

F1 – F8 90.1 MHz

G1 – G8 90.1 MHz

87.5 / 87.9 / 89.1 / 93.3 / 97.9 / 98.1 / 98.9 /

100.1 MHz

101.9 / 102.7 / 107.9 / 90.1 / 90.1 / 90.1 / 90.1 / 90.1 MHz

530 / 600 / 930 / 1000 / 1120 / 1210 / 1400 / 1710 kHz

Default Settings

Specify a name for the preset broadcast station (Preset Name) (vpage48)

n Listening to preset stations

Press SHIFT to select the memory

block (A to G).

Press CH +, CH – or 1 – 8 to select

the desired preset channel.

You can also operate via the main unit. In this case, perform the following operations. Press TUNING PRESET, then turn SOURCE

SELECT

to select the preset radio station.

n Direct frequency tuning

You can enter the receiving frequency directly to tune in.

Press SEARCH.

Input frequencies using the 0 – 9.

• If o is pressed, the immediately preceding

input is cancelled.

When setting is completed, press

ENTER.

The preset frequency is tuned in.

n Check the HD Radio reception information

Press STATUS while an HD Radio broadcast is being received.

The current reception information is shown on the display.

q Normal

w Frequency / Signal strength

e Station name / Program and Program type

r Title name / Artist name

t Album name / Genre name

NOTE

If the station signal weakens while receiving a digital broadcast (while

and text is displayed), the mode automatically switches to the analog reception mode (the reception frequency is displayed). Because of this, the indicator and text may ﬂicker if the station signal level is weak and unstable.

n Tuner (HD Radio reception) operation

Operation buttons Function

CH +, – Preset channel selection

MENU Amp menu

uio p

ENTER Enter SEARCH Direct frequency tuning RETURN Return

BAND FM/AM switching

MODE Switch search modes

TUNING df

0 – 9

SHIFT Preset channel block selection

MEMORY Preset memory registration

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

Cursor operation /

Multicast switching (ui)

Tuning (up/down)

Preset channel selection (1 – 8) /

Direct frequency tuning (0 – 9)

Page 30

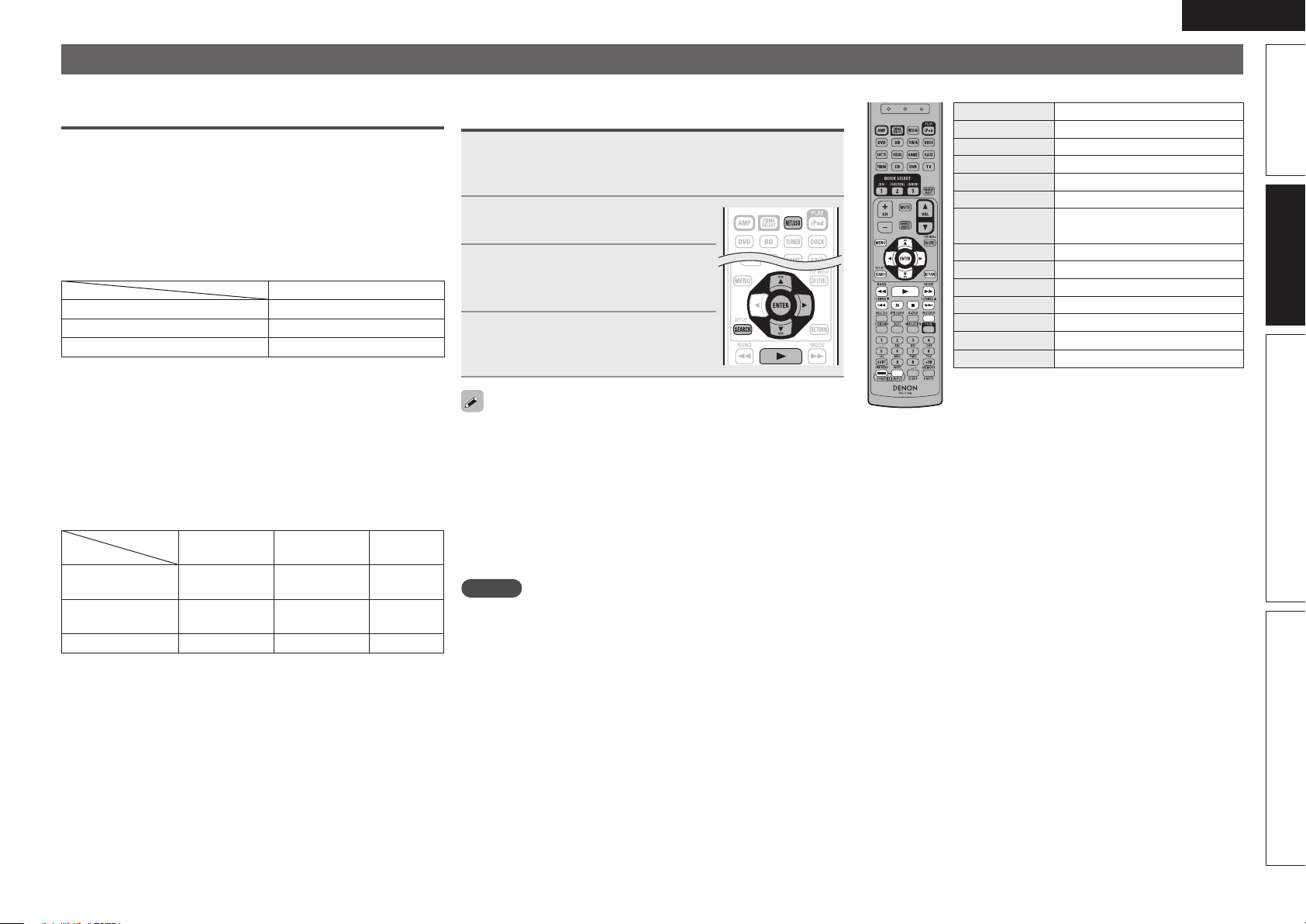

Playing a USB memory device

Playing back music ﬁles recorded on a USB memory device.

Important information

n USB memory devices

A USB memory device can be connected to the USB port of this unit to play music ﬁles stored on the USB memory device.

• Only USB memory devices conforming to mass storage class can be played on this unit.

• This unit is compatible with USB memory devices in “FAT16” or “FAT32” format.

GCompatible formatsH

USB memory devices

WMA (Windows Media Audio) MP3 (MPEG-1 Audio Layer-3) MPEG-4 AAC

z1 USB

• This unit is compatible with MP3 ID3-Tag (Ver. 2) standards.

• This unit is compatible with WMA META tags.

z2 Copyright-protected ﬁles can not be played. z3 Only ﬁles that are not protected by copyright can be played on

this unit. Also, ﬁles encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings.

GCompatible formatsH

Sampling

frequency

WMA (Windows

Media Audio) MP3 (MPEG-1

Audio Layer-3) MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps .m4a

32/44.1/48 kHz 48 – 192 kbps .wma

32/44.1/48 kHz 32 – 320 kbps .mp3

Bit rate Extension

P P

Playing ﬁles stored on USB memory devices

Connect the USB memory device to the USB port

(vpage 18 “Connecting an iPod or USB memory device to the USB Port”).

Press NET/USB to switch the

input source to “USB/iPod”.

Press ui to select the search

item or folder, then press ENTER or p.

Press ui to select the le, then

press ENTER, p or 1.

Playback starts.

• You can specify the duration of the on-screen display to be displayed

(default: 30 sec) at menu “USB” (vpage63). Press uio p to return to the original screen.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (vpage56). The default setting is “Mode 3”.

• If the USB memory device is divided into multiple partitions, only the top partition can be selected.

• This unit is compatible with MP3 ﬁles conforming to “MPEG-1 Audio Layer-3” standards.

NOTE

• Note that DENON will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.

• USB memory devices will not work via a USB hub.

• DENON does not guarantee that all USB memory devices will operate or be supplied power. When using a USB portable hard disk that can draw power from an AC adapter, we recommend using the AC adapter.

• It is not possible to connect and use a computer via the USB port of this unit using a USB cable.

ENGLISH

n USB operation

Operation buttons Function

MENU Amp menu

uio p

ENTER Enter SEARCH Page Search RETURN Return

6 7

(Press and hold)

8 9

3 2

RESTORER RESTORER TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

• Repeat playback (vpage51 “Repeat”)

• Shufﬂing playback (vpage51 “Shufﬂe”)

z1 If you press

and hold ui, manual search starts.

z2 If you press ENTER during playback, playback pauses. If ENTER is

pressed during pause, playback resumes.

If you press and hold ENTER, playback stops. z3 This functions when an ASD-1R, ASD-11R is used. Press SEARCH, then press o (previous page) or p (next page). To cancel, press ui or SEARCH.

ui during playback, auto search starts. If you press

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback / Pause

Auto search (cue)

Pause

Stop

Advanced versionSimple version InformationBasic version

Page 31

ENGLISH

Selecting a listening mode (Surround mode)

This unit can play input audio signals in multi-channel surround mode or in stereo mode. Select a listening mode suitable for the playback contents (cinema, music, etc.) or according to your liking.

Listening Mode

Input audio

signal

2-channel

Multi channel

2-channel

Multi channel

2-channel

Multi channel

2-channel

Multi channel

2-channel

Multi channel

• Some listening modes cannot be selected, depending on the audio format or number of channels of the input

signal. For details, see “Types of input signals, and corresponding surround modes” (vpage77).

• Adjust the sound ﬁeld effect with the menu “Surround Parameter” (vpage52) to enjoy your favorite sound

mode.

• You can select the listening mode by pressing SURROUND MODE 0 or SURROUND MODE 1 on the main

unit. Press SURROUND MODE 0 or SURROUND MODE 1 and the modes are switched as shown below.

DIRECT STEREO STANDARD MULTI CH STEREO ROCK ARENA

VIRTUAL

Playback Listening mode

Surround

Stereo

Surround

Stereo

Surround

Standard playback

DENON original

surround playback

Stereo playback

Direct playback

Pure direct playback

VIDEO GAMEMATRIX

(vpage28)

(vpage30)

MONO MOVIE JAZZ CLUB

For 2-channel signal input:

• Surround-channel signals are created and played with surround playback. For multichannel signal input:

• The surround signal recorded in source is played as surround playback. (The sound is played according to the settings of the speaker size in “Speaker Conﬁg.” (vpage57).)

• Surround-back-channel or front-height-channel signals that are not recorded in source can be created.

The surround effects suitable for the source type or according to your liking can be selected from the DENON original sound mode and is used for playback.

• If multichannel signals are input, they are mixed down to 2-channel audio and are played.

• Subwoofer signals are also output.

Sound recorded in source is played as is.

• Surround back signals or front height signals are not created.

• In this mode, the following items cannot be adjusted.

• Tone (vpage53) • MultEQ® (vpage54)

• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage55)

• RESTORER (vpage56)

This mode is for playback in higher sound quality than in “Direct playback” mode. The following circuits that affect sound quality are set to off.

• Main unit’s display circuit (The display is turned off.)

• Analog video input/output circuit

z Set the Pure direct mode using the

remote control unit.

Standard playback

n Surround playback of 2-channel sources

Playing the source (vpage 22 –

27).

Press STANDARD to select the

surround decoder to play back multichannel sound.

• Each time STANDARD is pressed, the surround mode is switched.

Which decoder can be selected depends on the settings of “Amp Assign” (vpage57) or “Speaker Conﬁg.” (vpage57).

DOLBY PLgz

DOLBY PLgx

DOLBY PLg

DTS NEO:6

z1 This can be selected when “Amp Assign” is set to “Front

Height” or “Speaker Conﬁg.” – “F.Height” is not set to “None”.

z2 This can be selected when “Amp Assign” is set to “Normal” or

“Speaker Conﬁg.” – “S.Back” is not set to “None”.

This mode is for 7.1-channel surround playback using the front height speakers.

• “PLgz Height” is displayed.

This mode is for 7.1-channel or 6.1-channel surround playback using the surround back speakers.

• “PLgx Cinema”, “PLgx Music”or “PLgx Game”

is displayed.

This mode is for 5.1-channel surround playback. Select this mode if no front height speaker nor surround back speaker is to be used.

• “PLg Cinema”, “PLg Music”, “PLg Game” or

“Pro Logic” is displayed.

This mode is for 7.1-channel, 6.1-channel or

5.1-channel surround playback using the surround back speakers.

• “DTS NEO:6 cinema” or “DTS NEO:6 music” is displayed.

Page 32

Select the mode corresponding to the playback

contents with the menu “Surround Parameter” – “Mode” (vpage 52) to enjoy your favorite sound mode.

Cinema

Music

Game

Pro Logic

Height

• If the menu “Surround Parameter” – “F.Height” (vpage53) is set

to “ON”, the mode is switched to “Height” mode.

This mode is suited for movie sources.

This mode is suited for music sources. More sound is sent to the front speakers than in “Cinema” mode.

This mode is suited for games.

This mode is suitable for playback of 2-channel sources recorded with Dolby Pro Logic.

This mode is for the surround decoder “Dolby PLgz”. If the surround decoder is “Dolby PLgz”, another mode cannot be selected.

n Surround playback of multi-channel sources

(Dolby Digital, DTS etc.)

Playing the source (vpage 22 –

27).

Press STANDARD to select the

surround decoder to play back multichannel sound.

Select the surround mode while viewing the display on the screen (v“Displaying The Currently Playing Surround Mode” at right).

• Which decoder can be selected depends on the input signal,

the settings of “Amp Assign” (vpage57) or “Speaker Conﬁg.” (vpage57).

Displaying the currently playing surround mode

Input signal Surround mode Display

DOLBY DIGITAL

DOLBY DIGITAL (other than 2ch) / DOLBY DIGITAL EX

DOLBY DIGITAL Plus

DOLBY TrueHD

DTS (5.1ch) / DTS-ES Discrete 6.1 / DTS-ES Matrix 6.1 / DTS 96/24

DTS-HD

PCM (multi ch)

z1 This is displayed when the input signal is “DTS-ES Matrix 6.1” and this unit’s “AFDM”

(vpage52) setting is “ON”.

z2 This is displayed when the input signal is “DTS-ES Discrete 6.1”. z3 This is displayed when the input signal is “DTS 96/24”.

DOLBY DIGITAL EX DOLBY DIGITAL + PLgx CINEMA DOLBY DIGITAL + PLgx MUSIC DOLBY DIGITAL + PLgz HEIGHT DOLBY DIGITAL Plus DOLBY DIGITAL Plus + EX DOLBY DIGITAL Plus + PLgx CINEMA DOLBY DIGITAL Plus + PLgx MUSIC DOLBY DIGITAL Plus + PLgz HEIGHT DOLBY TrueHD DOLBY TrueHD + EX DOLBY TrueHD + PLgx CINEMA DOLBY TrueHD + PLgx MUSIC DOLBY TrueHD + PLgz HEIGHT DTS SURROUND DTS + PLgx CINEMA DTS + PLgx MUSIC DTS + PLgz HEIGHT DTS + NEO:6 DTS ES MTRX6.1 DTS ES DSCRT6.1 DTS 96/24 DTS-HD HI RES DTS-HD MSTR DTS-HD + NEO:6 DTS-HD + PLgx CINEMA DTS-HD + PLgx MUSIC DTS-HD + PLgz HEIGHT DTS Express MULTI CH IN MULTI IN + Dolby EX MULTI IN + PLgx CINEMA MULTI IN + PLgx MUSIC MULTI IN + PLgz HEIGHT MULTI CH IN 7.1

DOLBY DIGITAL DOLBY DIGITAL EX

DOLBY D PL x C

DOLBY D PL x M DOLBY D PL z DOLBY DIGITAL + DOLBY D + EX

DOLBY D + PL x C

DOLBY D + PL x M

DOLBY D + PL z

DOLBY TrueHD DOLBY HD EX DOLBY HD PL x C DOLBY HD PL x M DOLBY HD PL z DTS SURROUND DTS PL x C DTS PL x M DTS PL z DTS NEO:6 DTS ES MTRX6.1 DTS ES DSCRT6.1 DTS 96/24 DTS-HD HI RES DTS-HD MSTR DTS-HD NEO:6 DTS-HD PL x C DTS-HD PL x M DTS-HD PL z DTS Express MULTI CH IN MULTI Dolby EX MULTI IN PL x C MULTI IN PL x M MULTI IN PL z MULTI CH IN 7.1

ENGLISH

Standard playback

GViews on the displayH

q w

q Shows a decoder to be used.

• A DOLBY DIGITAL Plus decoder is displayed as “DOLBY D +”.

w Shows a decoder that creates sound output

from the surround back speakers.

• “+ PLgz” indicates the front height sound from front height speakers.

For an input signal that can be reproduced in each surround mode, see “Surround modes and surround parameters” (vpage75).

Advanced versionSimple version InformationBasic version

Page 33

ENGLISH

DENON original surround playback

Playing the source (vpage 22 – 27).

Press SIMULATION to select the

surround mode.

• Each time SIMULATION is pressed, the

surround mode is switched.

MULTI CH

STEREO

ROCK ARENA

JAZZ CLUB

MONO MOVIE

VIDEO GAME

MATRIX

VIRTUAL

z When playing sources recorded in monaural in the “MONO

MOVIE” mode, the sound will be off balance with a single channel (left or right), so input to both channels.

This mode is for enjoying stereo sound from all speakers.

This mode is for enjoying the atmosphere of a live concert in an arena.

This mode is for enjoying the atmosphere of a live concert in a jazz club.

This mode is for playing monaural movie sources with surround sound.

This mode is suited for achieving surround sound with video games.

This mode lets you add a spacious feel to stereo music sources.

This mode is for enjoying surround effects using only the front speakers or headphones.

Stereo playback

This is the mode for playing in stereo. The tone can be adjusted.

• Sound is output from the front left and right speakers and subwoofer.

• If multichannel signals are input, they are mixed down to 2-channel audio and are played.

Playing the source (vpage 22 –

27).

Press D/ST to select “STEREO”.

Stereo playback begins.

Direct playback

Sound recorded in source is played as is.

• Surround back signals or front height signals are not created.

• In this mode, the following items cannot be adjusted.

• Tone (vpage53) • MultEQ® (vpage54)

• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage55)

• RESTORER (vpage56)

Playing the source (vpage 22 –

27).

Press D/ST to select “DIRECT”.

Direct playback begins.

Pure direct playback

This mode is for playback in higher sound quality than in “Direct playback” mode.

• The following circuits that affect sound quality are set to off.

• Main unit’s display circuit (The display is turned off.)

• Analog video input/output circuit

• Surround back signals or front height signals are not created.

• In this mode, the following items cannot be adjusted.

• Tone (vpage53) • MultEQ® (vpage54)

• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage55)

• RESTORER (vpage56)

Playing the source (vpage 22 –

27).

Press PURE.

The display goes dark, and pure direct playback begins.

• To cancel, press PURE again.

• Video signals are only output when HDMI signals are played in the PURE DIRECT mode.

NOTE

When in the PURE DIRECT mode, the menu screen is not displayed.

Depending on the program source being played, it may not be possible to achieve a satisfactory surround effect. In this case, try other modes to achieve a sound ﬁeld suited to your tastes.

NOTE

When the input signal is Dolby TrueHD, Dolby Digital Plus, DTS-HD or DTS Express, you cannot select DENON original surround mode.

Page 34

Advanced version

Here, we explain functions and operations that let you make better use of this unit.

F Speaker installation/connection (Other than 5.1-channel) vpage32 F Playback (Advanced operation) vpage38 F Playback in ZONE2 (Separate room) vpage41 F How to make detailed settings vpage43 F Operating the connected devices by remote control unit vpage65

ENGLISH

Basic versionSimple version InformationAdvanced version

Page 35

ENGLISH

Speaker installation/connection (Other than 5.1-channel)

Here we describe the installation, connection and setup methods for speakers other than 5.1-channel speakers. For the installation, connection and setup methods for 5.1-channel speakers, see “Simple version (Simple setup guide)” (vpage3).

Procedure for speaker settings

Install

Connect (vpage33)

Set up speakers (vpage36)

Install

This unit is compatible with Dolby Pro Logic gz (vpage 80),

which offers an even wider and deeper surround sensation. When using Dolby Pro Logic gz, install front height speakers.

Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm) higher than ear level.

Front height speaker

• Point slightly downwards

At least

3.3 ft / 1 m

z Recommended for Dolby Pro Logic gz

Front speaker

GViewed from the sideH

NOTE

It is not possible to use the surround back speakers and front height speakers simultaneously.

Surround speaker

2 – 3 ft / 60 – 90 cm

Surround back speaker

• Point slightly downwards

When 7.1ch (Front height speaker) installed

FHRFHL

Listening position

z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚

When 7.1ch (Surround back speaker) installed

FL FR

Listening

position

SBL SBR

z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚

When 6.1ch (Surround back speaker) installed

FL FR

Listening position

z1 22˚ – 30˚ z2 90˚ – 110˚

When Front A/B speakers installed

FL(B) FL(A)

FL Front speaker (L) SBL Surround back speaker (L) FR Front speaker (R) SBR Surround back speaker (R) C Center speaker FHL Front height speaker (L) SW Subwoofer FHR Front height speaker (R) SL Surround speaker (L) SR Surround speaker (R)

FR(A) FR(B)

Listening position

Page 36

Connect

• For the method of connecting 5.1-channel speakers, see page 4.

• For the method of connecting the TV, see page 5.

7.1-channel (Front height speaker) connection

For 7.1-channel (Front height speaker) playback, set “Amp Assign” in “Set up speakers” (vpage36) to “Front Height”.

ENGLISH

7.1-channel/6.1-channel (Surround back speaker) connection

For 7.1-channel (Surround back speaker) playback, set “Amp Assign” in “Set up speakers” (vpage36) to “Normal”.

FL FR

Basic versionSimple version InformationAdvanced version

FL FR

For speaker impedance and speaker cable connections, see page 4.

FHRFHL

SBL SBR

6.1-channel connection

If using only one surround back speaker (with a 6.1-channel connection), connect to the “L” side of the SURR. BACK/AMP ASSIGN terminal. For speaker settings in this case, see “When 6.1ch (Surround back speaker) installed” (vpage32).

Page 37

ENGLISH

Connect

Front A/B connection

The second set of front speakers can be connected to the SURR. BACK/AMP ASSIGN terminals. In this case, set “Amp Assign” of “Set up speakers” (vpage36) to “Front B”.

2.1-channel/2-channel connection

FL FR

FL(A)FL(B) FR(B)FR(A)

For surround playback of a multichannel source, if you connect the center speaker, surround speakers and subwoofers, 5.1-channel playback is available. Front speakers can be used separately, depending on the speaker’s speciﬁcations or playback source such as front speakers (A) for multichannel playback and front speakers (B) for 2-channel playback (vpage59 “Front Speaker Setup”).

For speaker impedance and speaker cable connections, see page 4.

2-channel connection

For 2-channel playback, disconnect the subwoofers.

n For connecting two subwoofers

Two subwoofers can be connected to this unit. The same signal is output from each subwoofer terminal.

Page 38

Bi-amp connection

A bi-amp connection is to connect separate ampliﬁers to the tweeter terminals and woofer terminals of speakers compatible with the bi-amp function. This prevents the back electromotive force (returned force without output) of the woofer sent to the tweeter, which affects the sound quality of the tweeter, and you can enjoy playback with higher-quality sound.

In this case, set “Amp Assign” of “Set up speakers” (vpage36) to “Bi-Amp”.

wq wq

FL FR

ENGLISH

Connect

5.1-channel + 2.1-channel connection

If front speakers for 2-channel playback are connected to the SURR. BACK / AMP ASSIGN terminals, both speakers for multichannel playback and for 2-channel playback can be used, by switching. In this case, set “Amp Assign” of “Set up speakers” (vpage36) to “2CH”.

Multi channel playback

Basic versionSimple version InformationAdvanced version

Switching

(R) (L)

When making a bi-amp connection, the same signal is output from the front speaker terminal and the SURR.BACK/AMP ASSIGN terminal. For surround playback of a multichannel source, if you connect the center speaker, surround speakers and subwoofers, 5.1-channel playback is available.

NOTE

• Use speakers compatible with bi-amp connections.

• When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.

For speaker impedance and speaker cable connections, see page 4.

FLFL FR FR

2-channel playback

• For switching multichannel playback and 2-channel playback, see “Selecting a listening mode (Surround

mode)” (vpage28).

• If “Audio Setup” – “2ch Direct/Stereo” – “Setting” (vpage60) is set to “Custom”, settings for 2-channel

playback speakers can be made.

(Direct/Stereo mode)

Page 39

ENGLISH

Set up speakers

Here we describe how to set up speakers other than 5.1-channel speakers. For the method of setting up 5.1-channel speakers, see “Simple version”, “Set up speakers (Audyssey® Auto Setup)” (vpage6).

First install and connect the speakers to this unit.

Before Auto Setup measurement, the settings shown below can be made.

• Changing the ampliﬁer assignment (Amp Assign) The signal output from the SURR.BACK / AMP ASSIGN speaker terminal of this unit can be switched to match your speaker environment (vpage36 “Set up “Amp Assign””).

• Setting the channels to be used (Channel Select) If channels that are not to be used are set in advance, measurement for the set channels is skipped, and measuring time can be reduced (vpage37 “Set up “Channel Select””).

Set up

the remote control unit

n Set up the zone mode

Press ZONE SELECT to switch the zone mode to “MAIN”.

The “MAIN” indicator lights.

Press ZONE SELECT

n Set up the operation mode

Press AMP to set the remote control unit to amplier operation mode.

Connect the setup microphone.

When the setup microphone is connected, the following screen is displayed.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P1 P repara tion Con nect the s peaker s and pla ce the m acco rding to the re commen datio ns i n the manual . Set the follo wing ite ms i f nece ssary.

Amp Ass ign Cha nnel Selec t

Aut o Se tup St art

Sta rt A uto Se tup

ENT ER En ter RE TURN Cance l

Mul tEQ

[1/ 6]

Set up “Amp Assign”

Use ui to select “Amp Assign”, and then press ENTER.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P1 P repara tion Con nect the s peaker s and pla ce the m acco rding to the re commen datio ns i n the manual . Set the follo wing ite ms i f nece ssary.

Amp Ass ign

Cha nnel Selec t Aut o Se tup St art

Set use of su rround bac k ch. for yo ur syst em

ENT ER En ter RE TURN Cance l

Mul tEQ

[1/ 6]

Front Height

around items indicate the settings.

Use o p to select the conguration of the connected speakers, and then press RETURN.

Normal

ZONE2

Bi-Amp

Front B

2CH

Set when using 7.1-channel (Front/Center/Surround/Surround Back/Subwoofer) speakers.

Set for connecting the speakers for ZONE2 to the SURR. BACK/ AMP ASSIGN terminals.

Set for connecting the front height speakers to the SURR. BACK/AMP ASSIGN terminals.

Set for connecting a tweeter of a front speaker to the SURR. BACK/AMP ASSIGN terminals and a woofer of the front speaker to the FRONT terminals.

Set for connecting the second set of front speakers to the SURR. BACK/AMP ASSIGN terminals.

Set for 2-channel direct/stereo playback. When “2CH” is set, connect the second set of front speakers to the SURR.BACK/ AMP ASSIGN terminals.

Press AMP

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 40

Set up speakers

ENGLISH

Set up “Channel Select”

Use ui to select “Channel Select”, and then press ENTER.

AUTO SE TUP AUDYSSE Y AUTO S ETUP

STE P1 P repara tion Con nect the s peaker s and pla ce the m acco rding to the re commen datio ns i n the manual . Set the follo wing ite ms i f nece ssary.

Amp Ass ign

Cha nnel Selec t

Aut o Se tup St art

Ski p un used c h’s me asur ement for ti mes avin g

ENT ER En ter RE TURN Cance l

Mul tEQ

Use ui to select a channel.

Front

Subwoofer

Surround

Back

Select for setting the front speakers to be used. In this case, go to step

• “Front” can be set when “Amp Assign” is set to “Front B”.

Select for no subwoofers to be used. In this case, go to step 8.

Select for no surround back speakers to be used. In this case, go to step 9.

• “Surround Back” can be set when “Amp Assign” is set to “Normal”.

[1/ 6]

GWhen “Subwoofer” is selected in

step 6H

Use o p to select the item.

Measure

Set for measuring a subwoofer.

Skip

Set for no measuring of a subwoofer.

GWhen “Surround Back” is selected in step 6H

Use o p to select the item.

Measure

(2spkrs)

Measure

(1spkr)

Set for measuring two surround back speakers.

Set for measuring a surround back speaker.

Set for no measuring of a surround

Skip

back speaker.

Press RETURN.

Proceed to page 8 step 5.

NOTE

After performing Audyssey Auto Setup, do not change the speaker connections or subwoofer volume. In event of a change, perform Audyssey Auto Setup again.

STEP 1 Preparation

Basic versionSimple version InformationAdvanced version

GWhen “Front” is selected in step 6H

Press o p to select a front speaker.

Select this to use front speaker A

Select this to use front speaker B.

A+B

Select this to use front speakers A and B simultaneously.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 41

ENGLISH

Playback (Advanced operation)

Playback (Basic operation) (vpage21)

Selecting a listening mode (Surround mode)

(vpage28)

n HDMI control function (vpage38) n Sleep timer function (vpage39) n Adjusting the volume of the speakers (vpage39) n Quick select function (vpage40) n REC OUT mode (vpage40) n Various memory functions (vpage41)

Convenient functions

HDMI control function

When you make an HDMI connection with a TV or player compatible with this unit and HDMI control functions, you can perform the following operations by setting the HDMI control function of each device.

n This unit power off can be linked to the TV power off

step.

n You can switch audio output devices with a TV

operation.

When you set “Output audio from amp” in the TV audio output setup operation, you can switch the amp power on.

n You can adjust this unit volume in the TV volume

adjustment operation.

n You can switch this unit input sources through

linkage to TV input switching.

n When playing the player, this unit input source

switches to the source for that player.

NOTE

• When “HDMI Control” is set to “ON”, it consumes more standby power.

• The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.

• Some functions may not operate depending on the connected TV or player. Check the owner’s manual of each device for details beforehand.

• When “Power Off Control” on the menu is set to “OFF” (vpage60), this unit is not set to standby even if the connected device is in the standby mode.

• When connection changes are implemented, such as adding connections to HDMI devices, linked operations may be initialized. In this case, you will need to reconﬁgure the settings.

• When “HDMI Control” is set to “ON”, it is not possible to assign an HDMI connector to “TV” at “Input Assign” (vpage48).

Set the HDMI output connector corresponding with

the HDMI control function.

Set “HDMI Control” (vpage60) to “ON“.

Turn the power on for all the equipment connected

by HDMI cable.

Set the HDMI control function for all equipment

connected by HDMI cable.

• Please consult the operating instructions for the connected equipment to check the settings.

• Carry out steps 1 and 2 should any of the equipment be unplugged.

Switch the television input to the HDMI input

connected to this unit.

Switch this unit input to the HDMI input source and

check if the picture from the player is ok.

When you turn the TV’s power to standby, check

that the power of this unit also goes to standby.

If the HDMI control function does not operate properly, check the following points.

• Is the TV or player compatible with the HDMI control function?

• Is “HDMI Control” (vpage60) set to “ON”?

• Is “Power Off Control” (vpage60) set to “All” or “Video”?

• Are the HDMI control function settings of all equipment correct?

NOTE

Should any of the operations below be performed, the interlocking function may be reset, in which case, repeat steps 2 and 3.

• “Input Assign” – “HDMI” (vpage48) setting has changed.

• There is a change to the connection between the equipment and the HDMI, or an increase in equipment.

Page 42

Sleep timer function

OFF 10 min 20 30 40 50

The power automatically goes into standby once the set time has elapsed. This is convenient for playing sources while going to sleep.

Press SLEEP and display the time you want to set.

The indicator on the display lights.

• The time switches as shown below each

time SLEEP is pressed.

120

110

To cancel the sleep timer

Press SLEEP to set “OFF”. The indicator on the display turns off.

• The sleep timer setting is canceled if this unit’s power is set to standby or turned off.

• When power to the main zone is turned off with the sleep timer, power in ZONE2 is also turned off.

• If

SLEEP on the main unit is pressed,

the same function as with the remote control unit can be obtained.

6080 7090100

Adjusting the volume of the speakers

You can adjust the channel level either according to the playback sources or to your taste, as described below.

n Adjusting the volume of the different speakers

Press ZONE SELECT to switch the

zone mode to “MAIN”.

The “MAIN” indicator lights.

Press AMP to set the remote

control unit to amplier operation mode.

Press CH LEVEL.

CHANNEL LEVEL

Fro nt L

Fro nt R Cen ter Sub woof er Sur roun d L Sur roun d R S.B ack L S.B ack R

Fad er

Sel ect

0.0 dB

Fro nt Rea r

Use ui to select the speaker.

The speaker that can be set switches each time one of the buttons is pressed.

Use o p to adjust the volume.

• In the case of a subwoofer, pressing o when it is at “–12 dB” will

change the setting to “OFF”.

When a headphone jack is inserted, the headphone channel level can be adjusted.

ENGLISH

Convenient functions

n Adjusting the volume of group of speakers

(Fader function)

This function lets you adjust (fade) the sound all at once from the front (front speaker / front height speaker / center speaker) or rear (surround speaker / surround back speaker).

Press ZONE SELECT to switch the

zone mode to “MAIN”.

The “MAIN” indicator lights.

Press AMP to set the remote

control unit to amplier operation mode.

Press CH LEVEL.

CHANNEL LEVEL

Fro nt L Fro nt R Cen ter Sub woof er Sur roun d L Sur roun d R S.B ack L S.B ack R

Fad er

Sel ect

Use i to select “Fader”, then select the item to be

adjusting using o p.

Use o p to adjust the volume of the speakers.

(o : front, p: rear)

• The fader function does not affect the subwoofer.

• The fader can be adjusted until the volume of the speaker is adjusted to the lowest value of –12 dB.

0.0 dB

Fro nt Rea r

Basic versionSimple version InformationAdvanced version

Page 43

ENGLISH

Convenient functions

Quick select function

All of the settings in step 1 can be memorized together. By memorizing frequently used settings, you can quickly access and enjoy a playback environment that is consistently the same.

n Saving the settings

Set the items below to the settings you want to save.

q Input source (vpage21) w Volume (vpage21) e Surround mode (vpage28) r Video Select (vpage49) t Audyssey Setting

(MultEQ®, Dynamic EQ®, Dynamic

Volume®) (vpage54)

Press and hold the desired QUICK SELECT until

“Memory” appears on the display.

The current settings will be memorized.

GQuick Select DefaultsH

Input source Volume QUICK SELECT 1 BD –40 dB QUICK SELECT 2 SAT/CBL –40 dB QUICK SELECT 3 DOCK –40 dB

n Recalling the settings

Press QUICK SELECT at which the settings you want to call out are saved.

The , or indicator illuminates on the display.

Naming quick select settings

See “Quick Select Name” (vpage63).

• The Quick Select function can be set separately for the different

zones (vpage42 “Quick select function”).

QUICK SELECT on the main unit

• If is pressed, the same function as with the remote control unit can be obtained.

NOTE

Input sources stored with the quick select function cannot be selected if they have been deleted at “Source Delete” (vpage62). In this case, store them again.

REC OUT mode

When using the audio/video recording connectors (DVR outputs), you can record the audio or video from a different program source while listening to the currently played track.

Press ZONE2/REC SELECT.

“ZONE2 Source” is shown on the display.

Turn SOURCE SELECT until “RECOUT

Source” is displayed.

The indicator illuminates.

ZONE2 Source ZONE2 CD ZONE2 HD Radio

RECOUT HD Radio RECOUT USB/iPod RECOUT Source

····

Turn SOURCE SELECT to choose the input source to

be recorded.

• For operating instructions, refer to the respective equipment’s operating instructions.

• To record FM or AM broadcasts, select the broadcast (vpage25).

Start recording.

• For operating instructions, refer to the respective equipment’s operating instructions.

• To cancel, press ZONE2/REC SELECT, then turn SOURCE SELECT

until “ZONE2 Source” is displayed.

• Make a test recording before starting the actual recording.

• The digital signals are not output to the analog REC OUT connectors.

• As the digital audio signal input from the HDMI connector is not output to the digital recording connector (OPTICAL), you should connect using the OPTICAL and COAXIAL connectors.

• Sources selected with the REC OUT mode are output from ZONE2 as well.

• The operable buttons on the remote control unit in REC OUT mode while it is in the operating mode for ZONE2 are as follows:

• ZONE/DEVICE power button

• Muting button

• Master volume control button

NOTE

• Recordings you make are for your personal enjoyment and should not be used for other purposes without permission of the copyright holder.

• Input sources for which “Delete” is selected at “Source Delete” (vpage62) cannot be selected.

Page 44

Convenient functions

Various memory functions

n Personal memory plus function

This function sets the settings (input mode, surround mode, HDMI output mode, MultEQ, Dynamic EQ, Dynamic Volume, audio delay etc.) last selected for the individual input sources.

The surround parameters, tone settings and the volumes of the different speakers are stored for the individual surround modes.

n Last function memory

This function stores the settings which were made before going into the standby mode.

When the power is turned back on, the settings are restored.

Playback in ZONE2 (Separate room)

• You can operate this unit so as to enjoy audio in a room (ZONE2) other than the MAIN ZONE (room where the unit is located).

• You can simultaneously play back the same source in both the MAIN ZONE and ZONE2. You can also play back separate sources in the MAIN ZONE and ZONE2.

• There are two methods to do this, as described below. Choose one of the methods.

q ZONE2 playback by speaker output w ZONE2 playback by audio output (PRE OUT)

(using an external ampliﬁer)

q ZONE2 playback by speaker

output

The ZONE2 audio signals are output from this unit’s SURR.BACK/AMP ASSIGN speaker terminals using the ampliﬁer assignment function.

Connecting and setting the speakers

“Amp Assign” setting (vpage 57) and audio signals output

Connecting the speakers

MAIN ZONE

w ZONE2 playback by audio output

The audio signals connected to this unit’s ZONE2 output terminals (ZONE2 OUT) are output to the ZONE2’s ampliﬁer and played with that ampliﬁer.

Connection (ZONE2)

MAIN ZONE

This unit

ZONE2

AUX

ENGLISH

Basic versionSimple version InformationAdvanced version

ZONE2

Output signal : Stereo (L / R)

This unit

ZONE2

• We recommend using high quality pin-plug cables for audio connections in order to prevent noise.

• Also be sure to read the operating instructions of the connected devices.

NOTE

It is not possible to play the digital audio signals input from the HDMI, COAXIAL or OPTICAL terminals in ZONE2. Play using analog connections (in stereo).

Page 45

ENGLISH

Playback

Switch ZONE SELECT to “ZONE2”.

The remote control unit switches to the operating mode for ZONE2.

Press AMP.

Press ZONE/DEVICE ON to turn

on the ZONE2 power.

The indicator on the display lights.

• Also, pressing any of input source select button in standby mode turns on the power.

ZONE/DEVICE OFF is pressed, ZONE2

• When turns off.

• Power in ZONE2 can be turned on or off by pressing ZONE2 ON/OFF on the main unit.

Press the input source select button.

The audio signal of the selected source is output to ZONE2.

SOURCE SELECT after

• Turn

pressing ZONE2 / REC SELECT on the main unit to select an input source.

Input source select buttons

Adjusting the volume

Use VOL df to adjust the volume.

GAdjustable rangeH (When the “Volume Display” (vpage62) setting is “Relative”)

GAdjustable rangeH

(When the “Volume Display” (vpage62) setting is “Absolute”)

• At time of purchase, “Volume Limit” (vpage62) is set to “–10dB

(71)”.

Turn MASTER VOLUME after pressing ZONE2/REC SELECT on the main unit to adjust the sound volume.

– – – –80dB – –40dB – 18dB

0 – 41 – 99

Turning off the sound temporarily

Press MUTE. The sound is reduced to the level set at “Mute Level” (vpage62) in the menu.

• To cancel, either adjust the volume or press MUTE again.

• The setting is canceled when the zone’s power is turned off.

Quick select function

It is also possible to save three settings for ZONE2.

n Saving the settings

Set the items below to the settings

you want to save.

q Input source (vpage42) w Volume (vpage42)

Switch ZONE SELECT to

“ZONE2”.

The remote control unit switches to the operating mode for ZONE2.

Press and hold the desired QUICK SELECT button until

“Memory” appears on the display.

The current settings will be memorized.

GQuick select defaultsH

Input source Volume QUICK SELECT 1 BD –40dB QUICK SELECT 2 SAT/CBL –40dB QUICK SELECT 3 DOCK –40dB

n Recalling the settings

Switch ZONE SELECT to

“ZONE2”.

The remote control unit switches to the operating mode for ZONE2.

When power for both MAIN ZONE and ZONE2 is set to ON, power of the MAIN ZONE only can be turned off. Select “MAIN” in step 1 then press ZONE/DEVICE OFF.

Press QUICK SELECT at which the

settings you want to call out are saved.

Naming quick select settings

See “Quick Select Name” (vpage63).

Page 46

How to make detailed settings

ENGLISH

Menu map

For menu operation, connect a TV to this unit and display the menu on the TV screen. For menu operations, see the following page.

Aud io /Vi deo A djust

Inf or mat ion Aut o Set up Man ua l S etup Inp ut Se tup

Adj us t v ariou s aud io an d v id eo pa ram et ers

Items that only need to be set

once

Set these for example upon purchase. Once these items are set, there is no need to set them again unless the speaker layout or the connected speakers have been changed.

Setting items Detailed items Description Page

1. Audio/Video Adjust

AUDIO/ VIDEO A DJUST

Aud io Adj ust

Pic tur e A dju st

2. Information

INFORM ATION

Sta tus

Aud io Inp ut Si gna l HDM I I nfo rma ti on Aut o S urr oun d Mod e Qui ck Sel ect Pre set Ch ann el

3. Auto Setup

AUTO S ETUP

Aud yss ey Aut o Set up

Par ame ter Ch ec k

4. Manual Setup

MANUAL SETUP

Spe ake r S etu p

HDM I S etu p Aud io Set up ZON E2 Set up Opt ion Se tup

Audio Adjust Adjusts various audio parameters. 52 Picture Adjust Adjusts the picture quality. 56

Status Shows information about current settings. 64 Audio Input Signal Shows information about audio input signals. 64 HDMI Information Displays the HDMI input/output signals and HDMI monitor information. 64 Auto Surround Mode Displays the settings stored for the auto surround mode. 64 Quick Select Displays the settings stored for the Quick Select function. 64 Preset Channel Shows information about tuner preset channels. 64

Audyssey® Auto Setup Makes the optimum settings for the speakers being used automatically. 6 Parameter Check Checks Audyssey Auto Setup measurement results.

10 This item is only displayed after Audyssey Auto Setup procedure has been performed.

Speaker Setup Sets the speaker size and distance, the channel level, etc. 57 HDMI Setup Makes settings for HDMI video/audio output. 60 Audio Setup Makes settings for audio playback. 60 ZONE2 Setup Makes settings for audio playback in a ZONE2 system. 61 Option Setup Makes various other settings. 62

Basic versionSimple version InformationAdvanced version

5. Input Setup

(Example: HD Radio)

INPUT SETUP

Aut o P res et

Pre set Sk ip Pre set Na me Vid eo Ren ame Sou rce Le vel

Displayed items of the “Input Setup” menu differs, depending on the selected input source.

Auto Preset Uses the auto preset function to program radio stations. 47 Preset Skip Sets the preset memories that you do not want to display when tuning. 47 Preset Name Assigns name to a preset memory. 48 Input Assign Changes input connector assignment. 48 Video Makes the video settings. 49 Input Mode Sets the audio input mode and decode mode. 50 Rename Changes the display name for this source. 50 Source Level Adjusts the playback level of the audio input. 51 Playback Mode Makes settings for iPod or USB memory device playback. 51

Page 47

ENGLISH

Examples of menu and front display

Below we describe typical examples of displays on the TV screen and on the set’s display window.

Menu Display Front Display Description

Top menu display

Display when changing settings

Audi o/Vide o Adjus t

Info rmatio n Auto Setup Manu al Setu p Inpu t Setup

Adju st var ious au dio an d vide o param eters

INPUT SET UP INPUT ASS IGN

Defa ult

[ H DMI ]

HDMI 1

DVD

HDMI 2

None

SAT/ CBL

HDMI 3

DVR

HDMI 4

GAME

HDMI 5

V.AU X

HDMI 6

Chan ge HDM I input conne ctor a ssignme nt

ENTE R EnterSele ct RETU RN R eturn

[ DI GITAL ]

None Coax 1 Opt1 Coax 2 Opt2 None None

[ C OMP ]

None 1-RC A None 2-RC A None None None

*M E NU A/ V A d j us t –

*I n pu t As s ig n BD [ H DM I 1 ]

q The menu items are displayed here. w The selected line is displayed here.

The currently selected item is displayed on the display. Use ui to move to the item you want to set.

uio p to move to the item you want to set.

q Use w Press ENTER to set to the mode in which the setting can be made.

Display when inputting characters

Display when resetting

Press ENTER.

INPUT SET UP INPUT ASS IGN

Defa ult

[ H DMI ]

HDMI 1

DVD

HDMI 2

None

SAT/ CBL

HDMI 3

DVR

HDMI 4

GAME

HDMI 5

V.AU X

HDMI 6

Assi gn HDM I 1 inp ut con nector

INPUT SET UP RENAME

DVD

Defa ult

Inpu t

a/A Keyboa rdSHIF T SEARCH

INPUT SET UP RENAME

DVD

Defa ult

[ DI GITAL ]

[ C OMP ]

None

Coax 1

1-RC A

Opt1

None

Coax 2

2-RC A

Opt2

None

ENTE R EnterSele ct RETU RN C ancel

DVD

RETU RN C ancelENTE R,0- 9 En ter

DVD

RETU RN R eturnENTE R Enter

*I n pu t As s ig n BD • H DM I 1 –

*R e na m e :D V D

•D V D –

*R e na m e De f au l t

*R e na m e De f au l t ? :• N o

Press ENTER.

e 0 1 is displayed at the sides of item whose setting can be changed.

Use o p to change to the desired setting.

q When o p is pressed, the cursor moves to the left or right. w When ui is pressed at the position where you want to input the

character, the character is input.

For inputting characters on a keyboard screen or with the number buttons on the remote control unit, see page 45.

q Press

i to select “Default”, then press ENTER to set.

w Press o to select “Yes”, then press ENTER.

Page 48

Inputting characters

“Preset Name” (vpage48), “Rename” (vpage50), “Zone Rename” (vpage63), and “Quick Select Name” (vpage63)can be changed as desired. For inputting characters, there are three methods, as shown below.

Method for inputting characters

Method Operations

Using the number

buttons

(normal screen)

Using the cursor buttons

(normal screen)

Using the keyboard

screen

Normal screen

n Display of a normal input screen

INPUT SETUP RENAME

DVD

Def ault

Inp ut

a/A Key boardSHI FT S EARCH

q Character input section w Guide for operation buttons

• Operating with the remote control unit.

• Multiple characters are assigned to a button, and each time the button is pressed, a character is switched.

• Operating with the remote control unit or the main unit.

uio p and ENTER to input

• Use characters.

• Operating with the remote control unit.

• Select a character on the TV screen to input characters.

DVD

RET URN Ca nc elENT ER,0- 9 En te r

Using the number buttons

Display the screen for inputting characters.

(vpage 43 “Menu map”)

Place the cursor at the character to be changed with

o p and press the number button (0 – 9) until the

desired character is displayed.

• The types of characters that can be input are as shown below.

1 . @ - _ / : ˜ M N O m n o 6

A B C a b c 2 P Q R S p q r s 7

D E F d e f 3 T U V t u v 8

G H I g h i 4 W X Y Z w x y z 9

J K L j k l 5

• The input character type can be switched by pressing is being changed.

• For entering the characters assigned to one number button continuously, press p to move the cursor to the right after entering a character then enter the next character.

• For entering characters assigned to separate buttons, press the number button continuously. The cursor automatically moves to the next position, and the entered character is registered.

SHIFT while the display name

Repeat step 2 to change the name then press ENTER

to register it.

0 (Space) ! “ # $ % & ‘ ( ) z + , ; < = > ? [ \ ] ^ ` { | }

ENGLISH

Example: For changing the input source from “DVD” to “DENON”

q Place the cursor at “V”.

w Press

“V” changes to “E”.

e Press

“E” is automatically registered, and “D” changes to “N”.

r Press p.

“N” is registered.

t Press

Input “O”.

y Press p.

“O” is registered.

u Press

Input “N”.

i Press

twice.

three times.

twice.

ENTER to register the input source name.

DVD

DED

DEN

DENO

DENON

Using the cursor buttons

Display the screen for inputting

characters. (vpage 43 “Menu map”)

Use o p to set the cursor to the

character you want to change.

Use ui to change the character,

then press ENTER.

• The types of characters that can be input are as shown below.

GUpper case charactersH ABCDEFGHIJKLMNOPQRSTUVWXYZ GLower case charactersH abcdefghijklmnopqrstuvwxyz

GSymbolsH ! “ # $ % & ‘ ( ) z + , - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ˜ GNumbersH

• The input character type can be switched by pressing the display name is being changed.

0123456789 (Space)

SHIFT while

Basic versionSimple version InformationAdvanced version

Repeat steps 2 and 3 to change the name then press

ENTER to register it.

Page 49

ENGLISH

Inputting characters

Keyboard screen

n Display of a keyboard input screen

INPUT SETUP RENAME

BDBD

’

(

Cle ar Sp ace 0 1 O K

a/A Nor malSHI FT S EARCH

q Character input section w Cursor e Keyboard section r Clear key t Space key y Cursor keys u OK key i Guide for operation buttons

S 5 )

Input Setup

Display the screen for inputting characters.

(vpage 43 “Menu map”)

Press SEARCH while a normal screen is displayed.

A keyboard screen is displayed.

Select a character to be changed.

”

;

RET URN Ca nc elENT ER In pu tSel ect

q Press uio p to select “ ”

or “ ”.

w Press ENTER to place the

cursor at the character to be changed.

Each time ENTER is pressed, the cursor moves by one character.

Select a character to be input with uio p then

press ENTER.

• The types of characters that can be input are as shown below.

GUpper case characters/Numbers/SymbolsH ABCDEFGHIJKLMNOPQRSTUVWXYZ 0123456789 ! “ # $ % & ’ ( ) z + , ; < = > GLower case characters/Numbers/SymbolsH abcdefghijklmnopqrstuvwxyz 0123456789 . @ - _ / : ˜ ? [ \ ] ^ ` { | }

Perform settings related to input source playback.

• You do not have to change the settings to use the unit. Make settings when needed.

Menu operation

Press ZONE SELECT to switch the

zone mode to “MAIN”.

The “MAIN” indicator lights.

Press AMP to set the remote

control unit to amplier operation mode.

Press MENU.

The menu is displayed on the TV screen.

Press ui to select the menu to

be set or operated.

Press ENTER or p to enter the setting.

• To return to the previous item, press RETURN.

• Exiting the Menu, press MENU while the menu is displayed.

The menu display disappears.

Remote control operation

buttons

• The input character type can be switched by pressing the display name is being changed.

Repeat steps 3 and 4 to change the name.

Use uio p to select “[OK]”, then press ENTER.

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

SHIFT while

Page 50

Items that can be set with the Input Setup procedure

Auto Preset (vpage47)

INPUT SE TUP AUTO PRE SET

Star t

Star t the auto pr eset p rocess

ENTE R Ente r R ETURN Retur n

Input Assign (vpage48)

INPUT SE TUP INPUT AS SIGN

Defa ult

BD DVD TV SAT/ CBL DVR GAME V.AU X

Chan ge HDM I input conne ctor a ssignme nt

[ H DMI ]

[ DI GITAL ]

HDMI 1

HDMI 2 None HDMI 3 HDMI 4 HDMI 5 HDMI 6

None Coax 1 Opt1 Coax 2 Opt2 None None

ENTE R Ente rSelect RET URN R eturn

Rename (vpage50)

INPUT SE TUP RENAME

DVD

Defa ult

DVD

[ C OMP ]

None 1-RC A None 2-RC A None None None

RETU RN R eturn

Preset Skip (vpage47) Preset Name (vpage48)

INPUT SE TUP PRESET S KIP

Bloc k

A B lock Presets A1 FM 87. 50MHz A2 FM 87. 90MHz A3 FM 89. 10MHz A4 FM 93. 30MHz A5 FM 97. 90MHz A6 AM 9 8.10MHz A7 AM 9 8.90MHz A8 AM 1 00.10M Hz

Chan ge mem ory blo cks

ON ON ON ON ON ON ON ON ON

[1/7 ]

RETU RN R eturn

Video (vpage49)

INPUT SE TUP VIDEO

Vide o Sele ct

Vide o Mode Vide o Conv ert i/p Scaler Reso lution (Analog ) Reso lution (HDMI) Prog ressiv e Mode Aspe ct

Sele ct des ired vi deo in put so urce

Sour ce

Auto ON Anal og & H DMI Auto Auto Auto Full

RETU RN R eturn

Source Level (vpage51)

INPUT SE TUP SOURCE L EVEL

Anal og Inp ut

Digi tal In put

Comp ensate analog audio input playba ck lev el

0 dB

RETU RN R eturn

INPUT SE TUP PRESET N AME

Bloc k

A1 FM 87. 50MHz A2 FM 87. 90MHz A3 FM 89. 10MHz A4 FM 93. 30MHz A5 FM 97. 90MHz A6 AM 9 8.10MHz A7 AM 9 8.90MHz A8 AM 1 00.10M Hz

Chan ge mem ory blo cks

[ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]

[1/7 ]

RETU RN R eturn

Input Mode (vpage50)

INPUT SE TUP INPUT MO DE

Inpu t Mode

Deco de Mod e

Auto matica lly det ect in put si gnal an d play back

Auto

RETU RN R eturn

Playback Mode (vpage51)

INPUT SE TUP PLAYBACK MODE

Repe at

Shuf fle

Repe at all songs

All

OFF

RETU RN R eturn

Input Setup

Important information

n About the display of input sources

In this section, the conﬁgurable input sources for each item are shown as follows.

BD DVD TV SAT/CBL DVR GAME V.AUX DOCK USB/iPod HD Radio CD

NOTE

Input sources that have been set to “Delete” at “Source Delete” (vpage62) cannot be selected.

Auto Preset

Use the auto preset function to program radio stations.

Setting items Setting details

Start

Start the auto preset process.

HD Radio

Preset Skip

Set preset ch to be skipped when selecting.

Setting items Setting details

A – G

Set the preset channels you do not want to display. You can set by preset memory block (A to G) or by preset channel (1 to 8).

HD Radio

If an FM station cannot be preset automatically, select the desired

station by tuning it in manually, then preset it manually.

Default settings are underlined.

1 – 8 : Set by individual preset channels in the currently selected preset

memory block.

• ON : Display the selected preset channel.

• Skip : Do not display the selected preset channel.

If you set “Block Presets” to “Skip”, you can skip the preset memory

blocks (A to G).

ENGLISH

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 51

ENGLISH

Input Setup

Preset Name

Assign name to a preset memory.

Setting items Setting details

A1 – G8

Select the preset channel.

HD Radio

Default

The changed preset name is returned to the default setting.

• Up to eight characters can be input.

• For character input, see page 45.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Input Assign

Examples of input assign menu screen displays

q Input Source w HDMI input e Digital audio input r Component video input

INPUT SETUP INPUT ASSIGN

Def ault

BD DVD TV SAT /CBL DVR GAM E V.A UX

Cha nge H DMI i npu t con nec to r a ss ign ment

[ HDMI ]

HDM I1

HDM I2 Non e HDM I3 HDM I4 HDM I5 HDM I6

[ D IGITA L ]

Non e Coa x1 Opt 1 Coa x2 Opt 2 Non e Non e

ENT ER Ent erSel ect R ET URN Ret urn

ew r

[ COMP ]

Non e 1-R CA Non e 2-R CA Non e Non e Non e

Input assignments menu operations

Use uio p to move the highlight to the item you want to set.

Press ENTER, then use o p to select the input connector to be

assigned.

Setting items Setting details

HDMI

Set this to change the HDMI input connectors assigned to the input sources.

BD DVD TV

SAT/CBL

GAME V.AUX DOCK

Digital

Set this to change the digital input connectors assigned to the input sources.

BD DVD TV

SAT/CBL

GAME V.AUX DOCK

DVR

HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 / HDMI 5 / HDMI 6 None : Do not assign an HDMI input connector to the selected input

source.

• At time of purchase, the settings of the different input sources are as shown below.

Input source

Default setting

• An input source to which an HDMI input connector cannot be assigned is displayed as “– – –”.

• To play the video signal assigned at “HDMI” combined with the audio signal assigned at “Input Assign“ – “Digital”, select “Digital” at “Input Mode” (vpage50).

• The audio signals input from the analog and digital connectors are not output to the monitor.

• When a control dock for iPod is connected, signals cannot be assigned to the HDMI connectors.

• When “HDMI Control” (vpage60) is set to “ON”, HDMI input connector cannot be assigned to “TV”.

COAX1 – 2 (COAXIAL) / OPT1 – 2 (OPTICAL) None : Do not assign a digital input connector to the selected input source.

• At time of purchase, the settings of the different input sources are as shown below.

Input source BD DVD TV

Default setting

Input source GAME V.AUX

Default setting

BD DVD TV

HDMI 1HDMI

None

None None None None

SAT/

DVR GAME V.AUX

CBL

HDMI 3HDMI 4HDMI 5HDMI

None

COAX

OPT

DOCK

SAT/ CBL

COAX

DOCK

None

DVR

OPT

Press ENTER to register the setting.

NOTE

If all “HDMI”, “Digital” and “Component” assignment of the Game source are set to “None”, Game source cannot be selected with the input source selection.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 52

ENGLISH

Input Setup

Setting items Setting details

Component

Set this to change the component video input connectors assigned to the input sources.

BD DVD TV

SAT/CBL

GAME V.AUX DOCK

Default

The “Input Assign” settings are returned to the default settings.

DVR

Video

Set the source video.

z “BD”, “TV” or “GAME” can be set when “HDMI” (vpage48) or “Component” (vpage49) has been

assigned.

Setting items Setting details

Video Select

Video of another input source is played back combined with the playing audio.

1-RCA / 2-RCA (Component video) None : Do not assign a component video input connector to the selected

input source.

• At time of purchase, the settings of the different input sources are as shown below.

Input source

Default setting

• An input source to which an component video input connector cannot be assigned is displayed as “– – –”.

• When a control dock for iPod is connected, signals cannot be assigned to the component video connectors.

Yes : Reset to the defaults. No : Do not reset to the defaults.

If you select “Default” and press ENTER, the message “Default

Setting?” is displayed. Select “Yes” or “No”, and then press ENTER.

Source : Play the picture and sound of the input source. BD / DVD / TV / SAT/CBL / DVR / GAME / V.AUX / DOCK : Select video

input source to view. This can be set for individual input sources.

“BD”, “TV”, and “GAME” can be selected only when a component

video connector is assigned as an input source.

BD DVD TV

None 1-RCA None 2-RCA None None None None

SAT/

DVR GAME V.AUX

CBL

Default settings are underlined.

DOCK

NOTE

• It is not possible to select HDMI input signals.

• Input sources for which “Delete” is selected at “Source Delete” (vpage62) cannot be selected.

Setting items Setting details

Video Mode

Make settings for video processing.

GAME

Video Convert

The input video signal is converted automatically in conjunction with the connected TV (vpage13 “Converting input video signals for output (Video conversion function)”).

GAME

i/p Scaler

Convert the input source’s resolution to the resolution set at “Resolution”.

GAME

SAT/CBL

DVD TV

DVR

V.AUX DOCK

DVD TV

DVR

V.AUX DOCK

DVD TV

DVR

V.AUX DOCK

Auto : Process video automatically based on the HDMI content information.

Movie : Process video normally. Game : Always process video appropriate for game content.

• If “Video Mode” is set to “Auto”, the mode is switched according to the input contents.

• If a source is played in both MAIN ZONE (audio and video) and ZONE2 (audio only) modes in the same room, audio in MAIN ZONE and ZONE2 modes may sound out of synchronization, but this is not malfunction. In this case, setting to “Game” mode may improve audio synchronization.

ON : The input video signal is converted. OFF : The input video signal is not converted.

• When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate. In this case set “Video Convert” to “OFF”.

• When “Video Convert” is set to “OFF”, the video conversion function does not work. In this case, connect this unit and TV with the same type

of cable.

Analog : Use i/p scaler function for analog video signal. Analog & HDMI : Use i/p scaler function for analog and HDMI video signal. HDMI : Use i/p scaler function for HDMI video signal. OFF : Do not use i/p scaler function.

• “Analog & HDMI” and “HDMI” can be set for input sources for which an HDMI input connector is assigned.

• Which items can be set depend on the input source assigned to each input connector.

• This function is not effective when the input signal is x.v.Color, 3D, sYCC601 color, Adobe RGB color, Adobe YCC601 color or computer resolution.

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 53

ENGLISH

Input Setup

Setting items Setting details

Resolution

Set the output resolution. Resolution (Analog) : Analog Video Resolution (HDMI) : HDMI

GAME

Progressive Mode

Set an appropriate progressive conversion mode for the source video signal.

GAME

Aspect

Set the aspect ratio for the video signals output to the HDMI.

GAME

z “BD”, “TV” or “GAME” can be set when “HDMI” (vpage48) or “Component” (vpage49) has been

assigned.

SAT/CBL

DVD TV

DVR

V.AUX DOCK

DVD TV

DVR

V.AUX DOCK

DVD TV

DVR

V.AUX DOCK

Auto : The number of pixels the TV connected to the HDMI output connector supports is detected automatically and the appropriate output resolution is set. 480p / 576p / 1080i / 720p / 1080p / 1080p:24Hz : Set the output resolution.

• This item can be set when “i/p Scaler” is set to anything other than “OFF”.

• When “i/p Scaler” is set to “Analog & HDMI”, the resolution of both the analog video input signal and HDMI input signal can be set.

• To watch 1080p/24Hz pictures, use a TV that supports 1080p/24Hz video signals.

• When set to “1080p/24Hz”, you can enjoy ﬁlm-like pictures for ﬁlm sources (in 24 Hz). For video sources and mixed sources, we recommend setting the resolution to “1080p”.

• It is not possible to convert a 50 Hz signal into 1080p/24Hz. It is output at a resolution of 1080p/50Hz.

Auto : The video signal is automatically detected and the appropriate mode is set.

Video1 : Select mode suitable for video playback. Video2 : Select mode suitable for video and 30-frame ﬁlm material

playback.

This item can be set when “i/p Scaler” is set to anything other than

“OFF”.

Full : Output at 16:9 aspect ratio. Normal : Output at 4:3 aspect ratio.

“Aspect” can be set when “i/p Scaler” is set to anything other than

“OFF”.

Input Mode

The input modes available for selection may vary depending on the input source.

Setting items Setting details

Input Mode

Set the audio input modes for the different input sources.

Decode Mode

Set the decode mode for input source.

BD DVD TV

SAT/CBL

DOCK GAME V.AUX

DVR

Auto : Automatically detect input signal and perform playback. HDMI : Play only signals from HDMI input. Digital : Play only signals from digital input. Analog : Play only signals from analog input.

• “HDMI” can be set for input sources for which “HDMI” is assigned at

“Input Assign” (vpage48).

• “Digital” can be set for input sources for which “Digital” is assigned at

“Input Assign” (vpage48).

• If the input source is set to “TV” or “Game”, it cannot be set to “Analog”.

• When digital signals are properly input, the indicator lights on the display. If the indicator does not light, check the digital input connector assignment and the connections.

• If “HDMI Control” is set to “ON” and a TV compatible with the ARC is connected via the HDMI MONITOR connectors, the input mode whose input source is “TV” is ﬁxed to ARC.

Auto : Detect type of digital input signal and decode and play automatically. PCM : Decode and play only PCM input signals. DTS : Decode and play only DTS input signals.

• This item can be set for input sources for which “HDMI” or “Digital” is assigned at “Input Assign” (vpage48).

• Normally set this mode to “Auto”. Set “PCM” and “DTS” when inputting the corresponding input signal.

Default settings are underlined.

Rename

Change the display name of the selected input source.

Setting items Setting details

Rename

Change the display name of the selected input source.

Default

The input source name is returned to the default setting.

• Up to eight characters can be input.

• For character input, see page 45.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 54

ENGLISH

Input Setup

Source Level

• This function corrects the playback level of the selected input source’s audio input.

• Make this setting if there are differences in the input volume levels between the different sources.

Setting details

–12dB – +12dB (0dB)

The analog input level and digital input level can be adjusted independently for input sources for

which “HDMI” or “Digital” is assigned at “Input Assign“ (vpage48).

Default settings are underlined.

Playback Mode

Setting items Setting details

Repeat

Make settings for repeat mode.

DOCK USB/iPod

Shufﬂe

Make settings for shufﬂe mode.

DOCK USB/iPod

n For iPod playback

All : All ﬁles are played repeatedly. One : A ﬁle being played is played repeatedly. OFF : Repeat playback mode is canceled.

n For USB memory device playback

All : All ﬁles are played repeatedly. One : A ﬁle being played is played repeatedly. Folder : A ﬁle in the folder being played is played repeatedly.

n For iPod playback (When iPod (USB/iPod), DENON control dock for

iPod ASD-1R or ASD-11R is connected)

Songs : Shufﬂe songs. Albums : Shufﬂe albums. OFF : Shufﬂe playback mode is canceled.

n For iPod playback (When DENON control dock for iPod ASD-3N, ASD-

3W, ASD-51N or ASD-51W is connected)

ON : Shufﬂe playback mode is enabled. OFF : Shufﬂe playback mode is canceled.

n For USB memory device playback

ON : Shufﬂe playback mode is enabled. OFF : Shufﬂe playback mode is canceled.

Audio/Video Adjust

The sound being played in the surround mode can be adjusted to your liking. The items (parameters) that can be adjusted depend on the signal being input and the currently set surround mode. For details on the adjustable parameters, see “Surround modes and surround parameters” (vpage75).

Menu operation

Press ZONE SELECT to switch the zone mode to “MAIN”.

The “MAIN” indicator lights.

Press AMP to set the remote control unit to amplier operation

mode.

Press MENU.

The menu is displayed on the TV screen.

Press ui to select the menu to be set or operated.

Press ENTER or p to enter the setting.

• To return to the previous item, press RETURN.

• Exiting the Menu, press MENU while the menu is displayed.

The menu display disappears.

Items that can be set with the Audio/Video Adjust procedure

Audio Adjust (vpage52)

n Surround Parameter (vpage52) n Tone (vpage53) n Audyssey Settings (vpage54) n Manual EQ (vpage55) n RESTORER (vpage56) n Audio Delay (vpage56)

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Picture Adjust (vpage56)

Conﬁrm the setting Return to previous menu

Page 55

ENGLISH

Audio/Video Adjust

Audio Adjust

n Surround Parameter

Adjust surround sound parameters. It may not be possible to set this item depending on the input signal

Setting items Setting details

Mode

Set the play modes for the different surround modes.

Cinema EQ

Soften the treble range of movie soundtracks for better understanding.

DRC

Compress dynamic range (difference between loud and soft sounds).

D.Comp

Compress dynamic range (difference between loud and soft sounds).

LFE

Adjust the low-frequency effects level (LFE).

C.Image

Assign center channel signal to front left and right channels for wider sound.

n In the PLgx or PLg mode

Cinema : Surround sound mode optimized for movie sources. Music : Surround sound mode optimized for music sources. Game : Surround sound mode optimized for games. Pro Logic : Dolby Pro Logic playback mode (PLg mode only).

n In the PLgz mode

Height : Dolby PLgz Height playback mode.

n In the DTS NEO:6 mode

Cinema : Surround sound mode optimized for movie sources. Music : Surround sound mode optimized for music sources.

• When “Surround Parameter” – “F.Height” (vpage53) is set to “ON”,

the “Height” mode is set automatically.

• The “Music” mode is also effective for movie sources including a lot of stereo music.

ON : “Cinema EQ” is used. OFF : “Cinema EQ” is not used.

Auto : Automatic dynamic range compression on/off control according to

source. This can be set in the Dolby TrueHD mode.

Low / Mid / High : These set the compression level. OFF : Dynamic range compression always off.

Low / Mid / High : These set the compression level. OFF : Turn dynamic range compression off.

–10dB – 0dB

For proper playback of the different sources, we recommend setting

to the values below.

• Dolby Digital sources : “0dB”

• DTS movie sources : “0dB”

• DTS music sources : “–10dB”

0.0 – 1.0 (0.3)

Default settings are underlined.

Setting items Setting details

Panorama

Assign front L/R signal also to surround channels for wider sound.

Dimension

Shift sound image center to front or rear to adjust playback balance.

C.Width

Assign center channel signal to front left and right channels for wider sound.

Delay Time

Adjust delay time to control sound stage size.

Effect Lev.

Adjust effect signal level.

Room Size

Determine size of acoustic environment.

ON : Set. OFF : Do not set.

0 – 6 (3)

0 – 7 (3)

0ms – 300ms (30ms)

1 – 15 (10)

Set to a lower level if the positioning and sense of phase of the

surround signals seems unnatural.

Small : Simulate acoustics of a small room. Medium-S : Simulate acoustics of a medium-small room. Medium : Simulate acoustics of a medium room. Medium-L : Simulate acoustics of a medium-large room. Large : Simulate acoustics of a large room.

NOTE

“Room Size” does not indicate the size of the room in which sources are played.

AFDM (Auto ﬂag detect mode)

Detect the source’s surround back channel signal and set the optimum surround mode automatically.

ON : Set. OFF : Do not set.

[Example] Playing Dolby Digital software (with EX ﬂag)

• When “AFDM” is set to “ON”, the surround mode is automatically set

to the DOLBY D + PLgx C mode.

• To play in the DOLBY DIGITAL EX mode, set “AFDM” to “OFF” and “Surround Parameter” – “S.Back” to “MTRX ON”.

Some Dolby Digital EX sources do not include EX ﬂags. If the playback

mode does not switch automatically even when “AFDM” is set to “ON”, set “Surround Parameter” – “S.Back” to “MTRX ON” or “PLgx C”.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 56

ENGLISH

Audio/Video Adjust

Setting items Setting details

S.Back

Sets the method of generating of the surround back channel.

n For 2-channel sources

ON : The surround back channel is used. OFF : No signal is played from the surround back channels.

n For Multi-channel sources

Set the decoding method for the surround back channel. DSCRT ON : Play the surround back signals included in the 7.1-channel source. MTRX ON : Generate and play the surround back signals from the surround channel signals. ES MTRXz1 : Generate and play the surround back signals from the surround channel signals of the DTS source. ES DSCRTz2 : Play the surround back signals included in the

6.1-channel DTS source. PLgx Cz3 : Generate and play the surround back signals by decoding the signals in the Dolby Pro Logic gx Cinema mode. PLgx M : Generate and play the surround back signals by decoding the signals in the Dolby Pro Logic gx Music mode. OFF : Do not play the surround back channel.

z1 This can be selected when playing DTS sources. z2 This can be selected when playing DTS sources including a signal to

identify discrete 6.1-channel signals.

z3 This can be selected when “Speaker Conﬁg.” – “S.Back” (vpage58)

is set to “2spkrs”.

• This can also be set by pressing STANDARD.

• If the source being played contains a surround back signal, the decoder type is automatically selected by the AFDM function. Set “AFDM” to “OFF” to switch to your preferred decoder.

NOTE

If the setting in “Speaker Conﬁg.” – “S.Back” (vpage 58) is “None”, “S.Back” is not displayed.

F.Height

Determine whether to use front height channel.

ON : Audio is output from the front height speaker. OFF : Audio is not output from the front height speaker.

NOTE

• “F.Height” is displayed for the following settings.

• When “Amp Assign” (vpage57) is set to “Front Height”.

• When the “Speaker Conﬁg.” – “F.Height” setting (vpage58) is set to

other than “None”.

• “F.Height” cannot be set if the HD Audio source being played includes a front height channel. In this case, the Front height channel is played back without decoding in PLgz mode, using the input signal.

Setting items Setting details

Height Gain

Control the front height channel volume.

Low : Reduce the front height channel volume. Mid : Front height channel sound is output with standard sound volume. High : Increase the front height channel volume.

NOTE

“Height Gain” is displayed for the following settings.

• When “Amp Assign” (vpage57) is set to “Front Height”.

• When the “Speaker Conﬁg.” – “F.Height” setting (vpage58) is set to

other than “None”.

• When surround mode is “PLgz” or the PLgz decoder is used.

Subwoofer

Turn subwoofer output on and off.

Default

The “Surround Parameter” settings are returned to the default settings.

ON : The subwoofer is used. OFF : The subwoofer is not used.

NOTE

This can be set when the surround mode is “DIRECT” (vpage30), “PURE DIRECT” (vpage30) and the “SW Mode” (vpage58) is “LFE+Main”.

Yes : Reset to the defaults. No : Do not reset to the defaults.

n Tone

Adjust the tonal quality of the sound.

Setting items Setting details

Tone Control

Set the tone control function to ON and OFF.

Bass

Adjust low frequency range (bass).

Treble

Adjust high frequency range (treble).

ON : Allow tone adjustment (bass, treble). OFF : Playback without tone adjustment.

“Tone Control” can be set when “Dynamic EQ” (vpage 54) is set to “OFF”.

NOTE

• “Tone Control” settings are not reﬂected to ZONE2.

• The tone cannot be adjusted in the direct mode.

–6dB – +6dB

“Bass” can be set when “Tone Control” is set to “ON”.

–6dB – +6dB

“Treble” can be set when “Tone Control” is set to “ON”.

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 57

ENGLISH

Audio/Video Adjust

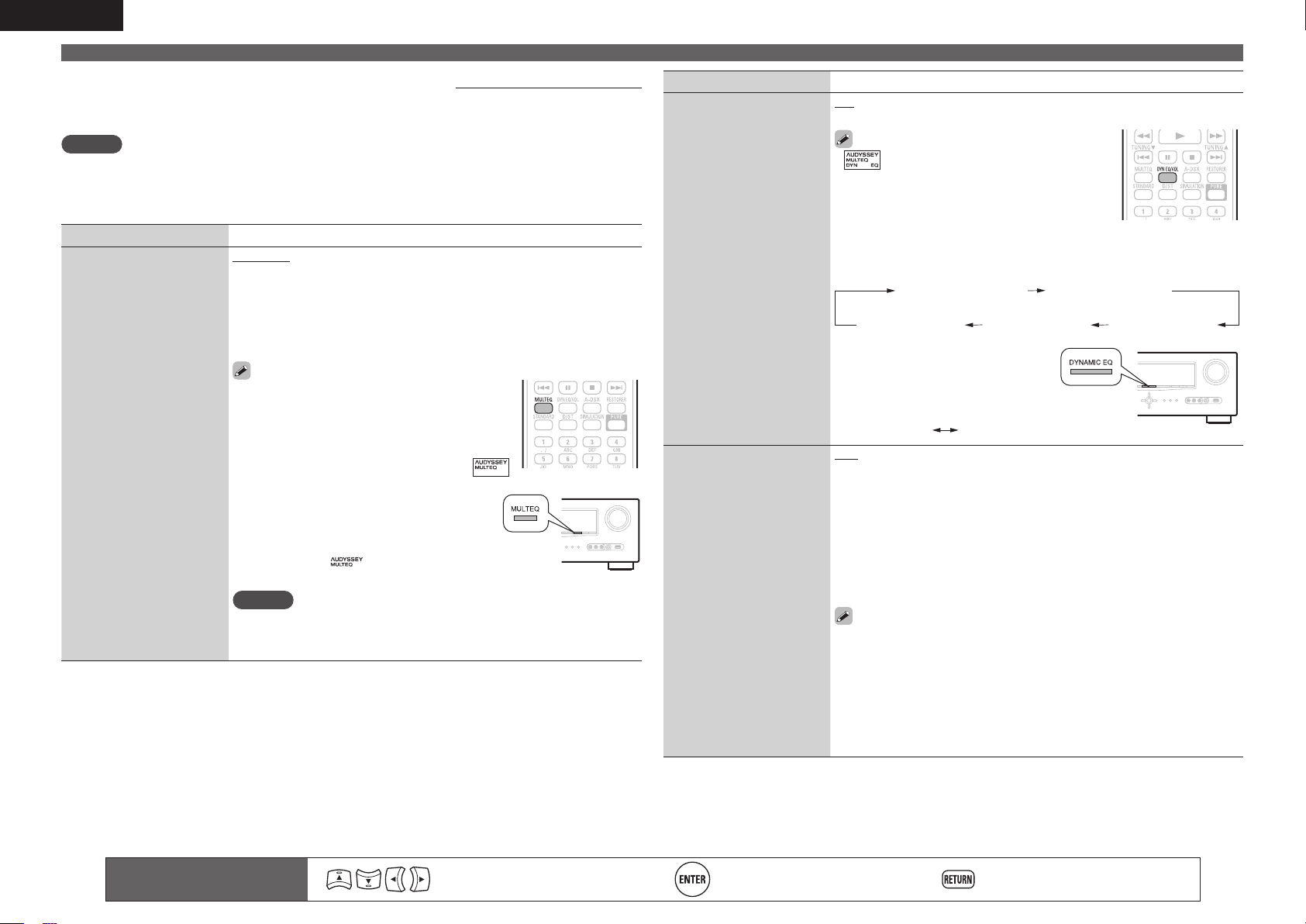

n Audyssey Settings

Set MultEQ®, Dynamic EQ® and Dynamic Volume®. These can be selected after Audyssey® Auto Setup has been performed. For additional information on Audyssey technology, please see page 80.

Default settings are underlined.

NOTE

If you have not performed Auto Setup, or if you change the speaker settings after performing Auto Setup, you may not be able to select Dynamic EQ/Dynamic Volume, and “Run Audyssey” may be displayed. In this case, either perform Audyssey Auto Setup over again or perform “Restore” (vpage10) to return to the settings after Audyssey Auto Setup was run.

Setting items Setting details

MultEQ

Select one equalizer from three modes. MultEQ corrects both time and frequency response problems in the listening area based on Audyssey Auto Setup calibration. We recommend “Audyssey”. MultEQ is the prerequisite function for Dynamic EQ and Dynamic Volume.

Audyssey : Optimize the frequency response of all speakers. Audyssey Byp.L/R : Optimize frequency response of speakers except

front L and R speakers. Audyssey Flat : Optimize frequency response of all speakers to ﬂat response.

Manual : Apply frequency response set with “Manual EQ” (vpage55). OFF : Turn “MultEQ” equalizer off.

• “Audyssey”, “Audyssey Byp. L/R” and “Audyssey Flat” can be selected after Audyssey Auto Setup has been performed. “Audyssey” is automatically selected after performing Audyssey Auto Setup. When “Audyssey”, “Audyssey Byp. L/R” or “Audyssey Flat” is selected, illuminates.

• After running Audyssey Auto Setup, if the Speaker Conﬁguration, Distance, Channel Level, and Crossover Frequency have changed without increasing the number of speakers measured, only illuminates.

• Pressing MULTEQ makes this setting.

NOTE

• “MultEQ” and “Manual” cannot be selected when “EQ Customize” is set to “Not Used” (vpage61).

• When using headphones, “MultEQ” is automatically set to “OFF”.

Setting items Setting details

Dynamic EQ

Solve the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.

Reference Level Offset

Audyssey Dynamic EQ is referenced to the standard ﬁlm mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, ﬁlm reference level is not always used in music or other non-ﬁlm content. Dynamic EQ Reference Level Offset provides three offsets from the ﬁlm level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.

ON : Use Dynamic EQ. OFF : Do not use Dynamic EQ.

• is displayed when set to “ON”.

• Buttons on the remote control unit or main unit can be used for operations.

GOperations with the remote control unitH

Press DYN EQ/VOL. Each time DYN EQ/VOL is pressed, the setting is changed as shown

below.

Dynamic EQ : ON Dynamic Volume : Midnight

Dynamic EQ : OFF Dynamic Volume : OFF

GOperations with the main unitH

Press DYNAMIC EQ. Each time DYNAMIC EQ is pressed, the setting is changed as shown below.

Dynamic EQ : ON Dynamic EQ : OFF

0dB (Film Ref) : This is the default setting and should be used when listening to movies. 5dB : Select this setting for content that has a very wide dynamic range, such as classical music. 10dB : Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below ﬁlm reference. 15dB : Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.

Setting is enabled when “Dynamic EQ” is “ON” (vpage54).

Dynamic EQ : ON Dynamic Volume : OFF

Dynamic EQ : ON Dynamic Volume : Evening

Dynamic EQ : ON Dynamic Volume : Day

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 58

ENGLISH

Audio/Video Adjust

Setting items Setting details

Dynamic Volume

Solve the problem of large variations in volume level between TV, movies and other content (between quiet passages and loud passages, etc.) by automatically adjusting to the user’s preferred volume setting.

Midnight : Most adjustment to softest and loudest sounds. Evening : Medium adjustment to loudest and softest sound. Day : Least adjustment to loudest and softest sounds. OFF : Do not use the “Dynamic Volume”.

• is displayed when set to “ON”.

• If “Dynamic Volume” is set to “Yes” in Auto Setup (vpage 9), the

setting is automatically changed to “Evening”.

• Buttons on the remote control unit or main unit can be used for operations.

GOperations with the remote control unitH

DYN EQ/VOL.

Press Each time DYN EQ/VOL is pressed, the setting is changed as shown below.

Dynamic EQ : ON Dynamic Volume : Midnight

Dynamic EQ : OFF Dynamic Volume : OFF

GOperations with the main unitH

Press DYNAMIC VOLUME. Each time DYNAMIC VOLUME is pressed, the setting is changed as shown below.

Dynamic Volume : OFF

Dynamic Volume : Day

Dynamic EQ : ON Dynamic Volume : OFF

Dynamic EQ : ON Dynamic Volume : Evening

Dynamic EQ : ON Dynamic Volume : Day

Dynamic Volume : Midnight

Dynamic Volume : Evening

n Manual EQ

Use the graphic equalizer to adjust the tone of each speaker. “Manual EQ” can be set when “MultEQ®” setting (vpage54) is “Manual”.

Setting items Setting details

Adjust CH

Correct the tone of each speaker.

Base Curve Copy

Copy “Audyssey Flat” curve from MultEQ.

Default

The “Manual EQ” settings are returned to the default settings.

q Select the speaker tone adjustment method.

All : Adjust the tone of all speakers together. L/R : Adjust the tone of left and right speakers together. Each : Adjust the tone of each speaker.

w Select the speaker. e Select the adjustment frequency band.

63Hz / 125Hz / 250Hz / 500Hz / 1kHz / 2kHz / 4kHz / 8kHz / 16kHz

• Select the speakers you want to adjust when “L/R” or “Each” is selected.

r Adjust the level.

–20.0dB – +6.0dB (0.0dB)

Yes : Copy. No : Do not copy.

“Base Curve Copy” is displayed after Audyssey Auto Setup has been

performed.

Yes : Reset to the defaults. No : Do not reset to the defaults.

Default settings are underlined.

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 59

ENGLISH

OFF Mode 1

Mode 2

Audio/Video Adjust

n RESTORER

Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The RESTORER function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also corrects the sense of volume of the bass to obtain richer sound with compressed audio signals.

Setting details

OFF : Do not use RESTORER. Mode 1 (RESTORER 64) : Optimized mode for compressed sources with very weak highs. Mode 2 (RESTORER 96) : Apply suitable bass and treble boost for all compressed sources. Mode 3 (RESTORER HQ) : Optimized mode for compressed sources with normal highs.

• This item can be set with analog signals or when a PCM signal (fs = 44.1/48 kHz) is input.

• This cannot be set when the surround mode is set to “DIRECT” or “PURE DIRECT”.

• This item default setting for “iPod” and “USB/iPod” is “Mode 3”. All others are set to “OFF”.

• When set to something other than “OFF”, is displayed.

• Pressing RESTORER on the remote control unit or the main unit makes this setting.

(RESTORER 64)

Mode 3

(RESTORER HQ)

n Audio Delay

While viewing video, manually adjust the time to delay audio output.

0ms – 200ms

(RESTORER 96)

Default settings are underlined.

Setting details

Picture Adjust

DVD TV SAT/CBL DVR GAME V.AUX

• This item can be set when the input source is

DOCK

• With input sources other than the ones above, this item can be set when “Video Select” is selected. In

• Can be set when the “Video Convert” setting (vpage49) is “ON”.

• “BD”, “TV”, or “GAME” can be set when “HDMI” (vpage48) or “Component” (vpage49) has been

Contrast

Adjust picture contrast.

Brightness

Adjust picture brightness.

Chroma Level

Adjust picture chroma level (saturation).

Hue

Adjust color hue.

DNR

Reduce overall picture noise.

Enhancer

Emphasize picture contours.

• “DNR” and “Enhancer” are each effective with HDMI output.

• The value set at “Picture Adjust” is stored in the memory individually for each input source.

this case, the original input source settings are called out.

assigned.

Setting items Setting details

–6 – +6 (0)

0 – +12

–6 – +6 (0)

OFF / Low / Mid / High

0 – +12

Default settings are underlined.

• This item can be set within the range of 0 to 100 ms when “Auto Lip Sync” is set to “ON” and when a TV compatible with Auto Lip Sync is connected.

• Store “Audio Delay” for each input source.

• Audio Delay for game mode can be set when “Video Mode” (vpage49) is set to “Game”.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 60

ENGLISH

Manual Setup

Set when changing Audyssey® Auto Setup settings, or when changing the audio, video, display or other settings.

• If you change the speaker settings after performing Audyssey Auto Setup, it will not be possible to set MultEQ®, Dynamic EQ® and Dynamic Volume® (vpage54, 55).

• Can be used without changing the settings. Please set if necessary.

Menu operation

Press ZONE SELECT to switch the zone mode to “MAIN”.

The “MAIN” indicator lights.

Press AMP to set the remote control unit to amplier operation

mode.

Press MENU.

The menu is displayed on the TV screen.

Press ui to select the menu to be set or operated.

Press ENTER or p to enter the setting.

• To return to the previous item, press RETURN.

• Exiting the Menu, press MENU while the menu is displayed.

The menu display disappears.

Items that can be set with the Manual Setup procedure

Speaker Setup (vpage57)

MANUAL S ETUP SPEAKER SETUP

Amp Assign

Spea ker Co nfig. Bass Setti ng Dist ance Chan nel Le vel Cros sover Frequen cy Fron t Spea ker Set up

Assi gn sur round b ack AM P for other u se

ZONE2 Setup (vpage61) Option Setup (vpage62)

MANUAL S ETUP ZONE2 SE TUP [1/2]

Bass

Treb le HPF Leve l Lch Leve l Rch Chan nel

Adju st low freque ncy ra nge (b ass)

HDMI Setup (vpage60) Audio Setup (vpage60)

MANUAL S ETUP HDMI SET UP

RGB Range

Auto Lip S ync HDMI Audio Out HDMI Contr ol

Use video range f rom 16 (blac k) to 2 35 (wh ite)

0 dB

0 dB OFF 0 dB 0 dB Ster eo

RETU RN R eturn

Norm al

ON AMP OFF

RETU RN R eturn

MANUAL S ETUP OPTION S ETUP

Volu me Con trol

Sour ce Del ete GUI Remo te Pre set Cod es Quic k Sele ct Name Zone Renam e Trig ger Ou t Remo te ID Setup

Make setti ngs for volum e cont rol

MANUAL S ETUP AUDIO SE TUP

2ch Direct /Stereo

Auto Surro und Mod e EQ C ustomi ze

Make vario us sett ings f or 2ch mode p laybac k

Speaker Setup

Default settings are underlined.

Perform when setting the speakers manually or when changing settings made in Audyssey Auto Setup.

• If you change the speaker settings after performing Audyssey Auto Setup, it will not be possible to select

MultEQ, Dynamic EQ and Dynamic Volume (vpage54, 55).

• Manual Setup can be used without changing the settings. Please set if necessary.

Setting items Setting details

Amp Assign

Set the speakers connected to this unit.

Normal : Set when using 7.1-channel (Front/Center/Surround/Surround Back/Subwoofer) speakers. ZONE2 : Set for connecting the speakers for ZONE2 to the SURR. BACK/ AMP ASSIGN terminals. Front Height : Set for connecting the front height speakers to the SURR. BACK/AMP ASSIGN terminals. Bi-Amp : Set for connecting a tweeter of a front speaker to the SURR. BACK/AMP ASSIGN terminals and a woofer of the front speaker to the FRONT terminals. Front B : Set for connecting the second front speakers to the SURR. BACK/AMP ASSIGN terminals. In this case, make settings for “Front Speaker Setup” (vpage59). 2CH : Set for 2-channel direct/stereo playback. When “2CH” is set, connect the second set of front speakers to the SURR.BACK/AMP ASSIGN terminals.

Since “Amp Assign” of this unit is set to “ZONE2” by default, audio is

not output from the surround back speakers. When using the surround back speakers with MAIN ZONE, change the “Amp Assign” setting to “Normal”.

Speaker Conﬁg.

Select speaker conﬁguration and size (bass reproduction capability).

NOTE

Do not use the outward shape of the speaker to determine selection of a “Large” or “Small” speaker. Instead, use the frequencies set in “Crossover Frequency” (vpage59) as the standard for determining bass reproduction capability.

Front : Set the front speaker size.

• Large : Use a large speaker that can adequately play back low

frequencies.

• Small : Use a small speaker that has inadequate playback capacity for

low frequencies.

• When “Subwoofer” is set to “No”, “Front” is automatically set to “Large”.

• When “Front” is set to “Small”, “Center”, “Surround“, “S.Back” and “F.Height” can not be set to “Large”.

Center : Set the presence and size of the center speaker.

• Large : Use a large speaker that can adequately play back low frequencies.

• Small : Use a small speaker that has inadequate playback capacity for low frequencies.

• None : Select when a center speaker is not connected.

“Large” is not displayed when “Front” is set to “Small”.

Subwoofer : Set the presence of a subwoofer.

• Yes : Use a subwoofer.

• No : Select when a subwoofer is not connected.

When “Front” is set to “Small”, “Subwoofer” is automatically set to

“Yes”.

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 61

ENGLISH

Manual Setup

Setting items Setting details

Speaker Conﬁg.

(Continued)

Surround : Set the presence and size of the surround speakers.

• Large : Use a large speaker that can adequately play back low

frequencies.

• Small : Use a small speaker that has inadequate playback capacity for

low frequencies.

• None : Select when the surround speakers are not connected.

• When “Surround” is set to “Large”, “S.Back” and “F.Height” can be set to “Large”.

• When “Surround” is set to “None”, “S.Back” and “F.Height” can automatically set to “None”.

S.Back : Set the presence, size and number of surround back speakers.

• Large : Use a large speaker that can adequately play back low frequencies.

• Small : Use a small speaker that has inadequate playback capacity for low frequencies.

• None : Select when the surround back speakers are not connected.

• 2spkrs : Use two surround back speakers.

• 1spkr : Use only one surround back speaker. When you select this setting, connect the surround back speaker to the left (L) channel.

Even when the “S.Back“ setting is other than “None”, sound may

not be emitted from the surround back speaker, depending on the playback source. In this case, make “Surround Parameter” – “S.Back” setting other than “OFF” (vpage53).

NOTE

When the “Amp Assign” setting (vpage57) is other than “Normal”, you cannot make the “S.Back” setting.

F.Height : Set the presence and size of the front height speakers.

• Large : Use a large speaker that can adequately play back low frequencies.

• Small : Use a small speaker that has inadequate playback capacity for low frequencies.

• None : Select when the front height speakers are not connected.

NOTE

When the “Amp Assign” setting (vpage57) is other than “Front Height”, you cannot make the “F.Height” setting.

Setting items Setting details

Bass Setting

Set subwoofer and LFE signal range playback.

SW Mode : Select low range signals to be reproduced by subwoofer.

• LFE : The low range signal of the channel set to “Small” speaker size is

added to the LFE signal output from the subwoofer.

• LFE+Main : The low range signal of all channels is added to the LFE

signal output from the subwoofer.

• “SW Mode” can be set when “Speaker Conﬁg.” – “Subwoofer”

(vpage57) is set to “Yes”.

• Play music or a movie source and select the mode offering the strongest bass.

• Select “LFE+Main” if you want the bass signals to always be produced from the subwoofer.

NOTE

If “Front” and “Center” for “Speaker Conﬁg.” are set to “Large”, and “SW Mode” is set to “LFE”, no sound may be output from the subwoofers, depending on the input signal or selected surround mode.

LPF for LFE : Set LFE signal playback range.

• 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz

Distance

Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each speaker.

Unit : Set the unit of distance.

• Feet / Meters

Step : Set the minimum variable width of the distance.

• 1ft / 0.1ft

• 0.1m / 0.01m

Front L / Front R / Center / Subwoofer / Surround L / Surround R / S.Back Lz / S.Back Rz / F.Height L / F.Height R : Select the speaker.

z When the “Speaker Conﬁg.” – “S.Back” setting (vpage58) is set to

“1spkr”, “S.Back” is displayed.

• 0.0ft – 60.0ft / 0.00m – 18.00m : Set the distance.

• The speakers that can be selected differ depending on the “Amp Assign” (vpage57) and “Speaker Conﬁg.” (vpage57) settings.

• Default settings : Front L / Front R / Center / Subwoofer / F.Height L / F.Height R : 12.0 ft (3.6 m) Surround L / Surround R / S.Back L / S.Back R : 10.0 ft (3.0 m)

• Set the difference in the distance between the speakers to less than 20 ft (6.0 m).

NOTE

Speakers set to “None” in “Speaker Conﬁg.” (vpage57) are not displayed.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 62

ENGLISH

Manual Setup

Setting items Setting details

Distance

(Continued)

Channel Level

Set the volume of the test tone to be the same when it is output from each speaker.

Default : The “Distance” settings are returned to the default settings.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

When you select “Default” and press ENTER, the “Default Setting?”

prompt is displayed. Select either “Yes” or “No”, and press ENTER.

Test Tone Start : Output test tone.

• Front L / F.Height L / Center / F.Height R / Front R / Surround R / S.Back Rz / S.Back Lz / Surround L / Subwoofer : Select the speaker.

z When the “Speaker Conﬁg.” – “S.Back” setting (vpage58) is set to

“1spkr”, “S.Back” is displayed.

• –12.0dB – +12.0dB (0.0dB) : Adjust the volume.

• When o is pressed while the subwoofer volume is set to “–12 dB”, the “Subwoofer” setting switches to “OFF”.

• When “Channel Level” is adjusted, the adjusted values are set for all the surround modes. To adjust the channel level separately for the different surround modes, use the operation see page 39.

NOTE

• Speakers set to “None” in the “Speaker Conﬁg.” (vpage57) settings are not displayed.

• When a headphones jack is inserted in the PHONES jack of this unit, the “Channel Level” is not displayed.

Default : The “Channel Level” settings are returned to the default settings.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

When you select “Default” and press ENTER, the “Default Setting?”

prompt is displayed. Select either “Yes” or “No”, and press ENTER.

Setting items Setting details

Crossover Frequency

Set the maximum frequency of the bass signal output from each channel to the subwoofer. Set the Crossover Frequency to suit the bass reproduction capability of the speaker being used.

Front Speaker Setup

Set the front speakers to use for every surround mode.

NOTE

This can be set when “Amp Assign” is set to “Front B” (vpage57).

Crossover : Set the crossover frequency.

• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /

250Hz

Advanced : Specify crossover frequency for each speaker.

• Front / Center / Surround / S.Back / F.Height : Select the speaker.

• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz : Set the crossover frequency.

• “Crossover Frequency” can be set when the “Bass Setting” – “SW Mode” (vpage58) setting is “LFE+Main”, or when you have a speaker that is set to “Small”.

• Always set the crossover frequency to “80Hz”. When using small speakers, however, we recommend setting the crossover frequency to a higher frequency.

• For speakers set to “Small”, sound below the crossover frequency is cut from the sound output. The cut bass sound is output from the subwoofer or front speakers.

• The speakers that can be set when “Advanced” is selected differ depending on the “SW Mode” setting (vpage58).

• When “LFE” is selected, speakers set to “Small” at “Speaker Conﬁg.”

can be set. If the speakers are set to “Large”, “Full Band” is displayed and the setting cannot be made.

• If set to “LFE+Main”, this setting can be made regardless of the

speaker size.

2CH DIRECT/STEREO : The front speakers used in the direct, stereo and

pure direct play modes (2 channel) are set in advance.

• A：Front speaker A is used.

• B：Front speaker B is used.

• A+B：Both front speakers A and B are used.

MULTI CH : The front speakers used in modes other than the direct, stereo and pure direct play modes (2 channel) are set in advance.

• A：Front speaker A is used.

• B：Front speaker B is used.

• A+B：Both front speakers A and B are used.

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 63

ENGLISH

Manual Setup

HDMI Setup

Make settings for HDMI video/audio output.

Setting items Setting details

RGB Range

Set the video range of RGB output from the HDMI connector.

Auto Lip Sync

Make automatic compensation for timing shift in audio and video output.

HDMI Audio Out

Select HDMI audio output device.

HDMI Control

You can link operations with devices connected to HDMI and compatible with HDMI Control.

Standby Source

Sets the HDMI input source to put into standby when the power is on.

Normal : Output with RGB video range (16 (black) to 235 (white)). Enhanced : Output with RGB video range (0 (black) to 255 (white)).

This setting is active when using a TV equipped with a DVI terminal.

ON : Compensated. OFF : Not compensated.

AMP : Play back through speakers connected to the receiver. TV : Play back through TV connected to the receiver.

When the HDMI control function is activated, priority is given to the TV

audio setting (vpage38 “HDMI control function”).

ON : Use HDMI control function. OFF : Do not use HDMI control function.

• When a device that is not compatible with the HDMI control function is connected, set “HDMI Control” to “OFF”.

• Please consult the operating instructions for each connected component to check the settings.

• Refer to “HDMI control function” (vpage38) for more information about the HDMI control function.

NOTE

• When “HDMI Control” is set to “ON”, it consumes more standby power. If you are not using this unit for an extended period, it is

recommended that you unplug the power cord from the power outlet.

• “HDMI Control” does not work when the power to the equipment is off. Either turn power on or set to standby.

• The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.

• If the “HDMI Control” settings have been changed, always reset the power to connected devices after the change.

Last : This item is set at the last-used input source. HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 / HDMI 5 / HDMI 6 : Put the respective

input source into standby.

“Standby Source” can be set when “HDMI Control” is set to “ON”.

Default settings are underlined.

Setting items Setting details

Power Off Control

Links the power standby of this unit to external equipment.

All : If power to a connected TV is turned off independently of the input source, power to this unit is automatically set to standby. Video : If power to a connected TV is turned off when the input source is BD / DVD / TV / SAT/CBL / DVR / GAME / V.AUX / DOCK, power to this unit is automatically set to standby. OFF : This unit does not link with power to a TV.

“Power Off Control” can be set when “HDMI Control” is set to “ON”.

Audio Setup

Make settings for audio playback.

Setting items Setting details

2ch Direct/Stereo

Select the method for setting the speakers used in the 2-channel direct and stereo playback modes.

Setting : Select the method for setting the speakers used in the 2-channel direct and stereo playback modes.

• Basic : The settings at “Speaker Setup” (vpage57) are applied.

• Custom : Make separate settings for 2-channel. Make the following

settings:

Front : Set the front speaker size.

• Large : Use a large speaker that can adequately play back low

frequencies.

• Small : Use a small speaker that has inadequate playback capacity for

low frequencies.

If “Speaker Conﬁg.” – “Subwoofer” (vpage57) is set to “No”, the

setting is automatically set to “Large”.

Subwoofer : Set the presence of a subwoofer.

• Yes : Use a subwoofer.

• No : Select when a subwoofer is not connected.

If “Speaker Conﬁg.” – “Subwoofer” (vpage57) is set to “No”, the

setting is automatically set to “No”. If the “Front” setting is “Small”, the setting is automatically “Yes”.

SW Mode : Select low range signals to be reproduced by subwoofer.

• LFE : When the “2ch Direct/Stereo” – “Front” setting is set to “Large”,

the LFE signal alone is output from the subwoofer. Also, when the “2ch Direct/Stereo” – “Front” setting is set to “Small”, the front channel low range signal is added to the LFE signal output from the subwoofer.

• LFE+Main : The front channel low range signal is added to the LFE signal

output from the subwoofer.

This setting can be set made “2ch Direct/Stereo” – “Subwoofer” is

set to “Yes”.

Default settings are underlined.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 64

ENGLISH

Manual Setup

Setting items Setting details

2ch Direct/Stereo

(Continued)

Auto Surround Mode

Make setting for memorizing surround mode setting for each input signal type.

Crossover : Set the maximum frequency of the bass signal output from each channel to the subwoofer.

• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /

250Hz

• This setting can be set made “2ch Direct/Stereo” – “Subwoofer” is set to “Yes”.

• If the “2ch Direct/Stereo” – “Front” setting is “Large” and the “SW Mode” setting is “LFE”, “Full Band” is displayed and the setting cannot be made.

Dist. FL / Dist. FR : Select the speaker.

• 0.0ft – 60.0ft (12.0ft) / 0.00m – 18.00m (3.60m) : Set the distance to the speaker.

Set so that the difference between the front left speaker and front

right speaker distances is 20.0 ft (6.0 m) or less.

Level FL / Level FR : Select the speaker.

• –12.0dB – +12.0dB (0.0dB) : Adjust the level of each channel.

ON : Memorize settings. Automatically play with the last used surround mode. OFF : Do not memorize settings. Surround mode does not change according to input signal.

• The auto surround mode function lets you store in the memory the surround mode last used for playing the four types of input signals listed below.

q Analog and PCM 2-channel signals w Dolby Digital and DTS 2-channel signals e Dolby Digital and DTS multi-channel signals r LPCM Multi-channel signals

• When playing in PURE DIRECT, the surround mode does not change even if the input signal is changed.

Setting items Setting details

EQ Customize

Set so that unused equalizer settings are not displayed when

MULTEQ is pressed.

The equalizer mode in which “Not Used” is selected cannot be stored and recalled in the Quick Select function.

Audyssey Byp. L/R : Set when not using “Audyssey Byp. L/R” equalizer.

• Used : Use.

• Not Used : Do not use.

Set so that “Audyssey Byp. L/R” settings can be made when

Audyssey Auto Setup is performed.

Audyssey Flat : Set when not using “Audyssey Flat” equalizer.

• Used : Use.

• Not Used : Do not use.

Set so that “Audyssey Flat” settings can be made when Audyssey

Auto Setup is performed.

Manual : Set when not using the “Manual” equalizer.

• Used : Use.

• Not Used : Do not use.

ZONE2 Setup

Set the audio to play back with ZONE2.

Setting items Setting details

Bass

Adjust low frequency range (bass).

Treble

Adjust high frequency range (treble).

HPF

Make settings for cutting the low range to reduce distortion in the bass.

Level Lch

Adjust the left channel output level.

Level Rch

Adjust the right channel output level.

–10dB – +10dB (0dB)

ON : The low range is attenuated. OFF : The low range is not attenuated.

–12dB – +12dB (0dB)

The “Level Lch” can be set when “Channel“ (vpage 62) is set to

“Stereo“.

–12dB – +12dB (0dB)

The “Level Rch” can be set when “Channel“ (vpage62) is set to

“Stereo“.

Basic versionSimple version InformationAdvanced version

Default settings are underlined.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 65

ENGLISH

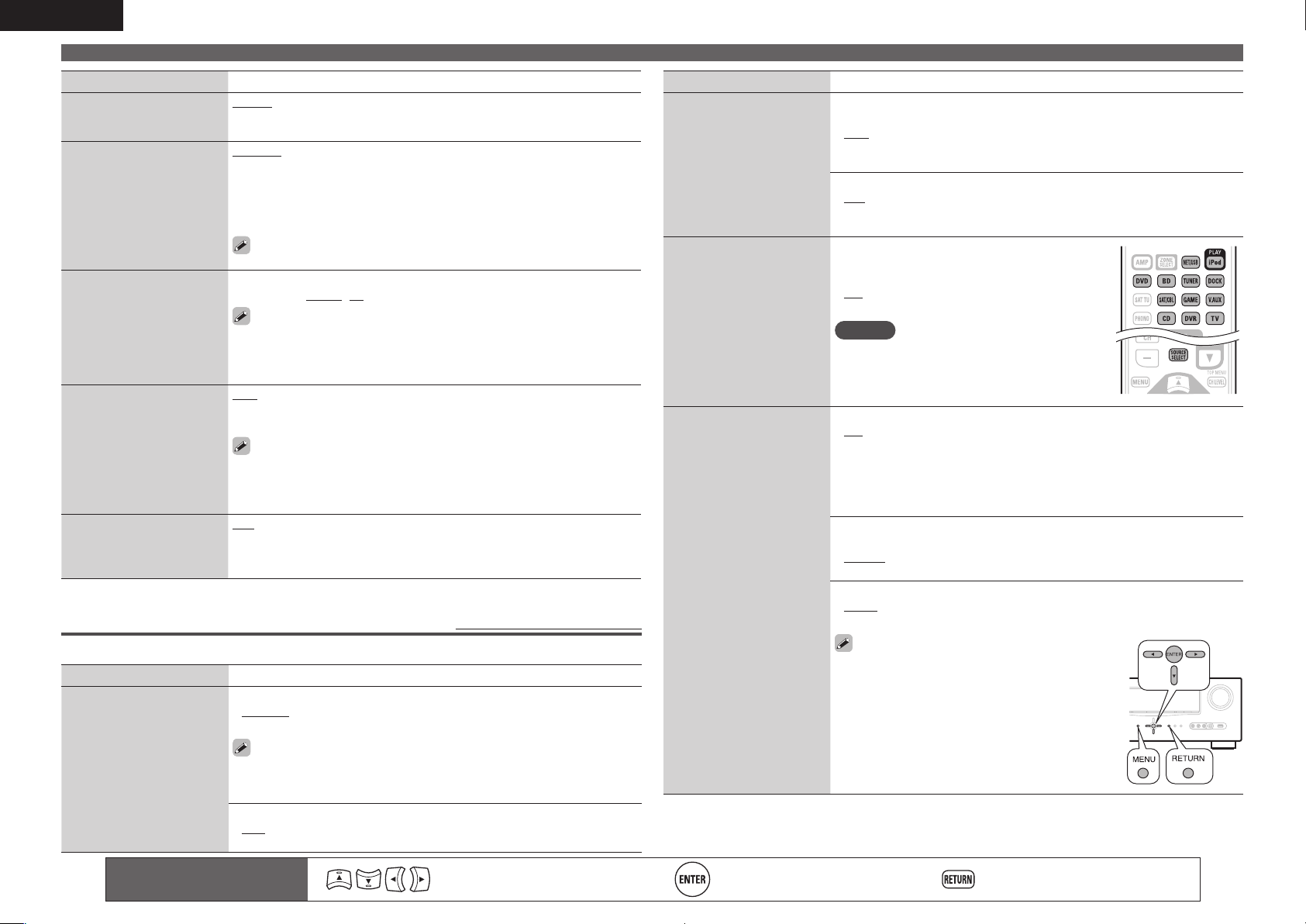

Manual Setup

Setting items Setting details

Channel

Set the signal output from ZONE2.

Volume Level

Set the volume output level.

Volume Limit

Make a setting for maximum volume.

Power On Level

Deﬁne the volume setting that is active when the power is turned on.

Mute Level

Set the amount of attenuation when muting is on.

Stereo : Select stereo output. Mono : Select mono output.

Variable : Volume adjustment is enabled by main unit and remote control

unit. –40dB (41) : Fix volume at –40 dB. Set when adjusting volume by external ampliﬁer. 0dB (81) : Fix volume at 0 dB. Set when adjusting volume by external ampliﬁer.

When “Amp Assign” (vpage57) is set to “ZONE2”, the “Volume

Level” setting is automatically set to “Variable”.

OFF : Do not set a maximum volume. –20dB (61) / –10dB (71) / 0dB (81)

• This can be set when the multi-zone “Volume Level” setting (vpage62) is “Variable”.

• This is displayed from 0 to 99 when “Volume Display” (vpage62) is set to “Absolute”.

Last : Use the memorized setting from the last session. – – – (0) : Always mute when power is turned on. –80dB – 18dB (1 – 99) : The volume is adjusted to the set level.

• This can be set when the multi-zone “Volume Level” setting (vpage62) is “Variable”.

• This is displayed from 0 to 99 when “Volume Display” (vpage62) is set to “Absolute”.

Full : The sound is muted entirely. –40dB : The sound is attenuated by 40 dB down. –20dB : The sound is attenuated by 20 dB down.

Option Setup

Make various other settings.

Setting items Setting details

Volume Control

Set the MAIN ZONE (room where the unit is located) volume setting.

Volume Display : Set how volume is displayed.

• Relative : Display ---dB (Min), in the range –80.5 dB – 18 dB.

• Absolute : Display in the range 0 (Min) – 99.

• The “Volume Display” setting is applied also to the “Volume Limit” and “Power On Level” display method.

• The “Volume Display” setting applies to all zones.

Volume Limit : Make a setting for maximum volume.

• OFF : Do not set a maximum volume.

• –20dB (61) / –10dB (71) / 0dB (81)

Default settings are underlined.

Setting items Setting details

Volume Control

(Continued)

Source Delete

Remove from the display input sources that are not used.

Power On Level : Deﬁne the volume setting that is active when the power is turned on.

• Last : Use the memorized setting from the last session.

• – – – (0) : Always use the muting on condition when power is turned on.

• –80dB – 18dB (1 – 99) : The volume is adjusted to the set level. Mute Level : Set the amount of attenuation when muting is on.

• Full : The sound is muted entirely.

• –40dB : The sound is attenuated by 40 dB down.

• –20dB : The sound is attenuated by 20 dB down. BD / DVD / TV / SAT/CBL / DVR / GAME / V.AUX

/ DOCK / USB/iPod / HD Radio / CD : Select input source that is not used.

• ON : Use this source.

• Delete : Do not use this source.

NOTE

• Input sources being used in the various zones cannot be deleted.

• Input sources set to “Delete” cannot be selected using SOURCE SELECT.

GUI

Make the settings related to displays on the TV screen.

Screensaver : Make screensaver settings.

• ON : The screen saver is activated during menu display, iPod, USB/iPod or HD Radio screen display if no operation is performed for an approximately 3-minute continuous period. When you press uio p, the screensaver is cancelled and the screen before that screen saver started is displayed.

• OFF : Screensaver is not activated.

Wall Paper : Set wallpaper to display in the background when playback is stopped, etc.

• Picture : Set the background to a picture (DENON logo).

• Black : Set the background to black.

Format : Set the video signal format to be output for the TV you are using.

• NTSC : Select NTSC output.

• PAL : Select PAL output.

“Format” can also be set by the following procedure. However, the menu screen is not displayed.

1. Press and hold the main unit’s p and i for at

least 3 seconds. “Video Format” appears on the display.

2. Press o p and set the video signal format.

3. Press the main unit’s ENTER, MENU or RETURN

to complete the setting.

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 66

ENGLISH

Manual Setup

Setting items Setting details

GUI

(Continued)

Remote Preset Codes

Search a preset code to register in the remote control unit.

Quick Select Name

Change the “Quick Select” display title to one you prefer.

Zone Rename

Change the display title of each zone to one you prefer.

NOTE

When a format other than the video format of the connected TV is set, the picture will not be displayed properly.

Text : Display the details of operation when switching surround mode, input mode, etc.

• ON : Turn display on.

• OFF : Turn display off. Master Volume : Display the master volume during adjustment.

• Bottom : Display at the bottom.

• Top : Display at the top.

• OFF : Turn display off.

When the master volume display is hard to see when superimposed

on movie subtitles, set to “Top”.

USB : Set the USB screen display time when the input source is “USB/ iPod”.

• Always : Show display continuously.

• 30sec : Show display for 30 seconds after operation.

• 10sec : Show display for 10 seconds after operation.

• OFF : Turn display off. iPod : Set the iPod screen display time when the input source is “DOCK”

or “USB/iPod”.

• Always : Show display continuously.

• 30sec : Show display for 30 seconds after operation.

• 10sec : Show display for 10 seconds after operation.

• OFF : Turn display off. TUNER : Set the tuner screen display time when the input source is “HD

Radio”.

• Always : Show display continuously.

• 30sec : Show display for 30 seconds after operation.

• 10sec : Show display for 10 seconds after operation.

• OFF : Turn display off. See “Registering preset codes” (vpage65).

• Up to 16 characters can be input.

• For character input, see page 45.

• Up to 10 characters can be input.

• For character input, see page 45.

Setting items Setting details

Trigger Out

Select the condition for activating Trigger Out for the input source, surround mode, etc. See “TRIGGER OUT jacks” (vpage20) for more information on trigger out.

Trigger Out

n When setting for zone (MAIN ZONE / ZONE2)

Trigger out is activated through linkage to the power of the zone set to “ON”.

n When setting for input source

Activate trigger out when the input source set to “ON” is selected.

Active for the zone set to “ON” with “When Setting for Zone”.

n When setting for surround mode

Activate trigger out when the surround mode set to “ON” is selected.

Active when the “MAIN ZONE” set to “ON” with “When Setting

for Zone” is selected, and when the input source set to “ON” with “When Setting for Input Source” is selected.

• ON : Activate trigger on this mode.

• – – – : Do not activate trigger on this mode.

Default : The “Trigger Out” settings are returned to the default settings.

• Yes : Reset to the defaults.

• No : Do not reset to the defaults.

Remote ID Setup

Used when receiving maintenance from a DENON service engineer or custom installer.

Dimmer

Adjust the display brightness of this unit.

Setup Lock

Protect settings from inadvertent change.

1 / 2 / 3 / 4

NOTE

Only use this function if so instructed by a DENON serviceperson or installer.

Bright : Normal display brightness. Dim : Reduced display brightness. Dark : Very low display brightness. OFF : Turns the display off.

Buttons on the main unit can be used for

operations. Each time DIMMER is pressed, the setting is changed as shown below.

Bright Dim

ON : Turn protection on. OFF : Turn protection off.

When canceling the setting, set “Setup Lock” to “OFF”.

NOTE

When “Setup Lock” is set to “ON”, the settings listed below can no longer be changed. Also, “SETUP LOCKED!” is displayed if you attempt to operate related settings.

· Menu operations · Channel Level

· RESTORER · MultEQ

· Dynamic Volume

DarkOFF

· Dynamic EQ

Basic versionSimple version InformationAdvanced version

Remote control operation

buttons

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 67

ENGLISH

Information

Show information about receiver settings, input signals, etc.

Items Setting details

Status

Show information about current settings.

Audio Input Signal

Show information about audio input signals.

n MAIN ZONE

This item shows information about settings for MAIN ZONE. The information displayed differs according to the input source.

Select Source / Name / Surround Mode / Input Mode / Decode Mode / HDMI / Digital / Component / Rec Select / Video Select / Video Mode / Content Type / Video Convert / i/p Scaler / Resolution / Progressive Mode / Aspect etc.

n ZONE2

This item shows information about settings for ZONE2.

Power / Select Source / Volume Level

Surround Mode : The currently set surround mode. Signal : The input signal type. fs : The input signal’s sampling frequency. Format : The number of channels in the input signal (front, surround, LFE). Offset : The dialogue normalization correction value. Flag : This is displayed when inputting signals including a surround back

channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix signals, “DISCRETE” with DTS-ES Discrete signals.

Dialogue normalization function

This function is automatically activated when playing Dolby Digital sources. It automatically corrects the standard signal level for individual program sources. The correction value can be checked using

STATUS.

the

The ﬁgure is the corrected value. This cannot be changed.

Items Setting details

Quick Select

Show information about “Quick select function” (vpage40) settings.

Preset Channel

Show information about preset channels.

HD Radio

Quick Select 1 / Quick Select 2 / Quick Select 3 / ZONE2 Quick Select 1 / ZONE2 Quick Select 2 / ZONE2 Quick Select 3

• Name / Select Source / Video Select / Volume Level / MultEQ® / Dynamic EQ® / Dynamic Volume® / Analog/PCM 2ch / Digital 2ch / Digital 5.1ch / Multi Ch

A / B / C / D / E / F / G A1 – A8 / B1 – B8 / C1 – C8 / D1 – D8 / E1 – E8 / F1 – F8 / G1 – G8

HDMI Information

Show information about HDMI input/output signals and monitor.

Auto Surround Mode

Show information about auto surround mode settings.

Remote control operation

buttons

HDMI Signal Information

• Resolution / Color Space / Pixel Depth HDMI Monitor Information

• Interface / Supported resol. Analog/PCM 2ch / Digital 2ch / Digital 5.1ch / Multi ch

Move the cursor (Up/Down/Left/Right)

Conﬁrm the setting Return to previous menu

Page 68

Operating the connected devices by remote control unit

ENGLISH

Registering the supplied preset codes in the remote control unit enables you to operate devices made by other manufacturers.

Operating AV equipment

Press ZONE SELECT to select a

zone for operation.

The zone mode indicator corresponding to the operating zone lights.

• The mode switches each time ZONE

SELECT

is pressed.

MAIN

ZONE2

ZONE3

• If setting of “Specifying the zone used with

the remote control unit” (vpage69) is “2”, operations in MAIN ZONE and ZONE2 are enabled.

Select for the operations in MAIN ZONE.

Select for the operations in ZONE2.

Not used.

Press the input source select button (vpage 21).

• The input source for the zone selected in step 1 is switched.

• The operation mode of the remote control unit is switched as shown in the table.

Input source button

z If a preset code is registered for this button, the remote control

Input source

of this unit

– This unit (ampliﬁer operation)

unit of this unit can control another devices.

DVD

SAT/CBL

DVR

GAME

V.AUX

USB/iPod or

DOCK

DOCK Control dock for iPod

USB/iPod

HD Radio HD Radio receiver

Devices controllable with the remote

control unit

(Operation mode)

Device registered on the

Device registered on the SAT/CBL button

Device registered on the

iPod connected to the USB port or control dock for iPod.

iPod or USB memory device connected to the USB port

BD button

DVD button

TV button

DVR button

GAME button

V.AUX button

CD button

NOTE

If the mode of the remote control unit is set to other than ampoperation mode, press AMP to switch the remote control unit to the amp-operation mode to perform the following operations:

• For menu operation by pressing MENU

• For setting the channel level of the unit by pressing CH LEVEL

• For turning power in each zone on or off by pressing ZONE/DEVICE

or ZONE/DEVICE OFF.

Registering preset codes

When preset codes are registered in the included remote control unit, it can then be used to operate any devices you have, such as DVD players or TVs made by different manufacturers. In this menu, you can search and display the preset codes that can be

preset in the included remote control unit.

n Buttons used for operating the devices

q ZONE/DEVICE ON, ZONE/DEVICE OFF

For switching power of each device on or off.

w uio p, ENTER, RETURN

For menu operation of each device.

e MENU, SETUP, TOP MENU

For displaying the menu of each device.

r 1, 2, 3, 6, 7, 8, 9 t Number button (0 – 9, +10) y CH +, CH – u TV POWER, TV INPUT

For operating a TV This button is enabled in any mode.

For details on operation with the remote control unit, see pages 23 to 27, 68.

Basic versionSimple version InformationAdvanced version

Operate this unit or the device whose input source is

switched.

• For details, refer to the operating instructions for each device. For operations of iPod, HD Radio receiver, and USB, see the following pages.

• iPod (vpage23, 24)

• HD Radio receiver (vpage26)

• USB memory device (vpage27)

Page 69

ENGLISH

Sab a

Sai vod Sam po Sam sung San sui San yo SBR Sch neid er See lver

Sel ect the de vice b rand

CH - Pre viou s CH + Nex t

Registering preset codes

n Default settings for preset codes

The devices shown below are registered for each input source button as default. Settings can be changed according to the

devices to be used.

Input source

button

z If a control dock for iPod is not to be used, the preset code for

another device can be set to

NOTE

• The preset code cannot be registered to TUNER or NET/USB.

• Do not register the preset code to iPod.

This button also functions as the Play button for an iPod.

Category Brand Preset code

Blu-ray Disc player DENON 32258 DVD player DENON 32134 Television SONY 10810 Satellite set top box DirecTV 01377 DVD recorder Tivo 20739 Cable set top box Motorola 01376 DVD player DENON 32134 Control dock for iPod DENON 42517 CD player DENON 42867

DOCK.

Press ZONE SELECT to switch the zone mode to

“MAIN”.

The “MAIN” indicator lights.

Press AMP to set the remote control unit to amplier

operation mode.

Press MENU.

The menu is displayed on the TV screen.

Use ui to select “Manual Setup”

– “Option Setup” – “Remote Preset Codes” and then press

ENTER or p.

MANUAL SETUP OPTION SETUP

Vol ume Contro l Sou rce Delete GUI

Rem ote Preset Codes

Qui ck S elect Name Zon e Re name Tri gger Out Rem ote ID Set up

Sea rch preset codes to regist er in the RC

Pressing ui, select the category

of device for preset registration. Then press ENTER or p.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

Blu -ray

CD CD Reco rder CAB LE CAB LE/P VR DVD DVD Rec order HD- DVD IPT V ST B PVR

Sel ect the de vice c ateg ory

D I J L M O P S V Y

Pressing ui, select the rst character of the brand

name. Then press ENTER or p.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

Blu -ray CD CD Reco rder CAB LE CAB LE/P VR

DVD

DVD Rec order HD- DVD IPT V ST B PVR

Sel ect first letter of device brand

A B C D E F G H I

• The ﬁrst character is displayed as 1, A to Z. (Initials for the brand are displayed for each category.) For brand names that start with numbers or symbols, select “1”.

Pressing ui, select the brand name. Then press

ENTER or p.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES [ 1/7]

Dae woo

Dan tax Den on Dis ney DSE Dur abra nd

Sel ect the de vice b rand

• When there are several pages of brand names, the pages can be

switched by pressing the remote control unit’s CH + or CH –.

NOTE

If the desired brand name is not listed, the supplied remote control unit cannot control the device. Use the remote control unit supplied with the device to be used.

- D VD -

Page 70

ENGLISH

Registering preset codes

The procedures for registering remote control codes

and remote control preset registration are displayed.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

Cat egor y Bra nd Cod e [ 1/ 3] Set up R emote

1. Pres s [INP UT SOU RCE] butto n.

2. Pres s and hold 3 sec. both [POWER ON ] [DEV ICE ON ] butt on.

3. Inpu t Code with [0-9 ] butt on.

4. Pres s any key to che ck dev ice. (e. g. [DE VICE O N])

QU ICK1 OK QUI CK2 NG QU ICK3 Retu rn

Pre ss Q UICK 1 if de vice works , QUIC K 2 if not

: D VD : D enon : 3 0490

NOTE

If a wrong brand name is selected, press QUICK SELECT 3. The following screen is displayed:

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

P ress [ AMP] butto n. And pr ess [ ENTER] but ton to retur n B RAND S ELECT MENU .

O K

Press AMP then ENTER to return to step 7.

Press the input source button on which the preset

code is to be registered (DVD, BD, SAT/CBL, DVR,

DOCK, V.AUX, GAME, CD or TV).

• For TV, only the preset code for the categories “TV”, “TV/DVD”, or

“TV/VCR” can be registered.

• For “TV”, “TV/DVD”, or “TV/VCR” categories, only the preset

code for TV can be registered.

Hold POWER ON and ZONE/DEVICE ON pressed

simultaneously for more than 3 seconds.

The zone mode indicator ﬂashes twice.

Enter a ve-digit code using 0 – 9.

Press the buttons with an interval less than 10 seconds.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

Cat egor y Bra nd Cod e [ 1/ 3] Set up R emote

1. Pres s [INP UT SOU RCE] butto n.

2. Pres s and hold 3 sec. both [POWER ON ] [DEV ICE ON ] butt on.

3. Inpu t Code with [0-9 ] butt on.

4. Pres s any key to che ck dev ice. (e. g. [DE VICE O N])

QU ICK1 OK QUI CK2 NG QU ICK3 Retu rn

Pre ss Q UICK 1 if de vice works , QUIC K 2 if not

: D VD : D enon : 3 0490

• When the code is registered: The zone mode indicator ﬂashes twice.

• When the code is not registered correctly: The mode indicator slowly ﬂashes once. Perform from step 9

again.

• When an input number is not correct: Press POWER ON once then perform the operations from step

9 again.

Operate the device being used to check the operation.

• If the device is operating, press QUICK SELECT 1.

Go to step 13.

• If the device is not operating, press QUICK SELECT 2.

Go to step 14.

The screen shown below is displayed, and registration

of the preset code is completed.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

R emote Pres et Cod es set up is f inishe d.

P ress [ AMP] butto n. And pr ess [ ENTER] but ton to retur n M ENU.

O K

• The menu screen is retrieved. Press AMP then ENTER.

Either of the screens below is displayed.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

S electe d co de is not ma tch ed.

P lesse try other codes.

• The screen is displayed for 3 seconds, then the next preset registration screen is displayed automatically.

MANUAL SETUP OPTION SETUP REMOTE PRESET C ODES

S orry, your remot e is n ot s upport ed. Thi s func tio n c an not b e used fo r yo ur dev ice

P ress [ AMP] butto n. And pr ess [ ENTER] but ton to retur n M ENU.

O K

GIf screen q is displayedH The device may be operating with the preset code displayed next. The preset registration screen is displayed. Repeat steps 9 to 12.

GIf screen w is displayedH The device cannot be controlled with the remote control unit supplied with this unit. Use the remote control unit supplied with the device to be used. The menu screen is retrieved. Press AMP then ENTER.

Some manufacturers use more than one type of remote control code. Preset codes to change the number and verify correct operation.

NOTE

Depending on the model and year of manufacture of your equipment, some buttons may not operate.

Basic versionSimple version InformationAdvanced version

Page 71

ENGLISH

Operating components

The supplied remote control unit can control a component other than this unit.

Press the input source select button

to which the preset code for the device you want to operate has been registered (vpage 65).

Operate the component.

• For details, refer to the component’s operating instructions.

n Blu-ray Disc player / HD-DVD player /

DVD player / DVD recorder operation

Operation buttons Function

ZONE/DEVICE ON

ZONE/DEVICE OFF

CH +, – Switch channels (up/down)

MENU (Popup) Menu

TOP MENU Top menu

uio p

ENTER Enter SETUP Setup

RETURN Return

6 7

8 9

3 2

0 – 9, +10

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

zThis may power some devices on/standby.

Power onz

Power standbyz

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback

Auto search (cue)

Pause

Stop

Select title, chapter or channel

selection

n CD player / CD recorder operation

Operation buttons Function ZONE/DEVICE ON

ZONE/DEVICE OFF

uio p

ENTER Enter

6 7

8 9

3 2

0 – 9, +10 Track selection

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

zThis may power some devices on/standby.

Power onz

Power standbyz

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback

Auto search (cue)

Pause

Stop

n Digital video recorder (PVR) /

video cassette recorder (VCR) operation

Operation buttons Function ZONE/DEVICE ON

ZONE/DEVICE OFF

CH +, – Switch channels (up/down) MENU Menu

uio p

ENTER Enter SETUP Setup

RETURN Return

6 7

8 9

3 2

0 – 9, +10

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

zThis may power some devices on/standby.

Power onz

Power standbyz

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback

Auto search (cue)

Pause

Stop

Select title, chapter or channel

selection

n TV operation

Operation buttons Function ZONE/DEVICE ON

ZONE/DEVICE OFF

CH +, – Switch channels (up/down)

MENU Menu

uio p

ENTER Enter SETUP Setup

RETURN Return

6 7

8 9

3 2

0 – 9, +10 Channel selection

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

zThis may power some devices on/standby.

Power onz

Power standbyz

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback

Auto search (cue)

Pause

Stop

n Set top box for satellite (SAT) / cable (CBL) /

IP TV operation

Operation buttons Function ZONE/DEVICE ON

ZONE/DEVICE OFF

CH +, – Switch channels (up/down)

MENU Menu

uio p

ENTER Enter SETUP Guide

RETURN Return

6 7

8 9

3 2

0 – 9, +10 Channel selection

TV POWER TV power on/standby (Default : SONY)

TV INPUT Switch TV input (Default : SONY)

zThis may power some devices on/standby.

Power onz

Power standbyz

Cursor operation

Manual search

(fast-reverse/fast-forward)

Playback

Auto search (cue)

Pause

Stop

Page 72

ENGLISH

Specifying the zone used with the remote control unit

When the ZONE SELECT button is pressed, only the set zone can be operated with the remote control unit.

Press and hold POWER ON and

ZONE/DEVICE ON for at least 3

seconds.

The zone mode indicator ﬂashes twice.

Press ZONE SELECT.

The zone mode indicator ﬂashes twice.

Press 1 – 3 to set.

The zone mode indicator ﬂashes twice.

[Settable items]

1 When only using “MAIN ZONE” 2 When using “MAIN ZONE” /

“ZONE2”

3 When using “MAIN ZONE” /

“ZONE2” / “ZONE3” (Default)

Resetting the remote control unit

Settings for the remote control unit are returned to the default setting.

Press and hold POWER ON and

ZONE/DEVICE ON for at least 3

seconds.

The zone mode indicator ﬂashes twice.

Information

Here, we list various information related to this unit. Please refer to this information as needed.

Basic versionSimple version InformationAdvanced version

F Part names and functions vpage70 F Other information vpage74 F Troubleshooting vpage82 F Speciﬁcations vpage84 F Index vpage85

Press 9, 8 and 1, in that order.

“MAIN” indicator ﬂashes four times. All the settings are restored to their defaults.

Page 73

ENGLISH

Part names and functions

Front panel

For buttons not explained here, see the page indicated in parentheses ( ).

W0 W1 W2 W4W3 W5 W6 W7 W8

q w e r t y u i o

q Power operation button

(ON/STANDBY) ······································ (6, 11) Turns power to this unit on and off (standby).

w Power indicator ·········································· (11) e Headphones jack

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

r QUICK SELECT buttons ······················· (40, 42) t MENU button ·············································· (46) y Cursor buttons (uio p) ·················· (44 – 46) u ENTER button ····································· (44 – 46) i RETURN button ·································· (44 – 46) o SURROUND MODE buttons ················ (28, 84) Q0 SETUP MIC jack ······································ (8, 36) Q1 USB/iPod port ············································(18) Q2 MASTER VOLUME control knob ···············(21)

Q3 V.AUX INPUT connectors ·························· (17)

Remove the cap covering the connectors when you want to use them.

Q4 Master volume indicator Q5 Display ························································· (70) Q6 Remote control sensor ······························(73) Q7 TUNING PRESET button ···························· (26) Q8 SOURCE SELECT knob ························(21, 42) Q9 ZONE2 / REC SELECT button ···················· (42) W0 ZONE2 ON/OFF button ······························ (42) W1 iPod PLAY button ······································· (25) W2 Sleep timer button (SLEEP) ······················· (39) W3 RESTORER button ······································ (56) W4 DYNAMIC EQ W5 DYNAMIC VOLUME W6 MULTEQ

button ································· (54, 61)

W7 DIMMER button ·········································· (63) W8 STATUS button ·········································· (64)

Q0 Q1

button ······························· (54)

button ···················· (55)

Q2Q4Q5Q6Q7Q8Q9

Display

Q8Q9 Q0Q1Q3

wq e r t y

q Input signal indicators w Input signal channel indicators

These light when digital signals are input. When playing HD Audio sources, the indicator lights when a signal from an extension channel (a channel other than the front, center, surround, surround back or LFE channel) is input. If there are two or more extension channels, the

and indicators light.

e Information display

The input source name, surround mode, setting values and other information are displayed here.

r Output signal channel indicators

This lights when audio signals are being output from the speakers.

t Front speaker indicator

These light according to the setting of the front A and B speakers.

y Monitor output indicators

This indicator lights up when an HDMI monitor is connected.

u QUICK SELECT indicators

The indicator corresponding to the memory for which Quick Select functionis set, lights (vpage40 “Quick select function”).

i Master volume indicator o MUTE indicator

This lights when the mute mode is select (vpage21).

Q7 u

ioQ4

Q0 AUDYSSEY indicators

Lighting is as follows, depending on the setting of “Dynamic EQ” (vpage 54) and “Dynamic Volume” (vpage55).

When “Dynamic EQ” and “Dynamic Volume” are “ON”.

When “Dynamic EQ” is “ON” and “Dynamic Volume” is “OFF”.

When “Dynamic EQ” and “Dynamic Volume” are “OFF”.

Q1 Sleep timer indicator

This lights when the sleep mode is selected (vpage39).

Q2 RESTORER indicator

This lights when the RESTORER mode is selected (vpage56).

Q3 ZONE2 indicator

This lights when ZONE2 (separate room) power is turned on (vpage42).

Q4 Input mode indicators

Set the audio input modes for the different input sources (vpage50).

Q5 HDMI indicator

This lights when playing using HDMI connections.

Page 74

ENGLISH

Display

Q6 Tuner reception mode indicators

These light according to the reception conditions when the input source is set to “HD Radio”. STEREO : In the FM mode, this light when receiving analog stereo broadcasts. TUNED : Lights when the broadcast is properly tuned in. AUTO : This light when in the auto tuning mode.

Q7 Recording output source indicator

This lights when the REC OUT mode is selected.

Q8 Decoder indicators

These light when the respective decoders are operating.

Q9 HD indicator

This light during HD Radio reception.

Rear panel

See the page indicated in parentheses ( ).

ioQ1 Q0

Basic version Advanced versionSimple version Information

wq e r yt

q RS-232C connector ·································································· (20) w HD Radio antenna terminals ·················································· (19) e Analog audio connectors ·················································(16 – 19)

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

r PRE OUT connectors ··············································(5, 33 – 35, 41) t Speaker terminals ························································(5, 33 – 35) y COMPONENT VIDEO connectors ····································· (15, 16) u AC inlet (AC IN) ·········································································· (5) i HDMI connectors ····································································· (14) o Digital audio connectors ··················································(15 – 17) Q0 REMOTE CONTROL jacks ······················································· (20) Q1 DOCK CONTROL jack ······························································ (18) Q2 S-VIDEO/VIDEO connectors ············································(15 – 18) Q3 TRIGGER OUT jack ·································································· (20)

Page 75

ENGLISH

Remote control unit

For buttons not explained here, see the page indicated in parentheses ( ).

u i

W0 W1

W2 W3

q ZONE/DEVICE power buttons ············ (42, 65) w Zone mode indicators ·························· (42, 65) e Input source select buttons ················· (21, 42) r QUICK SELECT buttons ······················· (40, 42) t Muting button (MUTE) ························ (21, 42) y Channel buttons (CH) ··························· (26, 68) u SOURCE SELECT button ·····················(21, 42) i MENU button ·············································· (46) o Cursor buttons (uio p) ·················· (44 – 46) Q0 SEARCH button ···································· (22, 46) Q1 System buttons ···························· (22 – 27, 68)

• Skip button (8, 9)

• Play button (1)

• Search button (6, 7)

• Pause button (3)

• Stop button (2)

Tuner system buttons ································ (25)

• FM/AM band switching button (BAND)

• Tuning mode button (MODE)

• Tuning down / Tuning up button (TUNING df)

Q2 Audyssey buttons ································(54, 61)

• MULTEQ® button

• Dynamic EQ®/Dynamic Volume® button (DYN EQ/VOL)

Q3 Surround mode buttons ······················ (28, 30)

• STANDARD button

• Direct / Stereo button (D/ST)

• DSP simulation button (SIMULATION)

Q4 SHIFT button ········································· (26, 45) Q5 TV operation buttons

(TV POWER / INPUT) ································· (68)

Q6 Remote control signal transmitter ··········· (73) Q7 Power buttons (POWER ON / OFF) ······ (6, 11) Q8 Master volume control buttons (VOL) ····· (21) Q9 Channel level button (CH LEVEL) ············· (39) W0 RETURN button ·········································· (46)

W1 ENTER button ····································· (44 – 46) W2 RESTORER button ······································ (56) W3 Pure direct button (PURE) ························· (30) W4 Number buttons ····························· (26, 67, 68) W5 Character buttons ······································(45) W6 MEMORY button ········································ (26) W7 Sleep timer button (SLEEP) ······················· (39)

NOTE

• NET/USB switches to the source of an iPod or

USB memory device connected via the USB port of this unit. For network connection of this unit, connect a control dock for iPod ASD-3N/ASD-3W/ ASD-51N/ASD-51W (sold separately) to this unit to use the network function of the control dock for iPod.

• The SAT TU, PHONO, MONITOR SELECT, A-DSX and PARTY buttons cannot be used.

Page 76

Remote control unit

ENGLISH

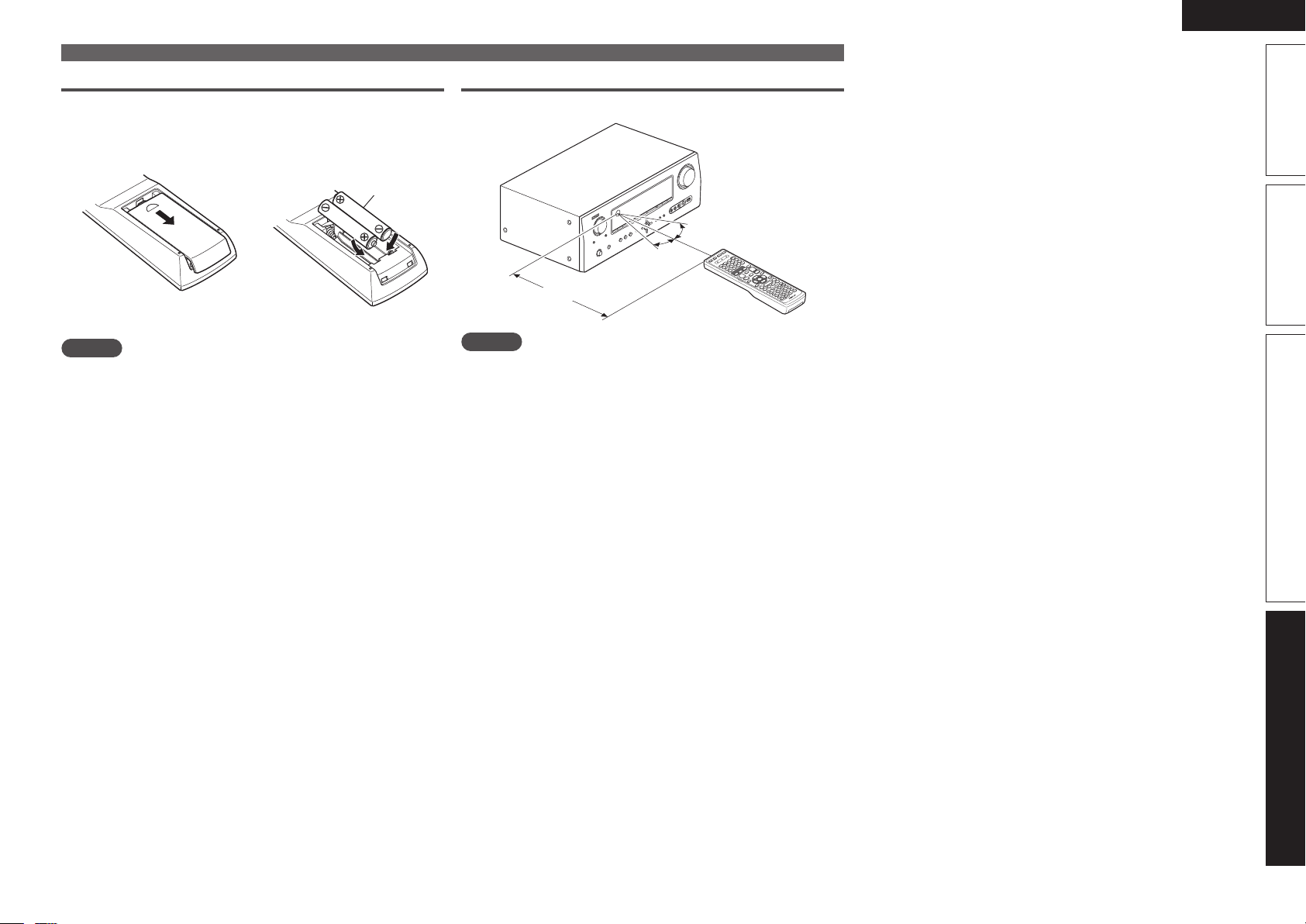

Inserting the batteries

q Slide the rear lid in the

direction of the arrow and remove it.

e Put the rear cover back on.

NOTE

• Insert the speciﬁed batteries in the remote control unit.

• Replace the batteries with new ones if the set does not operate even when the remote control unit is operated close to the unit. (The supplied batteries are only for verifying operation.)

• When inserting the batteries, be sure to do so in the proper direction, following the q and w marks in the battery compartment.

• To prevent damage or leakage of battery ﬂuid:

• Do not use a new battery together with an old one.

• Do not use two different types of batteries.

• Do not attempt to charge dry batteries.

• Do not short-circuit, disassemble, heat or dispose of batteries in

ﬂames.

• If the battery ﬂuid should leak, carefully wipe the ﬂuid off the inside of the battery compartment and insert new batteries.

• Remove the batteries from the remote control unit if it will not be in use for long periods.

• Used batteries should be disposed of in accordance with the local regulations regarding battery disposal.

w Load the two batteries

properly as indicated by the marks in the battery compartment.

R6/AA

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Basic version Advanced versionSimple version Information

30°

Approx. 23 ft /7 m

NOTE

The set may function improperly or the remote control unit may not operate if the remote control sensor is exposed to direct sunlight, strong artiﬁcial light from an inverter type ﬂuorescent lamp or infrared light.

Page 77

ENGLISH

Other information

n Trademark information (vpage74) n Surround (vpage75) n Relationship between video signals and monitor

output (vpage79)

n Explanation of terms (vpage80)

Trademark information

This product uses the following technologies:

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HDMI, the HDMI logo and HighDeﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEQ® is a registered trademark of Audyssey Laboratories. Audyssey Dynamic EQ® is a registered trademark of Audyssey Laboratories. Audyssey Dynamic Volume® is a trademark of Audyssey Laboratories.

HD Radio™ Technology Manufactured Under License From iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio™ and the HD Radio logo are proprietary trademarks of iBiquity Digital Corp.

“Made for iPod” means that an electronic accessory has been designed to connect speciﬁcally to iPod and has been certiﬁed by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect speciﬁcally to iPhone and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

• The iPod may only be used to copy or play content that are not copyrighted or content for which copying or playback is legally permitted for your private use as an individual. Be sure to comply with applicable copyright legislation.

Page 78

Surround

This unit is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.

Surround modes and surround parameters

This table shows the speakers that can be used in each surround mode and the surround parameters adjustable in each surround mode.

Symbols in the table

S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Conﬁg.” (vpage57).

Channel output

Surround mode (vpage28)

PURE DIRECT

DIRECT (2channel)

DIRECT (Multi-channel)

STEREO

MULTI CH IN DOLBY PRO LOGIC gz S D D D D S DOLBY PRO LOGIC gx S D D D D S S DOLBY PRO LOGIC g S D D D S S

DTS NEO:6

DOLBY DIGITAL

DOLBY DIGITAL Plus

DOLBY TrueHD

DTS SURROUND

DTS 96/24

DTS-HD

DTS Express

MULTI CH STEREO

ROCK ARENA

JAZZ CLUB

MONO MOVIE

VIDEO GAME

MATRIX

VIRTUAL

Front

L/R

S D S D S D D D S D S S S S D D D D

S D D D D S S S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D D D D S D

z1 A signal for each channel contained in an input signal is output as audio. z2 If “Surround Parameter” – “F.Height” (vpage53) is set to “ON”, sound is output from the front height speakers. z3 Only when “SW Mode” is set to “LFE+Main” (vpage58), sound is output from the subwoofer. z4 If this surround mode is selected, only the “Height” mode setting is available for “Surround Parameter” – “Mode” (vpage52). z5 For HD Audio whose sampling frequency of an input signal is more than 96kHz, this sound parameter cannot be set. z6 This item can be selected when “Surround Parameter” – “Mode” (vpage52) is set to “Cinema”. z7 This item can be selected when “Surround Parameter” – “Mode” (vpage52) is set to “Cinema” or “Pro Logic”. z8 This item cannot be set when “Surround Parameter” – “S.Back” (vpage53) is set to “PLgx Music”. z9 This item can be selected when a Dolby TrueHD signal is played. z10 This item can be selected when a Dolby Digital or DTS signal is played. z11 This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.

Center

Surround

L/R

Surround Back

L/R

Front Height L/R Subwoofer

z3 z3

z2 z2 z2 z2 z2 z2 z2 z2 z2 z2 z2 z2 z2

D S S S

D S S

D S D S D S D S D S D S D S D S S D S S S S D S S S S D S S S S D S S S S D S S S

Mode

(vpage52)

Cinema EQ.

(vpage52)

DRC z9

(vpage52)

S S S

z6 z7 z6 z8 z8 z8 z8 z8 z8 z8

Surround Parameter (vpage52)

D. Comp

z10

(vpage52) S S S S S

S S S S S S

S S S S

S S

S S S S S S S S

S S

z11

(vpage52)

LFE

Delay Time

(vpage52)

Effect Lev.

(vpage52)

ENGLISH

Basic version Advanced versionSimple version Information

Room Size

(vpage52)

Page 79

ENGLISH

Surround

Surround Parameter (vpage52)

Surround mode (vpage28)

PURE DIRECT

DIRECT (2 channel)

DIRECT (Multi-channel)

STEREO

MULTI CH IN DOLBY PRO LOGIC gz S S S S S S S DOLBY PRO LOGIC gx S S S S S S S S S DOLBY PRO LOGIC g S S S S S S S S S S

DTS NEO:6

DOLBY DIGITAL

DOLBY DIGITAL Plus

DOLBY TrueHD

DTS SURROUND

DTS 96/24

DTS-HD

DTS Express

MULTI CH STEREO

ROCK ARENA

JAZZ CLUB

MONO MOVIE

VIDEO GAME

MATRIX

VIRTUAL

AFDM

z12

(vpage52)

S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S S S S

z3 Only when “SW Mode” is set to “LFE+Main” (vpage58), sound is output from the subwoofer. z12 This item can be selected when a Dolby Digital or DTS or DVD-Audio signal is played. z13 If “Speaker Conﬁg.” – “F.Height” (vpage58) is set to “None”, this item cannot be selected. z14 This item can be selected when “Surround Parameter” – “F.Height” (vpage53) is set to “ON”. z15 This item cannot be set when “Dynamic EQ” (vpage54) is set to “ON”. z16 In this surround mode, bass is +6 dB, and treble is +4 dB. (Default) z17 This item cannot be set when “MultEQ” (vpage54) is set to “OFF” or “Manual”. z18 This item cannot be set when “Dynamic EQ” (vpage54) is set to “OFF”. z19 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz. z20 For HD Audio whose sampling frequency of an input signal is more than 96 kHz, this sound parameter cannot be set.

S.Back

(vpage53)

S S S S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

F.Height

z13

(vpage53)

Height Gain

(vpage53)

z14

z14 z14 z14 z14 z14 z14 z14

Subwoofer

(vpage53)

PRO LOGIC g/gx Music mode only

Panorama

(vpage52)

Dimension

(vpage52)

C.Width

(vpage52)

NEO:6 Music

mode only

C.Image

(vpage52)

Tone

z15

(vpage53)

S S S S S S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S S S S

z16

S S S S S

Audyssey Settings

MultEQ®

(vpage54)

S S S S

z20

Dynamic EQ

z17

(vpage54)

Dynamic

Volume®

(vpage55)

RESTORER

z19

(vpage56)

z18

Page 80

n Types of input signals, and corresponding surround modes

This table shows the input signal that can be played in each surround mode. Check the audio signal of the input source then select the surround mode.

Symbols in the table

F This indicates the default surround mode. D This indicates the surround mode that is ﬁxed when “AFDM” (vpage52) is set to “ON”. S This indicates the selectable surround mode.

Input signal types and formats

PCM DTS-HD DTS DOLBY DOLBY DIGITAL

Surround mode (vpage28)

DTS SURROUND

DTS-HD MSTR DTS-HD HI RES DTS ES DSCRT6.1 DTS ES MTRX6.1 DTS SURROUND DTS 96/24 DTS (–HD) + PLgx CINEMA z2z3 S S S S S S S DTS (–HD) + PLgx MUSIC z1z3 S S S S S S S DTS (–HD) + PLgz z4 S S S S S S S DTS EXPRESS DTS (–HD) + NEO:6 DTS NEO:6 CINEMA DTS NEO:6 MUSIC

DOLBY SURROUND

DOLBY TrueHD DOLBY DIGITAL+ DOLBY DIGITAL EX DOLBY (D+) (HD) +EX DOLBY DIGITAL DOLBY (D) (D+) (HD) +PLgx CINEMA z2z3 S S F D S S S DOLBY (D) (D+) (HD) +PLgx MUSIC z1z3 S S S S S S DOLBY (D) (D+) (HD) +PLgz z4 S S S S S S DOLBY PRO LOGIC gx CINEMA z1z3 S S S DOLBY PRO LOGIC gx MUSIC z1z3 S S S DOLBY PRO LOGIC gx GAME z1z3 S S S DOLBY PRO LOGIC gz z4 S S S DOLBY PRO LOGIC g CINEMA S S S DOLBY PRO LOGIC g MUSIC S S S DOLBY PRO LOGIC g GAME S S S DOLBY PRO LOGIC

NOTE

z1z3 F D z1z3 F D

z1z3 S S S S S S

z1z3 S S S S z1z3 S S

z1 If “Speaker Conﬁg.” – “S.Back” (vpage58) is set to “None”, this surround mode cannot be selected. z2 If “Speaker Conﬁg.” – “S.Back” (vpage58) is set to “1sp” or “None”, this surround mode cannot be selected. z3 This surround mode can be selected when “Amp Assign” (vpage57) is set to “Normal”. z4 If “Speaker Conﬁg.” – “F.Height” (vpage58) is set to “None”, this surround mode cannot be selected.

ANALOG

LINEAR PCM

(multi ch)

S S S S S S

S S S

LINEAR PCM

(2ch)

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES

DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

S S F

(5.1ch)

DTS

DTS 96/24

DOLBY TrueHD

DOLBY

DIGITAL Plus

DOLBY

DIGITAL EX

(With Flag)

S F F F

DOLBY

DIGITAL EX

(With no

Flag)

DOLBY

DIGITAL

(5.1/5/4ch)

DOLBY

DIGITAL

(4/3ch)

ENGLISH

Surround

Basic version Advanced versionSimple version Information

DOLBY

DIGITAL

(2ch)

Page 81

ENGLISH

Surround

MULTI CH IN

MULTI CH IN MULTI CH IN + PLgx CINEMA z2z3 S MULTI CH IN + PLgx MUSIC z1z3 S MULTI CH IN + PLgz z4 S MULTI CH IN + Dolby EX MULTI CH IN 7.1

DIRECT

PURE DIRECT

DSP SIMULATION

MULTI CH STEREO ROCK ARENA JAZZ CLUB MONO MOVIE VIDEO GAME MATRIX VIRTUAL

STEREO

Surround mode (vpage28)

Input signal types and formats

PCM DTS-HD DTS DOLBY DOLBY DIGITAL

NOTE

z1z3 S

z3 F D (7.1)

ANALOG

LINEAR PCM

(multi ch)

S S S S S S S S S S S S S S S S S

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

F S F S S S S S S S S S S S S S S

LINEAR PCM

(2ch)

DTS-HD

Master

Audio

DTS-HD

High

Resolution

Audio

DTS

EXPRESS

DTS ES

DSCRT

(With Flag)

DTS ES

MTRX

(With Flag)

DTS

(5.1ch)

DTS 96/24

DOLBY TrueHD

DOLBY

DIGITAL Plus

DOLBY

DIGITAL EX

(With Flag)

DOLBY

DIGITAL EX

(With no

Flag)

DOLBY

DIGITAL

(5.1/5/4ch)

DOLBY

DIGITAL

(4/3ch)

DOLBY

DIGITAL

(2ch)

Page 82

Relationship between video signals and monitor output

ENGLISH

Video Convert

1 ON 2 OFF 3 ON 4 ON 5 ON 6 ON 7 ON 8 ON

9 ON 10 11 ON 12 ON 13 ON 14 15 ON 16 ON 17 ON 18 19 ON 20 ON 21 ON 22 ON 23 ON 24 ON 25 ON 26 ON 27 ON 28 ON 29 OFF 30 OFF 31 OFF 32 OFF 33 OFF 34 OFF 35 OFF 36 OFF 37 OFF 38 OFF 39 OFF 40 OFF 41 OFF 42 OFF 43 OFF

S Video signal input present A No video signal input z1 When no HDMI monitor is connected or the HDMI monitor’s power is not on

• The main zone video conversion function is compatible with the following formats: NTSC, PAL, SECAM, NTSC4.43, PAL-N, PAL-M and PAL-60.

• When SECAM signals of video input are up-converted, the signals are output in PAL format from the S-Video and Video connectors.

• The menu display cannot be superimposed when x.v.Color signals and computer’s resolution (e.g. VGA) are input.

HDMI COMPONENT S-VIDEO VIDEO HDMI COMPONENT VIDEO HDMI COMPONENT VIDEO

A A A A A A A A A A A A A A A S A A S A A A S S A S (1080p) A A A S (1080i ~ 480p) A A A A S (480i/576i) A A A A S (1080p) A S A S (1080p) A S A S (1080i ~ 480p) A S A S (480i/576i) A S A S (1080p) S A A S (1080p) S A A S (1080i ~ 480p) S A A S (480i/576i) S A A S (1080p) S S A (COMPONENT) A S (1080p) S A A S (1080i ~ 480p) S S

A S (480i/576i) S S S A A A S A A S A S A S A A S A S S A S S A A S S A S S S S A S S S S

A A A S A A

A A S A A A

A A S S A A

A S A A A

A S A S A

A S S A A

A S S S A S A A A S A A S A S A S A A S A S S A S S A A S S A S S S S A S S S S

Input Signals Output Signals Menu displayed

MAIN ZONE MONITOR OUT

Wall paper

VIDEO VIDEO VIDEO

S-VIDEO S-VIDEO S-VIDEO

COMPONENT

–

COMPONENT

–

COMPONENT

–

COMPONENT

HDMI

A A

COMPONENT

A A

COMPONENT

A A

COMPONENT

S-VIDEO

NOTE

• If you operate the menu while playing back 3D video content, the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.

• This unit does not show the status display while playing back 3D video content.

VIDEO

Only the menu is

displayed

S (VIDEO) A (VIDEO)

S (S-VIDEO) A (S-VIDEO)

S (COMPONENT)

–

S (COMPONENT)

–

S (COMPONENT)

–

S (COMPONENT) A (COMPONENT)

S (HDMI)

Only the menu is

displayed

S ( ) Superimposed on the picture indicated in ( ). A ( ) Only the picture in ( ) is output. A Neither the picture nor the menu is output. z2 Only the menu is displayed when no HDMI monitor is

connected or the HDMI monitor’s power is not on.

If an HDMI monitor is not connected or power of

A (COMPONENT)

S (VIDEO)

A (COMPONENT)

S (S-VIDEO)

A (COMPONENT)

S (S-VIDEO)

A (COMPONENT)

A A

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

A (VIDEO)

A (S-VIDEO)

an HDMI monitor is not turned on, the menu is superimposed on a video image in parenthesis.

Basic version Advanced versionSimple version Information

Page 83

ENGLISH

Explanation of terms

Adobe RGB color / Adobe YCC601 color

Like x.v.Color, each of these color spaces deﬁnes a palette of available colors that is larger than the traditional RGB color model.

Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Audyssey Dynamic EQ works in tandem with Audyssey MultEQ® to provide well-balanced sound for every listener at any volume level.

Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same.

Audyssey MultEQ

Audyssey MultEQ is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, MultEQ calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated surround system setup.

Auto Lip Sync

If you connect the receiver to a TV that supports the Auto Lip Sync function, it can automatically correct delay between the audio and video.

Deep Color

This technology allows expression of more number of colors than the conventional 8 bits and can reproduce colors close to natural ones without color streak.

Dolby Digital

Dolby Digital is a multi-channel digital signal format developed by Dolby Laboratories. A total of 5.1 channels are played: 3 front channels (“FL” , “FR” and “C”), 2 surround channels (“SL” and “SR”) and the “LFE” channel for low frequencies. Because of this, there is no crosstalk between channels and a realistic sound ﬁeld with a “threedimensional” feeling (sense of distance, movement and positioning) is achieved. A realistic, powerful sense of presence is achieved when playing movie sources in AV rooms as well.

Dolby Digital EX

Dolby Digital EX is a 6.1-channel surround format proposed by Dolby Laboratories that allows users to enjoy in their homes the “DOLBY DIGITAL SURROUND EX” audio format jointly developed by Dolby Laboratories and Lucas Films. The 6.1 channels of sound, including surround back channels, provide improved sound positioning and expression of space.

Dolby Digital Plus

Dolby Digital Plus is an improved Dolby Digital signal format that is compatible with up to 7.1 channels of discrete digital sound and also improves sound quality thanks to extra data bit rate performance. It is upwardly compatible with conventional Dolby Digital, so it offers greater ﬂexibility in response to the source signal and the conditions of the playback equipment.

Dolby TrueHD

Dolby TrueHD is a high deﬁnition audio technology developed by Dolby Laboratories, using lossless coding technology to faithfully reproduce the sound of the studio master. This format is compatible with a maximum sampling frequency of 96 kHz and up to 7.1 channels, so it is used for applications particularly prioritizing sound quality.

Dolby Pro Logic g

Dolby Pro Logic g is a matrix decoding technology developed by Dolby Laboratories. Regular music such as that on CDs is encoded into 5 channels to achieve an excellent surround effect. The surround channel signals are converted into stereo and full band signals (with a frequency response of 20 Hz to 20 kHz or greater) to create a “three-dimensional” sound image offering a rich sense of presence for all stereo sources.

Dolby Pro Logic gx

Dolby Pro Logic gx is a further improved version of the Dolby Pro Logic g matrix decoding technology. Audio signals recorded in 2 channels are decoded to achieve a natural sound with up to 7.1 channels. There are three modes: “Music” suited for playing music, “Cinema” suited for playing movies, and “Game” which is optimized for playing games.

Dolby Pro Logic gz

Dolby Pro Logic gz introduces a new dimension to Home Entertainment through the addition of a pair of front height channels. Compatible with stereo,

5.1-channel and 7.1-channel content, Dolby Pro Logic gz provides enhanced spaciousness, depth and dimension to movies, concert video and video game playback while maintaining the full integrity of the source mix. Dolby Pro Logic gz identiﬁes and decodes spatial cues that occur naturally in all content, directing this information to the front height channels, complementing the performance of left and right surround sound speakers. Content that is encoded with Dolby Pro Logic gz height channel information can be even more revealing, with perceptually discrete height channel information bringing an exciting new dimension to home entertainment. Dolby Pro Logic gz, with front height channels is also an ideal alternative for households that cannot support the placement of back surround speakers of a typical 7.1-channel system but may have bookshelf space available to support the addition of height speakers.

Downmix

This function converts the number of channels of surround audio to less number of channels and plays back.

DTS

This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. When playing back audio by connecting this system with a device such as DTS ampliﬁer, accurate sound ﬁeld position and realistic sound effect as if you are in a movie theater can be obtained.

DTS 96/24

DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1 channels with a sampling frequency of 96 kHz and 24 bit quantization on DVD-Video.

DTS Digital Surround

DTS Digital Surround is the standard digital surround format of DTS, Inc., compatible with a sampling frequency of 44.1 or 48 kHz and up to 5.1 channels of digital discrete surround sound.

DTS-ES™ Discrete 6.1

DTS-ES™ Discrete 6.1 is a 6.1-channel discrete digital audio format adding a surround back (SB) channel to the DTS digital surround sound. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS-ES™ Matrix 6.1

DTS-ES™ Matrix 6.1 is a 6.1-channel discrete digital audio format inserting a surround back (SB) channel to the DTS digital surround sound through matrix encoding. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS Express

DTS Express is an audio format supporting low bit rates (max. 5.1 channels, 24 to 256 kbps).

DTS-HD

This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray Disc. This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1-channels are supported in Blu-ray Disc.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling frequencies of 96 or 48 kHz and up to

7.1 channels of discrete digital sound. High data bit rate performance provides high quality sound. This format is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS-HD Master Audio

DTS-HD Master Audio is DTS, Inc’s lossless audio format compatible with up to 96 kHz/7.1 channels. The lossless audio coding technology faithfully reproduces the sound of the studio master. It is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

Page 84

DTS NEO:6™ Surround

DTS NEO:6™ is a matrix decoding technology for achieving 6.1-channel surround playback with 2-channel sources. It includes “DTS NEO:6 Cinema” suited for playing movies and “DTS NEO:6 Music” suited for playing music.

Dynamic range

The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.

HDCP

When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.

HDMI

This is an abbreviation of High-Deﬁnition Multimedia Interface, which is an AV digital interface that can be connected to a TV or ampliﬁer. Video signal and audio signal can be connected using 1 cable.

LFE

This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensiﬁed by outputting 20 Hz to 120 Hz deep bass.

MAIN ZONE

The room where this unit is placed is called the MAIN ZONE.

MP3 (MPEG Audio Layer-3)

This is an internationally standardized audio data compression scheme, using the “MPEG-1” video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4

These are the names for digital compression format standards used for the encoding of video and audio. Video standards include “MPEG-1 Video”, “MPEG2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.

Progressive (sequential scanning)

This is a scanning system of video signal that displays 1 frame of video as one image. Compared to the interlace system, this system provides images with less ﬂickering and bleeding.

Protection Circuit

This is a function to prevent damage to components within the power supply when an abnormality such as an overload, excess voltage occurs or temperature for any reason. In this unit, the power indicator blinks and the unit enters standby mode when an abnormality occurs.

Sampling frequency

Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal). The number of readings taken in one second is called the “sampling frequency”. The larger the value, the closer the reproduced sound is to the original.

Speaker impedance

This is an AC resistance value, indicated in Ω (ohms). Greater power can be obtained with this value smaller.

sYCC601 color

Like x.v.Color, each of these color spaces deﬁnes a palette of available colors that is larger than the traditional RGB color model.

WMA (Windows Media Audio)

This is audio compression technology developed by Microsoft Corporation. WMA data can be encoded using Windows Media® Player Ver.7, 7.1, Windows Media®Player for Windows® XP and Windows Media® Player 9 Series. To encode WMA ﬁles, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the ﬁle may not work properly.

x.v.Color

This function lets HDTVs display colors more accurately. It enables display with natural, vivid colors. “x.v.Color” is a Sony registered trademark.

ZONE2

This unit can operate in a room other than the room where this unit is placed (MAIN ZONE) (ZONE2 playback). The room for ZONE2 playback is called ZONE2.

ENGLISH

Explanation of terms

Basic version Advanced versionSimple version Information

Page 85

ENGLISH

Troubleshooting

If a problem should arise, ﬁrst check the following:

1. Are the connections correct?

2. Is the set being operated as described in the owner’s manual?

3. Are the other components operating properly?

If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.

GGeneralH

Symptom Cause/Solution Page

Power does not turn on.

Display is off. • Set “Dimmer” on the menu to something other than “OFF”. 63

The power indicator is blinking red in intervals of approximately 2 seconds.

The power indicator is blinking red in intervals of approximately 0.5 seconds.

After turning on the power, the power indicator is blinking red in intervals of approximately 0.5 seconds.

Set does not operate properly.

GVideoH

Symptom Cause/Solution Page

No picture appears. • Check the TV connection.

• Check whether the power plug is correctly inserted into the power outlet.

• The protection circuit is active. Disconnect the power plug from the electric outlet, wait 5 to 10 seconds and then insert it back into the outlet.

• The temperature inside the unit has risen. Please turn off power once, and re-apply the power after the temperature has fallen sufﬁciently.

• Please re-install this unit in a place having good ventilation.

• Please use speakers which have the speciﬁed impedance.

• The speaker cable has shorted (is touching). Firmly twist the core wire in the speaker cable, and then re-connect it to the speaker terminal.

• This unit ampliﬁer circuit has failed. Turn off the power and please contact the DENON service adviser.

• Reset the microprocessor. 84

• Set the TV input correctly.

4, 81

–

4 4

–

5 6

GAudioH

Symptom Cause/Solution Page

Audio is not output. • Check the connections for all devices.

• Check the speaker connections.

• Check whether the audio device power is turned on.

• Adjust the master volume.

• Cancel the mute mode.

• Select a suitable input source.

• Select a suitable input mode.

• Disconnect the headphones. No sound is output from the speakers or the PRE OUT connectors when headphones are connected.

No sound is produced from surround speaker.

No sound is produced from surround back speaker.

No sound is produced from front height speaker.

No sound is produced from subwoofer.

DTS sound is not output.

Dolby TrueHD, DTSHD, Dolby Digital Plus audio is not output.

• Check if the surround speakers are connected to the SURROUND terminals.

• Set “Amp Assign” on the menu to “Normal”.

• Set “Speaker Conﬁg.” – “S.Back” on the menu to something other than “None”.

• Set “Surround Parameter” – “S.Back” on the menu to something other than “OFF”.

• Set the surround mode to something other than “STEREO”.

• Set “Surround Parameter” – “F.Height” on the menu to “ON”.

• Set “Amp Assign” on the menu to “Front Height”.

• Set “Speaker Conﬁg.” – “Surround” on the menu to something other than “None”.

• Check the subwoofer connections.

• Turn on the subwoofer’s power.

• Set “Speaker Conﬁg.” – “Subwoofer” on the menu to “Yes”.

• If “Front” and “Center” for “Speaker Conﬁg.” are set to “Large”, and “SW Mode” is set to “LFE”, no sound may be output from the subwoofers, depending on the input signal or selected surround mode.

• Set “Decode Mode” on the menu to “Auto” or “DTS”. 50

• Make HDMI connections. 14

5, 14 – 20 5, 33 – 35

– 21, 42 21, 42 21, 42

50 70

–

57 58

53 57 58

5, 33 – 35

57, 58

Page 86

ENGLISH

GHDMIH

Symptom Cause/Solution Page

No audio is output with HDMI connection.

No video is output with HDMI connection.

When the following operations are performed on devices compatible with HDMI control, the same operations occur on this unit.

• Power ON/OFF

• Switching audio output devices

• Adjust volume

• Switch input source

GHD Radio receiverH

Symptom Cause/Solution Page

Reception fails, or there is a lot of noise or distortion.

GiPodH

Symptom Cause/Solution Page

iPod cannot be played.

“Connection Error” is displayed.

“Not Support” is displayed.

“Connection Error” is displayed.

• Check the connection of the HDMI connectors.

• When outputting HDMI audio from the speakers, set “HDMI Audio Out” on the menu to “AMP”.

• When outputting HDMI audio from a TV, set “HDMI Audio Out” on the menu to “TV”.

• Check the connection of the HDMI connectors.

• Set the input source to match the connected HDMI connector.

• Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output correctly.

• Set “HDMI Control” on the menu to “OFF”. To operate power only for each device, set “Power Off Control” to “OFF”.

• Change the antenna orientation or position.

• Separate the AM loop antenna from the unit.

• Use an FM outdoor antenna.

• Separate the antenna from other connection cables.

• Check the iPod connections.

• Plug the control dock for iPod’s AC adapter into a power outlet.

• Switch the input source to “DOCK”.

• If using an iPod connected to the USB port, incompatible iPod types cannot be played back.

• Unable to communicate properly. Turn off the power to this unit, disconnect the iPod and then reconnect it.

• The iPod connected to the unit is not compatible. Please make sure the iPod you are connecting is compatible.

• The software version of the connected iPod is an old one. Please update to the latest version.

• The iPod is not responding. Turn off the power to this unit, disconnect the iPod and then reconnect it.

14 60

14, 21

38, 60

19 19 19 19

– 21 24

–

GUSB memory deviceH

Symptom Cause/Solution Page

When a USB memory device is connected, “USB” is not displayed on the menu.

Files on a USB memory device cannot be played.

The ﬁle names are not displayed properly (“...”, etc.).

The sound quality is poor or there is noise during playback.

“Connection Error” is displayed.

“Overcurrent” is displayed.

GRemote control unitH

Symptom Cause/Solution Page

The set cannot be operated with the remote control unit.

• The set cannot recognize a USB memory device. Check the connection.

• A USB memory device not conforming to mass storage class is connected. Connect a USB memory device conforming to mass storage class.

• A USB memory device cannot be connected via a USB hub.

• Set the USB memory device format to “FAT16” or “FAT32”. For details, refer to the USB memory device’s operating instructions.

• If the USB memory device is divided into multiple partitions, only ﬁles stored in the top partition can be played.

• The ﬁle is recorded in an incompatible format. Please record it in a compatible format.

• This unit cannot play back ﬁles covered by copyright protection.

• Characters that cannot be displayed on this unit are replaced by “.” (period).

• The ﬁle being played back has a low bit rate. –

• Unable to communicate properly. Turn off the power to this unit, unplug the USB memory device and then plug it back in.

• The USB memory device is not responding. Turn off the power to this unit, unplug the USB memory device and then plug it back in.

• The USB memory device is consuming too much power. When using a USB portable hard disk that can be powered by an AC adapter, connect its AC adapter.

• Batteries are worn out. Replace with new batteries.

• Operate the remote control unit within a distance of about 23 ft / 7 m from this unit and at an angle of within 30°.

• Remove any obstacle between this unit and the remote control unit.

• Insert the batteries in the proper direction, checking the q and w marks.

• The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type ﬂuorescent bulb light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.

–

22, 24

–

73 73

Basic version Advanced versionSimple version Information

Page 87

ENGLISH

Resetting the microprocessor

Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values.

SURROUND MODE 1ON/STANDBY

SURROUND MODE 0

Turn off the power using ON/STANDBY.

Press ON/STANDBY while simultaneously pressing SURROUND MODE 0 and

SURROUND MODE 1.

Once the display starts ashing at intervals of about 1 second, release the two

buttons.

If in step 3 the display does not ﬂash at intervals of about 1 second, start over from step 1.

Speciﬁcations

n Audio section

• Power ampliﬁer Rated output: Front:

Output connectors: 6 – 16 Ω

• Analog Input sensitivity/Input impedance: 200 mV/47 kΩ Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode) S/N: 100 dB (IHF–A weighted, DIRECT mode)

n Video section

• Standard video connectors Input/output level and impedance: 1 Vp-p, 75 Ω Frequency response: 5 Hz – 10 MHz — +1, –3 dB

• Color component video connector Input/output level and impedance: Y (brightness) signal — 1 Vp-p, 75 Ω

Frequency response: 5 Hz – 60 MHz — +0, –3 dB (when “Video Convert” set to “OFF”)

n HD Radio section [FM] [AM]

Receiving Range: 87.5 MHz – 107.9 MHz 530 kHz – 1710 kHz Usable Sensitivity: 1.5 μV (14.8 dBf) 20 μV S/N (IHF-A): MONO 78 dB

Total harmonic Distortion (at 1 kHz): MONO 0.1 %

105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Center:

105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Surround:

105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Surround back:

105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) 135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

B / CB signal — 0.7 Vp-p, 75 Ω

R / CR signal — 0.7 Vp-p, 75 Ω

(Note: μV at 75 Ω, 0 dBf = 1 x 10

STEREO 68 dB HD 85 dB 85 dB

STEREO 0.2 % HD 0.02 % 0.02 %

–15

n General

Power supply: AC 120 V, 60 Hz Power consumption: 600 W

0.1 W (Standby)

1.9 W (CEC standby)

Maximum external dimensions: 434 (W) x 171 (H) x 381 (D) mm (17-3/32” x 6-47/64” x 15”) Weight: 10.8 kg (23 lbs 13 oz)

n Remote Control Unit (RC-1146)

Batteries: R6/AA Type (two batteries) Maximum external dimensions: 53 (W) x 224 (H) x 28 (D) mm (2-3/32” x 8-13/16” x 1-7/64”) Weight: 160 g (5.6 oz, including batteries)

For purposes of improvement, speciﬁcations and design are subject to change without notice.

Page 88

ENGLISH

Index

v Numerics

2.1-channel ························································· 34 2ch Direct/Stereo ···············································60 3D ······································································· 14

5.1-channel ··························································· 4

6.1-channel ··················································· 32, 33

7.1-channel ··················································· 32, 33

v A

Accessories ·························································· 1 Adjust CH ··························································· 55 Adobe RGB color / Adobe YCC601 color ··········· 80 AFDM ································································· 52 AM loop antenna ················································ 19 Amp Assign ························································ 57 ARC ···································································· 14 Aspect ································································ 50 Audio Adjust ······················································· 52 Audio cable ········································· 5, 16, 17, 19 Audio Delay ························································ 56 Audio Setup ························································ 60 Audio/Video Adjust ············································· 51 Audyssey Auto Setup ····································· 6, 36 Audyssey Dynamic EQ ································· 54, 80 Audyssey Dynamic Volume ························· 55, 80 Audyssey MultEQ ··································54, 70, 80 Audyssey Settings ············································· 54 Auto Lip Sync ··············································· 60, 80 Auto Preset ························································47 Auto Setup ·····················································6, 36 Auto Surround Mode ·········································· 61

v B

Banana plug ·························································· 4 Base Curve Copy ················································ 55 Bass ····························································· 53, 61 Bass Setting ······················································· 58 Bi-amp ································································ 35 Brightness ·························································· 56 Browse mode ··············································· 22, 24

v C

Cable

Audio cable ······································· 5, 16, 17, 19 Coaxial digital cable ········································· 16 Component video cable ····························· 15, 16 HDMI cable ·················································· 5, 14 Optical cable ···············································15, 17 Speaker cable ····················································5 Video cable ···········································15, 16, 17

Channel ······························································62 Channel Level ····················································· 59 Characters ·························································· 45 Chroma Level ····················································· 56 C.Image ······························································ 52 Cinema EQ ························································· 52 Coaxial digital cable ············································ 16 Component video cable ······························· 15, 16 Condensation ·······················································2 Connection

Antenna ··························································· 19 Blu-ray Disc player ··········································· 14 Cable TV ··························································· 16 CD player ························································· 19 Control dock for iPod ········································ 18 Digital camcorder ········································14, 17 Digital video recorder ······································· 14 DVD player ················································· 14, 16 External control device ····································20 Game console ·················································· 14 HDMI ······························································· 14 iPod (USB) ························································ 18 Power cord ·························································5 Satellite tuner ··················································· 16 Set-top box ················································ 14, 16 Speaker ························································ 4, 33 TV··························································· 5, 14, 15

USB memory device ········································ 18 Contrast ······························································ 56 Crossover Frequency ·········································59 C.Width ······························································52

v D

D.Comp ······························································ 52 Decode Mode ···················································· 50 Deep Color ···················································14, 80 Delay Time ·························································52 DENON original surround mode ························· 30 Dimension ·························································· 52 Dimmer ······························································63 Display ································································ 70 Distance ·····························································58 DNR ···································································· 56 Dolby

Dolby Digital··············································· 29, 80

Dolby Digital EX ········································· 29, 80

Dolby Digital Plus ······································· 29, 80

Dolby Pro Logic II ············································· 80

Dolby Pro Logic IIx ··········································· 80

Dolby Pro Logic IIz ····································· 32, 80

Dolby TrueHD ············································· 29, 80 Downmix ···························································· 80

DRC ···································································· 52 DTS ······························································ 29, 80

DTS 96/24 ·················································· 29, 80 DTS-ES Discrete 6.1 ·································· 29, 80 DTS-ES Matrix 6.1 ·····································29, 80 DTS-HD ······················································ 29, 80 DTS-HD High Resolution Audio ······················· 80 DTS-HD Master Audio ····································· 80 DTS Digital Surround ·······································80 DTS Express ···················································· 80

DTS NEO:6™ Surround ·····························28, 81 Dynamic EQ ·······················································54 Dynamic range ···················································81 Dynamic Volume ················································ 55

v E

Effect Lev. ·························································· 52 Enhancer ····························································56 EQ Customize ····················································61 Error messages (Auto Setup) ····························· 10

v F

Fader function ····················································39 F.Height ························································ 53, 58 FM indoor antenna ············································· 19 Front A/B (connection) ································· 32, 34 Front height speaker ····································32, 33 Front Panel ························································· 70 Front Speaker Setup ·········································· 59

v G

GUI ····································································· 62

v H

HDCP ··························································· 14, 81 HDMI ···························································· 14, 81 HDMI 1.4 ···························································· 14 HDMI Audio Out ················································ 60 HDMI cable ····················································5, 14 HDMI Control ··············································· 38, 60 HDMI Setup ·······················································60 Headphones ······················································· 70 Height Gain ························································ 53 HPF ···································································· 61 Hue ····································································· 56

v I

Information ························································· 64

Audio Input Signal ············································ 64

Auto Surround Mode ······································· 64

HDMI Information ············································ 64

Preset Channel ················································64

Quick Select ····················································· 64

Status ······························································· 64 Input Assign ·······················································48 Input Mode ························································· 50 Input Setup ························································· 46 Input signal ··················································· 29, 77 iPod PLAY ·························································· 25 i/p Scaler ····························································· 49

v L

Level Lch ···························································· 61 Level Rch ··························································· 61 LFE ······························································· 52, 81 Listening mode ·················································· 28 Listening position ················································· 7

v M

MAIN ZONE ·················································41, 81 Manual EQ ························································· 55 Manual Setup ····················································· 57 Master volume display ······································· 63 Menu map ·························································· 43 Mode ·································································· 52 MP3 ···································································· 81 MPEG ································································· 81 MultEQ ······························································· 54 Mute Level ························································· 62

v O

Optical cable ················································· 15, 17 Option Setup ······················································ 62

Dimmer ···························································· 63

GUI··································································· 62

Quick Select Name ·········································· 63

Remote ID Setup ············································· 63

Remote Preset Codes ·····································63

Setup Lock ······················································· 63

Source Delete ·················································· 62

Trigger Out ······················································· 63

Volume Control ················································ 62

Zone Rename ··················································63

v P

Panorama ···························································52 Parameter Check ················································ 10 Picture Adjust ····················································· 56 Playback

Blu-ray Disc player ··········································· 22

CD player ························································· 22

Direct ······························································· 30

DVD player ······················································· 22

HD Radio reception ·········································· 25

Basic version Advanced versionSimple version Information

Page 89

ENGLISH

iPod (Control dock for iPod) ······························ 22 iPod (USB) ························································ 24 MP3 ································································· 27 MPEG-4 AAC ··················································· 27 Pure direct ·······················································30 Standard ·························································· 28 Stereo ······························································ 30 USB memory device ········································ 27 WMA ·······························································27

ZONE2 ····························································· 42 Playback Mode (Control dock for iPod) ··············51 Playback Mode (USB) ········································· 51 Power Off Control ·············································· 60 Power On Level ················································· 62 Preset codes ················································63, 65 Preset Name ······················································48 Preset Skip ························································· 47 Presetting radio stations ···································· 26 Progressive ························································ 81 Progressive Mode ·············································· 50 Protection circuit ················································81

v Q

Quick select ················································· 40, 42 Quick Select Name ············································ 63

v R

Rear panel ··························································71 REC OUT mode ·················································· 40 Reference Level Offset ······································ 54 Remote control unit ····································· 65, 72

Inserting the batteries ······································ 73

Operating components ···································· 68

Registering Preset Codes ································ 65 Remote ID Setup ··············································· 63 Remote mode ··············································22, 24 Remote Preset Codes ········································ 63 Rename ······························································ 50 Repeat ································································ 51 Resetting the microprocessor ···························· 84 Resolution ··························································50 RESTORER ························································· 56 RGB Range ························································· 60 Room Size ·························································· 52

v S

Sampling frequency ··········································· 81 S.Back ··························································53, 58 Screensaver ······················································· 62 Selecting the input source ································· 21 Setup Lock ·························································63 Shufﬂe ································································ 51

Sleep timer ························································· 39 Source Delete ···················································· 62 Source Level ······················································ 51 Speaker

Connect ·······················································4, 33 Install ···························································4, 32

Set up ··························································6, 36 Speaker cable ······················································· 5 Speaker Conﬁg. ·················································· 57 Speaker impedance ········································ 4, 81 Speaker Setup ···················································· 57 Standby Source ·················································· 60 Subwoofer ·························································· 53 Subwoofer setting ················································ 7 Surround back speaker ································· 32, 33 Surround Mode ············································28, 75 Surround Parameter ··········································· 52 sYCC601 color ···················································· 81

v T

Tone ···································································53 Tone Control ······················································· 53 Trademark ··························································74 Treble ···························································53, 61 Trigger Out ························································· 63 Turn off power (standby) ···································· 11 Turn on power ······················································ 6

v V

Video ··································································49 Video cable ············································· 15, 16, 17 Video conversion ················································ 13 Video Convert ····················································· 49 Video Mode ························································ 49 Video Select ·······················································49 Volume Control ·················································· 62 Volume Level ····················································· 62 Volume Limit ······················································ 62

v W

WMA ·································································· 81

v X

x.v.Color ·····························································81

v Z

ZONE2 ···················································· 41, 70, 81 ZONE2 Setup ·····················································61 Zone Rename ····················································· 63

Page 90

www.denon.com

Printed in China 5411 10423 001D

D&M Holdings Inc.
