Denon AVC-4320, AVR-4306 Service Manual

The Operating Manual for DENON AV Receiver/Amplifier firmware upgrade Page 1 / 19

The Operating Manual for

DENON AV Receiver / Amplifier firmware upgrade.

“AVR-4306/AVC-4320 Upgrade tool”

Model Name: AVR4306/AVC-4320 Version: 6.0.0.2 Date: 2006-08-01

The Operating Manual for DENON AV Receiver/Amplifier firmware upgrade Page 2 / 19

Index

<Notice>.................................................................................. 3

(1) .....................................................................................3

(2) .....................................................................................3

1. Preparations before starting the operation .............................................4

1.1 Preparation for the Personal Computer ................................................ 4

1.2 Preparations for the cables .......................................................... 4

2. Connection of AV receiver/amplifier and PC ............................................ 5

2.1 Connection diagram ................................................................5

3. Firmwares update procedure. ......................................................... 6

3.1 Setup the IP address of the PC (refer to 6) ............................................. 6

3.2 Run the upgrade application .........................................................6

3.3 Confirmation of notes ............................................................... 6

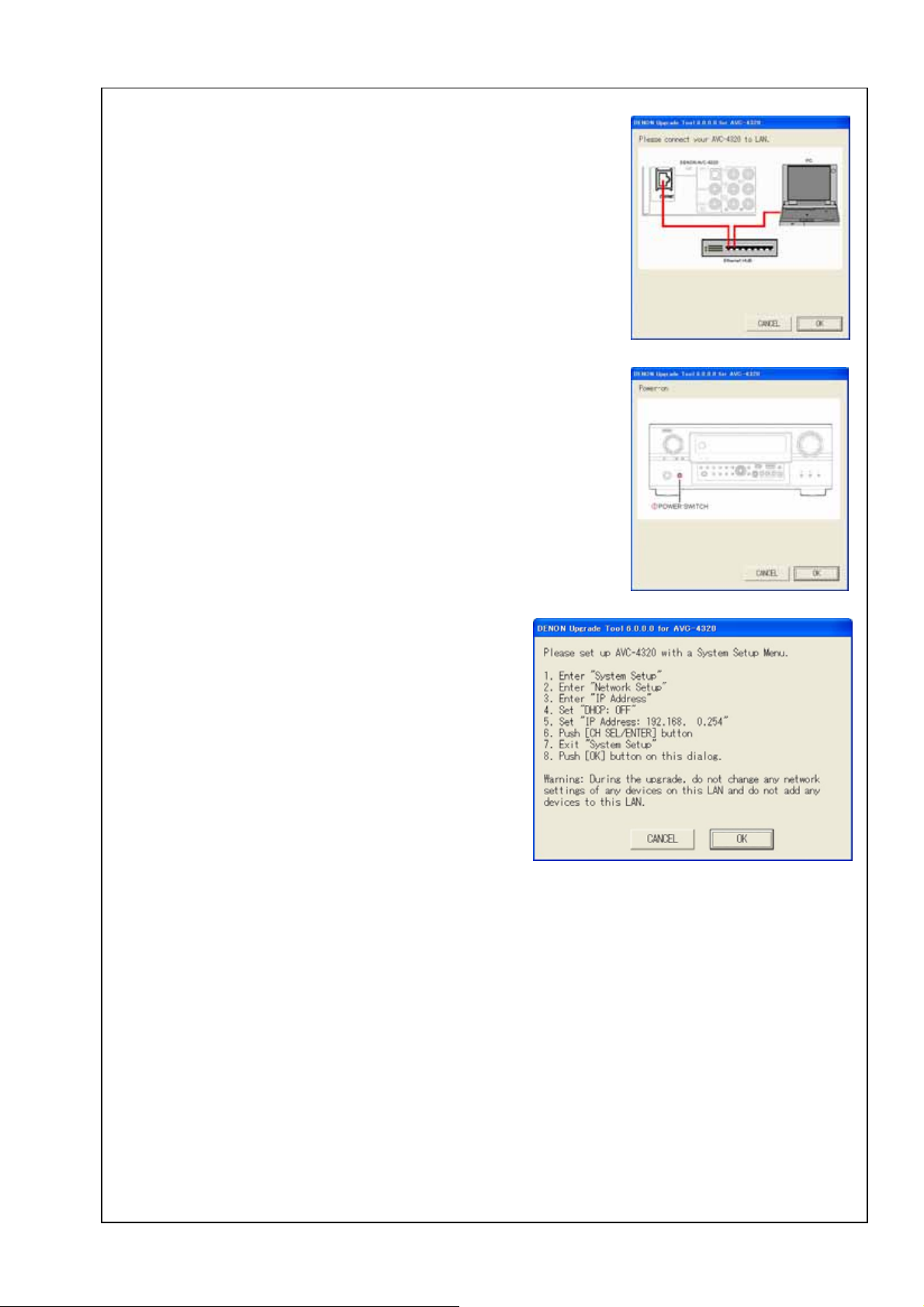

3.4 Connect the AV Receiver/Amplifier and the PC ......................................... 7

3.5 Turn on the AV Receiver /Amplifier .................................................... 7

3.6 Setup the IP address of the AV Receiver / Amplifier ..................................... 7

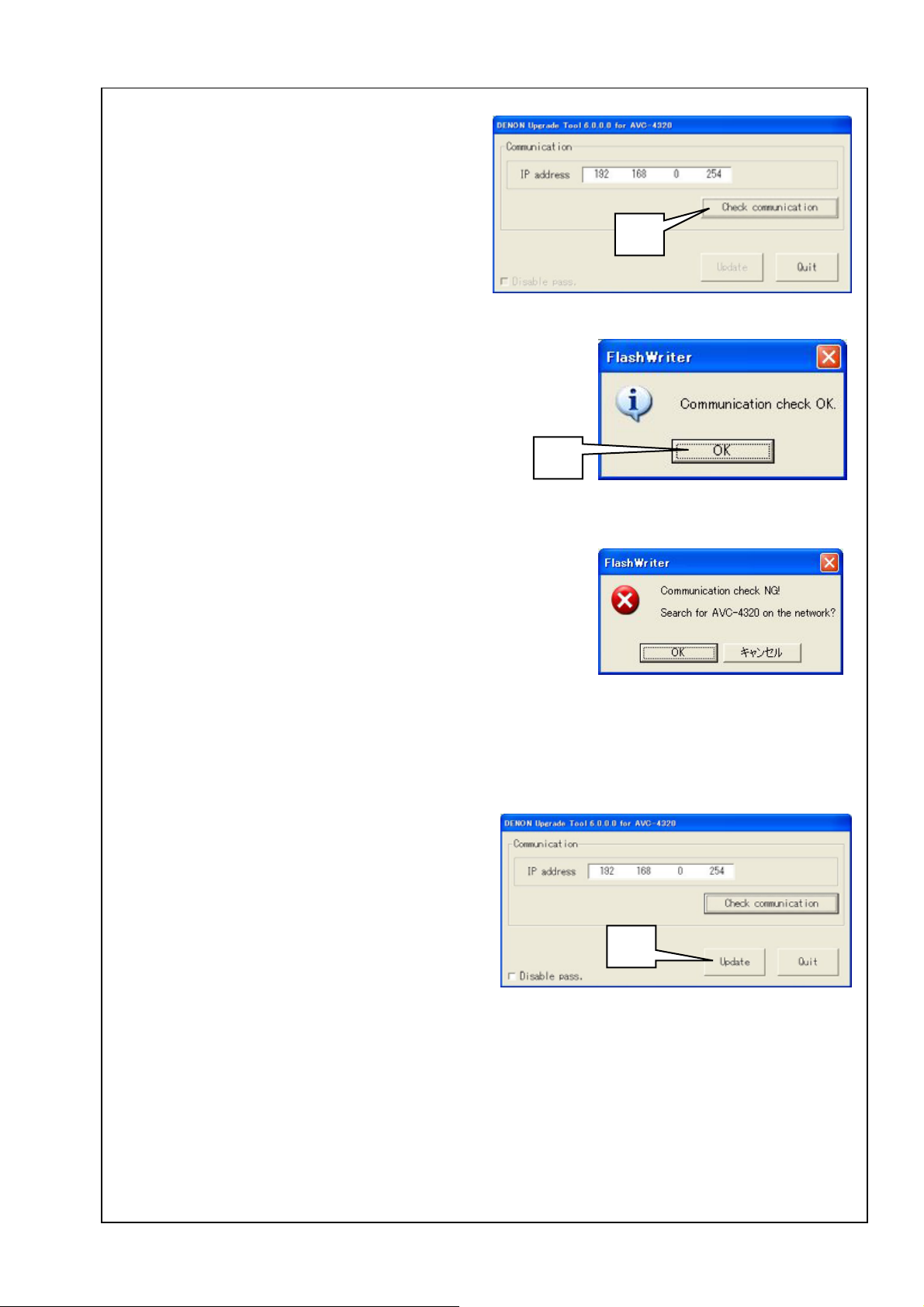

3.7 Communication check............................................................... 8

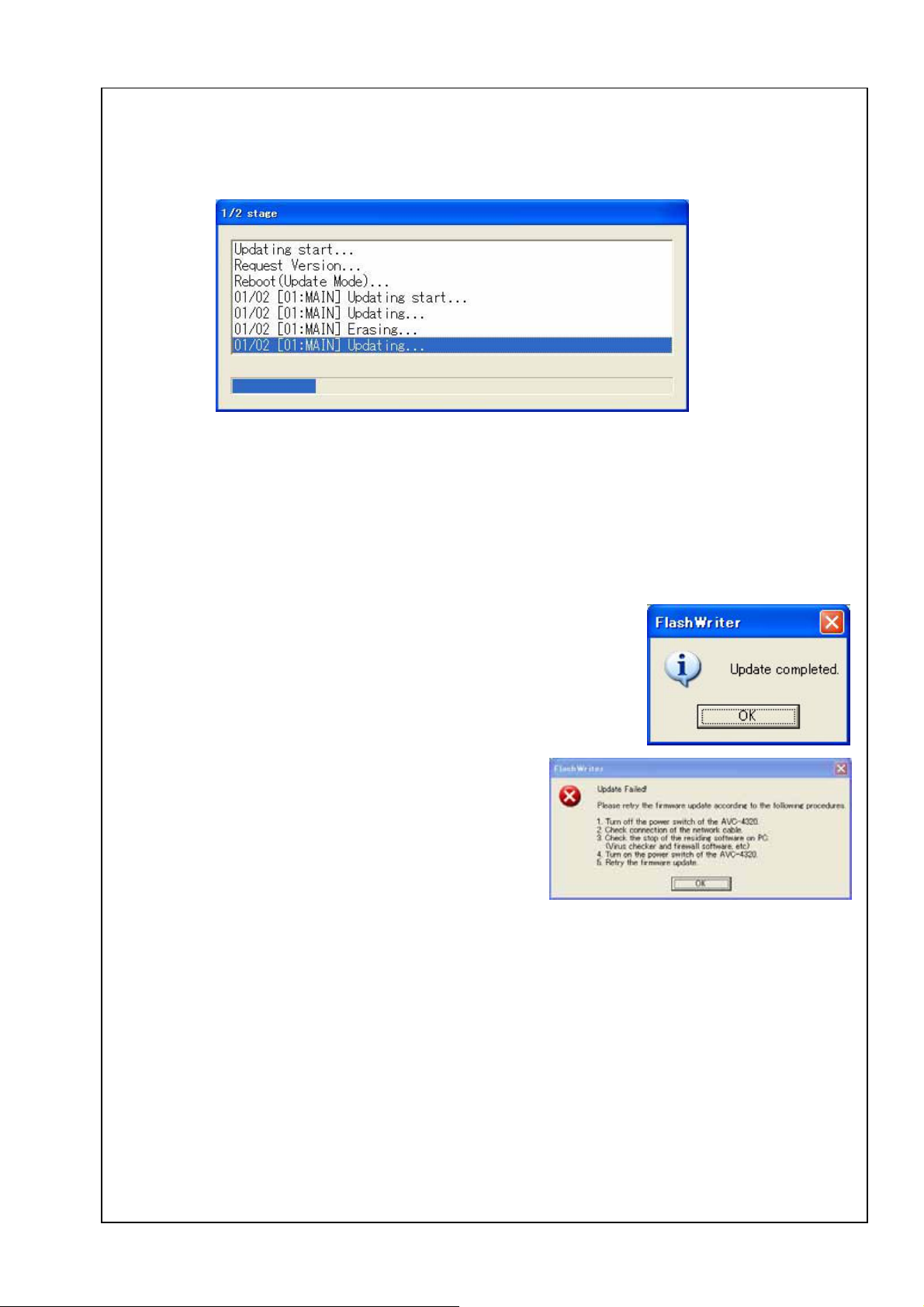

3.8 Start the firmware update. ........................................................... 9

3.9 Complete the firmware update. .......................................................9

4. Firmwares update procedure. ........................................................ 10

4.1 Setup the IP address of the PC (refer to 6) ............................................ 10

4.2 Run the upgrade application ........................................................ 10

4.3 Confirmation of notes .............................................................. 10

4.4 Connect the AV Receiver/Amplifier and the PC ........................................ 11

4.5 Turn on the AV Receiver /Amplifier ................................................... 11

4.6 Setup the IP address of the AV Amplifier / Receiver .................................... 11

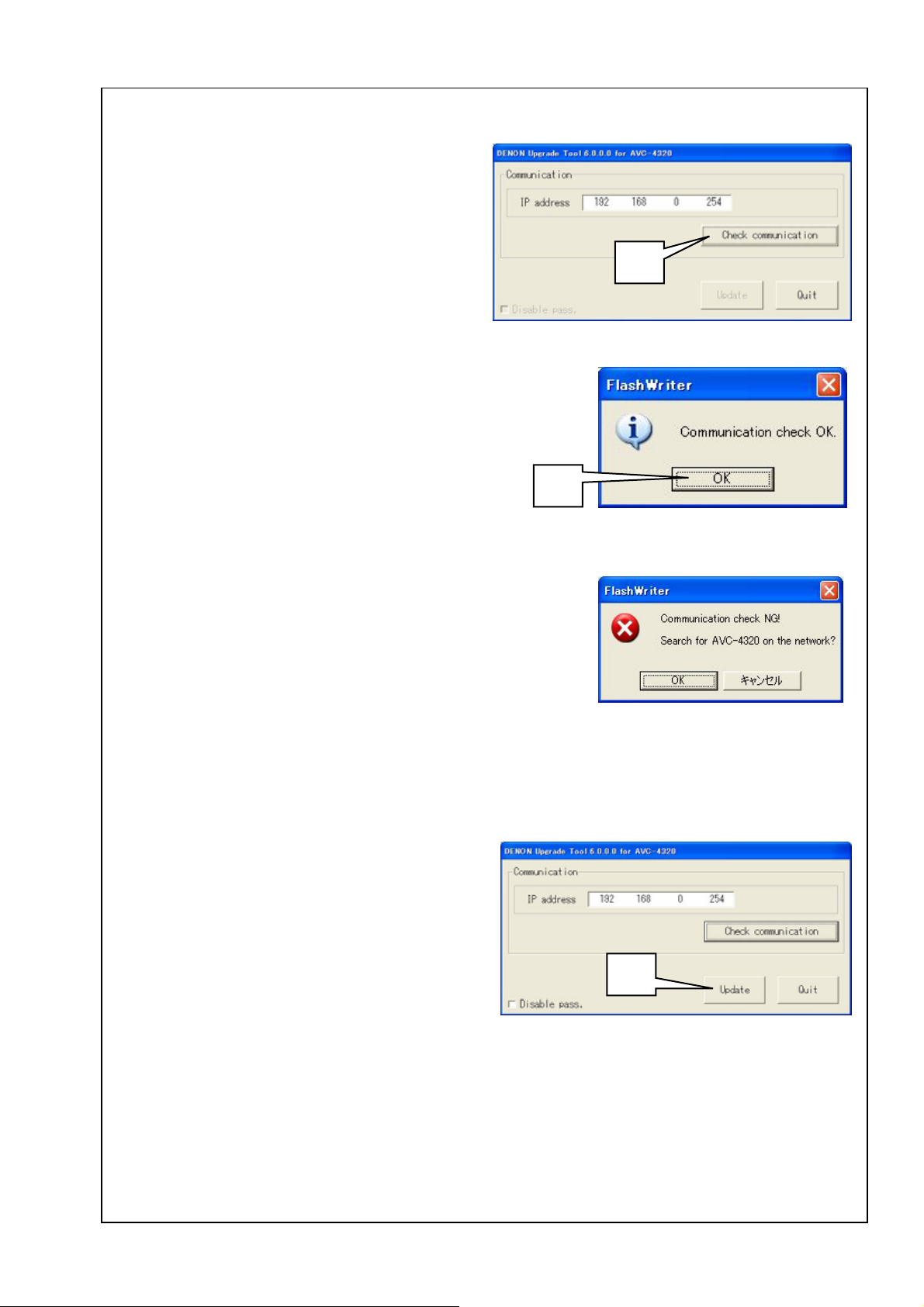

4.7 Communication check.............................................................. 12

4.8 Start the firmware update. .......................................................... 13

4.9 Complete the firmware update. ......................................................13

5. Firmwares update procedure. ........................................................ 14

5.1 Run the upgrade application ........................................................ 14

5.2 Confirmation of notes .............................................................. 14

5.3 Connect the AV Receiver/Amplifier and the PC ........................................ 15

5.4 Turn on the AV Receiver /Amplifier ................................................... 15

5.5 Check the IP address of the AV Amplifier / Receiver .................................... 15

5.6 Communication check.............................................................. 16

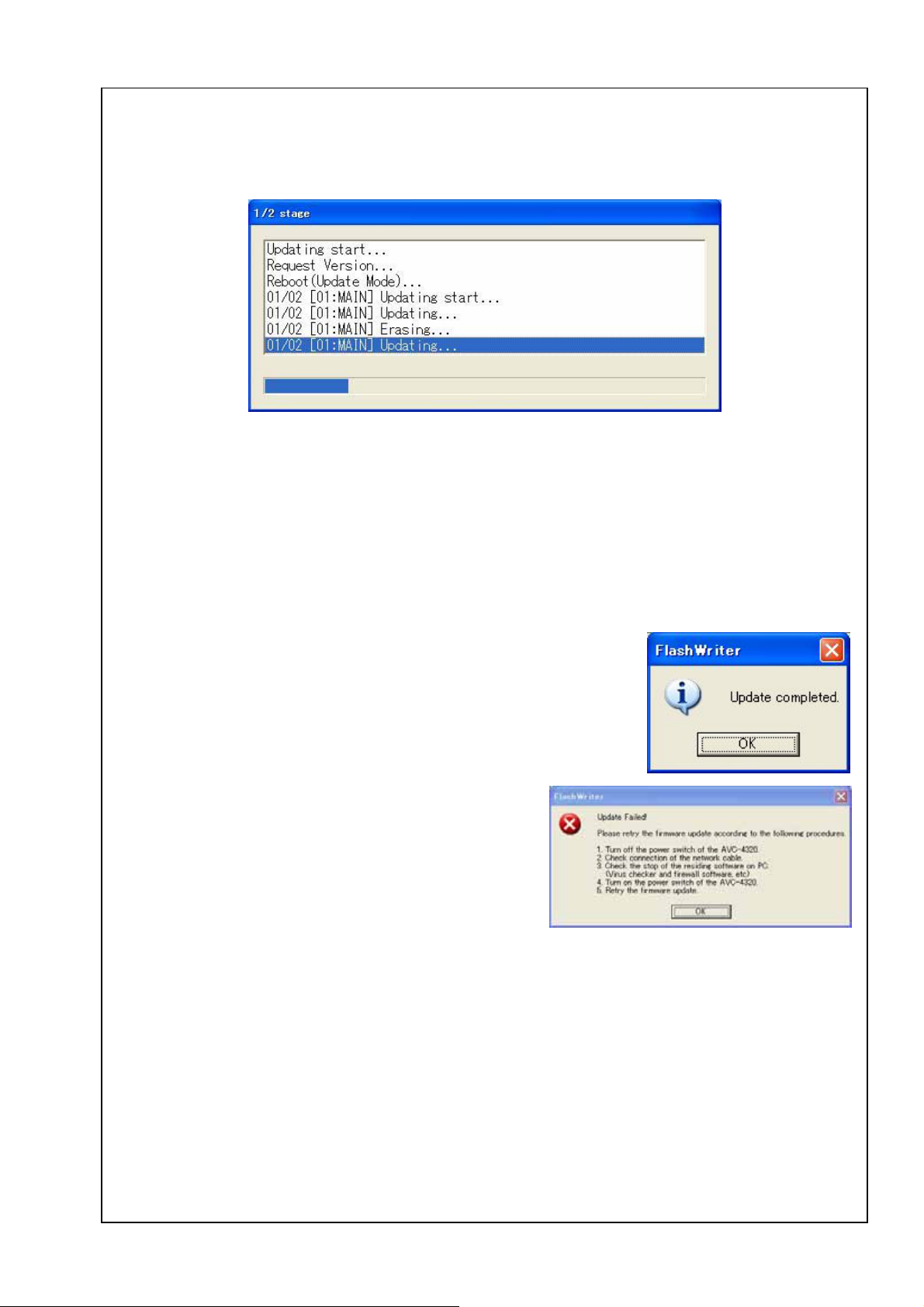

5.7 Start the firmware update. .......................................................... 17

5.8 Complete the firmware update. ......................................................17

6. Setup the IP address of the PC. ...................................................... 18

The Operating Manual for DENON AV Receiver/Amplifier firmware upgrade Page 3 / 19

(1)

After upgraded, the setting of product (AVR-4306/AVC-4320) is initialized, so please set all the

settings again according to the manual (attached to the product at the time of purchase).

(2)

Please keep the following notice for firmware update.

a) Keep the PC environment refer to 1.1.

b) Don't use a wireless network. (Flat type LAN cable)

Connect it by cable.

Don’t use flat type LAN cable like the right picture.

c) Stop the resident program on PC.

(Virus checker and firewall software, etc)

d) Avoid the communication cable from the electrical

noise source.

(E.g. telephone cable, AC line, a fluorescent light)

e) Stop the screen saver ability on PC.

f) Stop the power save ability on PC.

g) In case of laptop PC, Use the AC adaptor.

h) Don’t remove cable during update.

i) Don’t turn off the power during update.

j) Don’t run other PC application during update.

k) Please power off the product (AVR-4306/AVC-4320) before upgrade.

Please power on the product according to this manual.

l) This upgrade takes almost 15 minutes from beginning to the end.

The upgrade situation is displayed the bar graph, and can confirm the status.

Please do not touch the router, working PC, the AV Receiver / Amplifier, the connecting cable,

and HUB while upgrade.

The Operating Manual for DENON AV Receiver/Amplifier firmware upgrade Page 4 / 19

1. Preparations before starting the operation

1.1 Preparation for the Personal Computer

Minimum hardware and software requirements:

Type PC/AT compatible CPU Intel Pentium/Celeron500MHz or faster RAM 128MB or more Free hard disc space 25MB or more OS Windows XP Home Edition / Professional SP2 Display resolution Super VGA (800x600) or more. Port. ETHERNET port(RJ-45) Communication speed ETHERNET:10BASE-T/100BASE-TX

1.2 Preparations for the cables

There are three methods.

a) 10BASE-T/100BASE-TX Ethernet cross cable x 1pcs.

b) 10BASE-T/100BASE-TX Ethernet straight cable x 2pcs

and 10BASE-T/100BASE-TX Ethernet HUB or Router(w/o DHCP server).

c) 10BASE-T/100BASE-TX Ethernet straight cable x 2pcs

and 10BASE-T/100BASE-TX Ethernet HUB or Router(with DHCP server).

The Operating Manual for DENON AV Receiver/Amplifier firmware upgrade Page 5 / 19

2. Connection of AV receiver/amplifier and PC

2.1 Connection diagram

You can select the following 3 methods.

Also connect the display monitor for OSD.

a) Connect the Ethernet cross cable between Ethernet port of PC and Ethernet port of AV

Receiver/Amplifier. (refer to 3)

b) Connect the Ethernet straight cable between Ethernet port of PC and Ethernet port of Hub (or

Router w/o DHCP server). And connect the Ethernet straight cable between Ethernet port of

Ethernet cross cable

AV Receiver

/Amplifier

Display

Hub (or Router w/o DHCP server) and Ethernet port of AV Receiver/Amplifier. (refer to 4)

C) Connect the Ethernet straight cable between Ethernet port of PC and Ethernet port of

Router( with DHCP server). And connect the Ethernet straight cable between Ethernet port of

Router( with DHCP server) and Ethernet port of AV Receiver/Amplifier. (refer to 5)

Ethernet straight

cable

Ethernet straight

cable

HUB or

Router(w/o DHCP

server)

Ethernet straight

cable

Router

With

DHCPserver

Ethernet straight

cable

AV Receiver

/Amplifier

AV Receiver

/Amplifier

Display

The Operating Manual for DENON AV Receiver/Amplifier firmware upgrade Page 6 / 19

3. Firmwares update procedure.

In case of direct connection without hub using cross cable (refer to 2.1.a)

3.1 Setup the IP address of the PC (refer to 6)

Setup the IP Address.

IP Address: 192.168.0.2, Subnet Mask: 255.255.255.0

3.2 Run the upgrade application

Run the AVR-4306_upgrade_6_0_0_2.exe or the AVC-4320_upgrade_6_0_0_2.exe.

3.3 Confirmation of notes

Please push [OK] button on the dialog after confirming notes.
