0132215249

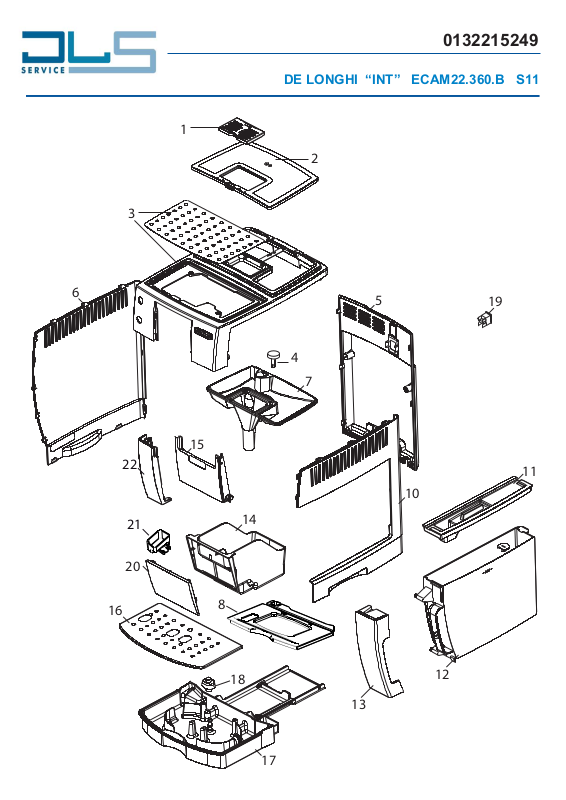

DE LONGHI “INT” ECAM22.360.B S11
1
2
3
6
4
7
15
22
21
20
14
5
10
19
11
16
8
18
13
17
12
Page 2
25
26
27
37
35
36
31
38
51
39
41
40
50
44

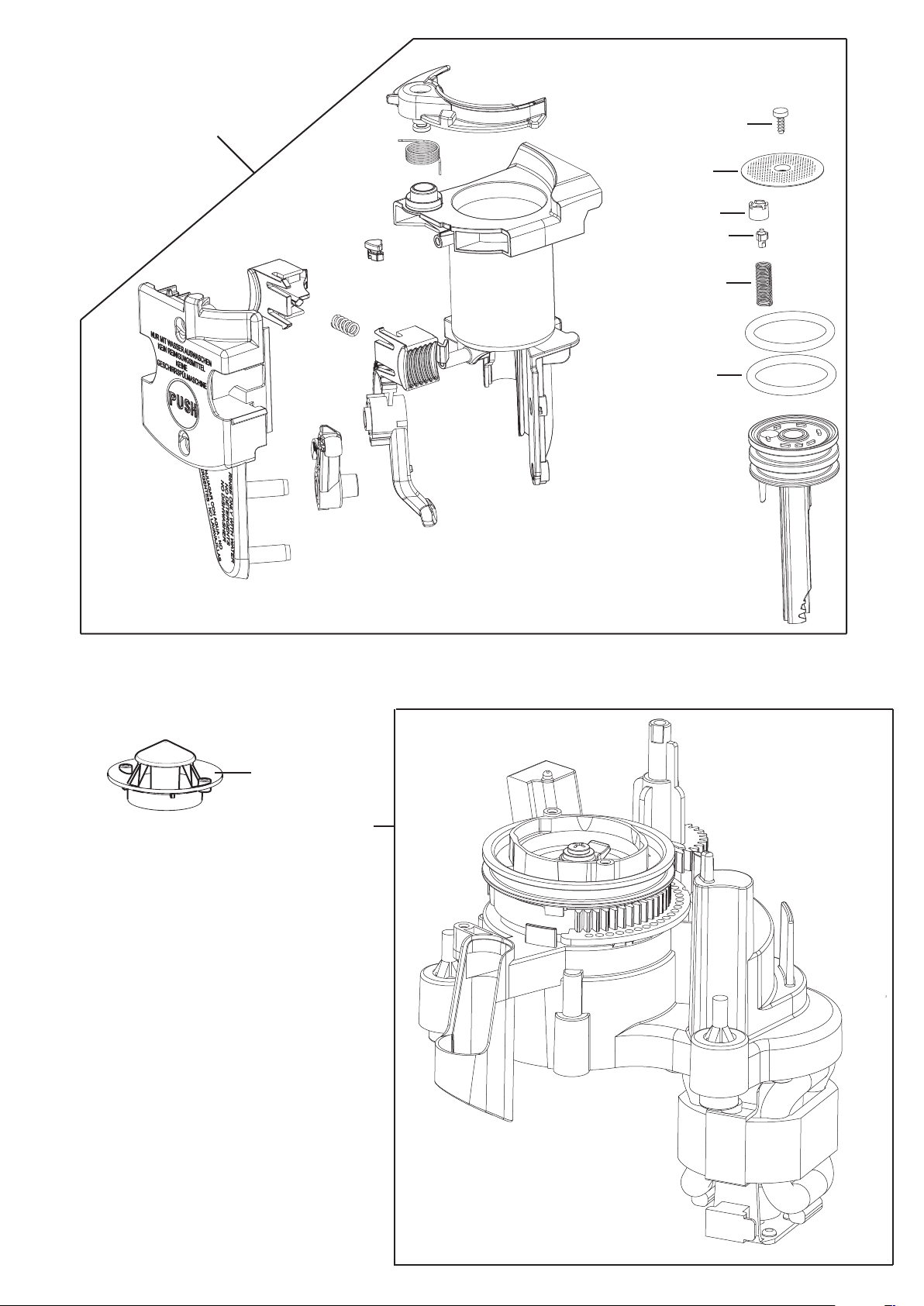

Page 3
47
48
49
49
Page 4
54
58
59
60
61
62
63
65
66

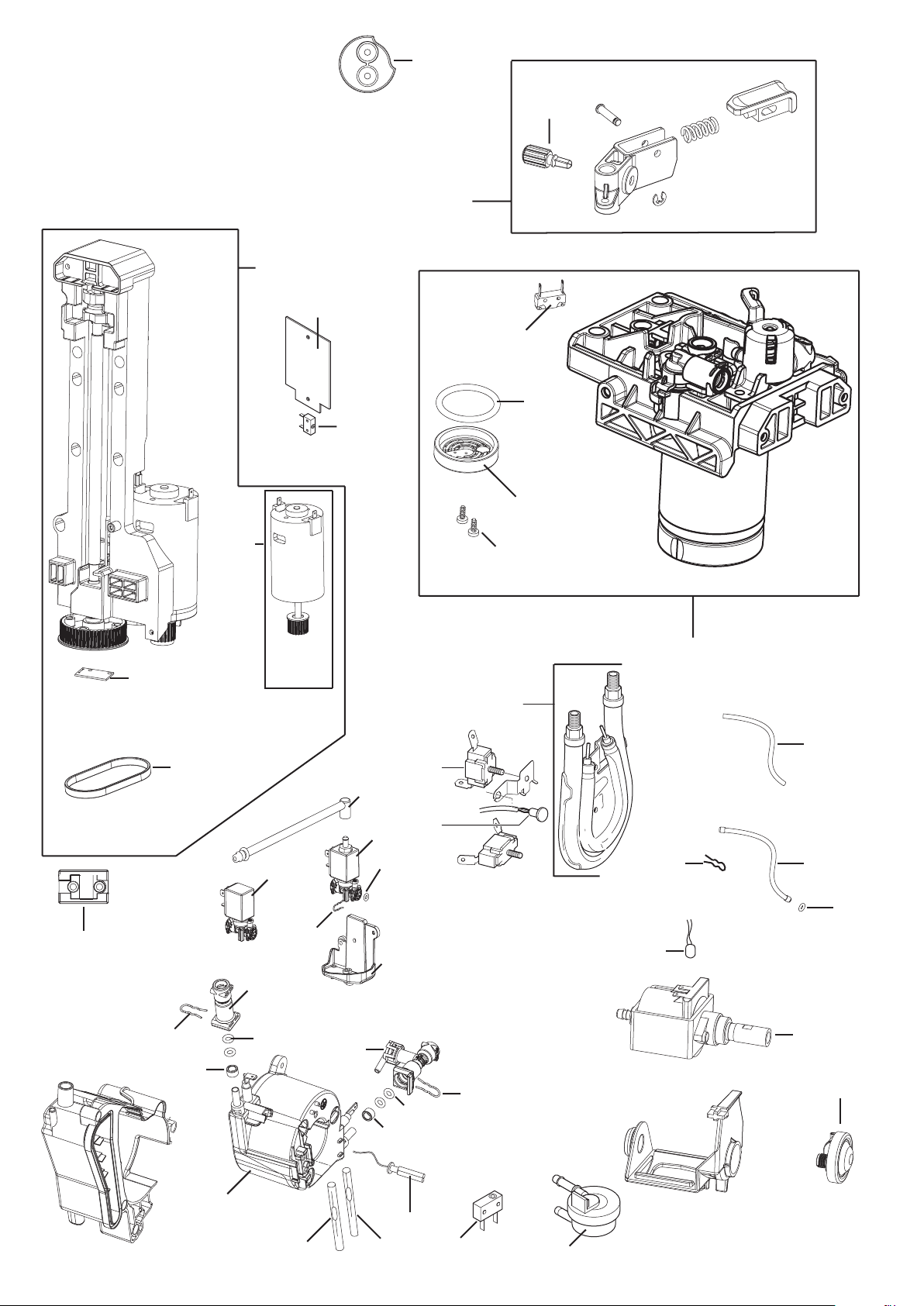

Page 5
75
71
74
73
76
82
83
77
84
105
79
80
78
V2
116
100
108
V3
67
68
69
109
115
93
70
110
85
SERIE TUBI
TUBE SERIES
SERIE TUBI CON BOCCOLE
TUBE SERIES CON BOCCOLE
89
101
86
87
88
96
94
102
95
104
97
94
103
95
93
98
Page 5 of 8
96
90
91
99
Page 6
0132215249
DE'LONGHI
INT ECAM22.360.B
Pos. Code Description
6113210121 STAFFA SENSORE(ACC.C70) (GENERATORE)ECAM
5313247361 COVER
000 5313225171 CONNECTION
6113210111 STAFFA TCO(ACC.C70) (GENERATORE) ECAM
001 5313221031 COVER DUST
002 5513214851 COVER
003 7313232151 COVER ASSEMBLY
004 5913212611 KNOB
005 5313231151 REAR PANEL
006 5513217011 SIDE LEFT
007 5313219211 TANK
008 5313223081 INSULATOR
010 5513217001 SIDE RIGHT
ECAM 22.360.B MAGNIFICA S
CAPPUCCINO S11
011 5313213321 COVER
012 7313212611 TANK
013 5313218571 FRONT PIECE
014 5313213561 DRAWER
015 5313224671 FRONT PIECE
016 6013211671 CUP PLATE
017 5313224831 TRAY
018 5313222641 FLOAT
019 5113210371 SWITCH
020 5313215181 FRONT PIECE
021 5313213551 TRAY
022 5313234411 FRONT PIECE
025 5513218331 KEYBOARD
026 5213215511 BOARD DISPLAY
027 5513219631 GLASS
031 7313212901 DISTRIBUTING
035 7313227381 COVER
036 5313233551 TUBE
037 5513218291 PIPETTE
038 5313230701 CARAFE
039 6132101300 CLIP
040 5313220031 O-RING
041 5313221011 O-RING
044 5132104100 MICROSWITCH
Page 6 of 8
Page 7
0132215249
DE'LONGHI
INT ECAM22.360.B
047 5232104600 SENSOR REED
048 5213219831 POWER BOARD
049 5313224721 FOOT
050 5313220131 RUBBER PAD
051 7313227421 COUPLING CARAFE
054 7313232331 DIFFUSER KIT
058 9812631250 SCREW
059 6032105300 FILTER
060 5332139600 STOPPER
061 5332139500 VALVE
062 6132112200 SPRING
063 5332149100 O-RING
065 5313227651 COVER
066 7313230951 COMPLETE GRINDER
ECAM 22.360.B MAGNIFICA S
CAPPUCCINO S11
067 5313236711 TUBE
068 5213218421 SOLENOID VALVE
069 5313217701 O-RING D=3,85
070 9812631250 SCREW
071 5313213591 STOPPER
073 7313214521 REGULATOR
074 5313213431 RUBBER PAD
075 7313225951 TRANSMISSION KIT
076 5213212381 MOTOR BOARD
077 5132110500 MICROSWITCH
078 7313217261 MOTOR ASSEMBLY
079 5213213981 SENSOR BOARD
080 5313243071 BELT
082 5132104100 MICROSWITCH
083 5332149100 O-RING
084 5313217601 FILTER
085 7313244461 MECHANICS VALVE
086 5313217871 TUBE DI=3 DE=6 L=200
086 5332199500 TUBE DI=4 L=150
086 5313217861 TUBE DI=3 DE=5,5 L=145
087 5513213901 TUBE PTFE DI2-DE4 L=320 2BUSHES
087 5513212871 TUBE PTFE DI2-DE4 L=97 2BUSHES
087 5513219871 TUBE PTFE L=460 NUT 1BUSHE
087 5513212901 TUBE PTFE DI2-DE4 L=290 2BUSHES
Page 7 of 8
Page 8
0132215249
DE'LONGHI
ECAM 22.360.B MAGNIFICA S
INT ECAM22.360.B
087 5513212881 TUBE PTFE DI2-DE4 L=270 2BUSHES
088 5313217701 O-RING D=3,85
089 6132101300 CLIP
090 5113211311 PUMP
091 5513211371 REGULATOR
093 5213214061 SENSOR NTC
094 5332239300 SPACER
095 5313217691 O-RING D=4,5
096 6113210021 CLIP
097 7313219401 VALVE
098 5113210211 MICROSWITCH
099 5213214671 FLOWMETER
100 5332239200 CONNECTOR
101 5213211161 PROTECTOR
CAPPUCCINO S11
102 5513214291 GENERATOR
103 5013252541 WIRING TCO
104 5013252961 WIRING TCO
105 5513214661 SLIDER
108 6113210021 CLIP
109 5313224491 SUPPORT
110 7332196700 VAPORIZER KIT
115 5213216261 TCO
116 5213218311 SOLENOID VALVE
Page 8 of 8
