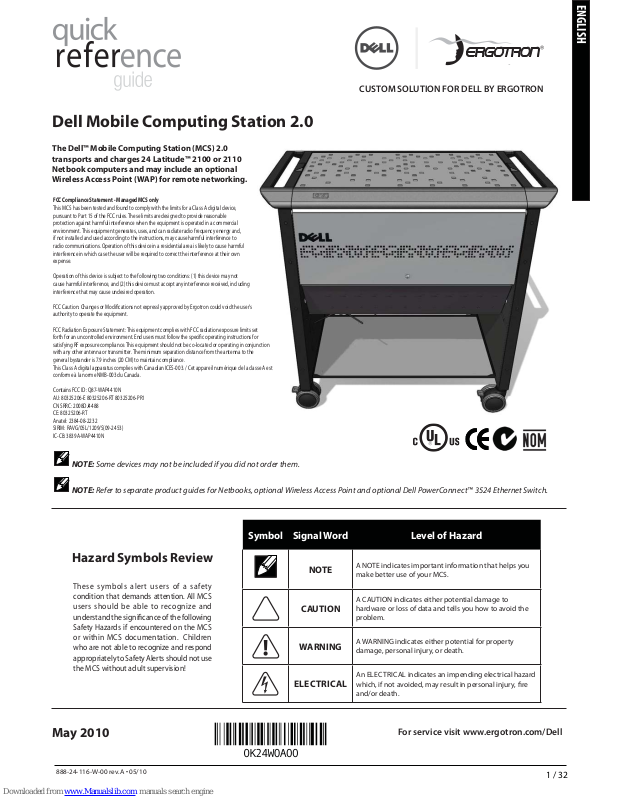

Dell Mobile Computing Station 2.0 Quick Reference Manual

888-24-116-W-00 rev.A • 05/10

ENGLISH

1 / 32

NOTE: Some devices may not be included if you did not order them.

Dell Mobile Computing Station 2.0

Hazard Symbols Review

Symbol Signal Word Level of Hazard

NOTE

A NOTE indicates important information that helps you
make better use of your MCS.

CAUTION

A CAUTION indicates either potential damage to
hardware or loss of data and tells you how to avoid the
problem.

WARNING

A WARNING indicates either potential for property
damage, personal injury, or death.

ELECTRICAL

An ELECTRICAL indicates an impending electrical hazard
which, if not avoided, may result in personal injury,  re
and/or death.

These symbols alert users of a safety
condition that demands attention. All MCS
users should be able to recognize and
understand the signifi cance of the following
Safety Hazards if encountered on the MCS
or within MCS documentation. Children
who are not able to recognize and respond
appropriately to Safety Alerts should not use
the MCS without adult supervision!

FCC Compliance Statement - Managed MCS only

This MCS has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,

radio communications. Operation of this device in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at their own
expense.

Operation of this device is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC Caution: Changes or Modi cations not expressly approved by Ergotron could void the user’s
authority to operate the equipment.

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. End users must follow the speci c operating instructions for
satisfying RF exposure compliance. This equipment should not be co-located or operating in conjunction
with any other antenna or transmitter. The minimum separation distance from the antenna to the
general bystander is 7.9 inches (20 CM) to maintain compliance.
This Class A digital apparatus complies with Canadian ICES-003. / Cet appareil numérique de la classe A est
conforme à la norme NMB-003 du Canada.

Contains FCC ID: Q87-WAP4410N
AU: 80325206-E 80325206-RT 80325206-PR1
CN SRRC: 2008DJ4488
CE: 80325206-RT
Anatel: 2384-08-2232
SIRIM: RAVG/05L/1209/S(09-2453)
IC-CB: 3839A-WAP4410N

NOTE: Refer to separate product guides for Netbooks, optional Wireless Access Point and optional Dell PowerConnect™ 3524 Ethernet Switch.

For service visit www.ergotron.com/Dell

CUSTOM SOLUTION FOR DELL BY ERGOTRON

May 2010

The Dell™ Mobile Computing Station (MCS) 2.0
transports and charges 24 Latitude™ 2100 or 2110
Netbook computers and may include an optional
Wireless Access Point (WAP) for remote networking.

if not installed and used according to the instructions, may cause harmful interference to

888-24-116-W-00 rev.A • 05/10

1

5

4

3

2

6

ENGLISH

2 / 32

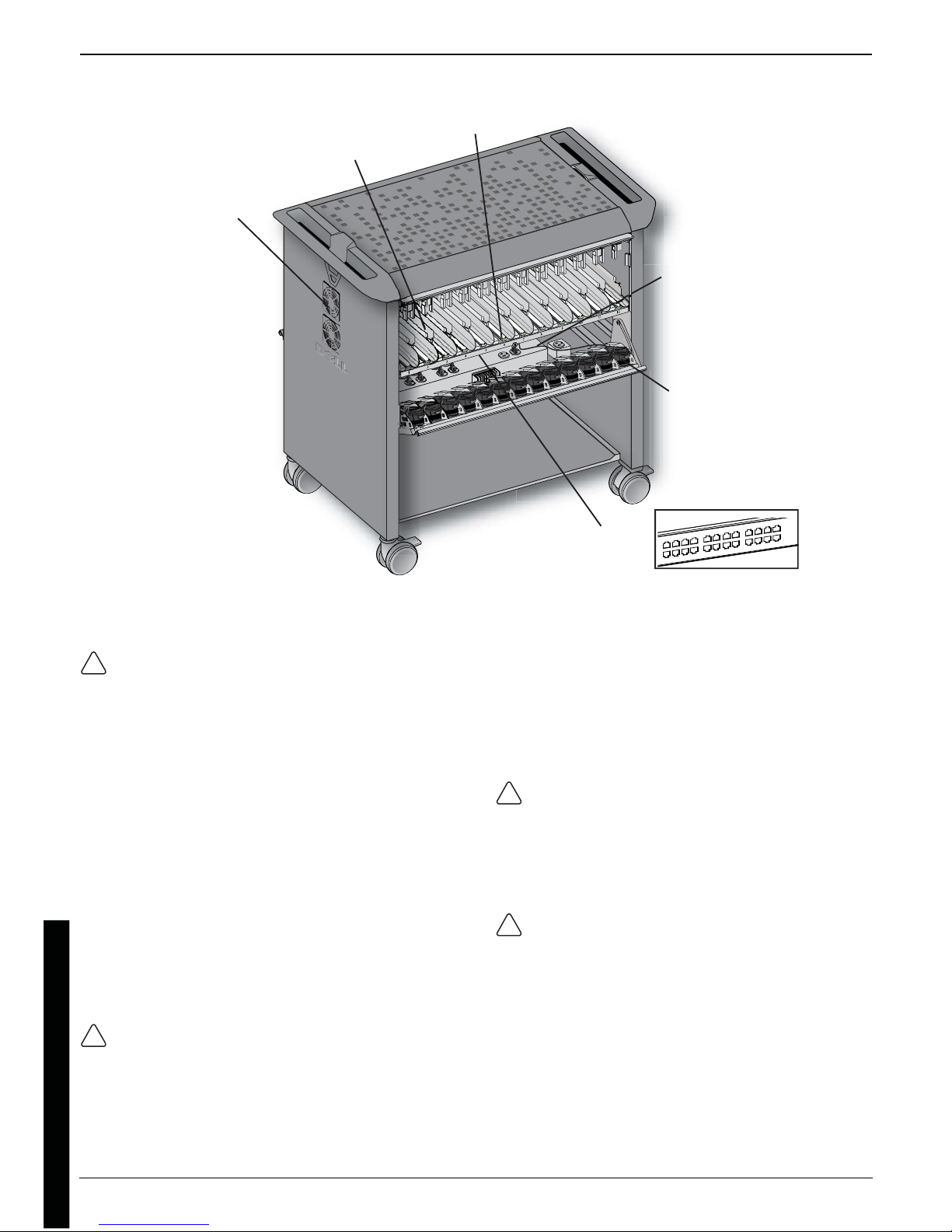

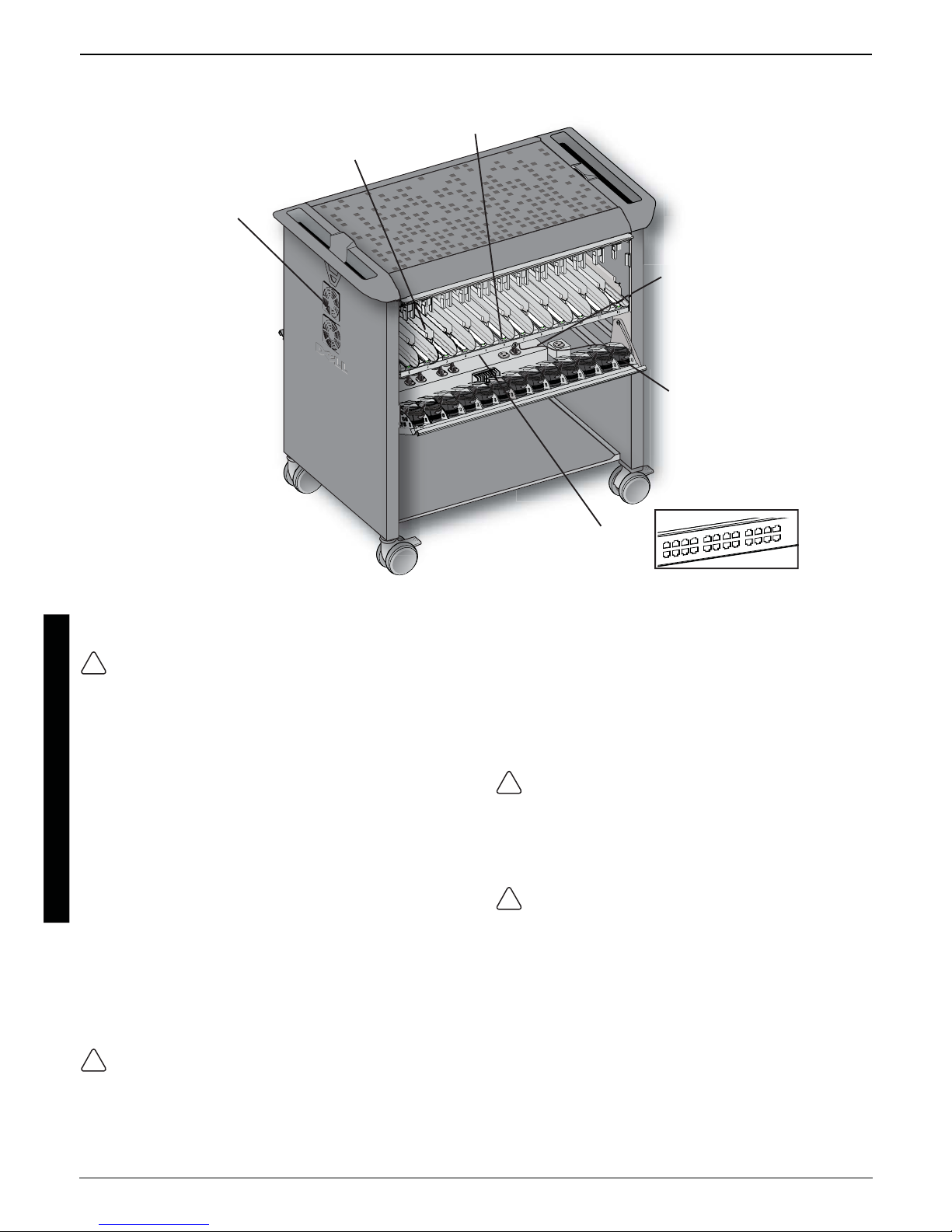

Lower Compartment

4

Controller Box houses

• Circuit breakers.

• 24 outlets are factory connected to Netbook AC adapters.

• 3 internal accessory outlets factory connected to:
– 25th AC adapter
– optional Wireless Access Point (WAP)
– optional Dell PowerConnect 3524 Ethernet Switch.

• The open (4th) internal outlet must not be used.

CAUTION: Do not connect equipment to open outlet(s).

5

AC Adapters

• 24 adapters factory connected to docks in upper compartment

• 25th adapter provides power distribution to Controller Box.

CAUTION: Use only 90 Watt 3 Prong AC Adapters in MCS.

6

Optional Ethernet Switch

• 24, factory connected,10/100 mbps ports, 2 1000 mpbs ports.

• Allows remote network updates to the docked MCS Netbooks.

Upper Compartment

1

Cooling Fans

CAUTION: Do not block fans and vent openings. To prevent

overheating, leave at least 5-inch (127 mm) clearance around fans
and vents.

2

Netbook Storage

• Storage and simultaneous charging for 24 Latitude™ 2100 or
2110 Netbooks.

• The charge status of individual Netbooks is visible when
the compartment is open.

3

Intuitive Docking

• The dock pro le matches the Netbook to prevent the user from
inserting the Netbook the wrong way.

• Dock and un-dock using just one hand.

• A tab at the front of each dock ensures seating of the power
and network connectors with the Netbooks.

• A green bar indicates Netbook is seated properly for charging.

• Exclusive design accepts both standard and touch-screen
Latitude 2100 or 2110 Netbooks, in 3-cell or 6-cell battery
con gurations.

Dell Mobile Computing Station 2.0

Interior Features

CAUTION: The Dell Mobile Computing Station 2.0 is

electrically operated equipment. To avoid risk of electric
shock or  re, it must be used with adult supervision.

888-24-116-W-00 rev.A • 05/10

1

2

3

4

5

6

8

7

12

13

15

14

10

11

9

ENGLISH

3 / 32

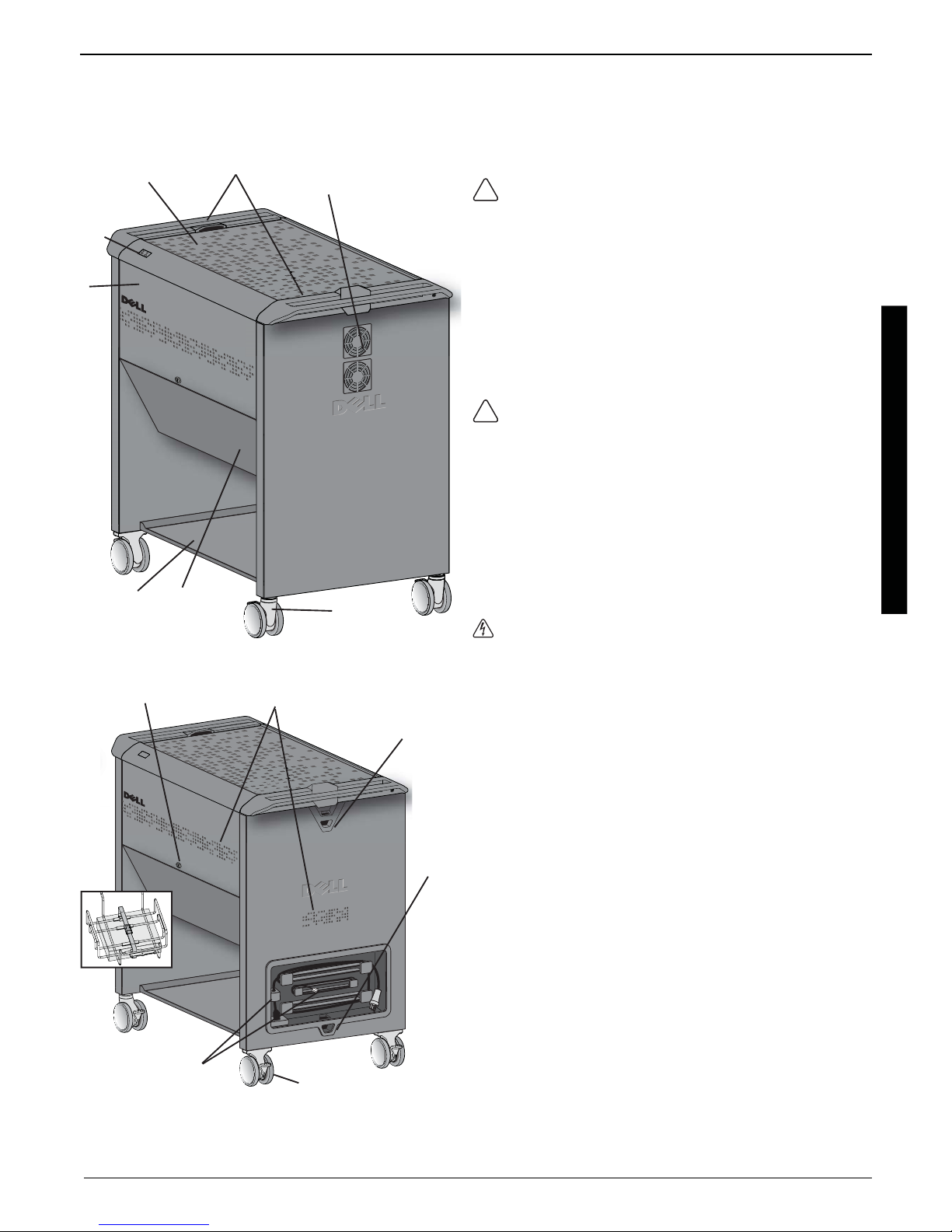

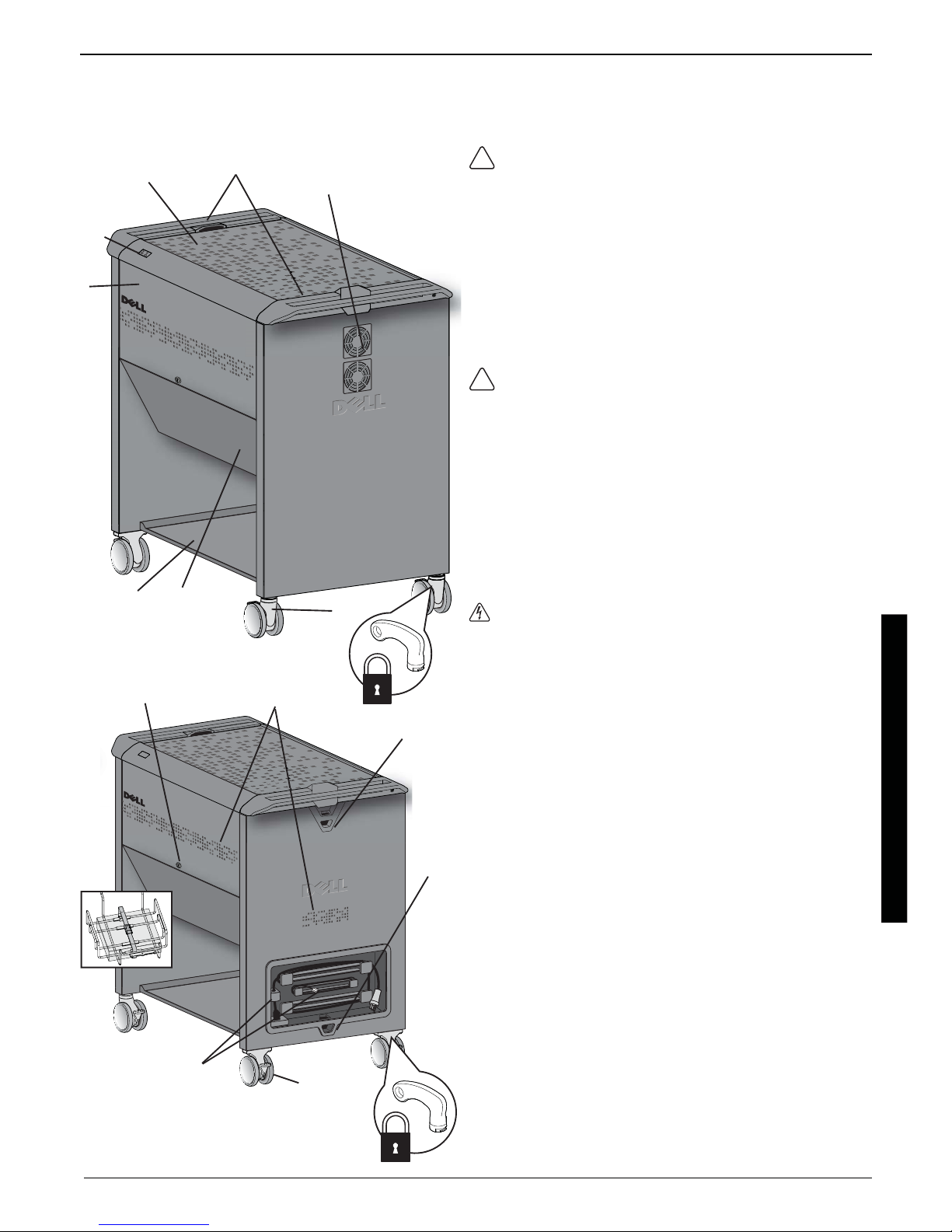

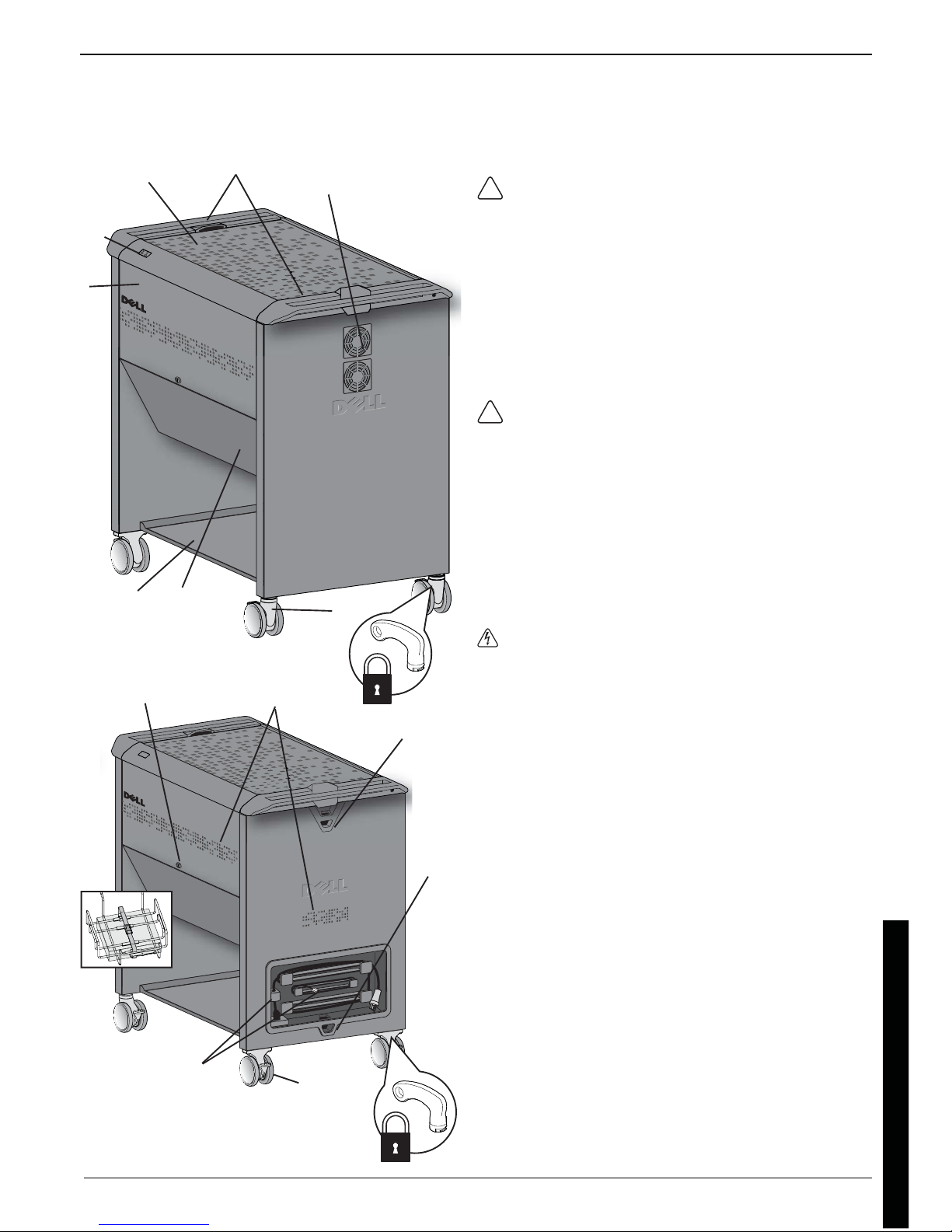

Dell Mobile Computing Station 2.0

1

Retractable Doors (upper compartment)

• The upper doors stow under the work surface for unobstructed
access to the Netbooks without changing the MCS footprint.
When closed, the upper doors overlap the lower doors and conceal
the lower compartment locks.

CAUTION: Keep the doors locked when the MCS is unattended or

in transit.

2

Power/Fault Status Indicator

• Displays the MCS fault and power indicators.

3

Work Surface With Anti-static Mat

• The maximum weight capacity of the work surface is 25 lb (11.4 kg).

4

Ergonomic Handles

• Positioned at each end of the MCS for optimum comfort and
maneuverability.

5

Fan Guards

• Allow air  ow and o er protection from fan blades.

CAUTION: Do not block fan or vent openings. To prevent

overheating, leave 5-inches (127 mm) or more clearance
around fan and vent openings.

6

Keyed, Rotating Front Casters

• The 4-inch (101 mm) rotating casters make steering and moving
over thresholds easier; the casters can be locked to prevent rolling; 2
keys are provided for the brake lock feature.

7

Locking, Hinged Doors (Lower Compartment)

• When closed, the AC Adapters and Controller Box are
concealed from view.

• The Risk of Shock label on the door alerts adults to prohibit children
from opening the lower compartments.

ELECTRICAL: Always disconnect the MCS power cable from the

wall outlet before opening the lower compartments. Do not allow
children to open the lower compartments.

8

Lower Storage Shelf

• The maximum weight capacity of the lower shelf is 60 lb (27.2 kg).

9

Locks

• 4 locks: one on each upper compartment door, one on each lower

compartment door; all four locks open with the same key (4 keys are
provided).

10

Ventilation System

• The vents on the sides and back end of the MCS improve air  ow; the
compartment contents are hidden from view.

11

Theft Deterrent Loops

• A heavy-duty loop is located near the handle above the cable bay.

12

MCS Security

• A heavy-duty loop is located near the recessed cable management
area to anchor the MCS to the wall or to the  oor.

13

Keyed, Fixed Rear Casters

• The 4-inch (101 mm)  xed casters make maneuvering the MCS easier.

• The casters can be locked to prevent rolling; 2 keys are provided for
the brake lock feature.

14

External Cable Management Bay

• Keeps the MCS power cable and Ethernet cable organized, protected
and close-at-hand; includes an 8-foot (2.4 m) power cable and 10-foot
(3 m) Ethernet cable.

15

Optional Wireless Access Point (WAP)

• Located beneath the lower compartments.

• The wire guard and strap hold the WAP securely, protecting it from
damage.

Exterior Features

888-24-116-W-00 rev.A • 05/10

ENGLISH

4 / 32

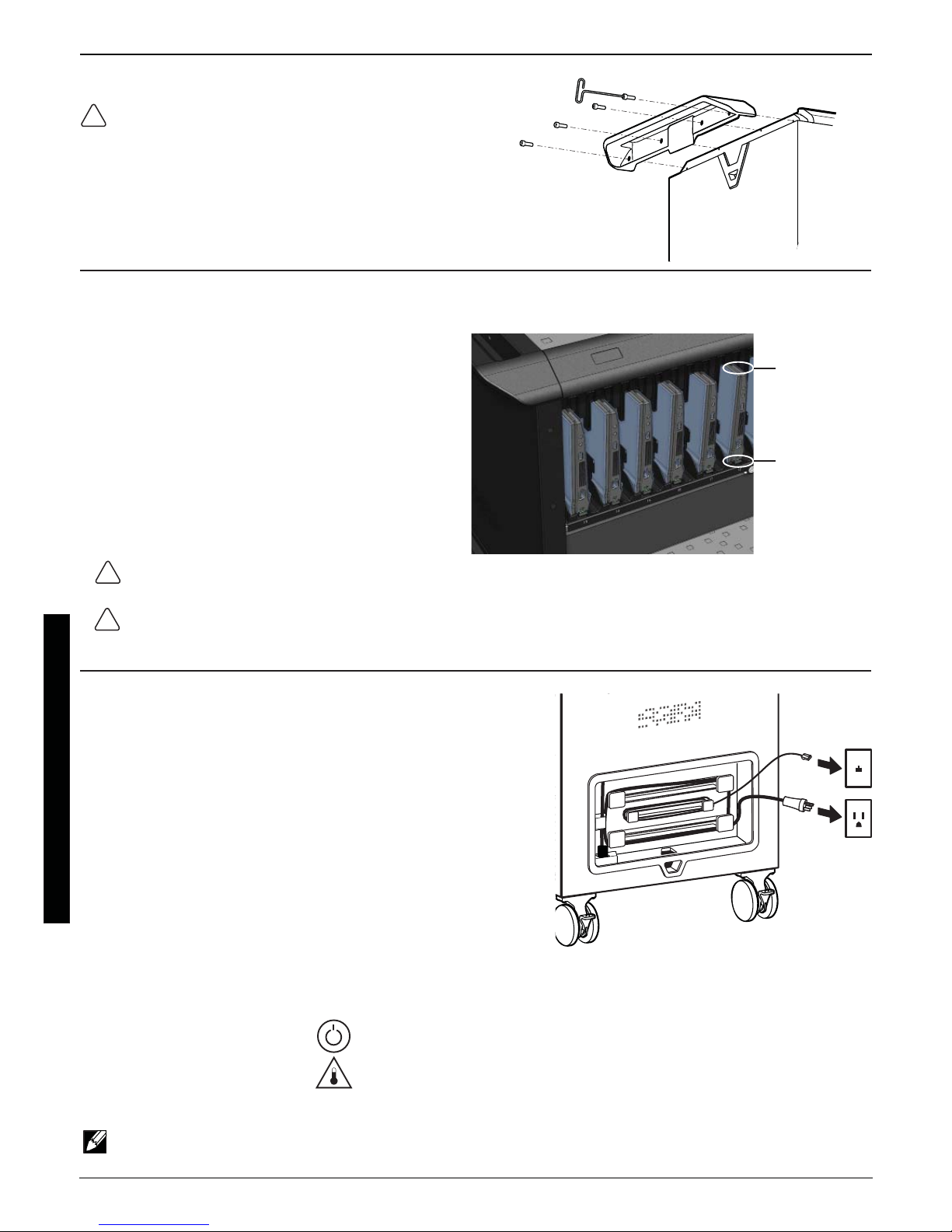

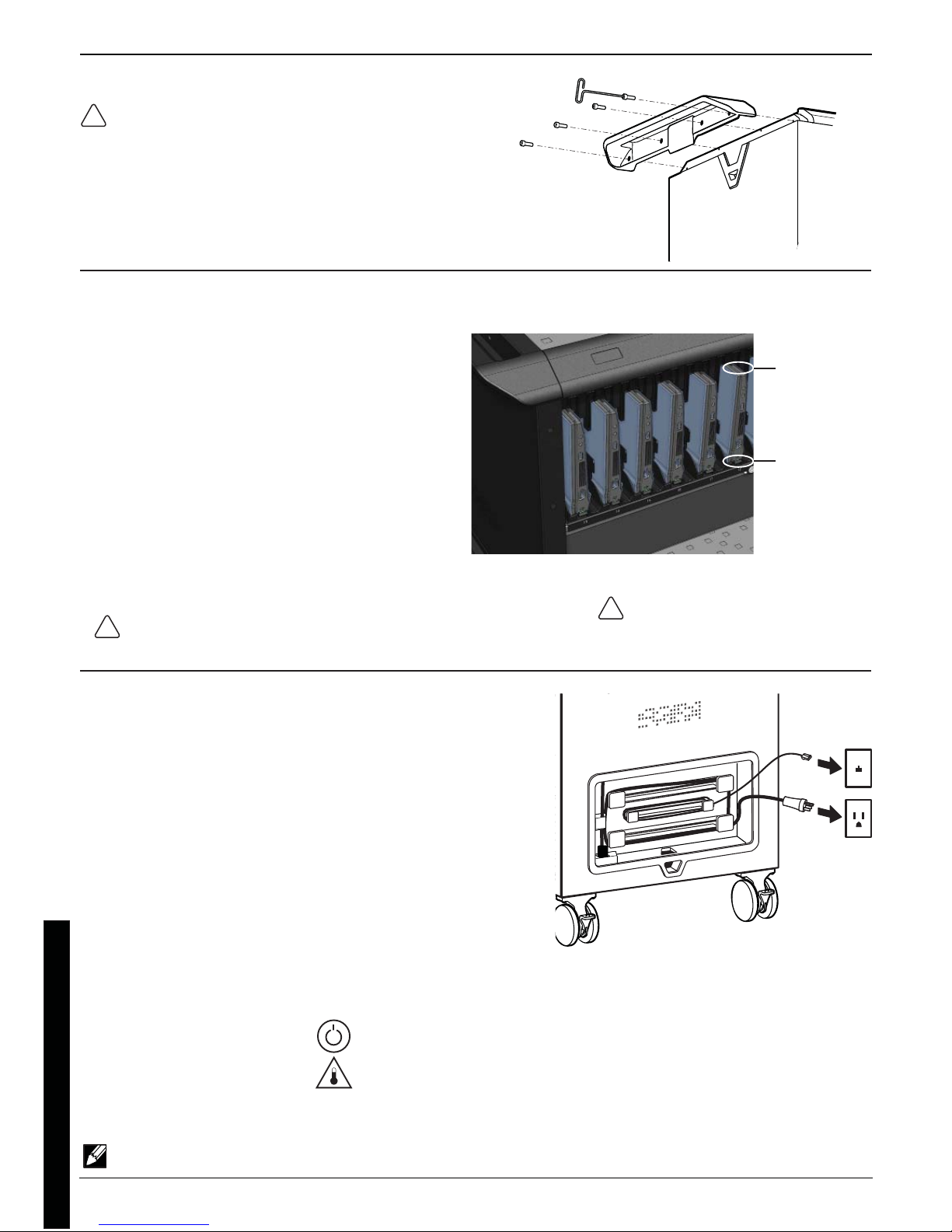

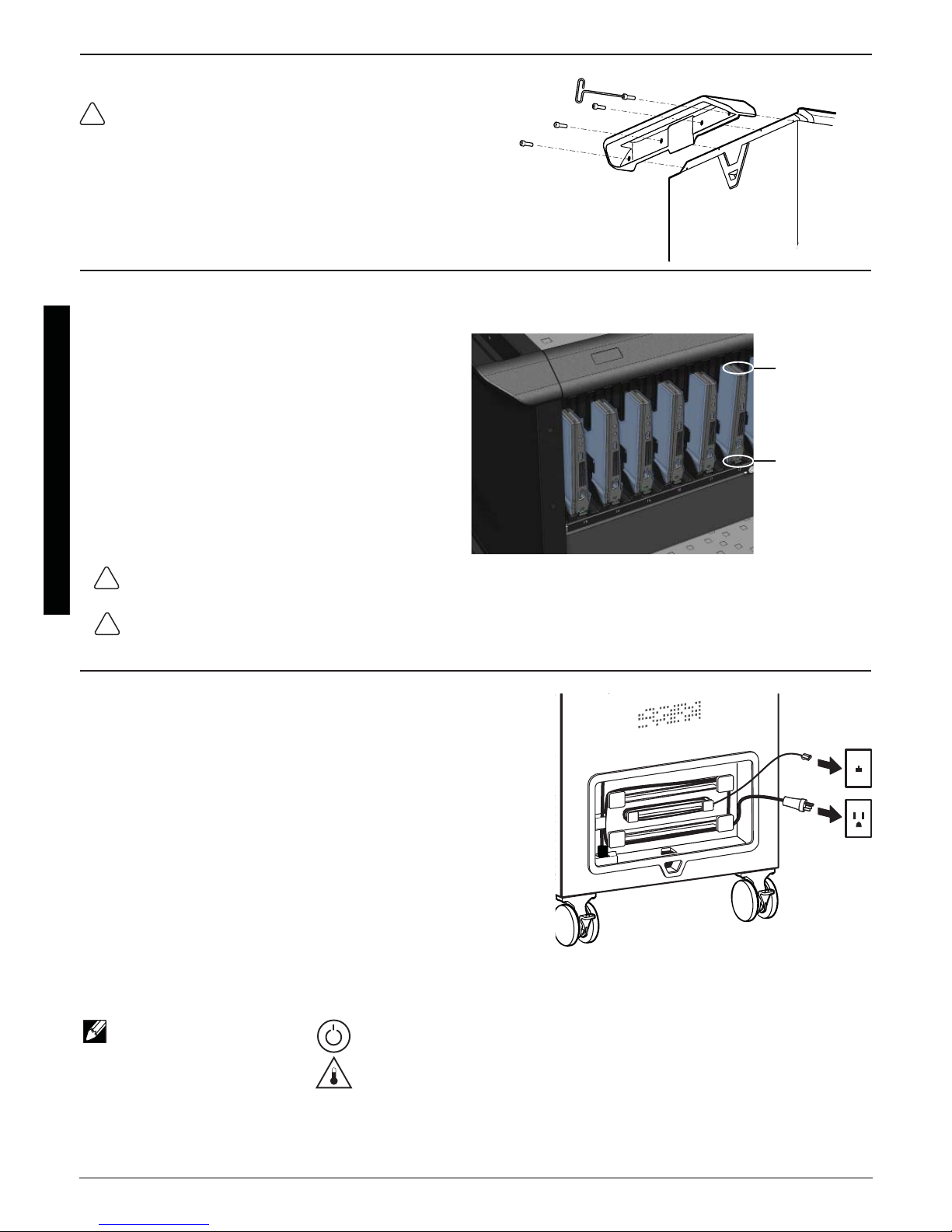

Set-Up and Go

1

Ensure handles are securely attached to MCS

2

Insert Netbooks into docks

3

First Time Battery Charge

Monitoring Netbook Power

Using the provided keys, unlock the two top compartment
doors. Lift the doors up and out, allowing the doors to drop
slightly, then lift the doors up and push them under the
work surface.

Insert the Netbooks into the docks with the front edge of
the Netbook at the top and the power/Ethernet connectors
leading into the docking station.

The green tab at the front of the dock will be visible if the
Netbook has been properly seated.

Charging activity can be viewed at the top edge of each
Netbook when docked.

CAUTION: To avoid injury or equipment damage,

ensure area is clear before closing upper doors.

Eight screws (four at each handle) and a hex tool have been provided to attach one
handle at each side of the MCS work surface.

Before using the Netbooks for the  rst time or after they have spent some
time in storage, ensure that the Netbooks have a full (100%) charge.

Connect the MCS power cable to a dedicated circuit, (one that is not
being shared with other devices).

Verify that the blue light on the Power/Fault Status Indicator near the
MCS work surface is lit.

Prior to  rst time use, allow the Netbooks to charge in the MCS for at
least 2-3 hours before removing them from the docks.

The Power/Fault Status Indicator lights near the MCS work surface communicate the following conditions.

NOTE: Charge status of individual Netbooks can be seen directly on Netbooks when docked and the upper compartment doors are open.

CAUTION: Observe all the safety precautions related to the Dell MCS

operation and maintenance included in this reference guide! Failure to
follow the safety precautions may result in injury or damage to equipment.

Blue light, solid Power "ON"

Amber light,  ashing Maximum temperature has been exceeded

* When recommended temperature has been exceeded, power to the
Netbooks is terminated. Charging resumes once the temperature falls within
an acceptable operating range.

CAUTION: There is no on/o switch on this equipment; the only power disconnect is the AC power cable.

Therefore, the socket outlet should be easily accessible and should be installed near the equipment.

Green tab
location

Netbook charge
indicator

Power/Fault Status Indicator Signal Meaning

888-24-116-W-00 rev.A • 05/10

CN-XXXXX-14941­ XXX-1234-A00

S/N 1234

Made in China
DP/N XXXXX

ENGLISH

5 / 32

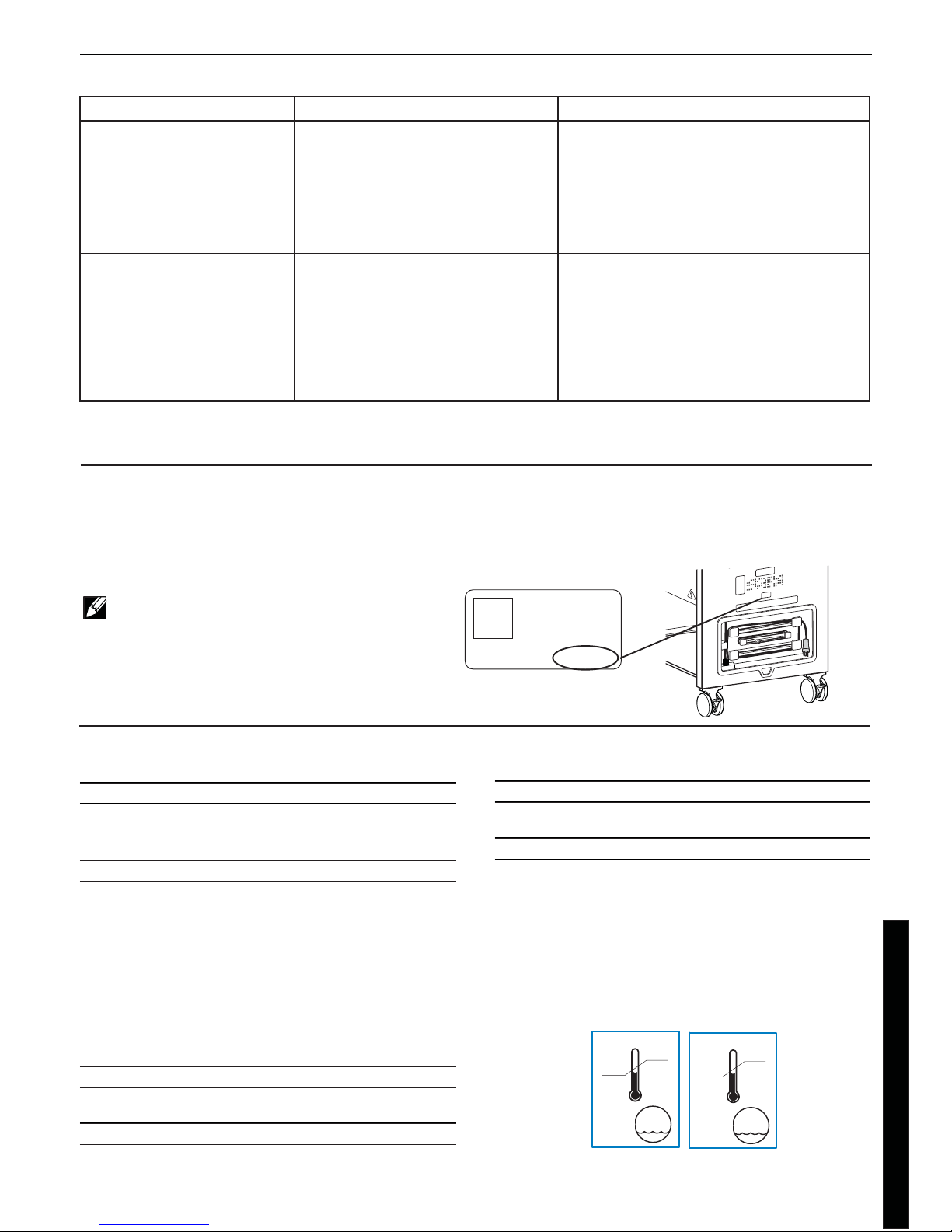

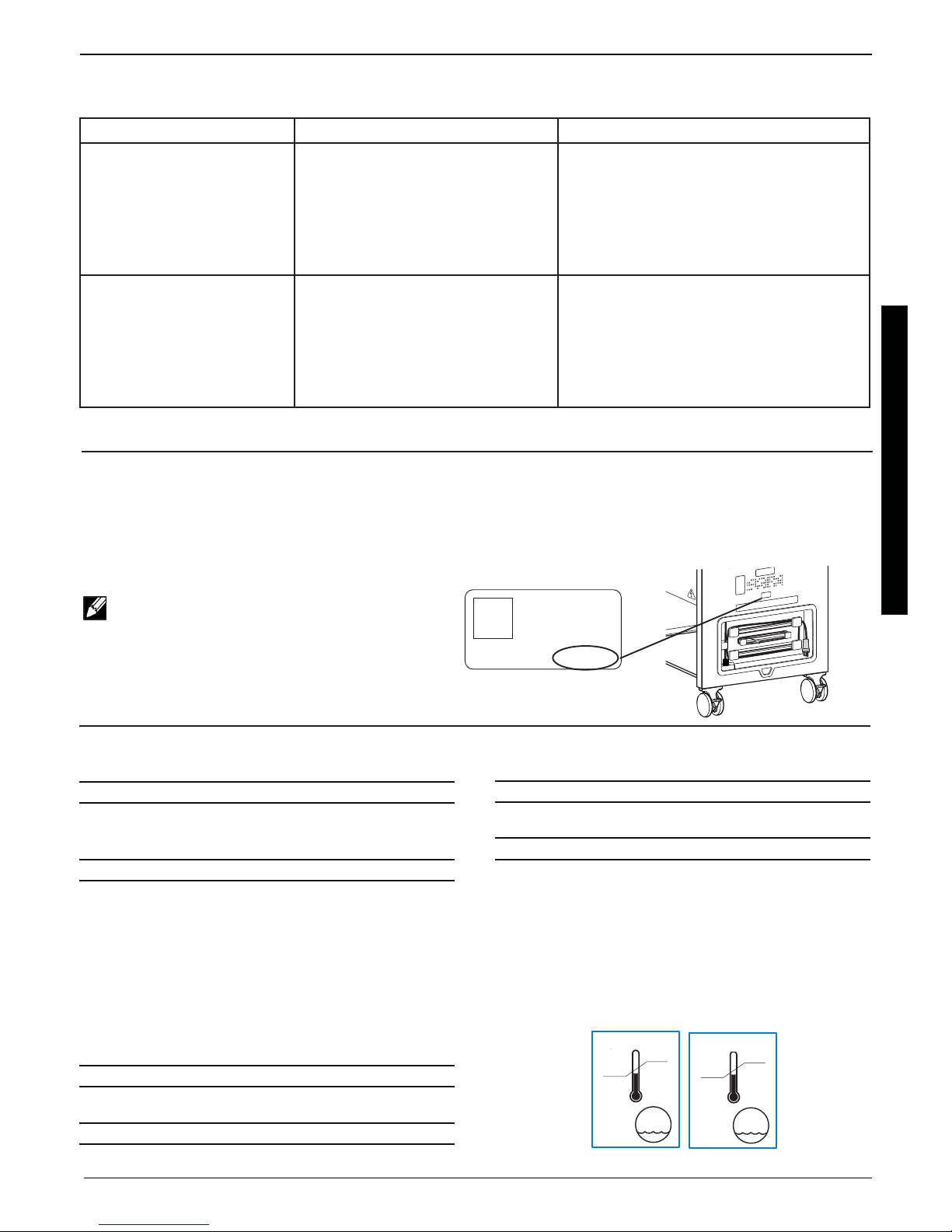

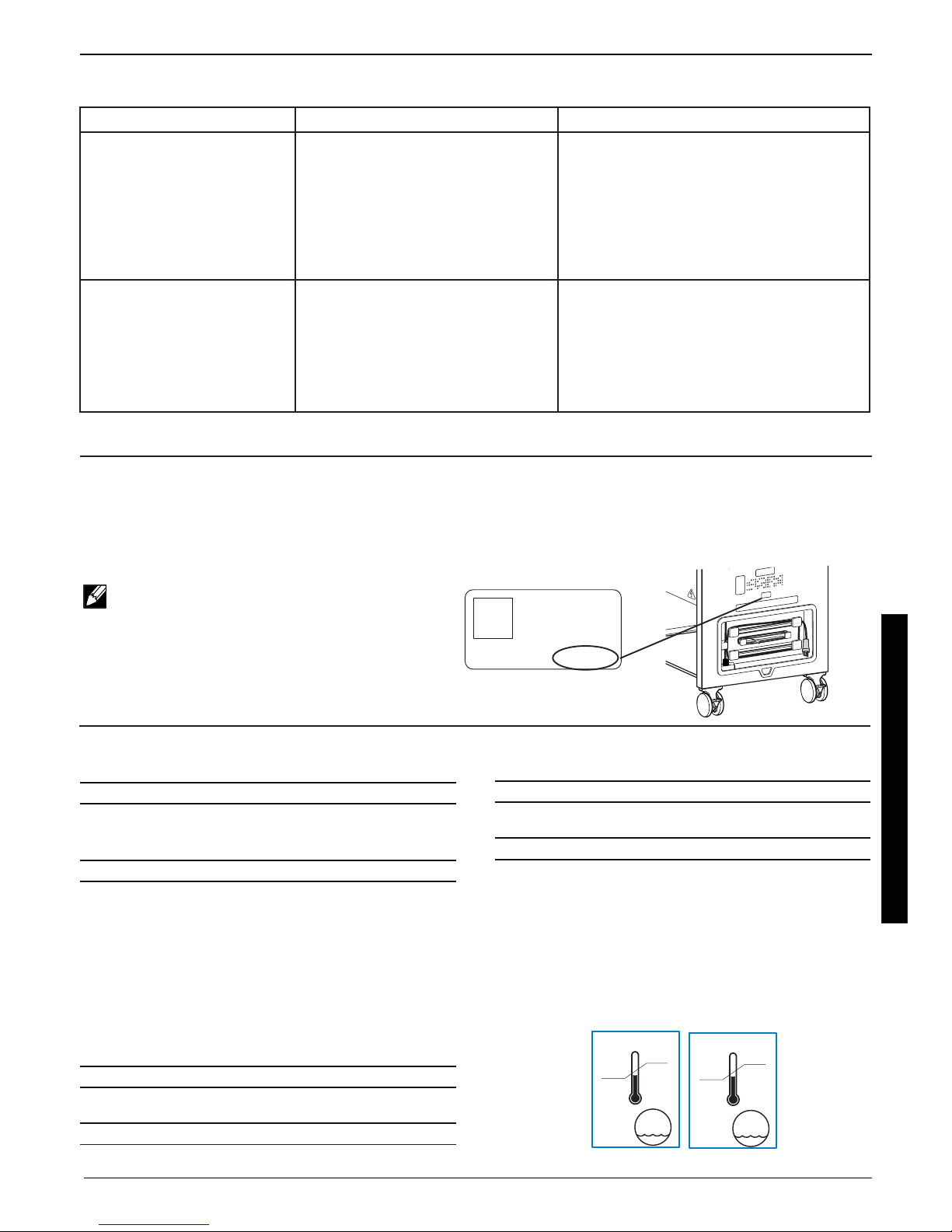

Troubleshooting

For problems not addressed above, visit www.ergotron.com/Dell

Problem Possible Cause Solution

Netbook(s) not charging. Wall power may not be reaching the MCS

Netbooks due to

• unplugged power cable

• improper docking of Netbook(s)

• tripped electrical circuit

• Ensure that power cable is plugged into a wall outlet.

• Verify that Netbook is docked properly: the green tab
at the edge of the dock is visible.

• Check circuit breakers.

• If another electrical device is sharing the same circuit
as the MCS, unplug the other device.

Power/Fault Status Amber Indicator
light is  ashing.

Indicates possible overheating. • Ensure areas around the fans and vents are

unobstructed.

• Take measures to reduce room temperature below
30° C (86° F).

• Power cable must remain plugged-in so that the
fans continue to operate. Once the temperature has
dropped to a safe level, charging will resume.

Service and Warranty

NOTE: When contacting customer service, reference the serial

number located above the external cable management bay.

For Service on the Dell Mobile Computing Station 2.0

Visit www.ergotron.com/Dell

Serial Number is required
for warranty entitlement.

Power System

120 V~, 12 A, 60 Hz or 220/230/240 V~, 8 A, 50/60 Hz depending on
region and model of Dell MCS 2.0

MCS Physical Dimensions

Height 982.98 mm (38.7-inches)
Length 1016 mm (40-inches)
Width 609.6 mm (24-inches)
Weight (without Netbooks) 104 kg (230 lb)
Weight Capacity:
Top Surface 11.34 kg (25 lb)
Lower Shelf 27.2 kg (60 lb)
Tip Test/Angle 10 degrees

AC Adapters (25)

90 Watt 3 Prong AC Adapter

Optional Wireless Access Point (WAP)

Cisco WAP4410N-XX

Speci cations

Optional Ethernet Switch

Dell PowerConnect 3524 Ethernet Switch

Environmental

Temperature range:
Operating 0° to 30°C (32° to 86°F)
Storage -40° to 65°C (-40° to 149°F)
Relative humidity (maximum):
Operating 10%–90% (non condensing)
Storage 5%–95% (non condensing)
Altitude (maximum): 2000 m (6,562 ft)

Operational

-40 °C

-40 °F

65 °C
149 °F

Relative

Humidity

Range

5-95% rH

Storage

0 °C
32 °F

30 °C

86 °F

Relative

Humidity

Range

10-90% rH

888-24-116-W-00 rev.A • 05/10

ENGLISH

6 / 32

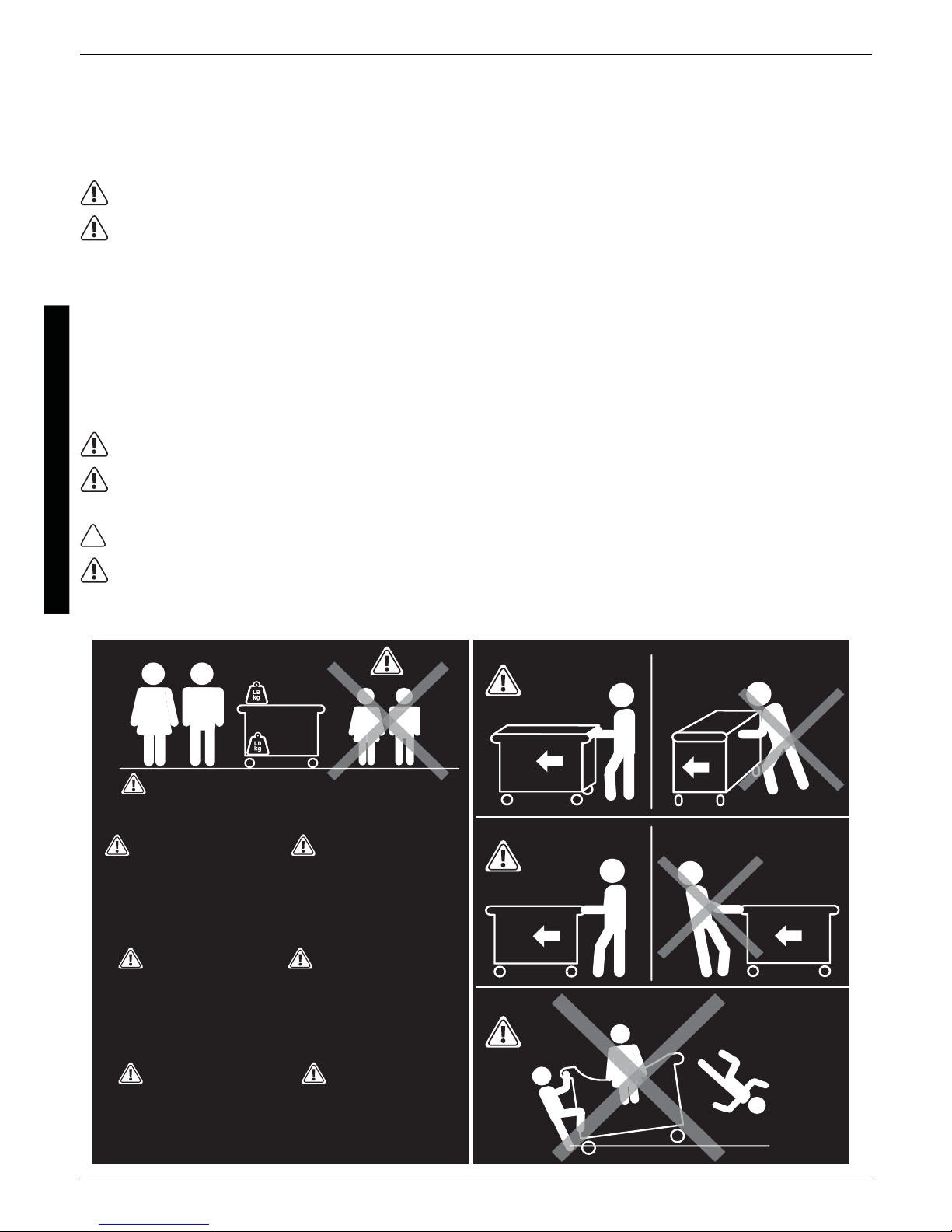

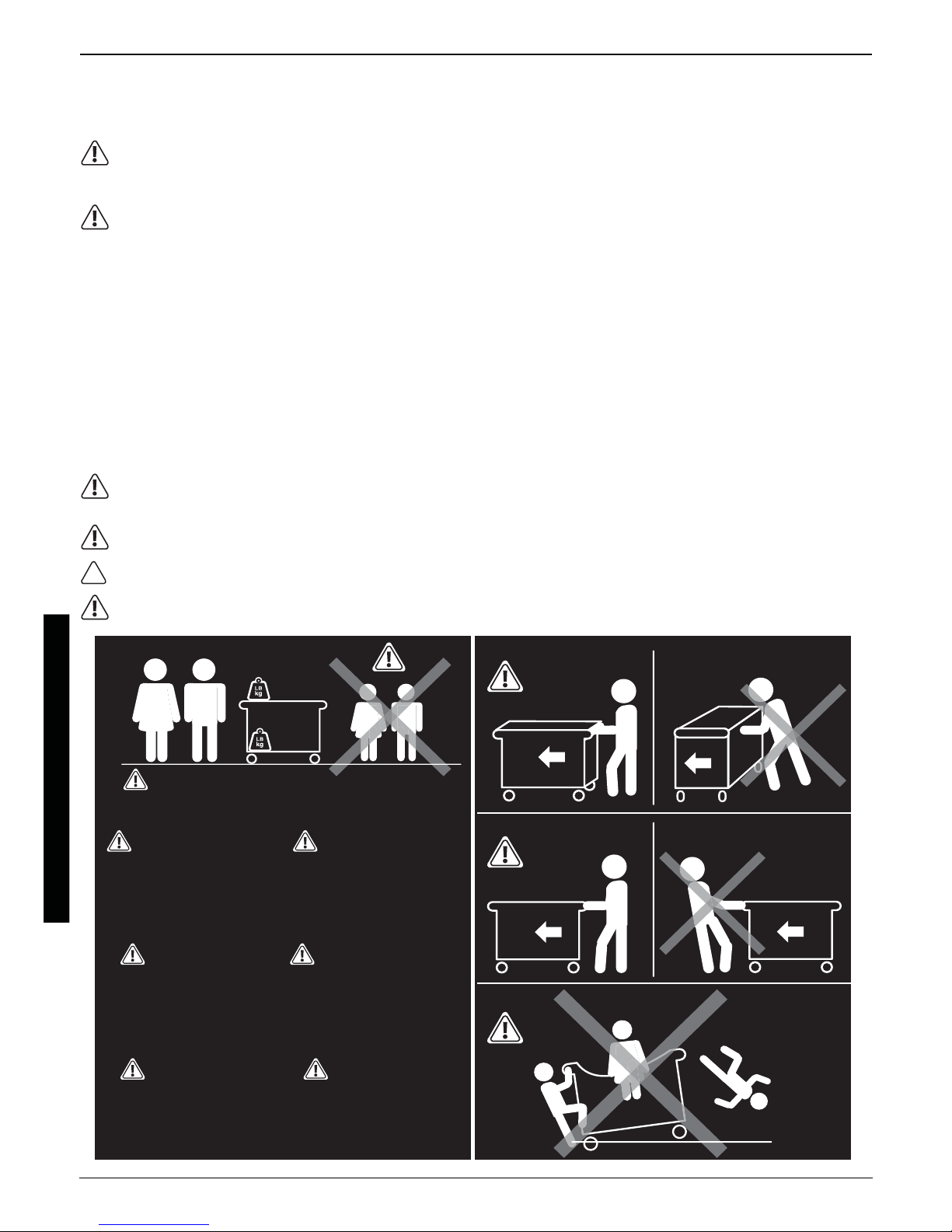

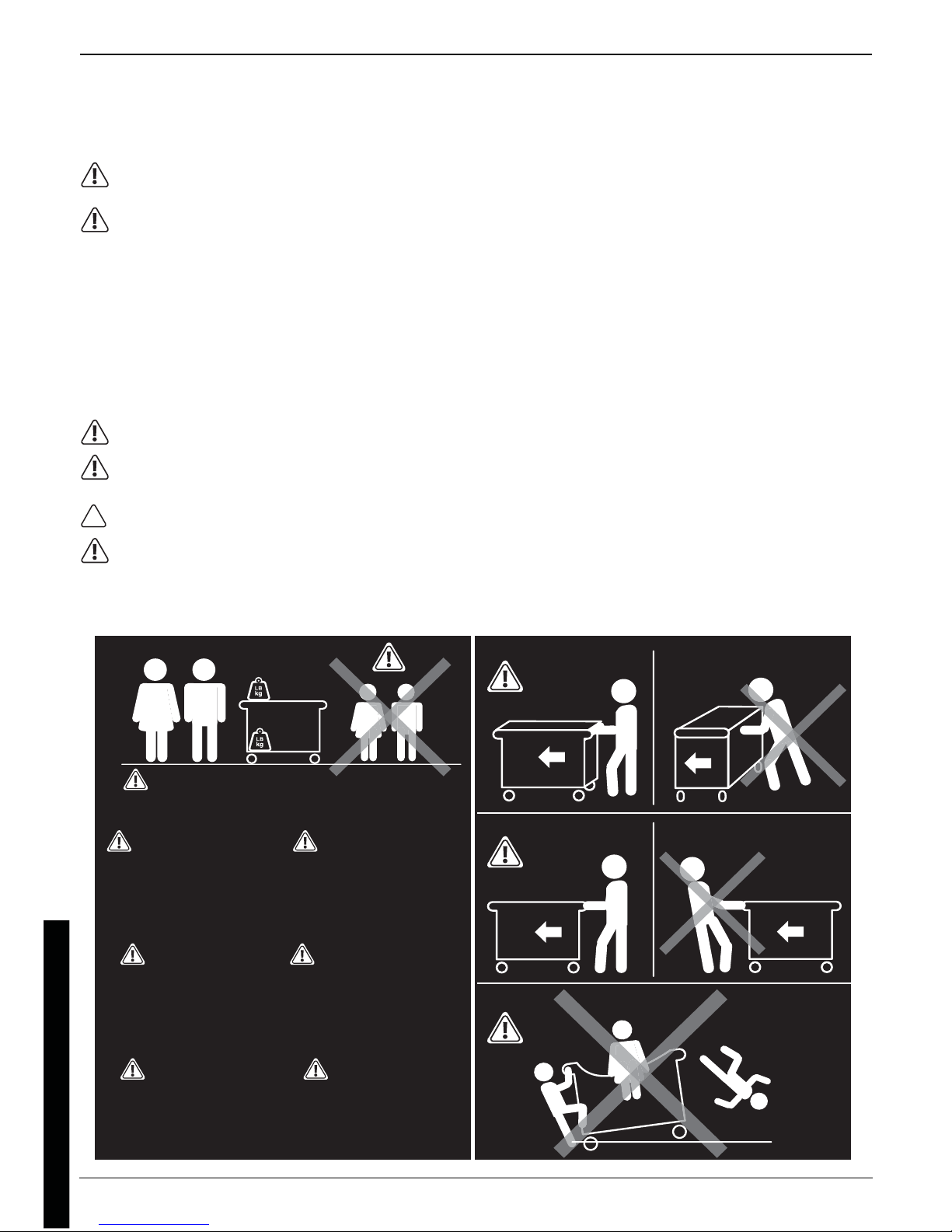

Moving the Dell Mobile Computing Station 2.0

The Dell Mobile Computing Station (MCS) is designed to be used indoors only.

WARNING:

Failure to observe the following safety notices may result in serious personal injury or equipment damage.

WARNING: Before moving the MCS:

1. Disconnect the power and Ethernet cables from the wall.

2. Make sure the cables are wrapped and secure.

3. Close and lock the upper and lower compartment doors.

4. Remove items from the top work surface and the lower shelf.

5. Unlock the casters.

6. Push (do not pull) the MCS at the back (where the cable management bay is located) for optimum maneuverability and to prevent muscle strain

7. Do not move the MCS across rough, uneven or irregular surfaces such as gravel.

WARNING: Do not allow children to move the MCS unless supervised by an adult who is familiar with all aspects of its operation.

WARNING: Do not sit, stand, or climb on MCS. The maximum weight capacity of the top surface is 11.4 kg (25 lb) and lower shelf is 27.2kg (60 lb).

CAUTION: Do not use the MCS to transport or store equipment other than what has benn noted in this guide.

WARNING: Do not lift the MCS from bottom.

Ergonomics and Safety Alerts

Tip Hazard! Do not allow children to use cart without adult supervision.
Failure to follow this warning may result in injury or equipment damage.

WARNING

Risque de renversement. Interdire aux

enfants d’utiliserle chariot sans la

surveillance d’un adulte.Risque de

blessure ou d’endommagement

matériel en cas de non-respect de cet

avertissement.

AVERTISSEMENT

¡Peligro de vuelco! No permita que los

niños utilicen el carro sin supervisión

de un adulto. En caso contrario,

podrían producirse lesiones físicas o

daños en el equipo.

ADVERTENCIA

Kippgefahr! Der Wagen darf von

Kindern nicht unbeaufsichtigt genutzt

werden. Bei Nichtbeachtung dieser

Anweisung kann es zu Verletzungen

oder zu Sachschäden kommen.

WARNUNG

Kantelgevaar! Sta kinderen niet toe

de trolley te gebruiken zonder

supervisie van een volwassene. Het

nalaten deze waarschuwing op te
volgen, kan resulteren in letsel of

schade aan de apparatuur.

WAARSCHUWING

⋍尕☀棸᧝₴䰐⏎䵴⦷㼰㦘㒟

ⅉ䥠㔳ₚ∎䞷㓚㘷懵ᇭ

ₜ挄⸗㷳巵⛙♾⺋咃♦↳㒥幍

⮖㗮⧞ᇭ

警告

Advertência! Não permitir que crianças

usem o carrinho sem supervisão de

adultos. A não observação deste alerta

pode resultar em acidentes ou danos

ao equipamento.

ATENÇÃO

822-384-01

≤ 27.2 kg
≤ 60 lb

≤ 11.4 kg
≤ 25 lb

888-24-116-W-00 rev.A • 05/10

ENGLISH

7 / 32

Cleaning and Maintenance

WARNING:

Failure to observe the following safety notices may result in serious personal injury or equipment damage.

Inspect for damage, dirt and debris on a regular basis. All paint and plastic components used in the MCS will withstand cleaning by most commonly used,
diluted, non-abrasive solutions such as quaternary ammonia compounds, ammonia enzyme cleaners, bleach, or alcohol solutions. It is recommended that any
cleaning solution be tested on a small, inconspicuous area to ensure it does not harm the surface of the MCS.

• Marks from permanent marker, dry-erase marker, and pens can be removed with 91% isopropyl alcohol and a soft cloth.

• Iodine stains can be removed with commonly used cleaners and a soft cloth.

• Do not use steel wool or other abrasive materials that may damage the surface  nish.

ELECTRICAL: To avoid risk of electric shock, do not expose electrical components to water, cleaning solutions or other potentially corrosive liquids or

substances.

ELECTRICAL: Do not immerse MCS or MCS components in liquid or allow liquids to  ow into the MCS. Wipe all cleaners o surface immediately using a

damp cloth. Dry the surface thoroughly after cleaning.

Ergonomics and Safety Alerts

ELECTRICAL: Do not use  ammable cleaners on MCS surfaces.

CAUTION: Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the MCS unless directed to do so through

Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-certi ed entity may adjust, service or replace MCS
components. If any component on the MCS is missing or damaged, the MCS must not be used. Contact Ergotron immediately to request a replacement part.

CAUTION: Casters - Check casters periodically to make sure they are clean and free of debris that would prevent smooth travel. Avoid moving MCS across

uneven, dirty, or damaged surfaces.

CAUTION: Customer Equipment- Make sure equipment is balanced and mounted securely to MCS. Contact Ergotron for information about moving MCS

components.

CAUTION: MCS must be periodically inspected for damage, and any broken parts replaced as necessary.

NOTE: Cables - Keep cables organized on the MCS (a variety of solutions are provided with your MCS for this purpose). Route excess cables away from

moving components with cable clips. Contact Ergotron for more information.

Parking the Dell Mobile Computing Station 2.0

The Dell MCS can be anchored using the heavy duty security loop located at the back of the cart (near the cable management bay. )

WARNING:

Failure to observe the following safety notices may result in serious personal injury or equipment damage.

CAUTION: Do not block the fans and vent openings. To prevent overheating, leave at least 127 mm (5-inch) clearance

around fans and vents.

WARNING: Do not park the MCS in areas of heavy traffi c.

WARNING: Do not run cables through doorways, holes in ceilings, wall, or fl oors.

WARNING: Do not run cables across hallways, classrooms, or other areas where they will be walked on.

WARNING: Do not leave MCS unattended in areas where children have access.

WARNING: Keep MCS doors closed and locked whenever it is unattended or parked for charging or storage.

WARNING: Do not place heavy objects on the MCS. The maximum weight capacity of the top surface is 11.4 kg (25 lb) and lower shelf is 27.2kg (60 lb).

WARNING: Do not use the MCS to store liquids or cleaning supplies.

ELECTRICAL: Do not place MCS in close proximity to fl ammable liquids or gases.

ELECTRICAL: Using an incompatible cable or improperly connecting the cable to the controller box may cause fi re or equipment damage.

888-24-116-W-00 rev.A • 05/10

Información para NOM (únicamente para México)

La información siguiente se proporciona en el dispositivo o dispositivos descritos en este documento, en cumplimiento
con los requistos de la Norma o cial mexicana (NOM):

Importador:

Dell México S.A. de C.V.
Paseo de la Reforma 2620 - 11° Piso
Col. Lomas Altas
11950 México, D.F.

Modelo Voltage de alimentación Frecuencia Consumo eléctrrico

Dell MCS 2.0 120 V~ 50Hz 12A

ENGLISH

8 / 32

CUSTOM SOLUTION FOR DELL BY ERGOTRON

For service visit www.ergotron.com/Dell

Warranty

3 years for mechanical components and functions and 1 year for

electrical components and functions. All third party components

(Optional Ethernet Switch, Optional Wireless Access Point (WAP),

Dell Power Cables, and AC Adapters) will follow the warranty as

de ned by the manufacturer.

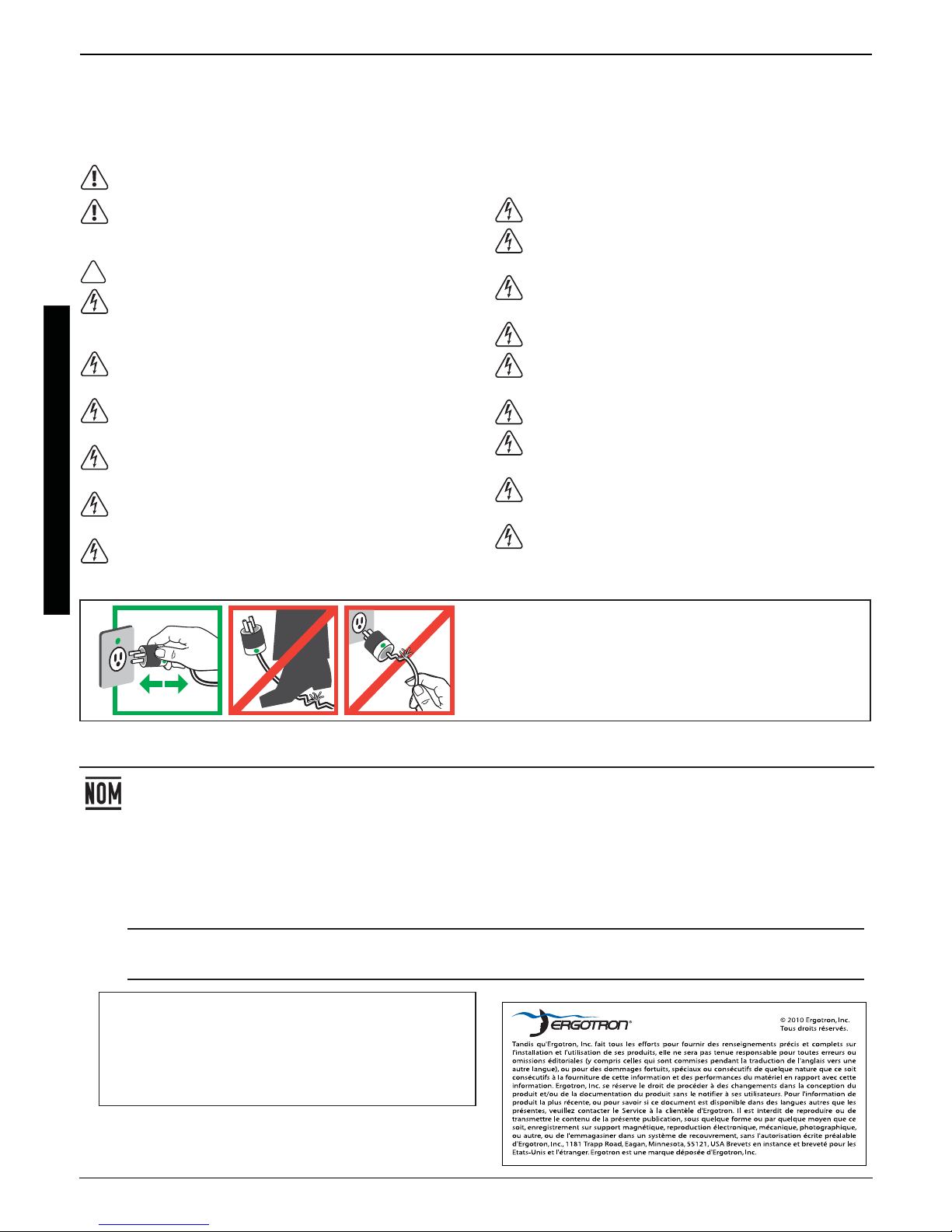

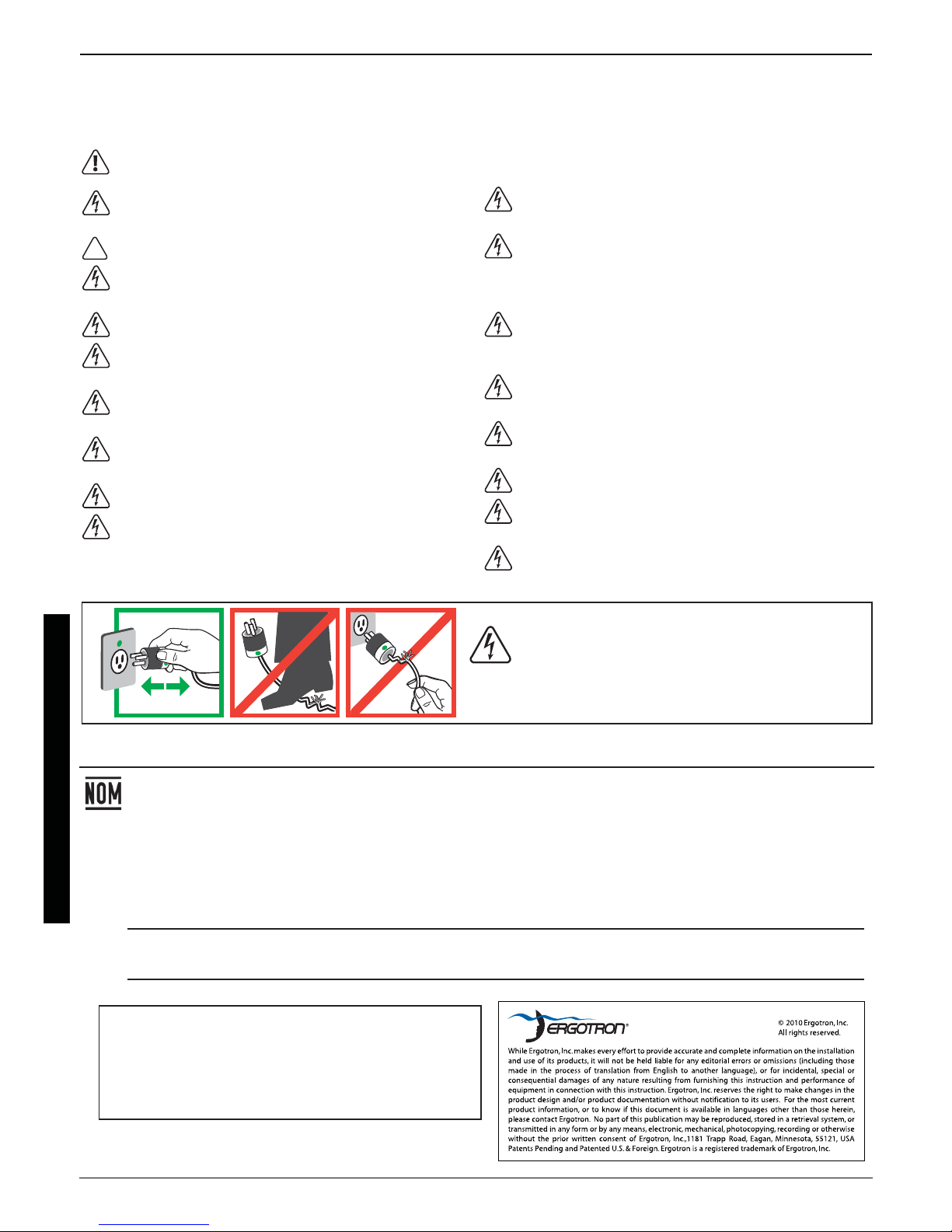

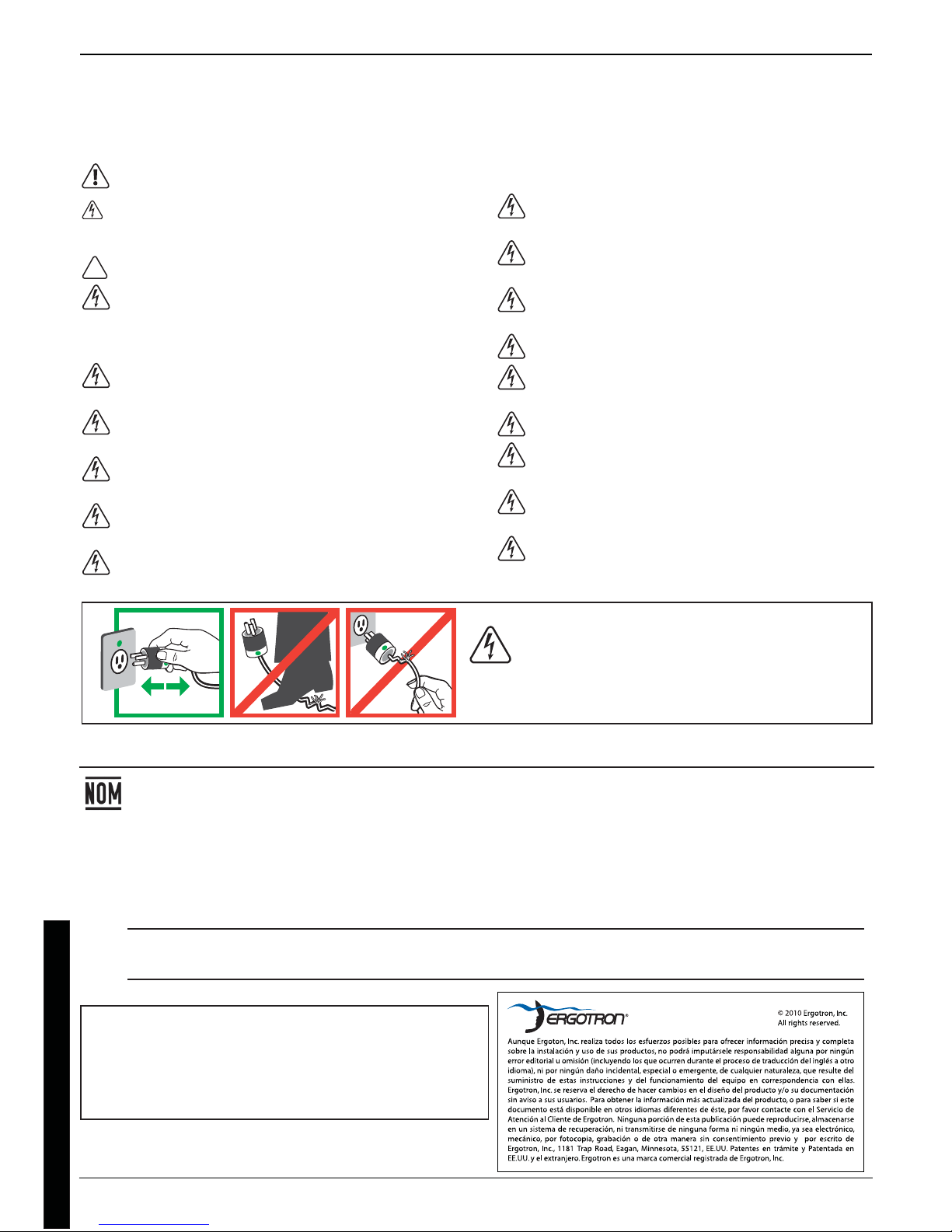

Power Cables and Equipment Cables

There are specifi c risks associated with the use of equipment having power cables. You must be aware of these risks and avoid these risks when the MCS is
located in close proximity to children.

WARNING: Failure to observe the following safety notices can result in  re or death by electric shock.

ELECTRICAL: Disconnect MCS power cable from wall outlet

before opening lower compartment. Do not allow children to open
lower compartment.

CAUTION: Double Pole / Neutral Fusing.

ELECTRICAL:

The ethernet port is not suitable for connection to
circuits used outside the building. The ethernet port is subject to lightening
or power faults.

ELECTRICAL:

Inspect power cables thoroughly before each use. Do
not use cables that are damaged.

ELECTRICAL:

Do not plug power sources with wattage rating

higher than specifi ed for the MCS.

ELECTRICAL:

Do not run cable through doorways, holes in ceilings,

walls or fl oors.

ELECTRICAL:

Insert plug completely into outlet.

ELECTRICAL:

Do not remove, bend or modify any metal prongs or

pins of cable.

ELECTRICAL:

Do not substitute supplied AC Adapters.

ELECTRICAL:

Do not use excessive force to make connections.

ELECTRICAL:

Keep away from water. Do not use when wet.

ELECTRICAL:

Keep children away from cable.

ELECTRICAL:

Keep children away from internal MCS components.

ELECTRICAL:

Do not plug cable into an extension cable.

ELECTRICAL:

Avoid overheating. Uncoil cable and do not cover it

with any material.

ELECTRICAL:

Do not drive, drag or place objects over cable. Do not

walk on cable.

ELECTRICAL:

Grasp plug to remove from outlet. Do not unplug by

pulling on cable.

Risk of Electric Shock

DANGER!

DANGER! Electrical cables can be hazardous.
Misuse can result in  re or death by electrical shock.

Ergonomics and Safety Alerts

FRANÇAISE

Station d’ordinateur mobile 2.0 de Dell

Revue des symboles de danger

Symbole Signal Mot Niveau de danger

NOTE

Un symbole NOTE indique de l’information importante
qui vous aide à faire un meilleur usage de votre station
de travail mobile.

ATTENTION

Un symbole ATTENTION indique soit un dommage
potentiel au matériel ou une perte de données et vous
indique comment éviter le problème.

AVERTISSEMENT

Un symbole AVERTISSEMENT indique un potentiel de
dommage matériel, de blessure corporelle ou de mort.

ÉLECTRIQUE

Un symbole ÉLECTRIQUE indique un danger électrique
imminent qui, s’il n’est pas évité, peut provoquer une
blessure corporelle, un incendie et/ou la mort.

Ces symboles avertissent les utilisateurs des conditions
de sécurité qui nécessitent votre attention. Tous les
utilisateurs de stations d’ordinateurs mobiles doivent être
en mesure de reconnaître et de comprendre la signifi cation
des situations dangereuses suivantes s’ils les rencontrent
dans les stations d’ordinateurs mobiles ou dans la
documentation relative aux stations d’ordinateur mobile.
Les enfants qui ne sont pas en mesure de reconnaître et de
réagir correctement aux alertes de sécurité ne doivent pas
utiliser la station d’ordinateur mobile sans la surveillance
d’un adulte!

Certi cat de conformité FCC – Uniquement les stations d’ordinateur mobile

Cette station d’ordinateur mobile a été testée et trouvée en accord avec les limitations
relatives aux appareils numériques de CatégorieA, conformément à la section15 des
règles de la FCC. Ces normes sont établies pour o rir une protection raisonnable
contre les interférences préjudiciables dans un environnement commercial. Cet
appareil génère, utilise et peut émettre des ondes de radiofréquence et, s’il n’est pas
installé et utilisé conformément aux instructions, il peut être une cause d’interférences
préjudiciables pour les communications radio. L’utilisation de cet appareil dans une zone
résidentielle risque de causer des interférences préjudiciables auquel cas l’utilisateur
devra corriger l’interférence à ses frais.

Le fonctionnement de cet appareil est soumis aux deux conditions suivantes: (1) ce dispositif
ne peut être la cause d’interférences préjudiciables et (2) il doit supporter toute interférence
reçue, y compris des interférences pouvant causer un fonctionnement non désiré.

Précaution FCC: Tout changement et toute modi cation non expressément approuvés
par Ergotron, peuvent annuler la capacité de l’utilisateur à utiliser le matériel. Certi cat
d’exposition aux radiations FCC Cet équipement est conforme aux limites d’exposition aux
radiations établies Pour un environnement non contrôlé. Les utilisateurs  naux doivent suivre les
instructions d’opération spéci ques pour répondre aux normes d’exposition RF. Cet équipement
ne doit pas être coimplanté ou opéré conjointement avec une autre antenne ou un autre émetteur.
La distance minimale de séparation de l’antenne jusqu’au tiers est de 20cm (7,9pouces) pour
garantir la conformité.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Contient une identi cation FCC: Q87-WAP4410N
AU: 80325206-E 80325206-RT 80325206-PR1
CN SRRC: 2008DJ4488
CE: 80325206-RT
Anatel: 2384-08-2232
SIRIM: RAVG/05L/1209/S(09-2453)
IC-CB: 3839A-WAP4410N

REMARQUE: il peut manquer certains équipements si vous ne les avez pas commandés.

REMARQUE: Référez-vous aux di érents guides de produit de Netbooks, au point d’accès sans  l en option et interrupteur Ethernet Dell

PowerConnect™ en option.

Pour l’entretien, consultez la page

www.ergotron.com/Dell

La station d’ordinateur mobile 2.0 de Dell™ (MCS)
transports et charges 24Latitude™2100ou2110
Ordinateurs portables Netbook et pouvant
comprendre en option un point d’accès sans  l (WAP)

SOLUTION CLIENT POUR DELL PAR ERGOTRON

Mai 2010

9 / 32

888-24-116-W-00 rev.A • 05/10

FRANÇAISE

Compartiment inférieur

4

Incorporations de boîtier de contrôleur

• Disjoncteurs.

• 24prises sont connectées en usine aux adaptateurs C.A. de
Netbook.

• 3prises accessoires internes sont connectées en usine à:
– 25ème adaptateur C.A.
– Point d’accès sans  l (WAP) en option
– interrupteur Ethernet Dell PowerConnect™ en option.

• Le 25e adaptateur fournit la distribution d’énergie au boîtier
contrôleur.

ATTENTION: Ne pas connecter les équipements aux prises

ouvertes.

5

Adaptateur C.A.

• La prise interne ouverte (4e) ne doit pas être utilisée.

• 24adaptateurs connectés en usine aux stations d’accueil dans le
compartiment supérieur

ATTENTION: N’utilisez que 3adaptateurs C.A. en broche de

90Watts dans la station d’ordinateur mobile.

6

Interrupteur Ethernet en option

• 24, connecté en usine,10/100 ports mbps, 21000ports mpbs.

• Permet les mises à jour de réseau à distance aux Netbooks MCS
en station d’accueil.

Compartiment supérieur

1

Ventilateurs refroidissants

ATTENTION: Ne bloquez pas les ouvertures de ventilation et

d’aération. Pour empêcher la surchau e, laissez un espace libre d’au
moins 127mm (5pouces) autour des ventilateurs et des aérations.

2

Rangement de Netbook

• Rangement et chargement simultané pour 24Latitude™2100 ou
2110Netbooks.

• L’état de chargement de chaque Netbook est visible lorsque
le compartiment est ouvert.

3

Station d'accueil intuitive

• Le pro l de la station d’accueil correspond au Netbook pour
empêcher l’utilisateur d’insérer la Netbook de la mauvaise façon.

• Connectez et déconnectez-vous de la station d’accueil à l’aide
d’une seule main.

• Une languette verte devant chaque station d’accueil assure
l’alimentation en énergie et que les connecteurs de réseau soient
bien installés avec les Netbooks.

• Une barre verte indique que Netbook est correctement installé
pour le chargement.

• Un design exclusif acceptant à la fois les con gurations
standards et à écran tactile Latitude 2100ou 2110Netbooks, en
3éléments de batterie or 6éléments de batterie

Station d’ordinateur mobile 2.0 de Dell

Caractéristiques intérieures

ATTENTION: La station d’ordinateur mobile 2.0 de Dell est

un équipement alimenté électriquement. Pour éviter les risques de
choc électrique ou d’incendie, il doit être utilisé sous la surveillance
d’un adulte.

10 / 32

888-24-116-W-00 rev.A • 05/10

1

5

4

3

2

6
