Dell D2015HC, D2215H, D2215HC User Manual

Model No.: D2015HC
Regulatory model: D2015HCc
User‘s Guide
Dell D2015HC
2
TABLE OF CONTENT
PRECAUTIONS �������������������������������������������������������������������������������������������������������������������4
SPECIAL NOTES ON LCD MONITORS ����������������������������������������������������������������������� 5
FEATURES ����������������������������������������������������������������������������������������������������������������������������6
PACKING LIST ��������������������������������������������������������������������������������������������������������������������� 6

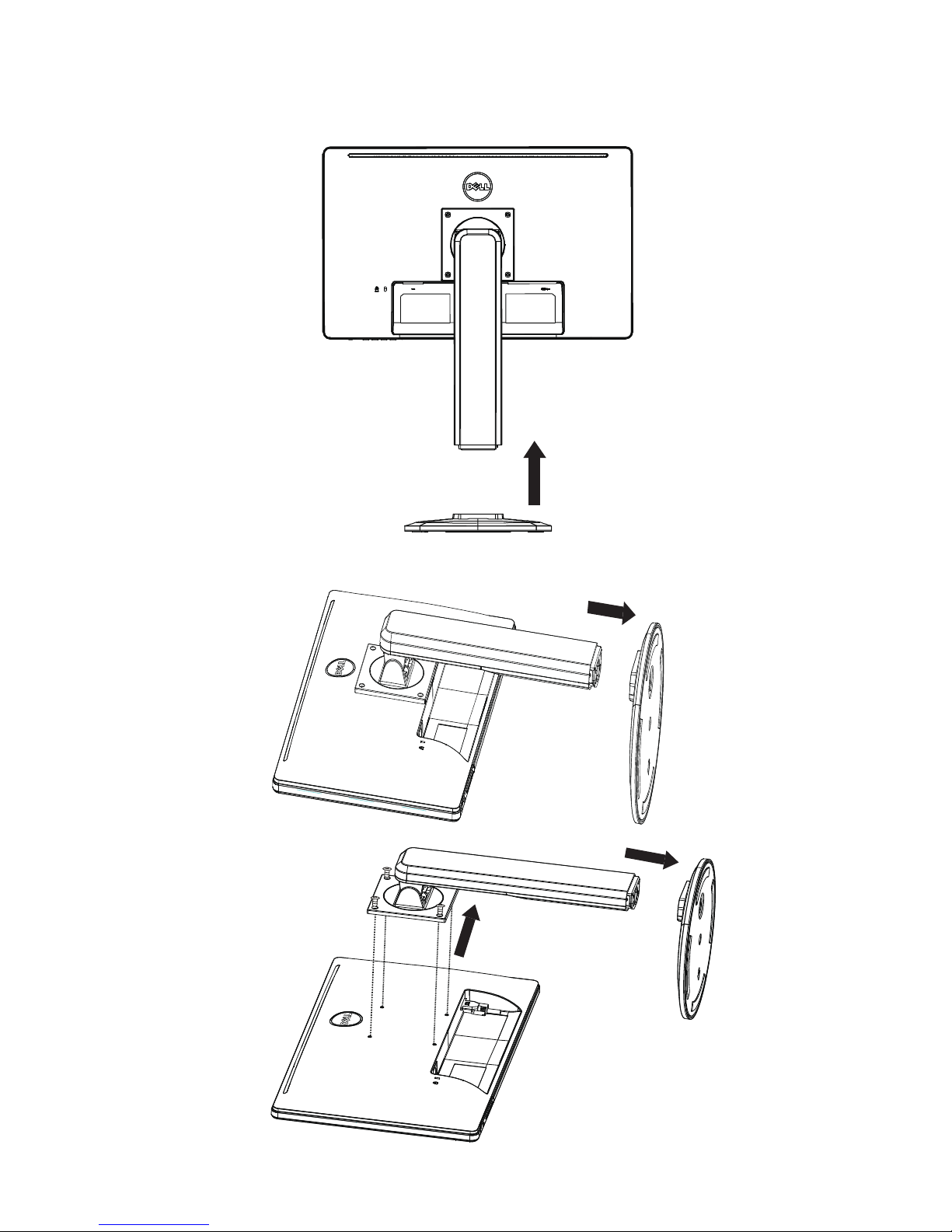

INSTALLATION INSTRUCTIONS ����������������������������������������������������������������������������������7
CONTROLS AND CONNECTORS �������������������������������������������������������������������������������9

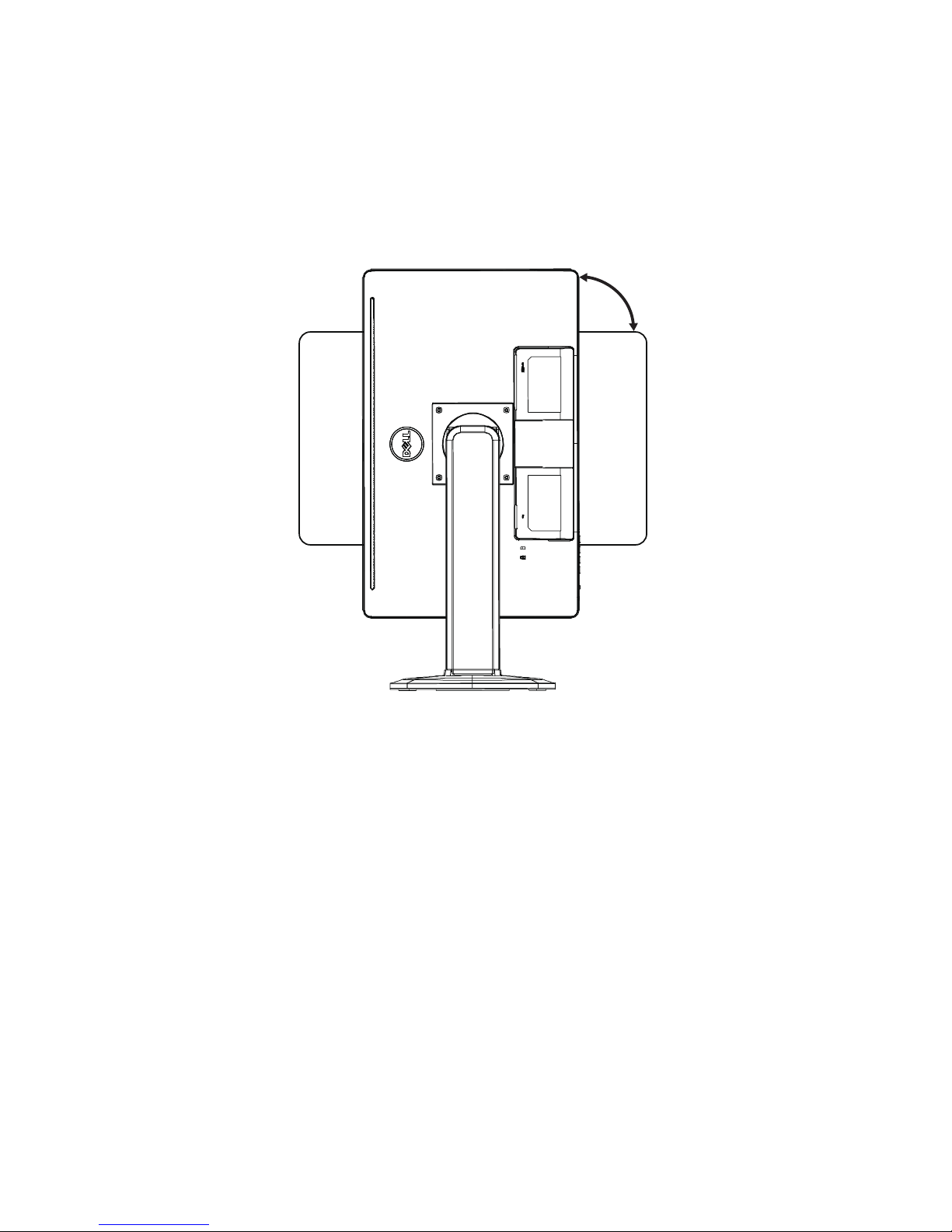

ADJUSTING THE VIEWING ANGLE ��������������������������������������������������������������������������� 10
GENERAL INSTRUCTIONS ������������������������������������������������������������������������������������������ 11
FRONT PANEL CONTROL ������������������������������������������������������������������������������������������� 12
HOW TO ADJUST A SETTING������������������������������������������������������������������������������������� 13
ADJUSTING THE PICTURE ������������������������������������������������������������������������������������������� 14
PLUG AND PLAY�������������������������������������������������������������������������������������������������������������� 15
ERROR MESSAGE AND POSSIBLE SOLUTION ����������������������������������������������������� 17
SPECIFICATIONS ������������������������������������������������������������������������������������������������������������� 18
FACTORY PRESET TIMING TABLE ������������������������������������������������������������������������������ 19
CONNECTOR PIN ASSIGNMENT������������������������������������������������������������������������������ 19
3
FOR YOUR SAFETY
Before operating the monitor, please read this manual thoroughly� This manual should be retained for future reference�
FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide reasonable protection against harmful interference in a residential installation� This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications� However, there is no guarantee that interference will not occur in a particular installation� If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1� Reorient or relocate the receiving antenna�
2� Increase the separation between the equipment and receiver�
3� Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected�
4� Consult the dealer or an experienced radio/TV technician for help�
NOTICE:
1� The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment�
2� Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits�
3� The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment� It is the responsibilities of the user to correct such interference�
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture� Dangerously high voltages are present inside the monitor� Do not open the cabinet� Refer servicing to qualified personnel only�
4
PRECAUTIONS
• Do not use the monitor near water, e�g� near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement�
• Do not place the monitor on an unstable cart, stand, or table� If the monitor falls, it can injure a person and cause serious damage to the appliance� Use only a cart or stand recommended by the manufacturer or sold with the monitor� If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions�
• Slots and openings in the back and bottom of the cabinet are provided for ventilation� To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered� Do not place the monitor on a bed, sofa, rug, or similar surface� Do not place the monitor near or over a radiator or heat register� Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided�
• The monitor should be operated only from the type of power source indicated on the label� If you are not sure of the type of power supplied to your home, consult your dealer or local power company�
• The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin� This plug will fit only into a grounded power outlet as a safety feature� If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely� Do not defeat the safety purpose of the grounded plug�
• Unplug the unit during a lightening storm or when it will not be used for long periods of time� This will protect the monitor from damage due to power surges�
• Do not overload power strips and extension cords� Overloading can result in fire or electric shock�
• Never push any object into the slot on the monitor cabinet� It could short circuit parts causing a fire or electric shock� Never spill liquids on the monitor�
• Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards� Please refer all servicing to qualified service personnel�
• To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min� 5A�
• The wall socket should be installed near the equipment and shall be easily accessible�
5
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitors and do not indicate a problem�
NOTES
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use�
• The LCD screen has effective pixels of 99�99% or more� It may include blemishes of 0�01% or less such as a missing pixel or a pixel lit all of the time�
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image when the same image has been displayed for a long time� The monitor will slowly recover from this�
• When the screen becomes black or flashing, or cannot illuminate any more, contact your dealer or service center to replace parts� Do not repair the screen by yourself!
6
BEFORE YOU OPERATE THE MONITOR
FEATURES
• 495�98mm (19�53’’) TFT Color LCD Monitor
• Crisp, Clear Display for Windows
• Recommend Resolutions: 1920 x 1080@60Hz
• Ergonomic Design
• Space Saving, Compact Case Design
PACKING LIST
The product package should include the following items:
1� LCD Monitor
2� Drivers and Documentation media (CD)
3� Quick Setup Guide
4� Safety and Regulatory Information
5� Power Cord
6� D-SUB Cable
7� Stand Riser (attached on the LCD monitor)
8� Base
