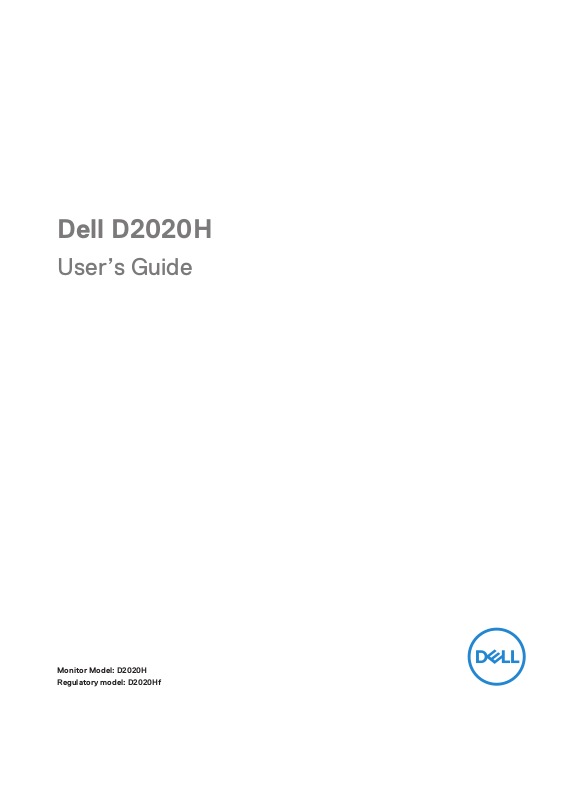

Page 1
Dell D2020H
User’s Guide
Monitor Model: D2020H
Regulatory model: D2020Hf
Page 2
Notes, Cautions and Warnings
NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other tradmarks
are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective
owners.
2019 - 11
Rev. A00
Page 3
Contents
About your monitor . . . . . . . . . . . . . . . . . . . . . . . . .
Package contents . . . . . . . . . . . . . . . . . . . . .
Product features . . . . . . . . . . . . . . . . . . . . . .
Identifying features and controls . . . . . . . . . . . . .
Monitor specications . . . . . . . . . . . . . . . . . . .
Plug and play capability . . . . . . . . . . . . . . . . . .
LCD monitor quality and pixel policy . . . . . . . . . . .
Maintenance guidelines . . . . . . . . . . . . . . . . . .
Setting up the monitor . . . . . . . . . . . . . . . . . . . . . .

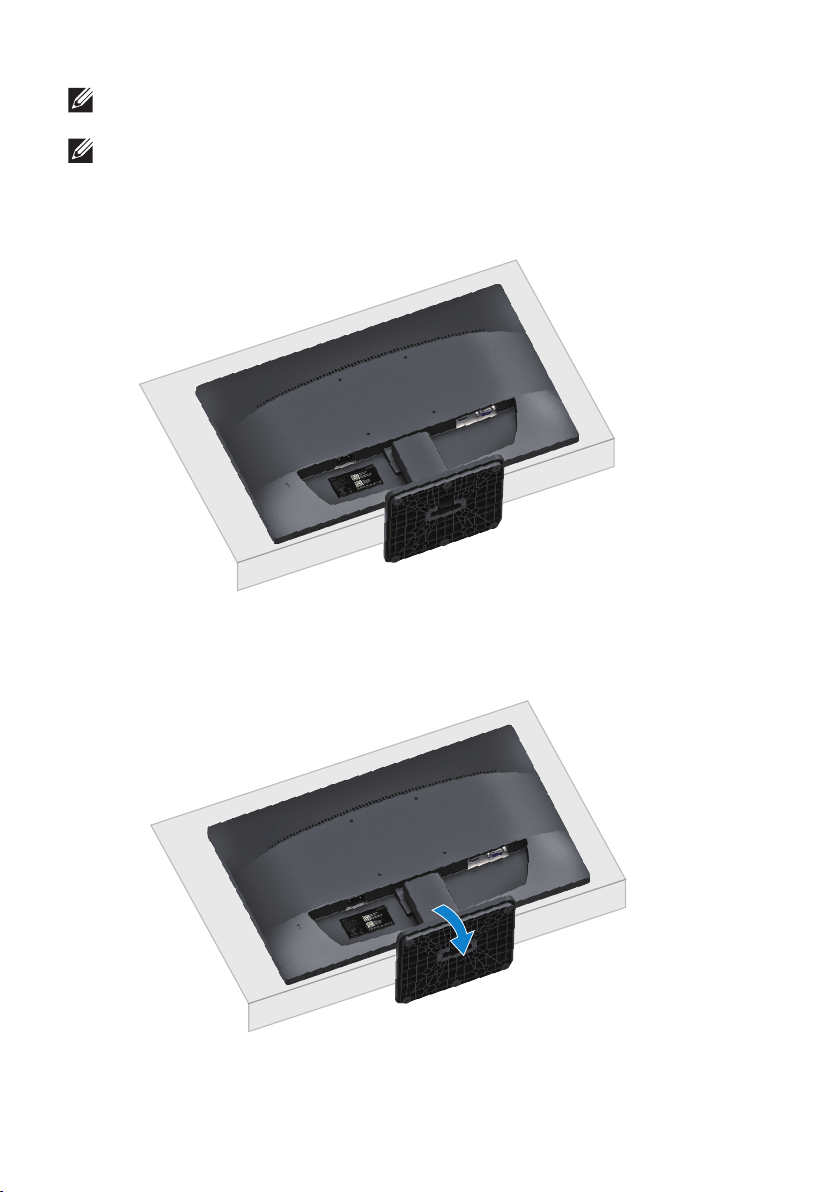

Connecting the stand . . . . . . . . . . . . . . . . . . .

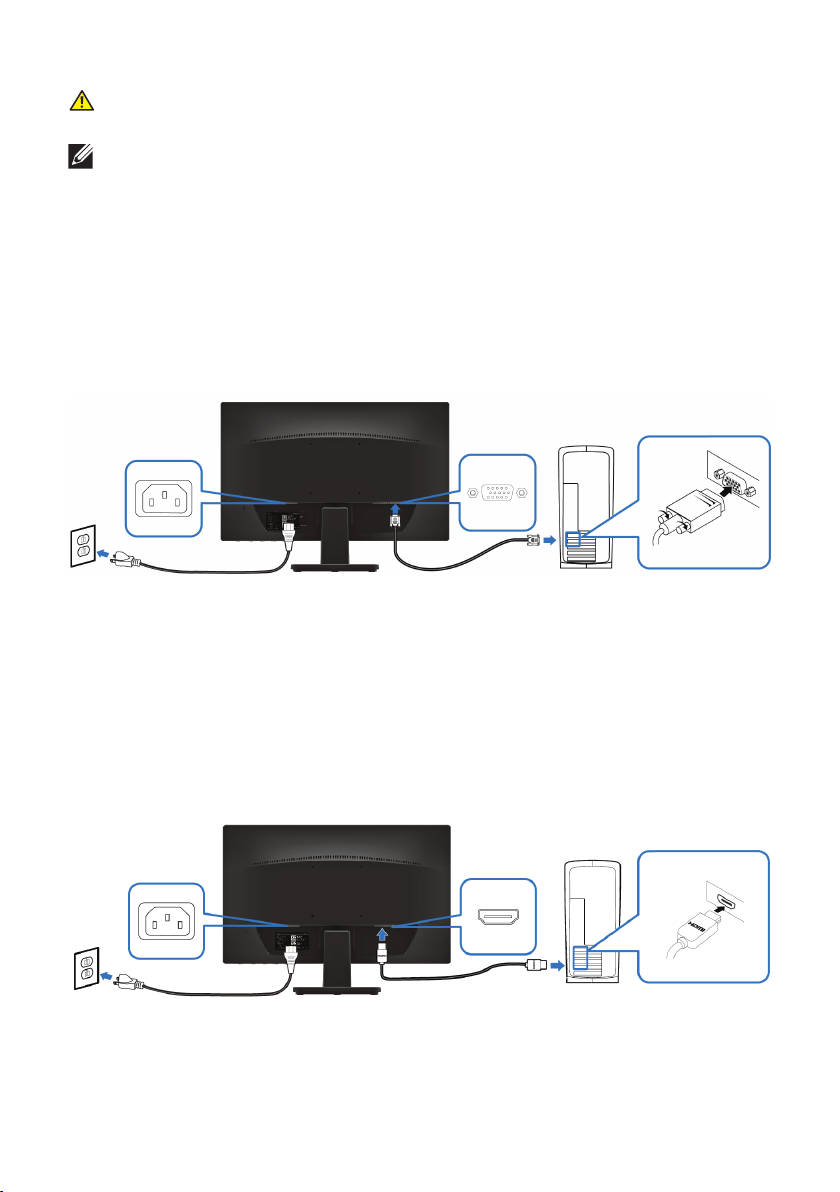

Connecting your monitor . . . . . . . . . . . . . . . . .
Removing the stand . . . . . . . . . . . . . . . . . . . .
Operating your monitor . . . . . . . . . . . . . . . . . . . . .

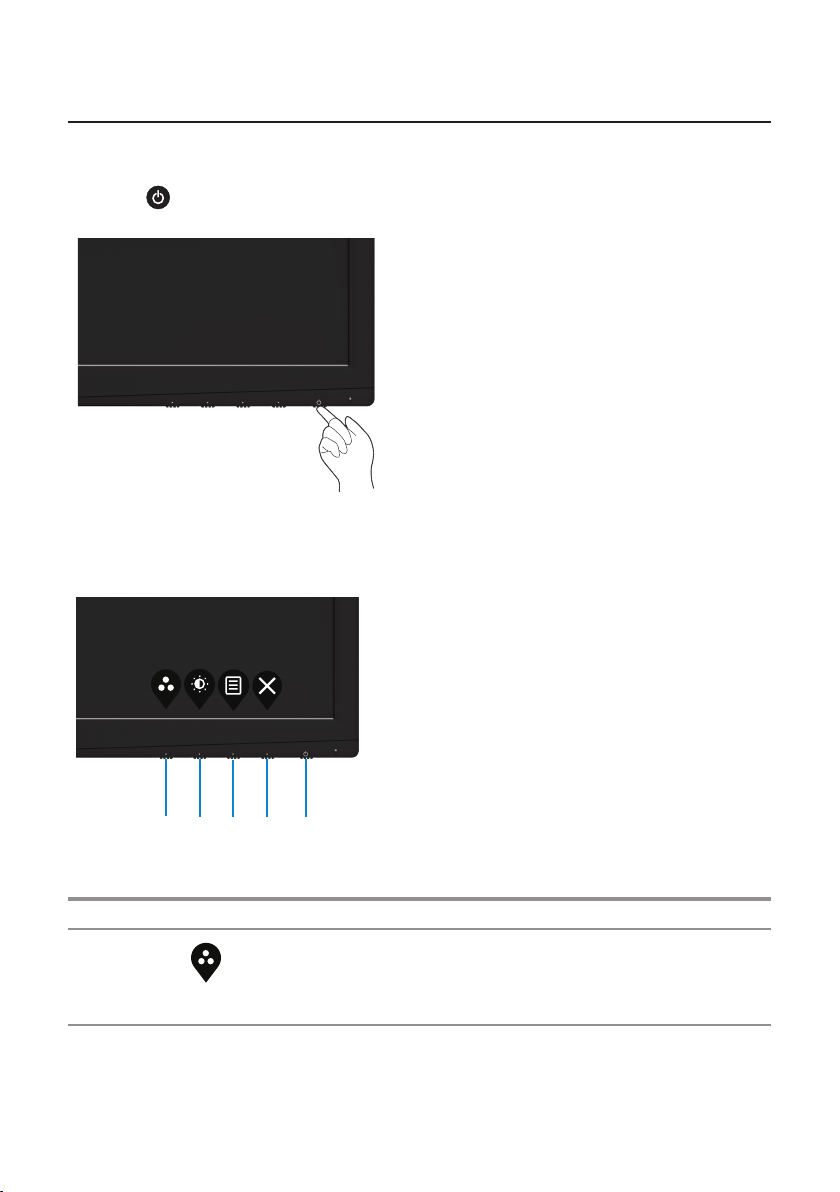

Turning on the monitor . . . . . . . . . . . . . . . . . .
5
5
6
7
10
16
16
16
17
17
18
19
21
21

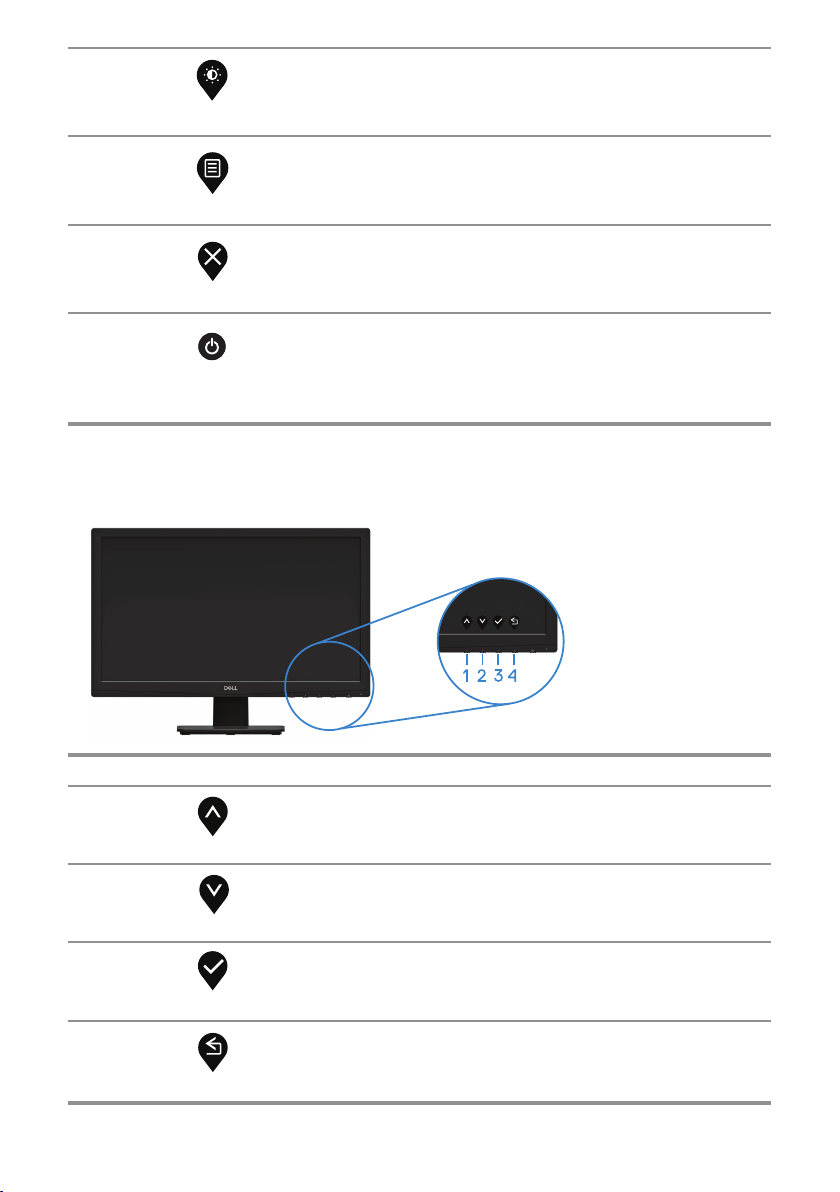

Using the front panel controls. . . . . . . . . . . . . . .

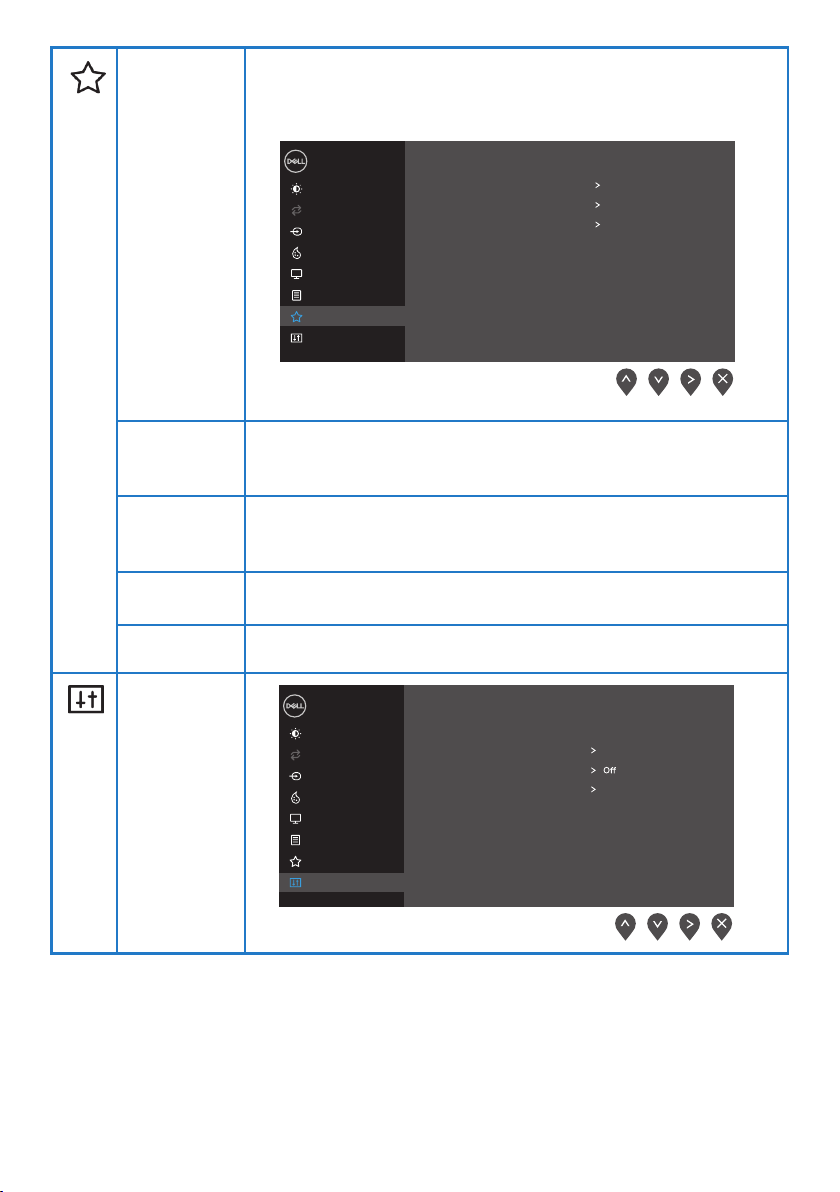

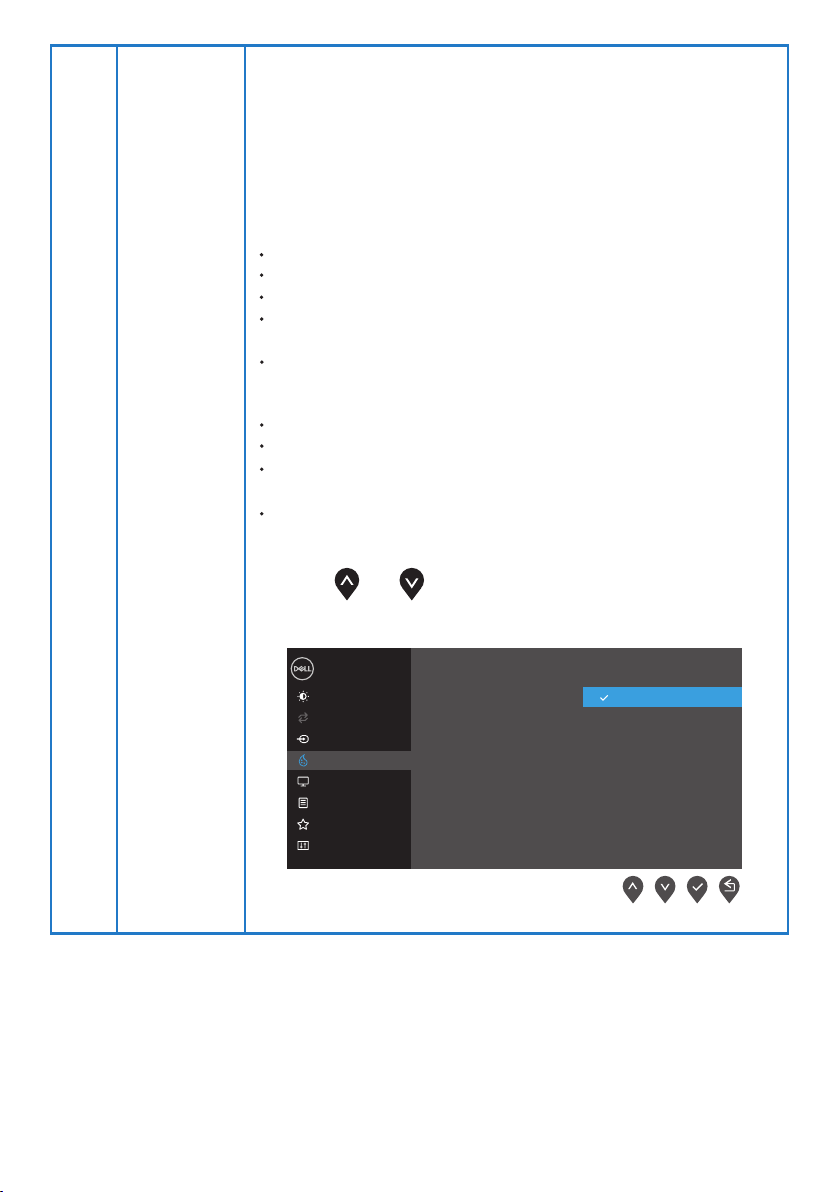

Using the On-Screen Display (OSD) menu . . . . . . . .
Setting up your monitor . . . . . . . . . . . . . . . . . .

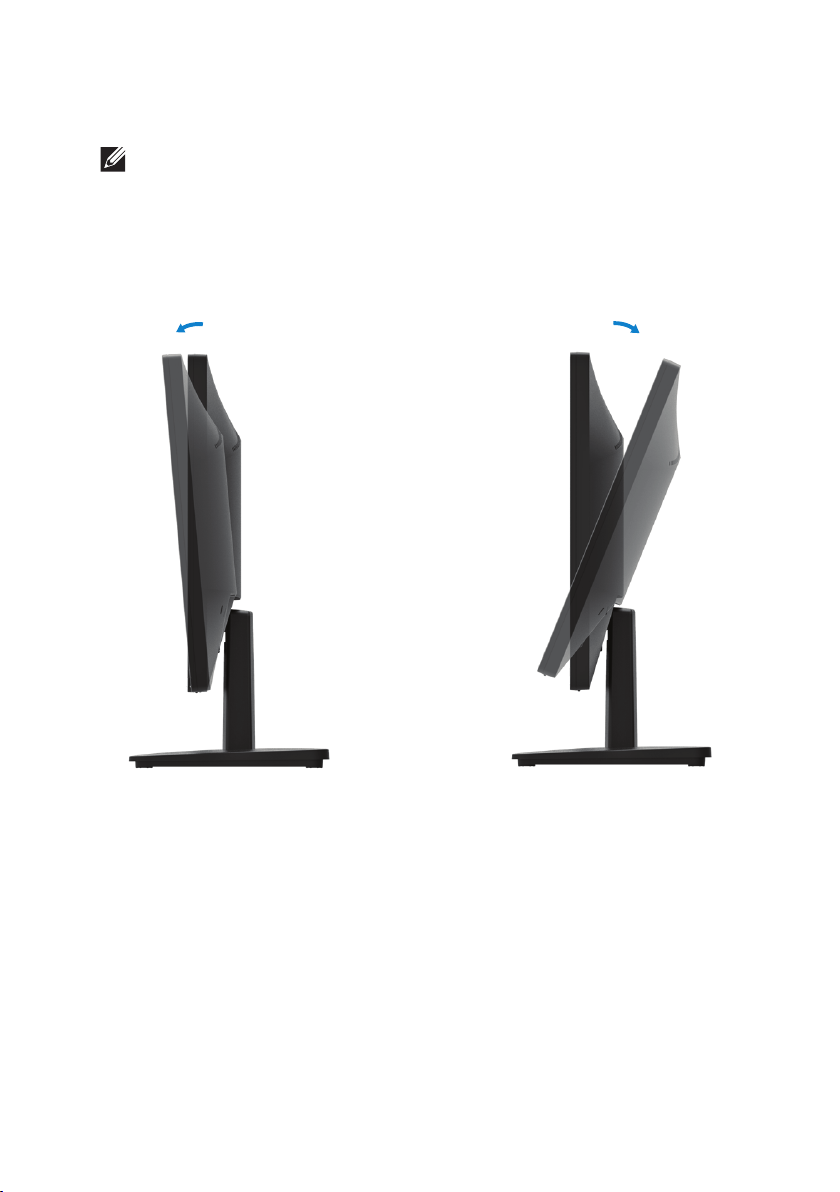

Using tilt . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents
21
23
35
37
|
3
Page 4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .
38

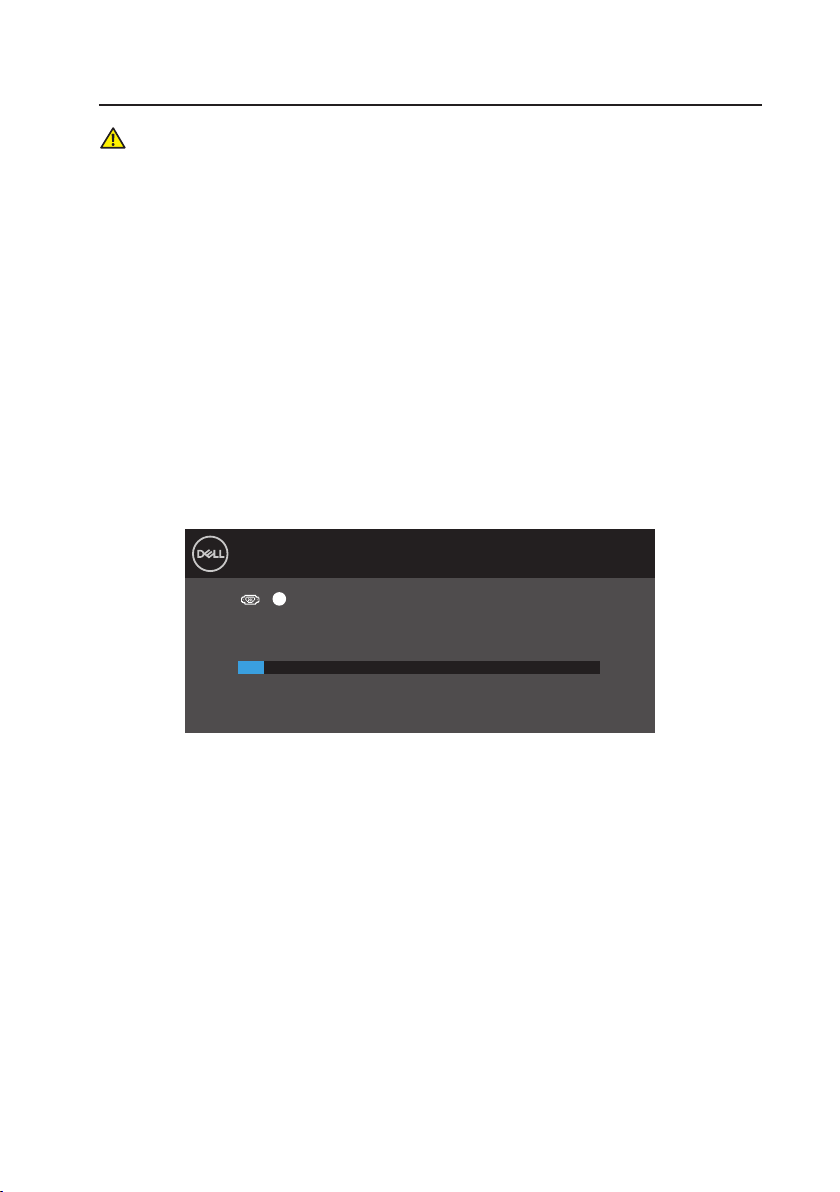

Self-test . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-in diagnostics . . . . . . . . . . . . . . . . . . . .
Common problems . . . . . . . . . . . . . . . . . . . .
Product-specic problems . . . . . . . . . . . . . . . .
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC notices (U.S. Only) and
other regulatory information . . . . . . . . . . . . . . .
Contacting Dell . . . . . . . . . . . . . . . . . . . . . .

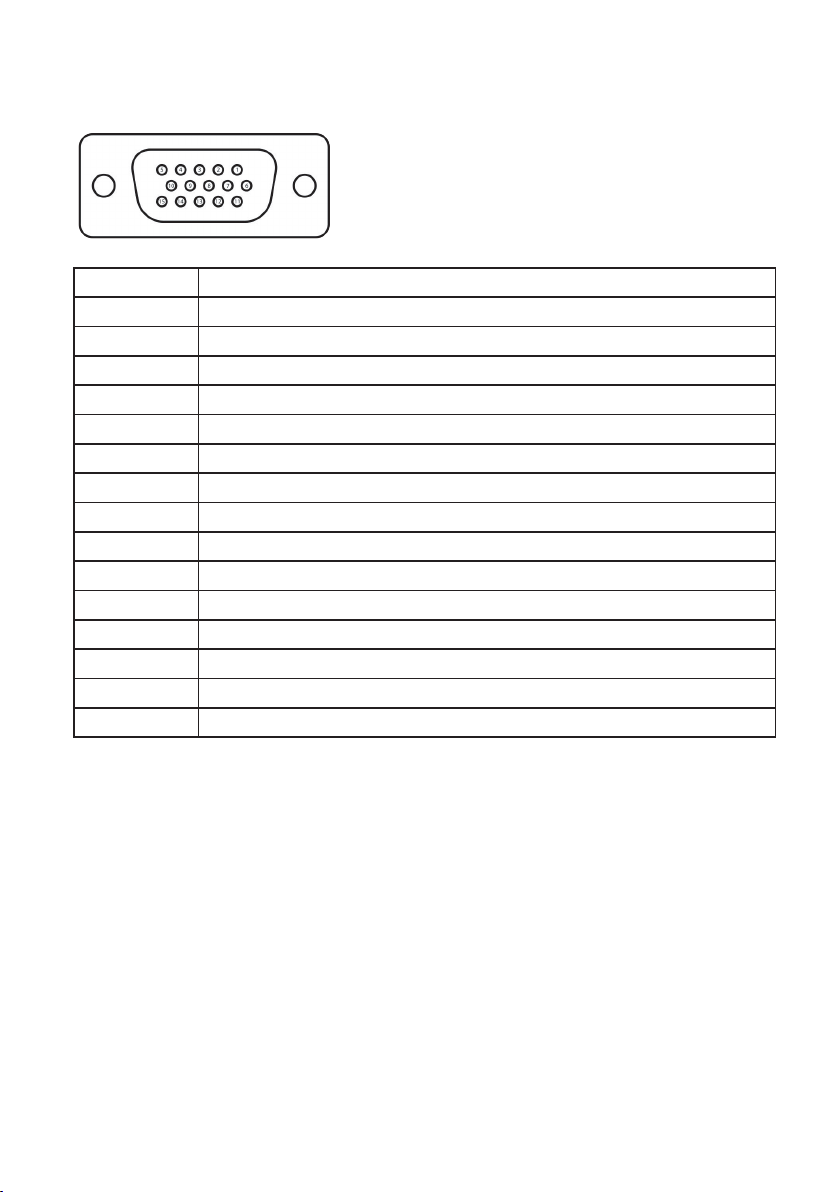

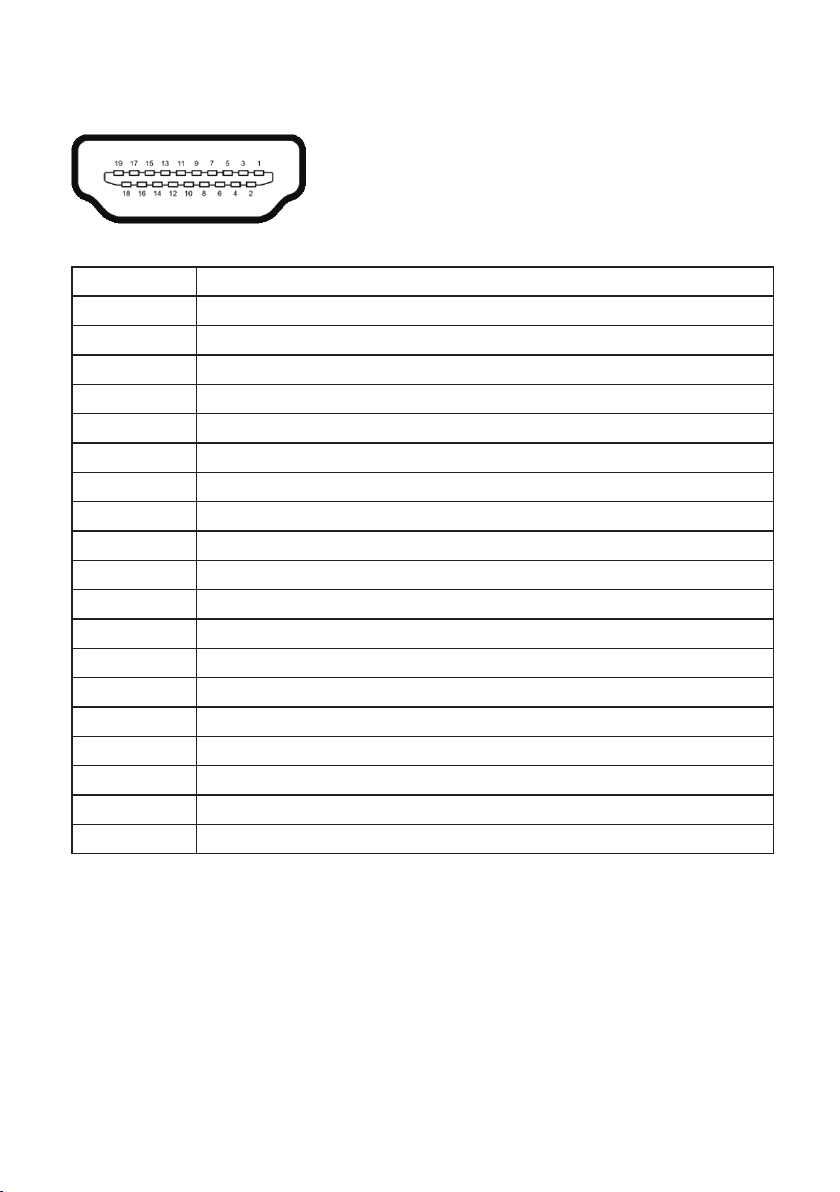

Pin assignments . . . . . . . . . . . . . . . . . . . . . .
38
40
41
43
44
44
44
45
4
|
Contents
Page 5
About your monitor
Package contents
Your monitor ships with the components indicated in the table. Ensure that you
have received all the components and see Contacting Dell if anything is missing.
NOTE: Some components may be optional and may not ship with your
monitor. Some features may not be available in certain countries.
NOTE: To set up with any other stand, see the documentation that
shipped with the stand.
Component descriptionComponent image
Monitor
Stand riser
Stand base
Power cable
VGA cable
About your monitor 5
|
Page 6
HDMI cable
Quick Setup Guide
Safety and Regulatory
Information
Product features
The Dell D2020H at panel display has an active matrix,Thin-Film Transistor (TFT),
Liquid Crystal Display (LCD), anti-static,and LED backlight.
The monitor features include:
49.53 cm (19.5 in.) diagonal viewable area display(measured diagonally).
1600 x 900 resolution, with full-screen support for lower resolutions.
HDMI connectivity makes it simple and easy to connect with legacy and new
systems.
Plug-and-play capability if supported by your computer.
On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
0.5 W standby power when in the sleep mode.
Security-lock slot.
Arsenic-free glass and mercury-free panel.
BFR / PVC-reduced (the circuit boards inside your monitor are made using BFR /
PVC-free laminates).
RoHS Compliant.
|
6
About your monitor
Page 7
Identifying features and controls
Front view
Label Description Use
1
Function buttons
Power On/O button
2
(with LED indicator)
To access the OSD menu and change
the settings if required. (For more
information, see Using the front panel
controls)
To turn the monitor On or O.
1
2
About your monitor
|
7
Page 8
Back view
21 3 4
Without monitor stand
Label Description Use
12Security-lock slot
Regulatory label, barcode, serial
number, and Service Tag label
3 Release button Release stand from monitor.
4 VESA mouting holes For exible mounting solutions.
To secure the monitor using a
lock (purchased separately).
List the regulatory approvals. See this
label if you need to contact Dell for
technical support. The Service Tag is a
unique alphanumeric identier that
enables Dell service technicians to
identify the hardware components in
your computer and access warranty
information.
With monitor stand
Side view
|
About your monitor8
Page 9
Bottom view, without monitor stand
1 2 3
Label Use
1 To connect the monitor power cable.
2
3
Description
Power port
HDMI port
VGA port
For connection to your computer using HDMI cable.
For connection to your computer using VGA cable.
About your monitor
|
9
Page 10
Monitor specications
Model
D2020H
Screen type Active matrix-TFT LCD
Panel type TN
Viewable area
Diagonal
495.3 mm (19.5 in. )
Active area:
Horizontal
Vertical
Area
Pixel pitch
432 mm (17 in. )
239.76 mm(9.44 in. )
1035.76 cm
2
(160.54 in.2)
0.27 x 0.27 mm
Pixel per inch (PPI) 94
Viewing angle:
Horizontal
Vertical
Brightness 200 cd/m
Contrast ratio
90° (typical)
50° (typical)
2
(typical)
600 to 1 (typical)
Faceplate coating Anti-glare with 3H hard coating, Haze 25%
Backlight LED light bar system
Response time (T
R+TF):
5 ms
Color depth 16.7 million colors
Color gamut 72% NSTC (CIE 1931)
Connectivity One VGA port and one HDMI 1.4 (HDCP 1.4) port.
Security
Security-lock slot for cable lock (optional purchase)
Tilt angle -5° to 21°
Bezel width (edge of
monitor to active area)
|
10
About your monitor
9.97 mm (Top)
8.35 mm (Left/Right)
9.97 mm (Bottom)
Page 11
Resolution specications
Model D2020H
Horizontal scan range
Vertical scan range
Maximum preset resolution
30 kHz to 80 kHz (automatic)
56 Hz to 76 Hz (automatic)
1600 x 900 at 60 Hz
Preset display modes
Display Mode Horizontal
Frequency
(kHz)
VESA, 720 x 400
VESA, 640 x 480
VESA, 640 x 480
VESA, 800 x 600
VESA, 800 x 600
VESA, 1024 x 768
VESA, 1024 x 768
VESA, 1152 x 864
VESA, 1280 x 720
VESA, 1280 x 800
VESA, 1600 x 900
31.5
37.5
37.9
46.9
48.4
60.0
67.5
45.0
49.7
60.0
Vertical
Frequency
(Hz)
70.131.5
60.0
75.0
60.3
75.0
60.0
75.0
75.0
60.0
59.8
60.0 108.0
Pixel Clock
Sync Polarity
(MHz)
28.3 -/+
25.2 -/-
31.5 -/-
40.0 +/+
49.5 +/+
65.0 -/-
78.8 +/+
108.0
74.3
83.5
(Horizontal /
Vertical)
+/+
+/+
-/+
+/+
About your monitor
|
11
Page 12
Electrical specications
Model
Video input signals
Synchronization
input signals
AC input voltage/
frequency/current
Inrush current
Physical characteristics
Model
Signal cable type:
Analog
Digital
Dimensions (with stand):
Height
Width
Depth
Dimensions (without stand):
Height
Width
Depth
D2020H
Analog RGB: 0.7 V ± 5 %,
75 ohm input impedance
HDMI 1.4 (HDCP 1.4), 600 mV
for each dierential line, 100
ohm input impedance per
dierential pair
Separate horizontal and vertical synchronizations,
polarity-free TTL level,
SOG (Composite SYNC on green)
100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.5 A
30 A (120 V AC Input)
60 A (240 V AC Input)
D2020H
D-Sub (VGA), 15 pins;
HDMI, 19 pins
347.5 mm (13.68 in. )
468.3 mm (18.44 in. )
167.3 mm (6.59 in. )
283.9 mm (11.18 in. )
468.3 mm (18.44 in. )
45.0 mm (1.77 in. )
12
|
About your monitor
Page 13
Stand dimensions:
Height
Width
Depth
Weight:
With packaging
With stand assembly and cables
Without stand assembly and
cables
Weight of stand assembly
139.7 mm (5.5 in.)
181.1 mm (7.13 in.)
167.3 mm (6.59 in.)
3.33 kg (7.34 lb)
2.88 kg (6.35 lb)
2.22 kg (4.89 lb)
0.28 kg (0.62 lb)
Environmental characteristics
Model
Temperature:
Operating
Non-operating:
Storage
Shipping
Humidity:
Operating 10% to 80% (non-condensing)
Non-operating:
Storage
Shipping
Altitude:
Operating (maximum) 5,000 m (16,400 ft)
Non-operating (maximum)
Thermal dissipation
D2020H
0 °C to 40 °C (32 °F to 104 °F)
-20 °C to 60 °C (-4 °F to 140 °F)
-20 °C to 60 °C (-4 °F to 140 °F)
5% to 90% (non-condensing)
5% to 90% (non-condensing)
12,192 m (40,000 ft)
58.0 BTU/hour (maximum)
51.2 BTU/hour (typical)
About your monitor
|
13
Page 14
Power management modes
If you have VESA's DPM compliance graphic cards or software installed on your
computer, the monitor can automatically reduce its power consumption when not in
use. This is referred to as power save mode*. If the computer detects input from the
keyboard, mouse or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this
automatic power saving feature.
*Zero power consumption in o mode can only be achieved by disconnecting the
power cable from the monitor.
VESA
modes
Normal
operation
Active-off
mode
Switch o
This document is informational only and reects laboratory performance. Your product
may perform dierently, depending on the software, components and peripherals you
ordered and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making decisions
about electrical tolerances or otherwise. No warranty as to accuracy or completeness
is expressed or implied.
Horizontal sync Vertical sync Video Power
indicator
Active Active Active White
Inactive
-
Inactive Blanked White
(Glowing)
- - Off
Power
consumption
17 W (maximum)
15 W (typical)
Less than 0.5 W
Less than 0.5 W
|
14 About your monitor
Page 15

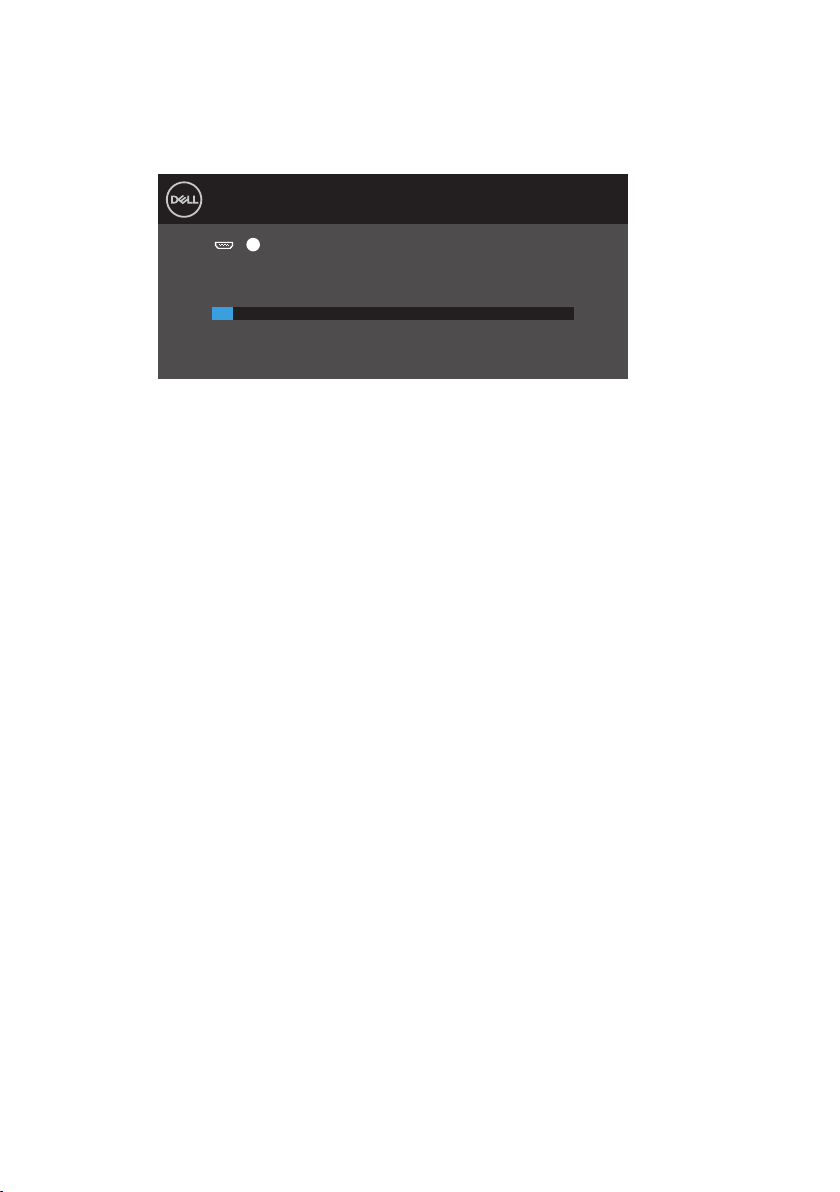

The OSD functions only in the normal operation mode. When any button is pressed
in the Active-o mode, one of the following messages will be displayed:

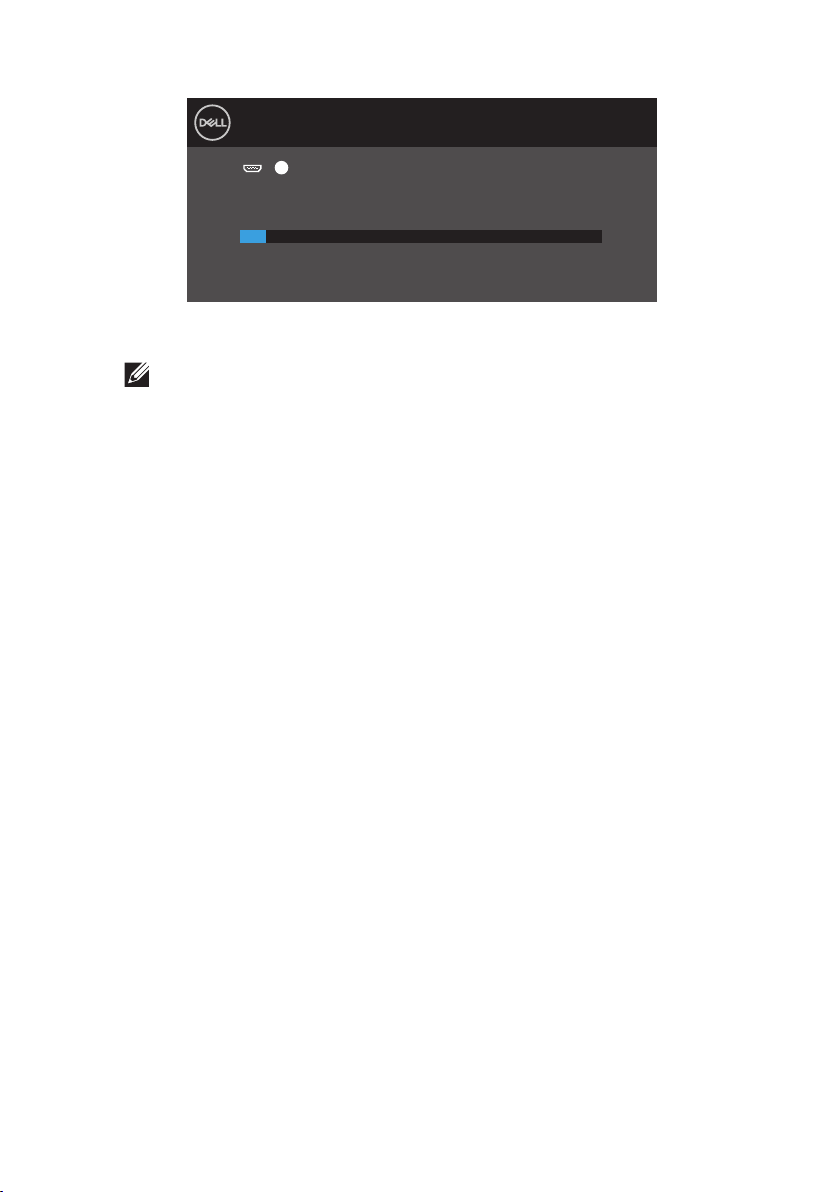

Dell 20 Monitor
?
No HDMI Cable
The display will go into Power Save Mode in 4 minutes.
www.dell.com/D2020H
D2020H
Activate the computer and the monitor to gain access to the OSD.
About your monitor
|
15
Page 16
Plug and play capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identication
Data (EDID) using Display Data Channel (DDC) protocols so the system can
congure itself and optimize the monitor settings. Most monitor installations are
automatic, you can select dierent settings if desired. For more information about
changing the monitor settings, see Operating your monitor.
LCD monitor quality and pixel policy
During the LCD Monitor manufacturing process, it is normal for one or more pixels
to become xed in an unchanging state which are hard to see and do not aect the
display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at www.dell.com/support/monitors.
Maintenance guidelines
Cleaning your monitor
WARNING: Before cleaning the monitor, unplug the monitor
power cable from the electrical outlet.
CAUTION: Read and follow the Safety Instructions before cleaning
the monitor.
For best practices, follow the instructions in the list below while unpacking, cleaning
or handling your monitor:
To clean your screen, lightly dampen a soft, clean cloth with water. If possible, use a
special screen-cleaning tissue or solution suitable for the anti-static coating. Do not
use benzene, thinner, ammonia, abrasive cleaners or compressed air.
Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of
any kind as some detergents leave a milky lm on the monitor.
If you notice white powder when you unpack your monitor, wipe it o with a cloth.
Handle your monitor with care as the black-colored monitor may get scratched.
To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn o your monitor when not in use.
|
16
About your monitor
Page 17
Setting up the monitor
Connecting the stand
NOTE: The stand is not attached when the monitor is shipped from
the factory.
NOTE: The following procedure is applicable for the stand that shipped
with your monitor.
To attach the monitor stand:
1. Assemble the stand riser to stand base.
a. Place the monitor stand base on a stable table top.
b. Slide the monitor stand body in the correct direction down onto the
stand base until it clicks into place.
2. Attach the stand assembly to the monitor:
a. Place the monitor on a soft cloth or cushion near the edge of desk.
b. Align the stand assembly bracket to the monitor groove.
c. Insert the bracket towards monitor until it locks in place.
Setting up the monitor
|
17
Page 18
Connecting your monitor
WARNING: Before you begin any of the procedures in this section,
follow the Safety Instructions.
NOTE: Do not connect all cables to the computer at the same time. It
is recommended to route the cables through the cable-management
slot before you connect them to the monitor.
To connect your monitor to the computer:
1. Turn o your computer and disconnect the power cable.
2. Connect VGA or HDMI cable from your monitor to the computer.
Connecting VGA cable
Connecting HDMI cable
|
18
Setting up the monitor
Page 19

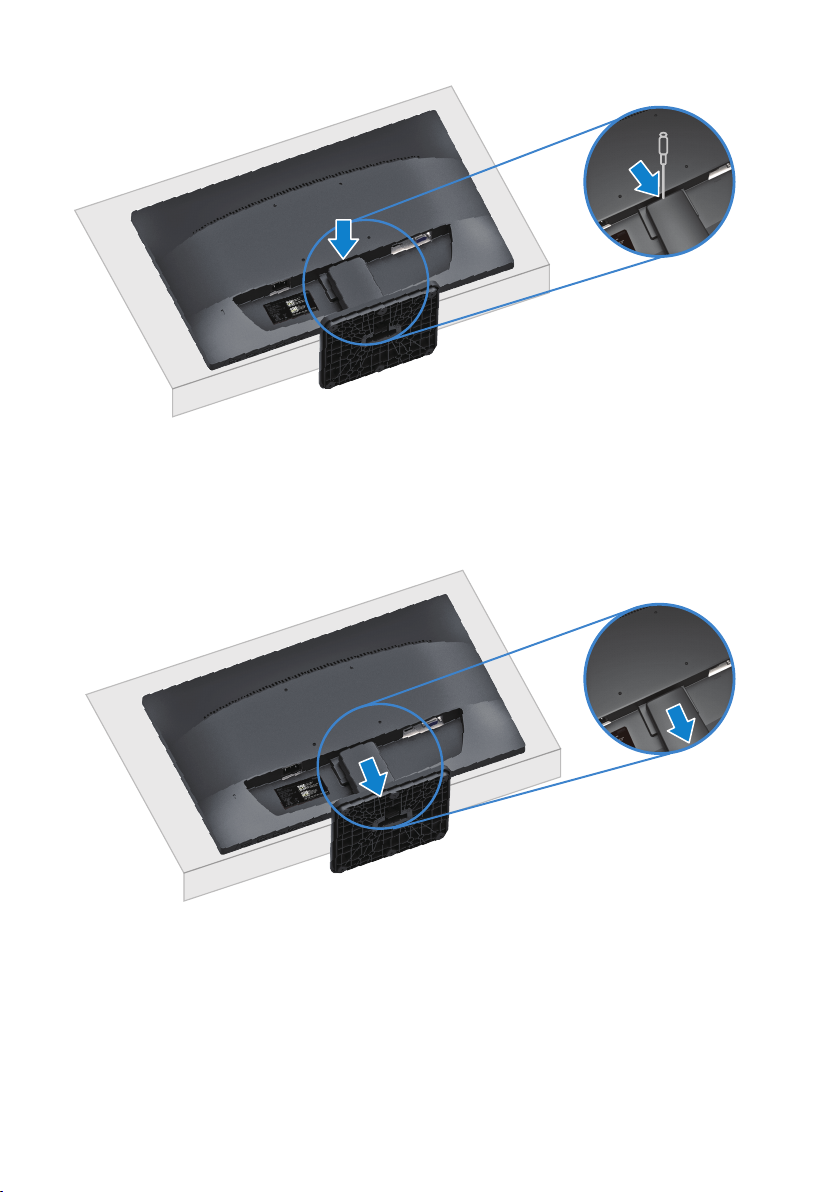

Removing the stand
NOTE: To prevent scratches on the screen when removing the stand,
ensure that the monitor is placed on a soft and clean surface.
NOTE: The following procedure is applicable for the stand that shipped
with your monitor.
To remove the stand:
1. Place the monitor on a soft cloth along the desk.
2. Tilt the stand downwards to access the release button.
Setting up the monitor
|
19
Page 20
3. Using a long screwdriver press the release button.
4. Keeping the release button pressed, pull the stand out.
20
|
Setting up the monitor
Page 21
Operating your monitor
Turning on the monitor
Press the button to turn on the monitor.
Using the front panel controls
Use the control buttons at the bottom edge of the monitor to adjust the image being
displayed.
1 2 3 4 5
The following table describes the control buttons:
Control Buttons Description
1
Preset mode
Use this button to choose from a list of preset modes.
Operating your monitor
|
21
Page 22
2
Brightness/Contrast
For direct access to the Brightness and
Contrast menu.
3
Menu
4
Exit
5
Power button
(with power-status light)
To launch the On-Screen Display (OSD) menu, or to
access the list of items / options of a menu item. For
more information, see Accessing the OSD menu.
To exit or return to the OSD main menu.
To turn the monitor on or o.
Solid white light indicates the monitor is turned on
and functioning normally. Blinking white light indicates
the monitor is in power save mode.
OSD controls
Use the buttons on the bottom edge of the monitor to adjust the image settings.
22
Control Buttons Description
1
Up
2
Down
3
OK
4
Back
|
Operating your monitor
Use the Up button to increase values or move up in a
menu.
Use the Down button to decrease values or move
down in a menu.
Use the OK button to conrm your selection in a menu.
Use the Back button to go back to the previous menu.
Page 23

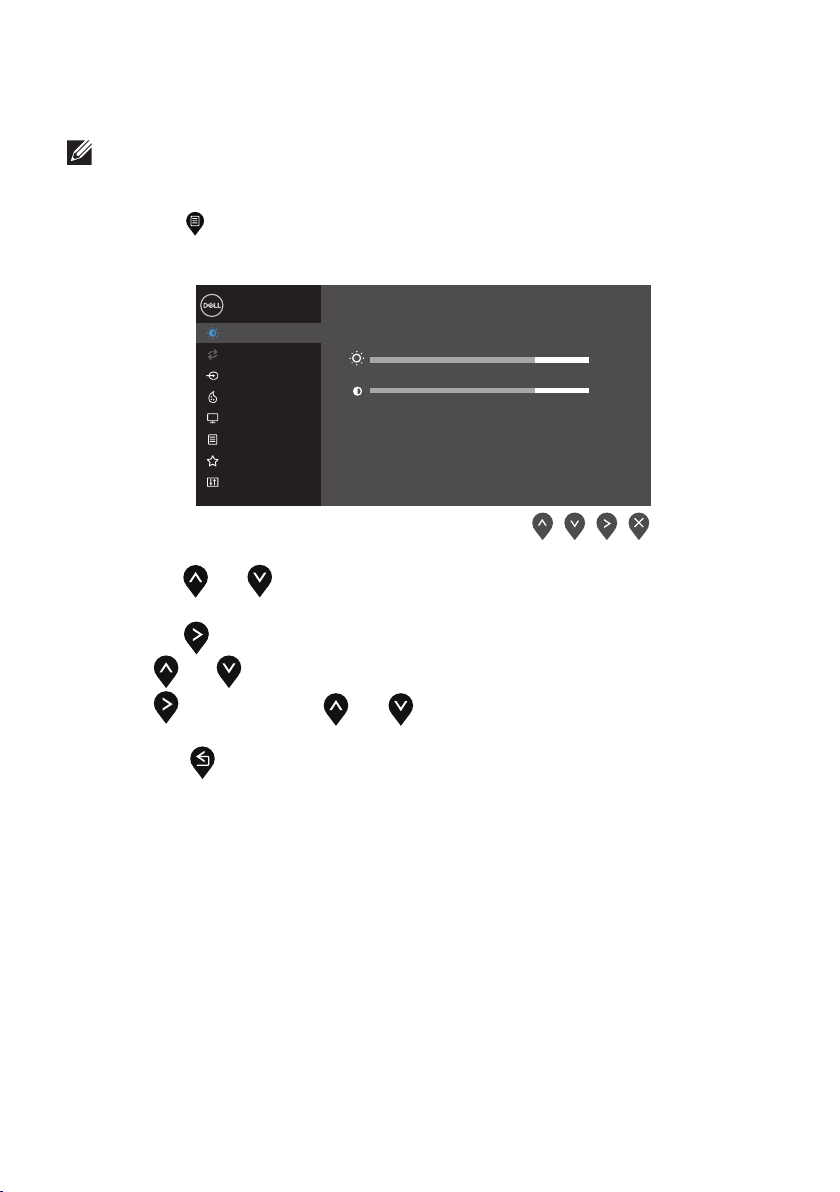

Using the On-Screen Display (OSD) menu
Accessing the OSD menu
NOTE: Any changes you make are automatically saved when you move to
another menu, exit the OSD menu, or wait for the OSD menu to close
automatically.
1. Press the button to display the OSD main menu.
Main menu for HDMI input
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
2. Press the and buttons to move between the setting options. As you move
from one icon to another, the option name is highlighted.
3. Press the button once to activate the highlighted option.
75%
75%
4. Press and button to select the desired parameter.
5. Press and then use the and buttons, according to the indicators on the
menu, to make your changes.
6. Select the button to return to the main menu.
Operating your monitor
|
23
Page 24

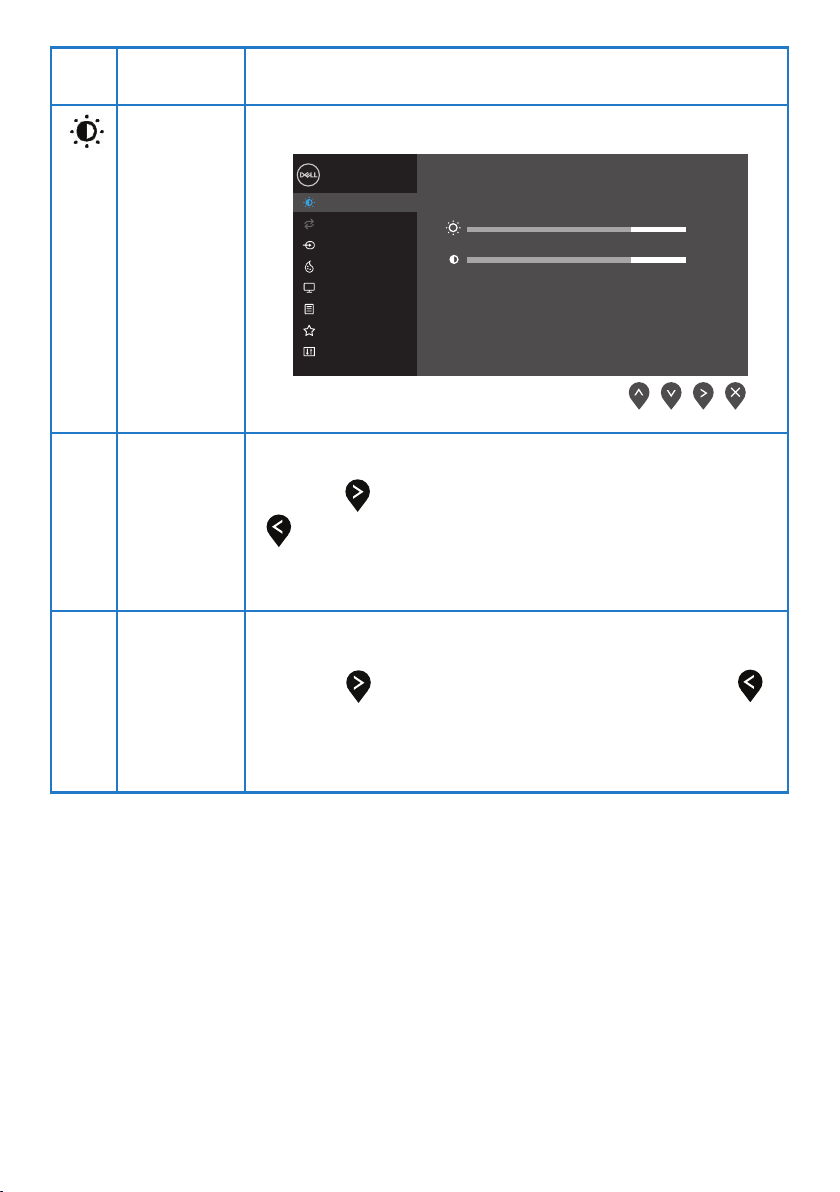

Icon Menu and
Submenus
Description
Brightness/
Contrast
Brightness
Contrast
Use this option to control the brightness or contrast settings .
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
75%
75%
Brightness adjusts the luminance of the backlight.
Press the button to increase the brightness and press the
button to decrease the brightness (min. 0; max. 100).
NOTE: Manual adjustment of brightness is disabled when
dynamic contrast is switched on.
Adjust the brightness rst, and then adjust the contrast only
if further adjustment is necessary.
Press the button to increase the contrast and press the
button to decrease the contrast (min. 0; max. 100).
The contrast function adjusts the degree of dierence
between darkness and lightness on the screen.
24
|
Operating your monitor
Page 25

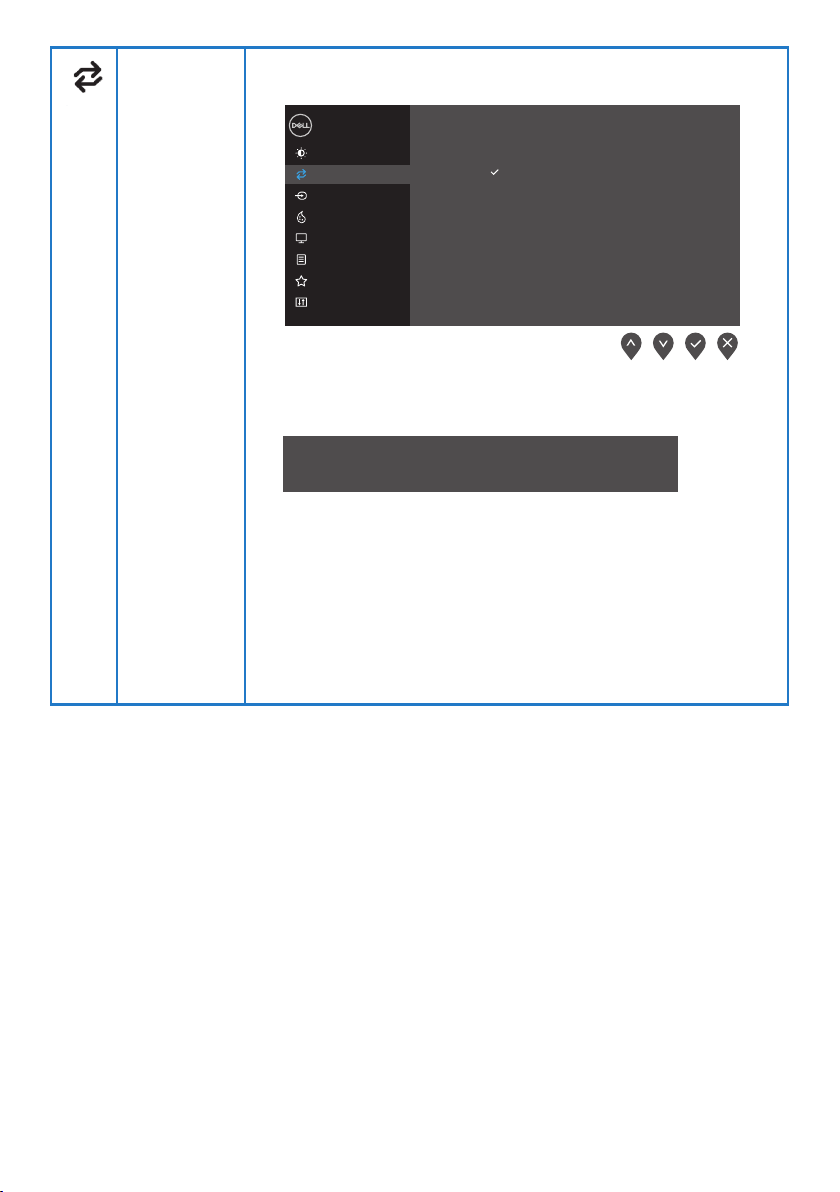

Auto Adjust
Use this option to activate automatic setup and adjust menu.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Press to adjust the screen automatically
The following dialog appears on a black screen as the monitor
self-adjusts to the current input:
Auto Adjustment in Progress...
Auto Adjust allows the monitor to self-adjust to the incoming
video signal. After using Auto Adjustment, you can further tune
your monitor by using the Pixel Clock (Coarse) and Phase
(Fine) controls under Display.
NOTE: Auto Adjust does not occur if you press the button
while there are no active video input signals or attached cables.
This option is only available when you are using the analog
(VGA) connector.
Operating your monitor
|
25
Page 26

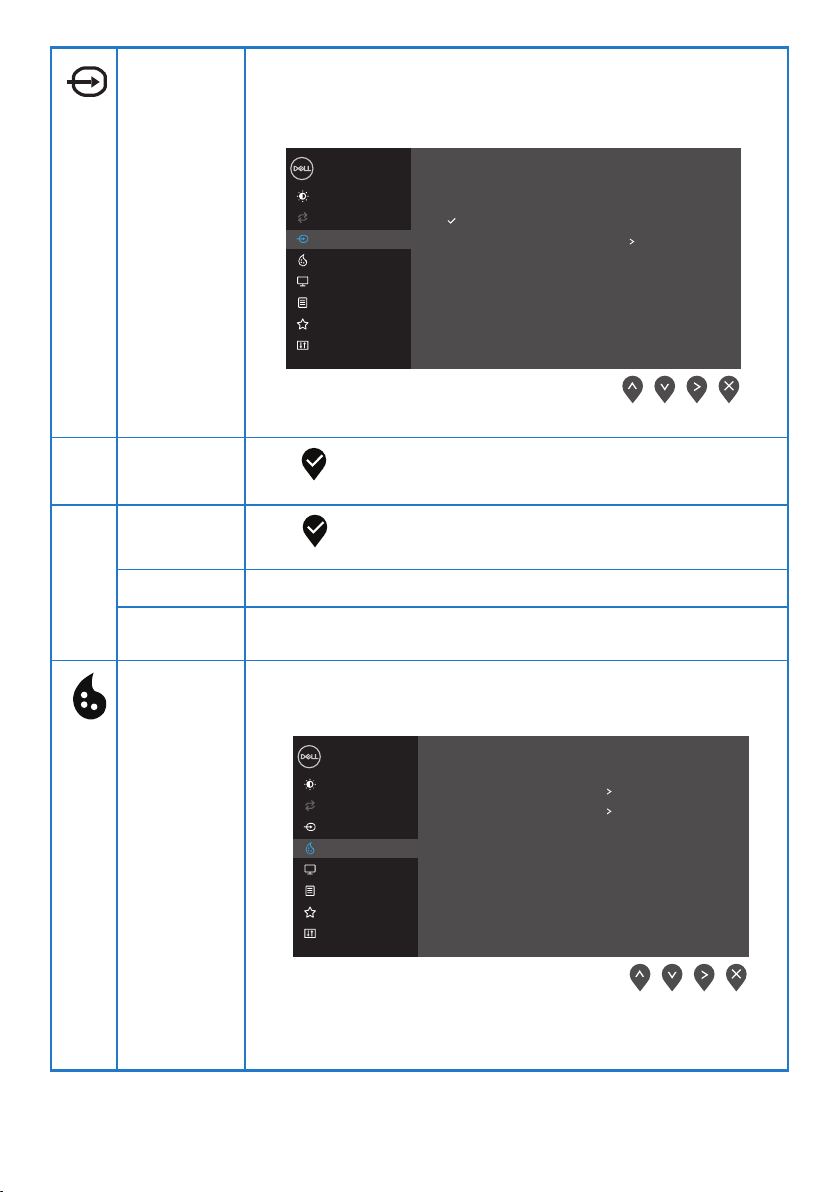

Input Source
Use the input source menu to switch between the dierent
video signals that may be connected to your monitor.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
VGA
HDMI
Auto Select
Reset Input Source
On
VGA
Push to select the VGA input source when using
VGA connector.
HDMI
Push to select the HDMI input source when using
HDMI connector.
Auto Select
Reset Input
Source
Select Auto Select to scan for available input signals.
Select this option to restore default input source.
Color Use color to adjust the color setting mode.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Preset Modes
Input Color Format
Reset Color
Standard
RGB
26
|
Operating your monitor
Page 27
Preset Modes
When you select Preset Modes, you can choose Standard,
Warm, Cool, Custom Color from the list.
Standard: Load the monitor's default color settings. This is
the default preset mode.
NOTE: To reduce the risk of eye strain and neck/arm/back/
shoulders pain from using the monitor for long periods of time,
we suggest that you:
Set the screen about 20~28 in. (50~70 cm) from your eyes.
Blink frequently to moisten or lubricate your eyes.
Take regular 20-minute breaks every two hours.
Look away from your monitor and gaze at a distant object at
20 feet away for at least 20 seconds during the breaks.
Perform stretches to relieve tension in the neck/arm/back/
shoulders during the breaks.
Warm: Increase the color temperature. The screen appears
warmer with a red/yellow tint.
Cool: Decrease the color temperature. The screen appears
cooler with a blue tint.
Custom Color: Allows you to manually adjust the color settings.
Press th
e and buttons to adjust the three colors
(R, G, B) values and create your own preset color mode.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Preset Modes
Input Color Format
Reset Color
Standard
Warm
Cool
Custom Color
Operating your monitor
|
27
Page 28

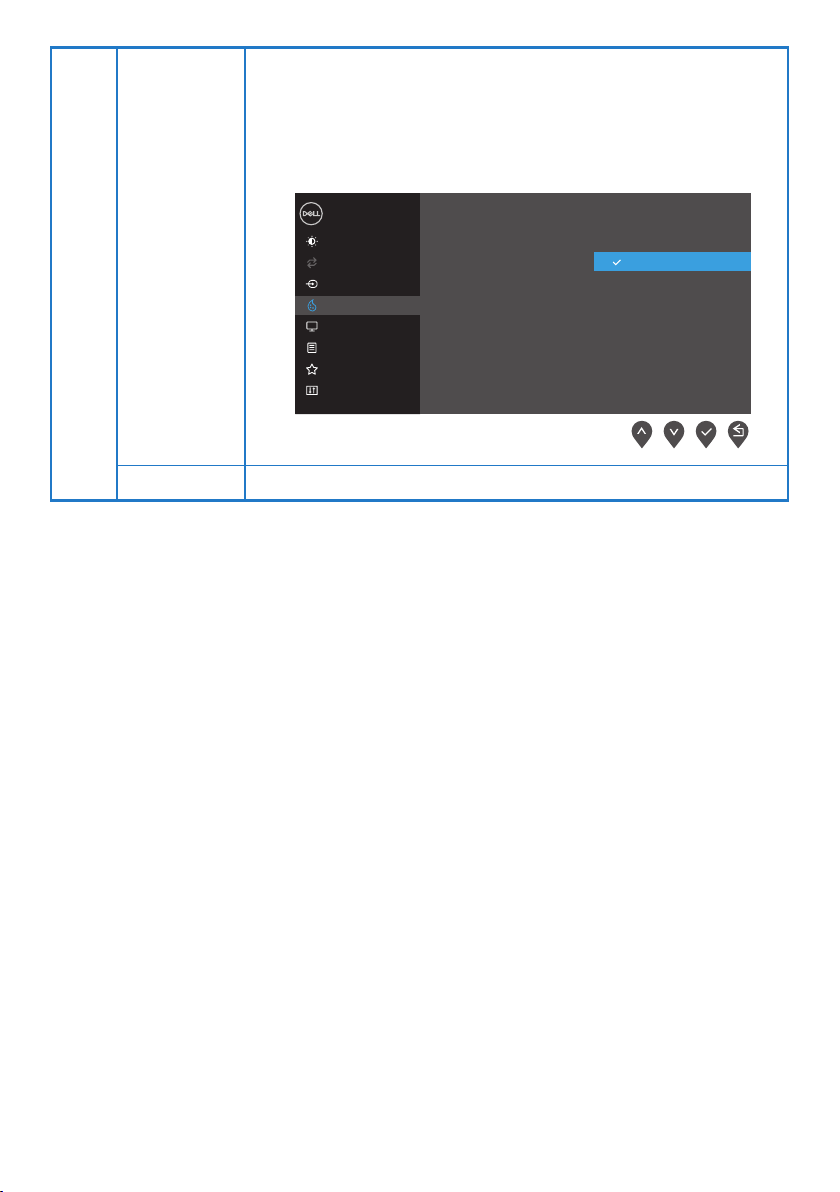

Input Color
Format
Allow you to set the video input mode to:
RGB: Select this option if your monitor is connected to a
computer or DVD player using the HDMI cable.
YPbPr: Select this option if your DVD player supports only
YPbPr output.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Preset Modes
Input Color Format
Reset Color
RGB
YPbPr
Reset Color
Reset your monitor color settings to the factory settings.
28
|
Operating your monitor
Page 29

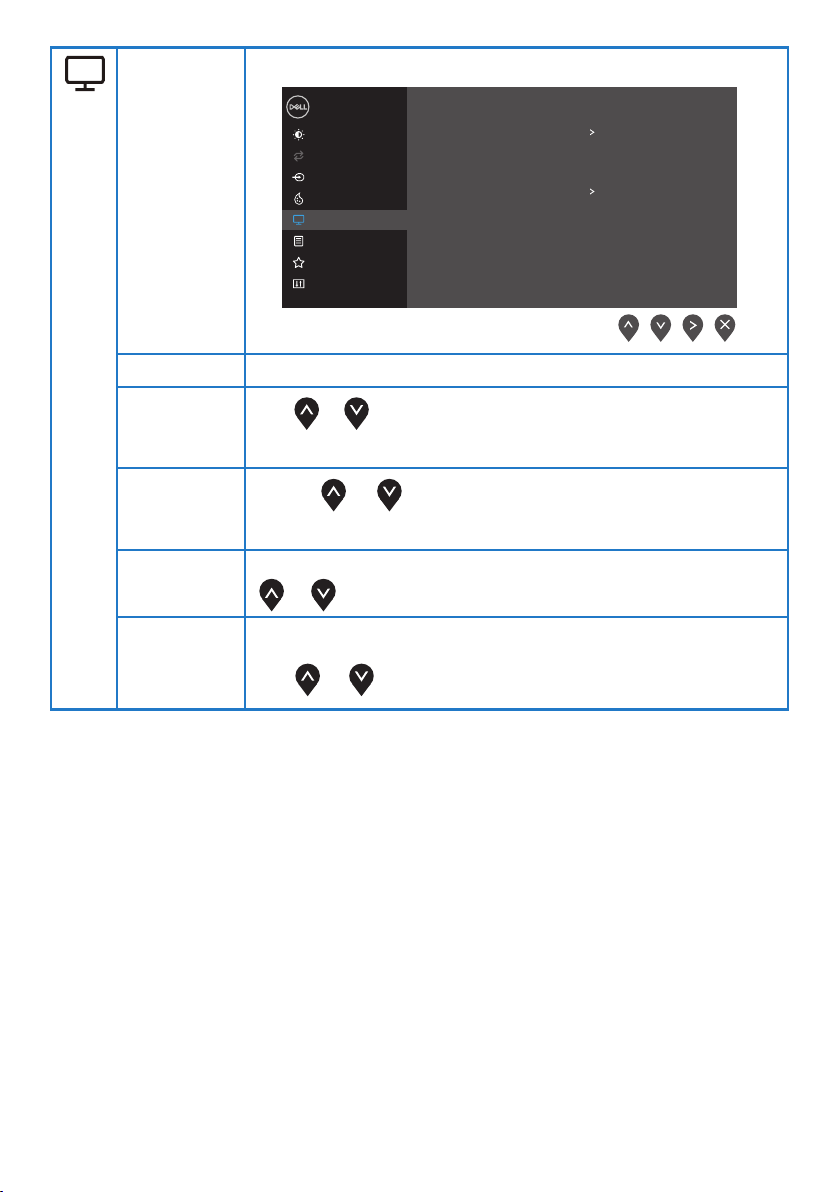

Display Use the display to adjust image.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Aspect Ratio
Horizontal Position
Vertical Position
Sharpness
Pixel Clock
Phase
Reset Display
Adjust the image ratio to Wide 16:9, 4:3 or 5:4.Aspect Ratio
Wide 16:9
50
Horizontal
Position
(VGA input only)
Vertical
Position
(VGA input only)
Sharpness
Pixel Clock
(VGA input only)
Use or to move image left and right.
Minimum is '0' (-). Maximum is '100' (+).
Use the or to move image up and down.
Minimum is '0' (-). Maximum is '100' (+).
This feature can make the image look sharper or softer. Use
or to adjust the sharpness from 0 to 100.
The Pixel Clock feature enables you to adjust
image quality on your monitor to your preference.
Use or buttons to adjust for best image quality.
Operating your monitor
29
Page 30
Phase
(VGA input only)
If satisfactory results are not obtained using the Phase
adjustment, use the Pixel Clock (coarse) adjustment and
then use Phase (ne), again.
Reset Display
Select this option to restore default display settings.

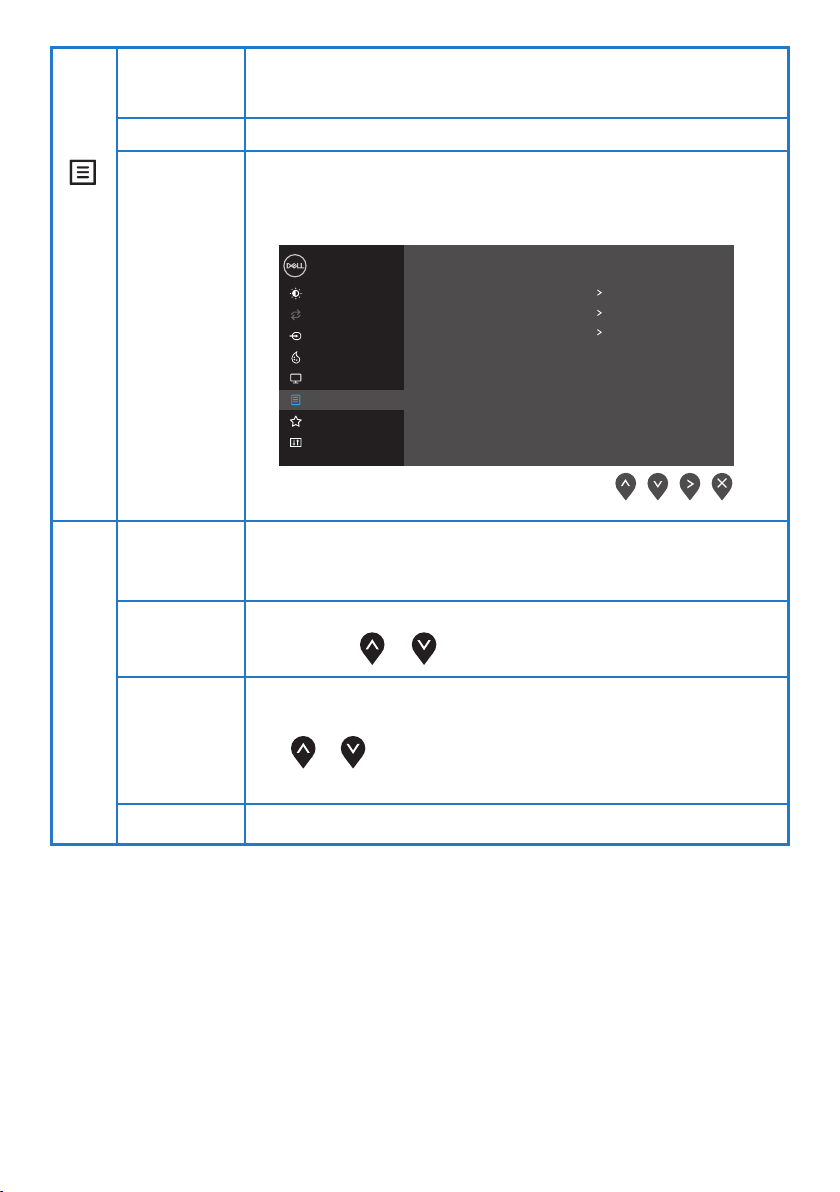

Menu Select this option to adjust the settings of the OSD, such as
the languages of the OSD, the amount of time, the menu
remains on screen and so on.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Language
Transparency
Timer
Reset Menu
English
20
20 s
Language Language options set the OSD display to one of the eight
languages (English, Spanish, French, German, Brazilian
Portuguese, Russian, Simplied Chinese, or Japanese).
30
Transparency
Select this option to change the menu transparency by
pressing the or buttons from 0 to 100.
Timer OSD hold time: sets the length of time the OSD will remain
active after the last time you pressed a button.
Use or to adjust the slider in 1 second increments,
from 5 to 60 seconds.
Reset Menu
|
Operating your monitor
Reset all OSD settings to the factory preset values.
Page 31
Personalize Allow you to choose a feature from Shortcut key 1, Shortcut
key 2, Power Button LED or Reset Personalization, Preset
Modes or Brightness/Contrast and set it as a shortcut key.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Shortcut Key 1
Shortcut Key 2
Power Button LED
Reset Personalization
Preset Modes
Brightness/Contrast
On During Active
Shortcut Key 1 Allow you to select one of the following: Preset
Modes, Brightness/Contrast, Auto Adjust, Input
Source, Aspect Ratio, to set the shortcut key 1.
Shortcut Key 2
Allow you to select one of the following: Preset Modes,
Brightness/Contrast, Auto Adjust, Input Source, Aspect
Ratio, to set the shortcut key 2.
Power Button
LED
Reset
Allow you to set the power LED indicator On During Active
or O During Active to save energy.
Allow you to restore shortcut key to the default setting.
Personalization
Others
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Display Info
DDC/CI
LCD Conditioning
Service Tag
Reset Others
Factory Reset
On
ABCDEFG
Operating your monitor
|
31
Page 32

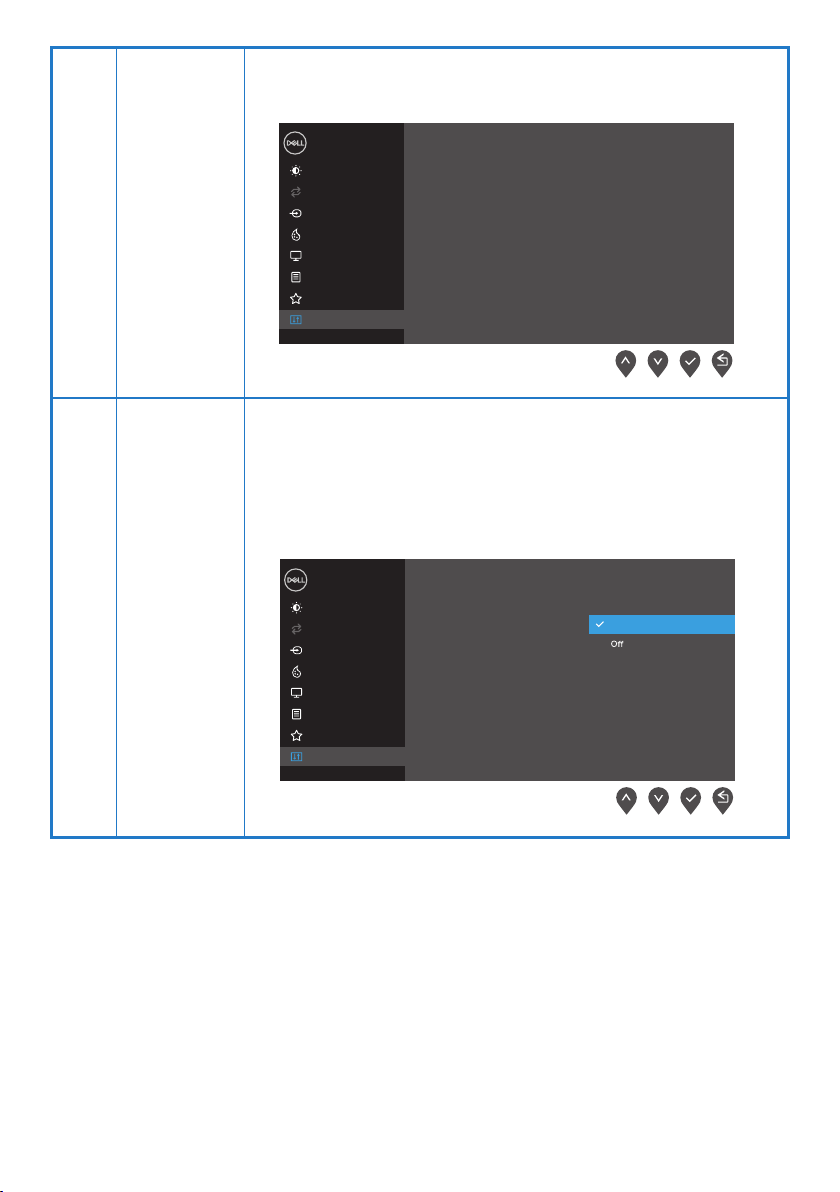

Display Info Press to display the information about the display.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Display Info
DDC/CI
LCD Conditioning
Service Tag
Reset Others
Factory Reset
Model: Dell D2020H
Input Source: HDMI
Current: 1600x900, 60Hz
DDC/CI DDC/CI (Display Data Channel/Command Interface) allows you
to adjust the monitor settings using software on your computer.
Select O to turn o this feature.
Enable this feature for best user experience and optimum
performance of your monitor.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Display Info
DDC/CI
LCD Conditioning
Service Tag
Reset Others
Factory Reset
On
32
|
Operating your monitor
Page 33

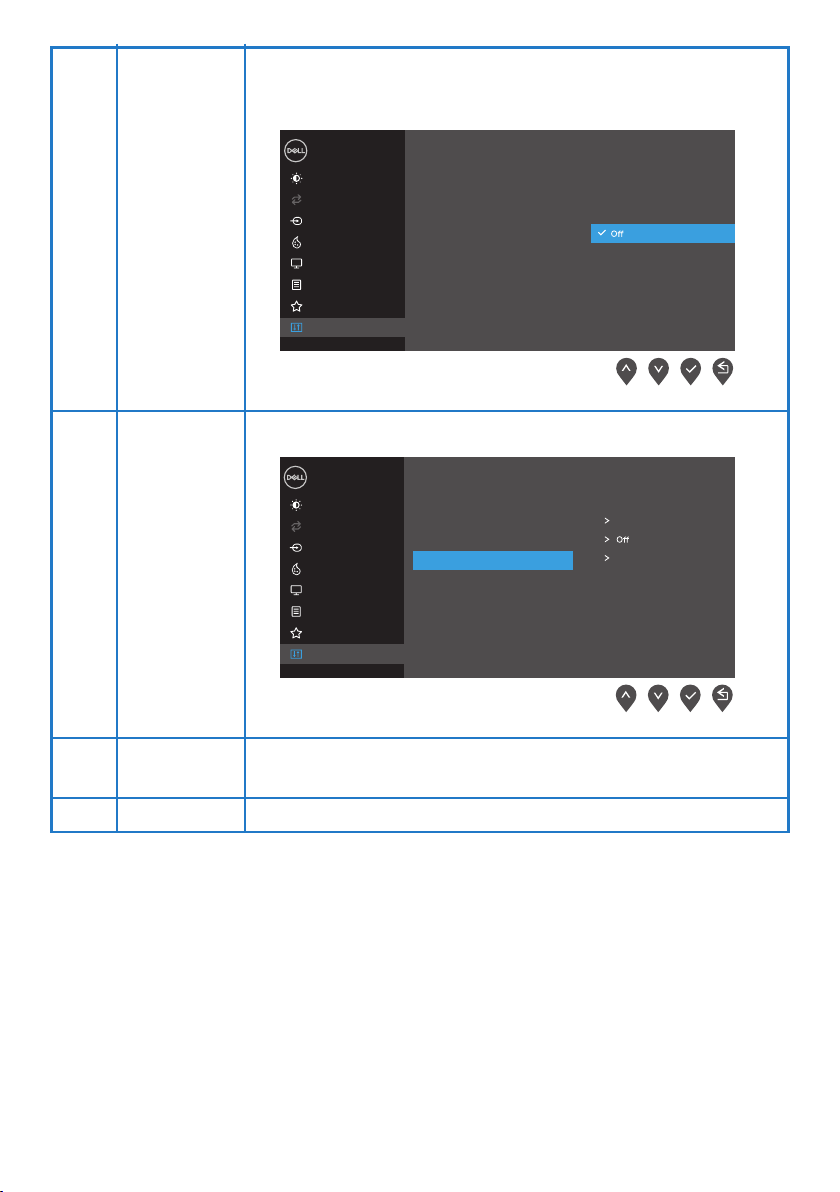

LCD
Conditioning
Help reduce minor cases of image retention. Depending on
the degree of image retention, the program may take some
time to run. To start LCD Conditioning, select On.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Display Info
DDC/CI
LCD Conditioning
Service Tag
Reset Others
Factory Reset
On
Service Tag Display the Service Tag number of the monitor.
Dell 20 Monitor
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Others
Display Info
DDC/CI
LCD Conditioning
Service Tag
Reset Others
Factory Reset
On
ABCDEFG
Reset Others
Reset all settings under the Others setting
menu to the factory default.
Factory Reset Reset all settings to the factory default.
Operating your monitor
|
33
Page 34

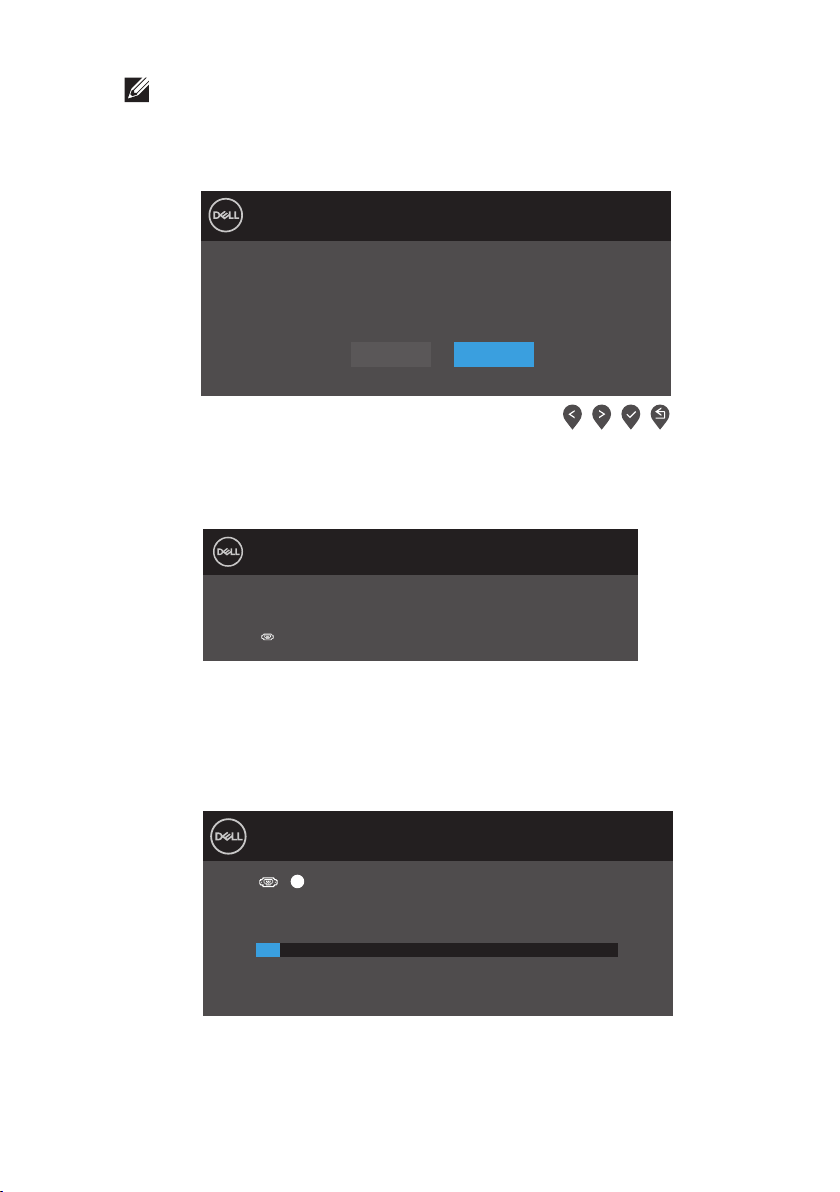

NOTE: Your monitor has a built-in feature to automatically
calibrate the brightness to compensate for LED aging.
Before the DDC/CI function is disabled, the following message is displayed.
Dell 20 Monitor
The function of adjusting display setting using PC application
will be disabled.
Do you wish to disable DDC/CI function?
Yes No
D2020H
When the monitor enters Power Save Mode, the following message appears.
Dell 20 Monitor
Entering Power Save Mode.
D2020H
34
If VGA or HDMI cable is not connected, a oating dialog box as shown below
appears. The monitor will enter Power Save Mode after 4 minutes if left in this state.
Dell 20 Monitor
?
No VGA Cable
The display will go into Power Save Mode in 4 minutes.
www.dell.com/D2020H
D2020H
See Troubleshooting for more information.
|
Operating your monitor
Page 35
Setting up your monitor
Setting display resolution to 1600 x 900
For best performance, set the display resolution to 1600 x 900 pixels by performing the
following steps:
In Windows 7:
1. Right-click on the desktop and click Screen Resolution.
2. Click the drop-down menu of the Screen Resolution and select 1600 x 900.
3. Click OK.
In Windows 8 or Windows 8.1:
1. Select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the drop-down menu of the Screen Resolution and select 1600 x 900.
4. Click OK.
In Windows 10:
1. Right-click on the desktop and click Display Settings.
2. Click Advanced Display Settings.
3. Click the drop-down menu under Resolution and select 1600 x 900
4. Click Apply.
If you do not see the recommended resolution as an option, you may need to update your
graphics driver. Use one of the following methods to update the graphics driver:
Dell computer
1. Go to www.dell.com/support, enter your service tag, and download the latest driver
for your graphics card.
2. After installing the drivers for your graphics adapter, attempt to set the resolution to
1600 x 900 again.
NOTE: If you are unable to set the resolution to 1600 x 900 please
contact Dell to inquire about a graphics adapter that supports these
resolutions.
Operating your monitor
|
35
Page 36
Non-Dell computer
In Windows 7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the
window (e.g. NVIDIA, AMD, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example,
www.AMD.com or www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution
to 1600 x 900 again.
In Windows 8 or Windows 8.1:
1. Select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the
window (e.g. NVIDIA, AMD, Intel etc.).
6. Refer to the graphic card provider website for updated driver (for example,
www.AMD.com or www.NVIDIA.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution
to 1600 x 900 again.
In Windows 10:
1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click Display adapter properties.
4. Identify your graphics controller supplier from the description at the top of the window
(e.g. NVIDIA, AMD, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example,
www.AMD.com or www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution to
1600 x 900 again.
NOTE: If you are unable to set the recommended resolution, please
contact the manufacturer of your computer or consider purchasing a
graphics adapter that supports the video resolution.
|
36
Operating your monitor
Page 37
Using tilt
You can tilt the monitor for the most comfortable viewing angle.
NOTE: The stand is not attached when the monitor is shipped from the
factory.
5°
21°
Operating your monitor
|
37
Page 38
Troubleshooting
WARNING: Before you begin any of the procedures in this section,
follow the Safety Instructions.
Self-test
Your monitor provides a self-test feature that allows you to check if your monitor is
functioning properly. If your monitor and computer are properly connected but the
monitor screen remains dark, run the monitor self-test by performing the following
steps:
1.
Turn on both your computer and the monitor.
2.
Disconnect all video cables from the monitor. This way, the computer doesn’t
have to be involved.
3.
Turn on the monitor.
If the monitor is working correctly, it detects that there is no signal and one of the
following message appears. While in self-test mode, the power LED remains white.
Dell 20 Monitor
?
No VGA Cable
The display will go into Power Save Mode in 4 minutes.
38
|
Troubleshooting
www.dell.com/D2020H
D2020H
Page 39
Dell 20 Monitor
?
No HDMI Cable
The display will go into Power Save Mode in 4 minutes.
www.dell.com/D2020H
D2020H
NOTE: This box also appears during normal operation, when
the video cable is disconnected or damaged.
4. Turn o your monitor and reconnect the video cable; then turn on your
computer and the monitor.
If your monitor remains dark after you reconnect the cables, check
your video controller and computer.
Troubleshooting 39
|
Page 40
Built-in diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if any screen
abnormality you experience is an inherent problem with your monitor, or with your
computer and video card.
NOTE: You can run the built-in diagnostics only when the video
cable is unplugged and the monitor is in self-test mode.

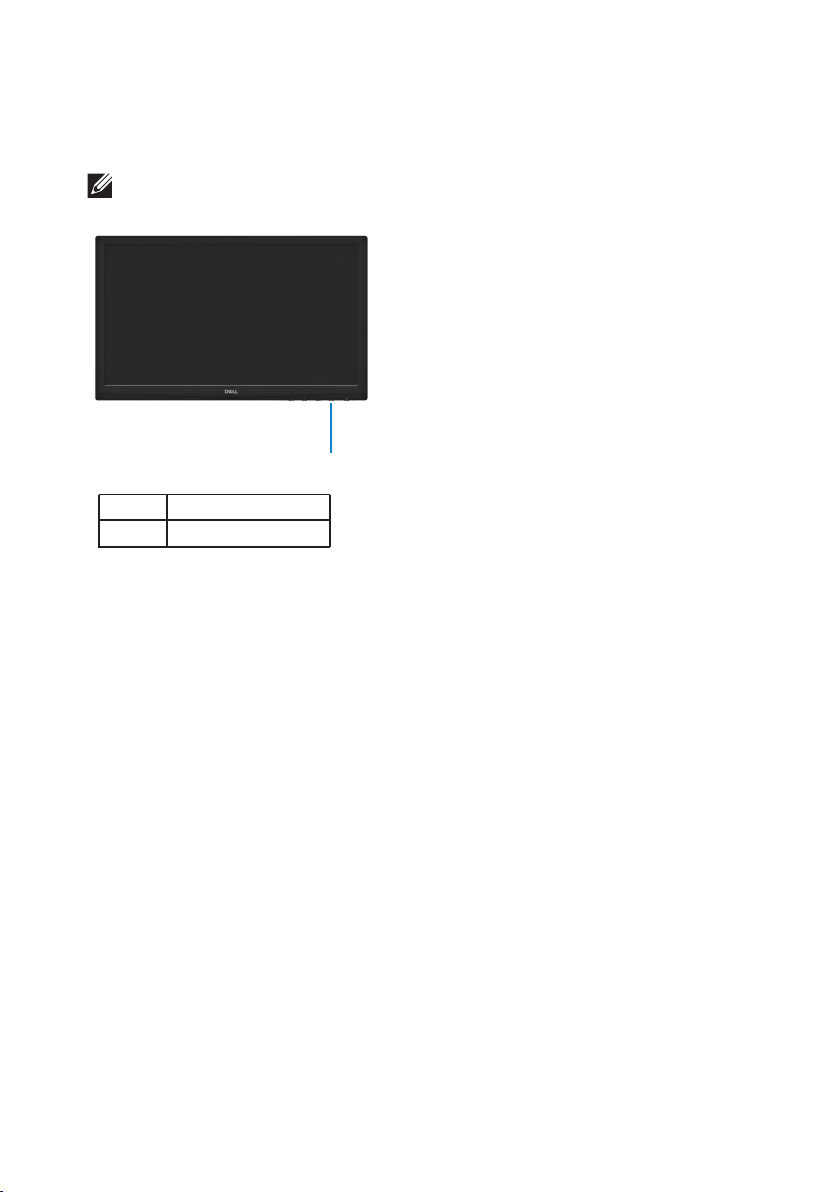

1
Label Description
1 Button 1
To run the built-in diagnostics:
1.
Ensure that the screen is clean (no dust particles on the surface of the screen).
2.
Unplug the video cable(s) from the back of the computer or monitor. The
monitor then goes into the self-test mode.
3.
Press and hold Button 1 for 5 seconds. A gray screen appears.
4.
Carefully inspect the screen for abnormalities.
5.
Press Button 1 on the bottom of the monitor again. The color of the screen
changes to red.
6.
Inspect the display for any abnormalities.
7.
Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text
screens.
|
Troubleshooting40
Page 41
Common problems
The following table contains general information about common monitor problems
you might encounter and the possible solutions:
Common Symptoms Possible Solutions
Ensure that the video cable connecting the monitor and
the computer is properly connected and secure.
Verify that the power outlet is functioning properly using any
other electrical equipment.
Ensure that the power button is pressed.
Ensure that the correct input source is selected via the
Input Source menu.
No Video/Power LED on
Poor focus
Shaky/Jittery video Reset the monitor to Factory Settings (Factory Reset).
Missing pixels
Stuck-on pixels
Brightness problems
Geometric distortion
Horizontal/Vertical lines Reset the monitor to Factory Settings (Factory Reset).
Increase brightness and contrast controls using the OSD.
Perform monitor self-test feature check.
Check for bent or broken pins in the video cable connector.
Run the built-in diagnostics.
Ensure that the correct input source is selected via the Input
Source menu.
Eliminate video extension cables.
Reset the monitor to Factory Settings (Factory Reset).
Change the video resolution to the correct aspect ratio.
Check environmental factors.
Relocate the monitor and test in another room.
Cycle power On-o.
Pixel that is permanently o is a natural defect that can occur in
LCD technology.
For more information on Dell Monitor Quality and Pixel Policy,
see Dell Support site at:
www.dell.com/support/monitors.
Cycle power On-o.
Pixel that is permanently o is a natural defect that can occur in
LCD technology.
For more information on Dell Monitor Quality and Pixel Policy,
see Dell Support site at:
www.dell.com/support/monitors.
Reset the monitor to Factory Settings (Factory Reset).
Adjust brightness & contrast controls via OSD.
Reset the monitor to Factory Settings (Factory Reset).
Adjust horizontal & vertical controls via OSD.
Perform monitor self-test feature check and determine if these
lines are also in self-test mode.
Check for bent or broken pins in the video cable connector.
Run the built-in diagnostics.
Troubleshooting
|
41
Page 42
Synchronization
problems
Safety related issues
Intermittent problems
Missing color Perform monitor self-test feature check.
Wrong color
Image retention from a
static image left on the
monitor for a long period of
time
Reset the monitor to factory settings ( Factory Reset).
Perform monitor self-test feature check to determine if the
scrambled screen appears in self-test mode.
Check for bent or broken pins in the video cable connector.
Restart the computer in safe mode.
Do not perform any troubleshooting step.
Contact Dell immediately.
Ensure that the video cable connecting the monitor to the
computer is connected properly and is secure.
Reset the monitor to Factory Settings (Factory Reset).
Perform monitor self-test feature check to determine if the
intermittent problem occurs in self-test mode.
Ensure that the video cable connecting the monitor to the
computer is connected properly and is secure.
Check for bent or broken pins in the video cable connector.
Change the Color Setting Mode in the Color Settings OSD to
Graphics or Video depending on the application.
Preset Modes in Color settings OSD. Adjust R/G/B
value in Custom Color in Color settings OSD.
Change the Input Color Format to RGB or YPbPr in the Color
settings OSD.
Run the built-in diagnostics.
all times when not in use (for more information, see Power
management modes.
Alternatively, use a dynamically changing screensaver.
42
|
Troubleshooting
Page 43
Screen image is too
small
Cannot adjust the
monitor with the
buttons on the bottom
of the panel
No input signal when
user controls are
pressed
The picture does not
ll the entire screen
Possible Solutions
Check the Aspect Ratio setting in the Display settings OSD.
Reset the monitor to Factory Settings (Factory Reset).
Turn o the monitor, unplug the power cord, plug it back, and then
the monitor.
Check the signal source. Ensure the computer is not in standby
or sleep mode by moving the mouse or pressing any key on the
keyboard.
Check if the video cable is plugged in properly. Disconnect and
reconnect the video cable if necessary.
Reset the computer or video player.
Due to dierent video formats (aspect ratio) of DVDs, the monitor may
display in full screen.
Run the built-in diagnostics.
turn on
Troubleshooting
|
43
Page 44
Appendix
Safety instructions
WARNING: Use of controls, adjustments, or procedures other than
those specied in this documentation may result in exposure to
shock, electrical hazards, and/or mechanical hazards.
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory
For FCC notices and other regulatory information, see the regulatory compliance
website located at www.dell.com/regulatory_compliance.
Information
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active Internet connection, you can
nd contact information on your purchase invoice, packing slip,
bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options.
Availability varies by country and product, and some services may not be available
in your area.
To get online Monitor support content:
1.
Visit www.dell.com/support/monitors.
To contact Dell for sales, technical support, or customer service issues:
1.
Visit www.dell.com/support.
2.
Verify your country or region in the Choose A Country/Region drop-down
menu at the bottom of the page.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
Choose the method of contacting Dell that is convenient for you.
5.
WARNING: For displays with glossy bezel, ensure to place it
correctly to avoid disturbing reections from surrounding light
and bright surfaces.
|
44
Appendix
Page 45
Pin assignments
D-Sub 15-pin connector
Pin Number
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
Signal Assignment
Appendix
|
45
Page 46
Pin assignments
HDMI 19-pin connector
Pin Number
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5 V POWER
19 HOT PLUG DETECT
Signal Assignment
46
|
Appendix
Loading...
