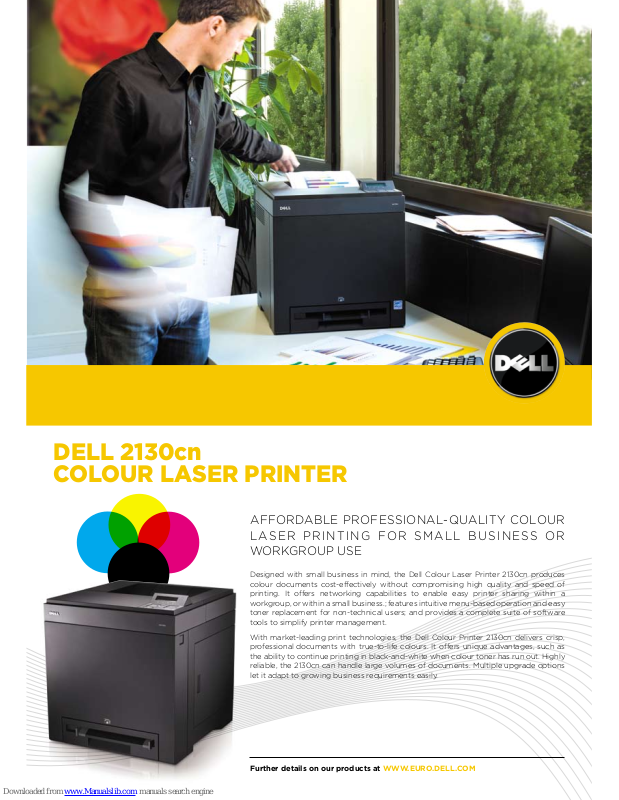

DELL 2130cn
COLOUR LASER PRINTER
Designed with small business in mind, the Dell Colour Laser Printer 2130cn produces
colour documents cost-effectively without compromising high quality and speed of
printing. It offers networking capabilities to enable easy printer sharing within a
workgroup, or within a small business.; features intuitive menu-based operation and easy
toner replacement for non-technical users; and provides a complete suite of software
tools to simplify printer management.
With market-leading print technologies, the Dell Colour Printer 2130cn delivers crisp,
professional documents with true-to-life colours. It offers unique advantages, such as
the ability to continue printing in black-and-white when colour toner has run out. Highly
reliable, the 2130cn can handle large volumes of documents. Multiple upgrade options
let it adapt to growing business requirements easily.
AFFORDABLE PROFESSIONAL-QUALITY COLOUR
LASER PRINTING FOR SMALL BUSINESS OR
WORKGROUP USE
Further details on our products at WWW.EURO.DELL.COM
DELL 2130cn
COLOUR LASER PRINTER
Rear ViewTop view Control panelWith optional 250 sheet drawer Easy toner cartridge access
(side view)
PROFESSIONAL QUALITY COLOUR DOCUMENTS
The 2130cn delivers crisp, professional documents and true-to-life colours.
Print quality is further enhanced by advanced print technologies: the
printer analyses document content to correct colour space and image
balance automatically, whilst advanced emulsion aggregation toner
not only improves the quality but also accelerates printing and uses
less power during the fusing process.
IMPROVED PRODUCTIVITY
The standard network connectivity allows printer access to be
shared by multiple users. With its high print speed of up to 16 pages
per minute (ppm) in colour and 20 ppm in monochrome, as well
as monthly capacity of up to 40 000 prints, the 2130cn will easily
handle the requirements of a workgroup or a small business.
READINESS TO MEET BUSINESS GROWTH
The broad range of upgrade options includes a 250 sheet drawer,
duplexer and wireless printer adapter. The 2130cn will meet your
growing printer needs easily so you don’t have to buy a new printer
as your business expands.
EASE OF USE
Operating the 2130cn is straightforward even for the non-technical
user thanks to the large LCD display as well as the simple menu-based
interface. Replacing cartridges in the easy-to-access side toner
compartment couldn’t be simpler.
SIMPLE MANAGEMENT
AND EFFORTLESS MAINTENANCE
Using the familiar browser interface, the Dell Printer
Configuration Web Tool makes managing the 2130cn
simple and intuitive. The Dell ColourTrack2TM tool
gives you total control over who can print in colour, and
how much. Dell Toner Management System alerts you
of low toner levels. However, if any of the colour toners
runs out the 2130cn offers a unique capability to continue
printing in black-and-white. Reordering toner is as simple as a few clicks
at the dedicated Dell website www.dell.com/supplies or supplies are
available from selected reseller partners.
LOW TOTAL COST OF PRINTING
Offering lower per-page cost and better convenience, the 2130cn is a
great alternative to outsourced colour printing. Combining low acquisition
price with cost-effective consumables, including economical, high
capacity toner cartridges, the 2130cn ensures a low total cost of printing.
ENVIRONMENTAL FRIENDLINESS
The 2130cn’s paper drawer supports the use of recycled
paper. The “N-Up” multiple-sheet feature reduces paper
consumption by enabling the printing of multiple pages
on a single sheet of paper. The Blue Angel and Energy
Star certified 2130cn uses 25% less power than
conventional models (source: www.energystar.gov). As
all Dell printers, it has also been designed to reduce the use
of materials and eliminate hazardous materials. Dell printer users can
return toner cartridges to Dell for recycling at no cost. Dell also helps
customers dispose of old printers and other computer equipment in an
environmentally friendly manner.
PRODUCT BENEFITS
ORDER
SUPPLIES
ONLINE
DELL IS
GREEN!
GET THE MOST OUT OF YOUR DELL PRINTER
WITH GENUINE DELL OPTIONS AND SUPPLIES
Toner cartridges Dell 2130cn black toner cartridge standard: approximately 1000 pages high capacity: approximately 2500 pages
Dell 2130cn cyan toner cartridge standard: approximately 1000 pages high capacity: approximately 2500 pages
Dell 2130cn magenta toner cartridge standard: approximately 1000 pages high capacity: approximately 2500 pages
Dell 2130cn yellow toner cartridge standard: approximately 1000 pages high capacity: approximately 2500 pages
Black and colour toner yield based on testing in accordance with ISO/IEC 19798. Yields vary with usage and environmental conditions.
Duplexer unit A duplexer unit enables the printer to print on both sides of the paper (where supported by the application software). This enables saving on
paper costs and document bulk. The duplexer unit is fitted internally (no additional footprint) and can be quickly and easily fitted without tools.
Additional paper drawer An additional 250 sheet paper drawer is available for this printer, enabling less frequent paper refills or easy access to different types of
media (for example, plain paper in the standard drawer, preprinted notepaper in the second drawer) where supported by application.
Additional memory Optional 512 or 1024 MB memory modules are available for this printer. Additional memory may speed the processing of large/complex
print files, or networked print files.
Network protocol adaptor The optional network protocol adaptor is required only where the following network protocols are in use: HTTPS, SSL/TLS, SNMPv3,
Netware 5.x, 6.x support via TCP/IP. This option is not required for most users.
Connectivity Dell 2130cn/3130cn Wireless Printer Adapter
Dell 3 m Ethernet cable
Dell 3 m USB cable
Service and support Installation service available
Next Business Day onsite service options, extendable to 5 years
Product description
Affordable professional-quality colour laser printing
Functionality Low-cost, high-speed networked colour laser printer for small business or workgroup use
Print specifications
Print speed - colour
1
Up to 16 A4 pages per minute (ppm)
Print speed - monochrome
1
Up to 20 A4 pages per minute
Warm-up time From power-on to ‘Ready’ state on LCD operator panel - 16 seconds or less
First page out time from ‘Ready’ state (Simplex A4, 600 dpi) monochrome, 16 seconds or less; colour, 17 seconds or less
Print resolution 600 x 600 dpi
User interface 2 line x 16 character backlit LCD text, 2 button / 5 way cursor keypad
Data streams PCL® 6 emulation (includes PCL 5e)
Processor speed 400 MHz
Memory (RAM) 256 MB standard, optional 512 MB or 1024 MB modules (1280 MB maximum) via one 200 pin DDR2 DIMM slot
Read-only Memory (ROM) 16 MB (programs)
Duty cycle Maximum 40 000 pages per month
Typical Monthly Print Volume 750 to 3000 pages per month
Paper handling
Standard input sources 250 sheet covered drawer, single sheet feeder
Additional input drawers Optional additional 250 sheet covered drawer
Maximum input capacity 501 sheets (250 + 250 + 1)
Duplex facility (print both sides) Optional duplex unit available
Standard output destination 150 sheet bin
Supported media types,
sizes and paper weights Media types supported: Plain paper (Normal, Thick); Cover stock (Normal, Thick); Coated paper (Normal, Thick); Label stock
(Normal, Thick); Envelope; Recycled paper
- Standard 250 sheet drawer Paper sizes available: A4, B5, A5, US Letter, Executive, Folio, Legal - all short edge fed
Envelope sizes: DL, C5, Com-10, Monarch - short edge fed
2
Custom paper sizes: Width 76 to 216 mm (maximum width 220 mm for DL envelope long edge feed), length 127 to 355 mm
(minimum length 98 mm for envelope).
DL and Monarch envelopes can be supported by long edge feed with flap opened
Paper weights supported: 60 to 215 gsm
- Single sheet feeder Paper sizes available: A4, B5, A5, US Letter, Executive, Folio, Legal - all short edge fed
Envelope sizes: DL, C5, Com-10, Monarch
Custom paper sizes: width 76 to 216 mm, length 127 to 355 mm - short-edge fed only
Paper weights supported: 60 to 215 gsm
- Optional 250 sheet drawer Paper sizes available: A4, B5, A5, US Letter, Executive, Folio, Legal - all short edge fed
Width: 148 mm minimum to 216 mm maximum, length 210 mm minimum to 355 mm maximum
Paper weights supported: 60 to 105 gsm
- Optional duplexer A4 paper, US Letter, Folio, Legal (short edge feed only), 60 to 105 gsm paper weight
Page layout options Portrait or landscape orientation, multiple copies, duplex printing, multipage printing (N-up), booklet printing, watermarks,
overlays
Printable area Maximum printable area 208 mm x 347 mm
Edge of paper margins Top, 4 mm; bottom, 4 mm; left, 4mm; right, 4 mm
Connectivity
Interfaces USB 2.0 High speed port (type B connector), Ethernet 10/100 BaseT port (cables not included)
Print languages and fonts PCL® 5e/6 emulation, 81 fonts
Client Operating Systems (OS) Microsoft® Windows® 2000 SP2-4, Windows XP SP1-2, Windows XP 64 bit, Windows Vista® (32 and 64 bit), Windows Server
2003 SP1, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64
Network Operating Systems (OS) Microsoft® Windows® 2000 SP2-4, Windows Server 2003 SP1, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64
Latest printer drivers available from http://support.euro.dell.com
Transport/Network protocols HTTP, HTTPS (optional), TLS/SSL (Optional), SNMP (v1, v2, v3 - optional)), MIBv2 (RFC1213 compliant), BOOTP, DHCP, RARP,
Auto IP, SMTP
Wireless options Optional Dell 2130cn/3130cn Wireless Printer Adapter
3
. Connectivity: IEEE 802.11b/g
Consumables
Toner management In conjunction with the printer and software, features include toner level reporting, low toner alerts, auto-generated alert
e-mails, toner conservation, and the Dell Toner Management System
TM
. Dell ColourTrackTM 2.1 network software (included)
permits setting up of user access printing rights and print quotas in monochrome and colour
Shipped toner cartridge capacity
4
The printer ships with high capacity black toner cartridge (approximately 2500 pages coverage) and standard capacity colour
toner cartridges (approximately 1000 pages each for cyan, magenta and yellow)
Standard toner cartridge capacity
4
Toner cartridges (black, cyan, magenta and yellow) are approximately 1000 pages each
High capacity toner cartridge
4
High-capacity (approximately 2500 pages) black, cyan, magenta or yellow toner cartridges available
Additional toner Available through Dell online, by telephone or through your selected reseller
Additional consumables A replacement imaging drum will be required after approximately 24 000 printed pages
Toner reycling Toner cartridges are recyclable using Dell’s recycling programme, details of which are included with each product
Language and regulatory certifications
Language support Softcopy user guide on driver CD, printer software English, French, Italian, German, Spanish, Dutch, Danish, Norwegian
and Swedish
Printer firmware (including LCD operator panel) and embedded web software English, French, Italian, German, Spanish, Dutch
Basic set-up and product safety instructions Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Norwegian, Polish, Portuguese (Iberian), Romanian, Russian, Spanish, Swedish, Turkish
Safety certifications IEC/EN60950-1:2001 (International); IEC60825-1 (Laser); CE Mark (EU); Nemko (Nordic); GS Mark (Germany); GOST and
Hygienic (Russia); SASO (Saudi Arabia); SABS (South Africa); UL/cUL listed (UL60950-1 US/Canada); FDA/DHHS (21CFR,
Chapter 1, Subchapter J, Class-1 Laser, US); NOM (Mexico); Other safety approvals required by individual countries.
EMC certifications CE (EU countries) [EN55022:2006; EN61000-3-2:2000+A2:2005; EN 61000-3-3:1995+A1:2001;
EN55024:1998+A1:2001+A2:2003]; FCC CFR Title 47, Part 15 Class B (USA); ICES-003, Issue 4 (Canada); GOST (Russia); SABS
(South Africa); C-Tick (Australia)
Other certifications and compliances WHQL, Printer MIB, RoHS
5
, Energy Star®-compliant, Blue Angel (Germany), SAP, Novell® Yes Certification, Citrix®
Metaframe Presentation Server 4.0/4.5 (Windows Server 2000/2003 running Terminal Services/Server)
Printer reycling Details of Dell’s printer recycling programme are included with each new printer (applies to Western Europe only)
DELL 2130cn
COLOUR LASER PRINTER
Printer management
Compatible printer
management software Dell Printer Configuration Web Tool; Dell Colour Track™ 2.1 and Dell Toner Management System™, HP Openview, CA Unicenter,
IBM Tivoli, Printer MIB
Included software Dell Printer Configuration Web Tool; Dell Colour Track™ 2.1 and Dell Toner Management System™
Printer options and accessories
Duplexer unit A duplexer unit enables the printer to print on both sides of the paper (where supported by the application software). This enables saving on
paper costs and document bulk. The duplexer unit is fitted internally (no additional footprint) and can be quickly and easily fitted without tools.
Duplexer dimensions WxDxH - packed 396 mm x 380 mm x 252 mm, unpacked 326 mm x 310 mm x 153 mm: weight packed
2.2 kg, unpacked 1.2 kg
Additional paper capacity An additional 250 sheet paper drawer is available for this printer, enabling less frequent paper refills or easy access to different types of
media (for example, plain paper in the standard drawer, preprinted notepaper in the second drawer) where supported by application
Additional 250 sheet paper drawer dimensions WxDxH - packed 537 mm x 589 mm x 225 mm, unpacked 400 mm x 406 mm x 108 mm:
weight packed 6.4 kg, unpacked 4.8 kg
Network protocol adaptor The optional network protocol adaptor is required only where the following network protocols are in use: HTTPS, SSL/TLS,
SNMPv3, Netware 5.x, 6.x support via TCP/IP. This option is not required for most users.
Wireless options
3
Optional Dell 2130cn/3130cn Wireless Printer Adapter - connectivity: IEEE 802.11b/g, Security protocols: WPA - PSK (TKIP
or AES), WPA2-PSK (AES), WEP (64 bit and 128 bit) - dimensions 88 mm x 53 mm x 38 mm, weight 38 g approx
Additional memory Optional 512 or 1024 MB memory modules are available for this printer. Additional memory may speed the processing of large/
complex print files, or networked print files
Service options
Standard Service 24 x 7 online Technical Support for the life of the product
12 months access to Dell’s telephone technical printer support queue
12 months Next Business Day unit exchange warranty
6
Fuser maintenance Dell Laser Printer next business day service includes fuser maintenance parts and part replacement for the duration of the
service contract
Service Options Two, three, four and five-year extended service options available
Upgrades available to one, two, three, four and five-year Dell Business Support
Optional installation service available
Physical specifications
What’s included in the box Dell 2130cn colour laser printer, installation software CD (Printer Driver, user guide in multiple language versions and Dell Toner
Management Software), Dell 2130cn ship-with black toner cartridge (2500 page yield
4
), Dell 2130cn ship-with colour toner
cartridges (cyan, magenta and yellow, 1000 page yield
4
), Setup placemat, Product Information Guide and hardware recycle
program label and instructions
Dimensions (mm) Printer: 400 mm W x 407 mm D x 413 mm H
Shipping carton: 542 mm W x 590 mm D x 581 mm H
Weight 18.6 kg including standard toner cartridges; shipping weight 22 kg
Operating environment Operating: air temperature 5°C to 32°C, Relative Humidity 15-85% non-condensing, altitude 3100 m or less
Storage (unpackaged): air temperature 0°C to 35°C, Relative Humidity 15-80%, altitude 3100 m or less
Storage (packaged): air temperature 0°C to 35°C, Relative Humidity 5-80%, altitude 3100 m or less
Acoustics Printing (Simplex Mode):
Sound Pressure, Operator position (LpAm)
7
56 dBA
Sound Pressure, Bystander position (LpAm)
7
52 dBA
Average Sound Power (LWAm), declared
8
6.6 Bels (66 dB)
Standby Mode:
Sound Pressure, Bystander position (LpAm)
7
25 dBA
Average Sound Power (LWAm), declared
8
4.30 Bels (43 dB)
Voltage 220-240 v AC, 47 to 63 Hz nominal. Power cord included with shipped printer.
Power consumption Continuous printing - 430 W average: Standby mode 28 W average: Powersaver mode 6 W: Off 0.4 W
Typical energy consumption 1.38 kWh per week
9
Energy Star®-compliant - see http://www.energystar.gov/ia/products
Maximum current while printing 5 A at 220 v AC
Power Save options User-definable - 5-60 minutes (default 5 min)
NOTES
1 Print speed quoted refers to A4 page using default print mode (600 x 600 dpi simplex). Actual print speed may vary depending upon system configuration, software
application and document complexity.
2 Envelope printing results may vary based on environmental conditions and the type of envelopes that are used
3 Ethernet mode is disabled when wireless mode is in use. Dell 2130cn/3130cn Wireless Printer Adapter is Wi-Fi CERTIFIED.
4 Black and colour toner yield based on testing in accordance with ISO/IEC 19798. Yields vary with usage and environmental conditions.
5 Meets the requirement of the EU Directive on the restriction of use of certain hazardous substances in electrical and electronic equipment dated 27 January 2003
6 Service may be provided by third party. Technician will be dispatched if necessary following phone-based troubleshooting. Subject to parts availability, geographical
restrictions and terms of service contract. Service timing dependent upon time of day call placed to Dell. Defective unit must be returned. Replacements may be
refurbished.
7 Measurements based on ISO 7779
8 Tested in accordance with ISO 7779 and reported in accordance with ISO 9296, Acoustics - Declared noise emission values of computer and business equipment
9 The Typical Energy Consumption value is derived from printer energy consumption specifications combined with typical business printing usage for this model.
The midpoint of the Typical Monthly Print Volume is assumed to be printed at 30 minute intervals across a 10 hour business day (0800-1800), 5 days per week.
A mixture of 50% mono: colour print is assumed. The printer enters standby mode when the print job is complete, and enters sleep mode after the default period.
The printer is assumed to remain in sleep mode at all other times including two weekend days. Energy consumption will be further reduced if the printer is powered
down when not in use for long periods. Actual energy consumption will vary according to print volume and usage patterns.
©2008 Dell Corporation Limited. Dell, the Dell logo and Dell Toner Management System are registered trademarks or trademarks of Dell Inc. Other trademarks
and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell disclaims proprietary interest
in the marks and names of others.
Microsoft, Windows and Windows NT are registered trademarks or trademarks of Microsoft Corporation.
Dell Products, Dell House, The Boulevard, Cain Road, Bracknell, Berkshire, RG12 1LF, UK.
v 1.0 September 2008 -- 2130cn EN
DELL 2130cn
COLOUR LASER PRINTER
Loading...
