Dell ChengMing 3980, D19M Setup And Specifications

ChengMing 3980

Setup and specication guide

Regulatory Model: D19M
Regulatory Type: D19M005

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks

may be trademarks of their respective owners.

2018 - 04

Rev. A01

Set up your computer

1 Connect the keyboard and mouse.

2 Connect to your network using a cable, or connect to a wireless network.

3 Connect the display.

1

Set up your computer 3

NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of

your computer are covered. Connect the display to the discrete graphics card.

4 Connect the power cable.

5 Press the power button.

4

Set up your computer

6 Follow the instructions on the screen to nish Windows setup:

a Connect to a network.

b Sign-in to your Microsoft account or create a new account.

7 Locate Dell apps.

Set up your computer

5

Table 1. Locate Dell apps

Register your computer

Dell Help & Support

SupportAssist — Check and update your computer

6

Set up your computer

Chassis

System front view

1 Optical drive 2 Power button and power status light

3 Hard drive activity light 4 Universal audio jack

5 USB 3.1 Gen 1 ports

2

Chassis 7

System back view

1 Line out port 2 HDMI port

3 VGA port 4 PS2 port for keyboard

5 USB 2.0 ports (4) 6 Expansion card slots

7 Power supply diagnostic button 8 Power diagnostic light

9 Power connector port 10 Padlock ring

11 Kensington security slot 12 Network port

13 Service tag 14 PS2 port for mouse

15 Serial port

8 Chassis

Technical specications

NOTE: Oerings may vary by region. The following specications are only those required by law to ship with your computer. For

more information about the conguration of your computer, go to Help and Support in your Windows operating system and
select the option to view information about your computer.

Topics:

• Dimensions and weight

• System information

• Processor

• Operating system

• Memory

• Ports and connectors

• Communication specications

• Video specications

• Audio

• Storage

• Storage combinations

• Power supply specications

• Security hardware

• Regulatory and Environmental Compliance

Dimensions and weight

Table 2. Dimensions and weight

Height

373.7

Width 160

Depth 289.4mm

Weight 5.9 kg (13.01 lb)

System information

Table 3. System information

Chipset Integrated: Intel H370

DRAM bus width 64-bit wide channels

FLASH EPROM 256Mbit

3

Technical specications 9

PCIe bus 100MHz

External bus frequency DMI3.0 8GT/s

Processor

Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions
on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of
congurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards
by locking in specic product congurations worldwide. The following GSP processors identied below will be made available to Dell
customers.

NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/

country.

Table 4. Processor specications

Type UMA Graphics

Intel Celeron- G4900 (2 Cores/2MB/2T/3.1GHz/65W) Intel Ultra HD (UHD) Graphics 610 with shared graphics memory

Intel Pentium Gold- G5400 (2 Cores/4MB/4T/3.7GHz/65W) Intel UHD Graphics 610 with shared graphics memory

Intel Core i3-8100 (4 Cores/6MB/4T/3.6GHz/65W) Intel UHD Graphics 630 with shared graphics memory

Intel Core i5-8400 (6 Cores/9MB/6T/ 4.0GHz/65W) Intel UHD Graphics 630 with shared graphics memory

Intel Core i5-8500 (6 Cores/9MB/6T/4.1GHz/65W) Intel UHD Graphics 630 with shared graphics memory

Intel Core i7-8700 (6 Cores/12MB/12T/4.6GHz/65W) Intel UHD Graphics 630 with shared graphics memory

Operating system

Table 5. Operating system

Operating systems supported

• Windows 10 64-bit

• Windows 10 64-bit Professional

• Ubuntu

• NeoKylin

Memory

Table 6. Memory

specications

Minimum memory conguration

4 GB

Maximum memory conguration

32 GB

Number of slots

2 UDIMM

Maximum memory supported per slot

16 GB

Memory options

• 4GB DDR4 2400MHz (4Gx1)

• 8GB DDR4 2400MHz (8Gx1)

• 8GB DDR4 2400MHz (4Gx2)

10 Technical specications

• 16GB DDR4 2400MHz (8Gx2)

• 16GB DDR4 2400MHz (16Gx1)

• 32GB DDR4 2400MHz (16Gx2)

• 4GB DDR4 2666MHz (4Gx1)

• 8GB DDR4 2666MHz (8Gx1)

• 8GB DDR4 2666MHz (4Gx2)

• 16GB DDR4 2666MHz (8Gx2)

• 16GB DDR4 2666MHz (16Gx1)

• 32GB DDR4 2666MHz (16Gx2)

NOTE:

The memory modules are customer replaceable units (CRU),
and memory can be upgraded.

Memory performance on Intel Celeron, Pentium, and Core i3
processors will be at 2400 MHz.

Type DDR4 SDRAM Non-ECC memory.

Speed

• 2666 MHz

• 2400 MHz on Celeron, Pentium, and i3 processor

Ports and connectors

Table 7. Ports and connectors

USB

• Four USB 3.1 Gen 1 ports

• Four USB 2.0 ports

Security

• Kensington security slot

• Padlock ring

Audio

• Headset port

• Line-out

Video

• VGA port

• HDMI 1.4 (UMA)

Network adapter One RJ-45 connector

Serial port One serial port

PS/2 ports for keyboard and mouse

• One PS/2 port for mouse

• One PS/2 port for keyboard

Technical specications 11

Communication specications

Table 8. Communication specications

Network adapter

Ethernet controller 10/100/1000 Mb/s Ethernet (RJ-45 )

Wireless

• WLAN/Bluetooth combo wireless NIC add-in card (with
external antenna)

• 2nd gigabit NIC add-in card (PCIe)

Video specications

Table 9. Video specications

Controller Type CPU

Dependency

Graphics
memory type

Capacity External display

support

Maximum
resolution

Intel UHD
Graphics 610

UMA Intel Pentium

Gold G5400

Celeron
processor
G4900

Integrated Shared system

memory

VGA

HDMI 1.4

VGA:
2048x1536@60 Hz

HDMI : 1920x1080@
60Hz

Intel UHD
Graphics 630

UMA Intel Core i3

-8100

Intel Core i5

-8400

Intel Core i3

-8100

Intel Core i5

-8400

Intel Core i7 ­8700

Integrated Shared system

memory

VGA

HDMI 1.4

VGA:
2048x1536@60 Hz

HDMI : 1920x1080@
60Hz

NVIDIA GeForce
GT 730 2GB

Discrete N\A GDDR5

2 GB DP1.2 Max Resolution

• 2560X1600

AMD Radeon RX
550 4GB

Discrete N\A GDDR5

4 GB mDP and DP Max Resolution

• 5120 X 2880

NVIDIA GeForce
GTX 1060

Discrete

N/A

GDDR5 3 GB DL-DVI

DP

HDMI

DL-DVI = 2560 x
1600x 24bpp @
60hz (reduced
blanking)

DisplayPort =

• 7680 x 4320 @
60hz YUV420
8bit with single
DP1.3

• 5120 x 3200 x 24
bpp @ 60hz

12 Technical specications

Controller Type CPU

Dependency

Graphics
memory type

Capacity External display

support

Maximum
resolution

(reduced
blanking)

• 5120 x 3200 x
30 bpp @ 60hz
(YUV422)

HDMI = 4096 x 2160
x 24bpp @ 60hz

Audio

Table 10. Audio

Controller Audio software: Waves MaxxAudio Pro

Type Four-channel high-denition audio

Speakers Two (Directional speakers)

Interface

• Universal audio jack

• High quality speakers

• Microphones

• Stereo headset/mic combo

Internal speaker amplier 2W (RMS) per channel

Storage

Table 11. Storage

specications

Type Form factor Interface Capacity

Hard drive
(HDD)

3.5 inch HDD and 2.5 inch HDD Up to 6Gbps
(SATA 3.0)

Up to 2 TB

Solid-State
Drive (SSD)

SSD M.2 PCIe 2230 and 2280 PCIe PCIe Gen3

8Gb/s (up to 4
lanes)

Up to 512GB

Solid-State
Drive (SSD)

M.2 SATA 2230 and 2280 SATA AHCI,

Up to 6 Gbps

Up to 512GB

Solid-State
Drive (SSD)

2.5 inch SSD Up to 6Gbps
(SATA 3.0)

Up to 512GB

Up to 32 GB
(optional)

Optane N\A Up to 32GB

Optical Drive options

Slim ODD tray type 9.5 mm (Optional)

Technical specications 13

Storage combinations

Table 12. Storage combinations

Type Form factor

M.2 Drive + SATA M.2 128GB Solid State Drive+ 1TB 7200 rpm Hard Drive

Power supply specications

Table 13. Power supply

Input Voltage 100–240 VAC or 200-240 VAC, 50–60Hz

Wattage

• 290W PSU (APFC)

• 290W PSU (EPA Bronze)

• 365 W PSU (EPA Gold), pair with NVIDIA GTX 1060 3GB
GDDR5

Security hardware

Table 14. Security hardware

Security HW

• Data wipe via BIOS (Secure Erase)

Regulatory and Environmental Compliance

Table 15. Regulatory and Environmental Compliance

Regulatory and Environmental Compliance

• Energy Star 6.1 (available in selected congurations only)

• FCC, UL mark

• Silver EPEAT Registered (for selected congurations only). For
specic country participation and rating, please visit

www.epeat.net

14 Technical specications

System setup

System setup enables you to manage your desktop hardware and specify BIOS level options. From the System setup, you can:

• Change the NVRAM settings after you add or remove hardware

• View the system hardware conguration

• Enable or disable integrated devices

• Set performance and power management thresholds

• Manage your computer security

Topics:

• Boot Sequence

• Navigation Keys

• System Setup options

• Updating the BIOS in Windows

• System and setup password

Boot Sequence

Boot Sequence allows you to bypass the System Setup–dened boot device order and boot directly to a specic device (for example:
optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:

• Access System Setup by pressing F2 key

• Bring up the one-time boot menu by pressing F12 key

The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are:

• Removable Drive (if available)

• STXXXX Drive

NOTE

: XXX denotes the SATA drive number.

• Optical Drive (if available)

• SATA Hard Drive (if available)

• Diagnostics

NOTE

: Choosing Diagnostics, will display the ePSA diagnostics screen.

The boot sequence screen also displays the option to access the System Setup screen.

Navigation Keys

The following table displays the system setup navigation keys.

NOTE

: For most of the system setup options, changes that you make are recorded but do not take eect until you re-start the

system.

4

System setup 15

Table 16. Navigation Keys

Keys Navigation

Up arrow Moves to the previous eld.

Down arrow Moves to the next eld.

<Enter> Allows you to select a value in the selected eld (if applicable) or follow the link in the eld.

Spacebar Expands or collapses a drop‐down list, if applicable.

<Tab> Moves to the next focus area.

NOTE: For the standard graphics browser only.

<Esc> Moves to the previous page till you view the main screen. Pressing <Esc> in the main screen displays a message

that prompts you to save any unsaved changes and restarts the system.

<F1> Displays the System Setup help le.

System Setup options

NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not appear.

Table 17. General

Option Description

System Information Displays the following information:

• System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Date,
Manufacture Date, and the Express Service Code.

• Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory
Channels Mode, Memory Technology, DIMM 1 Size, and DIMM 2 Size.

• PCI Information: Displays SLOT1, SLOT2, SLOT3, SLOT4, SLOT5_M.2

• Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock

Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3
Cache, HT Capable, and 64-Bit Technology.

• Device Information: Displays SATA-0, SATA-1, SATA-2, SATA-3, LOM MAC Address, Video
Controller

Boot Sequence Allows you to specify the order in which the computer attempts to nd an operating system from the

devices specied in this list.

• Legacy

• UEFI (default)

Advanced Boot Options Allows you to select the Enable Legacy Option ROMs option, when in UEFI boot mode. By default,

this option is enabled.

UEFI Boot Path Security Options:

• Always, Except Internal HDD (default)

• Always

• Never

Date/Time Allows you to set the date and time settings. Changes to the system date and time take eect

immediately.

16 System setup

Table 18. System Conguration

Option Description

Integrated NIC Allows you to control the on-board LAN controller. The options are:

• Enable UEFI Network stack

• Disabled

• Enabled

• Enabled w/PXE (default)

NOTE: Depending on the computer and its installed devices, the items listed in this section

may or may not appear.

Serial Port Identies and denes the serial port settings. You can set the serial port to:

• Disabled

• COM1 (default)

• COM2

• COM3

• COM4

SATA Operation Allows you to congure the operating mode of the integrated hard drive controller.

• Disabled = The SATA controllers are hidden

• AHCI

• RAID On (default)

Drives Allows you to enable or disable the various drives on-board:

• SATA-0

• SATA-1

• SATA-2

• SATA-3

• M.2 PCIe SSD-0

Default Setting: All drives are enabled.

Smart Reporting This eld controls whether hard drive errors for integrated drives are reported during system startup.

This option is disabled by default.

USB Conguration Allows you to enable or disable the integrated USB controller for:

• Enable Boot Support

• Enable Front USB Ports

• Enable Rear USB Ports

All the options are enabled by default.

Front USB Conguration Allows you to enable or disable the Front USB conguration. The options are:

• Front Port 1 (Left)*

• Front Port 2( Right)*

• Front Port 3 (Left)*

• Front Port 4 (Right)*

All the options are enabled by default.

* denotes a USB 3.0-capable port

Rear USB Conguration Allows you to enable or disable the rear USB conguration. The options are:

System setup 17

Option Description

• Rear Port 1 (Left)

• Rear Port 2 (Right)

• Rear Port 3 (Left)

• Rear Port 4 (Right)

All the options are enabled by default.

* denotes a USB 3.0-capable port

Audio Allows you to enable or disable the integrated audio controller.

• Enable Microphone

• Enable Internal Speaker

Both the options are enabled by default.

Miscellaneous Devices Allows you to enable or disable the various on-board devices.

• Enable PCI Slot (default option)

.

Table 19. Video

Option Description

Primary Display Allows you to select the primary display when multiple controllers are available in the system.

• Auto (default)

• Intel HD Graphics

• NVIDI HD Graphics

NOTE: If you do not select Auto, the on-board graphics device will be present and enabled.

Multi-Display The option is enabled by default

Table 20. Security

Option Description

Admin Password This option lets you enable or disable Admin passwords for the system.

NOTE: You must set the admin password before you set the system or hard drive

password. Deleting the admin password automatically deletes the system password and
the hard drive password.

NOTE: Successful password changes take eect immediately.

Default Setting: Not set

System Password Allows you to set, change or delete the system password.

NOTE: Successful password changes take eect immediately.

Default Setting: Not set

Internal HDD-0 Password Allows you to set, change or delete the password on the system's internal hard-disk drive.

NOTE: Successful password changes take eect immediately.

Default Setting: Not set

18 System setup

Option Description

Internal HDD-2 Password Allows you to set, change or delete the password on the system's internal hard-disk drive.

NOTE: Successful password changes take eect immediately.

Default Setting: Not set

Password Change Allows you to enable the disable permission to the System and Hard Drive passwords when the admin

password is set.

Default Setting: Allow Non-Admin Password Changes is selected.

UEFI Capsule Firmware Updates Allows you to controls whether the system allows BIOS update via UEFI capsule update packages.

Default setting: Enable

PTT Security Allows you to control the Platform Trust Technology feature (PTT) is visible to the operating system.

The options are:

• PTT On

NOTE: Disabling this option dose not change any setting you have made to the PTT nor

dose it delete or change any information or keys you may have stored in the PTT. Changes
to this settings take eect immediately

Master Password Lockout The option is disabled by default

HDD Protection Support The option is disabled by default

SMM Security Mitigation The option is disabled by default

CPU XD Support Allows you to enable or disable the Execute Disable mode of the processor. This option is enabled by

default.

Table 21. Secure Boot

Option Description

Secure Boot Enable Allows you to enable or disable Secure Boot feature. The option is disabled by default.

Secure Boot Mode

• Deployed Mode (default)

• Audit Mode

Expert key Management Allows you to manipulate the security key databases only if the system is in Custom Mode. The

Enable Custom Mode option is disabled by default. The options are:

• PK (default)

• KEK

• db

• dbx

If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The
options are:

• Save to File- Saves the key to a user-selected le

• Replace from File- Replaces the current key with a key from a user-selected le

• Append from File- Adds a key to the current database from a user-selected le

• Delete- Deletes the selected key

• Reset All Keys- Resets to default setting

• Delete All Keys- Deletes all the keys

NOTE: If you disable the Custom Mode, all the changes made will be erased and the

keys will restore to default settings.

System setup 19

Table 22. Intel Software Guard Extensions

Option Description

Intel SGX Enable Allows you to enable or disable the Intel Software Guard Extensions to provide a secured

environment for running code/storing sensitive information in the context of the main operating
system.

• Disabled

• Enabled

• Software Controlled (default)

Enclave Memory Size Allows you to set the Intel SGX Enclave Reserve Memory Size.

• 32 MB

• 64 MB

• 128 MB

Table 23. Performance

Option Description

Multi Core Support This eld species whether the process will have one or all cores enabled. This option is enabled by

default.

Enable Intel SpeedStep Allows you to enable or disable the Intel SpeedStep mode of the processor. This option is enabled by

default.

C States Control Allows you to enable or disable additional processor sleep states. This option is enabled by default.

Intel TurboBoost Allows you to enable or disable the Intel TurboBoost mode of the processor. This option is enabled by

default.

Hyper-Thread Control Allows you to enable or disable the HyperThreading in the processor.

• Disabled

• Enabled (default)

Table 24. Power Management

Option Description

AC Recovery Determines how the system responds when AC power is re-applied after a power loss. You can set

the AC Recovery to:

• Power O

• Power On

• Last Power State

This option is Power O by default.

Enable Intel Speed Shift
Technology

The option is enabled by default

Auto On Time Sets time to automatically turn on the computer. Time is kept in standard 12-hour format

(hour:minutes:seconds). Change the startup time by typing the values in the time and AM/PM elds.

NOTE: This feature does not work if you turn o your computer using the switch on a

power strip or surge protector or if Auto Power is set to disabled.

Deep Sleep Control Allows you to dene the controls when Deep Sleep is enabled.

• Disabled (default)

• Enabled in S5 only

20 System setup

Option Description

• Enabled in S4 and S5

This option is Disabled by default.

USB Wake Support Allows you to enable the USB devices to wake the computer from standby mode. This option is

enabled by default.

Block Sleep Allows you to block entering to sleep (S3 state) in OS environment. This option is disabled by default.

Table 25. POST Behavior

Option Description

Numlock LED Allows you to enable or disable the Numlock feature when your computer starts. This option is

enabled by default.

Keyboard Errors Allows you to enable or disable the keyboard error reporting when the computer starts. This option is

enabled by default.

Fast Boot This option can speed up the boot process by bypassing some compatibility steps:

• Minimal — The system boots quickly, unless the BIOS has been updated, memory changed, or
the previous POST did not complete.

• Thorough — The system does not skip any steps in the boot process.

• Auto — This allows the operating system to control this setting (this works only when the
operating system supports Simple Boot Flag).

This option is set to Thorough by default.

Extended BIOS Post Time

• 0 seconds (default)

• 5 seconds

• 10 seconds

Full Screen Logo The option is disabled by default

Warnings and Errors

• Prompt on Warnings and Errors (default)

• Continue on Warnings and Errors

• Continue on Warnings

Table 26. Virtualization Support

Option Description

Virtualization This option species whether a Virtual Machine Monitor (VMM) can utilize the additional hardware

capabilities provided by Intel® Virtualization Technology. Enable Intel Virtualization Technology -
This option is enabled by default.

VT for Direct I/O This option is enabled by default.

Table 27. Maintenance

Option Description

Service Tag Displays the Service Tag of your computer.

Asset Tag Allows you to create a system asset tag if an asset tag is not already set. This option is not set by

default.

SERR Messages The option is enabled by default

BIOS Downgrade Allows you to control ashing of the system rmware to the previous versions. This option is enabled

by default.

System setup 21

Option Description

NOTE: If this option is not selected, the ashing of the system rmware to the previous

versions is blocked.

Data Wipe The option is disabled by default

BIOS recovery Allows you to recover the corrupted BIOS conditions from the recovery les on the primary hard

drive or an external USB key.

First Power On Date This option lets you set ownership date. The option is disabled by default

Table 28. System Logs

Option Description

BIOS Events Displays the system event log and allows you to:

• Clear Log

• Mark all Entries

Table 29. Advanced congurations

Option Description

ASPM

• Auto (default)

• Disabled

• L1 only

Table 30. SupportAssist System Resolution

Option Description

Auto OS Recovery Threshold Allows you to control the automatic boot ow for SupportAssist System. Options are:

• O

• 1

• 2 (default)

• 3

SupportAssist OS Recovery Allows you to recover the SupportAssist OS Recovery (Enabled by default)

Updating the BIOS in Windows

It is recommended to update your BIOS (System Setup), when you replace the system board or if an update is available. For laptops, ensure
that your computer battery is fully charged and connected to a power outlet

NOTE

: If BitLocker is enabled, it must be suspended prior to updating the system BIOS, and then re-enabled after the BIOS

update is completed.

1 Restart the computer.

2 Go to Dell.com/support.

• Enter the Service Tag or Express Service Code and click Submit.

• Click Detect Product and follow the instructions on screen.

3 If you are unable to detect or nd the Service Tag, click Choose from all products.

4 Choose the Products category from the list.

NOTE

: Choose the appropriate category to reach the product page

22 System setup

5 Select your computer model and the Product Support page of your computer appears.

6 Click Get drivers and click Drivers and Downloads.

The Drivers and Downloads section opens.

7 Click Find it myself.

8 Click BIOS to view the BIOS versions.

9 Identify the latest BIOS le and click Download.

10 Select your preferred download method in the Please select your download method below window, click Download File.

The File Download window appears.

11 Click Save to save the le on your computer.

12 Click Run to install the updated BIOS settings on your computer.

Follow the instructions on the screen.

NOTE: It is recommended not to update the BIOS version for more than three revisions. For example: If you want to update the

BIOS from 1.0 to 7.0, then install version 4.0 rst and then install version 7.0.

System and setup password

Table 31. System and setup password

Password type Description

System password Password that you must enter to log on to your system.

Setup password Password that you must enter to access and make changes to the

BIOS settings of your computer.

You can create a system password and a setup password to secure your computer.

CAUTION

: The password features provide a basic level of security for the data on your computer.

CAUTION: Anyone can access the data stored on your computer if it is not locked and left unattended.

NOTE: System and setup password feature is disabled.

Assigning a system password and setup password

You can assign a new System Password only when the status is in Not Set.

To enter the system setup, press F2 immediately after a power-on or re-boot.

1 In the System BIOS or System Setup screen, select Security and press Enter.

The Security screen is displayed.

2 Select System Password and create a password in the Enter the new password eld.

Use the following guidelines to assign the system password:

• A password can have up to 32 characters.

• The password can contain the numbers 0 through 9.

• Only lower case letters are valid, upper case letters are not allowed.

• Only the following special characters are allowed: space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`).

3 Type the system password that you entered earlier in the Conrm new password eld and click OK.

4 Press Esc and a message prompts you to save the changes.

5 Press Y to save the changes.

The computer reboots.

System setup

23

Deleting or changing an existing system setup password

Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or
Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked.
To enter the System Setup, press F2 immediately after a power-on or reboot.

1 In the System BIOS or System Setup screen, select System Security and press Enter.

The System Security screen is displayed.

2 In the System Security screen, verify that Password Status is Unlocked.

3 Select System Password, alter or delete the existing system password and press Enter or Tab.

4 Select Setup Password, alter or delete the existing setup password and press Enter or Tab.

NOTE: If you change the System and/or Setup password, re-enter the new password when promoted. If you delete the

System and/or Setup password, conrm the deletion when promoted.

5 Press Esc and a message prompts you to save the changes.

6 Press Y to save the changes and exit from System Setup.

The computer reboot.

24 System setup

Software

Supported operating systems

Table 32. Supported operating systems

Supported operating systems Description

Windows 10

• Windows 10 64-bit

• Windows 10 64-bit Professional

Others

• Ubuntu

• NeoKylin

Downloading drivers

1 Turn on the desktop.

2 Go to Dell.com/support.

3 Click Product Support, enter the Service Tag of your desktop, and then click Submit.

NOTE

: If you do not have the Service Tag, use the auto detect feature or manually browse for your desktop model.

4 Click Drivers and Downloads.

5 Select the operating system installed on your desktop.

6 Scroll down the page and select the driver to install.

7 Click Download File to download the driver for your desktop.

8 After the download is complete, navigate to the folder where you saved the driver le.

9 Double-click the driver le icon and follow the instructions on the screen.

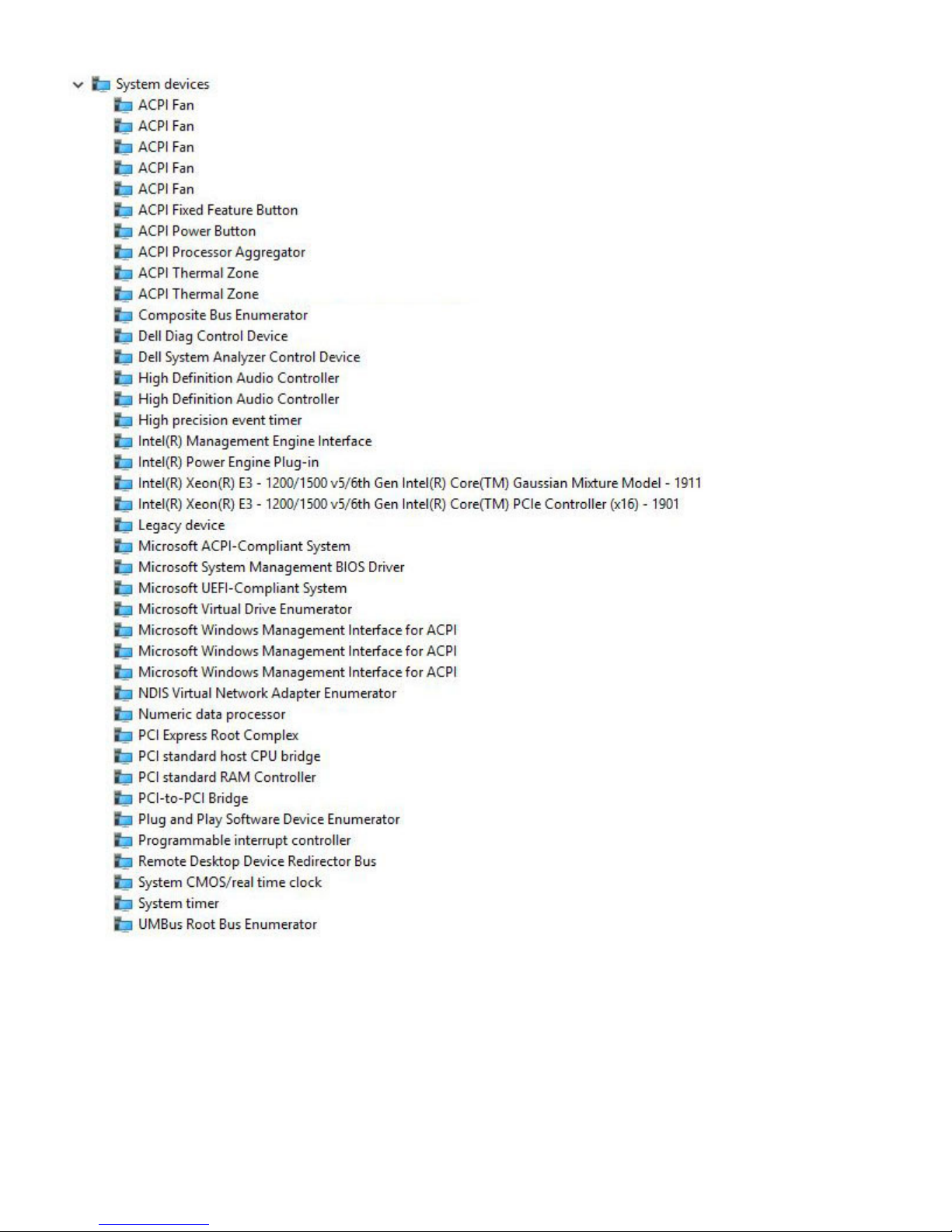

Intel chipset drivers

Verify if the Intel chipset drivers are already installed in the system.

5

Software 25

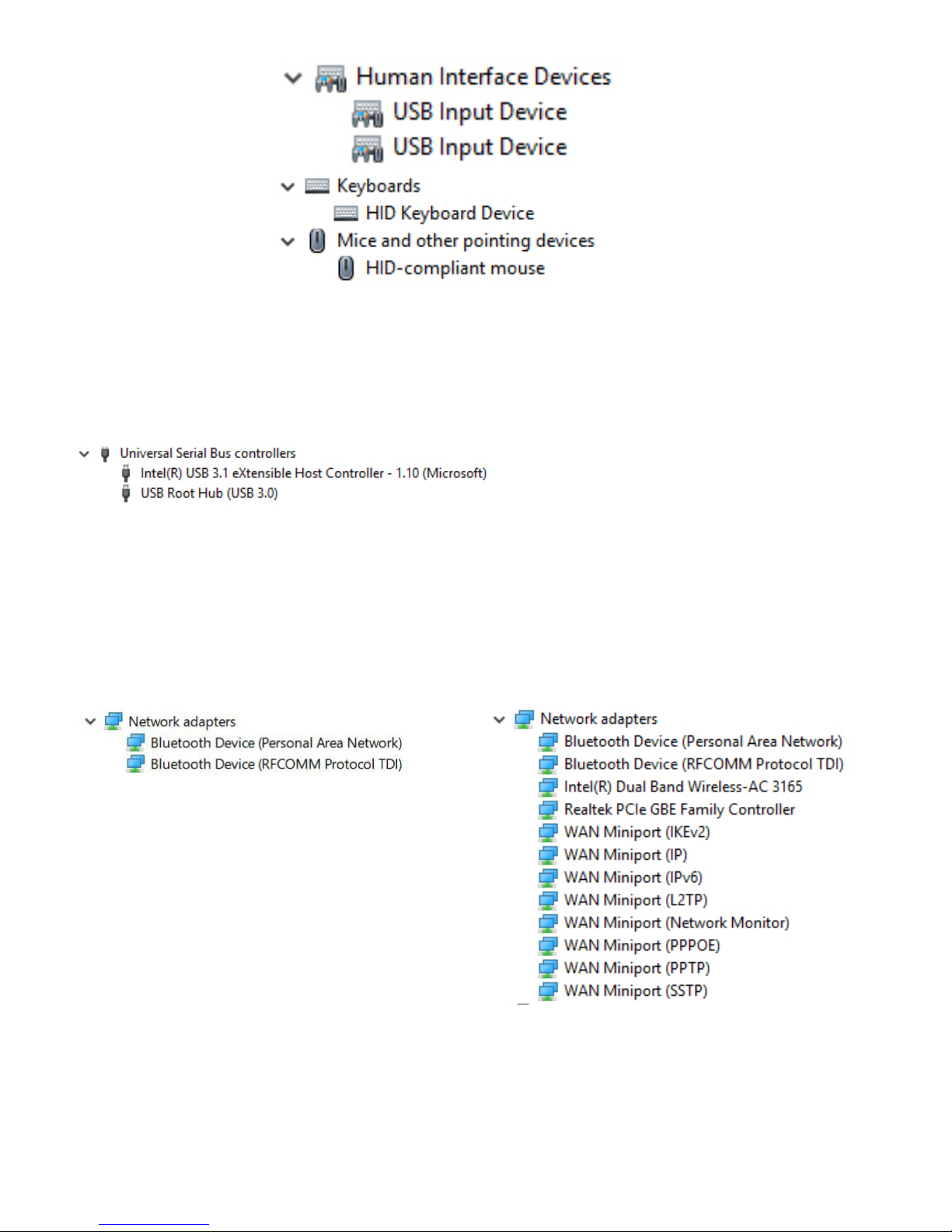

Serial IO driver

Verify if the drivers for Touchpad, IR camera, and keyboard and are installed.

26

Software

Figure 1. Serial IO driver

USB drivers

Verify if the USB drivers are already installed in the computer.

Network drivers

Install the WLAN and Bluetooth drivers from the Dell support site.

Table 33. Network drivers

Before installation After installation

Software 27

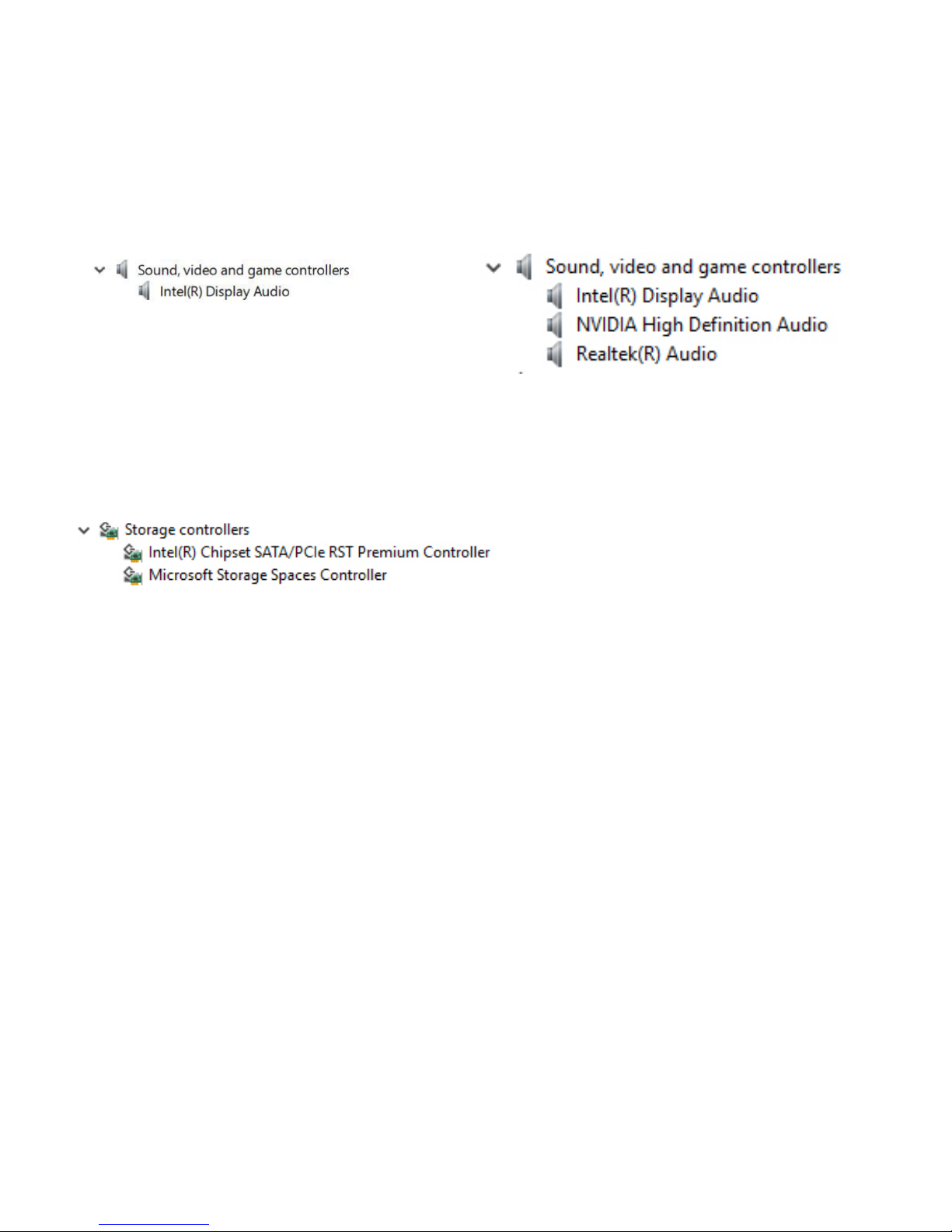

Realtek Audio

Verify if audio drivers are already installed in the computer.

Table 34. Realtek audio

Before Installation After Installation

Serial ATA drivers

Install the latest Intel Rapid Storage driver for best performance. Using the default Windows storage drivers is not recommended. Verify if
the default serial ATA drivers are installed in the computer.

28

Software

Getting help

Contacting Dell

NOTE: If you do not have an active Internet connection, you can nd contact information on your purchase invoice, packing slip,

bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services
may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1 Go to Dell.com/support.

2 Select your support category.

3 Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.

4 Select the appropriate service or support link based on your need.

6

Getting help 29
