De dietrich DTE312XA1 User Manual
DTE312XA1
Hob operating guide
AUS
99637252_A_ML.qxp 02/06/2006 13:33 Page 1
2
In this Manual,
displays safety instructions
displays tips and hints
List of contents
Using your hob in complete safety 4
What your hob looks like? 5
Installing your hob in all simplicity 6
Fitting recommendations 7-8
Electrical connections 9
Connecting the gas supply 10
Changing the type of gas supply 11-14
Using your hob in all simplicity 15

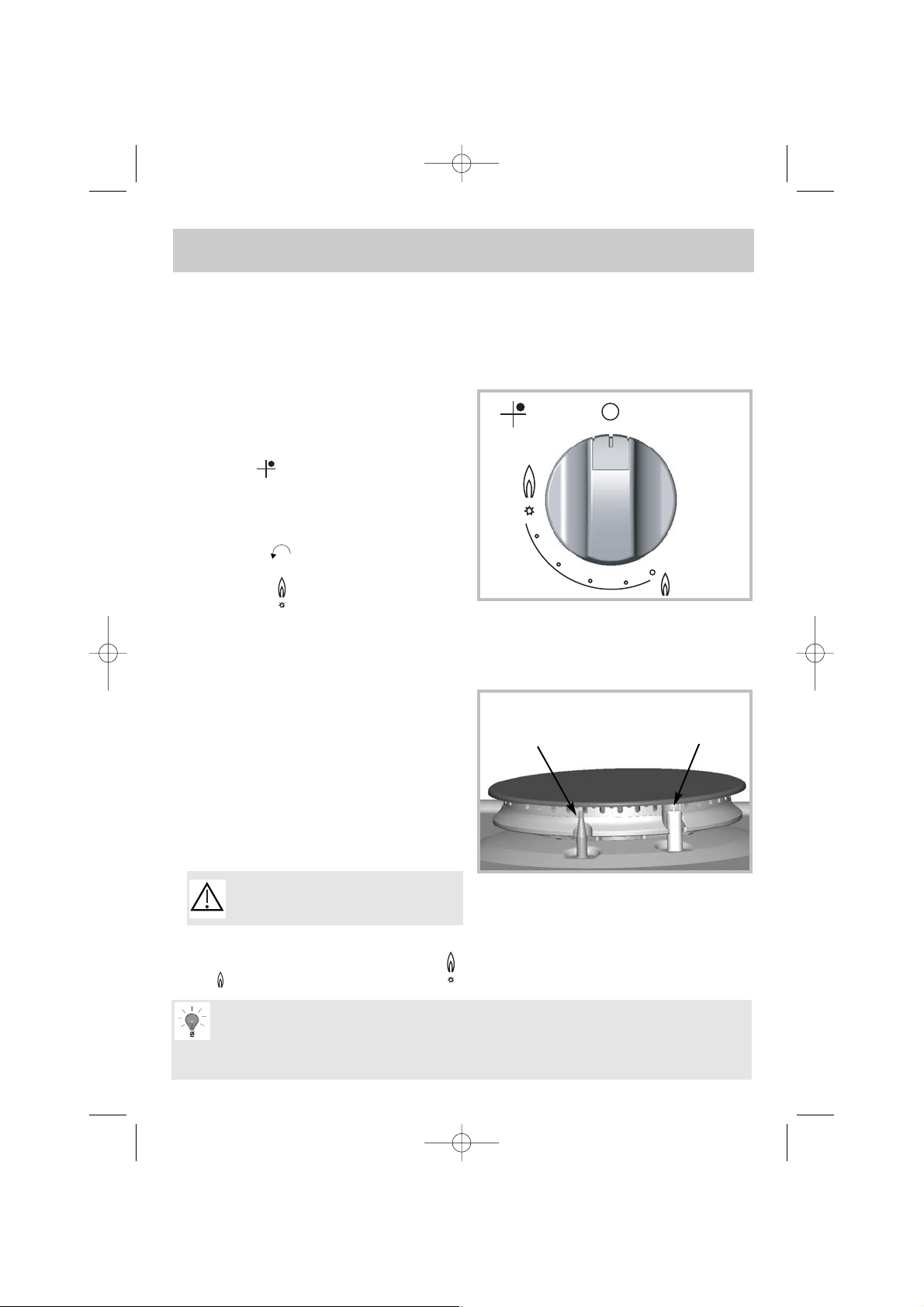

How to use your gas burners? 15
Which pans are best adapted for use 16
on the gas burner?
How to look after your hob? 17
Minor troubleshooting 18
Gas-cooking guide 19
99637252_A_ML.qxp 02/06/2006 13:33 Page 2
3
Dear Customer,
Thank you for buying a DE DIETRICH hob.
Our research teams have designed a new generation of kitchen
appliances. As a result of our unique expertise, we have produced
a range of goods whose quality, design and technical advance are
unsurpassed.
You will find that the clean lines and modern look of your
DE DIETRICH hob blends in perfectly with your kitchen décor. It
is easy to use and performs to a high standard.
DE DIETRICH also makes a range of products that will enhance
your kitchen such as hobs, extractor hoods, built-in dishwashers
and refrigerators. There are models to complement your new DE
DIETRICH hob.
Of course, we make every effort to ensure that our products meet
all your requirements, and our Customer Relations department is
at your disposal, to answer all your questions and to listen to all
your suggestions.
DE DIETRICH is certain that by setting new standards of
excellence by which comparisons can be made, customers will
find that DE DIETRICH appliances offer a better and more
exciting way of living.
DE DIETRICH.
Editorial
99637252_A_ML.qxp 02/06/2006 13:33 Page 3
4
- We have designed your hob for private
domestic use.
- With a view to the constant
improvement of our products, we reserve
the right to make any changes in their
technical, functional or aesthetic
characteristics as a result of technical
evolution.
- These hobs are designed exclusively for
the cooking of drinks and foodstuffs.
These products do not contain any
asbestos-based component parts.
- Using a gas-powered hob produces both
heat and humidity in the room where it is
used.
Make sure your kitchen is well
ventilated :
keep all natural air-vents open or have a
mechanical ventilation system installed (a
mechanically ventilated hood) with a
minimum airflow of 2m
3
/h.
- You must always keep an eye on your
cooking.
- Please read the instructions before
installing and using this appliance.
- Never leave any
CLEANING OR
INFLAMMABLE
products in the cupboard or
drawer beneath your hob (aerosols or
other pressurised cans, papers, recipe
books, etc.).
- If you use a drawer under your hob, we
advise you not to keep any objects in it
that are liable to suffer from heat (plastic,
paper, aerosols, etc.).
- Prolonged, intensive use of the hob may
require extra ventilation; by opening a
window for example or producing more
Your hob in complete safety
efficient ventilation by increasing the
power of the existing mechanical
ventilation.
- Disconnect your hob from both electrical
and gas supplies before carrying out any
maintenance operations.
- If you plug in any electrical appliance
near the hob, make sure that its power
cable is not in contact with any source of
heat.
- For safety reasons, do not forget to
close the main gas valve for built in gas
lines or the valve on the top of your
butane/propane gas cylinder.
- If a knob is difficult to turn,
DO NOT
FORCE IT
. Call up your authorised service
provider.
- The EC mark of conformity can be found
on all these hobs.
- Where this appliance is installed in marine craft or in caravans, it shall not be used
as a space heater.
- Do not spray aerosols in the vicinity of
this appliance while it is in operation.
- Servicing must be carried out by authorised personnel only.
- This appliance is not intended for use by
young children or infirm persons without
supervision.
- Young children should be supervised to
ensure that they do not play with the appliance.
Using your hob in complete safety
Y
OUR HOB IS DELIVERED PRE-SET FOR USE WITH NATURAL GAS.
99637252_A_ML.qxp 02/06/2006 13:33 Page 4
①①
Right back burner switch
What your hob looks like?
Semi-fast
burner
②②
Double-crown
burner
③③
Fast burner
①①
Auxiliary
burner
④④
②②
Left back burner switch
③③
Front left burner switch
④④
Front right burner switch
5
99637252_A_ML.qxp 02/06/2006 13:33 Page 5
6
This appliance shall be installed only
by authorised persons and in
accordance with the manufacturer’s
installation instructions, local gas
fitting regulations, municipal building
codes, electrical wiring regulations,
local water supply regulations, AS
5601- Gas Installations and any other
staturory regulations.
The Data Label is located on the underside
of the appliance. A duplicate data label is
supplied to adhere in an accessible area
adjacent to the appliance. This appliance is
suitable for Natural Gas and Universal LPG;
ensure that the available gas supply
matches the Data Label.
Installing your hob in all simplicity
VENTILATION
Ventilation must be in accordance with
AS5601/AG 601 - Gas Installations. In
general, the appliance should have
adequate ventilation for complete
combustion of gas, proper flueing and to
maintain temperature of immediate
surroundings within safe limits.
Fitting recommendations
Cut-out
Model
Width
Depth Height
Depending on cupboard
Outside
dimensions above
the work surface
60 cm
52 cm
5,6 cm
Outside
dimensions under
work surface
55 cm 47,5 cm 3,4 cm
49 cm
56 cm
99637252_A_ML.qxp 02/06/2006 13:33 Page 6
