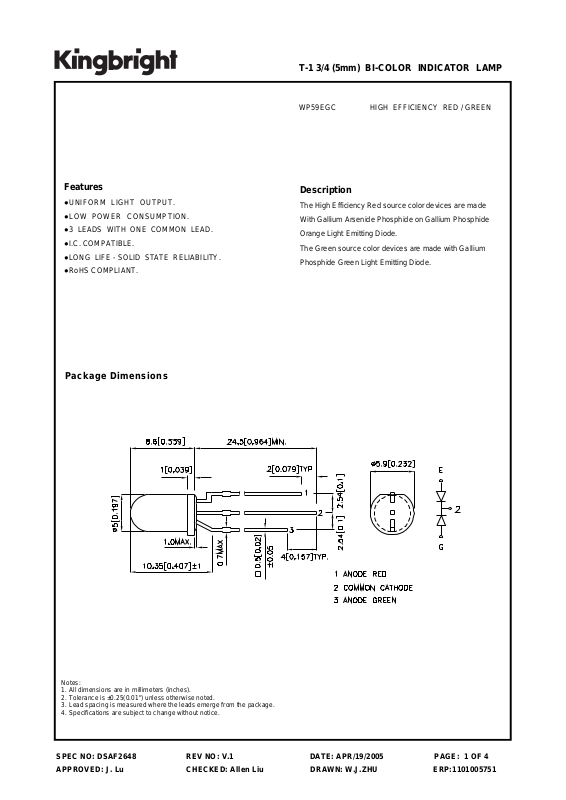

Page 1
-1 3/4 (5mm) BI-COLOR INDICATOR LAMP
T
WP59EGC HIGH EFFICIENCY RED / GREEN
Features
UNIFORM LIGHT OUTPUT.
LOW POWER CONSUMPTION.
3 LEADS WITH ONE COMMON LEAD.
I.C. COMPATIBLE.
LONG LIFE - SOLID STATE RELIABILITY.
RoHS COMPLIANT.
Package Dimensions
Description
The High EfficiencyRed source colordevices are made
With Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAF2648 REV NO: V.1 DATE: APR/19/2005 PAGE: 1 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1101005751
Page 2
Selection Guide
Viewing
Iv (mcd)
Part No. Dice Lens Type
WP59EGC
Note:
θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
1.
HIGH EFFICIENCY RED (GaAsP/GaP) 70 150
GREEN (GaP) 70 150
WATER CLEAR
@ 20mA
Min. Typ.
Angle
2 θθθθ1/2
Electrical / Optical Characteristics at TA=25°C
Symbol Parameter Device Typ. Max. Units Test Conditions
λpeak
λD
∆λ1/2
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
C Capacitance
V
F
Forward Voltage
High Efficiency Red
Green
High Efficiency Red
Green
High Efficiency Red
Green
High Efficiency Red
Green
High Efficiency Red
Green
IR Reverse Current All 10 uA VR = 5V
627
565
625
568
45
30
15
15
2.0
2.2
2.5
2.5
nm IF=20mA
nm IF=20mA
nm IF=20mA
pF VF=0V;f=1MHz
V IF=20mA
24°
Absolute Maximum Ratings at TA=25°C
Parameter High Efficiency Red Green Units
Power dissipation 105 105 mW
DC Forward Current 30 25 mA
Peak Forward Current [1] 160 140 mA
Reverse Voltage V
Operating/storage Temperature -40°C To +85°C
Lead Solder Temperature [2] 260°CFor 3 Seconds
Lead Solder Temperature [3] 260°CFor 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
SPEC NO: DSAF2648 REV NO: V.1 DATE: APR/19/2005 PAGE: 2 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1101005751
5
Page 3
High Efficiency Red / Green WP59EGC
SPEC NO: DSAF2648 REV NO: V.1 DATE: APR/19/2005 PAGE: 3 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1101005751
Page 4
PACKING & LABEL SPECIFICATIONS WP59EGC
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF2648 REV NO: V.1 DATE: APR/19/2005 PAGE: 4 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1101005751
