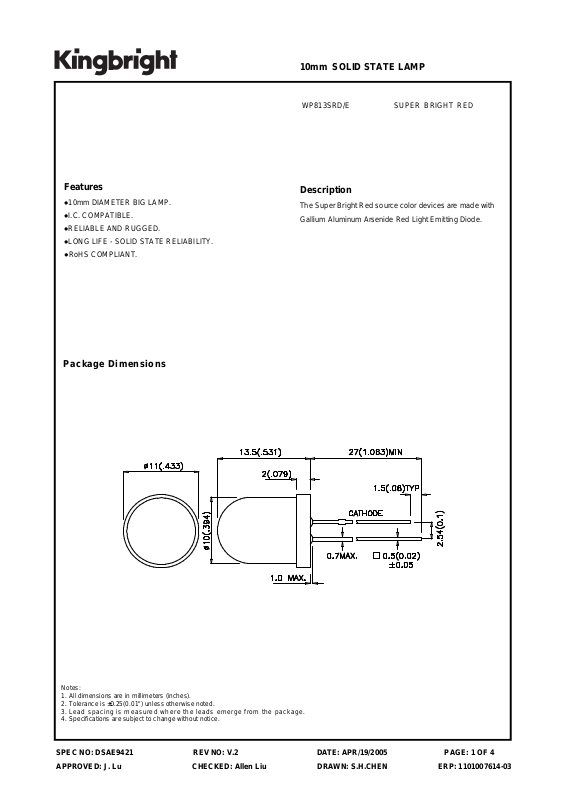

Page 1
SPEC NO: DSAE9421
REV NO: V.2 DATE: APR/19/2005 PAGE:
1OF4
APPROVED: J. Lu
CHECKED: Allen Liu DRAWN: S.H.CHEN ERP: 1101
007614
-
03

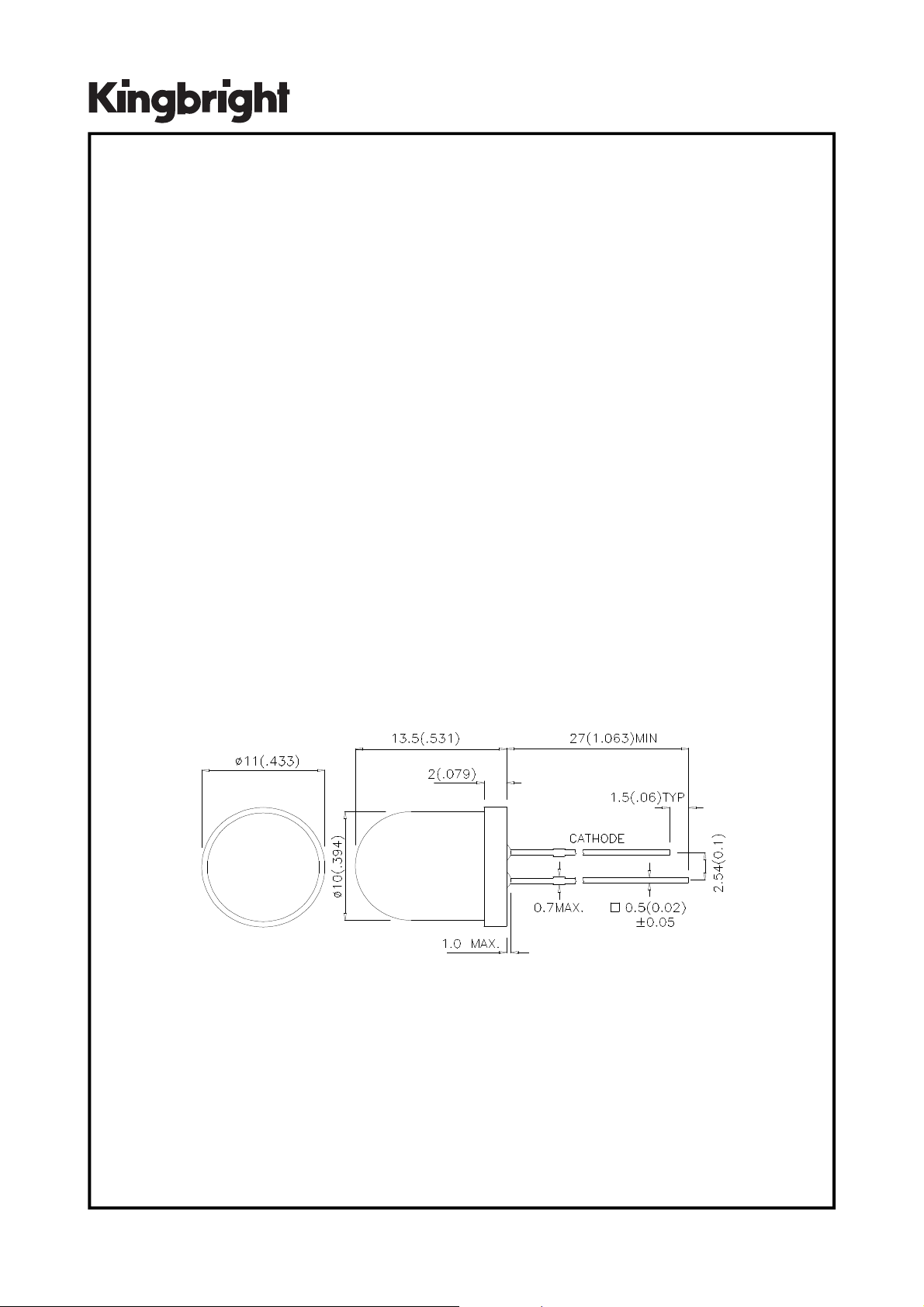

Package Dimen sion
s
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0
.25(0.01") unless ot h er wis e note d.
3.
Lead spaci ng is m easure d where t he leads emer ge from the pack age.
4. Specifications are subject to change without notice.
WP813SRD/E SUPER
BRIGHT
RED
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
10mm SOLID STATE LAMP
Features
z
10mm DIAMETER BIG LAMP.
z
I.C. COMPATIBLE.
z
RELIABLE AND RUGGED.
z
LONG LIFE
-
SOLID STATE RELIABILITY
.
O
RoHS COMPLIANT.
Page 2
SPEC NO: DSAE9421
REV NO: V.2 DATE: APR/19/2005 PAGE:
2OF4
APPROVED: J. Lu
CHECKED: Allen Liu DRAWN: S.H.CHEN ERP: 1101
007614
-
03
Selection Guid
e
Note:
1
.
1
/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°CAbsolute Maximum Ratings at T
A
=25
°C
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Viewing
Angle
Min.
Typ.
2θ1/2
WP813SRD/E
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
380
450
60
°
Symbol
Parameter
Device
Typ.
Max.
Test Conditions
Units
peak
Peak Wavelength
Super Bright Red
660nmIF=20mA
D
Dominant Wavelength
Super Bright Red
640nmIF=20mA
1/2
Spectral Line Half
-
width
Super Bright Red
20nmIF=20mA
C
Capacitance
Super Bright Red
45pFVF=0V;f=1MHz
VFForward Voltage
Super Bright Red
1.85
2.5VIF=20mA
IRReverse Current
Super Bright Red
10uAVR= 5V
Parameter
Super Bright Red
Units
Power dissipation
100
mW
DC Forward Current
30mAPeak Forward Current [1]
155mAReverse Voltage
5VOperating / Storage Temperature
-
40°C
To +85°C
Lead Solder Te mperature [2]
260°C
For 3 Seconds
Lead Solder Te mperature [3]
260°C
For 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package bas e.
θ
λ
λ
∆λ
Page 3
SPEC NO: DSAE9421
REV NO: V.2 DATE: APR/19/2005 PAGE:
3OF4
APPROVED: J. Lu
CHECKED: Allen Liu DRAWN: S.H.CHEN ERP: 1101
007614
-
03

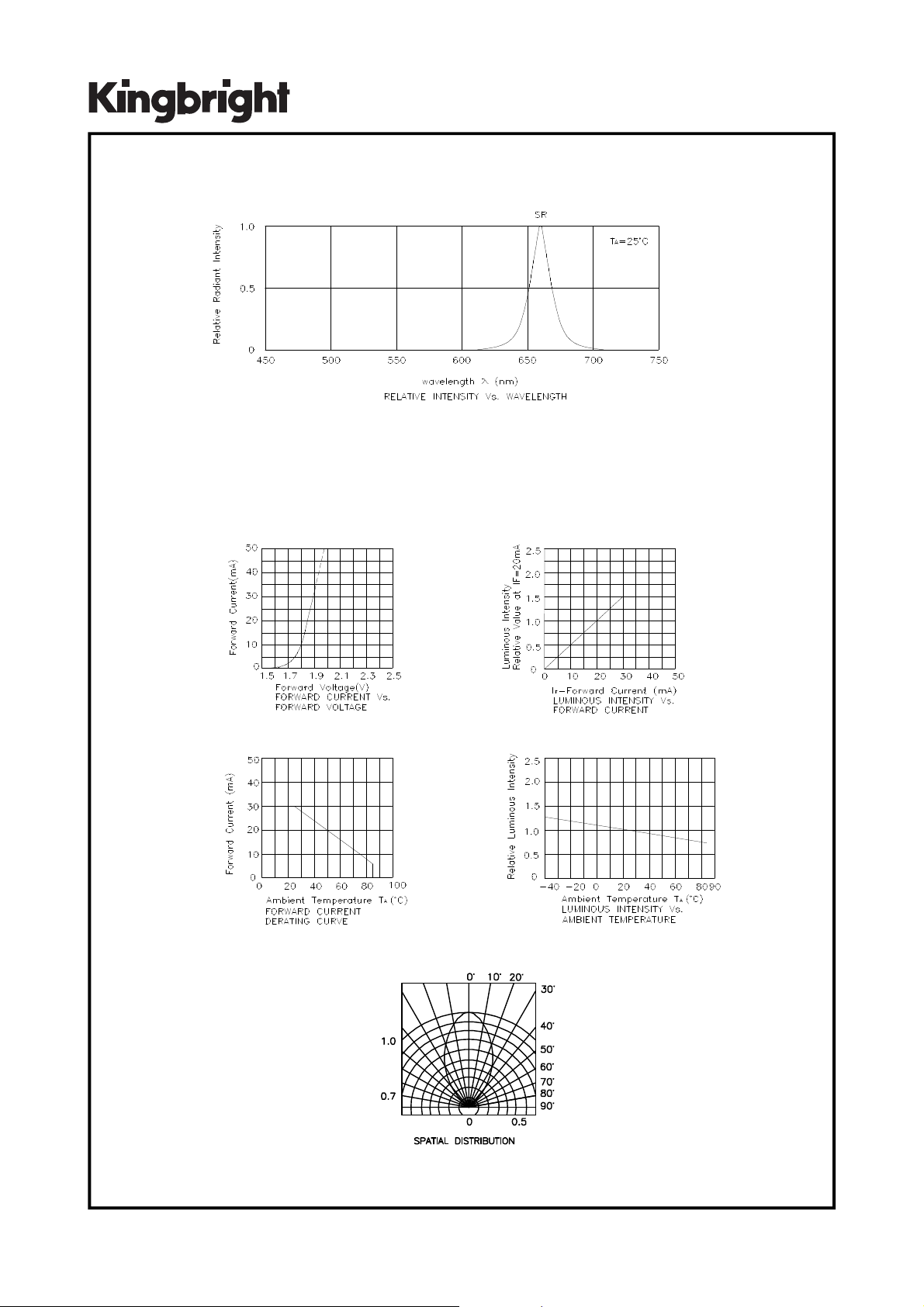

Super Bright Red
WP813SRD/E
Page 4
SPEC NO: DSAE9421
REV NO: V.2 DATE: APR/19/2005 PAGE:
4OF4
APPROVED: J. Lu
CHECKED: Allen Liu DRAWN: S.H.CHEN ERP: 1101
007614
-
03

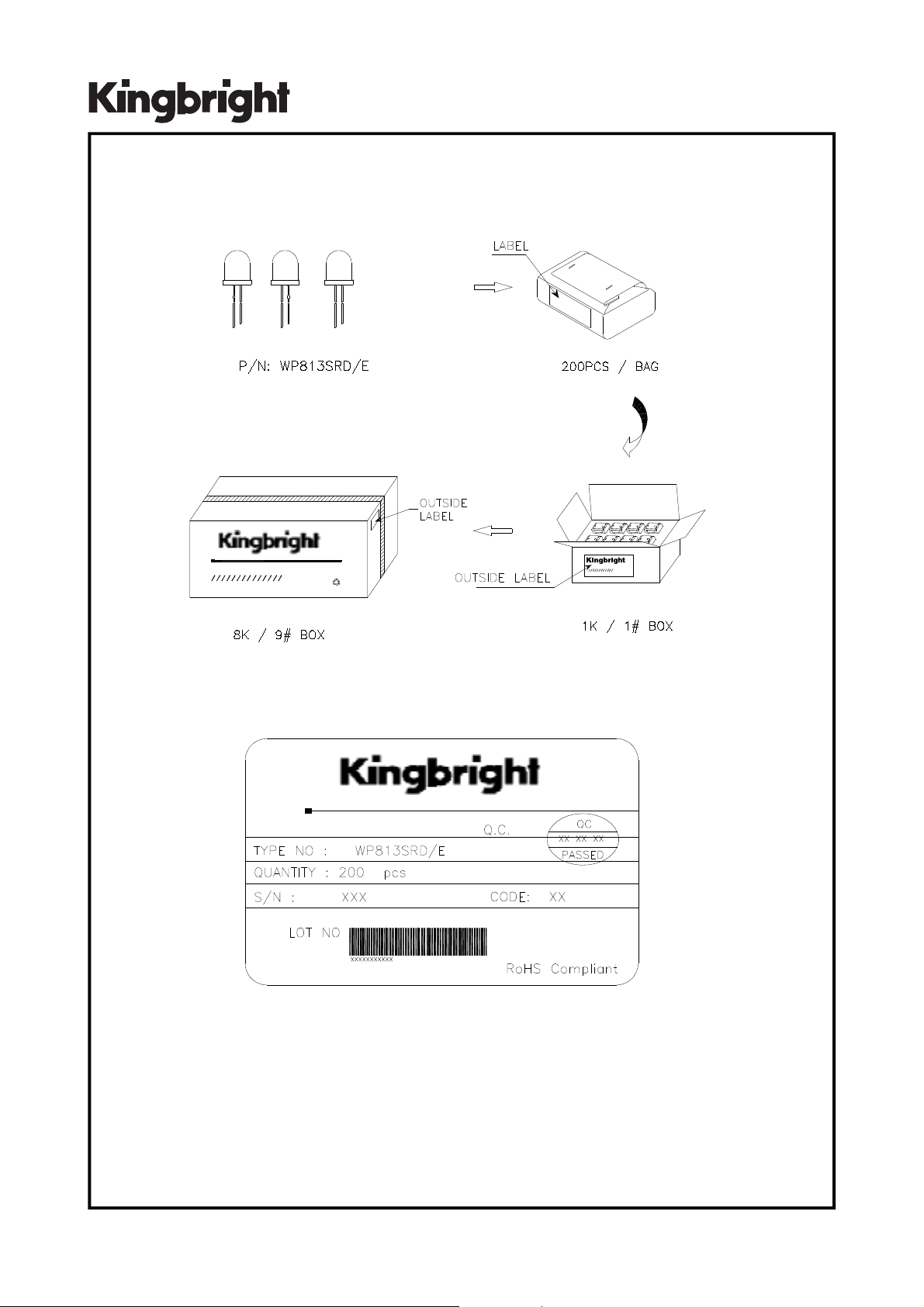

PACKING & LABEL SPECIFICATIONS WP813SRD/E
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/
-
1nm
2. Luminous Intensity: +/
-
15%
3. Forward Voltage: +/
-
0.1V
Note: Accuracy may depend on the sorting parameters.
