T-1 3/4 (5mm) SOLID STATE LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
zOUTSTANDING MATERIAL EFFICIENCY.
zRELIABLE AND RUGGED.
zI.C. COMPATIBLE.
zRoHS COMPLIANT.

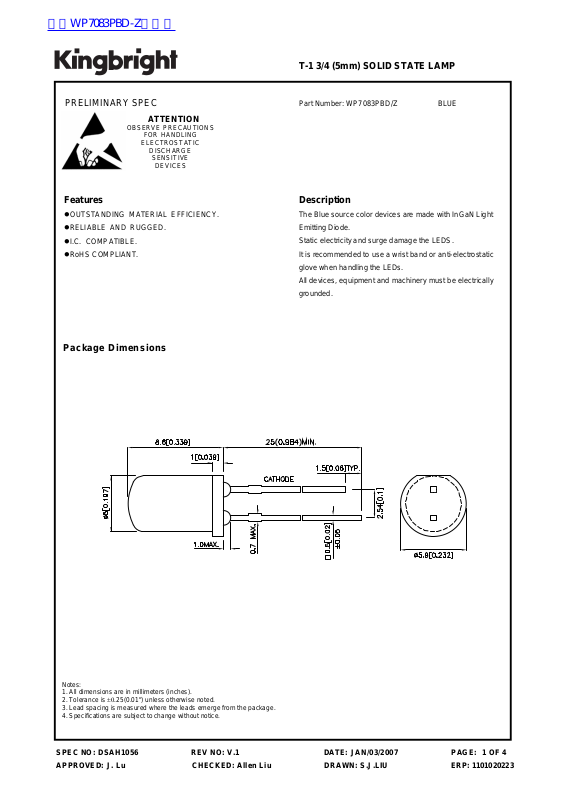

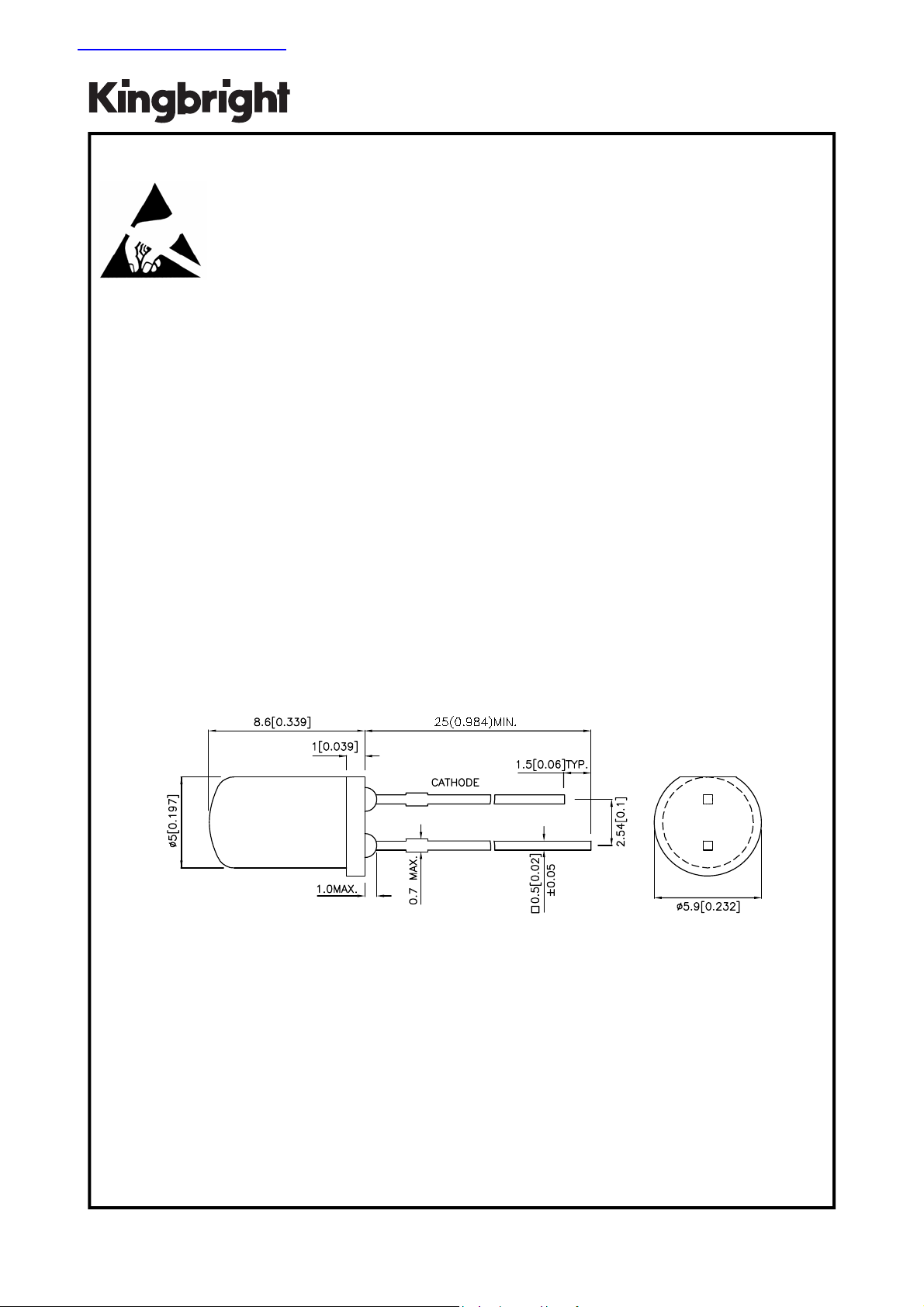

Package Dimensions
Part Number: WP7083PBD/Z BLUE
Description
The Blue source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAH1056 REV NO: V.1 DATE: JAN/03/2007 PAGE: 1 OF 4
APP R O V E D : J . Lu CH E C K E D : A l l e n L i u D RAW N: S . J . L IU ERP: 1101020223
Page 2
Selection Guide
V
Iv (mcd) [2]
Part No.
WP7083PBD/Z Blue (InGaN) BLUE DIFFUSED 280 500
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity / luminous flux: +/-15%.
Electrical / Optical Characteristics at T
Symbol Parameter Device Typ. Max. Test Conditions Units
λpeak
λD [1]
Δλ1/2
C Capacitance Blue 110 pF VF=0V;f=1MHz
VF [2] Forward Voltage Blue 3.2 3.7 V IF=20mA
IR Reverse Current Blue 10 uA VR= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Peak Wavelength Blue 458 nm IF=20mA
Dominant Wavelength Blue 465 nm IF=20mA
Spectral Line Half-width Blue 22 nm IF=20mA
Dice Lens Type
A=25°C
@ 20mA
Min. Typ.
iewing
Angle [1]
2θ1/2
60°
Absolute Maximum Ratings at T
Parameter Blue Units
Power dissipation 111 mW
DC Forward Current 30 mA
Peak Forward Current [1] 100 mA
Reverse Voltage 5 V
Operating / Storage Temperature -40°C To +85°C
Lead Solder Temperature [2] 260°C For 3 Seconds
Lead Solder Temperature [3] 260°C For 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
SPEC NO: DSAH1056 REV NO: V.1 DATE: JAN/03/2007 PAGE: 2 OF 4
APP R O V E D : J . Lu CH E C K E D : A l l e n L i u D RAW N: S . J . L IU ERP: 1101020223
A=25°C
Page 3

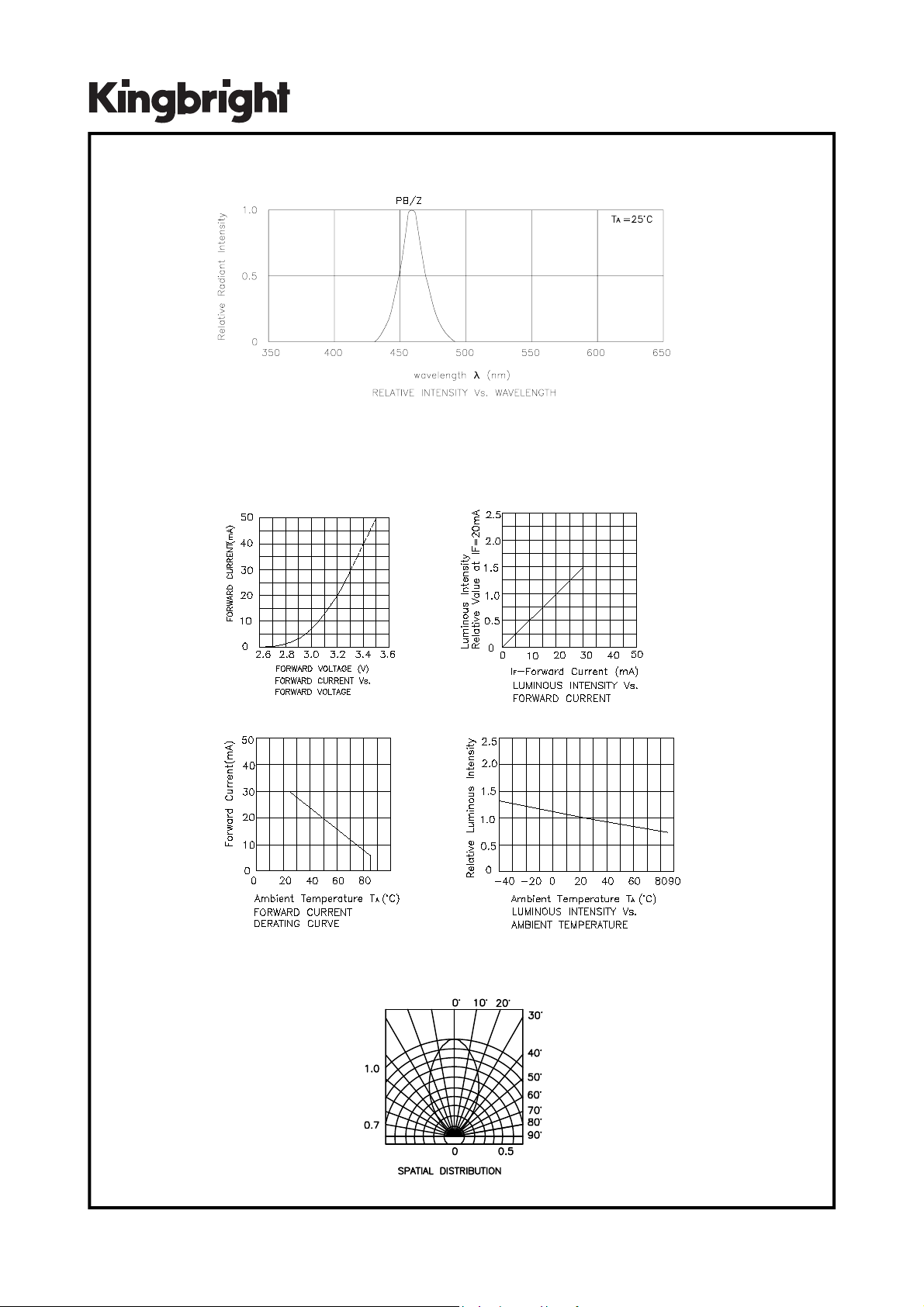

Blue WP7083PBD/Z
SPEC NO: DSAH1056 REV NO: V.1 DATE: JAN/03/2007 PAGE: 3 OF 4
APP R O V E D : J . Lu CH E C K E D : A l l e n L i u D RAW N: S . J . L IU ERP: 1101020223
Page 4

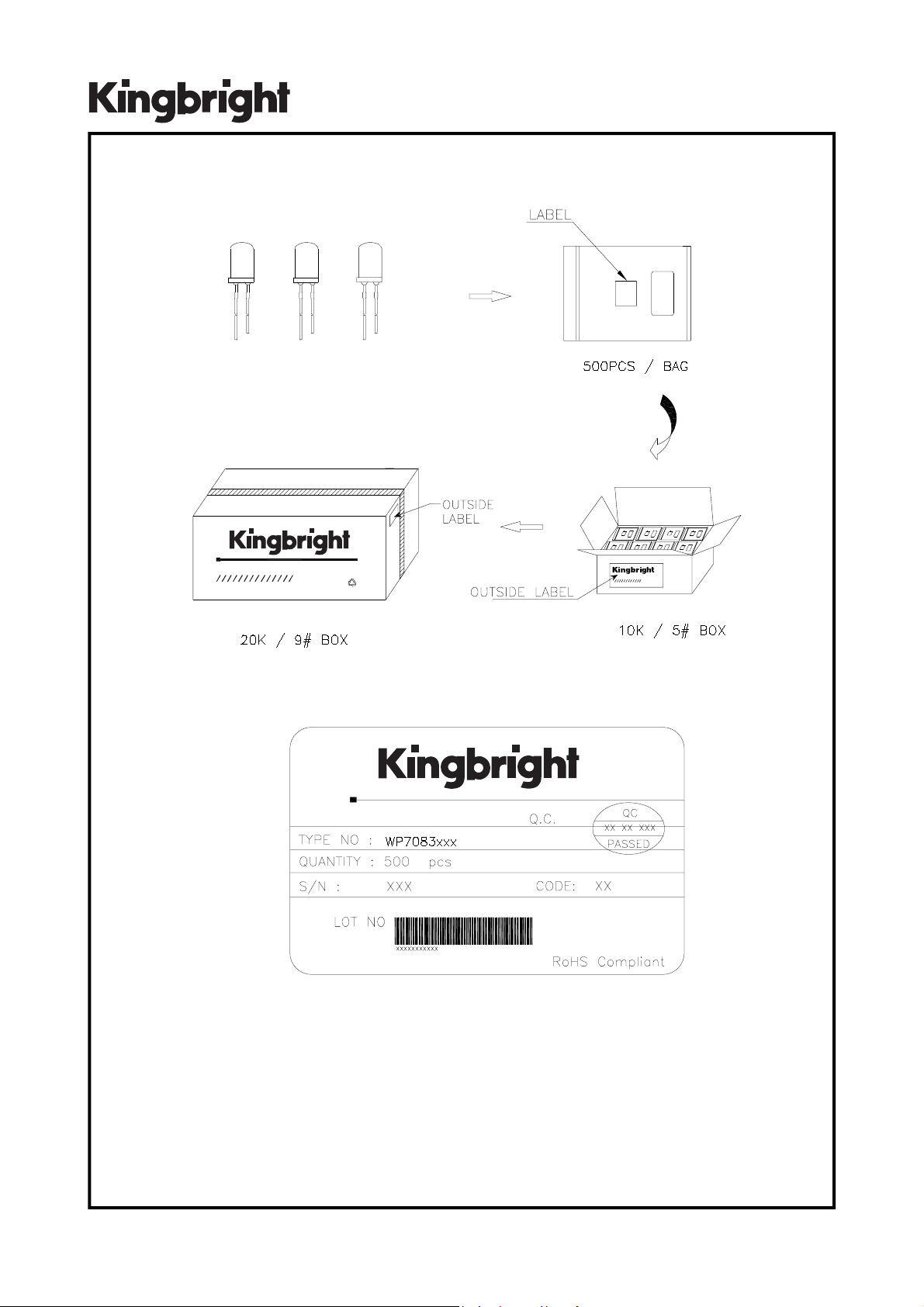

PACKING & LABEL SPECIFICATIONS WP7083PBD/Z
SPEC NO: DSAH1056 REV NO: V.1 DATE: JAN/03/2007 PAGE: 4 OF 4
APP R O V E D : J . Lu CH E C K E D : A l l e n L i u D RAW N: S . J . L IU ERP: 1101020223
