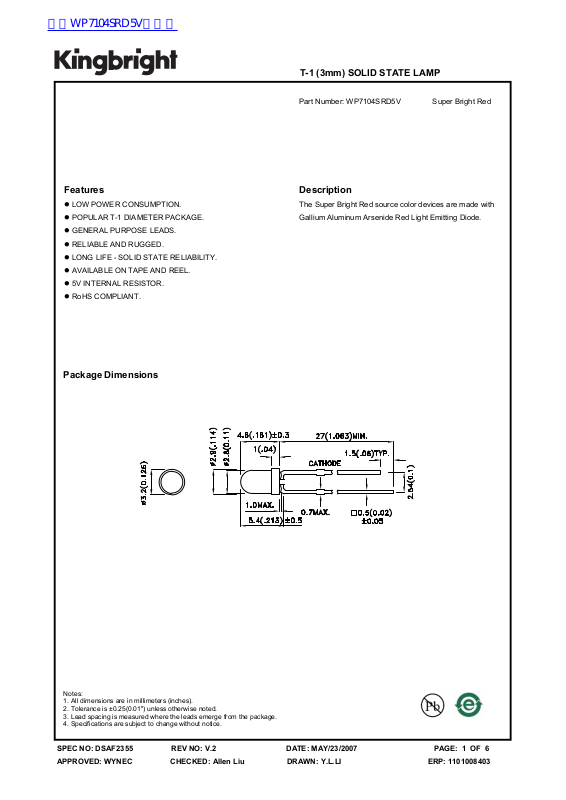

T-1 (3mm) SOLID STATE LAMP
Part Number: WP7104SRD5V Super Bright Red
Features
z LOW POWER CONSUMPTION.
z POPULAR T-1 DIAMETER PACKAGE.
z GENERAL PURPOSE LEADS.
z RELIABLE AND RUGGED.
z LONG LIFE - SOLID STATE RELIABILITY.
z AVAILABLE ON TAPE AND REEL.
z 5V INTERNAL RESISTOR.
z RoHS COMPLIANT.

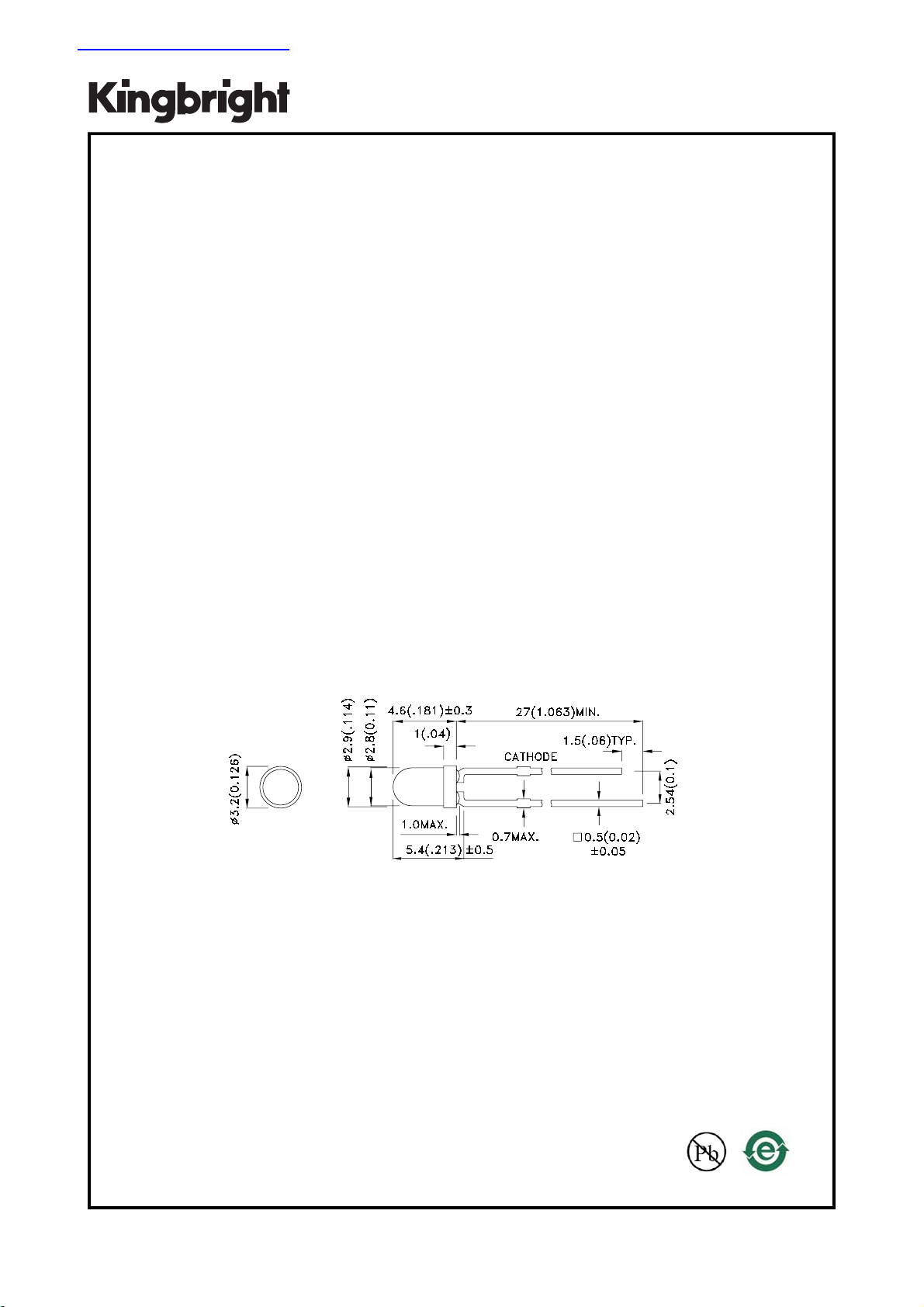

Package Dimensions
Description
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAF2355 REV NO: V.2 DATE: MAY/23/2007 PAGE: 1 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.L.LI ERP: 1101008403
Page 2
Selection Guide
V
Part No. Dice Lens Type
Iv (mcd) [2]
V= 5V
iewing
Angle [1]
Min. Typ. 2θ1/2
WP7104SRD5V Super Bright Red (GaAlAs) RED DIFFUSED 70 150
Notes:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol Parameter Device Typ. Max. Units Test Conditions
λpeak Peak Wavelength Super Bright Red 660
λD [1] Dominant Wavelength Super Bright Red 640
Δλ1/2 Spectral Line Half-width Super Bright Red 20
F Forward Current Super Bright Red 13 17.5 mA VF=5V
I
R Reverse Current Super Bright Red
I
Note:
1.Wavelength: +/-1nm.
10 uA VR = 5V
nm V
nm V
nm V
F=5V
F=5V
F=5V
40
°
Absolute Maximum Ratings at TA=25°C
Parameter Super Bright Red Units
Power dissipation 85 mW
Forward Voltage 6 V
Reverse Voltage 5 V
Operating Temperature -40°C To +70°C
Storage Temperature -40°C To +85°C
Lead Solder Temperature [1] 260°C For 3 Seconds
Lead Solder Temperature [2] 260°C For 5 Seconds
Notes:
1. 2mm below package base.
2. 5mm below package base.
SPEC NO: DSAF2355 REV NO: V.2 DATE: MAY/23/2007 PAGE: 2 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.L.LI ERP: 1101008403
Page 3

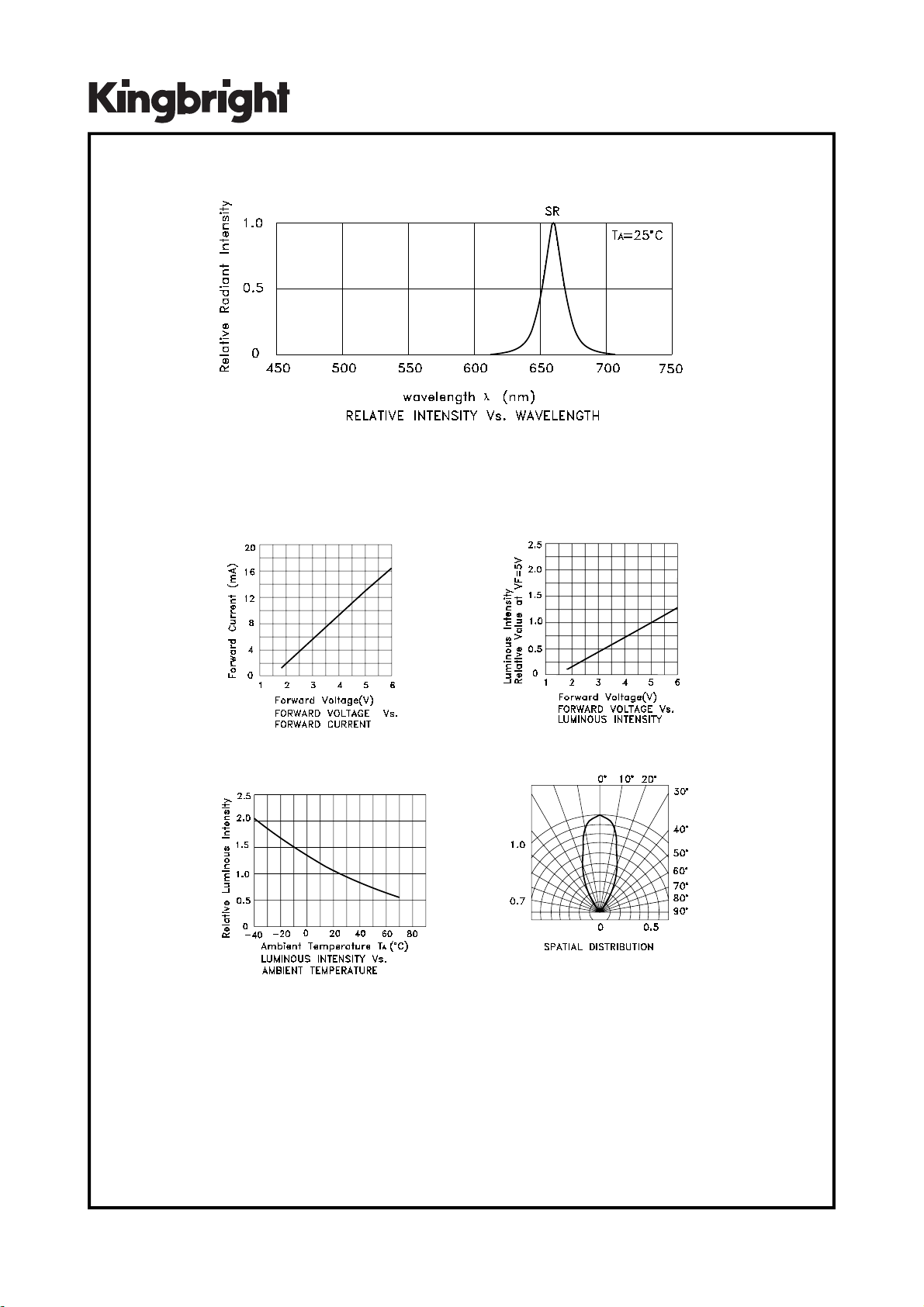

Super Bright Red WP7104SRD5V
SPEC NO: DSAF2355 REV NO: V.2 DATE: MAY/23/2007 PAGE: 3 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.L.LI ERP: 1101008403
Page 4

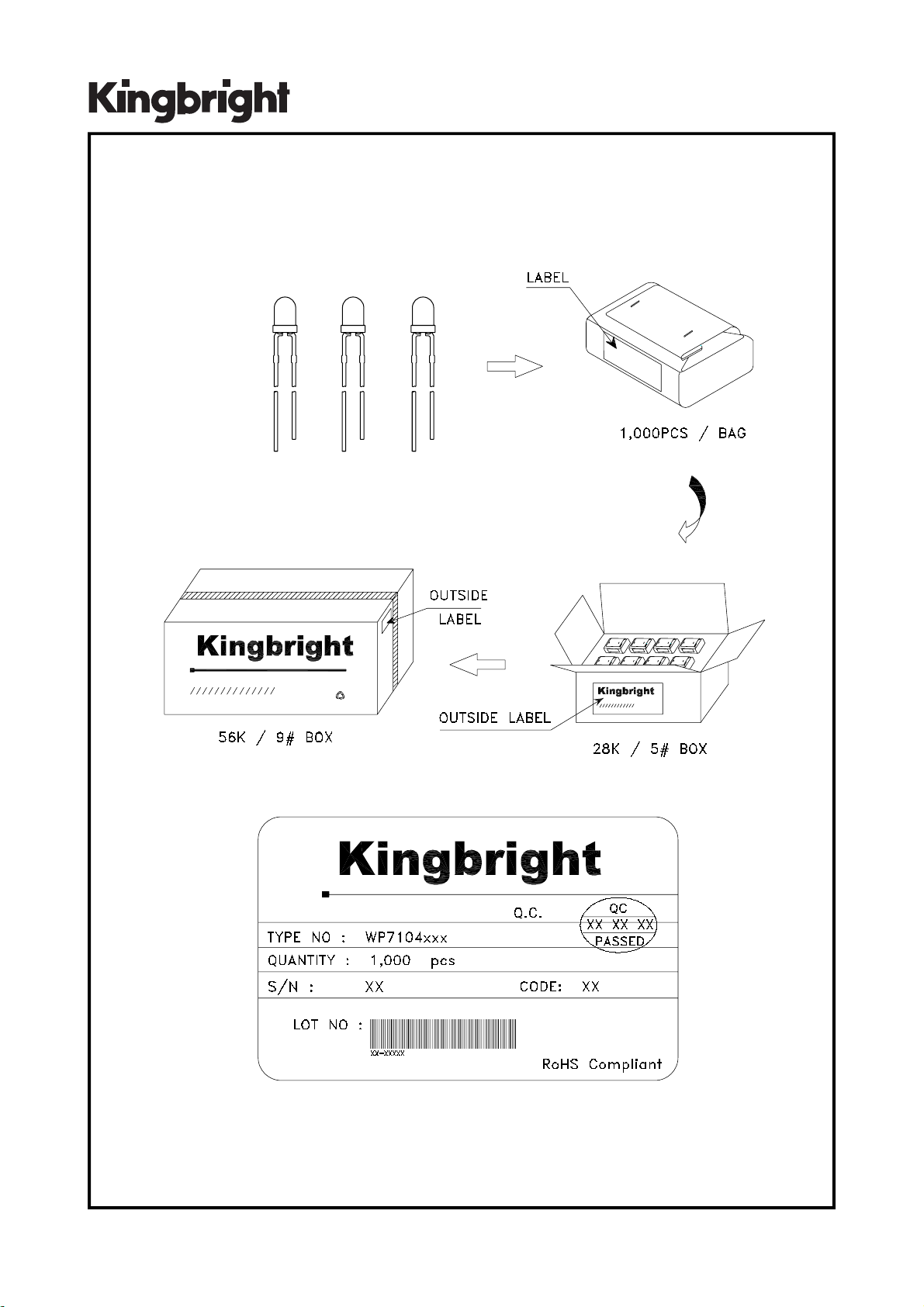

PACKING & LABEL SPECIFICATIONS WP7104SRD5V
SPEC NO: DSAF2355 REV NO: V.2 DATE: MAY/23/2007 PAGE: 4 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.L.LI ERP: 1101008403
Page 5

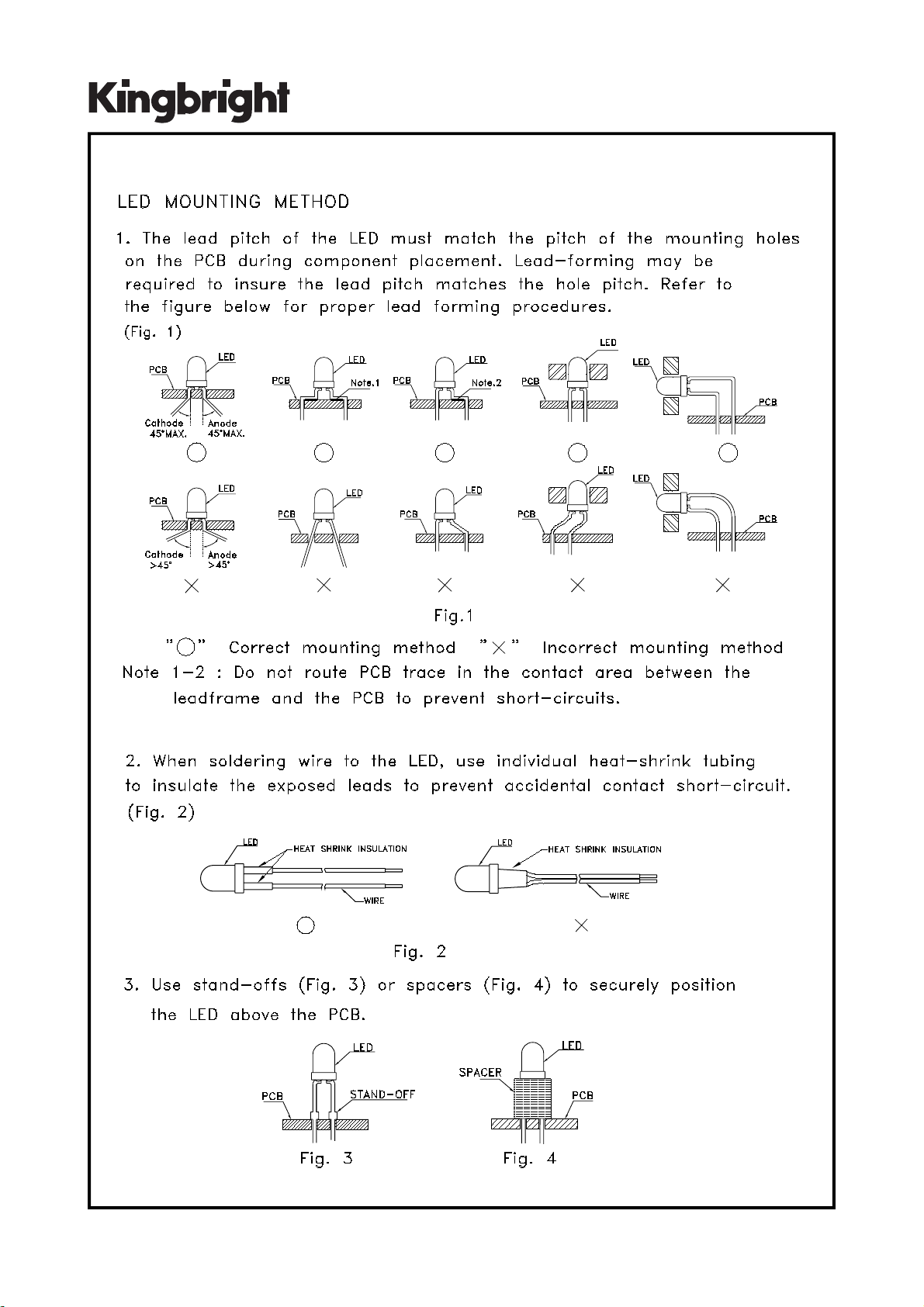

SPEC NO: DSAF2355 REV NO: V.2 DATE: MAY/23/2007 PAGE: 5 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.L.LI ERP: 1101008403
Page 6

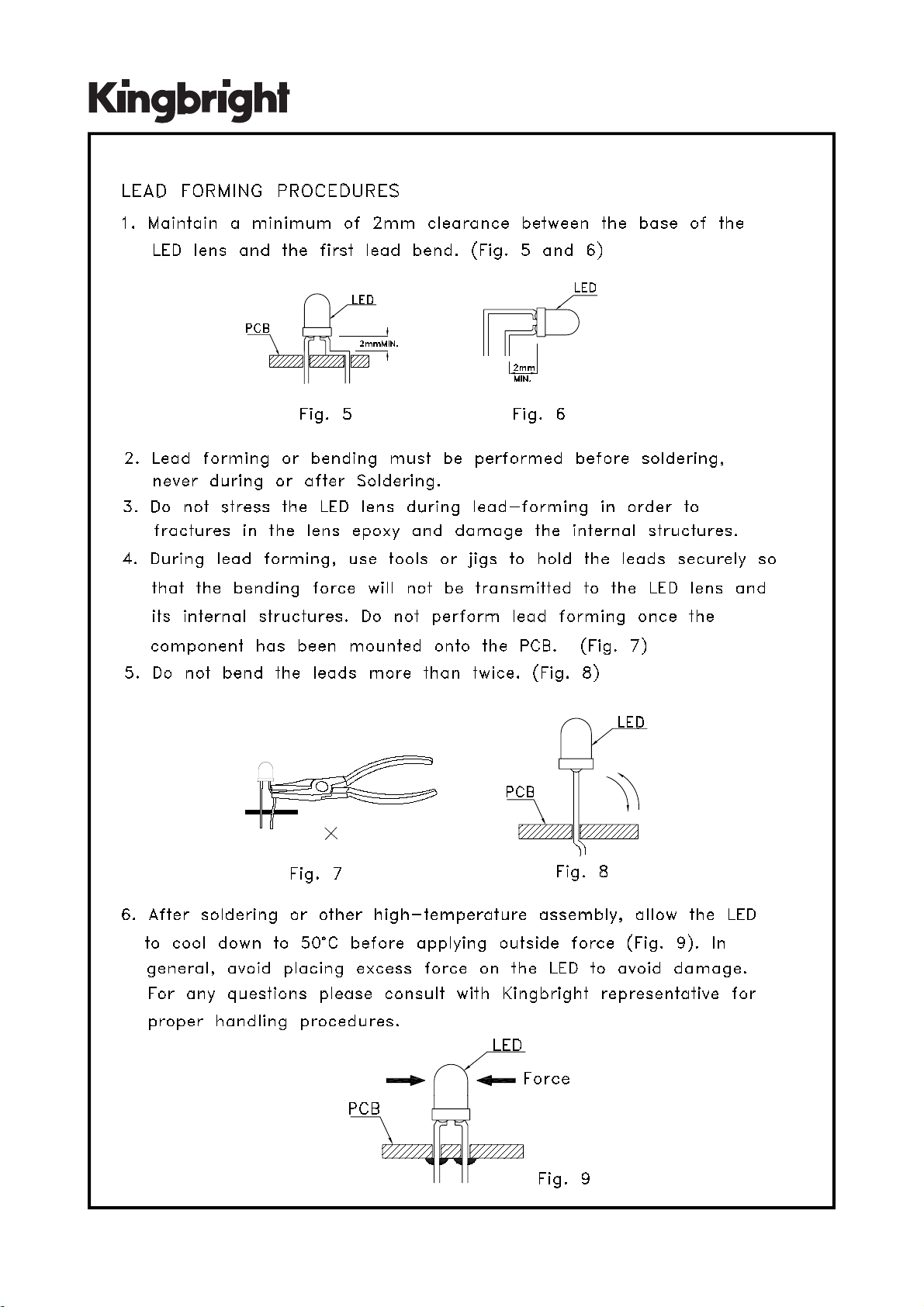

SPEC NO: DSAF2355 REV NO: V.2 DATE: MAY/23/2007 PAGE: 6 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.L.LI ERP: 1101008403
