SPEC NO: DSAF2464
REV NO: V.1 DATE: APR/19/ 20 05 P AGE:
1OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007303

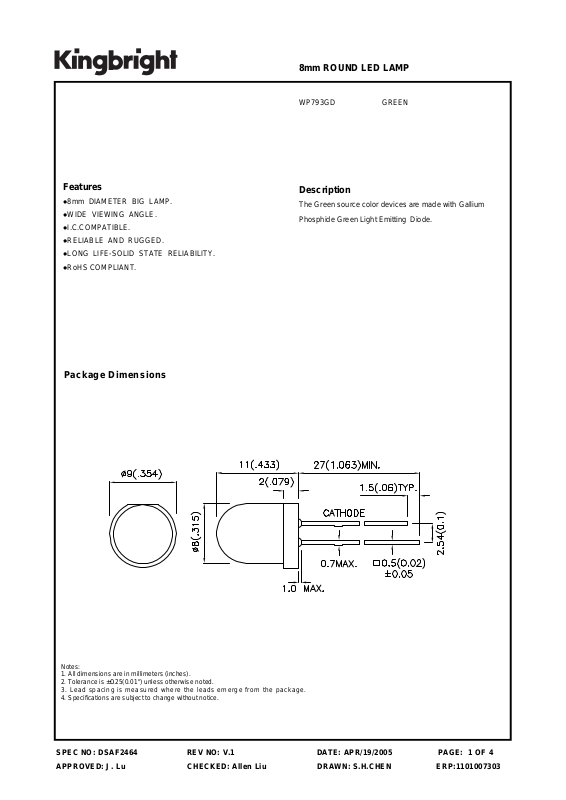

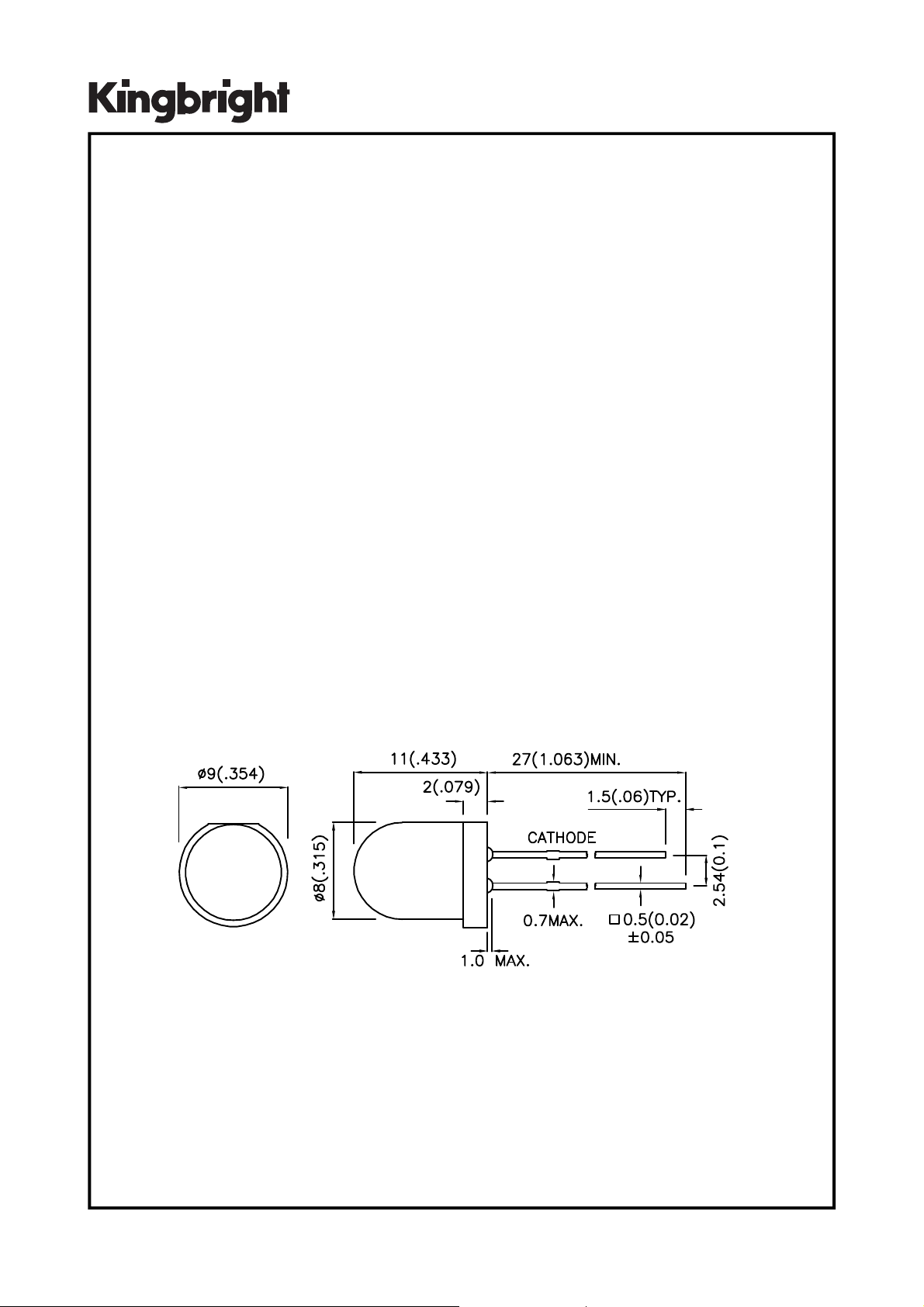

Package Dimen sion
s
WP793GD GREEN
Description
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0
.25(0.01") unless ot h er wis e note d.
3. Lead spaci ng is m easur ed wher e the l eads em erge from the p ackage.
4. Specifications are subject to change without notice.
8
mm ROUND LED LAMP
Features
z
8mm DIAMETER BIG LAMP.
z
WIDE VIEWING ANGL E.
z
I.C.COMPATIBLE.
z
RELIABLE AND RUGGED.
z
LONG LIFE
-
SOLID STATE RELIABILITY.
z
RoHS COMPLIANT.
Page 2
SPEC NO: DSAF2464
REV NO: V.1 DATE: APR/19/ 20 05 P AGE:
2OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007303
Selection Guid
e
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°CAbsolute Maximum Ratings at T
A
=25
°C
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package bas e.
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Viewing
Angle
Min.
Typ.
2 θ 1/2
WP793GD
GREEN (GaP)
GREEN DIFFUSED
18
60
60
°
Symbol
Parameter
Device
Typ.
Max.
Test Conditions
Units
λ
peak
Peak Wavelength
Green
565nmIF=20mA
D
Dominant Wavelength
Green
568nmIF=20mA
1/2
Spectral Line Half
-
width
Green
30nmIF=20mA
C
Capacitance
Green
15pFVF=0V;f=1MHz
VFForward Voltage
Green
2.2
2.5VIF=20mA
IRReverse Current
Green
10uAVR = 5V
Parameter
Green
Units
Power dissipation
105mWDC Forward Current
25mAPeak Forward Current [1]
140mAReverse Voltage
5VOperating/Storage Temperature
-
40°C
To +85°C
Lead Solder Te mperature [2]
260°C
For 3 Seconds
Lead Solder Te mperature [3]
260°C
For 5 Seconds
λ
∆λ
Page 3
SPEC NO: DSAF2464
REV NO: V.1 DATE: APR/19/ 20 05 P AGE:
3OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007303

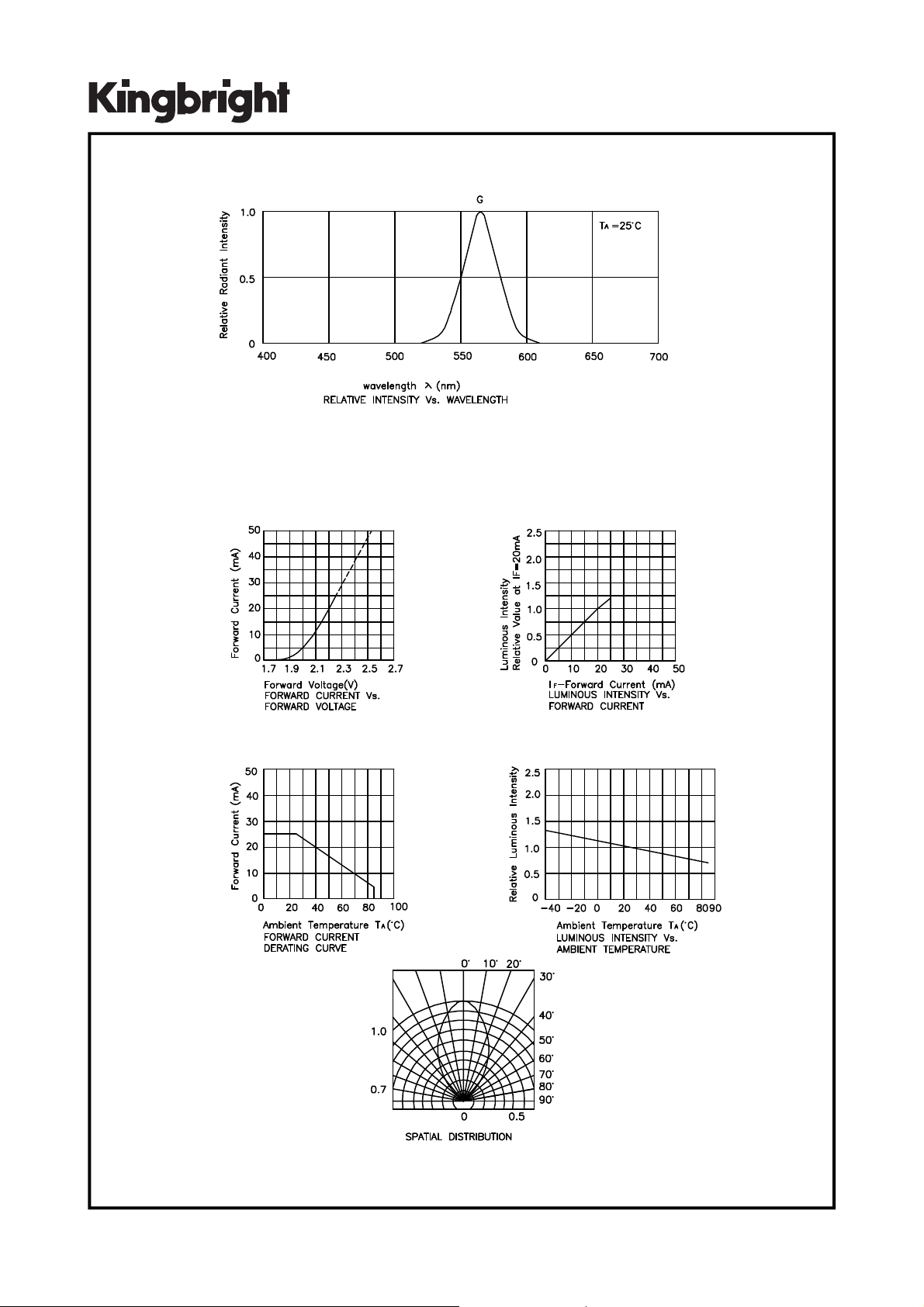

Green WP793GD
Page 4
SPEC NO: DSAF2464
REV NO: V.1 DATE: APR/19/ 20 05 P AGE:
4OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007303

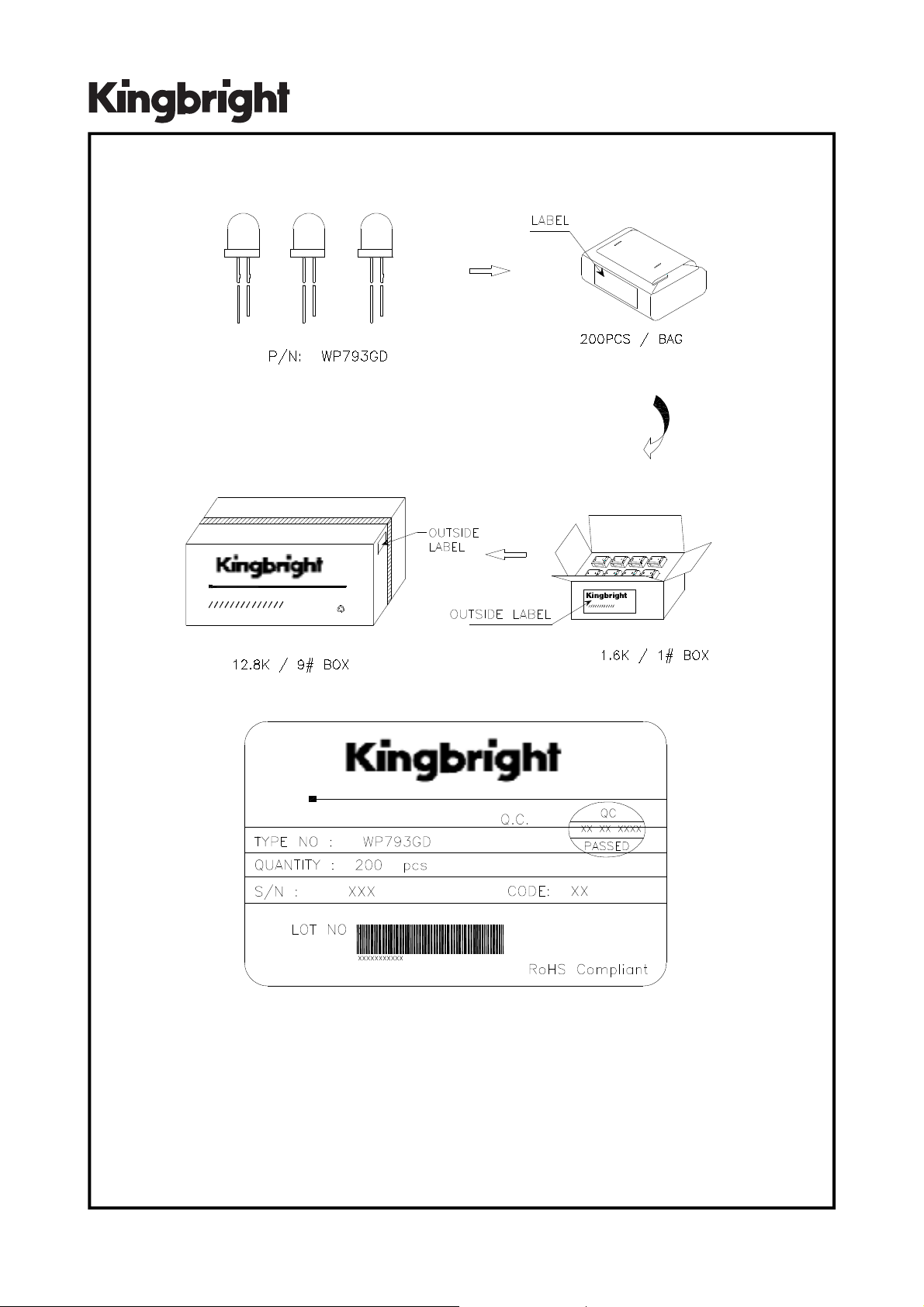

PACKING & LABEL SPECIFICATIONS WP793GD
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/
-
1nm
2. Luminous Intensity: +/
-
15%
3. Forward Voltage: +/
-
0.1V
Note: Accuracy may depend on the sorting parameters.
