Page 1
SPEC NO: DSAF2471
REV NO: V.1 DATE: APR/19/2005 PAGE:
1OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007645

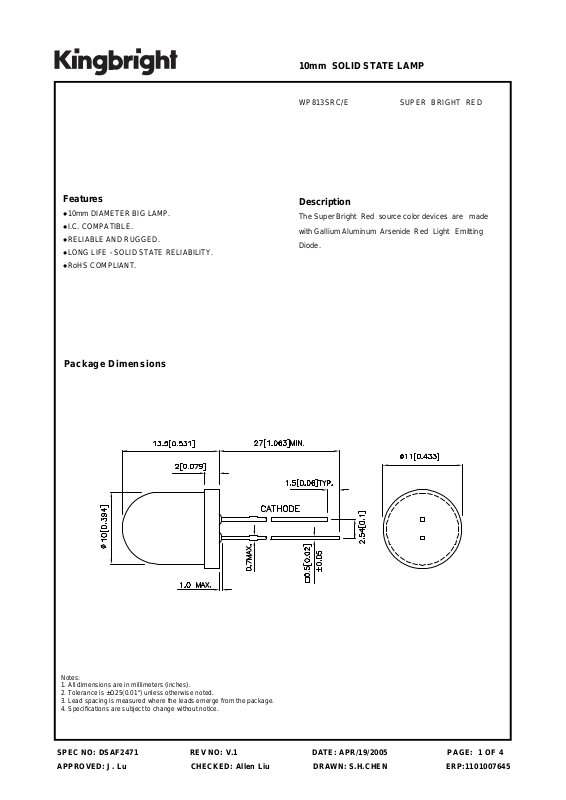

Package Dimen sion
s
10mm SOLID STATE LAMP
Features
z
10mm DIAMETER BIG LAMP.
z
I.C. COMPATIBLE.
z
RELIABLE AND RUGGED.
z
LONG LIFE
-
SOLID STATE RELIABILITY
.
z
RoHS COMPLIANT.
WP813SRC/E SUPER BRI GHT RED
Description
The Super Bright Red source color devices are
made
with Gallium Aluminum Arsenide Red Light
Emitting
Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0
.25(0.01") unless ot h er wis e note d.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
Page 2
SPEC NO: DSAF2471
REV NO: V.1 DATE: APR/19/2005 PAGE:
2OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007645
Selection Guid
e
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°CAbsolute Maximum Ratings at T
A
=25
°C
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Viewing
Angle
Min.
Typ.
2 θ 1/2
WP813SRC/E
SURPER BRIGHT RED (GaAIAs)
WATER CLEAR
1800
2700
40
°
Symbol
Parameter
Device
Typ.
Max.
Test Conditions
Units
λ
peak
Peak Wavelength
Super Bright Red
660nmIF=20mA
D
Dominant Wavelength
Super Bright Red
640nmIF=20mA
1/2
Spectral Line Half
-
width
Super Bright Red
20nmIF=20mA
C
Capacitance
Super Bright Red
95pFVF=0V;f=1MHz
VFForward Voltage
Super Bright Red
1.85
2.5VIF=20mA
IRReverse Current
Super Bright Red
10uAVR = 5V
Parameter
Super Bright Red
Units
Power dissipation
100mWDC Forward Current
30mAPeak Forward Current [1]
150mAReverse Voltage
5VOperating/Storage Temperature
-
40°C
To +85°C
Lead Solder Te mperature [2]
260°C
For 3 Seconds
Lead Solder Te mperature [3]
260°C
For 5 Seconds
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package bas e.
λ
∆λ
Page 3
SPEC NO: DSAF2471
REV NO: V.1 DATE: APR/19/2005 PAGE:
3OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007645

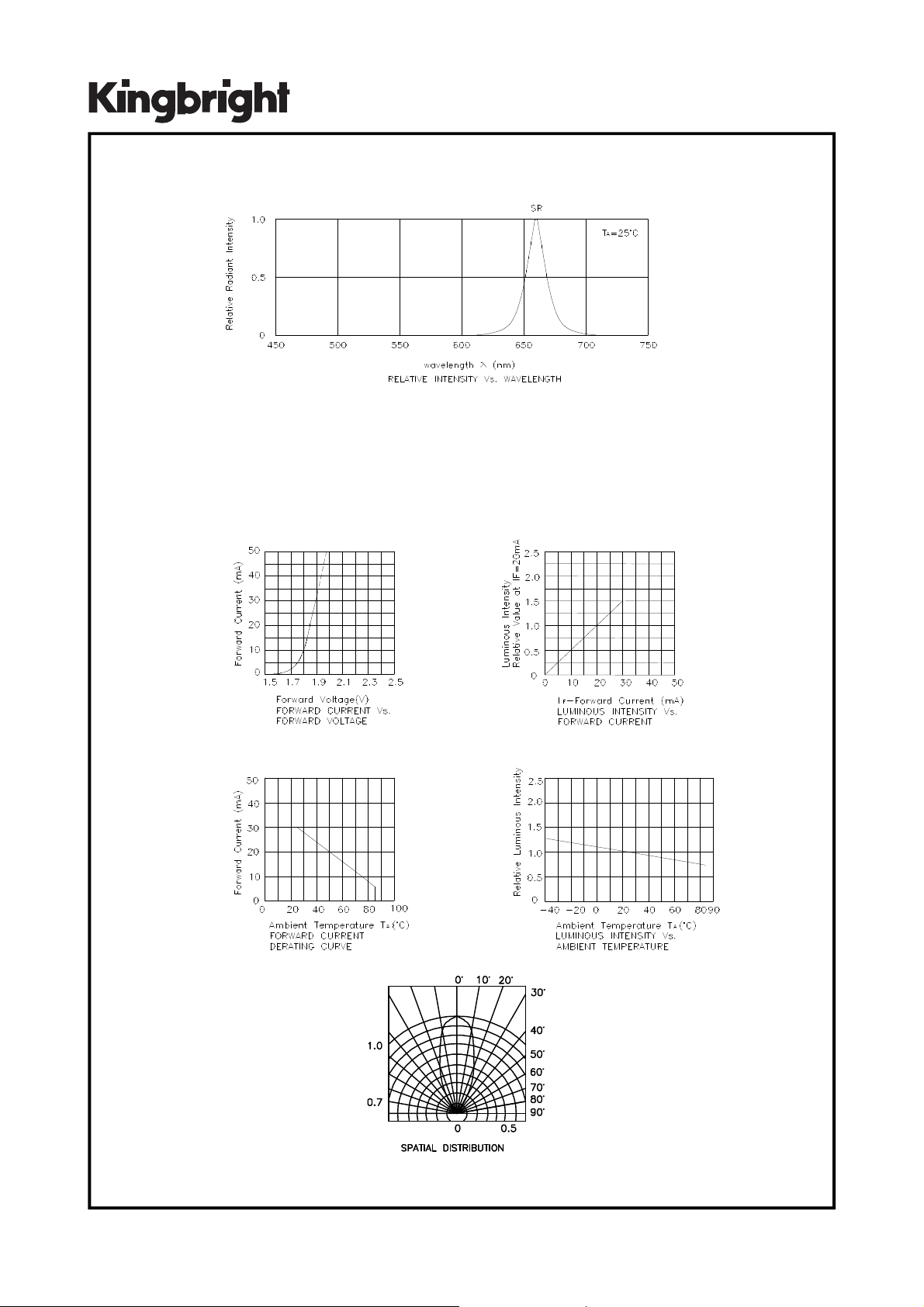

Super Bright Red
WP813SRC/E
Page 4
SPEC NO: DSAF2471
REV NO: V.1 DATE: APR/19/2005 PAGE:
4OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN: S. H.C HE N
ERP:1101007645

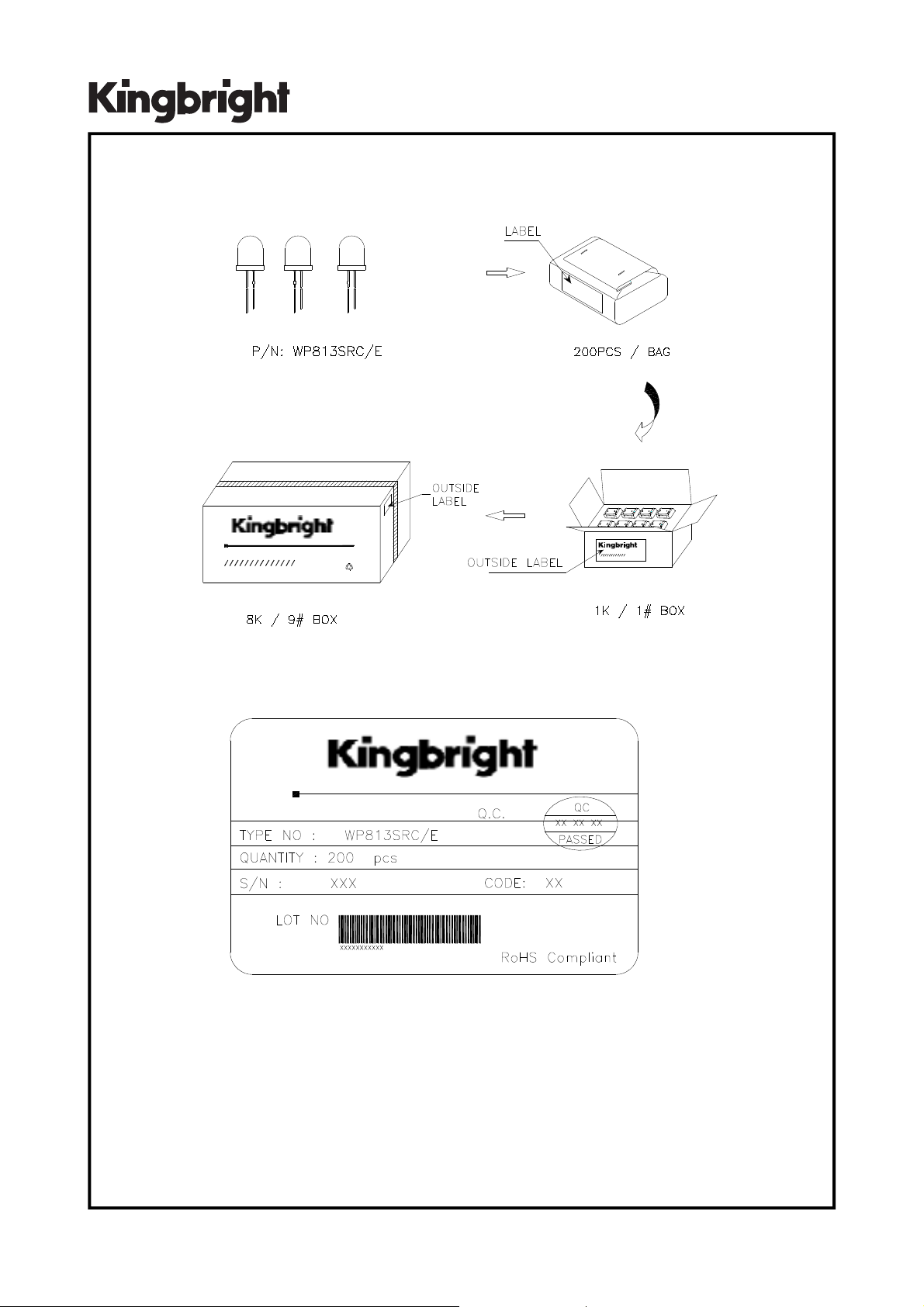

PACKING & LABEL SPECIFICATIONS WP813SRC/E
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/
-
1nm
2. Luminous Intensity: +/
-
15%
3. Forward Voltage: +/
-
0.1V
Note: Accuracy may depend on the sorting parameters.
