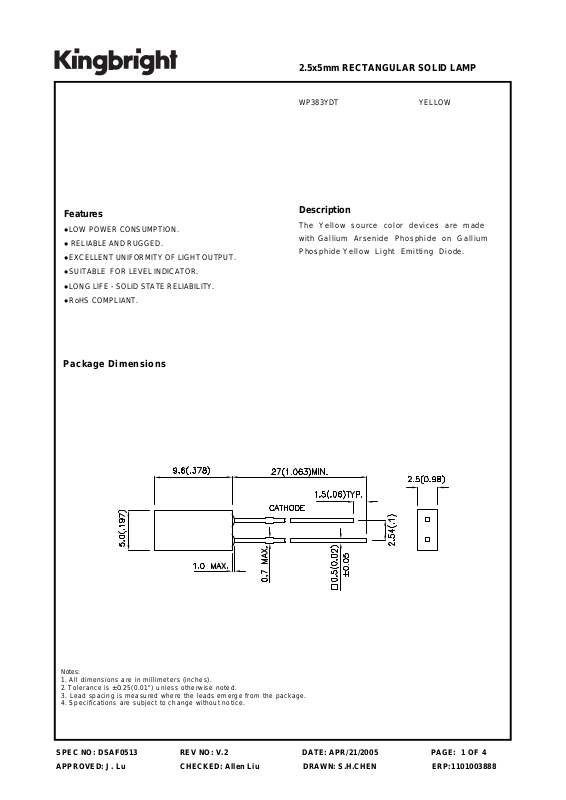

Page 1
SPEC NO: DSAF0513
REV NO: V.2 DATE:
APR/21/2005 PAGE:
1OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN:
S.H.CHEN E RP: 110 100 3888
Package Dimen sion
s
Notes:
1. All dime nsions ar e in m illimete rs (inc hes)
.
2.
Tolerance i s
±0
.25(0.01") unless otherwise noted
.
3. Lead spaci ng is m easur ed wher e the l eads em erge from the p ackage.
4. Specificati ons are subj ect to change without notic e
.
2.5x5mm RECTANGULAR SOLID LAMP
Features
z
LOW POWER CONSUMPTION.
z
RELIABLE AND RUGGED.
z
EXCELLENT UNIFORMITY OF LIGHT OUTPUT.
z
SUITABLE FOR LEVEL INDICATOR.
z
LONG LIFE
-
SOLID STATE RELIABILITY.
z
RoHS COMPLIANT.
Description
The Yellow source color devices are made
with Gallium Arsenide Phosphide on Gallium
Phosphide Yellow Light Emitting Diode.
WP383YDT YELLOW
Page 2
SPEC NO: DSAF0513
REV NO: V.2 DATE:
APR/21/2005 PAGE:
2OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN:
S.H.CHEN E RP: 110 100 3888
Selection Guid
e
N
ote:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°CAbsolute Maximum Ratings at T
A
=25
°C
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package bas e.
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA
Viewing
Angle
Min.
Typ.
2θ1/2
WP383YDT
YELLOW (GaAsP/GaP)
YELLOW
DIFFUSED
1
4
110
Symbol
Parameter
Device
Typ.
Max.
Test Conditions
Units
λ
peak
Peak Wavelength
Yellow
590nmIF=20mA
D
Dominant Wavelength
Yellow
588nmIF=20mA
1/2
Spectral Line Half
-
width
Yellow
35nmIF=20mA
C
Capacitance
Yellow
20pFVF=0V;f=1MHz
VFForward Voltage
Yellow
2.1
2.5VIF=20mA
IRReverse Current
Yellow
10uAVR = 5V
Parameter
Yellow
Units
Power dissipation
105mWDC Forward Current
30mAPeak Forward Current [1]
140mAReverse Voltage
5VOperating/Storage Temperature
-
40°C
To +85°C
Lead Solder Te mperature [2]
260°C
For 3 Seconds
Lead Solder Te mperature [3]
260°C
For 5 Seconds
°
λ
∆λ
Page 3
SPEC NO: DSAF0513
REV NO: V.2 DATE:
APR/21/2005 PAGE:
3OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN:
S.H.CHEN E RP: 110 100 3888
Yellow
WP383YDT
Page 4
SPEC NO: DSAF0513
REV NO: V.2 DATE:
APR/21/2005 PAGE:
4OF4
APPROVED: J. Lu
CHECKED: Alle n Liu DR AWN:
S.H.CHEN E RP: 110 100 3888
PACKING & LABEL SPECIFICATIONS WP383YDT
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/
-
1nm
2. Luminous Intensity: +/
-
15%
3. Forward Voltage: +/
-
0.1V
Note: Accuracy may depend on the sorting parameters.
