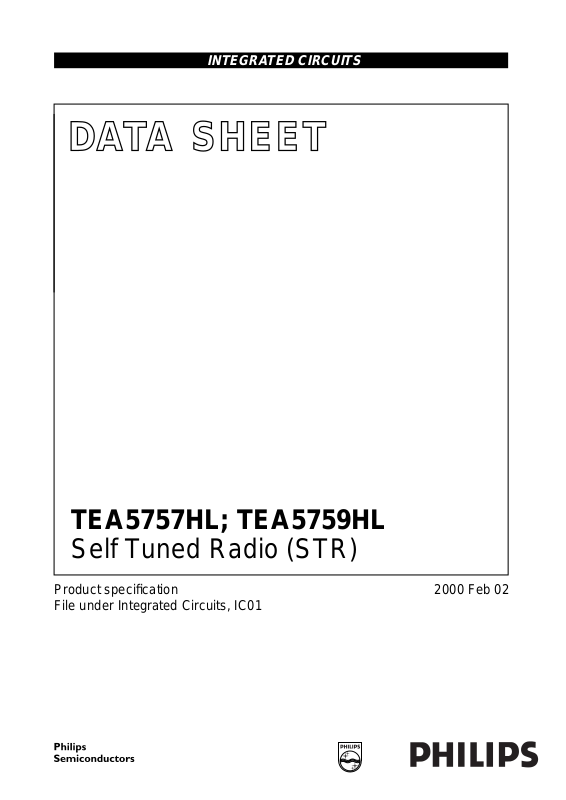

INTEGRATED CIRCUITS

DATA SH EET

TEA5757HL; TEA5759HL

Self Tuned Radio (STR)

Product specification
File under Integrated Circuits, IC01

2000 Feb 02

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

FEATURES

• The tuningsystem has an optimized IC partitioning both
from application (omitting interferences) and flexibility
(removable front panel option) point of view: the tuning
synthesizer is on-chip with the radio

• Thetuning quality issuperior and requiresno IF-counter
for stop-detection; it is insensitive to ceramic filter
tolerances

• In combination with the microcontroller, fast, low-power
operation of preset mode, manual-search, auto-search
and auto-store are possible

• Thelocal (internal) controller functionfacilitatesreduced
and simplified microcontroller software

• The high integration level (radio and tuning synthesizer
on one chip) means fewer external components with
regard to the communication between the radio and the
microcontroller (90% less components compared to the
digital tuning application of a radio IC with external PLL
tuning function) and a simple and small Printed-Circuit
Board (PCB)

• Therewill be no applicationconsiderationsfor the tuning
system, with regards to quality and high integration
level, since there will be no external 110 MHz buffers,
loop filter or false lock elimination

• The inherent FUZZY LOGIC behaviour of the Self
Tuned Radio (STR), which mimics hand tuning and
yields a potentially fast yet reliable tuning operation

• The level of the incoming signal at which the radio must
lock is software programmable

• Two programmable ports

• FM-on/off port to control an external FM front-end

• High selectivity with distributed IF gain

• Soft mute

• Signal dependent stereo-blend

• High impedance MOSFET input on AM

• Wide supply voltage range of 2.5 to 12 V

• Low current consumption 18 mA at AM and FM

(including tuning synthesizer)

• High input sensitivity

• Low output distortion

• Due to the new tuning concept, the tuning is

independent of the channel spacing.

GENERAL DESCRIPTION

The TEA5757HL; TEA5759HL is a 48-pin integrated
AM/FM stereo radio circuit including a novel tuning
concept. The radio part is based on the TEA5712.

The TEA5757HL is used in FM-standards in which the
local oscillator frequency is above the radio frequency
(e.g. european and american standards).

The TEA5759HL is the version in which the oscillator
frequency is below the radio frequency (e.g. Japanese
standard).

Thenew tuning conceptcombinesthe advantages ofhand
tuning with electronic facilities and features. User
‘intelligence’ is incorporated into the tuning algorithm and
animprovementofthe analog signal processing isusedfor
the AFC function.

ORDERING INFORMATION

TYPE

NUMBER

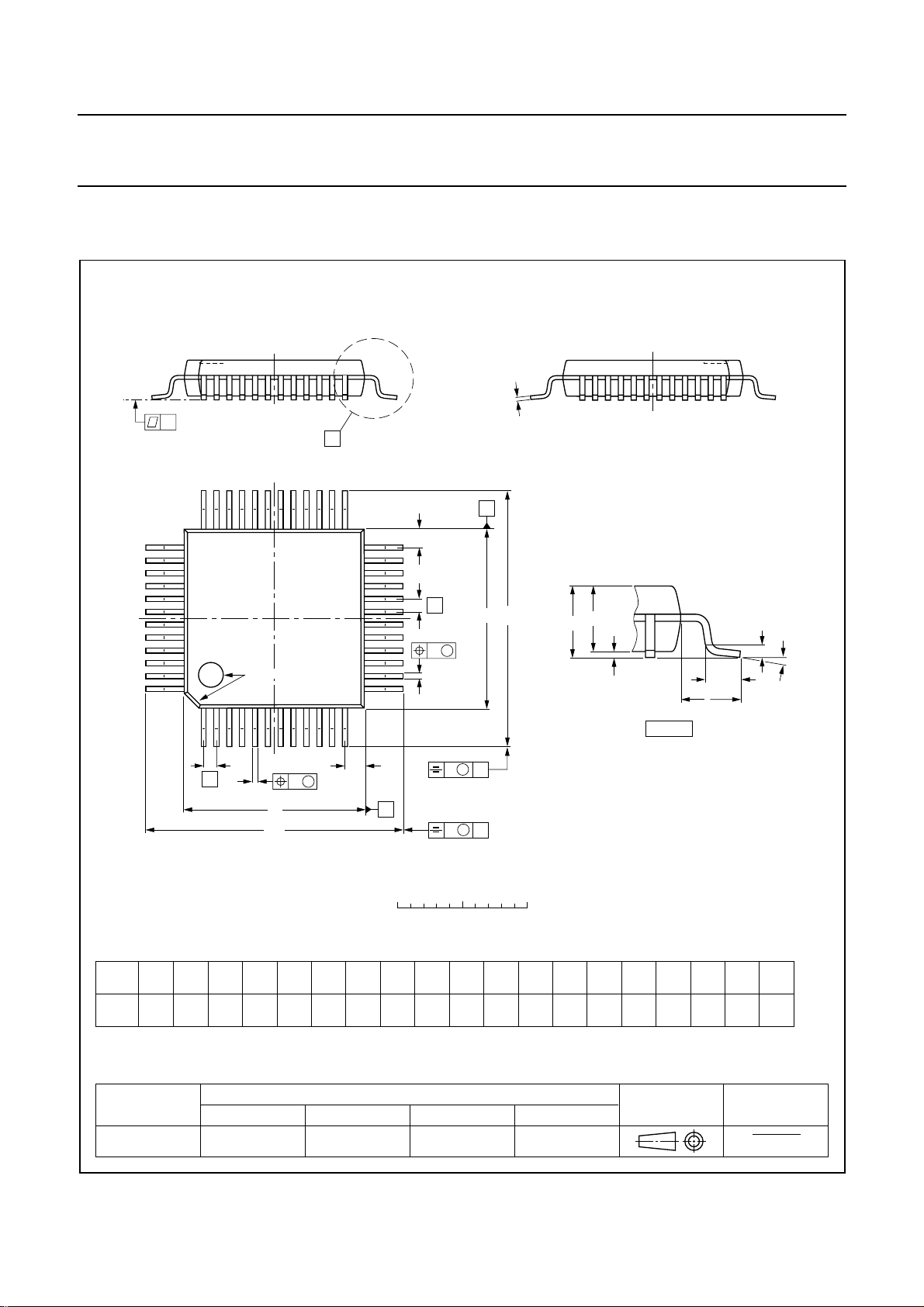

TEA5757HL LQFP48 plastic low profile quad flat package; 48 leads; body 7 × 7 × 1.4 mm SOT313-2
TEA5759HL LQFP48 plastic low profile quad flat package; 48 leads; body 7 × 7 × 1.4 mm SOT313-2

2000 Feb 02 2

NAME DESCRIPTION VERSION

PACKAGE

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CC1

V

CC2

V

tune

I

CC1

I

DD

I

CC2

T

amb

AM performance; note 1
V

11

V

i1

THD total harmonic distortion V
FM performance; note 2
V

11

V

i5

THD total harmonic distortion IF filter

MPX performance; note 3

α

cs

supply voltage 2.5 − 12 V
supply voltage for tuning −−12 V
tuning voltage 0.7 − V

− 0.75 V

CC2

supply current AM mode 12 15 18 mA

FM mode 13 16 19 mA

supply current AM mode 2.8 3.3 3.7 mA

FM mode 2.4 2.7 3.0 mA

supply current for tuning in

−−800 µA
preset mode
(band-end to band-end)

ambient temperature −15 − +60 °C

AF output voltage Vi1= 5 mV 36 45 70 mV
RF sensitivity input voltage (S+N)/N = 26 dB 40 55 70 µV

=1mV − 0.8 2.0 %

i1

AF output voltage Vi5= 1 mV 40 48 57 mV
RF sensitivity input voltage V11at −3 dB; V11is 0 dB

0.4 1.2 3.8 µV

at Vi5=1mV

− 0.3 0.8 %

SFE10.7MS3A20K-A

channel separation 26 30 − dB

Notes

1. V

CC1

=3V; V

CC2

= 12 V; V

=3V; fi= 1 MHz; m = 0.3; fm= 1 kHz; measured in Fig.11 with S1 in position A; S2

DDD

in position B; unless otherwise specified.

2. V

CC1

=3V; V

CC2

= 12 V; V

=3V; fi= 100 MHz; ∆fm= 22.5 kHz; fm= 1 kHz; measured in Fig.11 with S2 in

DDD

position A; S3 in position A and S5 in position A; unless otherwise specified.

3. V

CC1

=3V;V

CC2

=12V;V

DDD

=3V;V

i3(L + R)

= 155 mV; V

= 15.5 mV; fi= 1 kHz; measured in Fig.11 with S2 in

pilot

position B; S3 in position B; unless otherwise specified.

2000 Feb 02 3

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2000 Feb 02 4

FM-IFI1 FM-IFI2

FM-IFO1FM-MIXERFMOSC/COUNTI

FM
IF1

STATUS

REGISTER

SEQUENTIAL

CIRCUIT

AM

IF

AGC

up
down
level

FM
IF2

AM/FM

INDICATOR

IN-LOCK

DETECTOR

CHARGE

PUMP

hard mute

DETECTOR

IFGND FSIFMDEM

FM

DETECTOR

AFC

AM

191843 40 363836

22

TEA5757HL;

TEA5759HL

19 kHz

38 kHz

stereo

level

CONVERTER

PILOT

DETECTOR

PLL

DECODER

stereo

MATRIX

mono

SDS

MUTE

V/I

17
26

13
10

15
16

14

20
21
34

FM-RFI

RFGND2

DATA

BUS-CLOCK

WRITE-ENABLE

V

STAB(A)

V

STAB(B)

V

CC1

V

DDD

RIPPLE

FM-ON/OFF

XTAL

DGND

AM-RFI

FM-RFO

47
46

30
29
31

41
37
8
25
1

42

27
28

33

P1

32

P0

2

FM

FRONT-END

STABILIZER

PRESCALER

MULTIPLEXER

CRYSTAL

OSCILLATOR

AM

FRONT-END

OSCILLATOR

TUNER

SWITCH

OSCILLATOR

FM

SHIFT REGISTER

LAST-STATION

MEMORY

PROGRAMMABLE

COUNTER

WINDOW

DETECTOR

AM

FM

MIXER

AM

MIXER

FM

AM

PILFIL
MO/ST

LFI
VCO

AFLO
AFRO

MUTE

AFC
AFC
AFC

BLOCK DIAGRAM

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

(n)
(p)

7

AM-MIXERAMOSC

44 45

AM-IFI1

39

AM-IFI/O2

AGC

48

TUNE

923

AFO

V

CC2

11

MPXI

12

4

RFGND1

MHB606

Fig.1 Block diagram.

handbook, full pagewidth

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PINNING

SYMBOL PIN DESCRIPTION

RIPPLE 1 ripple capacitor input
AM-RFI 2 AMRF input
FM-RFO 3 parallel tuned FMRF circuit to ground
RFGND1 4 RF ground 1 and substrate
CGND 5 counter ground
FMOSC/COUNTI 6 parallel tuned FM-oscillator circuit to ground/counter input
AMOSC 7 parallel tuned AM-oscillator circuit to ground
V

CC1

TUNE 9 tuning current output
VCO 10 voltage controlled oscillator input
AFO 11 AM/FM AF output (output impedance typical 5 kΩ)
MPXI 12 stereo decoder input (input impedance typical 150 kΩ)
LFI 13 loop filter input
MUTE 14 mute input
AFLO 15 left channel output (output impedance typical 4.3 kΩ)
AFRO 16 right channel output (output impedance typical 4.3 kΩ)
PILFIL 17 pilot detector filter input
IFGND 18 ground of IF, detector and MPX stage
FMDEM 19 ceramic discriminator input
AFC

(n)

AFC

(p)

FSI 22 field strength indicator
V

CC2

n.c. 24 not connected
V

DDD

MO/ST 26 mono/stereo and tuning indication output
XTAL 27 crystal input
DGND 28 digital ground
BUS-CLOCK 29 bus-clock input
DATA 30 bus data input/output
WRITE-ENABLE 31 bus write-enable input
P0 32 programmable output port (P0)
P1 33 programmable output port (P1)
AFC 34 450 kHz LC circuit
n.c. 35 not connected
FM-IFI2 36 FMIF input 2 (input impedance typical 330 Ω)
V

STAB(B)

FM-IFO1 38 FMIF output 1 (output impedance typical 330 Ω)
AM-IFI/O2 39 input/output to IF-Tank (IFT); output: current source
FM-IFI1 40 FMIF input 1 (input impedance typical 330 Ω)

8 supply voltage

20 AFC negative output
21 AFC positive output

23 supply voltage for tuning

25 digital supply voltage

37 internal stabilized supply voltage (B)

2000 Feb 02 5

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

SYMBOL PIN DESCRIPTION

V

STAB(A)

FM-ON/OFF 42 FM ON/OFF port
FM-MIXER 43 ceramic filter output (output impedance typical 330 Ω)
AM-MIXER 44 open-collector output to IFT
AM-IFI1 45 IFT or ceramic filter input (input impedance typical 3 kΩ)
RFGND2 46 FMRF ground 2
FM-RFI 47 FMRF aerial input (input impedance typical 40 Ω)
AGC 48 AGC capacitor input

handbook, full pagewidth

41 internal stabilized supply voltage (A)

RIPPLE

AM-RFI

FM-RFO

RFGND1

CGND

FMOSC/COUNTI

AMOSC

V

CC1

TUNE

VCO

AFO

MPXI

AGC

FM-RFI

RFGND2

AM-IFI1

AM-MIXER

FM-MIXER

48

47

46

45

44

43

1
2
3
4
5
6
7
8

9
10
11
12

13

14

15

LFI

MUTE

AFLO

TEA5757HL;

TEA5759HL

16

17

AFRO

PILFIL

18

IFGND

STAB(A)

FM-ON/OFF

V

42

41

20

19

(n)

AFC

FMDEM

FM-IFI1
40

21

(p)

AFC

AM-IFI/O2
39

22
FSI

STAB(B)

FM-IFO1

V

38

37

23

24
n.c.

CC2

V

36

FM-IFI2

35

n.c.

34

AFC

33

P1

32

P0

31

WRITE-ENABLE

30

DATA

29

BUS-CLOCK

28

DGND

27

XTAL

26

MO/ST

25

V

DDD

MHB607

Fig.2 Pin configuration.

2000 Feb 02 6

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

FUNCTIONAL DESCRIPTION

The TEA5757HL; TEA5759HL is an integrated AM/FM
stereo radio circuit including digital tuning and control
functions.

The radio

The AM circuit incorporates a double balanced mixer, a
one-pin low-voltage oscillator (up to 30 MHz) and is
designed for distributed selectivity.

The AM input is designed to be connected to the top of a
tuned circuit. AGC controls the IF amplification and for
large signals it lowers the input impedance of the AM
front-end.

The first AM selectivity can be an IF-Tank (IFT) as well as
anIFT combined withaceramic filter; thesecond one is an
IFT.

The FM circuit incorporates a tuned RF stage, a double
balanced mixer, a one-pin oscillator and is designed for
distributed IF ceramic filters. The FM quadrature detector
uses a ceramic resonator.

The TEA5757HL; TEA5759HL can also be used with an
external FM front-end circuit. The external front-end is
activatedby the FM-ON/OFF signal. The AFC circuit in the
TEA5757HL; TEA5759HL provides a tuning voltage to
drive the VCOof the externalFM front-end.The frequency
of the external VCO is counted in the Self Tuned Radio
(STR) tuning system.

The PLL stereo decoder incorporates a signal dependent
stereo-blend circuit and a soft-mute circuit.

PRESET OPERATION
Inpreset mode, themicrocontroller has toload information

suchas frequency band,frequency and mono/stereo.This
information has to be sent via the bus to the STR.
The internal algorithm controls the tuning sequence as
follows:

1. The information is loaded into a shift register, a
last-station memory and the counter.

2. The Automatic Frequency Control (AFC) is switched
off.

3. The counter starts counting the frequency and the
tuning voltage is varied until the desired frequency
roughly equals the real frequency.

4. The AFC is then switched on and the counter is
switched off.

5. The real frequency is more precisely tuned to the
desired frequency.

After the AFC has tuned the real frequency to the desired
frequency an in-lock signal can be generated. In order to
get a reliable in-lock signal, there are two parameters
measured: the field strength and the S-curve. The field
strength indicates the strength of the station and by
looking at the S-curve the system can distinguish false
in-locks from real in-locks (false in-locks occur on the
wrong slope of the S-curve).

In the event of fading orpulling thein-lock signal becomes
logic 0 and the synthesizer will be switched on again and
the algorithm will be repeated.

SEARCH OPERATION

Tuning

Thetuning concept of Self TunedRadio (STR) isbased on
FUZZY LOGIC: it mimics hand tuning (hand tuning is a
combination of coarse and fine tuning to the qualitatively
best frequency position). As a consequence the tuning
system is very fast.

The tuning algorithm, which is controlled by the sequential
circuit (see Fig.1), is completely integrated; so there are
only a few external components needed.

The bus and the microcontroller can be kept very simple.
The bus only consists of three wires (BUS-CLOCK, DATA
and WRITE-ENABLE). The microcontroller must basically
give two instructions:

• Preset operation

• Search operation.

2000 Feb 02 7

During a search operation, the only action the
microcontroller has to take is: sending the desired band
plus the direction and the search sensitivity level to the
STR. The search operation is performed by the charge
pump until an in-lock signal is generated (combination of
measuring the field strength and the S-curve). The AFC
then fine tunes to the station. The frequency belonging to
thefound station willbecounted by the counterand written
into the last-station memory and the shift register of the
counter. At this time the frequency is available in the shift
register and can be read by the microcontroller.
The microcontroller decides whether the frequency is
withinthedesired frequency band. Ifso,thisfrequency can
be stored under a preset and if not, a new search action
should be started.

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

Toensure that the search functionoperates correctly underall conditions thefollowing search sequencemust be applied:

• Store the current frequency in the memory

• Issue the search command

• Wait for data valid and read the new frequency

• If the new frequency is the same as the stored frequency, issue a preset step (e.g. 50 kHz) and start the search

sequence again.

TUNING CURRENTS FOR DIFFERENT CONDITIONS

handbook, full pagewidth

I

9
I

B

I

A

−I

A

−I

B

R

R

W

2

W

1

f

c

R R

f

MHB641

Fig.3 Tuning currents.

Table 1 Tuning currents

BAND

SELECT

W

1

(kHz)

W

2

(kHz)

R

(kHz)

MIN. TYP. MAX. MIN. TYP. MAX.

IA (µA) IB (µA)

FM 25 200 12.5 2 2.5 3 54 80 100

MW 3 64 1 2 2.5 3 54 80 100

LW 1 64 1 2 2.5 3 54 80 100

SW 1 64 1 0.4 0.5 0.7 12 16 20

2000 Feb 02 8

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

Description of the bus

The TEA5757HL; TEA5759HL radio has a bus which
consists of three wires, as shown in Table 2.

Table 2 Bus signals

SIGNAL DESCRIPTION PIN

BUS-CLOCK software driven clock input 29
DATA data input/output 30
WRITE-ENABLE write/read input 31

These three signals, together with the mono/stereo pin
(MO/ST; pin 26), communicate with the microcontroller.
The mono/stereo indicator has two functions, which are
controlled by the BUS-CLOCK, as shown in Table 3.

Table 4 Explanation of the shift register bits

BIT DESCRIPTION

S.24 (MSB) search start/end 0 after a search when a station is found or after a preset

D.23 search up/down 0 indicates if the radio has to search down

M.22 mono/stereo 0 stereo is allowed

B0.21 band see Table 5 selects FM/MW/LW/SW band
B1.20 band see Table 5 selects FM/MW/LW/SW band
P0.19 port note 1 user programmable bits which e.g. can be used as

P1.18 port note 1 user programmable bits which e.g. can be used as

S0.17 search-level of station see Table 6 determines the locking field strength during an

S1.16 search-level of station see Table 6 determines the locking field strength during an

15 dummy − buffer
F.14 to F.0 (LSB) frequency − determine the tuning frequency of the radio;

LOGIC
STATE

1 during the search action

1 indicates if the radio has to search up

1 mono is required (radio switched to forced mono)

Table 3 Bus-clock functions

BUS-CLOCK MO/ST (PIN 26) RESULT

LOW LOW stereo

LOW HIGH mono
HIGH LOW tuned
HIGH HIGH not tuned

The TEA5757HL; TEA5759HL has a 25-bit shift register;
see Table 4 for an explanation of the shift register bits.

If in search mode no transmitter can be found, all
frequency bits of the shift register are set to logic 0.

The bus protocol is illustrated in Figs 4 and 5.

RESULT

band switch driver

band switch driver

automatic search, automatic store or manual search

automatic search, automatic store or manual search

see Table 7 for the bit values

Note

1. The output pins 32 and 33 can drive currents up to 5 mA; bits P0.19 and P1.18 control the output voltage of the
control pins P0 (pin 32) and P1 (pin 33):

a) Bit P0.19 LOW sets P0 (pin 32) to LOW.
b) Bit P0.19 HIGH sets P0 (pin 32) to HIGH.
c) Bit P1.18 LOW sets P1 (pin 33) to LOW.
d) Bit P1.18 HIGH sets P1 (pin 33) to HIGH.

2000 Feb 02 9

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

Table 5 Truth table for bits B0.21 and B1.20

B0.21 B1.20 BAND SELECT

00FM

(1)

01MW
10LW
11SW

Note

1. When FM is selected, the control output FM-ON/OFF
(pin 42) is pulled to ground to switch-on the external
FM front-end. Pin 42 is an open-collector pin with a
series resistor R = 500 Ω.

Table 6 Truth table for bits S1.16 and S0.17

SIGNAL RECEPTION

S1.16 S0.17

FM IF

INPUT

(µV)

FM RF

INPUT

(µV)

AM RF

INPUT

(µV)

0 0 >50 >5 >28
0 1 >100 >10 >40
1 0 >300 >30 >63
1 1 >1500 >150 >1000

Table 7 Values for bits F.14 to F.0

BIT BIT VALUEFMVALUE

(1)

(kHz)

F.14 2
F.13 2
F.12 2
F.11 2
F.10 2

F.9 2
F.8 2
F.7 2
F.6 2
F.5 2
F.4 2
F.3 2
F.2 2
F.1 2
F.0 2

14
13
12
11
10

9
8
7
6
5
4
3
2
1
0

− 16384

102400 8192

51200 4096
25600 2048
12800 1024

6400 512
3200 256
1600 128

800 64
400 32
200 16
100 8

50 4
25 2

12.5 1

Notes

1. FM value of the affected oscillators:
a) FM VALUE = FMRF + FMIF (for TEA5757HL).
b) FM VALUE = FMRF − FMIF (for TEA5759HL).

2. AM value of the affected oscillators:
AM VALUE = AMRF + AMIF.

AM

VALUE

(kHz)

(2)

2000 Feb 02 10

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

READING DATA
While WRITE-ENABLE is LOW data can be read by the

microcontroller. At a rising edge of the BUS-CLOCK, data
is shifted out of the register. This data is available from the
point where the BUS-CLOCK is HIGH until the next rising
edge of the BUS-CLOCK occurs (see Fig.4).

To read the entire shift register 24 clock pulses are
necessary.

handbook, full pagewidth

WRITE-ENABLE

BUS-CLOCK

DATA

data shiftdata available after search ready

MSB is LOW

WRITING DATA
While WRITE-ENABLE is HIGH the microcontroller can

transmit data to the TEA5757HL; TEA5759HL (hard mute
is active). Ata rising edge of theBUS-CLOCK, the register
shifts and accepts one bit into LSB. At clock LOW the
microcontroller writes data (see Fig.5).

To write the entire shift register 25 clock pulses are
necessary.

data read

data available

MBE817

ndbook, full pagewidth

WRITE-ENABLE

BUS-CLOCK

DATA

Fig.4 Read data.

MBE818

data changedata shift

Fig.5 Write data.

2000 Feb 02 11

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

BUS TIMING

handbook, full pagewidth

WRITE-ENABLE

V

BUS-CLOCK

DATA

t

HIGHtLOW

IH

V

IL

t

da

MBE819

Fig.6 Bus timing.

Table 8 Digital inputs

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Digital inputs

V

IH

V

IL

HIGH-level input voltage 1.4 − V
LOW-level input voltage − 0.6 V

Digital outputs (open-collector)

I

OL

V

OL

LOW-level output current − 1000 µA
LOW-level output voltage IOL= 600 µA − 0.6 V

Timing

f

clk

t

HIGH

t

LOW

t

da

clock input − 300 kHz
clock HIGH time 1.67 −µs
clock LOW time 1.67 −µs
shift register available after ‘search ready’ − 14 µs

2000 Feb 02 12

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

CC1

P

tot

T

stg

T

amb

T

j

V

es

Note

1. Charge device model; equivalent to discharging a 200 pF capacitor via a 0 Ω series resistor.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

supply voltage 0 13.2 V
total power dissipation T

=70°C − 250 mW

amb

storage temperature −65 +150 °C
ambient temperature −15 +60 °C
junction temperature −15 +150 °C
electrostatic handling voltage for all pins note 1 −±200 V

thermal resistance from junction to ambient in free air 75 K/W

2000 Feb 02 13

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

CHARACTERISTICS

V

=3V; T

CC1

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

CC1

V

CC2

V

DDD

V

tune

I

CC2

f

BUS-CLOCK(max)

I

CC1

I

DD

I

CC1

I

DD

t

search

t

acq

f

band

∆f

FM

∆f

AM

I

P0(sink)

I

P1(sink)

I

P0(source)

I

P1(source)

I

42(sink)

=25°C; unless otherwise specified.

amb

supply voltage 2.5 − 12 V
supply voltage for tuning −−12 V
supply voltage for digital part 2.5 − 12 V
tuning voltage 0.7 − V
supply current for tuning in preset

−−800 µA

− 0.75 V

CC2

mode (band-end to band-end)
maximum BUS-CLOCK frequency −−300 kHz
current consumption during

acquisition of V

CC1

current consumption during
acquisition of I

DD

current consumption after acquisition
of V

CC1

current consumption after acquisition
of I

DD

synthesizer auto-search time for

AM mode 12 15 18 mA
FM mode 12.5 15.5 18.5 mA
AM mode − 4.8 − mA
FM mode − 5.5 − mA
AM mode 12 15 18 mA
FM mode 13 16 19 mA
AM mode − 3.3 − mA
FM mode − 2.7 − mA
FM mode −−10 s

empty band
synthesizer preset acquisition time

between two band limits

FM − 100 − ms
MW − 100 − ms
LW − 200 − ms

(1)

− ms

frequency band range of the
synthesizer

SW − 500
AM mode 0.144 − 30 MHz

FM mode 50 − 150 MHz
AFC inaccuracy of FM note 2 −−1 kHz
AFC inaccuracy of AM −−100 Hz
sink current of software

V32=3V 4 6 − mA
programmable output P0

sink current of software

V33=3V 4 6 − mA
programmable output P1

source current of software

V32=0V 5 9 − mA
programmable output P0

source current of software

V33=0V 5 9 − mA
programmable output P1

sink current of FM-ON/OFF switch FM ON 4 6 − mA

Notes

1. Depending on band.

2. In the application with external front-end the inaccuracy depends on the front-end.

2000 Feb 02 14

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

AM CHARACTERISTICS

Input frequency fi= 1 MHz; m = 0.3; fm= 1 kHz; measured in test circuit at pin 11 (see Fig.11); S2 in position B;
V

measured at input of matching network at pin 2; matching network adjusted to maximum output voltage at low input

i1

level; V

V

11

V

i1

V

il

PSRR

I

i

C

i

G

c

(S+N)/N signal plus noise-to-noise ratio − 50 − dB

THD total harmonic distortion V

α

450

I

22

I

14

refers to test circuit (see Fig.11); Vn refers to pin voltages; unless otherwise specified.

i(n)

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AF output voltage Vi1=5mV 364570mV

= 0.2 mV 12 30 45 mV

V

i2

RF sensitivity input voltage (S+N)/N = 26 dB 40 55 70 µV
large signal voltage handling capacity m = 0.8; THD ≤ 8% 150 300 − mV

∆V
power supply ripple rejection

V

11



----------



∆V

8

= 100 mV (RMS);

8

100 Hz; V8= 3.0 V

−−47 − dB

input current (pin 2) V48= 0.2 V − 0 −µA
input capacitance (pin 2) V48= 0.2 V −−4pF
front-end conversion gain V48= 0.2 V 5 10 14 dB

= 0.9 V −26 −14 0 dB

V

48

V

= 0.32 mV − 32 − dB

i2

=1mV − 0.8 2.0 %

i1

IF suppression V11=30mV − 56 − dB
indicator current Vi2=0V; V22=0V −60 −50 −40 µA

V

= 100 mV; V22=0V −330 −285 −240 µA

i2

muting current S4 in position B;

12 16 20 µA

V14= 1.4 V; Vi2= 100 mV

2000 Feb 02 15

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

FM CHARACTERISTICS

Input frequency fi= 100 MHz; ∆f = 22.5 kHz; fm= 1 kHz; measured in test circuit (see Fig.11) at pin 11; S2 in position B;
V

refers to test circuit (see Fig.11); Vn refers to pin voltages; unless otherwise specified.

i(n)

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

11

V

i5

V

il

PSRR

G

c

(S+N)/N signal plus noise-to-noise ratio V

THD total harmonic distortion IF filter

I

22

I

14

AF output voltage Vi5=1mV 404857mV
RF sensitivity input voltage (S+N)/N = 26 dB 1 2 3.8 µV
RF limiting sensitivity V

at −3 dB; V11is 0 dB

11

0.4 1.2 3.8 µV

at Vi5=1mV
large signal voltage handling capacity THD ≤ 5% − 500 − mV

∆V
power supply ripple rejection

front-end conversion gain




V

11



----------



∆V

V

40

-------- ­V

i5

= 100 mV (RMS);

8

100 Hz; V8= 3.0 V

8

=2µV − 26 − dB

i5

V

=1mV − 62 − dB

i5

V

=30µV3338−dB

i4

=10mV 62 −−dB

V

i4

−44 −−dB

12 18 22 dB

SFE10.7MS3A20K-A
detector CDA10.7MG40-A

∆f = 22.5 kHz − 0.3 0.8 %
∆f = 75 kHz − 1.5 3 %

indicator current Vi4=0V; V22=0V −90 −60 −30 µA

V

= 100 mV; V22=0V −330 −285 −240 µA

i4

muting current V14= 1.4 V; Vi2= 0 mV 3 4.5 6 µA

V

= 1.4 V; Vi2= 100 mV 8 12 17 µA

14

2000 Feb 02 16

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

STEREO DECODER CHARACTERISTICS

V

i3(L + R)

maximum channel separation; soft mute off (S4 in position A); unless otherwise specified.

R
R
V
V
V
∆f/f capture range V
V
(S+N)/N signal plus noise-to-noise ratio V

THD total harmonic distortion − 0.5 1.0 %

α
α

I

26

α
α
α stereo-blend V

mute(s) soft mute depth V

= 155 mV; V

= 15.5 mV; f = 1 kHz; apply unmodulated RF-signal of 100 mV to front-end to set radio to

pilot

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

o

i
15/16
pilot(s)
pilot(m)

AF-L/Vi3

cs
cub

19
38

output resistance (pins 15 and 16) − 4.3 − kΩ
input resistance (pin 12) − 180 − kΩ
AF output voltage − 160 − mV
switch to stereo − 812mV
switch to mono 2 5 − mV

=15mV 348%

pilot

MPX voltage gain −1.5 − +1.5 dB

= 15.5 mV (stereo) − 74 − dB

pilot

V

= 0 mV (mono) − 80 − dB

pilot

channel separation 26 30 − dB
channel unbalance − 01dB
stereo indicator current V26=V

V
V

; clock = LOW

CC1

= 15.5 mV 600 800 −µA

pilot

=0mV − 15 30 µA

pilot

carrier and harmonic suppression 19 kHz (200 mV) = 0 dB 27 32 − dB

38 kHz 16 21 − dB

= 200 µV2230−dB

i5

=20µV − 12dB

V

i5

=3µV; V15=V

i5

V

=1µV; V15=V

i5

16
16

−10 − dB

−10 −6 − dB

2000 Feb 02 17

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

TUNING CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

FM(IF)

FM IF voltage levels α

high (auto-store/search) S0 = 1; S1 = 1 600 1500 5000 µV
medium (auto-store/search) S0 = 0; S1 = 1 100 300 550 µV
low (auto-store/search) S0 = 1; S1 = 0 40 100 200 µV
nominal (preset mode/tuning

indication)

V

FM(RF)

FM RF voltage levels α

high (auto-store/search) S0 = 1; S1 = 1 60 150 500 µV
medium (auto-store/search) S0 = 0; S1 = 1 10 30 55 µV
low (auto-store/search) S0 = 1; S1 = 0 4 10 20 µV
nominal (preset mode/tuning

indication)

V

AM

AM voltage levels α

high (auto-store/search) S0 = 1; S1 = 1 400 1000 2500 µV
medium (auto-store/search) S0 = 0; S1 = 1 50 63 80 µV
low (auto-store/search) S0 = 1; S1 = 0 32 40 50 µV
nominal (preset mode/tuning

indication)

V

AFC(off)

AFC voltage off mode α

mute(h) hard mute depth WRITE-ENABLE = HIGH − 60 − dB
mute(p) pull mute depth − 15 − dB
f

max

I

26

maximum frequency of FM prescaler − 150 − MHz
lock-in indicator current V26=V

-point at Vi4=20µV

−3dB

S0 = 0; S1 = 0 30 50 90 µV

-point at Vi5=2µV

−3dB

S0 = 0; S1 = 0 3 5 9 µV

-point at Vi5=2µV

−3dB

S0 = 0; S1 = 0 25 28 40 µV

-point at Vi5=2µV

−3dB

FM mode − 3 −µV
AM mode − 25 −µV

; clock = HIGH

CC1

tuning system locked 1200 1800 −µA
tuning system not

− 12 18 µA

locked

2000 Feb 02 18

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2000 Feb 02 19

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

handbook, full pagewidth

10

(dB)

0

−10

−20

−30

−40

−50

−60

−70

−80

−7

10

(dBµV)

(1)

(2)

(3)

−6

10

−5

10

−4

10

−3

10

−2

10

−1

10

Vi1 (V)

120100806040200−20

1

MBE853

9

8

7

6

5

4

3

2

1

0

THD

(%)

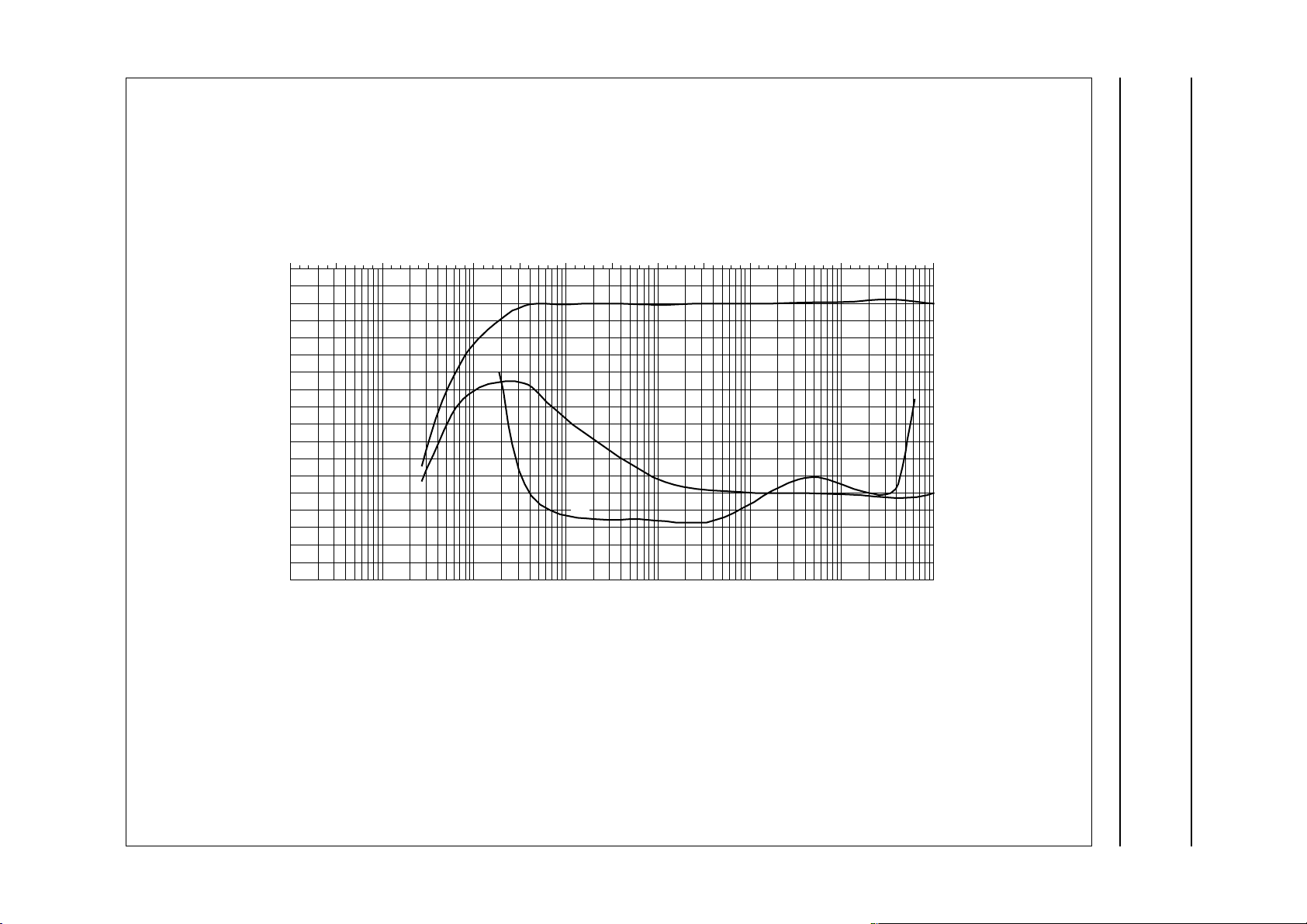

(1) Audio signal.
(2) Noise.
(3) Harmonic distortion.

Fig.7 AM mode.

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2000 Feb 02 20

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

10

handbook, full pagewidth

(dB)

0

−10

−20

−30

−40

−50

−60

−70

−80

−7

10

(dBµV)

(1)
(3)

(4)

(5)

(2)

(6)

−6

10

−5

10

−4

10

−3

10

−2

10

−1

10

Vi5 (V)

12010080604020−20 0

MHA115

9

THD

(%)

8

7

6

5

4

3

2

1

0

1

(1) Mono signal.
(2) Noise in mono mode.
(3) Left channel with modulation left.
(4) Right channel with modulation left.
(5) Noise in stereo mode.
(6) Total harmonic distortion ∆f = 75 kHz.

Fig.8 FM mode.

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

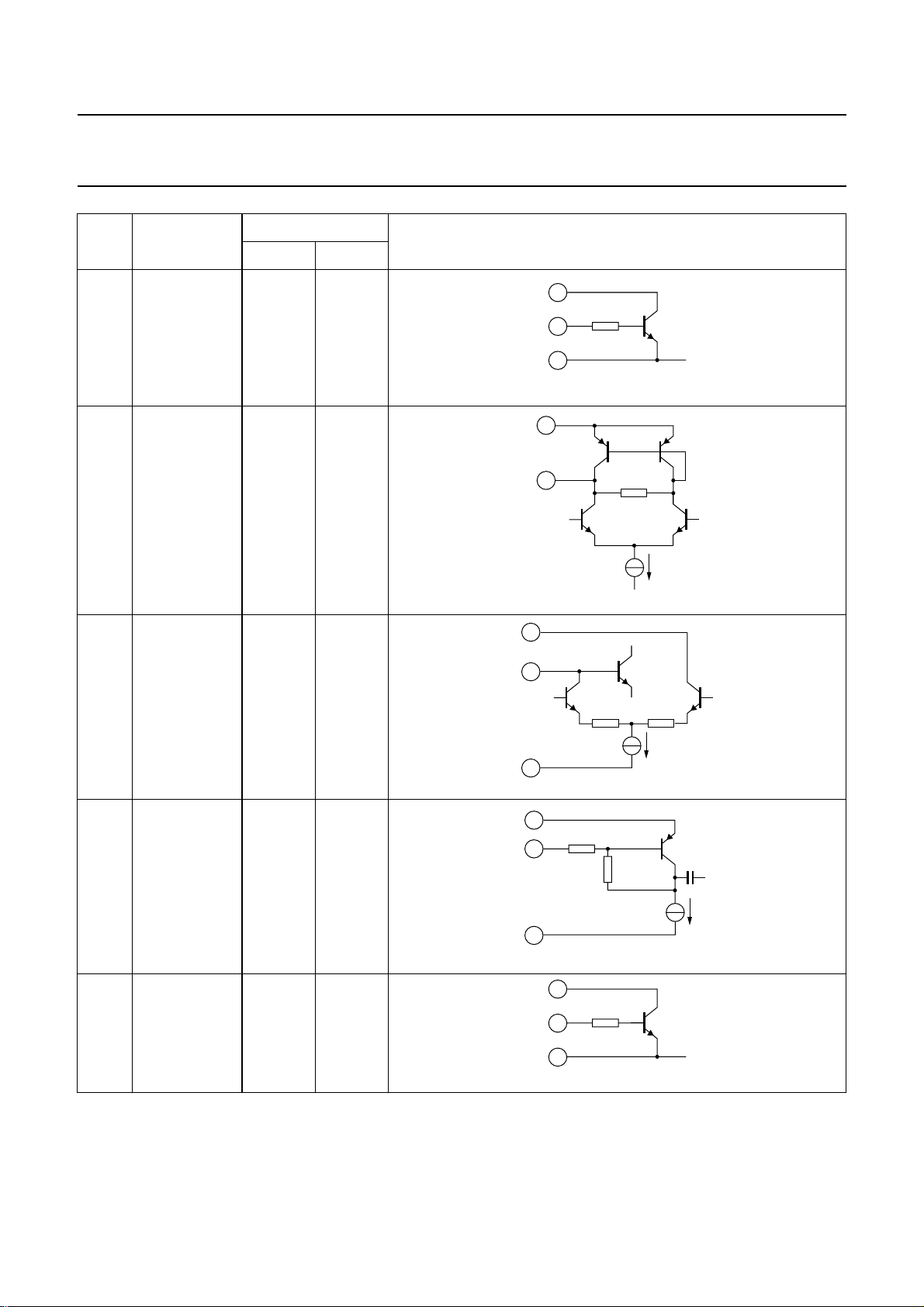

INTERNAL CIRCUITRY

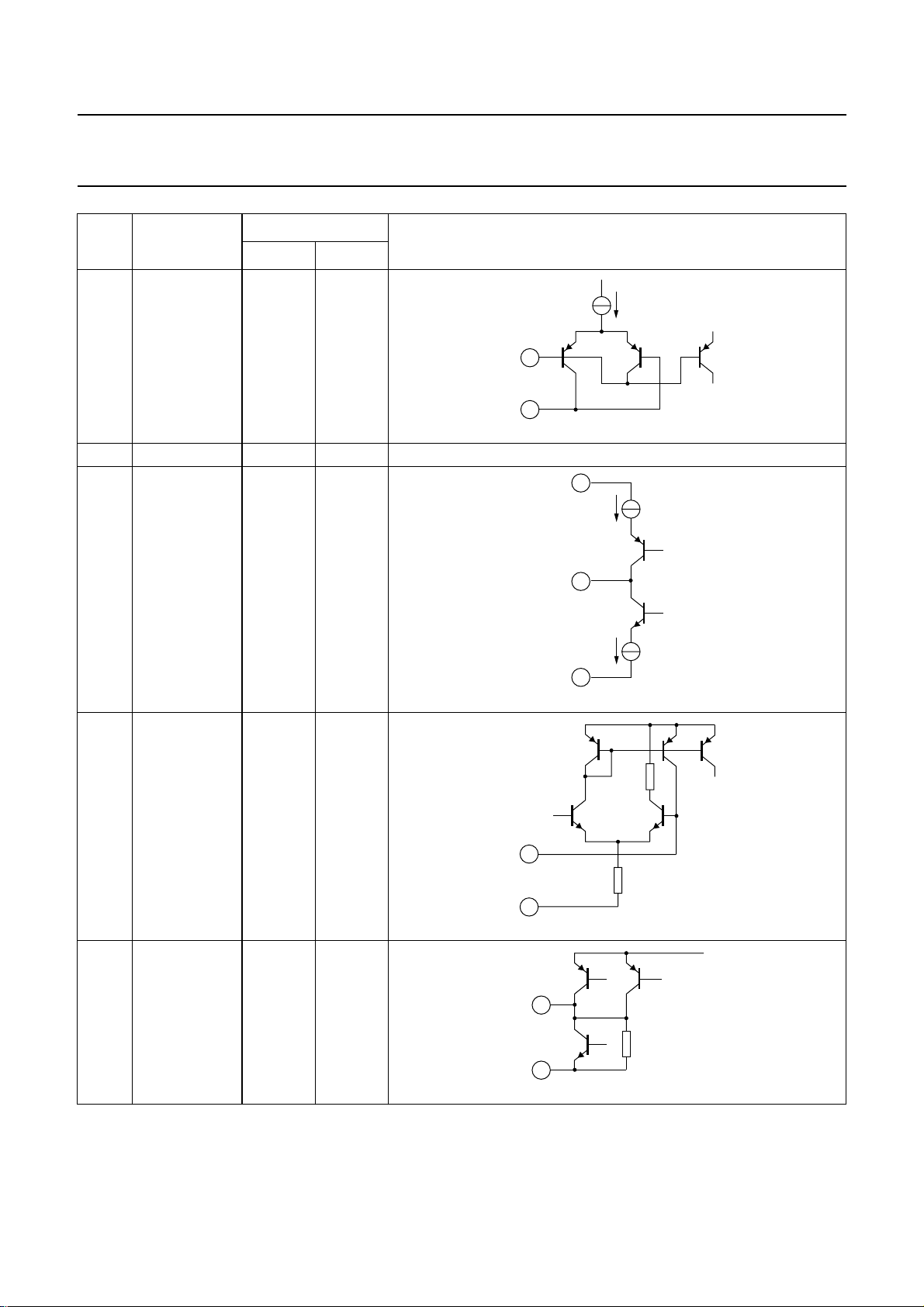

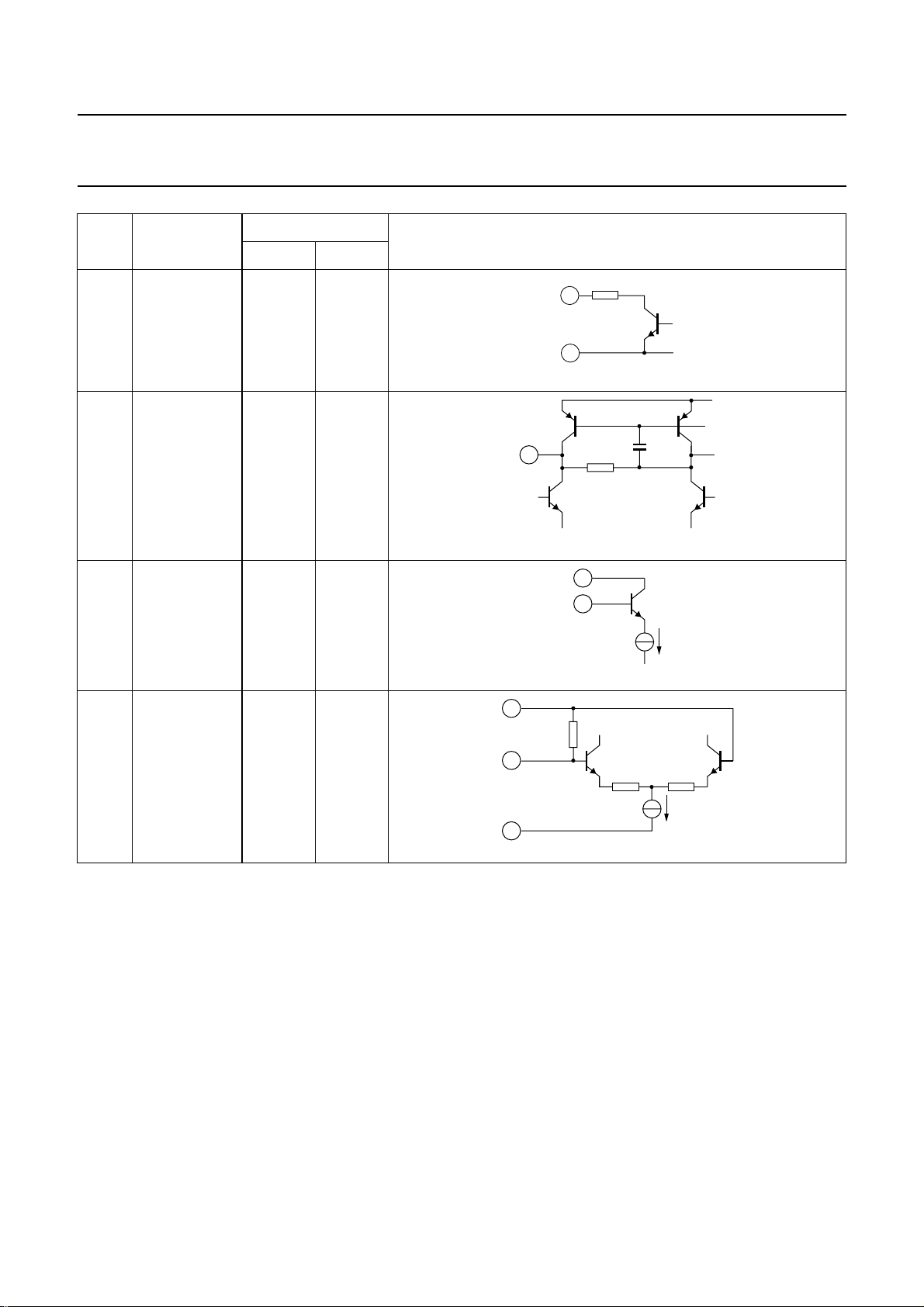

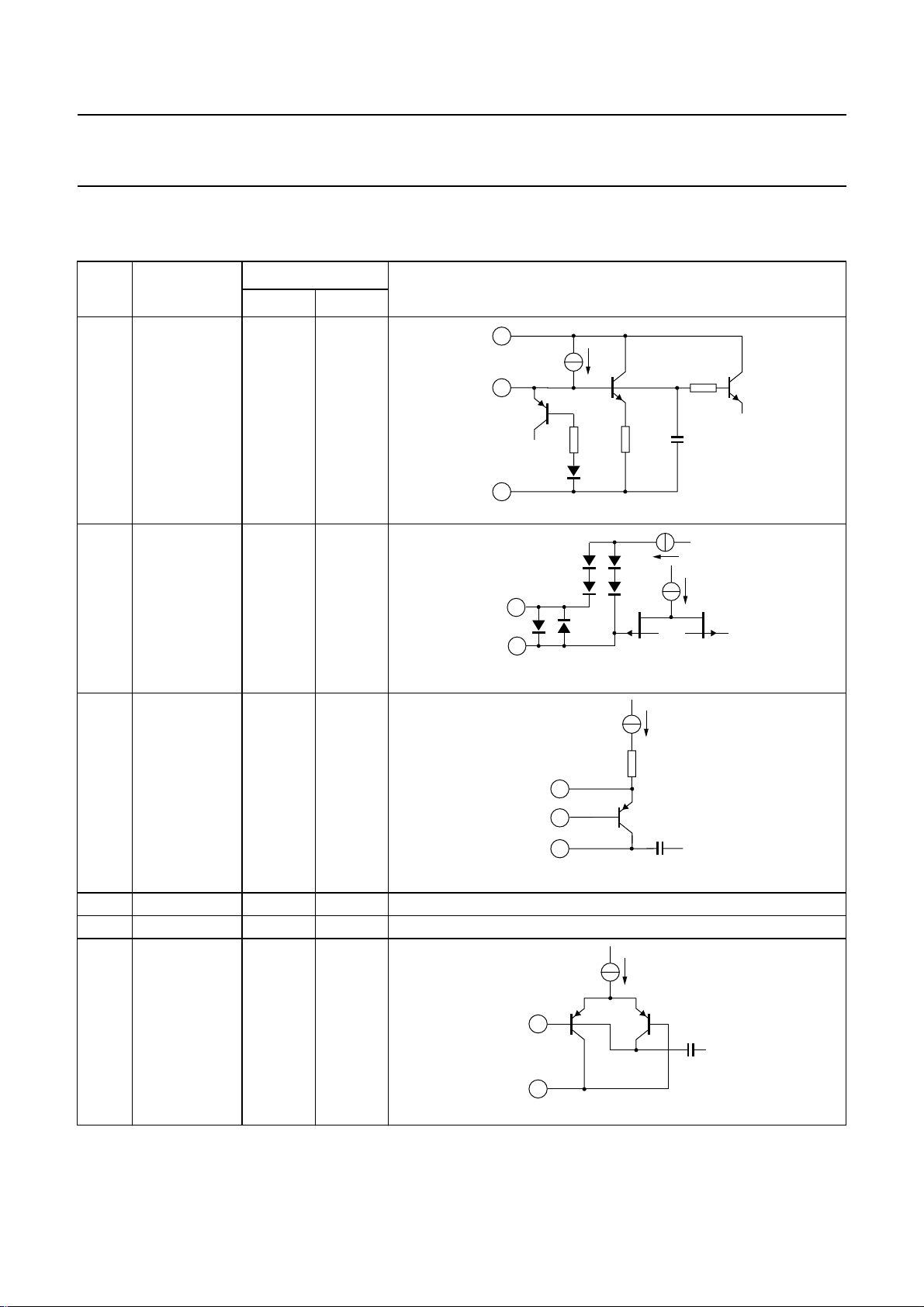

Table 9 Equivalent pin circuits and pin voltages

PIN SYMBOL

DC VOLTAGE (V)

AM FM

1 RIPPLE 2.1 2.1

2 AM-RFI 0 0

3 FM-RFO 0 0

EQUIVALENT CIRCUIT

8

1

3 kΩ

18

4

2

1 kΩ

70 pF

MHB608

MBE822

4 RFGND1 −−
5 CGND −−
6 FMOSC/

00

COUNTI

2000 Feb 02 21

220 Ω

47

46

3

MHB609

6

4

MHB610

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

7 AMOSC 0 0

8V

CC1

3.0 3.0

9 TUNE −−

EQUIVALENT CIRCUIT

7

4

23

9

28

MHB612

MHB611

10 VCO 1.3 0.95

11 AFO 0.6 0.7

1 kΩ

10

10 kΩ

18

11

18

MHB613

5 kΩ

MHB614

2000 Feb 02 22

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

12 MPXI 1.23 1.23

13 LFI 0.1 0.8

EQUIVALENT CIRCUIT

150 kΩ 150 kΩ

12

18

4 kΩ

13

18

9.5 kΩ

MHB615

13 kΩ

MHB616

14 MUTE 0.7 0.7

15 AFLO 0.65 0.65

14

18

7 kΩ 50 kΩ

15

18

MHB617

5 kΩ

MHB618

2000 Feb 02 23

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

16 AFRO 0.65 0.65

17 PILFIL 0.95 0.95

18 IFGND −−
19 FMDEM − 1.0

EQUIVALENT CIRCUIT

16

5 kΩ

18

17

10 kΩ

18

19

180 Ω

MHB619

10 kΩ

MHB620

910 Ω

20 AFC
21 AFC

(n)
(p)

−−

−−

2000 Feb 02 24

18

10 kΩ 10 kΩ

MHB621

20, 21

MHB622

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

22 FSI −−

23 V

CC2

−−

24 n.c. −−
25 V

DDD

3.0 3.0

26 MO/ST −−

EQUIVALENT CIRCUIT

1.4 V
40 kΩ

22

28

MHB623

12 to 34 kΩ
(dependent on
bits 16 and 17)

100 Ω

26

28

MHB624

27 XTAL −−

28 DGND −−
29 BUS-CLOCK −−

50 kΩ50 kΩ50 kΩ

27

28

29

28

MHB625

MHB626

2000 Feb 02 25

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

30 DATA −−
31 WRITE-

−−

ENABLE

32 P0 −−
33 P1 −−

34 AFC −−

EQUIVALENT CIRCUIT

100 Ω

30

50 kΩ

31
28

25

120 Ω

32, 33

20 kΩ

28

37

20 kΩ

34

100 kΩ

MHB627

100 kΩ

MHB628

35 n.c. −−
36 FM-IF12 − 0.73

2000 Feb 02 26

MHB629

37

140 Ω

36

2.2 kΩ

18

6 pF

MHB630

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

37 V

STAB(B)

1.4 1.4

38 FM-IFO1 − 0.69

39 AM-IFI/O2 1.4 1.4

EQUIVALENT CIRCUIT

8

1 kΩ

1

37

32

38

MHB632

37

39

MHB631

560 Ω

40 FM-IFI1 − 0.73

41 V

STAB(A)

1.4 1.4

3.6 kΩ 3.6 kΩ

1.9 kΩ

MHB633

6 pF

MHB634

MHB635

18

41

140 Ω

40

18

8

1 kΩ

1

41

2000 Feb 02 27

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

42 FM-ON/OFF −−

43 FM-MIXER − 1.0

44 AM-MIXER 1.4 1.4

EQUIVALENT CIRCUIT

500 Ω

42

28

43

680 Ω

44
41

MHB638

MHB636

30 pF

MHB637

45 AM-IF1I 1.4 1.4

41

3 kΩ

45

18

7.5 kΩ

7.5 kΩ

MHB639

2000 Feb 02 28

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PIN SYMBOL

DC VOLTAGE (V)

AM FM

46 RFGND2 −−
47 FM-RFI − 0.73

48 AGC 0.1 0.7

EQUIVALENT CIRCUIT

220 Ω

47

46

3

MHB609

1 kΩ

48

18

1 kΩ

1 kΩ

MHB640

2000 Feb 02 29

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2000 Feb 02 30

TEST AND APPLICATION INFORMATION

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

TUNE

DATA

BUS-CLOCK

WRITE-ENABLE

V

STAB(A)

V

STAB(B)

V

CC1

DGND

TUNE

18 kΩ

P1
P0

100

nF

47 kΩ

BB804

22 nF

L6

(6)

10 Ω

220
nF

BB112

(8)

10
pF

4.7 nF

22 pF

100

µF

75 kHz

(12)

18

L1

pF

(1)

TUNE

L8

47
46

30
29
31

41
37
8
25
1

42

27

(13)

28

33
32

2

BB804

18 kΩ

FM

FRONT-END

STABILIZER

PRESCALER

MULTIPLEXER

CRYSTAL

OSCILLATOR

AM

FRONT-END

10
pF

OSCILLATOR

TUNER

SWITCH

OSCILLATOR

(7)

L7

FM

SHIFT REGISTER

PROGRAMMABLE

AM

7

(2)

L2

18 pF

18 pF

470 pF

K1

MIXER

LAST-STATION

MEMORY

COUNTER

WINDOW

DETECTOR

MIXER

(12)

BB112

47 kΩ

V

STAB(A)

FM

AM

44 45

(3)

V

STAB(A)

(9)

FM

AM

L3

V

STAB(B)

K2

FM
IF1

STATUS

REGISTER

SEQUENTIAL

CIRCUIT

AM

IF

39

(4)

L4

V

STAB(B)

AGC

(10)

up
down
level

48

10 µF

FM
IF2

AM/FM

INDICATOR

IN-LOCK

DETECTOR

CHARGE

PUMP

hard mute

DETECTOR

AFC

AM

(11)

K3

FM

DETECTOR

10 nF

470 nF

TUNE

191843 40 363836

923

V

100 nF

22

11

CC2

19 kHz

38 kHz

stereo

SDS

level

TEA5757HL;

TEA5759HL

CONVERTER

220 nF

330 pF

PILOT

DETECTOR

PLL

DECODER

stereo

MATRIX

mono

MUTE

V/I

12

V

CC1

2.2 µF

17
26

13
10

12 nF

15
16

12 nF

14

20
21
34

4

MHB642

68 kΩ

(14)

(14)

470 nF

2.2 kΩ

L5

100 nF

100 nF

4.7 µF

(5)

10 kΩ

470 nF

470 nF

50 kΩ

V

MO/ST

AFLO
AFRO

STAB(B)

See Table 10 for figure notes.

TUNE

Fig.9 Application diagram.

handbook, full pagewidth

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2000 Feb 02 31

FM front-end
Mitsumi FE415-G11

OSC-OUT

V

CC1

DGND

TUNE

IF-OUT

VTUNE

P1
P0

V

GND
AGC

n.c.

ANT

V

MEMORY

COUNTER

WINDOW

BB112

Ω

47 k

K1

FM

MIXER

AM

MIXER

(12)

STAB(A)

AM

44 45

(3)

L3

V

STAB(A)

(9)

FM

CC

220 kΩ

470

50 kΩ

pF

DATA

BUS-CLOCK

WRITE-ENABLE

22 nF

V
V

BB112

STAB(A)
STAB(B)

10 Ω

220
nF

(12)

L1

(1)

100

75 kHz

18 pF

µF

(13)

100

68 kΩ

nF

10 kΩ

47 kΩ

120 Ω

47
46

30
29
31

41

37
8
25
1

42

51

27

28

33
32

2

150 Ω

FM

FRONT-END

STABILIZER

PRESCALER

MULTIPLEXER

CRYSTAL

OSCILLATOR

AM

FRONT-END

200 Ω

OSCILLATOR

TUNER

SWITCH

OSCILLATOR

FM

SHIFT REGISTER

LAST-STATION

PROGRAMMABLE

DETECTOR

AM

7

(2)

L2

18 pF

18 pF

470 pF

150 Ω

V

STAB(B)

K2

FM
IF1

STATUS

REGISTER

SEQUENTIAL

CIRCUIT

AM

IF

39

(4)

L4

V

STAB(B)

AGC

(10)

up
down
level

48

10 µF

FM
IF2

AM/FM

INDICATOR

IN-LOCK

DETECTOR

CHARGE

hard mute

DETECTOR

PUMP

AFC

AM

(11)

K3

FM

DETECTOR

10 nF

470 nF

TUNE

191843 40 363836

923

V

100 nF

22

TEA5757HL;

11

CC2

19 kHz

38 kHz

stereo

SDS

level

TEA5759HL

CONVERTER

220 nF

330 pF

PILOT

DETECTOR

PLL

DECODER

stereo

MATRIX

mono

MUTE

V/I

12

V

2.2 µF

17
26

13

2.2 kΩ

10

68 kΩ

12 nF

(14)

15
16

(14)

12 nF

14

4.7 µF

470 nF

20
21
34

L5

4

MHB643

CC1

470 nF

470 nF

100 nF

100 nF

(5)

10 kΩ

50 kΩ

V

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

MO/ST

AFLO
AFRO

STAB(B)

See Table 10 for figure notes.

TUNE

Fig.10 Application diagram with external FM front-end.

handbook, full pagewidth

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

2000 Feb 02 32

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

TUNE

BB804

18 kΩ

100 MHz

DATA

BUS-CLOCK

WRITE-ENABLE

V

STAB(A)

V

STAB(B)

V

CC1

FM-ON/OFF

DGND

10

pF

V

50 Ω

i5

560 Ω

100

nF

P1
P0

V

50 Ω

i1

1 MHz

See Table 10 for figure notes.

BB804

TUNE

(7)

L8

43 Ω

6.8 Ω

27 Ω

91 Ω

10 Ω

220
nF

75 kHz

(1)

L1

680 pF

18 kΩ

1 nF

100

µF

47
46

30
29
31

41
37
8
25
1

42

27

(11)

28

33
32

2

10
pF

FM

FRONT-END

STABILIZER

PRESCALER

MULTIPLEXER

CRYSTAL

OSCILLATOR

AM

FRONT-END

(6)

L7

TUNER

SWITCH

50 Ω

10.7
MHz

V

STAB(A)

FM

OSCILLATOR

AM

OSCILLATOR

7

(2)

L2

18 pF

18 pF

470 pF

V

330 Ω

i4

50 Ω

1 nF

B
A

K1

(8)

FM

MIXER

SHIFT REGISTER

LAST-STATION

MEMORY

PROGRAMMABLE

COUNTER

WINDOW

DETECTOR

AM

MIXER

44 45

(3)

(12)

BB112

Ω

47 k

TUNE

V

STAB(A)

S5

S1

AM

A

L3

SEQUENTIAL

FM

B

3 k

K2

FM
IF1

STATUS

REGISTER

CIRCUIT

AM

IF

39

220 nF

Ω

50

V

i2

450 kHz

V

STAB(B)

(4)

Ω

AGC

(9)

up
down
level

48

10 µF

L4

V

STAB(B)

FM
IF2

AM/FM

INDICATOR

IN-LOCK

DETECTOR

CHARGE

PUMP

hard mute

DETECTOR

AFC

AM

(10)

K3

FM

DETECTOR

10 nF

470 nF

TUNE

191843 40 363836

923

V

100 nF

22

TEA5757HL;

TEA5759HL

11

S2

CC2

B

A

level

10 nF

A

B

5 k

S3

PILOT

DETECTOR

19 kHz

PLL

38 kHz

DECODER

MATRIX

stereo

SDS

V/I

CONVERTER

220 nF

V

Ω

i3

50

stereo

mono

MUTE

12

330 pF

Ω

V

CC1

2.2 µF

17
26

13
10

12 nF

15
16

12 nF

14

20
21
34

4

Ω

50

MPX

68 kΩ

(13)

(13)

B

2.2 kΩ

8.2 kΩ

L5

MHB644

100 nF

100 nF

S4
A

470 nF

(5)

10 kΩ

470 nF

470 nF

4.7 µF

50 kΩ

V

MO/ST

AFLO
AFRO

STAB(B)

Fig.11 Test circuit.

handbook, full pagewidth

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

Table 10 Test and application components

FIGURE NOTE DESCRIPTION

Application diagrams; see Figs 9 and 10

1 L1 = 250 µH ferroceptor
2 L2 = 7P 7DRS-11459N, 110 µH at 796 kHz, Q = 80, TOKO
3 L3 = 7PA7MCS-11844N, C = 180 pF, Q = 90, TOKO
4 L4 = 7PA7MCS-11845Y, C = 180 pF, Q = 90, TOKO
5 L5 = 7PA7MCS-11845Y, C = 180 pF, Q = 90, TOKO
6 L6 = 60 nH
7 L7 = MC117E523FN-2000242, 38 pF ±3%, TOKO
8 L8 = MC117E523FN-2000242, 38 pF ±3%, TOKO
9 K1 = SFE10.7MS3, MURATA
10 K2 = SFE10.7MS3, MURATA
11 K3 = CDA10.7-MC40-A, MURATA
12 alternatively BB512, Siemens or KV1561A, TOKO
13 standard application: ±30 ppm at T

short wave application: ±20 ppm at T

14 de-emphasis time constant is 50 µs: C

de-emphasis time constant is 75 µs: C
Test circuit; see Fig.11
1 L1 = 22281-30091

2 L2 = 7P 7DRS-11459N, 110 µH at 796 kHz, Q = 80, TOKO
3 L3 = 7PA7MCS-11844N, C = 180 pF, Q = 90, TOKO
4 L4 = 7PA7MCS-11845Y, C = 180 pF, Q = 90, TOKO
5 L5 = 7PA7MCS-11845Y, C = 180 pF, Q = 90, TOKO
6 L7 = MC117E523FN-2000242, 38 pF ±3%, TOKO
7 L8 = MC117E523FN-2000242, 38 pF ±3%, TOKO
8 K1 = SFE10.7MS3, MURATA
9 K2 = SFE10.7MS3, MURATA
10 K3 = CDA10.7-MG40-A, MURATA or CDACV10.7MG61-A, MURATA
11 standard application: ±30 ppm at T

short wave application: ±20 ppm at T
12 alternatively BB512, Siemens or KV1561A, TOKO
13 de-emphasis time constant is 50 µs: C

de-emphasis time constant is 75 µs: C

amb

amb

amb

amb

=25°C

=25°C

=12nF

deem

=18nF

deem

=25°C

=25°C

=12nF

deem

=18nF

deem

2000 Feb 02 33

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

PACKAGE OUTLINE

LQFP48: plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm

c

y

X

SOT313-2

36

37

pin 1 index

48

1

e

w M

b

p

D

H

D

DIMENSIONS (mm are the original dimensions)

mm

A

A1A2A3b

max.

0.20

1.60

0.05

1.45

1.35

0.25

cE

p

0.27

0.18

0.17

0.12

UNIT

25

Z

24

E

e

A

H

E

E

A

2

A

A

1

w M

b

p

13

12

Z

D

v M

A

detail X

B

v M

B

0 2.5 5 mm

scale

(1)

(1) (1)(1)

D

7.1

6.9

eH

H

D

7.1

6.9

0.5

9.15

8.85

E

9.15

8.85

LL

p

0.75

0.45

0.12 0.10.21.0

Z

0.95

0.55

L

L

D

(A )

3

p

Zywv θ

E

0.95

0.55

o

7

o

0

θ

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE
VERSION

IEC JEDEC EIAJ

REFERENCES

SOT313-2 MS-026136E05

2000 Feb 02 34

EUROPEAN

PROJECTION

ISSUE DATE

99-12-27
00-01-19

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

SOLDERING
Introduction to soldering surface mount packages

Thistext gives a verybriefinsightto a complextechnology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages.Wave soldering isnot always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
tothe printed-circuit boardbyscreen printing, stencillingor
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating,soldering andcooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• Forpackageswith leads on foursides,thefootprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement andbefore soldering,the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Wave soldering

Conventional single wave soldering is not recommended
forsurfacemount devices (SMDs) orprinted-circuitboards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

2000 Feb 02 35

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

Suitability of surface mount IC packages for wave and reflow soldering methods

PACKAGE

WAVE REFLOW

(1)

BGA, SQFP not suitable suitable

SOLDERING METHOD

HLQFP, HSQFP, HSOP, HTSSOP, SMS not suitable

(3)

PLCC

, SO, SOJ suitable suitable
LQFP, QFP, TQFP not recommended
SSOP, TSSOP, VSO not recommended

(2)

(3)(4)
(5)

suitable

suitable
suitable

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP andTSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

2000 Feb 02 36

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

NOTES

2000 Feb 02 37

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

NOTES

2000 Feb 02 38

Philips Semiconductors Product specification

Self Tuned Radio (STR) TEA5757HL; TEA5759HL

NOTES

2000 Feb 02 39

Philips Semiconductors – a w orldwide compan y

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PTPhilips Development Corporation,SemiconductorsDivision,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

2000

Internet: http://www.semiconductors.philips.com

69

Printed in The Netherlands 753503/01/pp40 Date of release: 2000 Feb 02 Document order number: 9397 750 06617
