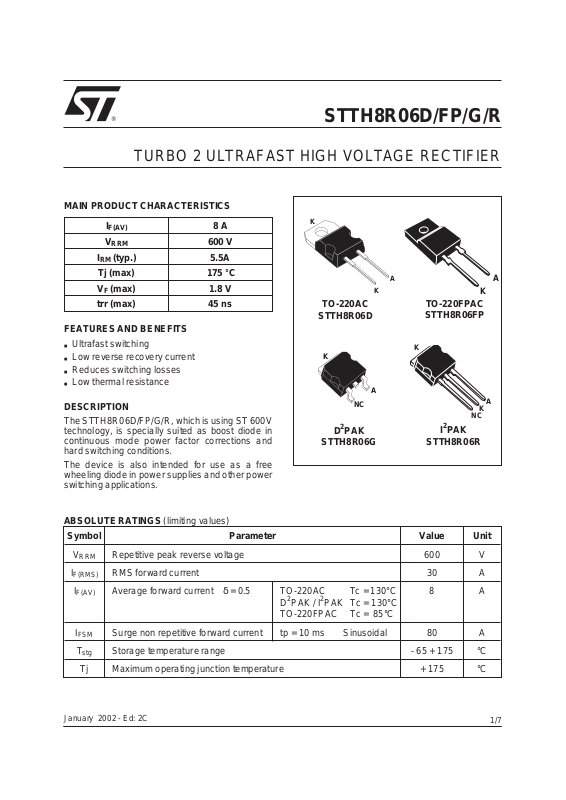

Datasheet STTH8R06R, STTH8R06FP, STTH8R06G, STTH8R06D Datasheet (SGS Thomson Microelectronics)

®

TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

MAIN PRODUCT CHARACTERISTICS

I

F(AV)

V

RRM

(typ.) 5.5A

I

RM

Tj (max) 175 °C

(max) 1.8 V

V

F

trr (max) 45 ns

FEATURES AND BENEFITS

Ultrafast switching

■

■ Low reverserecovery current

■ Reduces switchinglosses

Low thermal resistance

■

DESCRIPTION

The STTH8R06D/FP/G/R,whichisusingST600V
technology, is specially suited as boost diode in
continuous mode power factor corrections and
hard switching conditions.

The device is also intended for use as a free
wheeling diode in powersuppliesand other power
switching applications.

8A

600 V

STTH8R06D/FP/G/R

K

A

K

TO-220AC

STTH8R06D

K

A

NC

D2PAK

STTH8R06G

TO-220FPAC

STTH8R06FP

K

2

PAK

I

STTH8R06R

NC

A

K

A

K

ABSOLUTE RATINGS (limiting values)

Symbol Parameter Value Unit

V

RRM

I

F(RMS)

I

F(AV)

Repetitive peak reverse voltage 600 V
RMS forward current 30 A
Average forward current δ = 0.5 TO-220AC Tc = 130°C

8A
D2PAK/I2PAK Tc = 130°C
TO-220FPAC Tc = 85°C

I

FSM

T

stg

Surge non repetitive forwardcurrent tp = 10 ms Sinusoidal 80 A
Storage temperature range - 65 + 175 °C

Tj Maximum operating junction temperature + 175 °C

January 2002 - Ed: 2C

1/7

STTH8R06D/FP/G/R

THERMAL RESISTANCES

Symbol Parameter Value Unit

R

th (j-c)

Junction to case TO-220AC / D2PAK/I2PAK

TO-220FPAC

2.2

4.6

°C/W

STATIC ELECTRICAL CHARACTERISTICS

Symbol Parameter Tests conditions Min. Typ. Max. Unit

I

R

V

Reverse leakage
current

Forward voltage drop IF= 8 A Tj = 25°C 2.9 V

F

VR= 600V Tj = 25°C 30 µA

Tj = 125°C 35 400

Tj = 125°C 1.4 1.8

To evaluate the maximumconduction losses use thefollowing equation :
P=1.16xI

F(AV)

+ 0.08 I

F2(RMS)

DYNAMIC ELECTRICAL CHARACTERISTICS

Symbol Tests conditions Min. Typ. Max. Unit

trr I

= 0.5 A Irr= 0.25 A IR= 1A Tj = 25°C 25 ns

F

I

=1A dIF/dt=-50A/µsVR= 30V 45

F

I

RM

VR= 400 V IF=8A dIF/dt = - 200A/µs Tj = 125°C 5.5 7.2 A

S factor 0.3

Qrr 150 nC

tfr I

V

FP

=8A dIF/dt=64A/µs

F

VFR=1.1xVFmax

Tj = 25°C 150 ns

5V

2/7

STTH8R06D/FP/G/R

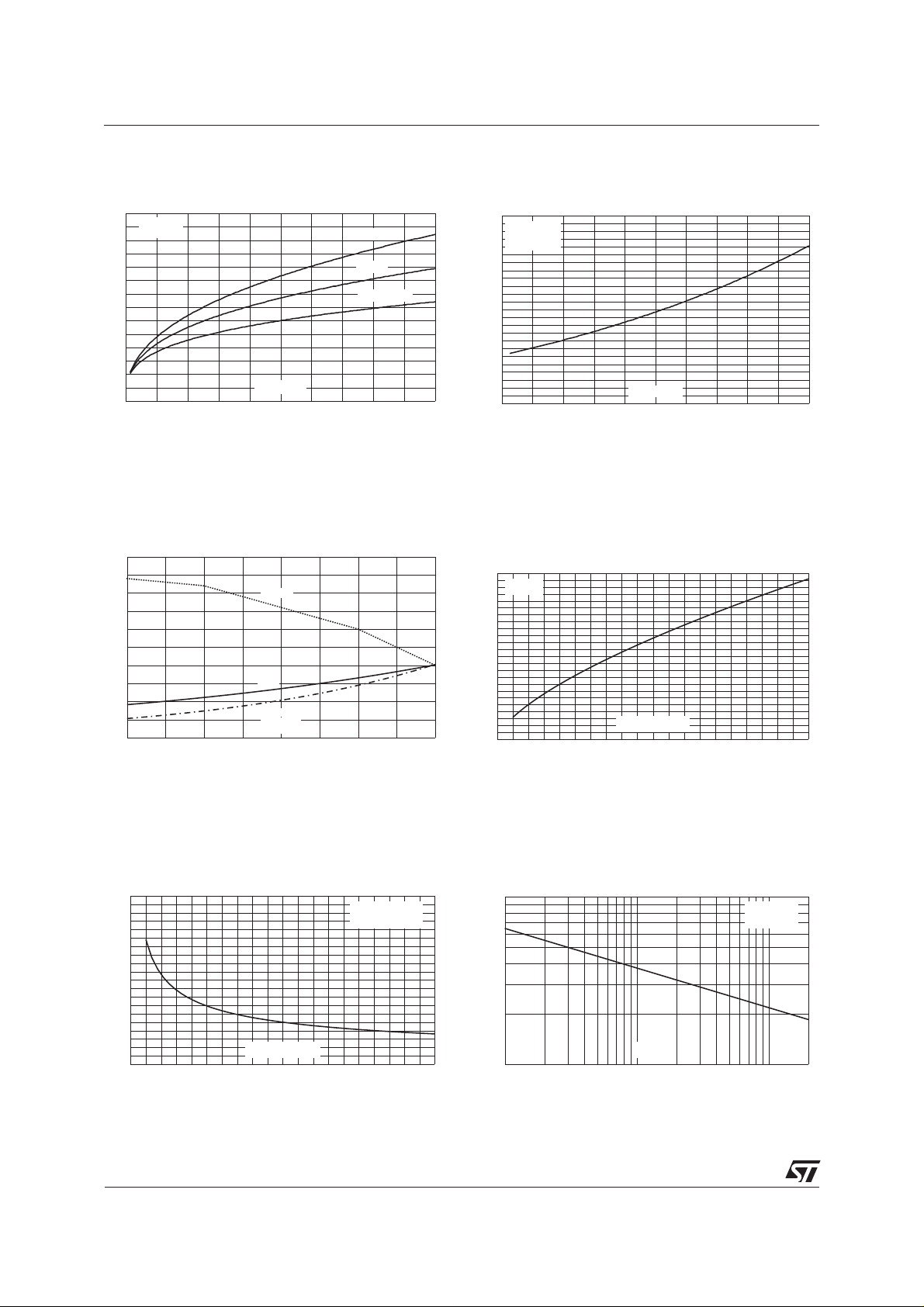

Fig.1: Conductionlossesversusaveragecurrent.

PF(av)(W)

22
20

δ = 0.05

δ = 0.1

δ = 0.2

δ = 0.5

18
16
14

δ = 1

12
10

8
6

T

4
2
0

012345678910

IF(av) (A)

δ

=tp/T

tp

Fig. 3-1: Relative variation of thermal impedance
junctiontocase versus pulse duration (TO-220AC,

2

PAK, D2PAK).

I

Zth(j-c)/Rth(j-c)

1.0

0.8

δ = 0.5

0.6

Fig. 2: Forward voltage drop versus forward
current.

IFM(A)

100

90
80

Tj=125°C

Maximum values

70
60

Tj=125°C

Typical values

50
40
30

Tj=25°C

Maximum values

20
10

0

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5

VFM(V)

Fig. 3-2: Relative variation of thermal impedance

junction to case versus pulse duration
(TO-220FPAC).

Zth(j-c)/Rth(j-c)

1.0

0.8

δ = 0.5

0.6

δ = 0.2

0.4

δ = 0.1

0.2

Single pulse

0.0
1E-3 1E-2 1E-1 1E+0

tp(s)

δ

=tp/T

T

tp

Fig. 4: Peak reverse recovery current versus

/dt (90% confidence).

dI

F

IRM(A)

22

VR=400V

20

Tj=125°C

18
16
14
12
10

8
6
4
2
0

0 200 400 600 800 1000

IF=0.25 x IF(av)

IF=IF(av)

IF=0.5 x IF(av)

dIF/dt(A/µs)

IF=2 x IF(av)

0.4

δ = 0.2

δ = 0.1

0.2

Single pulse

0.0
1E-3 1E-2 1E-1 1E+0 1E+1

tp(s)

δ

=tp/T

T

tp

Fig. 5: Reverse recovery time versus dIF/dt
(90% confidence).

trr(ns)

120
110
100

90
80
70
60
50
40
30
20
10

0

0 200 400 600 800 1000

IF=IF(av)

IF=0.5 x IF(av)

dIF/dt(A/µs)

VR=400V
Tj=125°C

IF=2 x IF(av)

3/7

STTH8R06D/FP/G/R

Fig. 6: Reverse recovery charges versus dIF/dt

(90% confidence).

Qrr(nC)

350

VR=400V
Tj=125°C

300

250

200

150

100

50

0

0 200 400 600 800 1000

dIF/dt(A/µs)

IF=2 x IF(av)

IF=IF(av)

IF=0.5 x IF(av)

Fig. 8: Relative variation of dynamic
parameters versus junction temperature
(Reference: Tj=125°C).

2.5

2.0

1.5

1.0

0.5

0.0
25 50 75 100 125

S factor

IRM

QRR

Tj(°C)

Fig. 7: Softness factor (tb/ta) versus dIF/dt

(typical values).

S factor

0.70

IF< 2 x IF(av)

0.65

VR=400V
Tj=125°C

0.60

0.55

0.50

0.45

0.40

0.35

0.30

0.25

0.20

0.15

0.10
0 200 400 600 800 1000

dIF/dt(A/µs)

Fig. 9: Transient peak forward voltage versus

/dt (90% confidence).

dI

F

VFP(V)

12

IF=IF(av)

11

Tj=125°C

10

9
8
7
6
5
4
3
2
1
0

0 50 100 150 200 250 300 350 400 450 500

dIF/dt(A/µs)

Fig. 10: Forward recovery time versus dIF/dt

(90% confidence).

tfr(ns)

200
180
160
140
120
100

80
60
40
20

0

0 50 100 150 200 250 300 350 400 450 500

dIF/dt(A/µs)

4/7

VFR=1.1 x VF max.

IF=IF(av)

Tj=125°C

Fig. 11: Junction capacitance versus reverse
voltage applied (typical values).

C(pF)

100

50

20

VR(V)

10

1 10 100 200

F=1MHz

Vosc=30mV

Tj=25°C

PACKAGE MECHANICAL DATA

TO-220FPAC

H

Dia

L6

L2

L3

L5

D

L4

G1

G

F1

F

STTH8R06D/FP/G/R

DIMENSIONS

REF.

A

B

A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.70 0.018 0.027
F 0.75 1 0.030 0.039

L7

F1 1.15 1.70 0.045 0.067

G 4.95 5.20 0.195 0.205

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409
L2 16 Typ. 0.63 Typ.
L3 28.6 30.6 1.126 1.205
L4 9.8 10.6 0.386 0.417
L5 2.9 3.6 0.114 0.142

E

L6 15.9 16.4 0.626 0.646
L7 9.00 9.30 0.354 0.366

Dia. 3.00 3.20 0.118 0.126

Millimeters Inches

Min. Max. Min. Max.

PACKAGE MECHANICAL DATA

TO-220AC

H2

L5

Ø I

L6

L2

L9

F1

L4

F

G

DIMENSIONS

REF.

Millimeters Inches

Min. Max. Min. Max.

A

C

L7

A 4.40 4.60 0.173 0.181

C 1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107

E 0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

D

H2 10.00 10.40 0.393 0.409
L2 16.40 typ. 0.645 typ.
L4 13.00 14.00 0.511 0.551

M

E

L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620
L7 6.20 6.60 0.244 0.259
L9 3.50 3.93 0.137 0.154

M 2.6 typ. 0.102 typ.

Diam. I 3.75 3.85 0.147 0.151

5/7

STTH8R06D/FP/G/R

PACKAGE MECHANICAL DATA

2

PAK

D

E

L2

L

L3

A1

B2

B

G

* FLAT ZONE NO LESSTHAN 2mm

C2

DIMENSIONS

REF.

A

Millimeters Inches

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

A1 2.49 2.69 0.098 0.106
A2 0.03 0.23 0.001 0.009

D

B 0.70 0.93 0.027 0.037

B2 1.14 1.70 0.045 0.067

C 0.45 0.60 0.017 0.024

C2 1.23 1.36 0.048 0.054

C

R

D 8.95 9.35 0.352 0.368

E 10.00 10.40 0.393 0.409

G 4.88 5.28 0.192 0.208

A2

L 15.00 15.85 0.590 0.624

L2 1.27 1.40 0.050 0.055

M

*

V2

L3 1.40 1.75 0.055 0.069

M 2.40 3.20 0.094 0.126

R 0.40 typ. 0.016 typ.

V2 0° 8° 0° 8°

FOOTPRINT (in millimeters)

16.90

10.30

8.90

6/7

5.08

1.30

3.70

STTH8R06D/FP/G/R

PACKAGE MECHANICAL DATA

2

PAK

I

E

L2

L1

L

e

b2
b1

b

c2

D

A1

DIMENSIONS

REF.

Millimeters Inches

Min. Max. Min. Max.

A

A 4.40 4.60 0.173 0.181

A1 2.49 2.69 0.098 0.106

b 0.70 0.93 0.028 0.037
b1 1.14 1.17 0.044 0.046
b2 1.14 1.17 0.044 0.046

c 0.45 0.60 0.018 0.024
c2 1.23 1.36 0.048 0.054

D 8.95 9.35 0.352 0.368

e 2.40 2.70 0.094 0.106

E 10.0 10.4 0.394 0.409

L 13.1 13.6 0.516 0.535

c

L1 3.48 3.78 0.137 0.149
L2 1.27 1.40 0.050 0.055

Ordering code Marking Package Weight Base qty Delivery mode

STTH8R06D STTH8R06D TO-220AC 1.9 g 50 Tube

STTH8R06FP STTH8R06FP TO-220FPAC 1.7 g 50 Tube

STTH8R06G STTH8R06G D
STTH8R06R STTH8R06R I

■

Cooling method: by conduction(C)

■

Recommended torque value (TO-220AC):0.55 Nm

■

Maximum torque value (TO-220AC/ TO-220FPAC): 0.7 Nm

■

Epoxy meets UL 94,V0

Informationfurnished is believed tobeaccurate and reliable. However,STMicroelectronicsassumes no responsibility fortheconsequences of
useof such information norfor any infringement ofpatents or other rightsofthird parties which mayresult from its use.No license is grantedby
implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to
change without notice. This publication supersedes and replaces all information previously supplied.
STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written ap­proval of STMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

© 2002 STMicroelectronics - Printed in Italy - All rights reserved.

STMicroelectronics GROUP OF COMPANIES

Australia - Brazil - Canada - China - Finland - France - Germany

Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Singapore

Spain - Sweden - Switzerland - United Kingdom - United States.

2

PAK 1.5 g 50 Tube

2

PAK 1.5 g 50 Tube

http://www.st.com
