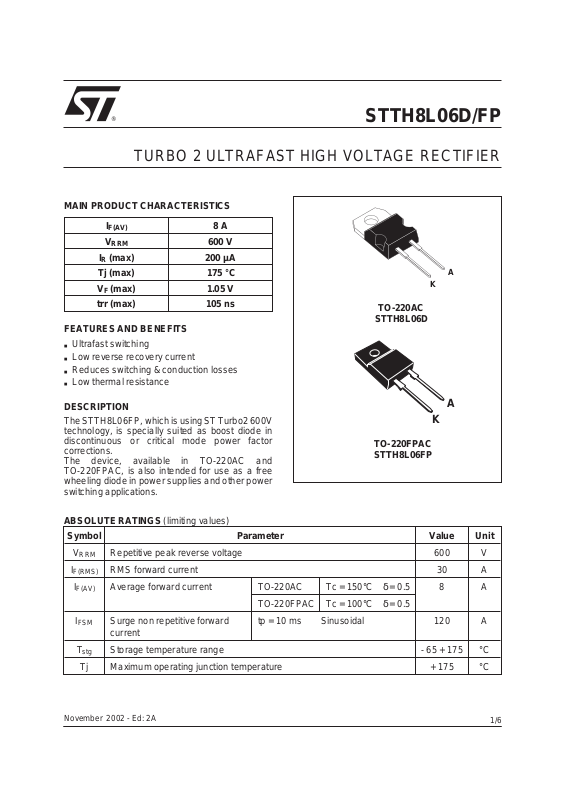

Page 1
®
TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
MAIN PRODUCT CHARACTERISTICS
STTH8L06D/FP
I
F(AV)
V
RRM
(max) 200 µA
I
R
8A
600 V
Tj (max) 175 °C
(max) 1.05 V
V
F
trr (max) 105 ns
FEATURES AND BENEFITS
Ultrafast switching
■
■ Low reverse recovery current
■ Reduces switching & conductionlosses
Low thermal resistance
■
DESCRIPTION
TheSTTH8L06FP,whichisusing ST Turbo2600V
technology, is specially suited as boost diode in
discontinuous or critical mode power factor
corrections.
The device, available in TO-220AC and
TO-220FPAC, is also intended for use as a free
wheeling diode in powersupplies and otherpower
switching applications.
A
K
TO-220AC
STTH8L06D
A
K
TO-220FPAC
STTH8L06FP
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
V
RRM
I
F(RMS)
I
F(AV)
Repetitive peak reverse voltage 600 V
RMS forward current 30 A
Average forward current TO-220AC Tc = 150°C δ = 0.5 8 A
TO-220FPAC Tc= 100°C δ = 0.5
I
FSM
Surge non repetitive forward
tp = 10 ms Sinusoidal 120 A
current
T
Storage temperature range - 65 + 175 °C
stg
Tj Maximum operating junction temperature + 175 °C
November 2002 - Ed: 2A
1/6
Page 2
STTH8L06D/FP
THERMAL PARAMETERS
Symbol Parameter Maximum Unit
R
th(j-c)
Junction to case TO-220AC 2.5 °C/W
TO-220FPAC 5
STATIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
I
R
Reverse leakage
current
V
Forward voltage drop IF= 8 A Tj = 25°C 1.3 V
F
VR= 600V Tj = 25°C 8 µA
Tj = 150°C 16 200
Tj = 150°C 0.85 1.05
To evaluate the maximumconduction lossesuse the following equation :
P=0.89xI
F(AV)
+ 0.022 I
F2(RMS)
DYNAMIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
trr Reverse recovery
time
=1A dIF/dt = 50 A/µs
I
F
VR= 30V
Tj = 25°C 75 105 ns
tfr Forward recovery
time
V
FP
Peak forward
voltage
I
=8A dIF/dt = 100 A/µs
F
Tj = 25°C 150 ns
VFR=1.1xVFmax
IF=8A dIF/dt = 100 A/µs Tj = 25°C 6 V
2/6
Page 3
STTH8L06D/FP
Fig.1: Conductionlosses versus average current.
P(W)
11
10
9
8
7
6
5
4
3
2
1
0
0246810
δ = 0.05
δ = 0.1
IF(av)(A)
δ = 0.2
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 3-1: Relative variation of thermal impedance
junctionto case versuspulse duration (TO-220AC)
Zth(j-c)/Rth(j-c)
1.0
0.9
0.8
0.7
δ = 0.5
0.6
0.5
0.4
δ = 0.2
δ = 0.1
0.3
0.2
Single pulse
0.1
0.0
1.E-03 1.E-02 1.E-01 1.E+00
tp(s)
δ
=tp/T
T
tp
Fig. 2: Forward voltage drop versus forward
current.
IFM(A)
100.0
Tj=150°C
Tj=150°C
(Maximum values)
(Maximum values)
Tj=150°C
Tj=150°C
(Typical values)
10.0
(Typical values)
Tj=25°C
(Maximum values)
1.0
VFM(V)
0.1
0.0 0.5 1.0 1.5 2.0 2.5 3.0
Fig. 3-2: Relative variation of thermal impedance
junction to case versus pulse duration
(TO-220FPAC)
Zth(j-c)/Rth(j-c)
1.0
0.9
0.8
0.7
0.6
δ = 0.5
0.5
0.4
δ = 0.2
0.3
δ = 0.1
0.2
0.1
Single pulse
0.0
1.E-03 1.E-02 1.E-01 1.E+00 1.E+01
tp(s)
δ
=tp/T
T
tp
Fig.4: Peak reverserecovery current versusdIF/dt
(90% confidence).
IRM(A)
10
VR=400V
Tj=125°C
9
8
7
6
5
4
3
2
1
0
0 102030405060708090100
IF=0.25 x IF(av)IF=0.25 x IF(av)
IF=0.5 x IF(av)IF=0.5 x IF(av)
IF=IF(av)IF=IF(av)
dIF/dt(A/µs)
IF=2 x IF(av)IF=2 x IF(av)
Fig. 5: Reverse recovery time versus dIF/dt
(90% confidence).
trr(ns)
1000
900
800
700
600
500
400
300
200
100
0
IF=IF(av)IF=IF(av)
IF=0.5 x IF(av)IF=0.5 x IF(av)
IF=2 x IF(av)IF=2 x IF(av)
dIF/dt(A/µs)
0 20 40 60 80 100 120 140 160 180 200
VR=400V
Tj=125°C
3/6
Page 4
STTH8L06D/FP
Fig. 6: Reverse recovery charges versus dIF/dt
(90% confidence).
Qrr(nC)
800
VR=400V
Tj=125°C
700
600
500
400
300
200
100
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
IF=2 x IF(av)
IF=IF(av)
IF=0.5 x IF(av)
Fig. 8: Relative variations of dynamic
parameters versus junction temperature.
1.25
1.00
0.75
0.50
0.25
0.00
25 50 75 100 125
S factor
IRM
QRR
Tj(°C)
IF = IF(av)
VR=400V
Reference: Tj=125°C
Fig. 7: Softness factor versus dIF/dt (typical
values).
S factor
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0 25 50 75 100 125 150 175 200
dIF/dt(A/µs)
IF = IF(av)
VR=400V
Tj=125°C
Fig. 9: Transient peak forward voltage versus
/dt (90% confidence).
dI
F
VFp(V)
8
IF=IF(av)
Tj=125°C
7
6
5
4
3
2
1
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
Fig. 10: Forward recovery time versus dIF/dt
(90% confidence).
tfr(ns)
300
250
200
150
100
50
dIF/dt(A/µs)
0
0 20 40 60 80 100 120 140 160 180 200
4/6
IF=IF(av)
VFR=1.1 x VF max.
Tj=125°C
Fig. 11: Junction capacitance versus reverse
voltage applied (typical values).
C(pF)
1000
100
10
VR(V)
1
1 10 100 1000
F=1MHz
Vosc=30mV
Tj=25°C
Page 5
PACKAGE MECHANICAL DATA
TO-220AC
H
Dia
L6
L2
L3
L5
D
L4
G1
G
F1
F
STTH8L06D/FP
DIMENSIONS
REF.
A
B
A 4.40 4.60 0.173 0.181
C 1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107
E 0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034
F1 1.14 1.70 0.044 0.066
L7
G 4.95 5.15 0.194 0.202
H2 10.00 10.40 0.393 0.409
L2 16.40 typ. 0.645 typ.
L4 13.00 14.00 0.511 0.551
L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620
E
L7 6.20 6.60 0.244 0.259
L9 3.50 3.93 0.137 0.154
M 2.6 typ. 0.102 typ.
Diam. I 3.75 3.85 0.147 0.151
Millimeters Inches
Min. Max. Min. Max.
5/6
Page 6
STTH8L06D/FP
PACKAGE MECHANICAL DATA
TO-220FPAC
H
Dia
L6
L2
L3
L5
D
L4
G1
G
F1
F
DIMENSIONS
REF.
Millimeters Inches
Min. Max. Min. Max.
A
B
A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.70 0.018 0.027
F 0.75 1 0.030 0.039
F1 1.15 1.70 0.045 0.067
L7
G 4.95 5.20 0.195 0.205
G1 2.4 2.7 0.094 0.106
H 10 10.4 0.393 0.409
L2 16 Typ. 0.63 Typ.
L3 28.6 30.6 1.126 1.205
L4 9.8 10.6 0.386 0.417
E
L5 2.9 3.6 0.114 0.142
L6 15.9 16.4 0.626 0.646
L7 9.00 9.30 0.354 0.366
Dia. 3.00 3.20 0.118 0.126
Ordering code Marking Package Weight Base qty Delivery mode
STTH8L06D STTH8L06D TO-220AC 1.9 g 50 Tube
STTH8L06FP STTH8L06FP TO-220FPAC 1.7 g 50 Tube
■
Epoxy meets UL 94,V0
■
Recommended torque value (TO-220AC):0.55 Nm
■
Maximum torque value (TO-220AC/ TO-220FPAC):0.7 Nm
