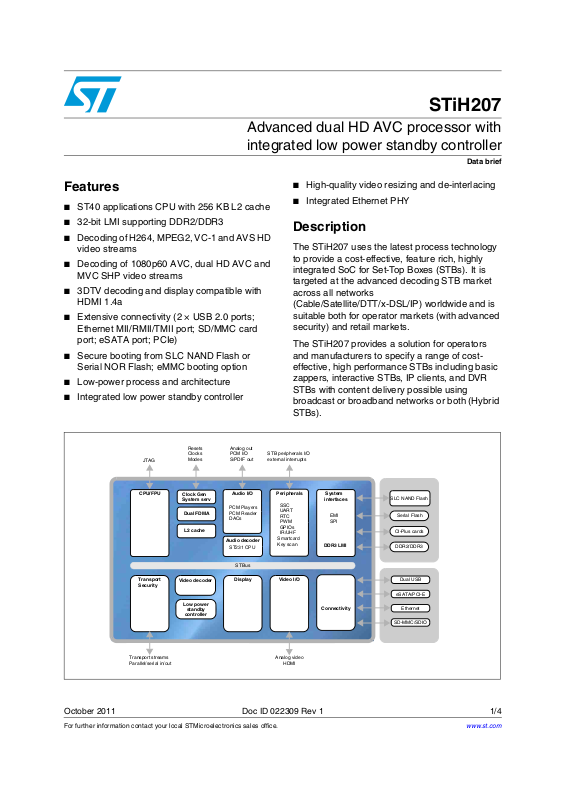

STiH207
JTAG
STB peripherals I/O
Resets Analog out
Clocks
Modes
PCM I/O
S/PDIF out external interrupts
Peripherals
Smartcard
Connectivity
Transport
Security
Analog video
Audio I/O
Display Video I/O
Transport streams
Parallel/serial in/out
Audio decoder
ST231 CPU
Video decoder
EMI
SPI
System
interfaces
CPU/FPU
STBus
PCM Players
PCM Reader
DACs
SLC NAND Flash
DDR3 LMI
eSATA/PCI-E
Ethernet
SD-MMC/SDIO
Dual USB
Key scan
Clock Gen
System serv
Dual FDMA
L2 cache
Serial Flash
CI-Plus cards
DDR2/DDR3
SSC
UART
RTC
PWM
GPIOs
IR/UHF
Low power
standby
controller
HDMI
Advanced dual HD AVC processor with
integrated low power standby controller
Data brief
Features
■ ST40 applications CPU with 256 KB L2 cache
■ 32-bit LMI supporting DDR2/DDR3
■ Decoding of H264, MPEG2, VC-1 and AVS HD
video streams
■ Decoding of 1080p60 AVC, dual HD AVC and
MVC SHP video streams
■ 3DTV decoding and display compatible with
HDMI 1.4a
■ Extensive connectivity (2 × USB 2.0 ports;
Ethernet MII/RMII/TMII port; SD/MMC card
port; eSATA port; PCIe)
■ Secure booting from SLC NAND Flash or
Serial NOR Flash; eMMC booting option
■ Low-power process and architecture
■ Integrated low power standby controller
■ High-quality video resizing and de-interlacing
■ Integrated Ethernet PHY
Description
The STiH207 uses the latest process technology
to provide a cost-effective, feature rich, highly
integrated SoC for Set-Top Boxes (STBs). It is
targeted at the advanced decoding STB market
across all networks
(Cable/Satellite/DTT/x-DSL/IP) worldwide and is
suitable both for operator markets (with advanced
security) and retail markets.
The STiH207 provides a solution for operators
and manufacturers to specify a range of costeffective, high performance STBs including basic
zappers, interactive STBs, IP clients, and DVR
STBs with content delivery possible using
broadcast or broadband networks or both (Hybrid
STBs).
October 2011 Doc ID 022309 Rev 1 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
4
Page 2
Introduction STiH207
1 Introduction
The STiH207 offers current users of ST’s growing family of advanced decoding ICs
enhancements in performance and features, enabling operators to offer consumers new
multimedia-rich services and viewing experiences, including new 3DTV features. Faster
DDR3 memory is also supported, and the applications CPU benefits from an L2 cache. The
STiH207 keeps pace with the latest advanced security requirements of the main CA
vendors, and an integrated standby controller enables the STiH207 to target stringent low
power regulations.
Features Benefits
ST40 applications CPU, with 32KI and 32KD L1
caches and 256K L2 cache.
Integrated low power standby controller within its
own power island.
Latest generation of ST's Delta video decoder
with an ST231-based multi-codec capable
controller, coupled with a High Quality Video
Display Pipeline (HQVDP).
Dual USB 2.0 hosts, eSATA, Ethernet MAC with
MII/RMII/TMII interfaces, PCI-e, SD-MMC/SDIO
interface.
Decoding of 1080p60 AVC, dual HD AVC and
MVC SHP video streams.
NOCS1.0/1.1/1.2/3.0, NSK2.0 and DVB-CSA3
ready.
1. Frequency for extended mode to be confirmed after silicon characterization.
High performance processing up to 1020 DMIPS
for applications and middleware.
Secure hibernation to, and fast resume from, very
low power passive standby mode, targeting STB
standby power < 0.5 W.
Decoding of advanced high definition standards
(MPEG2, H264, VC-1, AVS) plus the performance
and flexibility for web-based content decoding such
as Flash
impacting applications CPU performance.
Extensive high speed connectivity for the widest
range of STB peripherals, such as Flash drives,
external HDDs, Ethernet, home network controllers
(such as MoCA
memory cards.
Enables advanced high-definition viewing
experiences including full resolution per eye 3DTV,
full-HD 2D services and HD picture-in-picture
support (HD-PIP).
Fully compliant with the latest advanced security
requirements of CA vendors.
®
, DivX™, MJPEG and Real®, without
®
, Wi-Fi), DOCSIS® modem and
(1)
2/4 Doc ID 022309 Rev 1
Page 3
STiH207 Revision history
2 Revision history
Table 1. Document revision history
Date Revision Changes
24-Oct-2011 1 Initial release.
Doc ID 022309 Rev 1 3/4
