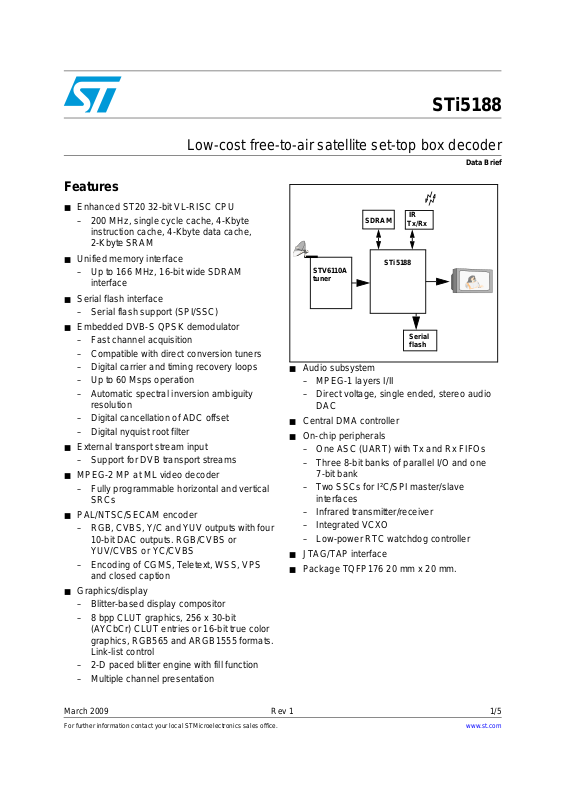

STi5188
Low-cost free-to-air satellite set-top box decoder
Data Brief
Features
■ Enhanced ST20 32-bit VL-RISC CPU
– 200 MHz, single cycle cache, 4-Kbyte
instruction cache, 4-Kbyte data cache,
2-Kbyte SRAM
■ Unified memory interface
– Up to 166 MHz, 16-bit wide SDRAM
interface
■ Serial flash interface
– Serial flash support (SPI/SSC)
■ Embedded DVB-S QPSK demodulator
– Fast channel acquisition
– Compatible with direct conversion tuners
– Digital carrier and timing recovery loops
– Up to 60 Msps operation
– Automatic spectral inversion ambiguity
resolution
– Digital cancellation of ADC offset
– Digital nyquist root filter
■ External transport stream input
– Support for DVB transport streams
■ MPEG-2 MP at ML video decoder
– Fully programmable horizontal and vertical
SRCs
■ PAL/NTSC/SECAM encoder
– RGB, CVBS, Y/C and YUV outputs with four
10-bit DAC outputs. RGB/CVBS or
YUV/CVBS or YC/CVBS
– Encoding of CGMS, Teletext, WSS, VPS
and closed caption
■ Graphics/display
– Blitter-based display compositor
– 8 bpp CLUT graphics, 256 x 30-bit
(AYCbCr) CLUT entries or 16-bit true color
graphics, RGB565 and ARGB1555 formats.
Link-list control
– 2-D paced blitter engine with fill function
– Multiple channel presentation
SDRAM
STV6110A
tuner
■ Audio subsystem
IR
Tx/Rx
STi5188
Serial
flash
– MPEG-1 layers I/II
– Direct voltage, single ended, stereo audio
DAC
■ Central DMA controller
■ On-chip peripherals
– One ASC (UART) with Tx and Rx FIFOs
– Three 8-bit banks of parallel I/O and one
7-bit bank
– Two SSCs for I²C/SPI master/slave
interfaces
– Infr ared tr ansmi tter /rec ei ver
– Integrated VCXO
– Low-power RTC watchdog controller
■ JTAG/TAP interface
■ Package TQFP176 20 mm x 20 mm.
March 2009 Rev 1 1/5
For further information contact your local STMicroelectronics sales office.
www.st.com
5
Page 2
Description STi5188
1 Description
Leader in the low-cost FTA satellite market, STMicroelectronics introduces its latest, lowcost highly integrated solution for the retail market.
Offering a direct migration path from the STi5118/STV0288 platform, The STi5188 uses the
same set of IPs, thereby facilitating the porting from previous generations. It is based on the
ST-interconnect architecture and the popular ST20 CPU running at 200 MHz, and comes
with a serial flash interface. The embedded QPSK demodulator guarantees fast satellite
scan times thanks to the blind scan algorithm and a direct connection to zero-IF tuners.
The STi5188 also includes audio DACs capable of direct connection to the TV input and the
capability to operate from the same clock as the STV6110A. These cost reductions have
been made without compromising ST quality standards and performance: 2-D graphics
engine, faster CPU and built-in flexible DMA have been integrated.
2/5
Page 3
STi5188 Ordering information
2 Ordering information
Table 1. Ordering information
Order code Packaging Description
STi5188ATB TQFP176 Version in production
STi5188HTB TQFP176 Version in production
3/5
Page 4
Revision history STi5188
3 Revision history
Table 2. Document revision history
Date Revision Changes
05-March-2008 1 First release
