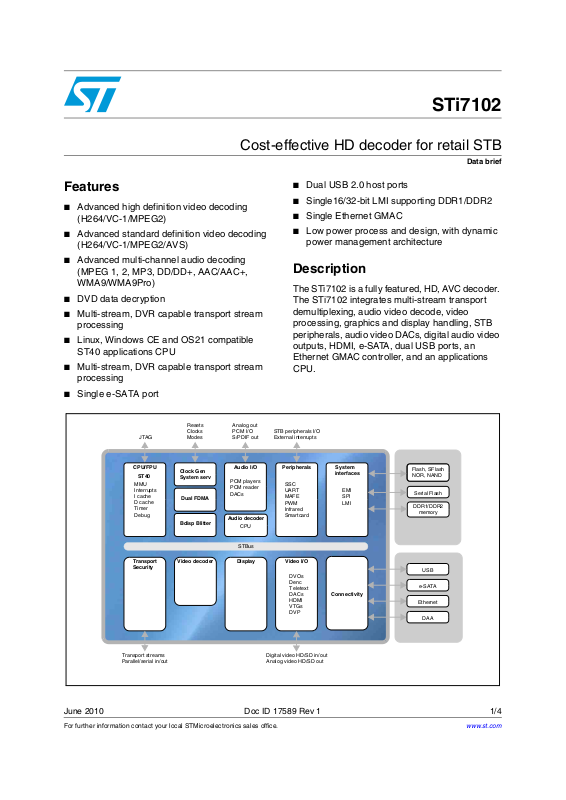

Page 1
STi7102
Cost-effective HD decoder for retail STB
Data brief
Features
■ Advanced high definition video decoding
(H264/VC-1/MPEG2)
■ Advanced standard definition video decoding
(H264/VC-1/MPEG2/AVS)
■ Advanced multi-channel audio decoding
(MPEG 1, 2, MP3, DD/DD+, AAC/AAC+,
WMA9/WMA9Pro)
■ DVD data decryption
■ Multi-stream, DVR capable transport stream
processing
■ Linux, Windows CE and OS21 compatible
ST40 applications CPU
■ Multi-stream, DVR capable transport stream
processing
■ Single e-SATA port
Resets Analog out
JTAG
Clocks
Modes
PCM I/O
S/PDIF out External interrupts
■ Dual USB 2.0 host ports
■ Single16/32-bit LMI supporting DDR1/DDR2
■ Single Ethernet GMAC
■ Low power process and design, with dynamic
power management architecture
Description
The STi7102 is a fully featured, HD, AVC decoder.
The STi7102 integrates multi-stream transport
demultiplexing, audio video decode, video
processing, graphics and display handling, STB
peripherals, audio video DACs, digital audio video
outputs, HDMI, e-SATA, dual USB ports, an
Ethernet GMAC controller, and an applications
CPU.
STB peripherals I/O
CPU/FPU
ST40
MMU
Interrupts
I cache
D cache
Timer
Debug
Transport
Security
Transport streams
Parallel/serial in/out
Clock Gen
System serv
Dual FDMA
Bdisp Blitter
Video decoder
Audio I/O
PCM players
PCM reader
DACs
Audio decoder
CPU
STBus
Display
Peripherals
SSC
UART
MAFE
PWM
Infrared
Smartcard
Video I/O
DVOs
Denc
Teletext
DACs
HDMI
VTGs
DVP
Digital video HD/SD in/out
Analog video HD/SD out
System
interfaces
EMI
SPI
LMI
Connectivity
Flash, SFlash
Flash, SFlash
NOR, NAND
NOR, NAND
Serial Flash
DDR1/DDR2
memory
USB
e-SATA
Ethernet
DAA
June 2010 Doc ID 17589 Rev 1 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
4
Page 2
Introduction STi7102
1 Introduction
The STi7102 is targeted at the latest Operator and CE manufacturer requirements for STBs
that use advanced HD decoding (H264/VC-1/MPEG2). The STi7102 conforms to DVB,
ISMA, ATIS-IIF, SCTE, ATSC, ARIB, CEA, ITU, OpenCable and MSTV specifications.
The STi7102 provides a solution for operators to specify a range of cost-effective, high
performance HD STBs including zappers, IP clients, interactive STBs, DVR standalone and
DVR server STBs. Content delivery is possible using broadcast or broadband networks, or
both (hybrid STBs).
The STi7102 offers current users of ST’s growing family of advanced decoding ICs
enhancements in performance and features, while reducing cost and time-to-market for the
next generation deployments.
Features Benefits
ST40 applications CPU
32K I cache, 32K D cache
STMicroelectronics' DELTA video decoding
system with ST231 processor
Dual USB 2.0 hosts, e-SATA,
Ethernet MAC with MII/RMII and TMII,
interfaces
Low power process, design and architecture Best in class, low power standby mode, to meet
Advanced 2D graphics and display subsystem
which also supports 3D user interface effects
and 1080p60 display output
Sufficient CPU performance to ensure the
implementation of high quality, HD, hybrid, DVR
set-top boxes with internet access.
Decoding of advanced high definition standards for
MPEG2, H264, VC-1 broadcast.
Extensive high speed connectivity for the widest
range of STB peripherals, such as Flash drives,
external HDDs.
emerging energy standards for STBs. Dynamic
configuration of power to individual sub-systems
enables power-efficient active standby modes.
Allows visually appealing user interfaces and video
rich navigation to be offered to consumers, while
high quality progressive output can be watched on
the latest high definition displays.
2/4 Doc ID 17589 Rev 1
Page 3
STi7102 Revision history
2 Revision history
Table 1. Document revision history
Date Revision Changes
04-Jun-2010 1 Initial release.
Doc ID 17589 Rev 1 3/4
