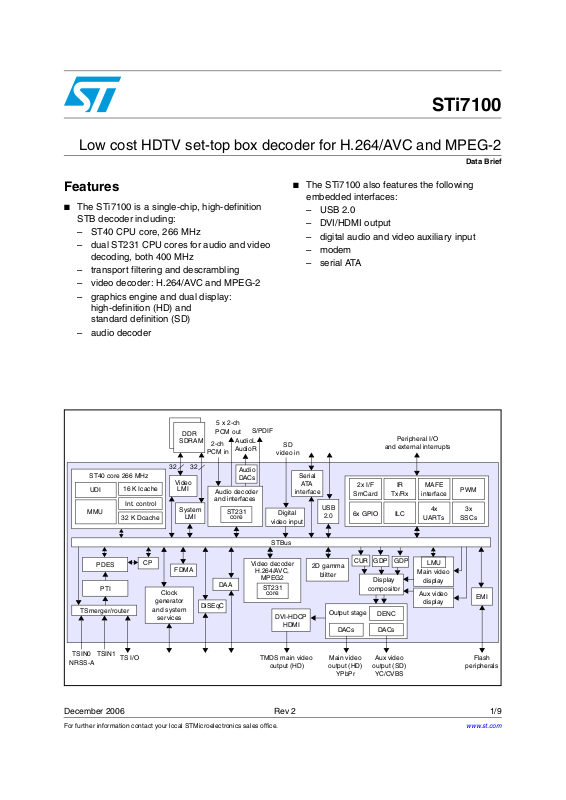

STi7100
Low cost HDTV set-top box decoder for H.264/AVC and MPEG-2
Data Brief
Features
■ The STi7100 is a single-chip, high-definition
STB decoder including:
– ST40 CPU core, 266 MHz
– dual ST231 CPU cores for audio and video
decoding, both 400 MHz
– transport filtering and descrambling
– video decoder: H.264/AVC and MPEG-2
– graphics engine and dual display:
high-definition (HD) and
standard definition (SD)
– audio decoder
ST40 core 266 MHz
UDI
MMU
16 K Icache
Int. control
32 K Dcache
32
Video
DDR
SDRAM
32
LMI
System
LMI
5 x 2-ch
PCM out
2-ch
PCM in
Audio decoder
and interfaces
AudioL
AudioR
Audio
DACs
ST231
core
S/PDIF
■ The STi7100 also features the following
embedded interfaces:
–USB 2.0
– DVI/HDMI output
– digital audio and video auxiliary input
– modem
– serial ATA
SD
video in
interface
Digital
video input
Serial
ATA
USB
2.0
2x I/F
SmCard
6x GPIO
Peripheral I/O
and external interrupts
IR
ILC
interface
UARTs
Tx/Rx
MAFE
4x
PWM
3x
SSCs
STBus
GDP
PDES
TSmerger/router
TSIN1
TSIN0
NRSS-A
PTI
TS I/O
CP
generator
and system
services
Clock
FDMA
DiSEqC
DAA
Video decoder
H.264/AVC,
MPEG2
ST231
core
DVI-HDCP
HDMI
TMDS main video
output (HD)
2D gamma
blitter
Output stage
Main video
output (HD)
YPbPr
CUR
DACs
Display
compositor
DENC
DACs
Aux video
output (SD)
YC/CVBS
GDP
LMU
Main video
display
Aux video
display
EMI
Flash
peripherals
December 2006 Rev 2 1/9
For further information contact your local STMicroelectronics sales office.
www.st.com
9
Page 2
Description STi7100
1 Description
The STi7100 is a new generation, high-definition set-top box decoder chip, and provides
very high performance for low-cost HD systems. With enhanced performances over the
STi7710, it includes an H.264/AVC decoder for new low-bitrate applications, as well as dualdecode MPEG-2 capability.
Based on the Omega2 (STBus) architecture, this system on chip is a full back-end
processing solution for digital terrestrial, satellite and cable high-definition set-top boxes
compliant with ATSC, DVB, DIRECTV, DCII, OpenCable and ARIB BS4 specifications.
The STi7100 demultiplexes, decrypts and decodes a single HD or SD video stream with
associated multichannel audio. Video is output to two independently formatted displays: a
full resolution display intended for a TV monitor, and a downsampled display intended for a
VCR, or alternatively a second SD TV. Connection to a TV or display panel can be via an
analog component interface or a copy protected DVI/HDMI interface. Composite outputs are
provided for connection to the VCR with Macrovision protection. Audio is output with
optional PCM mixing to an S/PDIF interface, PCM interface or via integrated stereo audio
DACs.
Digitized analog programs can also be input to the STi7100 for reformatting and display.
The STi7100 includes a graphics rendering and display capability with a 2D graphics
accelerator, two graphics planes and a cursor plane. A dual display compositor provides
mixing of graphics and video with independent composition for each of the TV and VCR
outputs.
The STi7100 includes a stream merger to allow five different transport streams from
different sources to be merged and processed concurrently. Applications include DVR time
shifted viewing of a terrestrial program while acquiring an EPG/data stream from a satellite
or cable front end.
The flexible descrambling engine is compatible with required standards including DVB, DES,
AES and Multi2.
The STi7100 embeds a 266 MHz ST40 CPU for applications and device control. A dual
DDR1 SDRAM memory interface is used for higher performance, to allow the video decoder
the required memory bandwidth for HD H.264 decoding and sufficient bandwidth for the
CPU and the rest of the system. A second memory bus is also provided for flash memory
storing resident software and for connection of peripherals.
A hard-disk drive (HDD) can be connected either to the serial ATA interface or as an
expansion drive via the USB 2.0 port. The USB port can also be used to connect to a
DOCSIS 2.0 CM gateway for interactive cable applications.
The STi7100 is supported by STMicroelectronics’ STAPI software, and is compatible with
several other related devices such as the STi7109.
2/9
Page 3
STi7100 Description

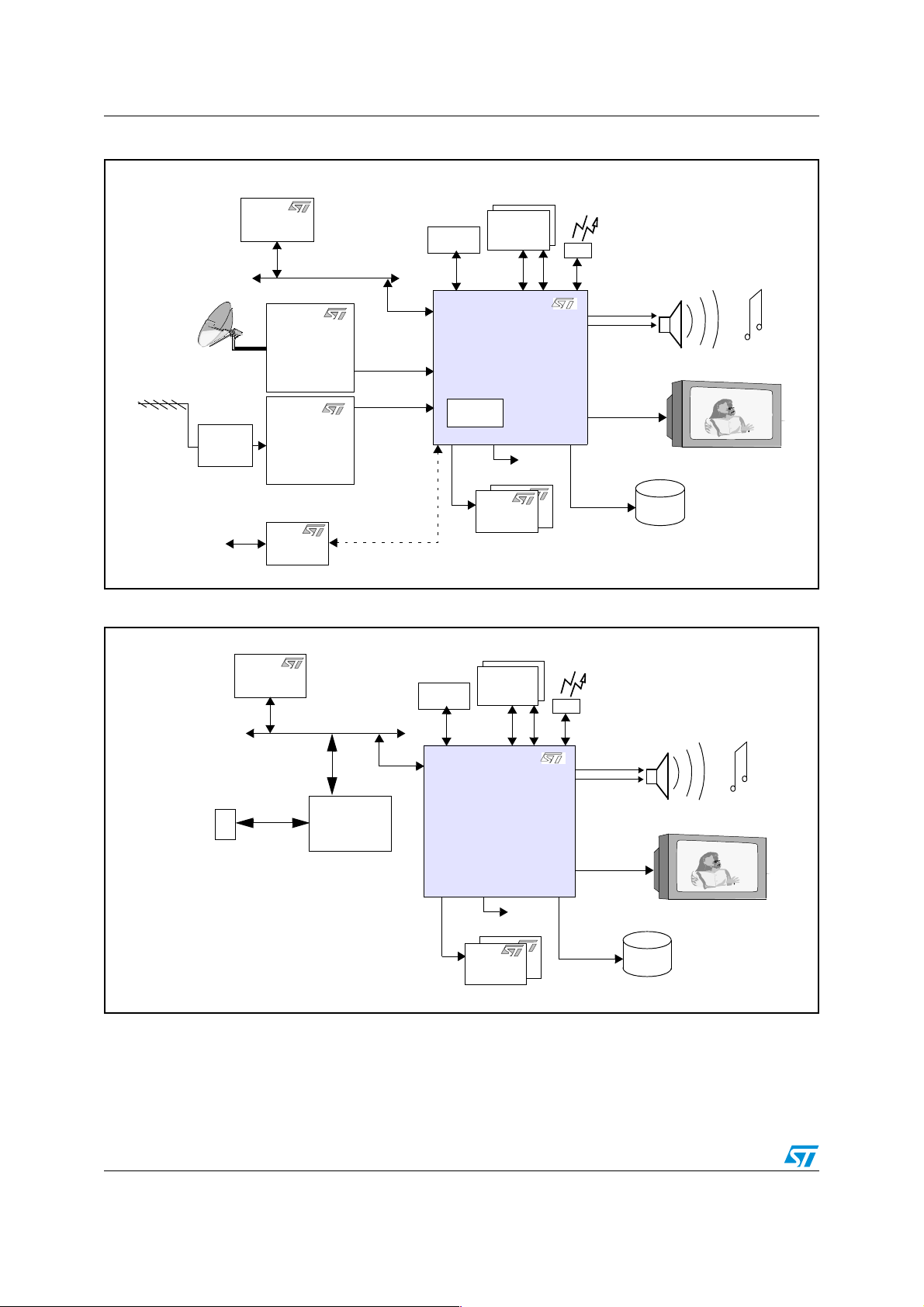

Figure 1. Low-cost satellite HD set-top box
IR Tx/Rx
STV0299
+STB6000
Transport
stream in
2 x 128 Mbit
DDR1
2 x 128 Mbit
DDR1
STi7100
QPSK Rx
PTSN
MAFE I/F
Smart
cards
Flash
Figure 2. Low-cost cable HD set-top box with return channel
CableCARD™
interface
Flash
2 x 128 Mbit
DDR1
RGB/YPbPr/
HDMI
CVBS/YC
VCR
2 x 128 Mbit
DDR1
Broadcast
IB data/
OOB
Tuner and
SAW filter
Tuner and
SAW filter
Diplex
filter
Upstream
PGA
STV0498
Cable
front end
QAM/QPSK
transceiver
IR
Tx/Rx
Smart
cards
EMI
STi7100
RS232
RGB/YPbPr/
HDMI
CVBS/YC
VCR
3/9
Page 4
Description STi7100
Figure 3. Low-cost dual satellite and terrestrial HD set-top box with HDD
IR
Flash
STV0299
+STB6000
QPSK Rx
EMI
HDD
2xDDR1
SATA
STi7100
Tx/Rx
DVB-CI
Tuner
STV0370
8VSB Rx
Smart
cards
PSTN
MAFE I/F
Figure 4. Low-cost HD IP-TV set-top box with HDD
Flash
HDD
Ethernet
RJ45
EMI
Ethernet
controller
SATA
STi7100
RGB/YPbPr/
HDMI
RS232
USB 2.0
HDD
(expansion)
IR
Tx/Rx
2xDDR1
4/9
Smart
cards
RGB/YPbPr/
HDMI
RS232
USB 2.0
HDD
(expansion)
Page 5
STi7100 Description
1.1 Detailed features list
1.1.1 Processor subsystem
● ST40 32-bit superscalar RISC CPU
– 266 MHz, 2-way set associative 16-Kbyte ICache, 32-Kbyte DCache, MMU
– 5-stage pipeline, delayed branch support
– floating point unit, matrix operation support
– debug port, interrupt controller
1.1.2 Transport subsystem
● TS merger/router
– 2 serial/parallel inputs
– 1 bidirectional interface
– merging of 3 transport streams
– transport stream from memory support
– NRSS-A module interface
– TS routing for DVB-CI and CableCARD™ modules
● Programmable transport interface (PTI)
– transport stream demux: DVB, DIRECTV®, ATSC, ARIB, OpenCable, DCII
– integrated DES, AES, DVB, ICAM and Multi2 descramblers
– NDS random access scrambled stream protocol (RASP) compliant
– NDS ICAM CA
– support for VGS, Passage and DVS042 residue handling
1.1.3 Video/graphics subsystem
● MPEG-4 AVC high profile level 4.1/ MPEG-2 MP@HL video decoder
– hardware/firmware mixed architecture
– advanced error concealment and trick mode support
– dual MPEG-2 MP@HL decode
● SD (ITU-R BT 601/656) D1 digital video input
● Displays
– HD display, multiformat capable
(1080I, 720P, 480P/576P, 480I/576I)
- Analog HD output RGB or YPbPr
- HDMI encoded output
– SD display
- Analog SD output: YPbPr or YC and CVBS
5/9
Page 6
Description STi7100
● Gamma 2D/3D graphics processor
– dual source blitter engine
– alpha blending and logical operations
– color space and format conversion
– fast color fill
– arbitrary resizing with high quality filters
– acceleration of direct drawing by CPU
– Gamma compositor and video processor
– 5 channels mixer for HD output
– independent 2-channel mixer for SD output
– 2 graphic display planes
– high-quality video scaler
– picture up-conversion hardware
– linear resizing and format conversions
– horizontal and vertical filtering
● Copy protection
– HDMI 1.0/HDCP 1.1 copy protection hardware
– Macrovision™ copy protection for 480I, 480P, 576I, 576P outputs
1.1.4 Audio subsystem
● Digital audio decoder
– compatible with all popular audio standards
– PCM mixing with internal or external source and sample rate conversion
– independent multichannel PCM output, S/PDIF output and analog output
– 6 to 2 channel downmixing
– PCM audio input
● Stereo 24-bit audio DAC for analog output
● IEC958/IEC1937 digital audio output interface (S/PDIF)
1.1.5 Interfaces
● External memory interface (EMI)
– 16-bit interface supporting ROM, Flash, SFlash, SRAM, peripherals
– access in 5 banks
– master/slave support for interconnecting two STi7100 devices
● Dual local memory interface (LMI)
– dual interface for 32-bit DDR1 200-MHz (DDR400) memories, supports 64, 128,
256 and 512 Mbit devices
● USB 2.0 host interface
● Serial ATA hard-disk drive support
– record and playback with trick modes
– pause and time shifting
– watch and record
6/9
Page 7
STi7100 Description
● On-chip peripherals
– 4 ASCs (UARTs) with Tx and Rx FIFOS, two of which can be used in smartcard
interfaces
– 2 smartcard interfaces and clock generators (improved to reduce external
circuitry)
– 3 SSCs for I²C/SPI master slaves interfaces
– serial communications interface (SCIF)
– 2 PWM outputs
– PWM capture/compare functions
– teletext serializer and DMA module
– 6 banks of general purpose I/O, 3.3 V tolerant
– SiLabs line-side (DAA) interface
– Modem analog front end (MAFE/DAA) interface
– infrared transmitter/receiver supporting RC5, RC6 and RECS80 codes
– UHF remote receiver input interface
– interrupt level controller and external interrupts,
3.3 V tolerant
– low power/RTC/watchdog controller
– integrated VCXO
– DiSEqC
● Flexible multichannel DMA
TM
2.0 interface
1.1.6 Services and package
● JTAG/TAP interface
● ST40 and ST231 toolset support
● 35 x 35 PGBA package, 580+100 balls
7/9
Page 8
Revision history STi7100
2 Revision history
Table 1. Document revision history
Date Revision Changes
19-Dec-2006 2 Rewritten to include latest information and corrected product code.
10-Dec-2004 1 Initial release.
8/9
Page 9
STi7100
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2006 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
9/9
Loading...
